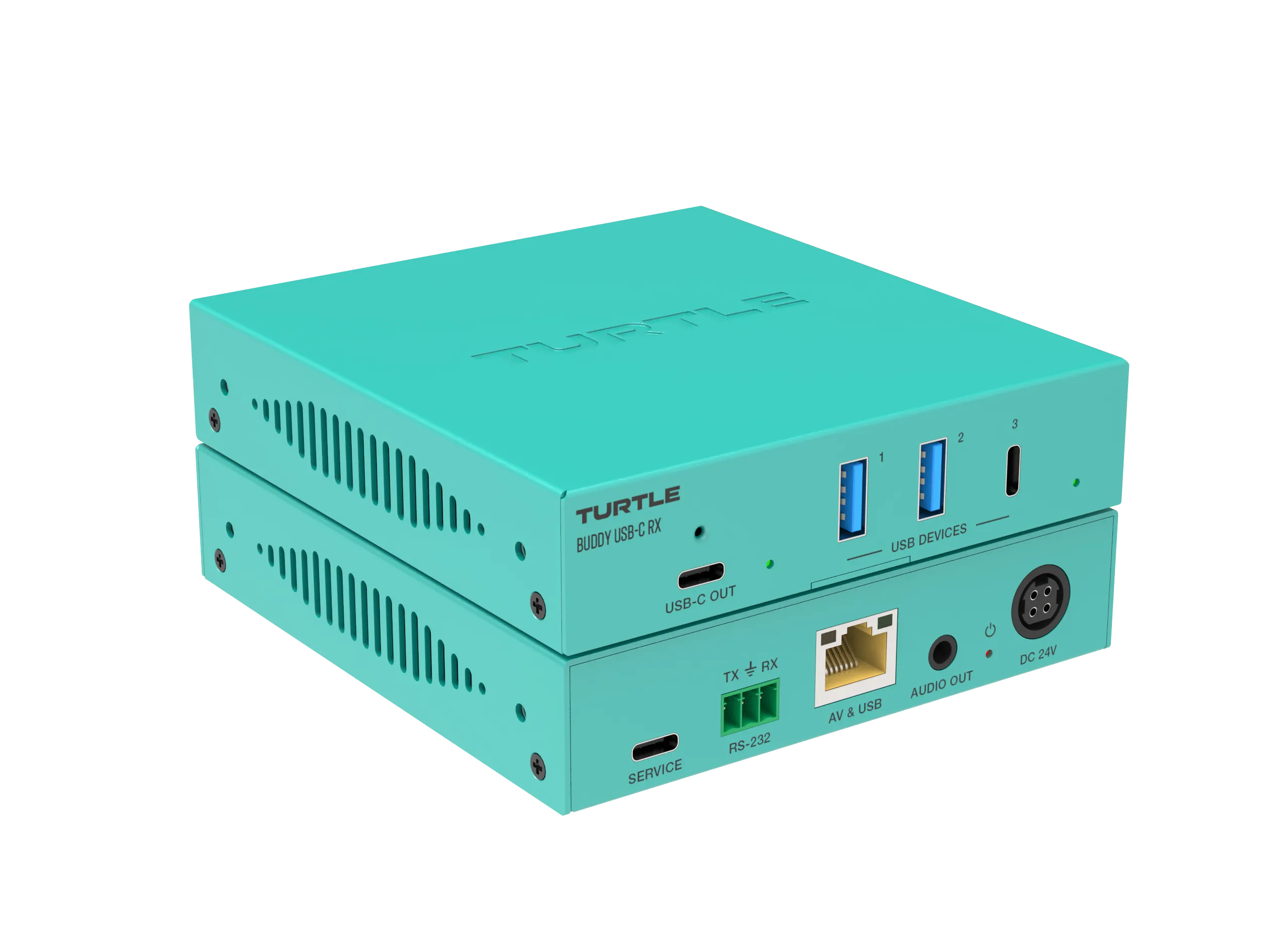

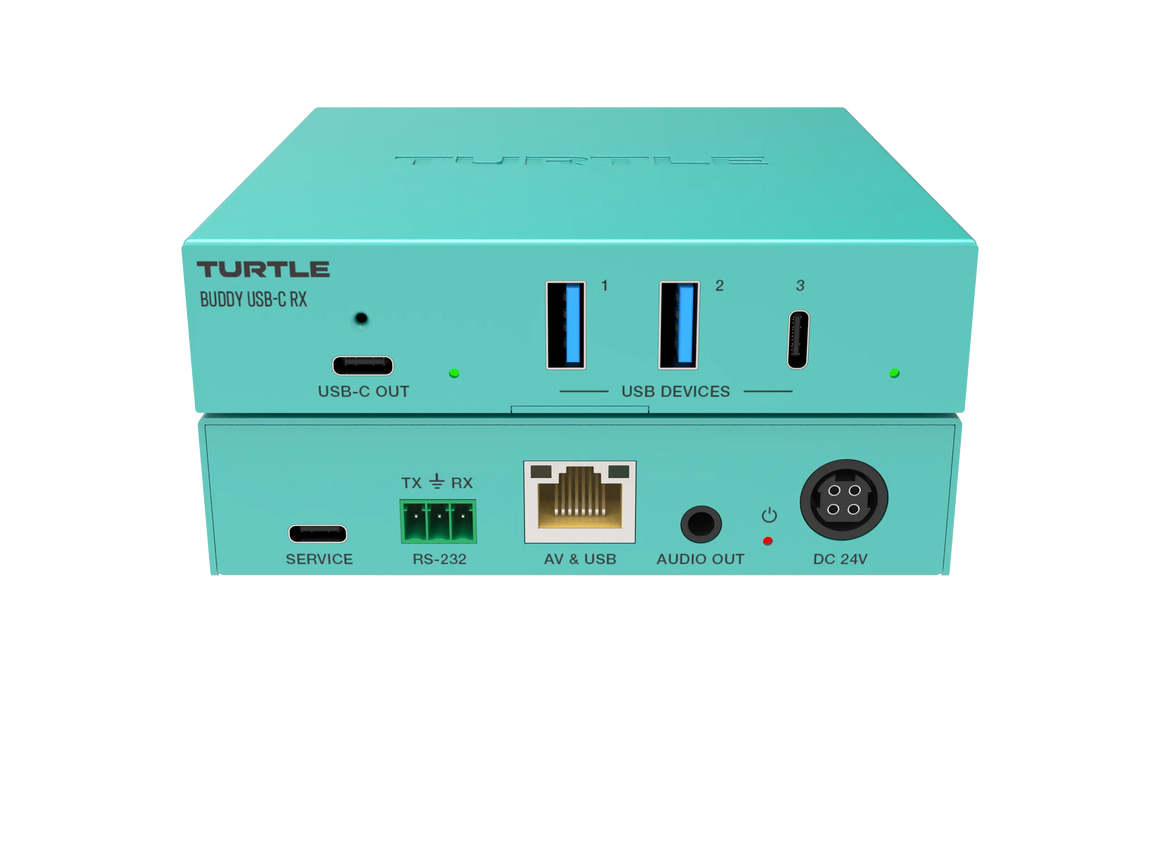

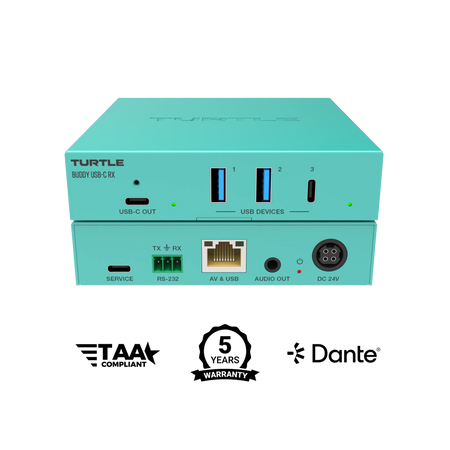

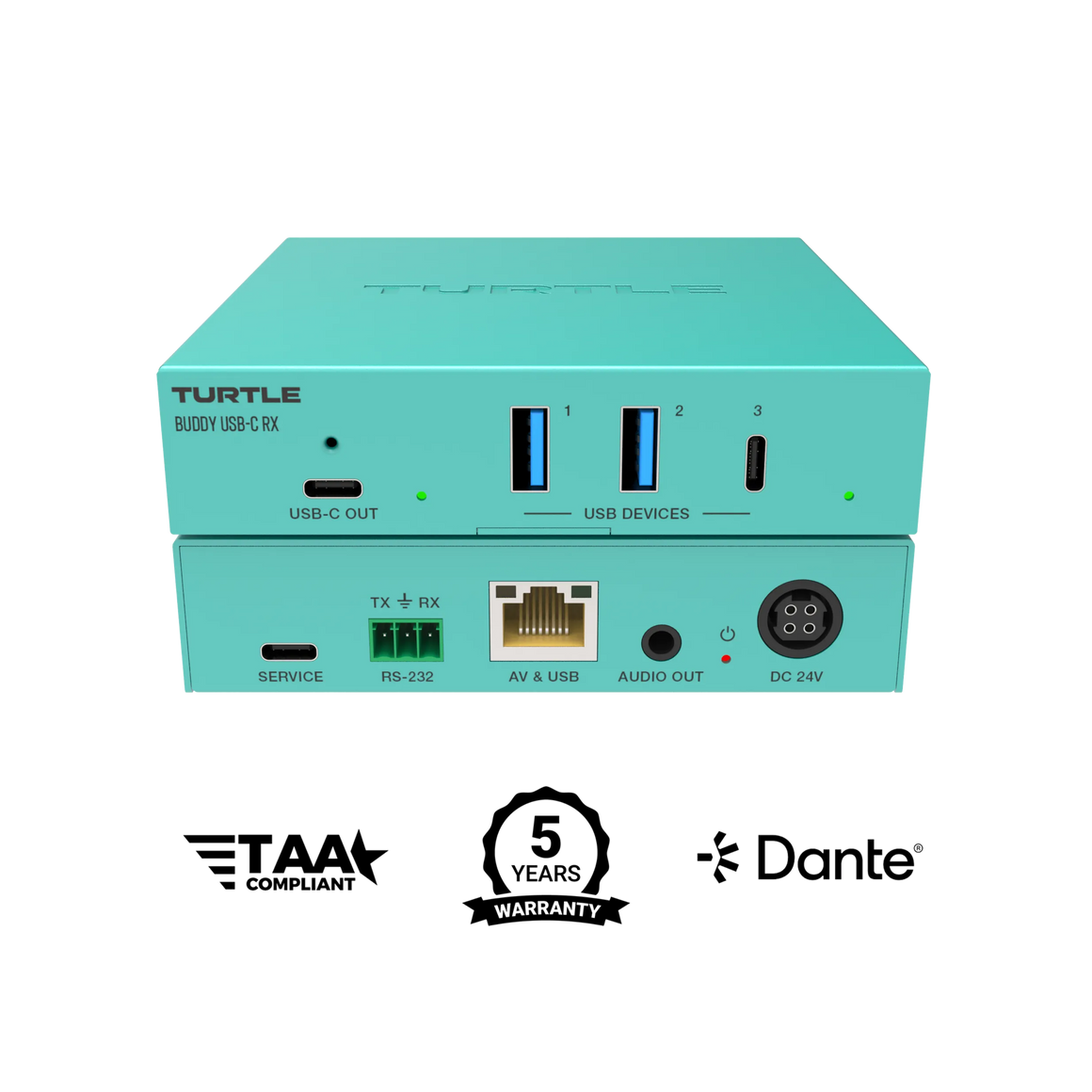

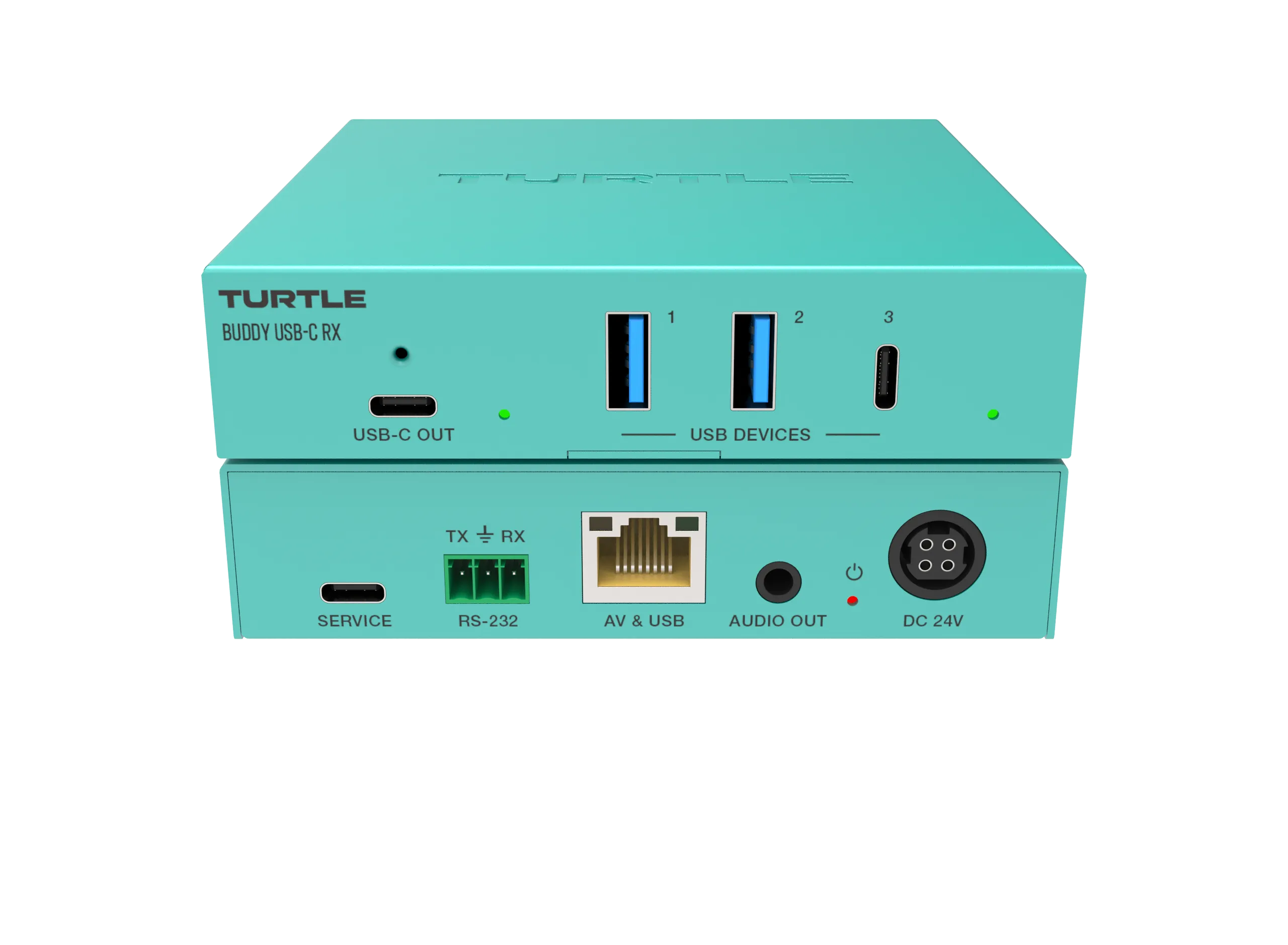

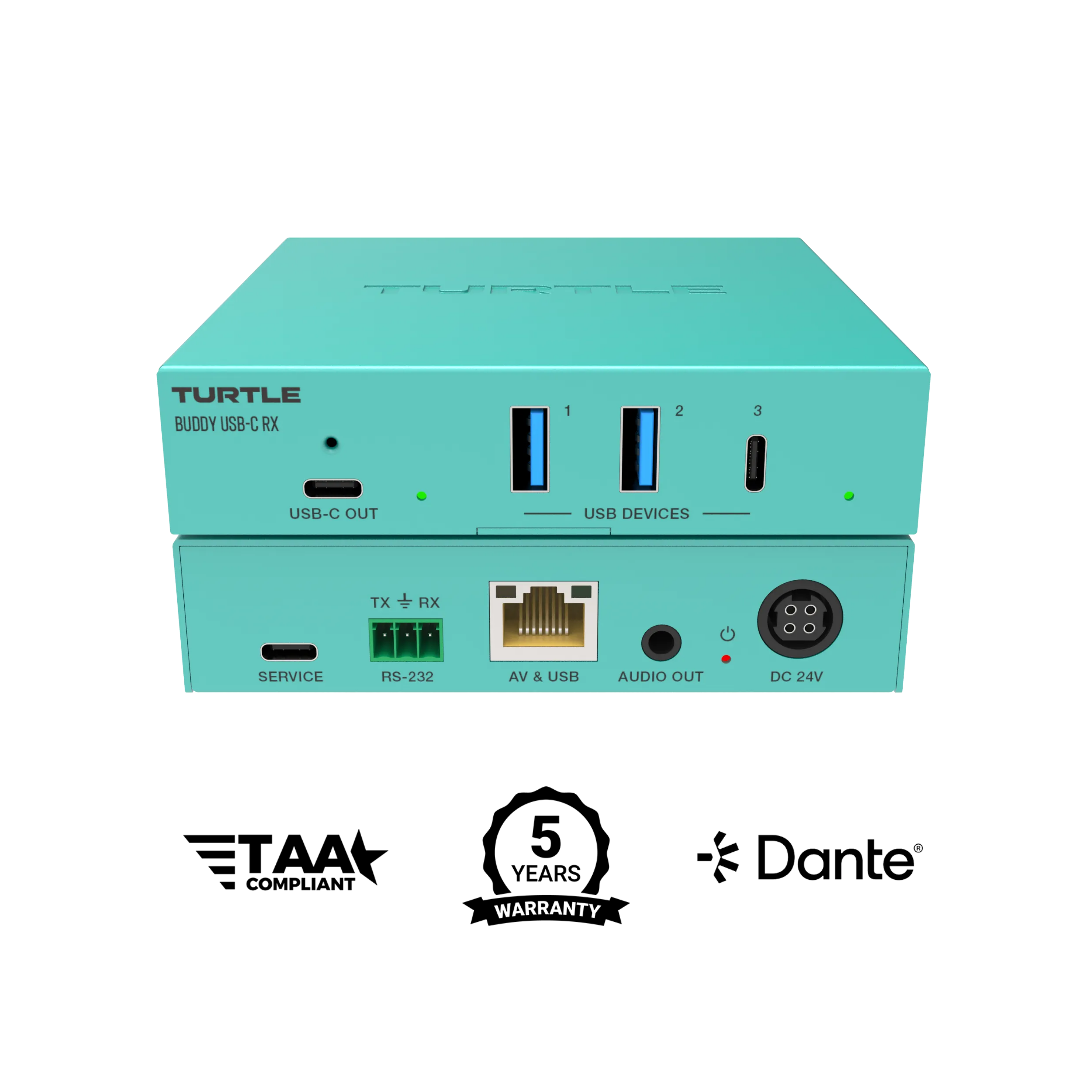

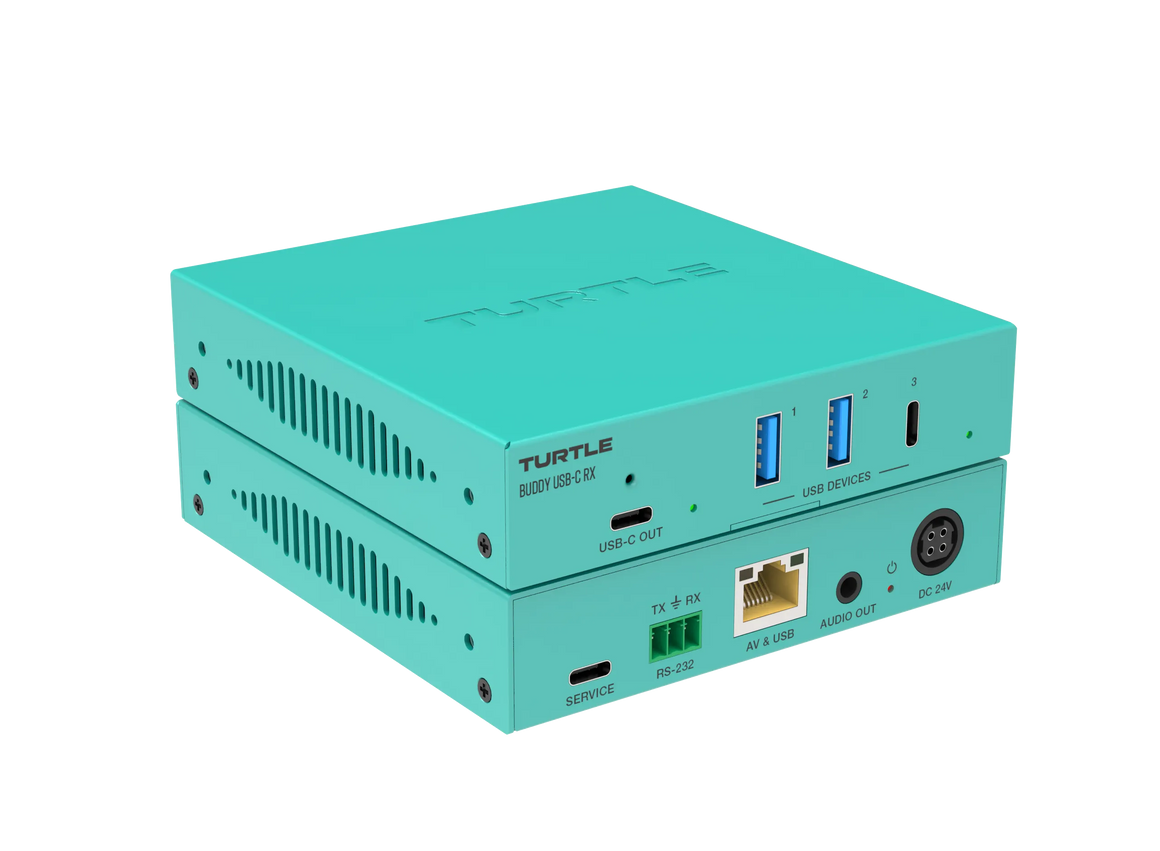

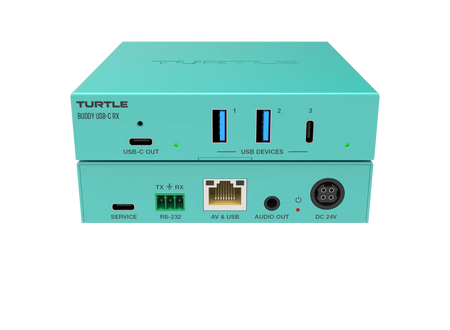

Turtle AV Boardroom Buddy USB-C RX — 4K60 HDBaseT Receiver for USB-C Displays
4K60 USB-C RX over single CAT, DisplayPort output
Secure Checkout
Warranty Protection
14 - Day Returns
The Turtle AV Boardroom Buddy USB-C RX — 4K60 HDBaseT Receiver for USB-C Displays is the display-end receiver for Boardroom Buddy USB-C installations, delivering 4K60 4:4:4 video via a USB-C DisplayPort 1.4a output for environments where the display, interactive panel, or room AV system uses USB-C connectivity. USB data from the room's peripherals returns over the CAT cable to the presenter's USB-C device at the TX end. Three USB downstream ports, 3.5mm audio, RS-232 control, and 24V PoC power from the TX complete the unit.
Key Features
- USB-C DisplayPort 1.4a Output: USB-C output for USB-C monitors, interactive displays, and UC units — eliminates HDMI-to-USB-C adapters at the display
- 2× USB-A + 1× USB-C Downstream: Three USB downstream ports for room peripherals
- USB-C Data Return: USB data returns over the CAT cable to the presenter's USB-C device at the TX end
- 24V PoC — Powered from TX: Powered over the CAT cable from the TX — no local PSU at the display
- 4K60 4:4:4 Reception: Full uncompressed 4K60 4:4:4 reception from the USB-C TX over CAT6a
- Full HDR Support: HDR10+, Dolby Vision, HLG passed transparently
- 8/10/12-Bit Colour: Full colour depth for premium displays
- 3.5mm Audio Output: LPCM 2CH de-embedded to analogue 3.5mm
- RS-232 AV Control: Serial control for AV system integration at the display end
- Dimensions: 118 × 111 × 25.5mm, 365g: Identical form to other Boardroom Buddy units
Specifications
| USB Protocol | USB 3.2 Gen 1 — up to 2.5Gbps |
| HDCP | HDCP 2.3 and HDCP 1.x |
| Video Bandwidth | 18Gbps |
| Maximum Resolution | Up to 5120×2160@60Hz |
| 4K | 3840×2160 and 4096×2160 up to 60Hz |
| HDR | HDR, HDR10, HDR10+, Dolby Vision, HLG |
| Colour Depth | 8/10/12-bit |
| Colour Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Transmission Distance | Up to 40m / 130ft for 5K@30Hz; 35m / 115ft for 5K@60Hz via CAT6a |
| Audio | LPCM, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio — de-embedded to 3.5mm |
| Audio Output Level | Max 2.2dBu (1Vrms) |
| Audio Dynamic Range | >90dB @ 0dBu, 1kHz A-weighted |
| Audio THD+N | <0.007% @ 2.2dBu, 1kHz |
| ESD Protection | IEC 61000-4-2: ±8kV air-gap, ±4kV contact discharge |
| Housing | Metal enclosure, Turtle Aqua |
| Dimensions | 118 × 111 × 25.5mm |
| Operating Temperature | 0°C to 40°C |
| Operating Humidity | 20% to 80% RH, non-condensing |
| DP Standard | DisplayPort 1.4a (via USB-C output) |

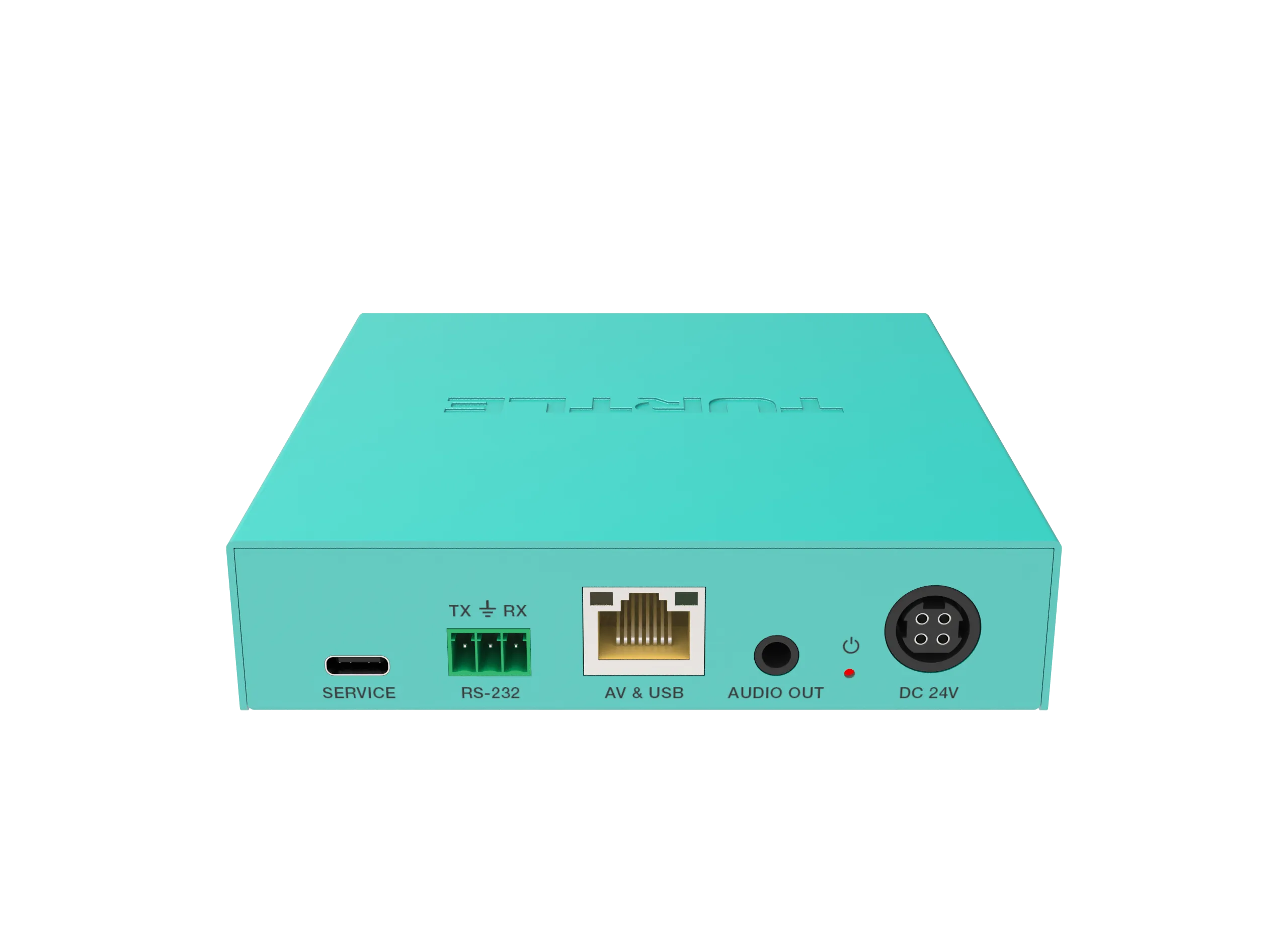

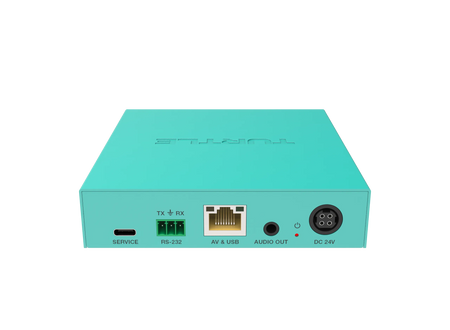

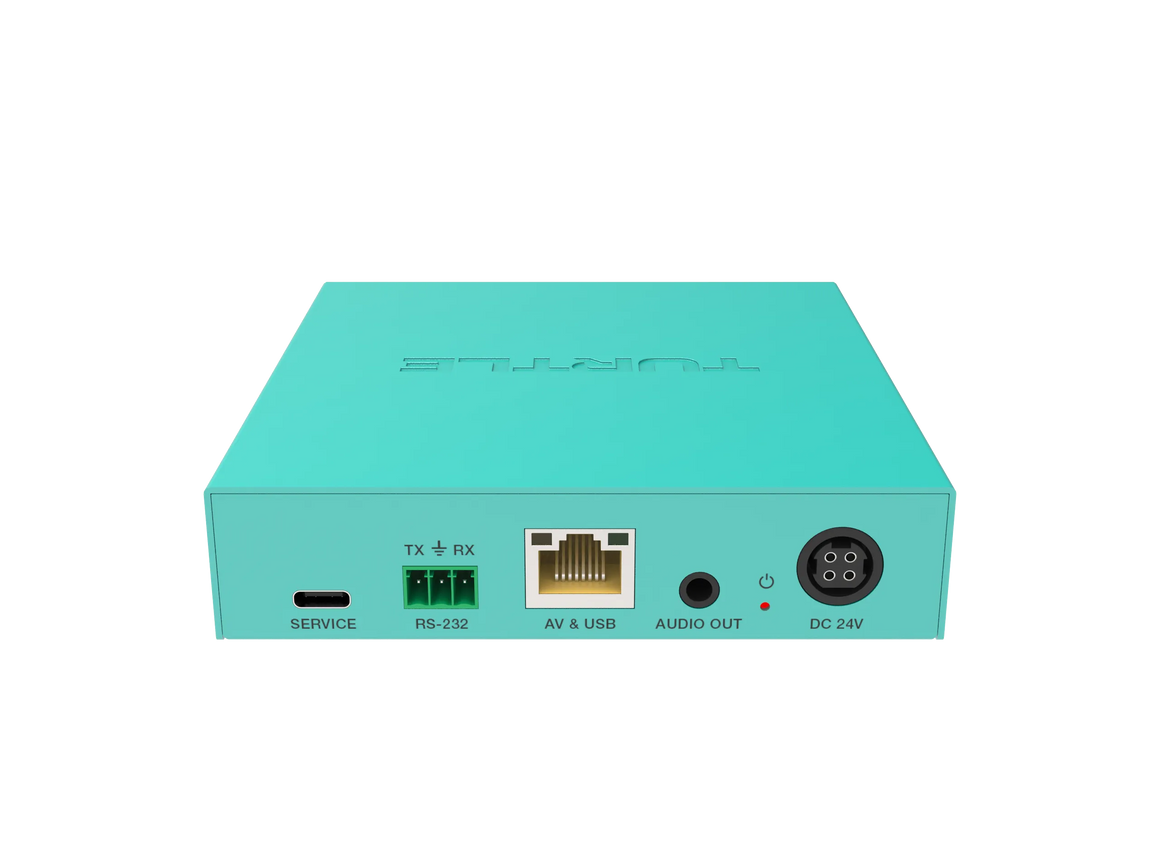

| Input | 1× AV-USB3 IN RJ45 (24V PoC) |
| Output | 2× USB-A downstream 9-pin; 1× USB-C downstream 24-pin; 1× USB-C OUT 24-pin; 1× Audio Out 3.5mm |
| Control | RS-232 3-pin 3.5mm phoenix; USB-C service port |
| Weight | 365g |
| Power Supply | AC 100–240V; DC 24V/7.5A (CE/FCC/UL certified) — or powered via 24V PoC from TX |
| Power Consumption | 33W max |
Warranty
The Turtle AV Boardroom Buddy USB-C RX is backed by the 5-year manufacturer warranty, providing peace of mind for professional installations.
Application Examples
| USB-C Monitor Environments | Pairs with the USB-C TX to connect a USB-C laptop to a USB-C monitor over CAT with simultaneous USB hub and 100W charging |
| Interactive Panel Installations | Receiver for USB-C interactive flat panels in boardrooms and education spaces — one CAT cable from the table TX to the panel |
| Zoom Rooms and UC Systems | Deploy at the display end of a Zoom Rooms or Teams Rooms UC system with a USB-C display connection |
| USB-C Display Hot-Desks | Permanent CAT infrastructure between table and display in hot-desk spaces with USB-C displays — presenter connects one USB-C cable at the table |
