SKU: TAV-CHAZY4K-MV

Turtle AV Chazy 4K Multiview — World's First Dante AV-A 4K Multiviewer

Turtle AV

Dante AV-A 4K60 4-input multiviewer with HDMI output

The Turtle AV Chazy 4K Multiview — World's First Dante AV-A 4K Multiviewer (TAV-CHAZY4K-MV) is the world's first Dante AV-A multiviewer, combining four 4K60 Dante AV-A/JPEG 2000 video streams into a fully customisable 4K multiview layout with simultaneous local HDMI 2.0b output and network distribution as a Dante AV-A stream. Four decoder inputs receive 4K60 Dante AV-A streams from encoders anywhere on the 1G managed network, and one encoder output distributes the composed multiview as a new Dante AV-A stream for downstream decoders, recorders, or other multiviewers. Multiple layout options including user-defined configurations and a background image mode for digital signage applications give operators full control of the combined output. A Dante AV-A licence is included, the front panel hosts an active LCD preview display and control buttons, and KVM mouse roaming allows pointer control across all four input sources. HDMI 2.0b, HDCP 2.2, 18Gbps video bandwidth, visually lossless JPEG 2000 compression at 1 to 2 frame latency, and Euroblock audio break-out complete the specification. Designed for broadcast control rooms, command and control centres, broadcast monitoring, and large-scale distributed AV installations.

Highlighted Features

  • World's First Dante AV-A 4K Multiviewer: Combines four 4K60 Dante AV-A/JPEG 2000 streams into a fully customisable 4K multiview — simultaneously outputting locally over HDMI and distributing as a new Dante AV-A network stream
  • Dante AV-A Licence Included: Full Dante AV-A licence ships in the box — no separate licence purchase required for network video streaming and reception
  • Customisable Layouts + Digital Signage Mode: Multiple multiview layout options including user-defined configurations and a background image mode for digital signage overlay applications

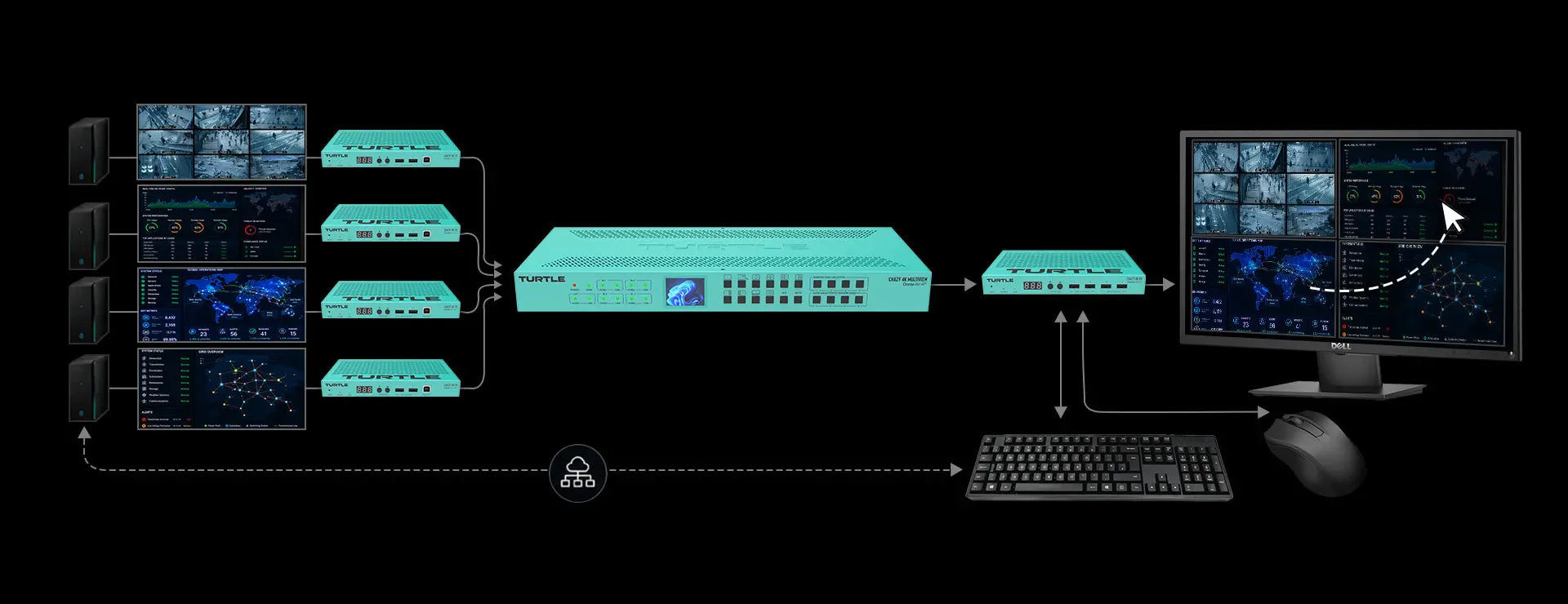

  • KVM Mouse Roaming: Mouse pointer roams across all four source inputs for cross-source KVM control — ideal for command and control environments requiring keyboard and mouse across multiple systems
  • 1 to 2 Frame Latency, Visually Lossless: JPEG 2000 visually lossless compression at 1 to 2 frame latency ensures near-real-time monitoring with no perceptible quality loss across the four-way composite

The Turtle AV Chazy 4K Multiview is the ideal solution for broadcast control rooms, command and control environments, and large-scale distributed AV installations requiring 4K60 Dante AV-A multiview display — the first device in the world to combine four Dante AV-A streams into a live 4K multiview with simultaneous network re-encoding.

In stock
£8,850.00

Secure Checkout

Warranty Protection

14 - Day Returns

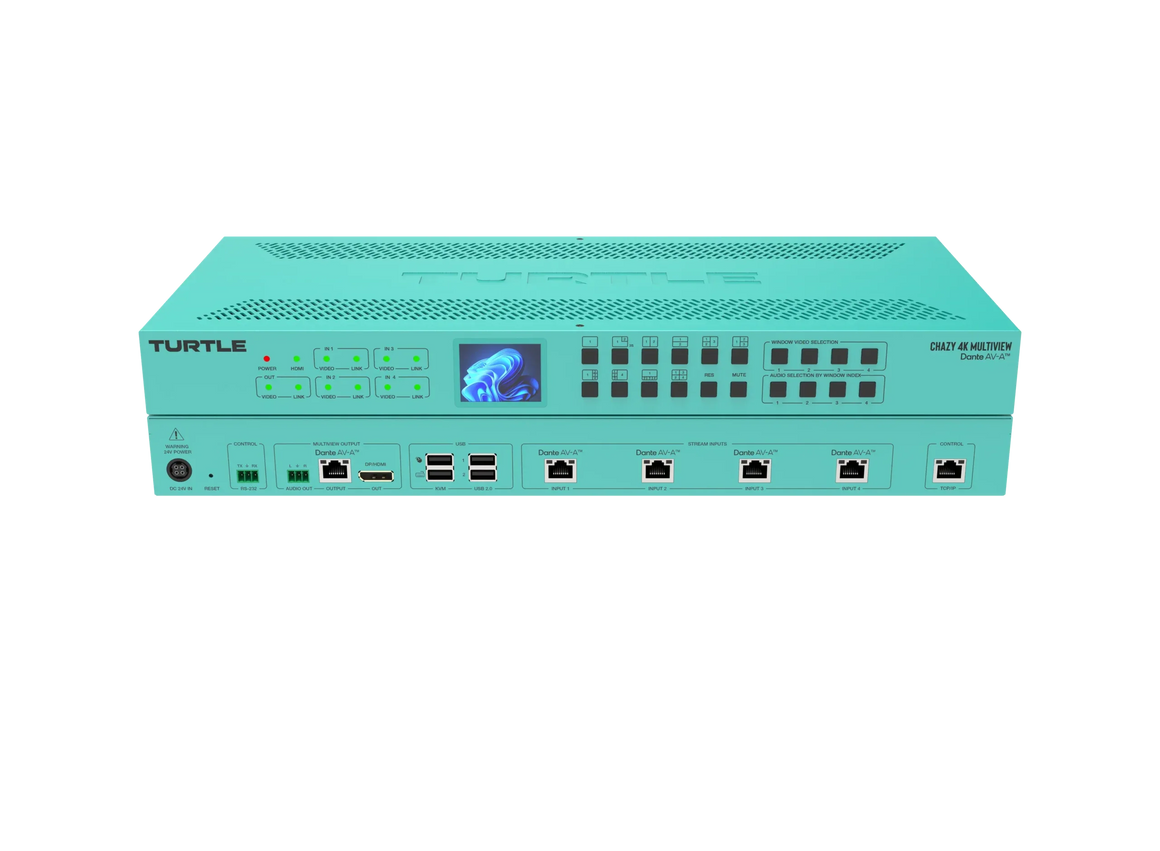

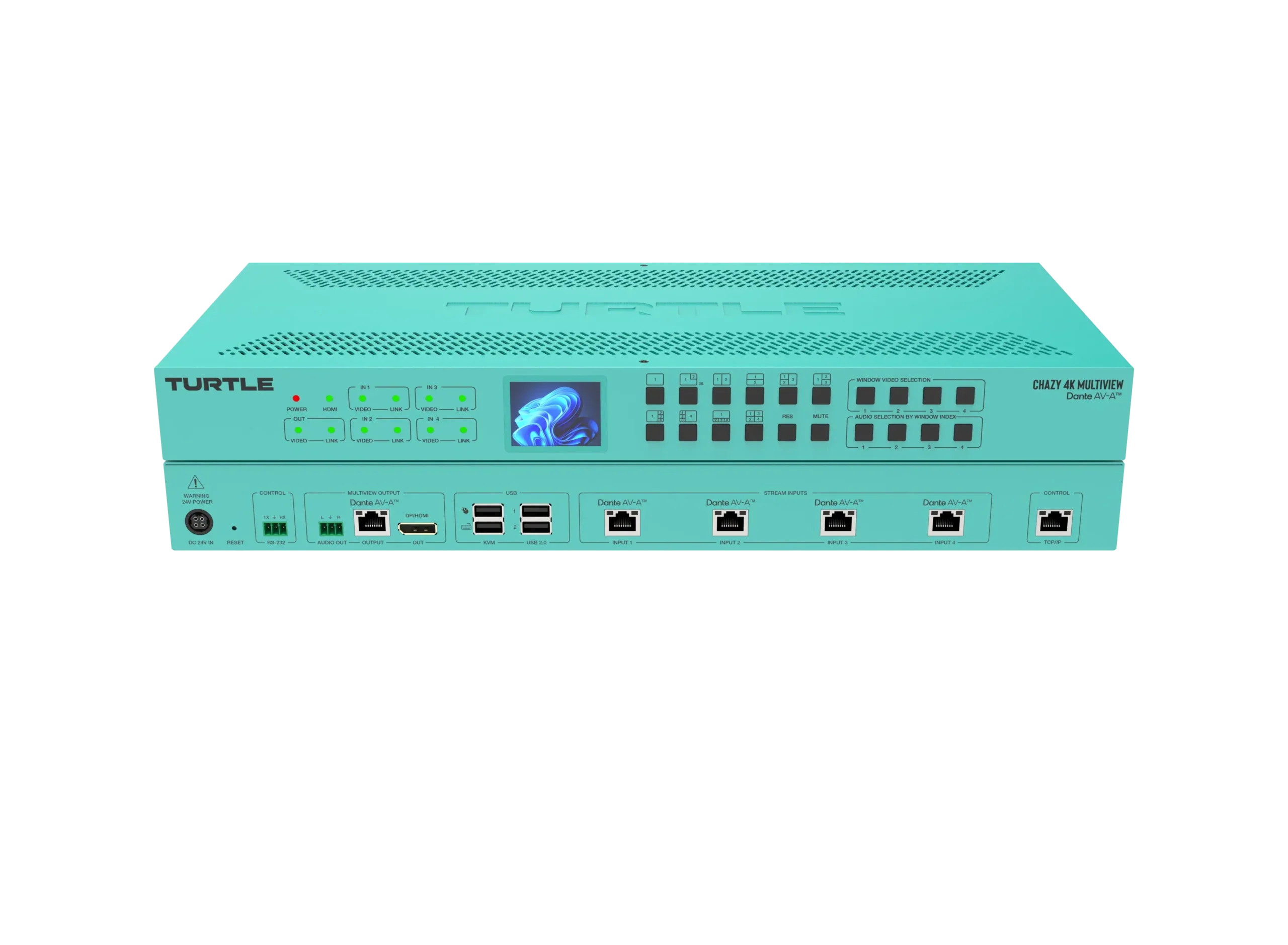

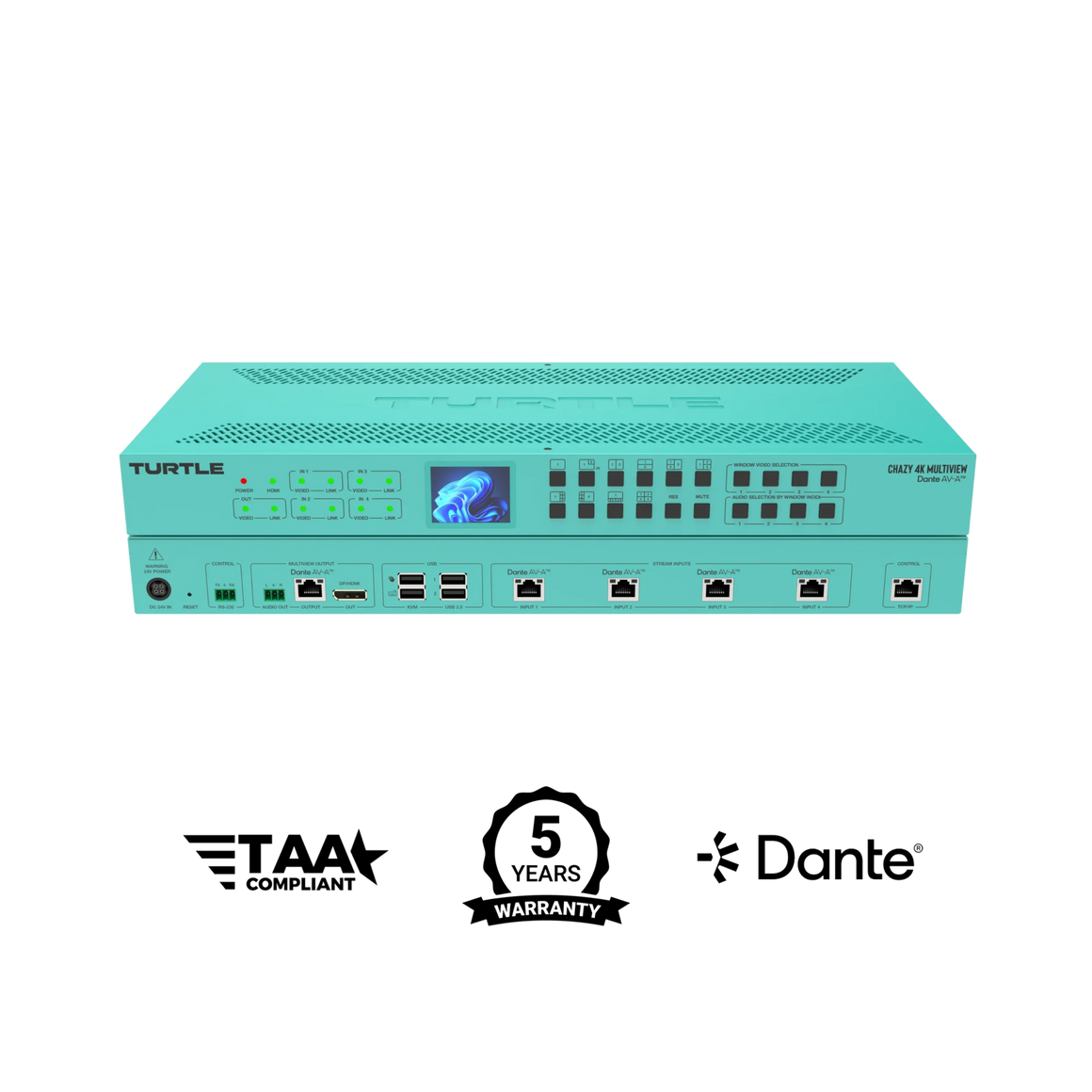

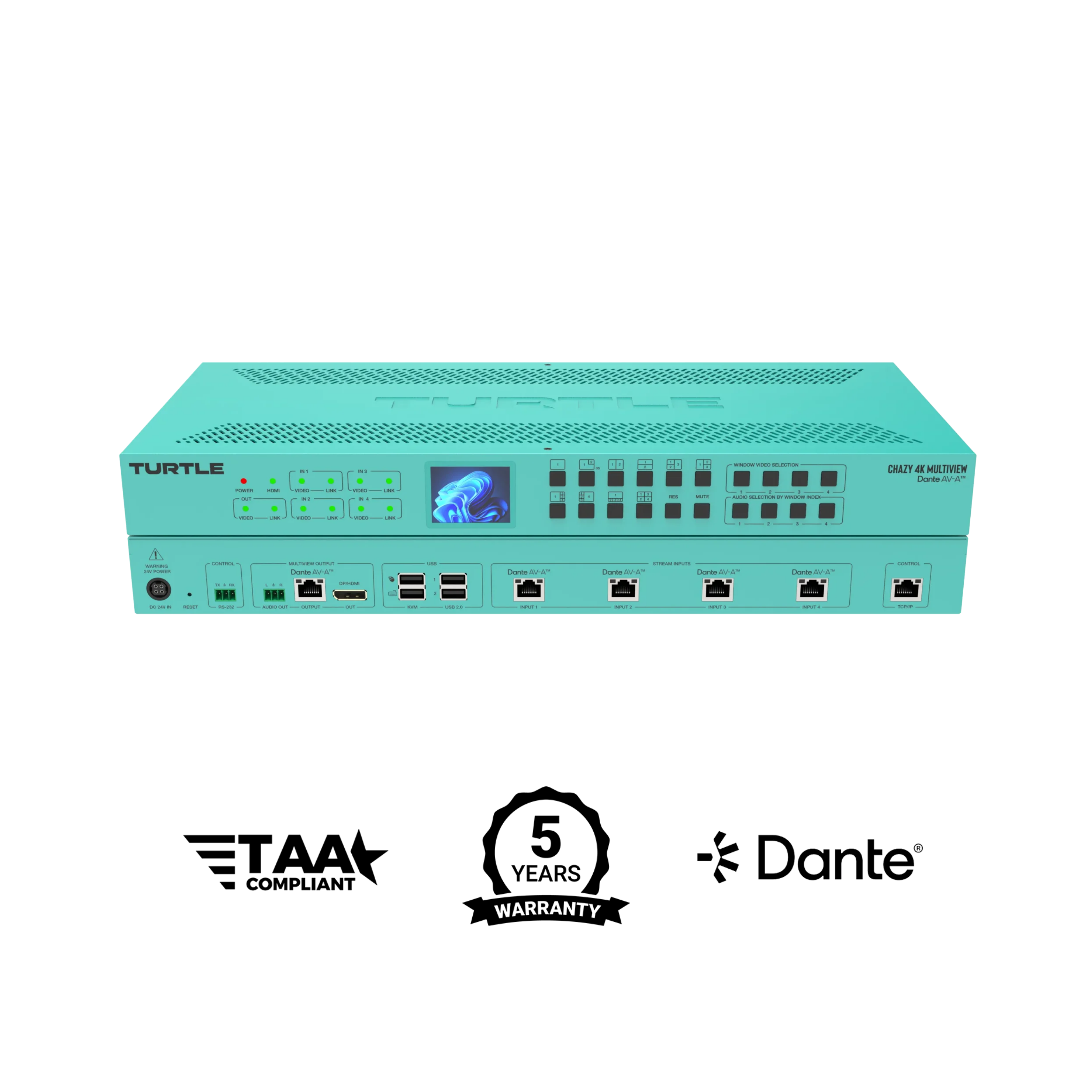

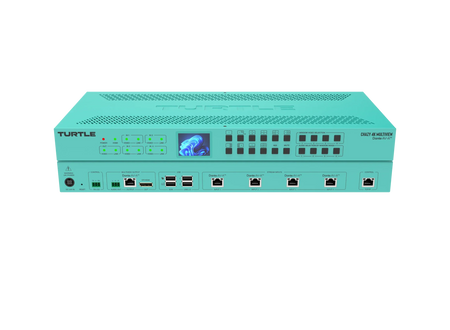

The Turtle AV Chazy 4K Multiview is the world's first Dante AV-A 4K multiviewer, receiving four 4K60 Dante AV-A network streams and compositing them into a single, fully customisable 4K multiview layout delivered simultaneously over HDMI 2.0b and as a new Dante AV-A network stream for downstream devices. The front panel LCD display provides an active preview of all four inputs, front panel buttons control layout switching, and KVM mouse roaming provides pointer control across all four source systems. Dante AV-A uses JPEG 2000 visually lossless compression at 1 to 2 frame latency, and a Euroblock audio break-out carries audio from the composite output. The device integrates with the Dante Controller ecosystem and is controlled via front panel, local TCP/IP web UI, and Chazy Control or Chazy Control Pro software.

Key Features

  • 4× Dante AV-A Decoder Inputs: Receives four simultaneous 4K60 Dante AV-A/JPEG 2000 network video streams from encoders anywhere on the 1G managed network
  • 1× Dante AV-A Encoder Output: Distributes the composed multiview as a new Dante AV-A network stream for downstream decoders, recorders, or additional multiviewers
  • Local HDMI 2.0b Output: Simultaneous local HDMI 2.0b output at 4K60 for direct connection to a monitor or display in the control room
  • HDCP 2.2 Compliance: HDCP 2.2 content protection compliance across all four inputs and both output paths
  • Dante AV-A Licence Included: Full Dante AV-A licence included — connects to any Dante AV-A encoder or decoder without additional licence cost
  • User-Defined Multiview Layouts: Multiple preset and user-configurable multiview layouts — customise source positions, sizes, and labels for each application
  • Background Image Mode: Background image mode enables digital signage overlay — ideal for broadcast, monitoring, and information display environments
  • KVM Mouse Roaming: Mouse pointer roaming across all four sources for cross-system KVM control in command and control environments
  • 1–2 Frame Latency, JPEG 2000: Visually lossless JPEG 2000 at 1 to 2 frame latency — near-real-time monitoring with no perceived quality loss
  • Euroblock Audio Break-Out: Analogue audio break-out via Euroblock connector for connection to room audio systems

Specifications

Product 4K60 Dante AV-A 4-input 2-output Multiviewer with KVM mouse roaming
Video Format 4K60 4:4:4 Dante AV-A/JPEG 2000
HDMI Standard HDMI 2.0b
HDCP HDCP 2.2
Video Bandwidth 18Gbps
Maximum Resolution Up to 4K×2K@60Hz
Compression Dante AV-A/JPEG 2000 — visually lossless
Latency 1 to 2 frames
Dante AV-A Licence Included
Audio Formats LPCM 2.0/5.1/7.1, Dolby Digital/+, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS-HD, DTS:X
Audio Interface Euroblock audio break-out
Decoder Inputs 4× IP streams over 1G managed network
Encoder Output 1× IP stream + local HDMI output
Network 1G managed network
Control Front panel buttons; TCP/IP web UI; Chazy Control / Chazy Control Pro
Multiview Layouts Multiple presets and user-defined layouts; background image / digital signage mode
KVM Mouse roaming across all four inputs
Signal Pass-Through RS-232 and USB 2.0

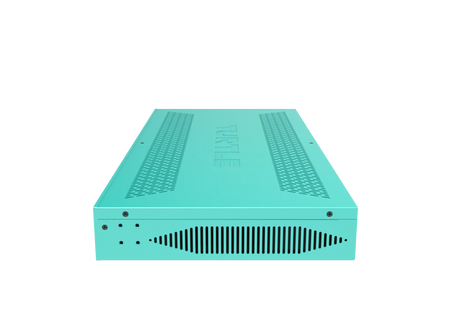

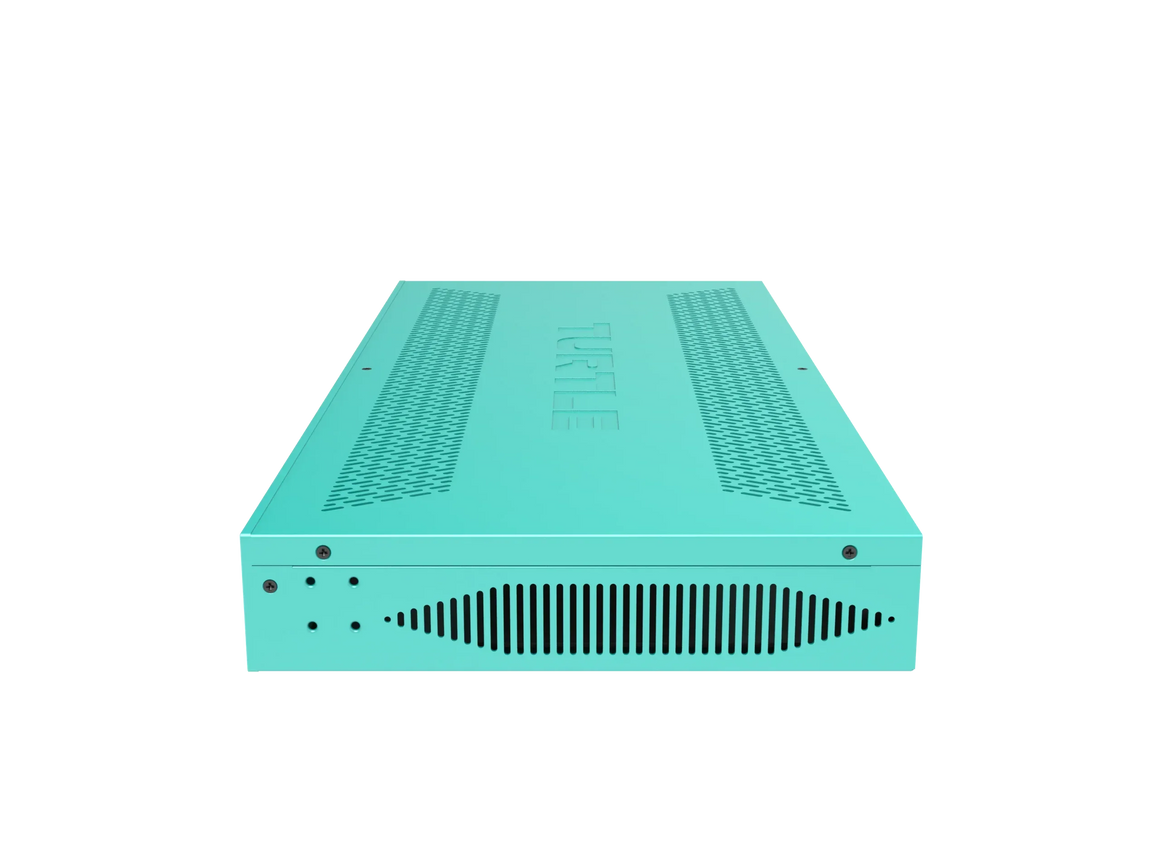

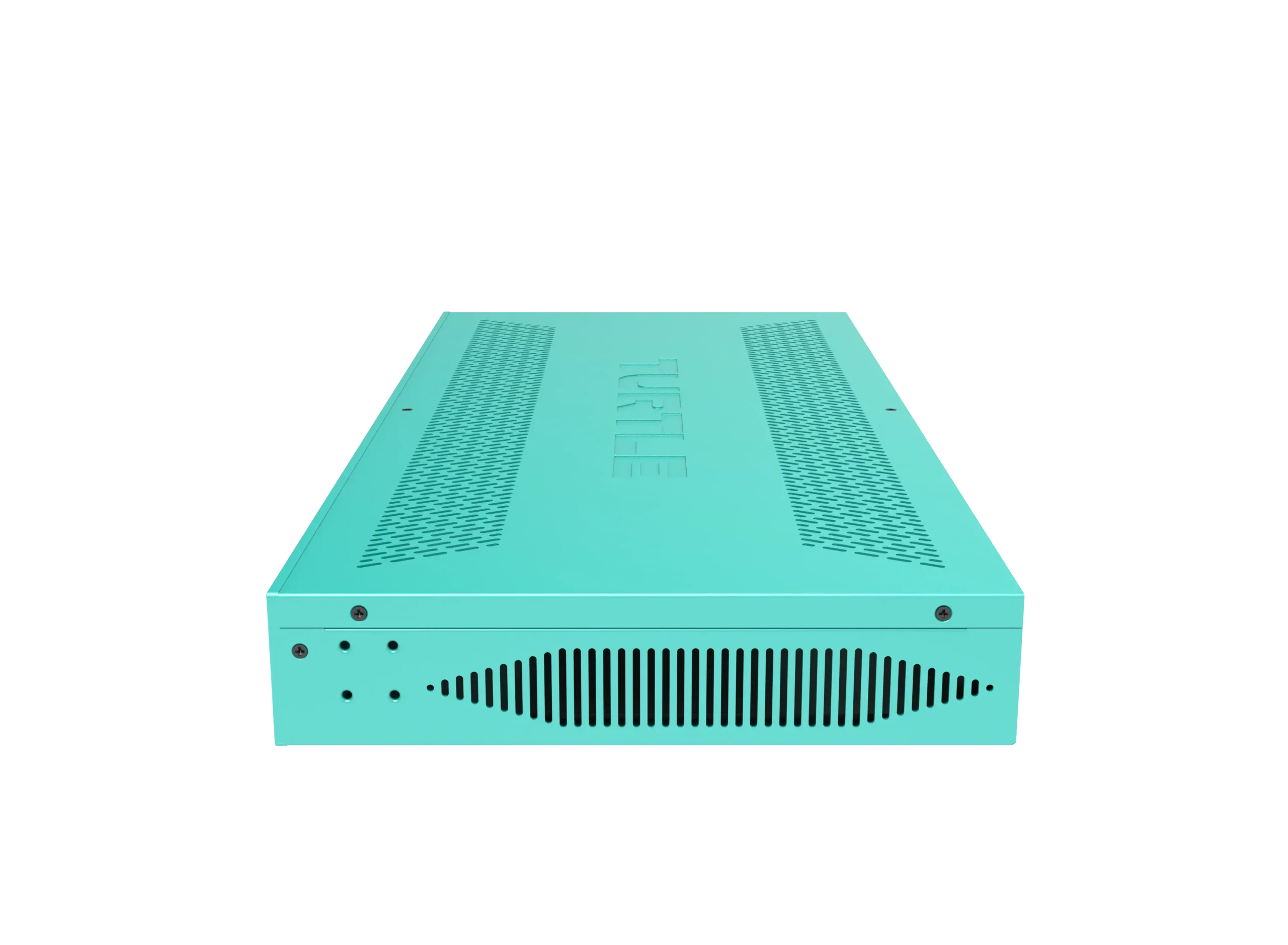

Housing Metal enclosure, Turtle Aqua

Warranty

The Turtle AV Chazy 4K Multiview is backed by the 5-year manufacturer warranty, providing peace of mind for professional installations.

Application Examples

Broadcast Control Rooms Combine four 4K60 Dante AV-A camera or replay feeds into a live multiview for broadcast monitoring, director preview, and transmission confidence checking
Command and Control Centres Deploy in security operations, network operations, and emergency management centres for a live four-source KVM multiview with mouse roaming across all source systems
Education Video Switchers Use as a 4K Dante AV-A programme selector in university broadcast and media production facilities — monitor four sources simultaneously before switching to air
Large-Scale Distributed AV Deploy as a multiview node in a large Dante AV-A installation — re-encodes and distributes the composite output as a new network stream for downstream viewing points
