The Turtle AV Dante Bluetooth Wallplate is a professional in-wall audio interface designed to bring Bluetooth® audio directly into Dante® networks for commercial AV environments. Ideal for meeting rooms, hospitality spaces, education, and corporate installations, it converts two-channel Bluetooth audio into two-channel Dante digital audio with high-quality wireless performance and simple pairing. Supporting Bluetooth 5.0 and advanced codecs including SBC, AAC, aptX, aptX LL, and aptX HD, it delivers high-fidelity audio up to 24-bit / 192kHz over Bluetooth, with Dante audio output sampled up to 24-bit / 96kHz for clear, professional-grade sound. Built-in WebGUI and API over IP provide powerful remote configuration, playback control, metadata access, and system integration.

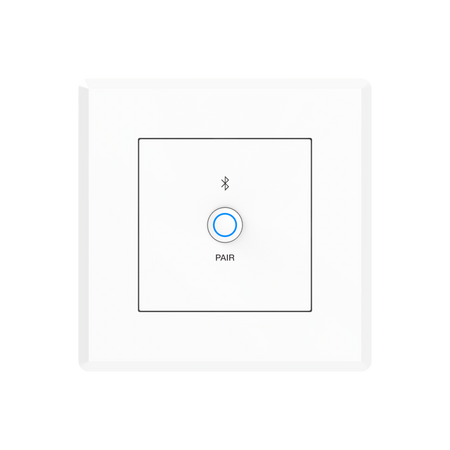

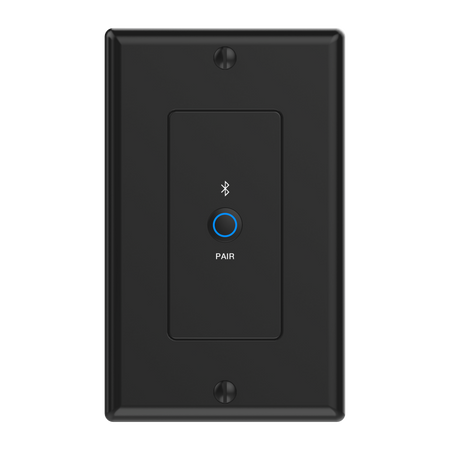

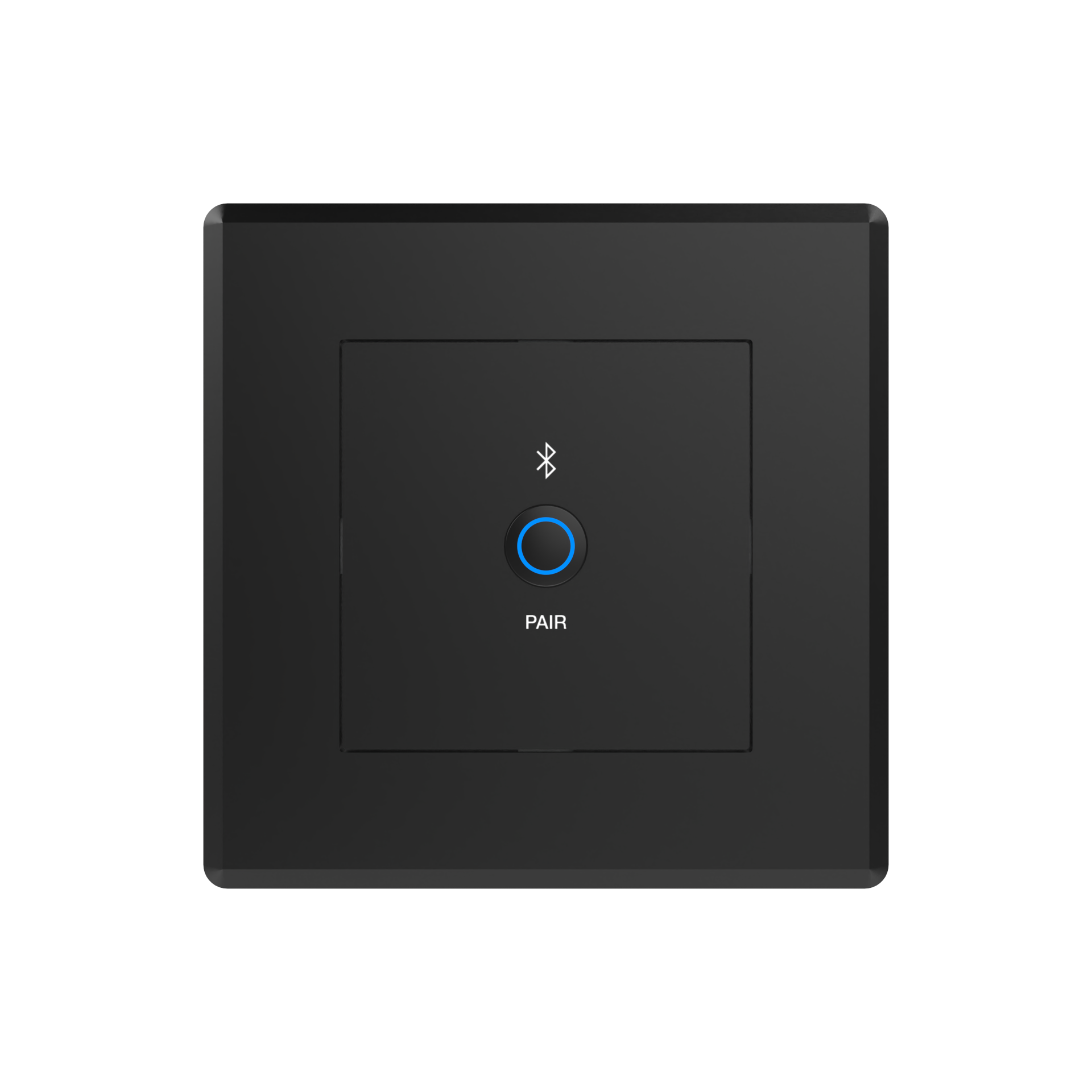

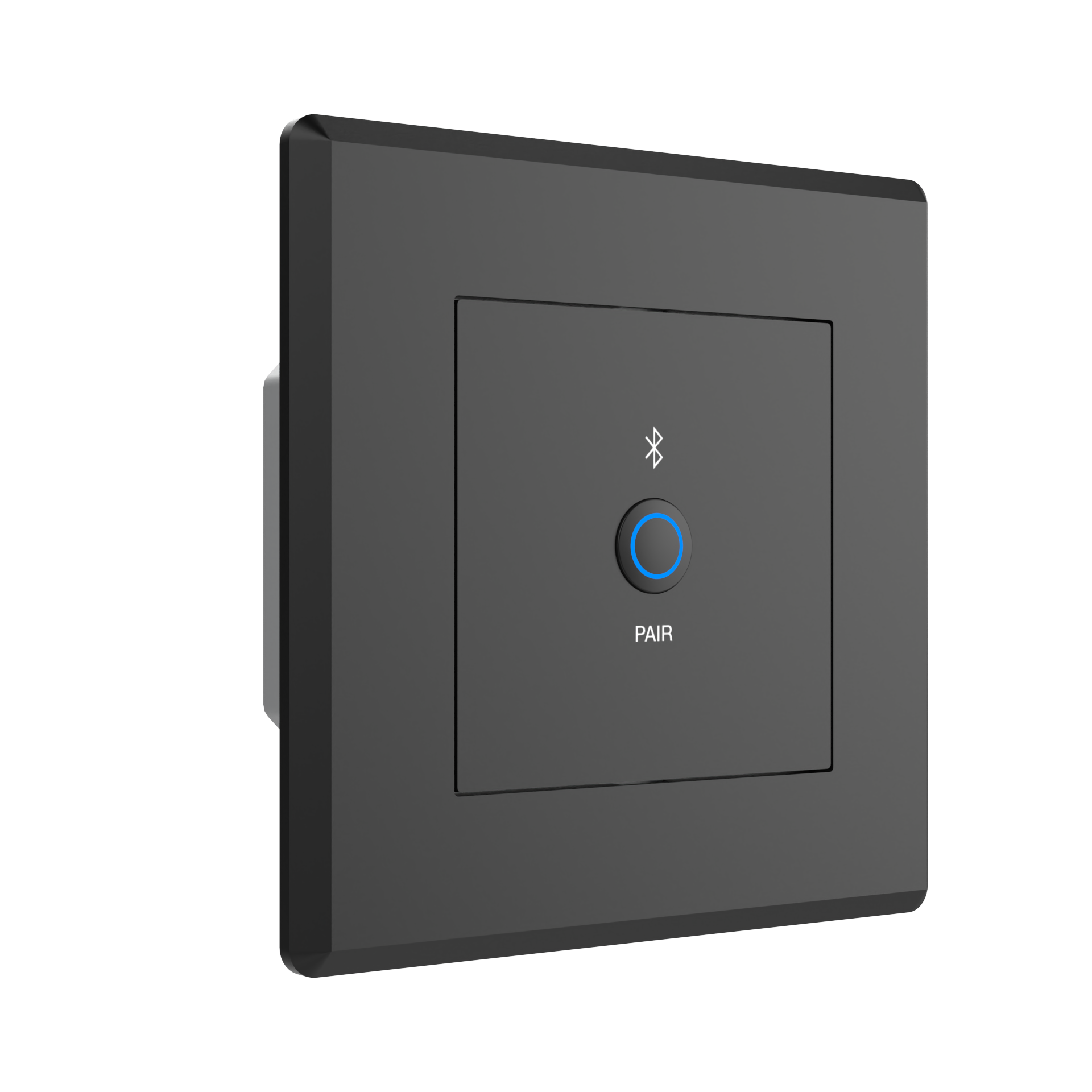

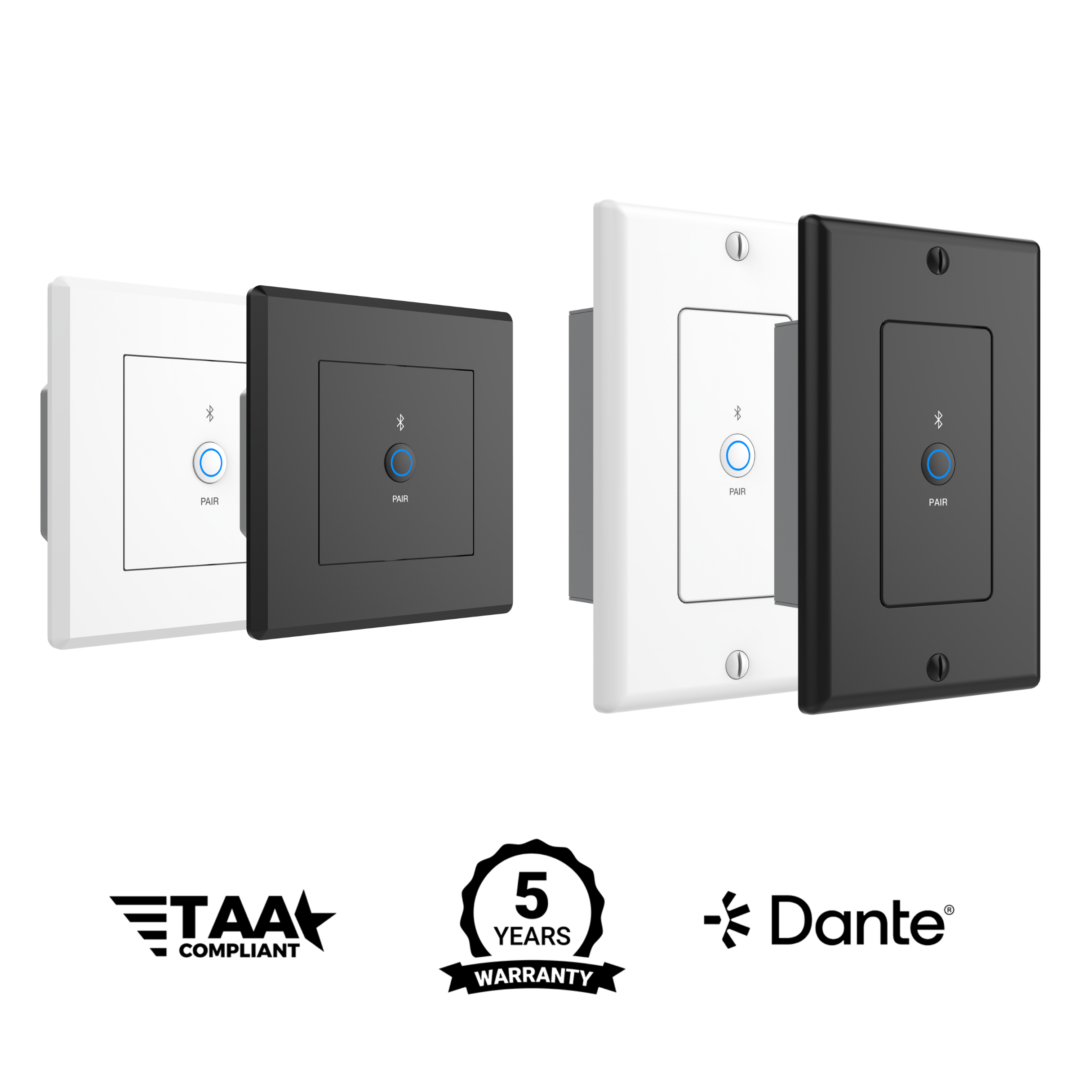

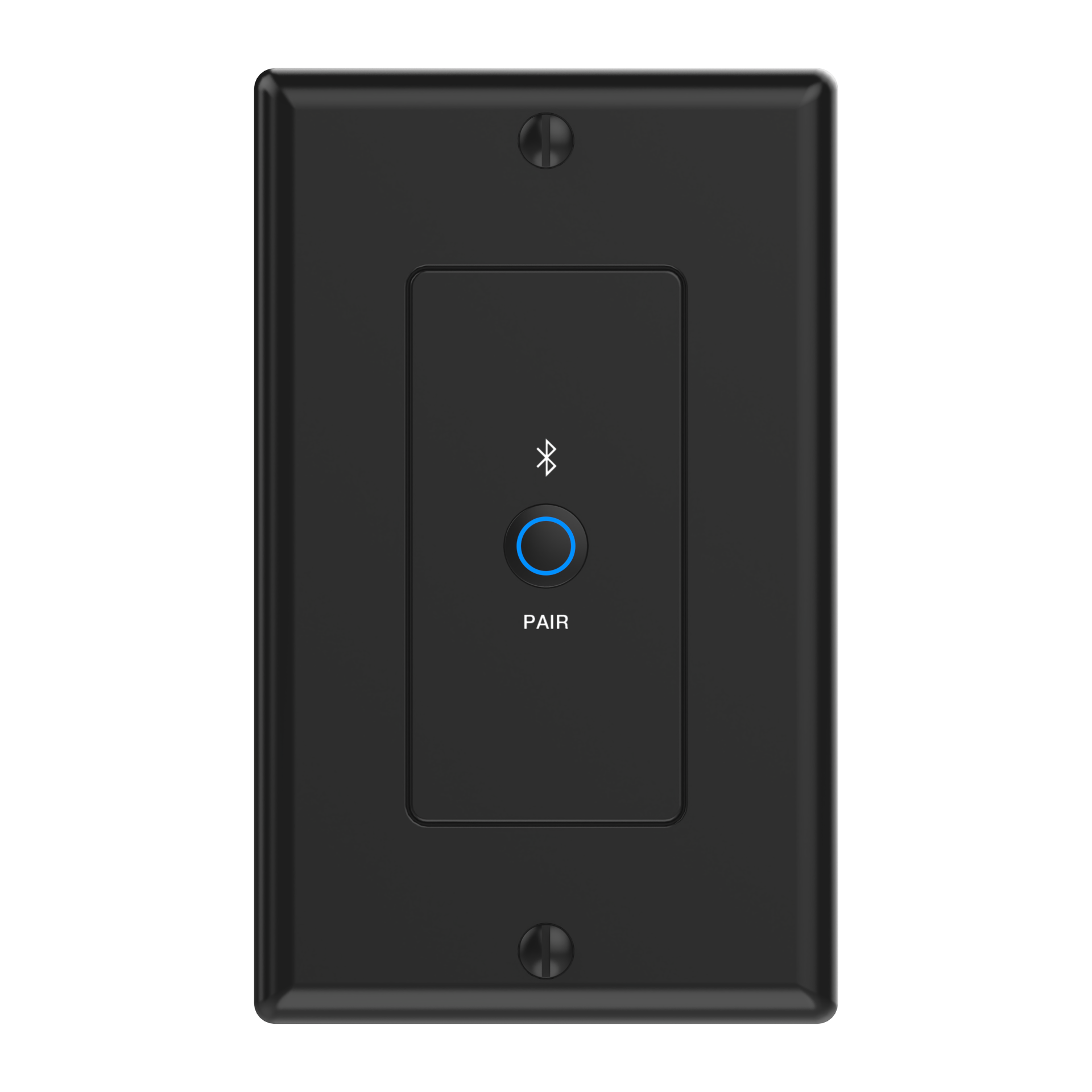

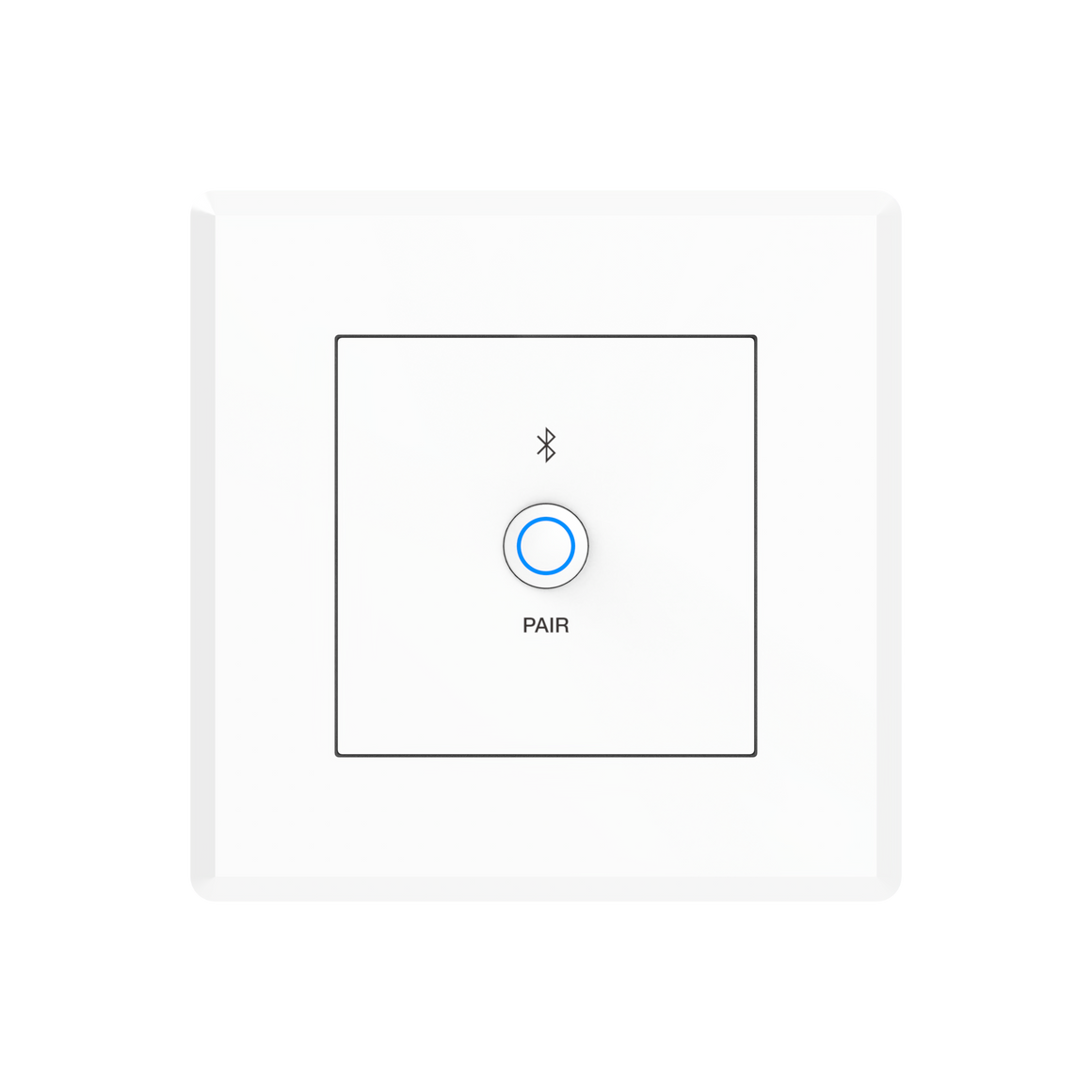

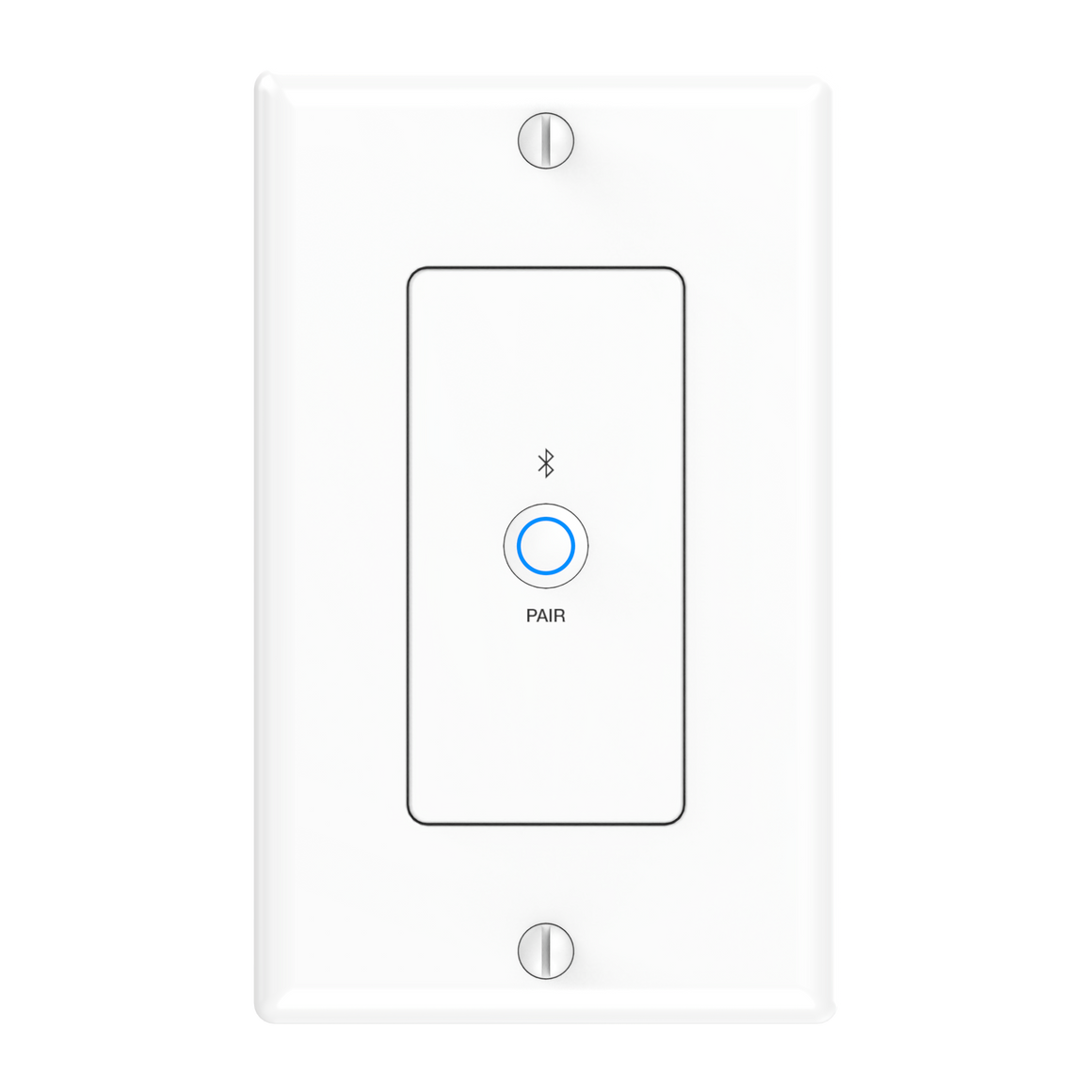

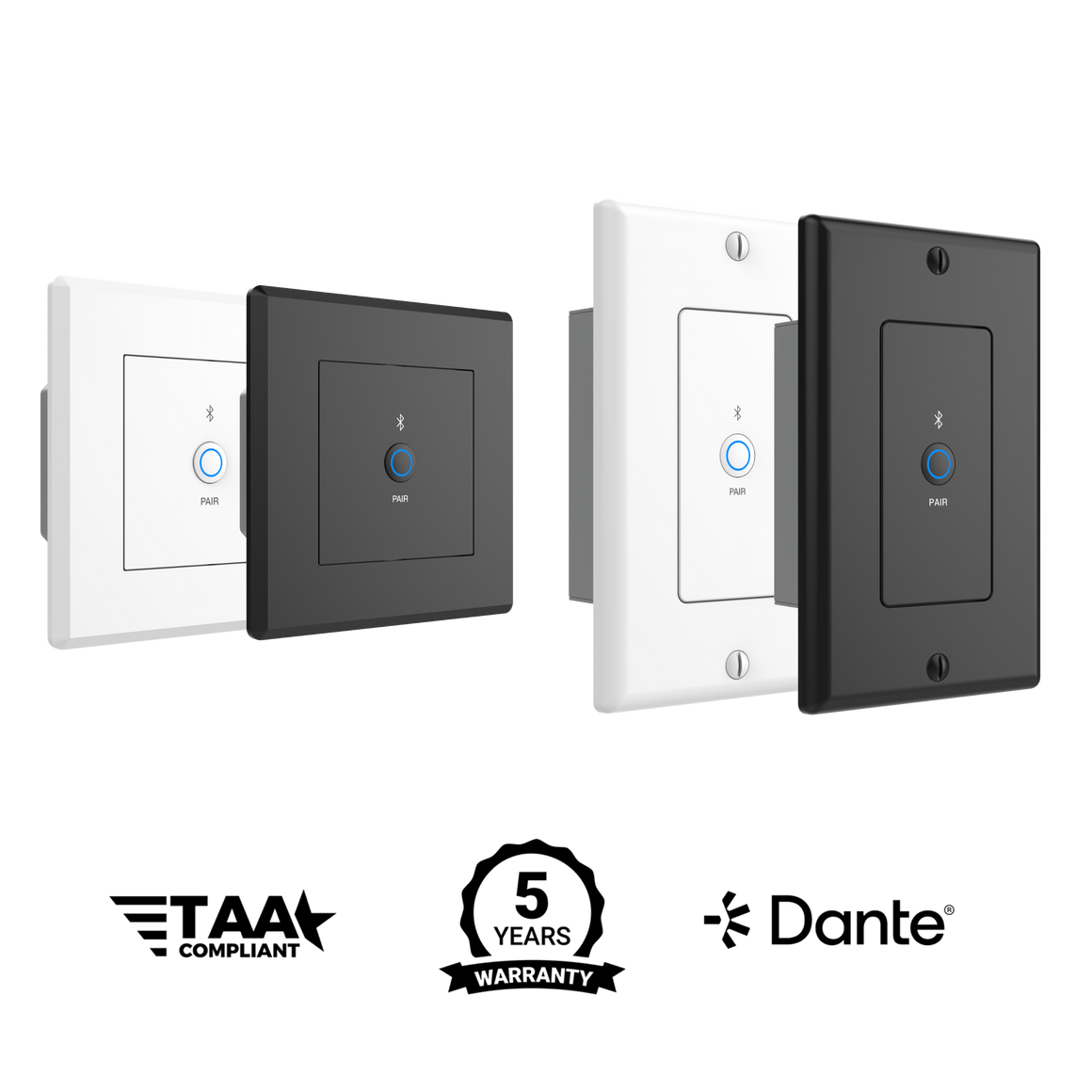

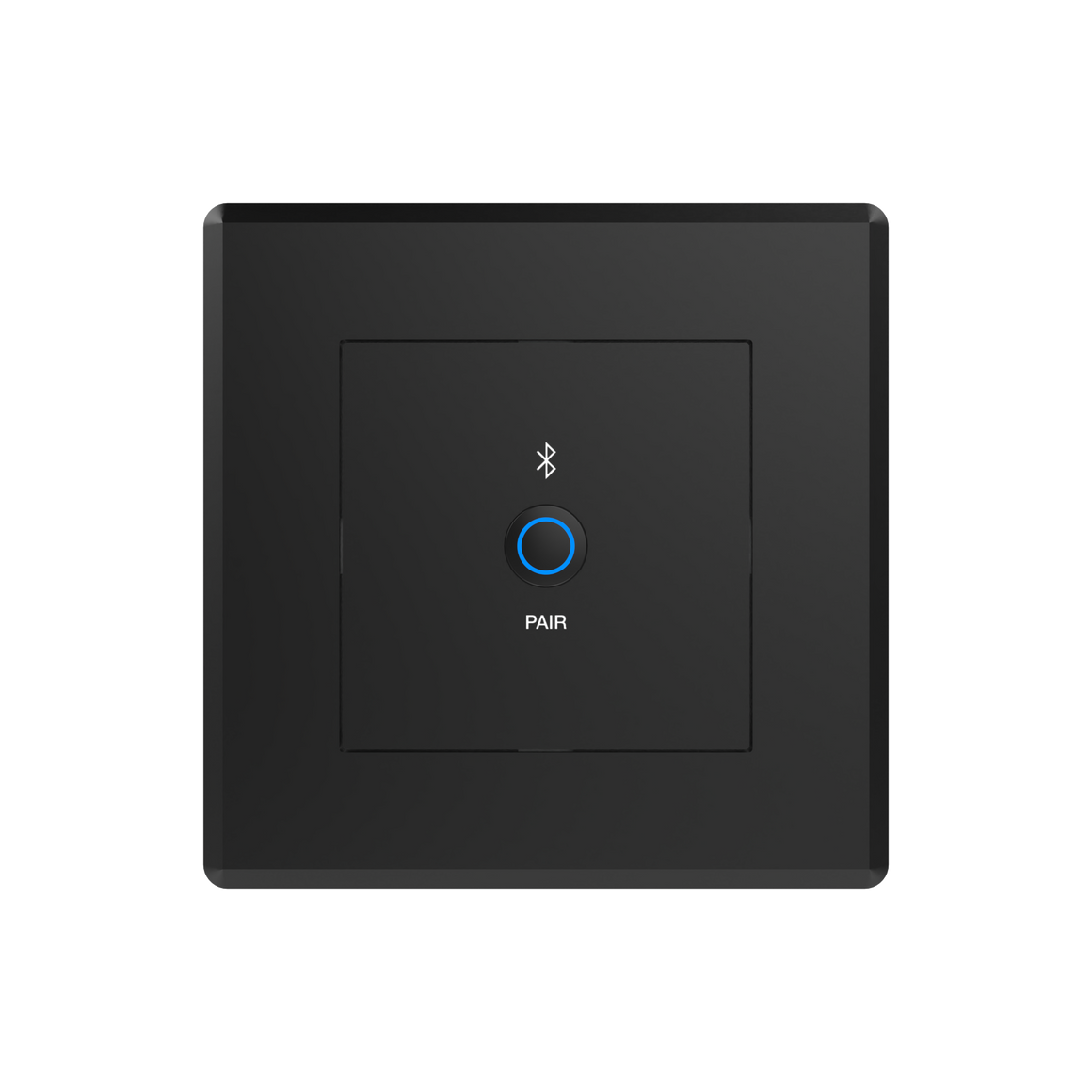

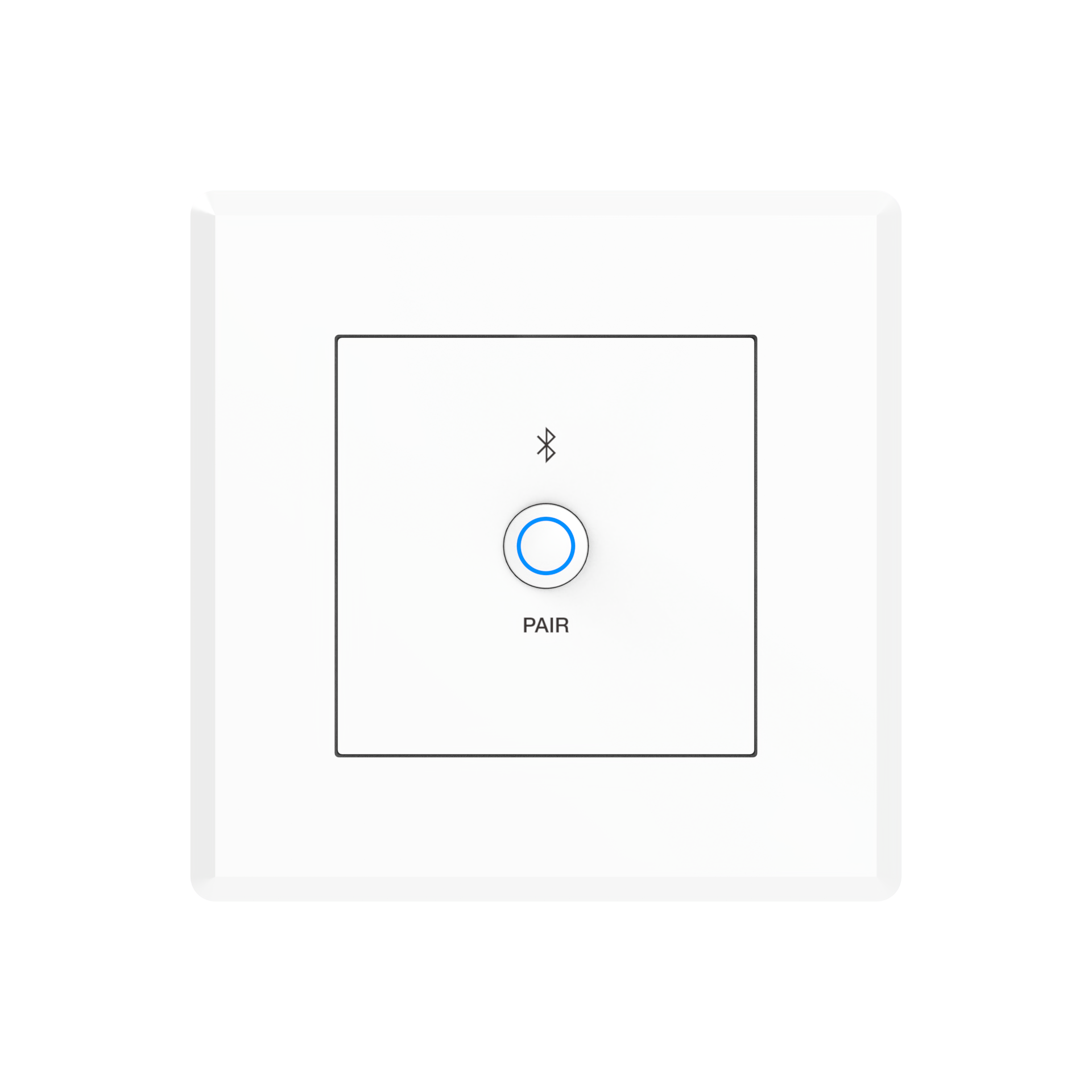

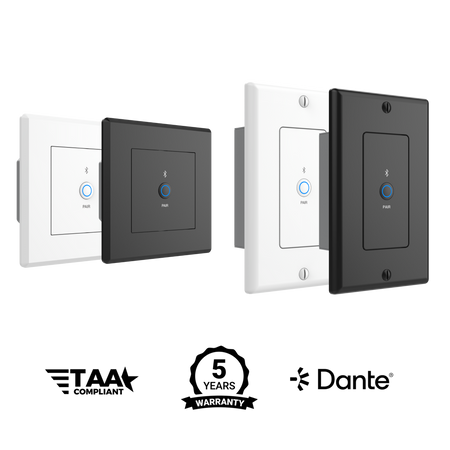

Available in US 1-Gang Decora or EU Wall Box versions, and in Black or White finishes, the Turtle AV Dante Bluetooth Wallplate blends seamlessly into modern installations while delivering a managed, secure, and elegant Bluetooth-to-Dante endpoint.
Key Features
- Bluetooth to Dante Audio: Converts two-channel Bluetooth audio into two-channel Dante digital audio for seamless integration into networked AV systems.
- Bluetooth 5.0 with Advanced Codecs: Supports SBC, AAC, aptX, aptX Low Latency, and aptX HD for high-quality wireless audio streaming.
- High-Resolution Audio Support: Bluetooth audio supports up to 24-bit / 192kHz, while Dante output supports PCM 2-channel audio up to 96kHz / 24-bit for professional-grade sound.
- Configurable Dante Latency: Supports selectable Dante latency settings of 2, 3, 5, or 10 milliseconds for flexible network tuning.
- WebGUI, API & Dante Controller Integration: Built-in WebGUI and API over IP allow full remote configuration, device management, and integration with Dante Controller.
- Playback & Metadata Control: Supports play, pause, skip, volume control, and real-time metadata extraction for artist and track information.
- Secure Connection Management: Supports programmable discovery, pairing authorisation, and forced disconnection for managed environments.
- PoE & 12V DC Power Options: Flexible powering via PoE IEEE 802.3af Class 0 or 12V DC input for simplified installation.
- Flexible Installation Formats: Available in US 1-Gang Decora and EU / UK standard wall box versions to suit regional installation requirements.
- Black or White Finish Options: Offered in both Black and White to blend cleanly into modern interior spaces.
- Total Dante Software Compatibility: Fully compatible with Dante Controller, Dante Domain Manager, and Dante software applications.
- TAA Compliant & 5-Year Warranty: Meets procurement requirements for regulated projects and includes advance replacement warranty cover.
Specifications
| Product Type | Bluetooth to Dante wallplate audio interface |
| Input | Two-channel Bluetooth audio |
| Output | Dante 2-channel digital audio |
| Control Method | WebUI, API, Dante Controller |
| Network Bandwidth | 100M |
| Audio Latency | Configurable Dante device latency; supports 2ms, 3ms, 5ms, or 10ms configurable using Dante Controller |
| Bluetooth Audio Formats | Bluetooth V5.0, SBC / AAC / aptX / aptX-LL / aptX-HD, up to 192kHz @ 24-bit |
| Dante Audio Formats | Dante OUT digital audio, PCM 2-channel up to 96kHz / 16-bit / 24-bit |
| Input Impedance | N/A |
| Line Input Level (Maximum) | N/A |
| Frequency Response | 20Hz to 20kHz (-/+0dB) |
| Dynamic Range | >100dB @ 2Vrms, 1kHz A-weighted |
| Audio S/N Ratio | >100dB @ 2Vrms, 1kHz A-weighted |
| Audio THD+N | <0.01% @ 0dBV, 1kHz |
| Transmission Distance | 328ft / 100m (CAT6 / 6A / 7) |
| ESD Protection | IEC 61000-4-2: ±8kV (air-gap discharge) and ±4kV (contact discharge) |

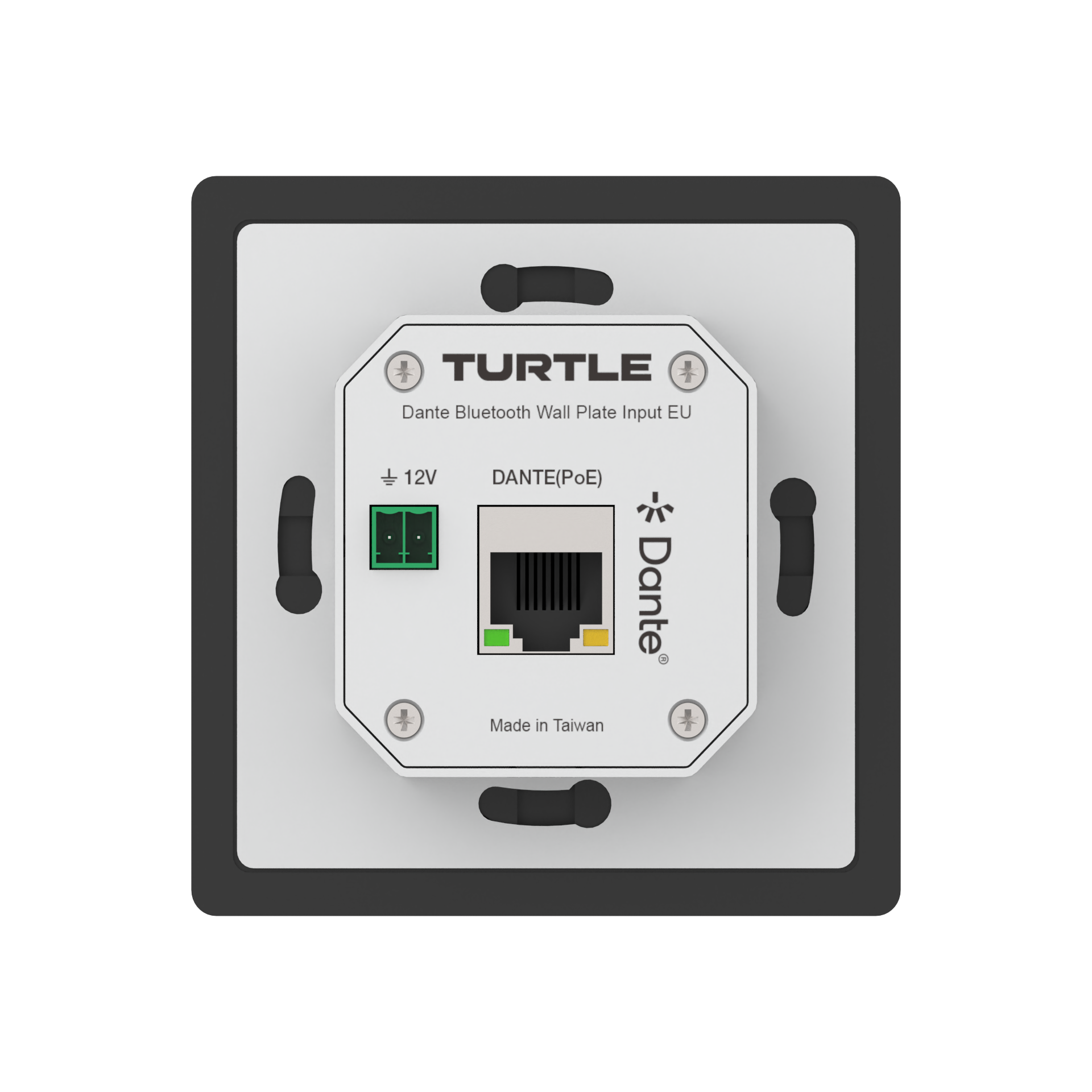

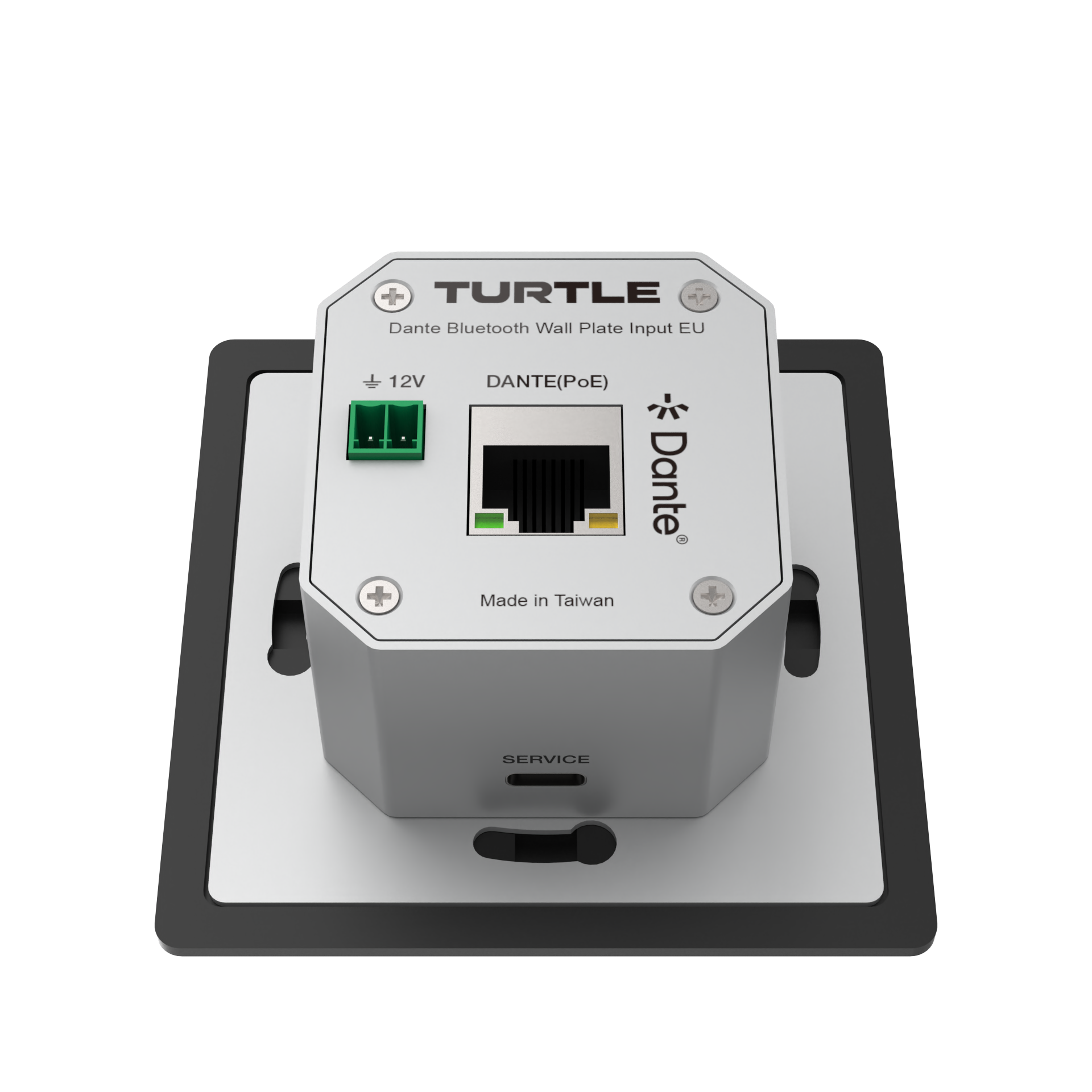

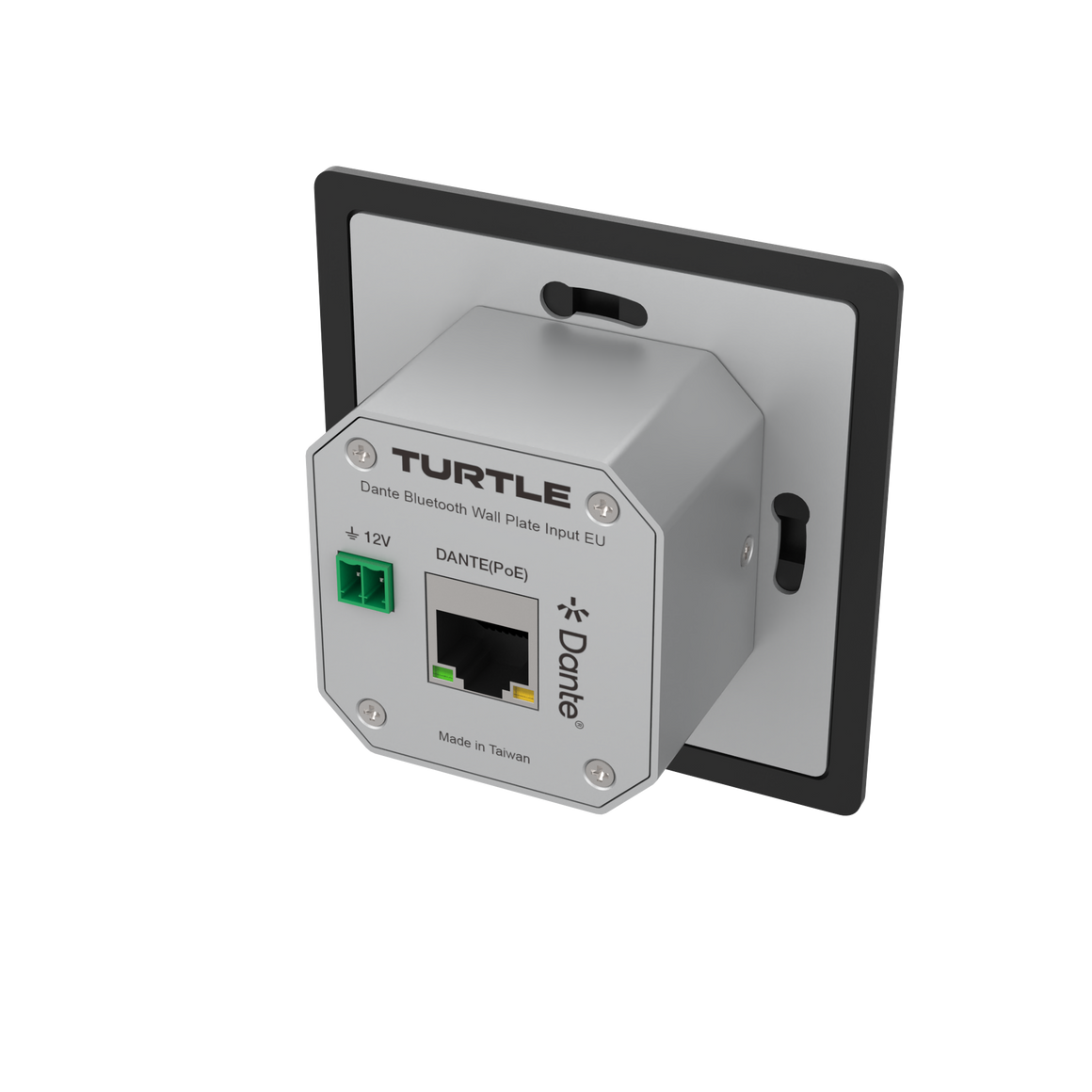

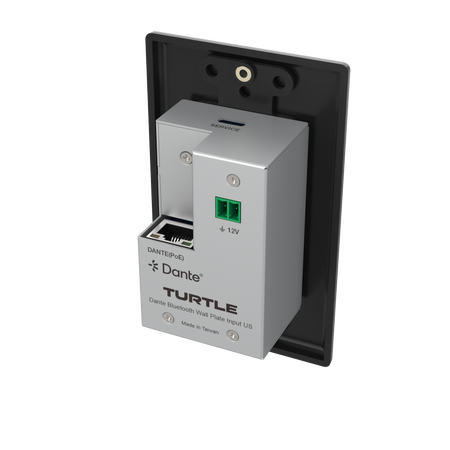

| Input Connections | 1 x Power input (PoE Class 0 IEEE 802.3af / 12V DC), 1 x Bluetooth input (wireless) |
| Output Connections | 1 x Dante RJ45 connector with PoE |

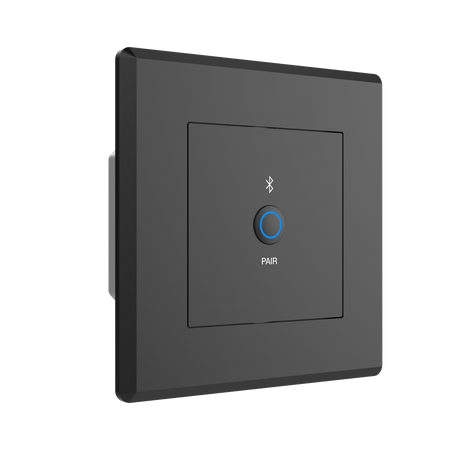

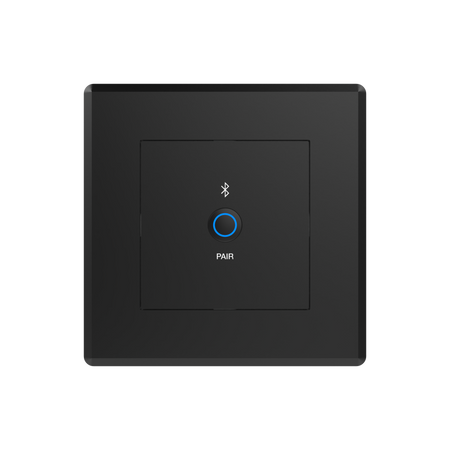

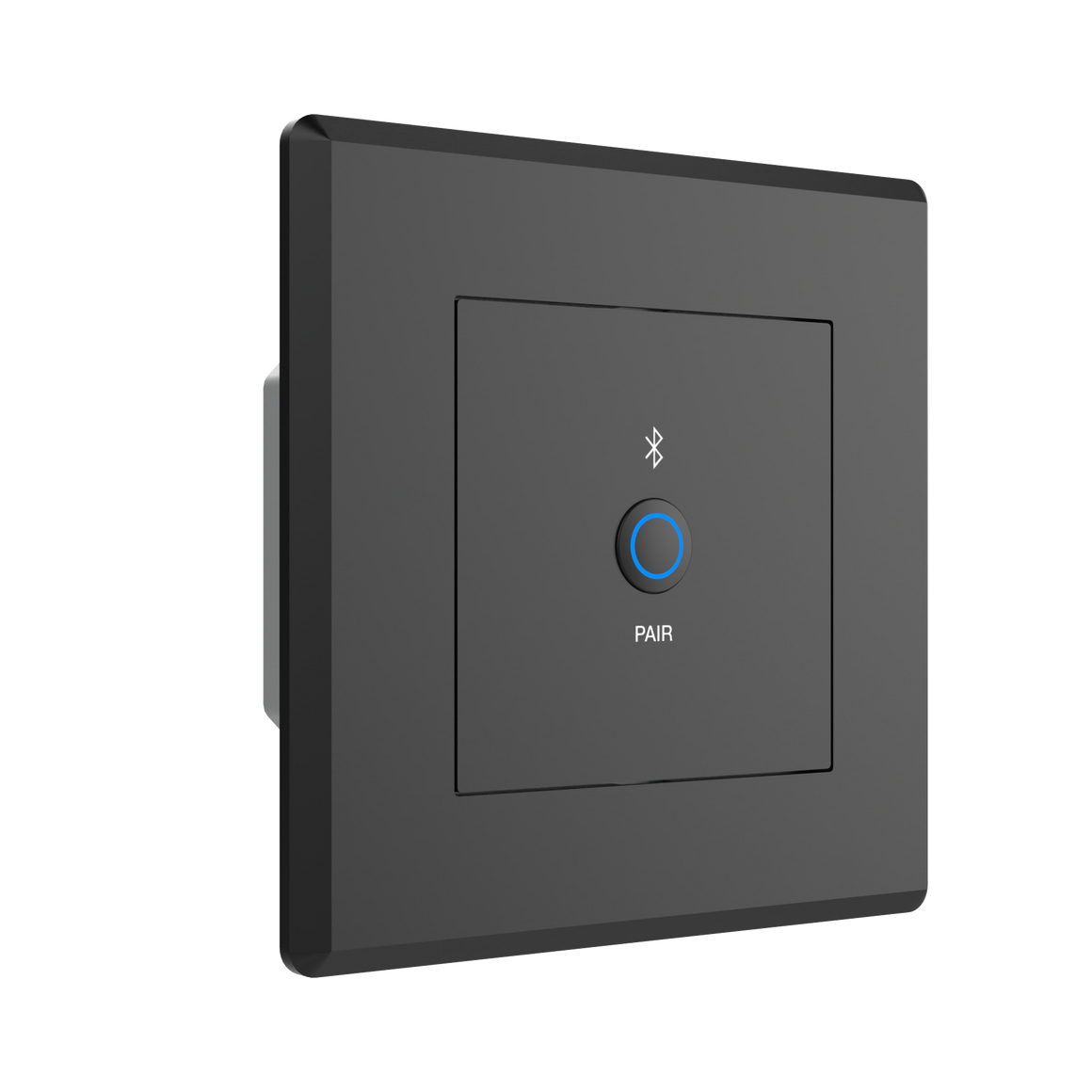

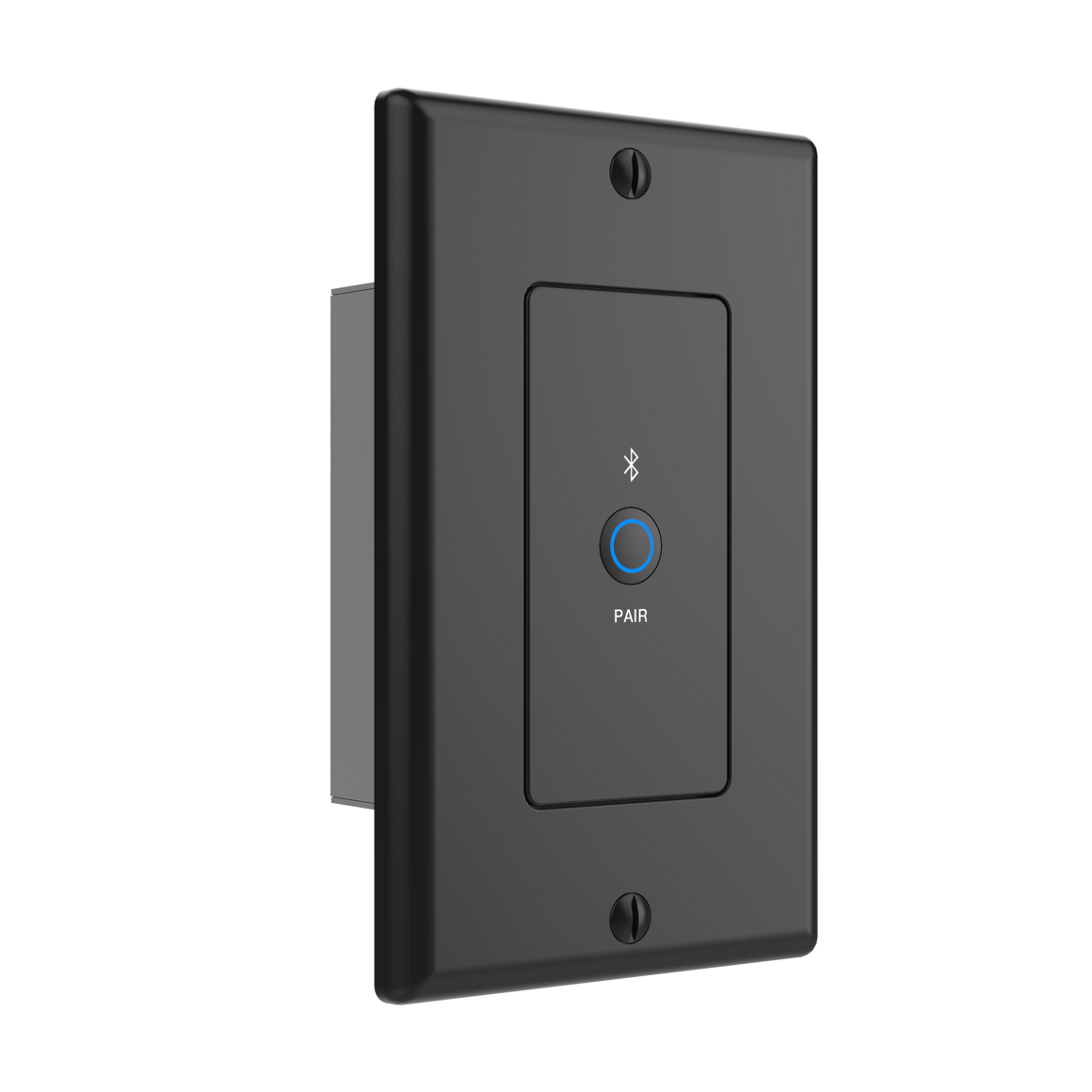

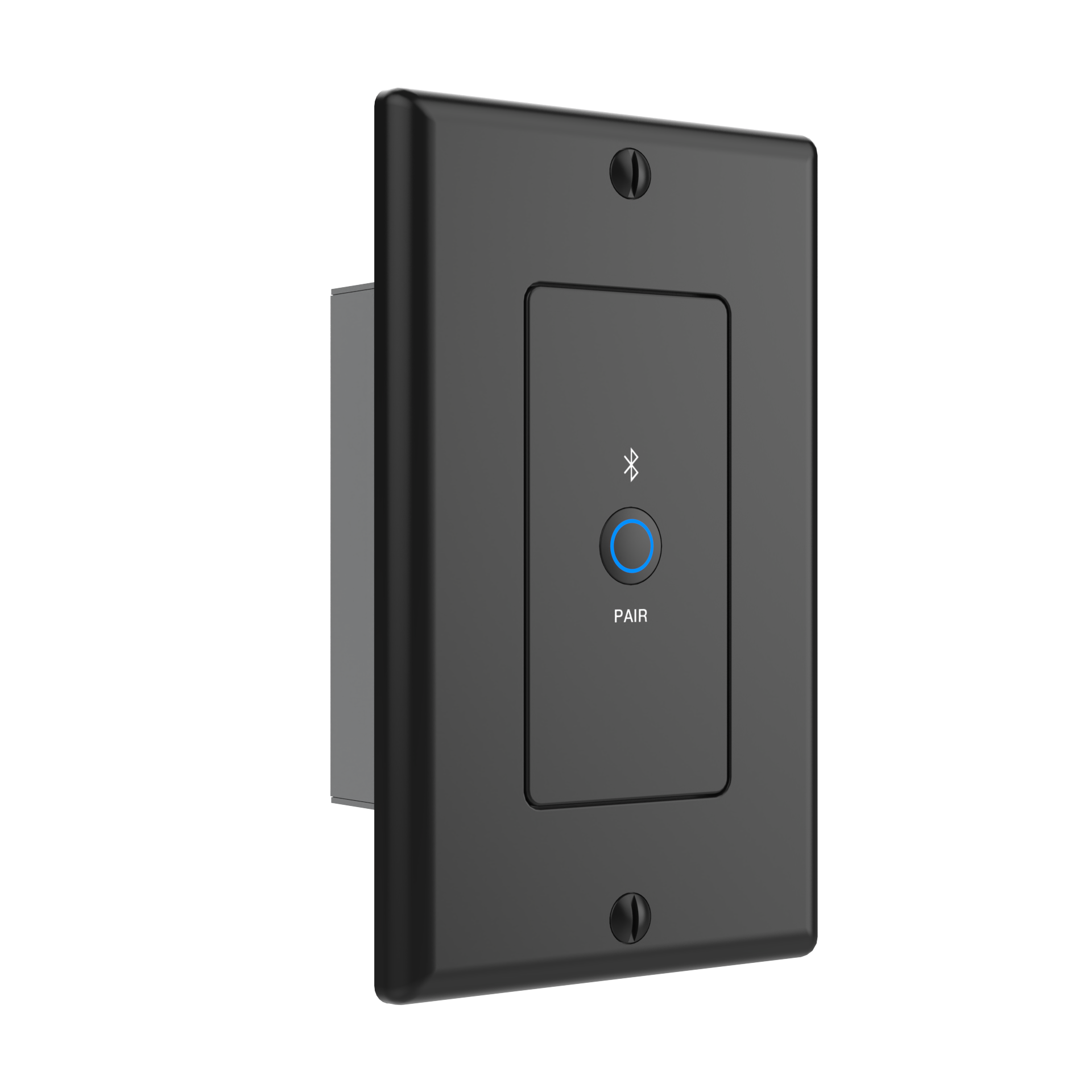

| Controls / Indicators | 1 x Pair button, 1 x Status LED |
| Housing | Plastic / Metal enclosure |

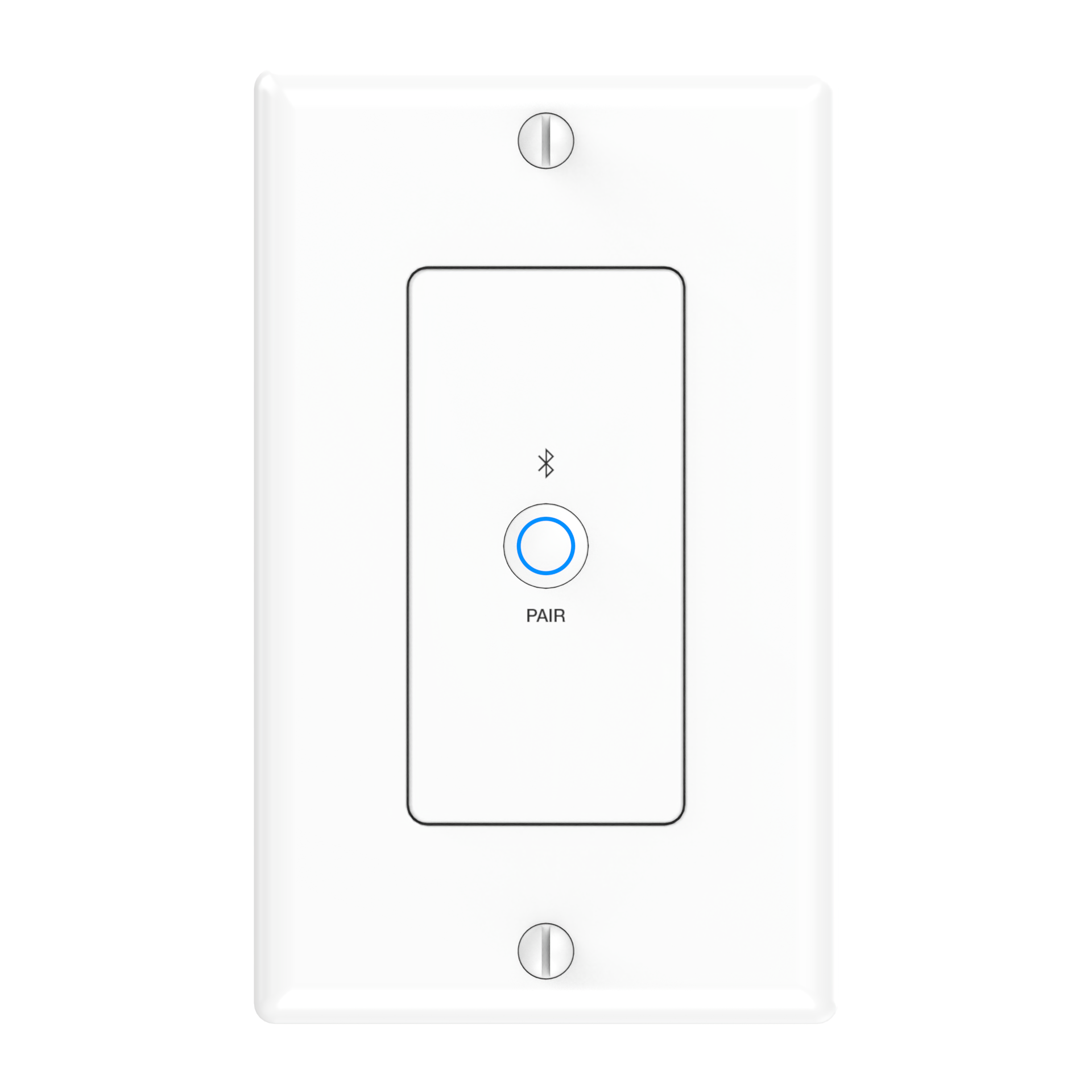

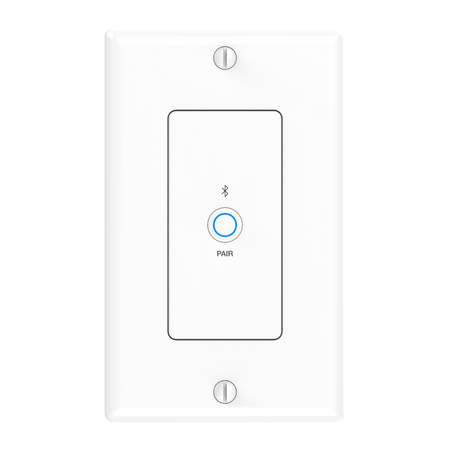

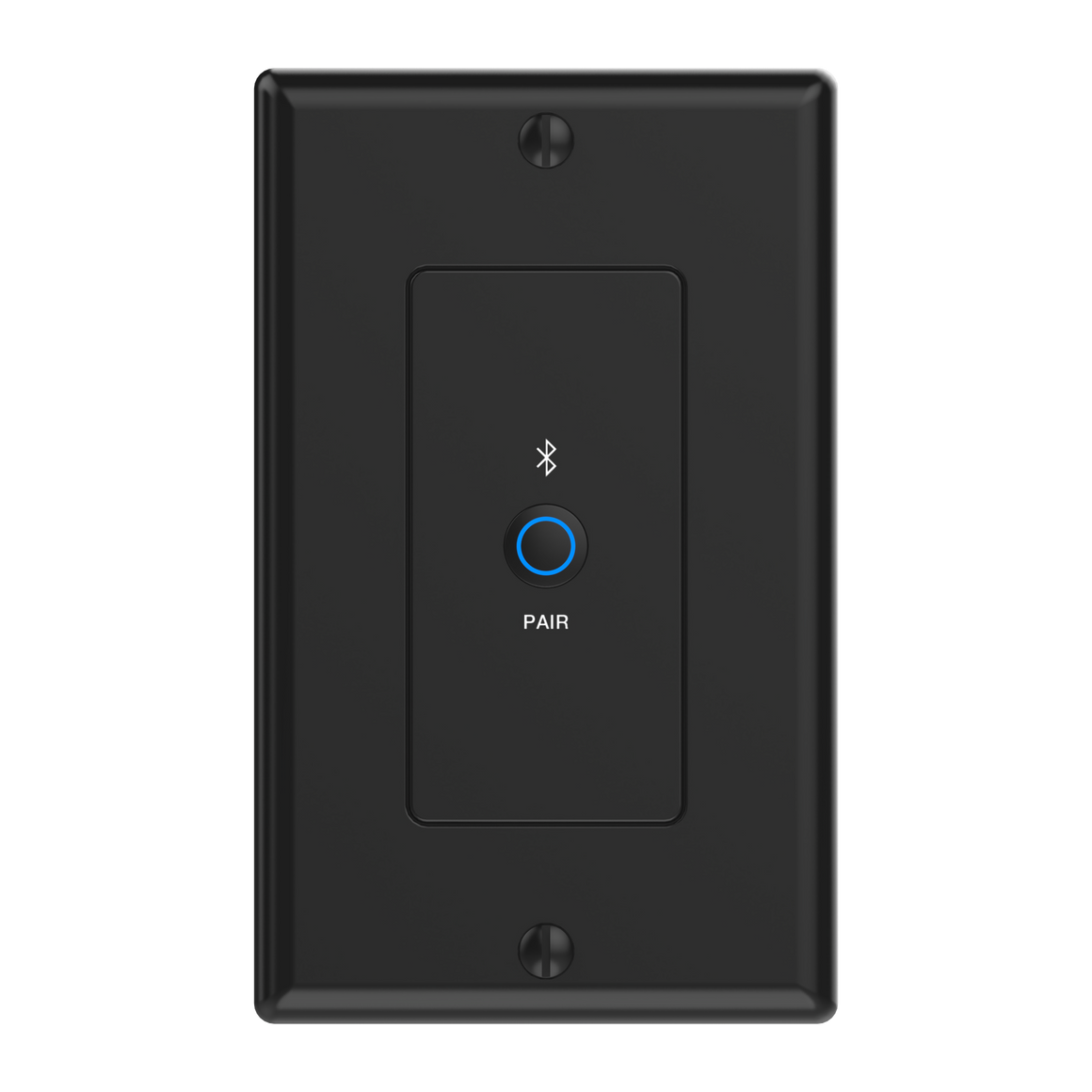

| Colour Options | Black or White |

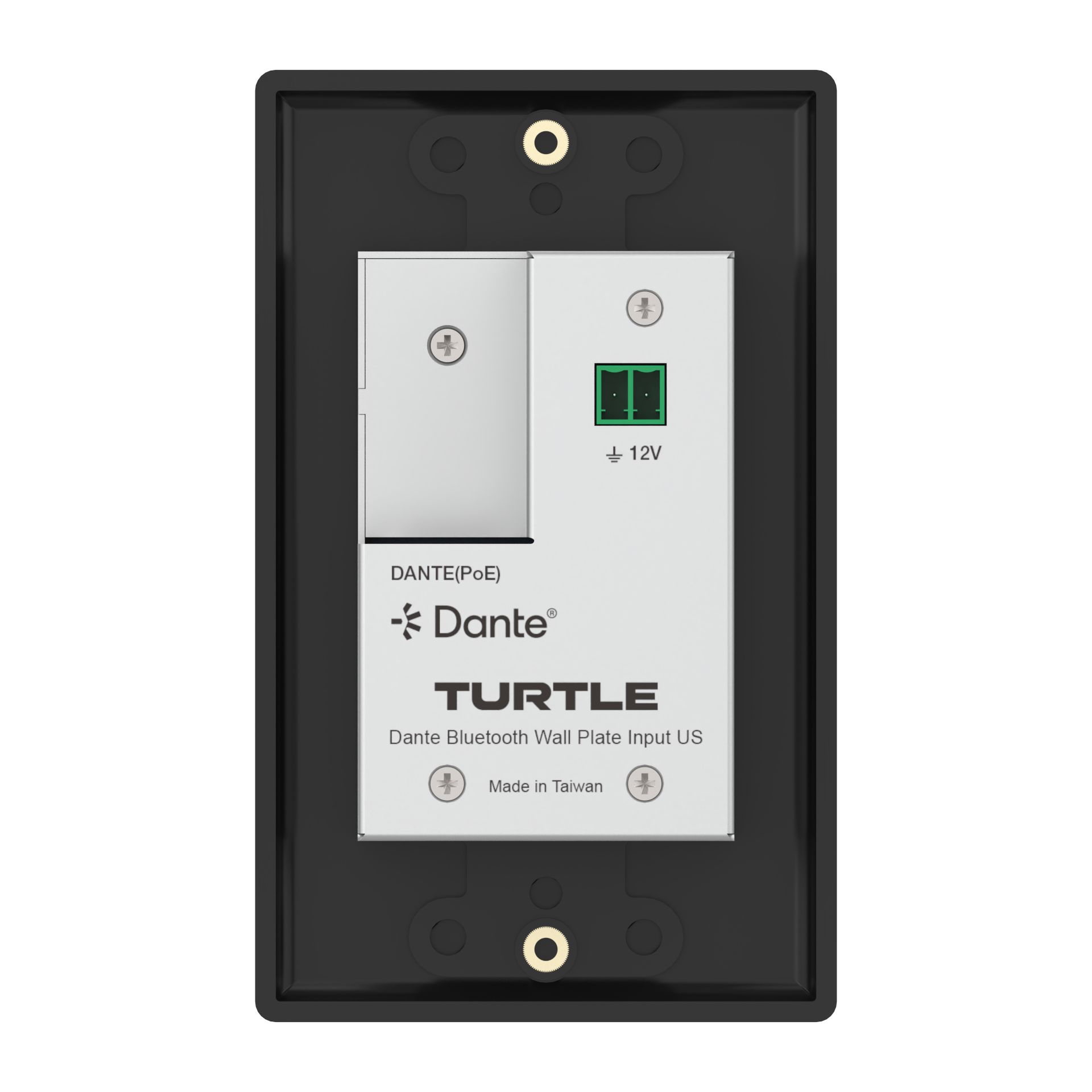

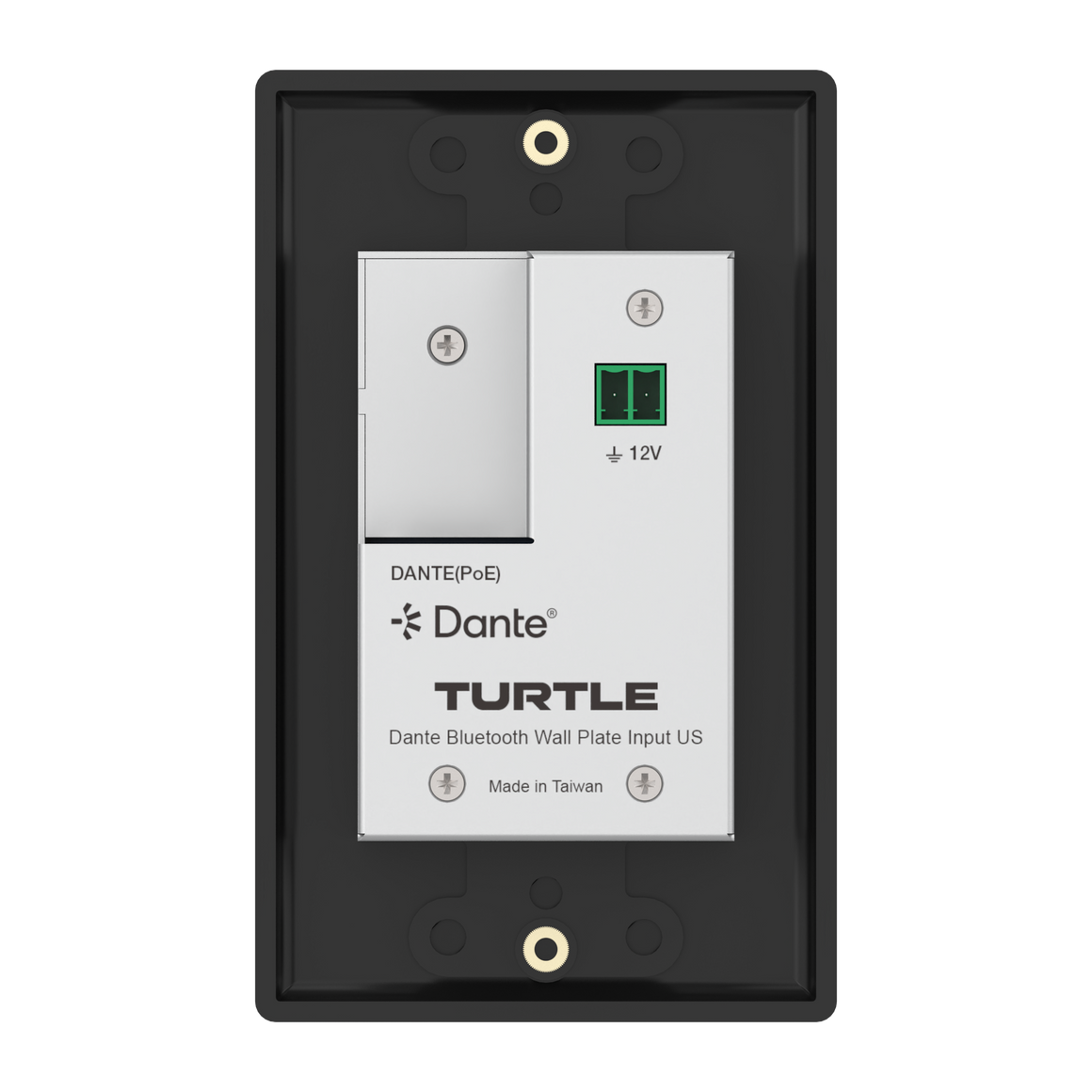

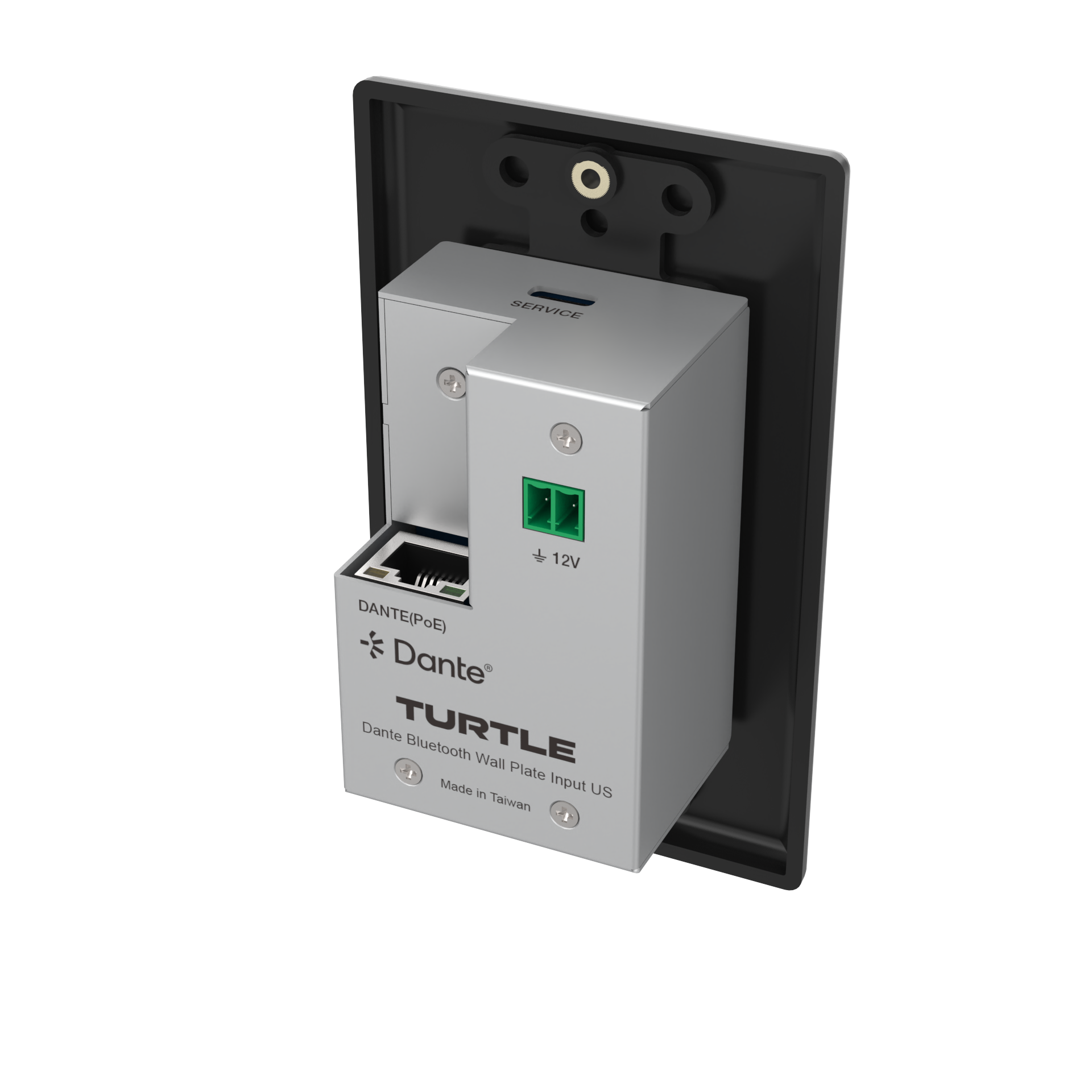

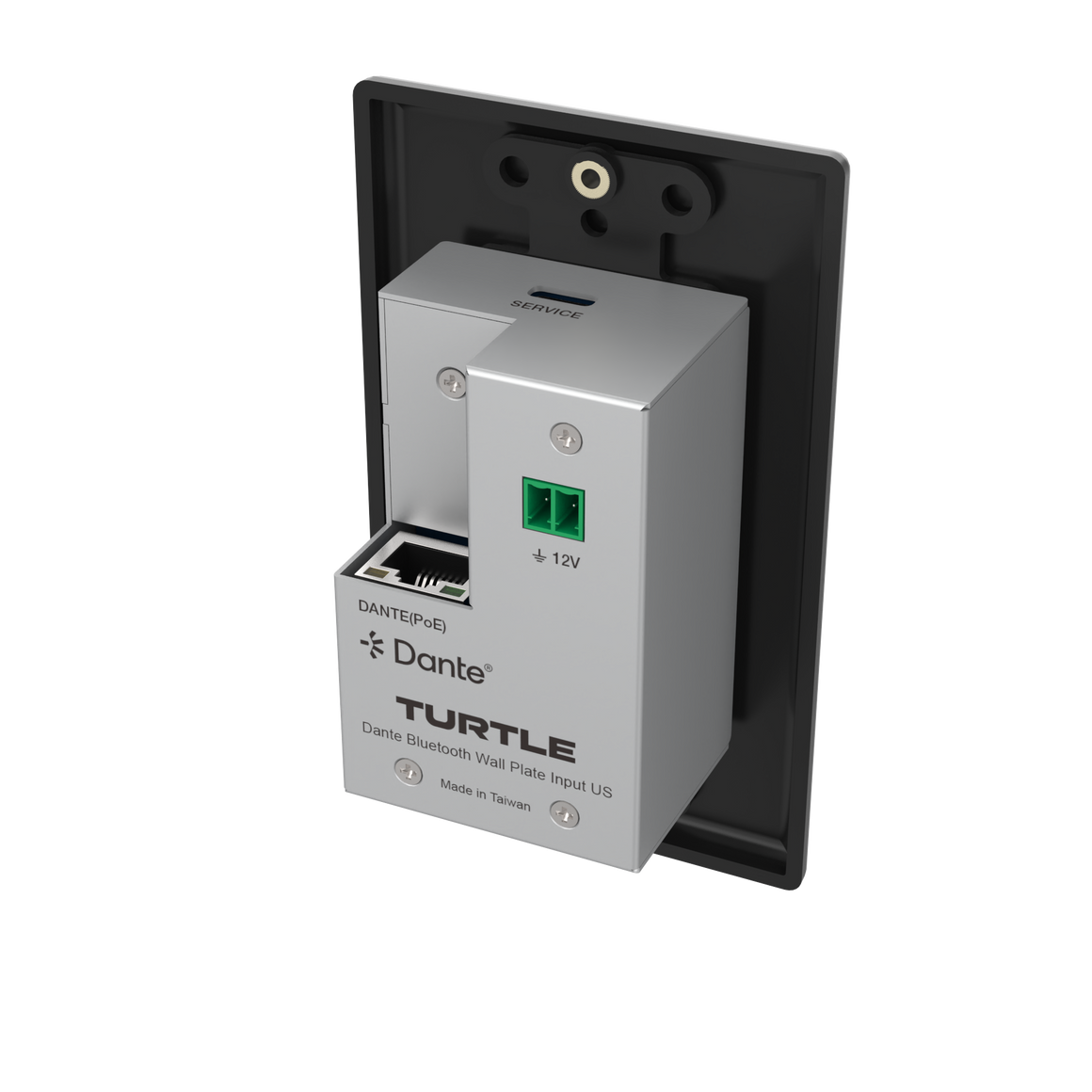

| US Version Dimensions | Standard 1-Gang US Decora design |

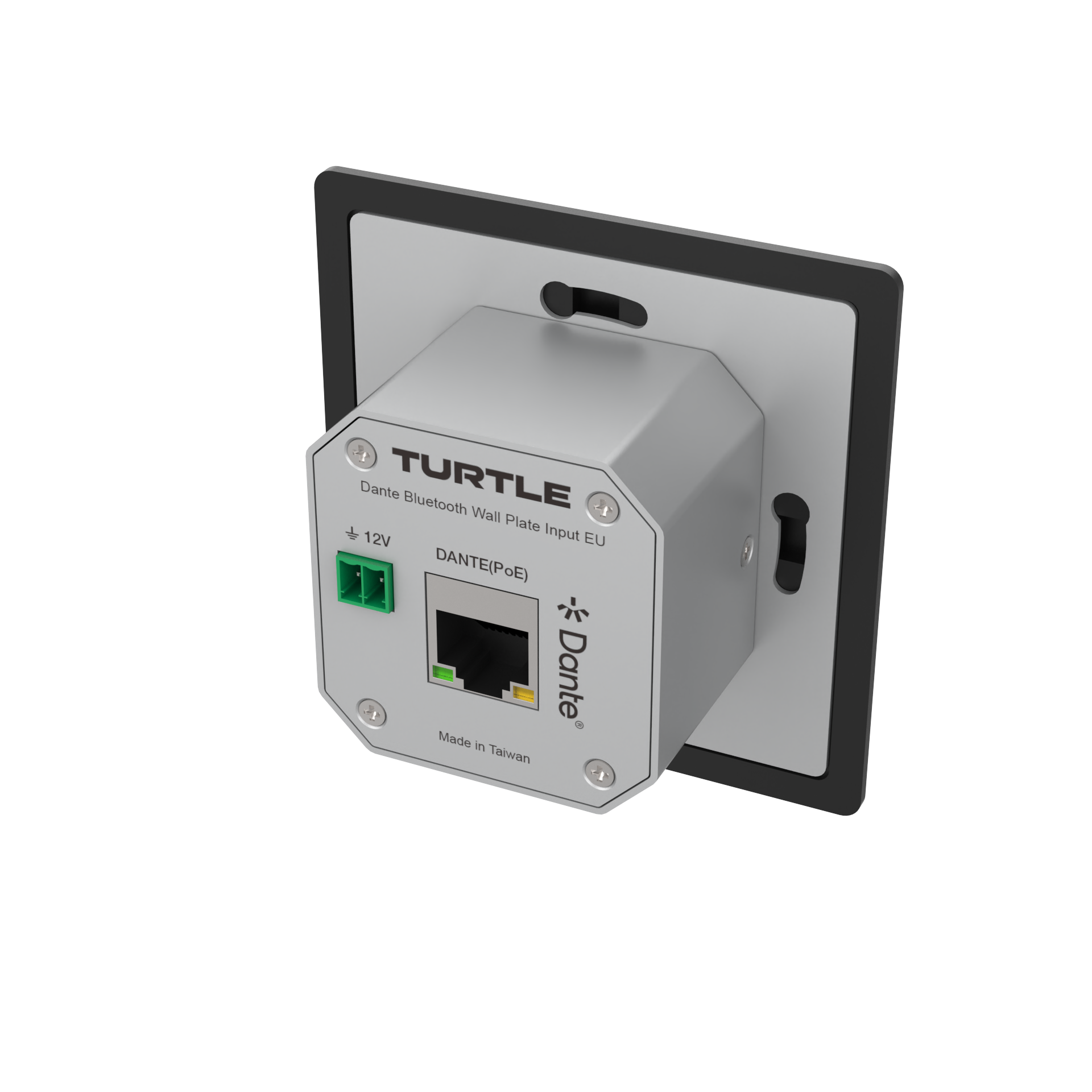

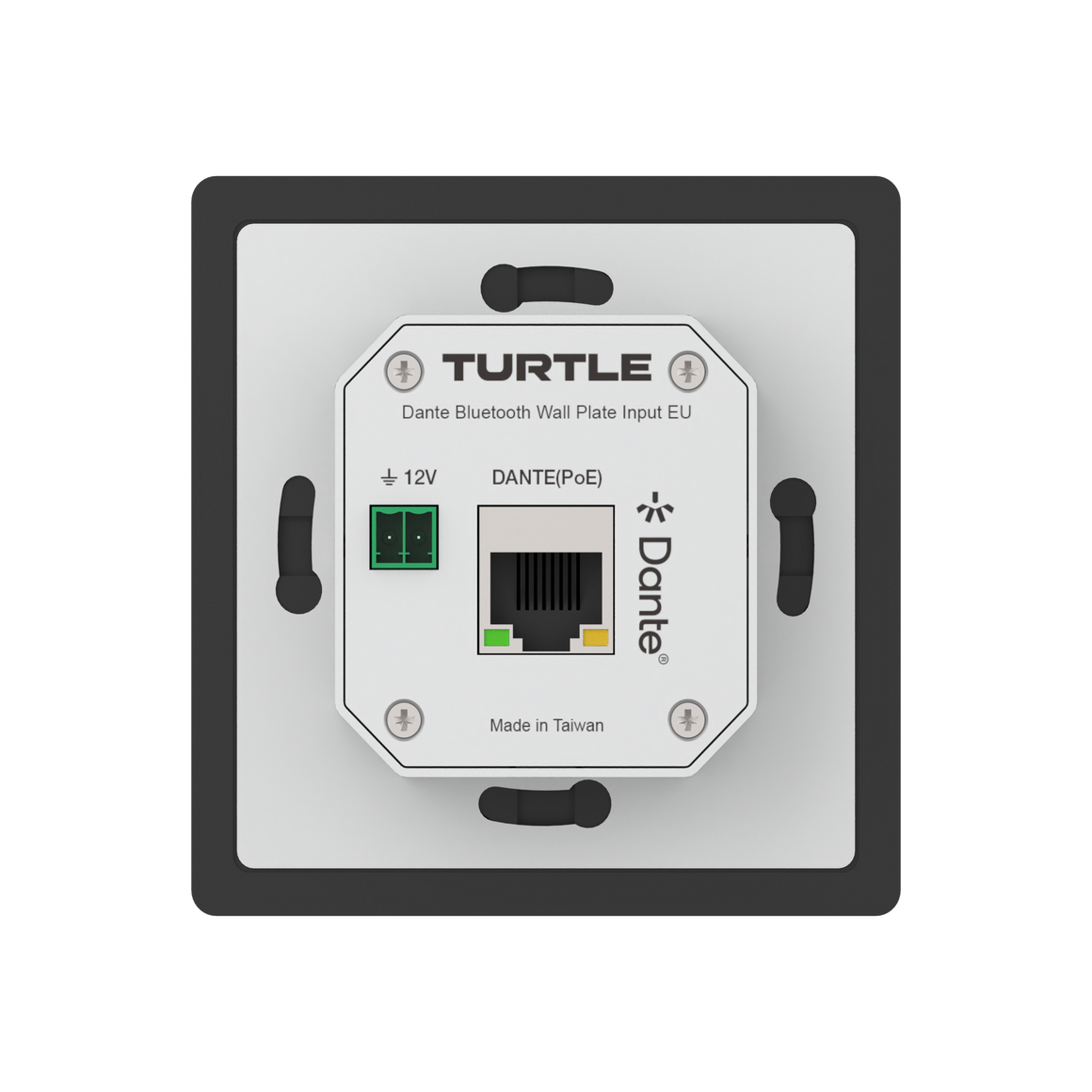

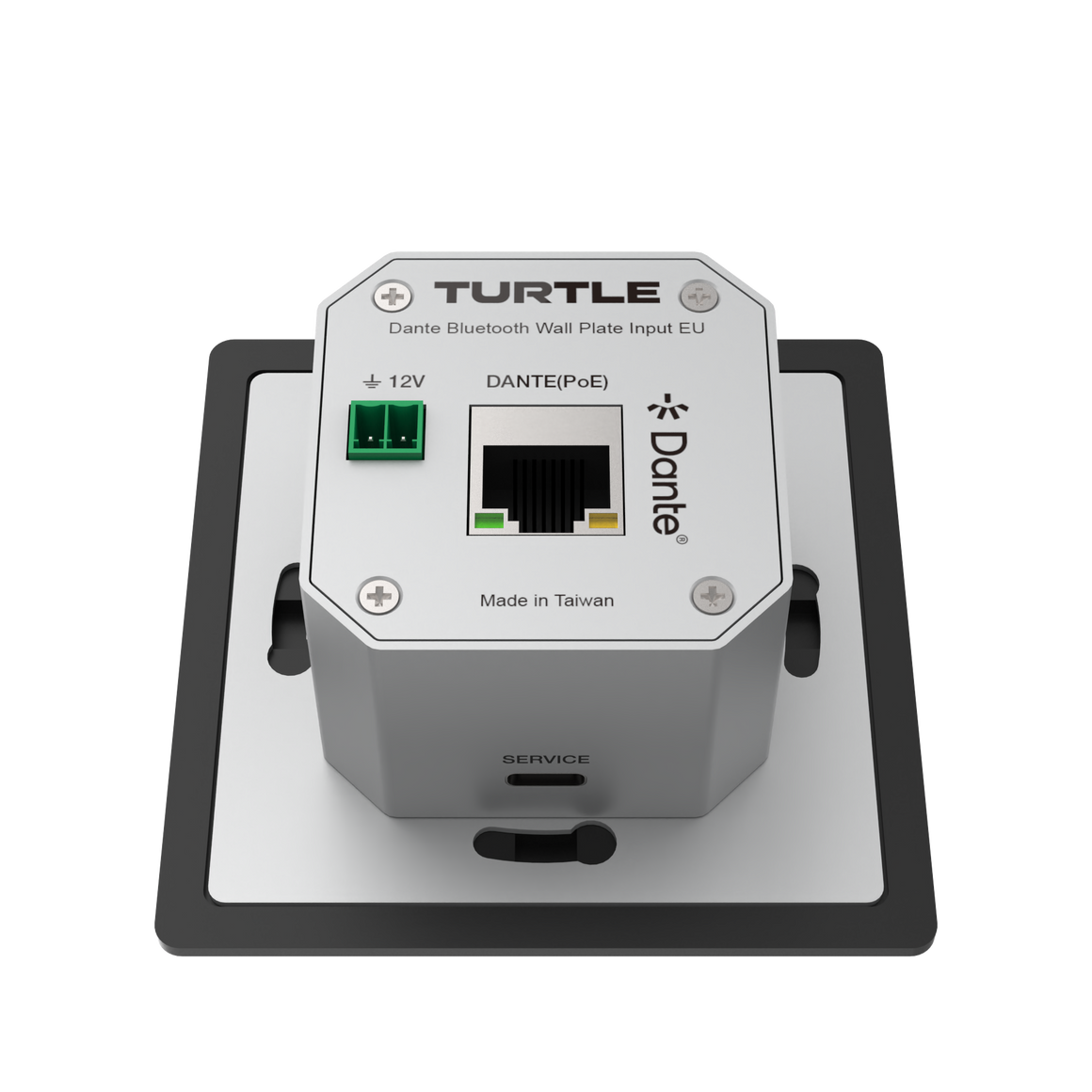

| EU Version Dimensions | Standard 1-Gang EU / UK wall box |
| Power Supply | 12V DC or PoE input: PoE IEEE 802.3af Class 0 |
| Power Consumption | 0.65W (Max) |
| Operating Temperature | 32 ~ 104°F / 0 ~ 40°C |
| Storage Temperature | -4 ~ 140°F / -20 ~ 60°C |
| Operating Humidity | 20% ~ 80% RH (relative humidity, non-condensing) |
| Storage Humidity | 10% ~ 90% RH (relative humidity, non-condensing) |
| Compliance | TAA compliant |
What’s in the Box
- Turtle AV Dante Bluetooth Wallplate x 1
- Installation guide / quick start documentation
Warranty
The Turtle AV Dante Bluetooth Wallplate includes a 5-year manufacturer warranty with advance replacement. This provides long-term peace of mind for commercial and professional AV installations.
Application Examples
| Meeting Rooms | Enables simple Bluetooth audio playback from laptops, phones, and tablets directly into Dante-enabled room audio systems. |
| Hospitality Spaces | Provides a clean, in-wall Bluetooth audio input solution for bars, restaurants, hotels, and event spaces using Dante infrastructure. |
| Education Environments | Ideal for lecture rooms and classrooms where presenters need quick wireless audio connection into installed AV systems. |
| Corporate AV Installations | Offers a managed Bluetooth-to-Dante endpoint with API control, metadata, and pairing control for professional workplace deployments. |
| Integrated Control Systems | Suitable for advanced automation environments where playback, pairing, and disconnection need to be managed via third-party control platforms. |
The Turtle AV Dante Bluetooth Wallplate combines elegant in-wall installation, professional Bluetooth audio performance, Dante network compatibility, and powerful remote control features in one compact endpoint. It is an excellent choice for commercial AV users seeking a flexible, secure, and visually discreet Bluetooth-to-Dante solution.
