SKU: TAV-XLRWP-OUT-EU-W

Turtle AV Dante Dual XLR Output Wallplate — EU Wall Box

Turtle AV

Dante XLR output wallplate, EU wall box

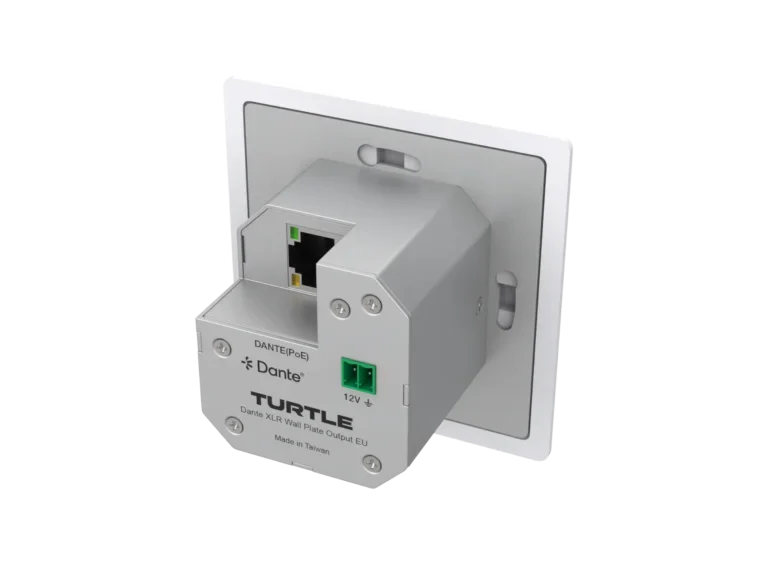

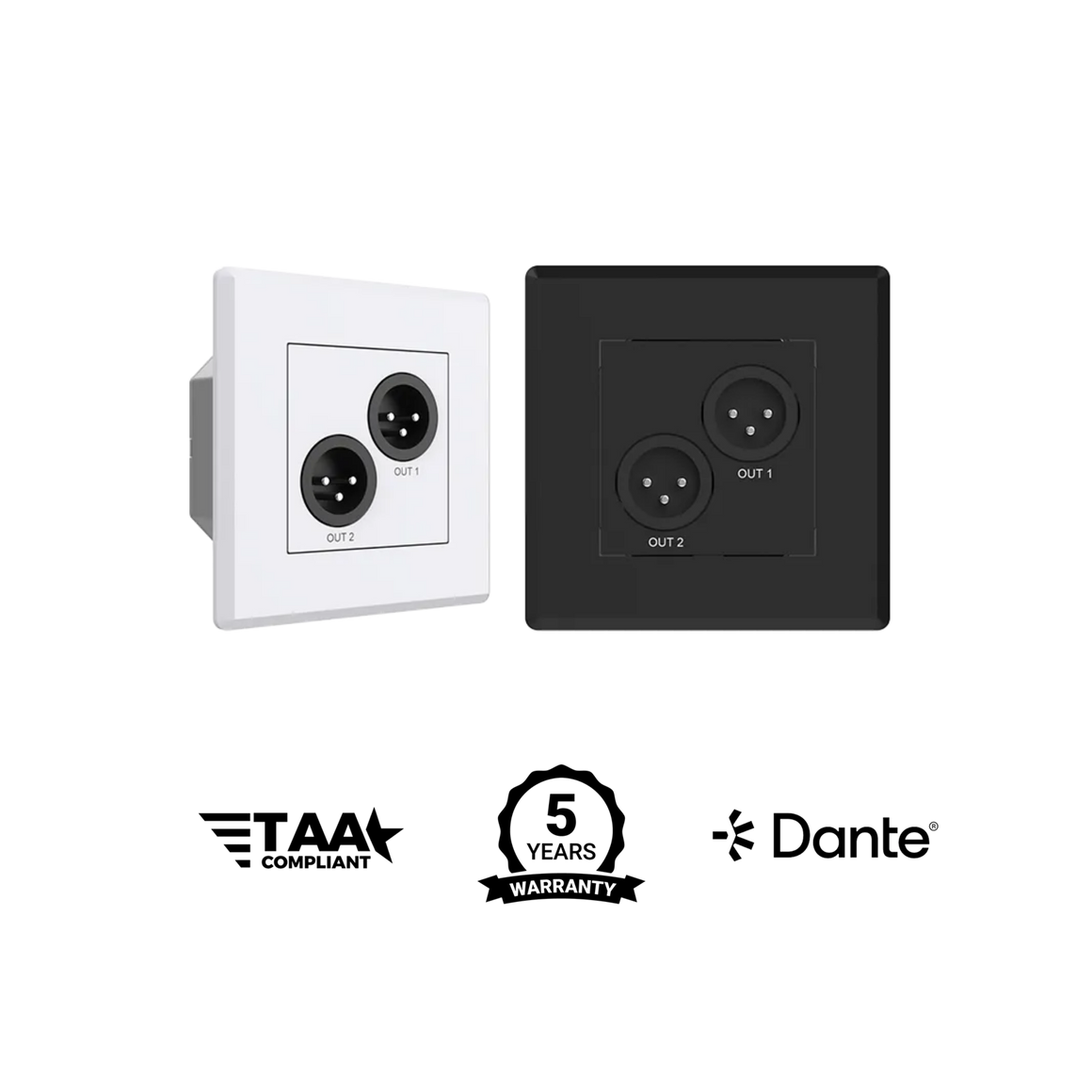

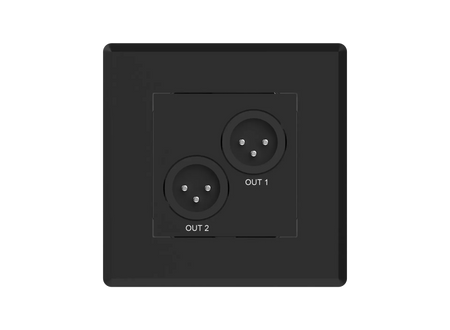

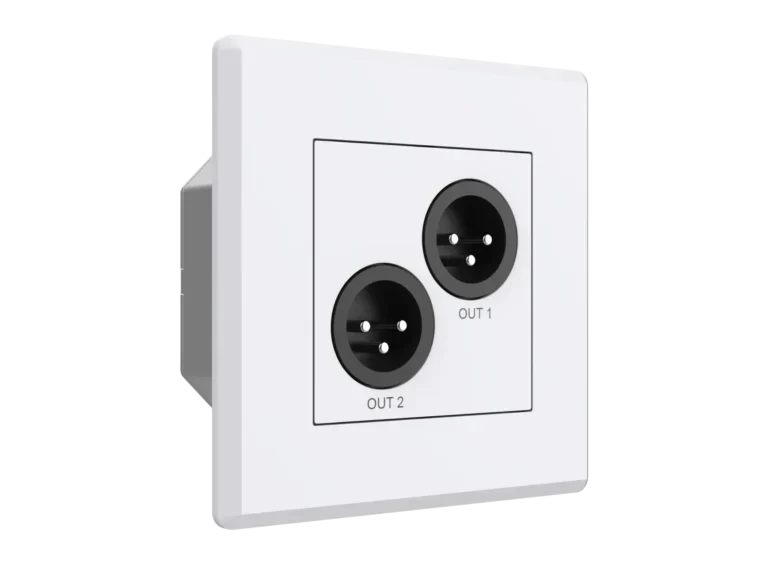

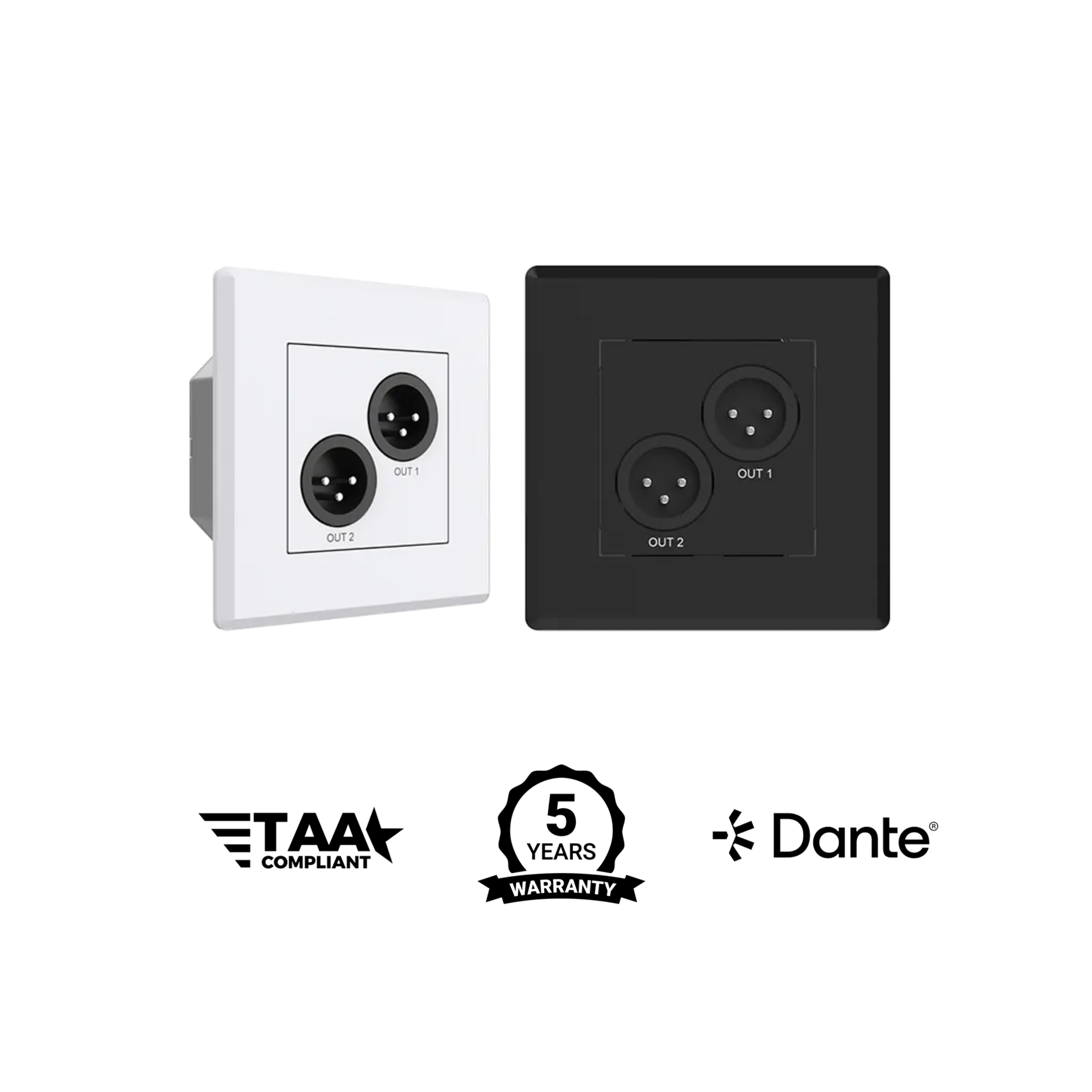

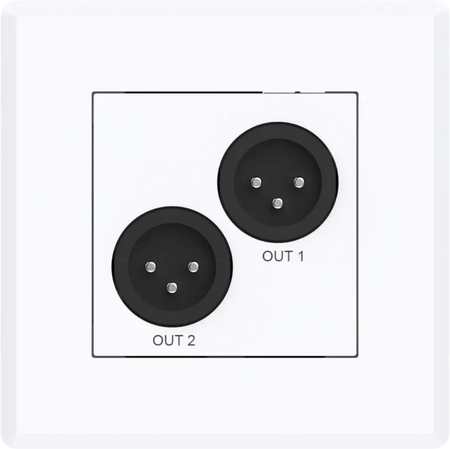

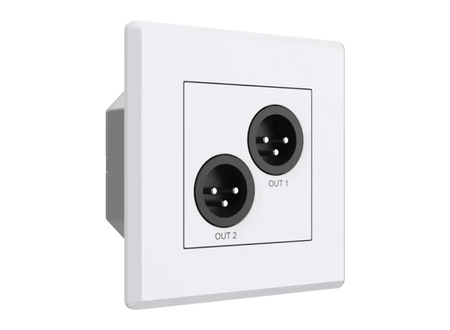

The Turtle AV Dante Dual XLR Output Wallplate — EU Wall Box (TAV-XLRWP-OUT-EU-W) converts two Dante network audio streams into balanced analogue XLR outputs in a standard EU wall box with a white finish, providing a permanent flush-mounted Dante output breakout point for European installed AV environments. Five-level per-channel output gain control, 8-band parametric EQ, and a built-in limiter DSP condition the signal before it reaches downstream amplifiers and processors, while AES67 RTP transport and configurable 1, 2, or 5ms latency ensure compatibility across any Dante or AES67 network. PoE Class 0 or 12V DC power keeps the installation to a single cable.

Highlighted Features

  • EU Wall Box, White Finish: Standard EU wall box in white for clean European corporate, education, and hospitality AV installations
  • Dual XLR Output with 5-Level Gain: 2× balanced XLR outputs with per-channel output/gain control — ideal for feeding amplifiers and processors from the wall
  • Limiter and 8-Band EQ DSP: Built-in limiter and parametric EQ at the output stage — protects downstream equipment and shapes the output signal
  • AES67 RTP Transport: Full AES67 compatibility for mixed-vendor Dante and AES67 European AV networks
  • PoE Class 0 or 12V DC: Single cable from the switch — no EU power socket required at the wall

The Turtle AV Dante Dual XLR Output Wallplate — EU Wall Box is the ideal solution for European AV installations requiring a permanent, white-finish Dante audio output point at the wall — feeding amplifiers, processors, and recording interfaces directly from Dante without rack space or additional cabling.

In stock
£660.00

Secure Checkout

Warranty Protection

14 - Day Returns

The Turtle AV Dante Dual XLR Output Wallplate — EU Wall Box provides a permanent, flush-mounted Dante audio output point in a white EU wall box, converting Dante network streams into balanced XLR analogue signals at the wall for European installations. The built-in limiter, 8-band parametric EQ, and five-level output gain control condition the signal before it reaches downstream amplifiers and processors, and AES67 RTP transport with configurable latency ensures compatibility in any Dante network. PoE Class 0 or 12V DC powers the device from the network switch.

Key Features

  • EU 1-Gang Wall Box, White: Standard EU form, white finish for corporate, education, and hospitality EU environments

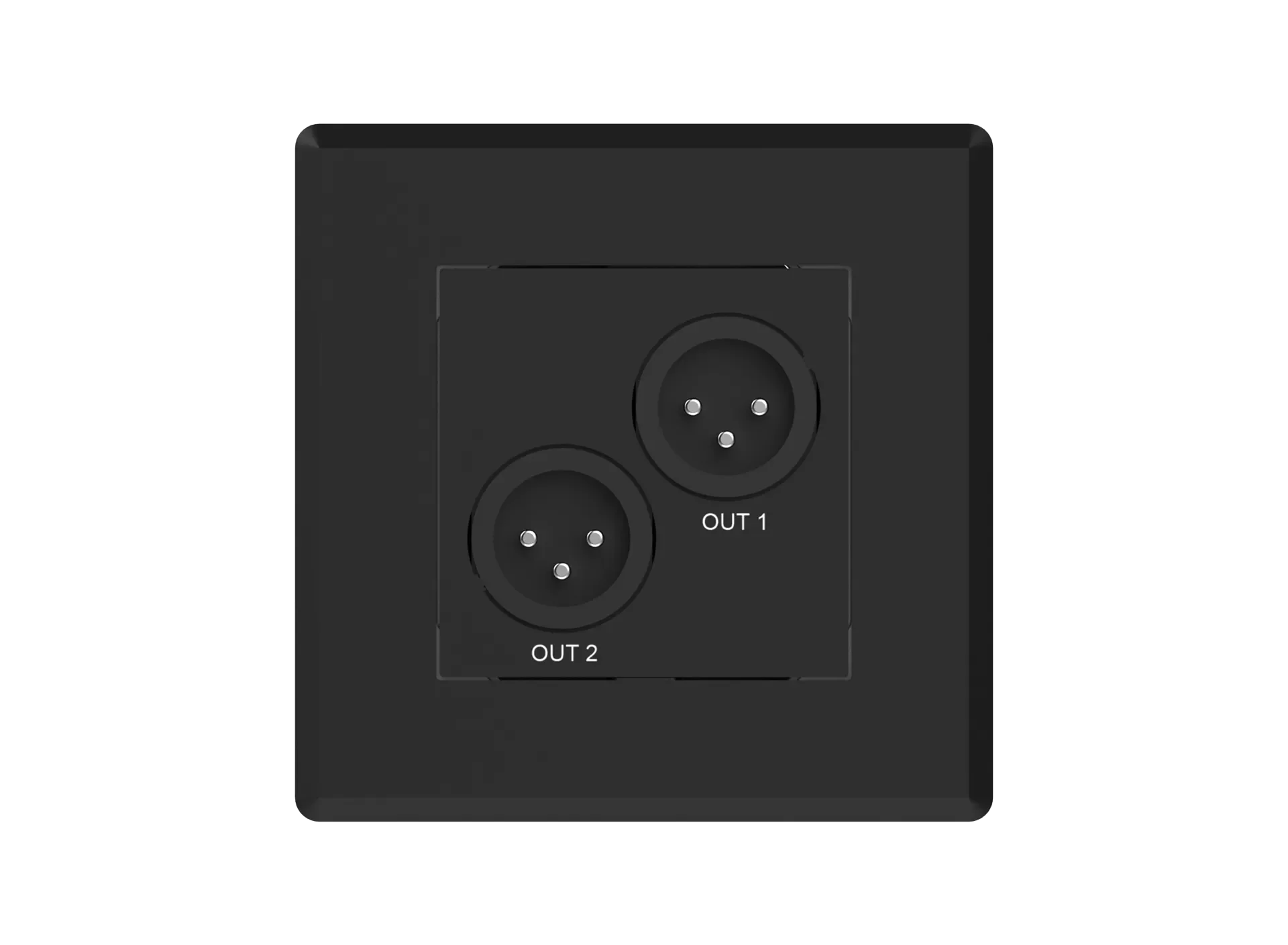

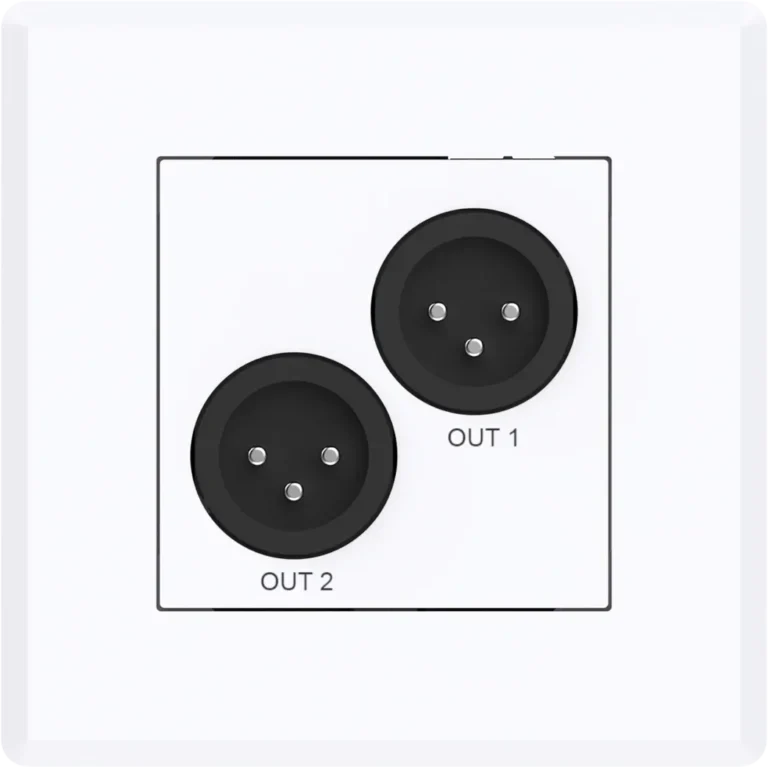

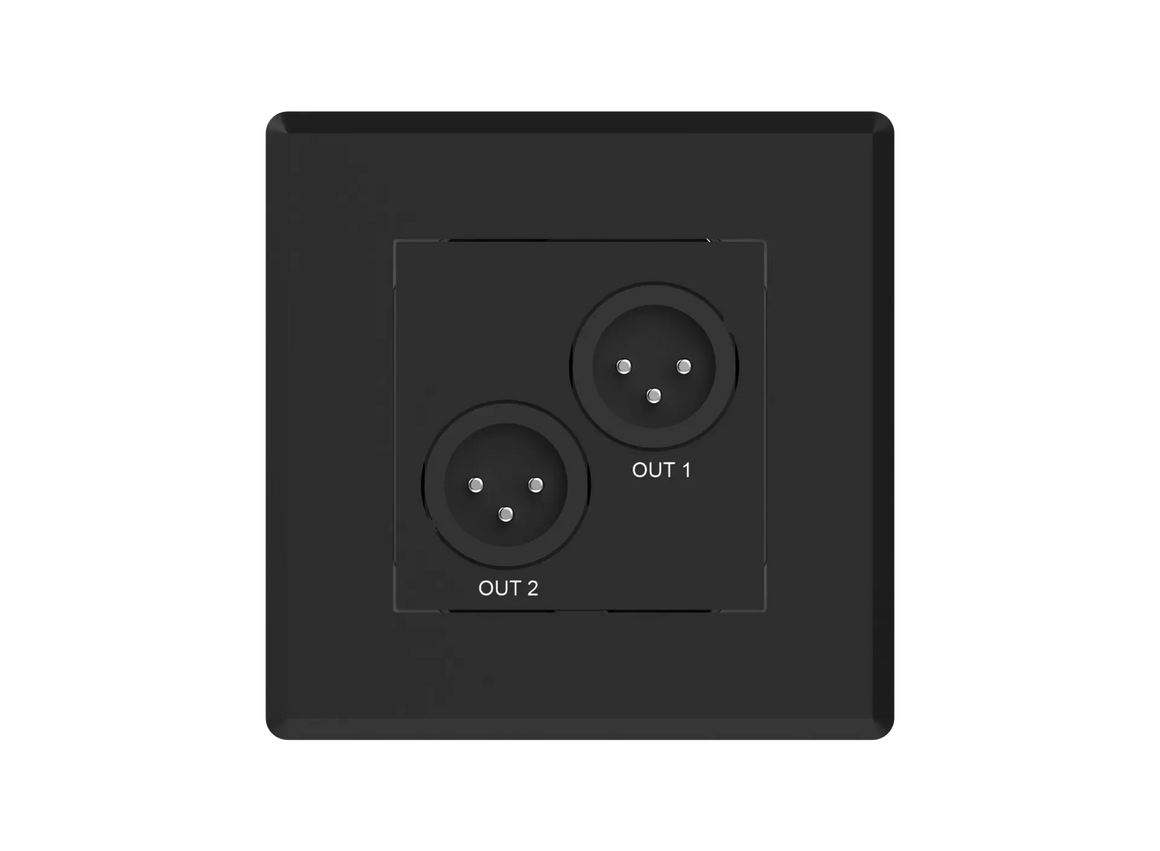

  • 2× Balanced XLR Output: Converts two Dante streams to balanced XLR analogue for amplifiers and processors
  • 5-Level Output Gain: Per-channel output level control for matching downstream equipment
  • 8-Band Parametric EQ: Built-in EQ for output frequency shaping at the wall
  • Limiter DSP: Protects downstream equipment from signal overload
  • 1, 2, or 5ms Latency: Dante Controller configurable for network timing alignment
  • AES67 RTP Transport: Full AES67 compatibility in mixed Dante and AES67 networks
  • PoE Class 0 IEEE 802.3af: Single cable from the network switch — no local EU socket required
  • White Finish: Clean white finish for modern EU AV installations

Specifications

Audio Channels 2CH Dante and XLR
Audio Output 2× XLR with 5-level output/gain control
DSP Processing Built-in DSP — limiter and 8-band parametric EQ
Sample Rates 44.1kHz, 48kHz and 96kHz at 24-bit
Audio Latency 1, 2, or 5ms configurable via Dante Controller
Audio Transport AES67 RTP audio transport supported
Network Audio Dante network audio with AES67 RTP support

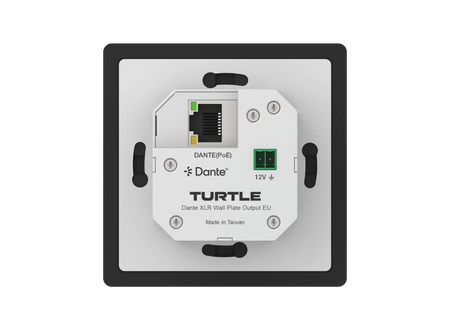

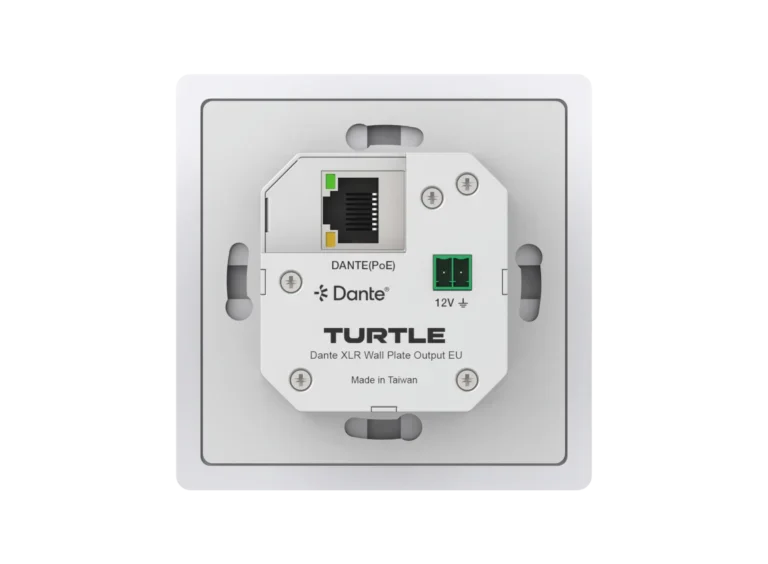

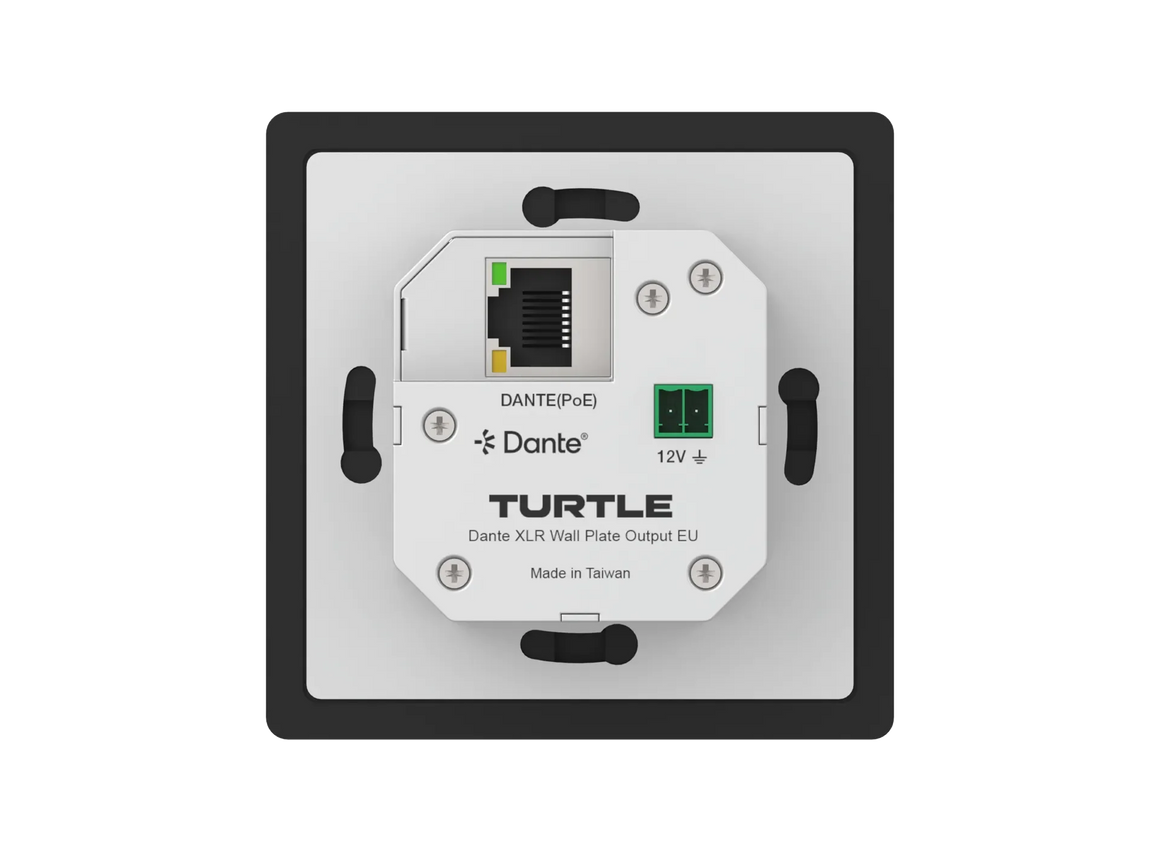

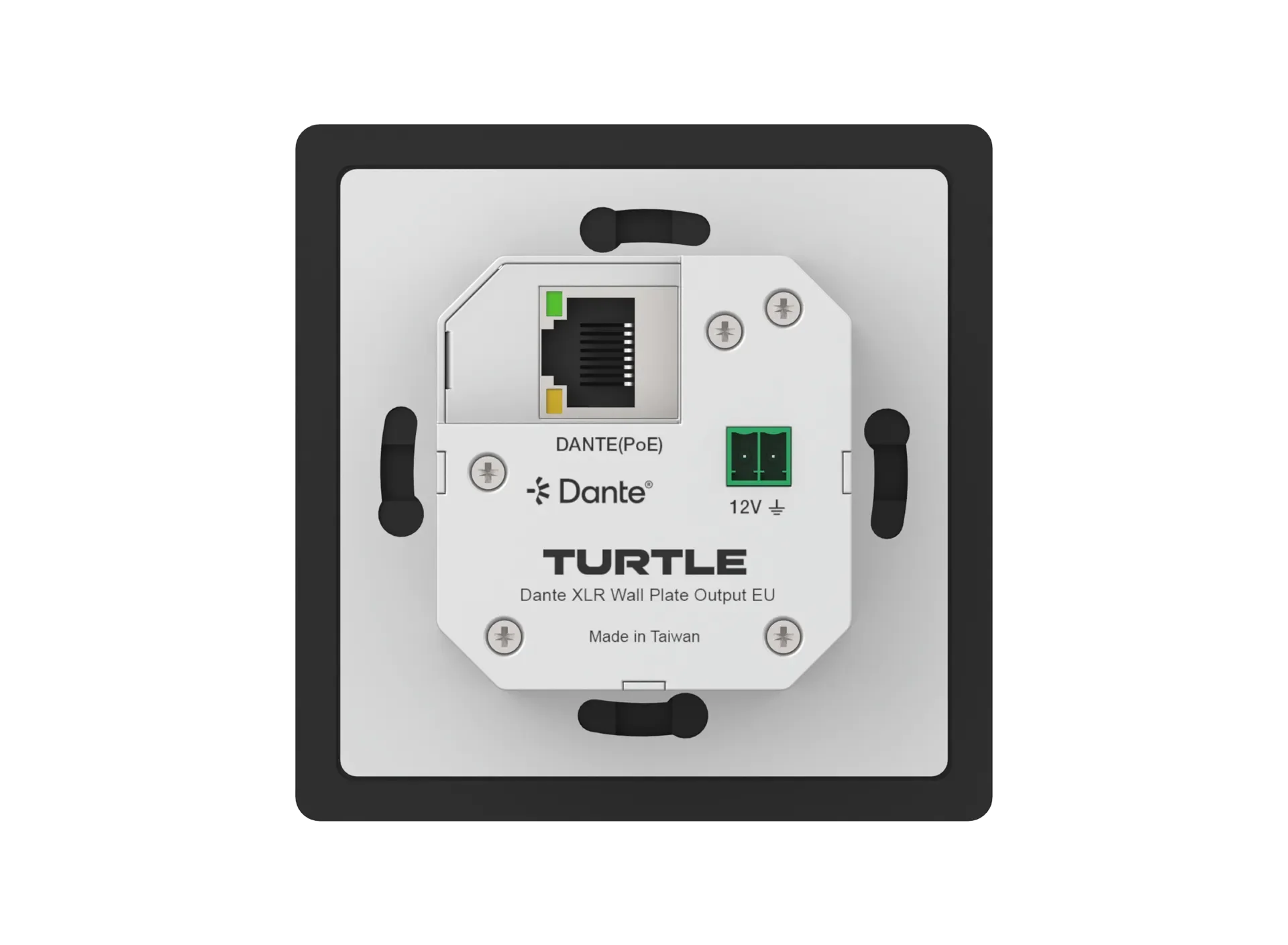

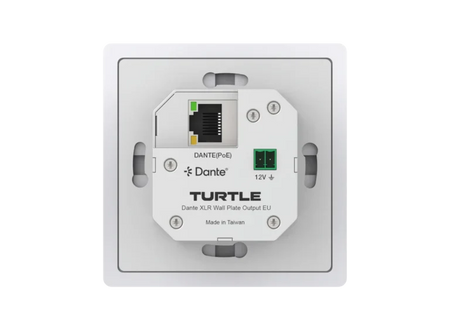

Power PoE Class 0 IEEE 802.3af, or local 12V DC
Form Factor Standard 1-Gang EU wall box
Colour White

Warranty

The Turtle AV Dante Dual XLR Output Wallplate is backed by the 5-year manufacturer warranty, providing peace of mind for professional installations.

Application Examples

EU Corporate AV Output Points Permanent white-finish Dante output wallplates feeding local amplifiers and monitors in European corporate AV infrastructure
EU Education Audio XLR output at fixed positions in EU lecture theatres and training rooms feeding PA and distributed audio systems
EU Hospitality Venues Dante output breakouts at fixed amplifier positions in European hotels, conference centres, and event spaces
Multi-Room EU Installations Permanent white Dante output points across multi-room European AV systems
