SKU: TAV-DARWIN4K-CTL

Turtle AV Darwin 4K Control — Central Management Box for Darwin 4K AV over IP

Turtle AV

Central management and switching for Darwin 4K systems

The Turtle AV Darwin 4K Control — Central Management Box for Darwin 4K AV over IP (TAV-DARWIN4K-CTL) provides centralised management, routing, and control for Darwin 4K H.265 AV over IP systems, coordinating source selection and matrix switching across all Darwin 4K TX encoders and RX decoders on the 1G network from a single device. Two 1G LAN ports — one with PoE output — connect the control box to the video distribution network and to managed encoders and decoders. Additional control ports include IR input and output for IR extender integration, a 6-pin digital I/O for contact closure control, two RS-232 ports for AV control system integration, and a Micro USB update port. The device manages routing commands across the Darwin 4K matrix via the network, removing the need for a PC or separate control software to operate the AV system. Designed for matrix AV over IP installations in corporate, education, retail, and public sector environments.

Highlighted Features

  • Centralised Matrix Routing: Routes any Darwin 4K TX source to any Darwin 4K RX display across the 1G network — the single control point for the entire Darwin 4K matrix installation
  • Dual 1G LAN with PoE Output: Two 1G LAN ports — one with PoE output — connect the control box to the network and provide power to connected Darwin 4K encoders or decoders
  • IR In and Out for Remote Control: IR input and output ports extend IR remote control signals across the AV system — ideal for equipment in racks or areas without line-of-sight
  • Dual RS-232 for AV Control Integration: Two RS-232 ports allow bidirectional control from Crestron, AMX, Extron, and other AV control systems — full matrix management from the room control system
  • Digital I/O for Contact Closure: 6-pin digital I/O for integration with contact-closure triggers — room booking panels, lighting controllers, and other building automation systems

The Turtle AV Darwin 4K Control is the ideal central management solution for Darwin 4K AV over IP matrix systems — providing routing, control, and system management for any scale of Darwin 4K installation from a single compact device on the network.

In stock
£774.00

Secure Checkout

Warranty Protection

14 - Day Returns

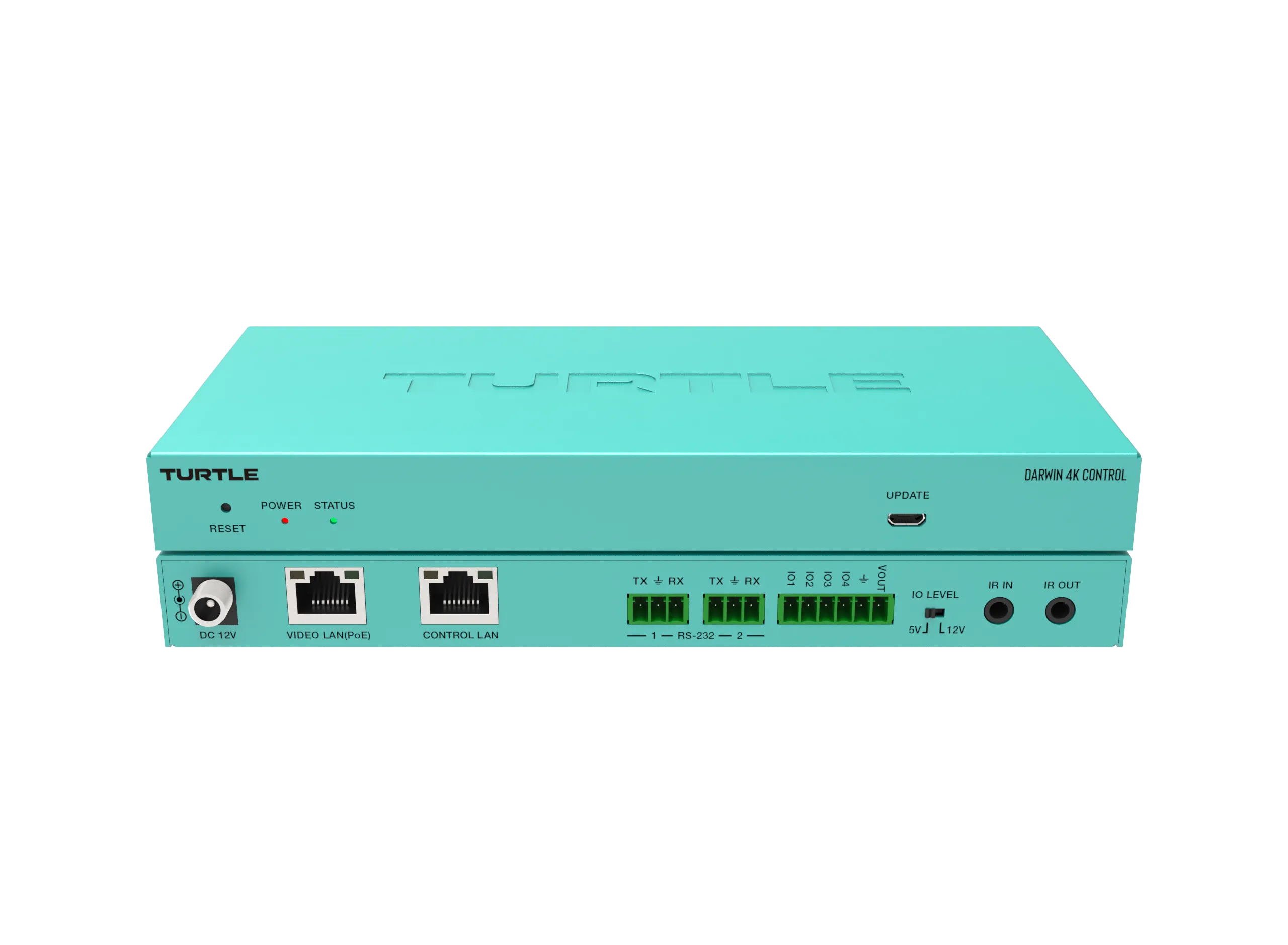

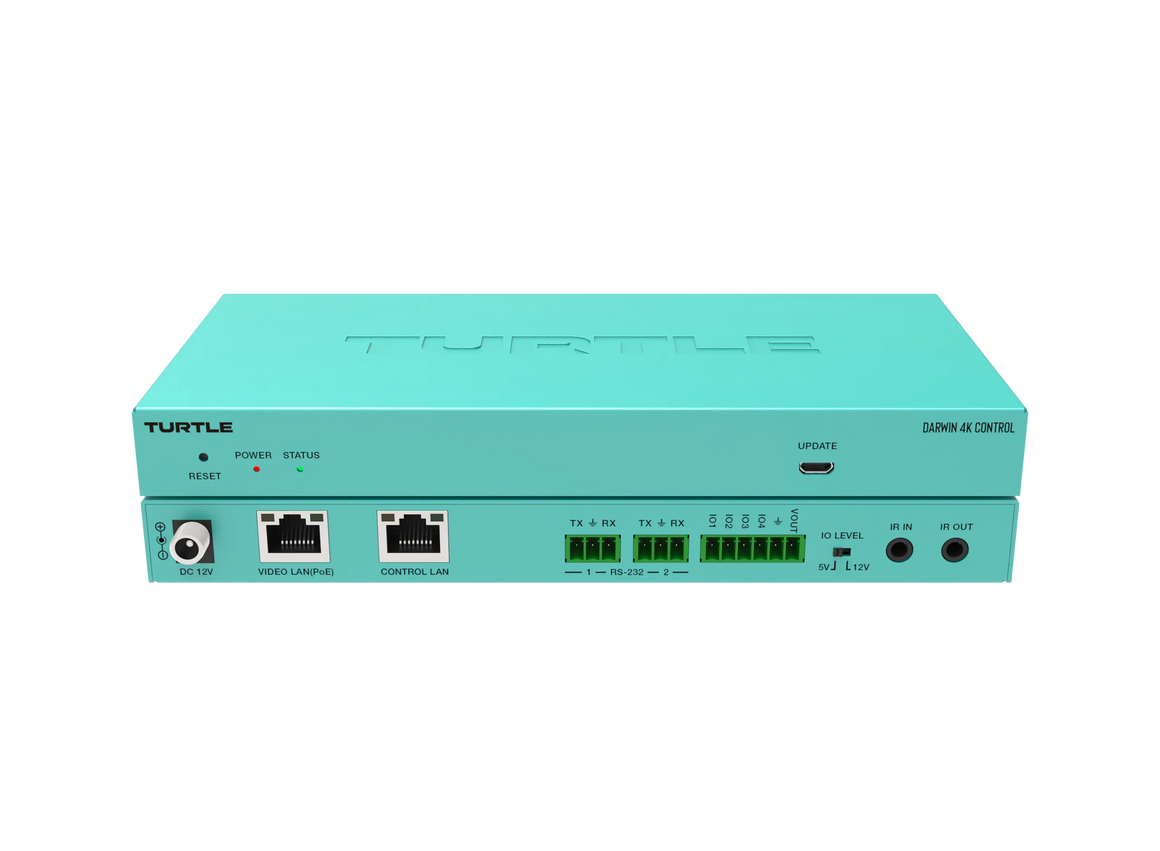

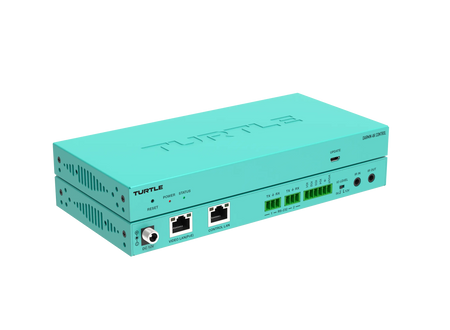

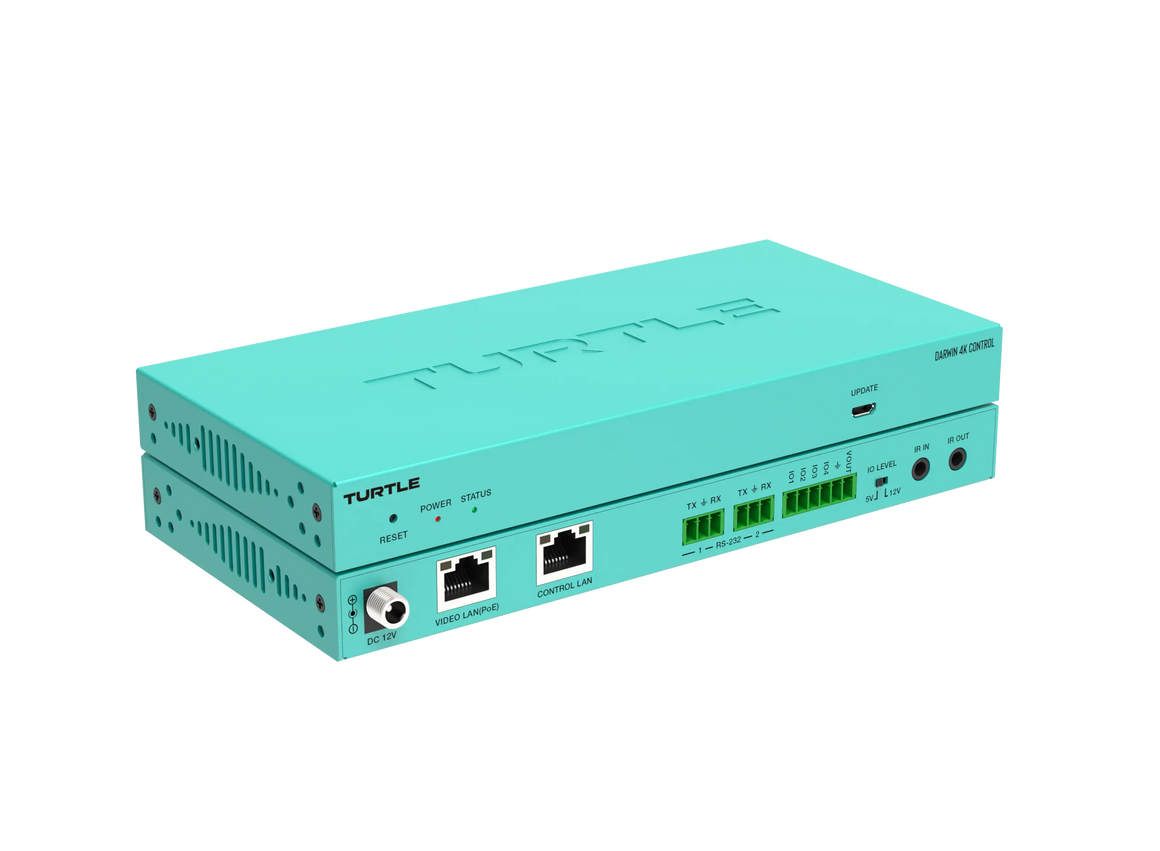

The Turtle AV Darwin 4K Control is the network controller for Darwin 4K H.265 AV over IP matrix installations, managing routing between all Darwin 4K TX encoders and RX receivers on the 1G network without requiring a permanently connected PC or control software. Two 1G LAN ports — one with PoE output — connect the box to the managed network and allow it to power connected Darwin 4K devices. An IR input, IR output, 6-pin digital I/O, and two RS-232 ports extend the control ecosystem to cover touch panels, AV control processors, IR extenders, and building automation systems. A Micro USB port handles firmware updates. At 204 × 117.5 × 21.5mm and 597g, the Control box sits in any rack, AV credenza, or equipment bay alongside the network switch.

Key Features

  • Darwin 4K Matrix Management: Central routing controller for all Darwin 4K TX/RX devices — manages any-source-to-any-display switching across the 1G network
  • 2× 1G LAN (1× with PoE Output): Dual gigabit LAN — one port provides 24V PoE output to power connected Darwin 4K devices
  • IR Input (12V Level): IR input accepts 12V-level IR signals for remote control integration at the control box location
  • IR Output (5V Level): IR output extends 5V-level IR commands to equipment in racks or closed spaces
  • 6-Pin Digital I/O: Contact closure interface for integration with lighting, room booking systems, and building automation
  • 2× RS-232 Control: Dual 3.81mm phoenix RS-232 ports for bidirectional AV control system integration

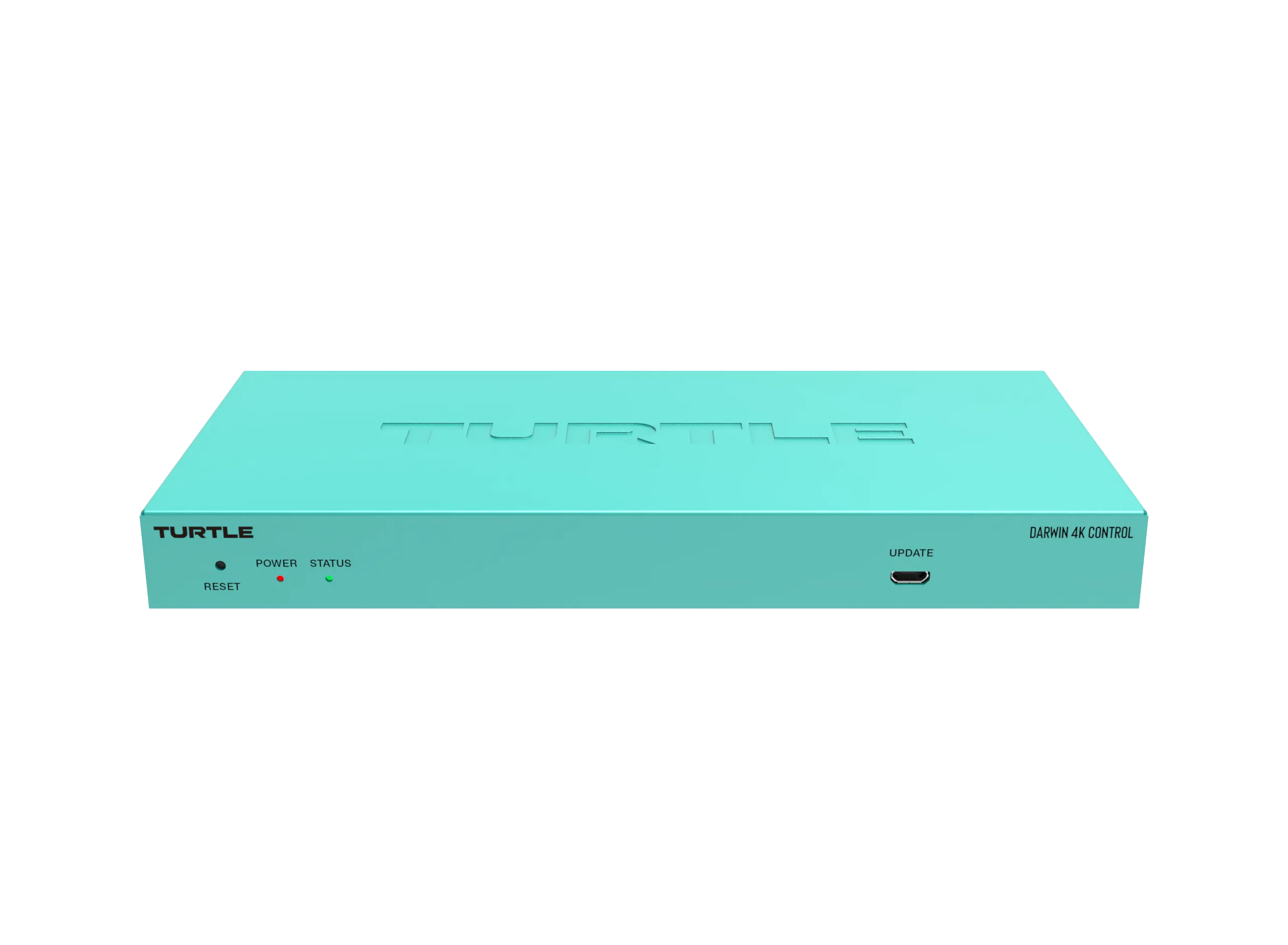

  • Micro USB Firmware Update: Micro USB port for field firmware updates without network management tools
  • 100m via CAT5e/6/6a/7: Communicates with Darwin 4K devices up to 100m away via standard CAT cable
  • Compact 204 × 117.5 × 21.5mm, 597g: Slim rack or shelf form at 597g — fits in any AV equipment bay

Specifications

Network Bandwidth 1G
Transmission Distance 100m via CAT5e/6/6a/7

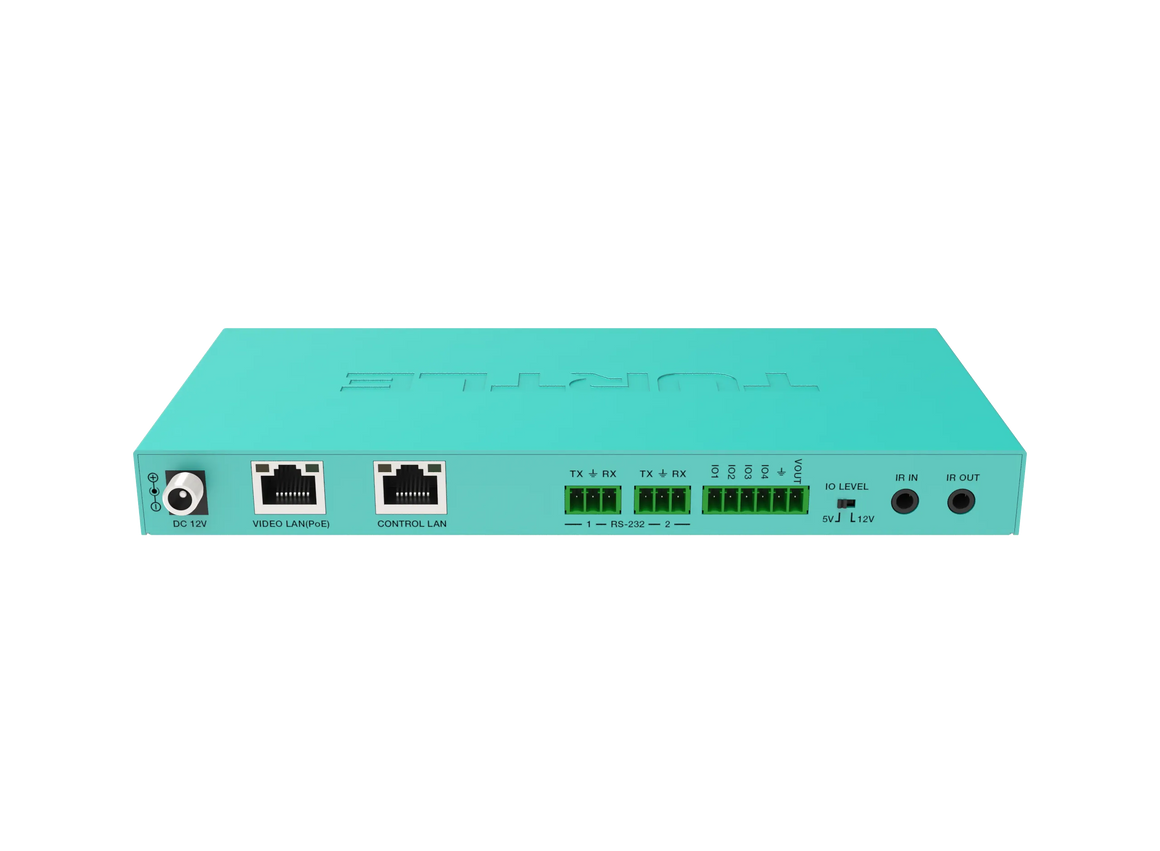

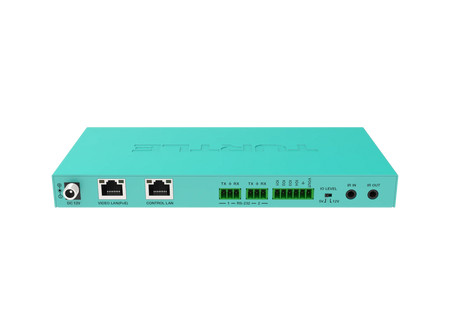

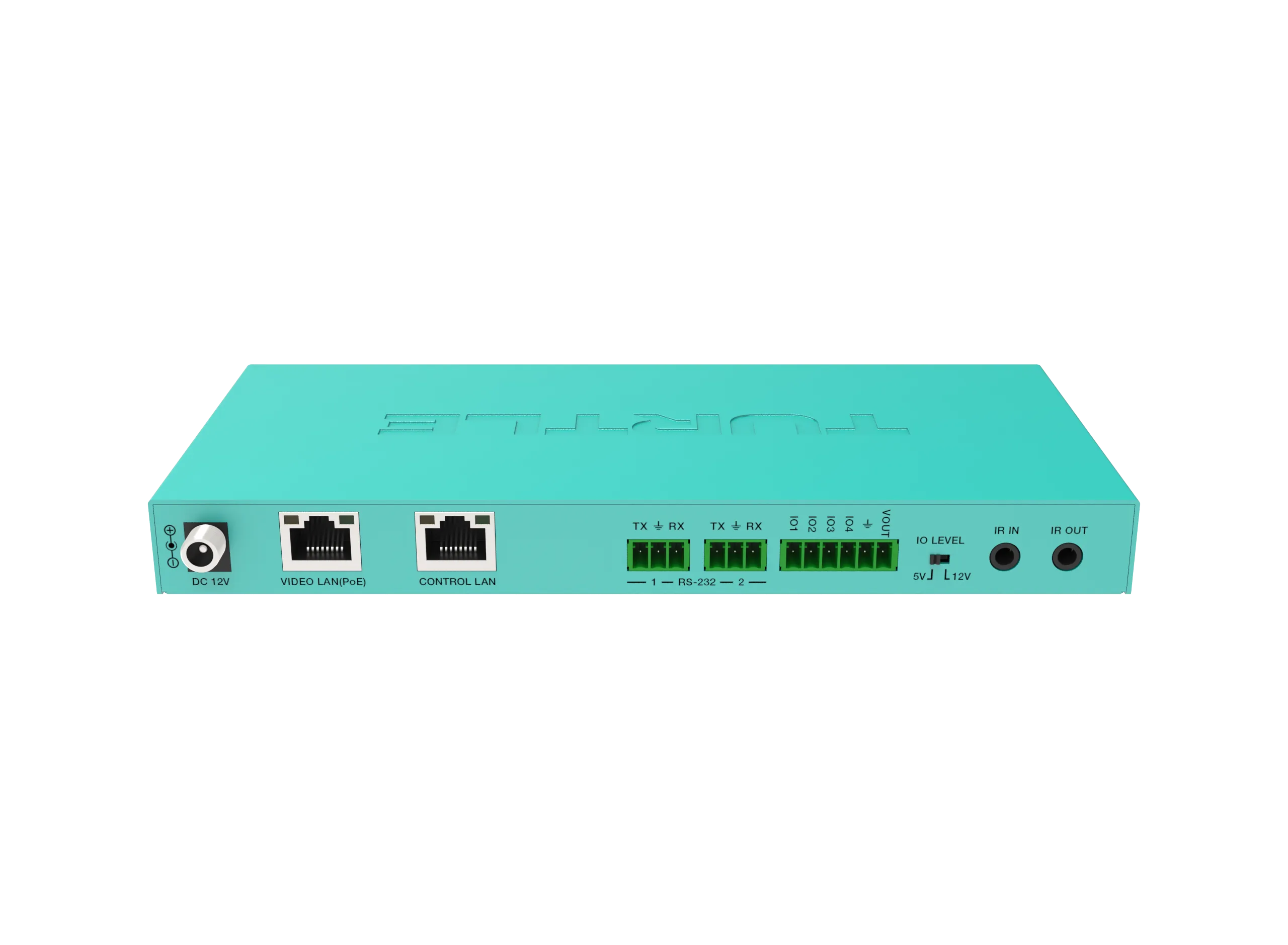

LAN 2× 1G RJ45 (VIDEO LAN supports PoE output)
IR Input 1× 3.5mm audio jack, 12V level
IR Output 1× 3.5mm audio jack, 5V level
Digital I/O 1× 6-pin 3.81mm phoenix connector
RS-232 2× 3-pin 3.81mm phoenix connector
Firmware Update 1× Micro USB 5-pin female
Housing Metal enclosure, Turtle Aqua
Dimensions 204 × 117.5 × 21.5mm
Weight 597g
Power Supply 12V/2.5A
Power Consumption 6.84W

Warranty

The Turtle AV Darwin 4K Control is backed by the 5-year manufacturer warranty, providing peace of mind for professional installations.

Application Examples

Corporate Matrix AV System Central routing control for a corporate building AV matrix — any conference room source to any display, managed from the AV control system via RS-232
Education Campus AV Management Single control point for routing lecture and media sources across a campus Darwin 4K distribution network — integrated with the campus AV control system
Digital Signage Management Manages source-to-screen routing for a Darwin 4K digital signage network — switch content sources to specific displays on schedule or on demand
Integrated Room Control RS-232 and digital I/O connect the Darwin control to touch panels, room booking systems, and lighting — coordinating AV routing with the rest of the room automation
