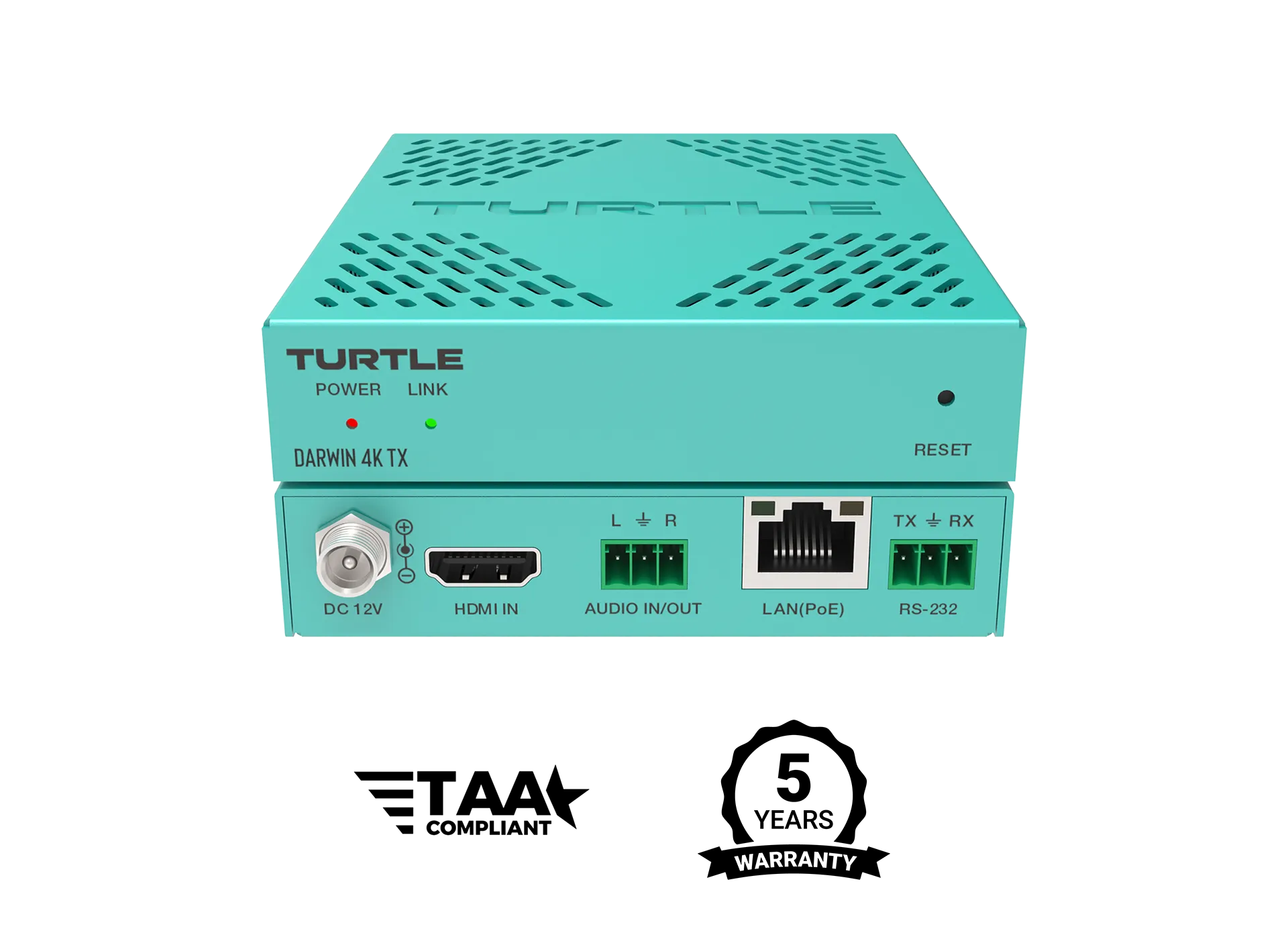

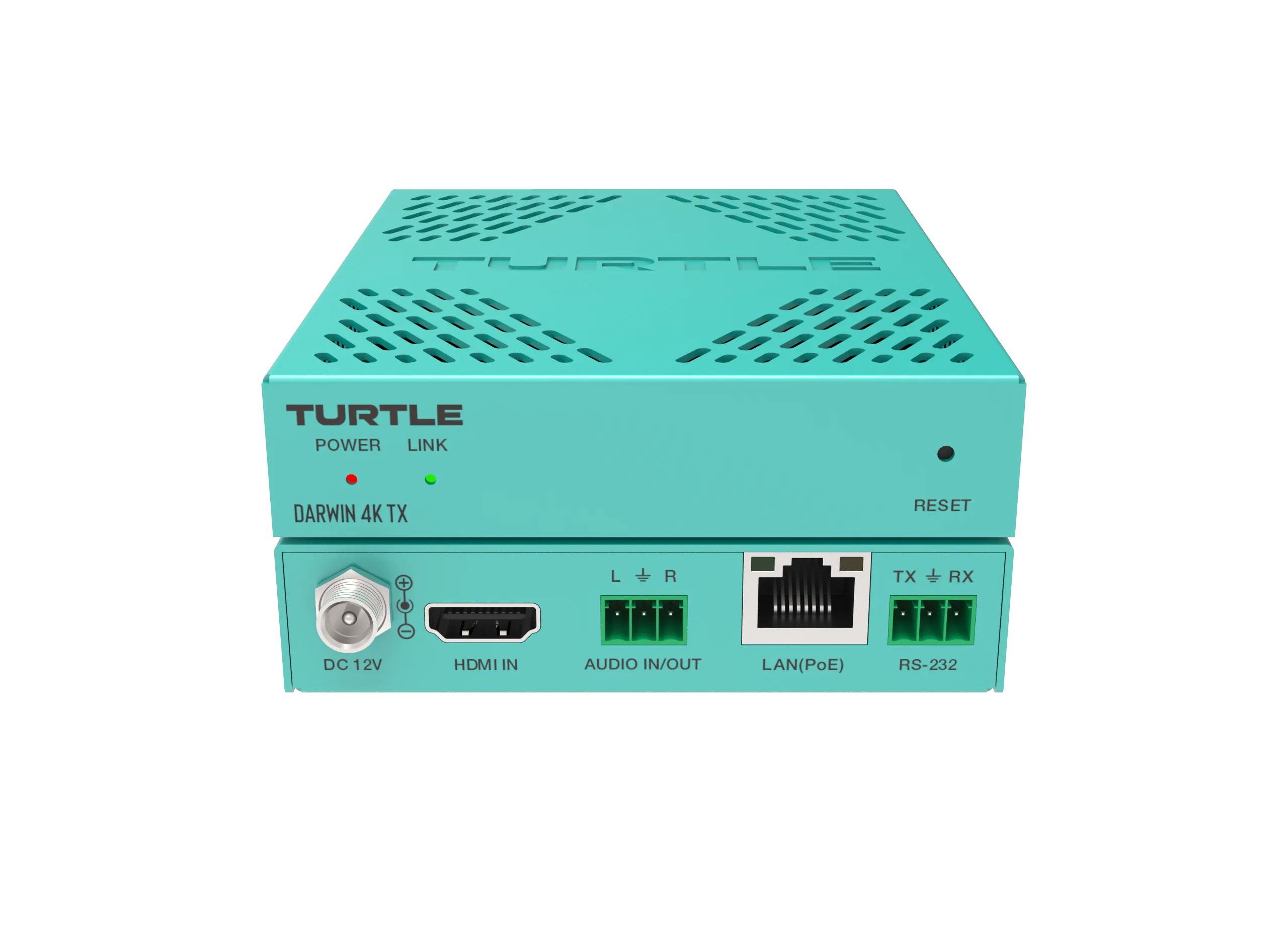

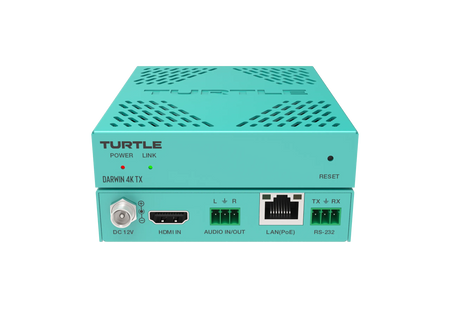

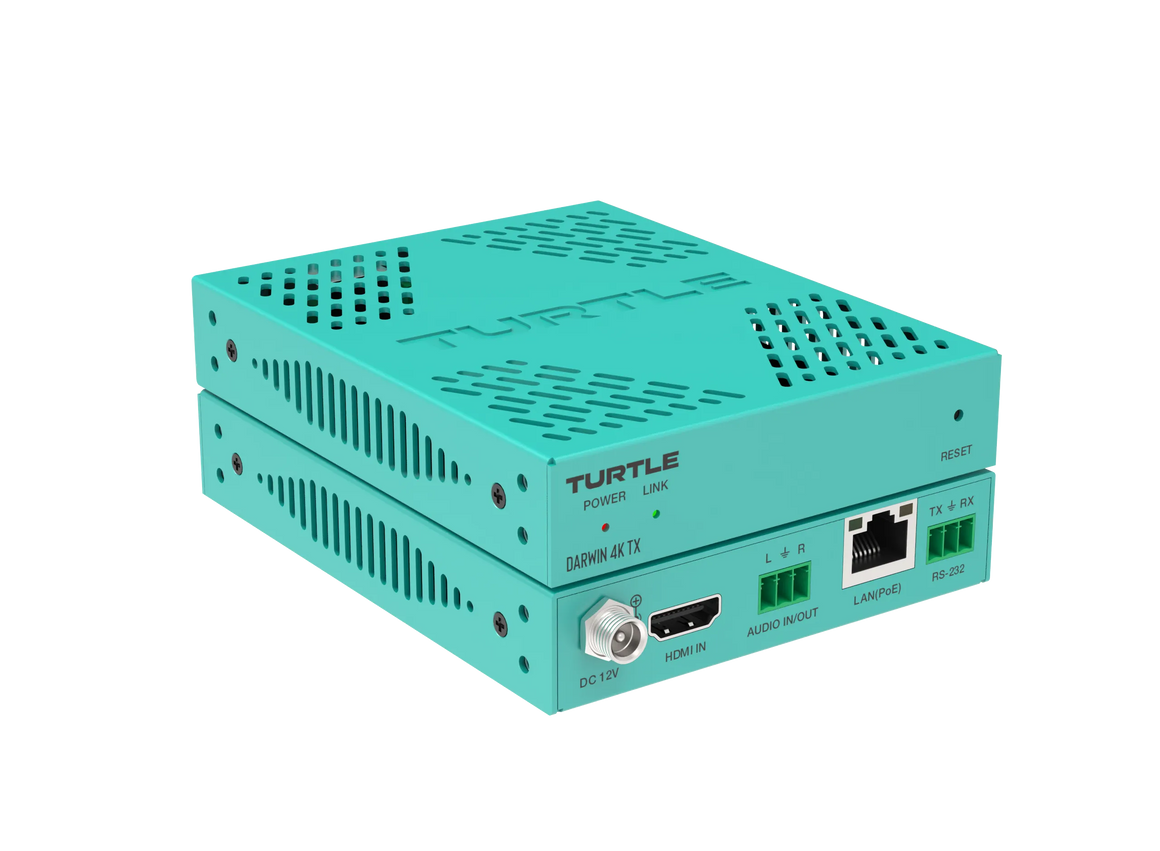

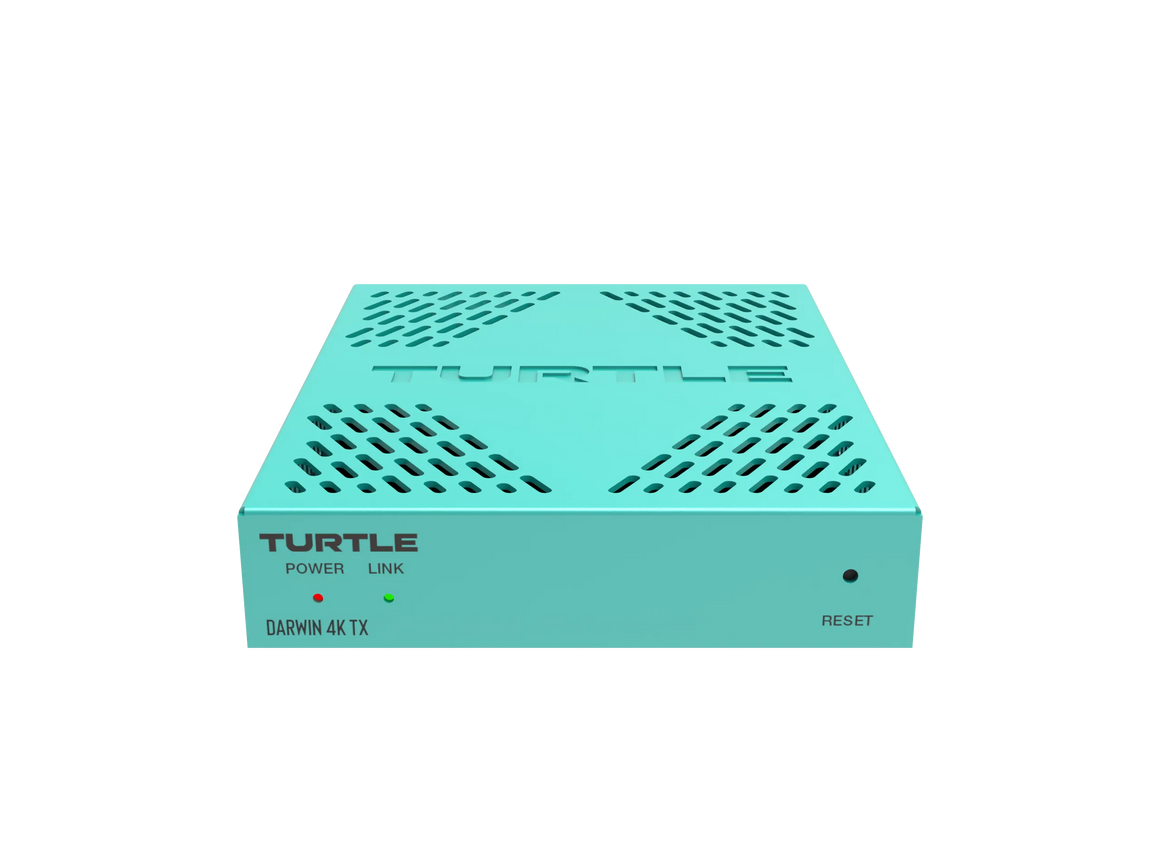

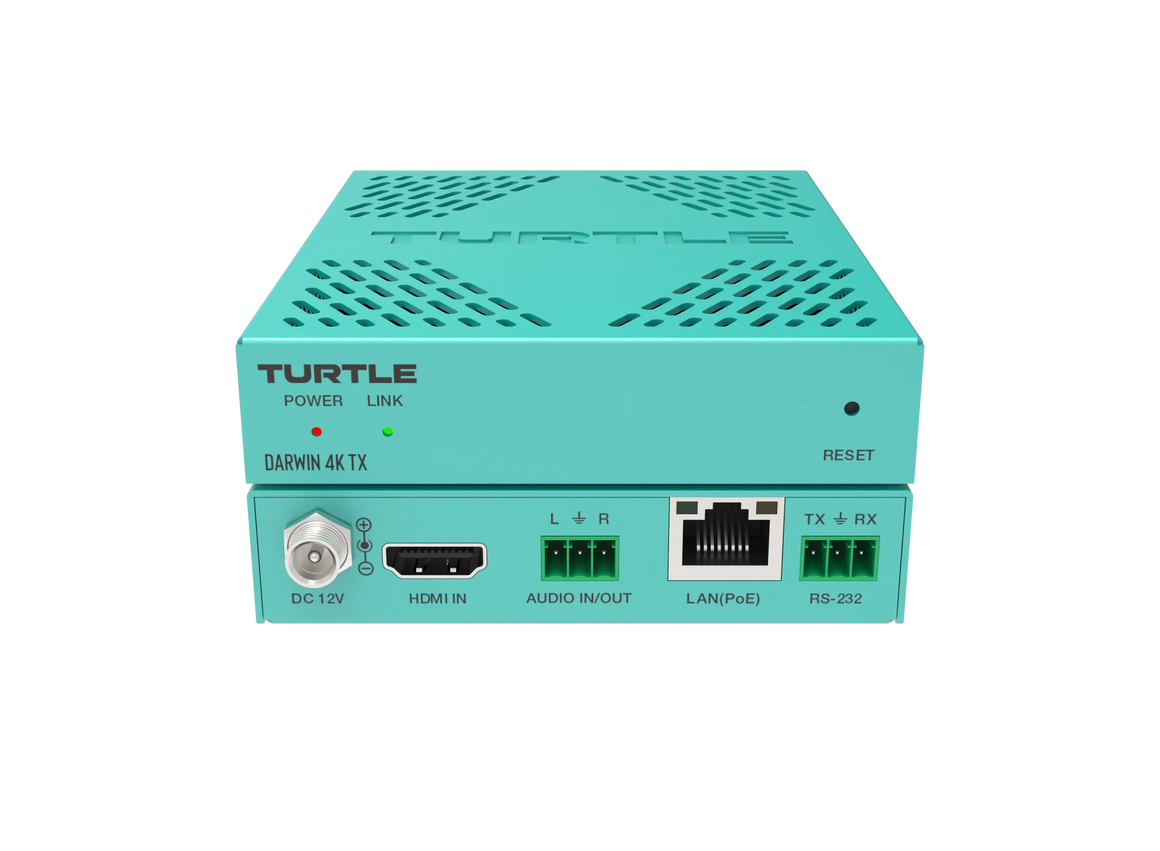

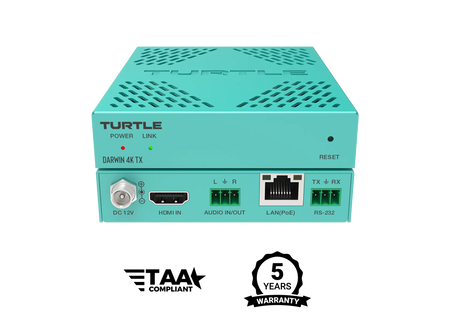

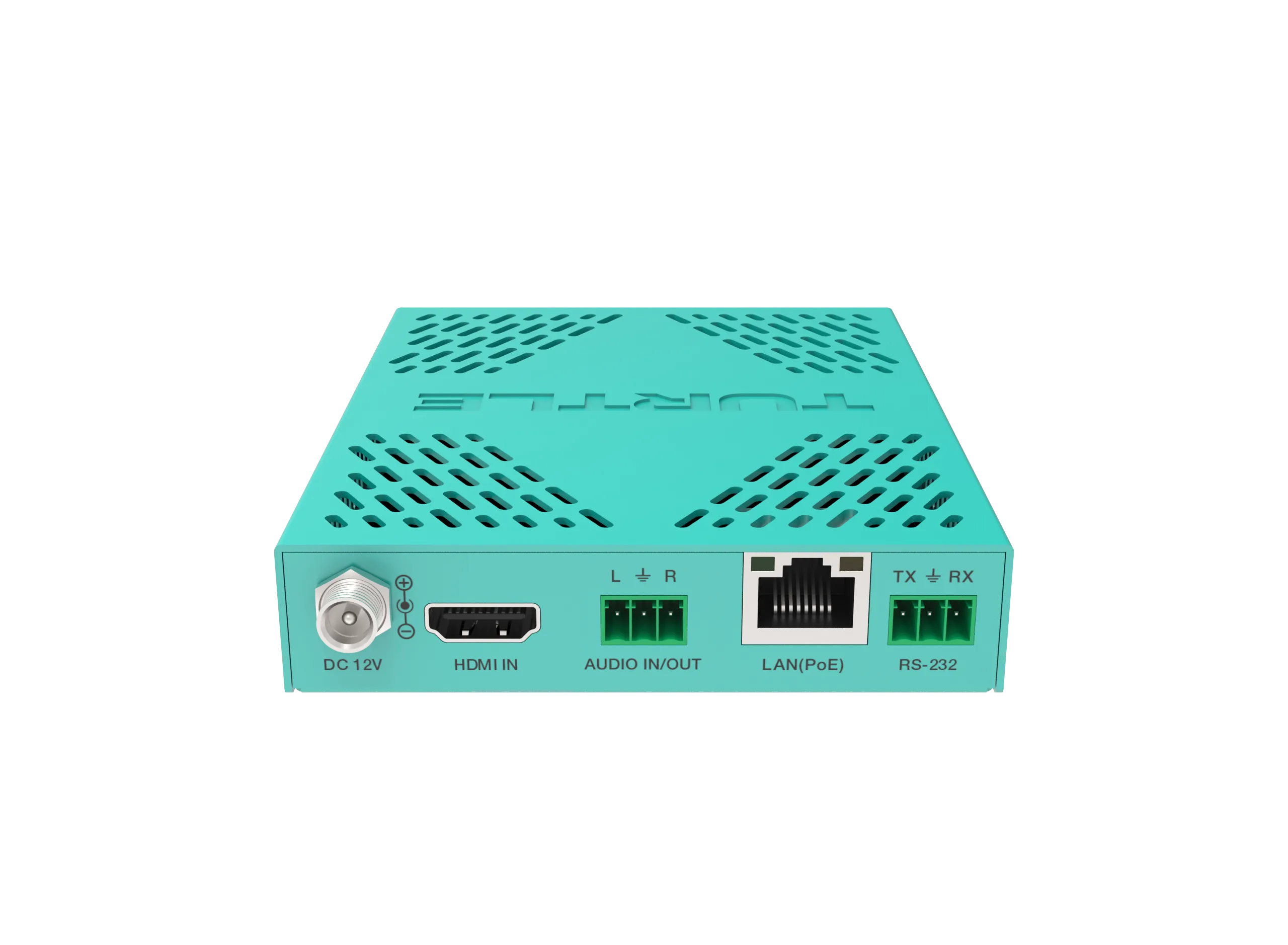

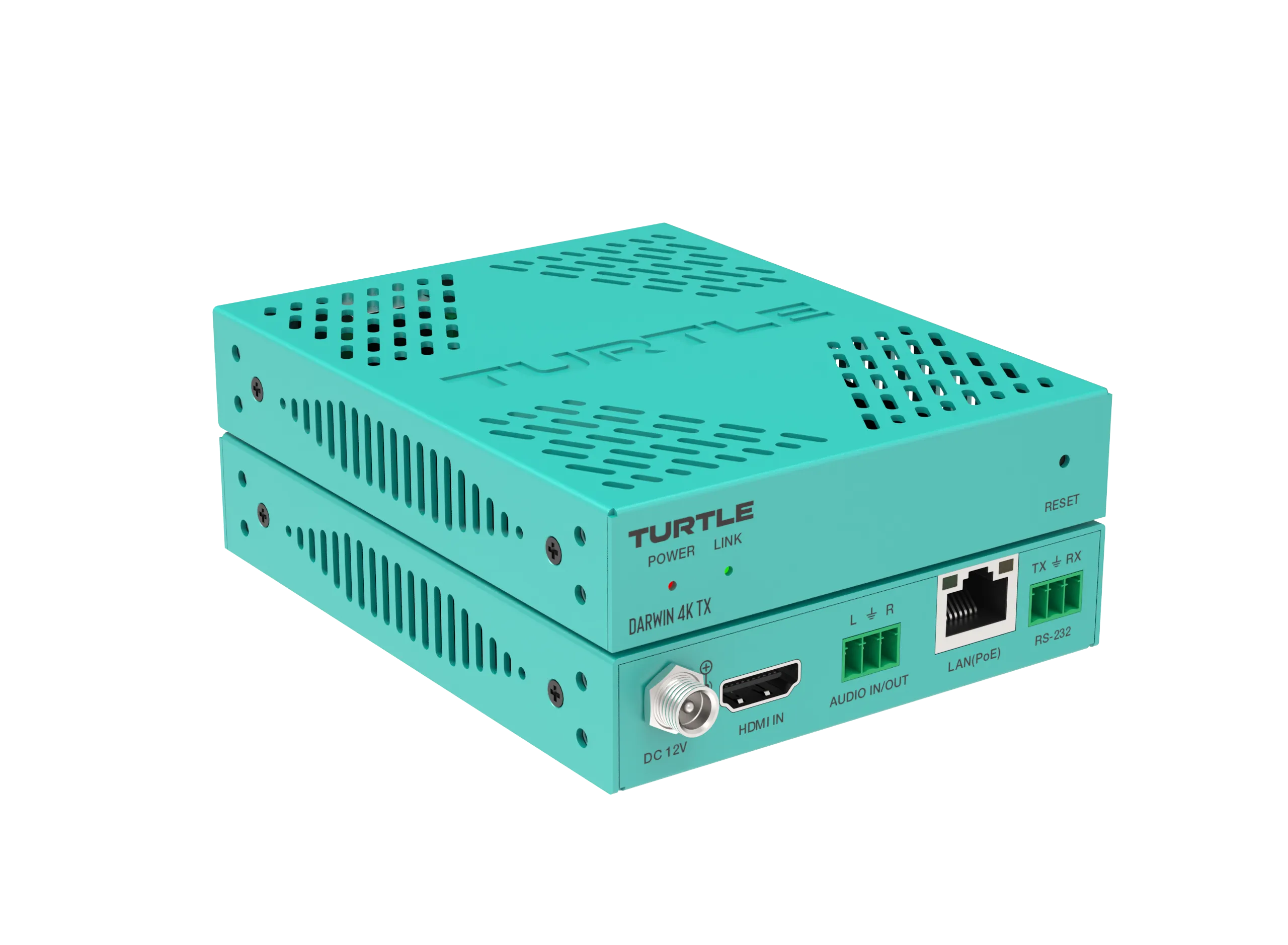

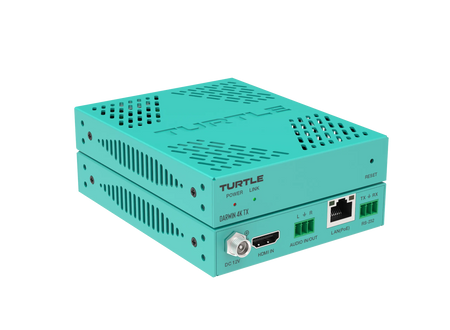

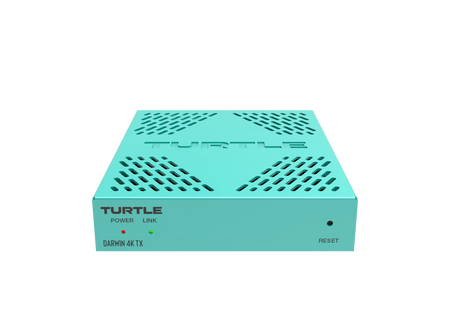

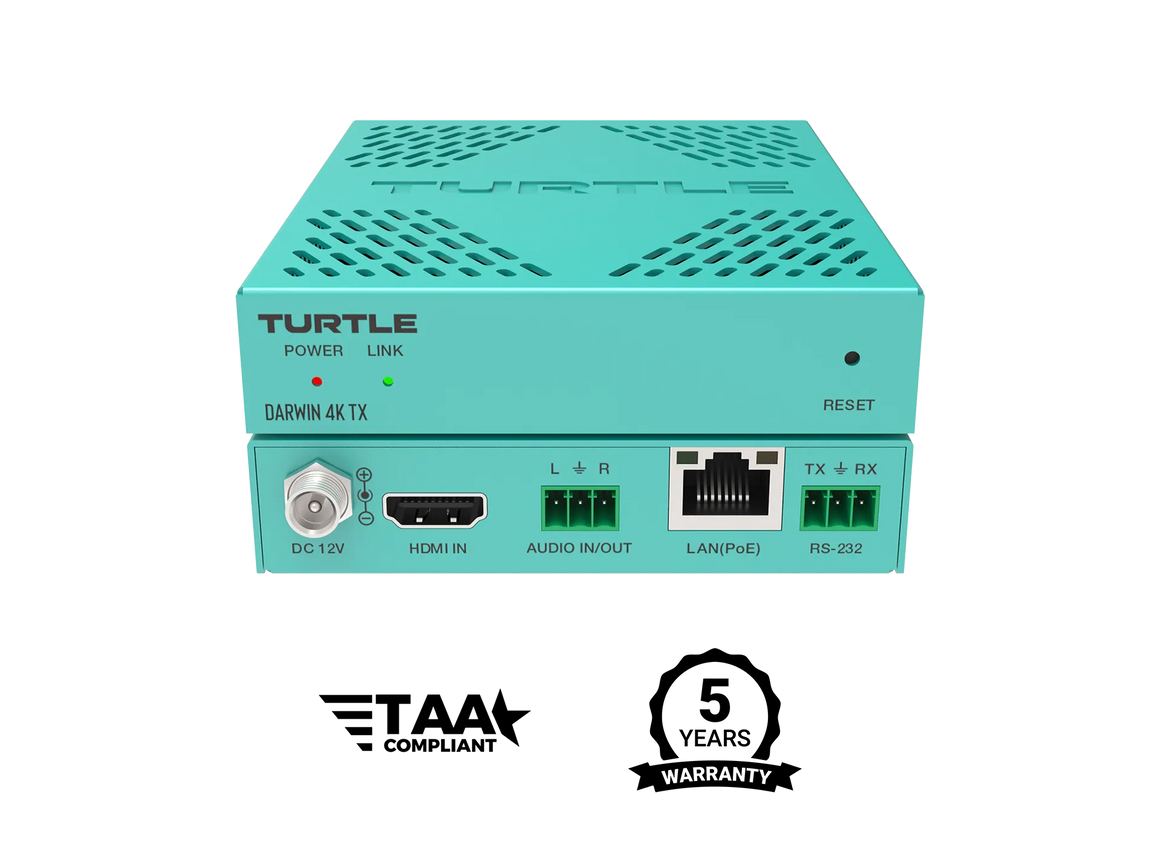

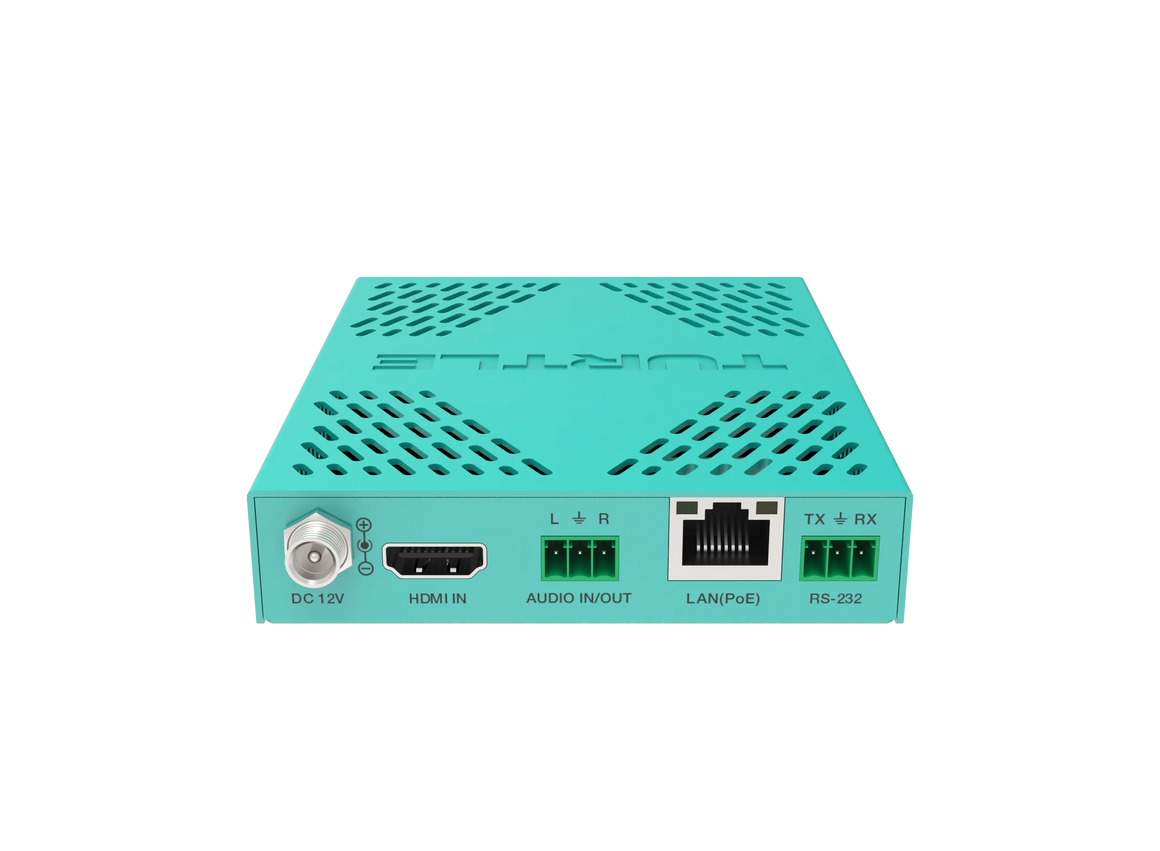

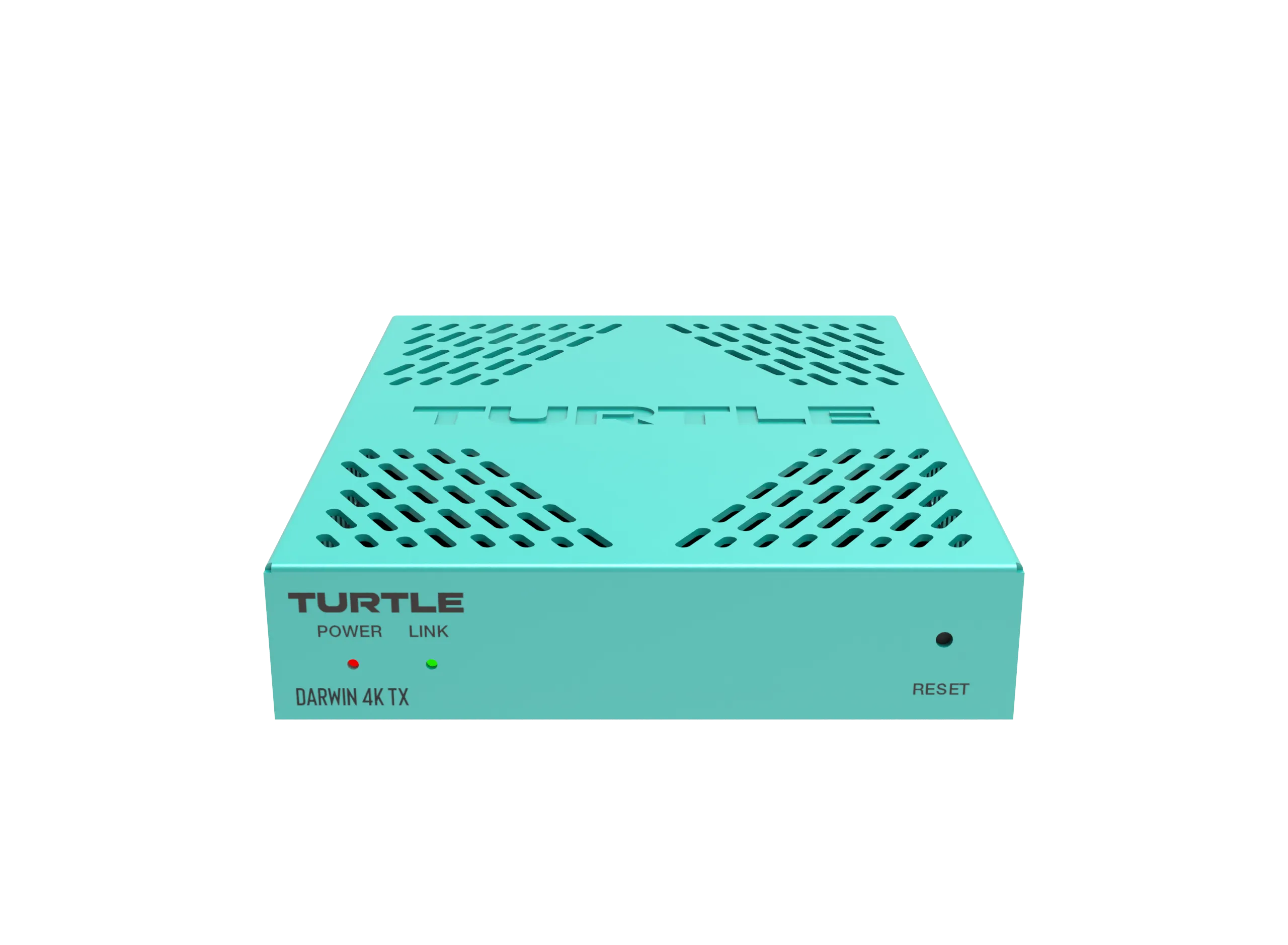

Turtle AV Darwin 4K TX — H.265 HDMI 4K AV over IP Transmitter
H.265 4K AV over IP HDMI transmitter, PoE
Secure Checkout
Warranty Protection
14 - Day Returns
The Turtle AV Darwin 4K TX is an H.265/H.264 AV over IP encoder that takes an HDMI 1.4 source — up to 4K at 30Hz — and distributes it as a network stream across a standard 1G LAN to any Darwin 4K RX receiver in the system. H.265 compression enables efficient bandwidth use while maintaining HDCP 1.4 compliance, and analogue audio in and out via 3.5mm phoenix connectors complement the digital HDMI signal. PoE on the LAN port eliminates local power supplies at encoder positions, and RS-232 integrates with AV control systems for matrix switching and source selection commands. With 100m reach over standard CAT cable, the Darwin 4K TX is the scalable, infrastructure-friendly encoder for multi-room and enterprise AV over IP.
Key Features
- H.265/H.264 Encoding: Encodes HDMI video up to 4K30 using H.265 or H.264 for efficient 1G network distribution
- HDMI 1.4 Input, HDCP 1.4: HDMI 1.4 source connection with HDCP 1.4 content protection compliance
- Up to 4K30 Input Resolution: Input resolutions from 480p to 3840×2160@30Hz — full HD and 4K sources supported
- 1G Network Distribution, 100m CAT: Transmits over CAT5e/6/6a/7 up to 100m on a standard 1G network
- Text Mode: 1–2 Frames Latency: Near-real-time latency in text mode for KVM and IT content distribution
- PoE LAN — No Local Power Required: PoE on the RJ45 port powers the encoder from the network switch without a local power supply
- Analogue Audio I/O: 3.5mm phoenix audio in and out for analogue audio integration alongside HDMI
- RS-232 Control: Serial port for AV control system commands and matrix integration
- Compact 95 × 120 × 21.5mm, 305g: Ultra-slim low-profile form factor for discreet mounting behind displays or in cable channels
- H.265 Bandwidth Efficiency: H.265 compression delivers 4K video at lower network bandwidth than MJPEG-based AV over IP alternatives
Specifications
| HDMI Standard | HDMI 1.4 |
| HDCP | HDCP 1.4 |
| Video Bandwidth | 10.2Gbps |
| Video Compression | H.265 / H.264 |
| Network Bandwidth | 1G |
| Input Resolution | Up to 3840×2160@30Hz |
| Output/Stream | H.265/H.264 IP stream |
| IP Stream — 4K30 | 4:2:0 |
| IP Stream — 1080p | 4:4:4 / 4:2:2 / 4:2:0 configurable |
| Latency | Text mode: 1–2 frames; Video mode: 3–4 frames |
| Audio Formats | LPCM 2.0CH, 48kHz |
| Audio Input | 3.5mm phoenix, 10K Ohm impedance, 1Vrms max |
| Audio Output | 3.5mm phoenix, 330 Ohm impedance, 2Vrms max |
| Audio S/N Ratio | Line out 99dB; Line in 84dB @ 0dBFS 1kHz A-weighted |
| Transmission Distance | CAT5e/6/6a/7 up to 100m; HDMI passive 10m (4K30), 15m (1080p60) |
| LAN | RJ45 with PoE support |
| RS-232 | 3-pin 3.5mm phoenix |
| ESD Protection | IEC 61000-4-2: ±15kV air-gap, ±8kV contact discharge |
| Housing | Metal enclosure, Turtle Aqua |
| Dimensions | 95 × 120 × 21.5mm |
| Weight | 305g |
| Power Supply | DC 12V/1A (US/EU standard, CE/FCC/UL) — note: PSU not included by default |
| Power Consumption | 3.72W max |
| Operating Temperature | 0°C to 40°C |
Warranty
The Turtle AV Darwin 4K TX is backed by the 5-year manufacturer warranty, providing peace of mind for professional installations.
Application Examples
| Matrix AV over IP System | Deploy multiple Darwin 4K TX encoders across a building — any source to any display over the existing network, managed by the Darwin 4K Control box |
| Multi-Room Video Distribution | Distribute a 4K source — PC, media player, or satellite receiver — to displays in multiple rooms simultaneously over the building LAN |
| Digital Signage Networks | Encode content sources for distribution to Darwin 4K RX displays across a digital signage network — scalable from a handful of screens to hundreds |
| Education Campus AV | Distribute lecture content from campus sources to classroom displays across the institution's existing 1G LAN without dedicated AV cabling |
