SKU: TAV-MINEOLAMICRO

Turtle AV Mineola MICro — Dante Dual XLR Mic Preamp with DSP

Turtle AV

Compact Dante dual-channel mic preamp with 48V phantom

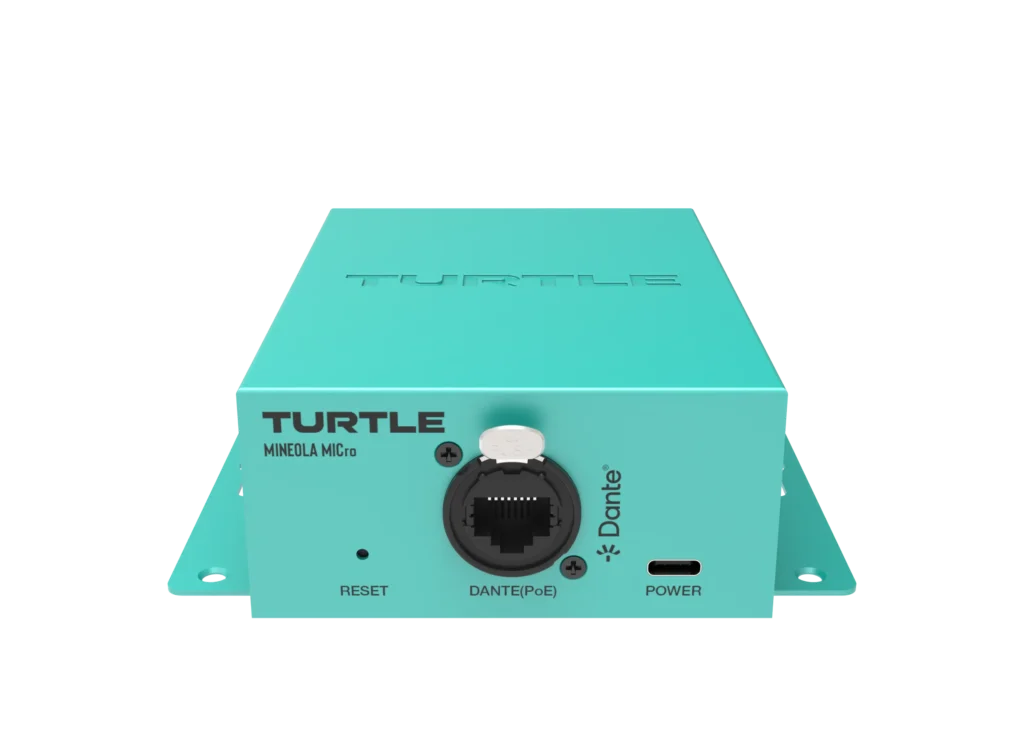

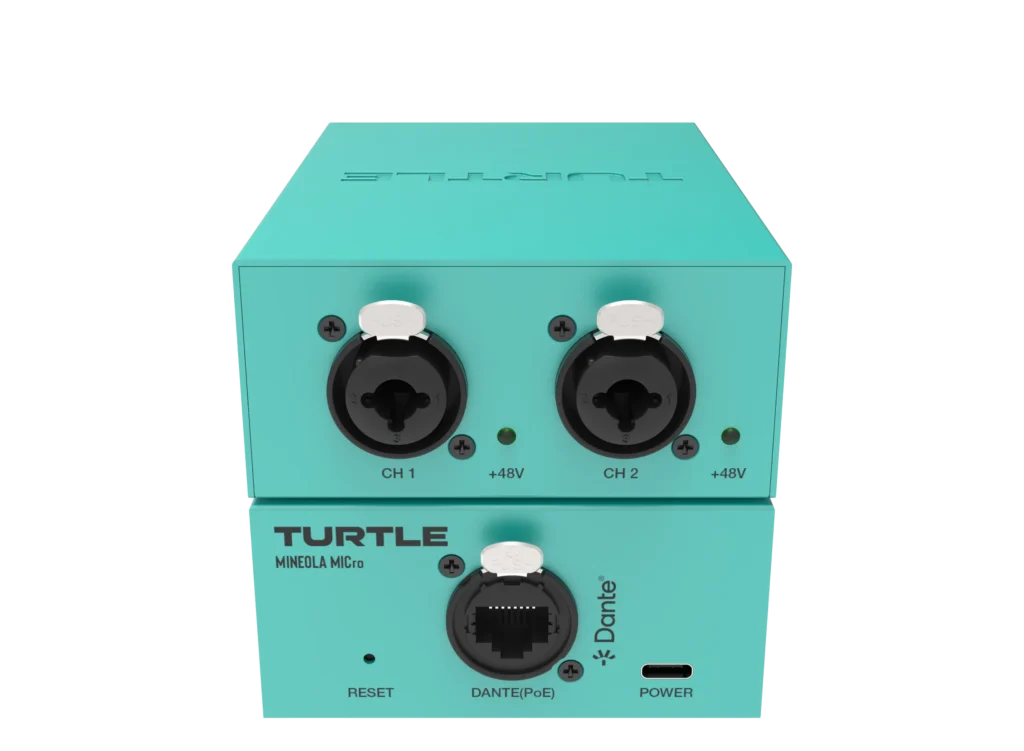

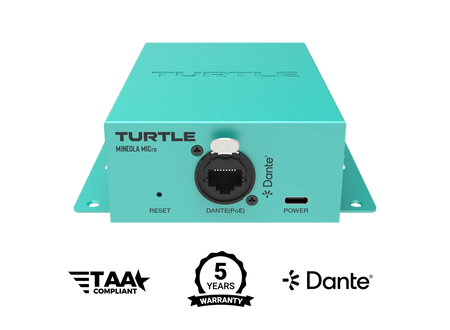

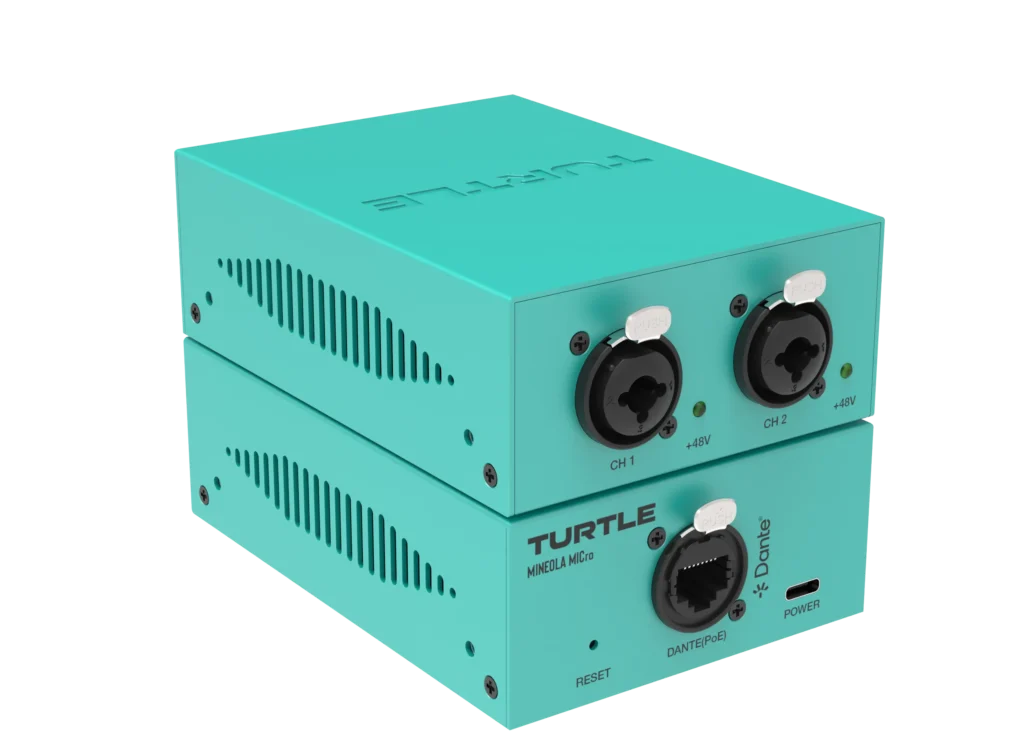

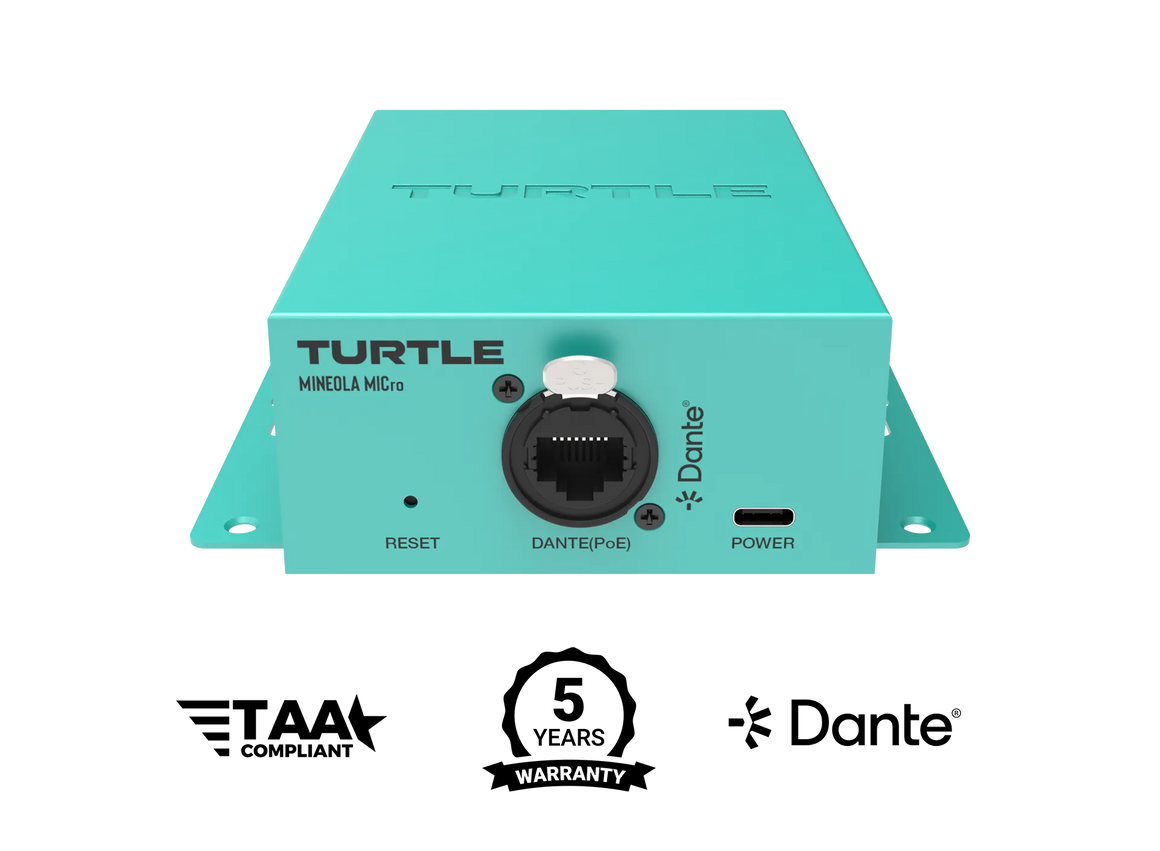

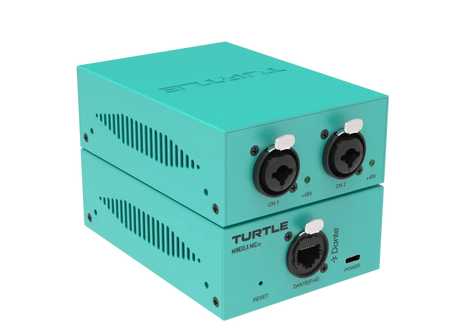

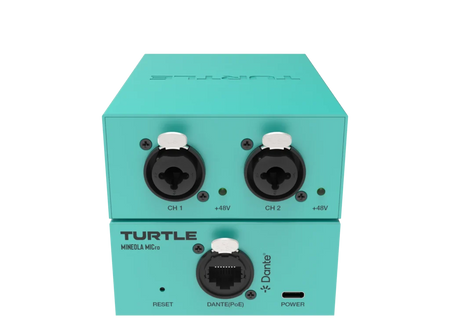

The Turtle AV Mineola MICro — Dante Dual XLR Mic Preamp with DSP (TAV-MINEOLAMICRO) connects two balanced microphone or line-level XLR/TRS combo inputs directly to a Dante network in an ultra-compact metal enclosure, providing a high-quality mic preamp, 48V phantom power, and an integrated DSP with 8-band parametric EQ, compressor, expander, and configurable delay in a device small enough to mount on any surface, behind any display, or in any cable tray. Two Dante primary and secondary ports with EtherCON RJ45 connectors provide redundant Dante network connectivity, and PoE Class 4 IEEE 802.3af powers the device from the network switch with no local PSU. Six line-up level settings from -35dBV to +24dBu accommodate everything from instrument-level sources to hot line feeds, and configurable latency from 2ms to 10ms via Dante Controller aligns the MICro with any Dante network timing configuration. WebUI and Dante Controller provide remote configuration and monitoring. Designed for installed AV environments where a compact, mount-anywhere Dante mic preamp is required.

Highlighted Features

  • Ultra-Compact Mount-Anywhere Form: 120 × 85 × 40mm metal enclosure mounts on any surface, behind displays, in ceiling voids, or in cable trays — ideal for installed AV environments where space is limited
  • High-Quality Mic Preamp with 48V Phantom: Professional-grade mic preamp with 48V phantom power and XLR/TRS combo inputs accommodates condenser and dynamic microphones and line-level sources — ideal for boardrooms, lecterns, and broadcast positions
  • Built-In DSP — EQ, Compressor, Expander, Delay: 8-band parametric EQ, compressor, expander, and configurable delay built in — ideal for processing audio at the source before it reaches the Dante network
  • Redundant Dante Ports — Primary and Secondary: Two EtherCON RJ45 Dante ports provide primary and secondary network connectivity for redundant Dante network topologies — ideal for broadcast and mission-critical installations
  • AES67 and Dante Network Audio: Full Dante and AES67 network audio output — interoperates with any Dante Controller-managed Dante or AES67 device on the network

The Turtle AV Mineola MICro — Dante Dual XLR Mic Preamp with DSP is the ideal solution for installed AV environments requiring a compact, high-quality Dante mic preamp that can be mounted in any location — from boardroom ceiling voids and lectern interiors to AV racks, under-table mounts, and wall cavities.

In stock
£444.00

Secure Checkout

Warranty Protection

14 - Day Returns

The Turtle AV Mineola MICro — Dante Dual XLR Mic Preamp with DSP provides two channels of professional microphone preamplification with Dante network audio output in an ultra-compact 120 × 85 × 40mm metal enclosure designed for flexible mounting in installed AV environments. Two XLR/TRS combo inputs with 48V phantom power accept condenser and dynamic microphones and line-level sources, and six line-up level settings from -35dBV to +24dBu provide full input range coverage. The built-in DSP covers 8-band parametric EQ, compressor, expander, and delay for on-device processing before Dante transmission. Primary and secondary EtherCON RJ45 Dante ports support redundant network topologies, PoE Class 4 powers the device from the switch, and configurable 2–10ms Dante latency and AES67 support ensure compatibility across any Dante network. WebUI and Dante Controller provide remote configuration.

Key Features

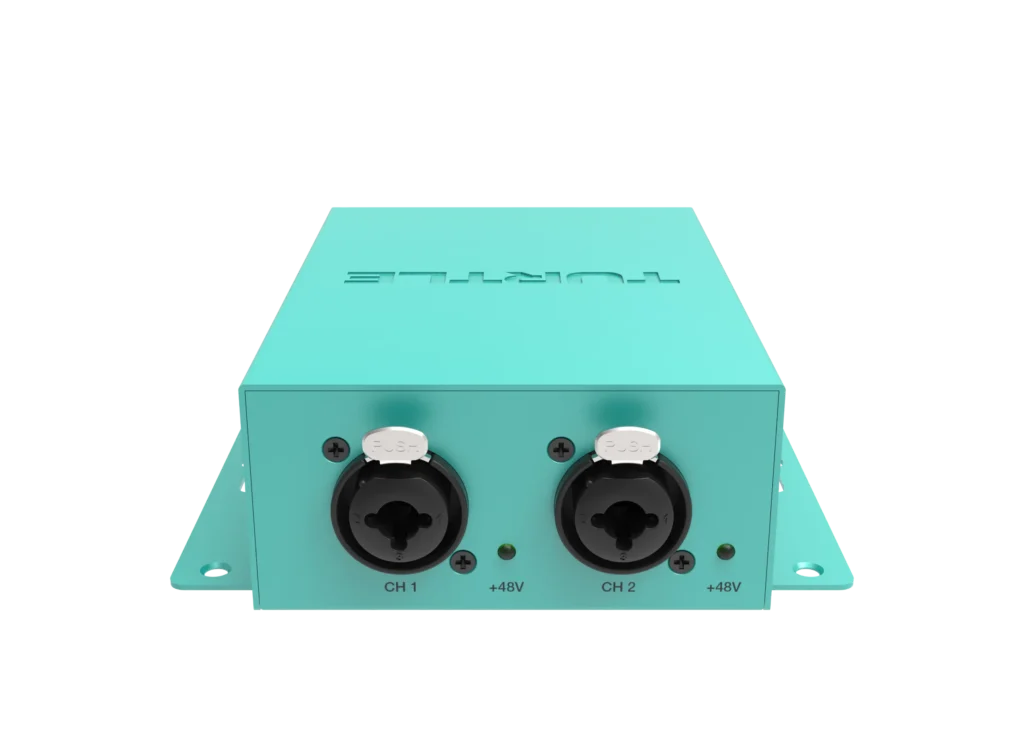

  • 2× XLR/TRS Combo Inputs: Two balanced/unbalanced XLR/TRS combo inputs accept microphone, instrument, and line-level signals in any combination
  • 48V Phantom Power: 48V phantom power for condenser microphones at both XLR inputs
  • 6 Line-Up Levels (-35dBV to +24dBu): Six selectable input level settings: -35dBV, -18dBV, 0dBV, +4dBu, +14dBu, +24dBu — covers the full range of professional audio sources
  • 8-Band Parametric EQ: Full 8-band parametric EQ for input frequency correction and shaping before Dante transmission
  • Compressor DSP: Built-in compressor for dynamic control at the input stage — reduces peak levels and improves intelligibility
  • Expander DSP: Built-in expander reduces ambient noise and bleed between audio sources
  • Configurable Delay (18ms): Adjustable delay for time-alignment with video and other audio sources across the Dante network
  • Primary + Secondary Dante Ports: Two EtherCON RJ45 Dante ports for primary and secondary redundant Dante network connection
  • PoE Class 4 IEEE 802.3af: Powered from the network switch via PoE — no local power supply required at the mount location
  • 2–10ms Dante Latency, AES67: Configurable latency via Dante Controller and full AES67 RTP support for mixed-vendor Dante networks

Specifications

Inputs 2× XLR/TRS combo — balanced/unbalanced with 48V phantom power
Dante Output 2 channels Dante/AES67
Dante Ports Primary: EtherCON RJ45 LAN (PoE); Secondary: EtherCON RJ45 LAN (PoE)
Network Bandwidth 100M
Audio Latency 2, 3, 4, 5, or 10ms configurable via Dante Controller
Line-Up Level -35dBV, -18dBV, 0dBV, +4dBu, +14dBu, +24dBu (6 levels)
Input Sensitivity 0dBV / +4dBu / +14dBu / +24dBu / -18dBV / -35dBV
DSP Input Gain, 8-Band Parametric EQ, Delay, Compressor, Expander
Sample Rate 48kHz / 96kHz
Signal Latency 18ms
AES67 Supported
Control Dante Controller, WebUI
ESD Protection IEC 61000-4-2: ±8kV air-gap, ±4kV contact discharge
Housing Metal enclosure, Turtle Aqua
Dimensions 120 × 85 × 40mm
Power PoE Class 4 IEEE 802.3af
Power Consumption 5.44W
Operating Temperature -20°C to 60°C
Operating Humidity 20% to 90% RH (non-condensing)


Warranty

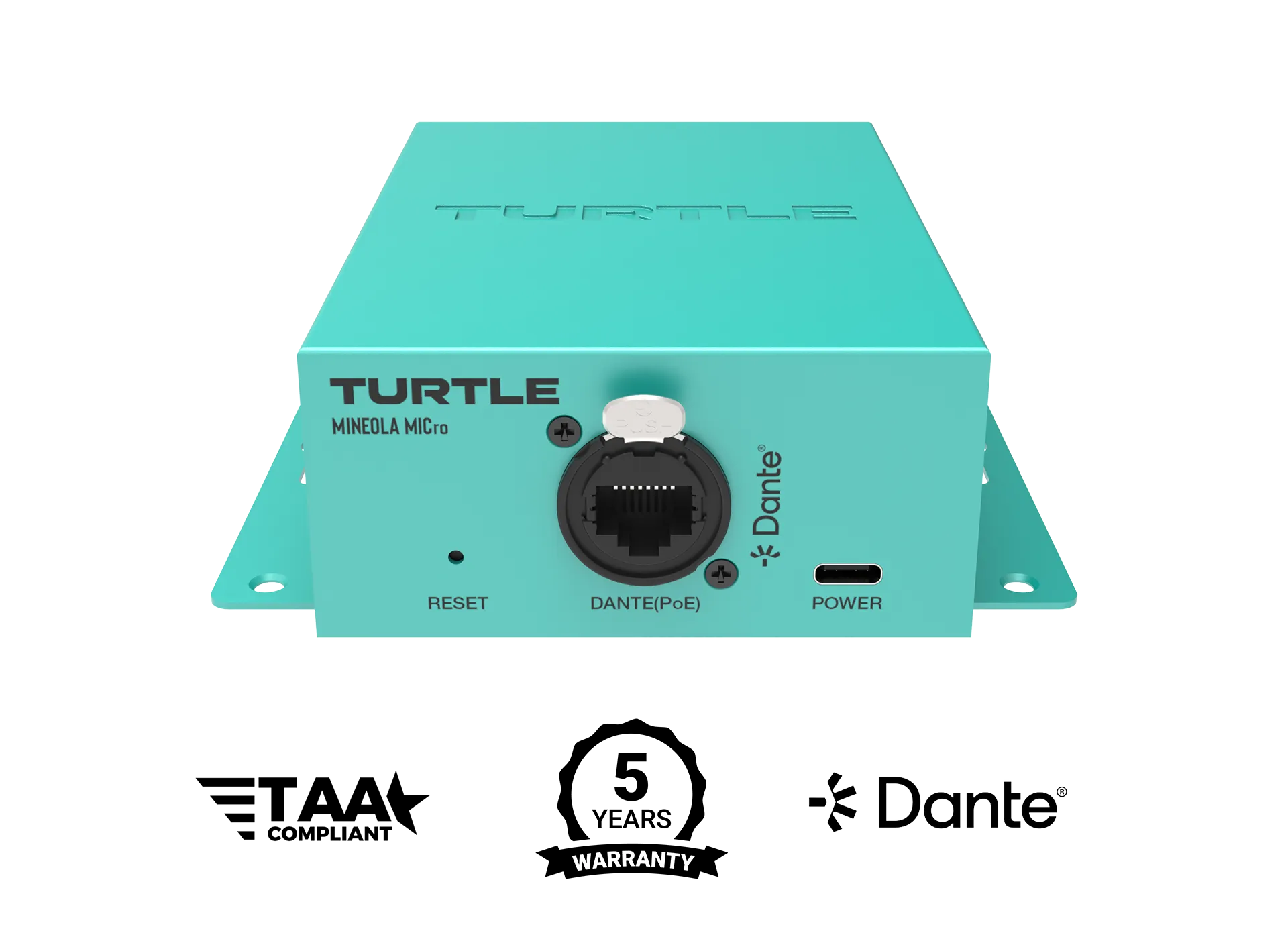

The Turtle AV Mineola MICro is backed by the 5-year manufacturer warranty, providing peace of mind for professional installations.

Application Examples

Lectern and Podium Mic Preamps Mount inside lectern and podium furniture for a hidden Dante mic preamp at the source — connects condenser or dynamic mics directly to the Dante network
Ceiling-Mounted Mic Inputs Deploy above suspended ceilings or behind wall panels as an invisible Dante mic input point for ceiling-mounted microphone arrays
Boardroom AV Infrastructure Integrate as the mic preamp stage in a boardroom Dante audio infrastructure — processes and conditions the signal before it reaches the DSP or mixer on the network
Broadcast Remote Positions Mount at talent positions in broadcast environments for a compact, redundant-network-capable Dante mic preamp at each presenter location
