SKU: TAV-USBEXTKIT2

Turtle AV USB-C 4K60 and USB 2.0 Extender Kit — Single CAT Cable

Turtle AV

4K60 4:4:4 USB-C and USB 2.0 extender kit over CAT

The Turtle AV USB-C 4K60 and USB 2.0 Extender Kit — Single CAT Cable (TAV-USBEXTKIT2) extends 4K60 4:4:4 USB-C video and USB 2.0 data over a single CAT6a cable, covering distances up to 40 metres at 4K60 and 70 metres at 4K30, with USB 2.0 connectivity to up to four USB devices at the receiver end. The host extender connects to a USB-C source, and the device extender — powered over the same CAT cable — provides an HDMI output, a USB-C device port, and three USB-A ports for webcams, keyboards, mice, and peripherals. A 100W USB-C charging port at the transmitter keeps the source device powered during operation. HDR10+, Dolby Vision, HLG, 8/10/12-bit colour, HDCP 2.3, and all major audio formats pass transparently. RS-232 control and Power over Cable simplify integration and installation. Designed for BYOD meeting rooms, lecture theatres, permanent boardroom table installations, and compact AV setups where a single cable route to the display is required.

Highlighted Features

  • 4K60 4:4:4 over Single CAT Cable: Uncompressed 4K60 4:4:4 video and USB 2.0 data over one CAT6a cable up to 40m — ideal for BYOD meeting rooms and lecture theatre installations
  • 4K30 up to 70 Metres: Extends to 70m at 4K30 for larger rooms and longer cable runs where the display is further from the source
  • USB 2.0 to 4 Devices at the Receiver: Up to four USB 2.0 devices — webcam, keyboard, mouse, USB hub — connected at the receiver end and passed over the CAT cable
  • 100W USB-C Charging at Transmitter: 100W USB-C PD port at the host extender charges the presenter's laptop simultaneously — single cable experience with no separate charger
  • Power over Cable — Single PSU: 24V PoC on the HDBaseT cable powers the receiver from the host PSU — no second power supply at the display end

The Turtle AV USB-C 4K60 and USB 2.0 Extender Kit is the ideal solution for BYOD and fixed AV installations requiring 4K60 video and USB device connectivity over a single CAT cable, with 100W source charging and Power over Cable simplifying both the user experience and the installation.

In stock
£1,326.00

Secure Checkout

Warranty Protection

14 - Day Returns

The Turtle AV USB-C 4K60 and USB 2.0 Extender Kit consists of a host (transmitter) and device (receiver) extender that together extend 4K60 4:4:4 USB-C video and USB 2.0 signals over a single CAT6a cable run, covering 40 metres at 4K60 and 70 metres at 4K30. The host extender connects to a USB-C source device and provides a 100W USB-C charging port for simultaneous laptop power. The device extender connects to the room display via HDMI 2.0b and provides a USB-C device port plus three USB-A ports for up to four USB 2.0 peripherals, all connected back to the source over the same CAT cable. HDR10+, Dolby Vision, HLG, 8/10/12-bit colour, HDCP 2.3, and all major audio formats pass transparently. Power over Cable from the host eliminates a second PSU at the receiver.

Key Features

  • 4K60 4:4:4 up to 40m: Uncompressed 4K60 with full 4:4:4 chroma sampling to 40m via CAT6a — no compression artefacts at the display end
  • 4K30 up to 70m: Extended range at 4K30 for larger rooms and long cable routes
  • USB 2.0 to 4 Devices: Four USB 2.0 device connections at the receiver — webcam, keyboard, mouse, USB hub or other peripherals
  • 100W USB-C PD Charging: 100W Power Delivery at the host extender charges the connected USB-C laptop without a separate charger
  • HDMI 2.0b Output at Receiver: Full HDMI 2.0b output at the display end — all video formats, HDR, and colour depth passed from the USB-C source
  • HDR10+, Dolby Vision, HLG: Full HDR format support including Dolby Vision for premium display environments
  • HDCP 2.3: Content protection for DRM-protected USB-C video sources
  • Power over Cable — 24V PoC: Host PSU powers the receiver over the CAT cable — one power supply for the entire installation
  • RS-232 + API Control: RS-232 and API control at both host and device for integration with AV control systems
  • Dimensions: 120 × 113 × 25.5mm each: Identical compact form factor at both ends — TX 353g, RX 352g, metal Turtle Aqua enclosure

Specifications

HDMI Standard HDMI 2.0b
HDCP HDCP 2.3
USB Standard USB 2.0
Video Bandwidth 18Gbps
Video Resolution Up to 4K@60Hz (4:4:4 8-bit)
Colour Space RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Colour Depth 8/10/12-bit
HDR HDR, HDR10, HDR10+, Dolby Vision, HLG
Audio Formats LPCM 2.0/5.1/7.1CH, Dolby TrueHD, Dolby Atmos, DTS-HD, DTS:X
Transmission — 4K60 Up to 40m / 130ft via CAT6a/7
Transmission — 4K30 Up to 70m / 230ft via CAT6a/7
USB 2.0 Reach Up to 70m, connects to 4 USB devices at receiver

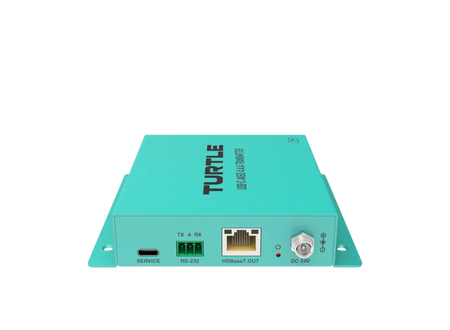

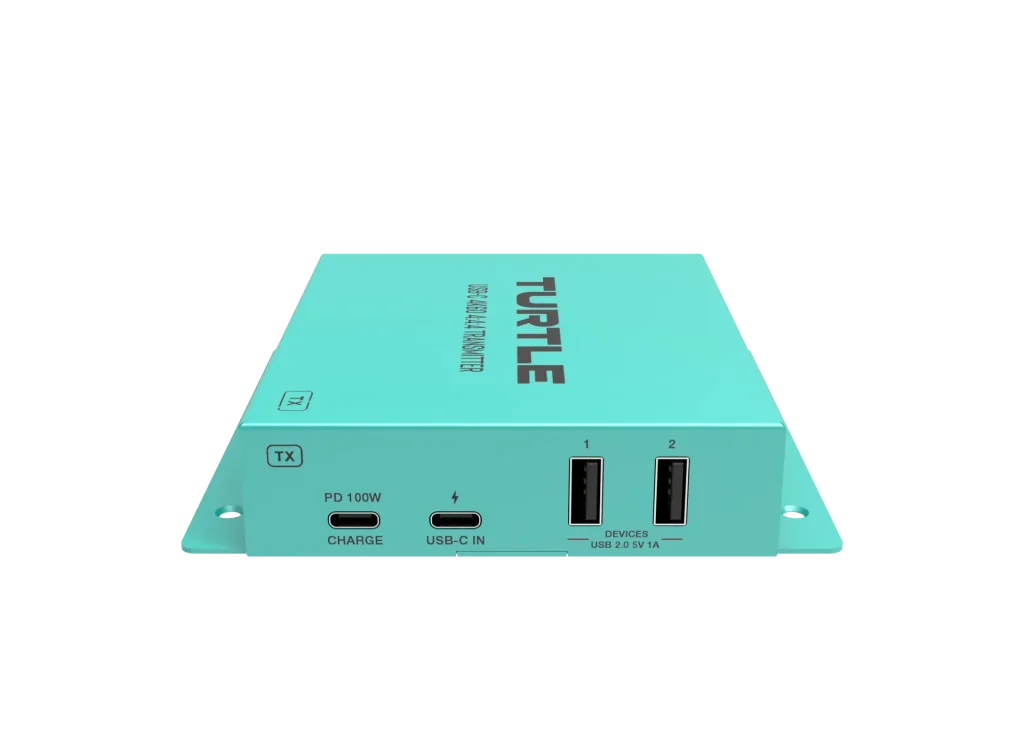

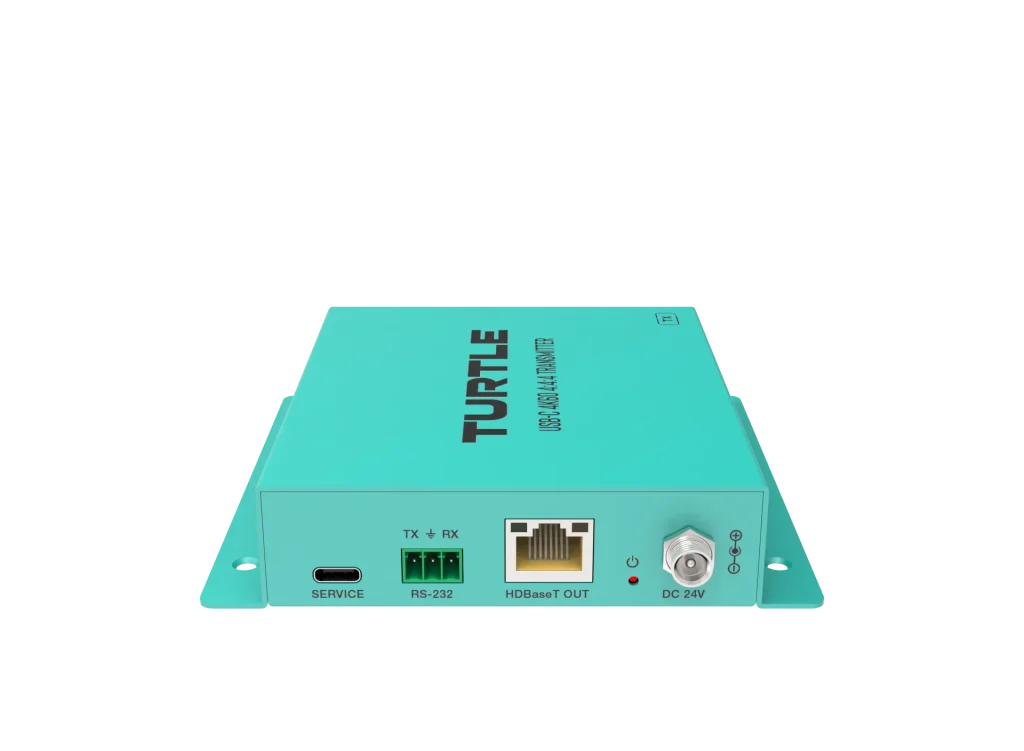

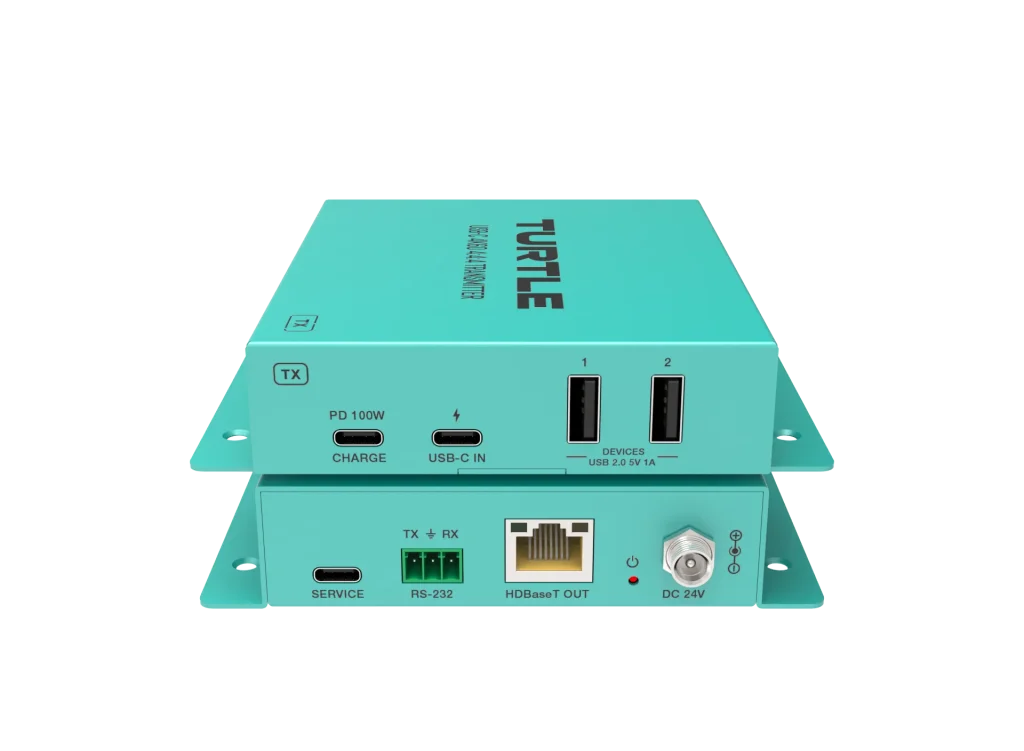

Transmitter Inputs 1× USB-C IN; 1× USB-C CHARGE (100W PD); 2× USB-A; 1× HDBaseT OUT RJ45 (24V PoC)
Receiver Outputs 1× HDMI OUT; 1× USB-C; 3× USB-A; 1× HDBaseT IN RJ45 (24V PoC)
Control RS-232, API — both TX and RX
ESD Protection IEC 61000-4-2: ±8kV air-gap, ±4kV contact discharge
Housing Metal enclosure, Turtle Aqua
Dimensions 120 × 113 × 25.5mm (each unit)
Weight TX 353g, RX 352g
Power Supply AC 100–240V; DC 24V/2.7A (CE/FCC/UL certified)
Power Consumption 51.36W max (full USB load); 10.08W (no USB devices)
Operating Temperature 0°C to 40°C
Operating Humidity 20% to 80% RH, non-condensing

Warranty

The Turtle AV USB 2.0 Extender Kit is backed by the 5-year manufacturer warranty, providing peace of mind for professional installations.

Application Examples

BYOD Boardroom Cable Point Permanent table-top connection point — one USB-C cable from the laptop to the host extender, one CAT run to the display, with 100W charging and USB return
Lecture Theatre Table to Projector Extend the presenter's USB-C display and USB from the lectern to the projector or screen up to 70m away over the room's existing CAT infrastructure
Huddle Room Clean Desk Single CAT cable under the desk connects table-top host to wall-mounted display with full USB hub functionality for the room peripherals
AV-over-CAT Retrofit Deploy over existing CAT5e/6/6a infrastructure to add 4K60 USB-C and USB 2.0 extension to rooms already cabled but not currently equipped
