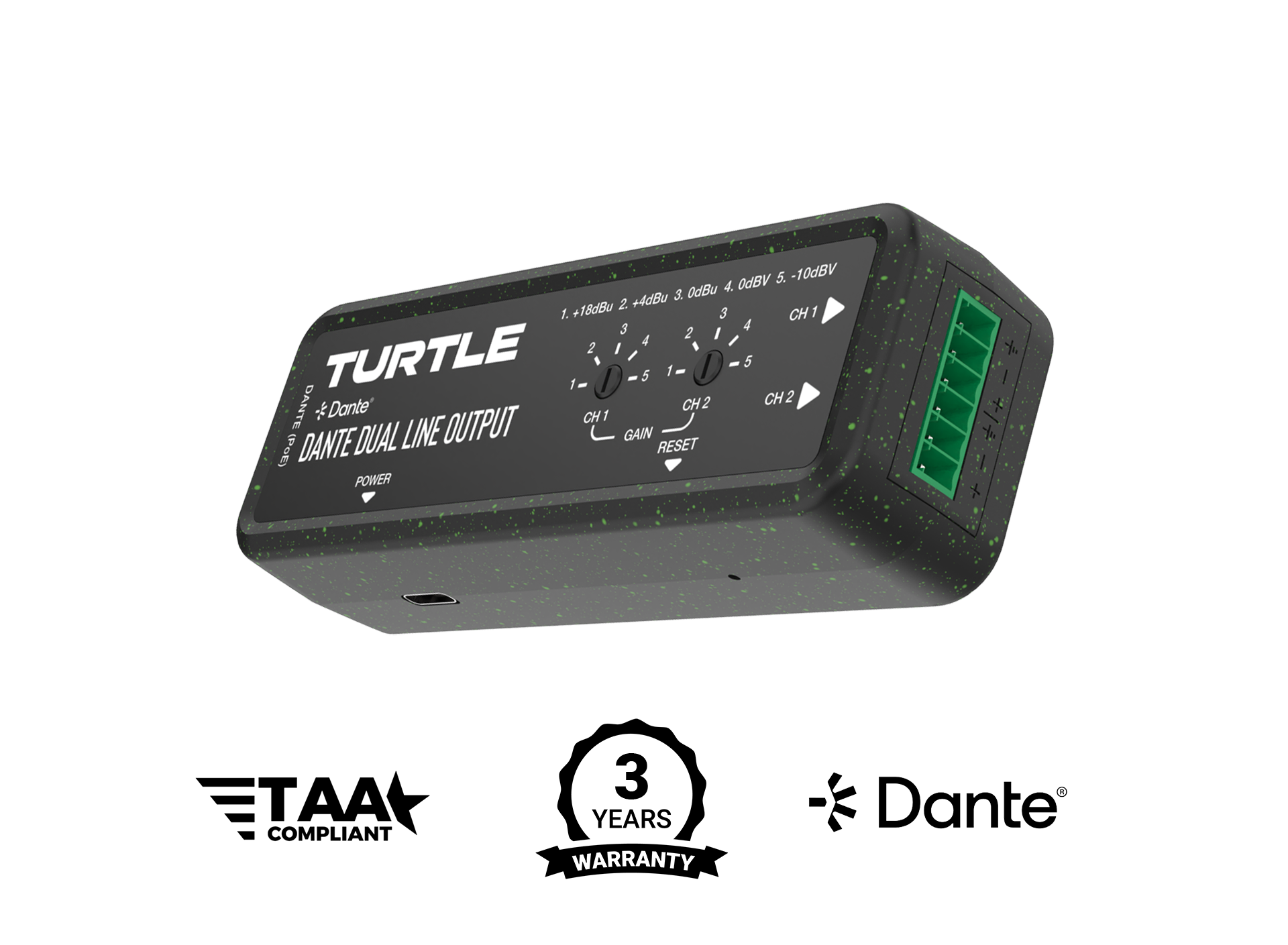

Turtle audio device with Dante compliance and warranty on a white background

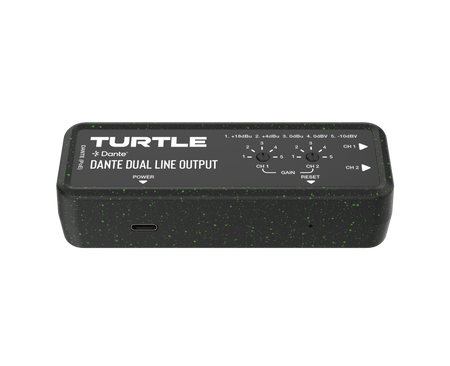

Turtle Dante Dual Line Output device on a white background

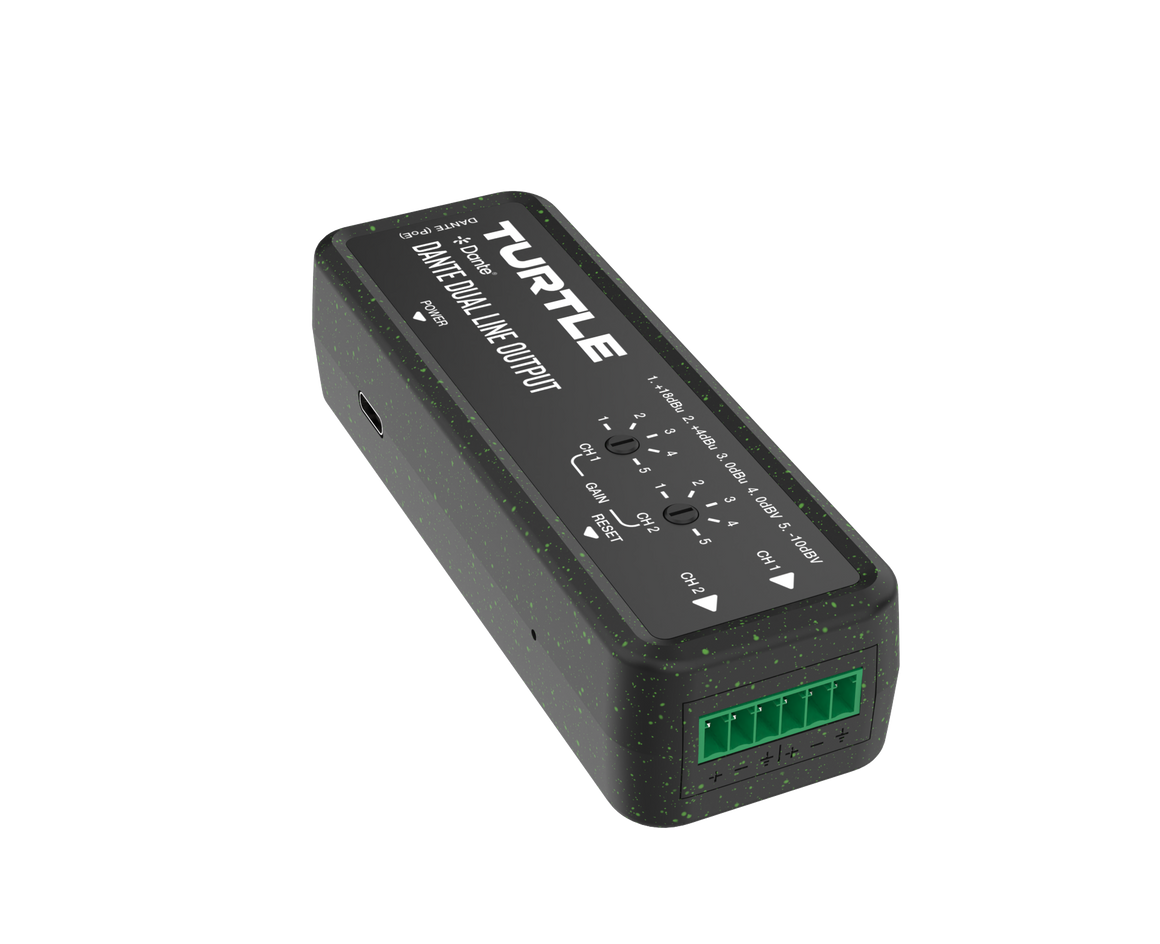

Black electronic device with 'Turtle' branding on a white background

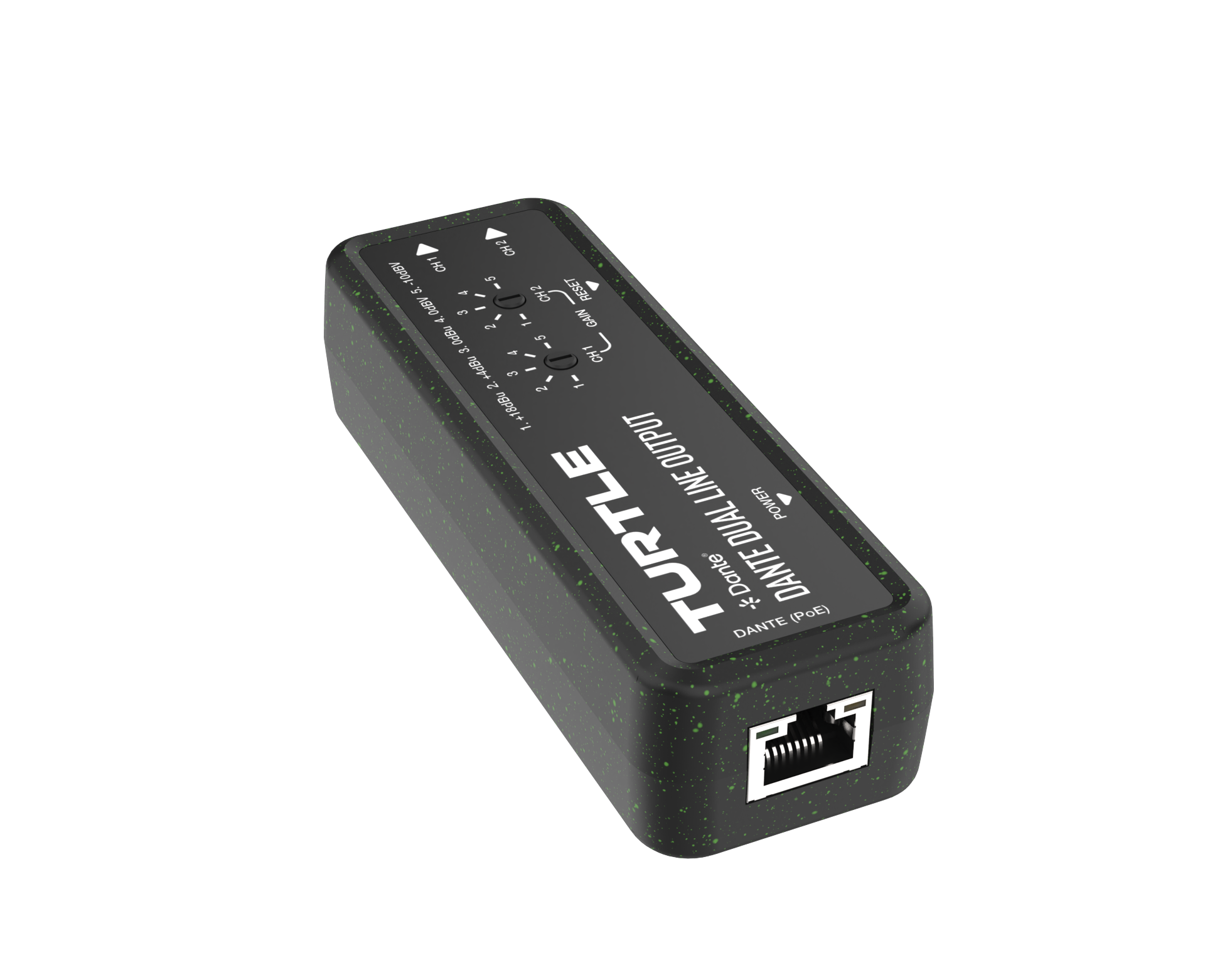

Black audio interface with 'Turtle' branding on a white background
Turtle Dante dual line output device on a white background
Black electronic module with green speckles featuring an Ethernet port on a white background
Black rectangular device with green speckles and a green display on a white background
Turtle audio device with Dante compliance and warranty on a white background
Turtle Dante Dual Line Output device on a white background
Black electronic device with 'Turtle' branding on a white background
Black audio interface with 'Turtle' branding on a white background
Turtle Dante dual line output device on a white background
Black electronic module with green speckles featuring an Ethernet port on a white background
Black rectangular device with green speckles and a green display on a white background
SKU: TAV-D2LDE

Turtle Dante 2CH Analog Line Output Adapter with Gain Controls

Turtle AV

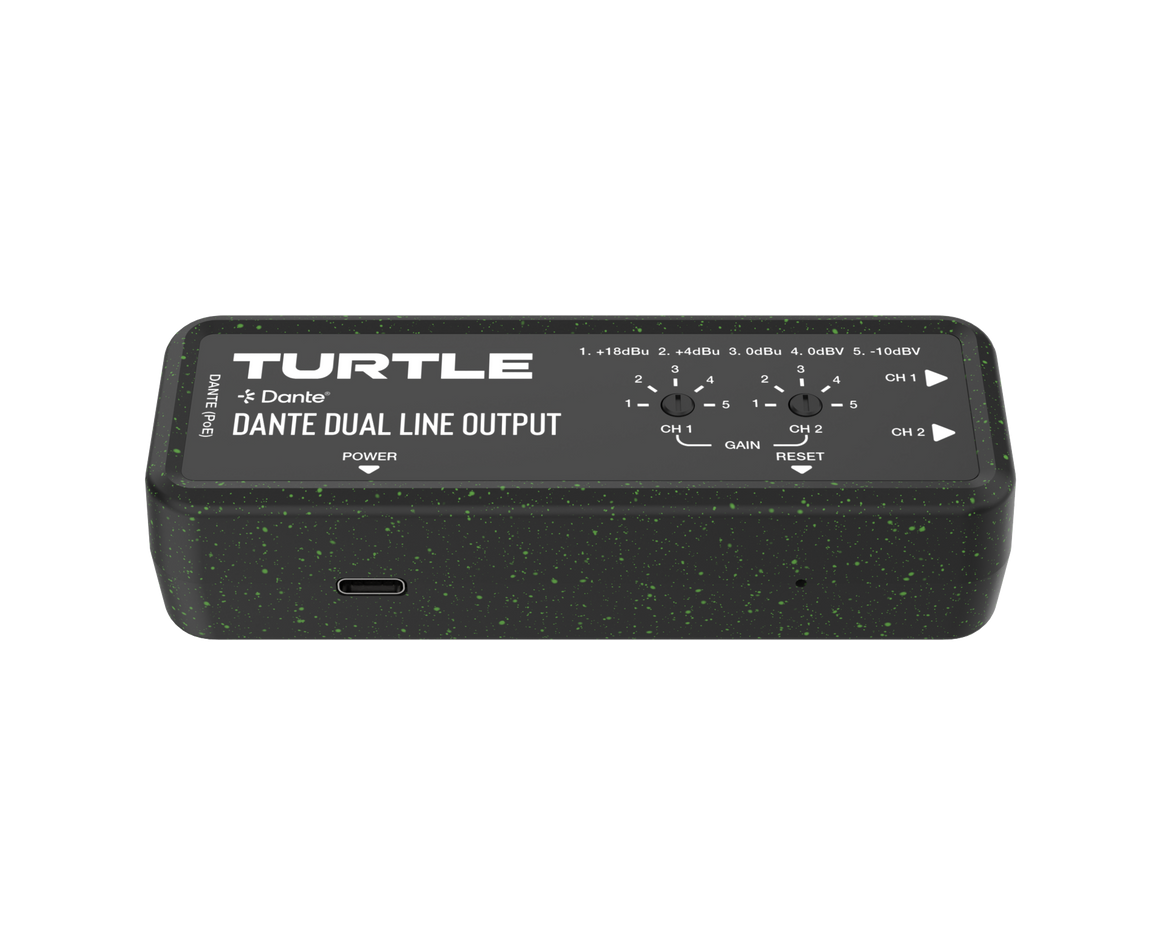

Dante Dual Line Output

The Turtle Dante 2CH Analogue Line Output Adapter (TAV‑D2LDE) delivers crystal-clear Dante® digital audio to two channels of balanced or unbalanced analogue output. Built on the Dante Ultimo 2×2 platform, it supports up to 96 kHz at 24-bit resolution. With selectable output gain, ultra-low latency, and dual power options via PoE or USB‑C, it’s ideally suited for professional AV, broadcast, and commercial audio applications.

Highlighted Features

  • Dual Analogue Outputs: Balanced/unbalanced output over a 6-pin Phoenix connector, suitable for integration with amplifiers, DSPs, or legacy systems.
  • Selectable Output Gain: Jumper-selectable levels for each channel: +18 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV.
  • Dante Controller Compatible: Configure channel routing, gain, and latency directly via Dante Controller software.
  • Flexible Powering: Operates via PoE (IEEE 802.3af) or USB‑C, consuming less than 2W.
  • Low Latency Performance: Supports configurable latency as low as 1ms for time-sensitive applications.
  • Eco-Conscious Design: Compact enclosure constructed from recycled plastic, including ocean-bound materials.
  • Fully Network Compliant: Compatible with both Dante and AES67 standards for maximum interoperability.


The TAV‑D2LDE is a compact, energy-efficient adapter purpose-built to integrate digital Dante audio systems with legacy analogue outputs. Whether in fixed installations, mobile rigs, or broadcast setups, it ensures reliable, high-quality audio performance with minimal setup and zero compromise.

In stock
£162.00

Secure checkout

Friendly support

Hassle-free returns

The Dante 2CH Analog Line Output Adapter (TAV‑D2LDE) delivers crystal-clear Dante® digital audio to two channels of analog balanced or unbalanced output. Built on the Dante Ultimo 2×2 platform, it supports up to 96 kHz at 24-bit resolution. With flexible gain settings, low latency, and dual power options via PoE or USB-C, it’s ideal for AV installations, broadcast, and professional audio environments.

Highlighted Features

  • 2‑Channel Analog Output: Dual-channel balanced/unbalanced analog audio via 6-pin 3.5 mm Phoenix connector.

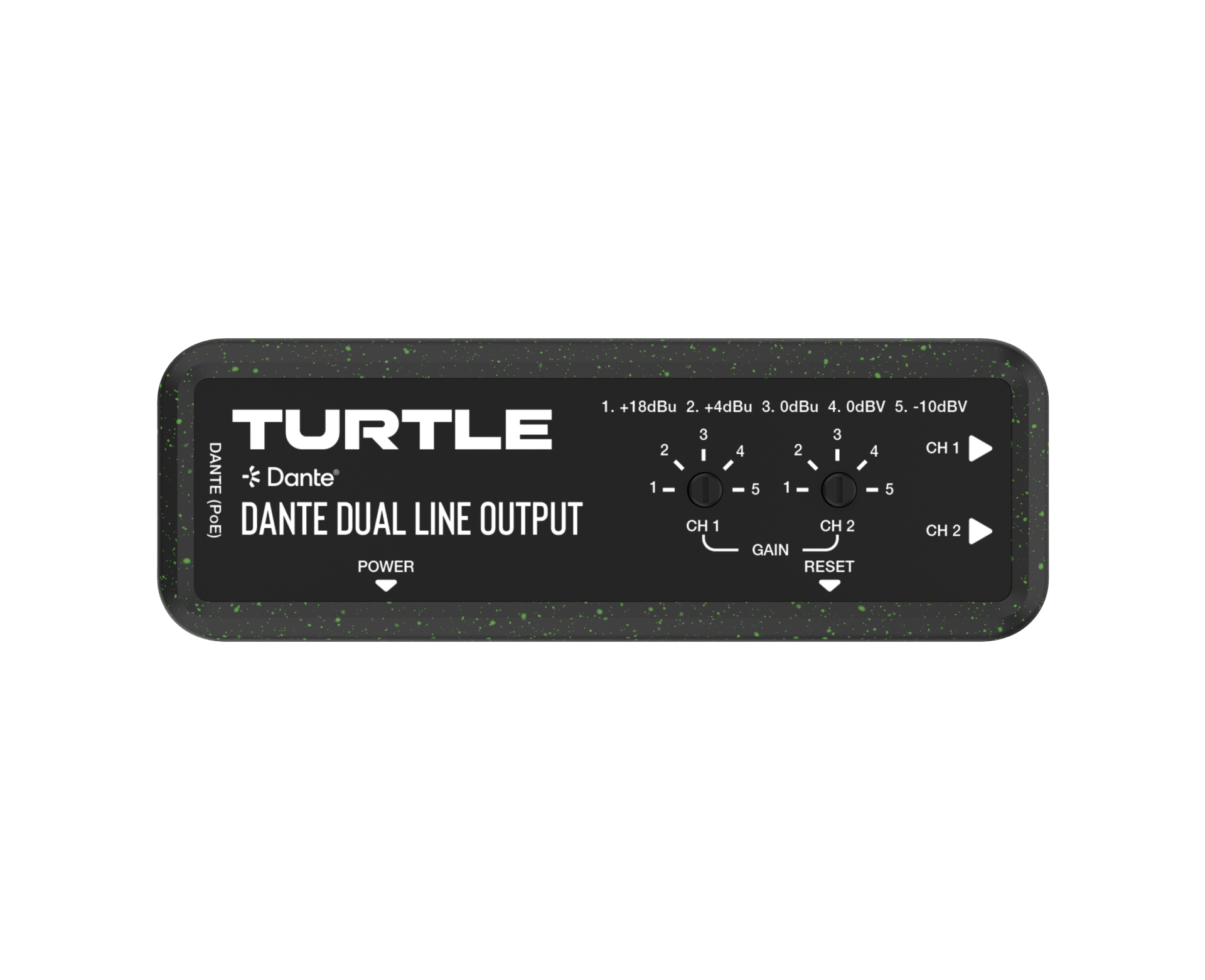

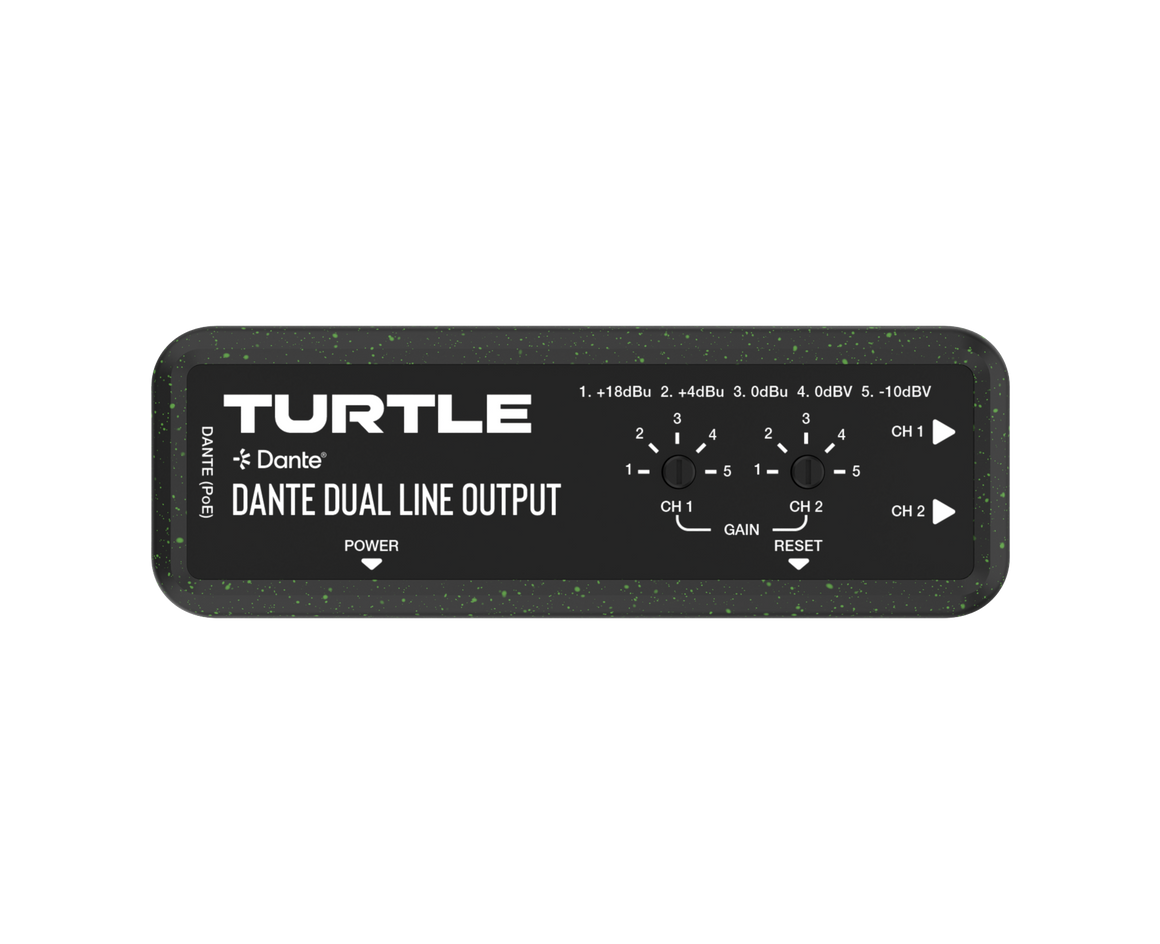

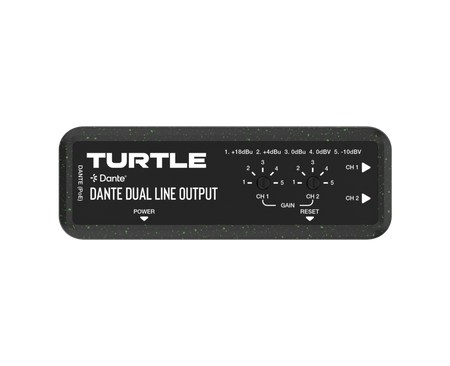

  • Gain Adjustment: Jumper-selectable output levels: +18 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV per channel.
  • Dante Controller Support: Adjust latency, gain, and routing via Dante Controller software.
  • Dual Power Options: Powered by IEEE 802.3af PoE or USB‑C (5 VDC @ 500 mA).
  • Energy Efficient & Compact: Consumes less than 2W; enclosed in eco-conscious black/green plastic housing.
  • Full Dante & AES67 Compatibility: Seamlessly integrates with Dante and AES67 networks.

Connections

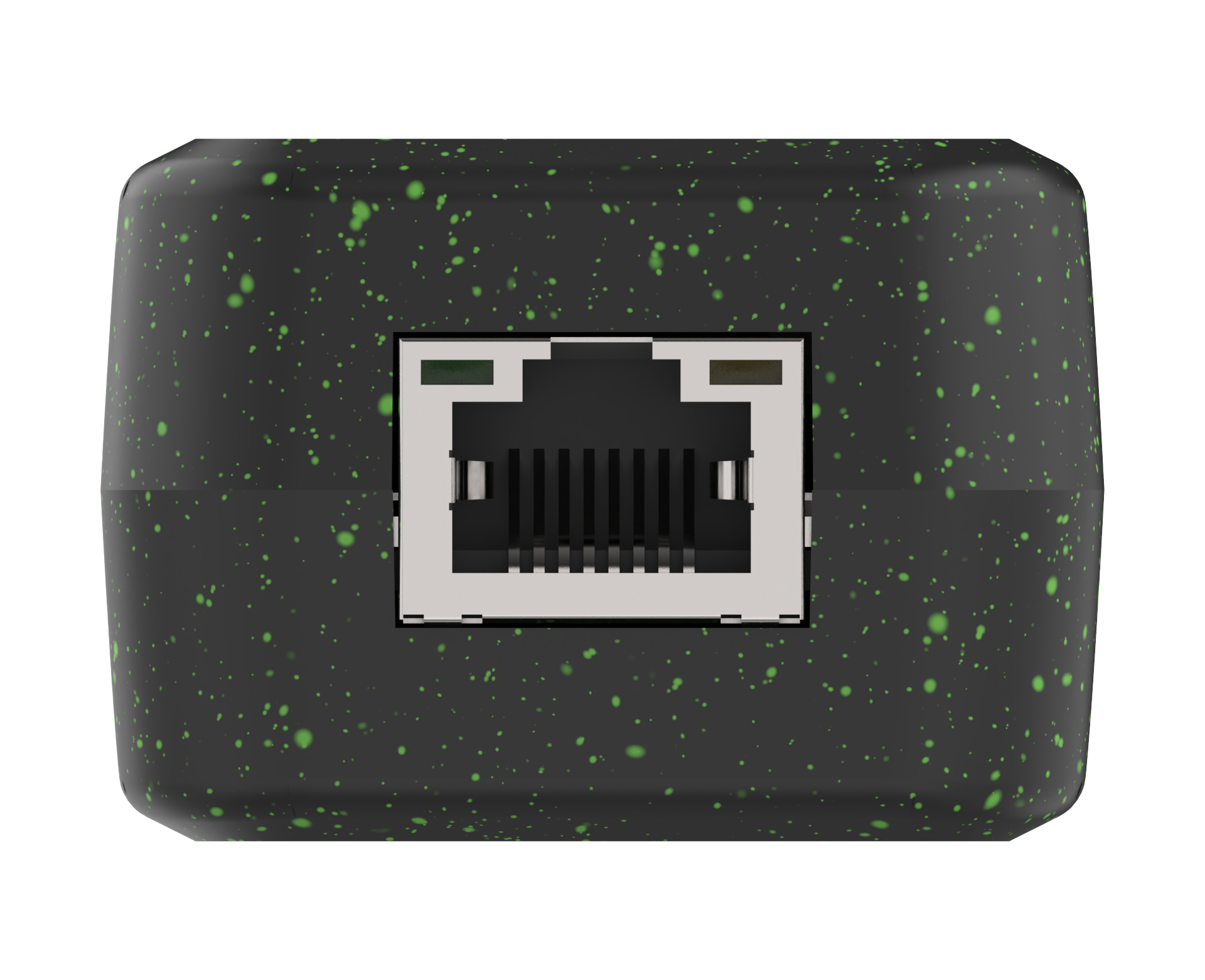

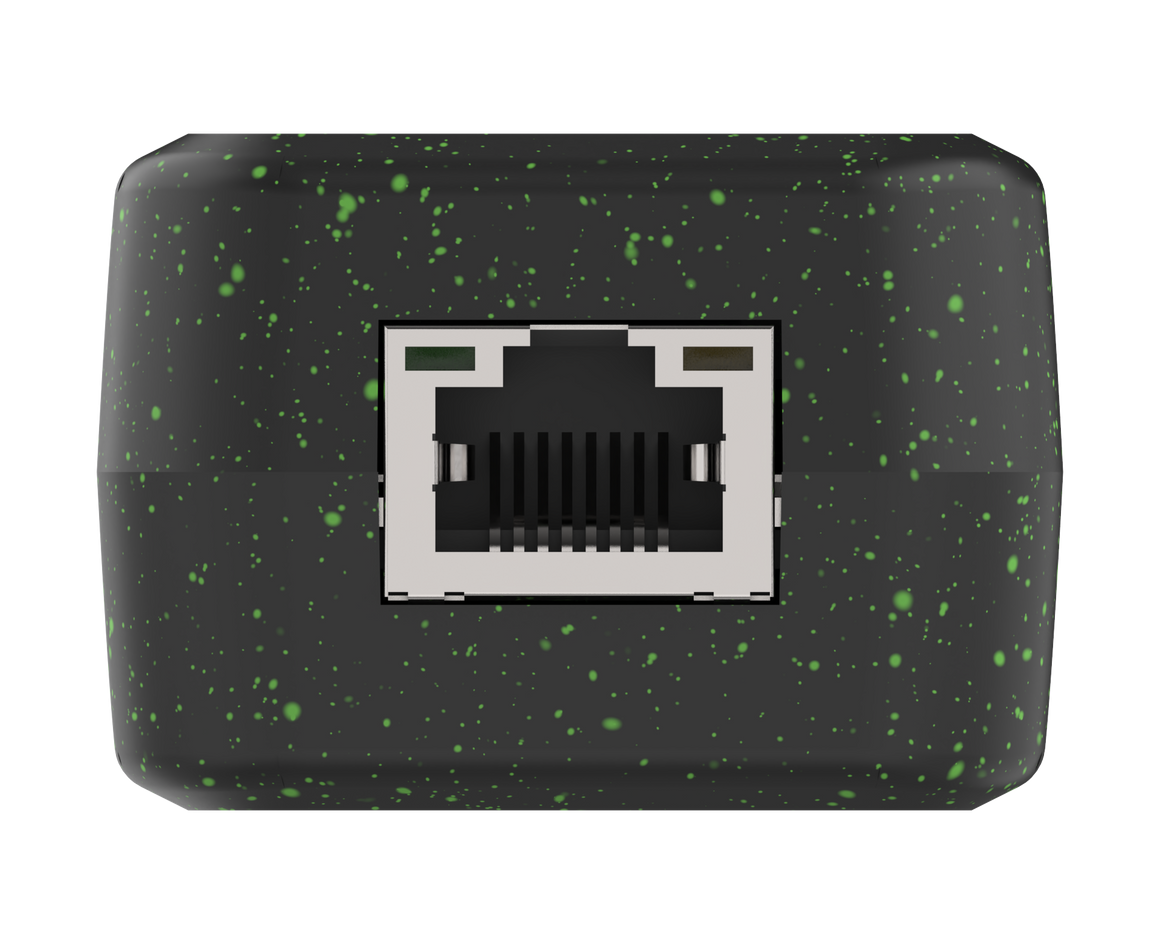

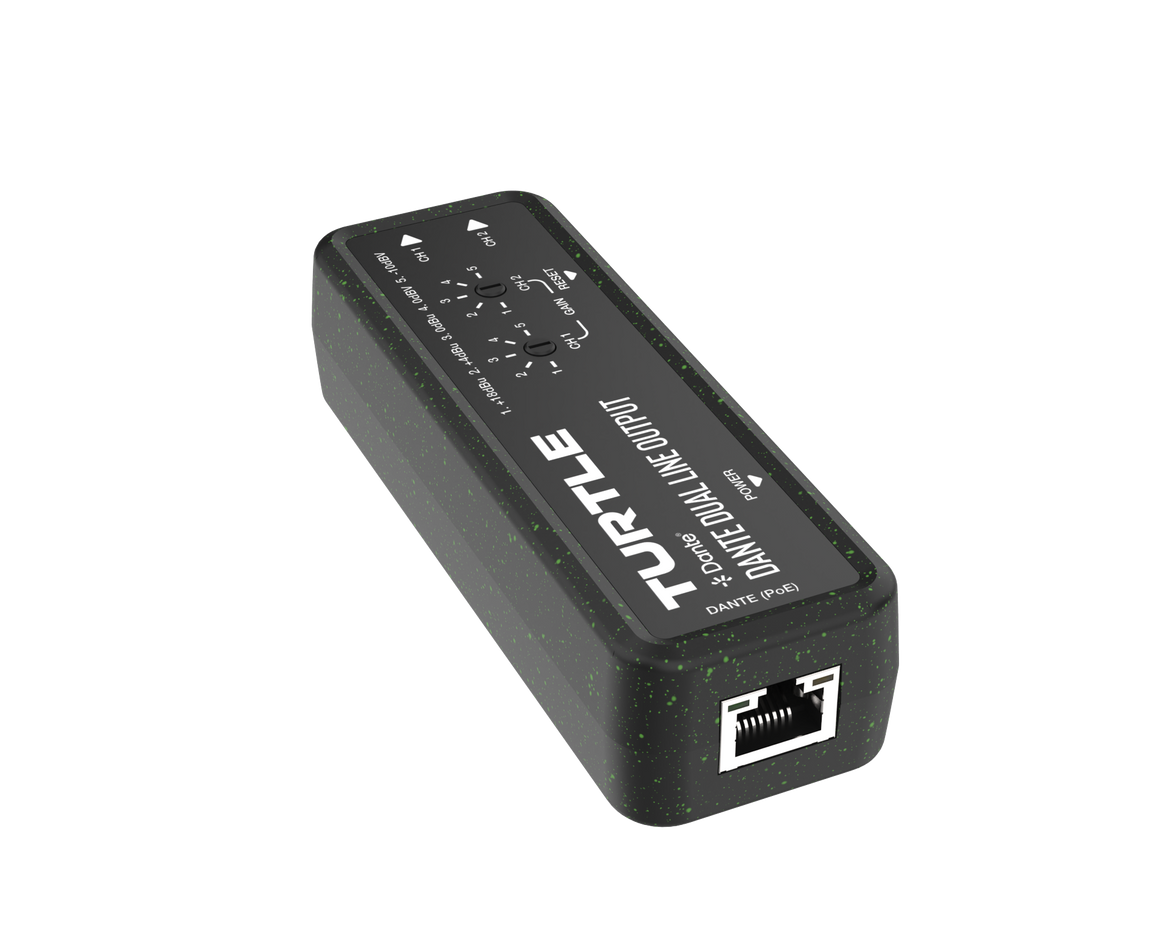

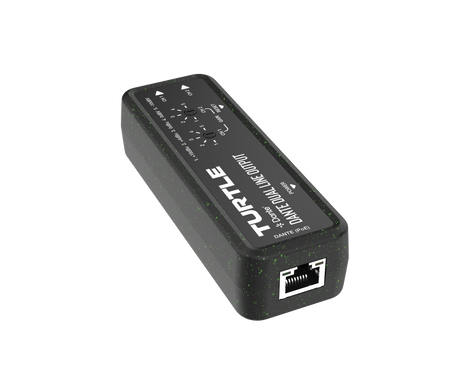

  • Input: 1 × Dante [RJ45 LAN, PoE]

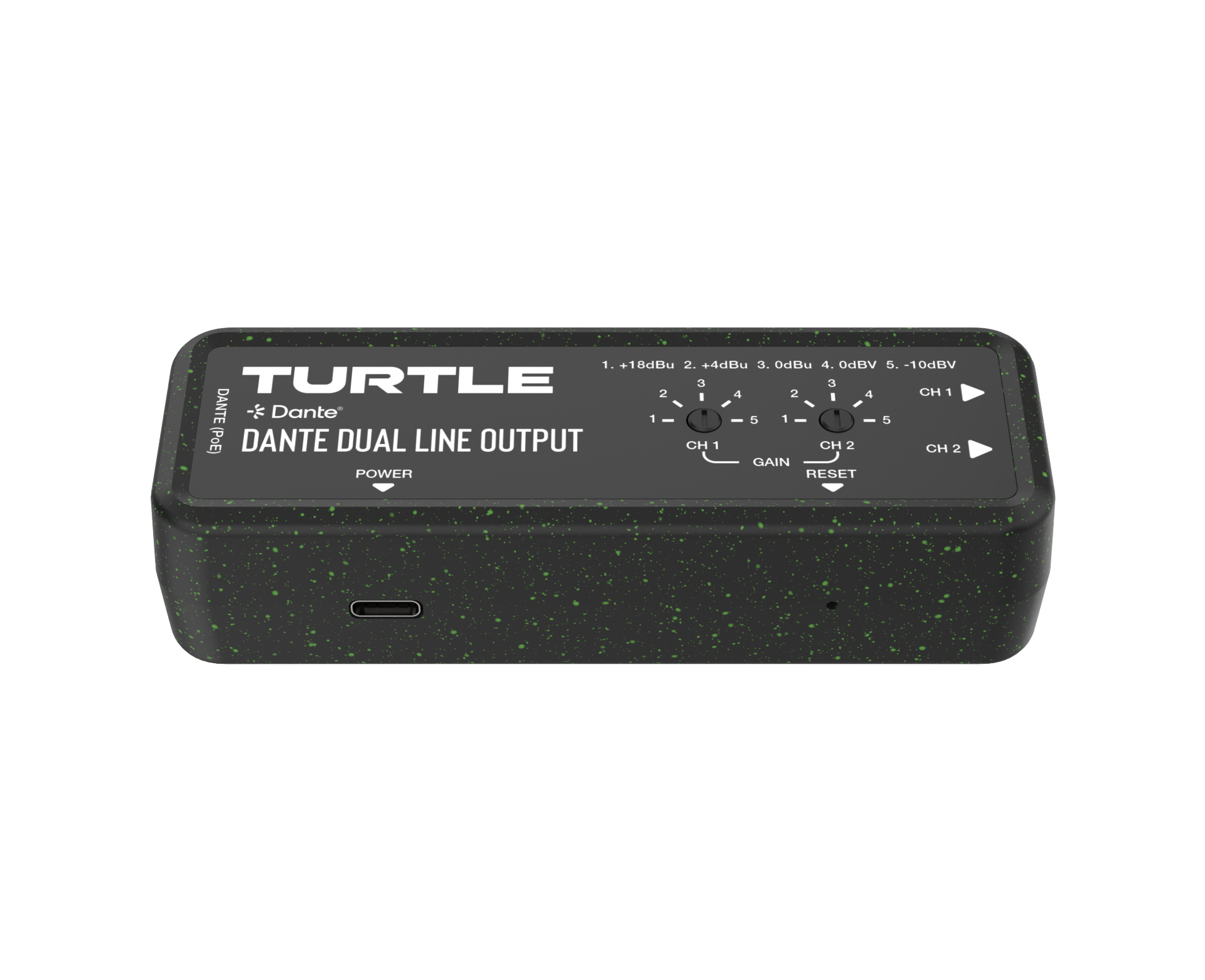

  • Power: 1 × USB-C (Power and firmware updates, 12-pin female)

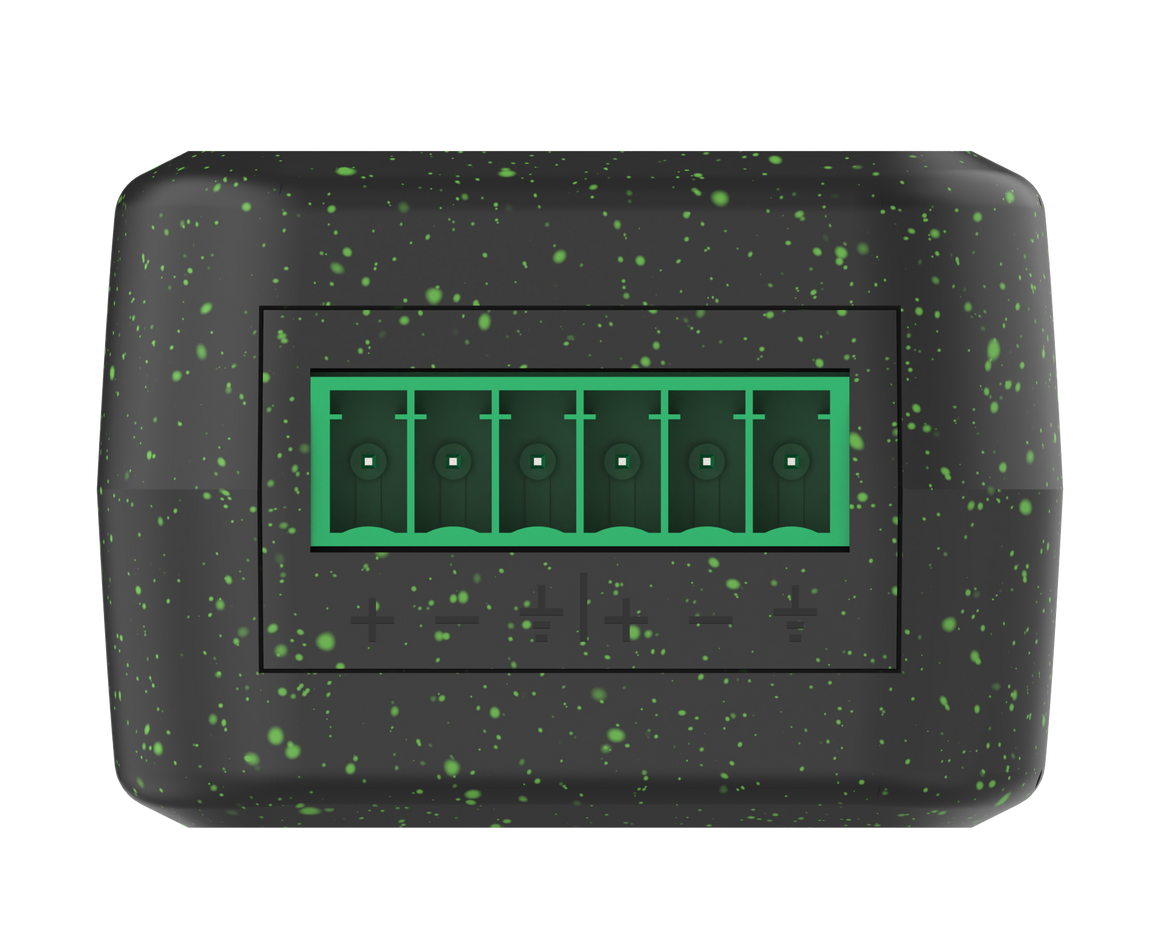

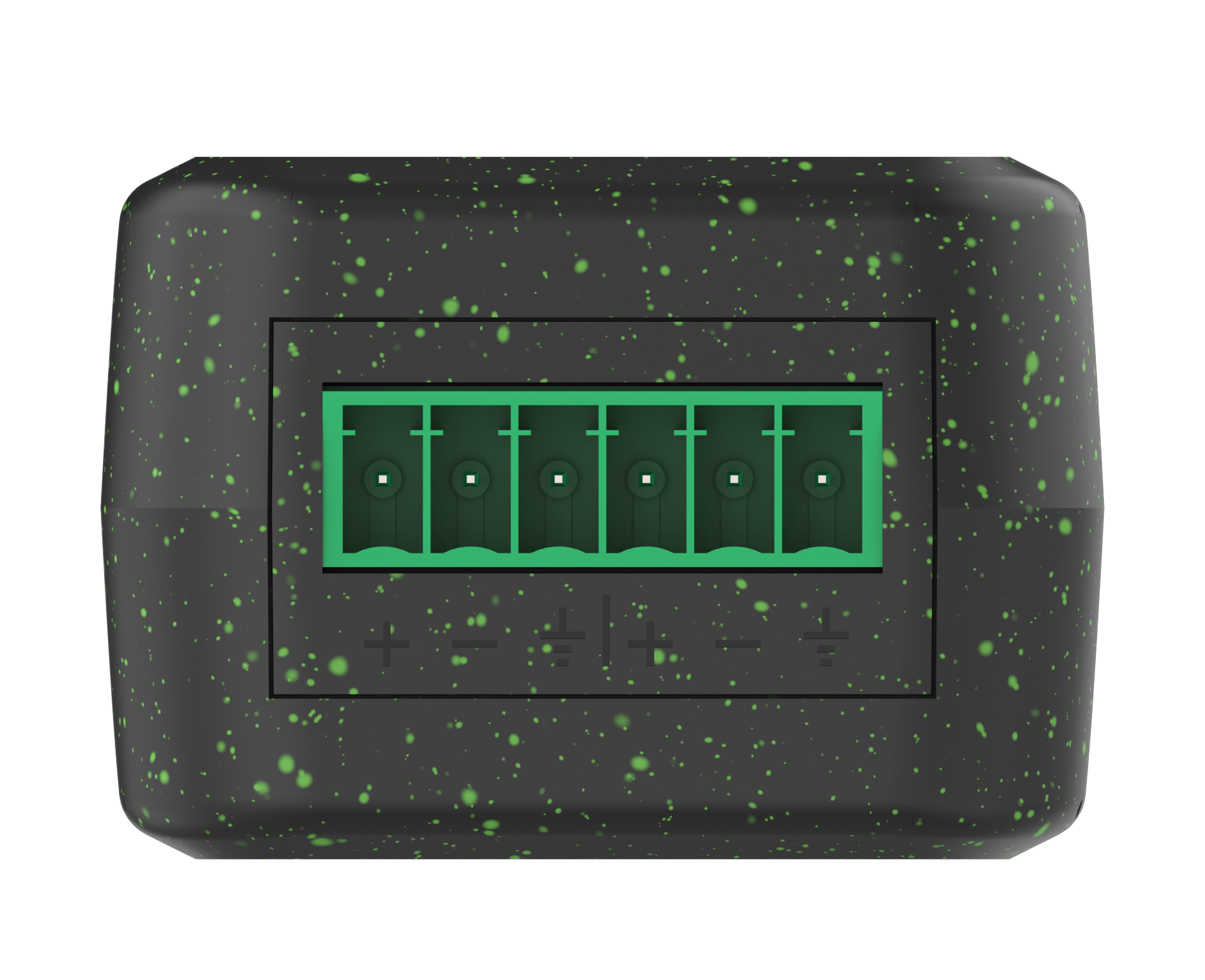

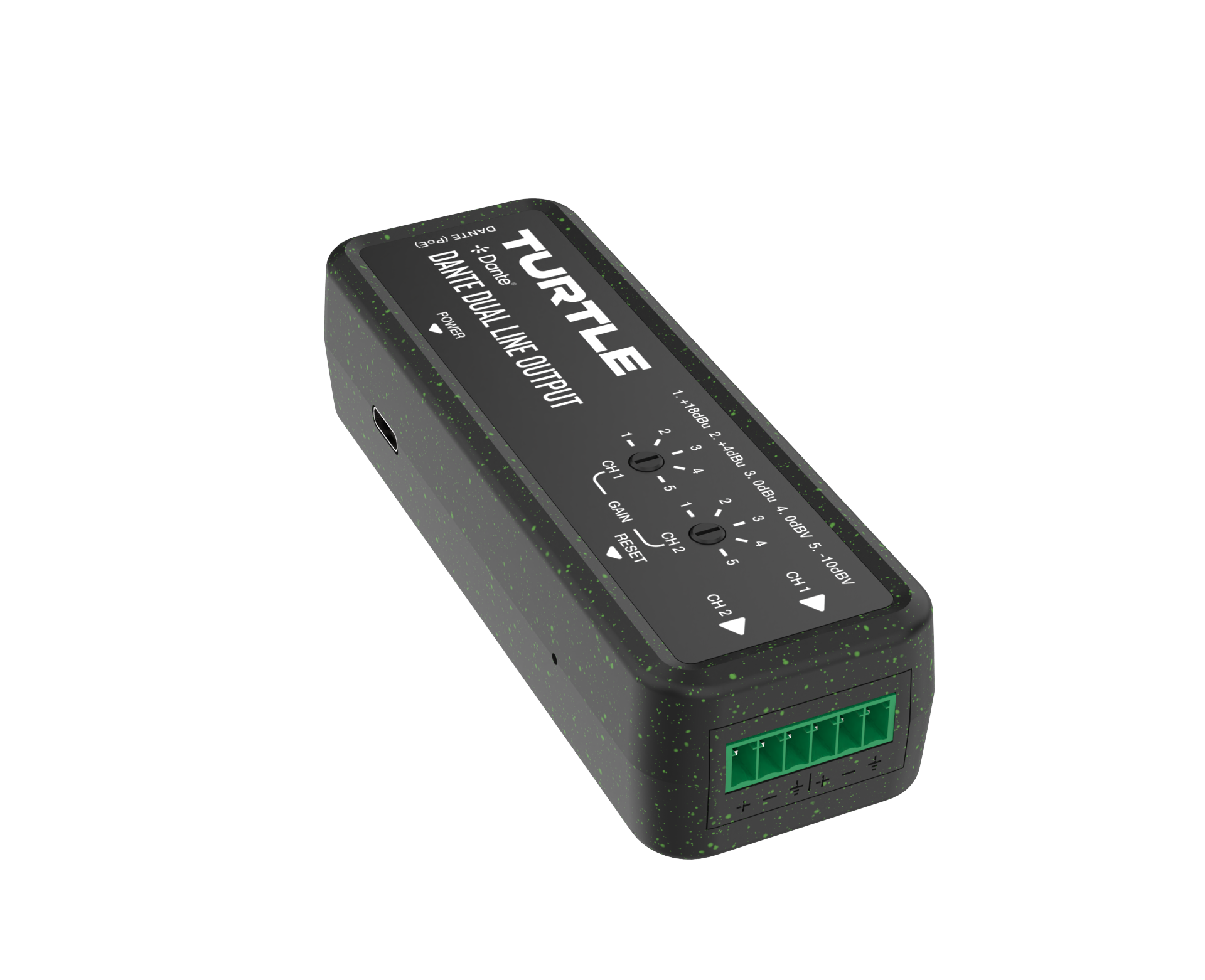

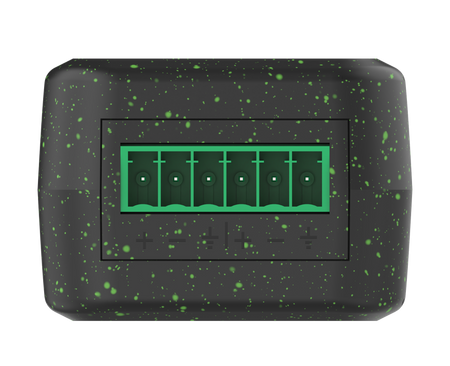

  • Output: 1 × CH1/CH2 LINE OUT [6-pin 3.5mm Phoenix connector]

Specifications

Dante 2CH Analog Line Output Adapter (TAV‑D2LDE)
Input Dante® 2CH digital audio via RJ45 (PoE enabled)
Output 2CH analog audio via 6-pin Phoenix (balanced/unbalanced)
Gain Levels +18 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV (jumper selectable)
Output Impedance 600 Ω balanced, 300 Ω unbalanced
Max Output Level +18 dBu (6.15 Vrms) balanced, +12 dBu (3.08 Vrms) unbalanced
Control Dante Controller software
Network Bandwidth 100 Mbps
Latency Configurable: 1 ms, 2 ms, or 5 ms via Dante Controller
Audio Formats PCM 2CH @ 44.1 / 48 / 88.2 / 96 kHz, 16/24-bit
Frequency Response 20 Hz – 20 kHz (±0.5 dB)
Dynamic Range / SNR >100 dB @ 0 dBu, 1 kHz (A‑weighted)
THD + N < 0.01% @ +4 dBu, 1 kHz
Sync Delay <10 ms
ESD Protection IEC 61000-4-2: ±8 kV air, ±4 kV contact
Mechanical
Housing Plastic enclosure (Black/Green)
Dimensions 115 × 40 × 28 mm (4.52 × 1.57 × 1.10")
Weight 94 g
Power Supply PoE IEEE 802.3af Class 0, or USB‑C: 5 VDC @ 500 mA
Power Consumption Max 2 W
Operating Temperature 32–104 °F (0–40 °C)
Relative Humidity 20–90 % RH (non‑condensing)
