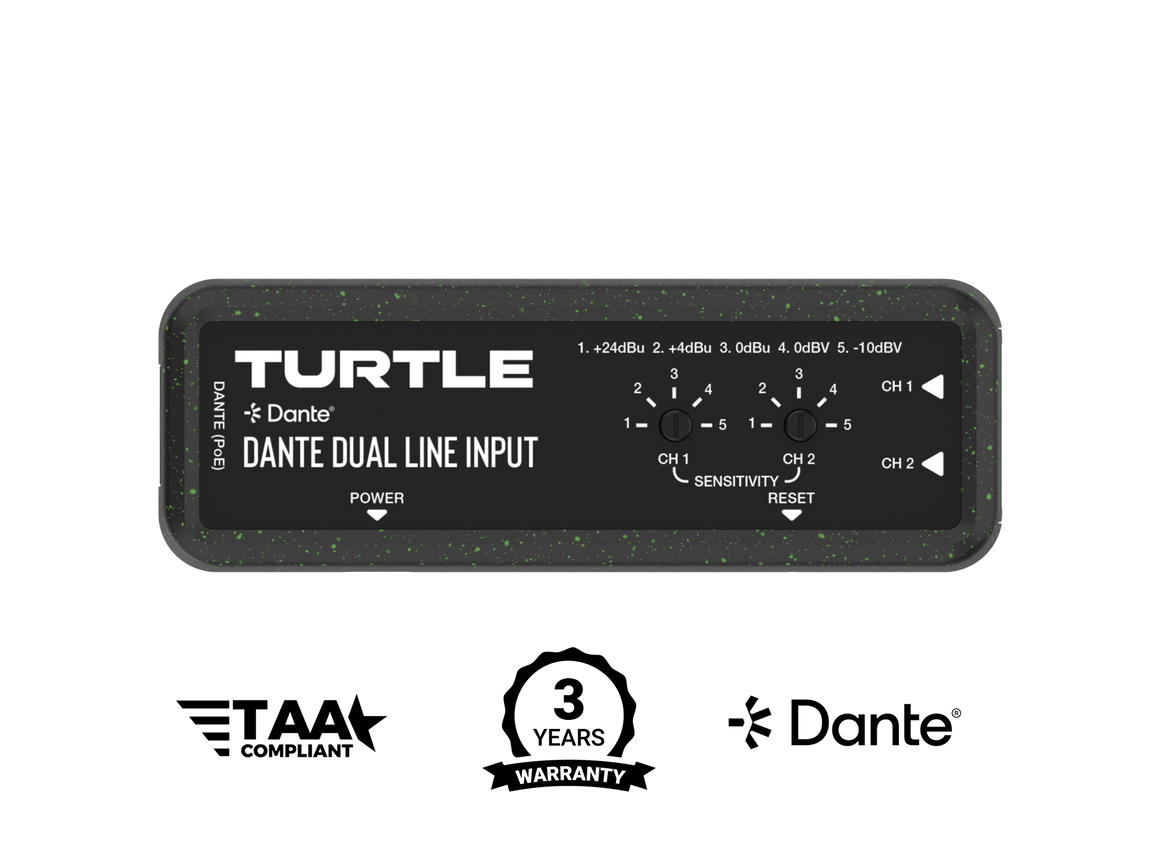

Turtle AV Dante 2CH Analog Line Input Adapter with Gain Controls

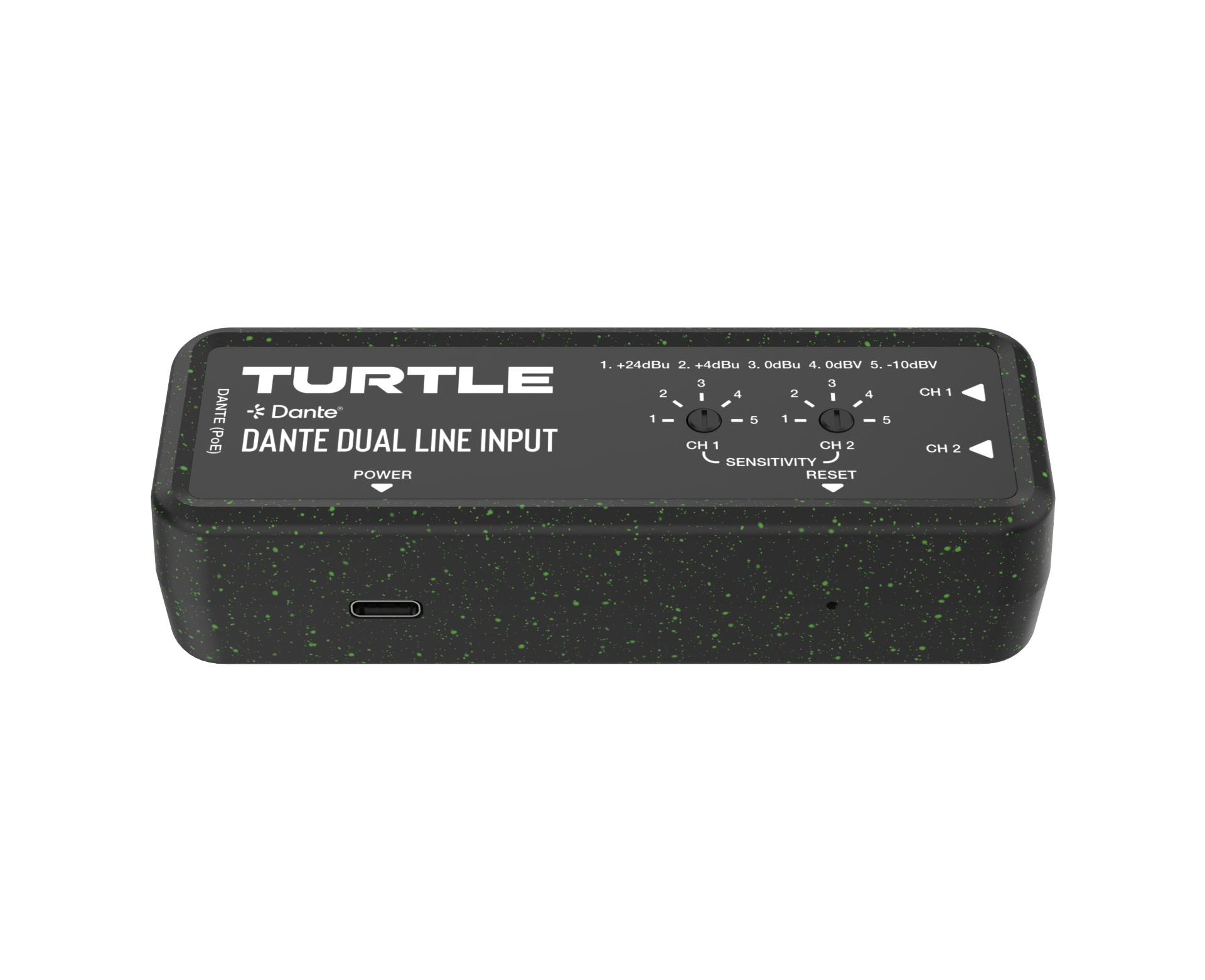

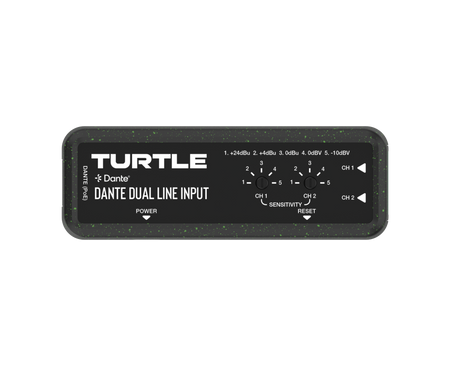

Turtle Dante Dual Line Input device on a white background
Turtle Dante Dual Line Input device on a white background

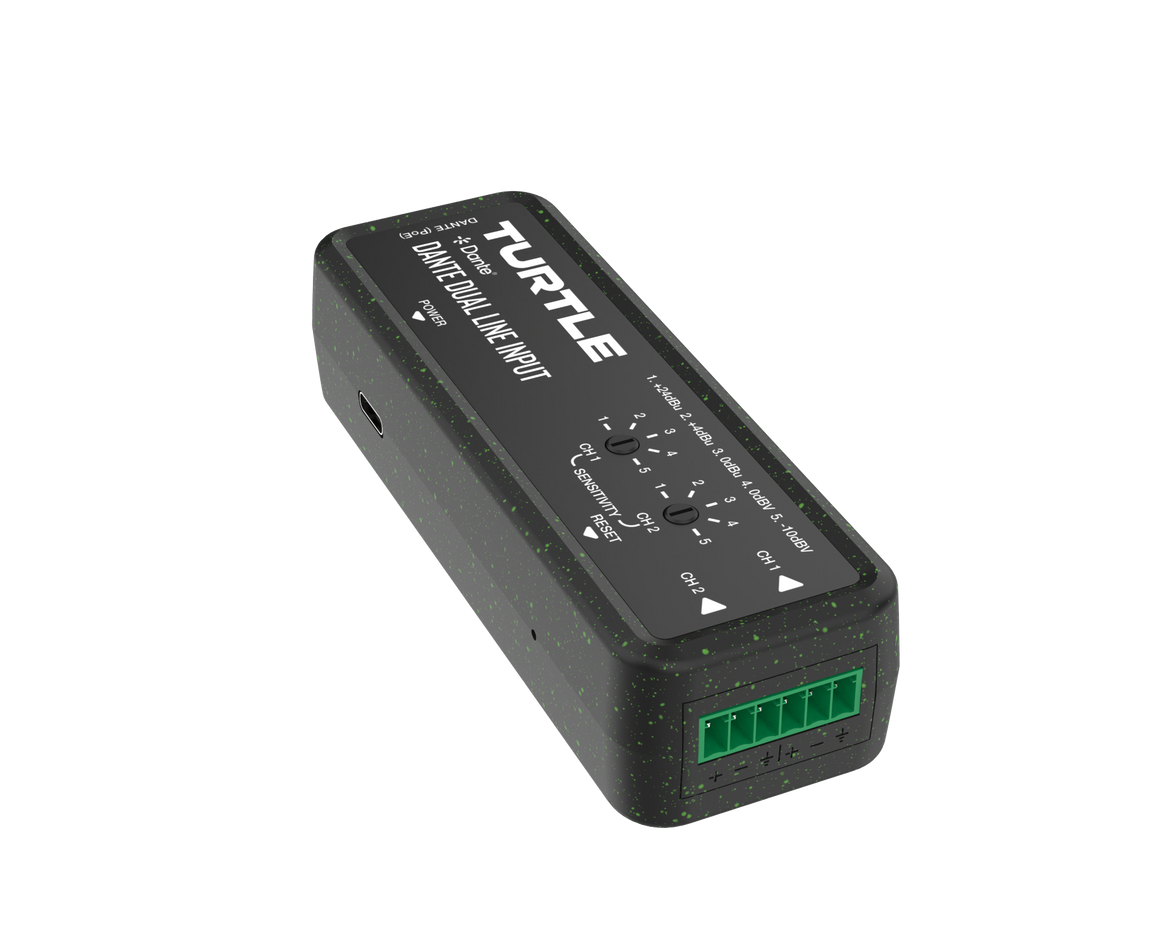

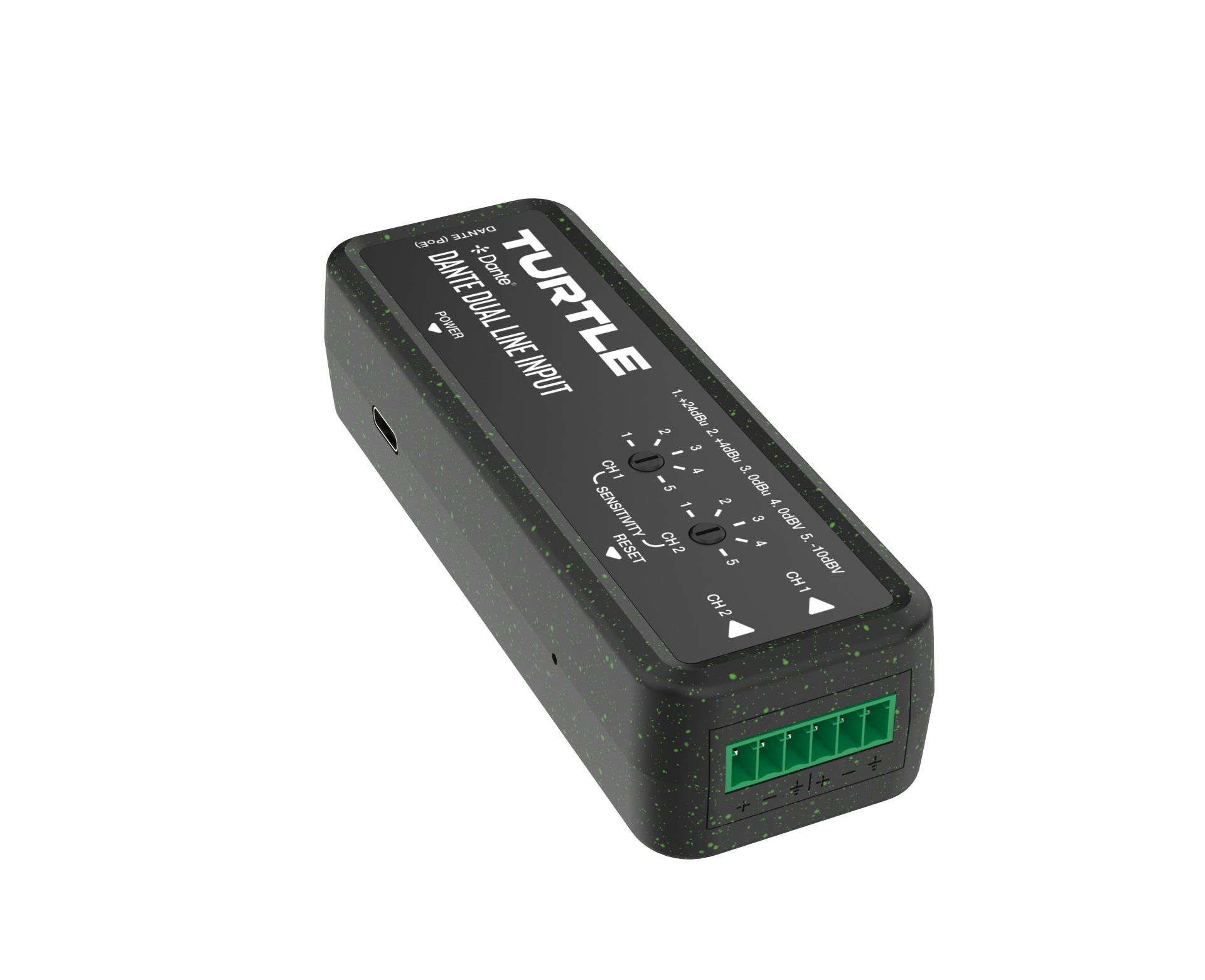

Black electronic device with 'Turtle' branding on a white background

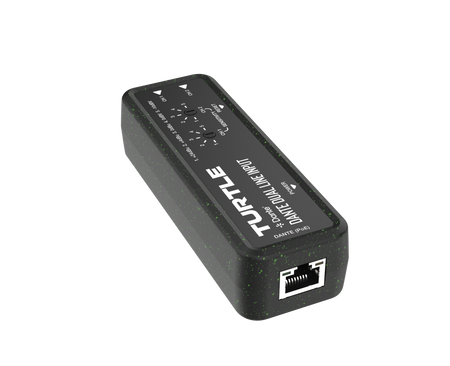

Black audio interface with 'Turtle' branding on a white background

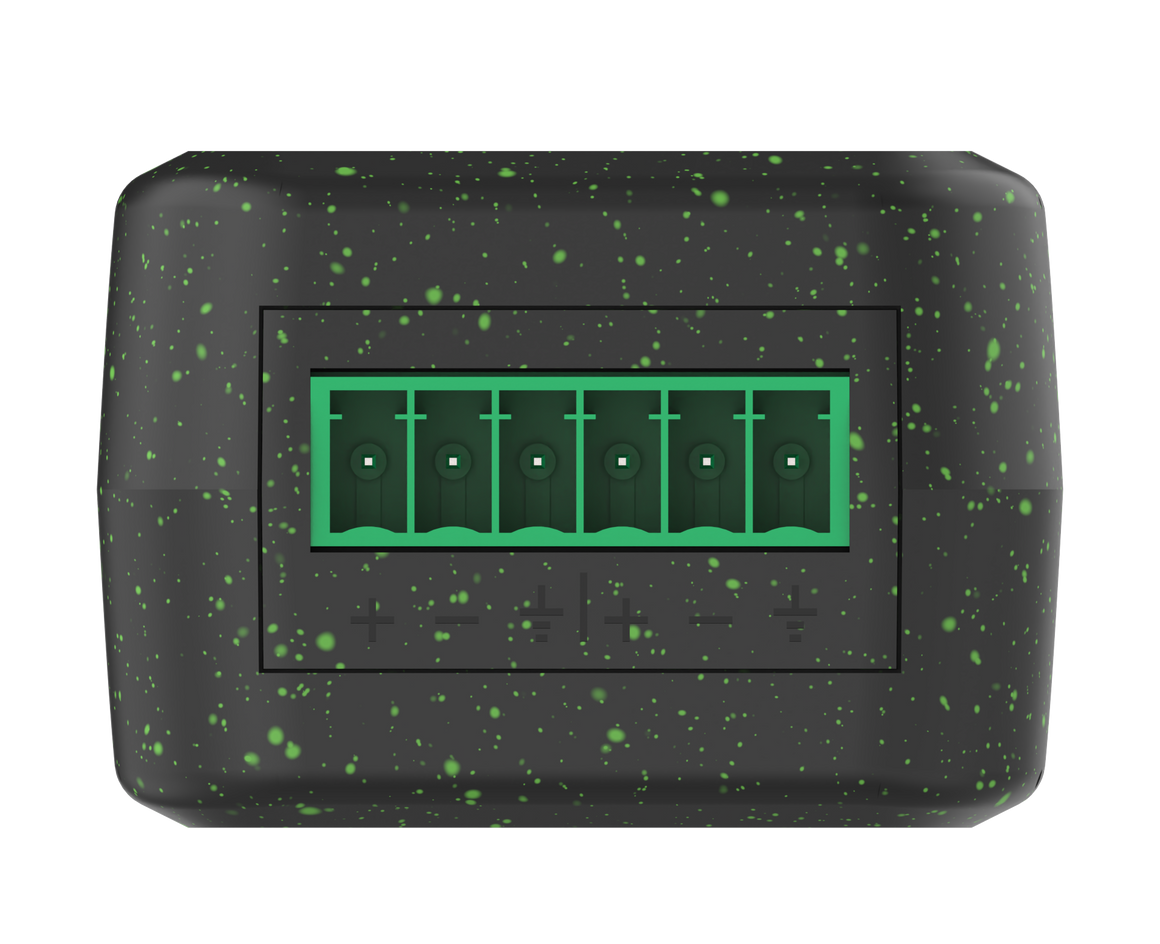

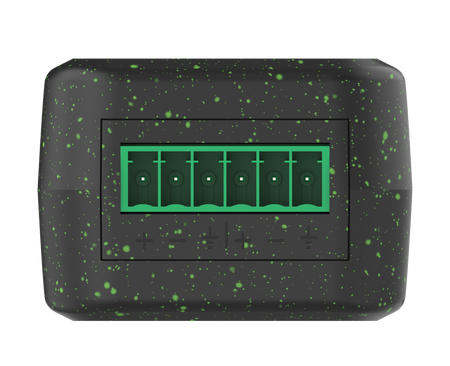

Black rectangular device with green speckles and a green display on a white background
Black electronic module with green speckles and an Ethernet port on a white background
Turtle AV Dante 2CH Analog Line Input Adapter with Gain Controls
Turtle Dante Dual Line Input device on a white background
Turtle Dante Dual Line Input device on a white background
Black electronic device with 'Turtle' branding on a white background
Black audio interface with 'Turtle' branding on a white background
Black rectangular device with green speckles and a green display on a white background
Black electronic module with green speckles and an Ethernet port on a white background
SKU: TAV-D2LEN

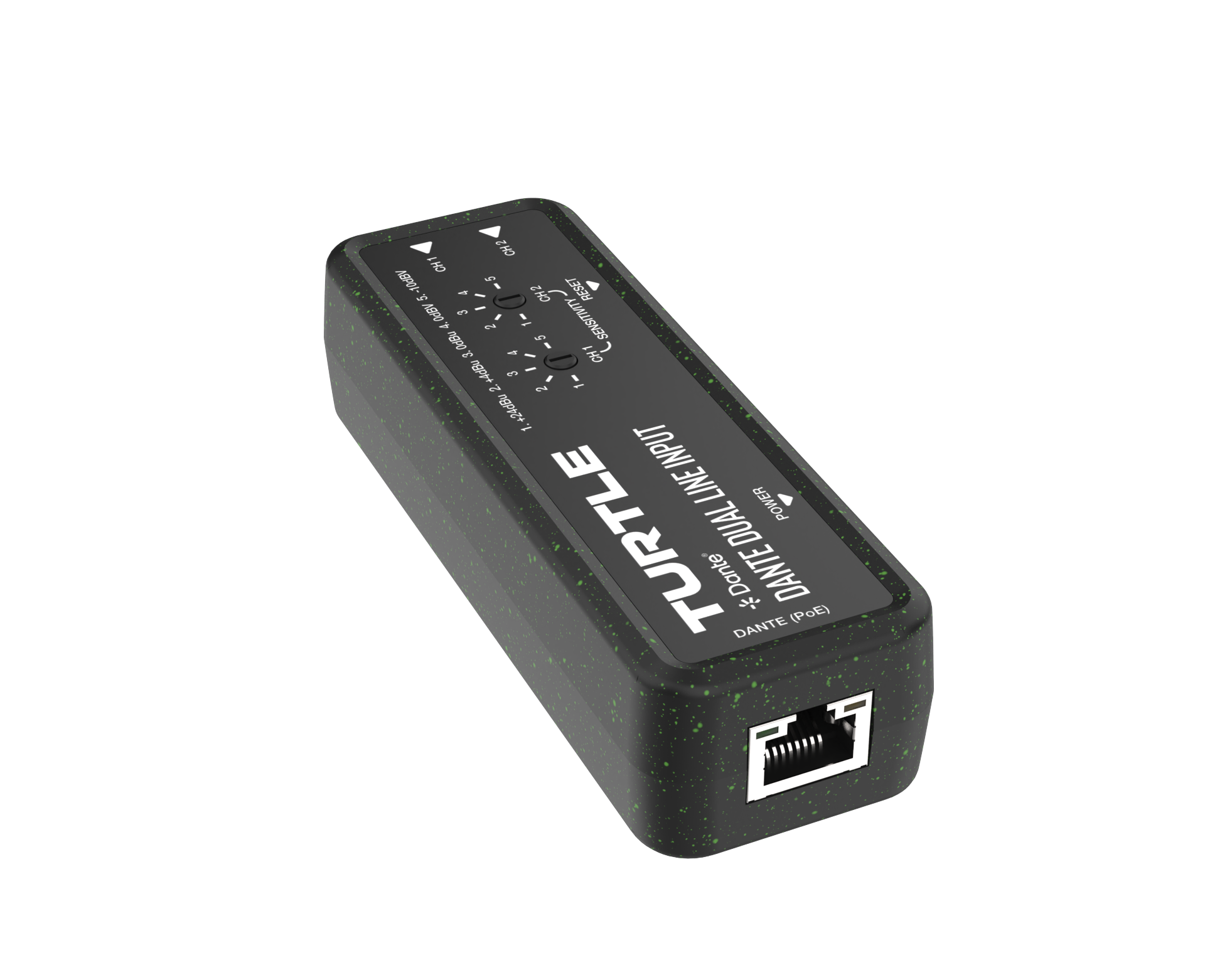

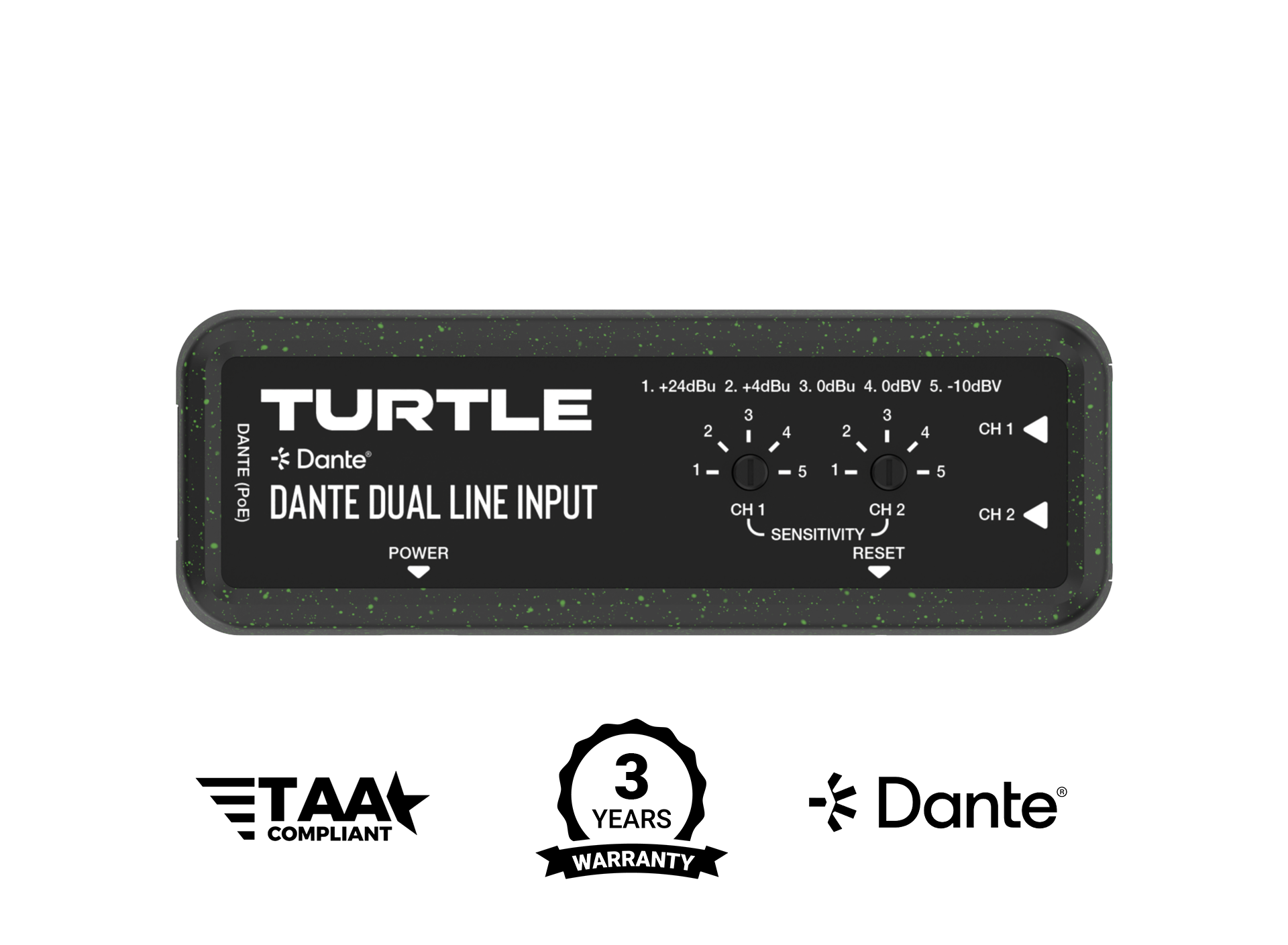

Turtle AV Dante 2CH Analog Line Input Adapter with Gain Controls

Turtle AV

Dante Dual Line Input

The Turtle Dante 2CH Analogue Line Input Adapter (TAV‑D2LEN) provides high-quality two-channel conversion of analogue audio into Dante® digital streams. Built on the Dante Ultimo 2×2 platform, it supports 16/24-bit resolution at sample rates from 44.1 kHz to 96 kHz, with selectable input sensitivity and latency. Ideal for professional AV, broadcast, and integration applications, it operates efficiently via PoE or USB‑C and supports AES67 interoperability.

Highlighted Features

  • 2‑Channel Analogue Input: Balanced/unbalanced analogue audio via dual 6-pin 3.5 mm Phoenix connectors.

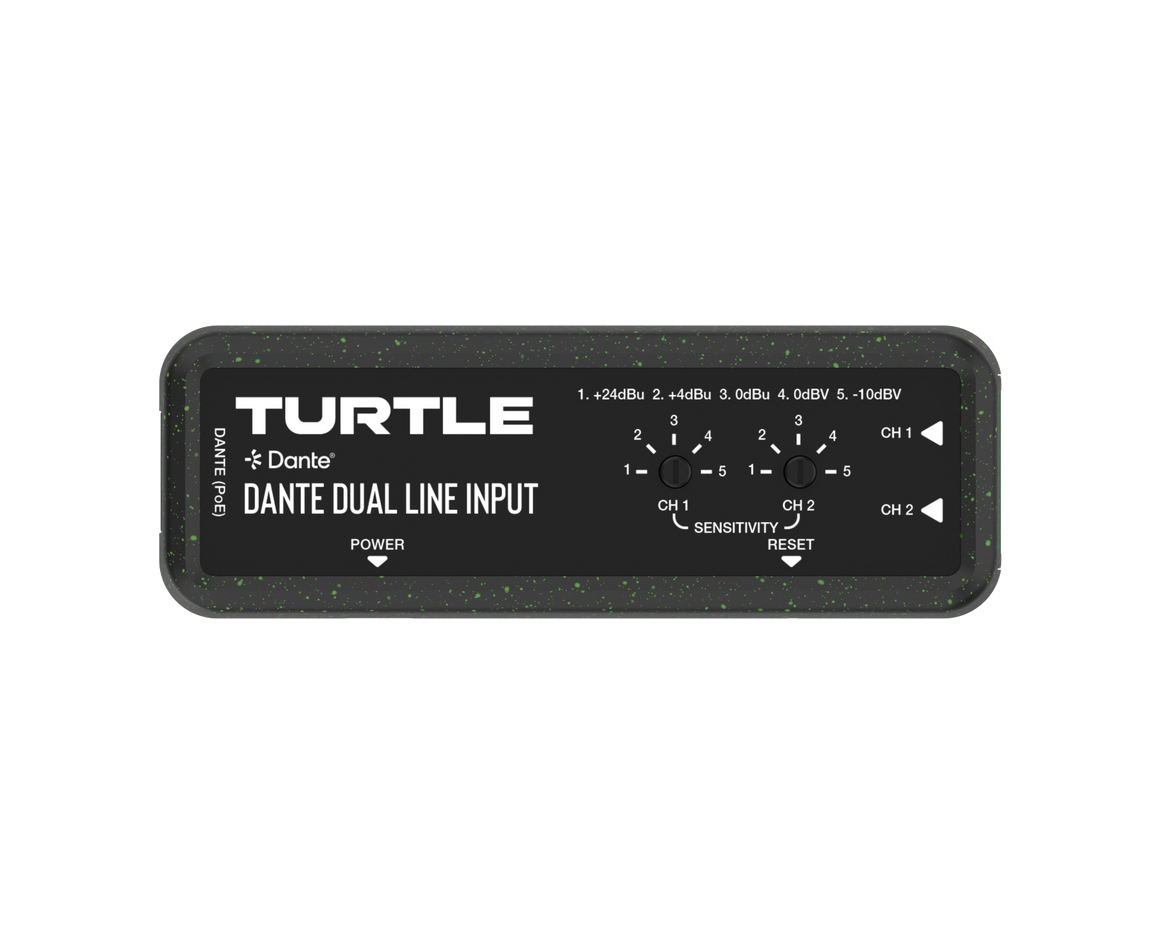

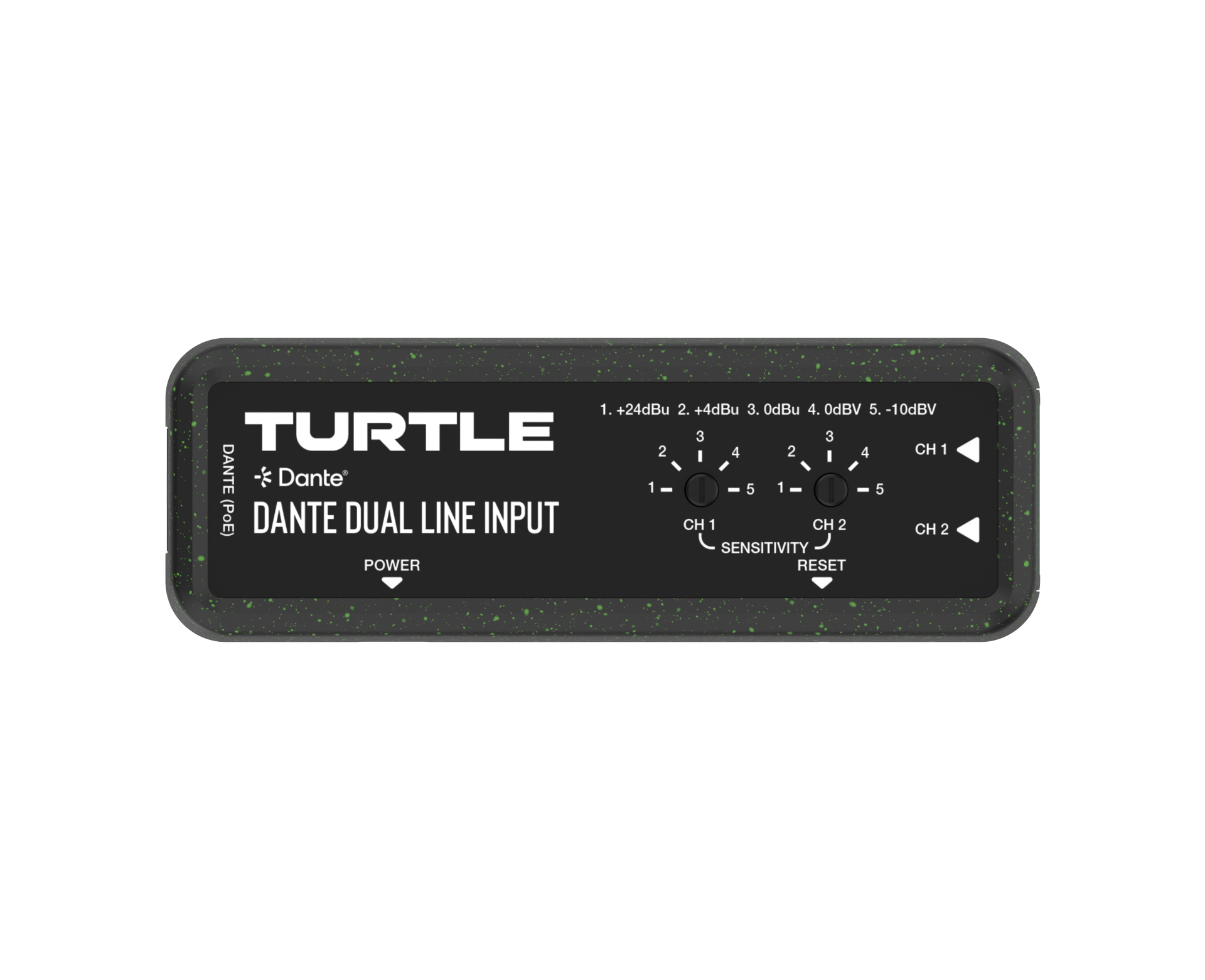

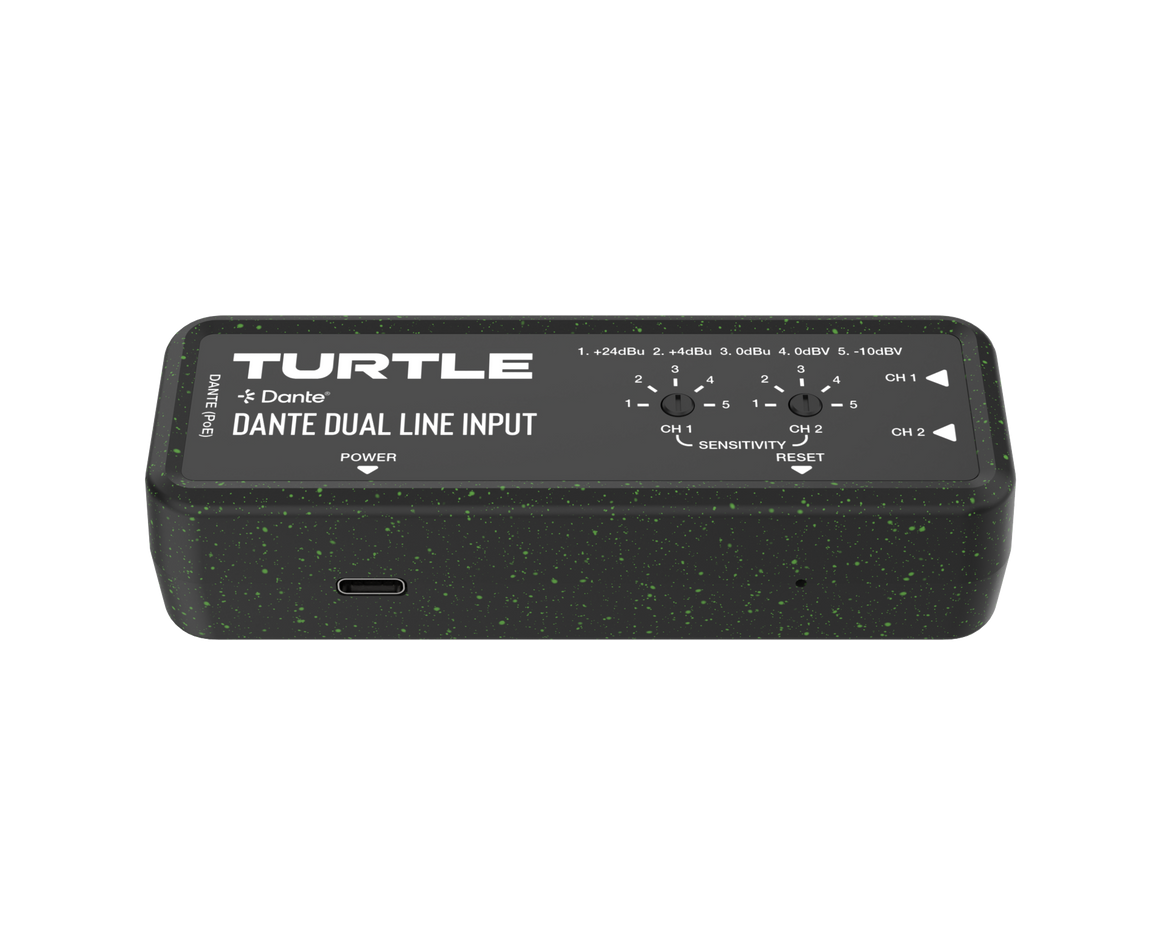

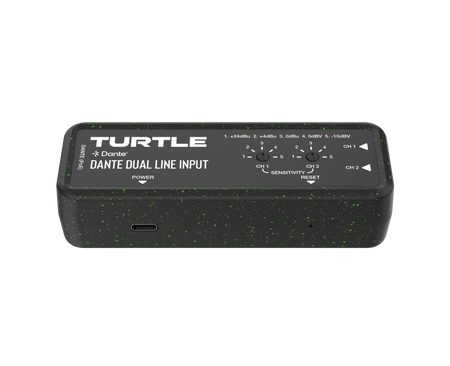

  • Gain Adjustment: Five-level jumper‑selectable input sensitivity: +24 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV.
  • Dante Controller Support: Configure latency, input gain, and channel routing through Dante Controller.
  • Dual Power Options: Powered via IEEE 802.3af PoE or USB‑C (5 VDC @ 500 mA, max ~2 W).
  • Eco‑Friendly Design: Compact plastic enclosure made from 90% recycled material, including 5% ocean‑bound plastic.
  • Standards‑Compliant Interoperability: Compatible with both Dante and AES67 network audio systems.

The TAV‑D2LEN is an ideal solution for integrating legacy analogue audio sources into modern Dante or AES67-based networked environments, offering a compact footprint, flexible powering, and professional-grade performance.

In stock
£145.44

Secure Checkout

Warranty Protection

14 - Day Returns

The Dante 2CH Analog Line Input Adapter (TAV‑D2LEN) delivers pristine two-channel conversion of analog audio into Dante® digital streams. Built on the Dante Ultimo 2×2 platform, it supports 16/24-bit resolution at sample rates from 44.1 kHz to 96 kHz, with selectable input sensitivity and latency. Ideal for professional AV, broadcast, and integration use, it runs efficiently via PoE or USB‑C and supports AES67 interoperability.

Highlighted Features

  • 2‑Channel Analog Input: Balanced/unbalanced analog audio in via dual 6-pin 3.5 mm Phoenix connectors.
  • Gain Adjustment: Five-level jumper‑selectable input sensitivity: +24 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV.
  • Dante Controller Support: Configure device latency, input gain, and channel routing via Dante Controller.
  • Dual Power Options: Powers via IEEE 802.3af PoE or USB‑C (5 VDC @ 500 mA, max ~2 W).
  • Eco‑Friendly Design: Compact plastic housing made from 90% recycled material, including 5% Ocean‑Bound Plastic.
  • Standards‑Compliant Interoperability: Compatible with both Dante and AES67 network audio systems.

Connections

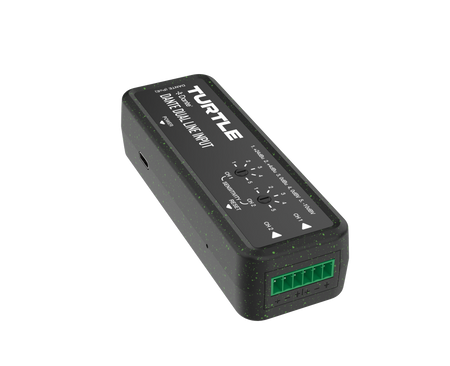

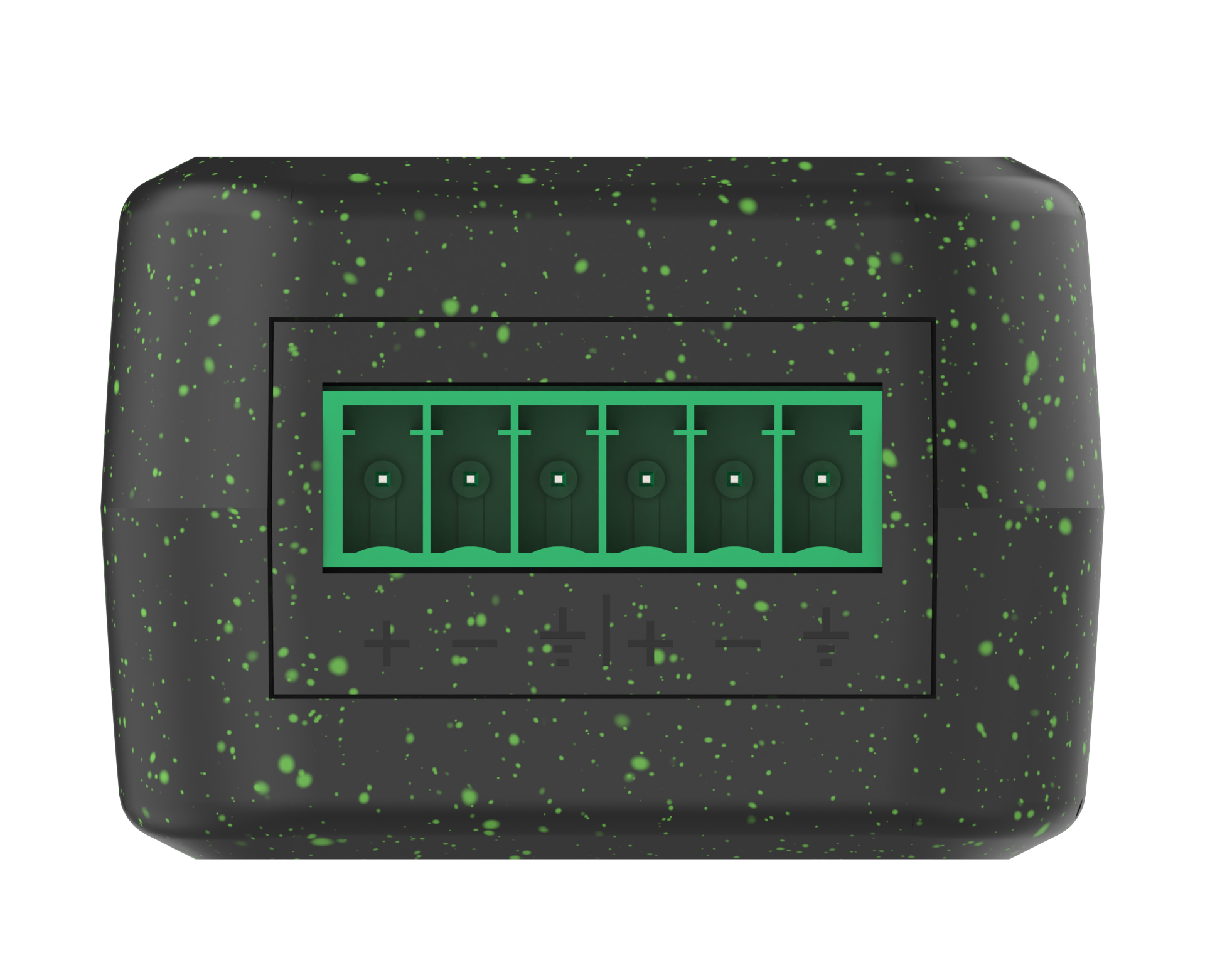

  • Input: 2 × CH1/CH2 LINE IN (6-pin Phoenix connector for analog input)
  • Power: 1 × POWER (USB‑C port — supply power and firmware updates, 12‑pin female)

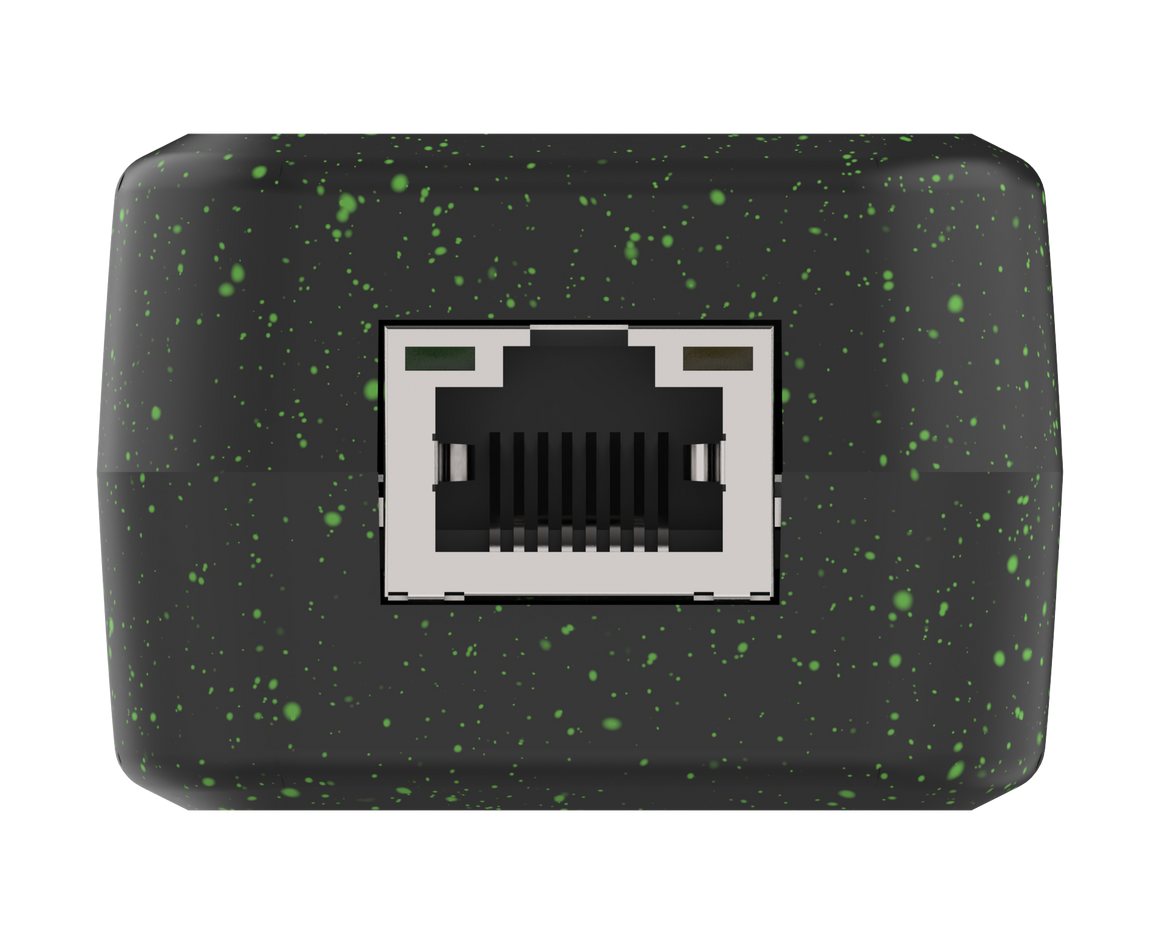

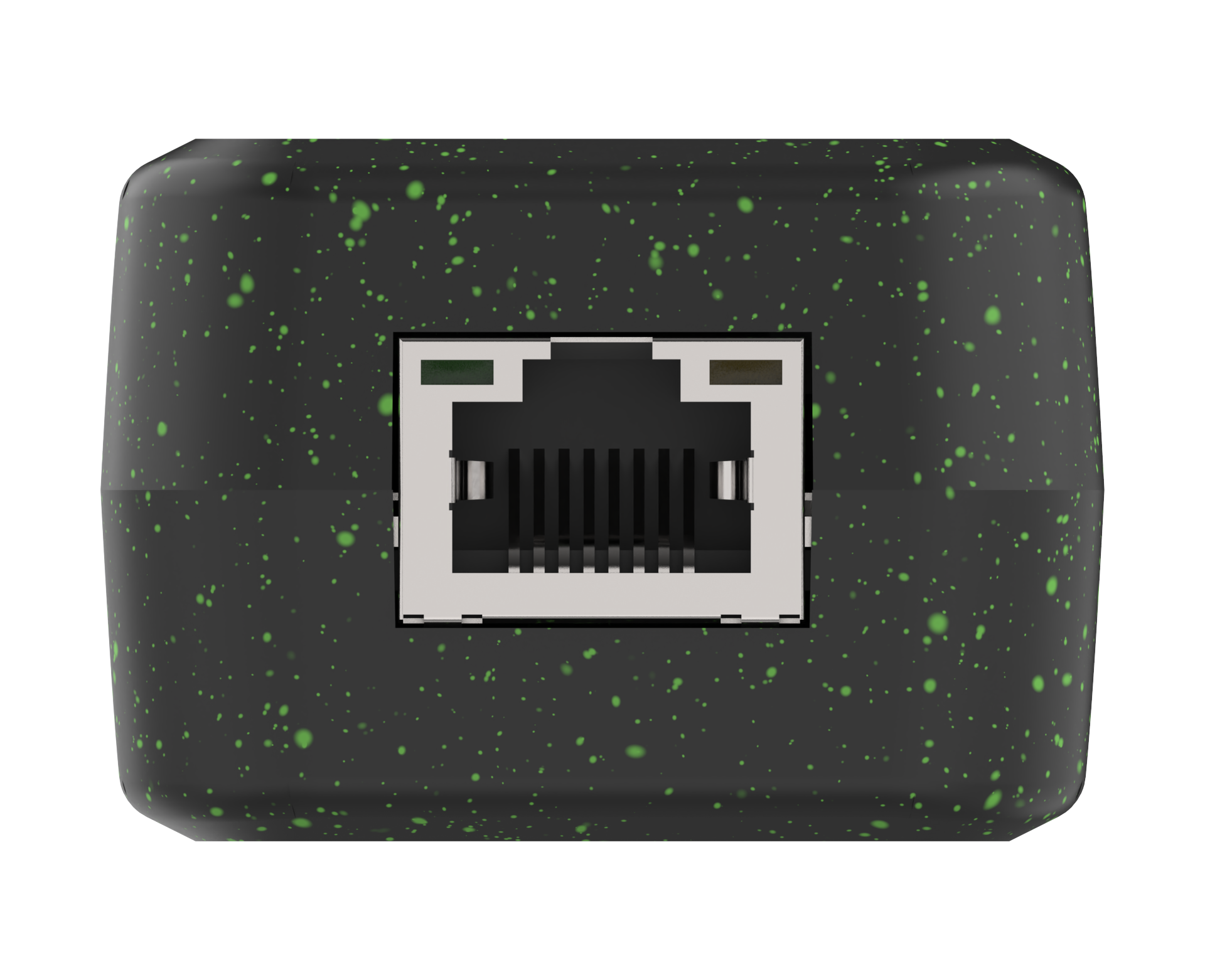

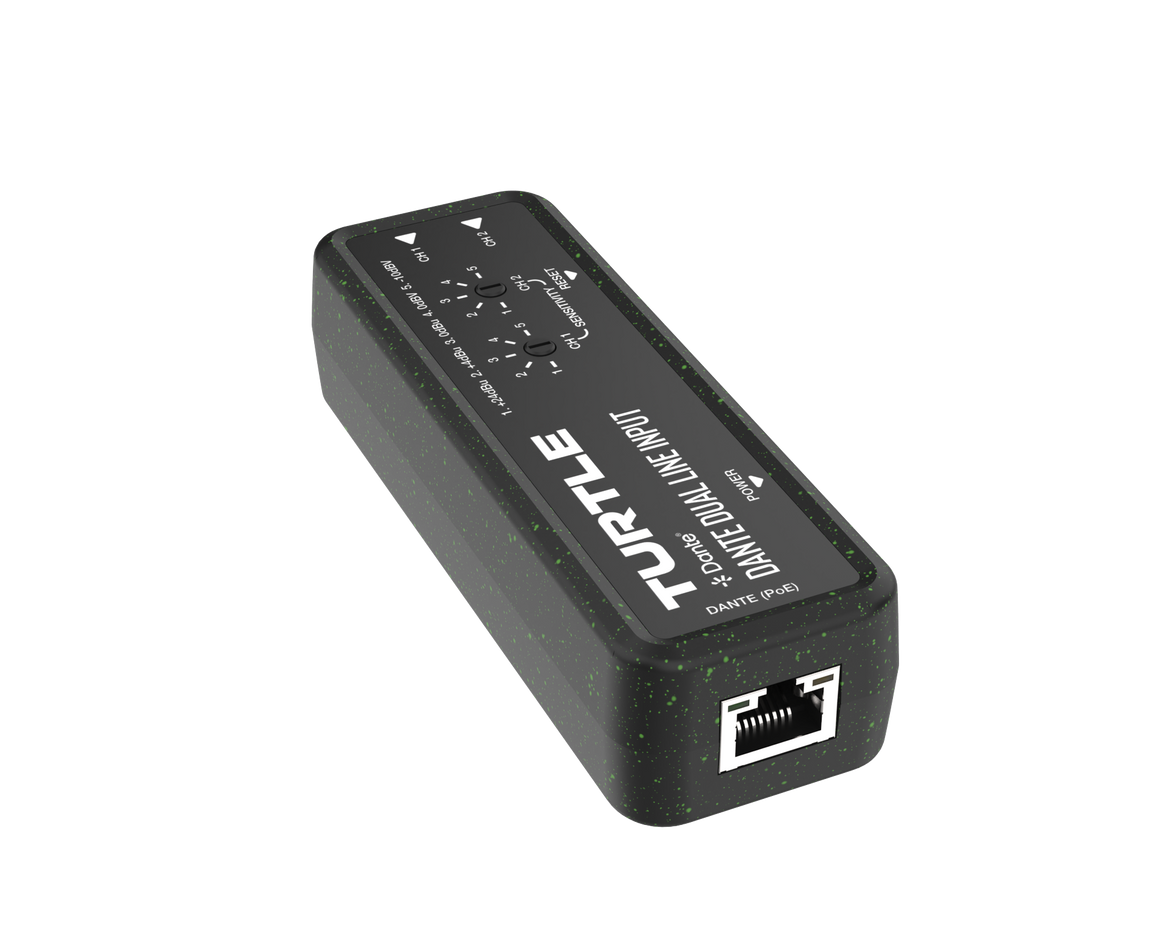

  • Output: 1 × DANTE (RJ45 LAN port with PoE)

Specifications

Dante 2CH Analog Line Input Adapter (TAV‑D2LEN)
Input Two‑channel analog audio via Phoenix block (balanced/unbalanced), max input level +24 dBu
Gain Levels +24 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV (jumper selectable)
Output Dante® 2CH digital audio via RJ45 (supports PoE)
Control Dante Controller software
Network Bandwidth 100 Mbps
Latency Configurable: 1 ms, 2 ms, or 5 ms via Dante Controller
Audio Formats PCM 2CH @ 44.1 / 48 / 88.2 / 96 kHz, 16‑ or 24‑bit
Input Impedance 20 kΩ balanced, 10 kΩ unbalanced
Max Input Level +24 dBu (≈ 12.3 Vrms balanced), +18 dBu (≈ 6.15 Vrms unbalanced)
Frequency Response 20 Hz – 20 kHz (±0.5 dB)
Dynamic Range / SNR >100 dB @ 0 dBu, 1 kHz (A‑weighted)
THD + N <0.01% @ +4 dBu, 1 kHz
Sync Delay <10 ms
ESD Protection IEC 61000‑4‑2: ±8 kV air‑gap, ±4 kV contact discharge
Mechanical
Housing Plastic enclosure (Black/Green)
Dimensions 115 × 40 × 28 mm (4.52 × 1.57 × 0.98")
Weight ≈98 g (0.21 lb)
Power Supply PoE IEEE 802.3af Class 0 or USB‑C: 5 VDC @ 500 mA
Power Consumption Max 2 W
Operating Temperature 32–104 °F (0–40 °C)
Relative Humidity 20–90 % RH (non‑condensing)
