SKU: TAV-D2LEN-PRO

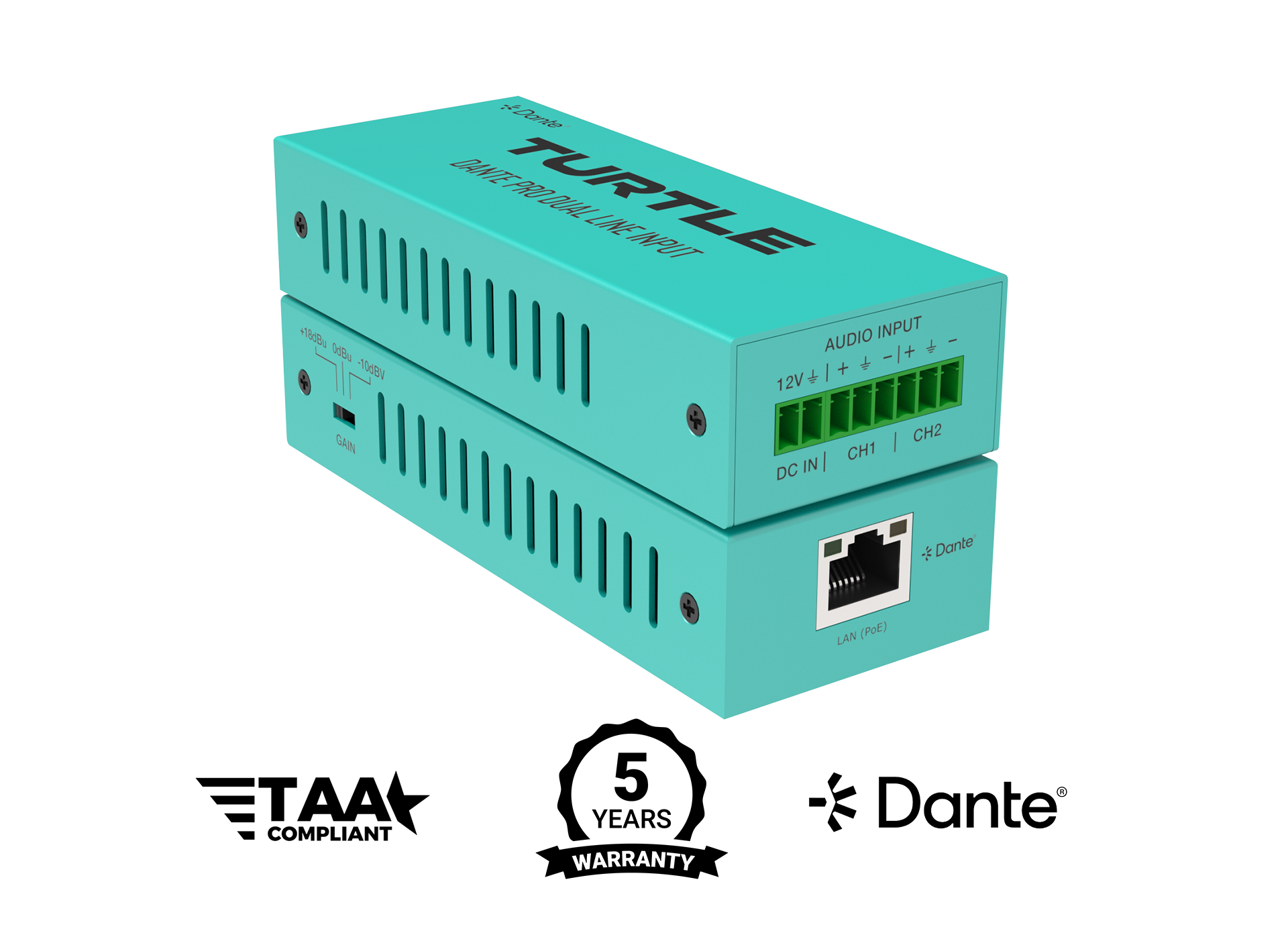

Turtle AV Dante Pro 2CH Analog Line Input Adapter with Gain Controls

Turtle AV

Dante Pro Dual Line Input

The Turtle Dante Pro 2CH Analogue Line Input Adapter (TAV‑D2LEN‑PRO) is a robust professional-grade interface designed to convert two channels of analogue audio into Dante® digital streams. Featuring a metal chassis, selectable input gain, Precision Time Protocol (PTP) support, and dual power options via PoE or 12 V DC, it delivers uncompromising reliability for fixed AV installations, commercial systems, and critical audio environments.

Highlighted Features

  • Professional Euroblock Inputs: Two 3-pin Euroblock connectors support balanced or unbalanced analogue sources up to +18 dBu.
  • Recessed Gain Selector: Rear-panel switch allows input sensitivity selection at +18 dBu, 0 dBu (default), or –10 dBV, ensuring optimal headroom for varied signal sources.
  • Precision Time Protocol: Supports PTP for sample-accurate, jitter-free Dante audio clocking in complex networks.
  • Software Configuration: Manage channel routing, gain and latency settings (1, 2, or 5 ms) using Dante Controller.
  • Flexible Power Options: Operates via PoE (IEEE 802.3af) or 12 V DC via a Phoenix connector for power redundancy.
  • Standards-Based Compatibility: Fully compatible with Dante and AES67 environments for maximum system interoperability.
  • Industrial Metal Enclosure: Housed in a durable TAA-compliant metal chassis for long-term installation stability.
  • 5-Year Advance Replacement: Backed by professional support and an extended hardware warranty.

The TAV‑D2LEN‑PRO is ideal for demanding Dante/AES67 network environments that require secure mounting, reliable signal conversion, and installation-grade build quality. From boardrooms to control rooms, it delivers consistent, noise-free performance with intuitive setup and minimal footprint.

In stock
£222.00

Secure checkout

Friendly support

Hassle-free returns

The Dante Pro 2CH Analog Line Input Adapter (TAV‑D2LEN‑PRO) is a professional-grade analog-to-Dante interface built for installation-grade environments. With a rugged metal chassis, Precision Time Protocol (PTP), selectable input gain via recessed switch, AES67 compatibility, and dual power options (PoE or 12 V DC), it’s ideal for mission-critical AV deployments.

Highlighted Features

  • Euroblock Analog Inputs: Dual balanced/unbalanced 3‑pin Euroblock inputs supporting up to +18 dBu.
  • Selectable Gain Control: Recessed switch sets analog input sensitivity to +18 dBu, 0 dBu (default), or –10 dBV. Used to match incoming signal level for optimal headroom and low noise.
  • Precision Time Protocol (PTP): Ensures accurate, jitter-free Dante synchronisation.
  • Dante Controller Support: Configure input channels, latency (1, 2, or 5 ms), and routing.
  • Power via PoE or 12 V DC: IEEE 802.3af PoE (via RJ45) or external 12 V DC via Phoenix connector.
  • AES67 & Dante Compatibility: Fully interoperable in Dante or AES67 mode.
  • Metal Chassis & TAA Compliance: Robust build for long-term, secure installations.
  • 5-Year Advance Replacement Warranty: Professional-grade reliability and support.

Connections

  • Line Input: 2 × CH1/CH2 via 3‑pin Euroblock (balanced/unbalanced analog audio).
  • Gain Switch: 3-position recessed selector (rear panel) for +18 dBu / 0 dBu / –10 dBV.
  • Power Input: 1 × 2‑pin Phoenix (12 V DC) or PoE via RJ45.

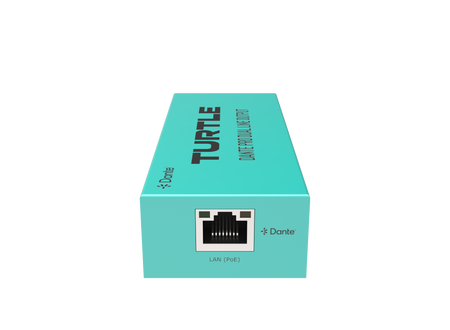

  • DANTE Output: 1 × RJ45 Ethernet (Class 0 PoE) for digital audio streaming.

Specifications

Dante Pro 2CH Analog Line Input Adapter (TAV‑D2LEN‑PRO)
Analog Input 2 × balanced/unbalanced via Euroblock; 20 kΩ (balanced), 10 kΩ (unbalanced); max input +18 dBu
Gain Control Recessed 3-position switch: +18 dBu, 0 dBu (default), –10 dBV (for matching source levels)
Dante Output PCM 2CH @ 44.1, 48, 96 kHz (16/24-bit); AES67 compatible
Control Dante Controller software (channel routing, gain, latency: 1 / 2 / 5 ms)
Network Bandwidth 100 Mbps (Fast Ethernet)
Frequency Response 20 Hz – 20 kHz (±0.5 dB)
Dynamic Range / SNR >100 dB @ 0 dBu, A‑weighted
THD + N <0.01% @ +4 dBu, 1 kHz
Sync Delay <10 ms
ESD Protection IEC 61000‑4‑2: ±8 kV air, ±4 kV contact
Mechanical
Housing All-metal chassis (Turtle Aqua); TAA compliant
Dimensions 120 × 47 × 26 mm (4.72 × 1.85 × 1.02″)
Weight ~186 g (0.41 lb)
Power Supply PoE IEEE 802.3af Class 0 via RJ45 or 12 V DC Phoenix
Power Consumption 1.2 W typical, ≤2 W max
Operating Temperature 32–104 °F (0–40 °C)
Relative Humidity 20–90 % RH (non-condensing)
Warranty 5-Year advance replacement
