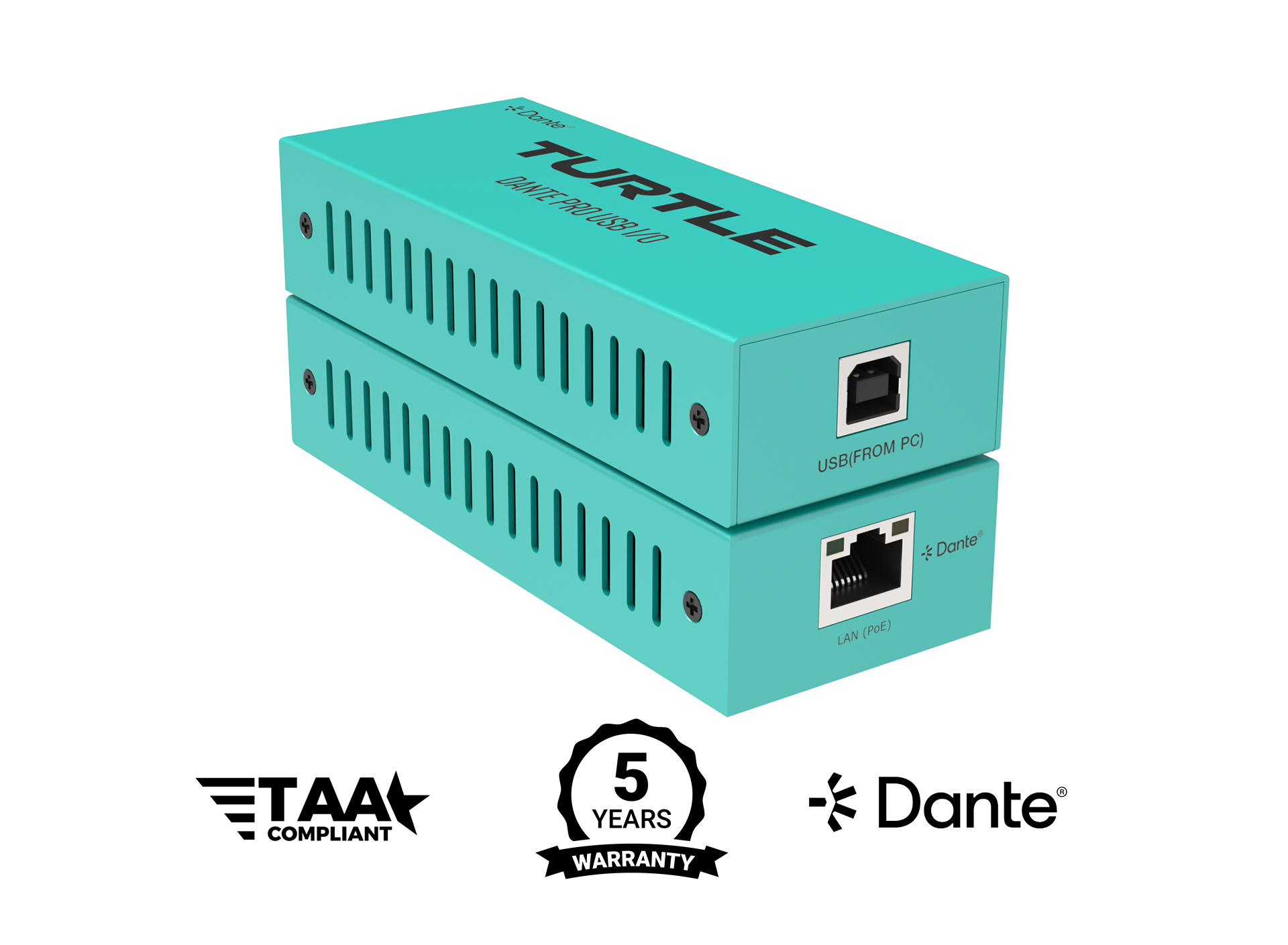

Turquoise electronic device with labels for TAA compliance, 5-year warranty, and Dante certification on a white background.
Turquoise box with technical connectors on a white background

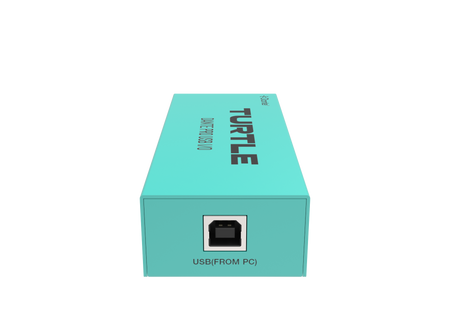

Turquoise box with 'Turtle' branding and USB port icon on a white background

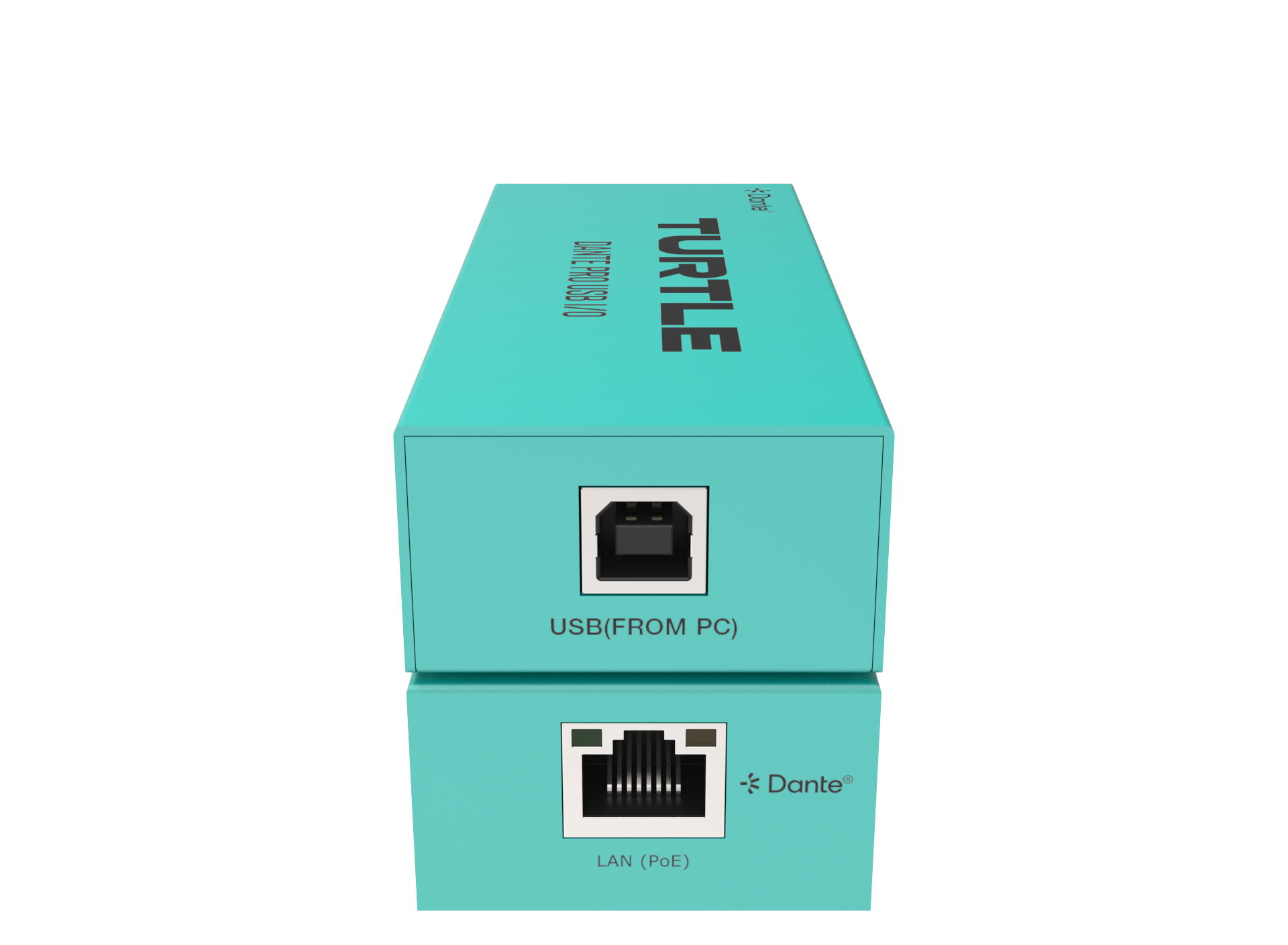

Turquoise box with 'Turtle' branding and Dante logo on a white background
Turquoise electronic device with labels for TAA compliance, 5-year warranty, and Dante certification on a white background.
Turquoise box with technical connectors on a white background
Turquoise box with 'Turtle' branding and USB port icon on a white background
Turquoise box with 'Turtle' branding and Dante logo on a white background
SKU: TAV-D2USB-PRO

Turtle AV Dante Pro 2CH USB I/O Adapter

Turtle AV

Dante Pro USB I/O

The Turtle Dante Pro 2 CH USB‑C I/O Adapter (TAV‑D2USB‑PRO) provides professional bi‑directional conversion between USB‑C audio and Dante® digital audio. Supporting USB audio at up to 24‑bit/192 kHz (output) and 24‑bit/96 kHz (input), and Dante formats at 24‑bit/44.1–96 kHz, it offers superb fidelity for critical AV environments. Featuring AES67 support, PTP synchronisation, toggle-mode Dante/AES67 operation, and flexible powering via PoE or USB‑C, it’s ideal for installations, production spaces, and mobile AV use.

Highlighted Features

  • Bi‑Directional USB‑C & Dante I/O: Enables full two-channel USB‑C to Dante conversion and vice versa; USB Audio Class 1.0/2.0 compliant (driverless).
  • High‑Resolution Audio: Supports up to 24‑bit/192 kHz USB output; 24‑bit/96 kHz USB input; Dante I/O at 24‑bit, 44.1 / 48 / 88.2 / 96 kHz.
  • Latency Configuration: Adjustable Dante latency via Dante Controller (1 ms, 2 ms, or 5 ms) for optimal timing precision.
  • Dante & AES67 Compatible: Interoperable with Dante Domain Manager and AES67 multicast streams for seamless system integration.
  • Robust Metal Enclosure: All-metal Turtle Aqua chassis provides durability and is TAA-compliant for professional installation standards.
  • Flexible Power Options: Operates via PoE (IEEE 802.3af Class 0), USB‑C (5 V @ 500 mA), or 12 V DC via Phoenix connector.
  • Eco-Conscious Design: Built with sustainability in mind — USB version features 90% recycled materials; PRO unit uses recyclable metal and low-power circuitry.
  • Extended Warranty: Backed by Turtle AV’s 5-year advance replacement service for reliable, long-term support.

The TAV‑D2USB‑PRO is ideal for bridging laptops, mobile devices, or desktop audio workstations into professional Dante audio networks. Compact and resilient, it’s purpose-built for AV integrators, rental setups, and fixed infrastructure projects demanding dependable performance and plug-and-play simplicity.

In stock
£222.00

Secure checkout

Friendly support

Hassle-free returns

The Dante Pro 2 CH USB‑C I/O Adapter (TAV‑D2USB‑PRO) provides professional bi‑directional conversion between two‑channel USB audio and Dante® audio. It supports USB audio up to 24‑bit/192 kHz (USB output) and up to 24‑bit/96 kHz (USB input), while Dante I/O operates at 24‑bit and 44.1–96 kHz. Equipped with PTP synchronisation, toggle‑mode operation for Dante/AES67, and dual power via PoE or USB‑C, it's tailored for robust, low‑latency AV workflows.

Highlighted Features

  • Bi‑Directional USB & Dante I/O: Two-channel USB‑C audio to Dante, and vice versa (USB class‑compliant 1.0/2.0).
  • High-Resolution Support: USB output to 24‑bit/192 kHz; USB input and Dante to 24‑bit/96 kHz. Dante formats support 44.1–96 kHz.
  • Latency Control: Configurable Dante latency (1 ms, 2 ms, or 5 ms) via Dante Controller.
  • AES67 & Dante Compatibility: Seamless interoperability with Dante and AES67 multicast modes.
  • Rugged Build & TAA Compliance: All‑metal Turtle Aqua chassis for installation environments.
  • Flexible Power Options: IEEE 802.3af Class 0 PoE or USB‑C power (5 V @ 500 mA). Max power draw ~2 W.
  • Sustainable Design: Made from 90% recycled plastic in USB- models; PRO unit is metal. Supports eco packaging and low power.
  • 5-Year Advance Replacement Warranty: Long-term reliability backed by Turtle AV.

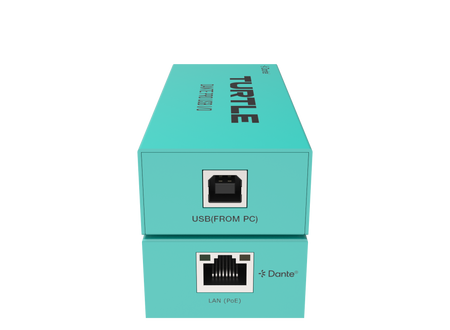

Connections

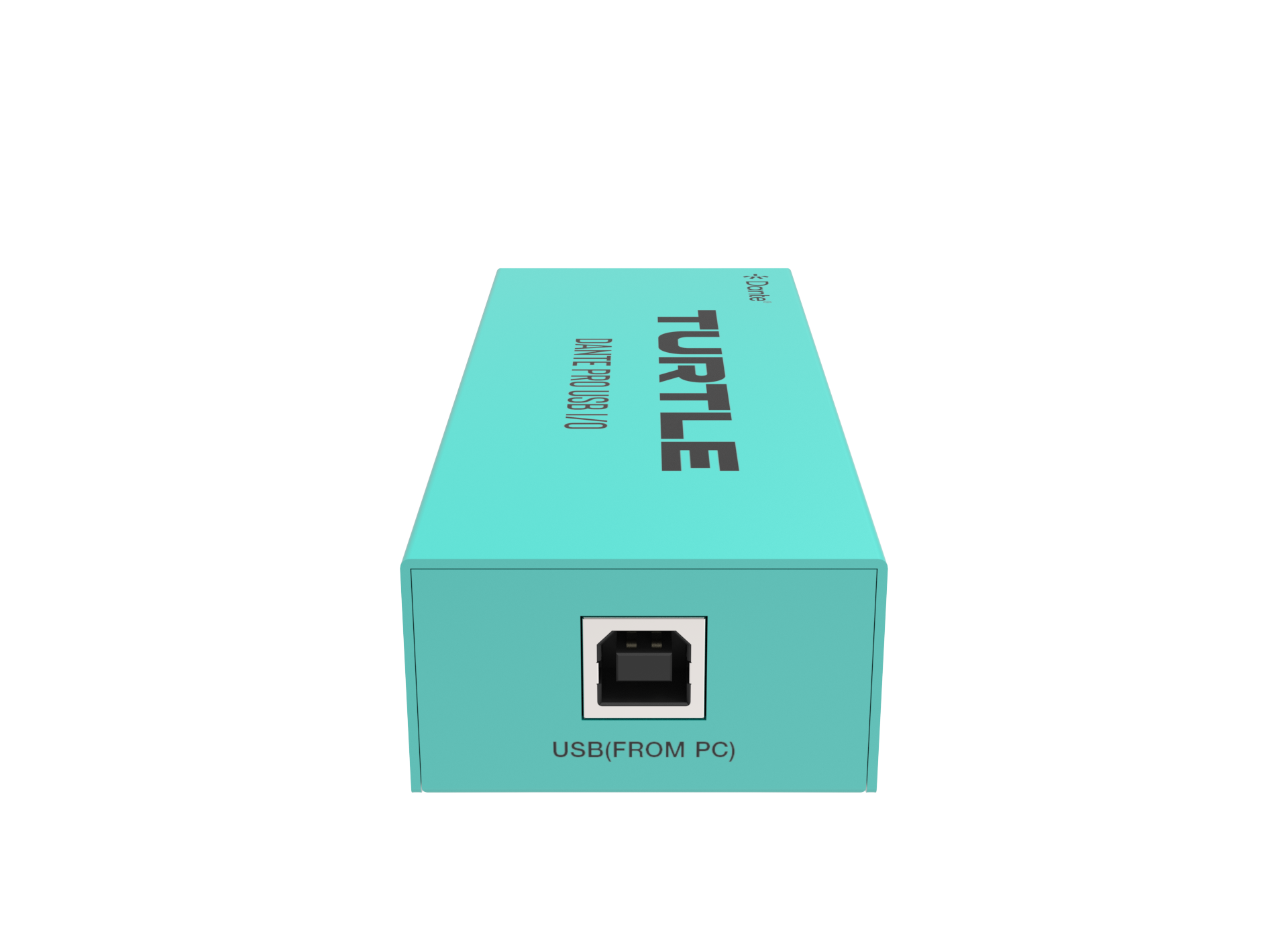

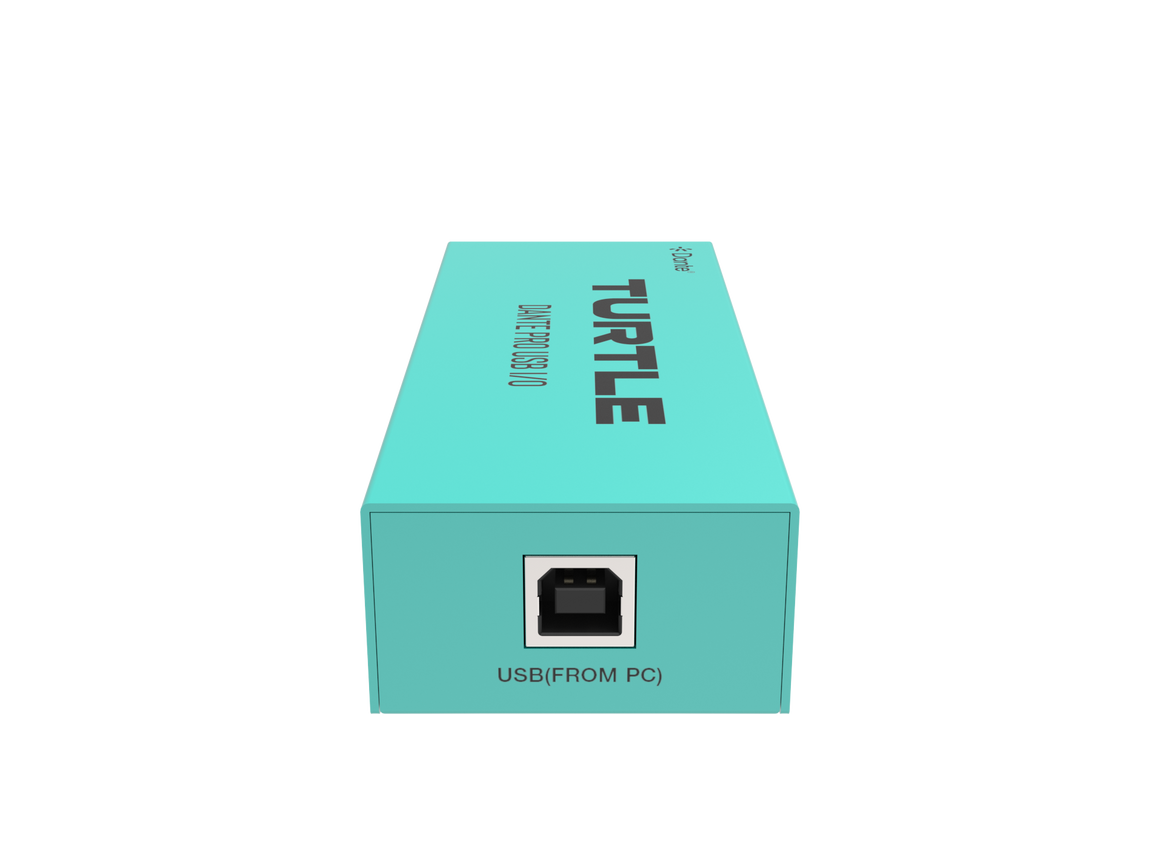

  • USB‑C I/O / Power: One 12‑pin USB‑C port for audio input/output, firmware updates, and optional 5 V power.

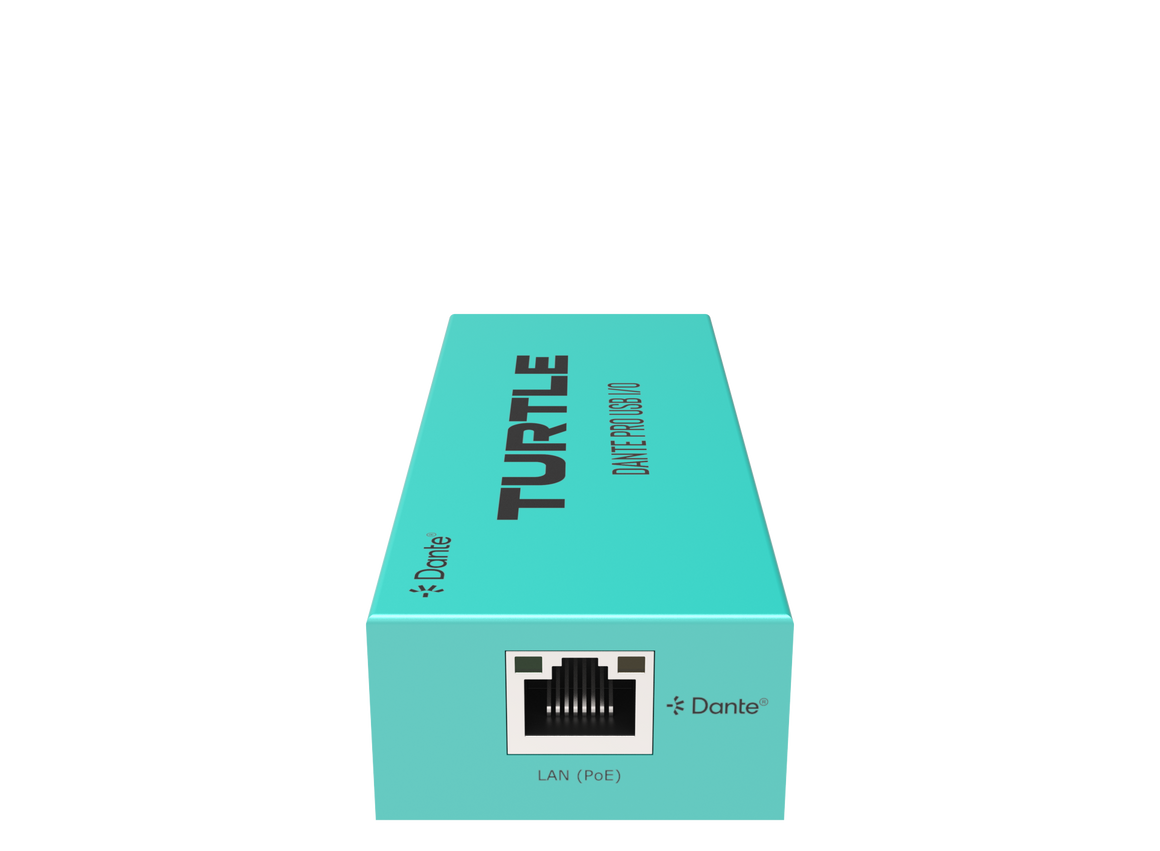

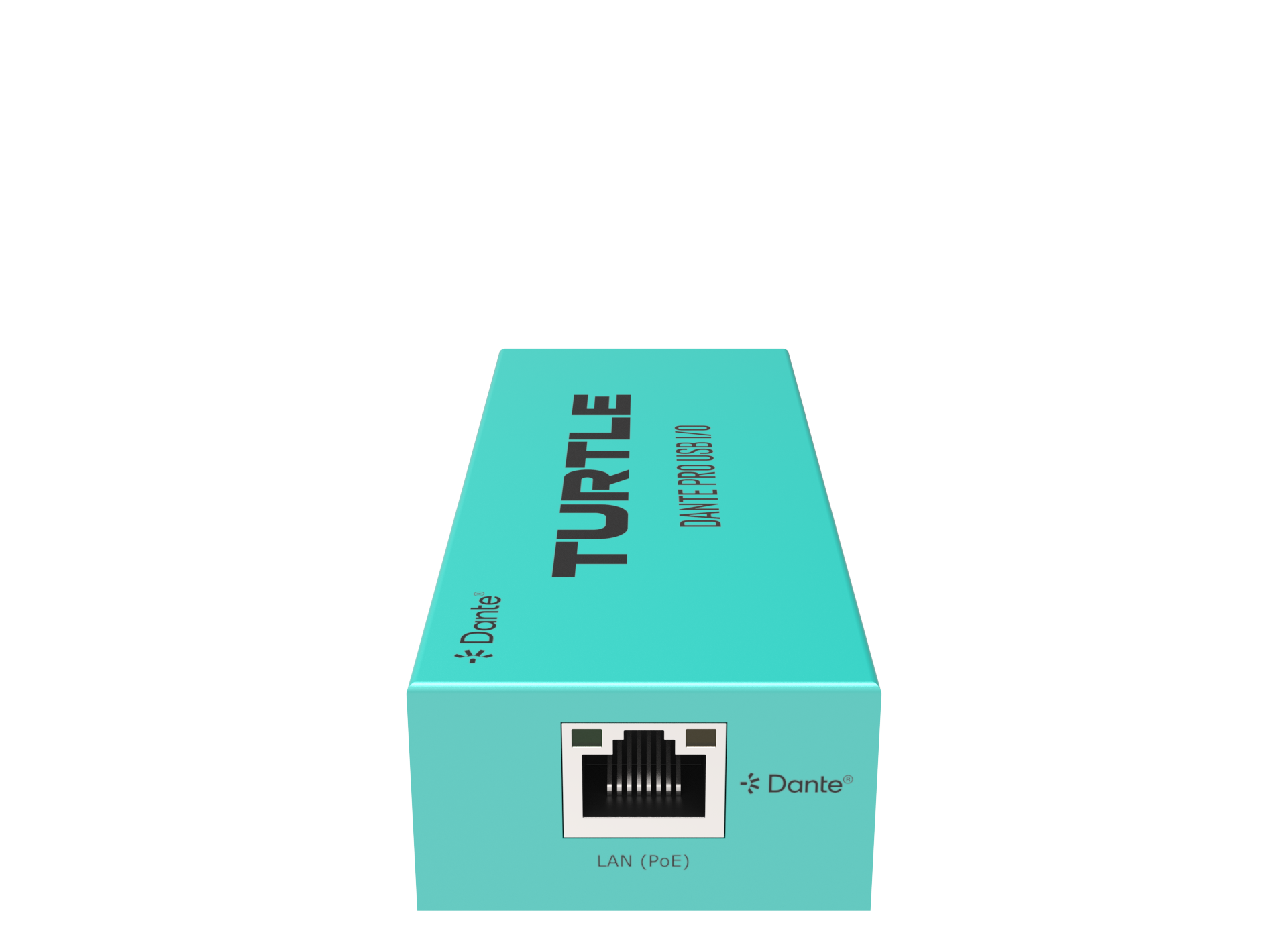

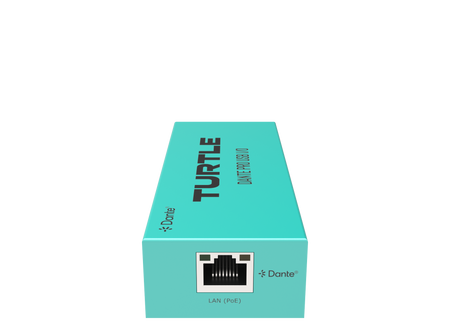

  • DANTE: RJ45 port for dual‑channel Dante input/output and PoE power.
  • POWER: Optional 2‑pin Phoenix connector for DC 12 V input (PoE alternate).

Specifications

Dante Pro 2 CH USB‑C I/O Adapter (TAV‑D2USB‑PRO)
USB Audio Output PCM 2 CH up to 24‑bit/192 kHz
USB Audio Input PCM 2 CH up to 24‑bit/96 kHz
USB Audio Class Class 1.0/2.0 compliant (plug‑and‑play)
Dante I/O Format PCM 2 CH @ 44.1, 48, 88.2, 96 kHz (16/24‑bit); supports AES67
Control Dante Controller (latency, routing)
Network Bandwidth 100 Mbps
Latency Configurable: 1 ms / 2 ms / 5 ms
Frequency Response 20 Hz – 20 kHz (±0.5 dB)
Dynamic Range / SNR >100 dB @ 0 dBu, 1 kHz (A‑weighted)
THD + N <0.01% @ +4 dBu, 1 kHz
Sync Delay <10 ms
ESD Protection IEC 61000‑4‑2: ±8 kV air / ±4 kV contact
Mechanical
Housing All‑metal Turtle Aqua chassis (TAA compliant)
Dimensions 120 × 47 × 26 mm (4.72 × 1.85 × 1.02″)
Weight ~188 g (0.41 lb)
Power Supply PoE (IEEE 802.3af Class 0) or USB‑C: 5 V @ 500 mA (via USB or Phoenix DC)
Power Consumption ≈2 W max
Operating Temperature 32–104 °F (0–40 °C)
Relative Humidity 20–90 % RH (non‑condensing)
Warranty 5‑Year advance replacement warranty
