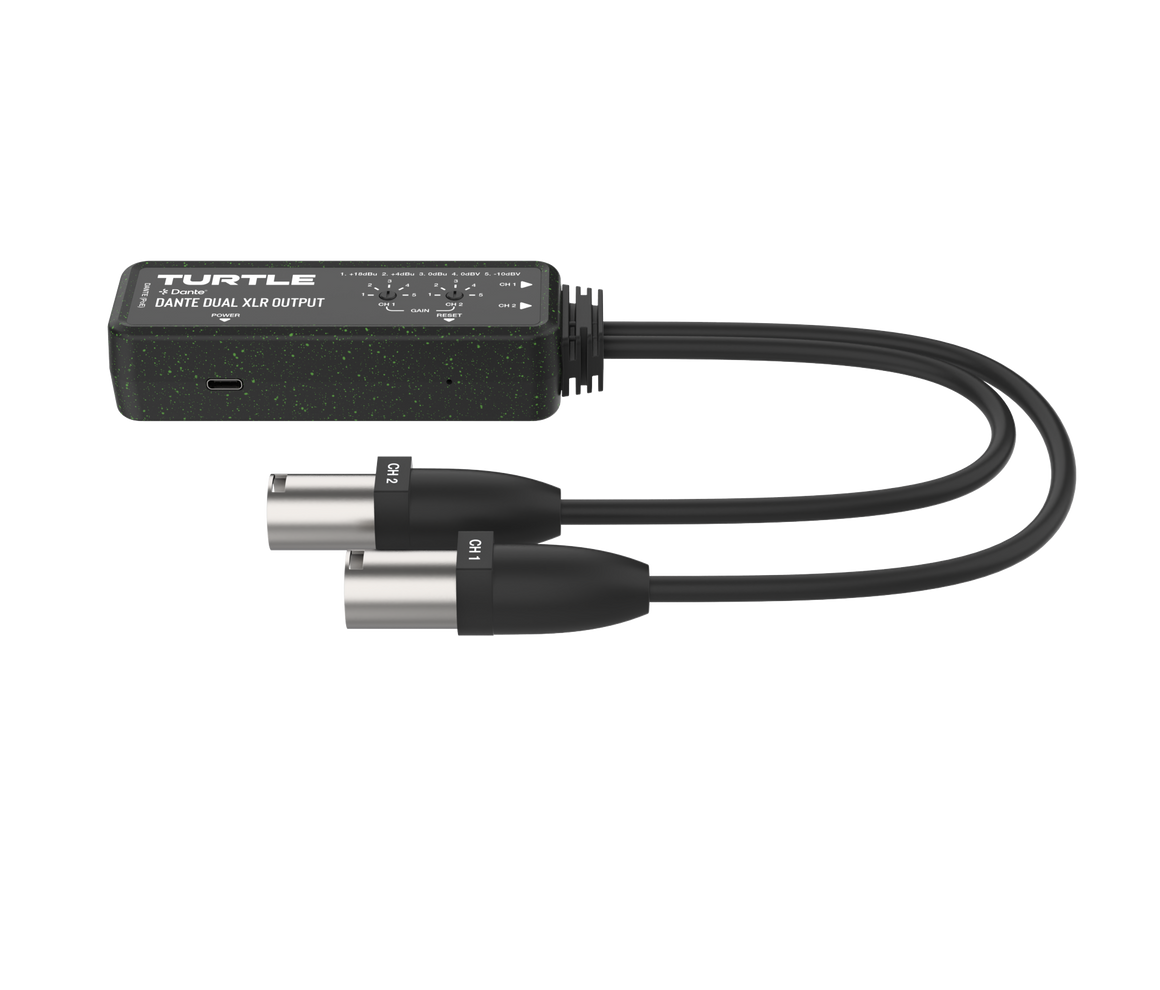

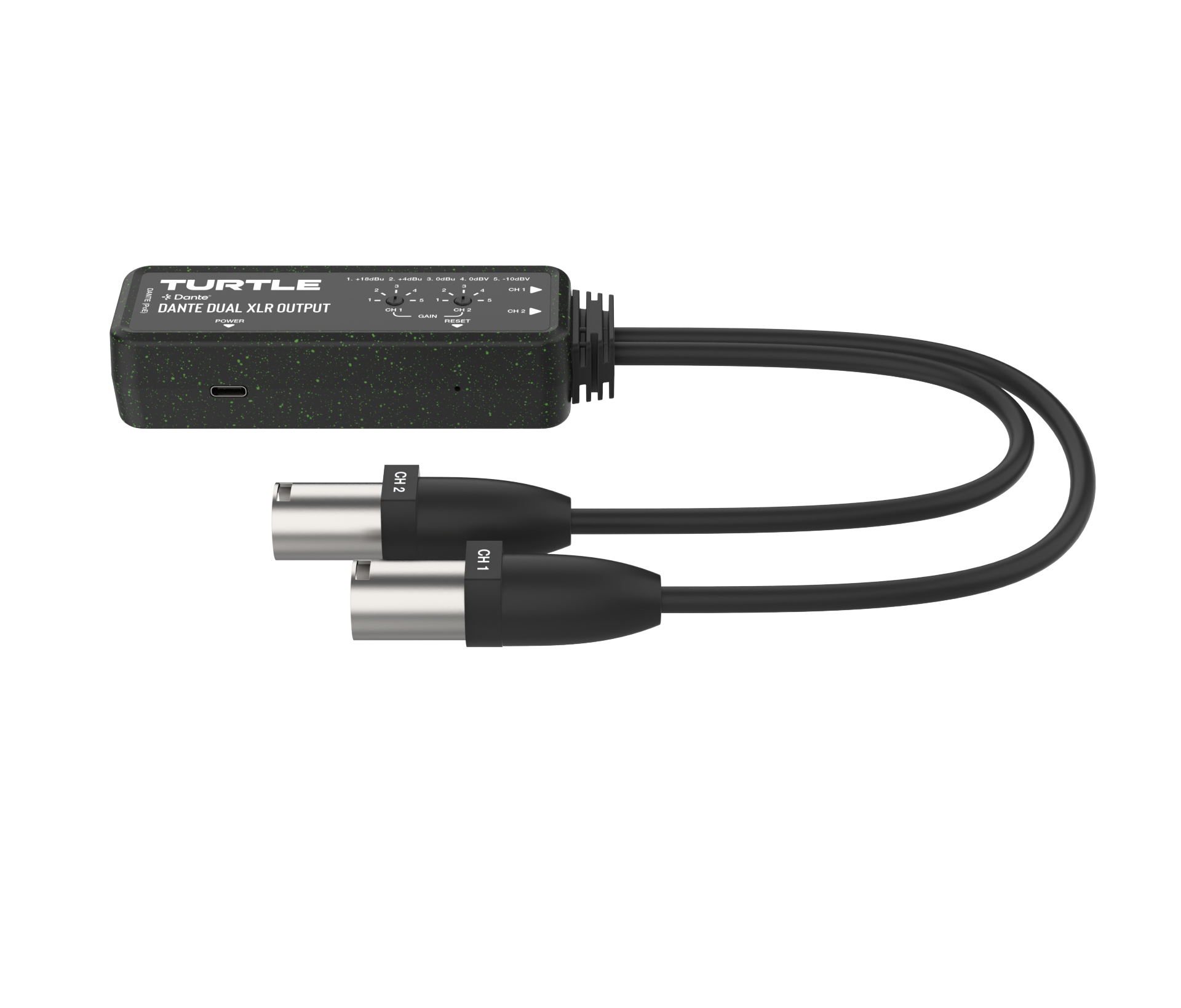

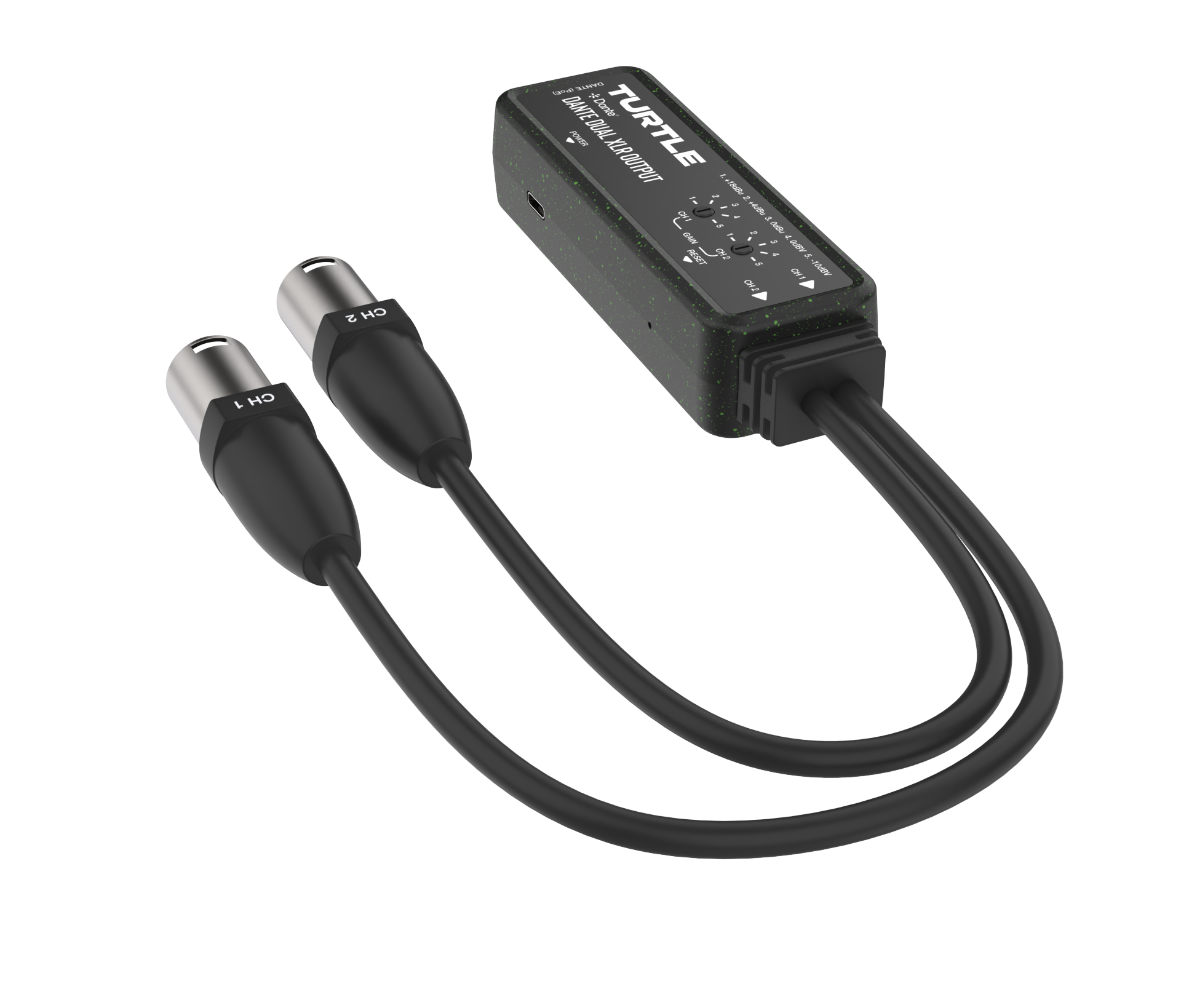

Turtle audio interface with two XLR cables on a white background

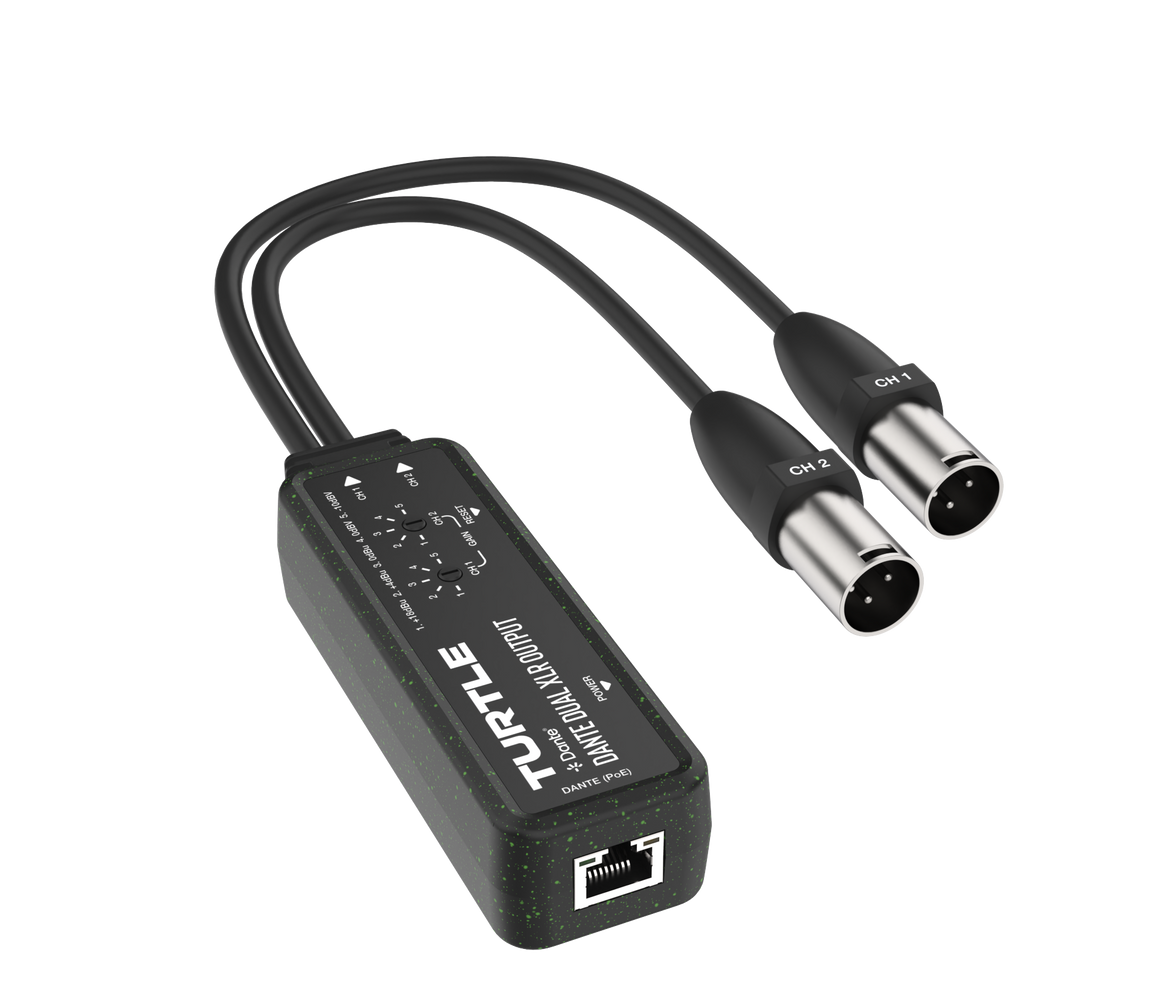

Black audio adapter with two XLR connectors on a white background

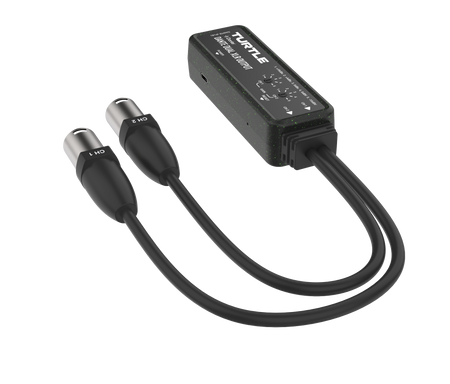

Turtle audio cable with XLR connectors on a white background

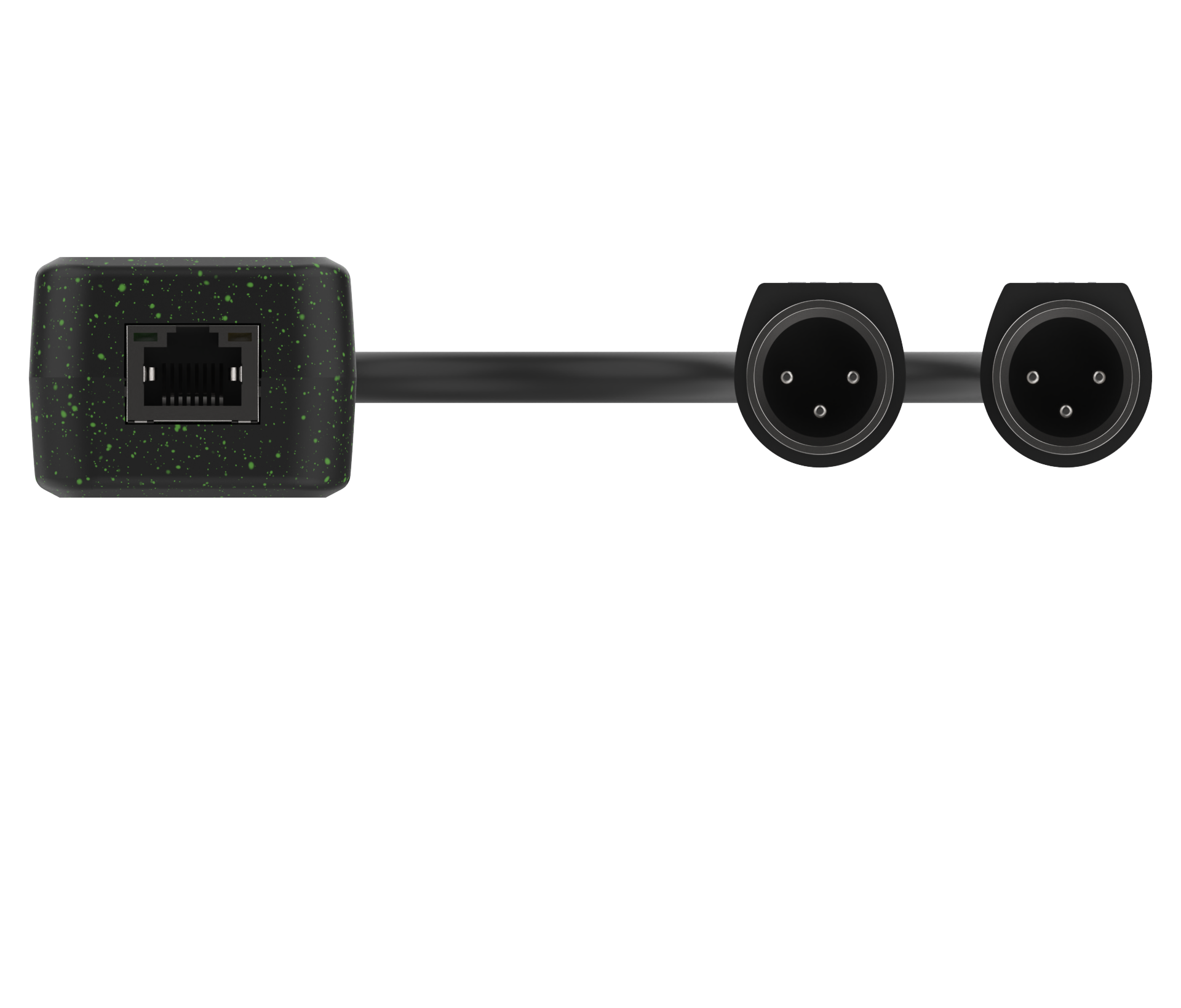

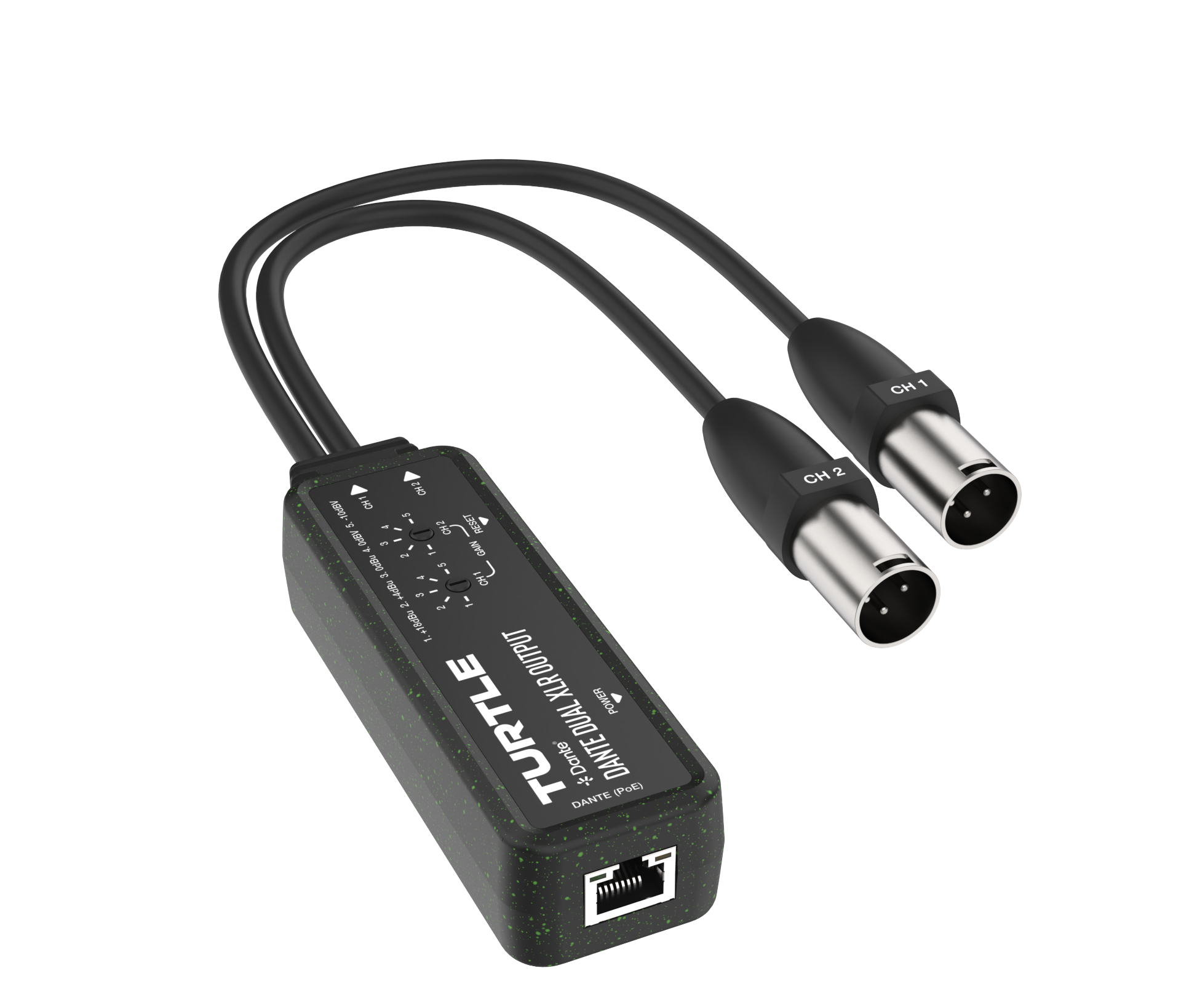

Black audio interface with Ethernet port and XLR connectors on a white background
Turtle audio interface with two XLR cables on a white background
Black audio adapter with two XLR connectors on a white background

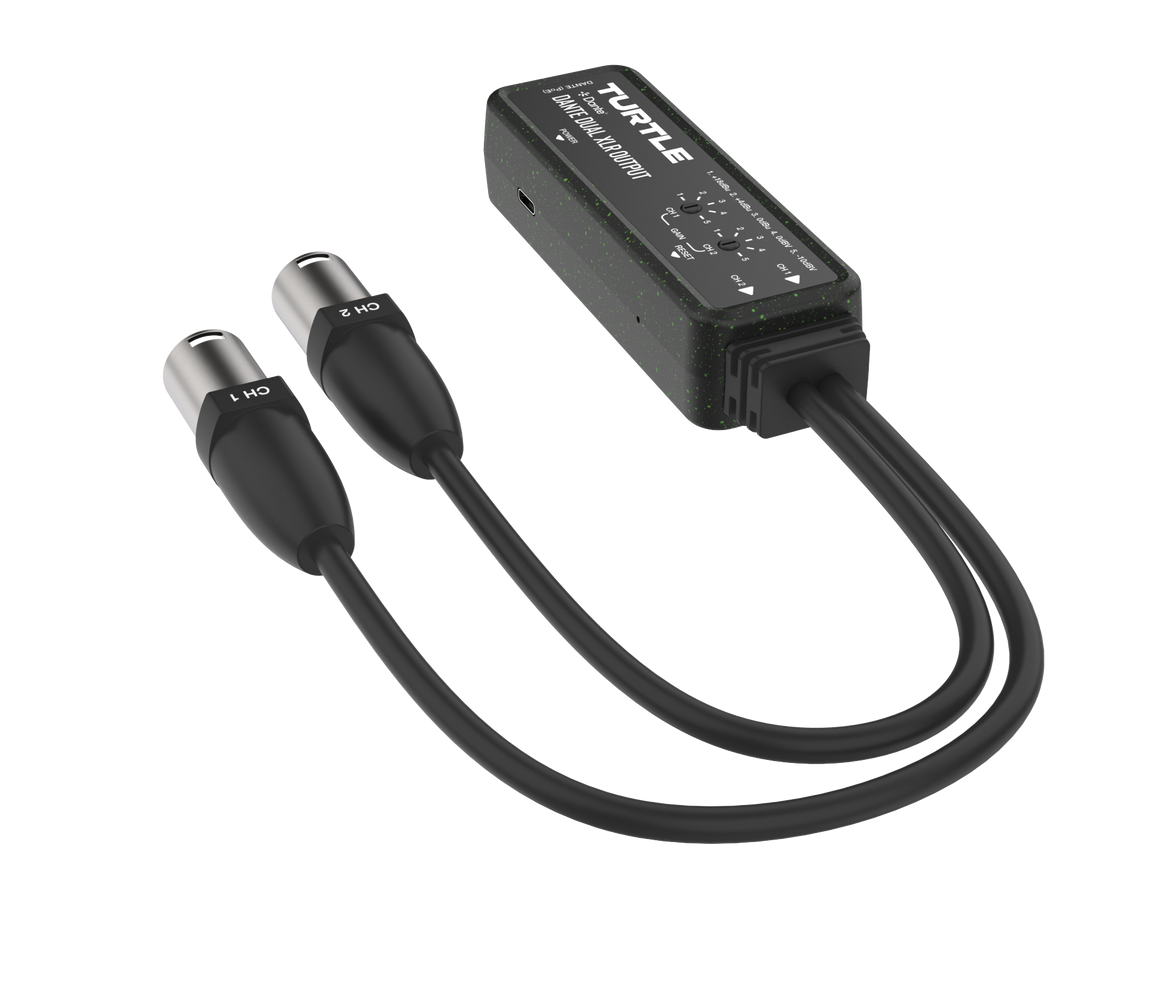

Turtle audio cable with XLR connectors on a white background
Black audio interface with Ethernet port and XLR connectors on a white background
SKU: TAV-D2XDE

Turtle Dante 2CH Analog XLR Output Adapter with Gain Controls

Turtle AV

Dante Dual XLR Output

The Turtle Dante 2CH Analogue XLR Output Adapter (TAV‑D2XDE) converts Dante® digital audio into two channels of high-quality analogue output via balanced XLR connectors. Built on the Dante Ultimo 2×2 platform, it supports 24-bit audio at sample rates up to 96 kHz and features jumper-selectable output levels for integration with a wide range of professional equipment. Powered via PoE or USB‑C, it is the ideal solution for AV installations, live events, and broadcast workflows where pristine output quality and reliability are essential.

Highlighted Features

  • 2-Channel XLR Output: Delivers balanced analogue audio over dual XLR connectors for professional interfacing with amplifiers, mixers, and recording systems.
  • Selectable Output Gain: Jumper-configurable output levels: +18 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV, allowing tailored signal strength per channel.
  • Dante Controller Compatible: Set gain, channel routing, and latency preferences through Audinate’s Dante Controller software.
  • Dual Powering Options: Supports IEEE 802.3af PoE and USB‑C power input for flexible deployment across AV environments.
  • Low Latency Processing: Adjustable latency settings down to 1 ms ensure tight synchronisation in time-critical applications.
  • Eco-Conscious Build: Compact, hardwearing chassis constructed from 90% recycled plastic, including ocean-bound materials.
  • Network Interoperability: Fully compliant with both Dante and AES67 protocols for seamless audio distribution across hybrid networks.


The TAV‑D2XDE is purpose-built to provide pristine audio performance in any Dante-based system requiring professional analogue output. Its compact footprint, robust construction, and power efficiency make it an excellent fit for fixed installs, road cases, or OB rigs where every watt and inch count.

In stock
£162.00

Secure checkout

Friendly support

Hassle-free returns

The Dante 2CH Analog XLR Output Adapter (TAV‑D2XDE) converts Dante® digital audio into two channels of high-quality analog output via balanced XLR connectors. Powered via PoE or USB‑C, it supports up to 96 kHz at 24-bit resolution and provides jumper-selectable output levels, making it perfect for professional AV installations, broadcast, and live sound systems.

Highlighted Features

  • 2‑Channel Analog Output: Dual balanced XLR outputs for professional-grade analog audio delivery.
  • Gain Adjustment: Five-level jumper‑selectable output levels: +18 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV.
  • Dante Controller Support: Manage latency, gain settings, and channel mapping via Dante Controller.
  • Dual Power Options: Operates via IEEE 802.3af PoE or USB‑C (5V/500mA).
  • Rugged & Eco‑Conscious: Compact enclosure made from 90% recycled plastic, including 5% ocean-bound material.
  • Dante & AES67 Interoperability: Seamlessly integrates into any Dante or AES67 network.

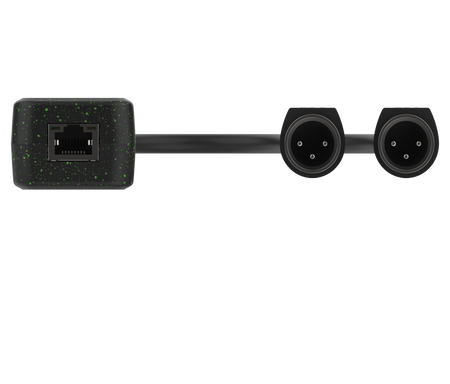

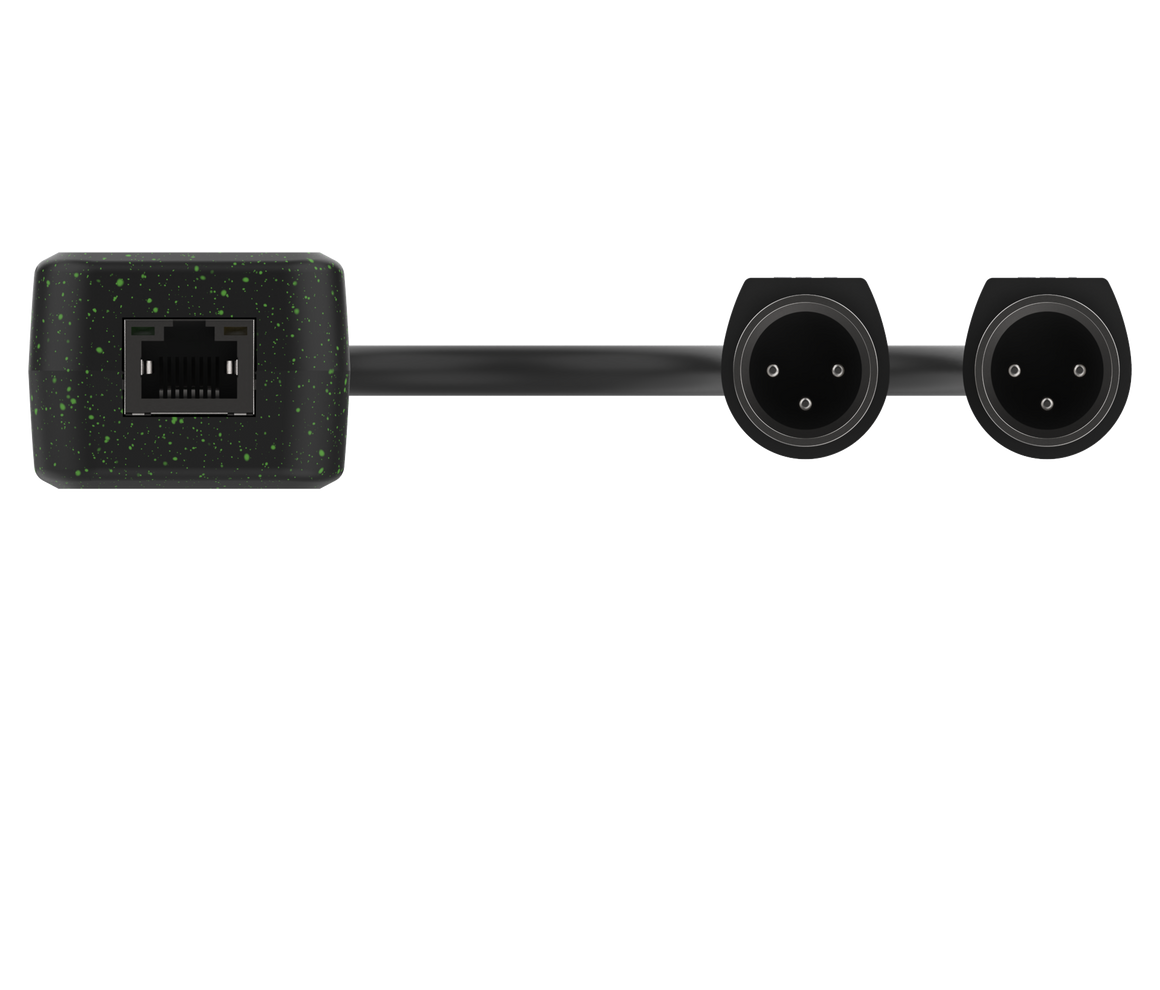

Connections

  • Input: 1 × Dante [RJ45 LAN, PoE]
  • Power: 1 × USB-C (Power and firmware updates, 12-pin female)
  • Output: 2 × XLR male (balanced analog)

Specifications

Dante 2CH Analog XLR Output Adapter (TAV‑D2XDE)
Input Dante® 2CH digital audio via RJ45 (PoE enabled)
Output 2CH analog audio via XLR male (balanced)
Gain Levels +18 dBu, +4 dBu, 0 dBu, 0 dBV, –10 dBV (jumper selectable)
Output Impedance 600 Ω balanced
Max Output Level +18 dBu (6.15 Vrms)
Control Dante Controller software
Network Bandwidth 100 Mbps
Latency Configurable: 1 ms, 2 ms, or 5 ms via Dante Controller
Audio Formats PCM 2CH @ 44.1 / 48 / 88.2 / 96 kHz, 16/24-bit
Frequency Response 20 Hz – 20 kHz (±0.5 dB)
Dynamic Range / SNR >100 dB @ 0 dBu, 1 kHz (A-weighted)
THD + N < 0.01% @ +4 dBu, 1 kHz
Sync Delay <10 ms
ESD Protection IEC 61000-4-2: ±8 kV air, ±4 kV contact
Mechanical
Housing Plastic enclosure (Black/Green), 90% recycled, 5% ocean-bound material
Dimensions 115 mm (W) × 40 mm (D) × 28 mm (H)
Weight Approx. 178 g (0.39 lb)
Power Supply PoE IEEE 802.3af Class 0, or USB-C: 5V @ 500 mA
Power Consumption Max 2 W
Operating Temperature 32–104 °F (0–40 °C)
Relative Humidity 20–80% RH (non-condensing)
