SKU: TAV-DARWINHD-TX

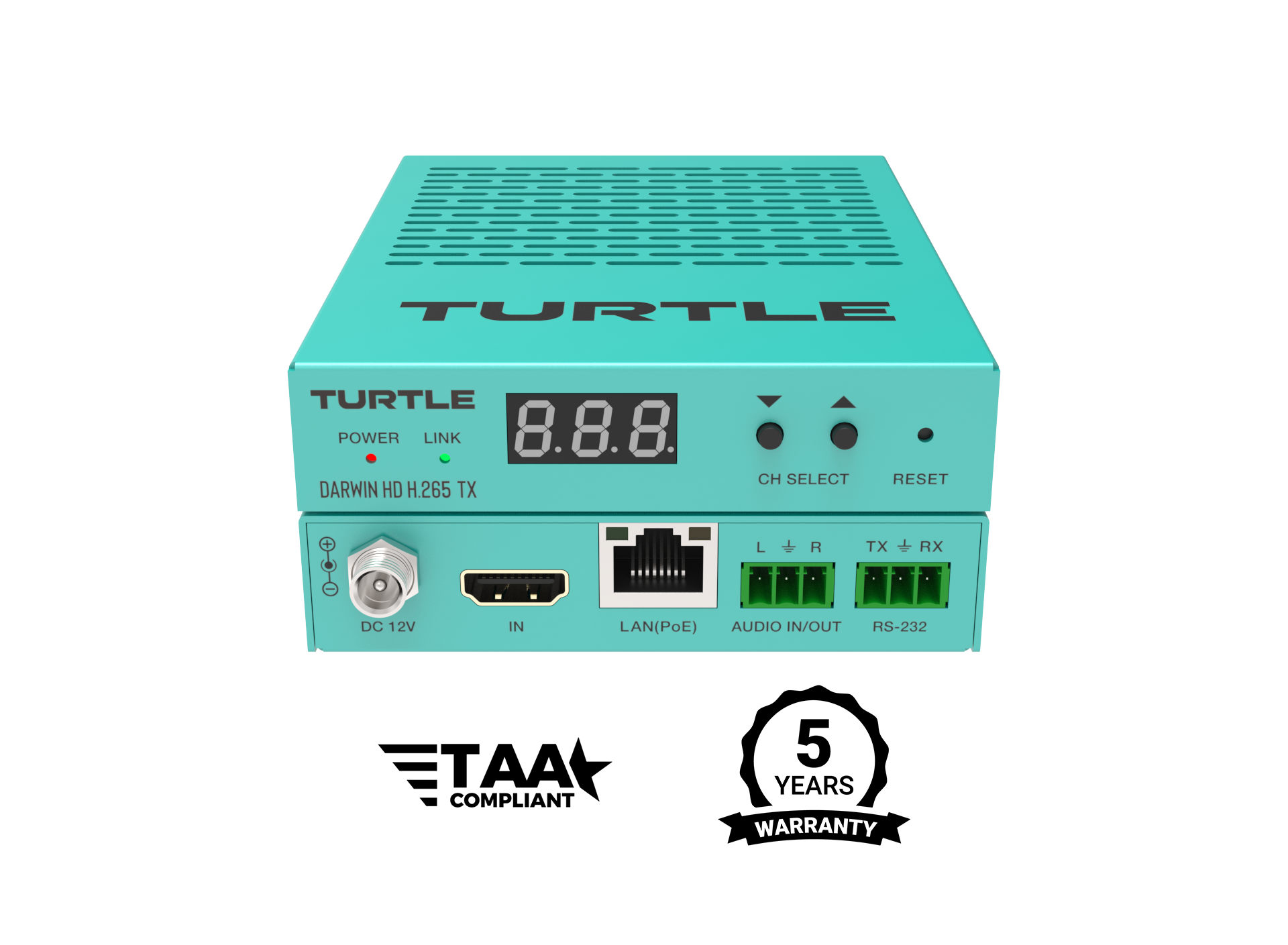

Turtle AV Darwin HD H.265 TX

Turtle AV

Reliable H.265 HDMI encoding transmitter

The Turtle Darwin HD H.265 TX (TAV‑DARWINTX1) is a compact, high-performance HDMI encoder for streaming full HD video over IP networks. Designed for broadcast, AV-over-IP, education, and surveillance environments, it supports 1080p60 input, dual-stream H.265/H.264 encoding, and a wide range of streaming protocols. With looped HDMI output, stereo audio integration, ONVIF support, and a web-based UI for control, it offers reliable low-latency streaming in a rugged, fanless metal enclosure. Fully TAA compliant and backed by a 5-Year UK-based advance replacement warranty.

Highlighted Features

  • Full HD HDMI Input: Supports resolutions up to 1080p60 with local HDMI loop-through output for monitoring.
  • H.265 & H.264 Encoding: Delivers efficient dual-stream compression (Main/Sub) with adjustable bitrates.
  • Audio Integration: Includes 3.5mm stereo analogue input and HDMI audio embedding for AV workflows.
  • Multiple Streaming Protocols: Compatible with RTSP, RTMP, HTTP, UDP, RTP, SRT, and ONVIF for flexible deployment.
  • Low-Latency Streaming: Achieves end-to-end latency as low as 80ms over UDP or SRT.
  • Web-Based UI: Access configuration, stream monitoring, and firmware updates via browser interface.
  • Compact & Fanless Design: Silent all-metal housing with passive cooling for professional installation.
  • ONVIF Compatibility: Seamlessly integrates into surveillance and security systems.
  • Public Sector Ready: Fully TAA compliant for secure enterprise and government applications.
  • Reliable Warranty: Includes Turtle AV’s 5-Year advance replacement cover for long-term assurance.

The TAV‑DARWINTX1 offers powerful, efficient H.265 IP video encoding in a compact format—ideal for real-time HD streaming in any pro AV, education, or broadcast scenario where reliability and versatility are critical.

In stock
£330.00

Secure checkout

Friendly support

Hassle-free returns

The Turtle Darwin HD H.265 TX (TAV-DARWINTX1) is a compact and efficient H.265 HDMI encoder for streaming full HD content over IP networks. It supports HDMI input up to 1080p60, compresses using H.265 or H.264 codecs, and streams via RTSP, RTMP, HTTP, UDP, RTP, and SRT. With looped HDMI output, stereo audio embedding, dual-stream capability, and low latency, it’s ideal for broadcast, education, and AV-over-IP deployments. The unit supports ONVIF and includes a web-based UI for monitoring and control.

Key Features

  • Full HD Streaming: HDMI input up to 1080p60 with loop-through output for monitoring.
  • Efficient Compression: H.265 and H.264 support with dual-stream (Main/Sub) encoding.
  • Audio Integration: Stereo analogue audio input via 3.5mm, and HDMI audio embedding.
  • Flexible Streaming Protocols: RTSP, RTMP, HTTP, UDP, RTP, SRT, and multicast supported.
  • ONVIF Compatible: Interoperable with surveillance and broadcast equipment.
  • Web GUI Control: User-friendly browser interface for configuration, monitoring, and firmware updates.
  • Low Latency: End-to-end latency down to 80ms with SRT/UDP streaming.
  • Compact and Rugged: Small form factor with metal enclosure and passive cooling for silent operation.
  • TAA Compliant: Suitable for public sector and secure enterprise applications.
  • 5-Year Warranty: Backed by a UK-based advance replacement programme.

Specifications

Video Input 1 × HDMI (up to 1080p60)
Video Output 1 × HDMI Loop Out (local preview)
Audio Input 1 × 3.5mm stereo (analogue); embedded HDMI audio supported
Compression H.265 / H.264 (dual stream supported)
Protocols RTSP, RTMP, HTTP, UDP, RTP, SRT, ONVIF
Bitrate Range 32Kbps – 16Mbps (adjustable)
Latency 80–200ms (network and settings dependent)
Resolution Support 480p / 576p / 720p / 1080i / 1080p
Max Frame Rate 60 fps
Network Interface 1 × RJ45 (10/100M Ethernet)
Control WebGUI (via IP), Telnet, ONVIF
Firmware Update Via WebGUI
Power Input 12V DC (locking barrel connector)
Power Consumption <5W
Dimensions 108mm (W) × 66mm (D) × 26mm (H)
Weight 230g
Operating Temperature 0–45 °C
Storage Temperature –20–60 °C
Compliance TAA, RoHS, CE, FCC
Warranty 5-Year advance replacement warranty
