SKU: TAV-DOWNTOWN

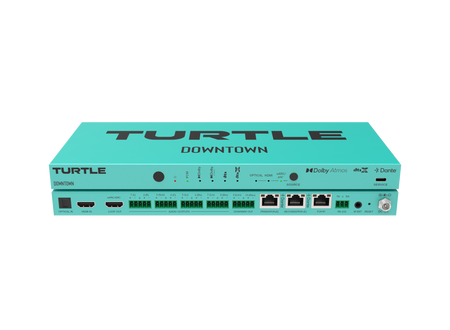

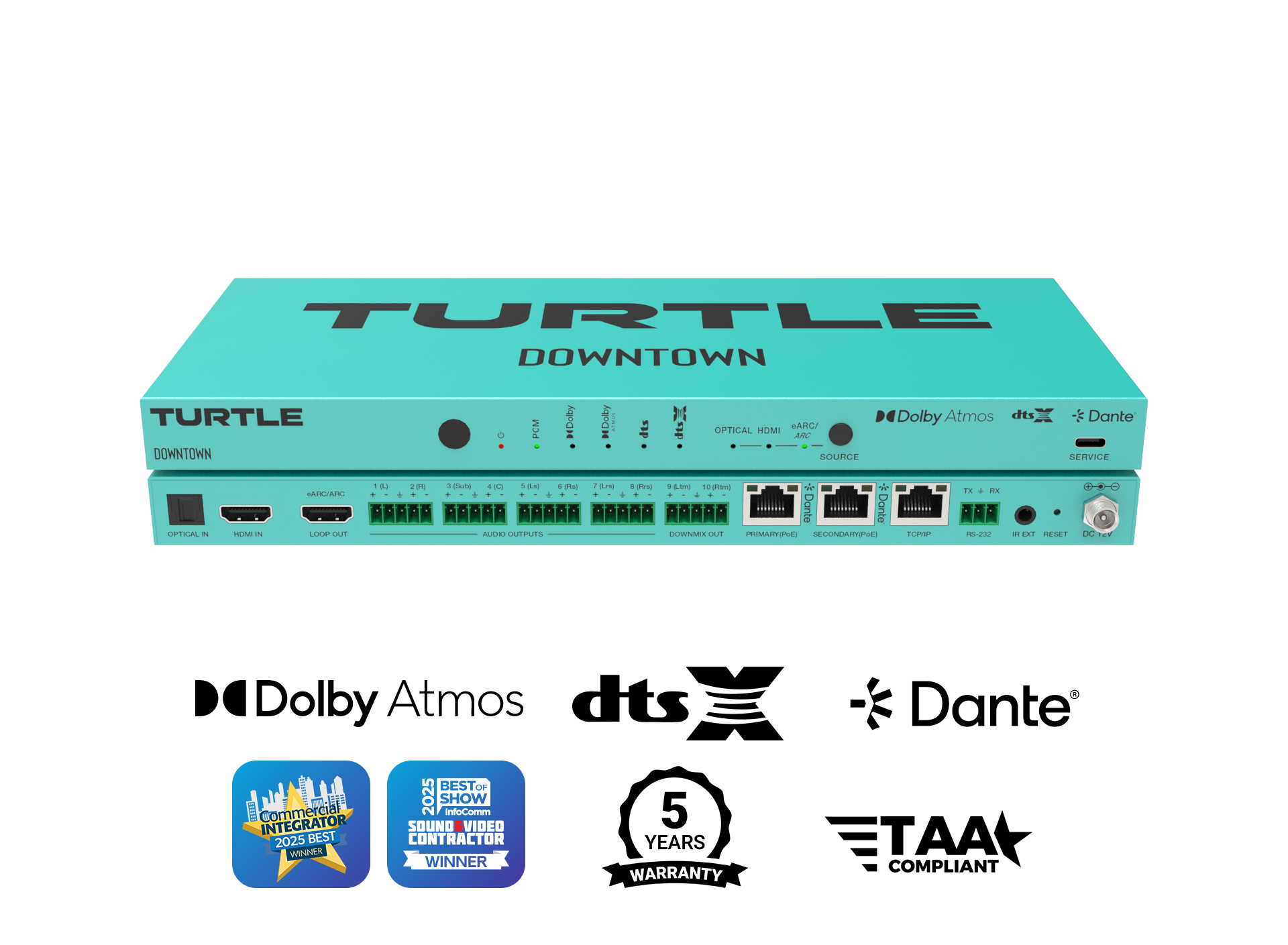

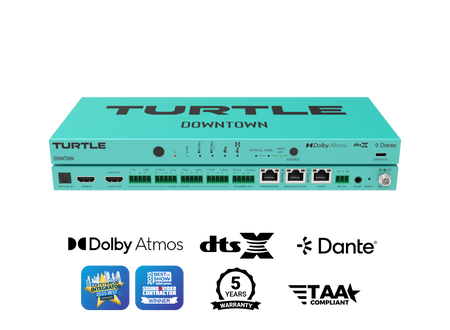

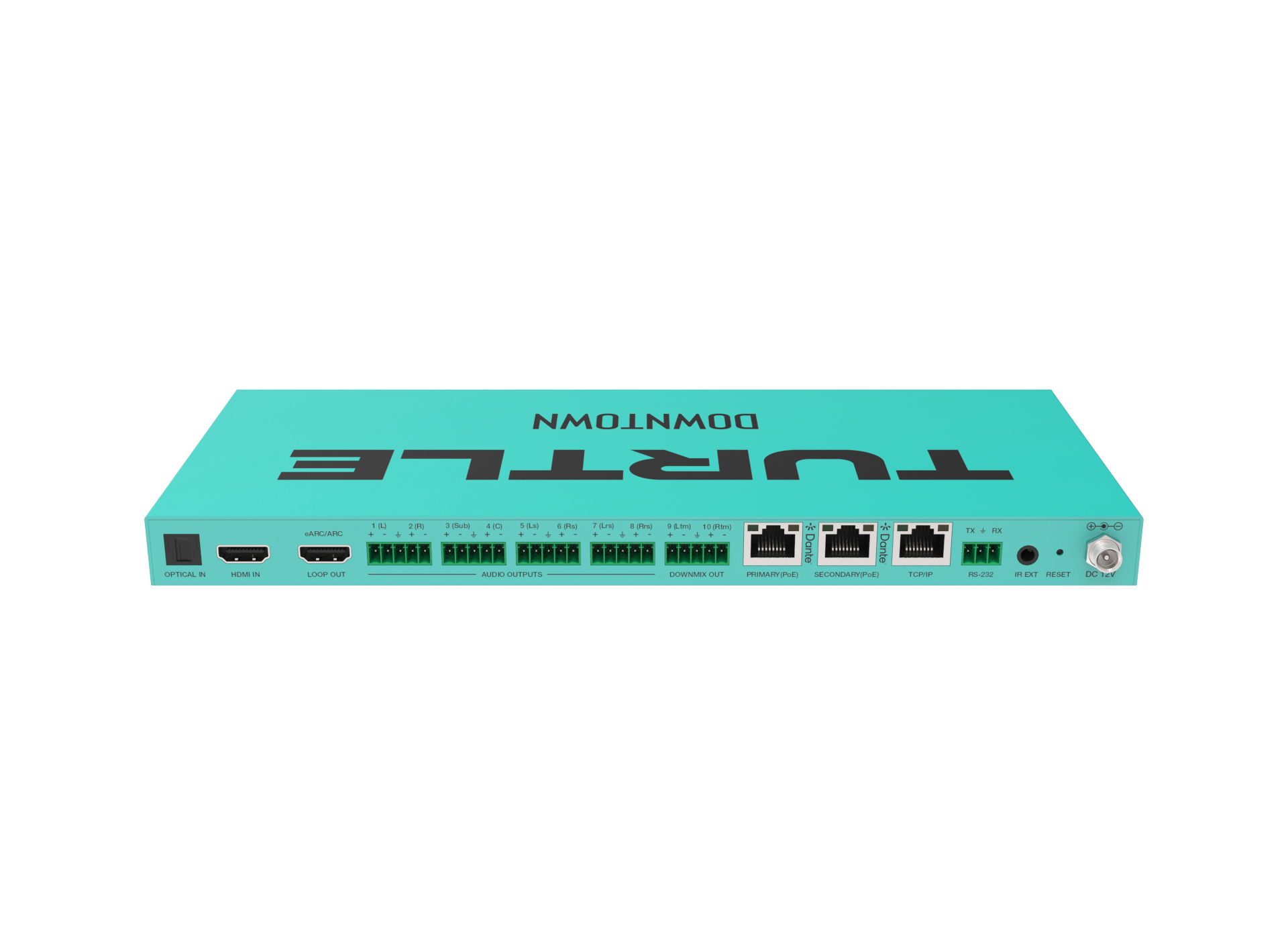

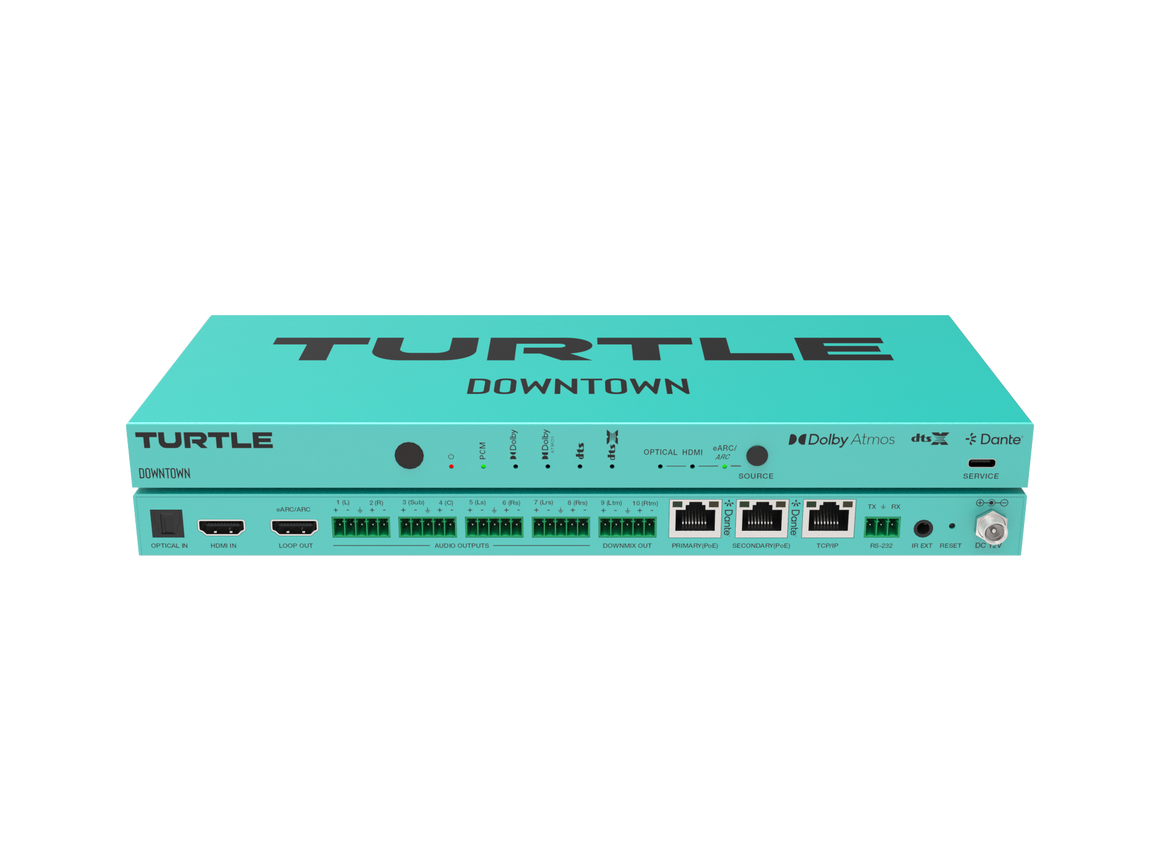

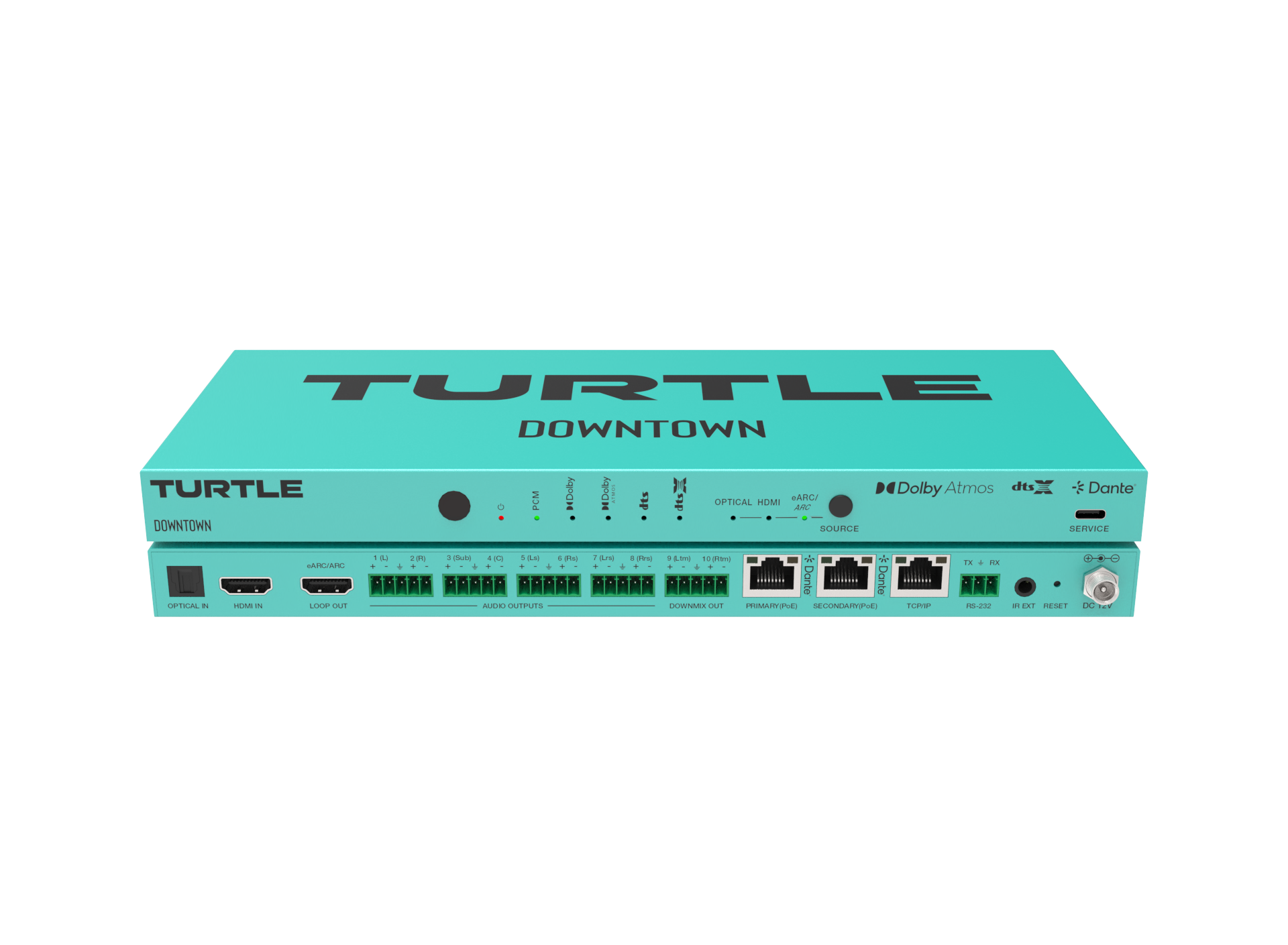

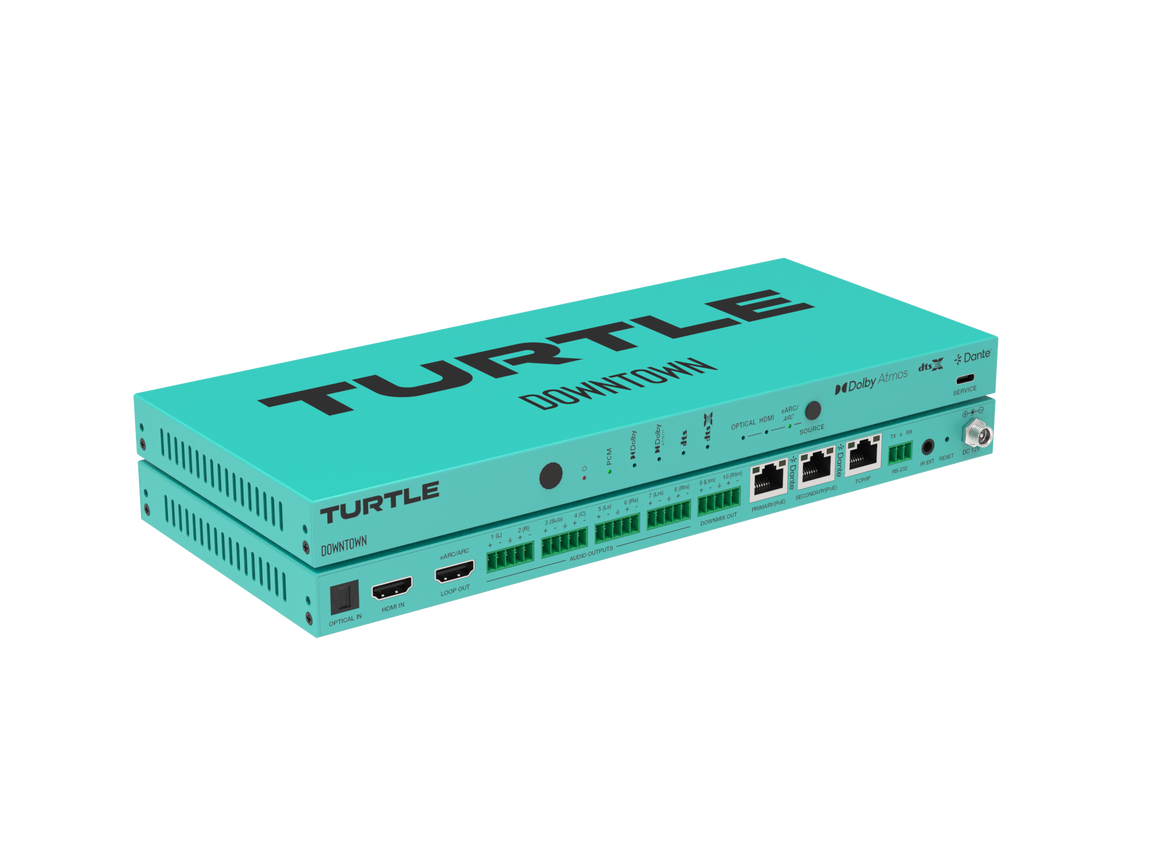

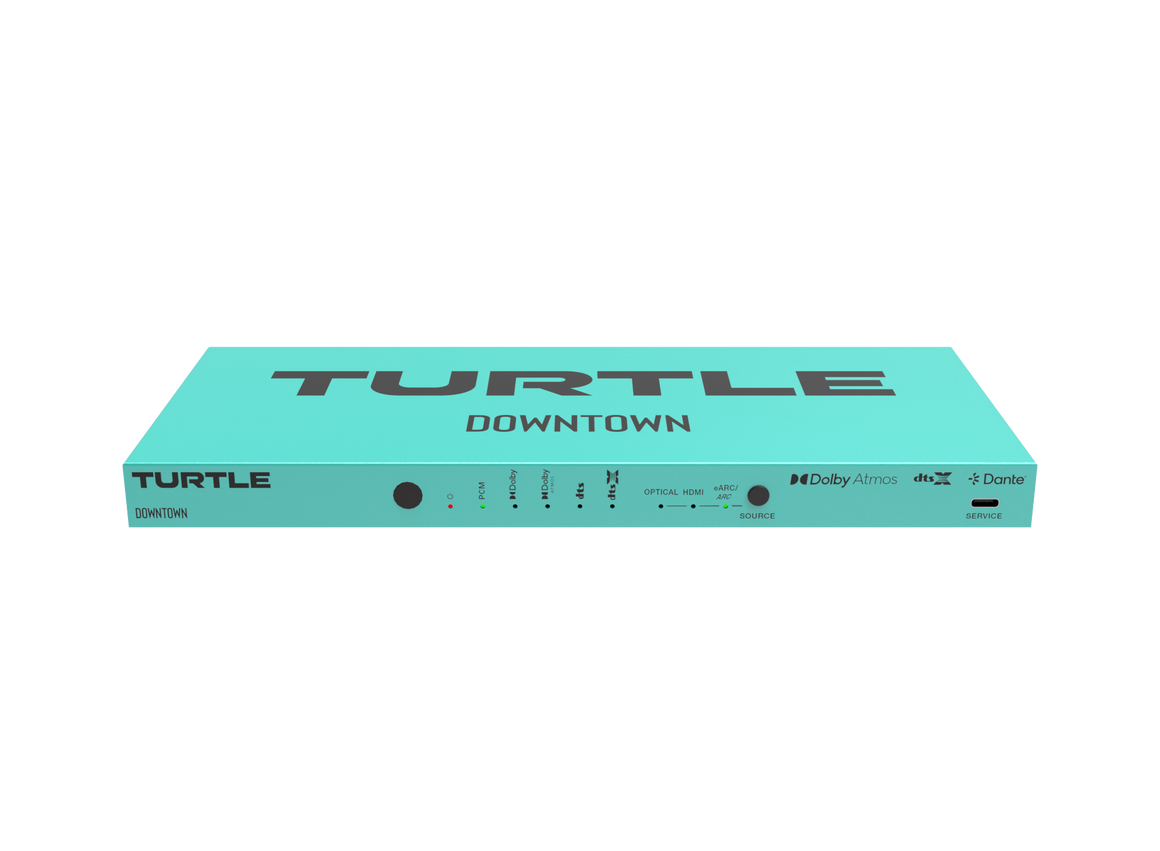

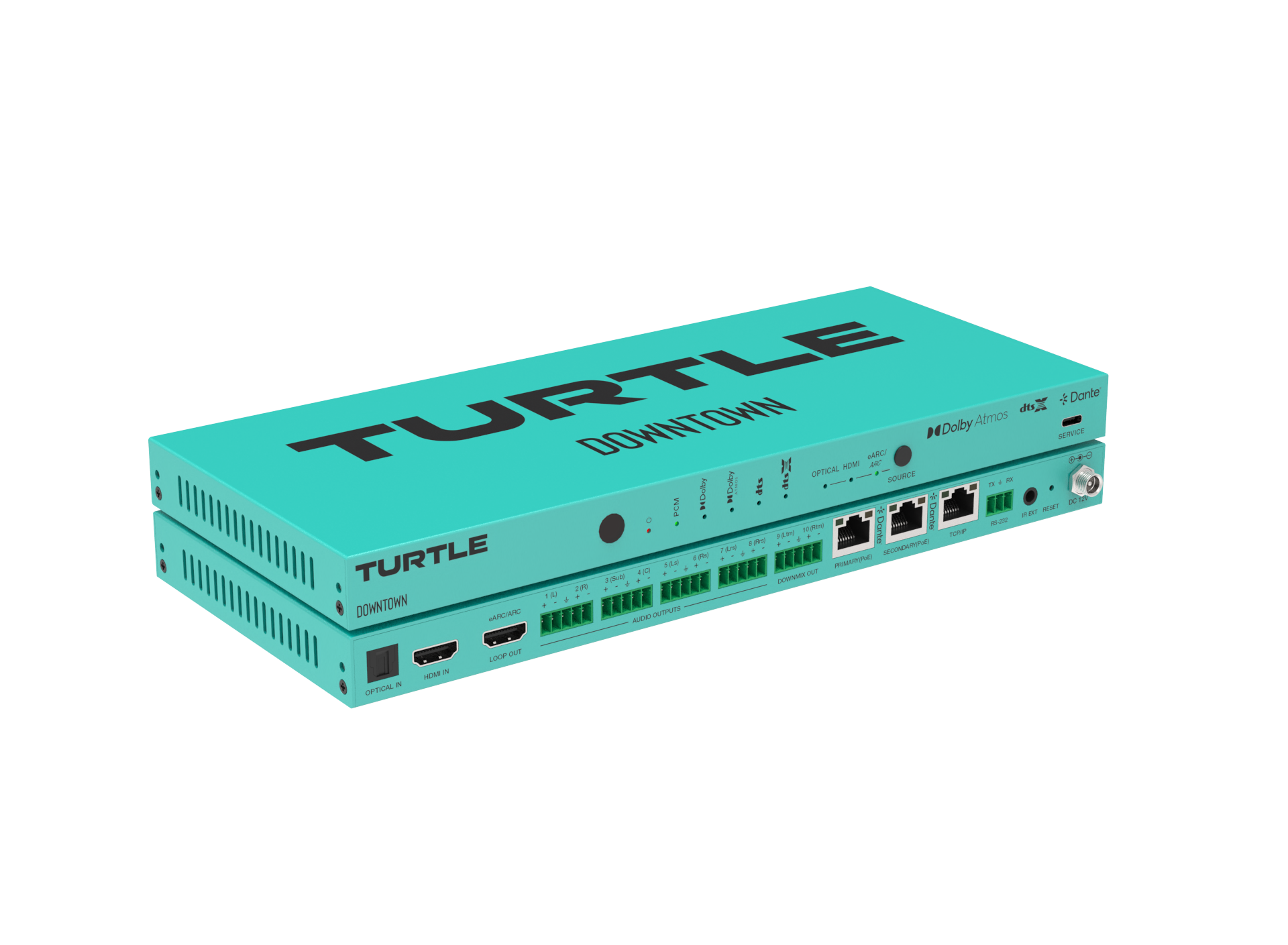

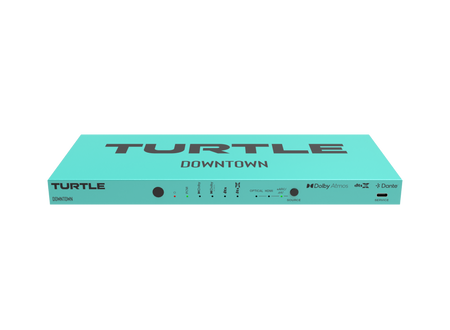

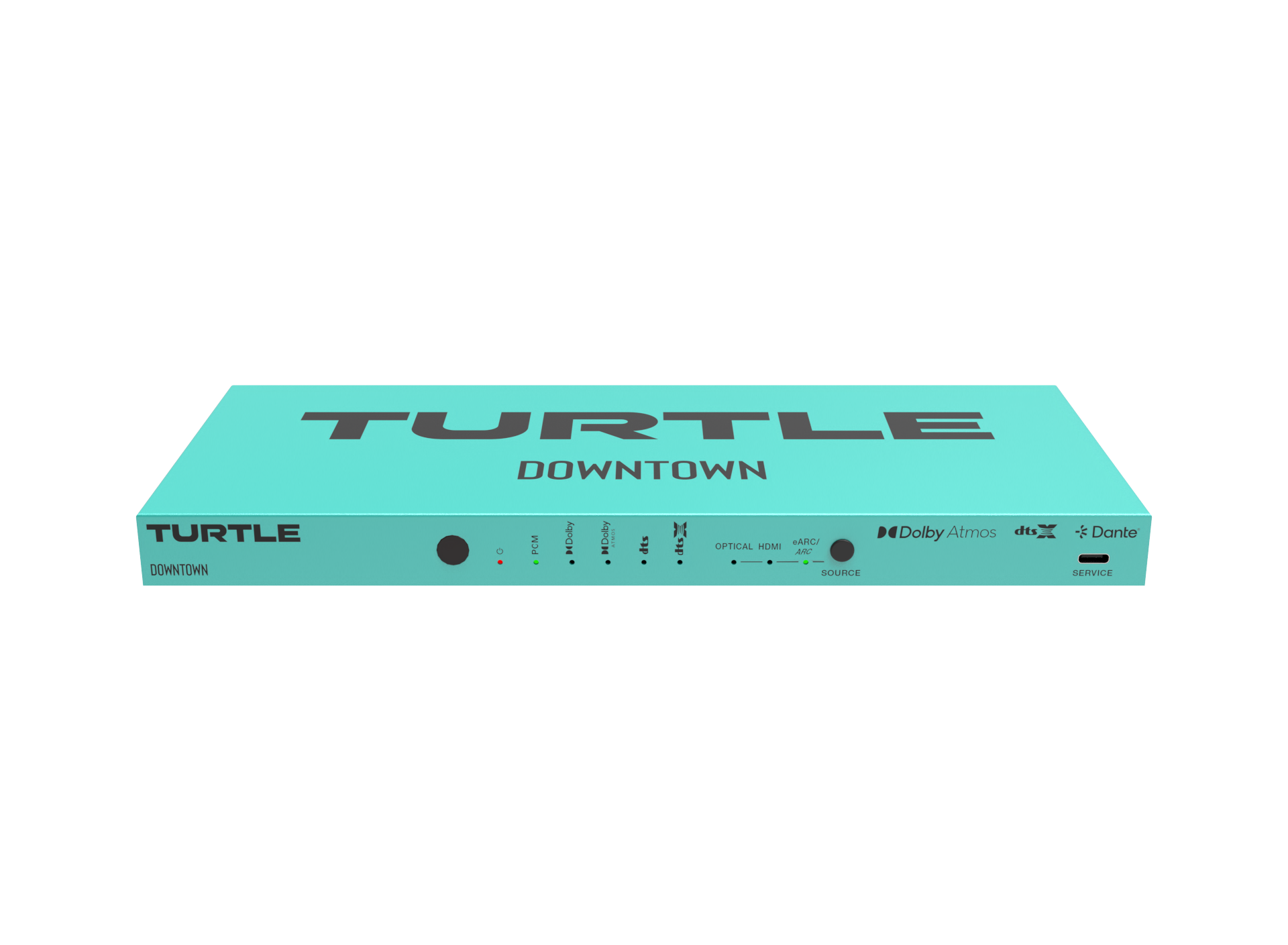

Turtle AV Downtown Dolby Atmos to Dante Audio Encoder

Turtle AV

Converts Dolby Atmos streams to Dante

The Turtle Downtown (TAV‑DOWNTOWN) is a premium HDMI audio-over-IP encoder engineered to deliver up to 9.1 channels of Dolby Atmos and DTS:X audio into Dante and AES67 networks. Supporting Dolby Digital, DD+, Atmos, DTS:X, and multichannel PCM, each channel is encoded as a discrete Dante stream for precise routing via Dante Controller. Ideal for immersive audio workflows in broadcast, themed entertainment, cinema, stadium, and professional AV, it also provides stereo downmix for legacy systems. Triple network architecture with dual redundant PoE and a dedicated control LAN enhances system security and uptime. Housed in a rack-mountable Turtle Aqua 1RU chassis, it is TAA compliant and backed by a UK-based 5-Year advance replacement warranty.

Highlighted Features

  • Dolby Atmos & DTS:X Encoding: Supports advanced immersive formats up to 9.1 channels including Dolby Digital, DD+, and PCM.
  • Discrete Dante Audio Streams: Each audio channel is mapped to its own Dante stream for flexible routing and integration.
  • Stereo Downmix Output: Generate a stereo mix for compatibility with legacy systems or for use in livestream applications.
  • Full Dante & AES67 Compatibility: Seamlessly integrates with Dante and AES67 audio networks.
  • HDMI Loopout with 8K60 Support: Pass through uncompressed 8K60 video with HDR, HDR10+, Dolby Vision, and HLG.
  • Flexible Audio Inputs: HDMI IN/Loop Out, eARC/ARC, and Optical SPDIF supported.
  • Redundant Power Architecture: Dual PoE network ports and a locking DC input for triple power redundancy.
  • Dedicated Control Network: Separate LAN interface for secure remote management and API integration.
  • Automation Ready: Offers API support for external system control and integration.
  • Public Sector Ready: TAA compliant and covered by Turtle AV’s 5-Year advance replacement warranty.

The TAV‑DOWNTOWN brings professional-grade immersive audio encoding to the network, making it the ideal choice for scalable, standards-based installations in any demanding AV-over-IP environment.

In stock
£2,214.00

Secure checkout

Friendly support

Hassle-free returns

The Turtle Downtown (TAV-DOWNTOWN) is a premium Dolby Atmos and DTS audio-over-IP encoder that delivers up to 9.1 channels of immersive HDMI audio into the Dante and AES67 ecosystems. Supporting Dolby Digital, DD+, Dolby Atmos, DTS:X, and PCM formats, each channel appears as a discrete Dante stream for granular routing in Dante Controller. It features redundant PoE, dual Dante networks for failover, a third dedicated control LAN, and a 1RU mountable Turtle Aqua chassis. Ideal for broadcast, themed entertainment, and pro AV environments, it is TAA compliant and includes a 5-year advance replacement warranty.

Key Features

  • Dolby & DTS Encoding: Supports Dolby Atmos, Dolby Digital/Plus, DTS:X, and PCM up to 9.1 channels.
  • Discrete Dante Streams: Each audio channel is transmitted as its own Dante stream, allowing flexible routing and mixing.
  • Stereo Mixdown: Downmix immersive formats to stereo for use in legacy zones or live streaming.
  • Full Dante & AES67 Support: Seamless integration into existing networked audio systems.
  • 8K60 HDMI Loopout: Pass through uncompressed 8K60 video with support for Dolby Vision, HDR10/+, and HLG.
  • Audio Input Flexibility: HDMI, eARC/ARC, and Optical SPDIF supported.
  • Redundant PoE + Triple Power: Dual PoE LAN ports and locking DC for triple power redundancy.
  • Dedicated Control Network: Isolate management traffic from Dante AV streams for enhanced security.
  • API Control & Integration: Full external control capability for system integration and automation.
  • TAA Compliant & 5-Year Warranty: Certified for public sector use with advance replacement support.

Specifications

HDMI Input 1 × HDMI 2.1
Video Support Up to 8K@60Hz 4:2:0 10-bit; HDR, HDR10, HDR10+, Dolby Vision
HDCP Compliance HDCP 2.3 and 1.x
Color Depth 8/10/12-bit
Color Space RGB, YCbCr 4:4:4, 4:2:2, 4:2:0

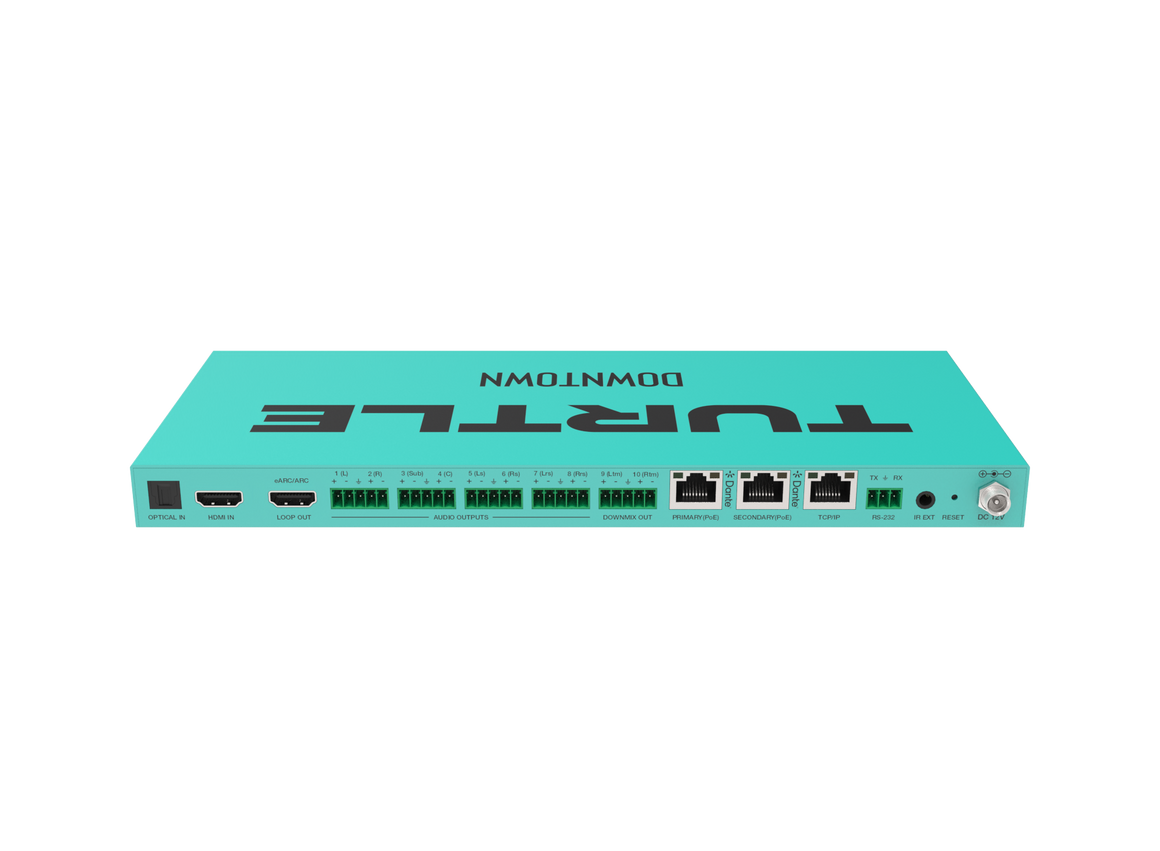

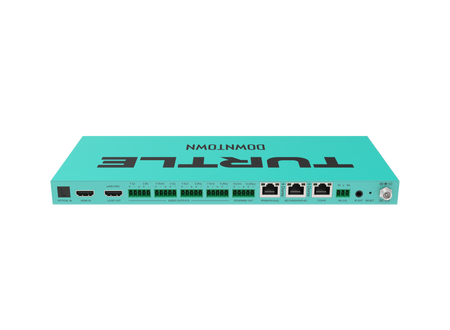

Audio Input Options HDMI IN/Loop Out, eARC/ARC, SPDIF Optical
Supported Audio Formats Dolby Digital, DD+, Dolby Atmos, DTS:X, PCM (up to 9.1 channels)
Dante Output PCM 9CH (44.1KHz–96KHz, 16/24-bit); Downmixed 2CH stereo
Analog Output 9 × LINE OUT (5-pin Phoenix, balanced/unbalanced)
2 × CH downmixed stereo output
Max Output: 2VRMS; 8.2dBu balanced, 2.2dBu unbalanced
Audio Performance Frequency Response: 20Hz–20kHz (±0.5dB)
SNR: >100dB @ 0dBu
THD+N: < 0.01% @ +4dBu
Control Interfaces 1 × RS-232/TRG (5-pin Phoenix; 5–12V trigger input)
1 × LAN (control network)
Network Ports 1 × Dante Primary (RJ45, PoE)
1 × Dante Secondary (RJ45, PoE)
1 × Control LAN (RJ45)
PoE Support Yes – Dual PoE input redundancy
Mechanical
Housing Metal enclosure
Colour Turtle Aqua (Pantone 3262 C)
Mounting Includes Turtle Ears for 1RU rack mounting
Dimensions TBC
Weight TBC
Power
Power Supply AC 100–240V, 50/60Hz input
Power Consumption TBC
Environmental
Operating Temperature –20 to 60 °C (32–104 °F)
Relative Humidity 20–90% RH (non-condensing)
Compliance TAA, RoHS, CE, FCC
Warranty 5-Year advance replacement warranty
