SKU: TAV-DPA30D

Turtle AV Dante 30W PoE+ Amp

Turtle AV

Compact PoE+ Dante power amplifier

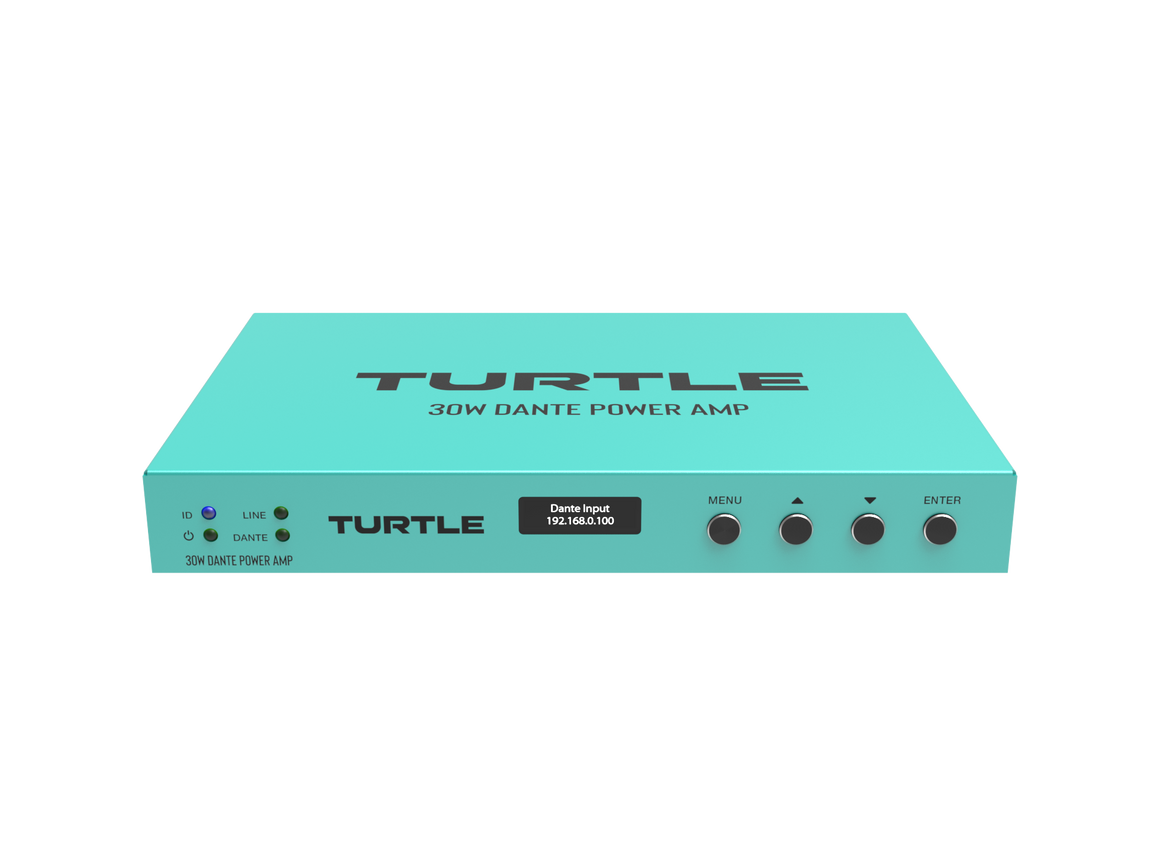

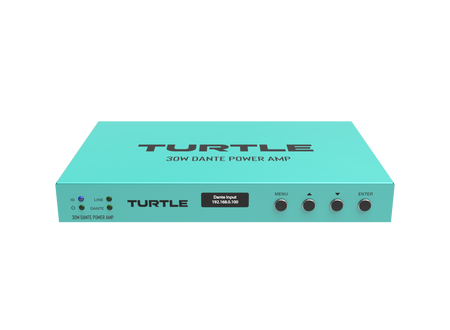

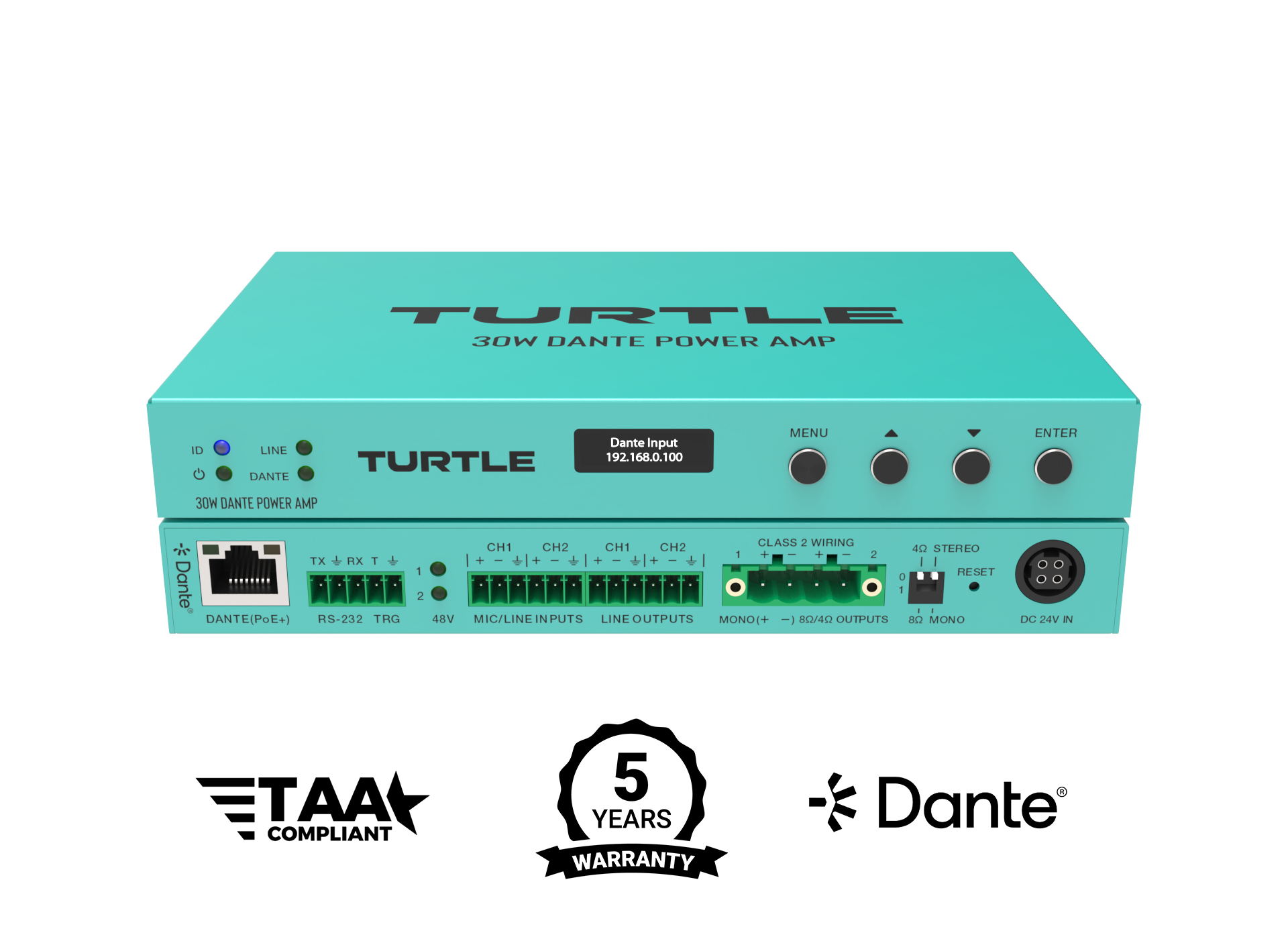

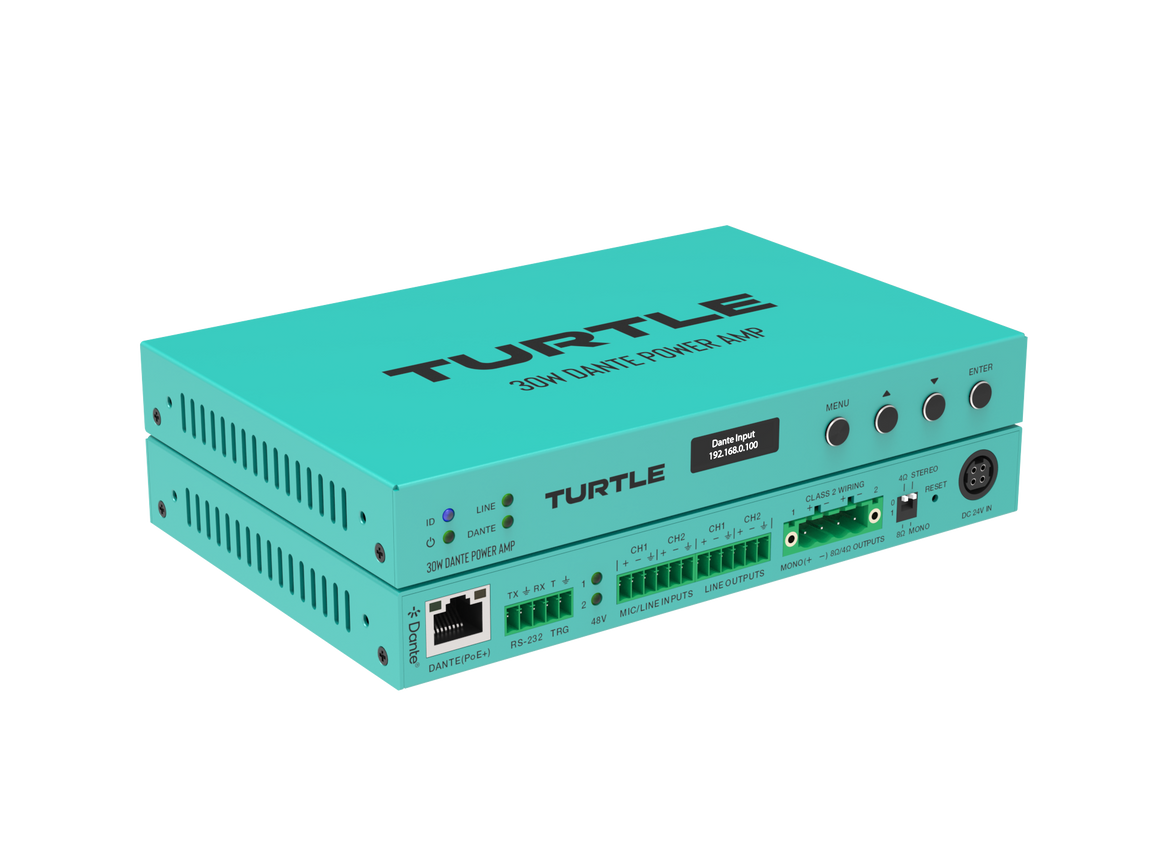

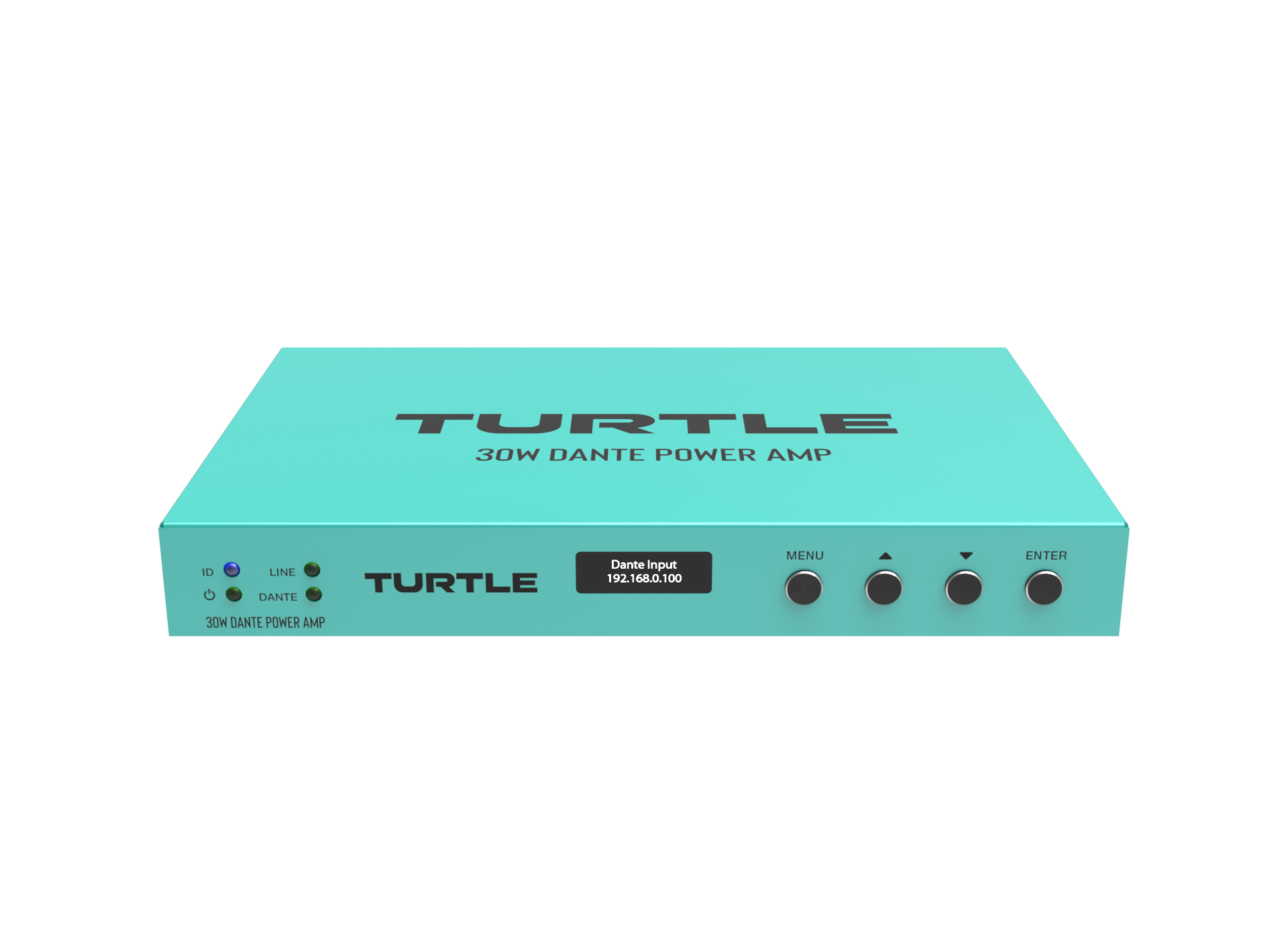

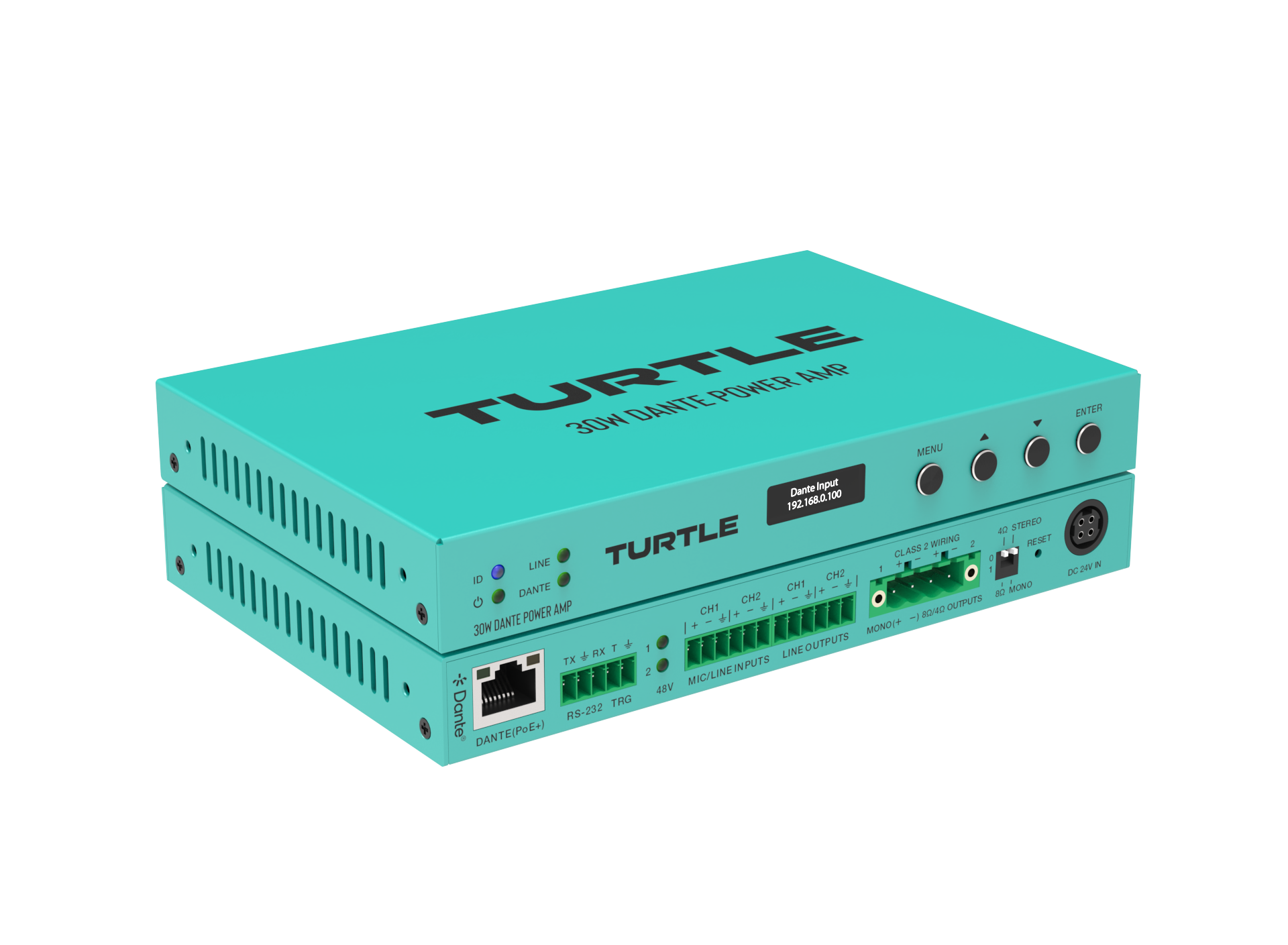

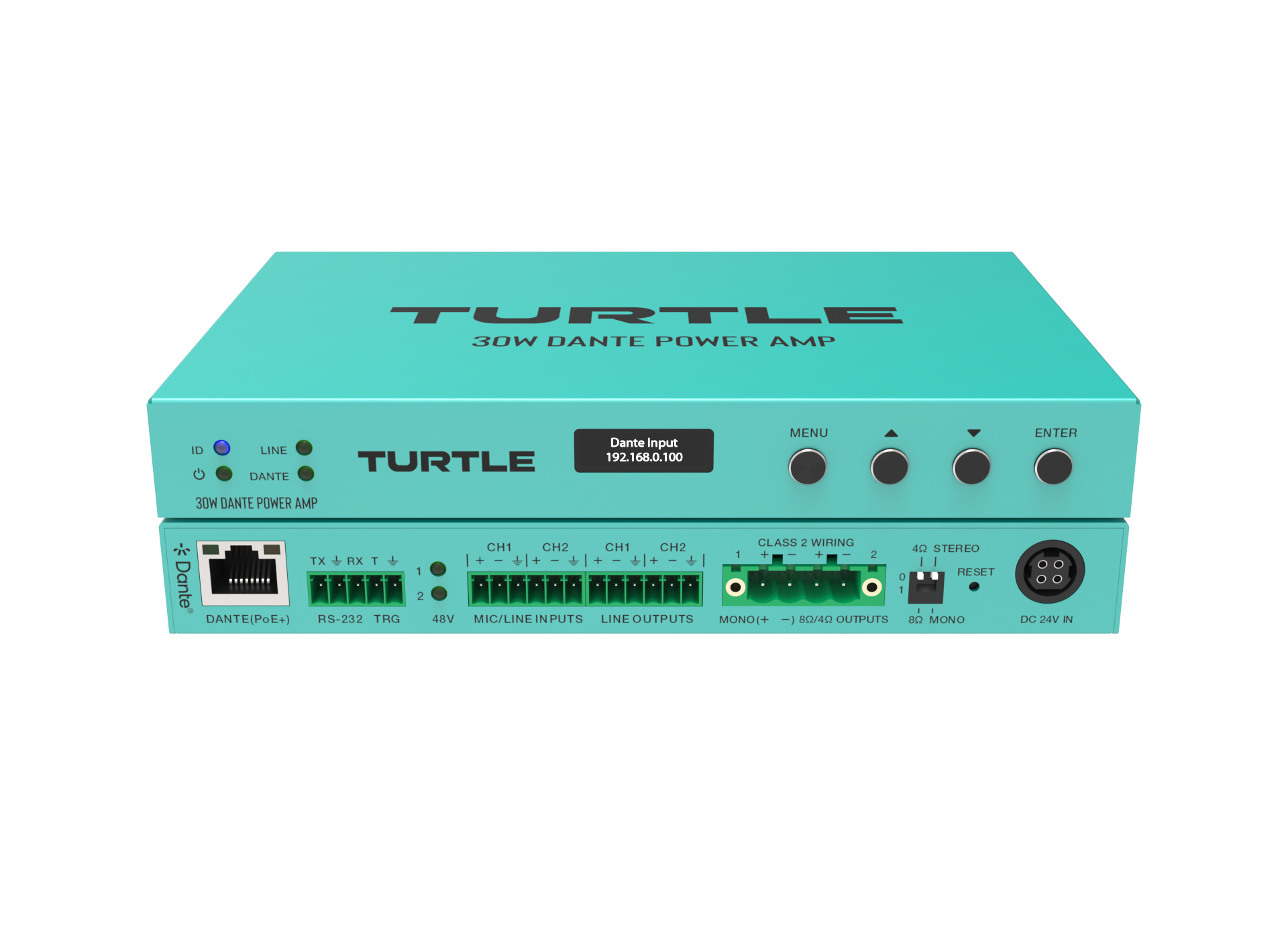

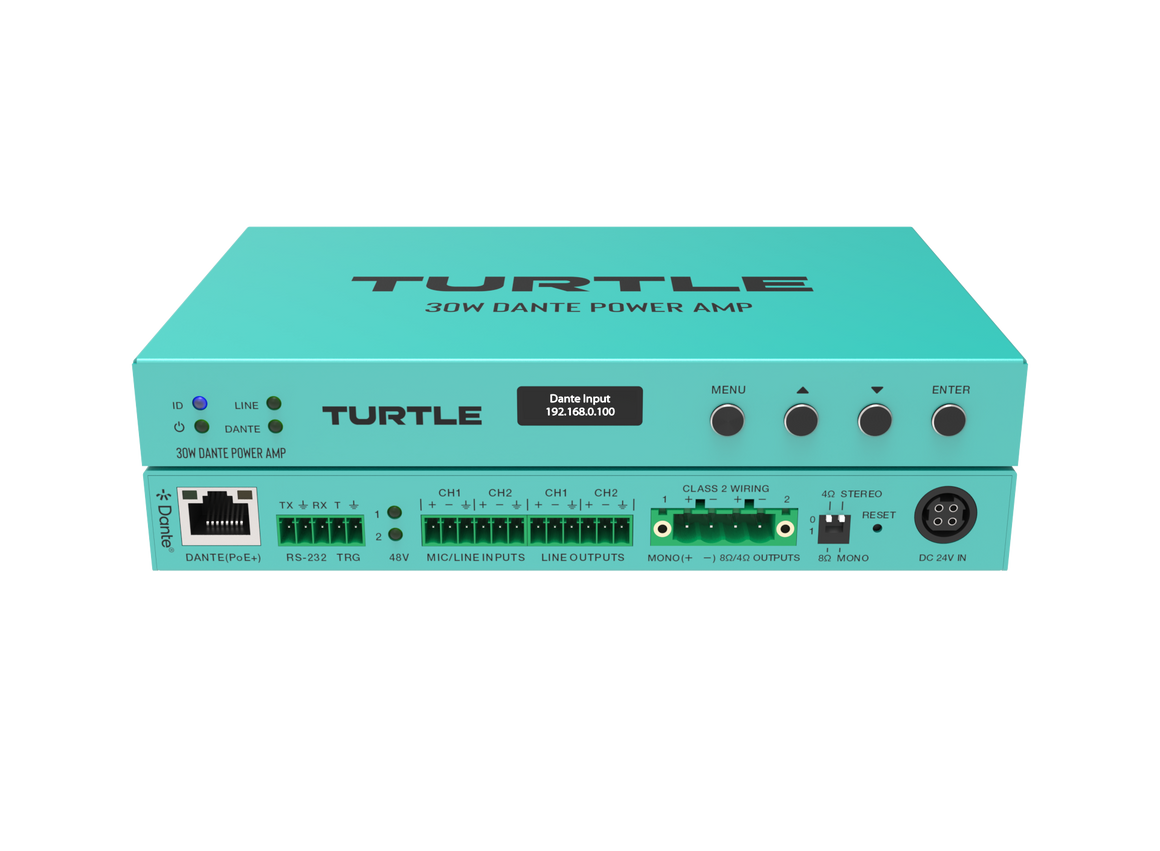

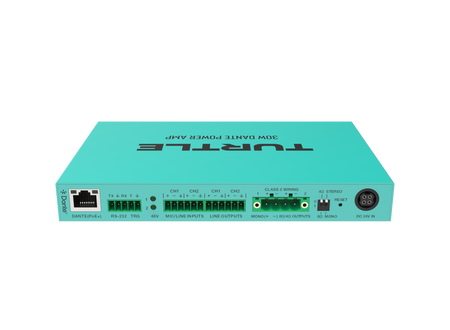

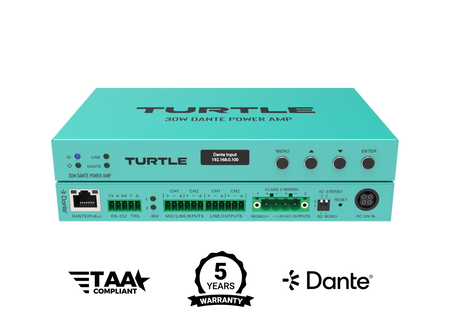

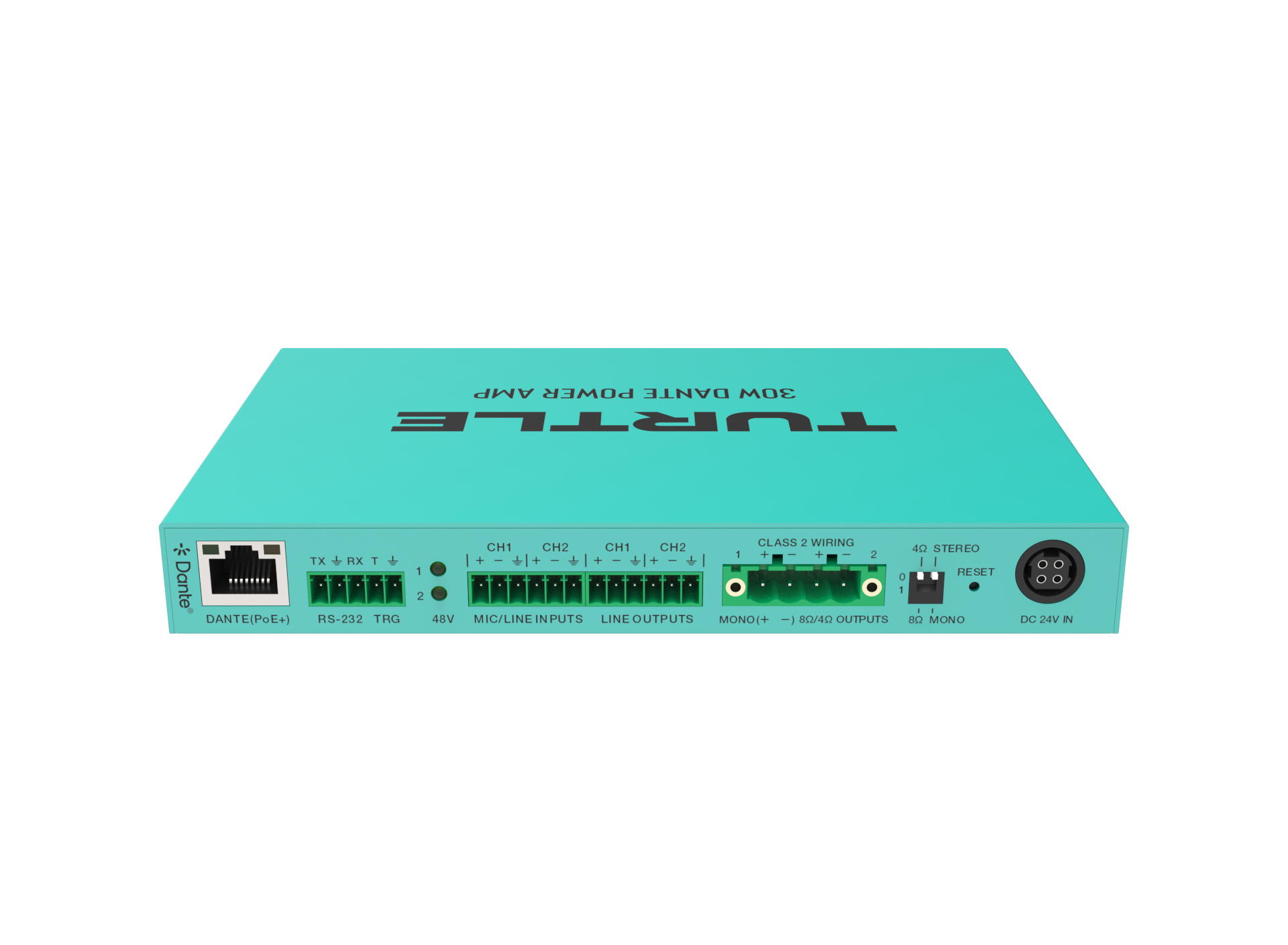

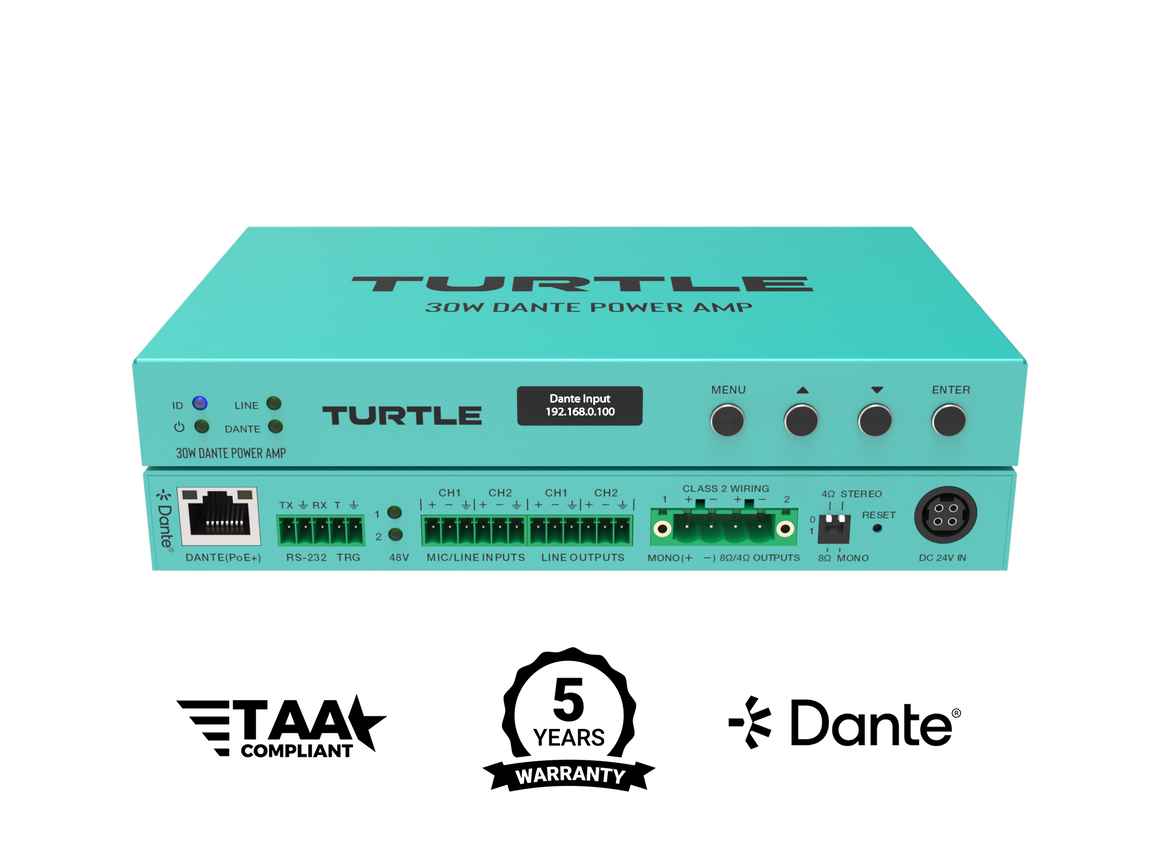

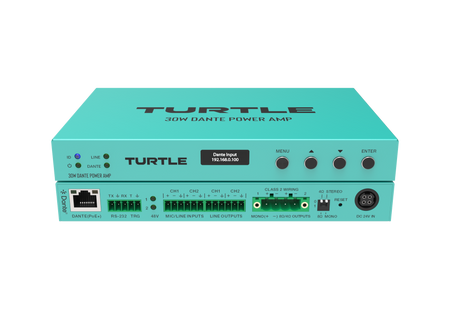

The Turtle 30W PoE+ Dante Power Amp (TAV‑DPA30P) is a compact, plenum-rated amplifier and Dante® audio bridge designed for commercial AV, education, and government environments. It delivers 2×15 W stereo or 1×30 W mono output, supports Hi-Z/Lo-Z speaker configurations, and includes onboard DSP, analog/Dante conversion, and triple power redundancy—all housed in a rugged Turtle Aqua metal enclosure.

Highlighted Features

  • 30 W PoE+ Power Amplifier: Delivers 2×15 W at 4/8 Ω stereo or 1×30 W bridged mono; also supports 70 V/100 V Hi-Z speaker systems.
  • Dante Audio Bridging: Provides full Dante/AES67 I/O with integrated analogue-to-Dante and Dante-to-analogue conversion.
  • Plenum-Rated Chassis: Certified for air-handling space installation in ceilings and concealed infrastructure.
  • Triple Power Redundancy: Supports PoE+ (IEEE 802.3at), 12 V DC, or simultaneous dual input for fail-safe operation.
  • Integrated DSP & WebGUI: Manage gain, 8-band EQ, delay, and 5 user presets via intuitive browser-based interface.
  • Flexible Control Options: RS-232, contact trigger, WebGUI, Dante Controller, API, Telnet, and IP configuration support.
  • Dual Network Ports: Isolate Dante and control traffic across two RJ45 ports with Neutrik etherCON locking connectors.
  • Compact Pro-AV Build: All-metal chassis with Phoenix connectors ensures reliable, low-latency deployment in demanding environments.
  • Public Sector Ready: TAA compliant and backed by a 5-Year advance replacement warranty for institutional use.

The TAV‑DPA30P delivers high-efficiency Dante amplification and conversion in a form factor that’s purpose-built for installed AV systems. Whether in a classroom ceiling or a boardroom rack, it provides performance, protection, and professional-grade control in one unified solution.

In stock
£882.00

Secure checkout

Friendly support

Hassle-free returns

The 30W PoE+ Dante Power Amp (TAV-DPA30P) is a compact, plenum-rated amplifier and Dante® audio bridge built for commercial AV, education, and government applications. It delivers 2x15W stereo or 1x30W mono audio and features analog/Dante conversion, Hi-Z/Lo-Z support, integrated DSP, and triple power redundancy—all within a rugged Turtle Aqua chassis.

Key Features

  • 30W PoE+ Power Amplifier: Drives 2x15W @ 4/8Ω stereo or 1x30W @ 4/8Ω mono (bridged); switchable to Hi-Z 70V/100V operation.
  • Dante Bridge: Full Dante/AES67 in/out with built-in analog-to-Dante and Dante-to-analog conversion.
  • Plenum Rated: Certified for air-handling spaces, ideal for ceiling or concealed installations.
  • Triple Power Options: Operates via PoE+ (IEEE 802.3at), 12V DC input, or both simultaneously for redundancy.
  • Advanced DSP: Built-in WebGUI with gain control, 8-band parametric EQ, audio delay, and 5 preset slots.
  • Flexible Control: RS-232, trigger input, Dante Controller, WebGUI, API, DHCP/static IP, Telnet, and firmware management.
  • Dual Network Ports: Separate Dante and control traffic using dual RJ45 (with PoE) and Neutrik etherCON connectors.
  • Built for Pro AV: Compact design with locking phoenix connectors, low-latency audio, and rugged all-metal housing.
  • TAA Compliant & 5-Year Warranty:Suitable for UK public sector and supported with advance replacement cover.

Specifications

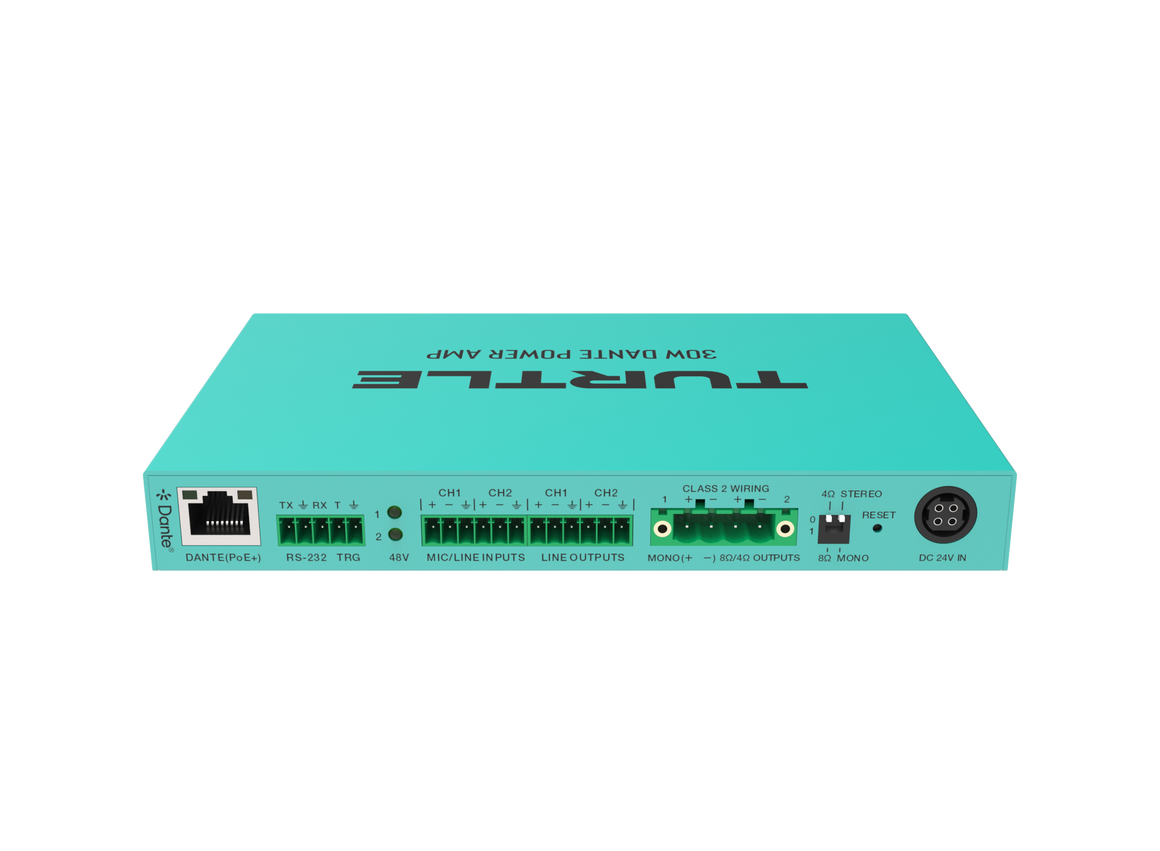

Input 1 × MIC/LINE IN (balanced/unbalanced via 6-pin 3.5mm Phoenix)
Output 1 × LINE OUT (6-pin 3.5mm Phoenix), 1 × AMP OUT (4-pin 5.08mm Phoenix, 2×15W stereo or 1×30W mono @ 4/8Ω)
Audio Formats Dante/AES67, PCM 2CH 44.1–96kHz, 16/24-bit; Analog IN/OUT (balanced/unbalanced)
Input Impedance 20kΩ balanced, 10kΩ unbalanced
Input Level Max 24dBu (balanced line), Max 18dBu (unbalanced), Min –35dBV (mic)
Output Impedance 600Ω balanced, 300Ω unbalanced
Output Level Max 2V RMS
Frequency Response 20Hz – 20kHz (±0.5dB)
Dynamic Range / SNR >100dB @ 0dBu, 1kHz A-weighted
THD+N <0.01% @ +4dBu, 1kHz
Audio Output Delay <1ms
Audio Latency Configurable via Dante Controller (2, 3, 4, 5, or 10ms); Analog AMP latency adjustable (0–50ms)
Transmission Distance Up to 100m (CAT6/6A/7)
ESD Protection IEC 61000-4-2: ±8kV (air), ±4kV (contact)
Mechanical
Housing All-metal enclosure, Turtle Aqua finish
Dimensions 180mm (W) × 118mm (D) × 23mm (H)
Weight 713g
Power Supply PoE+ (Class 4 IEEE 802.3at), 12V DC (4-pin locking), or both
Power Consumption Max 39W (tested @ 1kHz sine wave, 4Ω load)
Operating Temperature 32–104°F (0–40°C)
Storage Temperature –4–140°F (–20–60°C)
Operating Humidity 20–80% RH (non-condensing)
Storage Humidity 10–90% RH (non-condensing)
Compliance TAA, RoHS, CE, FCC, WEEE
Warranty 5-Year advance replacement warranty
