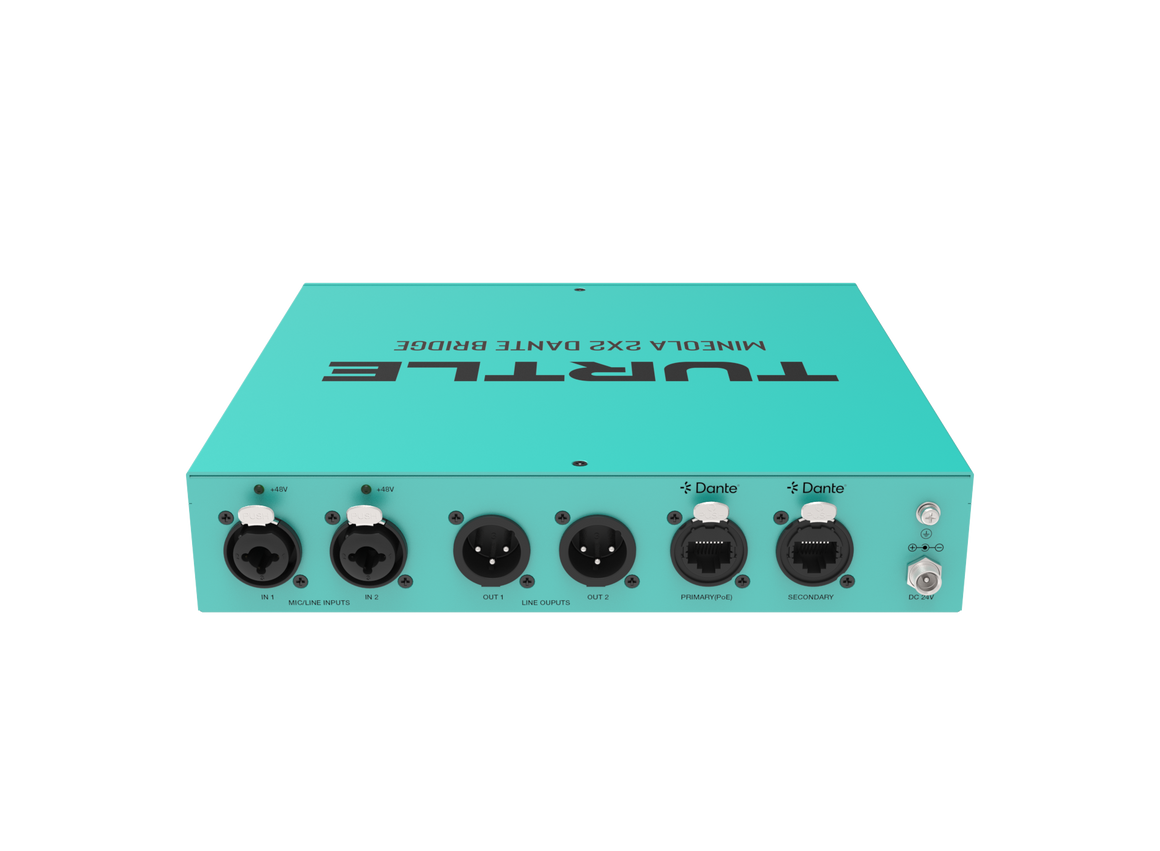

Turquoise audio device box with 'Turtle' branding and certification logos on a white background

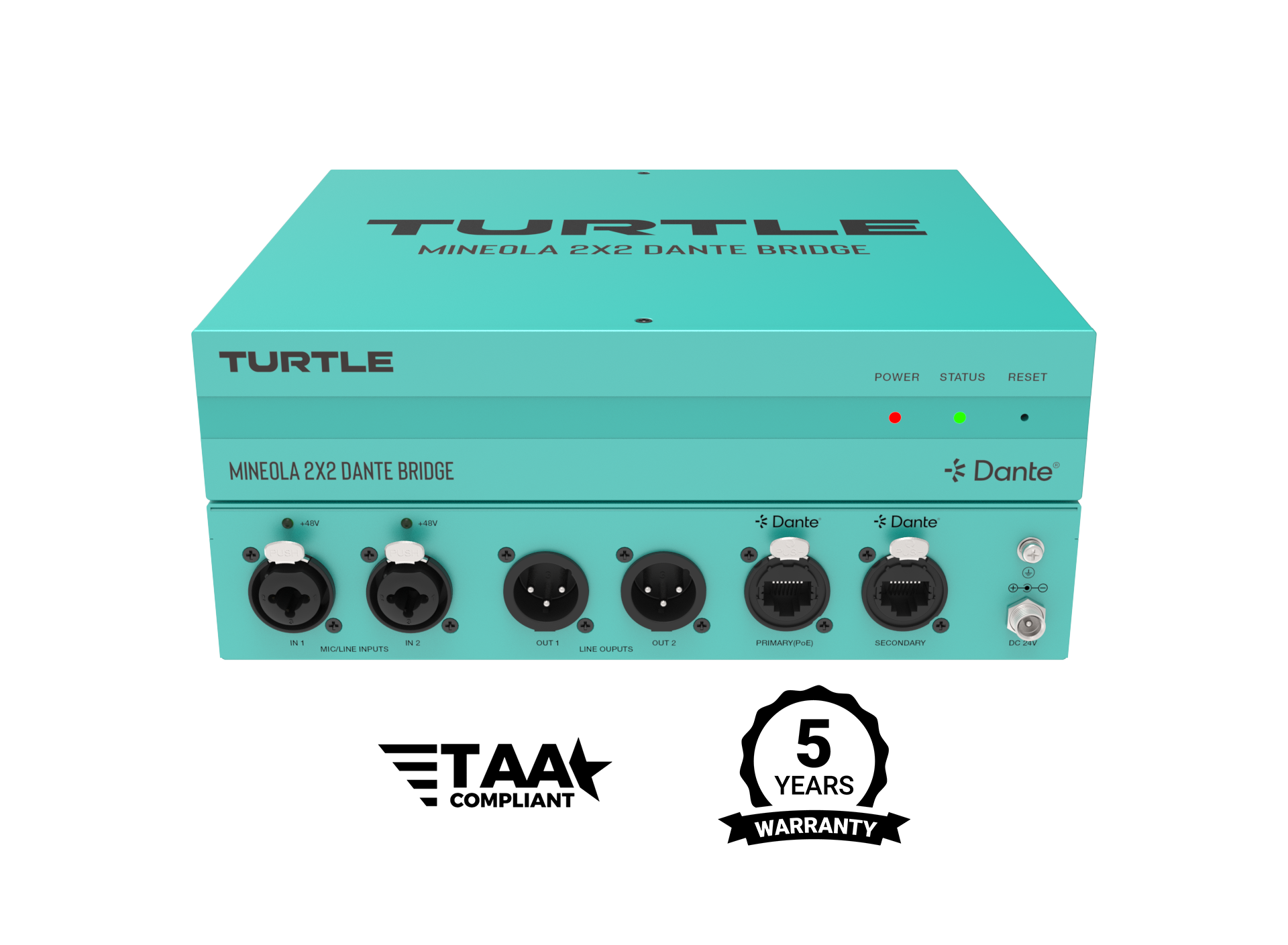

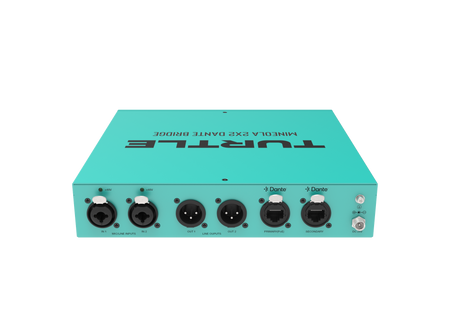

Turquoise audio equipment box with 'Turtle' branding on a white background

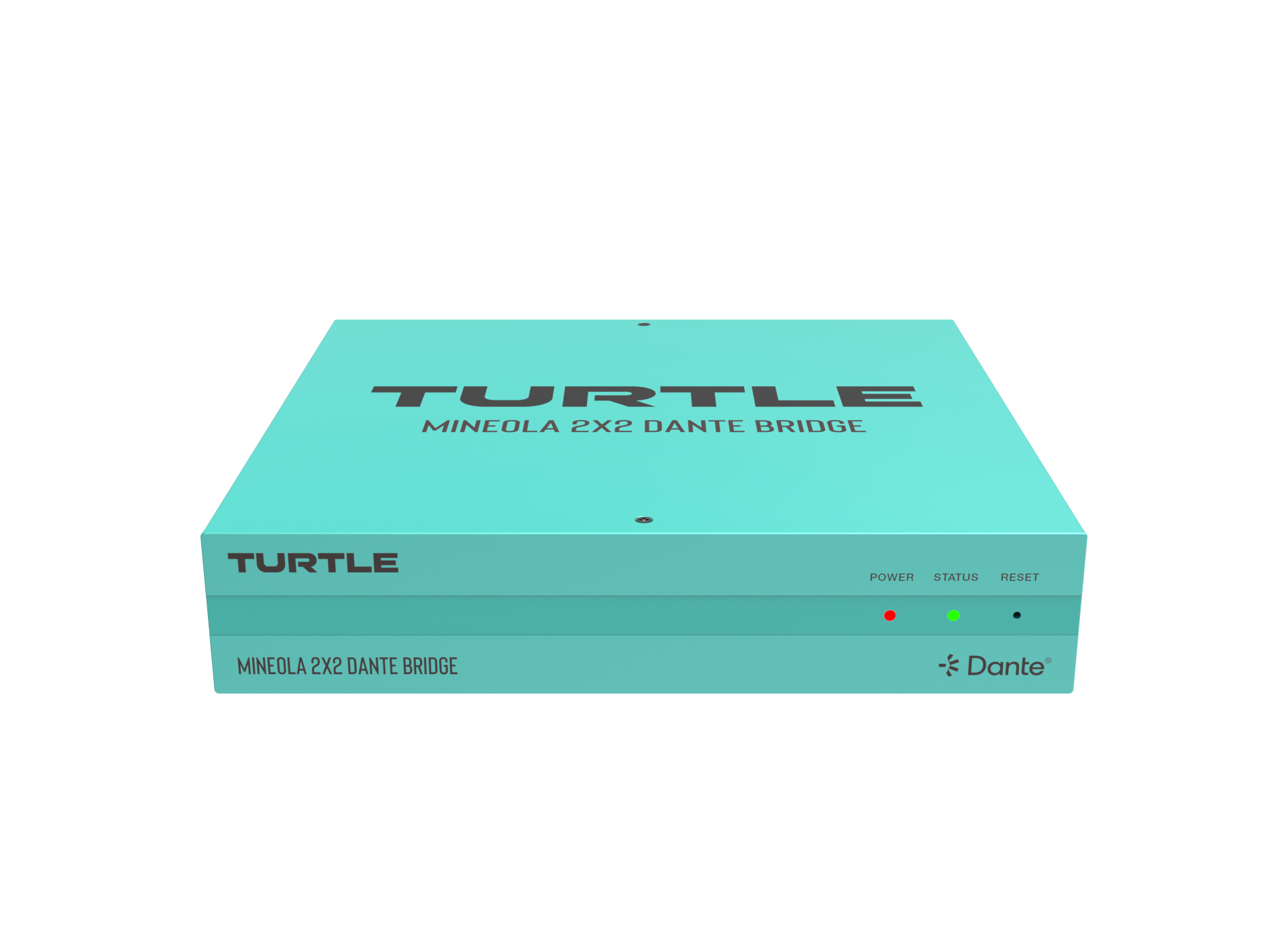

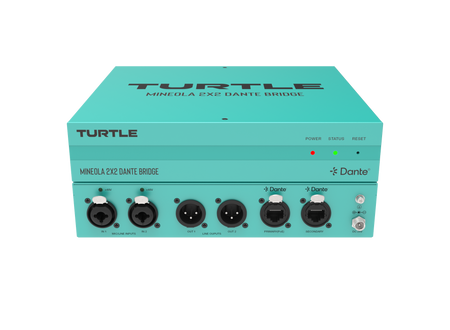

Turquoise audio interface with multiple ports on a white background

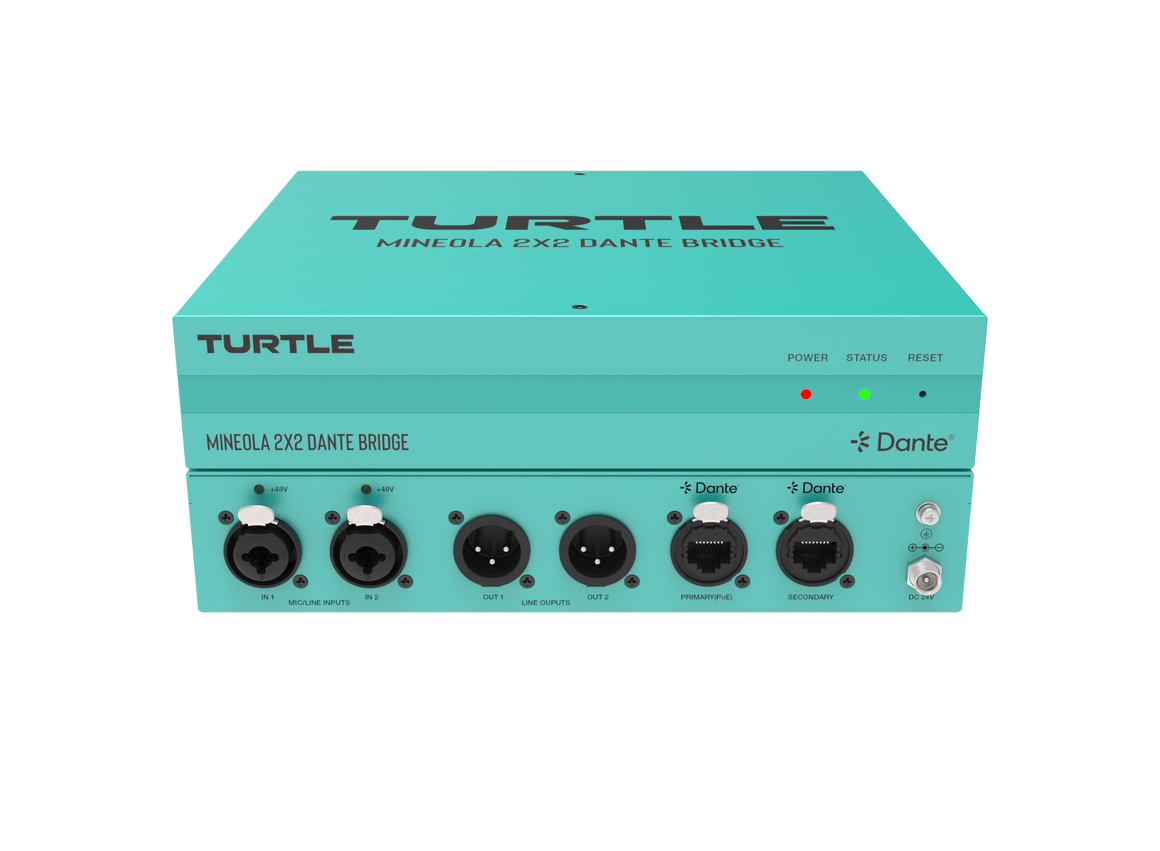

Turquoise box with 'Turtle' branding on a white background

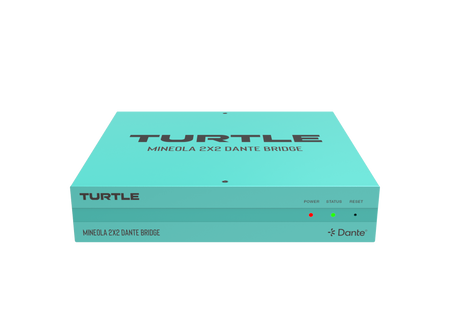

Turquoise audio device box with 'Turtle' branding and certification logos on a white background

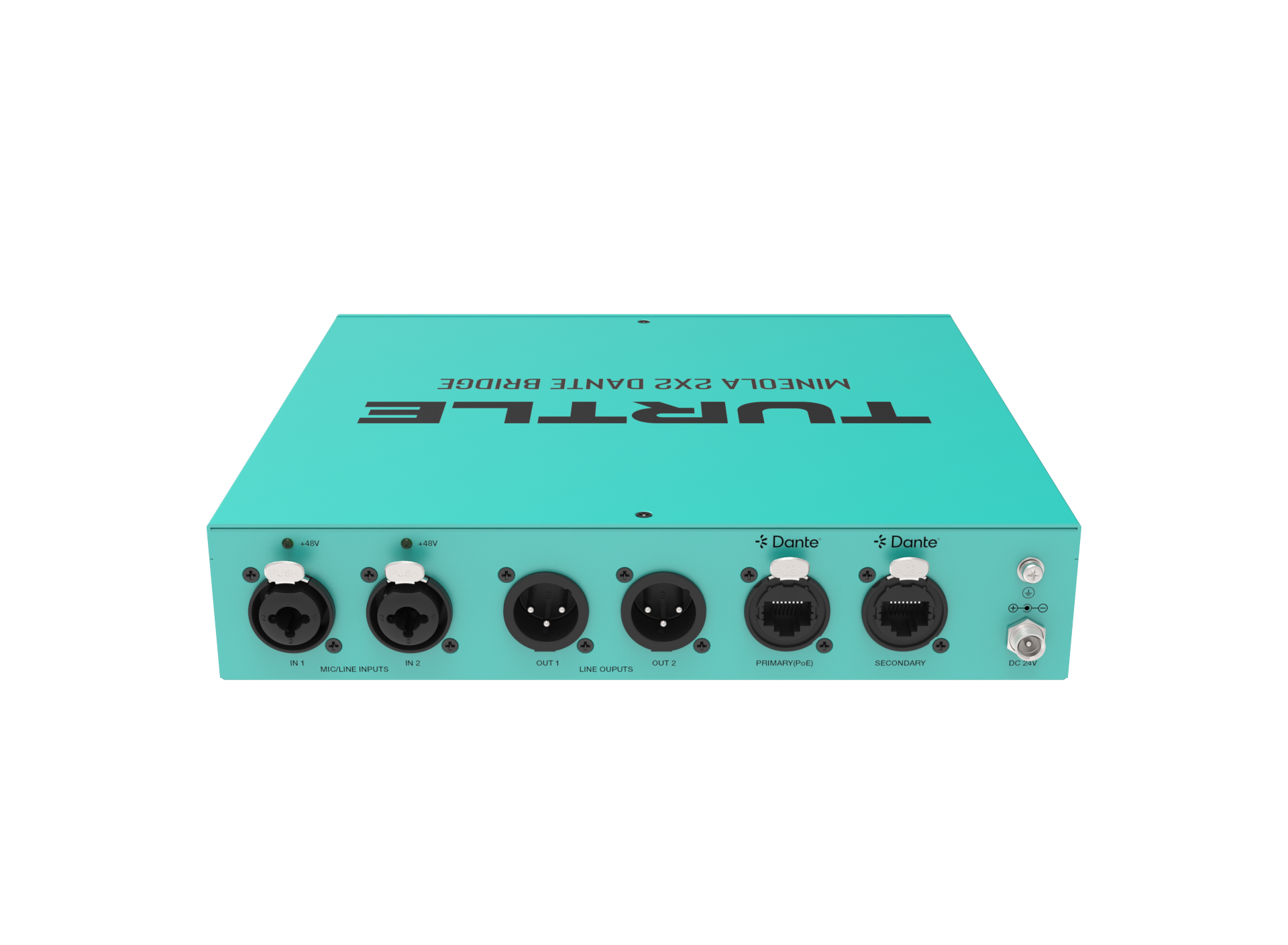

Turquoise audio equipment box with 'Turtle' branding on a white background

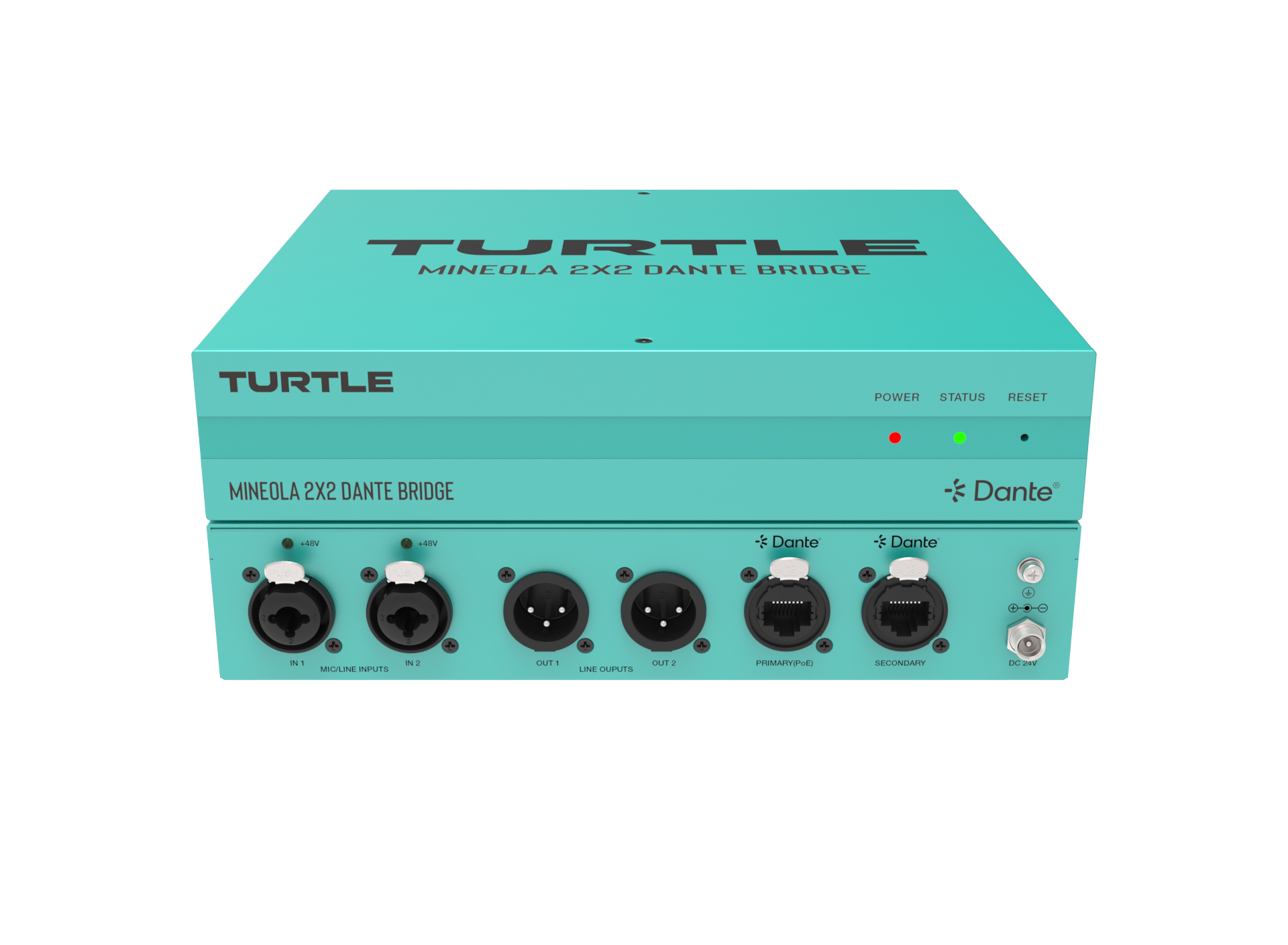

Turquoise audio interface with multiple ports on a white background

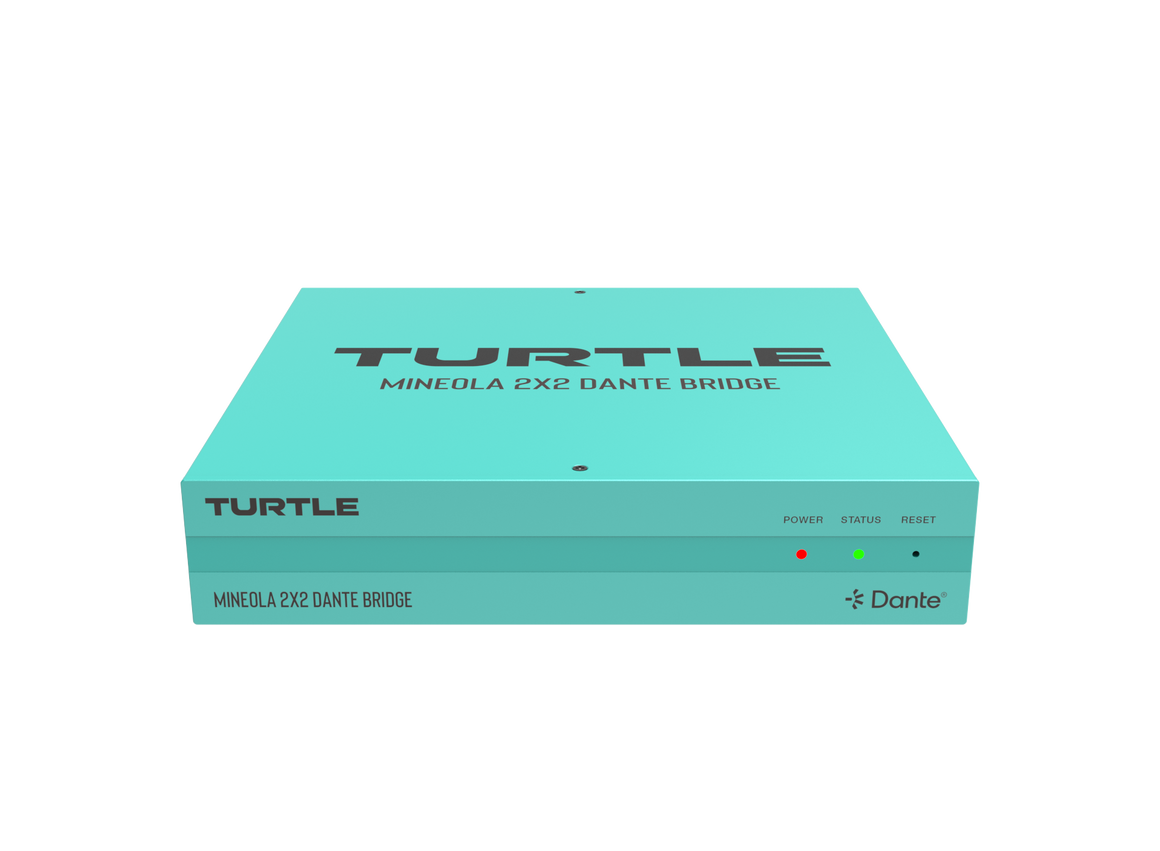

Turquoise box with 'Turtle' branding on a white background
SKU: TAV-MINEOLA2XLR

Turtle AV Mineola 2x2 Dante Audio Bridge

Turtle AV

Dante audio bridging solution

The Turtle Mineola 2x2 Dante Audio Bridge (TAV‑MINEOLA2XLR) is a robust, installation-grade audio interface designed to bridge analogue XLR signals with Dante® digital networks. Featuring two balanced XLR/TRS combo inputs (with switchable 48 V phantom power) and two balanced XLR outputs, it delivers high-quality bi-directional audio conversion for professional systems. With dual Dante ports for redundancy, PoE or 12 V DC power, and an included rackmount kit, it is optimised for production environments, fixed AV systems, and live event workflows.

Highlighted Features

  • 2×2 Dante Audio Bridging: Routes two analogue audio inputs into Dante and outputs two Dante channels to XLR analogue, enabling full bi-directional operation.
  • 48 V Phantom Power: Provides phantom power on both XLR/TRS combo inputs to support condenser microphones and active DI sources.
  • Dual Dante Ports: Primary and secondary Neutrik etherCON connectors support network redundancy for fail-safe Dante integration.
  • Versatile Power Options: Operates via PoE (IEEE 802.3af Class 0) or external 12 V DC input using a locking barrel connector. Both can be connected simultaneously for redundancy.
  • Rugged Metal Construction: TAA-compliant all-metal chassis in Turtle Aqua finish offers durability for touring, broadcast, or permanent installation.
  • Flexible Mounting: Use as a freestanding box or mount into a 19″ rack with the included half-rack mounting kit.
  • Wide Dante Compatibility: Fully compatible with Dante Controller, Domain Manager, Connect, Director, and AES67-enabled systems.
  • Production-Ready: Ideal for use with OBS, vMix, Wirecast, TriCaster, and other production platforms in hybrid live/studio settings.
  • 5-Year Advance Replacement: Includes extended professional warranty coverage for long-term reliability and support.

The TAV‑MINEOLA2XLR delivers reliable Dante connectivity for any AV environment requiring robust analogue interfacing. Whether for front-of-house capture, broadcast I/O, or studio patching, it’s built to perform with uncompromising flexibility and resilience.

In stock
£882.00

Secure checkout

Friendly support

Hassle-free returns

The Mineola 2x2 Dante Audio Bridge (TAV-MINEOLA2XLR) is a compact, rugged audio interface designed to bridge analog and digital Dante® audio environments. With two balanced XLR/TRS combo inputs (with 48V phantom power) and two balanced XLR outputs, this unit delivers seamless bi-directional audio bridging. It supports dual Dante network ports for redundancy, PoE or 12V DC power, and includes a rackmount kit—making it ideal for live events, studios, and fixed installations.

Key Features

  • 2×2 Dante Audio Bridging: Two analog inputs to Dante, and two Dante outputs to analog via locking XLR connectors.
  • 48V Phantom Power: Available on both analog XLR/TRS combo inputs for microphone-level sources.
  • Dual Dante Network Ports: Primary and Secondary RJ45 ports (Neutrik etherCON) for network redundancy and reliability.
  • PoE and 12V DC Power: Supports Power over Ethernet (IEEE 802.3af Class 0) or external DC power with locking connector.
  • All-Metal Enclosure: Built tough for professional use, finished in signature Turtle Aqua for durability and style.
  • Mounting Flexibility: Use as a standalone throwdown box or in a 19" rack using the included half-width rack kit.
  • Total Dante Compatibility: Works with Dante Controller, DVS, Domain Manager, Connect, and Director.
  • Live Production Ready: Ideal companion for systems like OBS, vMix, Wirecast, TriCaster, and more.
  • TAA Compliant & 5-Year Warranty:Suitable for UK public sector and supported with advance replacement cover.

Specifications

Input 2 × analog balanced/unbalanced audio via XLR/TRS combo connectors, with 48V Phantom Power
Output 2 × Dante® digital audio to balanced analog XLR outputs
Network Interface Primary and Secondary Dante ports (RJ45 with locking Neutrik etherCON connectors)
Control Dante Controller and WebUI
Audio Latency Configurable via Dante Controller: 1 ms / 2 ms / 5 ms
ESD Protection IEC 61000-4-2: ±8 kV (air), ±4 kV (contact)
Mechanical
Housing All-metal Turtle Aqua chassis
Dimensions Half 1U width for 19″ rack; rackmount kit included
Power Supply PoE IEEE802.3af Class 0 or 12V DC via locking connector
Power Redundancy Supports simultaneous PoE and 12V DC input
Operating Temperature 32–104 °F (0–40 °C)
Relative Humidity 20% – 90% RH (non-condensing)
Warranty 5-Year advance replacement warranty
Compliance TAA, RoHS, CE, FCC, WEEE
