SKU: TAV-MINEOLA4XLR

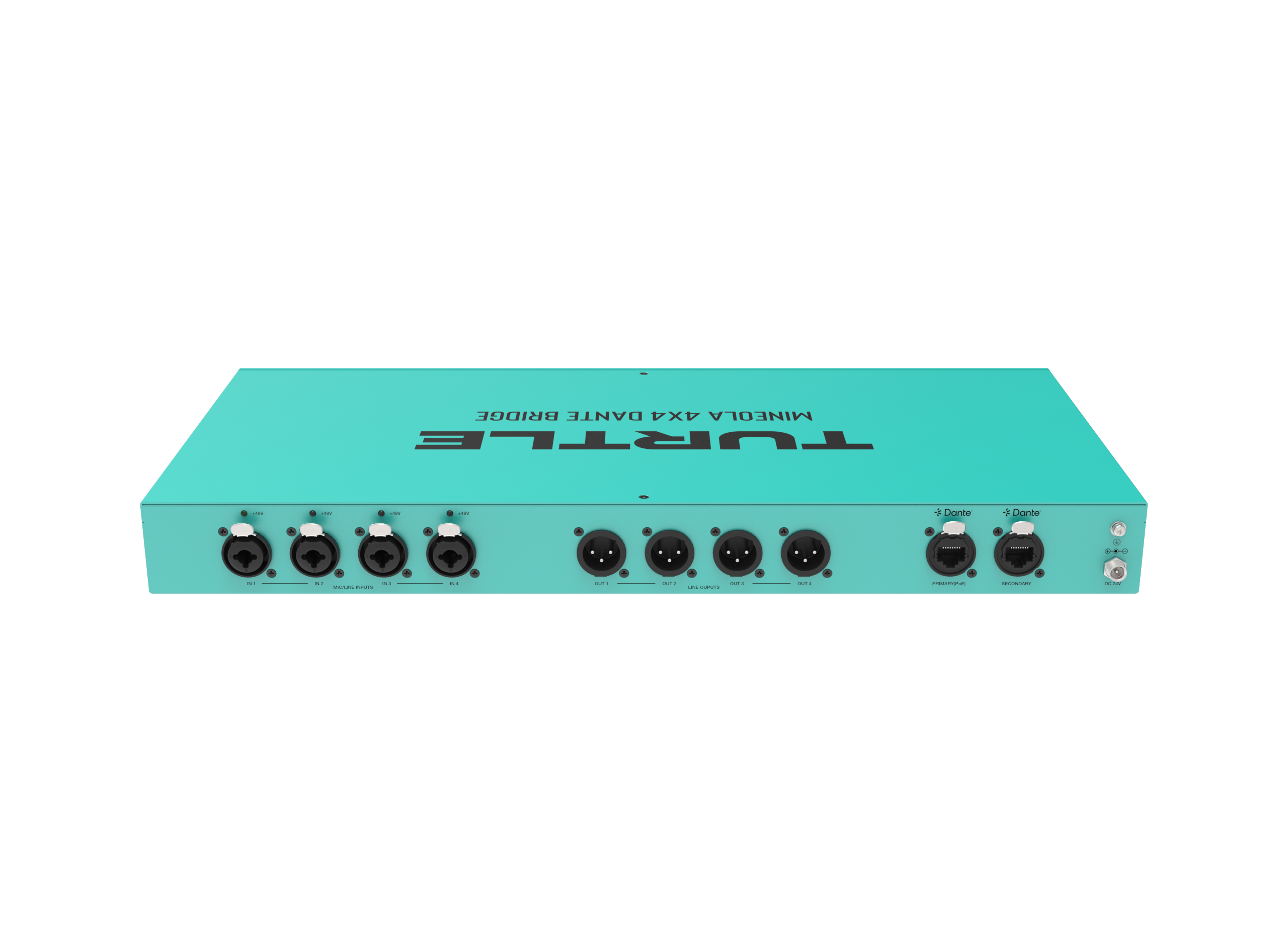

Turtle AV Mineola 4x4 Dante Audio Bridge

Turtle AV

Versatile mid‑capacity Dante audio bridge

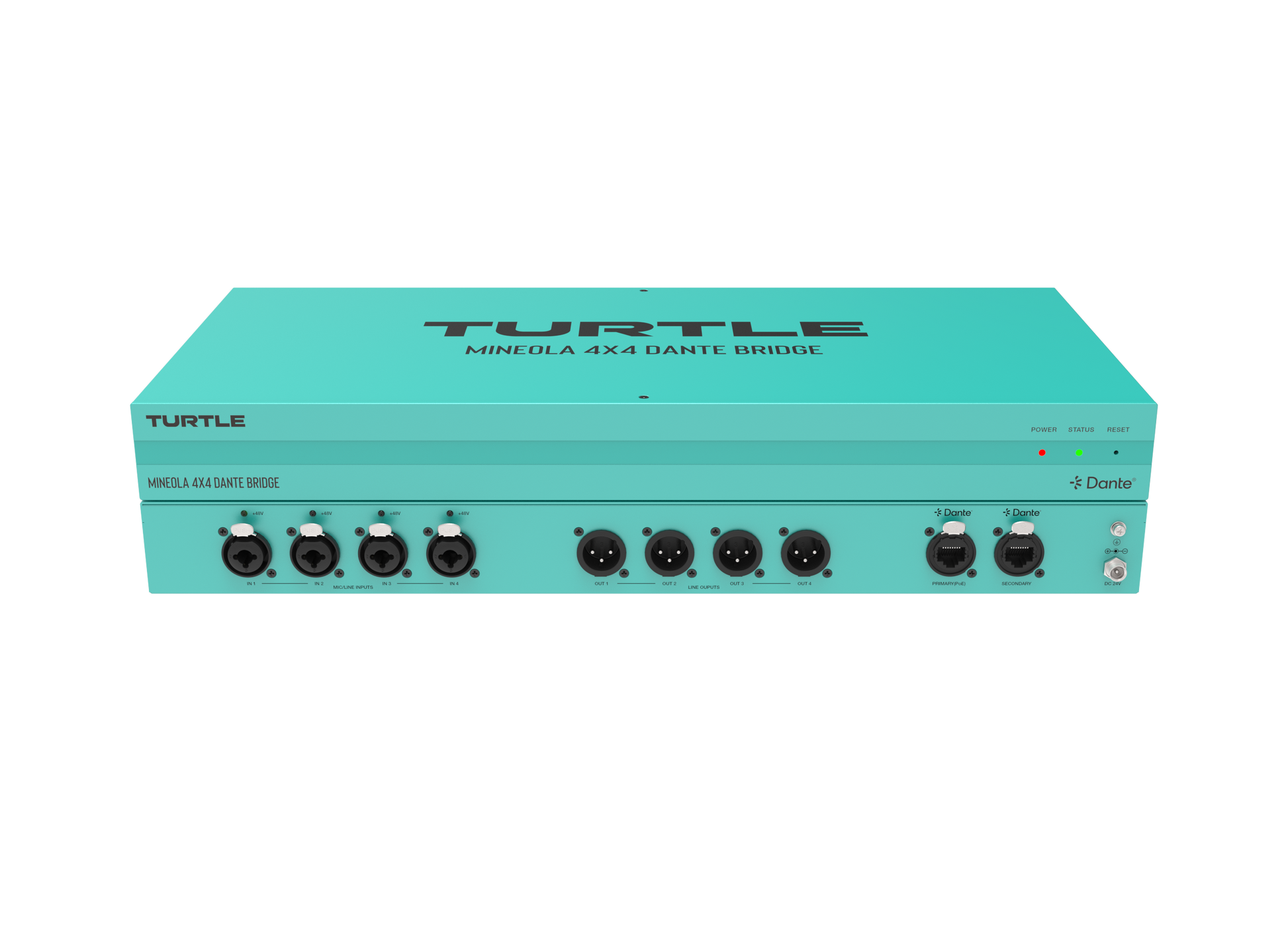

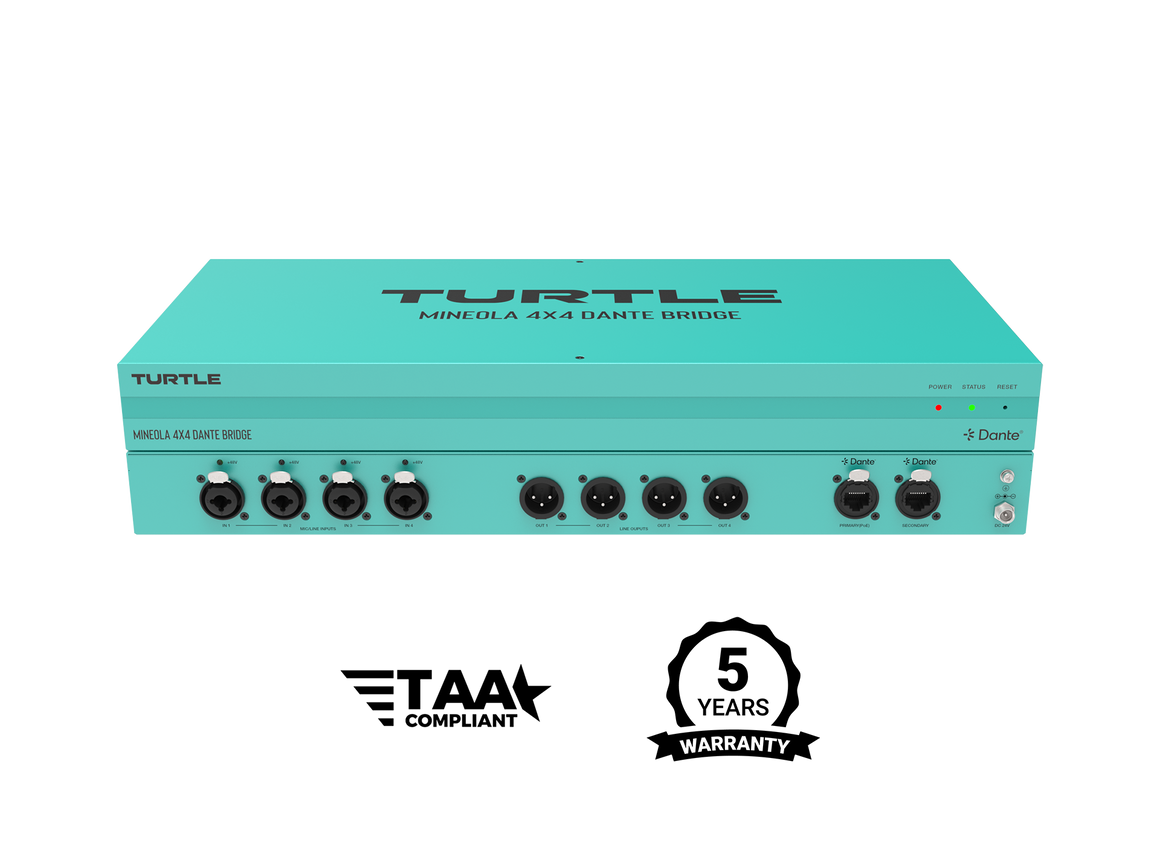

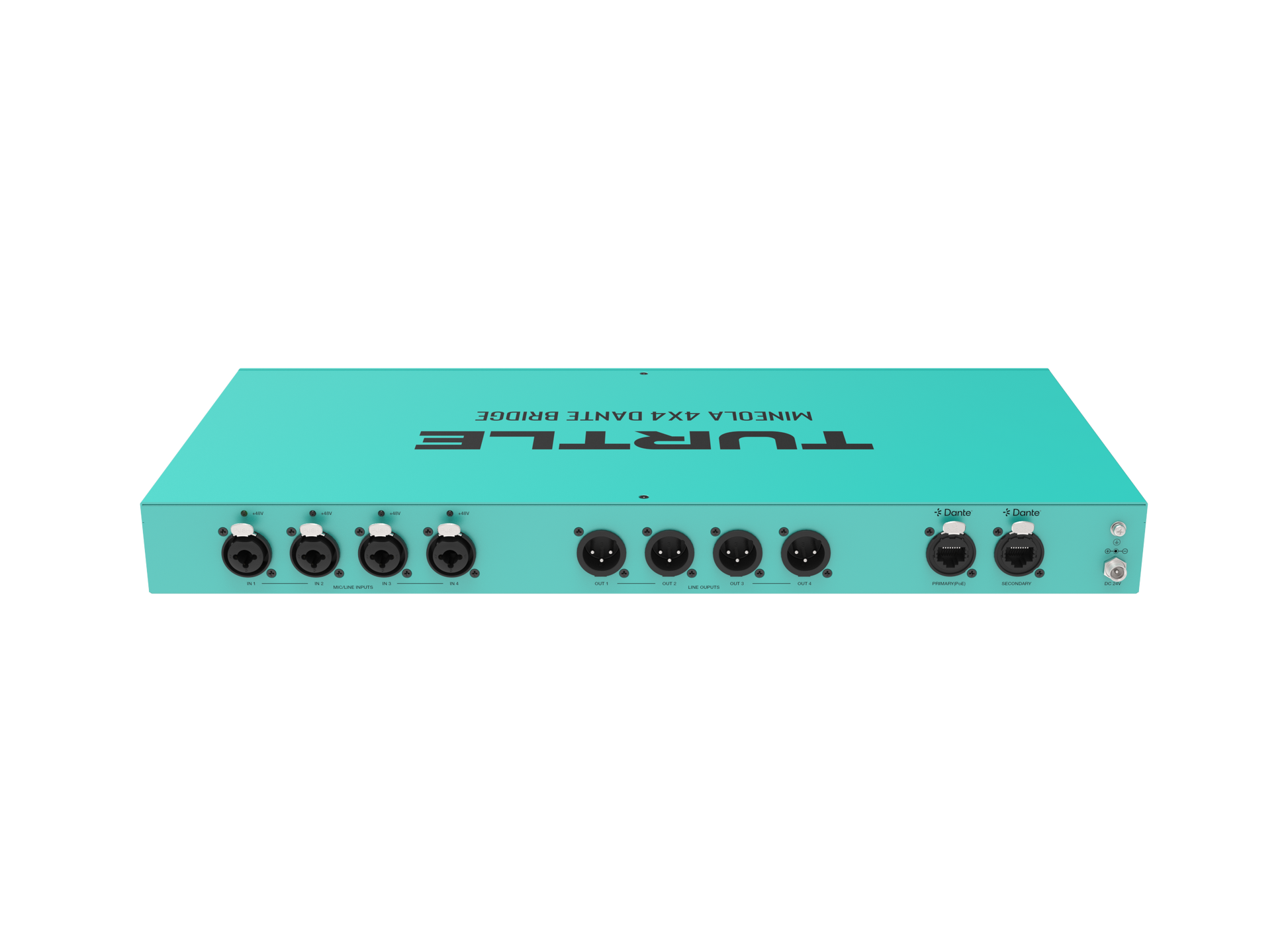

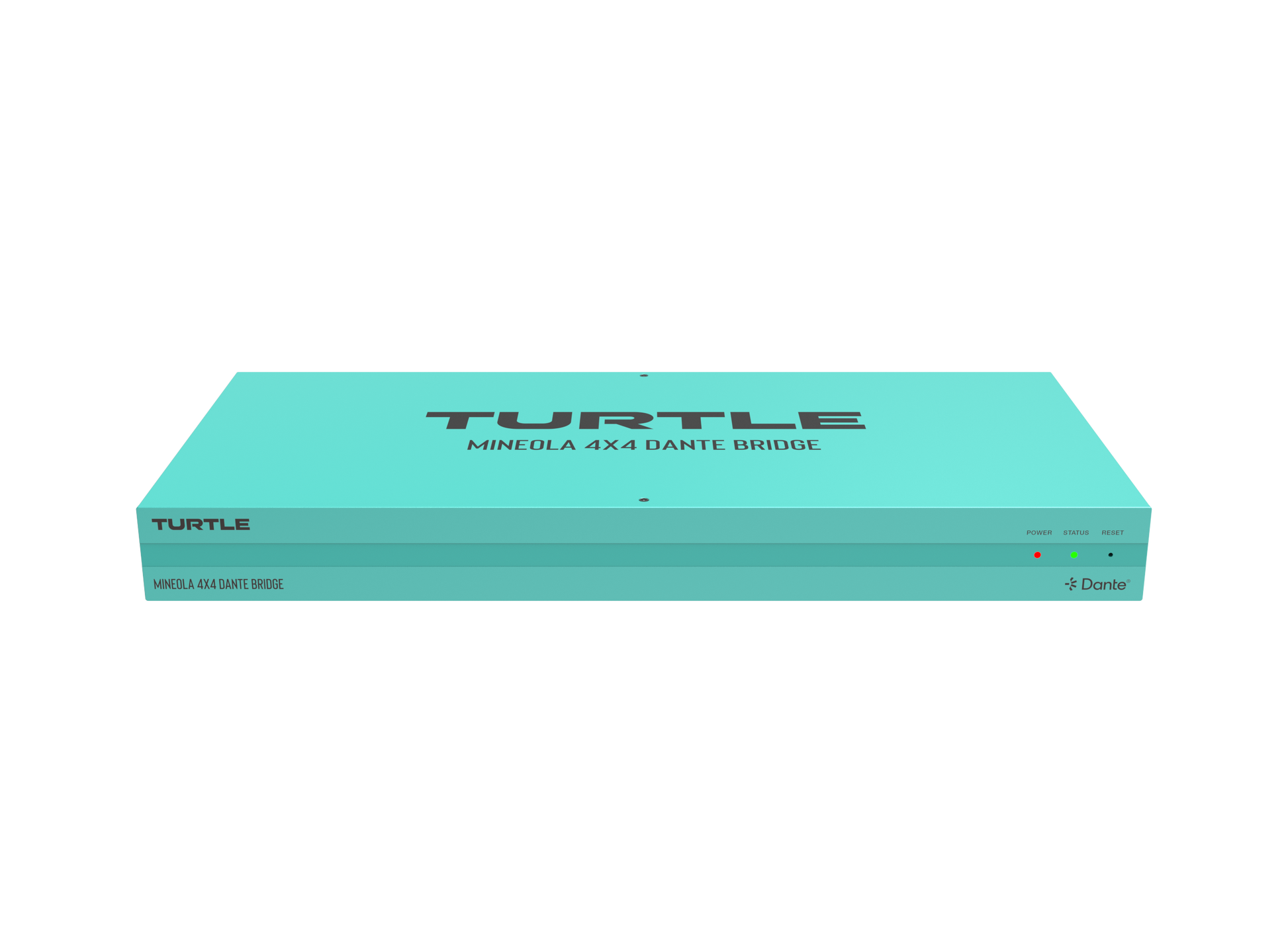

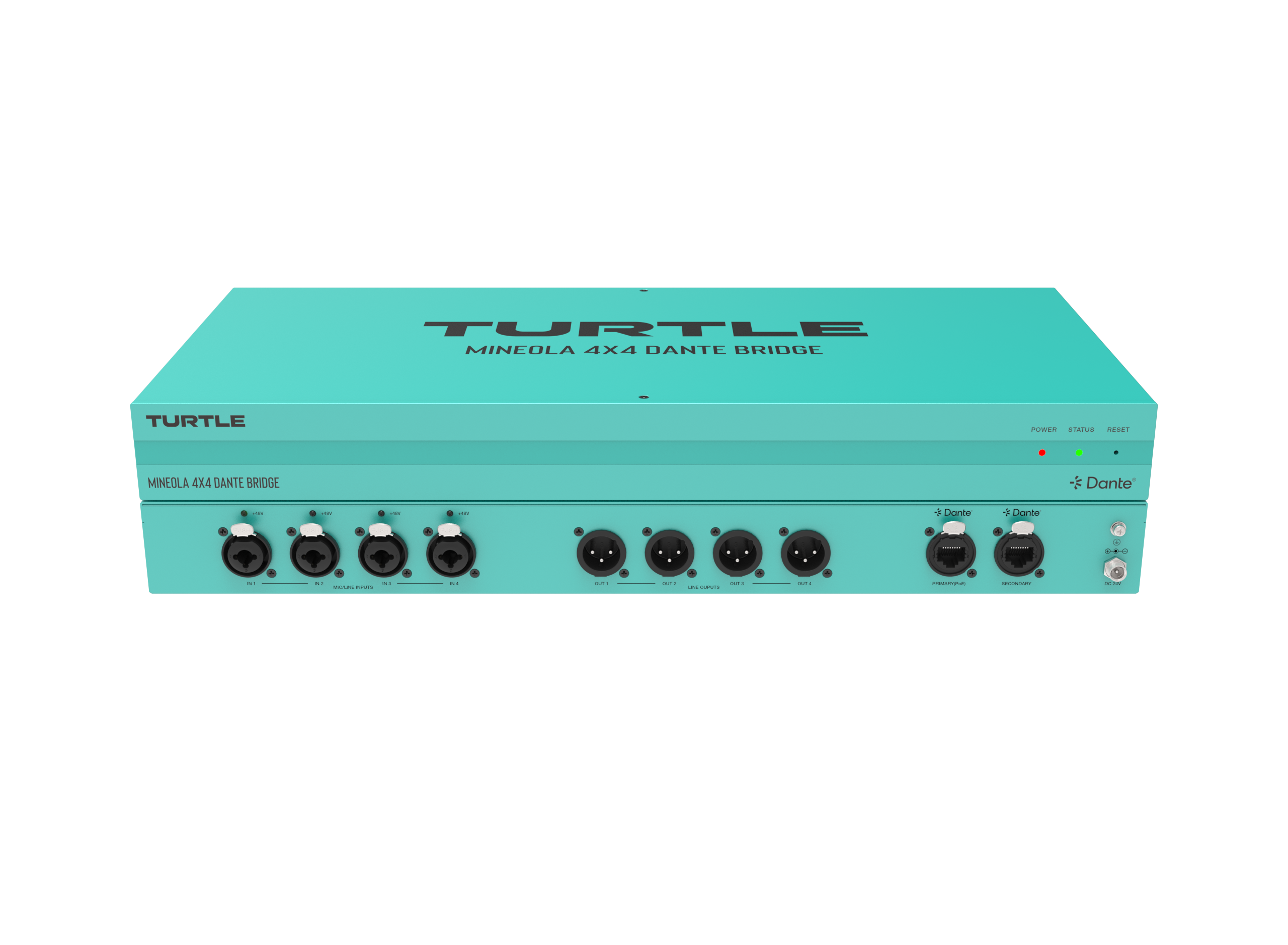

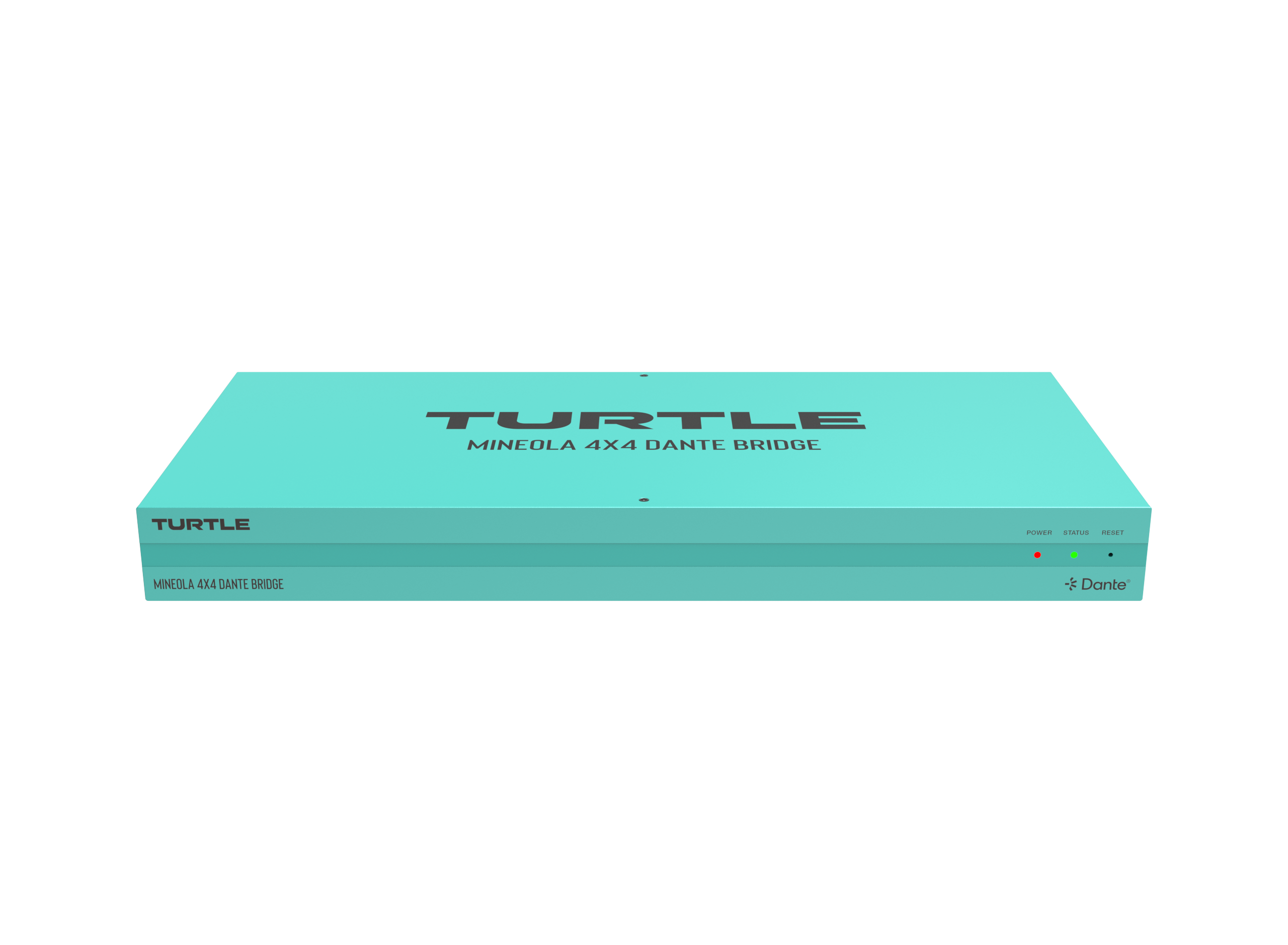

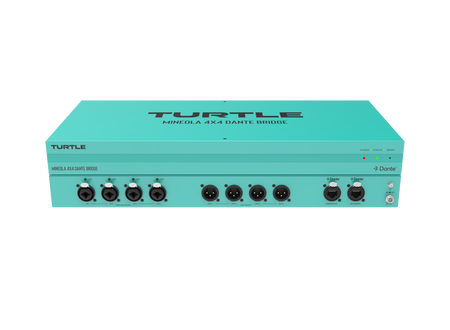

The Turtle Mineola 4x4 Dante Audio Bridge (TAV‑MINEOLA4XLR) is a rugged, installation-ready audio interface engineered for seamless integration between analogue XLR audio and Dante® digital networks. With four balanced XLR/TRS combo inputs (each supporting 48 V phantom power) and four balanced XLR outputs, it delivers dependable bi-directional audio bridging for demanding AV workflows. Dual Dante ports, redundant power support, and rackmount capability make it ideal for studios, live venues, and broadcast environments.

Highlighted Features

  • 4×4 Dante Audio Bridging: Connects four analogue audio inputs to Dante and routes four Dante channels to balanced XLR analogue outputs.
  • 48 V Phantom Power: Available on all four XLR/TRS combo inputs, enabling connection of condenser microphones and active sources.
  • Dual Dante Network Ports: Primary and Secondary Neutrik etherCON connectors provide network redundancy for critical audio streams.
  • Redundant Power Options: Supports IEEE 802.3af PoE and 12 V DC input simultaneously for failover protection.
  • Rugged Metal Enclosure: Durable Turtle Aqua metal housing ensures reliability in fixed installations and portable rigs.
  • Rackmountable Design: Half-width 1U chassis fits standard 19″ racks; rack kit included for flexible mounting.
  • Complete Dante Integration: Compatible with Dante Controller, Domain Manager, DVS, Connect, and Director for unified management.
  • Production-Grade Compatibility: Ideal for systems including TriCaster, OBS, Wirecast, vMix, and Vizrt workflows.
  • Professional Support: Includes a 5-Year advance replacement warranty for mission-critical deployments.

The TAV‑MINEOLA4XLR provides reliable Dante I/O for any professional audio setup requiring high-performance analogue interfacing. Whether installed in a rack or used on-stage, it’s built to meet the demands of hybrid, live, and networked production environments.

In stock
£1,104.00

Secure checkout

Friendly support

Hassle-free returns

The Mineola 4x4 Dante Audio Bridge (TAV-MINEOLA4XLR) is a robust, rack-mountable audio interface that connects four analog XLR inputs and four analog XLR outputs to a Dante® network. Designed for professional audio environments, it features locking connectors, dual Dante network ports for redundancy, and PoE or 12V DC power options. With 48V phantom power, full Dante software compatibility, and a durable Turtle Aqua metal enclosure, it’s the ideal solution for live production, studios, and fixed installations.

Key Features

  • 4×4 Dante Audio Bridging: Four analog inputs to Dante and four Dante outputs to analog XLR connectors.
  • 48V Phantom Power: Available on all four XLR/TRS combo inputs for microphones and other low-level sources.
  • Dual Dante Network Ports: Primary and Secondary ports with Neutrik etherCON connectors for network redundancy.
  • Power Redundancy: Operates via IEEE 802.3af PoE or 12V DC locking connector — supports dual power input for redundancy.
  • Metal Turtle Aqua Enclosure: Rugged and styled for durability in high-demand AV installations.
  • Mounting Options: Half-width 1U design fits 19″ rack; rackmount kit included.
  • Total Dante Compatibility: Works with Dante Controller, DVS, Domain Manager, Connect, and Director.
  • Live Production Ready: Seamlessly integrates with systems such as OBS, TriCaster, vMix, Wirecast, and Vizrt.
  • TAA Compliant & 5-Year Warranty: Suitable for UK public sector and supported with advance replacement cover.

Specifications

Input 4 × balanced/unbalanced analog audio via XLR/TRS combo connectors, 48V Phantom Power
Output 4 × Dante® digital audio to balanced analog XLR outputs
Network Interface Primary and Secondary Dante ports via RJ45 with locking Neutrik etherCON
Control Dante Controller and WebUI
Network Bandwidth 100 Mbps
Audio Latency Configurable: 1 ms / 2 ms / 5 ms via Dante Controller
ESD Protection IEC 61000-4-2: ±8 kV (air), ±4 kV (contact)
Mechanical
Housing All-metal enclosure in Turtle Aqua finish
Dimensions 1U 19″ rack-mountable (kit included)
Power Supply PoE IEEE 802.3af Class 0 or 12V DC via locking connector
Power Redundancy Supports simultaneous PoE and 12V DC input
Operating Temperature 32–104 °F (0–40 °C)
Relative Humidity 20–90% RH (non-condensing)
Warranty 5-Year advance replacement
Compliance TAA, RoHS, CE, FCC, WEEE
