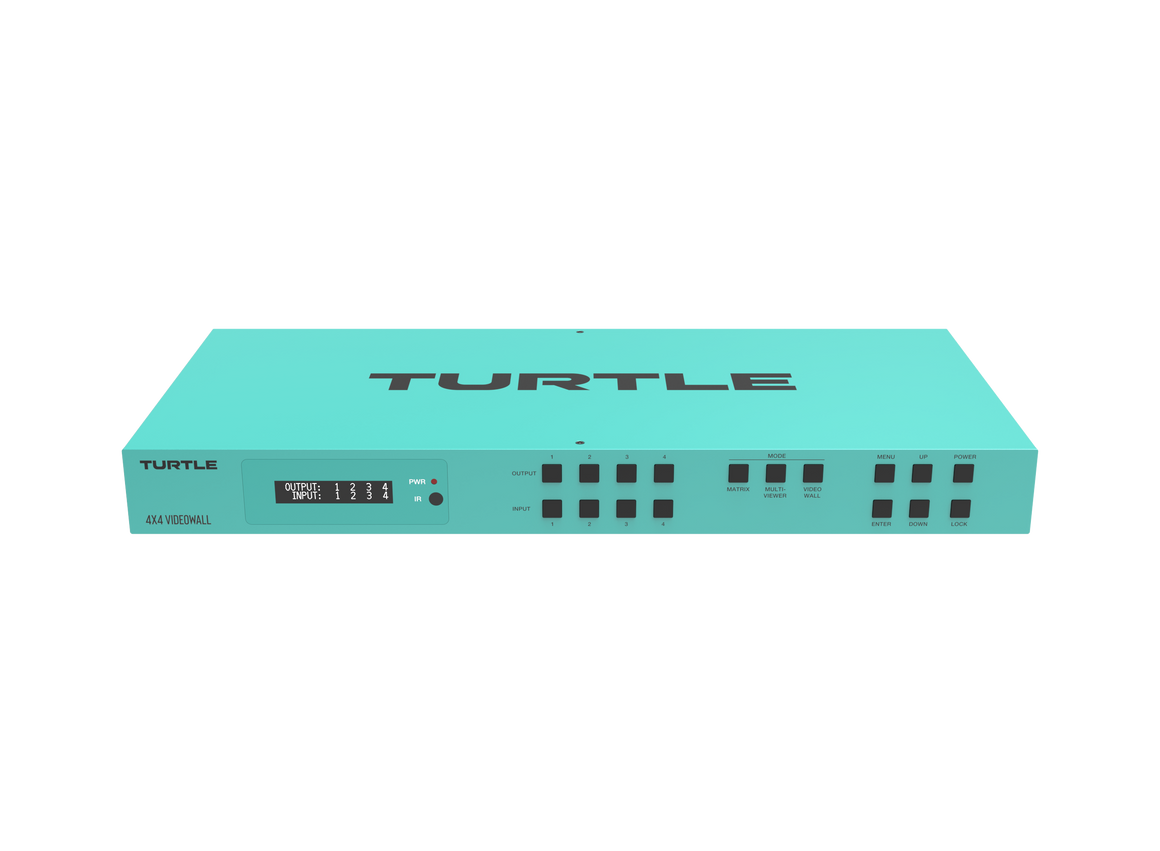

Teal electronic device with 'Turtle' branding on a white background, featuring certification logos and warranty information.

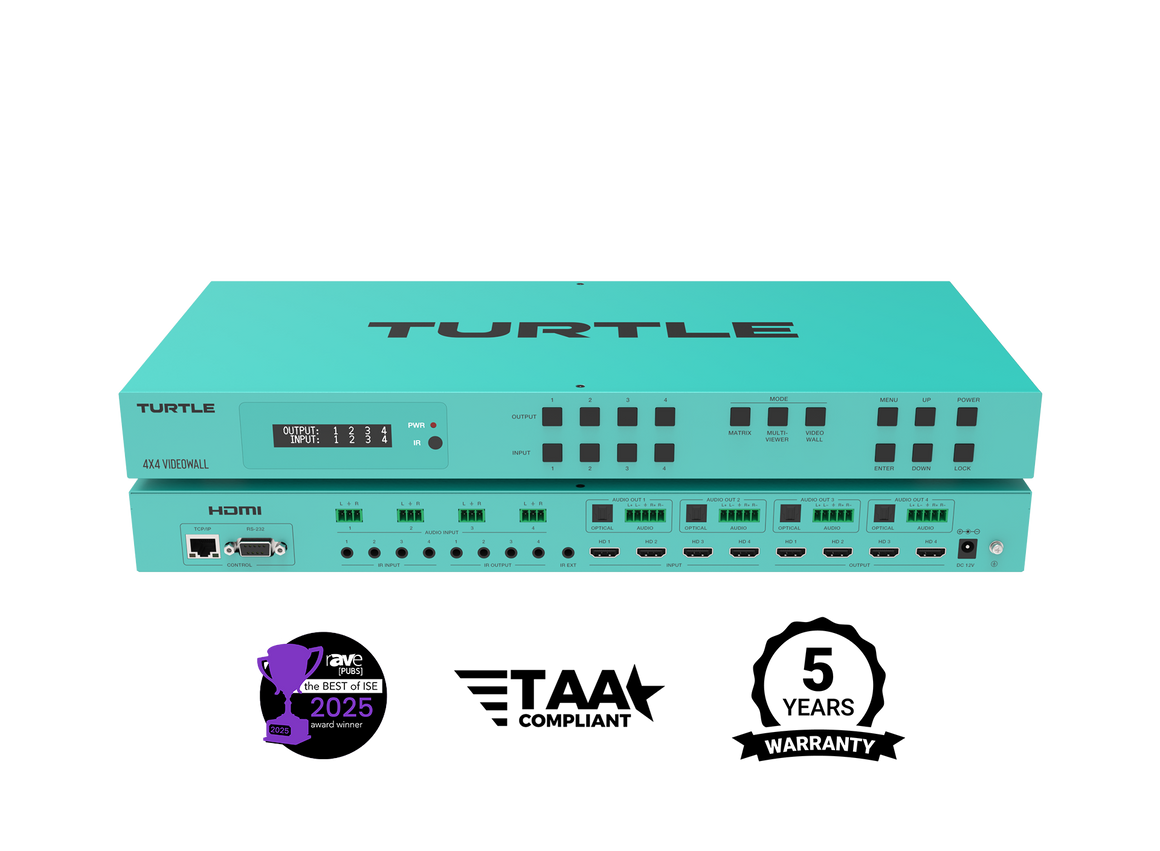

Turquoise electronic device with 'TURTLE' branding on a white background

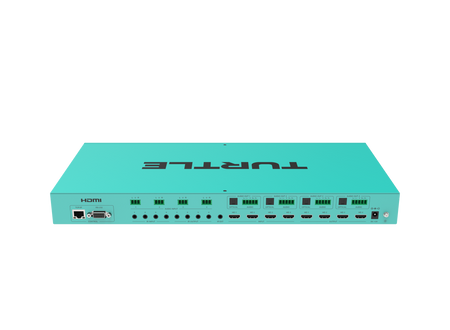

Turquoise device with 'Turtle' branding on a white background

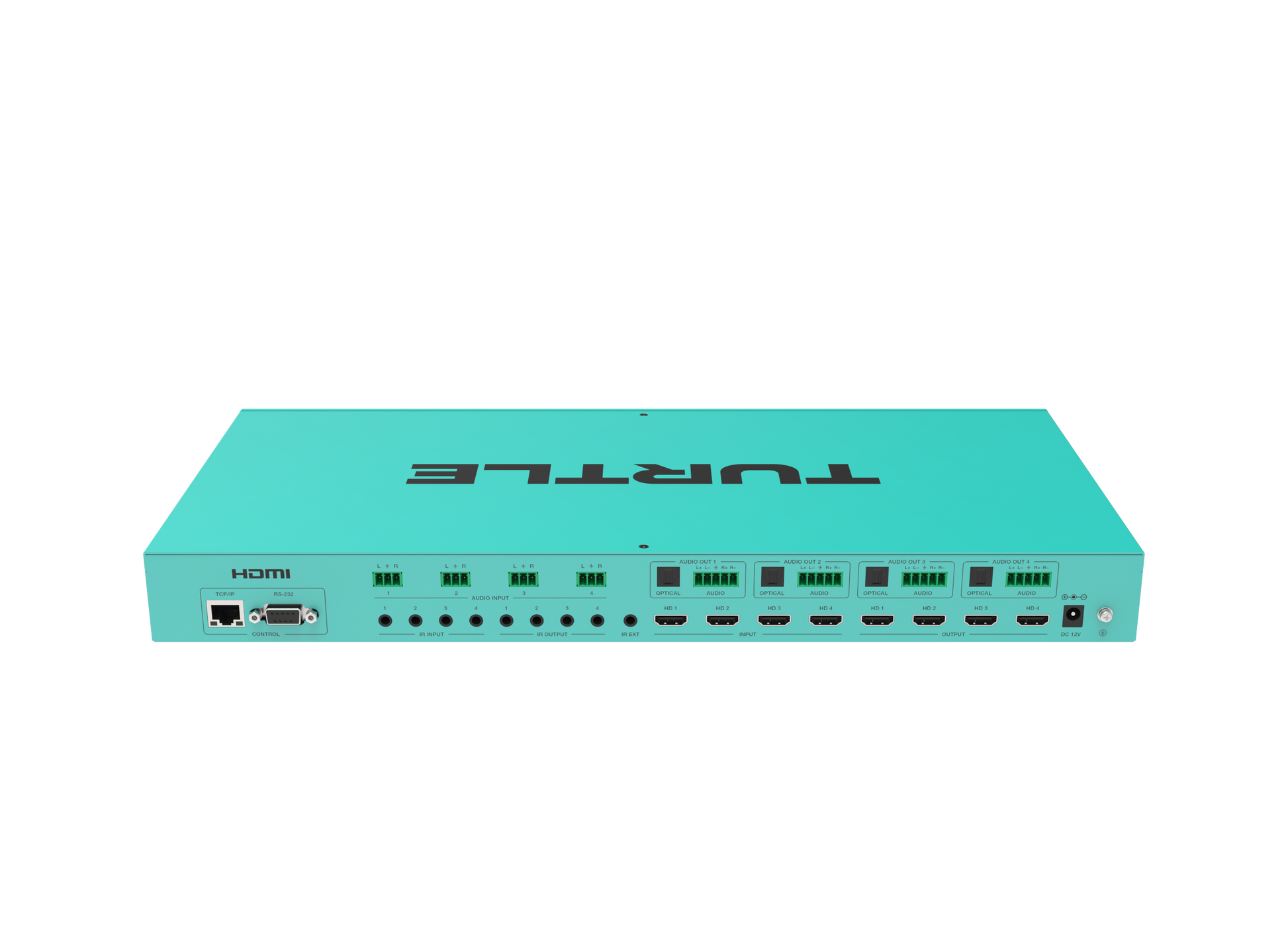

Teal electronic device with 'Turtle' branding on a white background

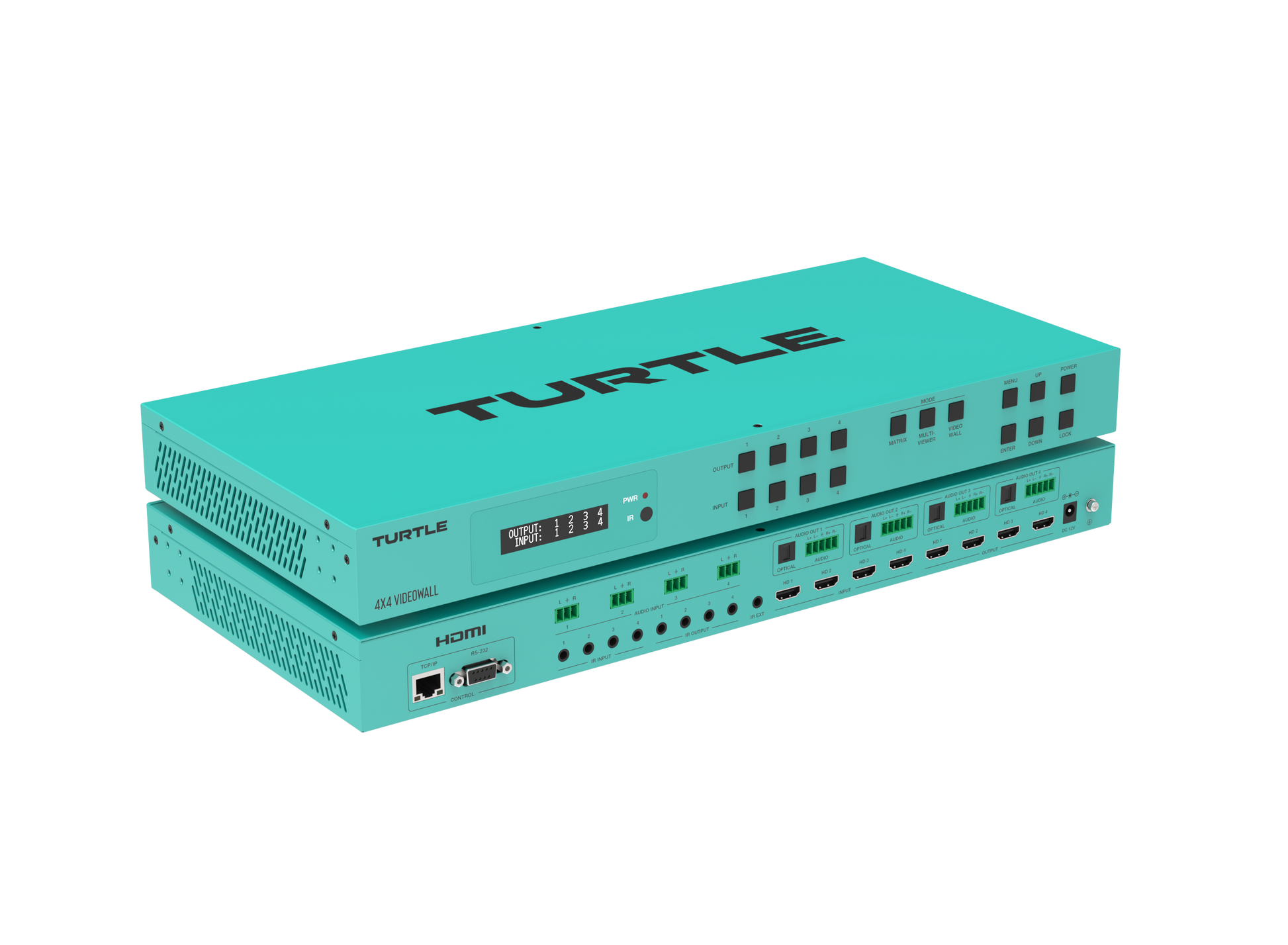

Teal electronic device with 'Turtle' branding on a white background, featuring certification logos and warranty information.

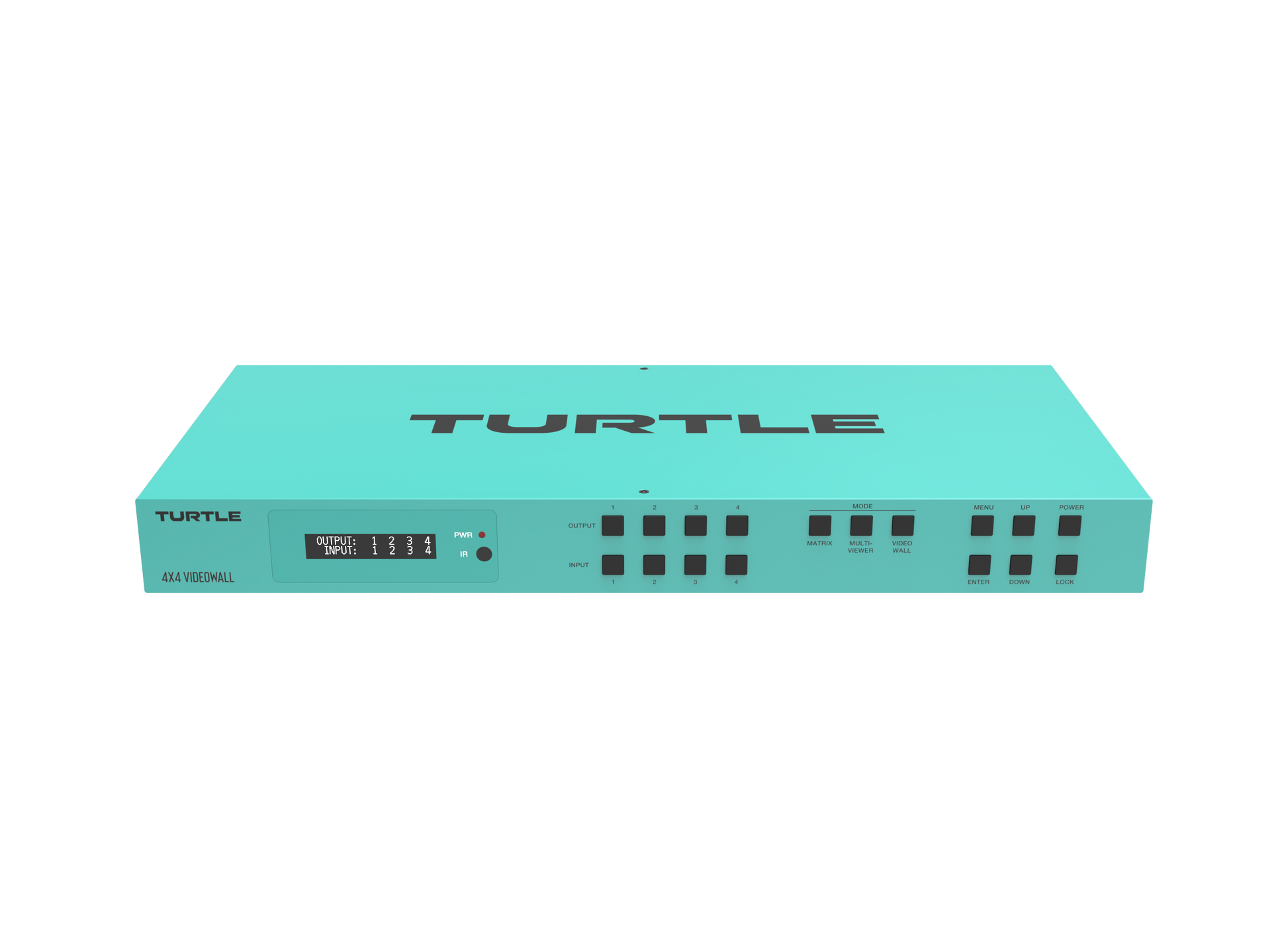

Turquoise electronic device with 'TURTLE' branding on a white background

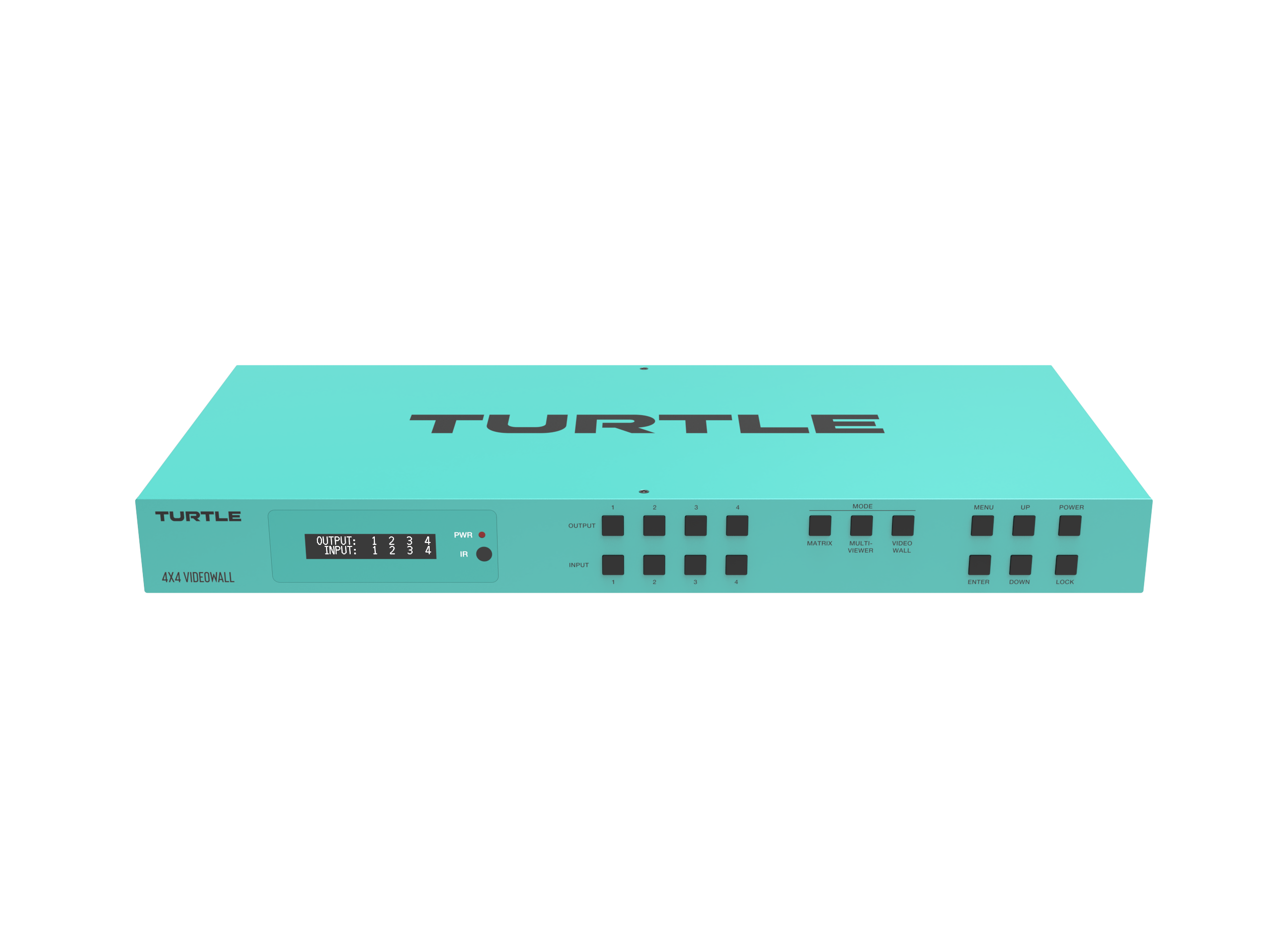

Turquoise device with 'Turtle' branding on a white background

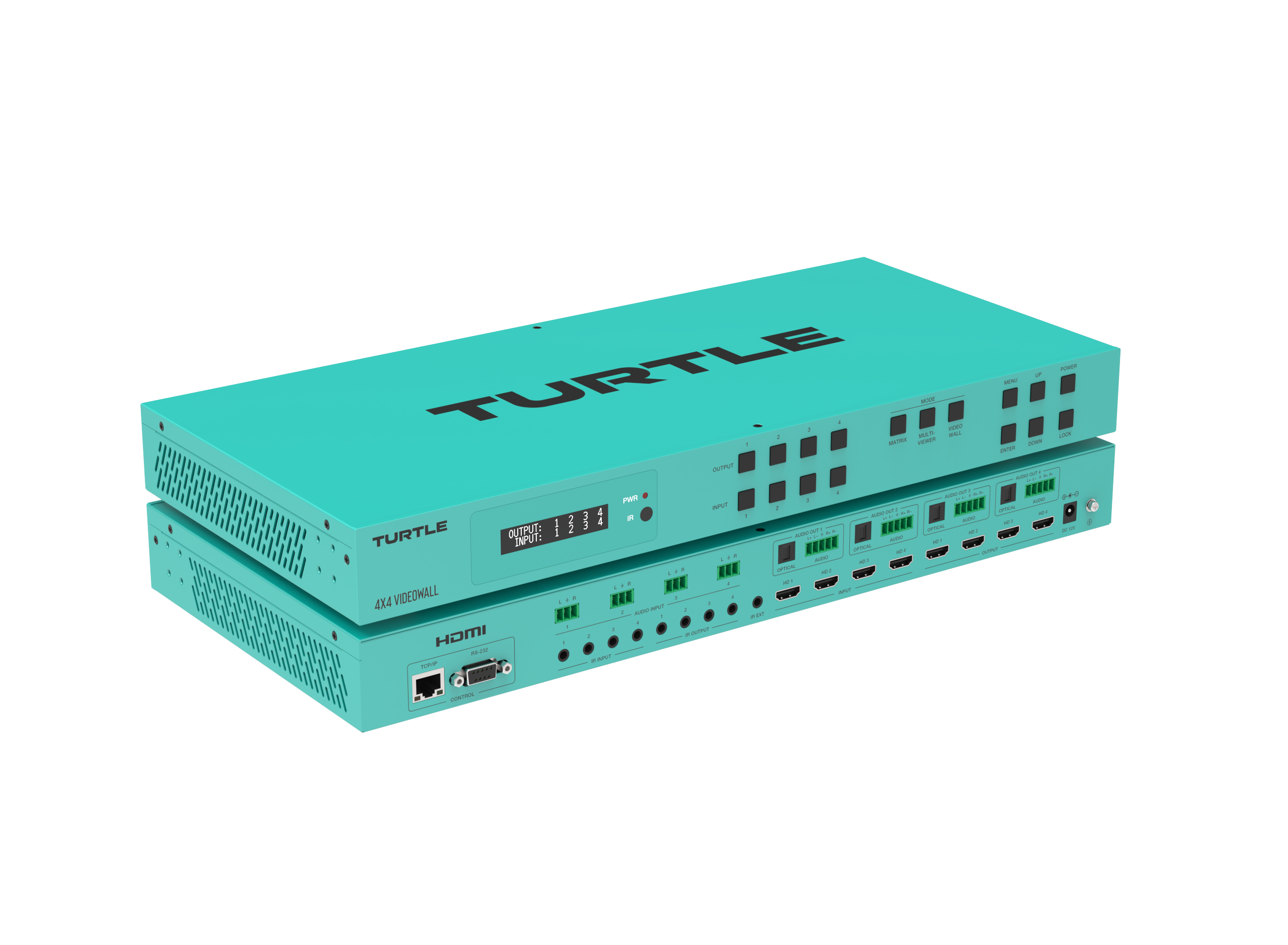

Teal electronic device with 'Turtle' branding on a white background
SKU: TAV-MX44VW

Turtle AV 4x4 Video Wall

Turtle AV

Compact 4×4 4K videowall solution

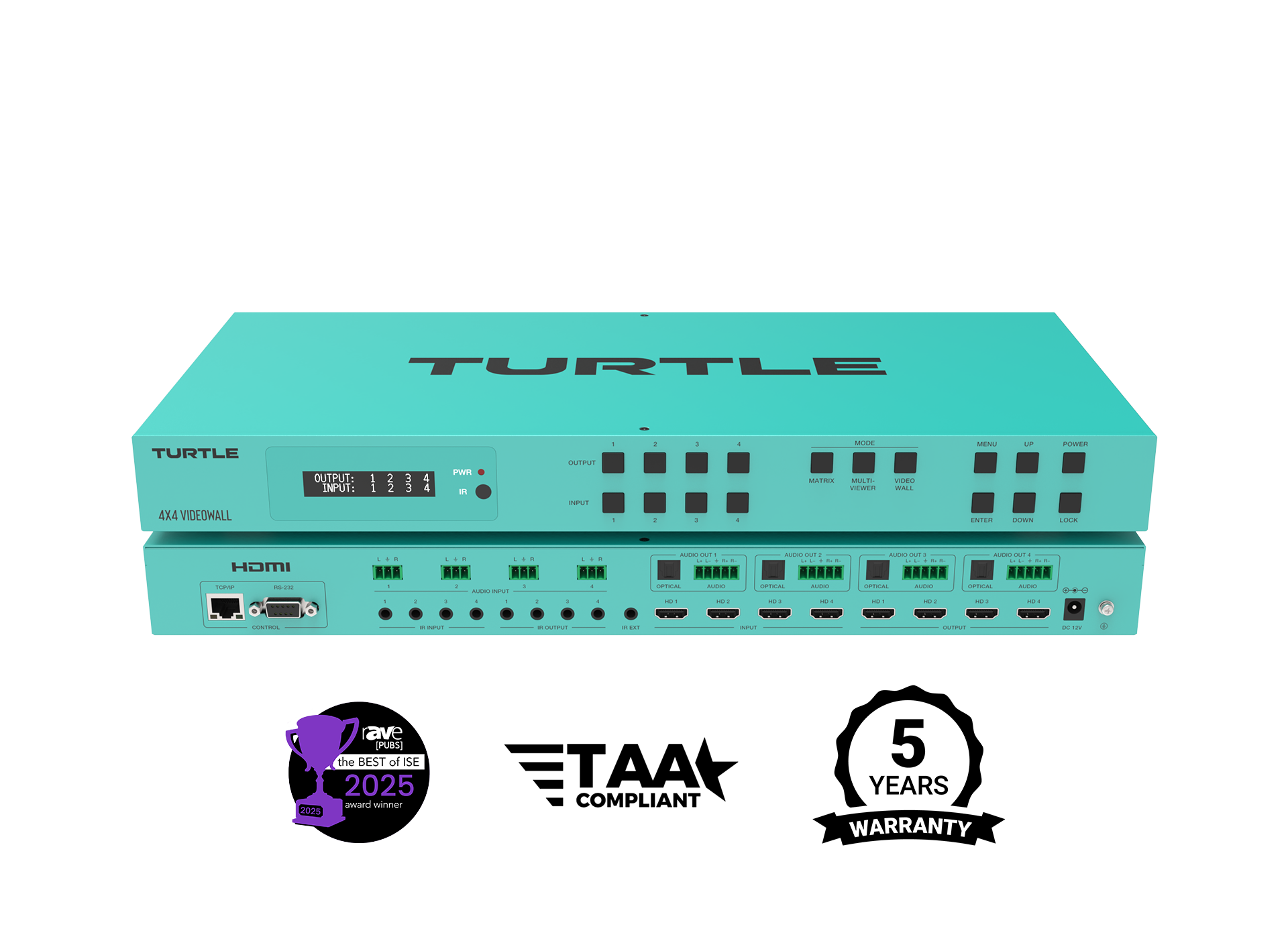

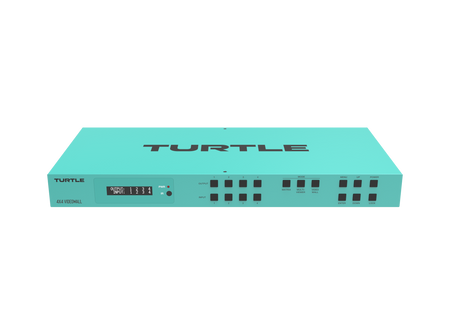

The Turtle 4x4 Video Wall (TAV‑MX44VW) is a powerful all-in-one HDMI 2.0 video wall processor, matrix switcher, and multiviewer built for professional AV environments. With four HDMI inputs and four HDMI outputs, it supports 4K60 4:4:4 video, seamless switching, multiview layouts, and audio embedding/de-embedding—making it a versatile centrepiece for live production, control rooms, and collaborative display systems. Ruggedly built in Turtle Aqua with intuitive WebGUI, front panel, and RS-232 control, it’s TAA compliant and backed by a 5-Year advance replacement warranty.

Highlighted Features

  • 4K60 4:4:4 HDMI 2.0: Supports full-bandwidth 18Gbps content for ultra-high-definition visual fidelity.
  • 4x4 Matrix, Video Wall & Multiview: Configure as a matrix switch, 2x2 wall, or combine sources in one display.
  • 10 Preset Video Wall Layouts: Built-in scaling and seamless switching across multiple display modes.
  • 12 Multiview Layouts: Display multiple sources simultaneously on a single screen—ideal for monitoring.
  • Audio Flexibility: Includes audio embedding and de-embedding with Phoenix and optical outputs.
  • Comprehensive EDID Management: Choose from 12 presets, 2 user-defined, and 4 copy modes.
  • Seamless Switching: Zero-lag transitions between sources for smooth, professional presentations.
  • Versatile Control Options: Access via WebGUI, RS-232, IR, TCP/IP, and API integration.
  • Robust Metal Enclosure: Turtle Aqua finish in 1U rackmount form factor for professional integration.
  • Public Sector Ready: TAA compliant and protected by a 5-Year advance replacement warranty.

The TAV‑MX44VW is a high-performance switching and display platform engineered for demanding AV installations. Whether creating dynamic video walls or complex multiview layouts, it offers seamless control, stunning visuals, and rock-solid reliability.

In stock
£2,430.00

Secure checkout

Friendly support

Hassle-free returns

The Turtle 4x4 Video Wall (TAV-MX44VW) is an all-in-one 4K60 4:4:4 HDMI 2.0 video wall, matrix switcher, and multiview processor. With four HDMI inputs and four HDMI outputs, it supports seamless switching, audio embedding/de-embedding, and multiple display configurations including 10 video wall presets and 12 multiview layouts. Control is straightforward via WebGUI, front panel, or RS-232, and its rugged Turtle Aqua metal chassis ensures dependable performance in any professional AV set-up. TAA compliant and backed by a 5-year advance replacement warranty.

Key Features

  • 4K60 4:4:4 HDMI 2.0: Supports 18Gbps video bandwidth for crisp, high-resolution content delivery.
  • 4x4 Video Wall, Matrix, and Multiview: Flexible configuration for a range of AV applications.
  • 10 Video Wall Layouts: Choose from ten preset display modes with scaling and seamless switching.
  • 12 Multiview Modes: Combine multiple sources in one display with customisable layouts.
  • 4x4 Matrix Switching: Route any input to any output, or multiple outputs independently.
  • Audio Embedding/De-embedding: Optical and Phoenix connectors for flexible audio routing.
  • Advanced EDID Management: Includes 12 preset, 2 user-defined, and 4 copy modes.
  • Control Options: WebGUI, RS-232, IR, TCP/IP, and API for seamless integration.
  • Seamless Switching: Lag-free source transitions for professional presentations and productions.
  • Durable Metal Housing: Rugged Turtle Aqua finish in a 1U rack-mountable design.
  • TAA Compliant & 5-Year Warranty: Suitable for UK public sector and supported with advance replacement cover.

Specifications

HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2
Video Bandwidth 594MHz / 18Gbps
Video Resolution 480i ~ 1080P@50/60Hz, 4K2K@24/30/60Hz
Colour Space RGB, YCbCr 4:4:4, 4:2:2, 4:2:0
Colour Depth 8/10/12-bit
Audio Formats LPCM, Dolby (Digital/Plus/TrueHD), DTS (EX/96-24/HD-MA)

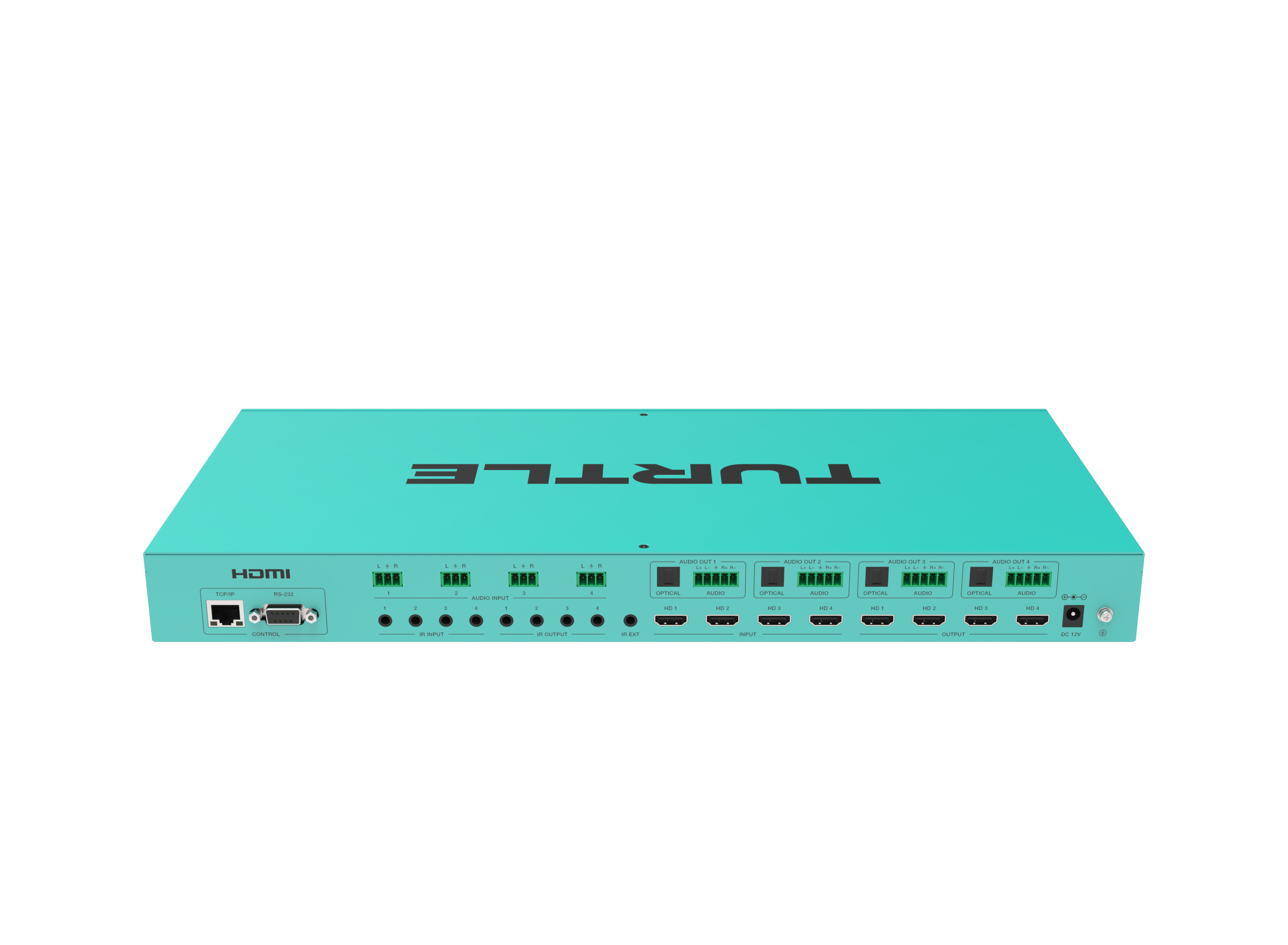

Input Ports 4 × HDMI (Type A), 4 × L/R Audio In (3-pin Phoenix)
Output Ports 4 × HDMI, 4 × Optical Audio Out (S/PDIF), 4 × L/R Audio Out (5-pin Phoenix)
Control Ports 1 × TCP/IP (RJ45), 1 × RS-232, 1 × IR EXT, 4 × IR In, 4 × IR Out
IR Frequency 20K–60KHz Wideband
ESD Protection ±8kV (air), ±4kV (contact) per IEC 61000-4-2
Mechanical
Housing All-metal chassis, Turtle Aqua finish
Dimensions 440mm (W) × 203mm (D) × 44.5mm (H)
Weight 2.55kg
Power Supply AC 100–240V input, DC 12V/2.5A output (certified)
Power Consumption Max 25W
Operating Temperature 0–40 °C
Storage Temperature –20–60 °C
Relative Humidity 20–90% RH (non-condensing)
HDMI Cable Length (IN/OUT) 5m / 10m / 15m
Compliance TAA, RoHS, CE, FCC, WEEE
Warranty 5-Year advance replacement warranty
