SKU: TAV-MX88VW

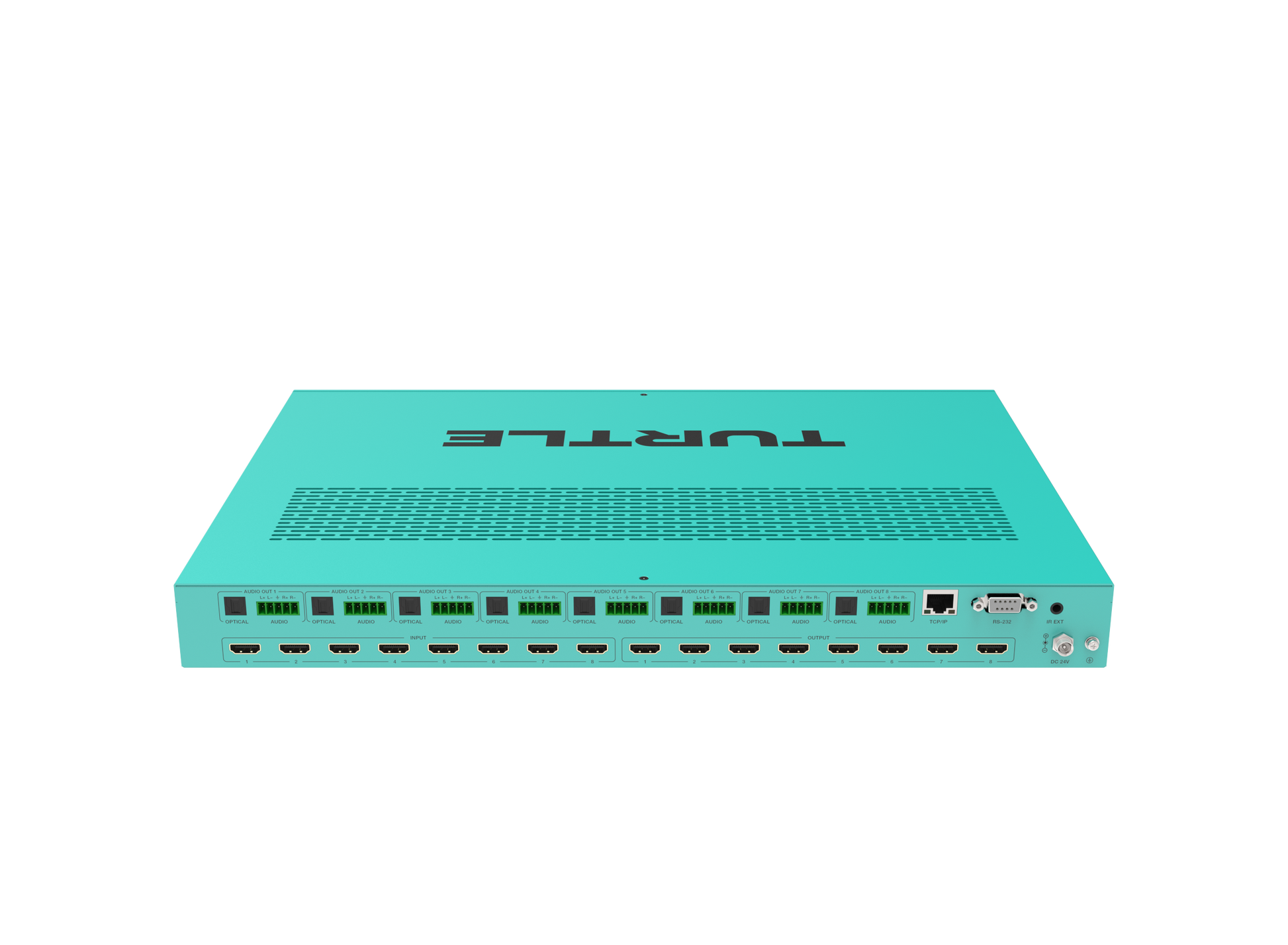

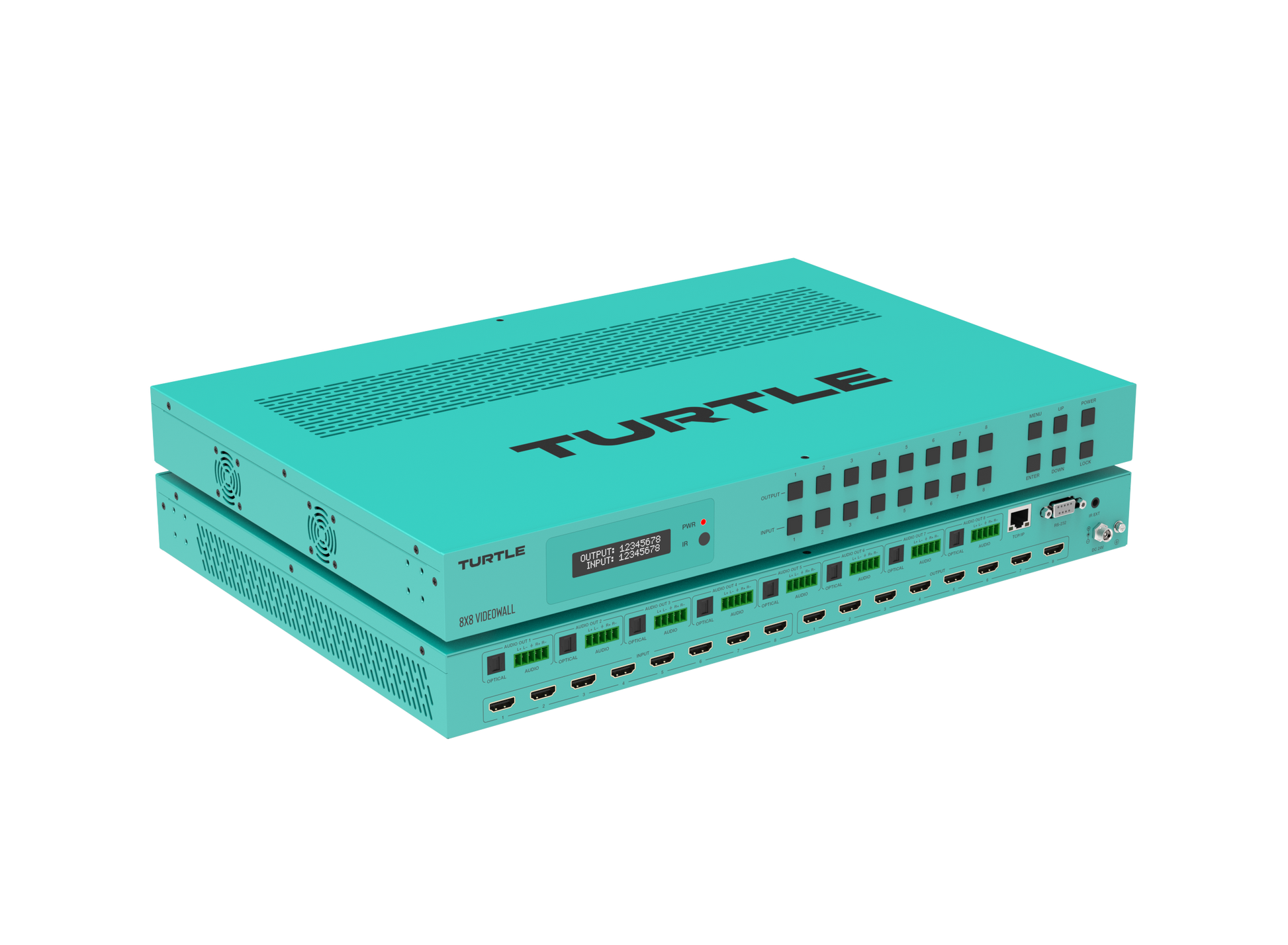

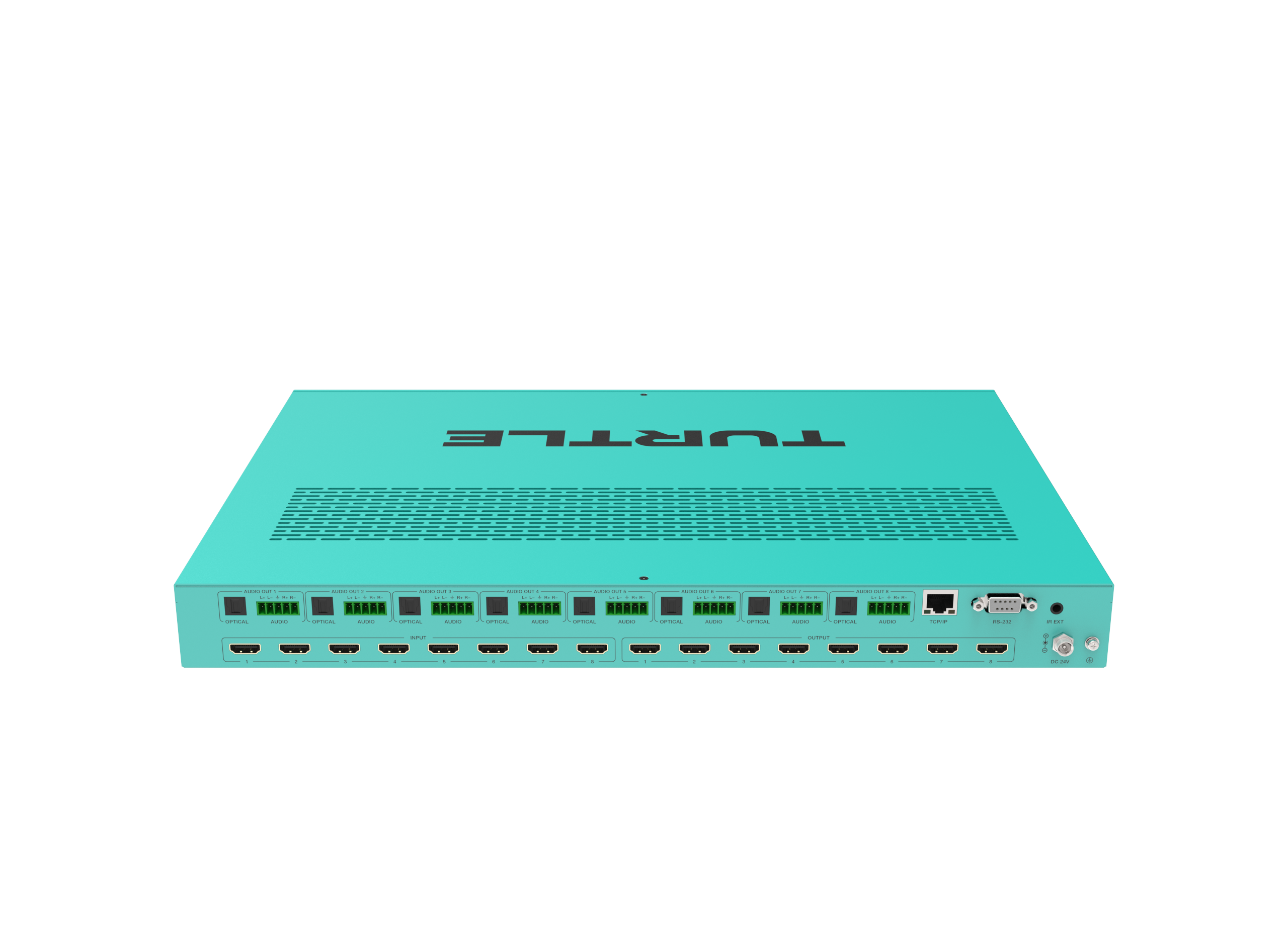

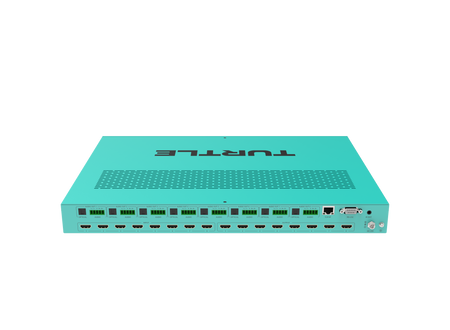

Turtle AV 8x8 Video Wall

Turtle AV

Scalable 8×8 4K video wall

The Turtle 8x8 Video Wall (TAV‑MX88VW) is a professional-grade all-in-one 4K60 4:4:4 video wall processor, matrix switcher, and multiviewer designed for high-end AV environments. With eight HDMI 2.0 inputs and eight outputs, it supports versatile wall configurations, seamless switching, dual multiview outputs, and flexible audio management—ideal for live events, control rooms, signage networks, and collaborative displays. Housed in a robust Turtle Aqua chassis, it delivers intuitive WebGUI, API, and RS-232 control with full UK support and TAA compliance, backed by a 5-Year advance replacement warranty.

Highlighted Features

  • 4K60 4:4:4 HDMI 2.0: Delivers up to 18Gbps bandwidth for vivid, high-resolution video across all displays.
  • 8x8 Matrix, Video Wall & Multiview: Configurable as a full matrix switch, scalable wall, or multiview system—all in one device.
  • Flexible Wall Layouts: Supports 4x4, 3x3, 2x4, 1x8, and mixed-zone configurations with seamless scaling.
  • Dual Independent Multiview Outputs: Real-time source monitoring with up to 16 layouts per output.
  • Audio Matrix with Embedding/De-embedding: Integrates audio routing via optical and Phoenix connectors.
  • Advanced EDID Control: 12 factory presets, 2 user-defined, and 4 copy modes ensure compatibility.
  • Lag-free Seamless Switching: Professional-grade transitions between inputs with per-output downscaling.
  • Versatile Control Options: WebGUI, API, RS-232, IR, and front panel access for flexible system integration.
  • Durable Rack-Ready Housing: 1U all-metal chassis finished in Turtle Aqua for reliable deployment.
  • Public Sector Ready: Fully TAA compliant and protected by a 5-Year advance replacement warranty.

The TAV‑MX88VW is an all-in-one AV solution that delivers high-performance video wall processing, seamless matrix switching, and robust multiview capabilities in a single compact unit. Whether used in mission-critical control rooms or dynamic event displays, it provides precision, flexibility, and unmatched reliability.

In stock
£4,422.00

Secure checkout

Friendly support

Hassle-free returns

The Turtle 8x8 Video Wall (TAV-MX88VW) is a professional-grade all-in-one 4K60 4:4:4 video wall, matrix switcher, and multiview processor. With 8 HDMI 2.0 inputs and 8 HDMI outputs, it supports flexible video wall configurations, 8x8 matrix routing, and dual independent multiview outputs—making it ideal for live events, command centres, and public displays. Built with a rugged all-metal Turtle Aqua chassis, this powerful processor delivers seamless switching, audio embedding/de-embedding, advanced EDID, and WebGUI/API control. TAA compliant and backed by a 5-year advance replacement warranty.

Key Features

  • 4K60 4:4:4 HDMI 2.0: Up to 18Gbps bandwidth for ultra-clear visuals at full 4K60 resolution.
  • 8x8 Video Wall, Matrix, and Multiview: One device, three functions—switch between layouts with ease.
  • Versatile Video Wall Layouts: Supports 4x4, 2x2, 3x3, 1x8, 2x4 and custom zones for ultimate flexibility.
  • Dual Independent Multiview Outputs: Each with up to 16 layouts for real-time monitoring and control rooms.
  • Audio Matrix: 8 L/R outputs with source selection and channel toggling.
  • Audio Embedding/De-embedding: Optical and Phoenix connectors for adaptable audio integration.
  • Advanced EDID Management: 12 presets, 2 user-defined, and 4 copy modes for compatibility control.
  • Seamless Switching & Scaling: Lag-free switching with per-output downscaling support.
  • Control Options: WebGUI, API, RS-232, and front panel interface for easy integration.
  • Durable Construction: Turtle Aqua all-metal housing with 1U rack-mount design.
  • TAA Compliant & 5-Year Warranty: Public sector-ready with full UK support.

Specifications

HDMI Compliance HDMI 2.0b
HDCP Compliance HDCP 2.2
Video Bandwidth 594MHz / 18Gbps
Video Resolution Up to 4K@60Hz 4:4:4
Colour Space RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
Colour Depth 8 / 10 / 12-bit
Audio Formats HDMI IN/OUT: LPCM, Dolby Digital/Plus/TrueHD/Atmos, DTS/HD-MA, DSD; Optical Out: LPCM 2.0, Dolby, DTS 5.1; Phoenix Out: LPCM 2CH
Input Ports 8 × HDMI (Type A)

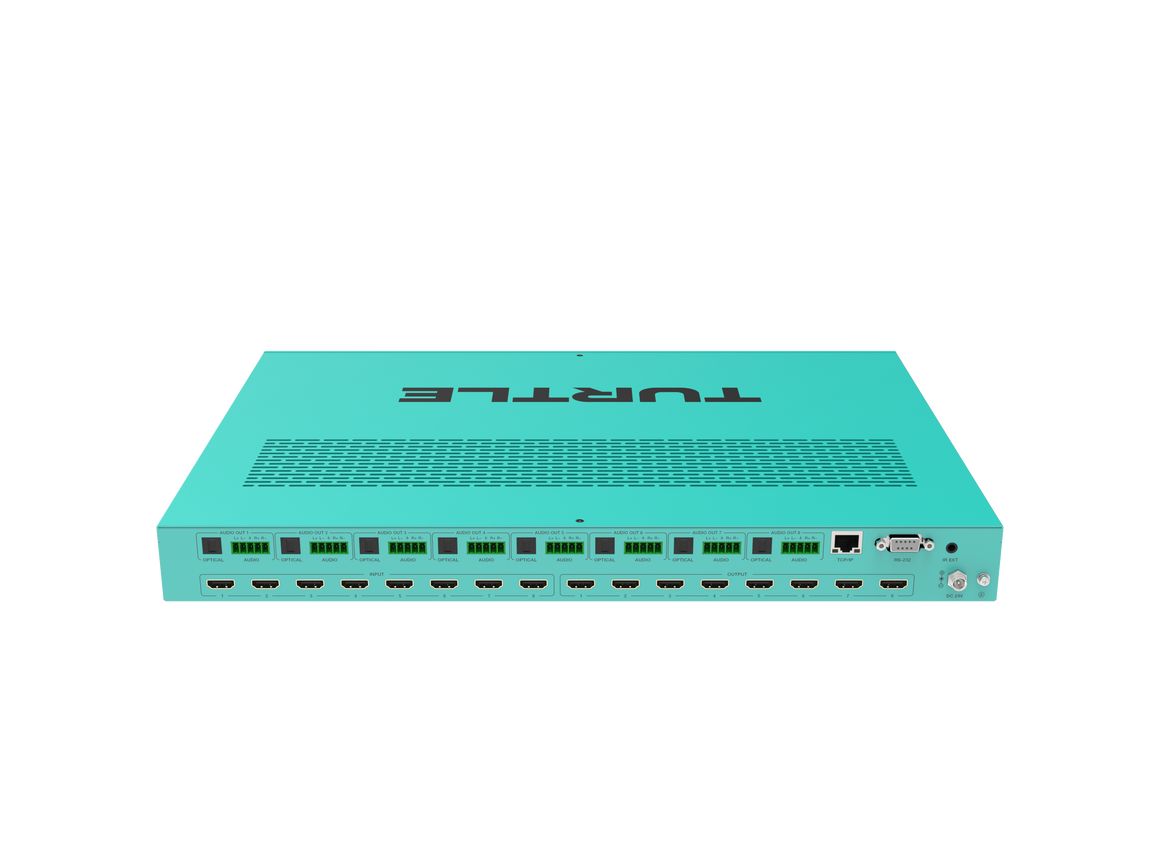

Output Ports 8 × HDMI, 8 × Optical Audio Out (S/PDIF), 8 × L/R Audio Out (3.5mm, 5-pin Phoenix)
Control Ports 1 × TCP/IP (RJ45), 1 × RS-232, 1 × IR EXT
IR Frequency 20K–60KHz Wideband
ESD Protection ±8kV (air), ±4kV (contact) per IEC 61000-4-2
Mechanical
Housing All-metal enclosure, Turtle Aqua
Dimensions 440mm (W) × 300mm (D) × 44.5mm (H)
Weight 3.95kg
Power Supply Input: AC 100–240V 50/60Hz, Output: DC 24V/3.75A
Power Consumption Max 70W
Operating Temperature 0–40 °C
Storage Temperature –20–60 °C
Relative Humidity 20–90% RH (non-condensing)
HDMI Cable Length (IN/OUT) 5m / 10m / 15m
Compliance TAA, RoHS, CE, FCC, WEEE
Warranty 5-Year advance replacement warranty
