SKU: TAV-USBEXTKIT1

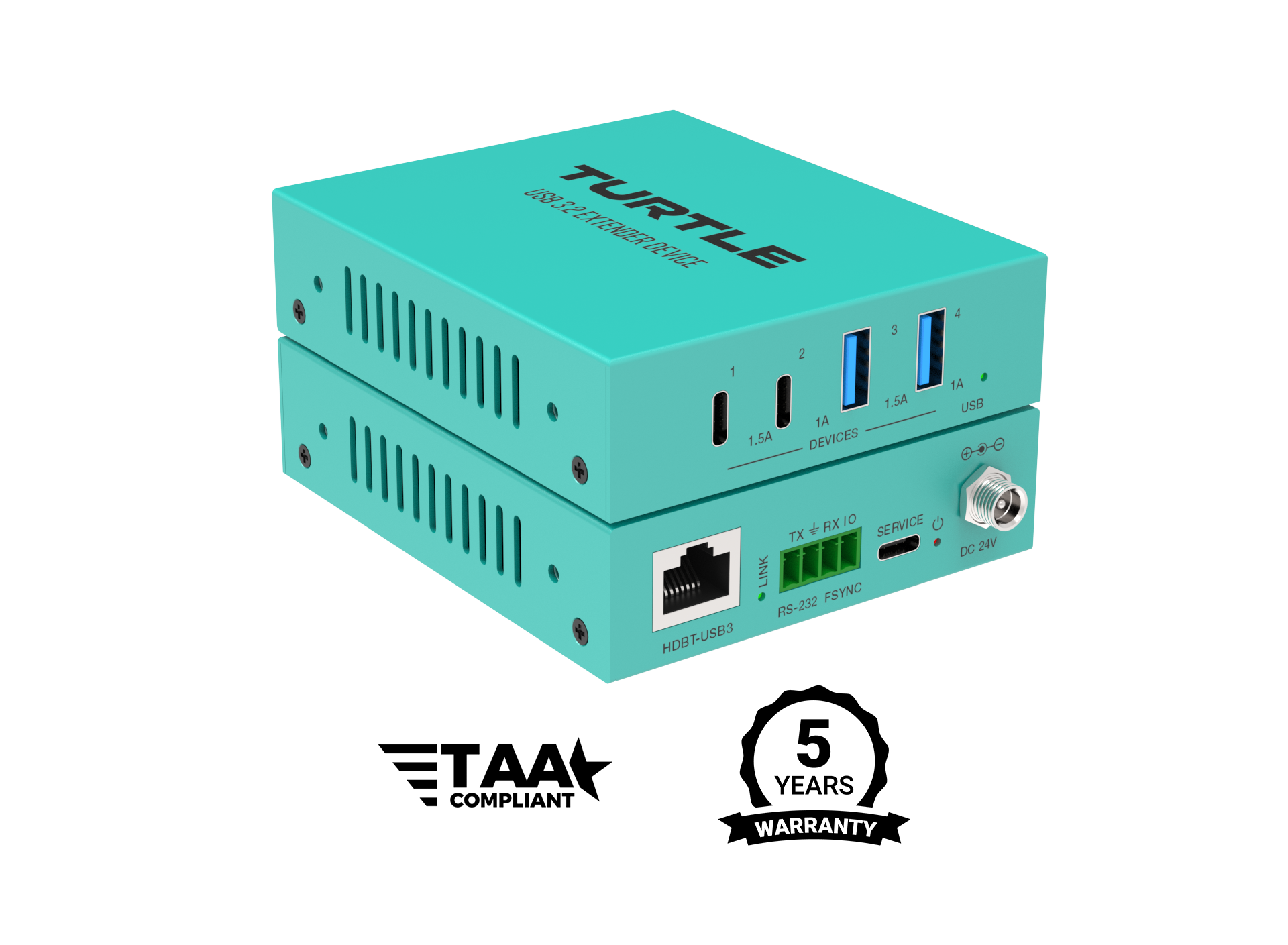

Turtle AV USB 3.2 5Gbps 100 metre Extender Kit

Turtle AV

100 m USB 3.2 5 Gbps extender

The Turtle USB 3.2 5Gbps 100 Metre Extender Kit (TAV‑USBEXTKIT1) is a professional USB extension solution designed for high-speed AV, conferencing, and broadcast environments. It extends USB 3.2 Gen1 signals up to 100 metres using a single CAT6a cable and supports data rates up to 5Gbps. The kit includes compact Host and Device units in rugged Turtle Aqua enclosures and features PoC, USB-A/C connectivity, and plug-and-play operation with no drivers required. TAA compliant and backed by a 5-Year advance replacement warranty.

Highlighted Features

  • 100 Metre USB Extension: Extends USB 3.2 Gen1 signals up to 100 metres (328 ft) over CAT6/6a/7 cable.
  • High-Speed Data Transfer: Supports USB 3.2 performance with data rates up to 5Gbps for cameras, hubs, and peripherals.
  • Plug-and-Play Operation: No drivers or software required—just connect and go.
  • Power over Cable (PoC): Power either the Host or Device unit and the other is powered automatically over the link.
  • Multiple USB Ports: Includes USB-C and USB-A connectors for broad device compatibility.
  • GPIO Pass-through: FSYNC GPIO for synchronisation and control across both units.
  • Robust Construction: Durable full-metal housing in Turtle Aqua finish (Pantone 3262 C) for commercial and industrial environments.

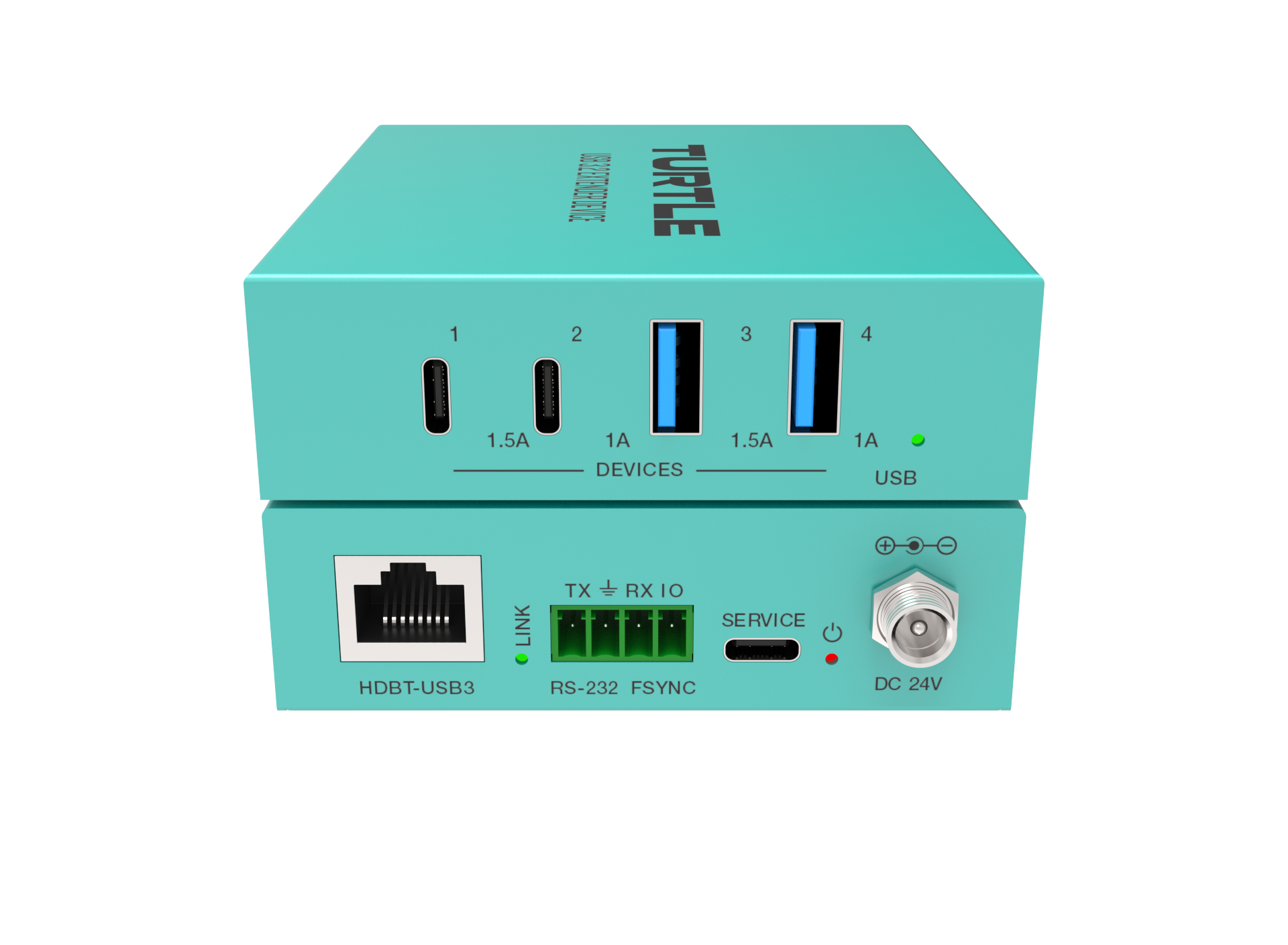

  • Dual Unit Design: Kit includes both Host and Device extenders—ready to deploy.
  • Low-Latency USB Transport: Engineered for AV applications requiring fast and reliable long-distance performance.
  • Professional Warranty: TAA compliant with a 5-Year advance replacement warranty for public sector and commercial deployments.

The TAV‑USBEXTKIT1 is the go-to USB 3.2 extension kit for professional installations that demand high-speed connectivity, long reach, and dependable plug-and-play performance—all in a compact, rugged design.

In stock
£720.00

Secure checkout

Friendly support

Hassle-free returns

The USB 3.2 5Gbps 100 Metre Extender Kit (TAV-USBEXTKIT1) is a professional USB extension solution for AV, conferencing, and broadcast applications. It extends USB 3.2 Gen1 signals up to 100 metres using a single CAT6a cable, while supporting up to 5Gbps data rates. The kit includes a Host and Device extender in a compact, rugged Turtle Aqua chassis, with support for USB-C, USB-A, PoC, and plug-and-play operation—no drivers required. TAA compliant and backed by a 5-year advance replacement warranty.

Key Features

  • 100m USB Extension: Extend USB 3.2 Gen1 signals up to 100 metres (328 ft) over CAT6/6a/7 cable.
  • High-Speed USB: Supports data rates up to 5Gbps for fast, reliable USB 3.2 performance.
  • Plug-and-Play: No drivers or software installation required—simple and instant operation.
  • PoC (Power over Cable): Power either the Host or Device unit; the other is powered via CAT cable.
  • USB-C & USB-A Support: Multiple USB I/O ports including USB-A and USB-C for compatibility.
  • Robust Metal Housing: Durable full-metal construction in signature Turtle Aqua color (Pantone 3262 C).
  • FSYNC GPIO Pass-through: Synchronise and trigger events with GPIO support.
  • Low Latency & Stability: Engineered for professional-grade applications with reliable long-distance performance.
  • 5-Year Warranty: Advance replacement warranty with full coverage and no-hassle support.

Specifications

USB Protocol USB 3.2 Gen1
Transmission Rate Up to 5Gbps
Transmission Distance 100m (328 ft) via CAT6a (F/FTP); 1.5m (4.9 ft) via USB cable
ESD Protection IEC 61000-4-2: ±8kV air-gap, ±4kV contact
Transmitter
Inputs 1× USB Type-C (Host)
Outputs 1× USB-C, 2× USB-A, 1× HDBT-USB3 (RJ45, PoC)
Control RS-232, FSYNC, Service USB-C (firmware)
Receiver

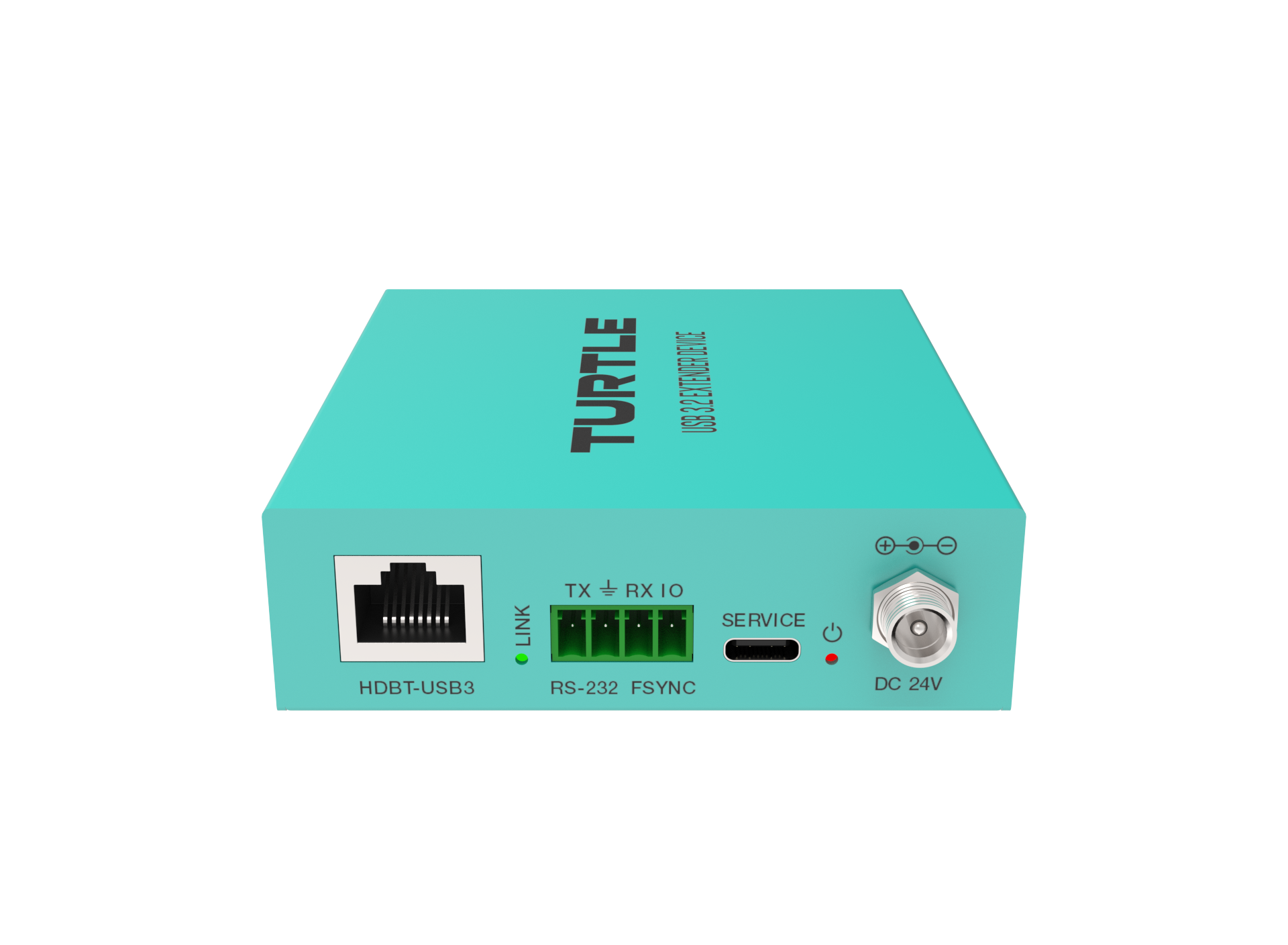

Inputs 1× HDBT-USB3 (RJ45, PoC)

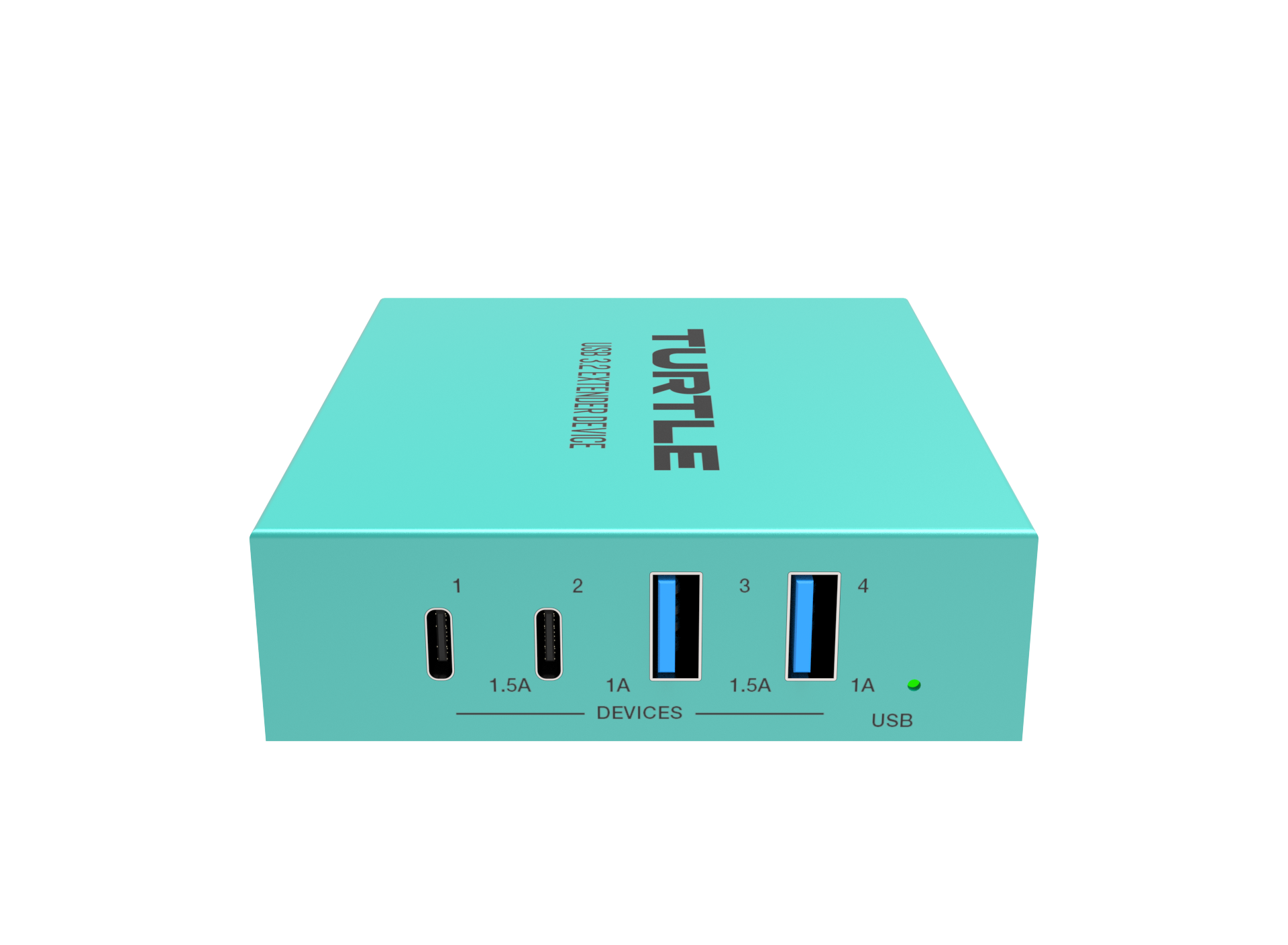

Outputs 2× USB-A, 2× USB-C
Control RS-232, FSYNC, Service USB-C (firmware)
Mechanical
Housing Metal enclosure
Color Turtle Aqua (Pantone 3262 C)
Dimensions 100mm (W) × 85mm (D) × 25.5mm (H)
Weight TX: 265g, RX: 275g
Power Supply DC 24V/3.75A (input 100–240V AC)
Power Consumption TX: 23W (max), RX: 35W (max), Total: 68W (including line loss)
Operating Temperature 0–40°C (32–104°F)
Storage Temperature –20–60°C (–4–140°F)
Operating Humidity 20–80% RH (non-condensing)
Storage Humidity 10–90% RH (non-condensing)
Compliance TAA, RoHS, CE, FCC, WEEE
Warranty 5-Year advance replacement warranty
