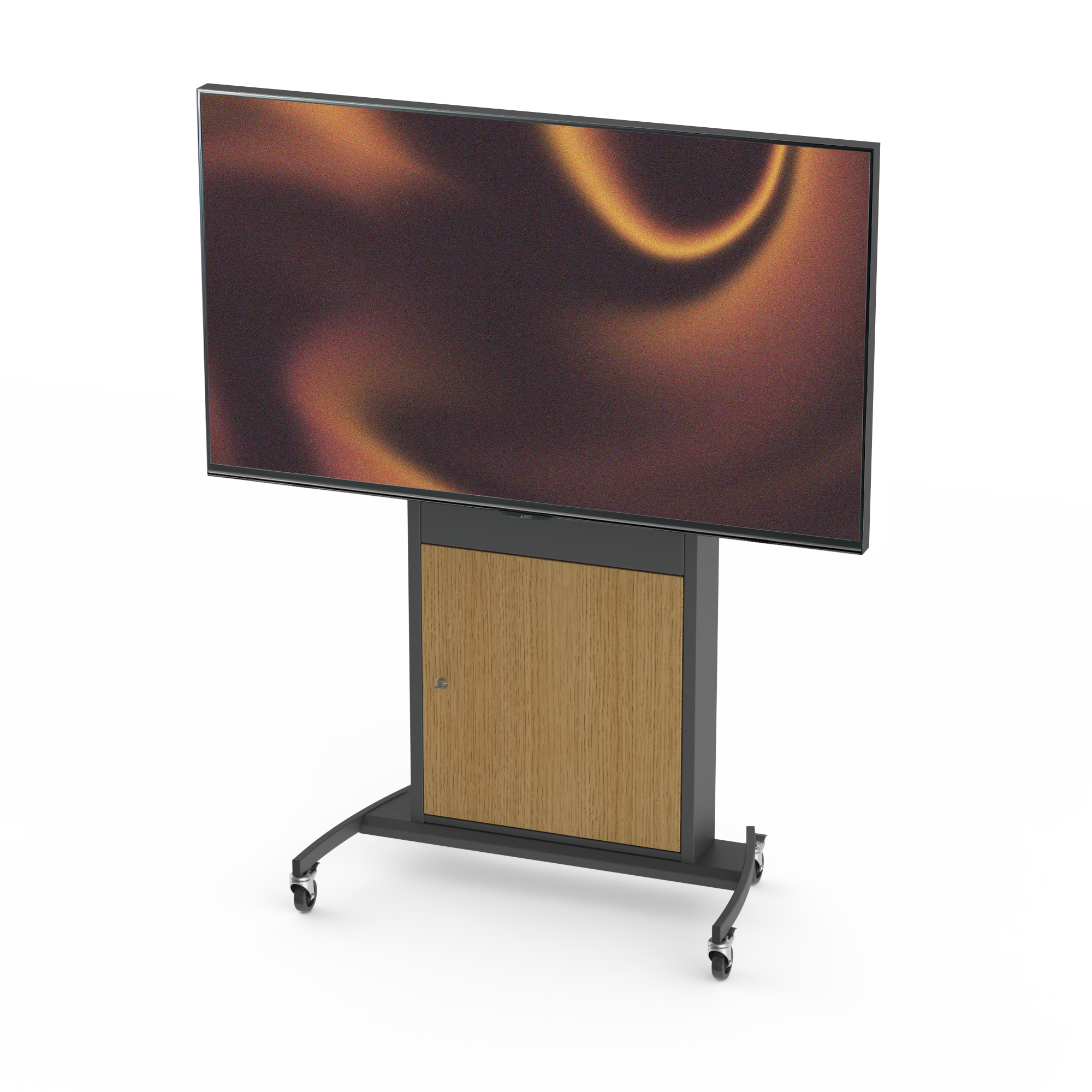

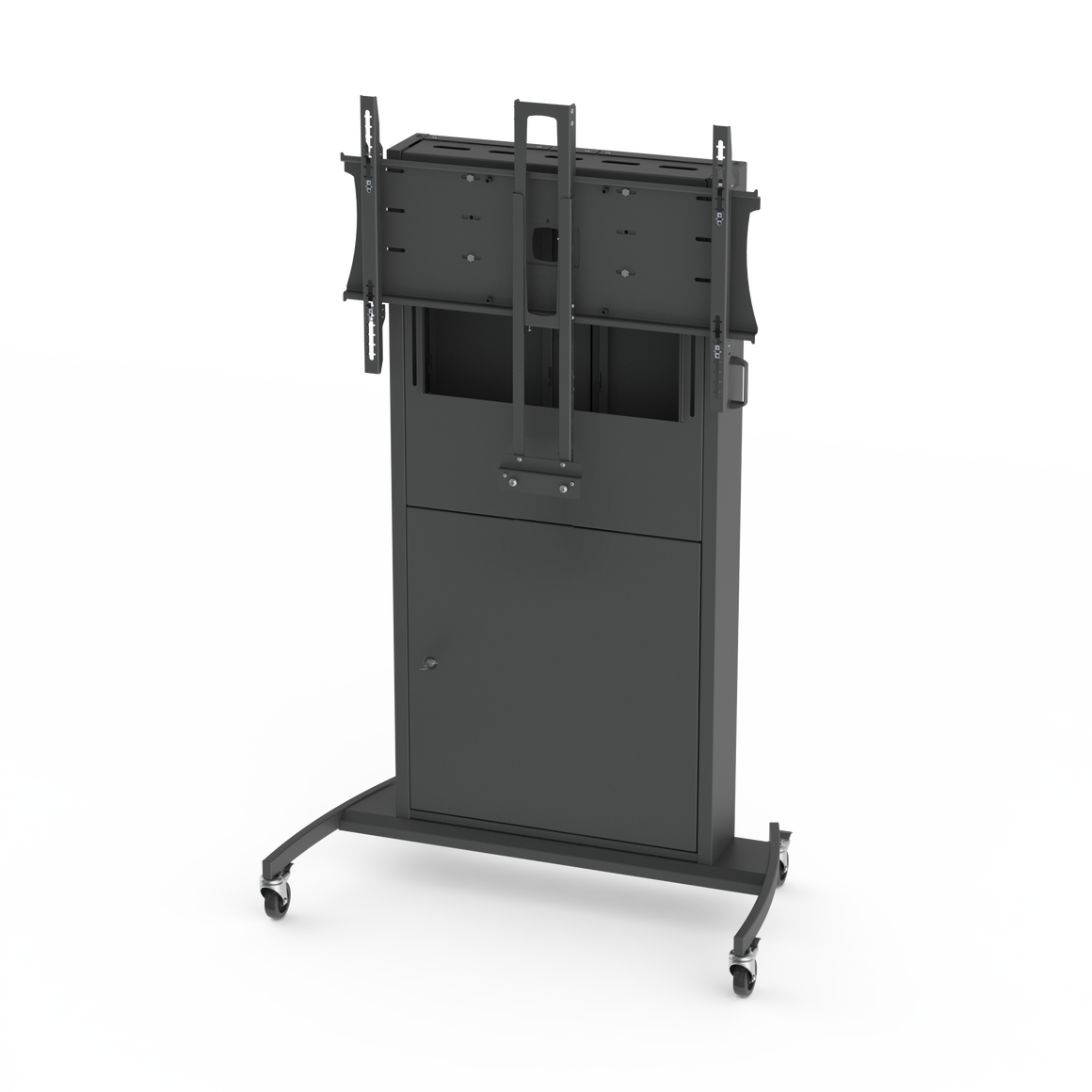

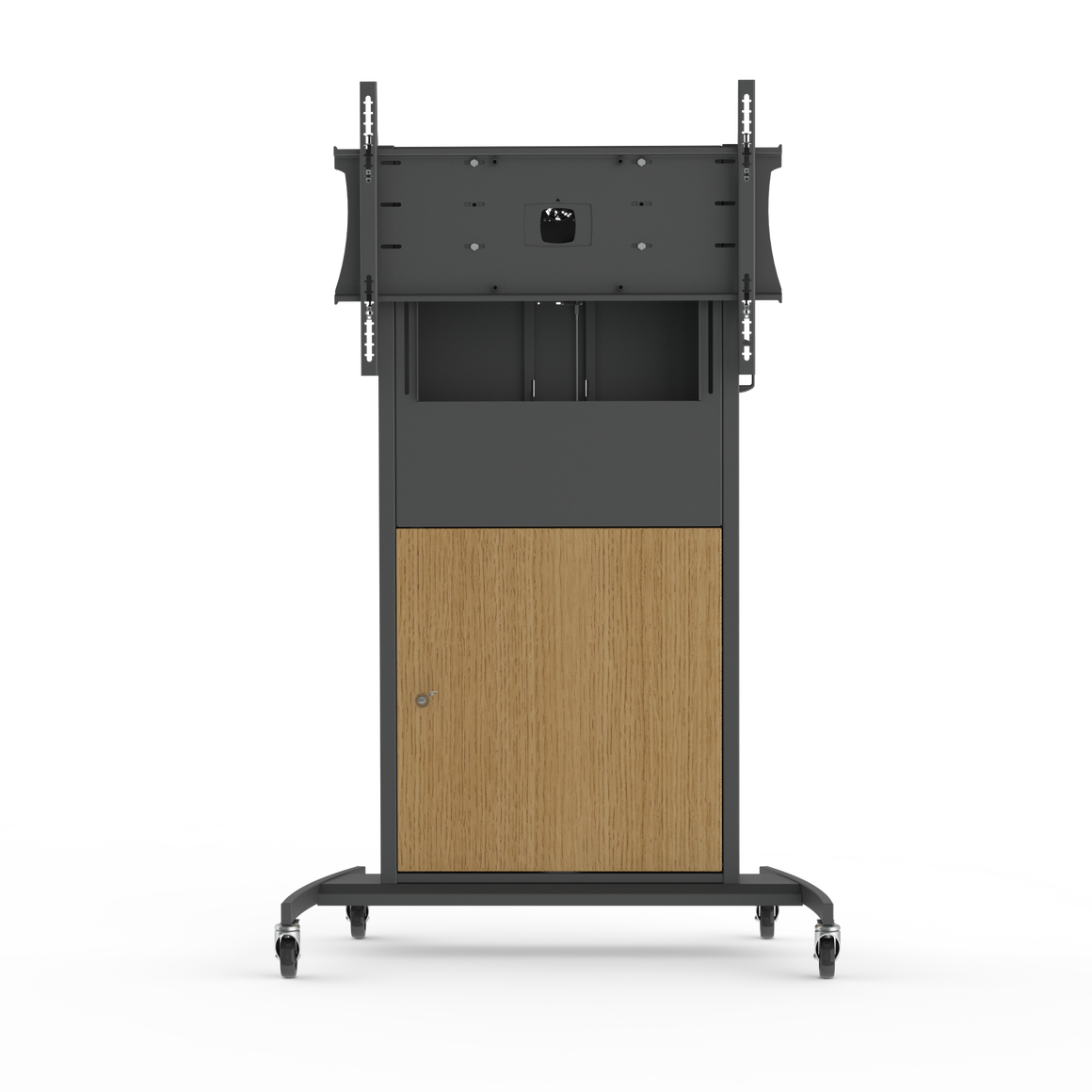

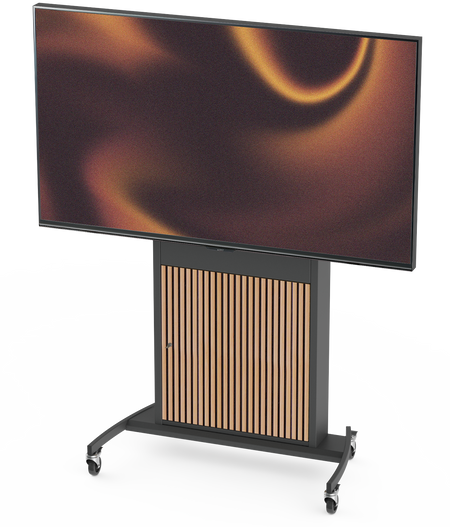

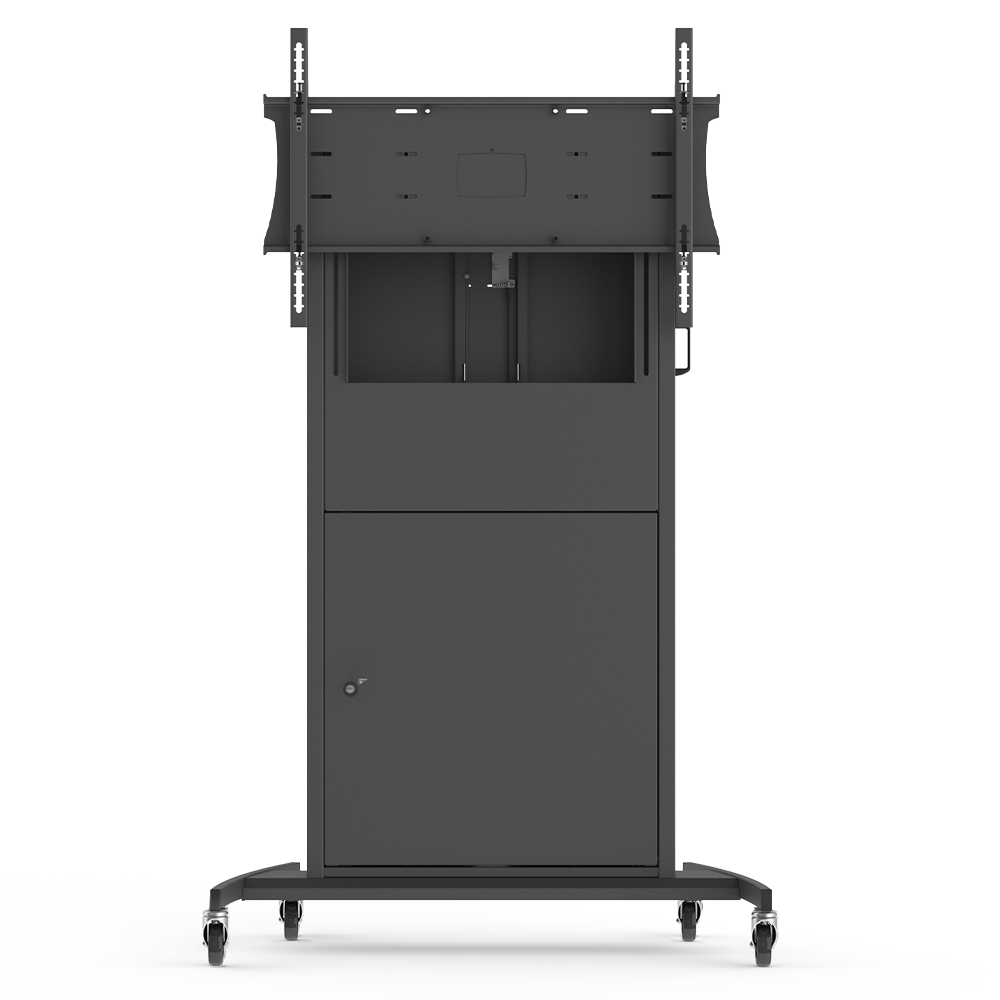

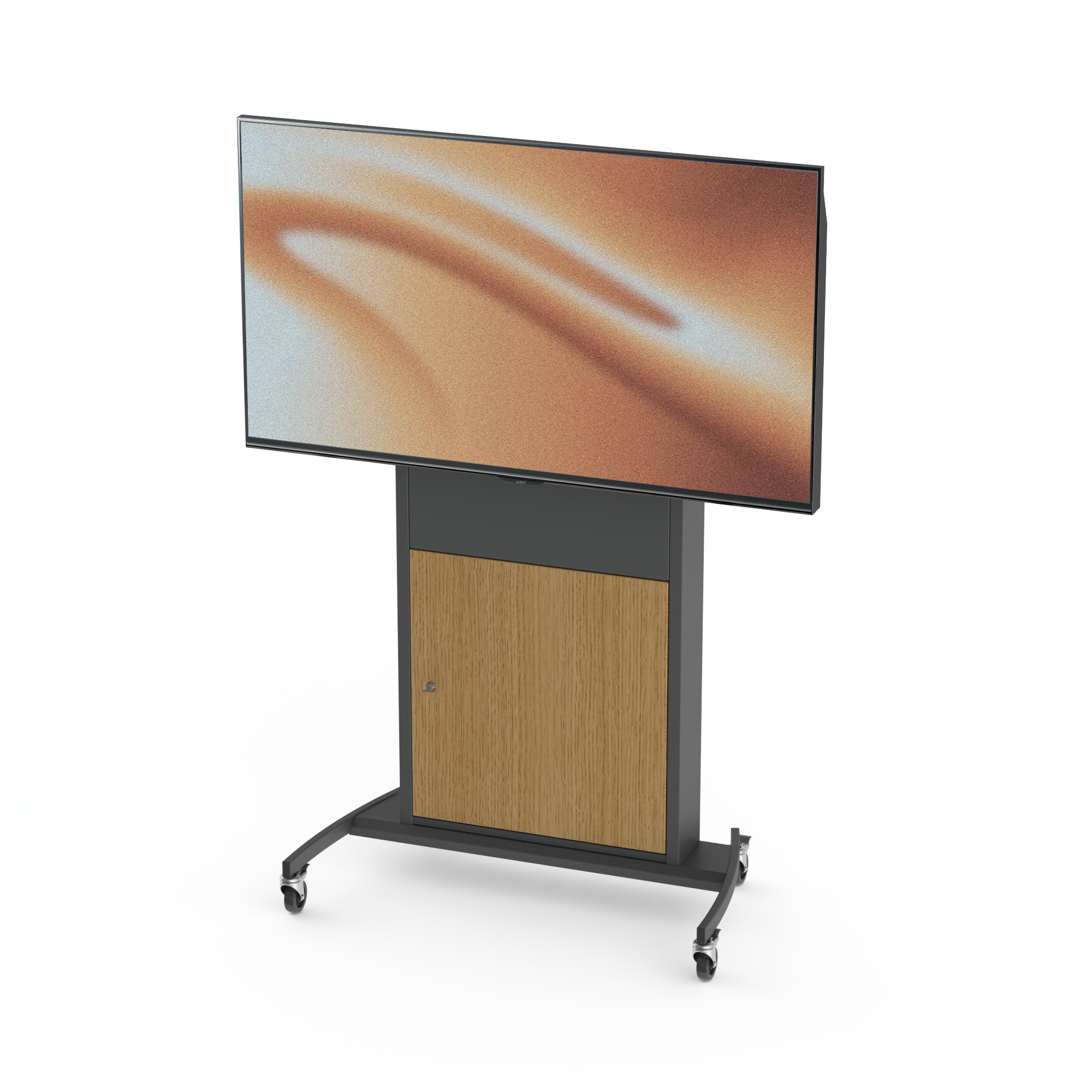

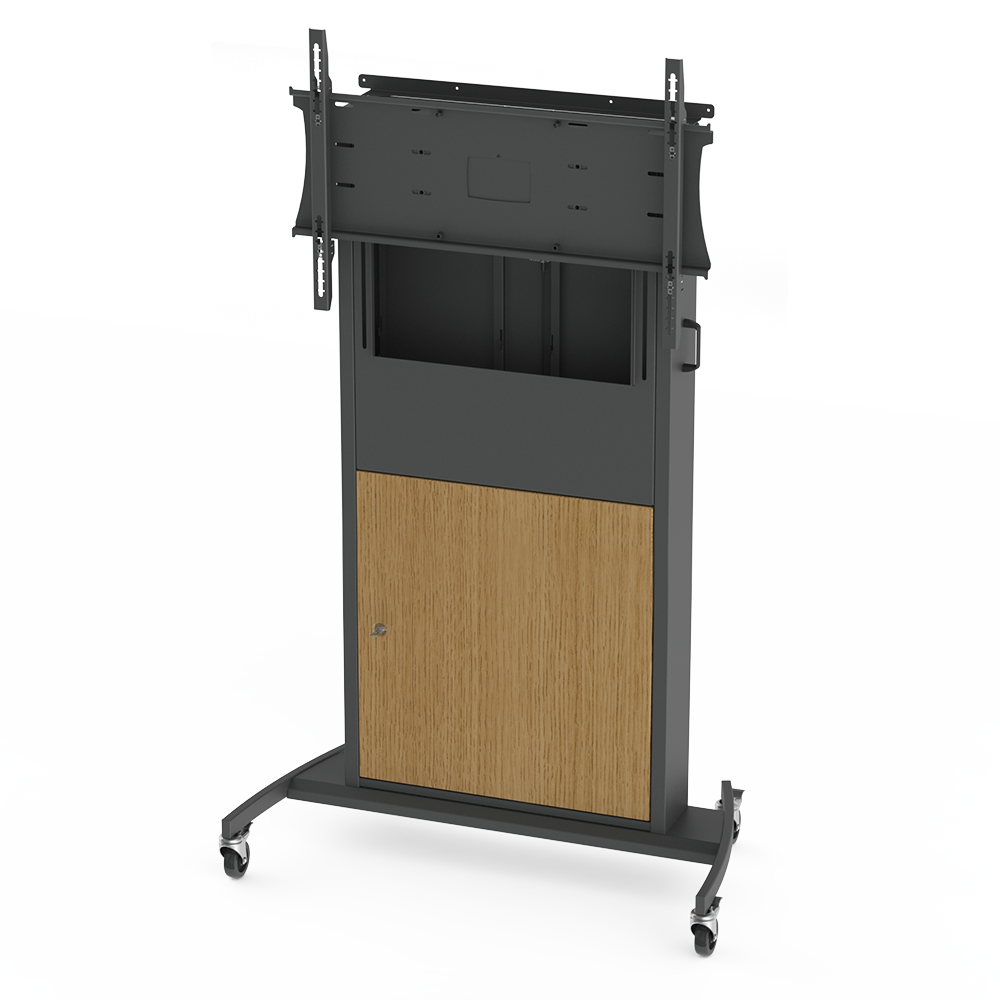

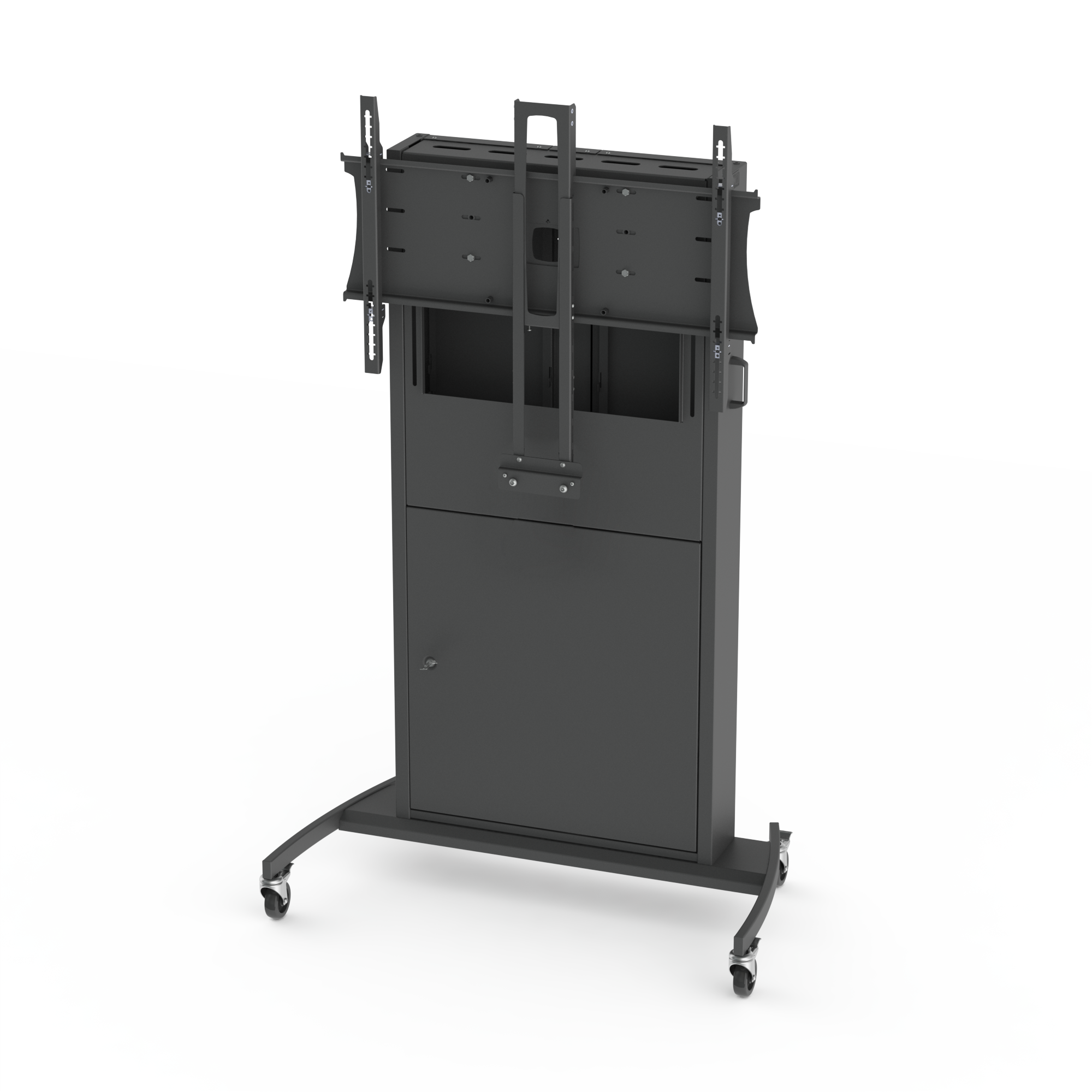

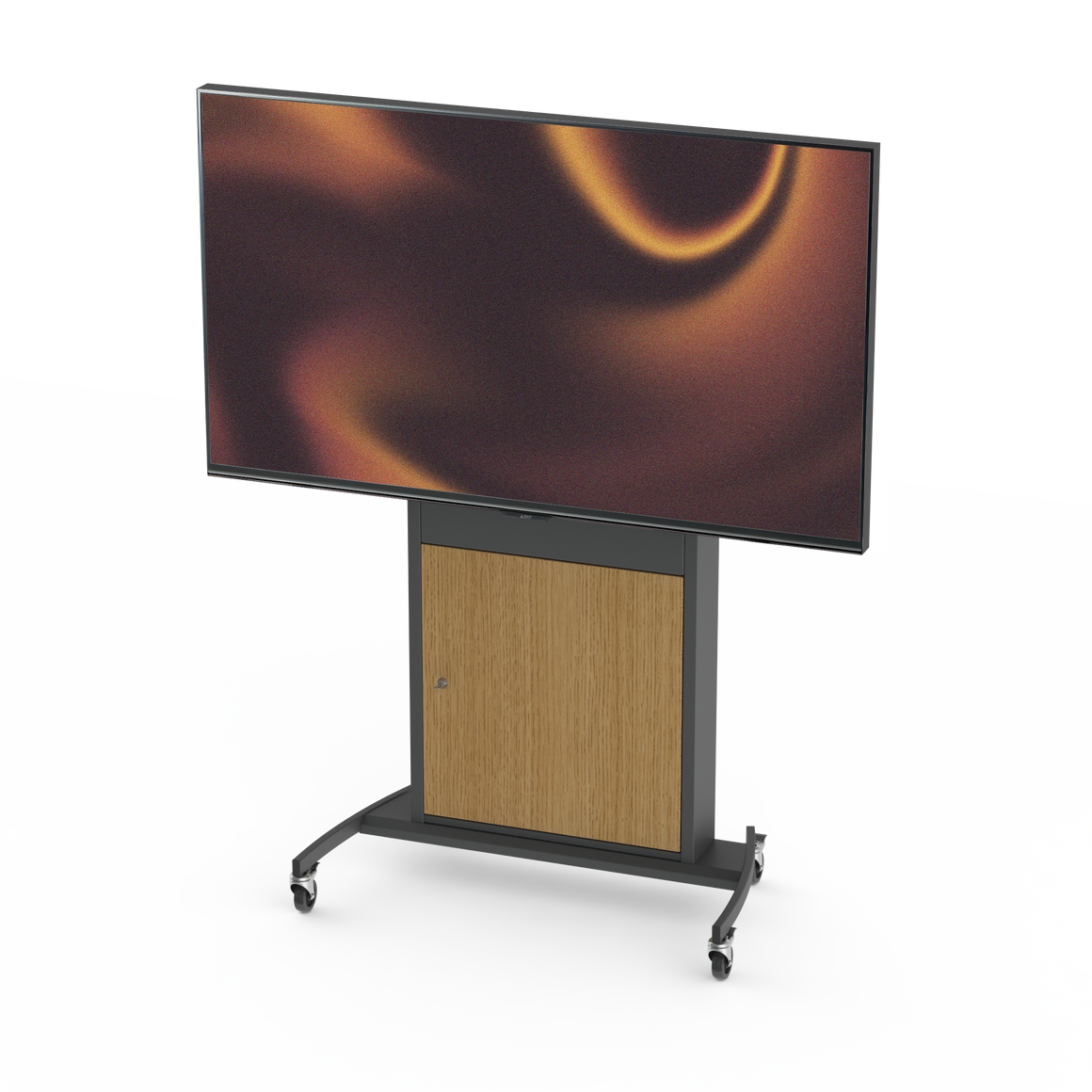

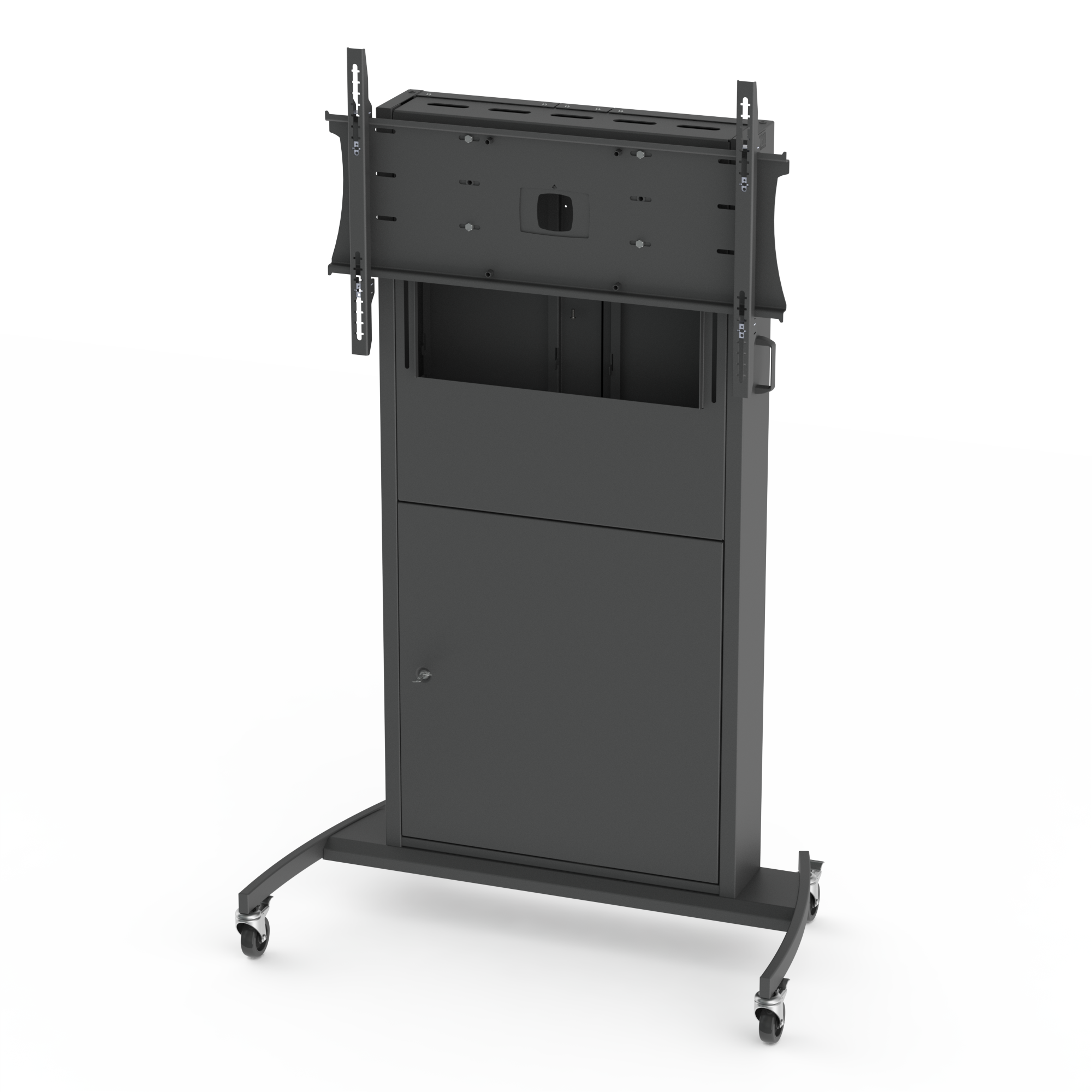

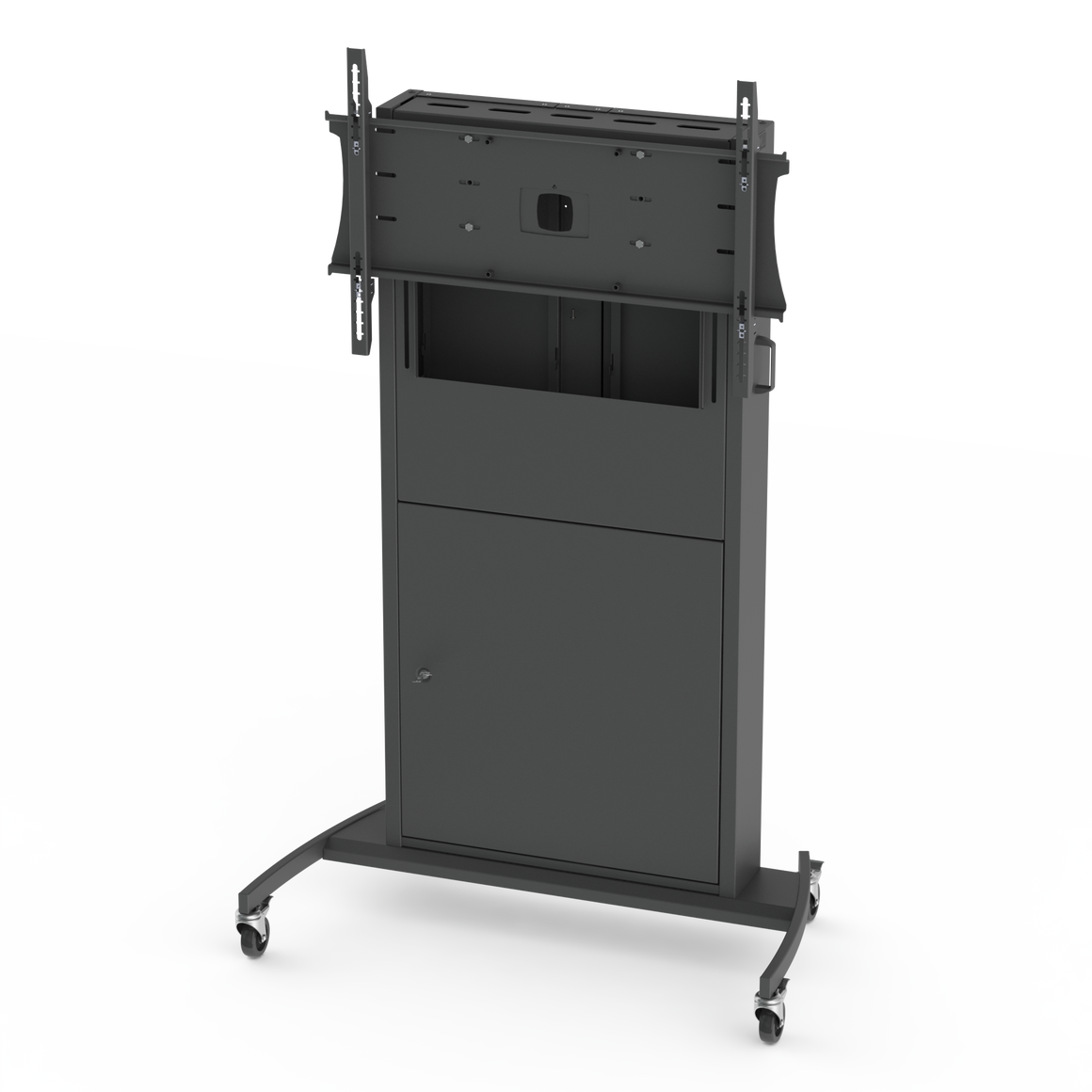

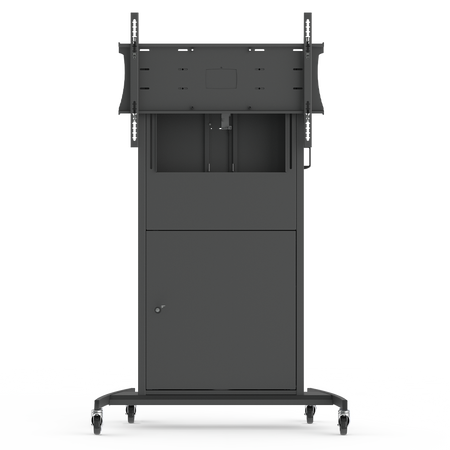

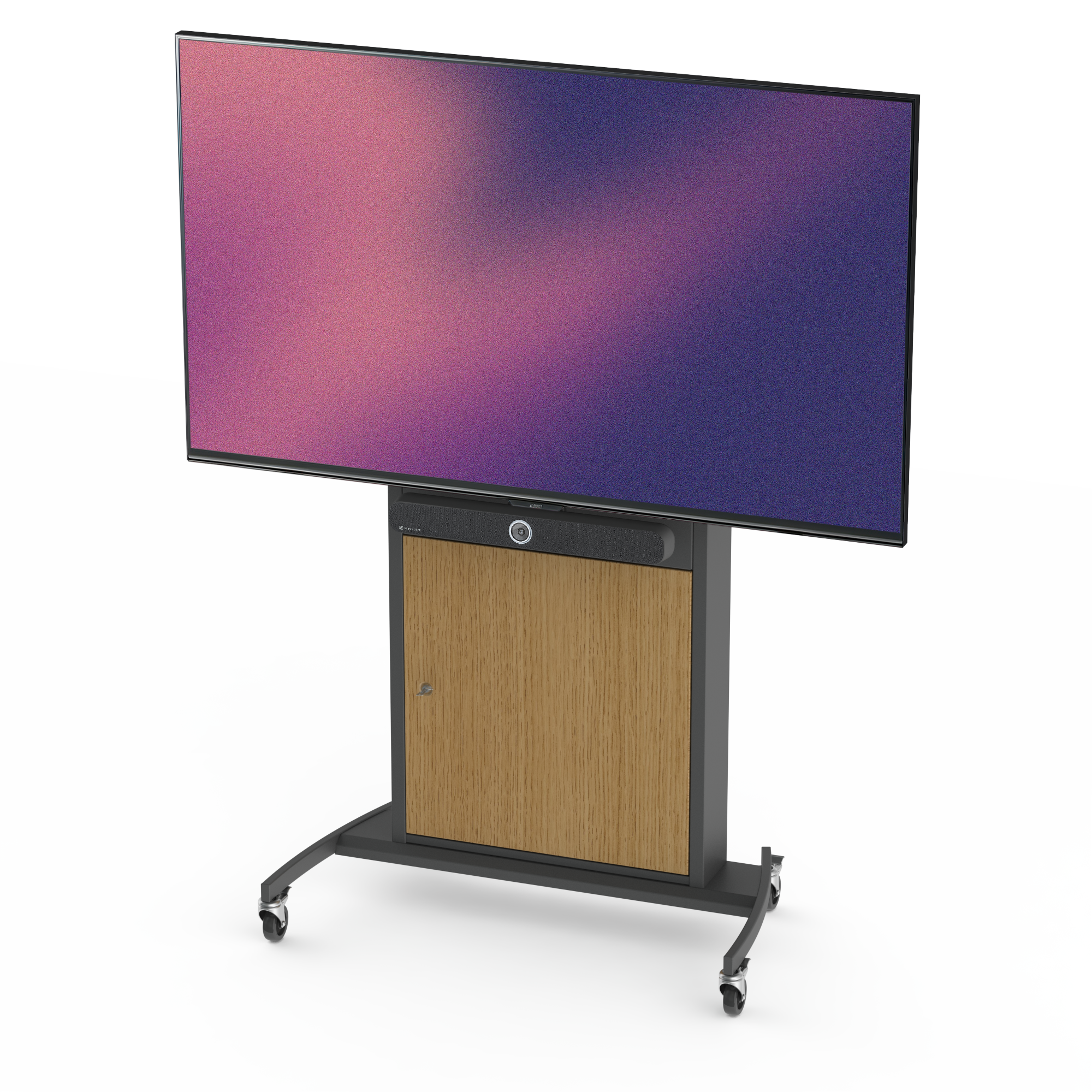

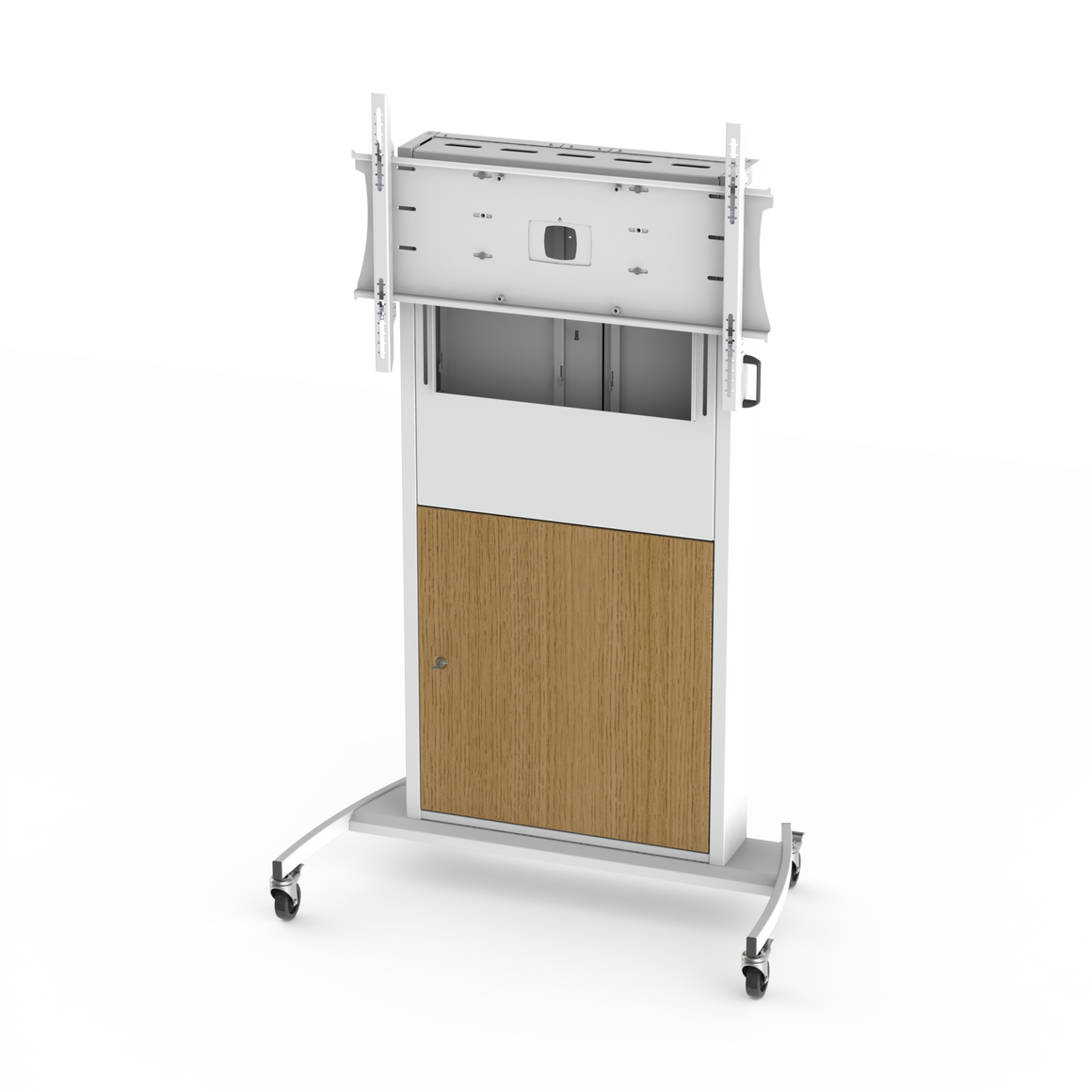

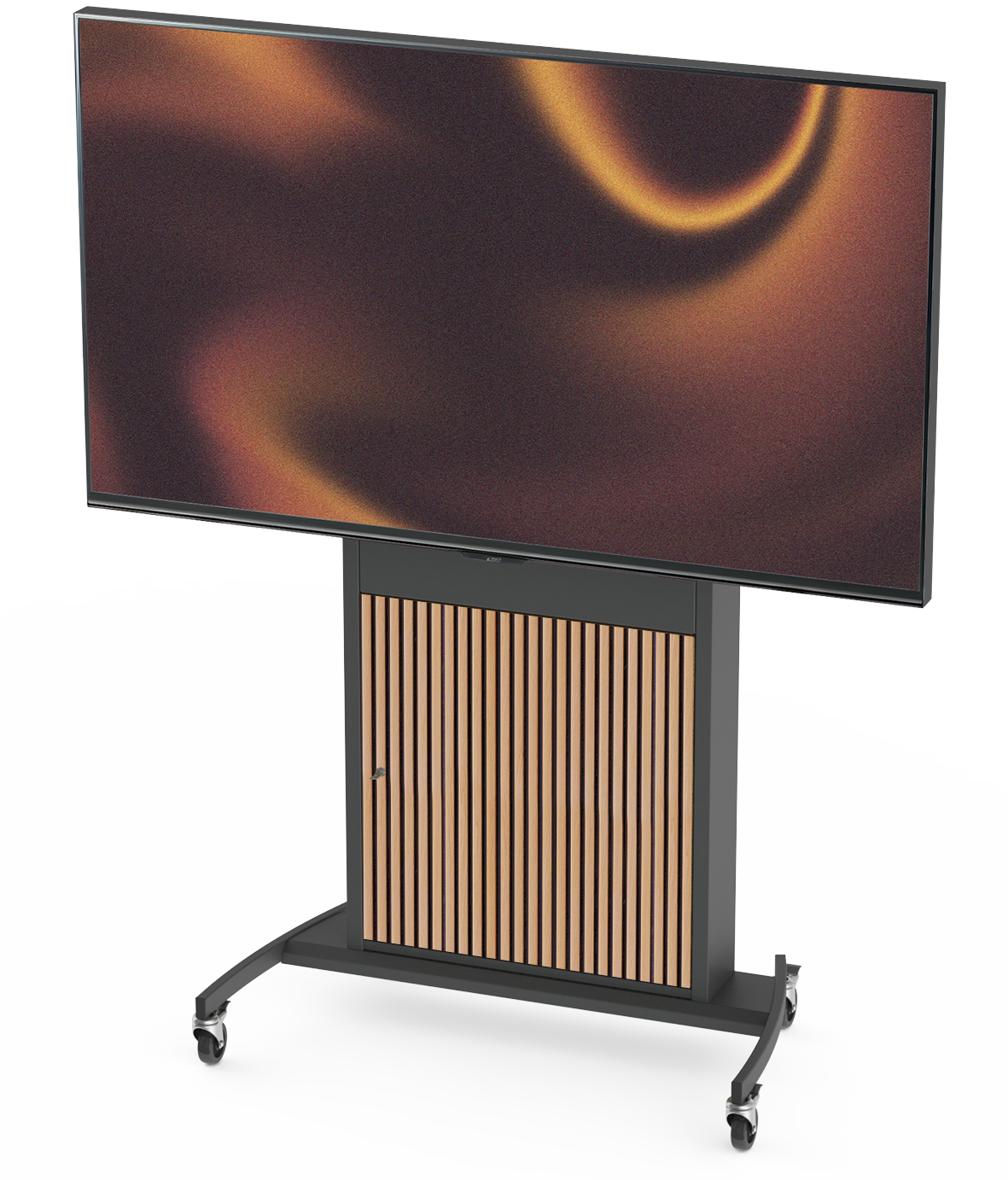

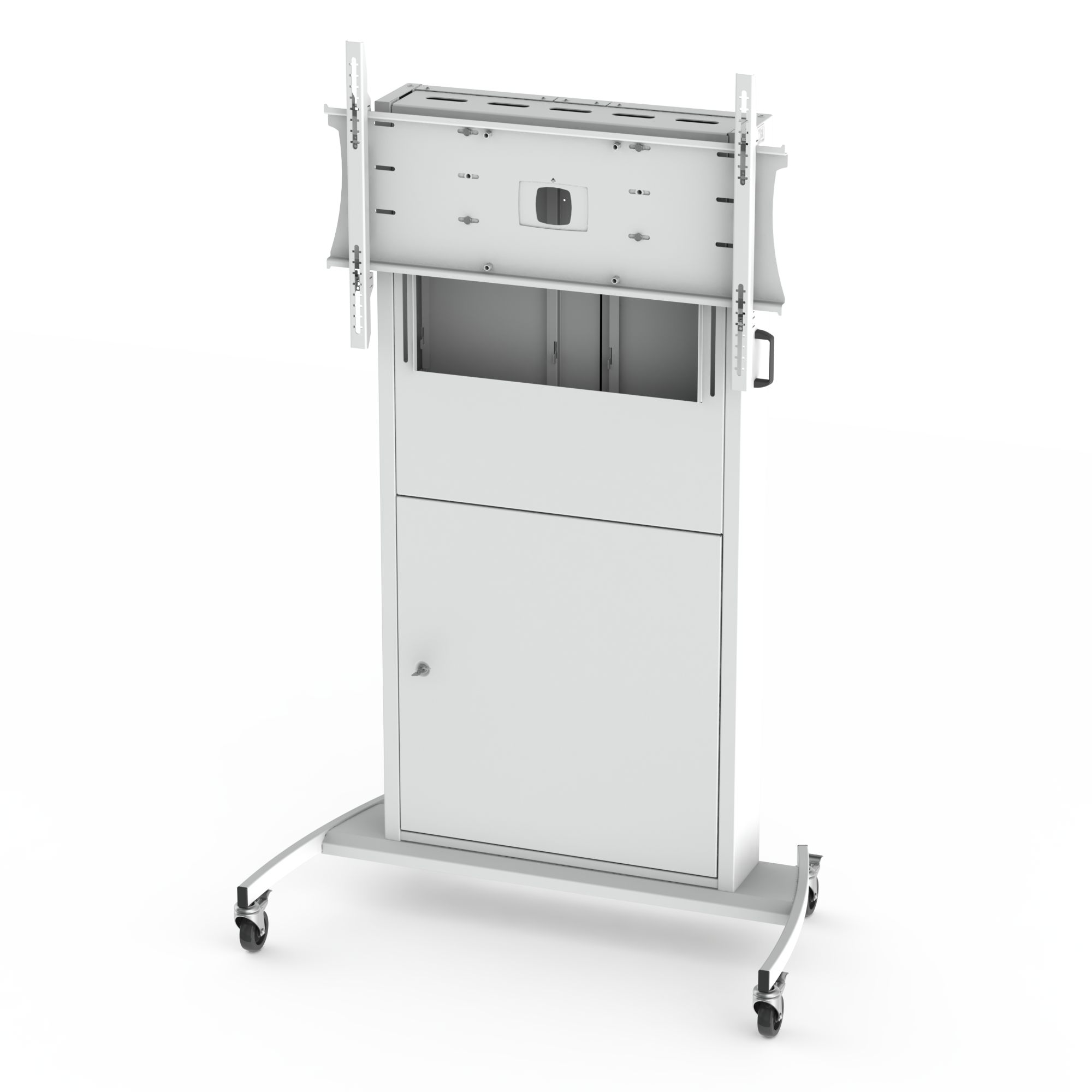

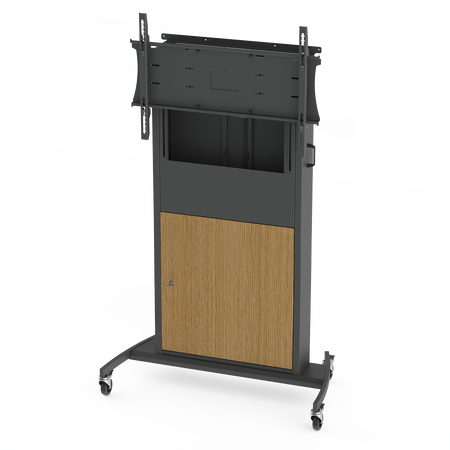

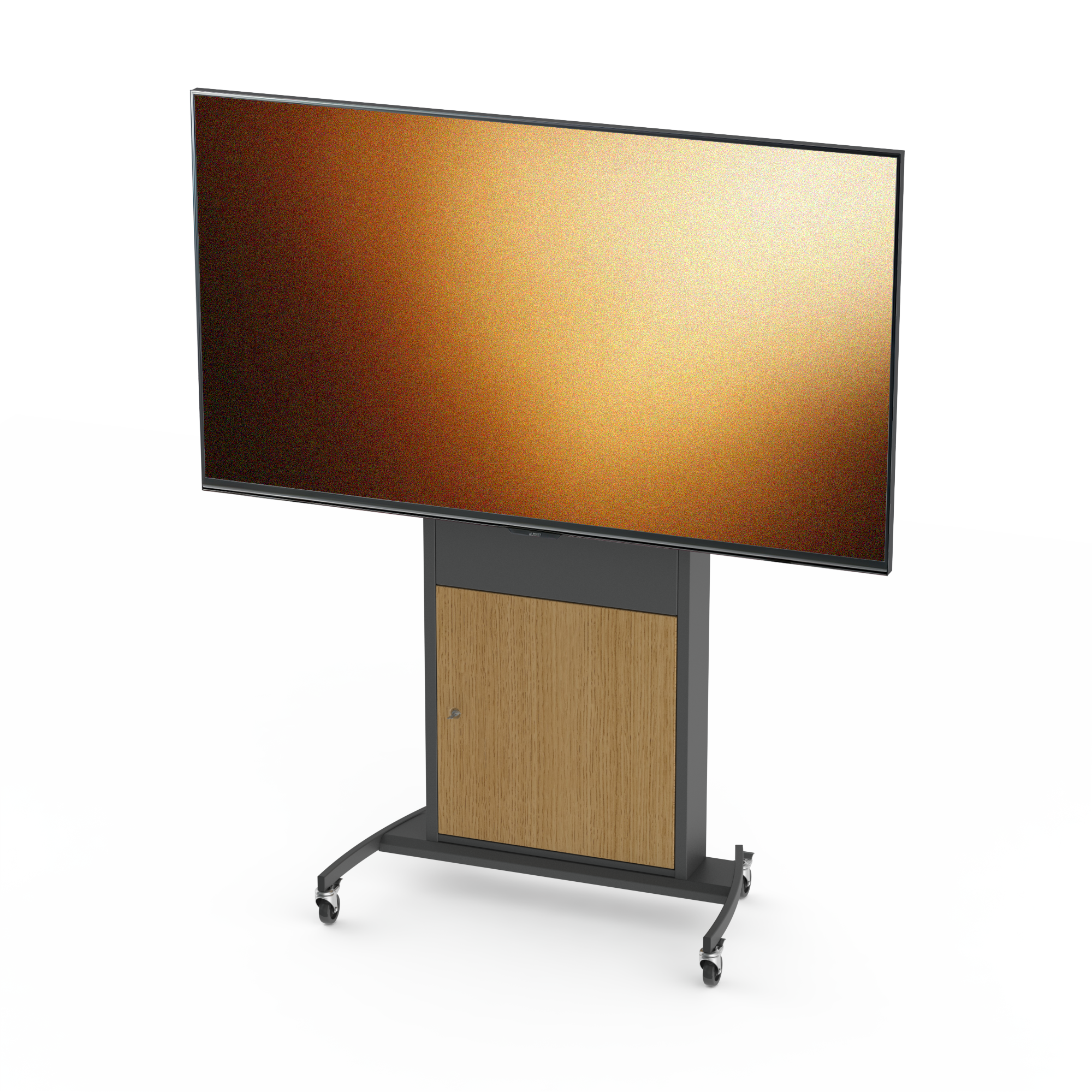

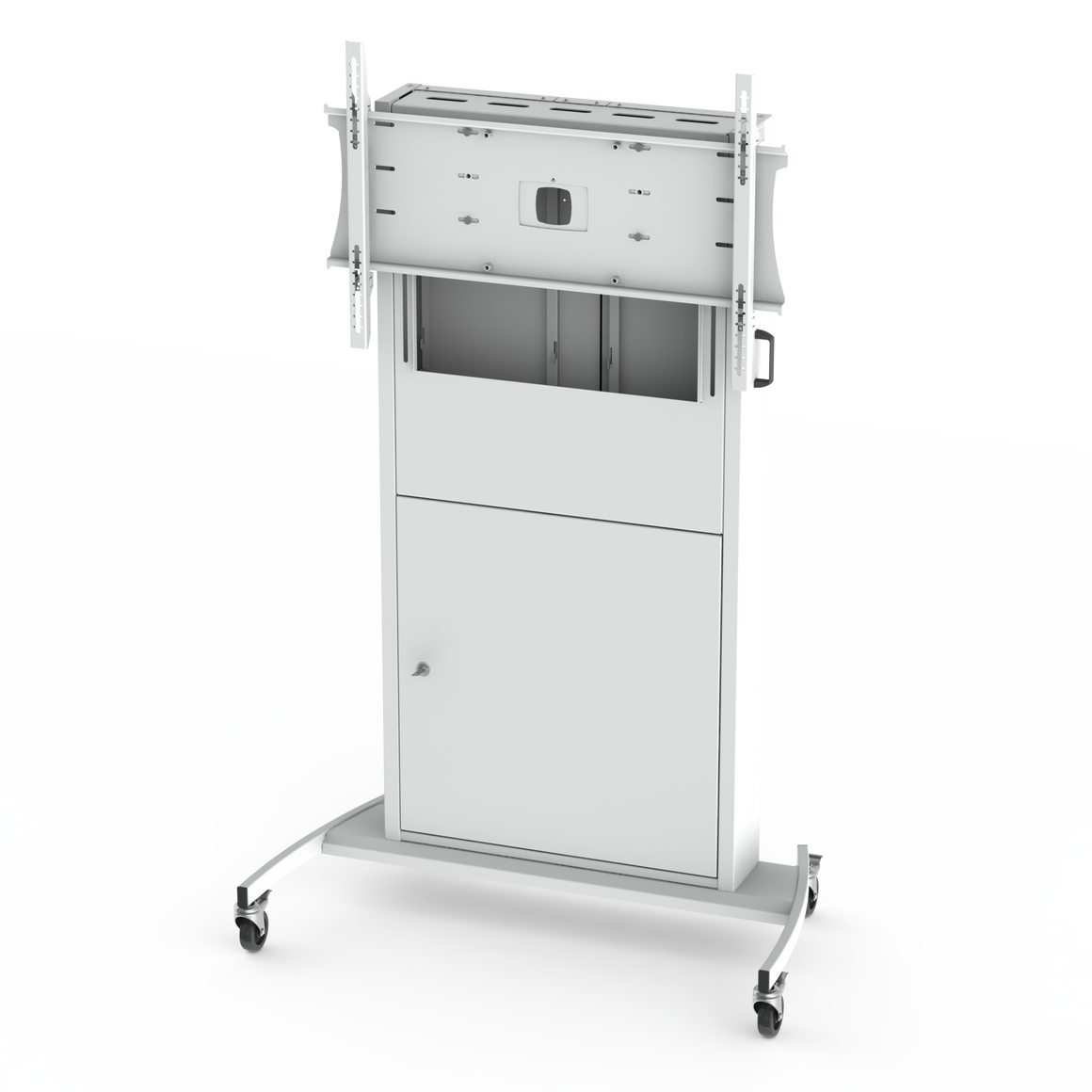

Unicol RP100-HD Heavy Duty Rhobus Plus Trolley
Standard Trolley for 71 - 98" displays with VESA 300 × 300 to 1000 × 600 (max. 150 kg)
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Unicol RP100-HD Heavy Duty Rhobus Plus Trolley is a robust mobile AV display solution engineered to support very large professional displays in demanding environments such as boardrooms, control centres, education facilities, and public venues. Designed for single displays from 71" to 98" with a maximum load capacity of 150 kg, the RP100-HD combines heavy-duty construction with integrated AV equipment storage, cable management, and adjustable screen positioning for secure, professional installations.
Key Features

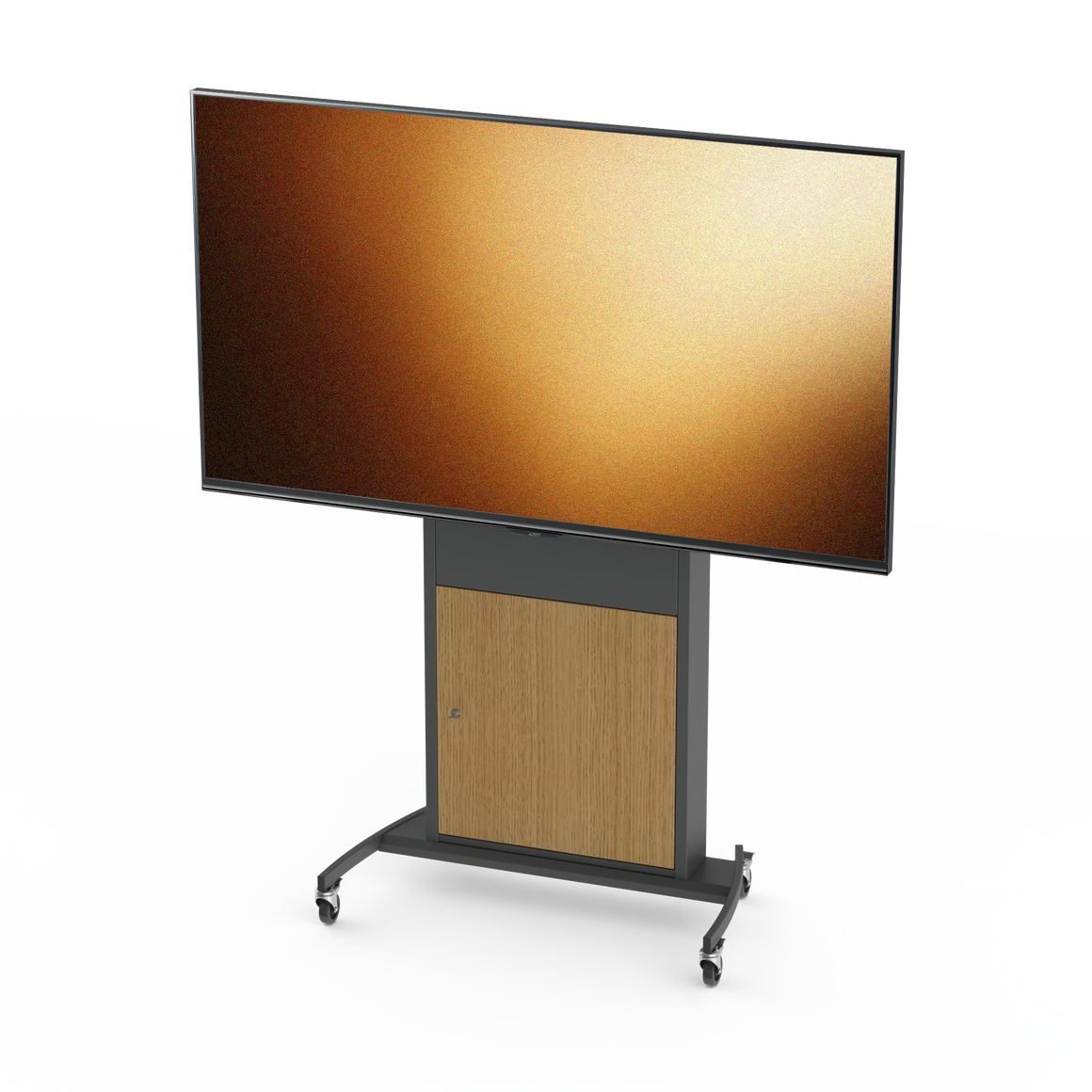

- 71"–98" Large Display Support: Designed for single large-format displays from 71" to 98", ideal for high-impact presentation and signage environments.
- 150 kg Heavy-Duty Load Capacity: Engineered to support very large professional displays while maintaining excellent stability.
- Wide VESA Compatibility: Supports VESA mounting patterns from 300 × 300 to 1000 × 600 for secure mounting of large commercial displays.

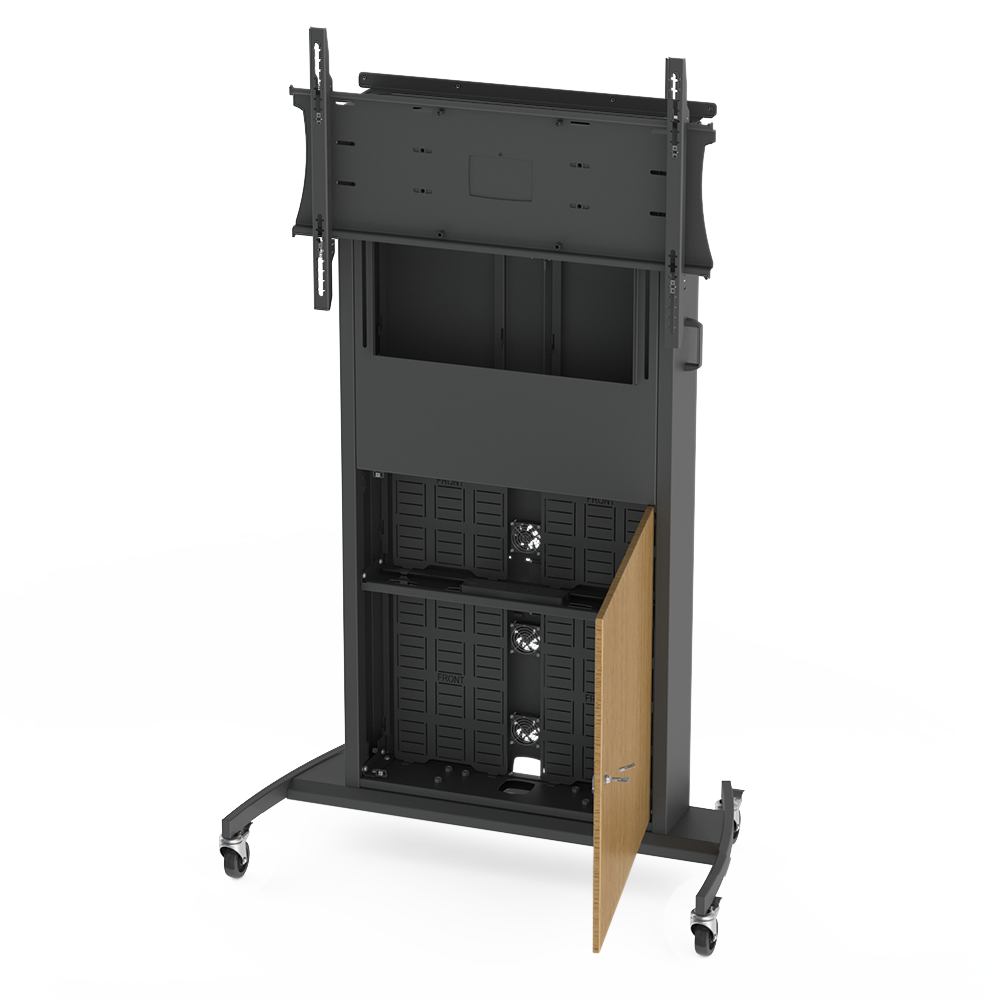

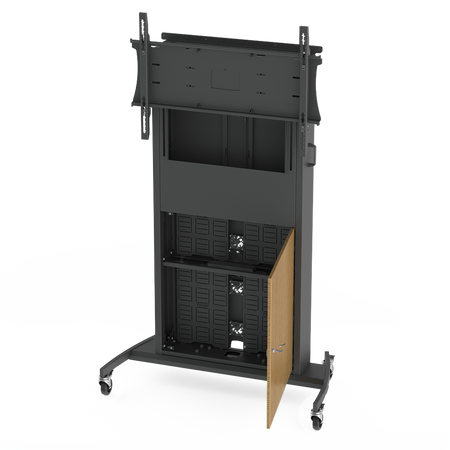

- Integrated Lockable Equipment Cabinet: Secure cabinet houses up to four removable AV equipment trays, ideal for power supplies, mini PCs, codecs, or control hardware.
- Removable Equipment Trays: Four vertical trays (approx. 310 × 488 mm) simplify installation, servicing, and upgrades of AV equipment.

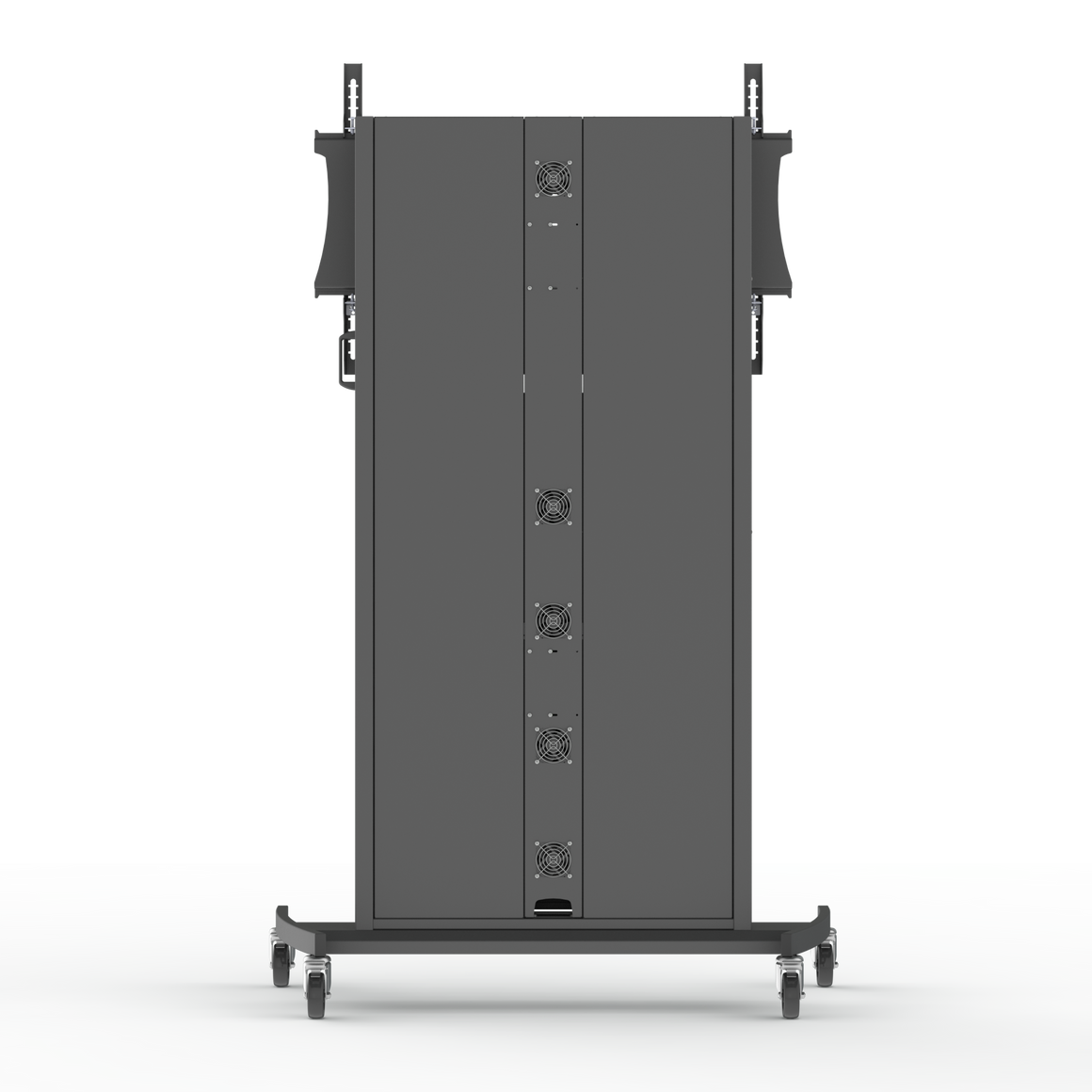

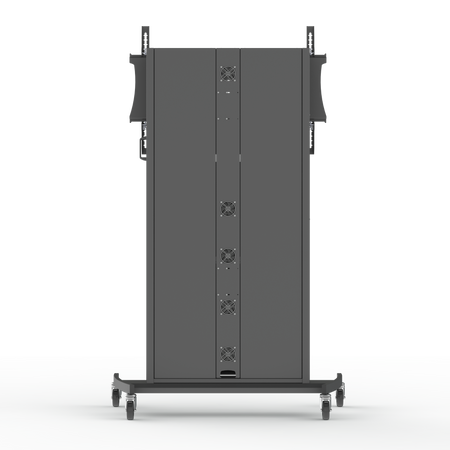

- Zonal Air Circulation Cooling: Designed to maintain airflow around installed equipment to ensure reliable AV/IT performance.
- Discrete Cable Management: Built-in power socket and internal cable routing keep installations tidy and professional.
- Adjustable Screen Height: Screen centre height adjusts from 1420 mm to 1765 mm for optimal viewing or video conferencing integration.

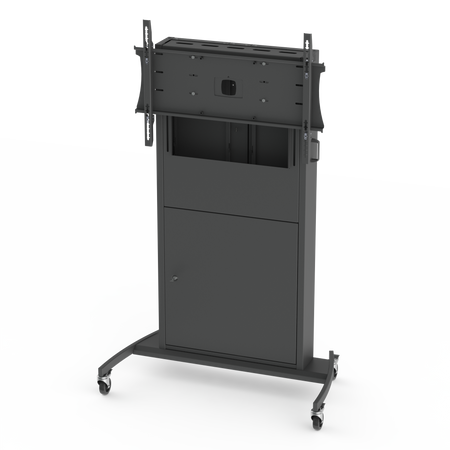

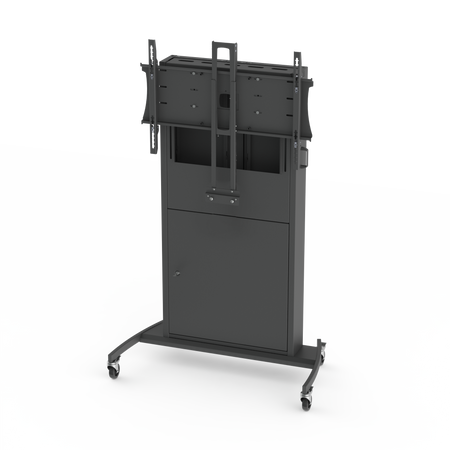

- Professional Rhobus Plus Construction: Built with UNICOL’s durable Sinterflex Black finish for long-term reliability in demanding AV environments.

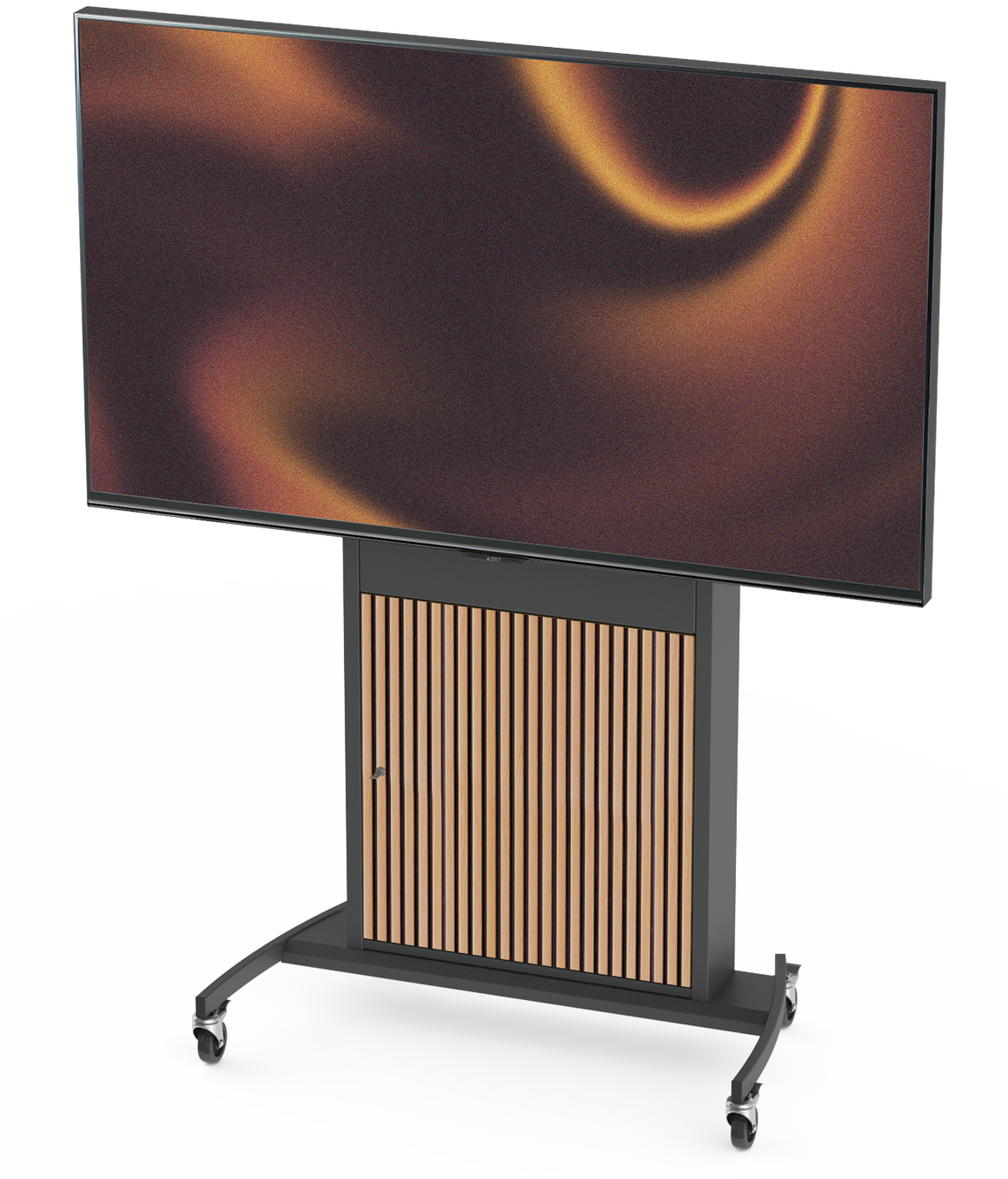

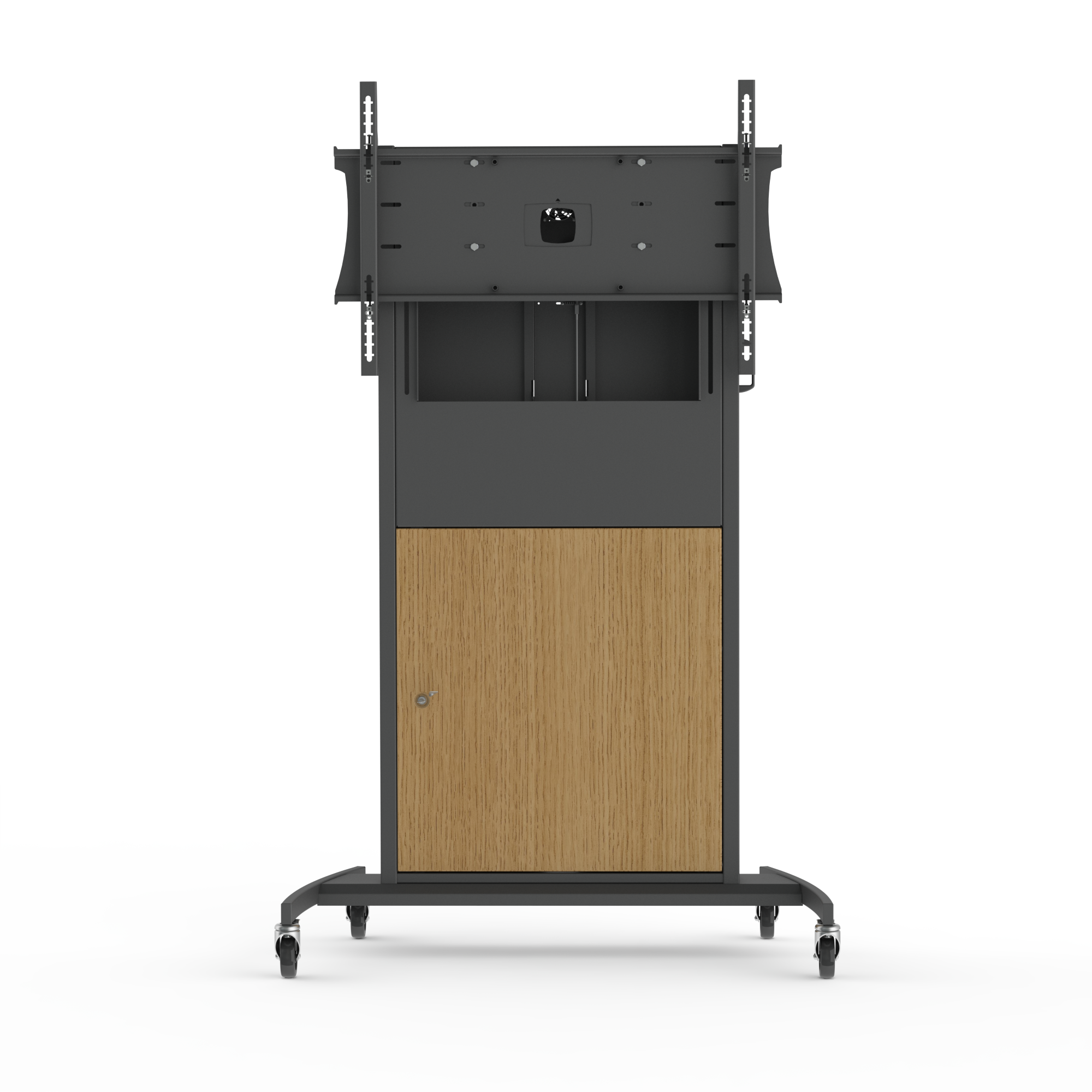

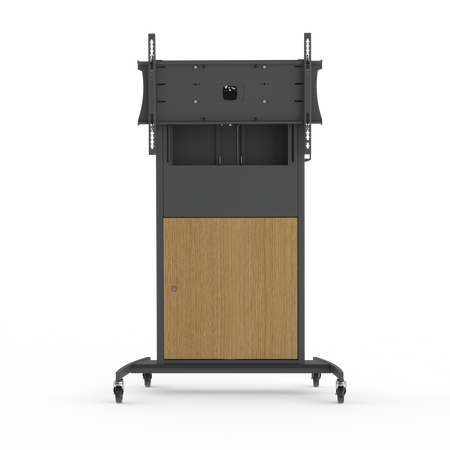

- Customisation Options: Bespoke RAL colours, alternative cabinet finishes, illuminated logos, and branding options are available via UNICOL special projects.
Specifications
| RP100-HD (Heavy Duty Rhobus Plus Trolley) | |
|---|---|
| Product Type | Heavy Duty Mobile AV Display Trolley (Single Screen) |
| Screen Size Support | 71" – 98" |
| VESA Fixings | 300 × 300 to 1000 × 600 |
| Max Weight Capacity | 150 kg |
| Overall Height | 1960 mm |
| Screen Centre Height | 1420 – 1765 mm (adjustable) |
| Overall Dimensions | Width: 1282 mm Depth: 695 mm |
| Product Weight | 120.60 kg |
Application Examples
| Corporate Boardrooms & Auditoriums | Supports very large displays for executive presentations, town halls, and large meeting environments. |

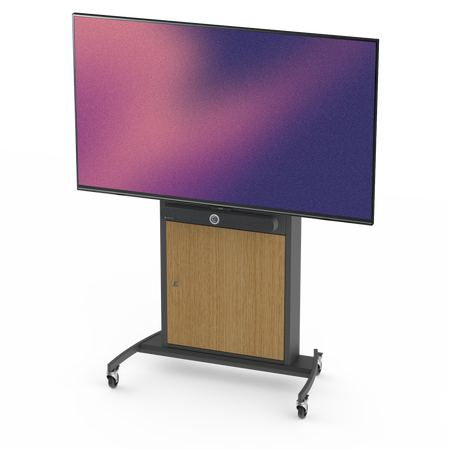

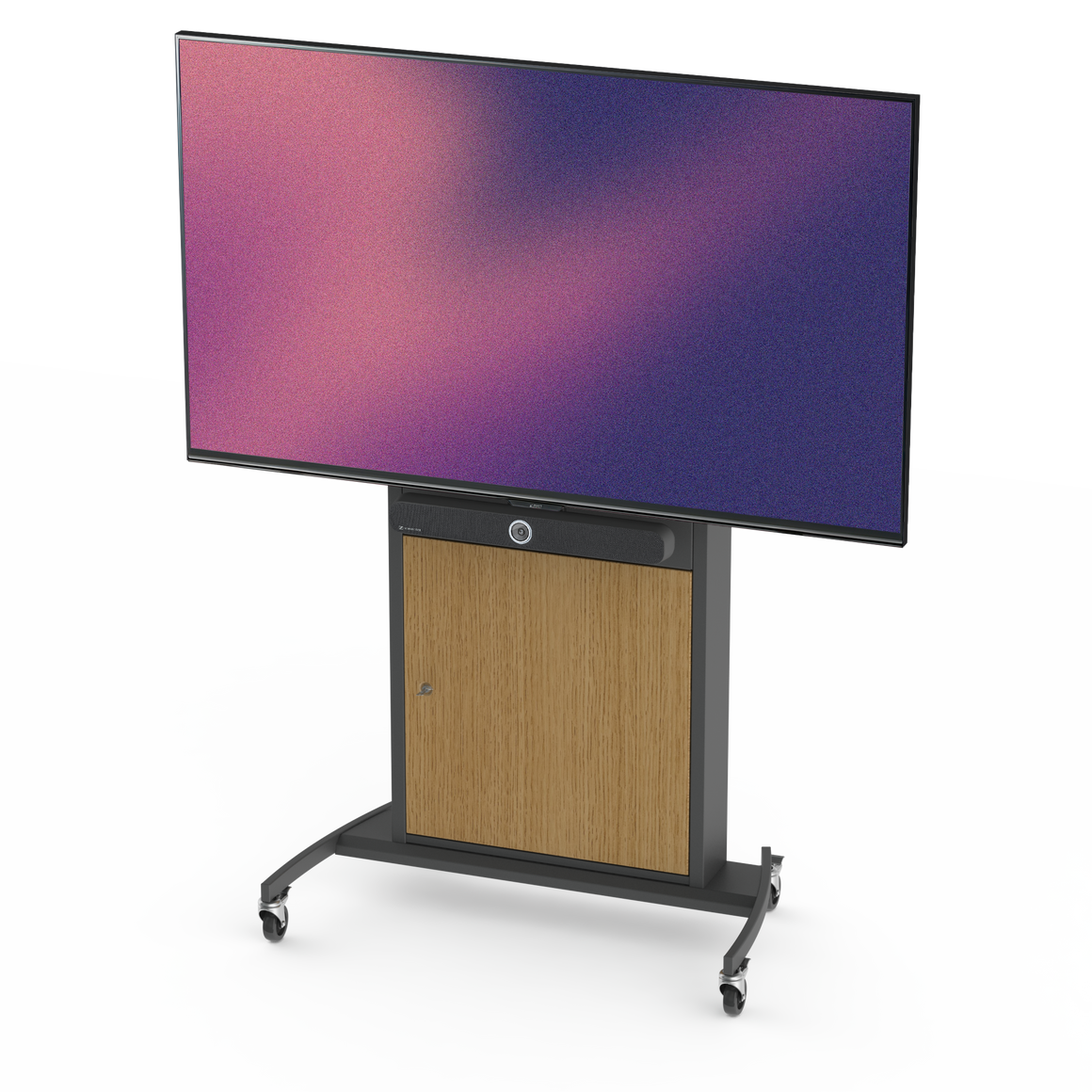

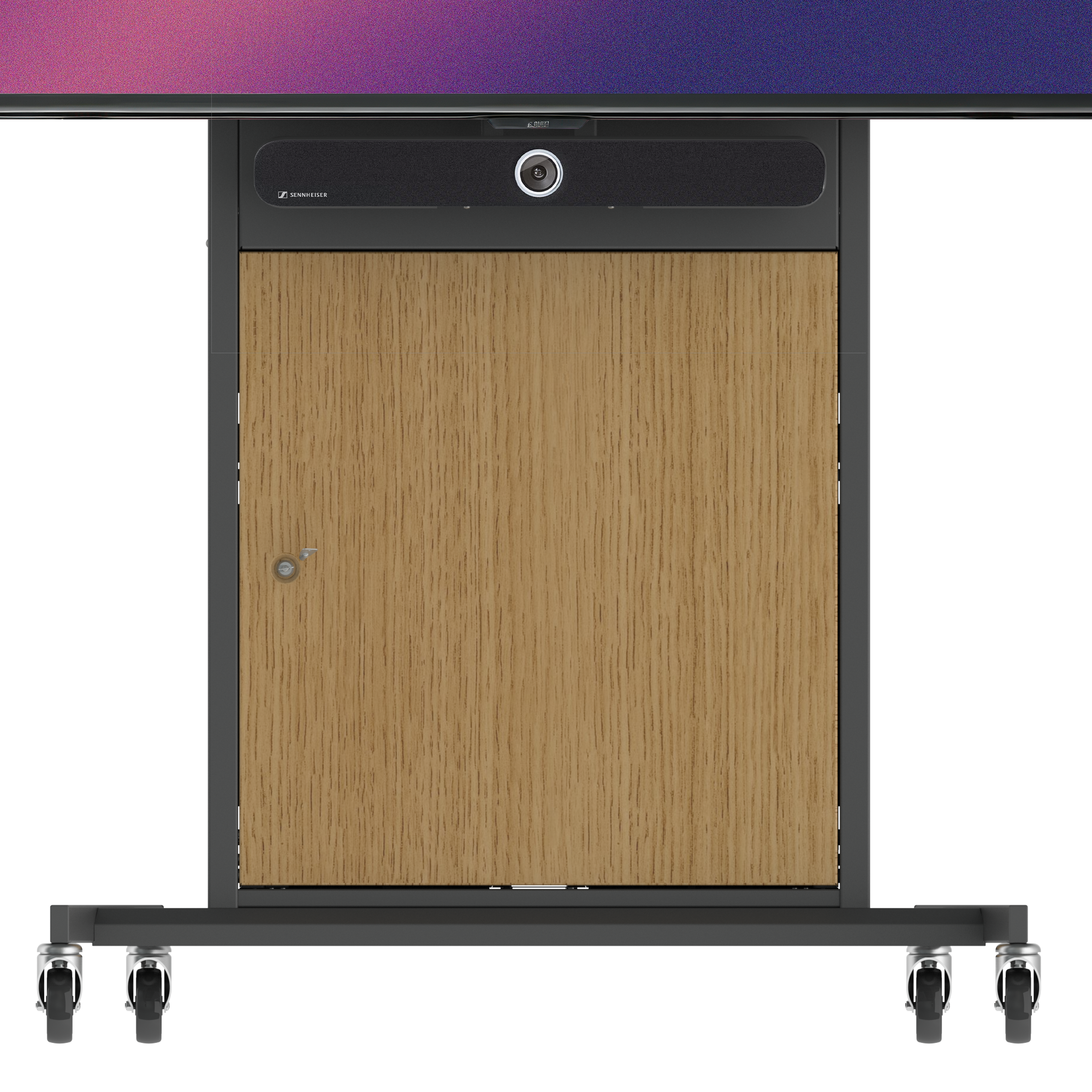

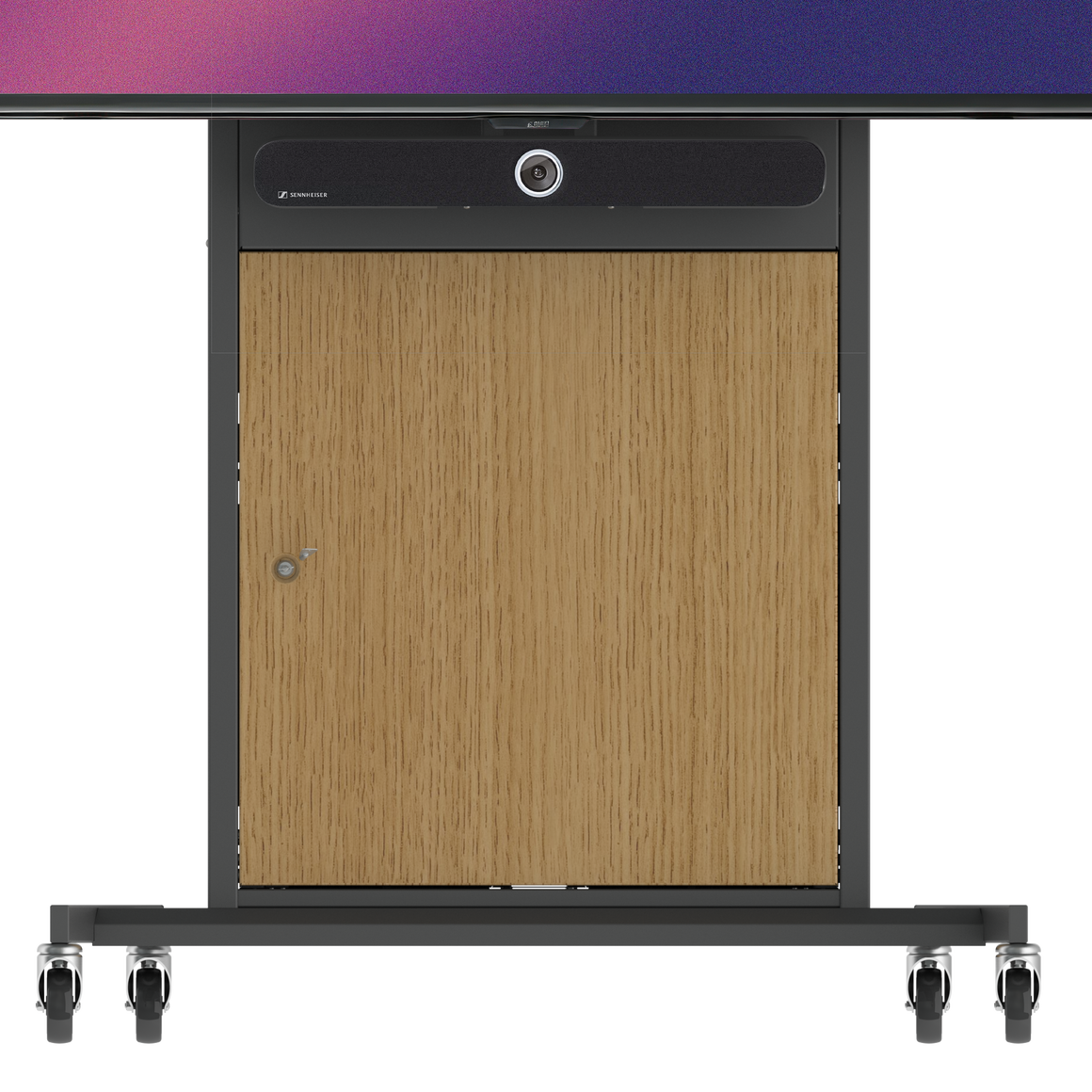

| Video Conferencing Suites | Provides secure housing for conferencing hardware while supporting cameras, soundbars, and collaboration equipment. |
| Control Rooms & Operations Centres | Heavy-duty platform designed for large monitoring displays and mission-critical AV installations. |
| Education & Lecture Theatres | Stable support for large teaching displays and shared learning environments. |
| Commercial & Public Spaces | Ideal for large-format information displays, digital signage, and presentation systems. |
The Unicol RP100-HD Heavy Duty Rhobus Plus Trolley provides a powerful and dependable platform for supporting large professional displays. Combining a 150 kg load capacity, wide VESA compatibility, integrated AV equipment storage, and adjustable screen positioning, it delivers a secure and adaptable solution for large-screen AV installations.
