SKU: CDE5514

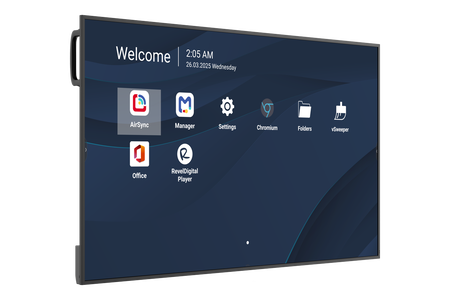

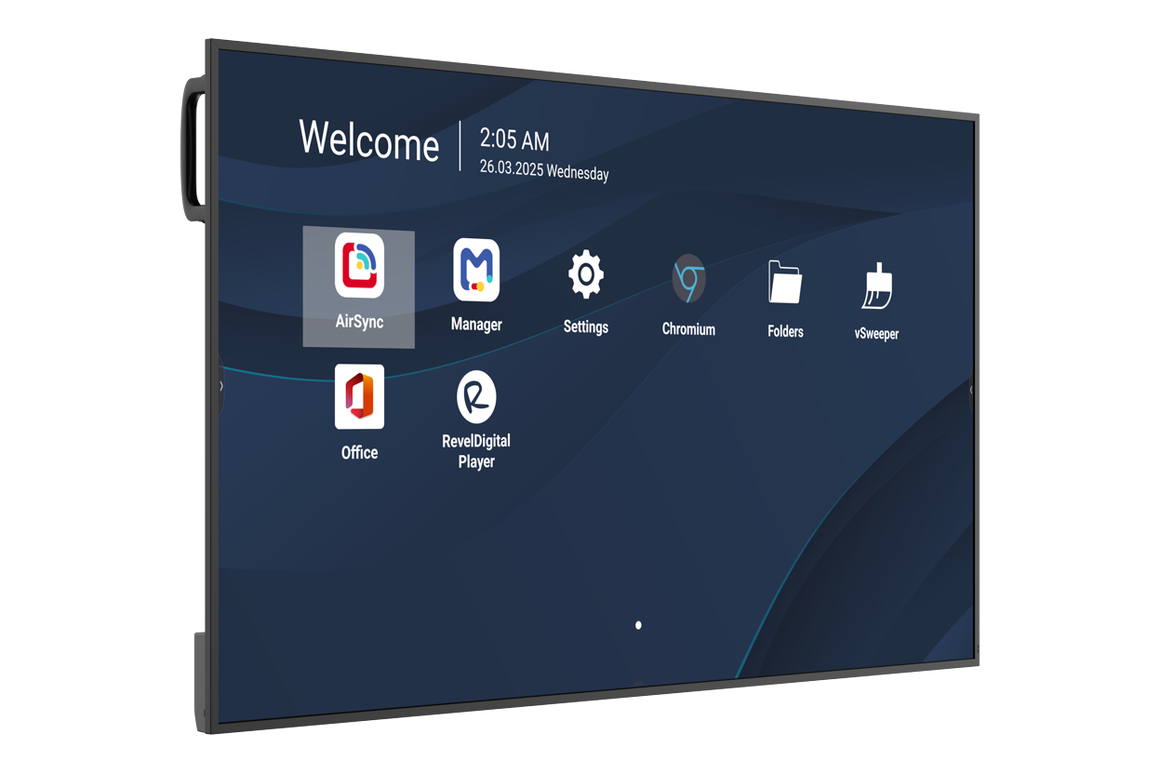

ViewSonic CDE5514-2C 55" Commercial 4K UHD Display – Commercial Signage Display

ViewSonic

55 inch 4K Commercial Display with ProAV Integration

The ViewSonic CDE5514-2C is a 55-inch commercial 4K UHD display designed for 24/7 operation in demanding business and public environments. Equipped with a quad-core ARM Cortex-A73 processor, 4 GB of RAM, and 32 GB of storage, it delivers fast boot-up, smooth multitasking, and reliable content playback. With 500 nits of brightness, wide 178° viewing angles, and both landscape and portrait orientation support, the CDE5514-2C provides vibrant, detailed imagery for signage, presentations, and corporate communication. ProAV integration, signal failover, and remote management via ViewSonic Manager make it a dependable solution for continuous professional use.

Key Features

  • Quad-Core Performance: Integrated ARM Cortex-A73 processor with 4 GB RAM ensures responsive performance, smooth playback, and fast warm boot in under seven seconds.
  • Brilliant 4K UHD Visuals: 3840 × 2160 resolution and 500-nit brightness deliver crisp, lifelike images with exceptional clarity for presentations and digital signage.
  • Flexible Orientation: Supports both landscape and portrait display modes, offering versatile installation options for varied commercial applications.
  • Continuous 24/7 Operation: Designed for round-the-clock use, ensuring stable and reliable performance in corporate, retail, and transport settings.
  • Comprehensive Connectivity: Equipped with HDMI 2.1 ×3 (HDMI 3 with ARC), USB-C with DisplayPort 1.2 and 15W power delivery, USB-A ×2, SPDIF, RS232, LAN, and a Wi-Fi module slot.
  • Signal Failover & USB Playback: Ensures uninterrupted content delivery by automatically switching to USB playback if the primary signal source is lost.
  • ProAV & Remote Management: Integrates with leading ProAV control systems and ViewSonic Manager for centralised configuration, scheduling, and network monitoring.
  • Built-In Speakers: Dual 10W speakers provide clear, full-bodied sound suitable for multimedia and meeting environments.

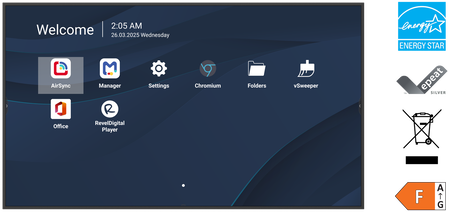

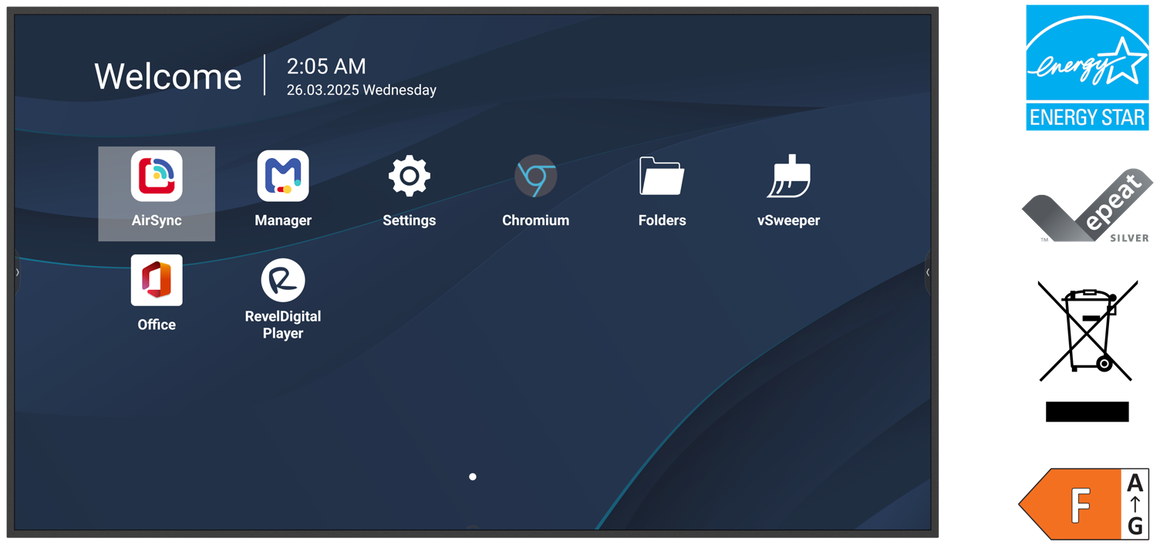

  • Energy Efficient & Certified: ENERGY STAR 8.0 and EPEAT Silver certified, consuming only 66.35 W on average for long-term, cost-effective operation.

The ViewSonic CDE5514-2C combines advanced performance, seamless connectivity, and continuous reliability to deliver exceptional image quality and operational efficiency. Perfect for corporate, retail, and transport applications, it provides a professional-grade 4K solution that’s easy to manage, durable, and energy-efficient for 24/7 commercial deployment.

In stock
£547.20

Secure Checkout

Warranty Protection

Hassle-Free Returns

The ViewSonic CDE5514-2C is a 55-inch commercial 4K UHD display engineered for 24/7 operation in corporate, retail, and public-space environments. Powered by Android 14 (upgradeable to Android 16) and a high-performance quad-core SoC with 4 GB RAM and 32 GB storage, it delivers fast warm boot-up, smooth multitasking, and reliable signage playback. With 500 nits brightness, wide 178° viewing angles, and both landscape and portrait orientation support, the CDE5514-2C ensures vivid, detailed, and professional-grade visuals suitable for meeting rooms, digital signage, and transport hubs. ProAV integration, USB failover, and remote control through ViewSonic Manager make it a robust and easily managed display solution for continuous operation.

Corporate Lobby
Shopping Mall

Key Features

  • High-Performance Quad-Core SoC: ARM Cortex-A73 processor with 4 GB RAM delivers responsive performance, fast warm boot-up (under 7 seconds), and smooth content playback.
  • Brilliant 4K UHD Visuals: 3840 × 2160 resolution and 500 nits typical brightness provide crisp, lifelike imagery ideal for corporate presentations and commercial signage.
  • Flexible Orientation: Supports both landscape and portrait display modes to suit diverse installation environments.
  • 24 / 7 Operation & Signal Failover: Built for continuous use, with automatic USB playback failover ensuring uninterrupted content delivery even if the primary signal source is lost.
  • Comprehensive Connectivity: HDMI 2.1 × 3 (HDMI 3 with ARC), USB-C (DisplayPort 1.2 with 15 W PD), USB-A × 2, RS-232, SPDIF, LAN (RJ45), and Wi-Fi slot for seamless integration.
  • ProAV Integration & Remote Management: Compatible with leading ProAV control systems and ViewSonic Manager software for centralised scheduling, monitoring, and updates.
  • Energy Efficient Design: ENERGY STAR 8.0 and EPEAT Silver certified, consuming just 66.35 W on average for sustainable, cost-effective performance.
  • Integrated Audio: Dual 10 W speakers deliver clear, room-filling sound for multimedia applications without the need for external amplification.

Specifications

Screen Size 55” (54.6” viewable)
Display Type TFT LCD Module with DLED backlight
Display Area (W × H) 1209.6 × 680.4 mm
Resolution 3840 × 2160 (4K UHD)
Aspect Ratio 16:9
Brightness 500 nits (typical)
Contrast Ratio 1200 : 1 (typical) / 2000 : 1 (DCR enabled)
Response Time 8 ms
Viewing Angle 178° (H) / 178° (V)
Backlight Life 50 000 hours
Surface Treatment Anti-glare coating, 3H hardness, 25 % haze

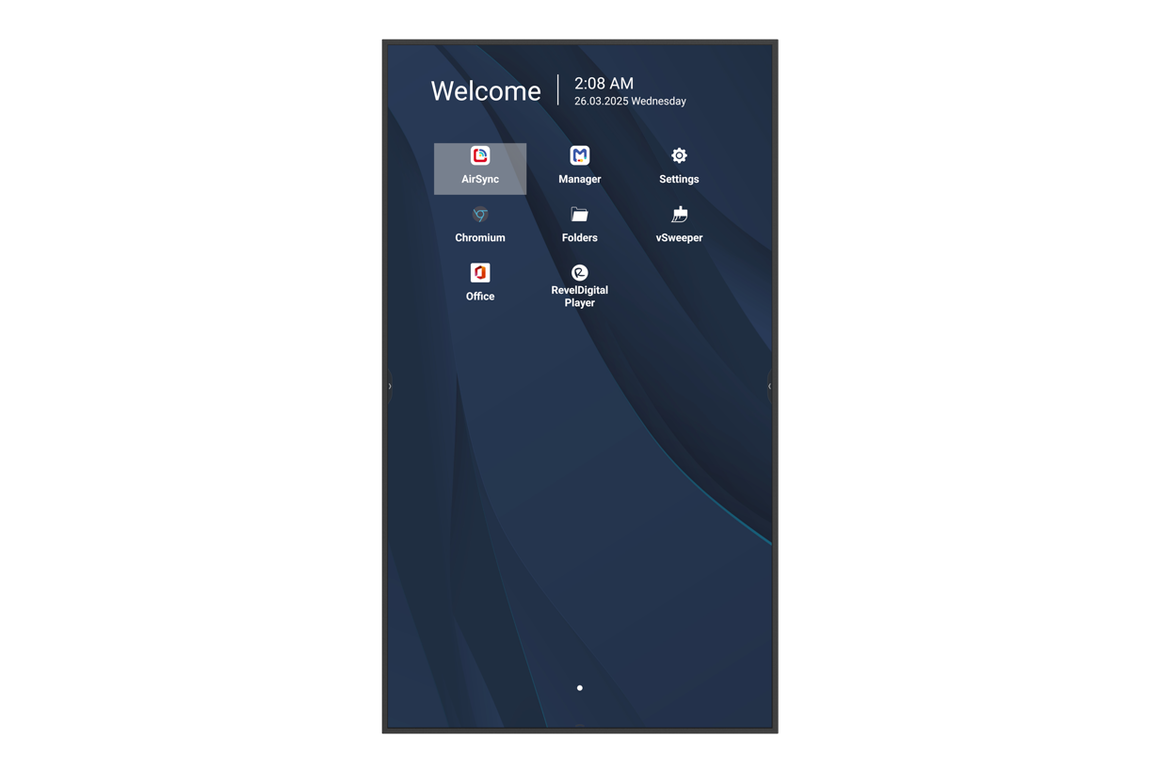

Orientation Landscape and Portrait
Processor Quad-core ARM Cortex-A73 SoC
Memory 4 GB DDR4
Storage 32 GB

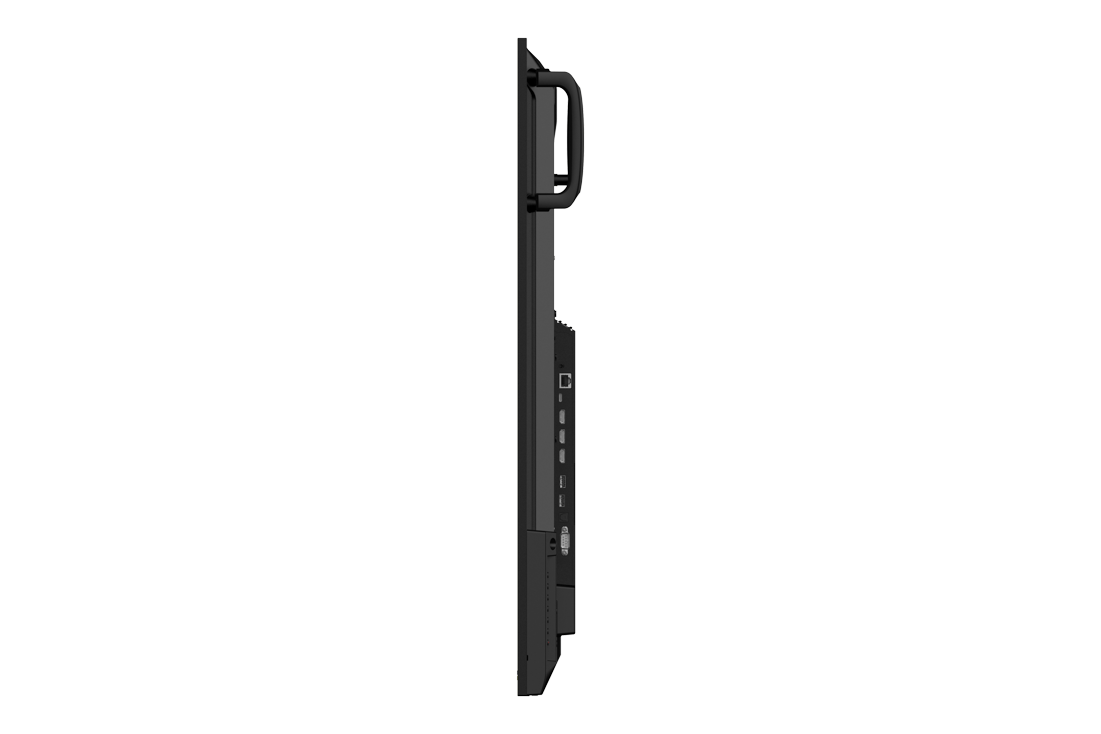

Inputs HDMI × 3 (HDMI 2.1 4K@60 Hz; HDMI 3 supports ARC), USB-A × 2 (USB 2.0), USB-C × 1 (DP 1.2, 15 W PD, Ethernet sharing, Smart USB), RS-232 × 1, Wi-Fi slot × 1
Outputs Audio Out (3.5 mm) × 1, SPDIF × 1, LAN (RJ45 10/100 M) × 1
Speakers 2 × 10 W
Embedded OS Android 14 AOSP (upgradeable to Android 16)

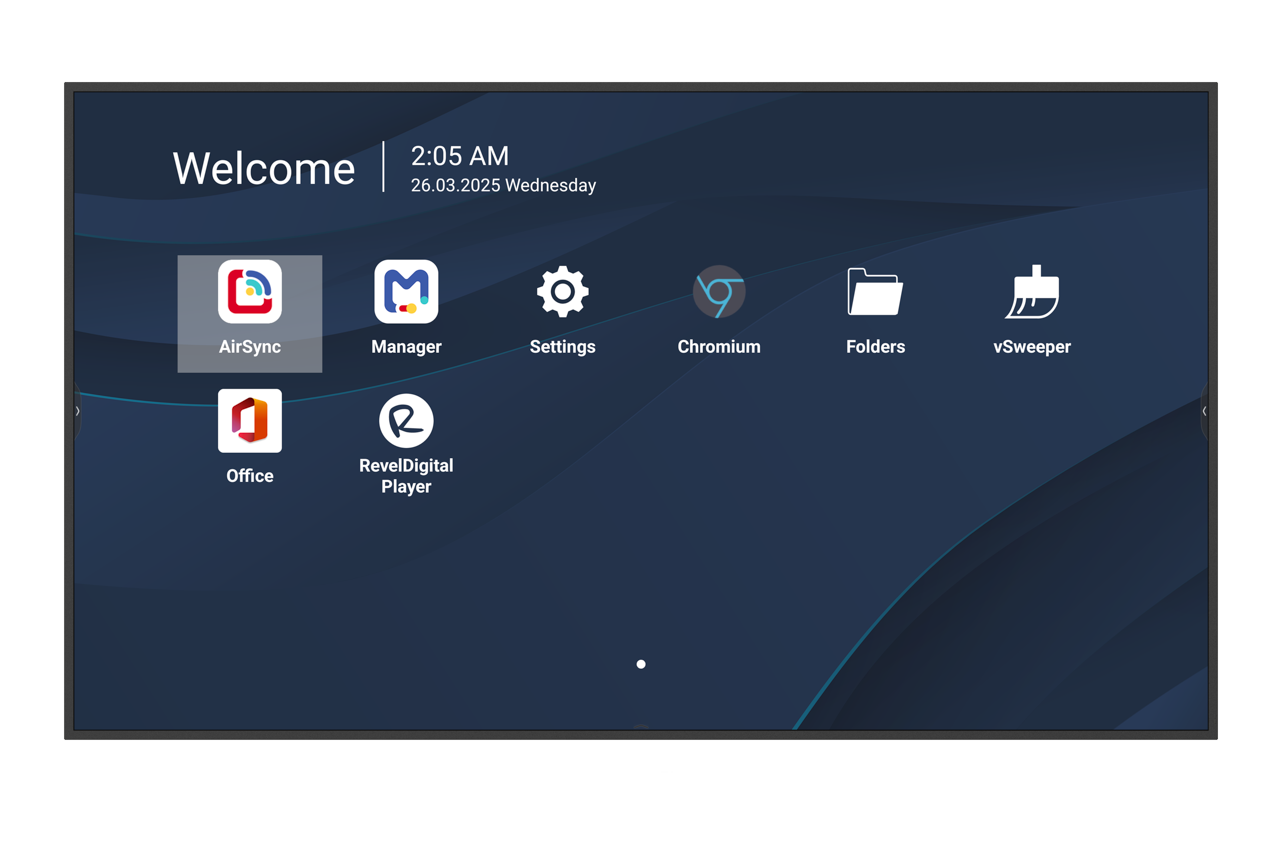

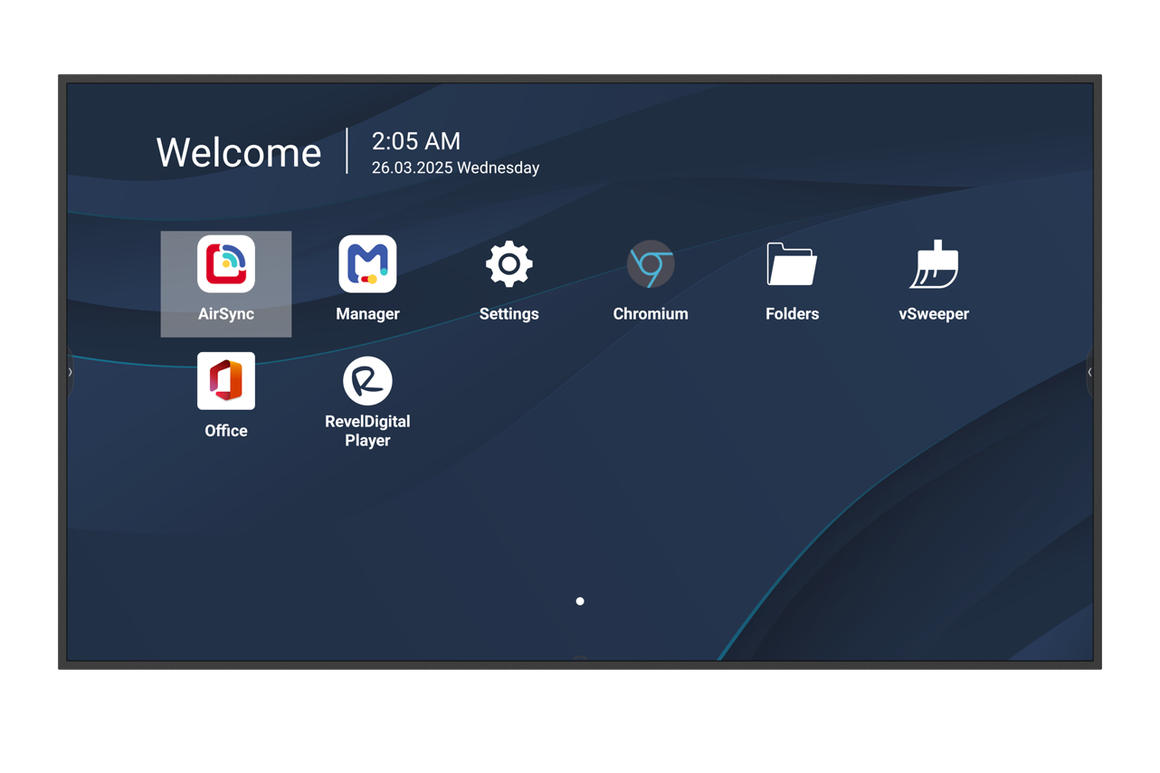

Bundled Software AirSync (Wireless Presentation), ViewSonic Manager (Device Management)
Power Supply 100–240 V AC ± 10 %, 50/60 Hz
Power Consumption 66.35 W (Energy Star certified)

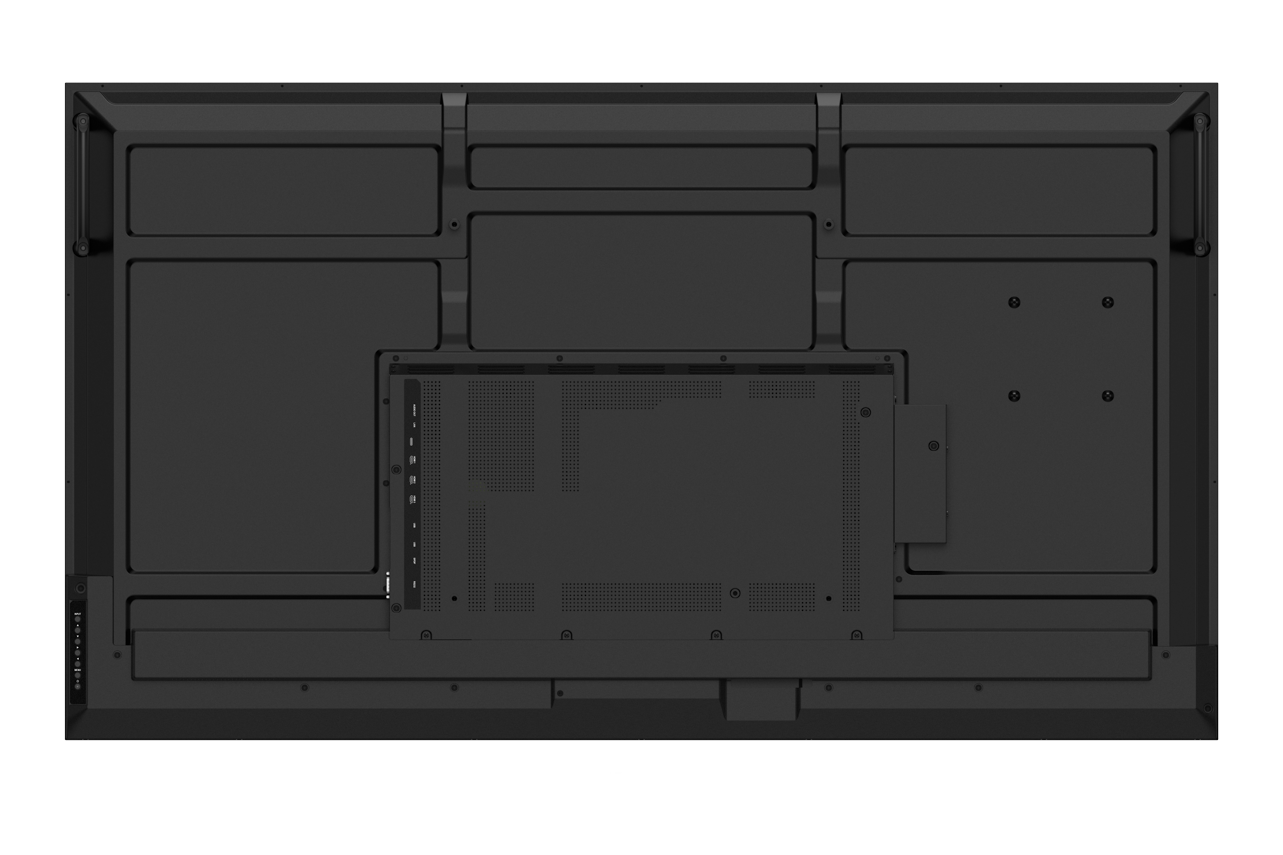

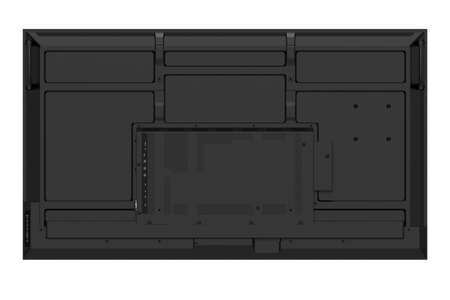

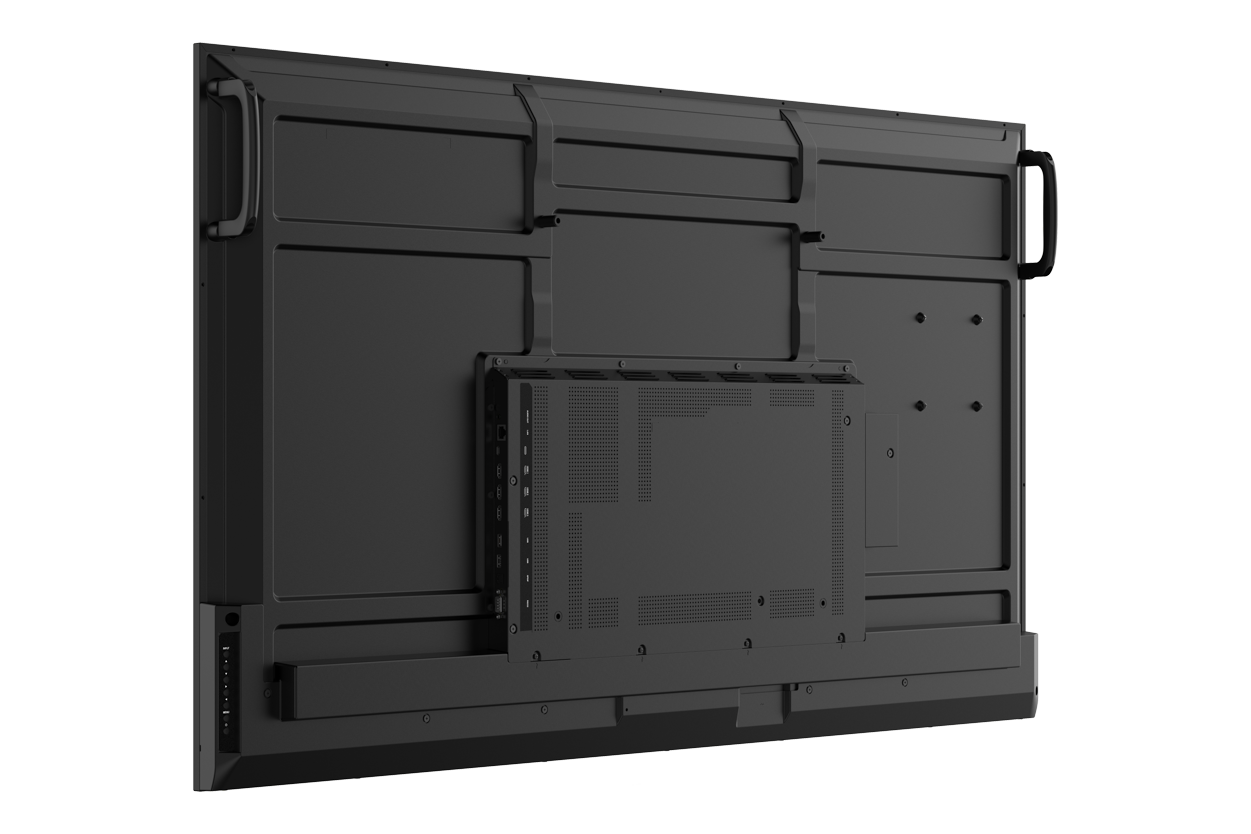

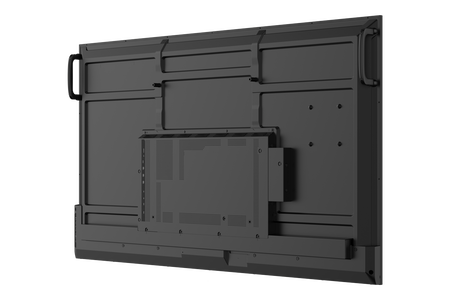

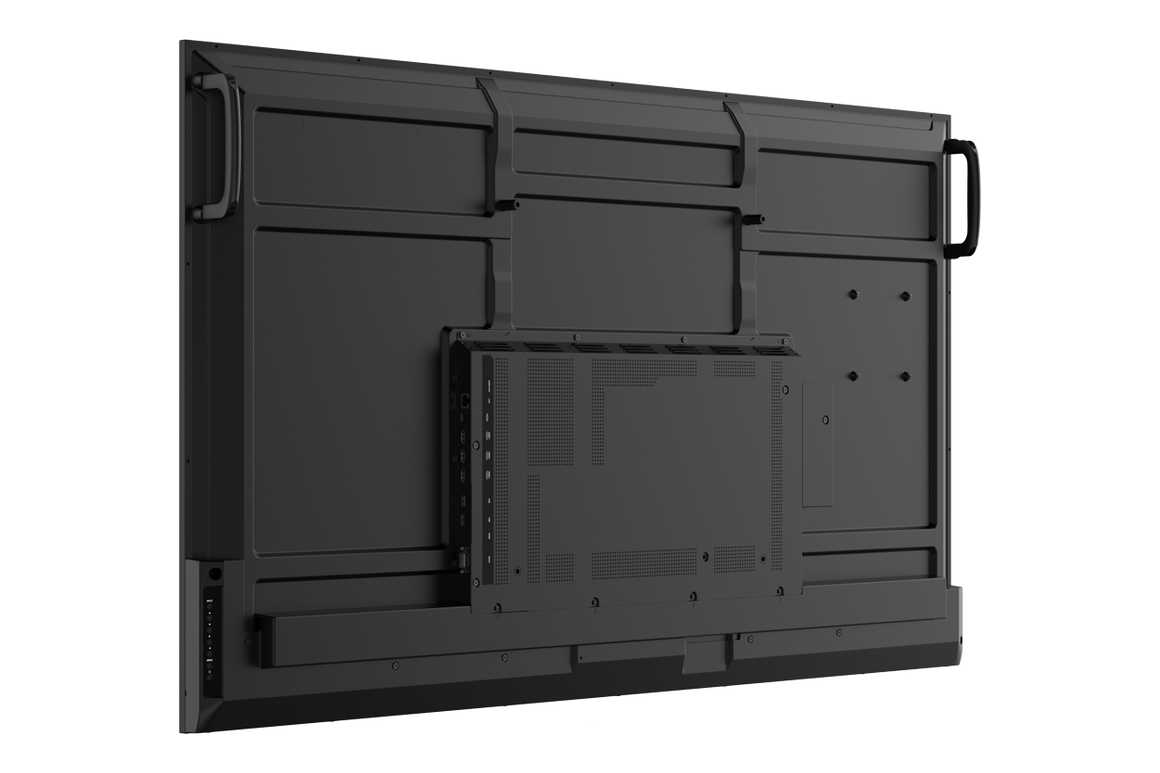

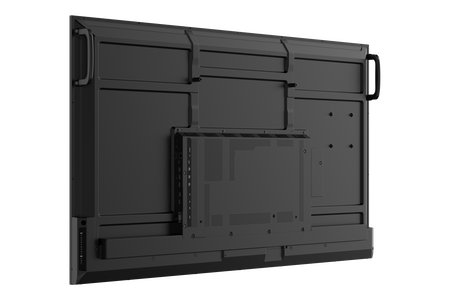

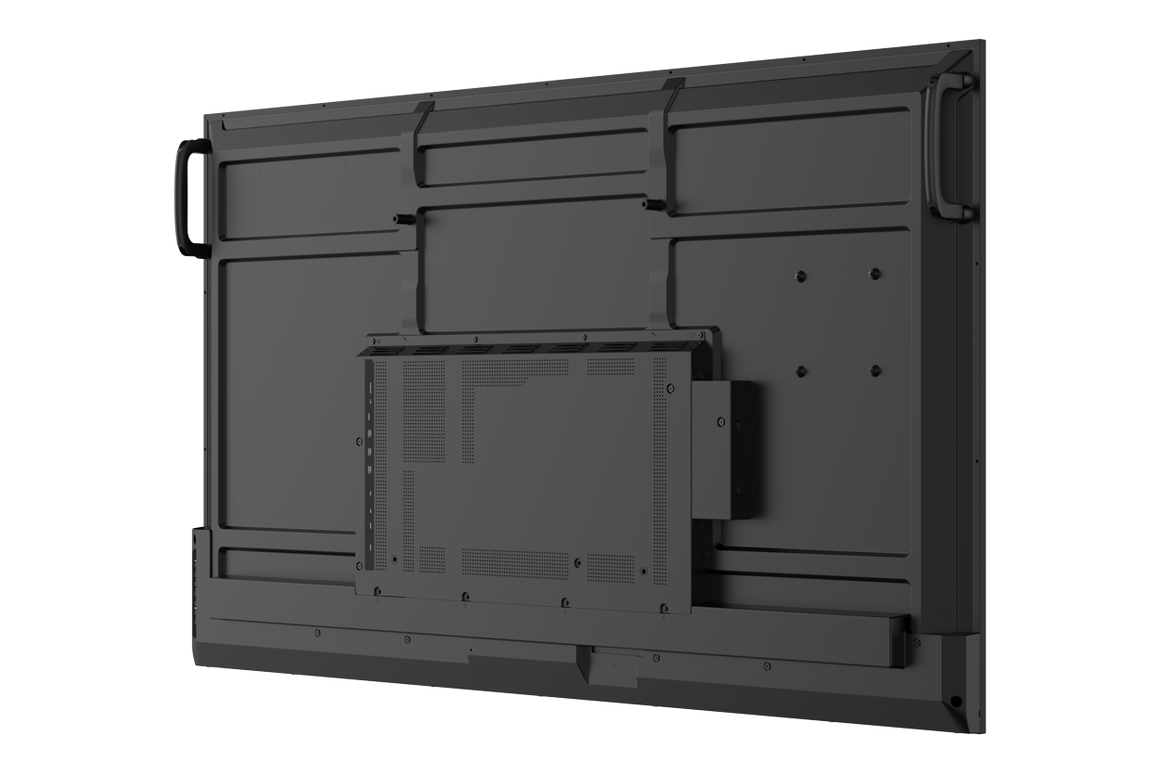

Mounting (VESA) 400 × 400 mm
Operating Conditions Temperature 0 – 40 °C; Humidity 20–80 % RH (non-condensing)
Operating Hours 24 / 7 continuous operation
Dimensions (W × H × D) 1233 × 703.5 × 62 mm (48.54 × 27.69 × 2.44 in)
Weight Net 12.95 kg; Gross 17.98 kg
Certifications Energy Star 8.0, EPEAT Silver, CE, FCC, RoHS, ErP-Eco, REACH, WEEE, TPCH, CA65
Included Accessories Power cord (3 m), remote control, 2 × AAA batteries, Quick Start Guide, RS-232 adapter, wall-mount screws × 4, HDMI cable (3 m), compliance statement

Application Examples
Corporate & Meeting Rooms Display detailed 4K presentations and video conferencing visuals with sharp clarity and professional polish.
Retail & Public Spaces Deliver high-impact promotional or informational signage that operates reliably around the clock.
Transport & Information Hubs Provide real-time schedules, wayfinding, and announcements with failover assurance and bright, legible displays.
Education & Hospitality Venues Enhance engagement and communication with versatile orientation support and easy remote management.

The ViewSonic CDE5514-2C merges professional-grade performance, flexible connectivity, and durable design for modern 4K signage and collaboration environments. Its reliable 24/7 operation, ProAV integration, and energy-efficient engineering make it an ideal choice for corporate, retail, transport, and hospitality applications.
