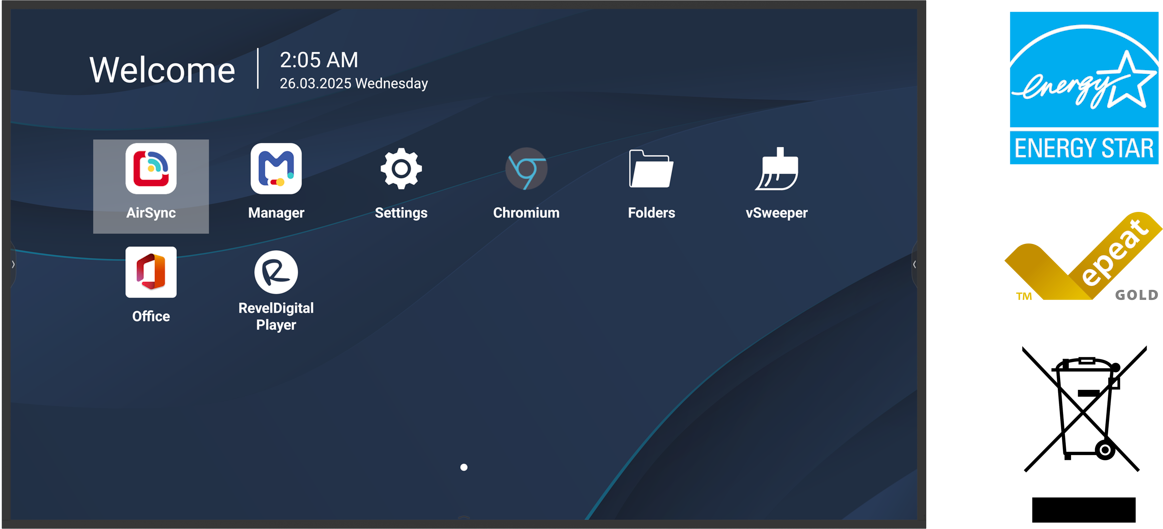

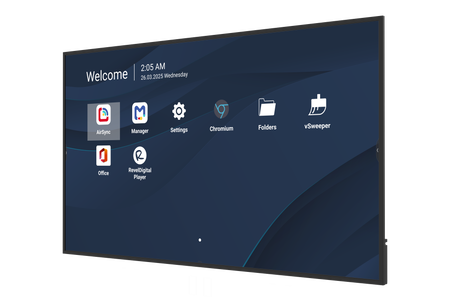

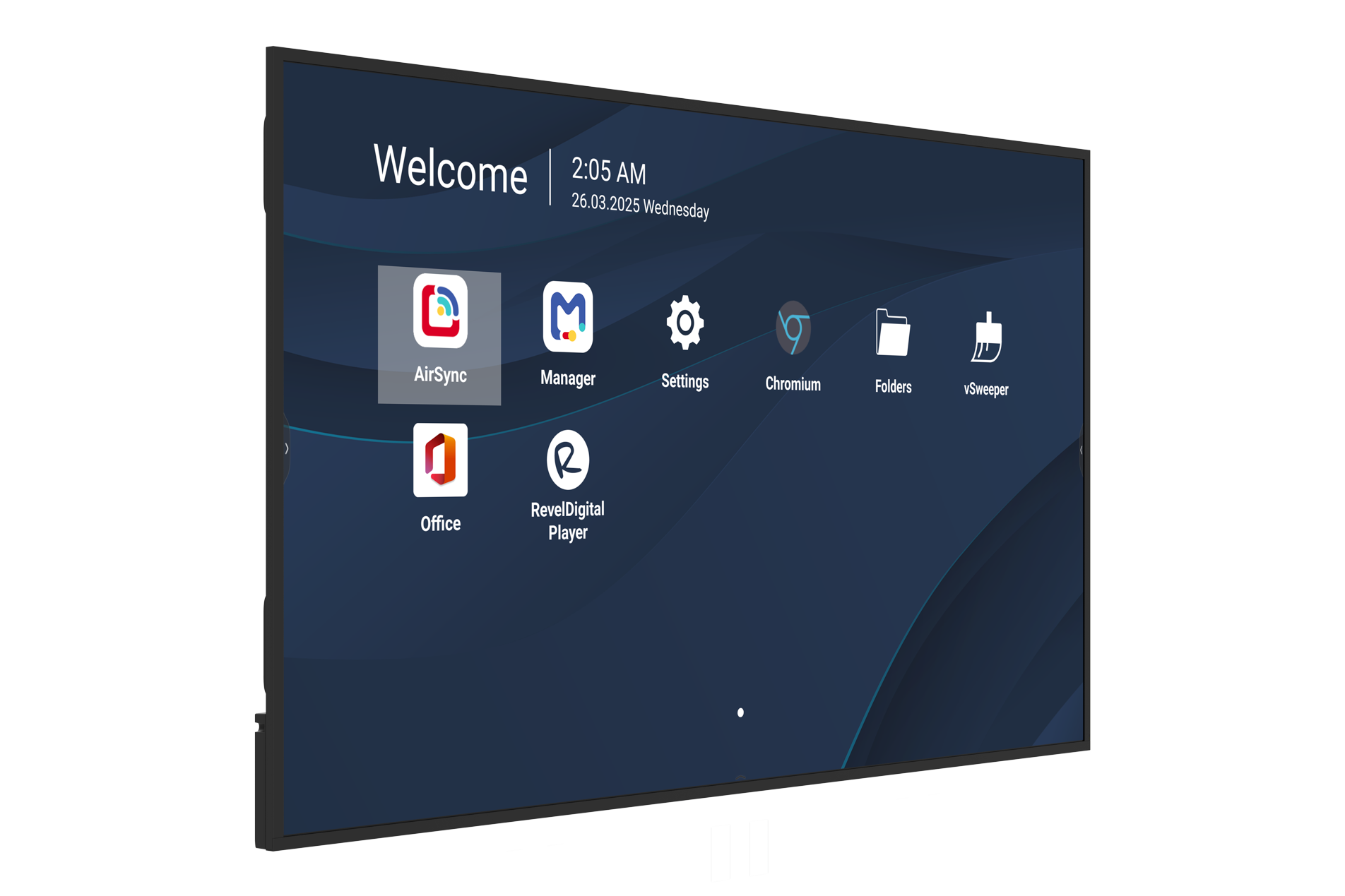

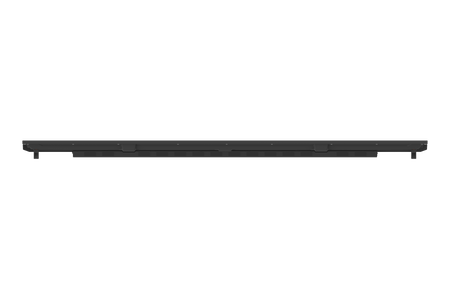

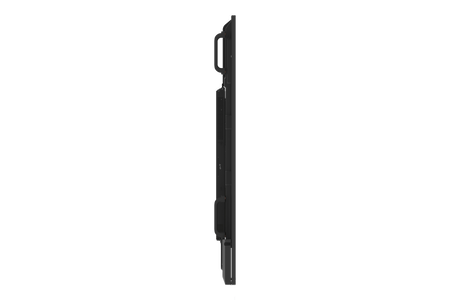

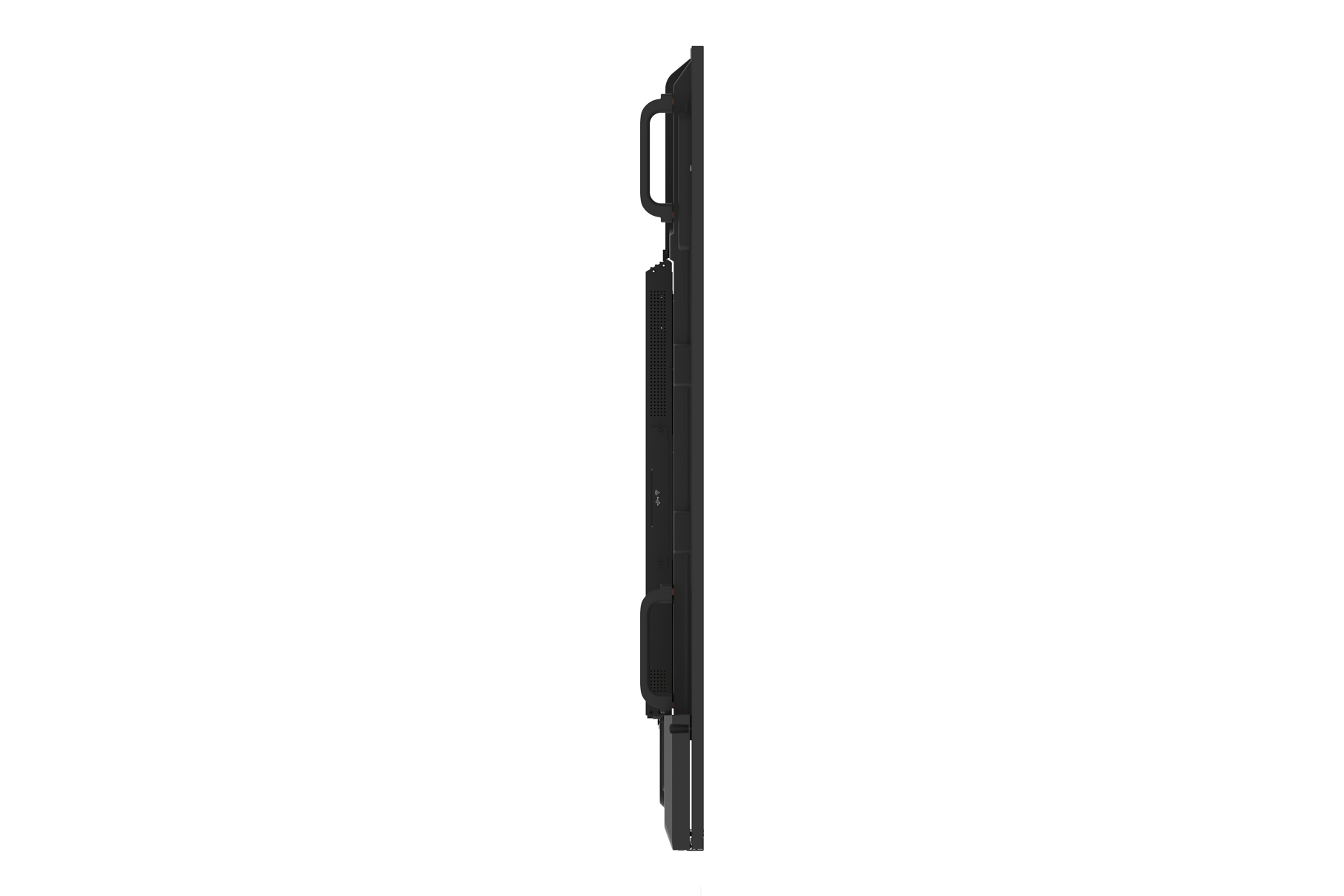

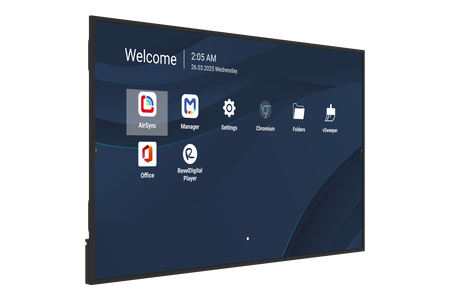

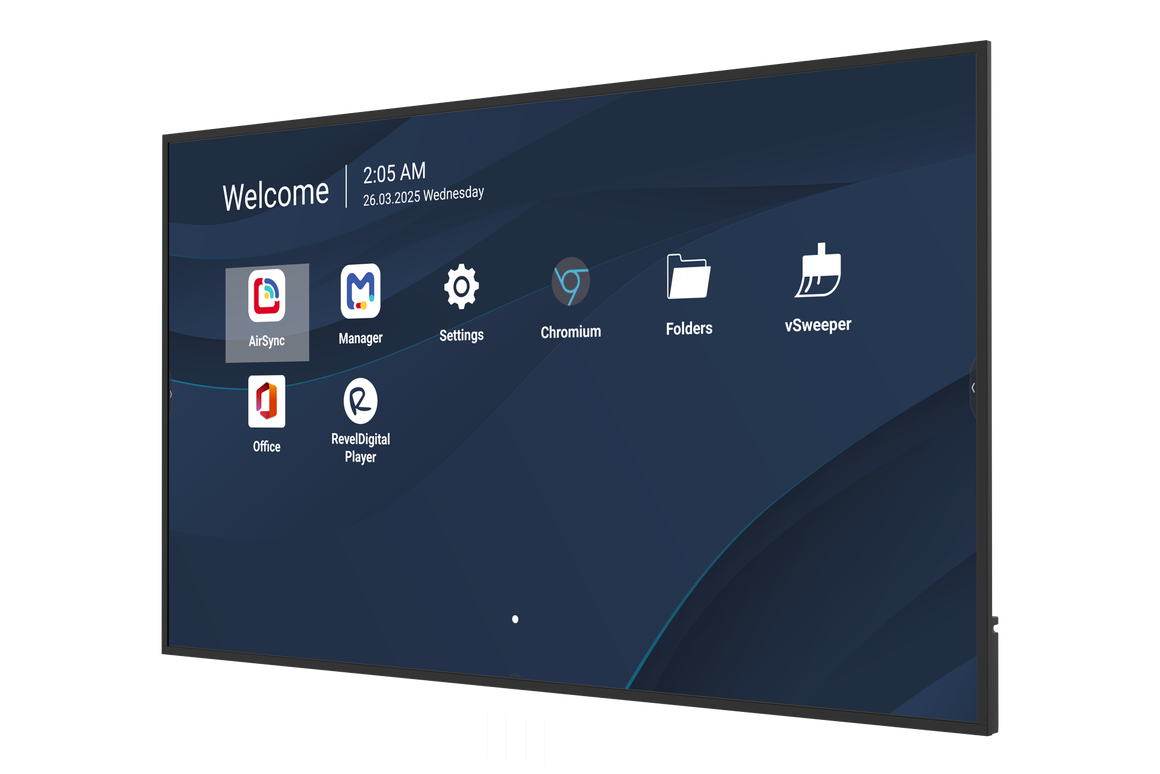

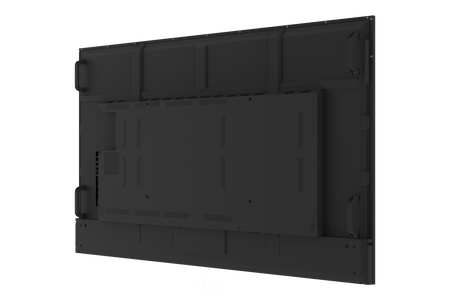

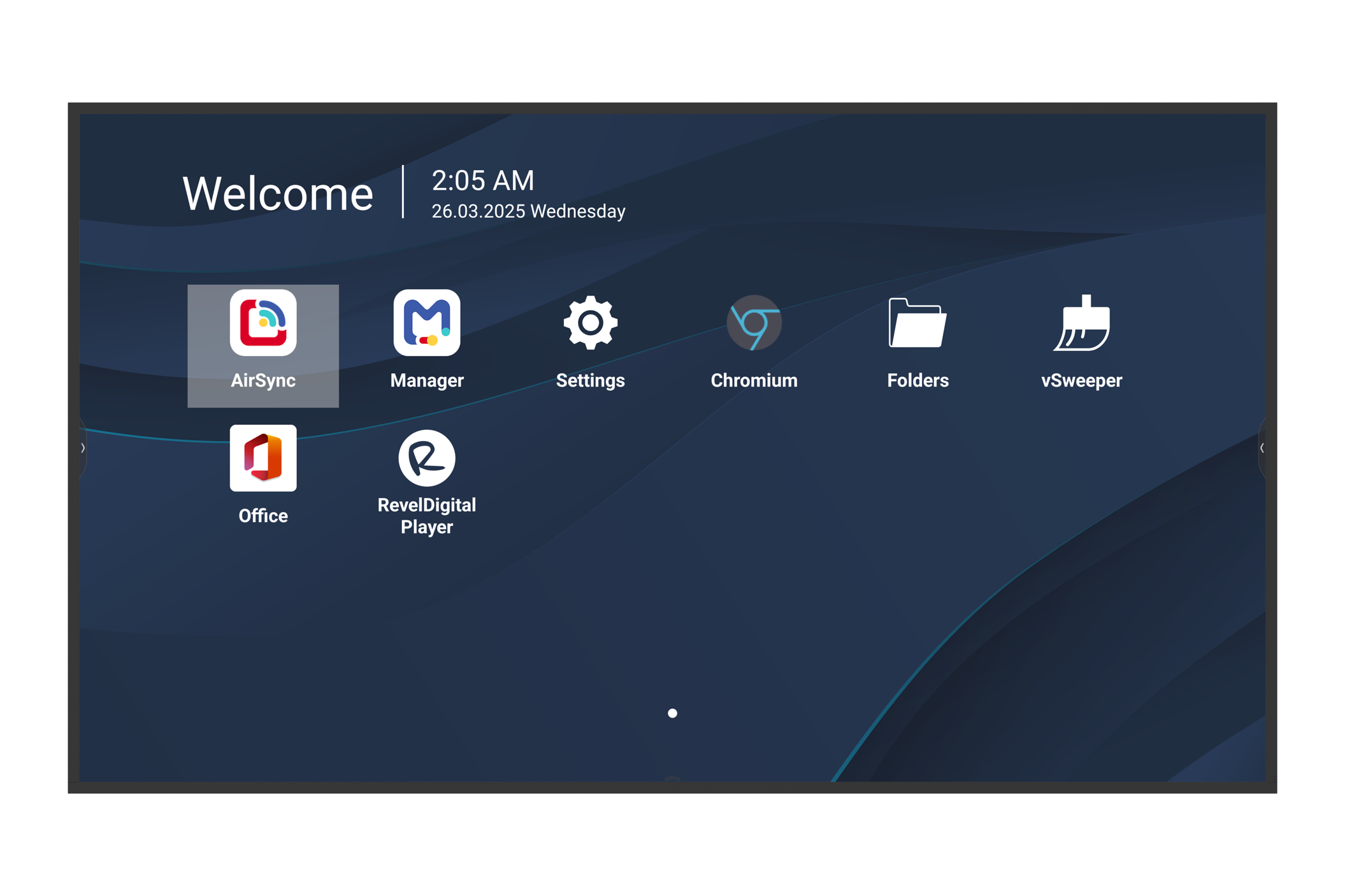

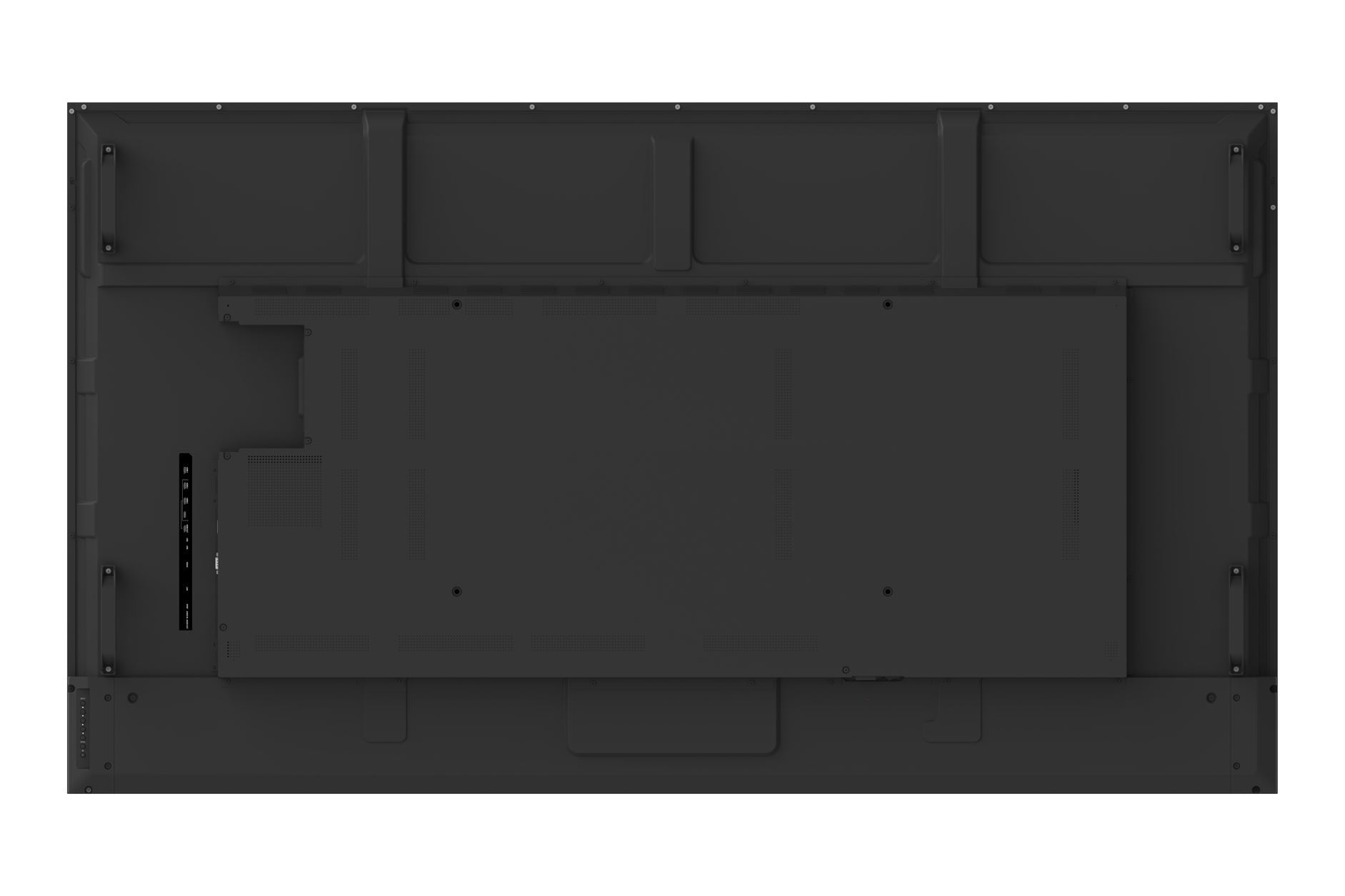

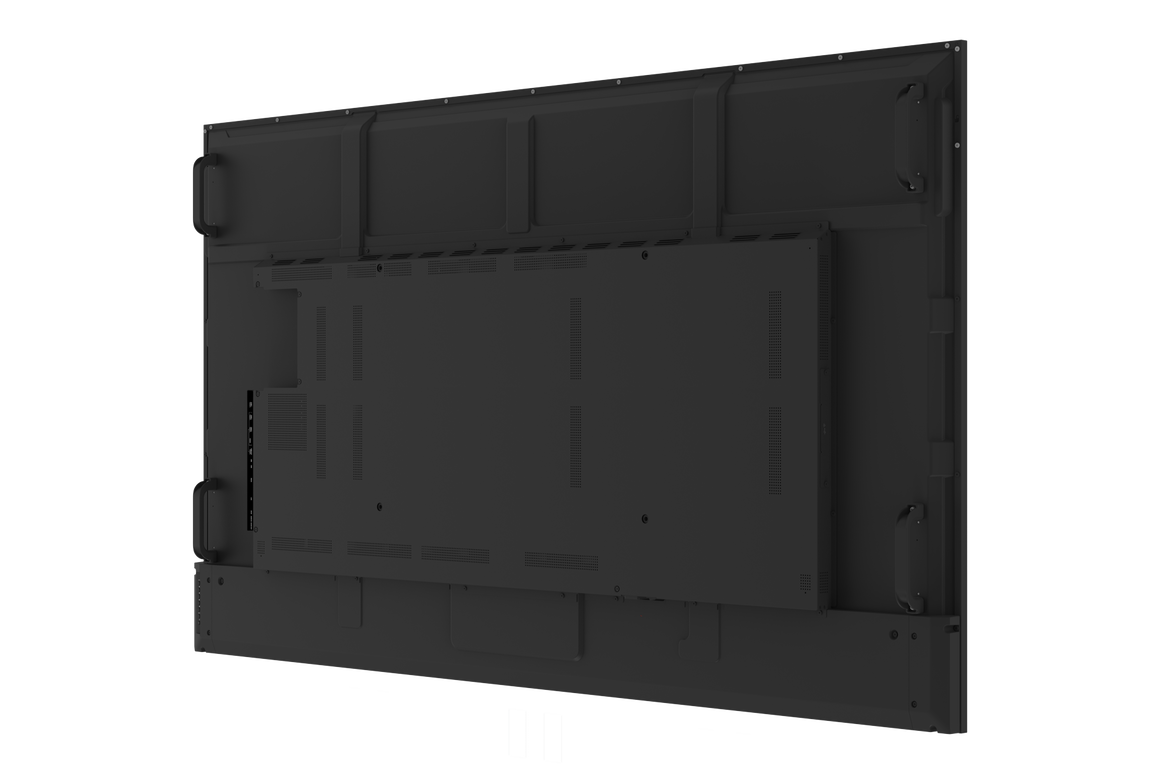

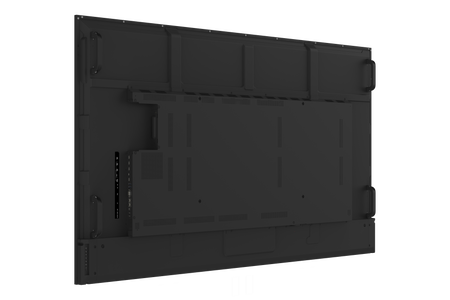

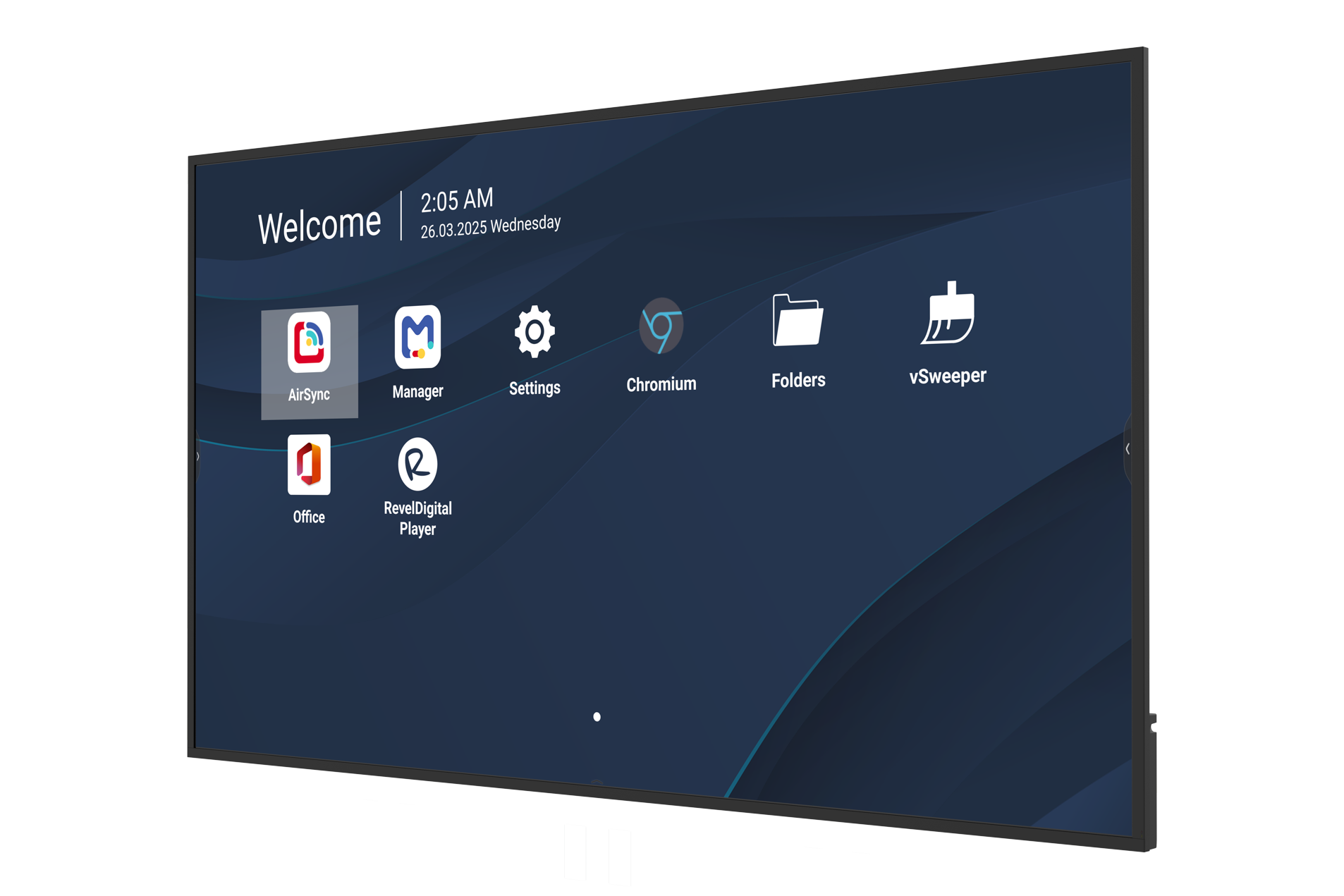

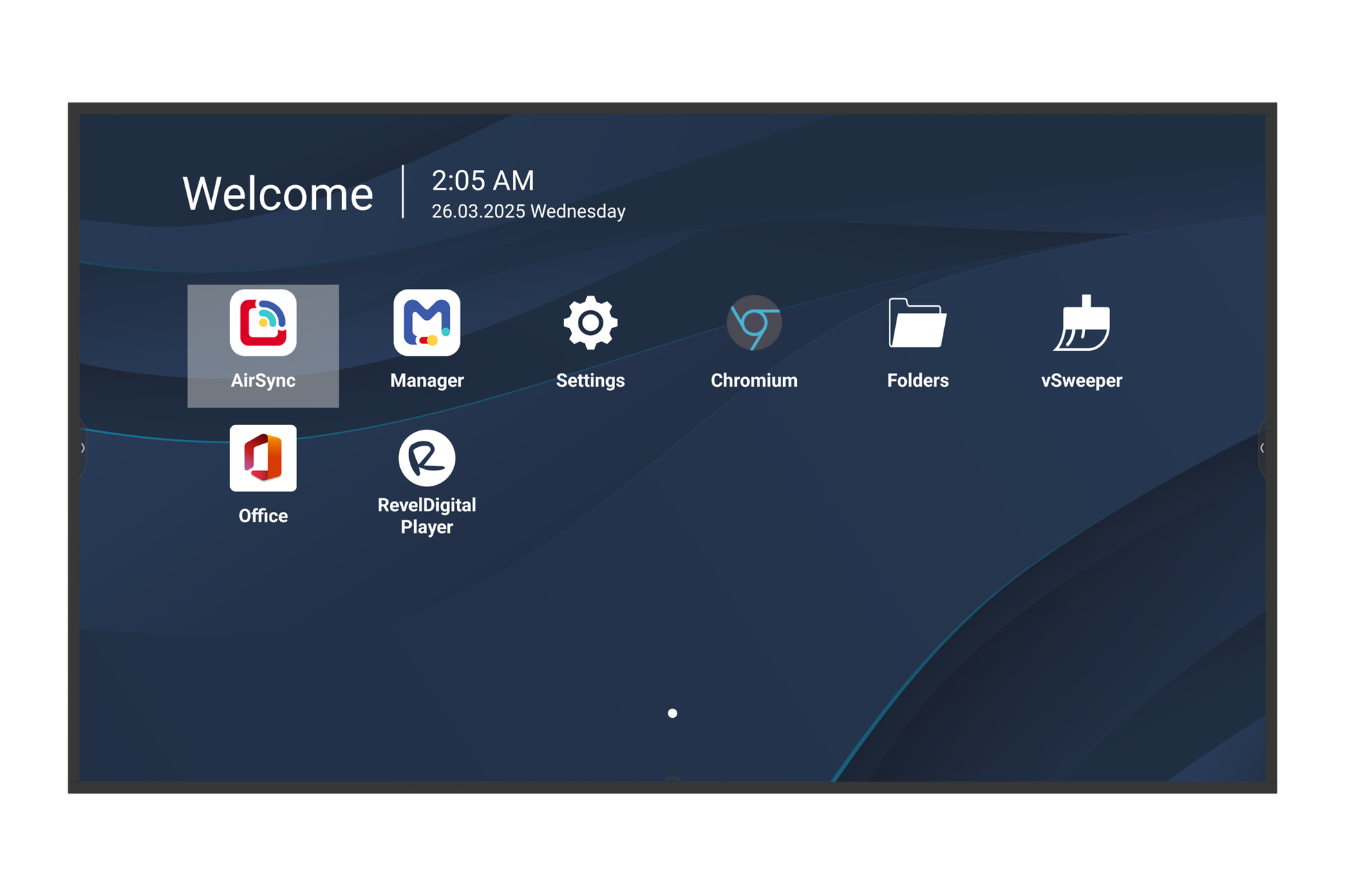

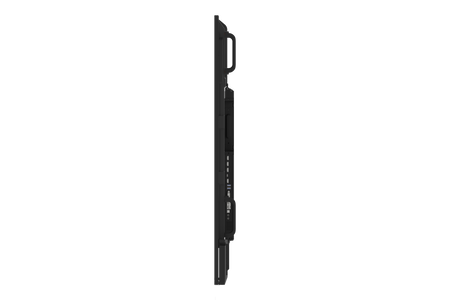

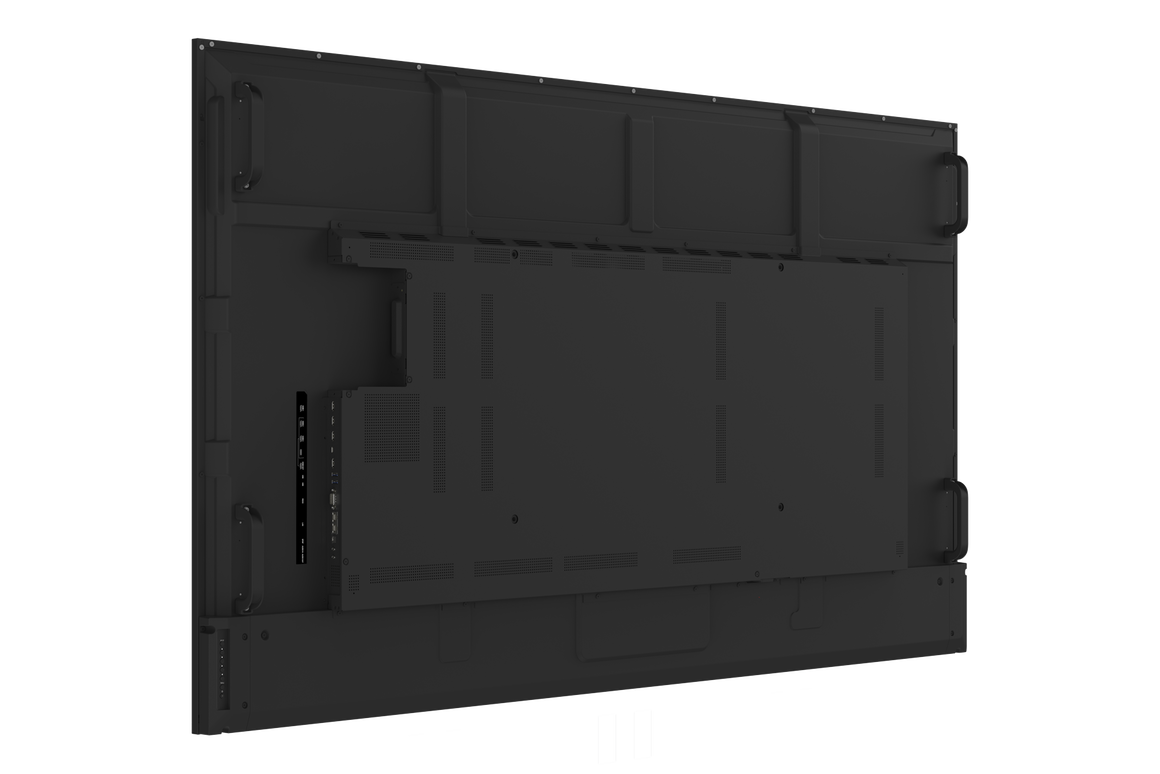

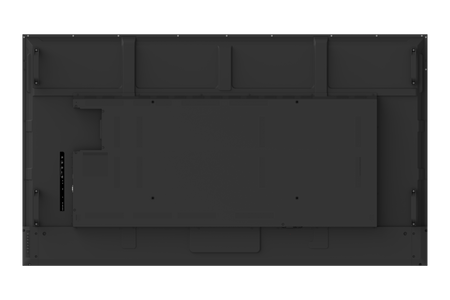

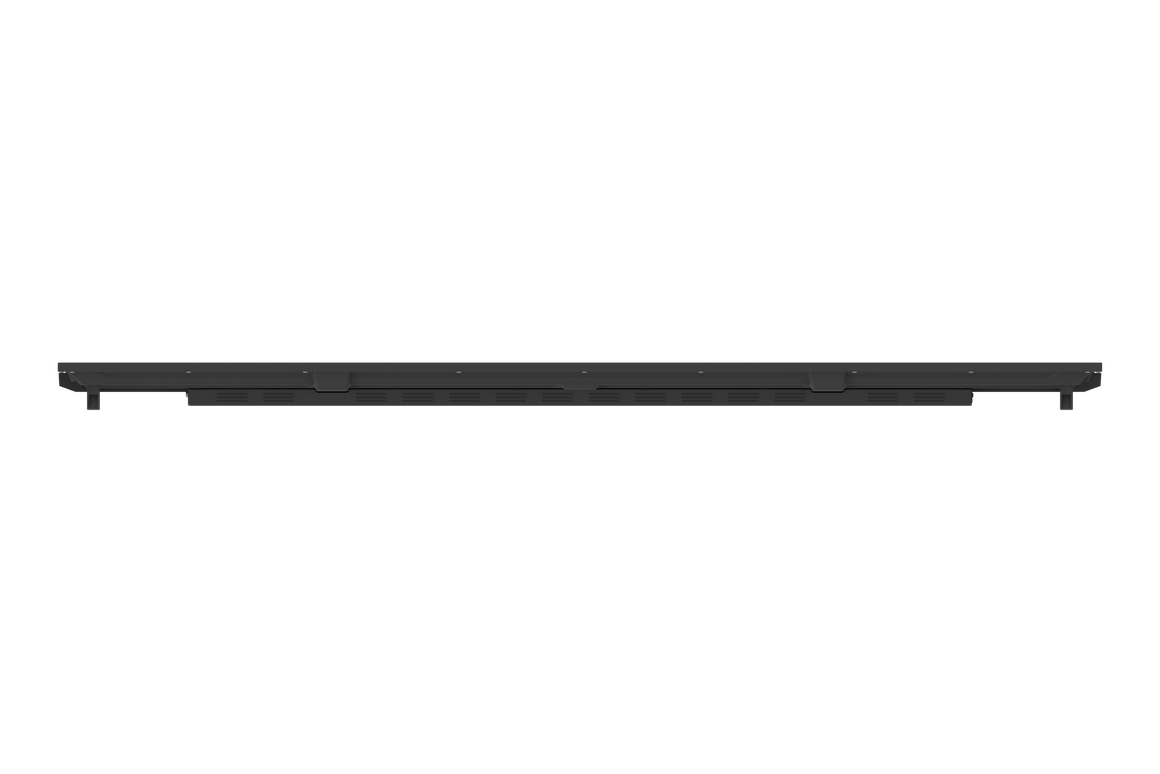

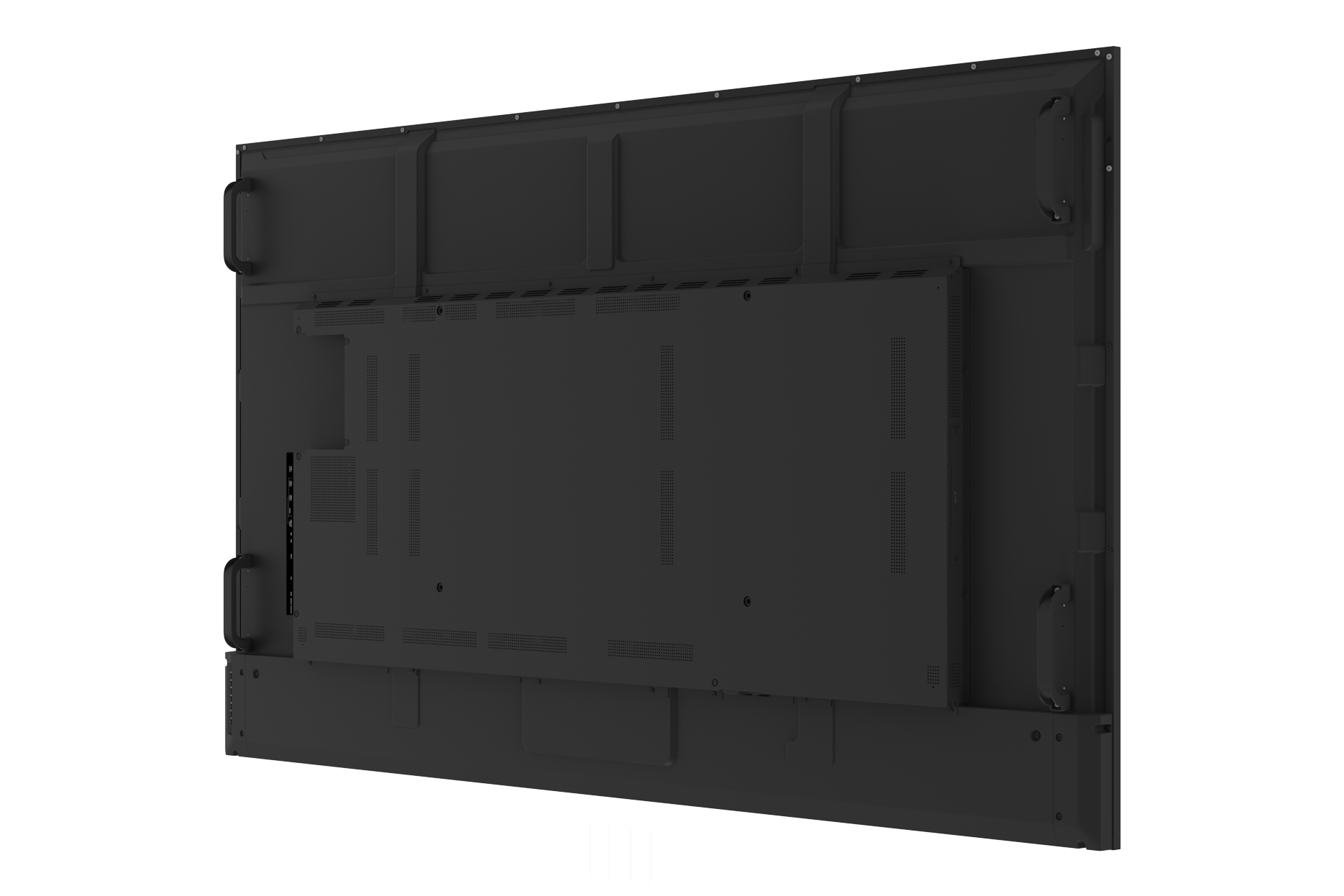

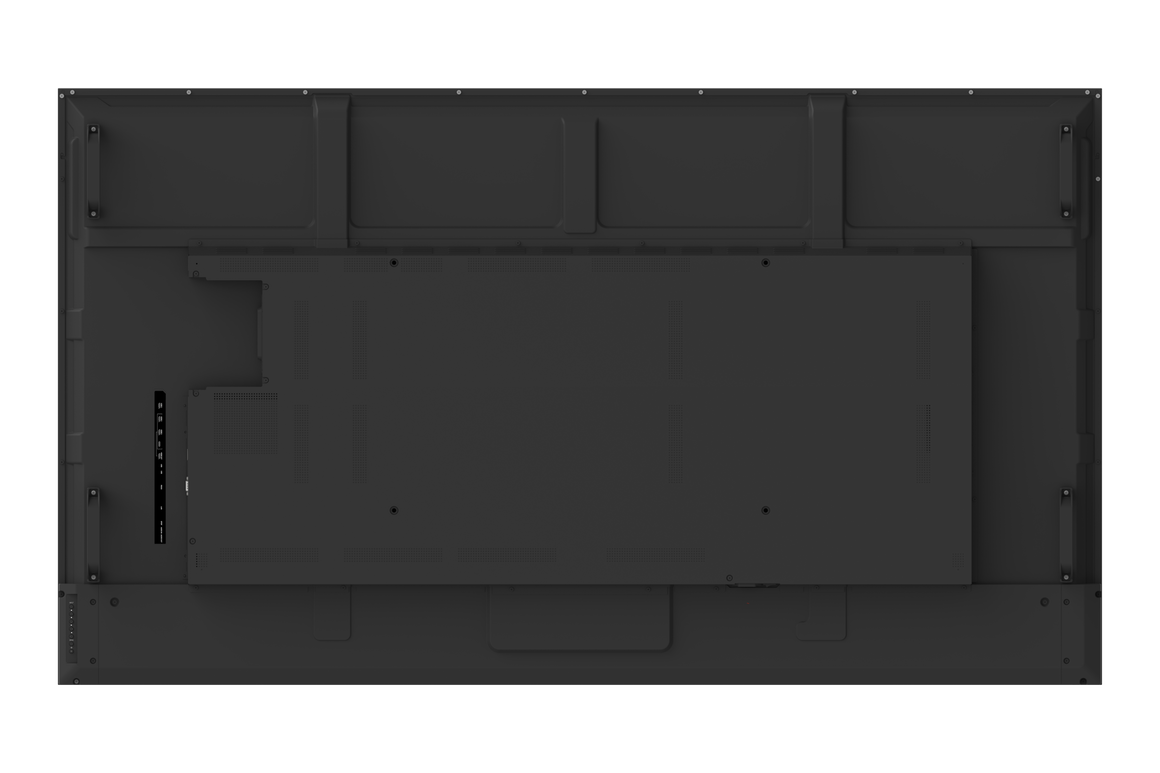

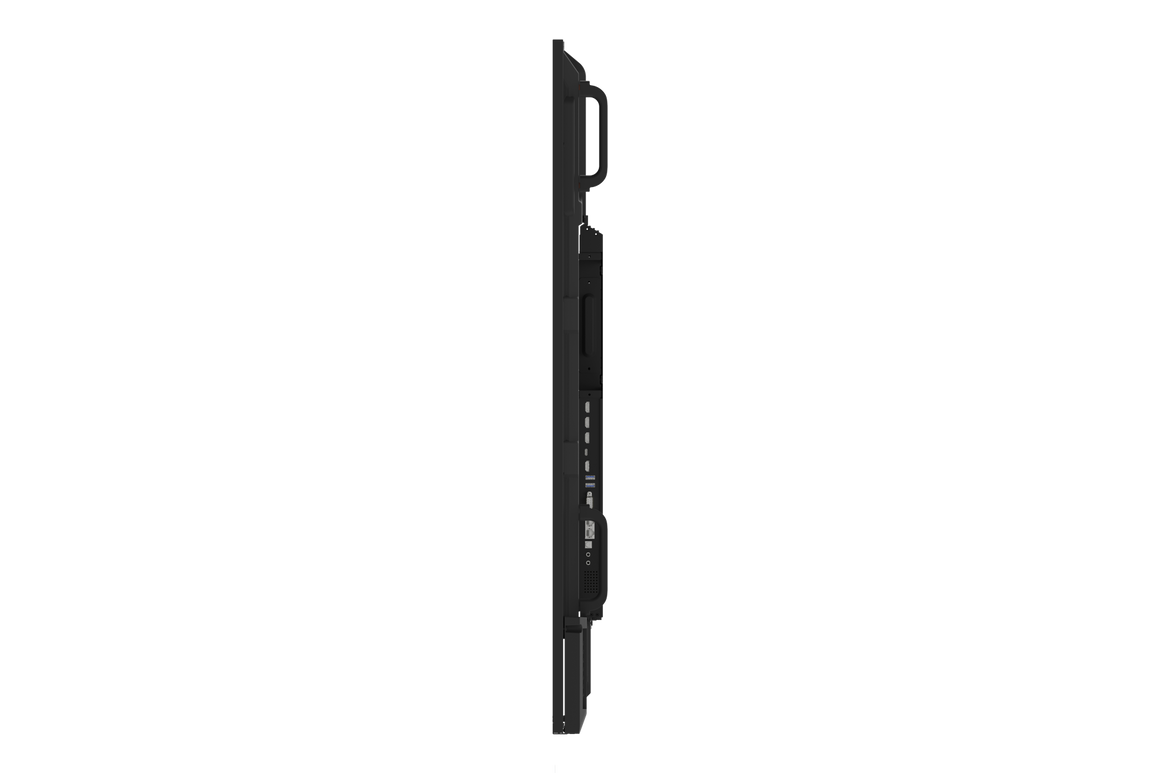

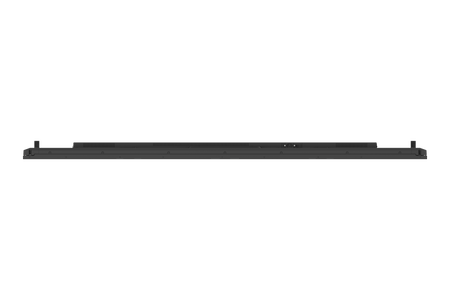

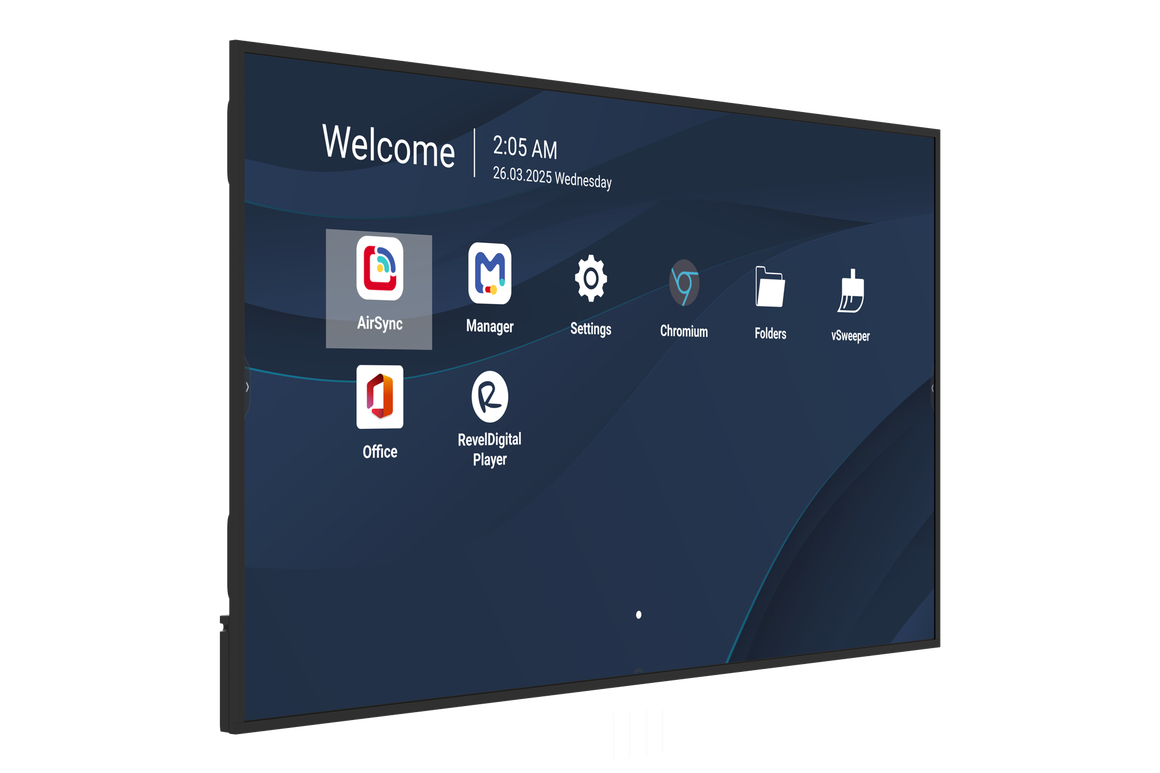

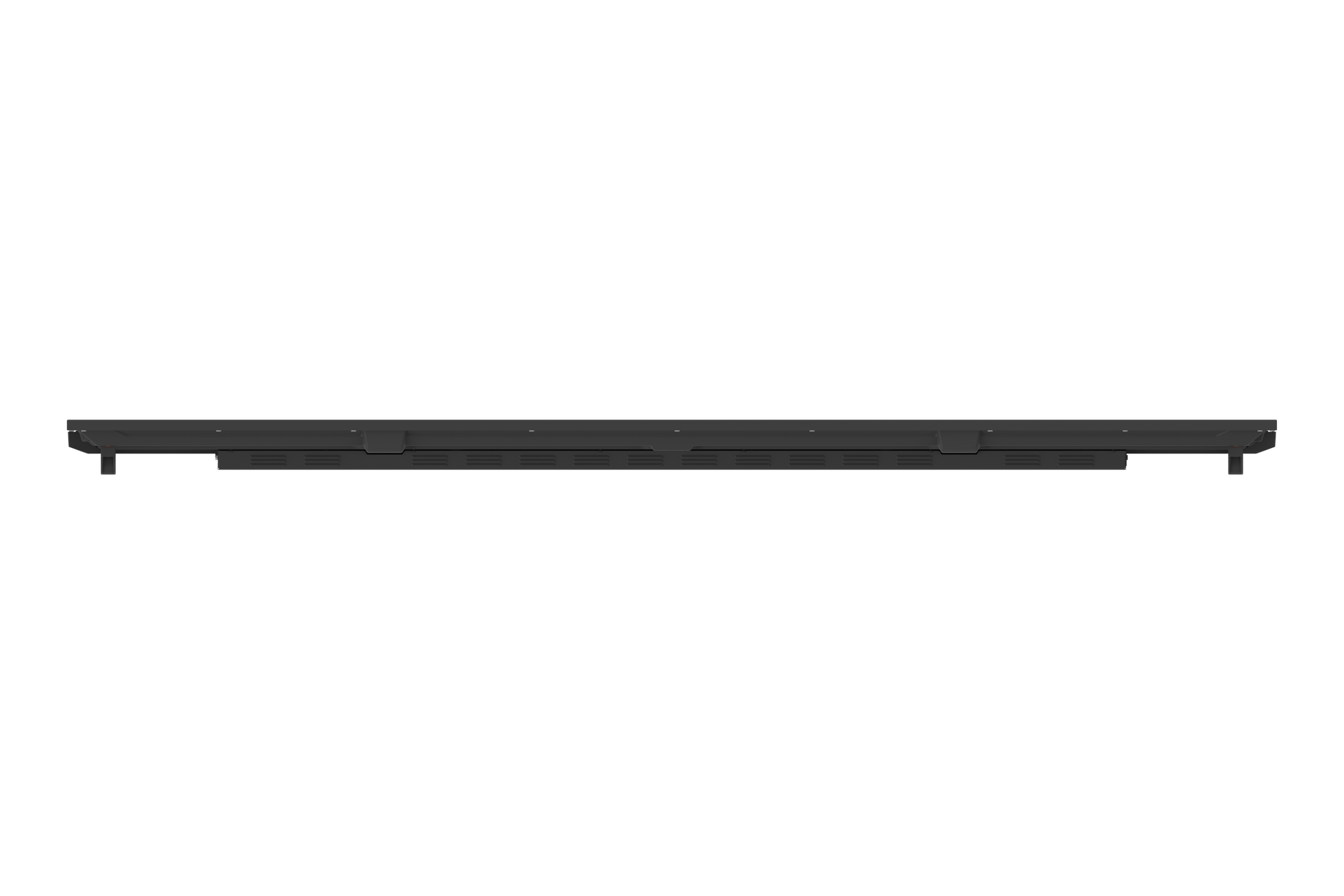

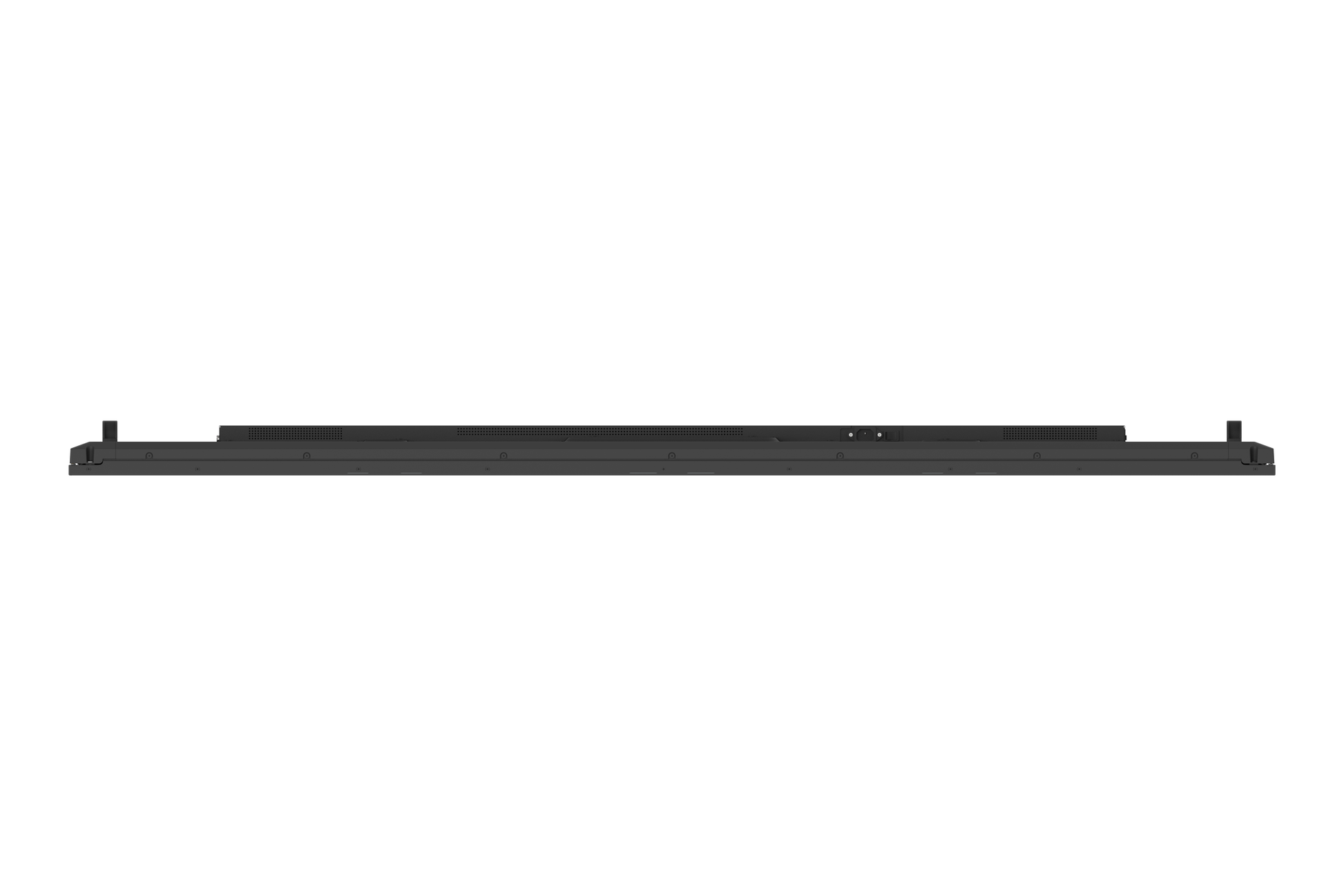

ViewSonic CDE7531-1C 75" Commercial 4K UHD Display
75 inch 4K Professional Commercial Display with ProAV Integration
Secure Checkout
Warranty Protection
Hassle-Free Returns
The ViewSonic CDE7531 is a 75-inch 4K Ultra HD commercial display designed for reliable 24/7 operation across corporate, retail, education, and public venues. It delivers crisp, consistent visuals with native 3840 × 2160 resolution, 500 nits brightness, and wide 178° viewing angles. Powered by Android 14 (AOSP) with an upgrade path to Android 16, the CDE7531 features a Quad-Core ARM Cortex-A73 processor, 8 GB DDR4 RAM, and 32 GB storage for smooth playback and responsive performance. Fast Warm Boot (under 7 seconds), USB media playback with automatic failover, and centralized management via ViewSonic Manager ensure dependable, seamless content delivery.
Key Features
- Native 4K UHD in Any Orientation: 3840 × 2160 resolution, 500 nits brightness, and 178°/178° viewing angles deliver sharp, vivid signage and presentation visuals in landscape or portrait.
- Fast Warm Boot: Starts and launches content in under 7 seconds to minimize downtime.
- Commercial-Grade Reliability: Engineered for 24/7 operation with a 50,000-hour backlight life.
- USB Playback & Automatic Failover: Keeps signage running by switching to USB media if the primary signal is interrupted.
- ProAV Integration & Centralized Control: RS232, LAN (in/out), OPS slot, and web-based UI with ViewSonic Manager for remote configuration, monitoring, and scheduling.
- Comprehensive Connectivity: HDMI 2.0 × 3 (HDMI 1 with ARC), USB-A × 2 (USB 2.0 + USB 3.2 Gen 1), USB-C (DP 1.2 with PD 65 W/15 W and Ethernet sharing), RS-232, SPDIF, RJ45 × 2 (LAN In/Out), OPS slot, and Wi-Fi slot.
- Integrated Audio: Dual 16 W speakers deliver clear, room-filling sound without external amplification.

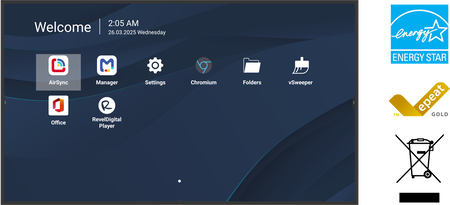

- Energy Efficient: ENERGY STAR 8.0 with typical power consumption of 89.19 W for sustainable 24/7 use.
Specifications
| Screen Size | 75 inches (diagonal) |
| Display Type | TFT LCD module with DLED backlight |
| Display Area (W × H) | 1650.24 × 928.26 mm (74.6″ diagonal) |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16:9 |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1,200:1 (typ.) / 5,000:1 (DCR enabled) |
| Response Time | 6.5 ms |
| Viewing Angle | 178° (H) / 178° (V) typ. |
| Backlight Life | 50,000 hours |
| Surface Treatment | Anti-glare, 3H hardness, 25% haze |

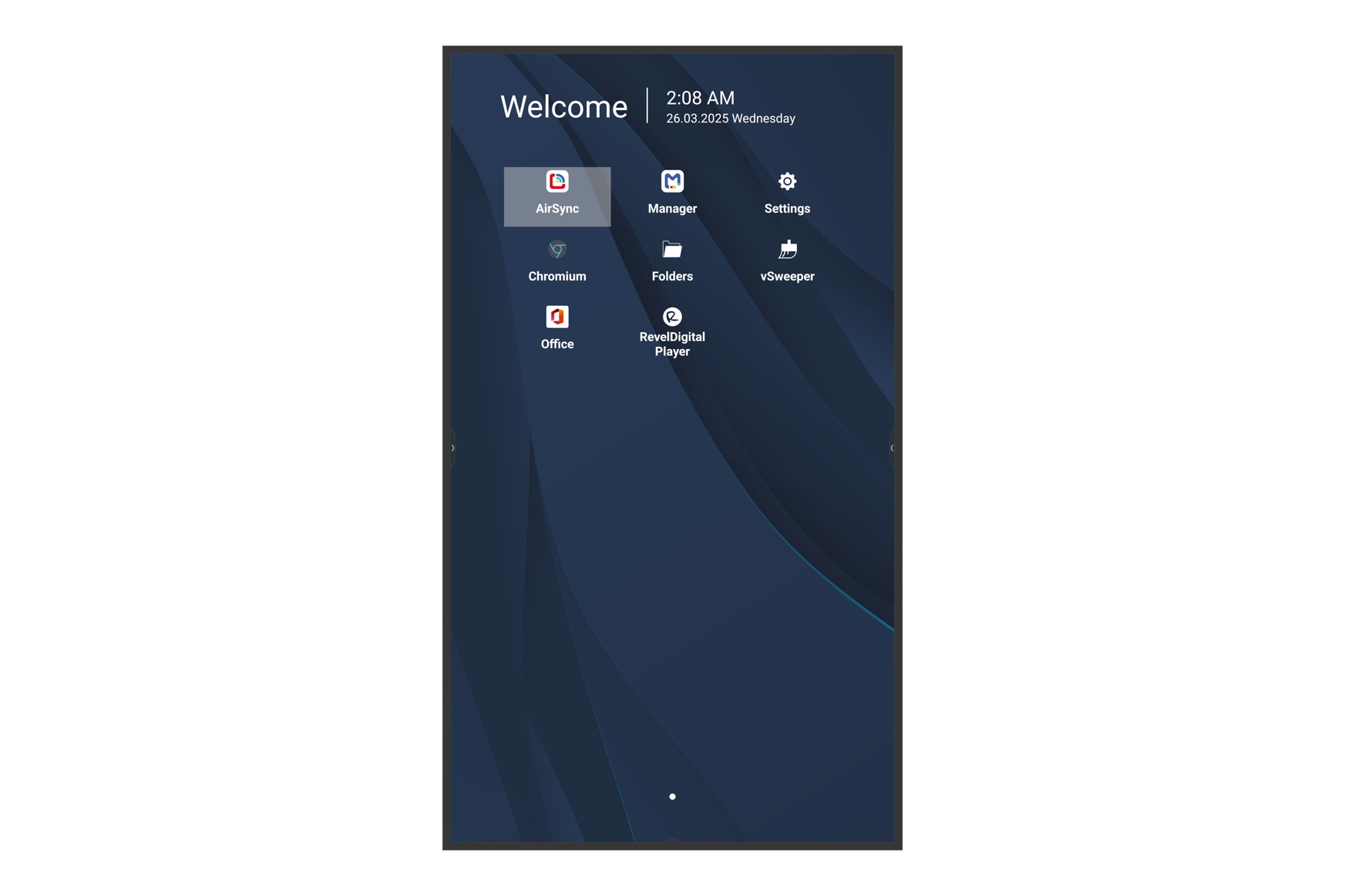

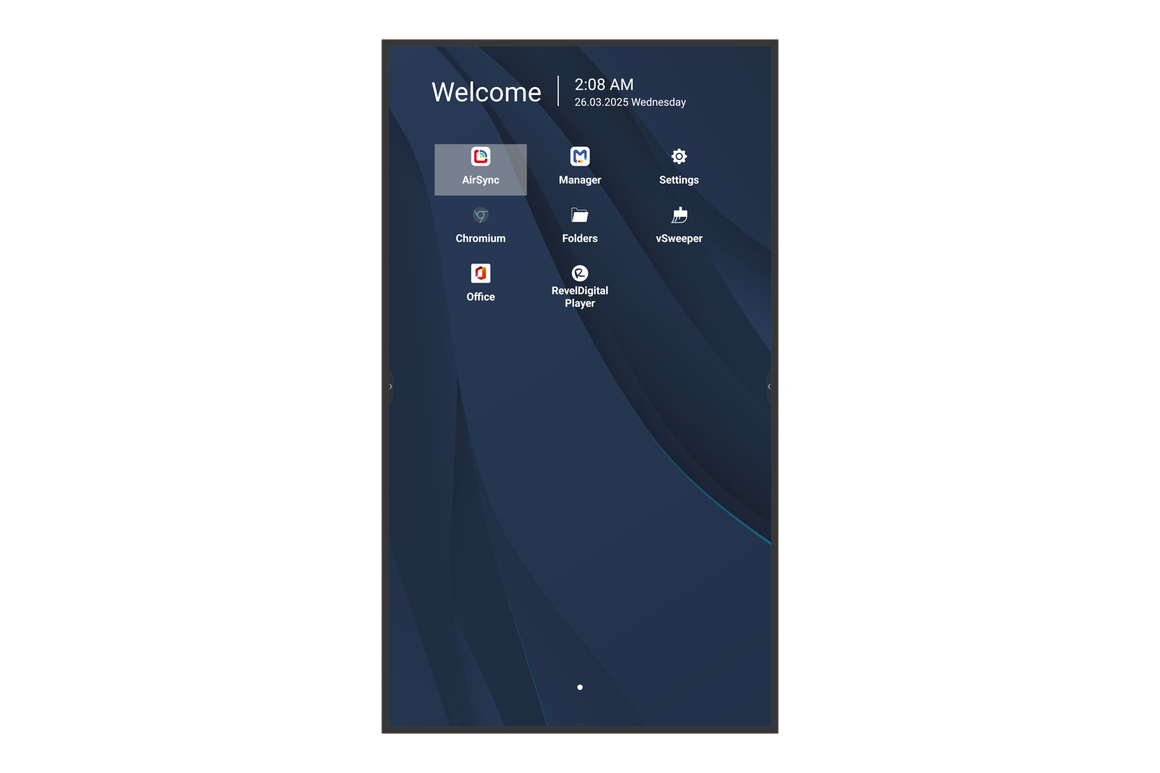

| Orientation | Landscape & Portrait |
| Processor | Quad-Core ARM Cortex-A73 |
| Memory / Storage | 8 GB DDR4 / 32 GB |

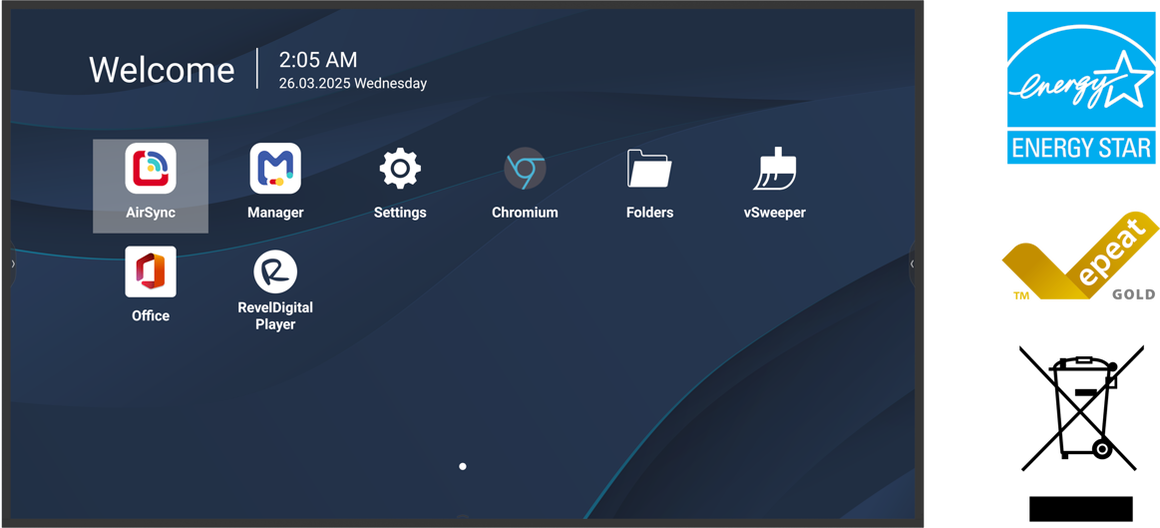

| Embedded OS | Android 14 (AOSP), upgradeable to Android 16 |
| Inputs | HDMI × 3 (HDMI 2.0 @ 60 Hz; HDMI 1 with ARC), Audio In (3.5 mm) × 1, RS-232 × 1, OPS slot × 1, Wi-Fi slot × 1 |
| Outputs | HDMI × 1, SPDIF × 1, Audio Out (3.5 mm) × 1, RJ45 (LAN In/Out) × 2 (10/100 M; 1000 M for OPS) |
| USB Ports | USB-A × 2 (USB 2.0 + USB 3.2 Gen 1), USB-C × 1 (PD 65 W / 15 W with OPS, DP 1.2 + USB 2.0 + 10/100 M sharing) |
| Speakers | 16 W × 2 |
| Power Supply | 100 – 240 V AC ± 10 %, 50 / 60 Hz |
| Power Consumption | 89.19 W (typical, ENERGY STAR 8.0) |

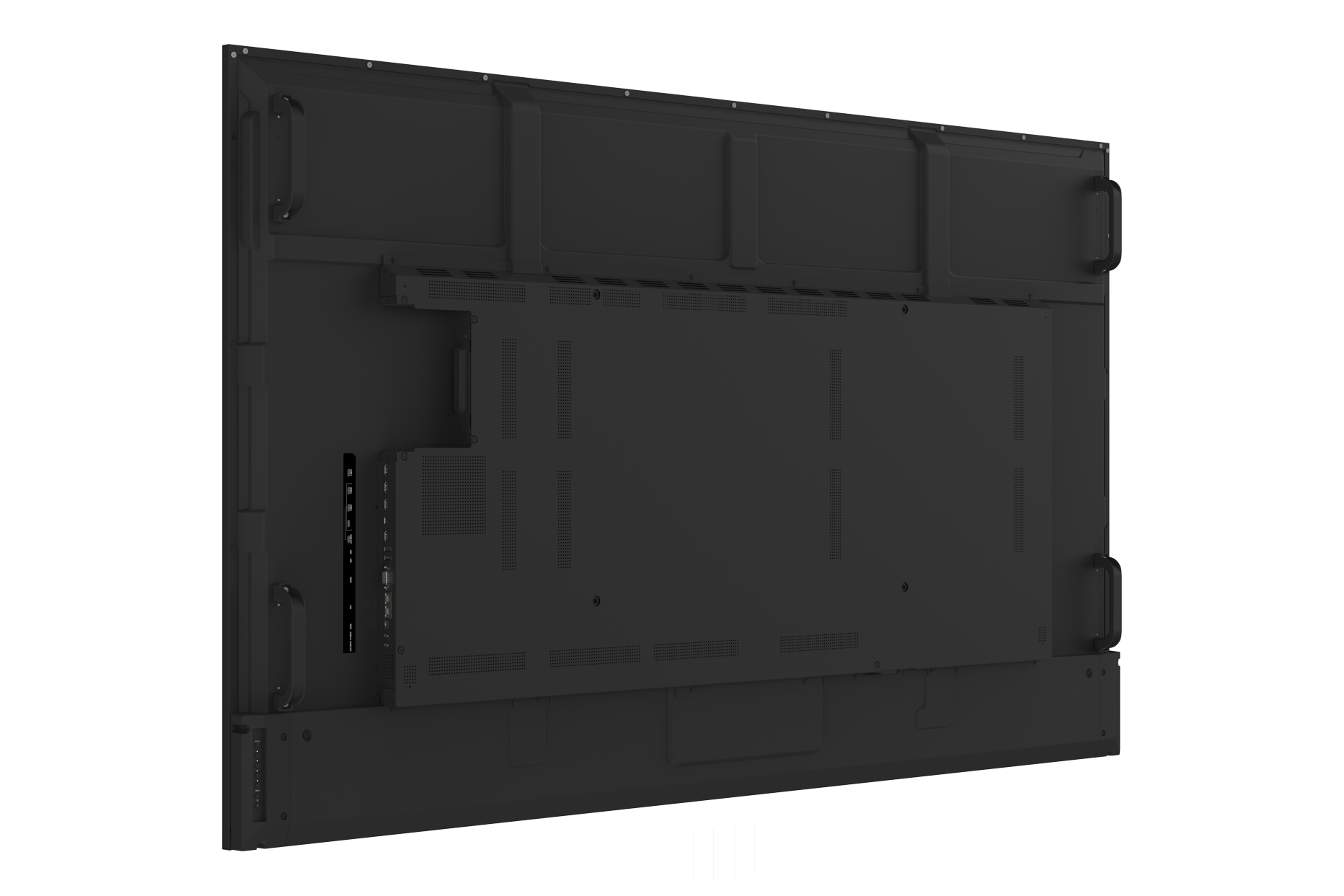

| Mounting (VESA) | 600 × 400 mm |
| Operating Conditions | 0 – 40 °C; 20 – 80 % RH (non-condensing) |
| Operating Hours | 24 / 7 continuous operation |
| Dimensions (W × H × D) | 1685.6 × 963.7 × 68 mm (66.36 × 37.94 × 2.68 in) |
| Weight | Net 34.15 kg / Gross 48.44 kg |
| Certifications | ENERGY STAR 8.0, EPEAT Gold, CE, FCC, RoHS, REACH, ErP-Eco, and others |
| Included Accessories | 3 m power cord, remote control, 2 × AAA batteries, Quick Start Guide, RS-232 adapter, 4 × wall-mount screws, 5 × clamps, 3 m HDMI cable (LA certified), compliance statement |
Application Examples
| Corporate & Meeting Rooms | Deliver sharp 4K presentations and signage with fast warm-boot and centralized device management. |
| Retail & Public Spaces | Showcase vivid promotions with continuous 24/7 reliability and USB failover assurance. |
| Transport & Information Hubs | Present real-time updates and wayfinding with excellent visibility and durable operation. |
| Education & Hospitality | Enable engaging 4K learning and information displays in classrooms, lobbies, and training spaces. |
The ViewSonic CDE7531 combines brilliant 4K performance, proven 24/7 reliability, and ProAV-ready integration in a modern, energy-efficient design—ideal for organizations that need dependable, high-impact visual communication.
