SKU: CDE8614

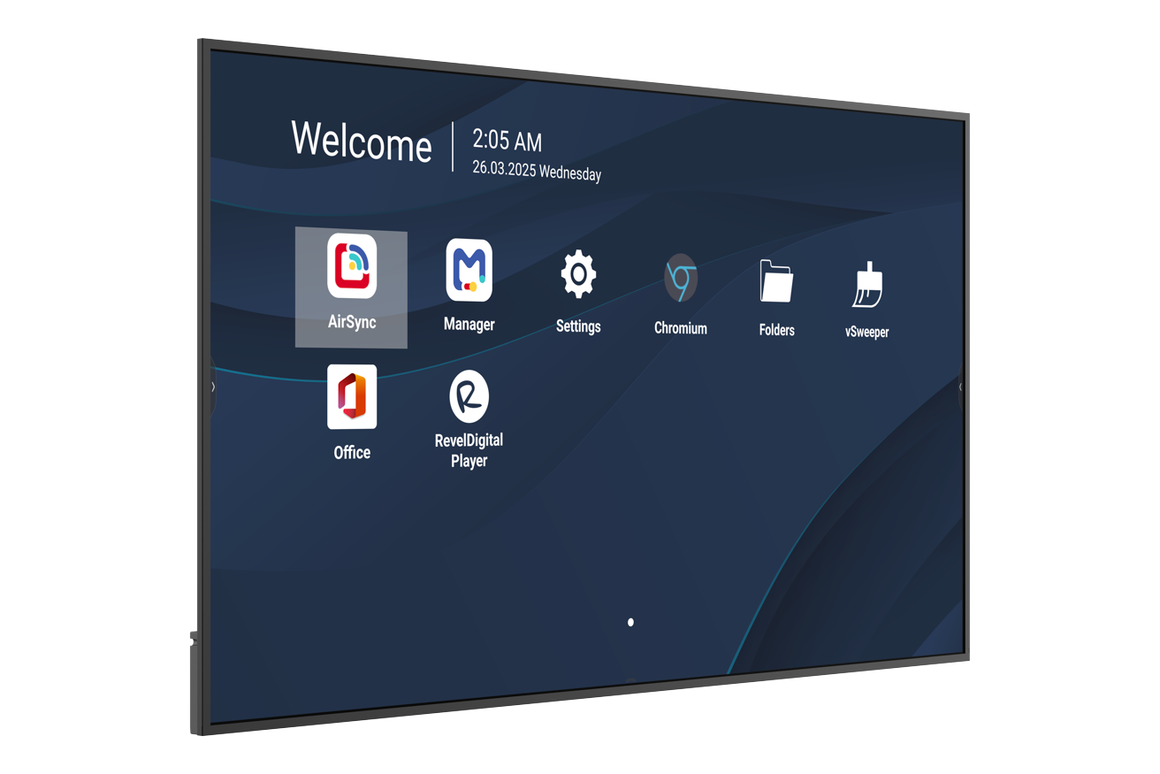

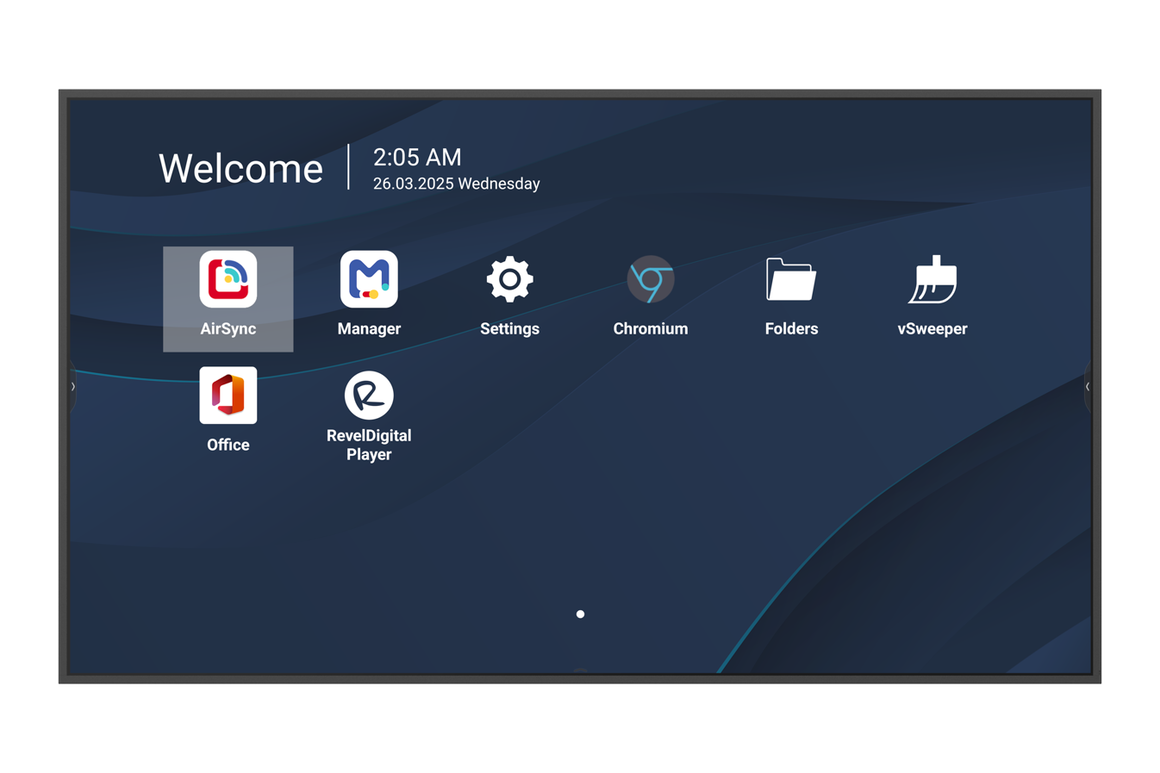

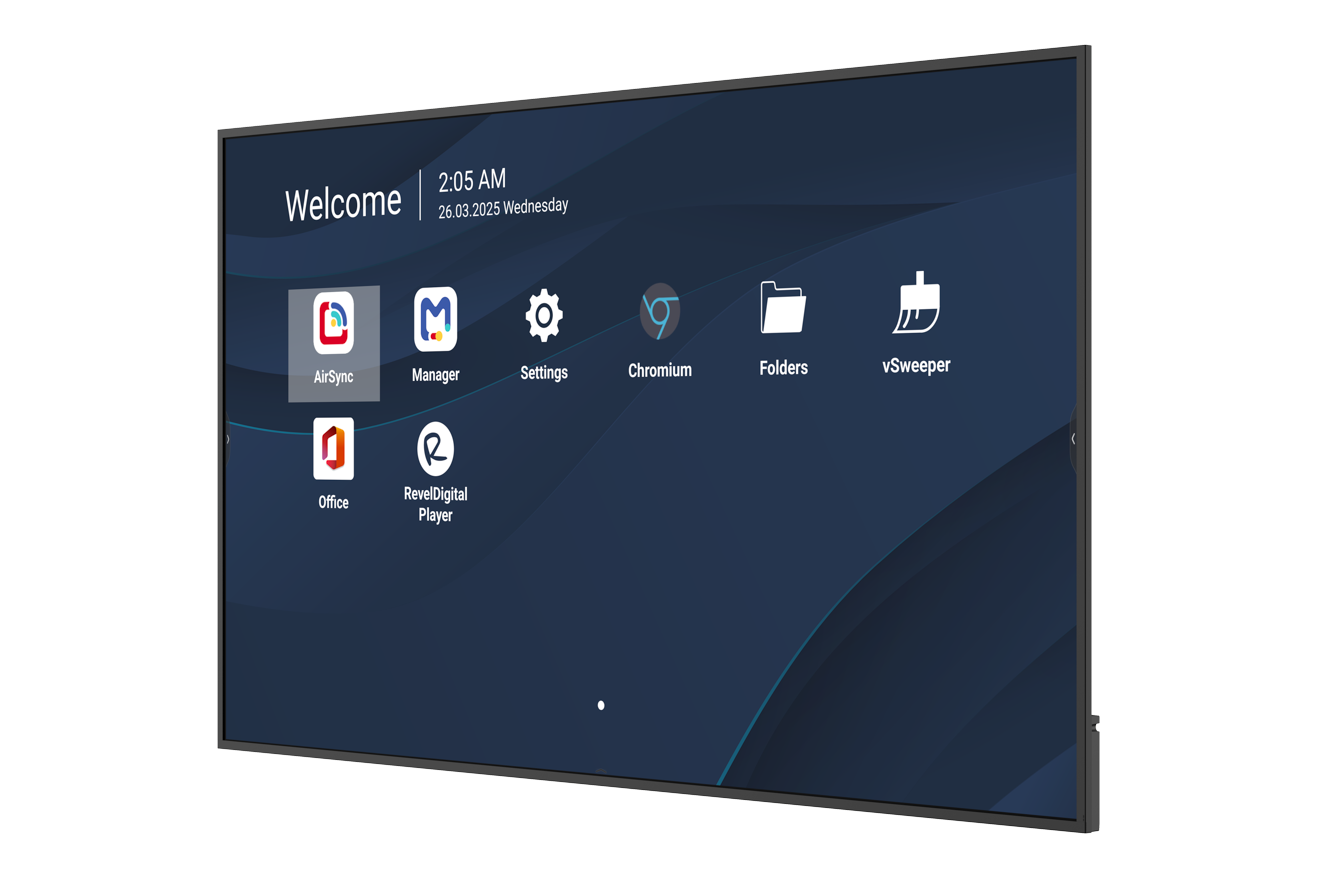

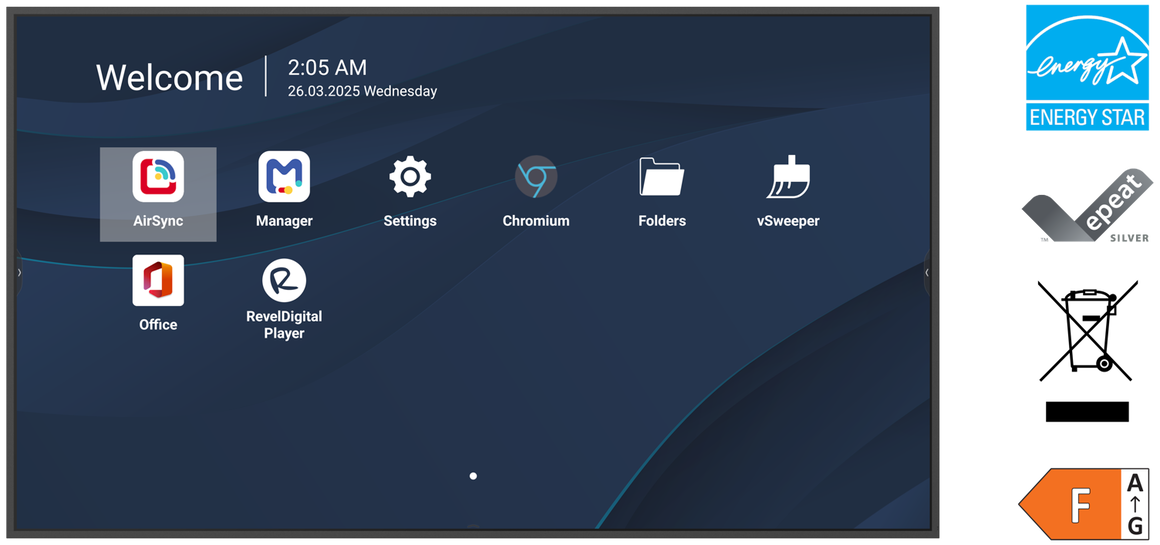

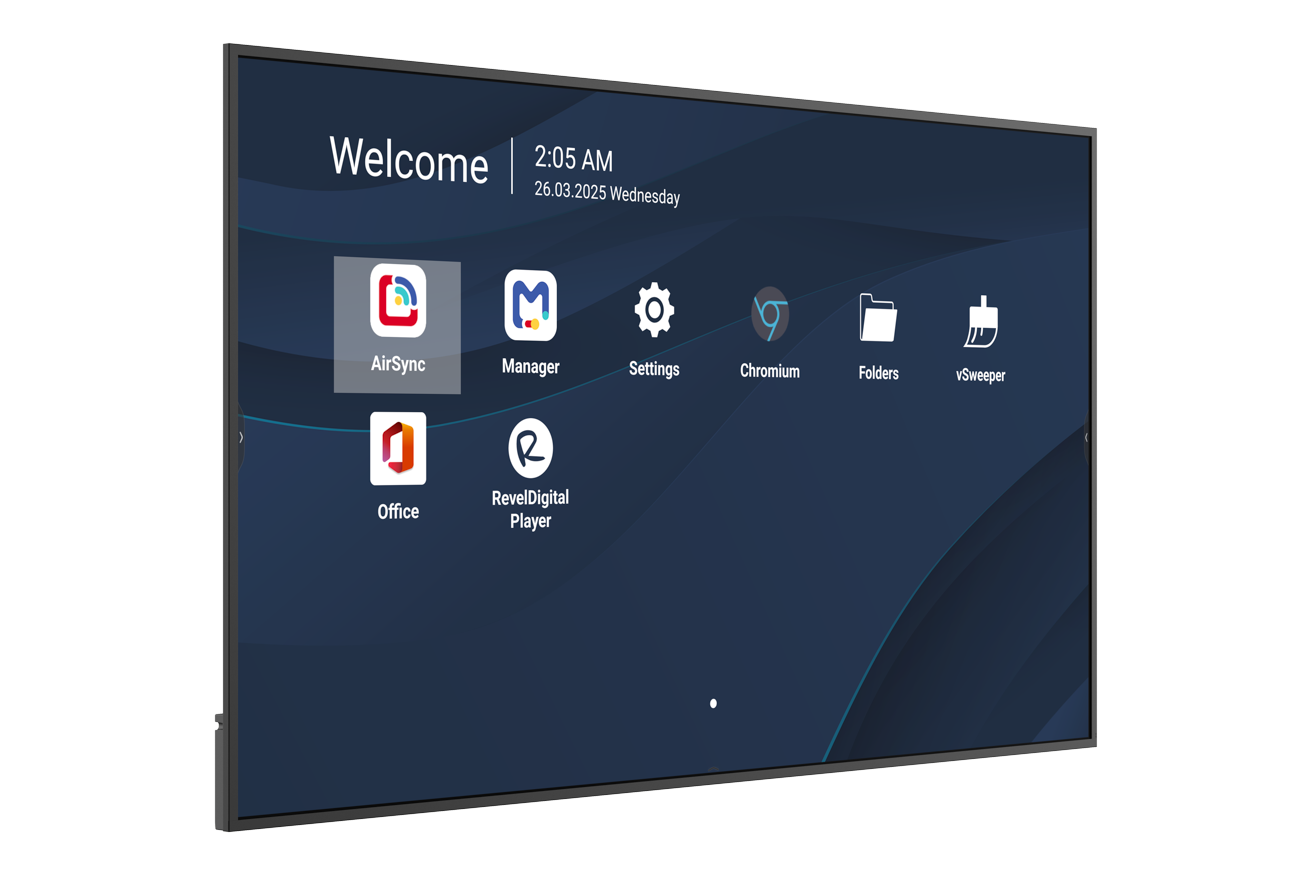

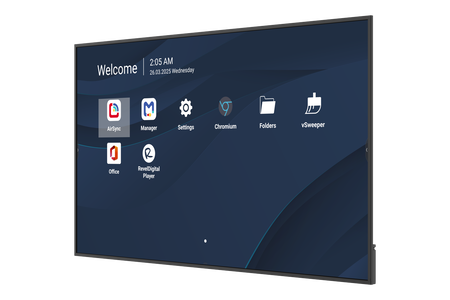

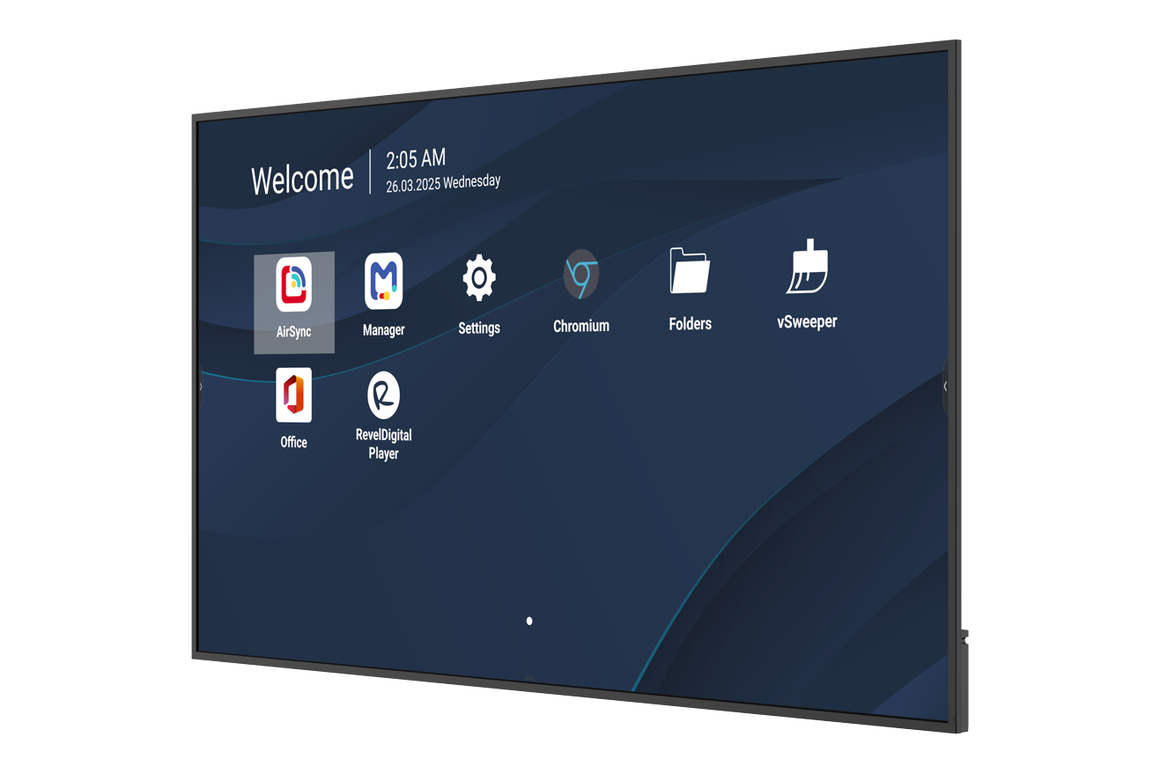

ViewSonic CDE8614-2C 86" Commercial 4K UHD Display

ViewSonic

86 inch 4K Commercial Display with ProAV Integration

The ViewSonic CDE8614-2C is an 86-inch commercial-grade 4K UHD display engineered for continuous 24/7 operation in business, retail, and transport environments. Powered by Android 14 (AOSP) with upgrade support to Android 16, it features a quad-core ARM Cortex-A73 processor, 4 GB DDR4 RAM, and 32 GB storage for fast warm-boot start-up in under seven seconds and reliable performance. Delivering 500 nits brightness, a 1 200 : 1 (static) / 2 000 : 1 (DCR) contrast ratio, and wide 178° viewing angles, the CDE8614-2C provides crisp, professional-grade visuals in both landscape and portrait orientations. USB media playback with automatic signal failover, ProAV integration, and centralised remote management via ViewSonic Manager make it a dependable and efficient signage solution for modern commercial applications.

Key Features

  • Quad-Core SoC Performance: Powered by an ARM Cortex-A73 processor with 4 GB DDR4 RAM and 32 GB storage for smooth multitasking, fast start-up, and stable 4K playback.
  • Brilliant 4K UHD Clarity: 3840 × 2160 resolution, 500 nits brightness, and a 1 200 : 1 contrast ratio deliver vivid, high-detail imagery for signage and presentations.
  • Flexible Orientation: Supports both landscape and portrait installations to accommodate a wide range of commercial display set-ups.
  • Continuous 24/7 Operation: Designed for round-the-clock use with a 50 000-hour backlight life, ensuring reliable performance for corporate and public applications.
  • Comprehensive Connectivity: Includes HDMI 2.1 × 3 (HDMI 3 with ARC), USB-A × 2 (USB 2.0), USB-C ( DP 1.2, 15 W PD, Ethernet sharing ), RS-232, SPDIF, RJ45 LAN, and Wi-Fi slot for flexible integration.
  • USB Playback with Signal Failover: Automatically switches to USB media playback when the main signal source is interrupted, maintaining uninterrupted content delivery.
  • ProAV Integration & Remote Management: Compatible with leading AV control systems and ViewSonic Manager software for centralised configuration, scheduling, and network monitoring.
  • Integrated Speakers: Dual 10 W speakers deliver clear audio output for multimedia presentations and public announcements without external amplification.

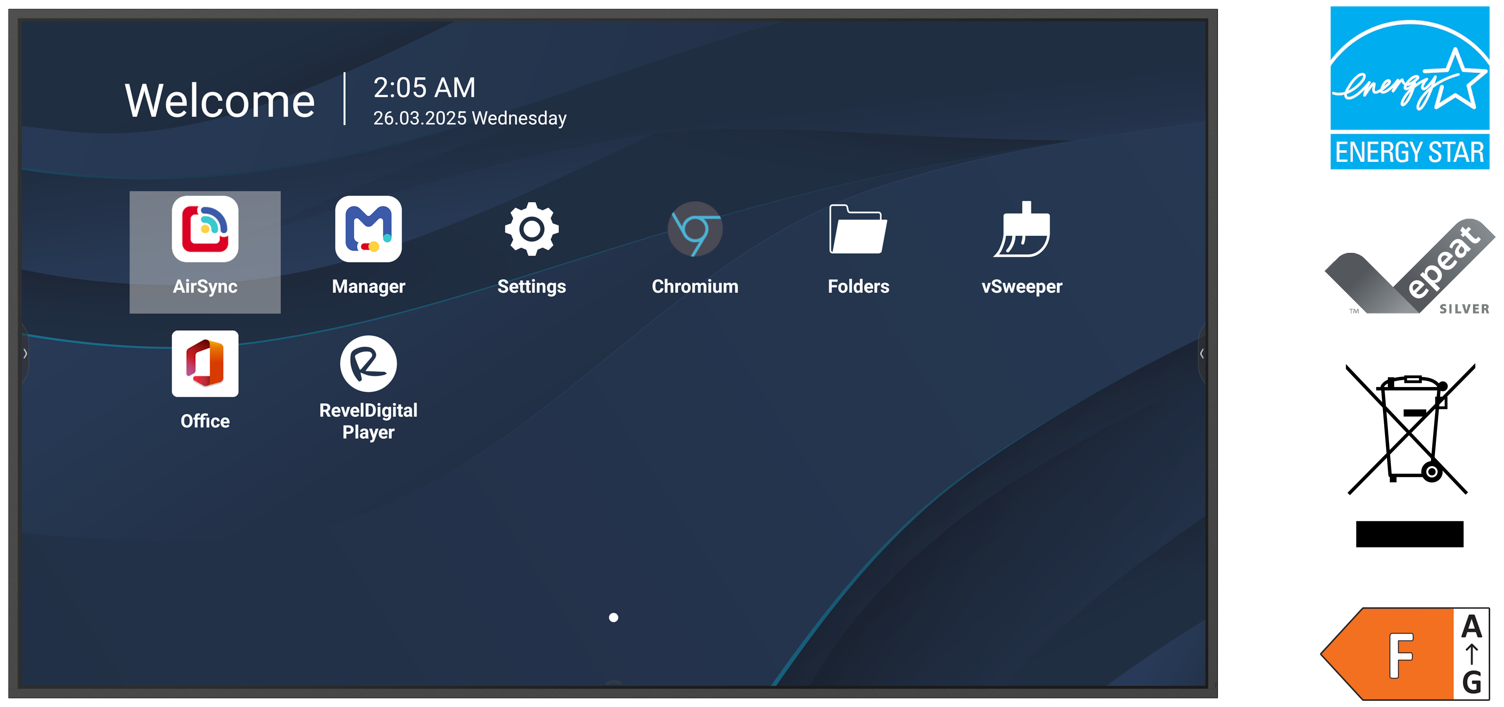

  • Energy-Efficient Design & Certifications: ENERGY STAR 8.0 and EPEAT Silver certified with typical power consumption of 120.95 W, supporting sustainable, long-term operation.

The ViewSonic CDE8614-2C combines professional-grade 4K image performance, robust 24/7 reliability, and smart management capabilities to meet the demands of modern corporate, retail, and public display environments. Its ProAV-ready connectivity and Android-based platform deliver seamless control, while its energy-efficient design ensures long-term value for business installations.

In stock
£1,310.40

Secure Checkout

Warranty Protection

Hassle-Free Returns

The ViewSonic CDE8614-2C is an 86-inch commercial 4K UHD display built for 24/7 operation in corporate, retail, education, and transport environments. Equipped with a quad-core ARM Cortex-A73 SoC, 4 GB RAM, and 32 GB storage, it runs Android 14 (upgradable to Android 16) for fast start-up, smooth multitasking, and stable signage performance. With 500 nits of brightness, 1200 : 1 contrast ratio (typ.), and landscape / portrait orientation support, the CDE8614-2C delivers sharp, professional-grade visuals for presentations and digital signage. Its USB playback with signal failover, ProAV integration, and remote management via ViewSonic Manager make it a reliable, energy-efficient display for continuous operation.

Corporate Lobby
Shopping Mall

Key Features

  • Powerful Quad-Core SoC: ARM Cortex-A73 processor with 4 GB RAM and 32 GB storage enables fast warm boot (in under seven seconds) and smooth 4K content playback.
  • Brilliant 4K UHD Display: 3840 × 2160 resolution with 8-bit + FRC colour depth for vivid detail and lifelike clarity.
  • USB Playback with Signal Failover: Ensures continuous content delivery even if the primary signal source is interrupted.

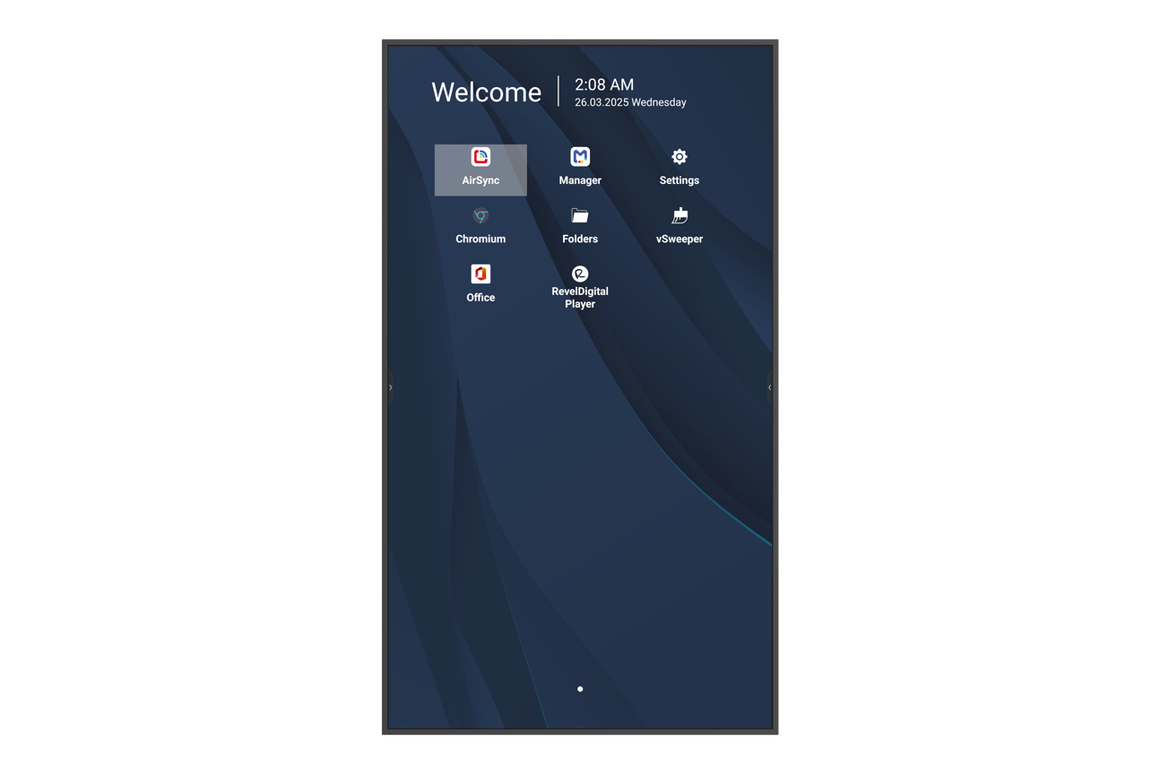

  • Flexible Orientation: Supports both landscape and portrait modes for adaptable installation in different settings.
  • 24 / 7 Operation and 500-Nit Brightness: Ideal for high-traffic environments that demand round-the-clock visibility.
  • Comprehensive Connectivity: HDMI 2.1 × 3 (HDMI 3 with ARC), USB-A × 2, USB-C (DisplayPort 1.2 with 15 W PD), RS-232, SPDIF, and LAN for seamless integration.
  • ProAV Integration & Remote Management: Compatible with leading AV control systems and ViewSonic Manager software for centralised device control and monitoring.
  • Dual 10 W Speakers: Built-in stereo sound delivers clear audio for meetings, retail, and public applications.
  • Energy-Efficient Design: 120.95 W average power consumption (Energy Star certified) and EPEAT Silver compliance for sustainable operation.

Specifications

Screen Size 86 inches (diagonal)
Display Type TFT LCD Module with DLED backlight
Display Area (W × H) 1895.04 × 1065.96 mm
Resolution 3840 × 2160 (4K UHD)
Aspect Ratio 16 : 9
Brightness 500 nits (typical)
Contrast Ratio 1200 : 1 (typ.) / 2000 : 1 (DCR enabled)
Response Time 8 ms
Viewing Angle 178° (H) / 178° (V)
Backlight Life 50 000 hours
Surface Treatment Anti-glare coating, 3H hardness, 25 % haze

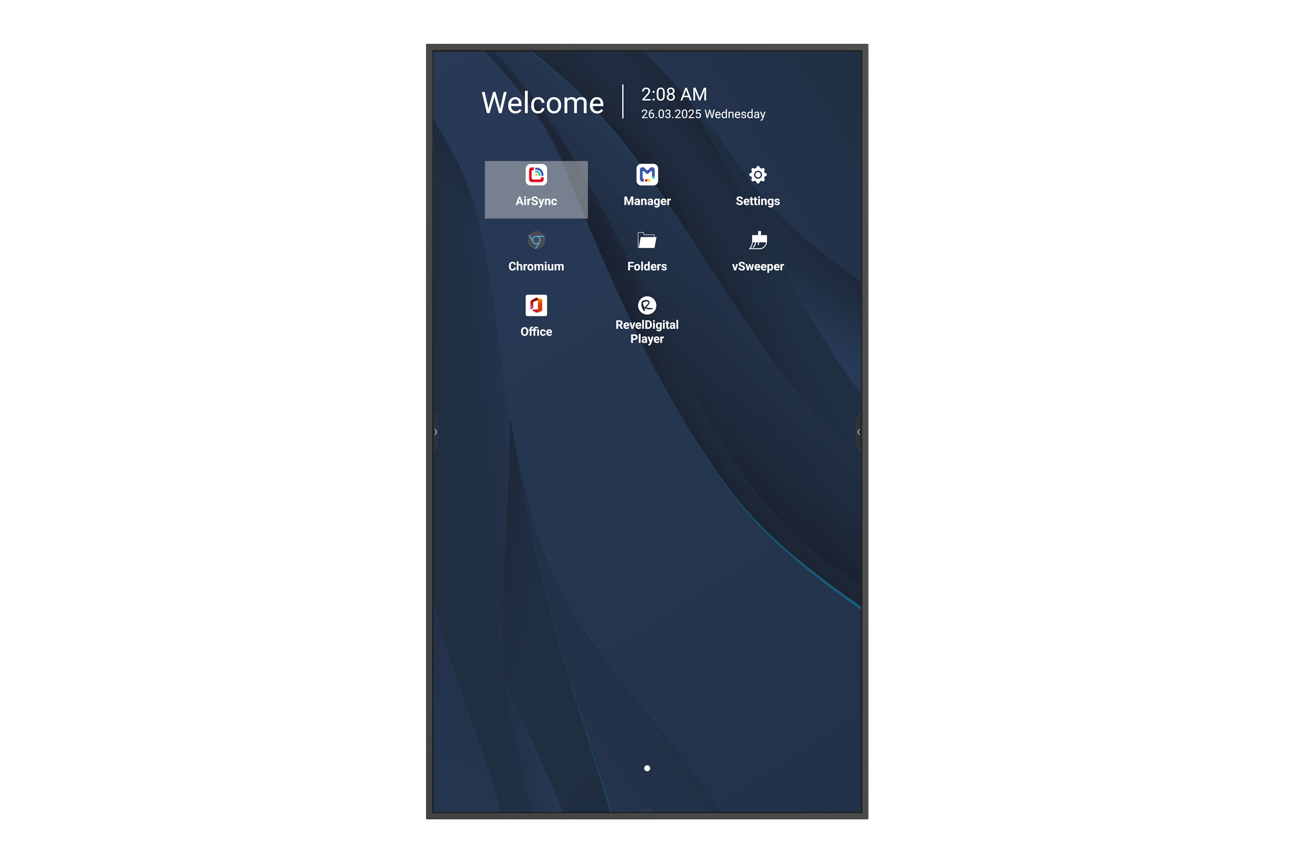

Orientation Landscape and Portrait
Processor Quad-core ARM Cortex-A73
Memory / Storage 4 GB DDR4 / 32 GB Flash
Inputs HDMI × 3 (HDMI 2.1 4K@60 Hz; HDMI 3 supports ARC), RS-232 × 1, Wi-Fi slot × 1
Outputs Audio Out (3.5 mm) × 1, SPDIF × 1, LAN (RJ45 10 / 100 M for USB Type-C) × 1
USB Ports USB-A × 2 (USB 2.0), USB-C × 1 (DP 1.2, USB 2.0, 15 W PD, Ethernet sharing, Smart USB)
Speakers 2 × 10 W
Embedded OS Android 14 AOSP (upgradeable to Android 16)

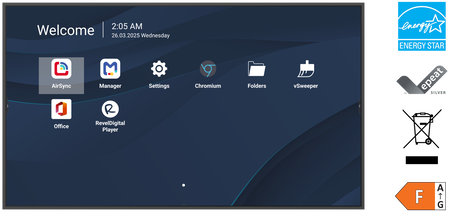

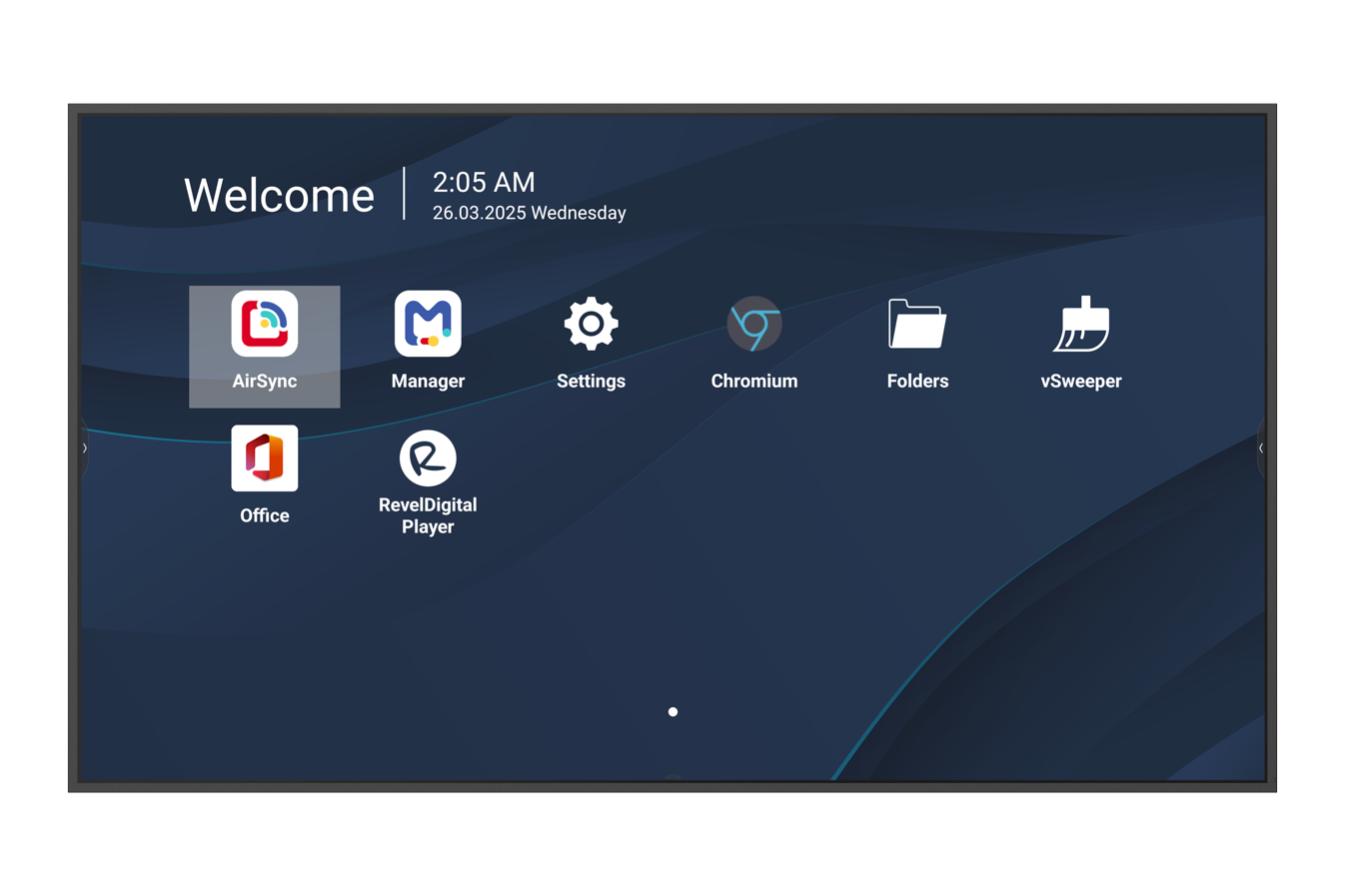

Bundled Software AirSync (Wireless Presentation), ViewSonic Manager (Device Management), ViewSonic Launcher
Power Supply 100–240 V AC ± 10 %, 50/60 Hz
Power Consumption 120.95 W (Energy Star certified)

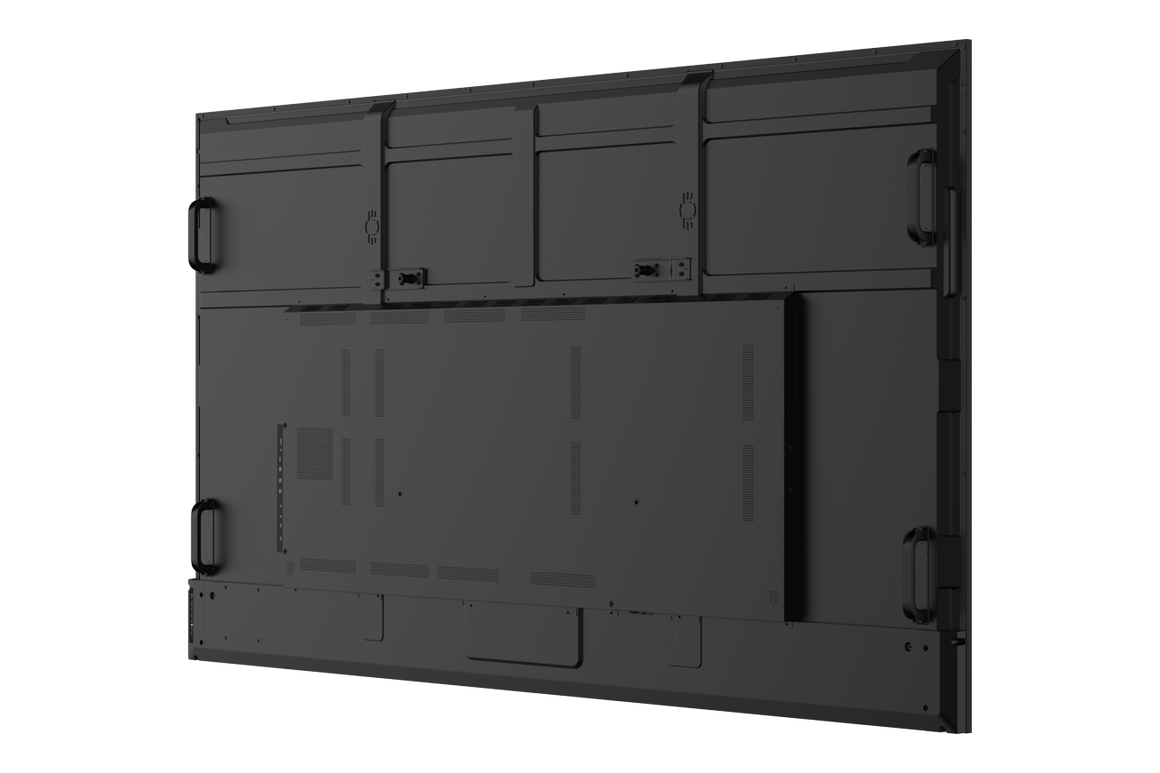

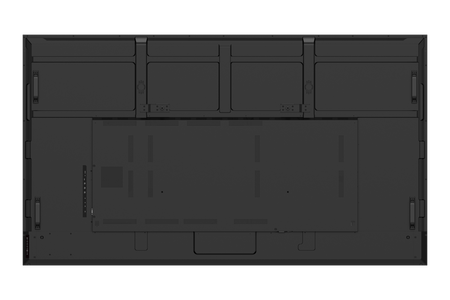

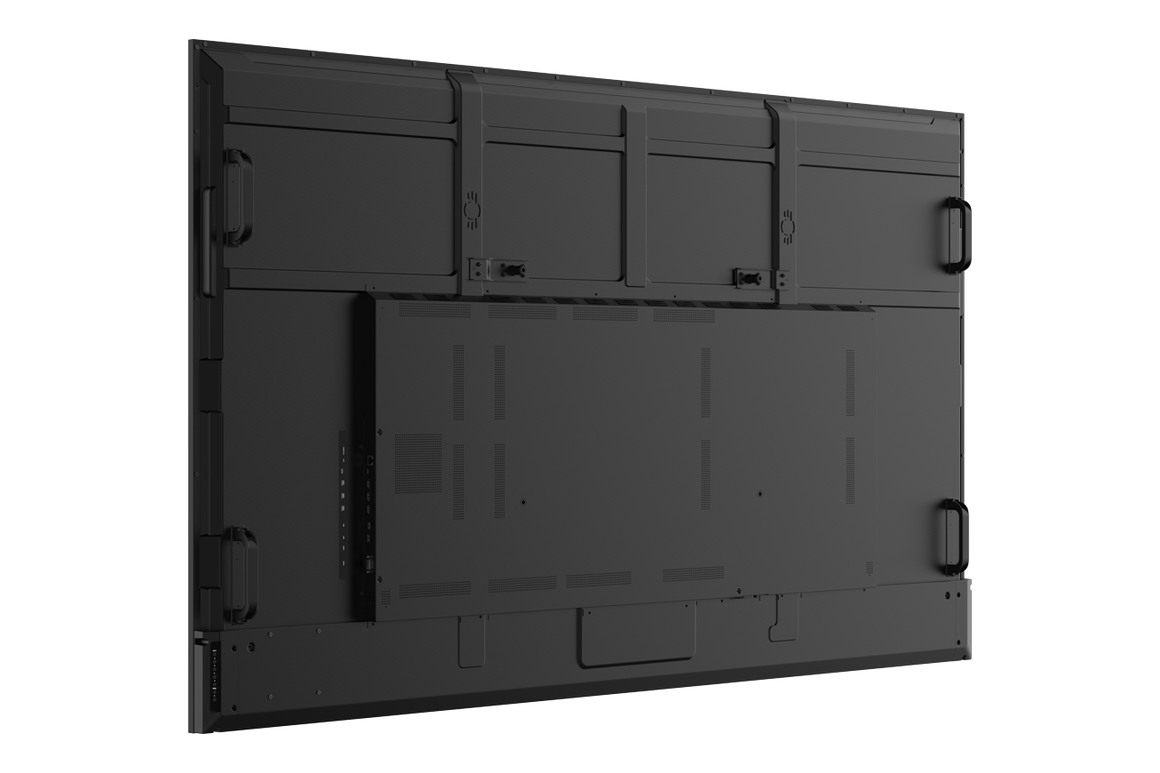

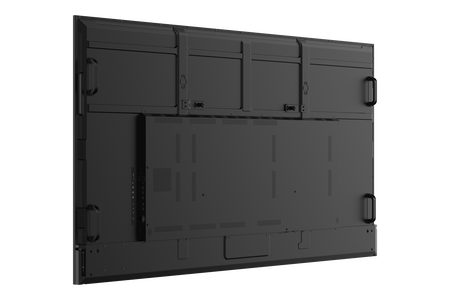

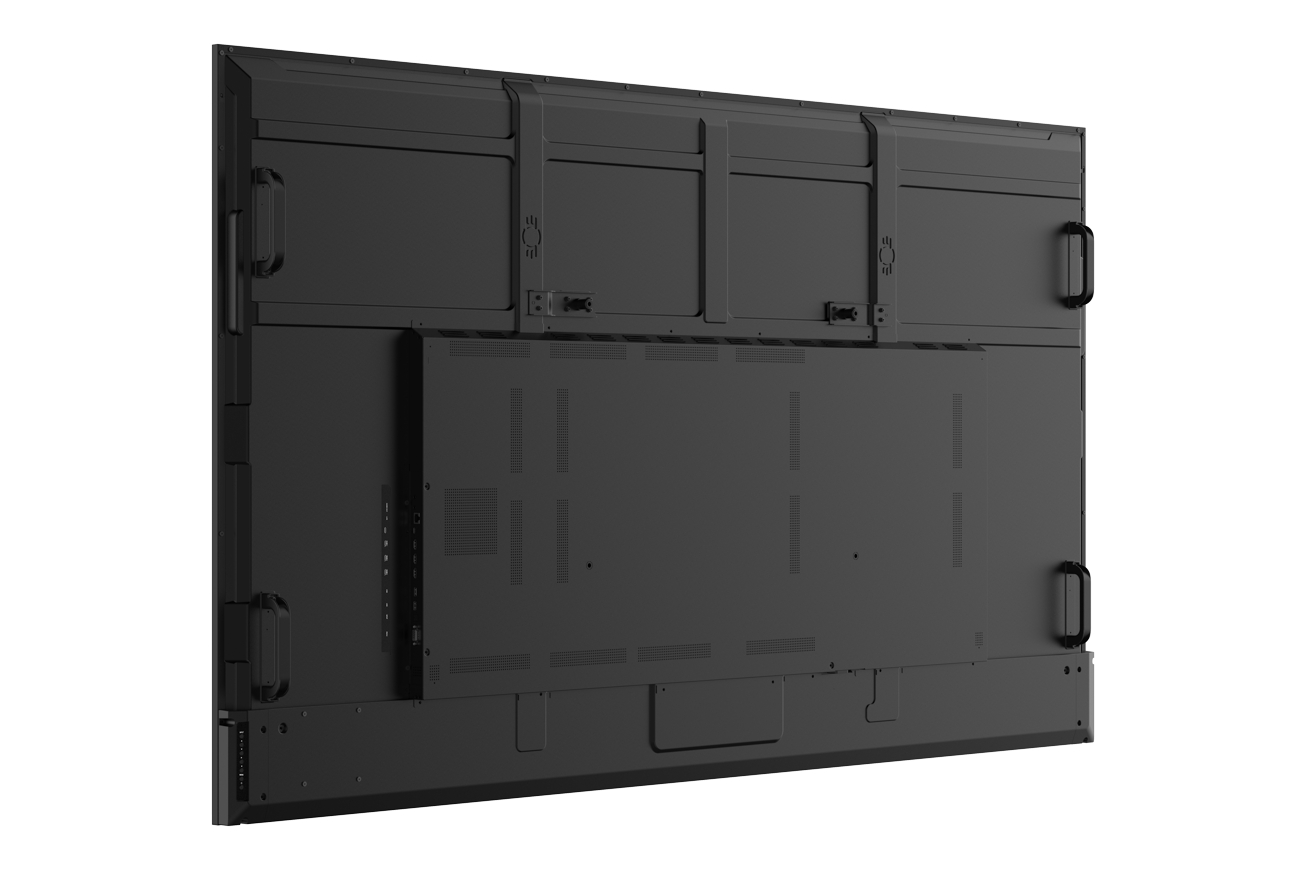

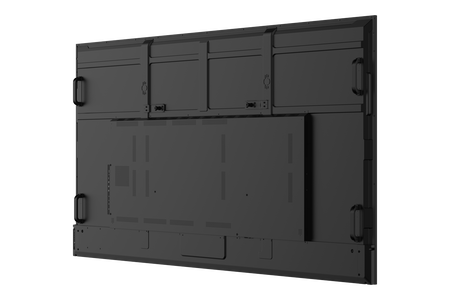

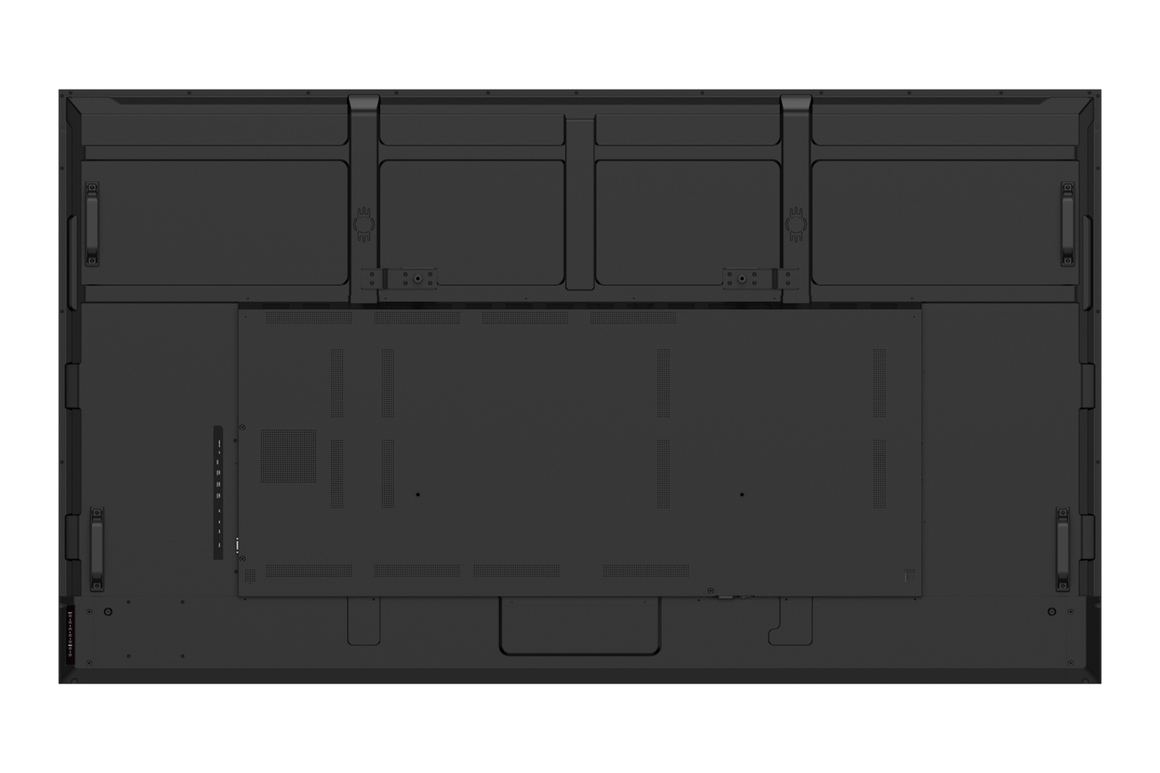

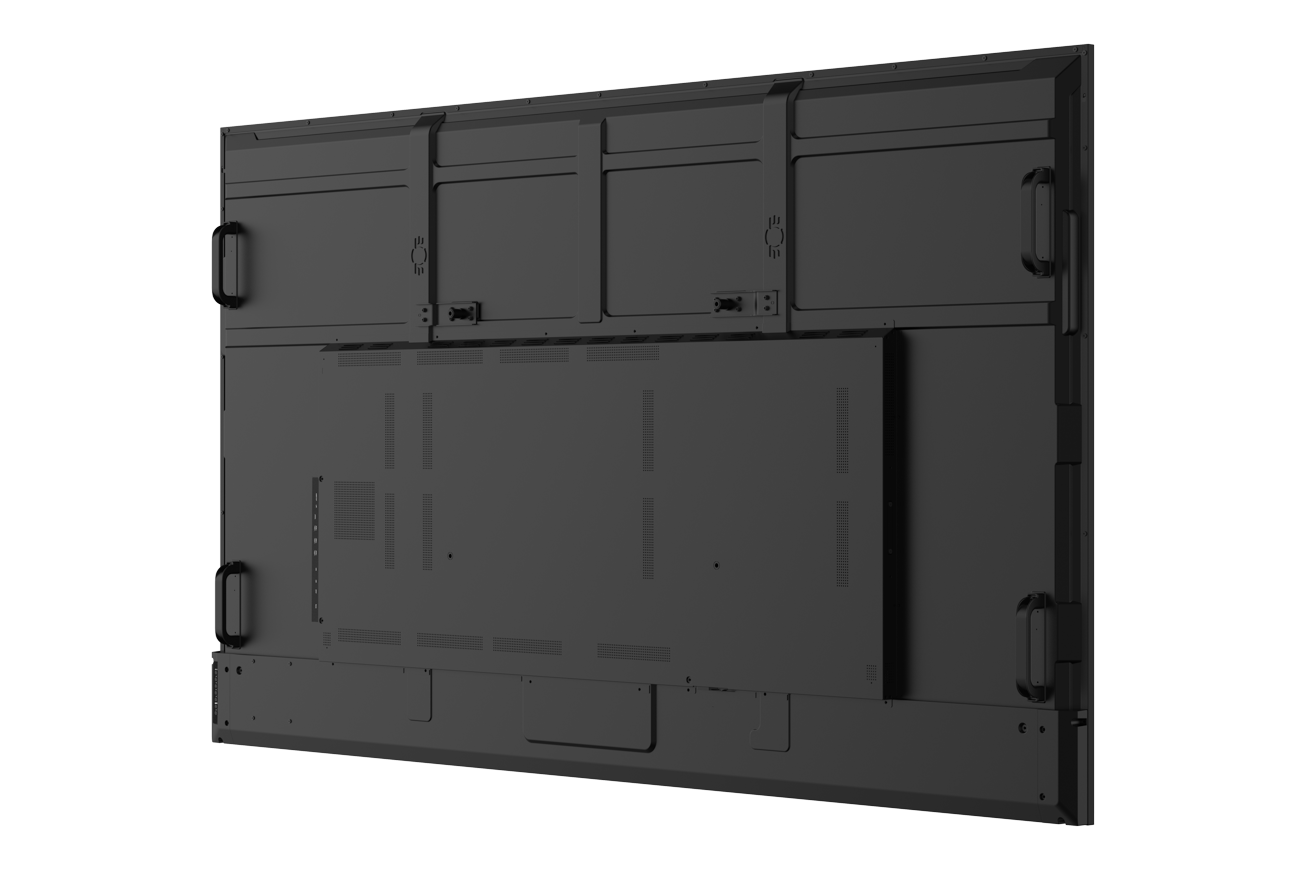

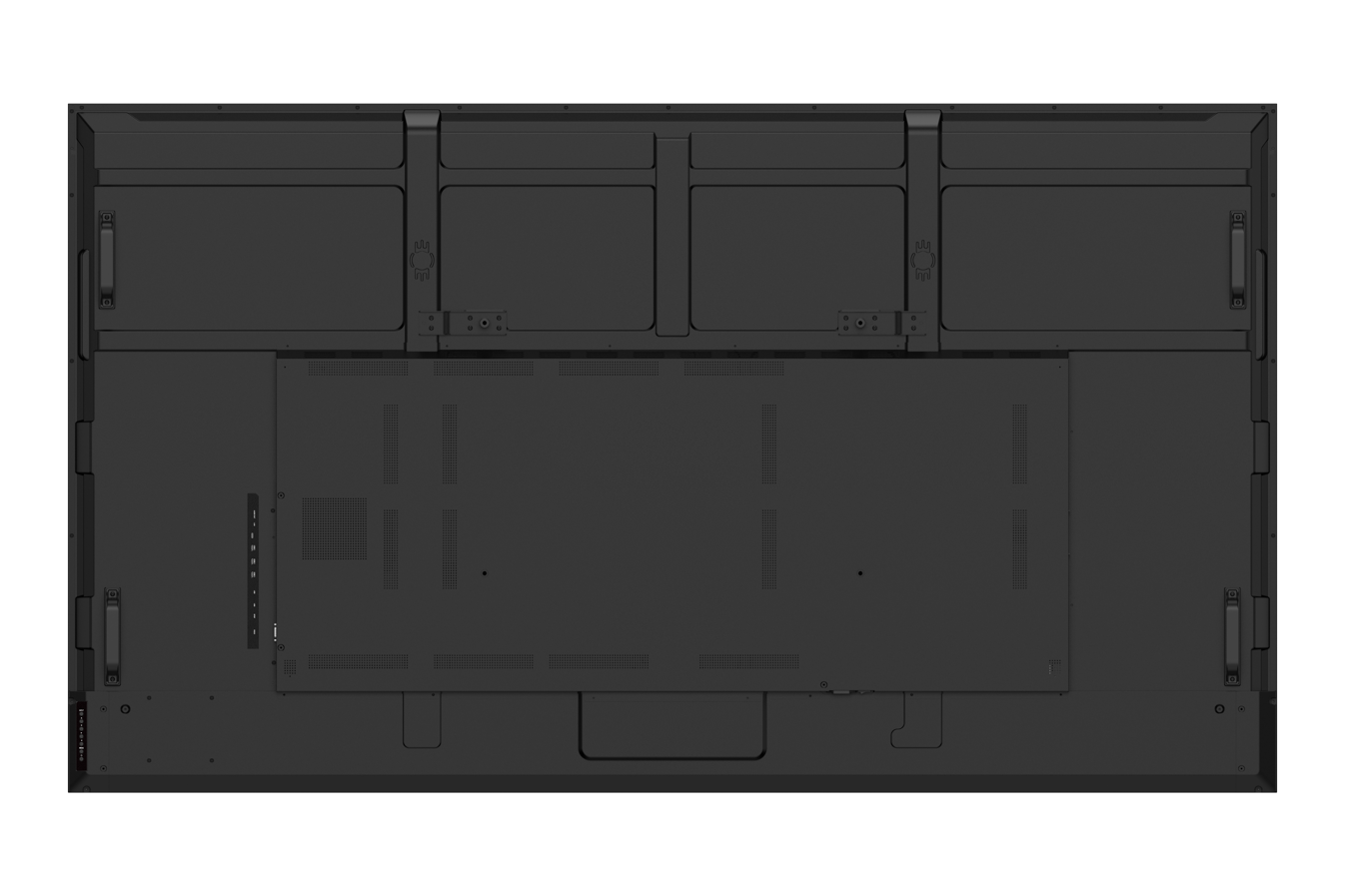

Mounting (VESA) 600 × 400 mm
Operating Temperature 0 – 40 °C / 20 – 80 % RH (non-condensing)
Operating Hours 24 / 7 continuous operation

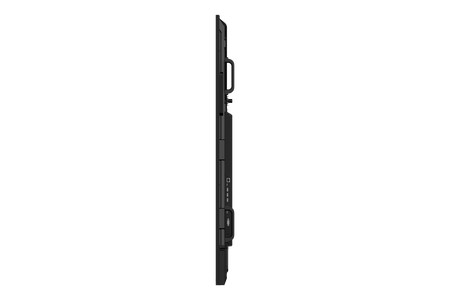

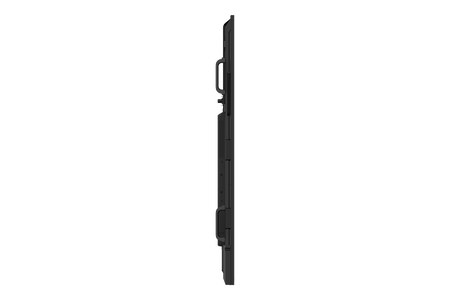

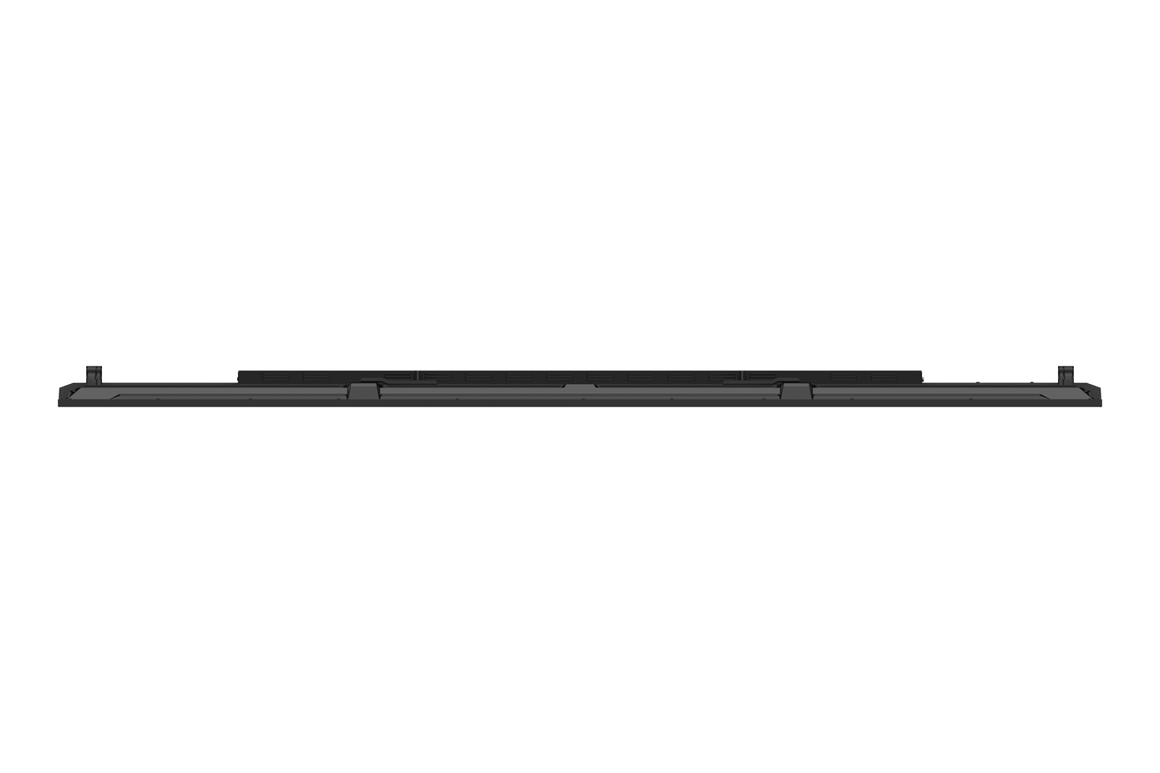

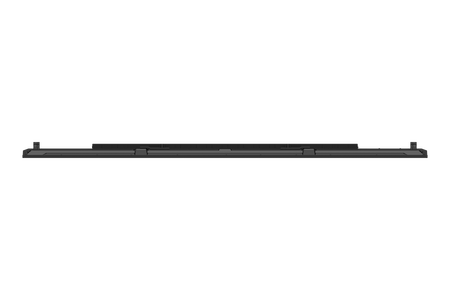

Dimensions (W × H × D) 1930.8 × 1101.7 × 68 mm
Weight Net 42 kg / Gross 56.95 kg
Certifications Energy Star 8.0, EPEAT Silver, CE, FCC, RoHS, REACH, WEEE, TPCH, CA65 and more
Included Accessories 3 m power cord, remote control, 2 × AAA batteries, Quick Start Guide, RS-232 adapter, 4 × mounting screws, 3 m HDMI cable (LA certified), compliance statement

Application Examples

Corporate & Meeting Rooms Deliver high-resolution 4K presentations and signage with fast start-up and centralised device control.
Retail & Public Spaces Showcase dynamic advertising and brand visuals with vivid colour and continuous USB failover playback.
Transport & Information Hubs Display real-time updates and wayfinding information clearly and reliably in bright environments.
Education & Hospitality Provide engaging 4K content for students and visitors with energy-efficient, always-on operation.

The ViewSonic CDE8614-2C combines brilliant 4K visuals, continuous operation, and ProAV-ready integration for professional communication and signage applications. With its high performance, durability, and energy efficiency, it is a versatile solution for corporate, retail, transport, and educational environments.
