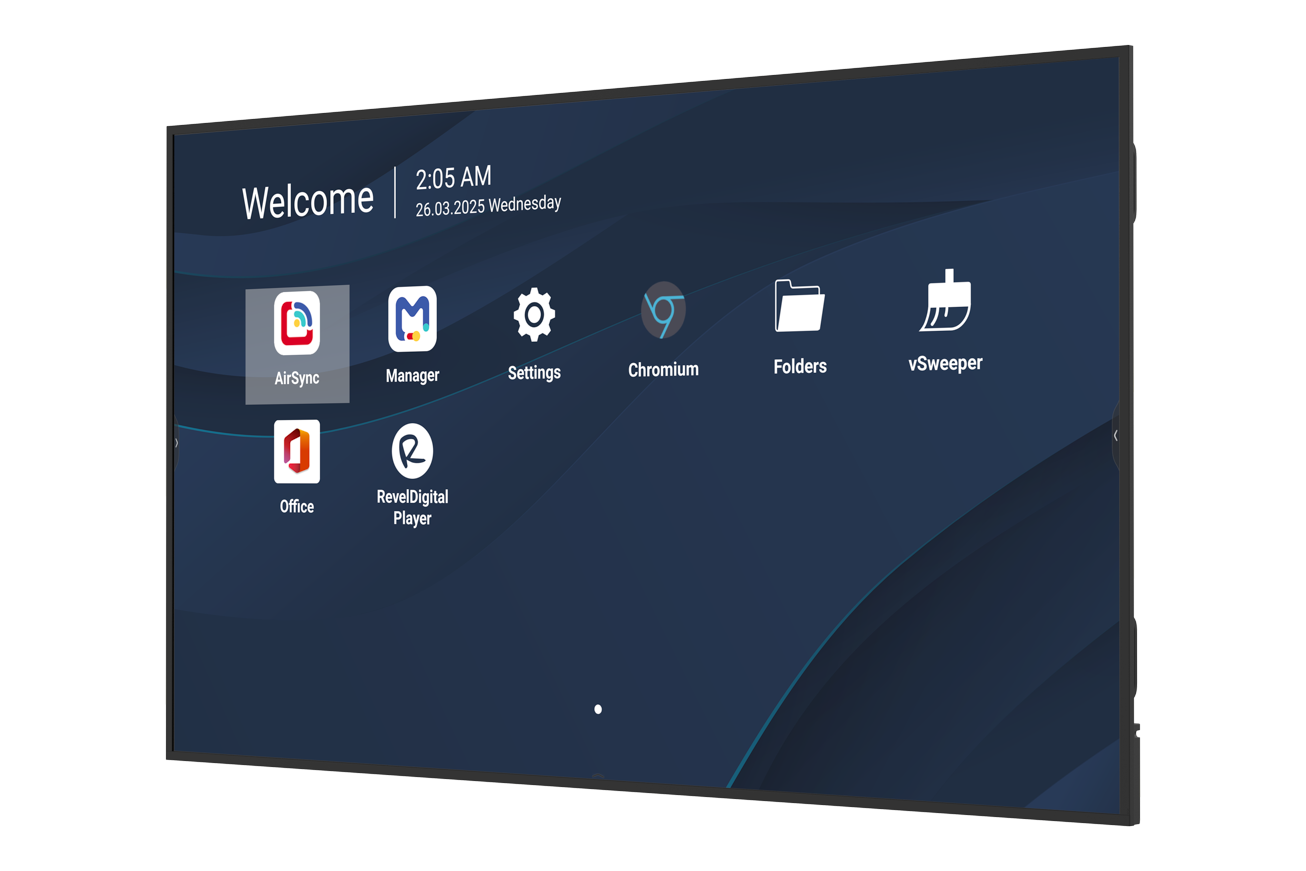

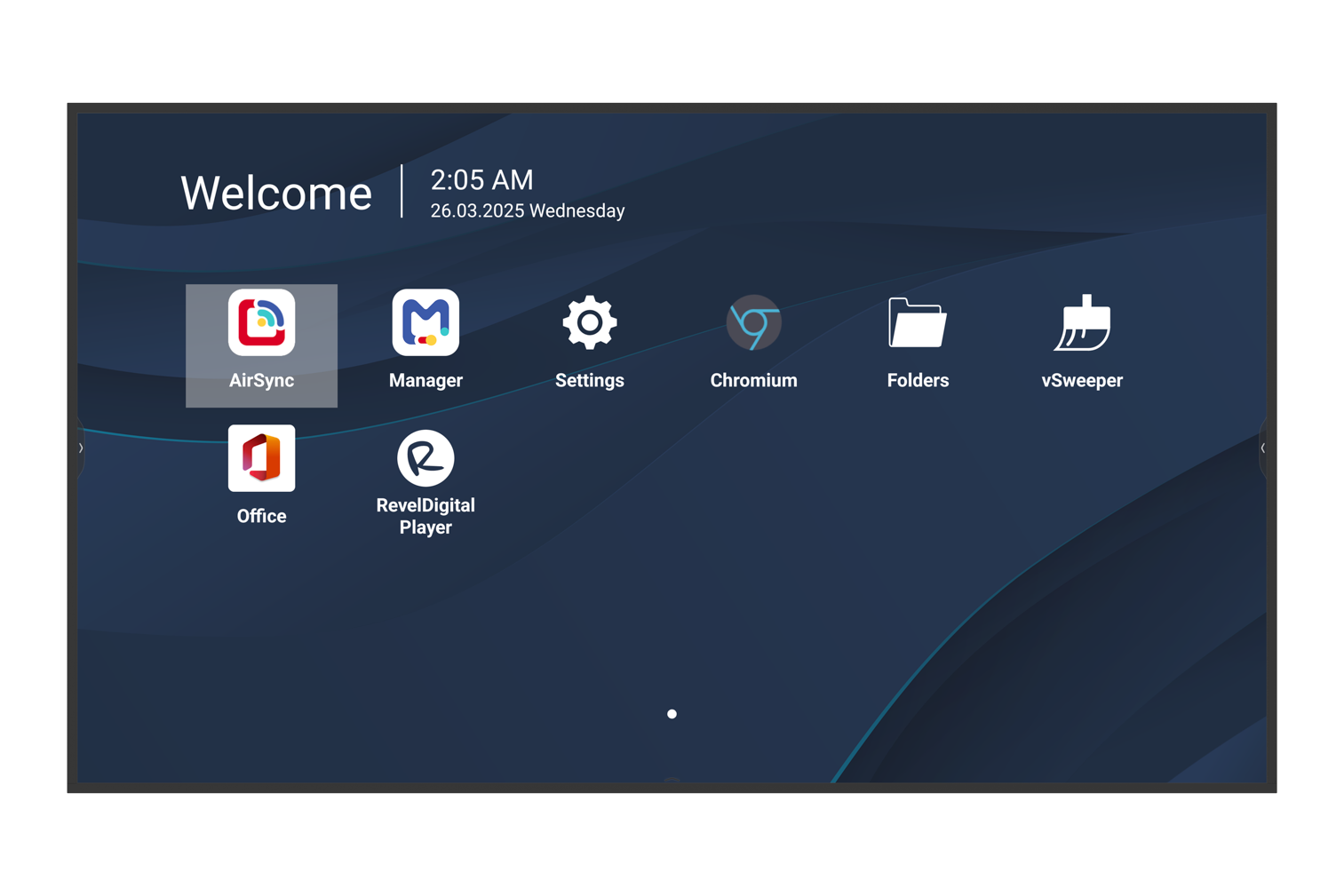

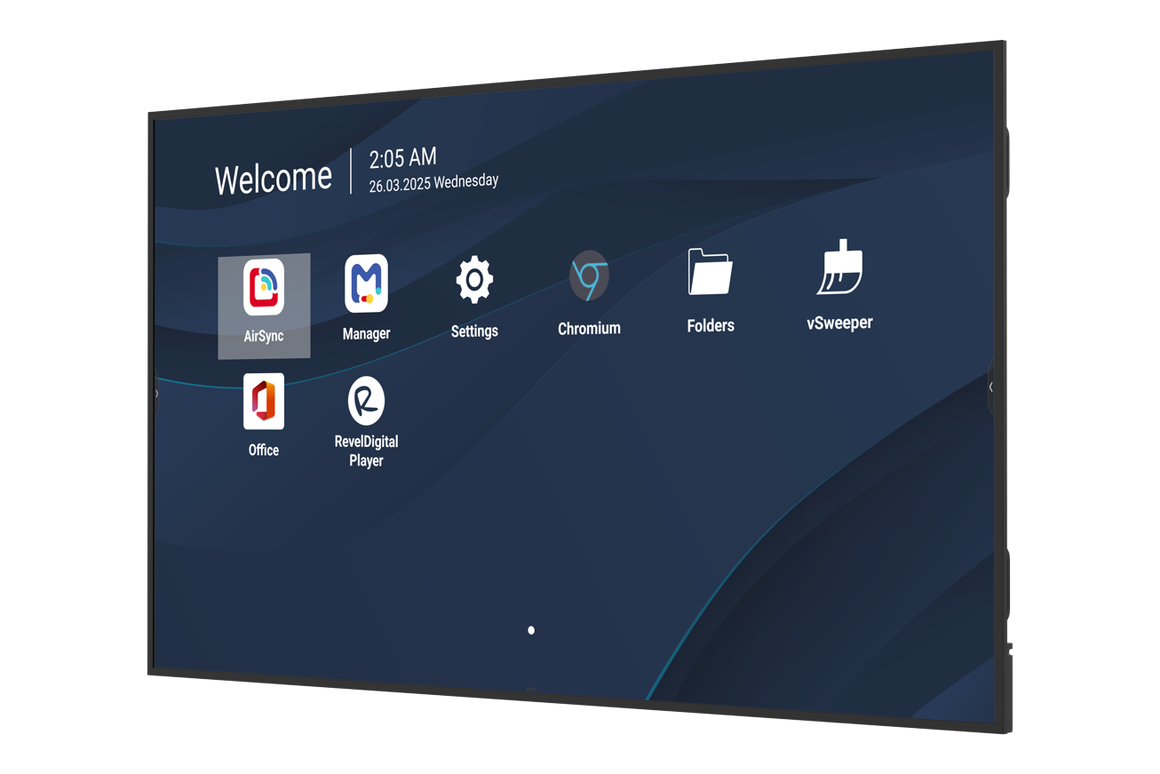

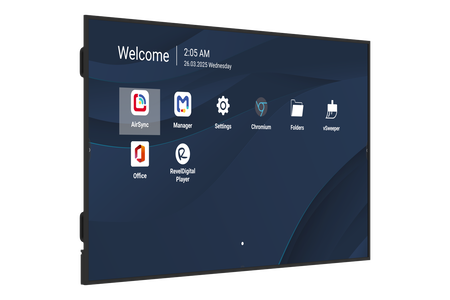

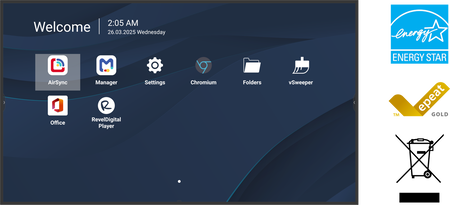

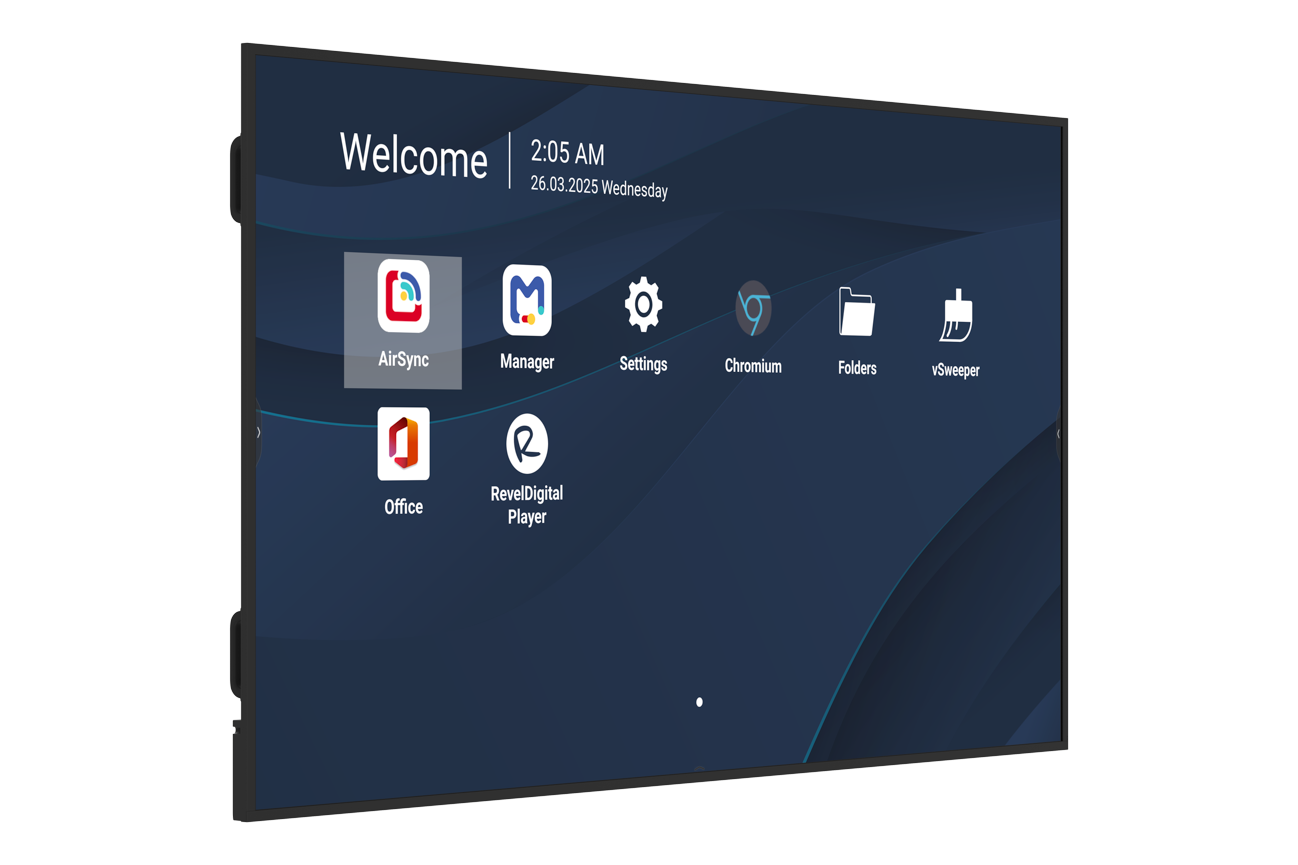

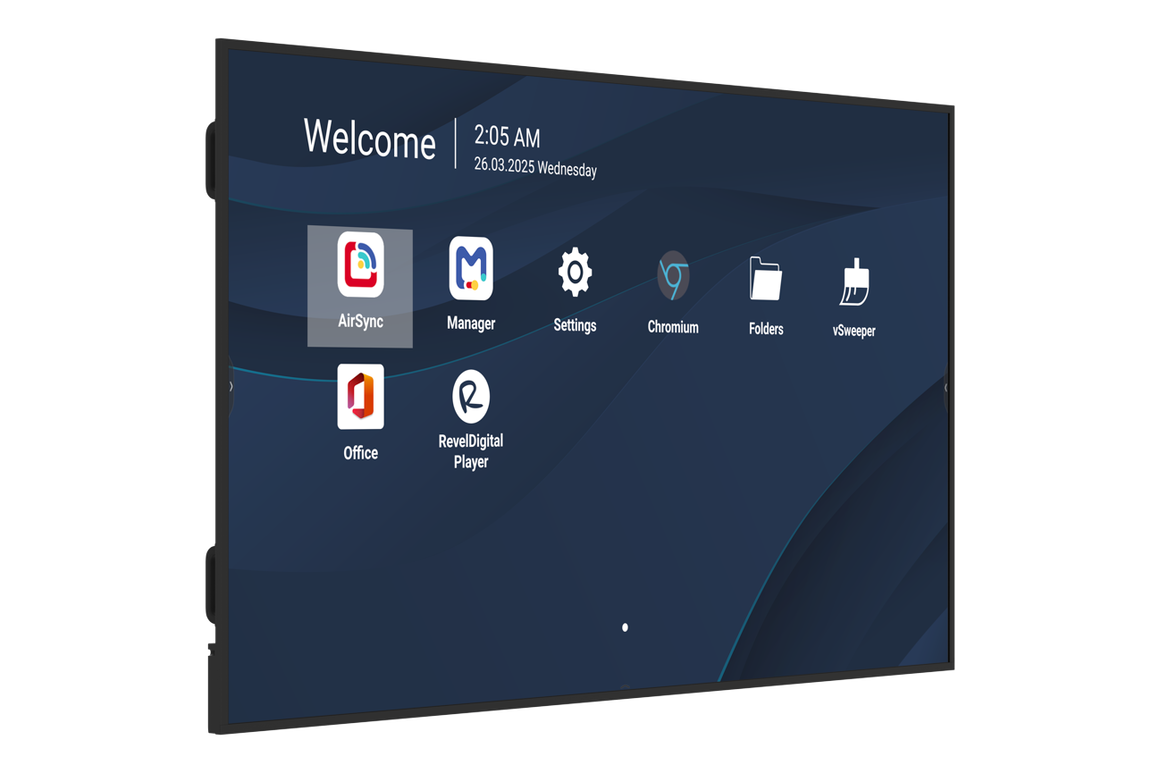

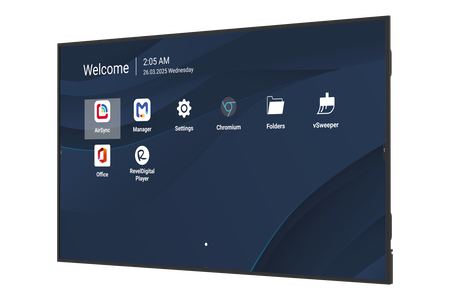

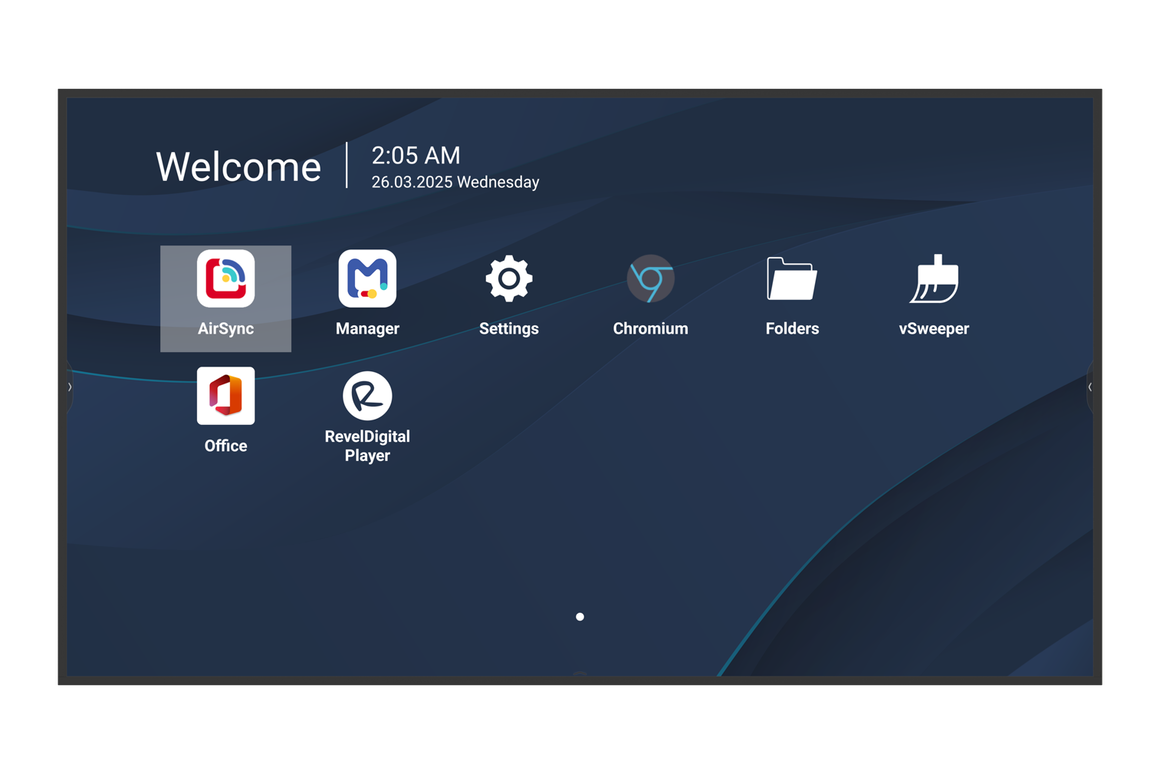

ViewSonic CDE9831-1C 98" Commercial 4K UHD Display
98 inch 4K Professional Commercial Display with ProAV Integration
Secure Checkout
Warranty Protection
Hassle-Free Returns
The ViewSonic CDE9831-1C is a 98-inch commercial-grade 4K UHD display designed for continuous 24/7 operation across corporate, retail, education, and healthcare environments. Powered by Android 14 (AOSP) with upgrade support to Android 16, it features a quad-core ARM Cortex-A73 processor, 8 GB DDR4 RAM, and 32 GB storage for smooth playback, fast warm-boot start-up in under seven seconds, and reliable performance. Delivering 500 nits of brightness, a 1,200 : 1 (typical) / 5,000 : 1 (DCR) contrast ratio, and wide 178° viewing angles, the CDE9831-1C offers vibrant, detail-rich visuals in both landscape and portrait orientations. With USB media playback, automatic signal failover, and comprehensive ProAV integration, it provides an efficient, high-performance signage and presentation solution for modern commercial applications.
Key Features
- Fast Warm Boot: Eliminates long start-up delays, launching signage and content in under seven seconds.

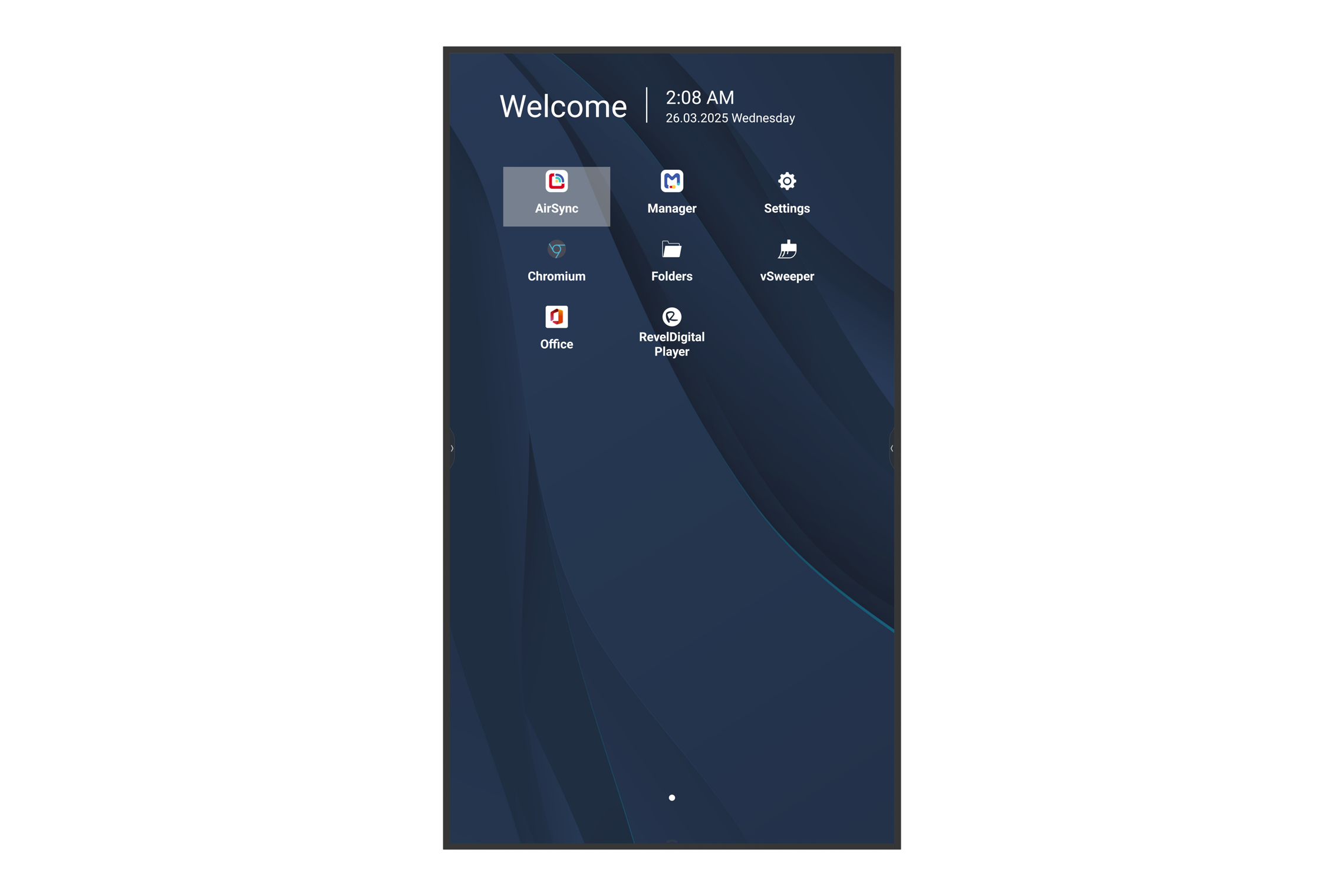

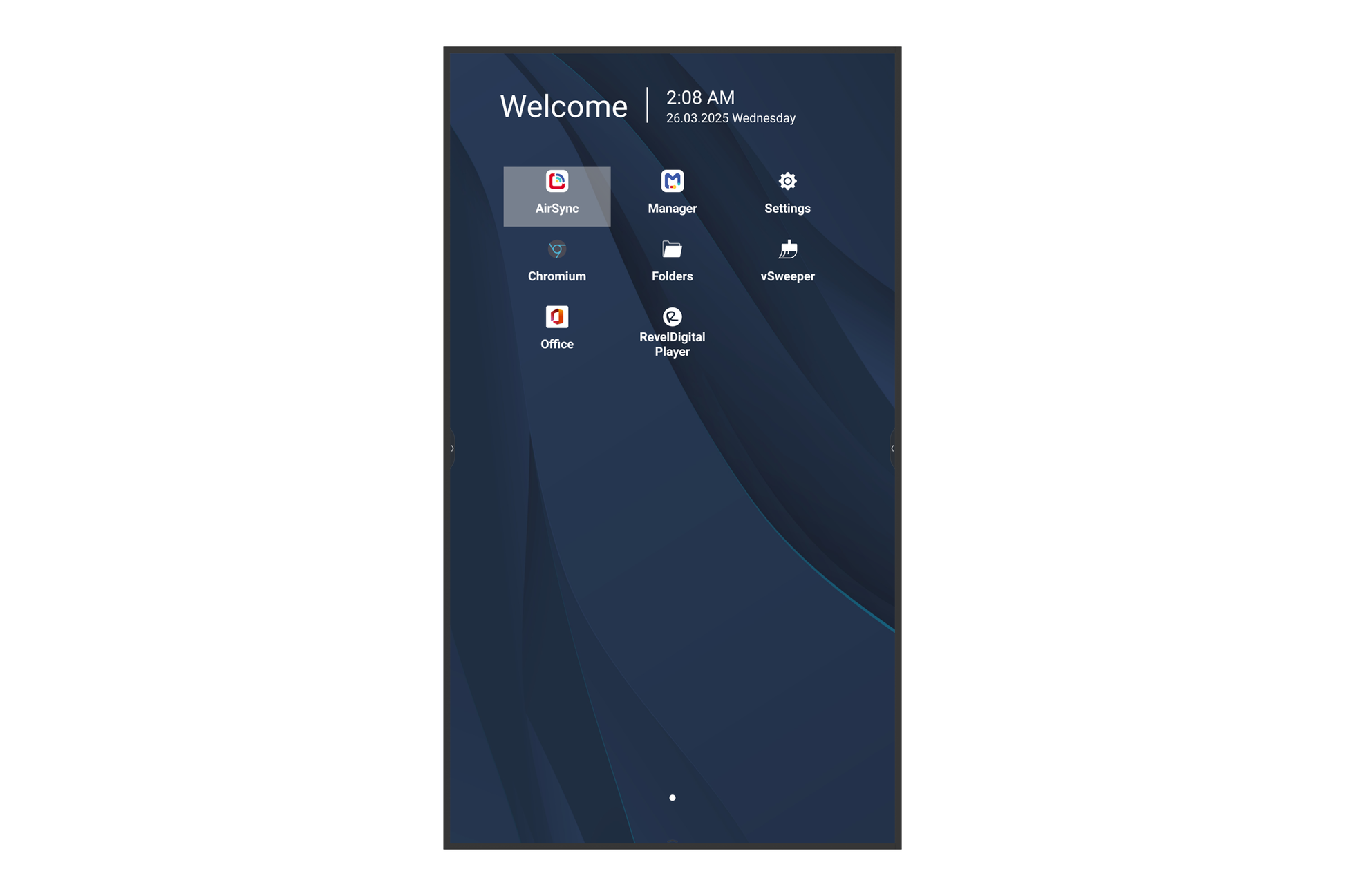

- Native 4K UHD in Any Orientation: Delivers sharp, high-resolution visuals in both landscape and portrait modes for versatile deployments.
- USB Playback with Signal Failover: Automatically switches to USB media content if the primary source is lost, ensuring uninterrupted signage operation.
- Commercial-Grade Brightness & 24 / 7 Reliability: 500 nits brightness and 50,000-hour backlight life ensure clear and consistent performance around the clock.
- ProAV Integration & Centralised Management: Compatible with leading control systems and ViewSonic Manager software for network-based device monitoring, scheduling, and maintenance via LAN or web UI.
- Comprehensive Connectivity: HDMI 2.0 × 3 (HDMI 1 supports ARC), USB-A × 2 (USB 2.0 + USB 3.2 Gen 1), USB-C (DP 1.2, PD 65 W / 15 W, Ethernet sharing), RS-232, SPDIF, RJ45 × 2 (LAN In / Out), OPS slot, and Wi-Fi slot for flexible control and integration.
- Integrated 16 W × 2 Speakers: Dual front-facing speakers provide clear, room-filling sound for multimedia content and presentations without external amplification.

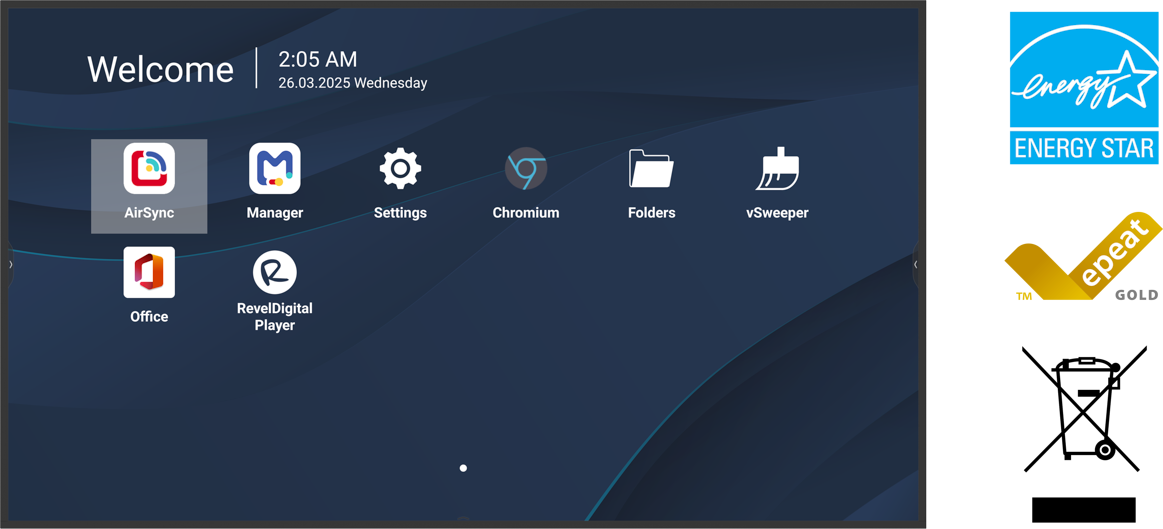

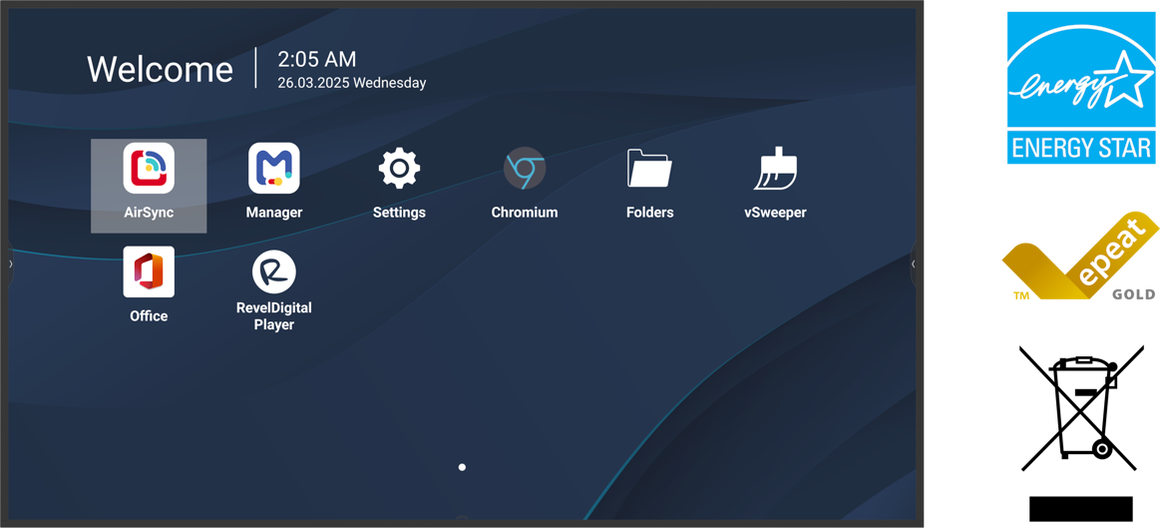

- Energy-Efficient Design: ENERGY STAR 8.0 and EPEAT Gold certified with 130.3 W typical power consumption, ensuring sustainable long-term operation.
Specifications
| Screen Size | 98 inches (diagonal) |
| Display Type | TFT LCD module with DLED backlight |
| Display Area (W × H) | 2158.848 × 1214.352 mm |
| Resolution | 3840 × 2160 (4K UHD) |
| Aspect Ratio | 16 : 9 |
| Colour Depth | 8-bit + FRC |
| Brightness | 500 nits (typical) |
| Contrast Ratio | 1,200 : 1 (typ.) / 5,000 : 1 (DCR enabled) |
| Response Time | 8 ms |
| Viewing Angle | 178° (H) / 178° (V) |
| Backlight Life | 50,000 hours |
| Surface Treatment | Anti-glare coating, 3H hardness, 25 % haze |
| Bezel Width | 18 mm (L/R/T/B) |

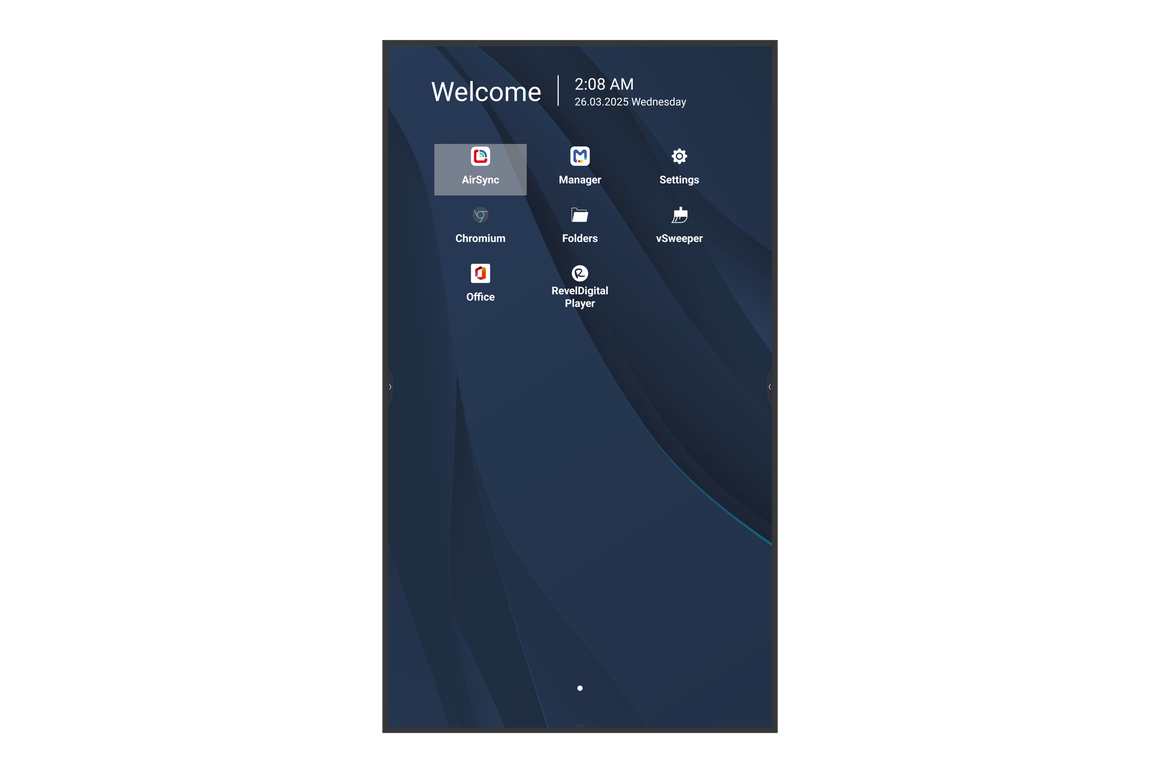

| Orientation | Landscape / Portrait |
| Processor | Quad-core ARM Cortex-A73 |
| Memory / Storage | 8 GB DDR4 / 32 GB Flash |
| Inputs | HDMI × 3 (HDMI 2.0 @ 60 Hz, HDMI 1 with ARC), RS-232 × 1, Wi-Fi slot × 1, OPS slot × 1 |
| Outputs | HDMI × 1, Audio Out (3.5 mm) × 1, SPDIF × 1, RJ45 (LAN In/Out) × 2 (10 / 100 M for Type-C, 1000 M for OPS) |
| USB Ports | USB-A × 2 (USB 2.0 and USB 3.2 Gen 1), USB-C × 1 (DP 1.2, PD 65 W / 15 W, Data, Ethernet sharing) |
| Speakers | 16 W × 2 (front-facing) |
| Embedded OS | Android 14 AOSP (upgradeable to Android 16) |
| Bundled Software | AirSync (Wireless Presentation), ViewSonic Manager (Device Management) |
| Power Supply | 100 – 240 V AC ± 10 %, 50 / 60 Hz |
| Power Consumption | 130.3 W (typical, ENERGY STAR 8.0 certified) |

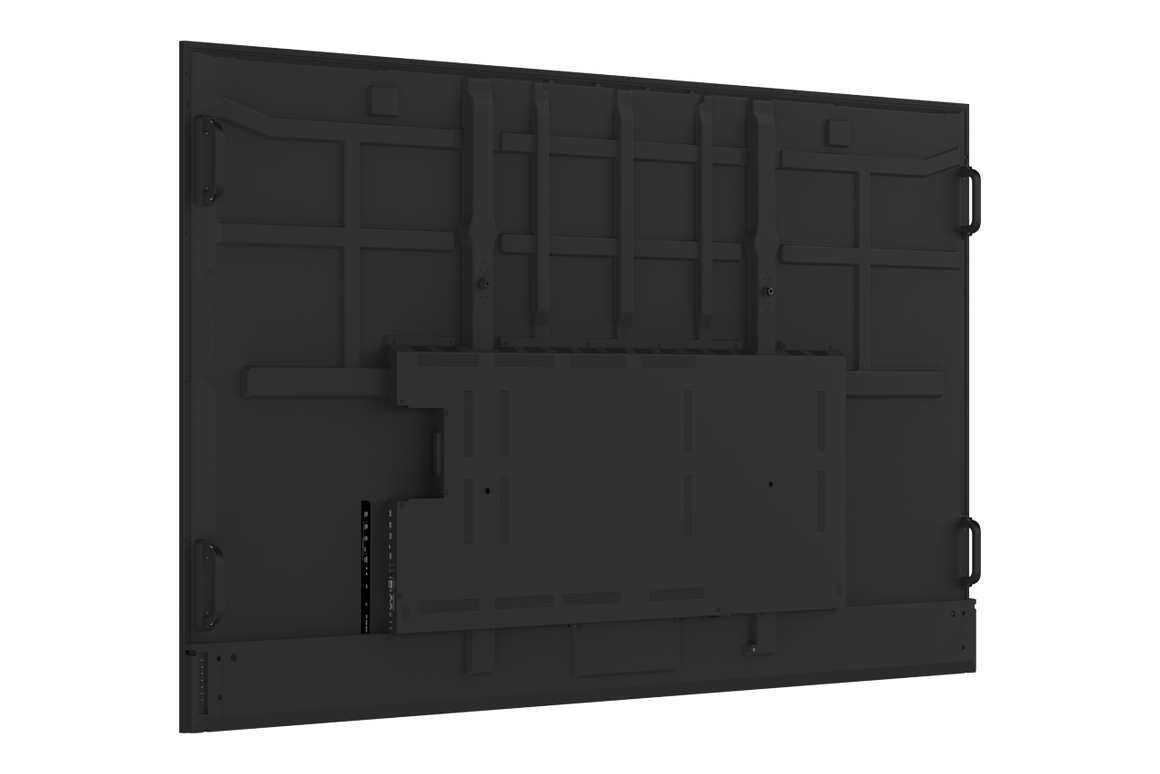

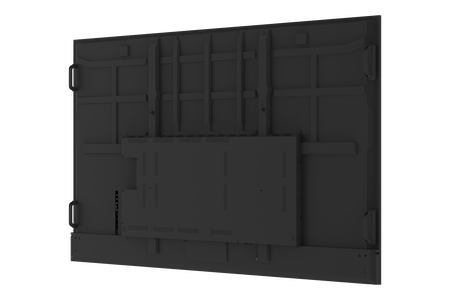

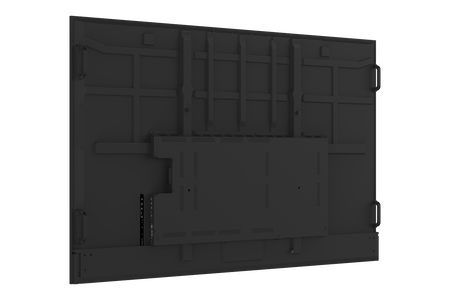

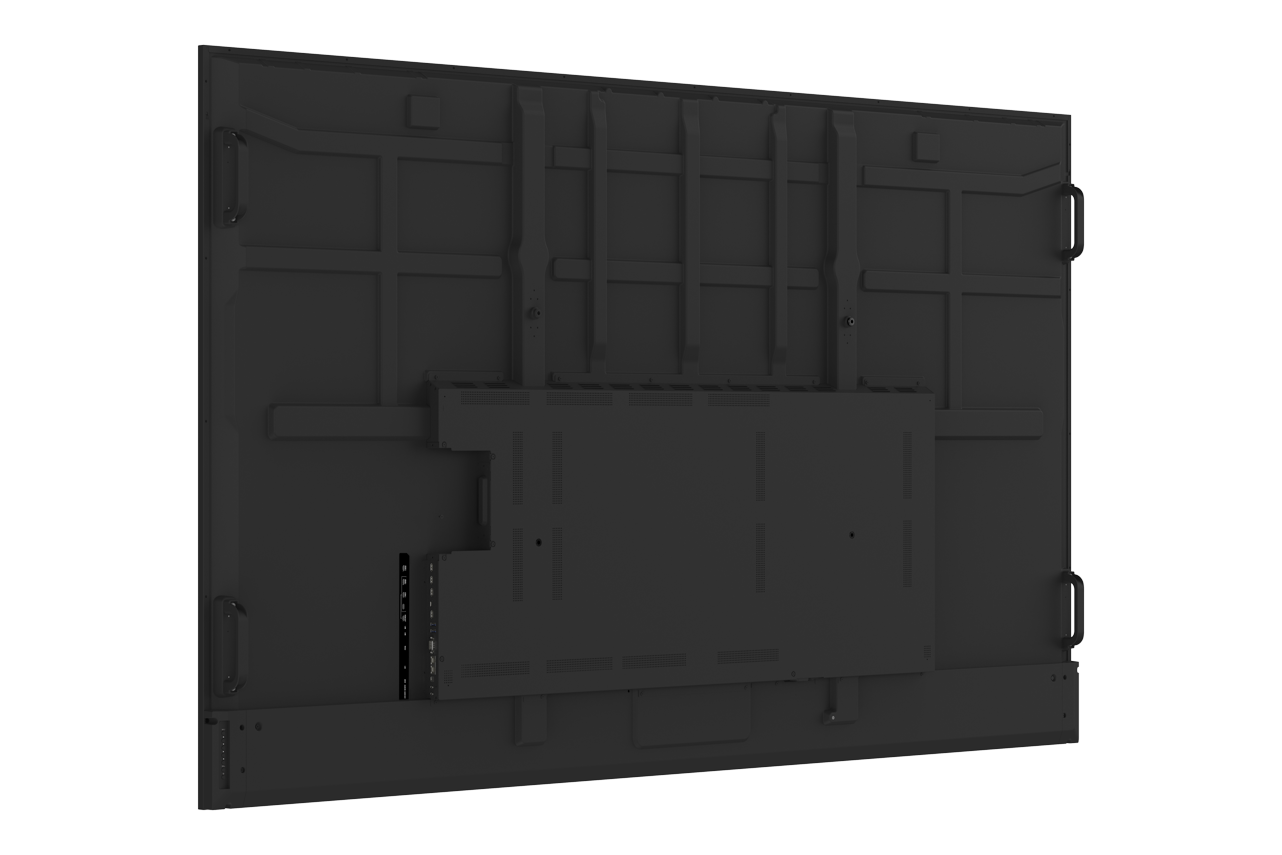

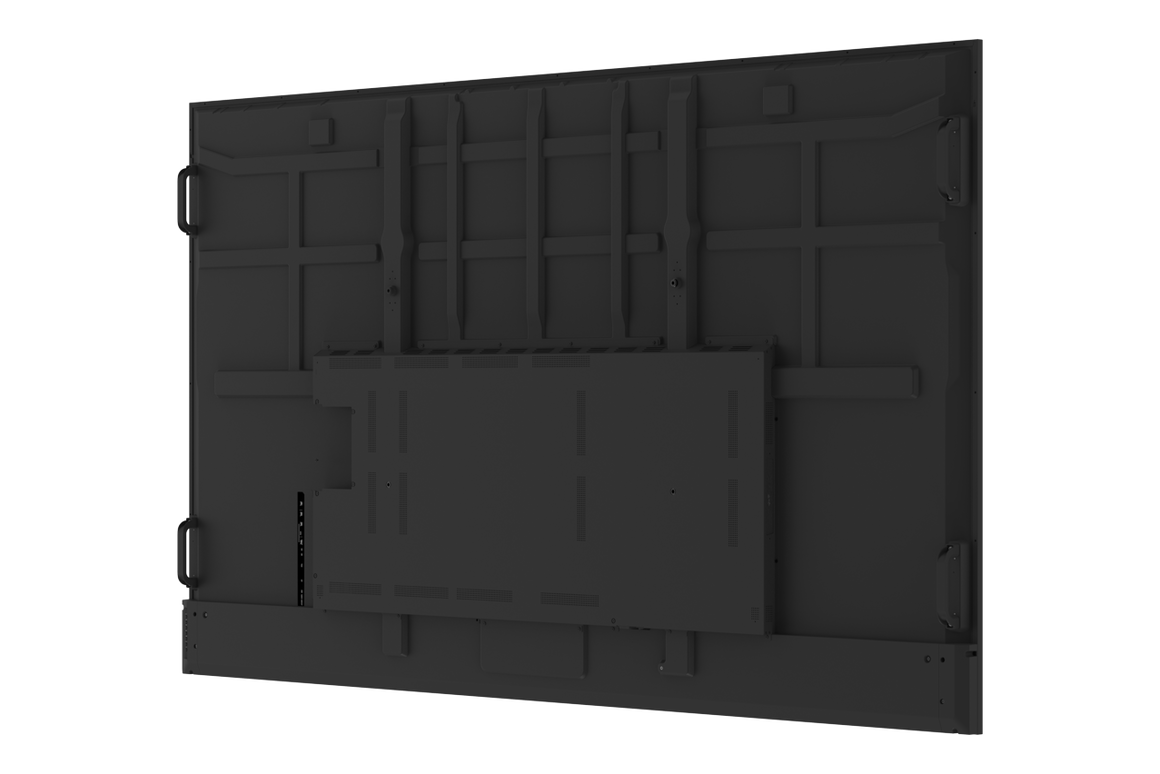

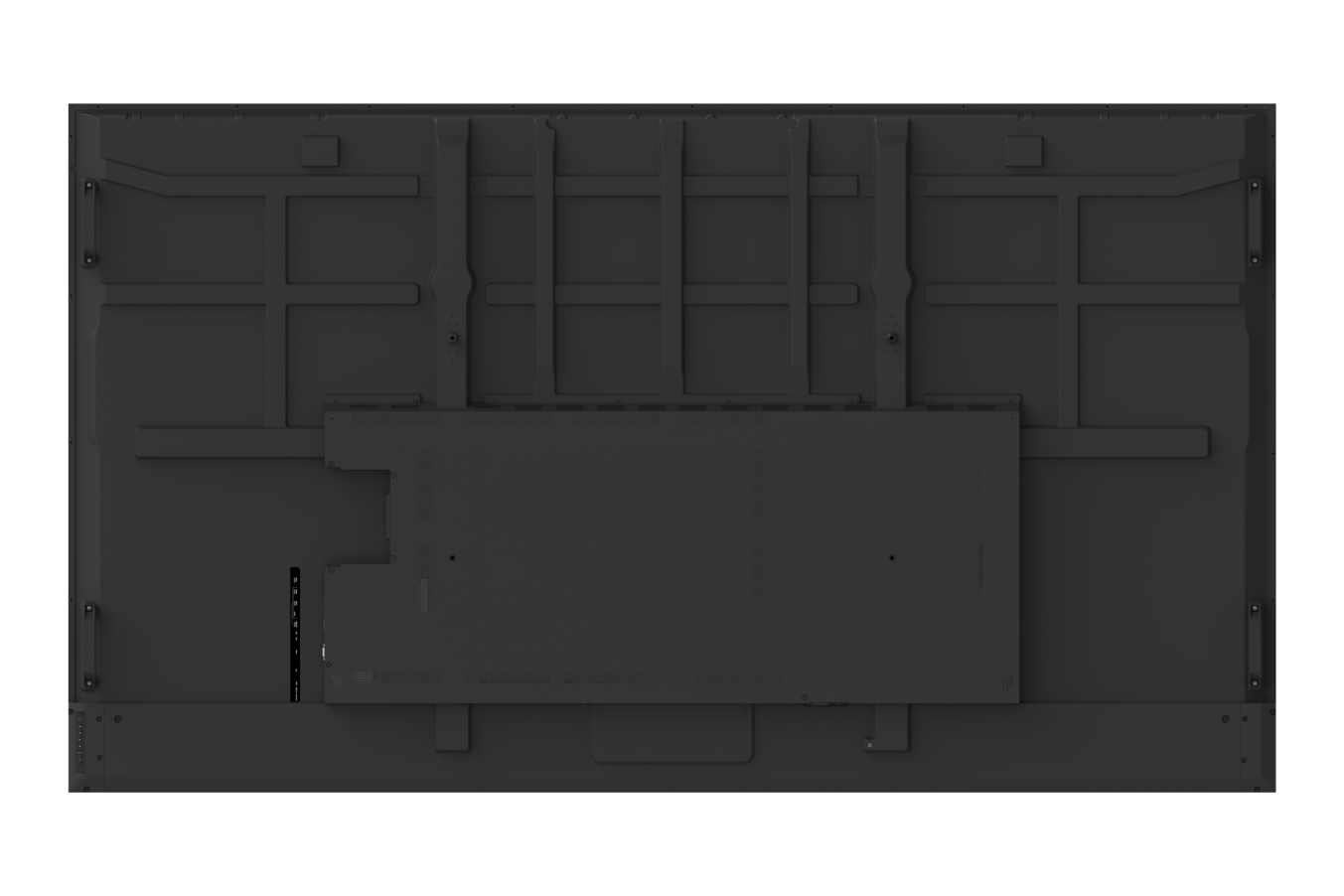

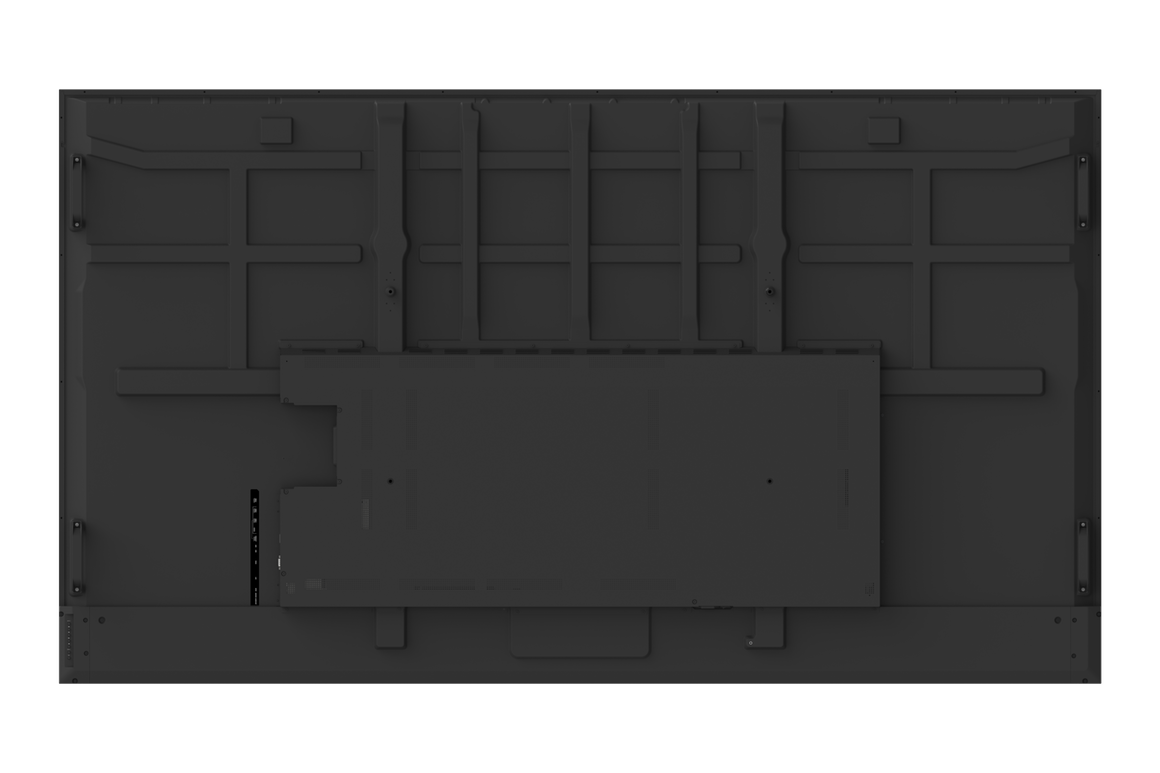

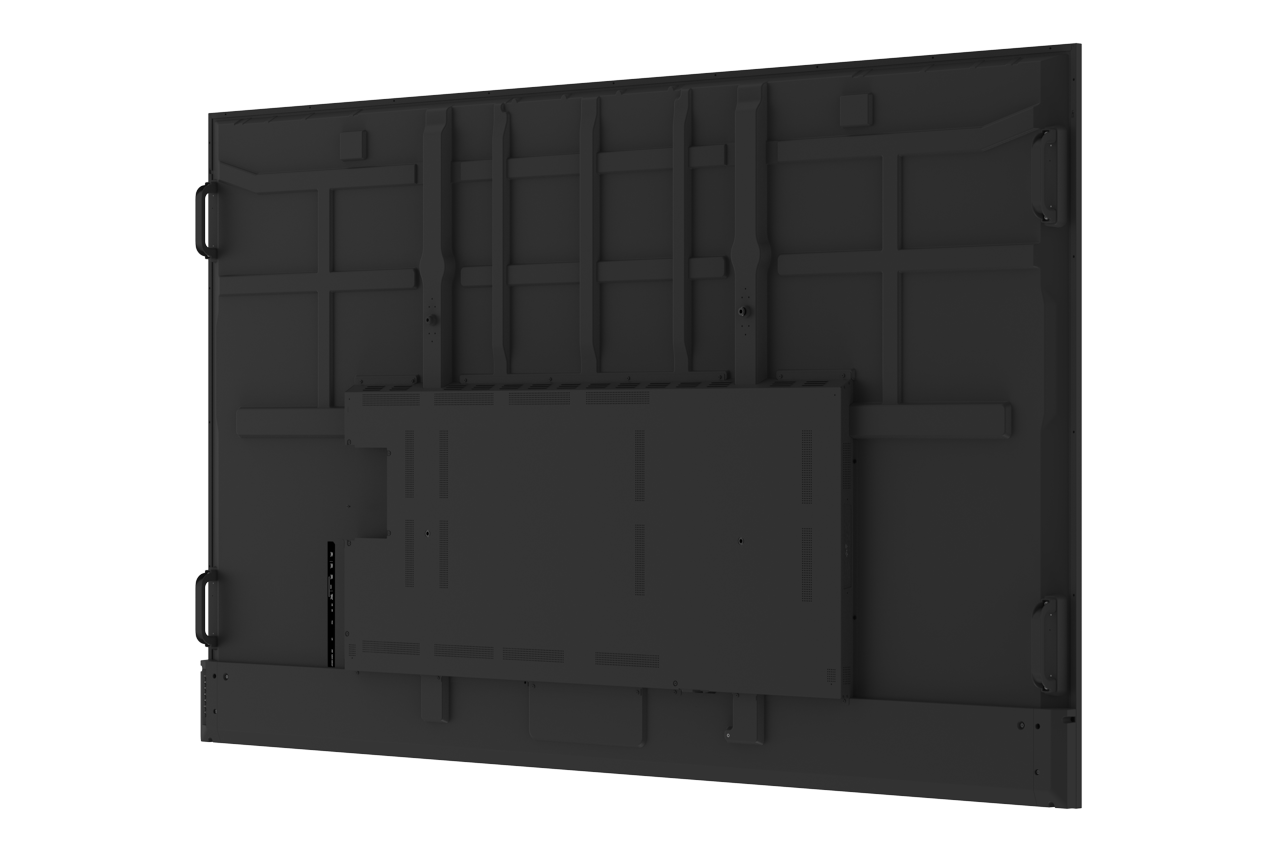

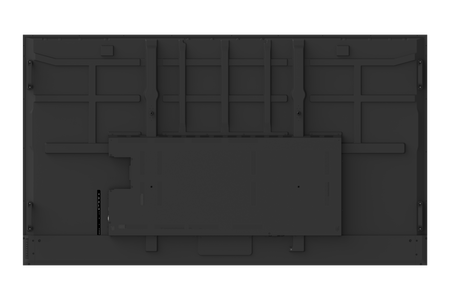

| Mounting (VESA) | 800 × 400 mm |
| Operating Temperature | 0 – 40 °C / 20 – 80 % RH (non-condensing) |
| Operating Hours | 24 / 7 continuous operation |
| Dimensions (W × H × D) | 2198.9 × 1254.6 × 68.6 mm |
| Weight | Net: 53.9 kg / Gross: 80.1 kg |
| Certifications | cTUVus, FCC/ICES003, Energy Star 8.0, EPEAT Gold, CE, RCM, RoHS, REACH, WEEE, CA65, and others |
| Included Accessories | 3 m power cord, remote control, 2 × AAA batteries, Quick Start Guide, RS-232 adapter, clamps × 5, wall mount screws × 4, 3 m HDMI cable (LA certified), compliance statement |
Application Examples
| Corporate Boardrooms & Meeting Spaces | Deliver ultra-high-definition 4K presentations with seamless integration, fast boot, and effortless centralised control. |
| Retail & Public Venues | Showcase vivid, dynamic signage and promotional content designed for 24 / 7 reliability and clear visibility. |
| Transport & Information Hubs | Provide real-time information and wayfinding with continuous, high-visibility operation and durable commercial design. |
| Education & Hospitality | Enable interactive, 4K content delivery in classrooms, auditoriums, and lobbies with integrated audio and remote management. |
The ViewSonic CDE9831-1C delivers professional-grade 4K performance, 24 / 7 reliability, and advanced ProAV integration, making it the ideal choice for corporate communication, retail signage, transport, and educational applications.
