SKU: LDP136-071C

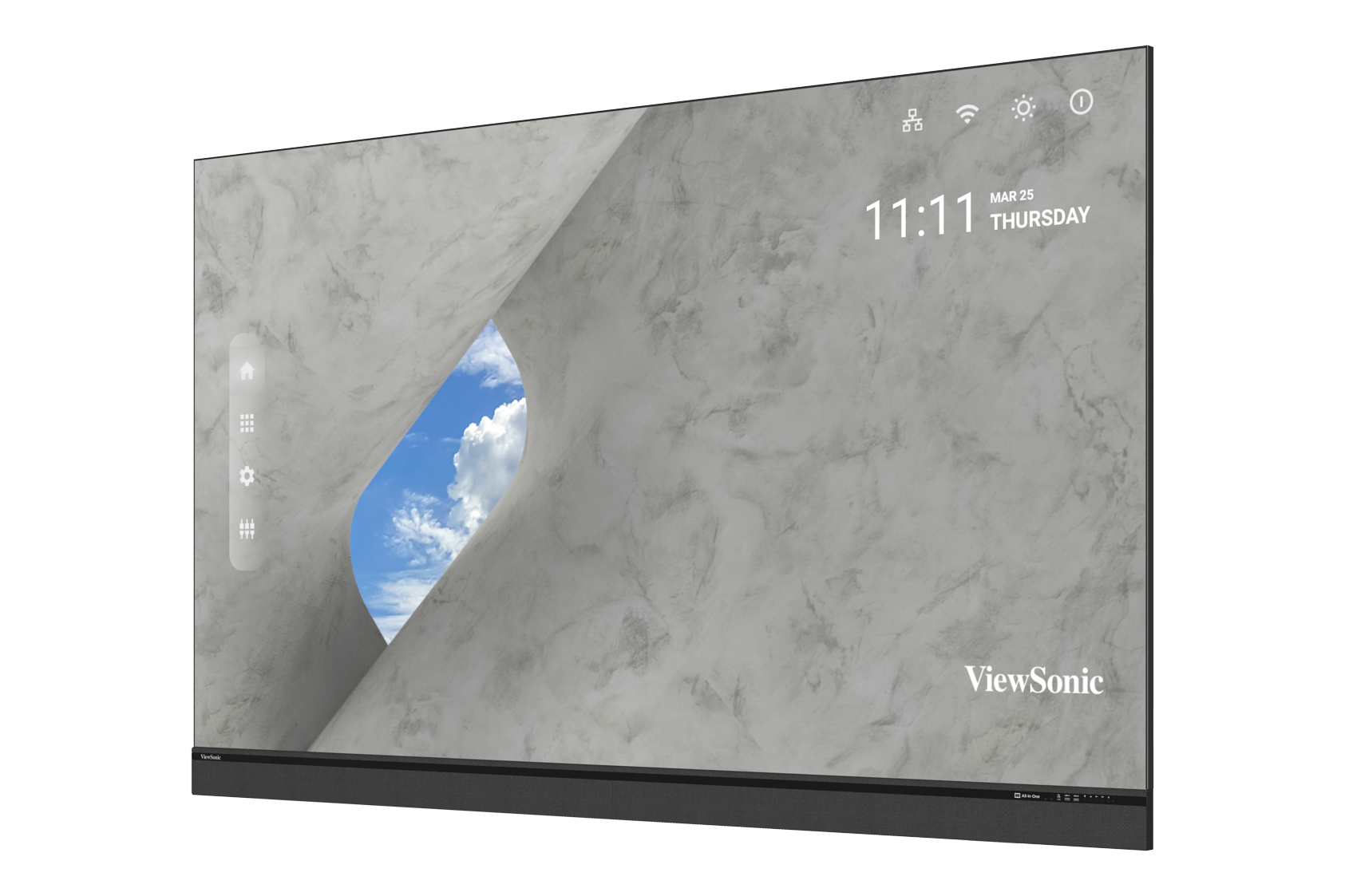

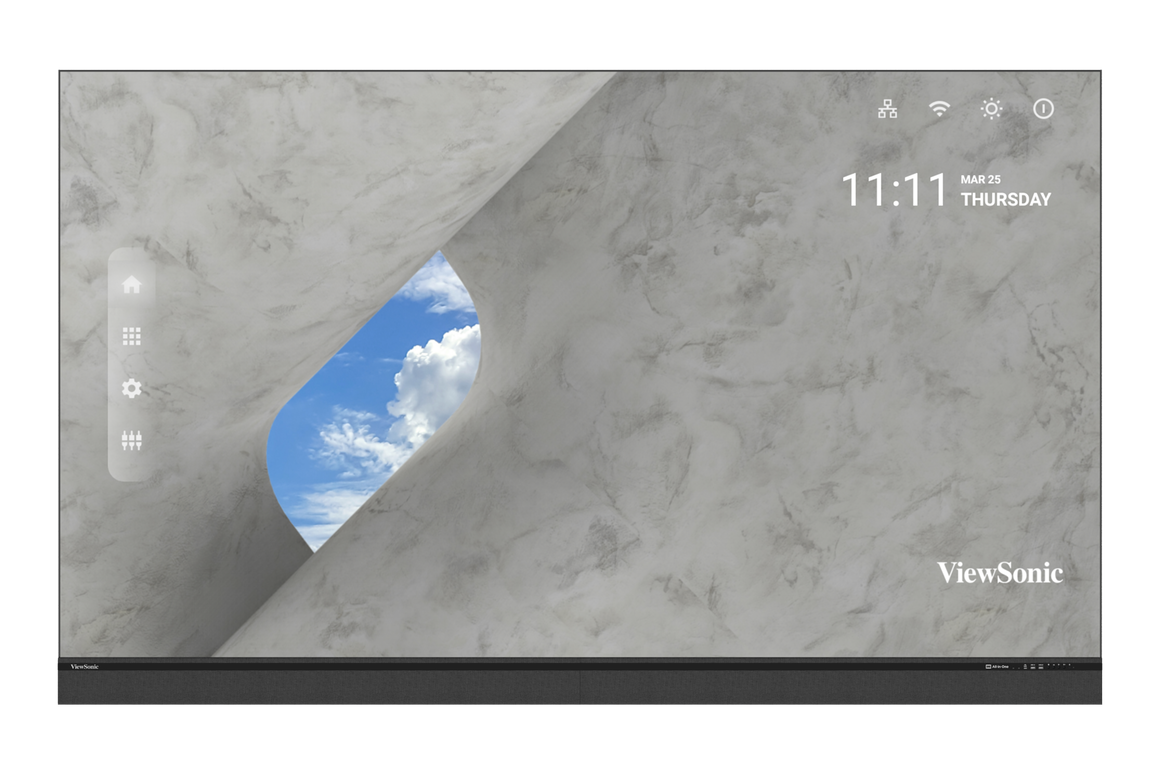

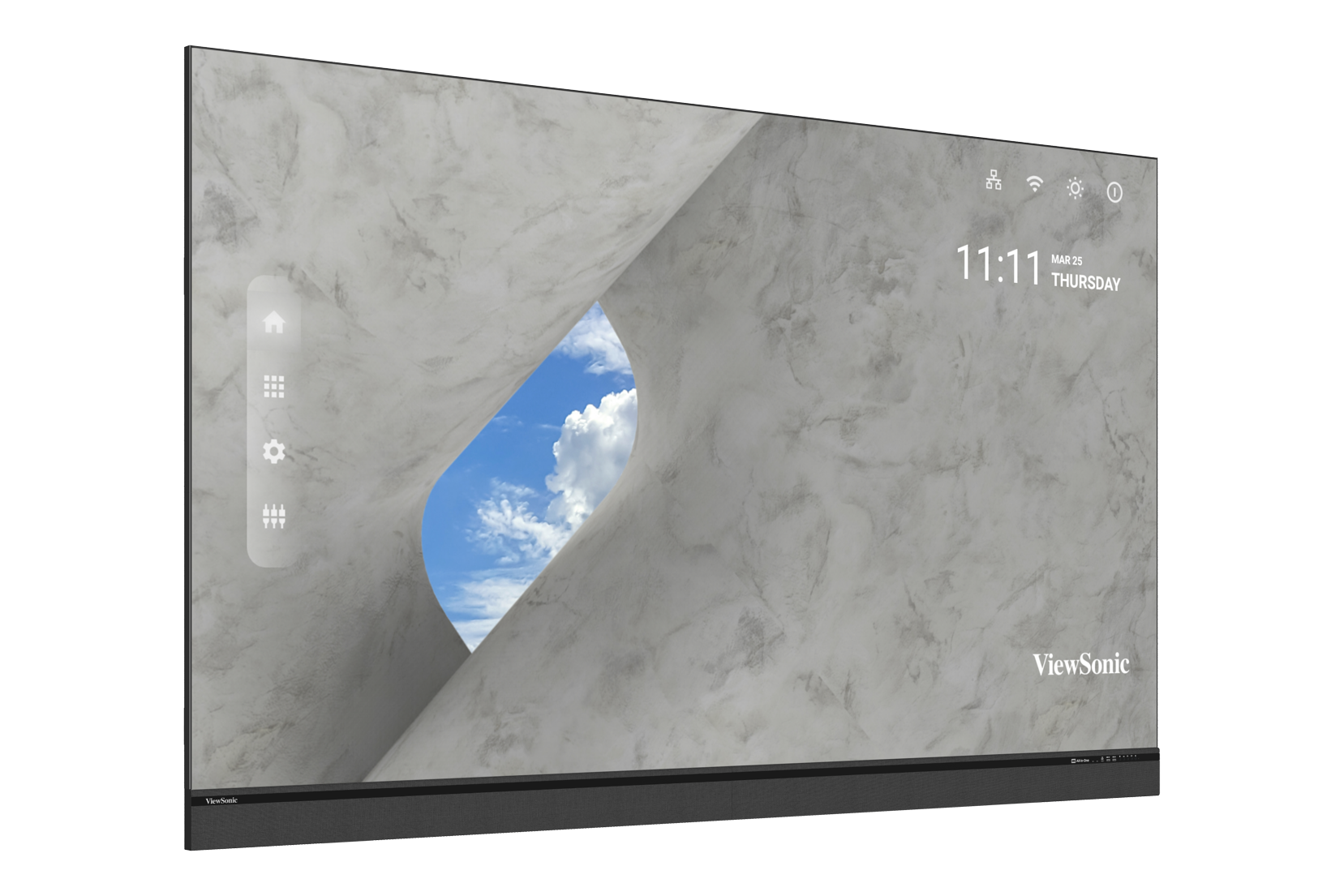

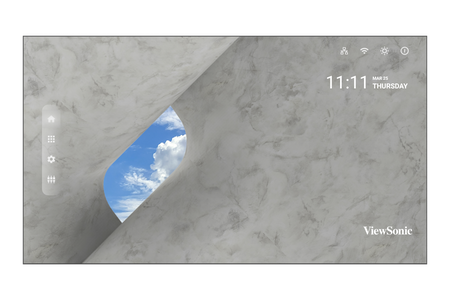

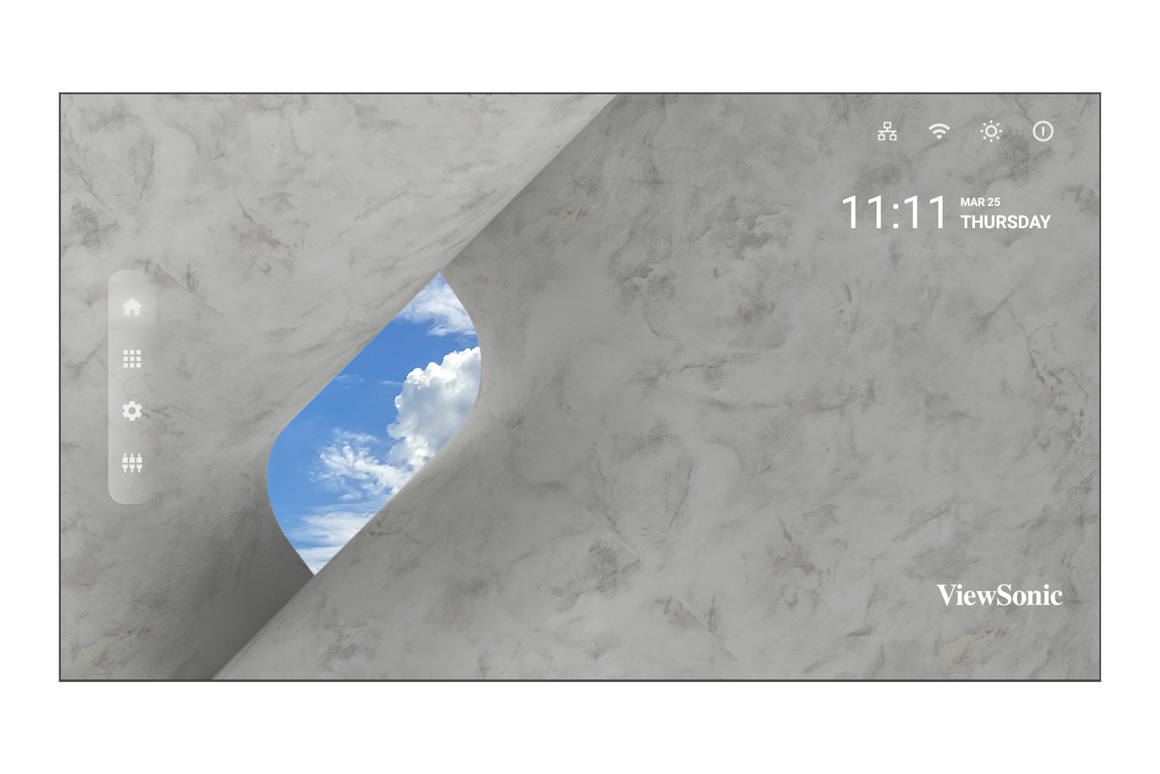

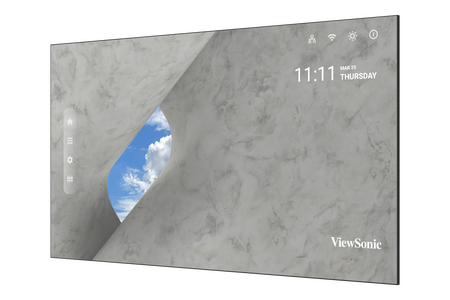

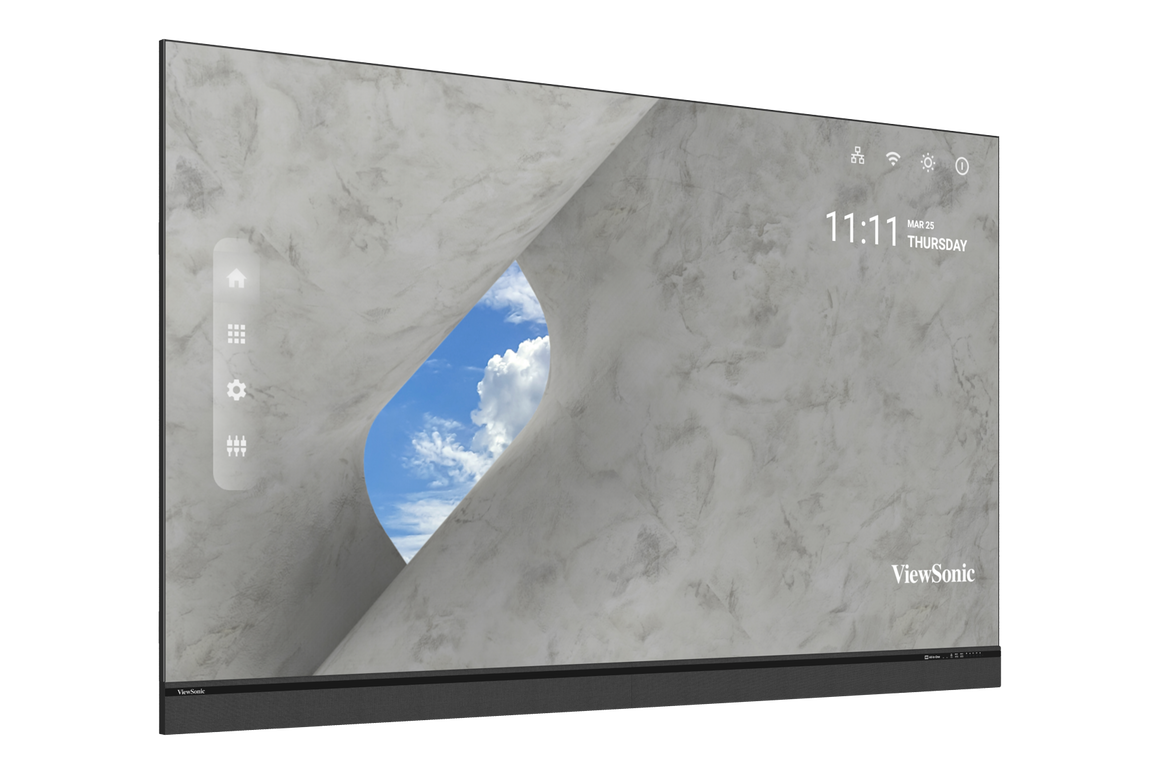

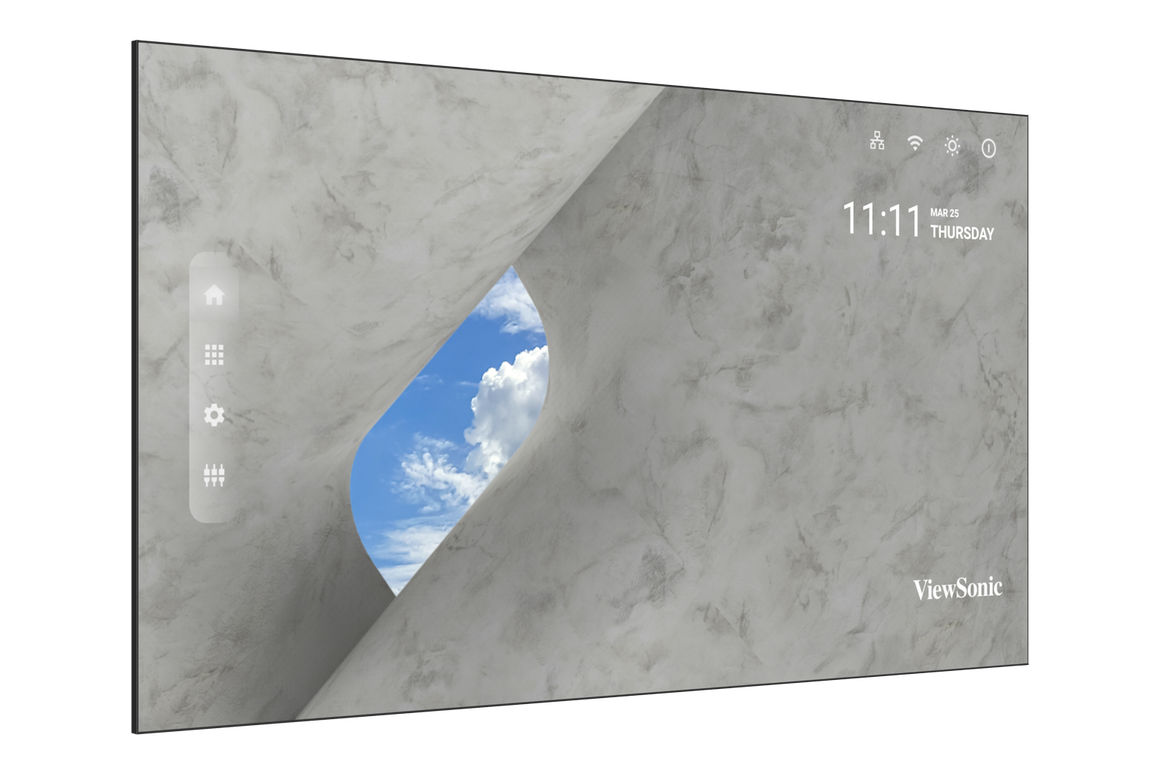

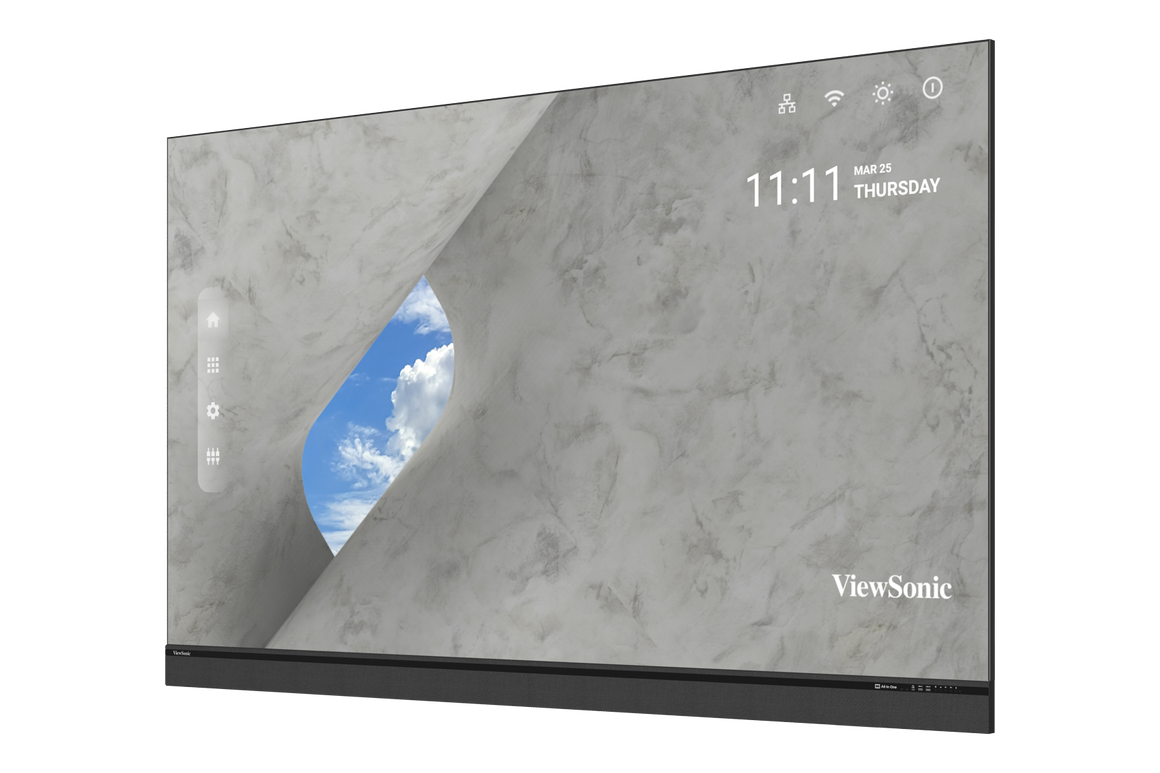

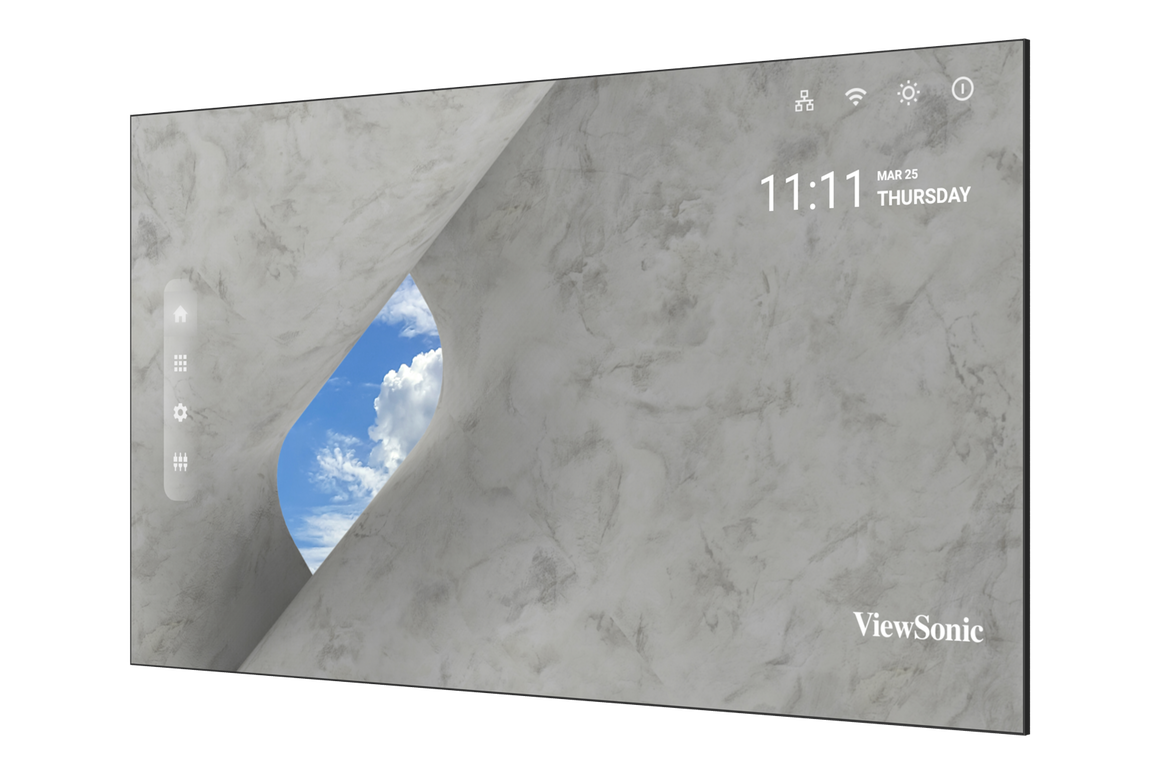

ViewSonic LDP136-071C 136" 4K UHD AIO Direct View LED Display

ViewSonic

136 inch 4K UHD AIO Direct View LED Display

The ViewSonic LDP136-071C is a 136-inch 4K UHD All-in-One Direct View LED Display designed to deliver premium visual performance for enterprise, education, and high-end commercial spaces. Combining Mini LED technology with advanced Chip-on-Board (COB) engineering, it provides vivid colour, exceptional contrast, and superior durability—all in a sleek, ultra-slim form factor ideal for modern environments.

Key Features

  • 4K UHD Visuals with Mini LED: 3840×2160 resolution delivers ultra-fine detail, deep contrast, and vivid colours for immersive large-scale visuals.
  • Advanced COB Technology: Provides enhanced durability against impact, dust, and moisture with IP54 and IK08 front protection ratings—ideal for high-traffic environments.
  • All-in-One Integration: Combines power, control, image stitching, and display into a single system for simplified installation completed by two people in under two hours.
  • Energy-Efficient Design: Common cathode LEDs and smart ICs minimise energy consumption while ensuring long-term reliability and sustainability.
  • Smart Collaboration Tools: Features PIP/PBP screen-split modes, LAN control, and wireless content sharing via ViewShare (optional) and AirSync for flexible meeting environments.

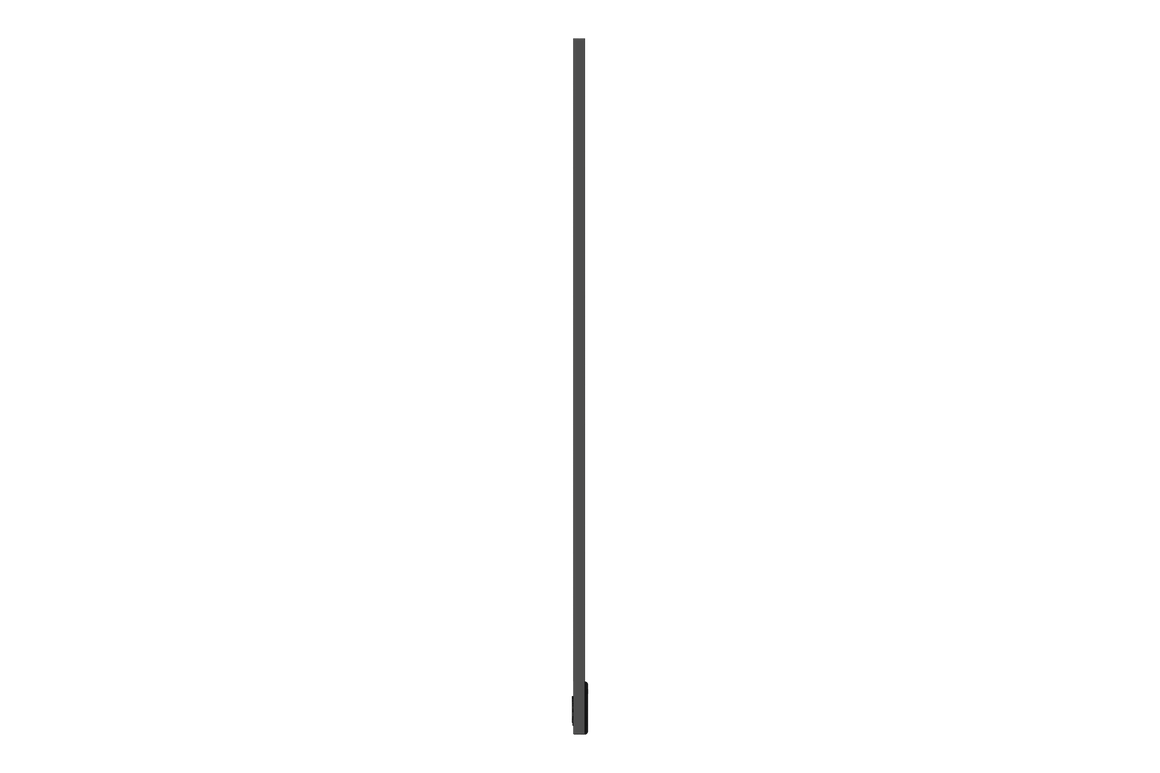

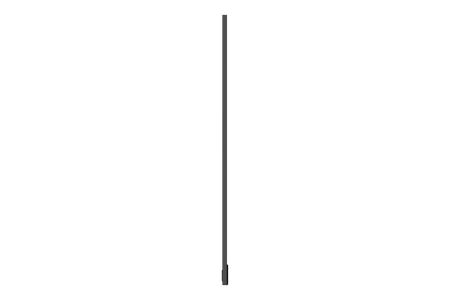

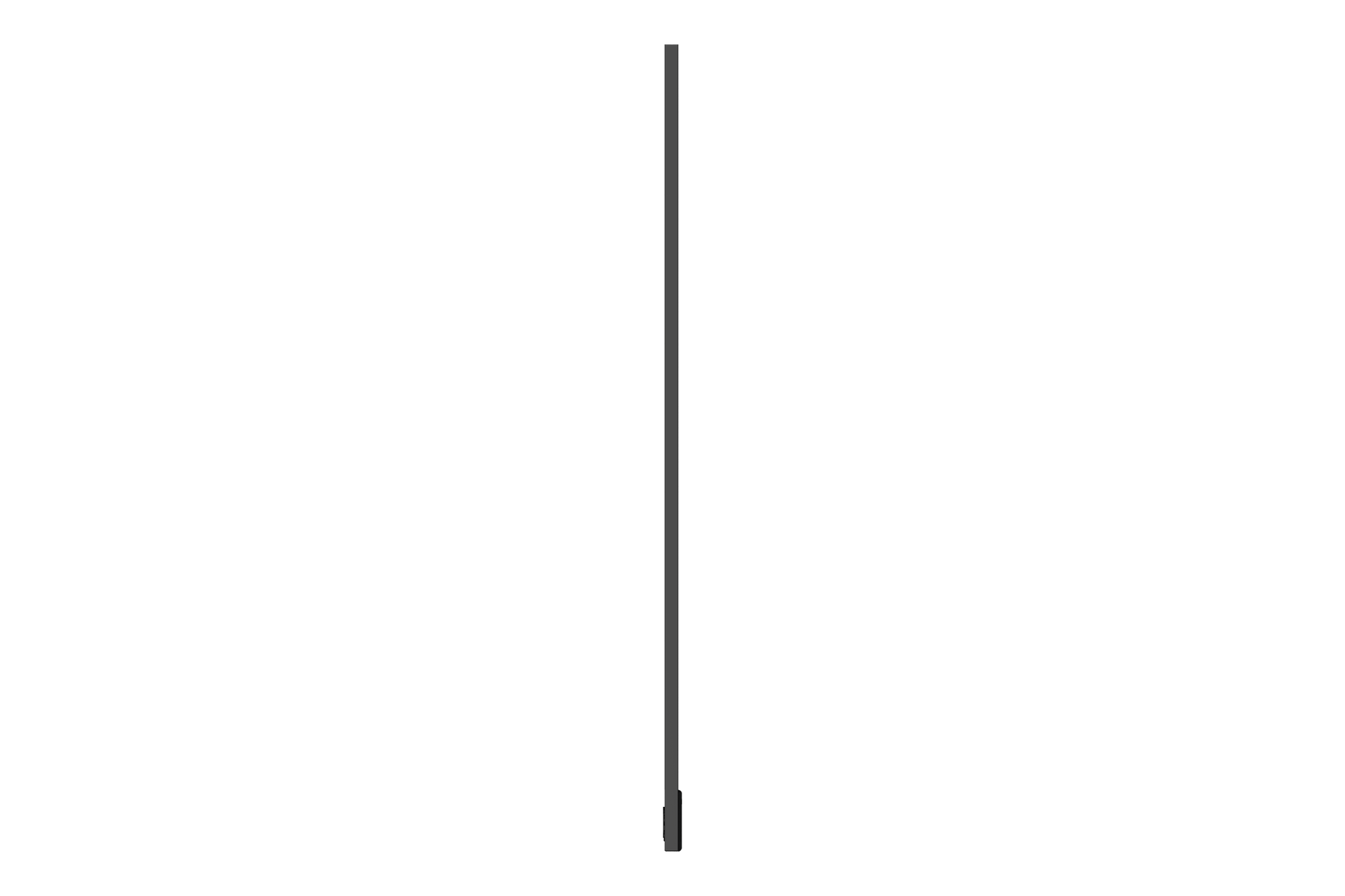

  • Sleek, Modern Design: 31 mm ultra-slim profile and near bezel-free panel deliver a premium aesthetic that enhances any space.
  • Powerful Audio: Built-in dual 30 W speakers provide rich, room-filling sound for impactful presentations and multimedia playback.

The ViewSonic LDP136-071C is the ultimate large-scale LED solution for conference rooms, training centers, and executive boardrooms. Offering brilliant 4K performance, durable COB construction, and all-in-one simplicity, it enables seamless collaboration and visually captivating communication in professional settings.

In stock
£178,800.00

Secure Checkout

Warranty Protection

14 - Day Returns

The ViewSonic LDP136-071C is a 136” 4K UHD All-in-One Direct View LED Display designed to deliver stunning large-format visuals and seamless collaboration in professional and enterprise environments. Featuring advanced Mini LED architecture and Chip-on-Board (COB) technology, it combines superior image fidelity, energy efficiency, and durability in an ultra-slim, bezel-free design ideal for modern meeting spaces.

Key Features

  • 4K UHD Resolution with Mini LED: Produces ultra-fine detail, vibrant colour, and deep contrast for premium visual impact.
  • Advanced COB Technology: Ensures robust performance with IP54 dust- and water-resistance and IK08 impact protection—perfect for high-traffic professional settings.
  • All-in-One Integration: Combines power, control, image stitching, and display in a single unit—installed by two people in under two hours.
  • Energy-Efficient Design: Common-cathode LED structure and smart ICs optimise power use while maintaining bright, uniform performance.
  • Smart Collaboration Tools: Supports PIP/PBP split-screen modes, LAN control, and optional wireless content sharing via ViewShare and AirSync.
  • Premium, Ultra-Slim Design: At only 31 mm thick with a near bezel-free surface, it blends seamlessly into any high-end corporate space.
  • Powerful Audio: Dual 30 W speakers deliver rich, clear sound for meetings and multimedia applications.

Specifications

Screen Size 136”
Display Area (W × H) 3000 × 1687.5 mm
Native Resolution 3840 × 2160 (4K UHD)
Panel Technology Direct View LED
LED Package Type Flip-Chip COB (Chip-on-Board)
Pixel Pitch 0.78 mm
Brightness (Max.) 600 nits (100 levels adjustable)
Contrast Ratio 10 000 : 1 (typ.)
Viewing Angle 170° (H) / 170° (V)
LED Lifetime 100 000 hours (typ.)
Orientation Landscape
Embedded OS Android 9.0
Local Storage 32 GB (26 GB available)
Inputs HDMI 2.0 ×4 (HDCP 2.2; 3 internal + 1 external), USB-A ×3 (USB 3.0 ×1, USB 2.0 ×2), USB-C ×1 (data only), RJ45 ×3 (2 Internet + 1 Control), IR In ×1, Wi-Fi 2.4G/5G
Outputs HDMI Out ×1 (HDMI 2.0, HDCP 2.2), Audio Out ×2 (3.5 mm), S/PDIF ×1
Speakers 30 W × 2 stereo
Control RS232 (DB9) ×1, LAN Control ×1, IR Receiver ×1
Ingress / Impact Protection IP54 (Front) / IK08 (Front)
Power Supply 100–120 V / 20 A (50/60 Hz) or 220–240 V / 10 A (50 Hz)
Power Consumption 680 W (typ.), 2031 W (max), < 0.5 W (Hibernate)
Operating Temperature 0–40 °C
Dimensions (W × H × D) 3012 × 1834.5 × 41 mm (118.6 × 72.2 × 1.6 in)
Weight Net: 169 kg (372.6 lbs); Gross: 272 kg (599.7 lbs)
Included Accessories Power cord, LAN cable (Cat5E), IR extender cable, remote control, wall mount, 14 spare LED modules, installation guide, maintenance tools (LD-MK-004, LD-MK-006)

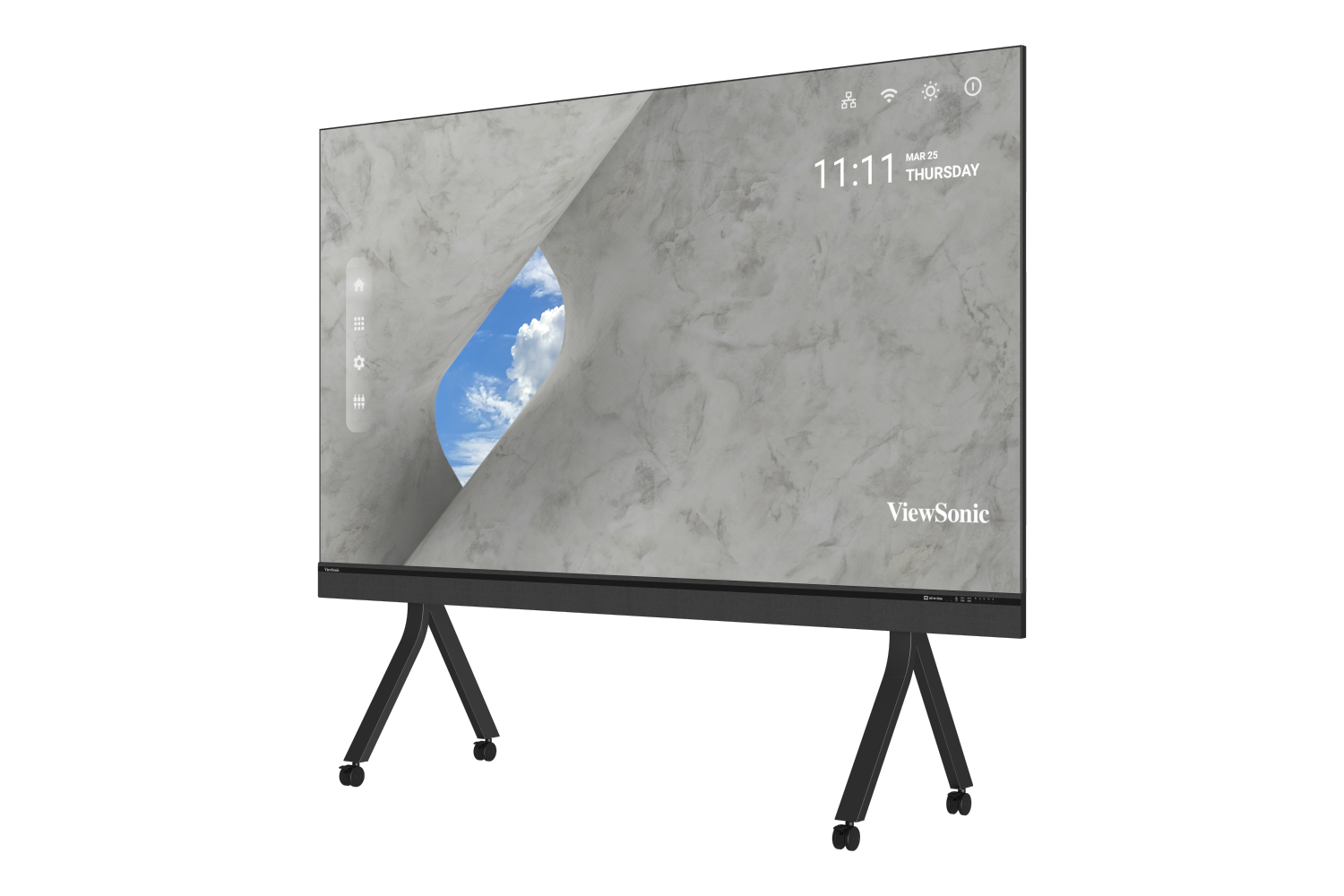

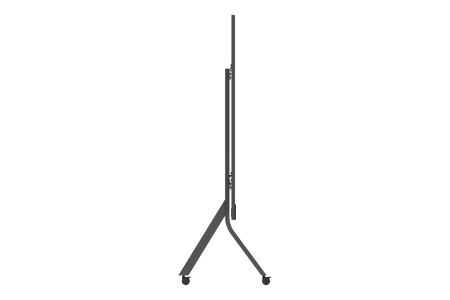

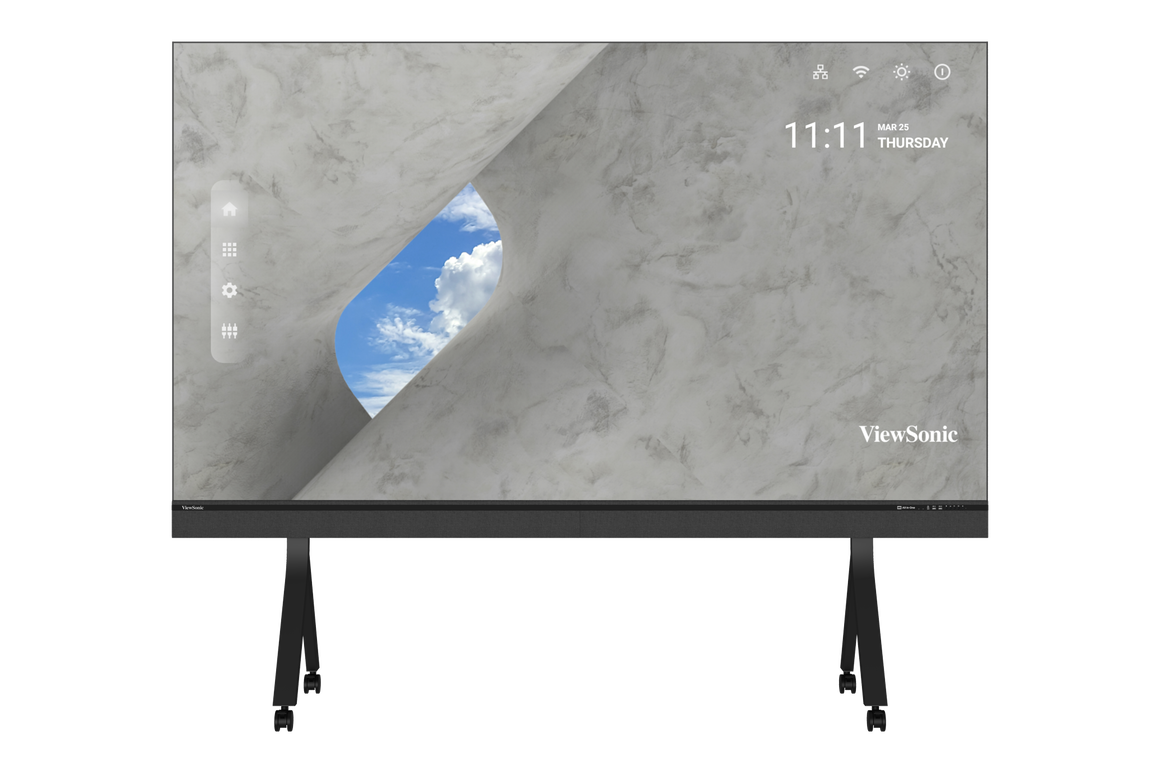

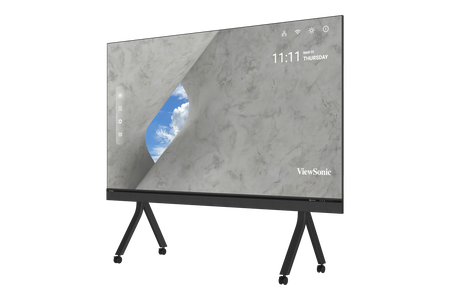

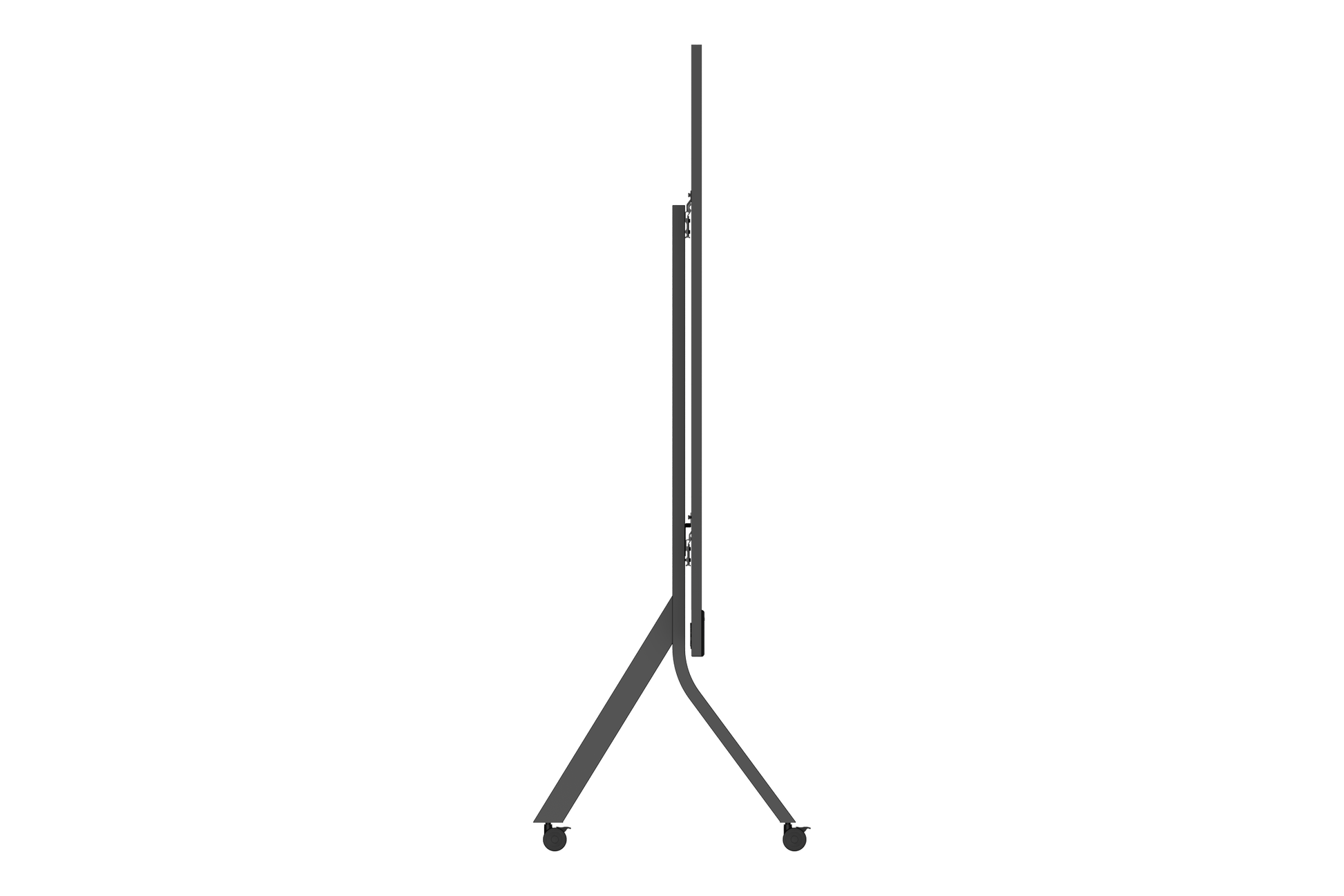

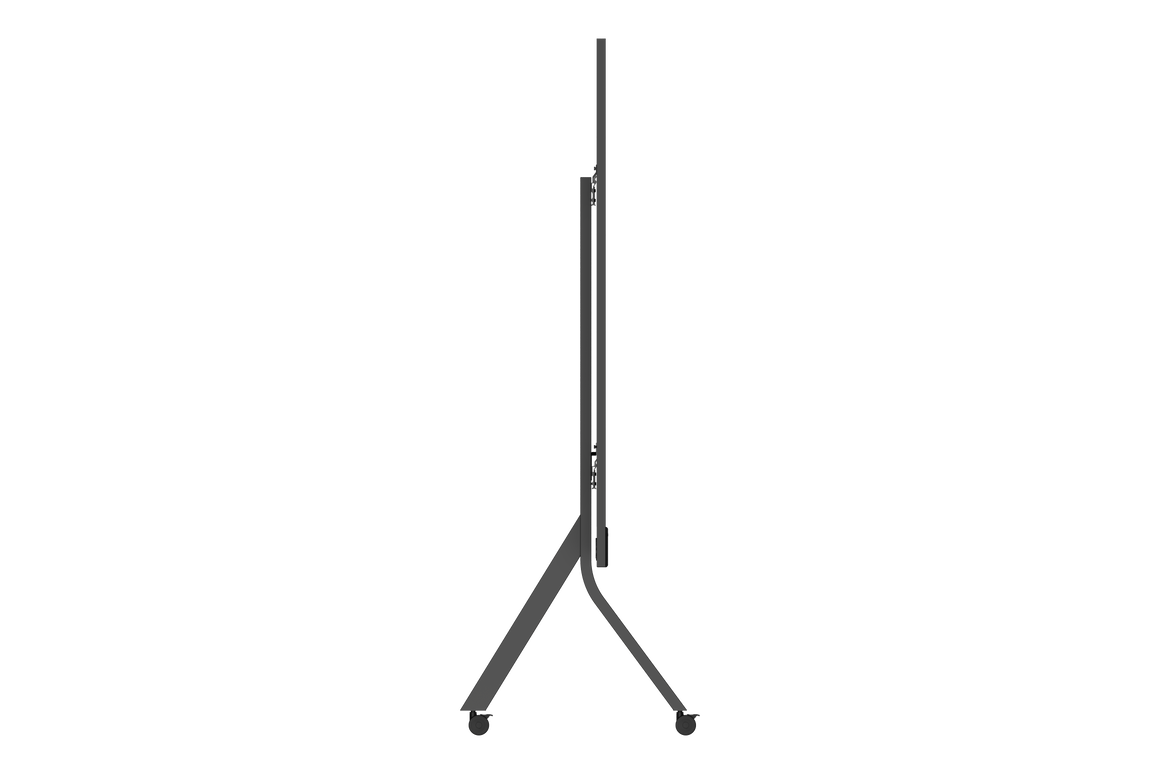

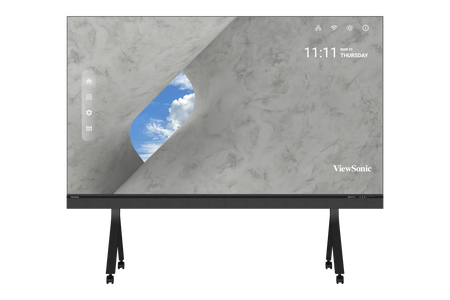

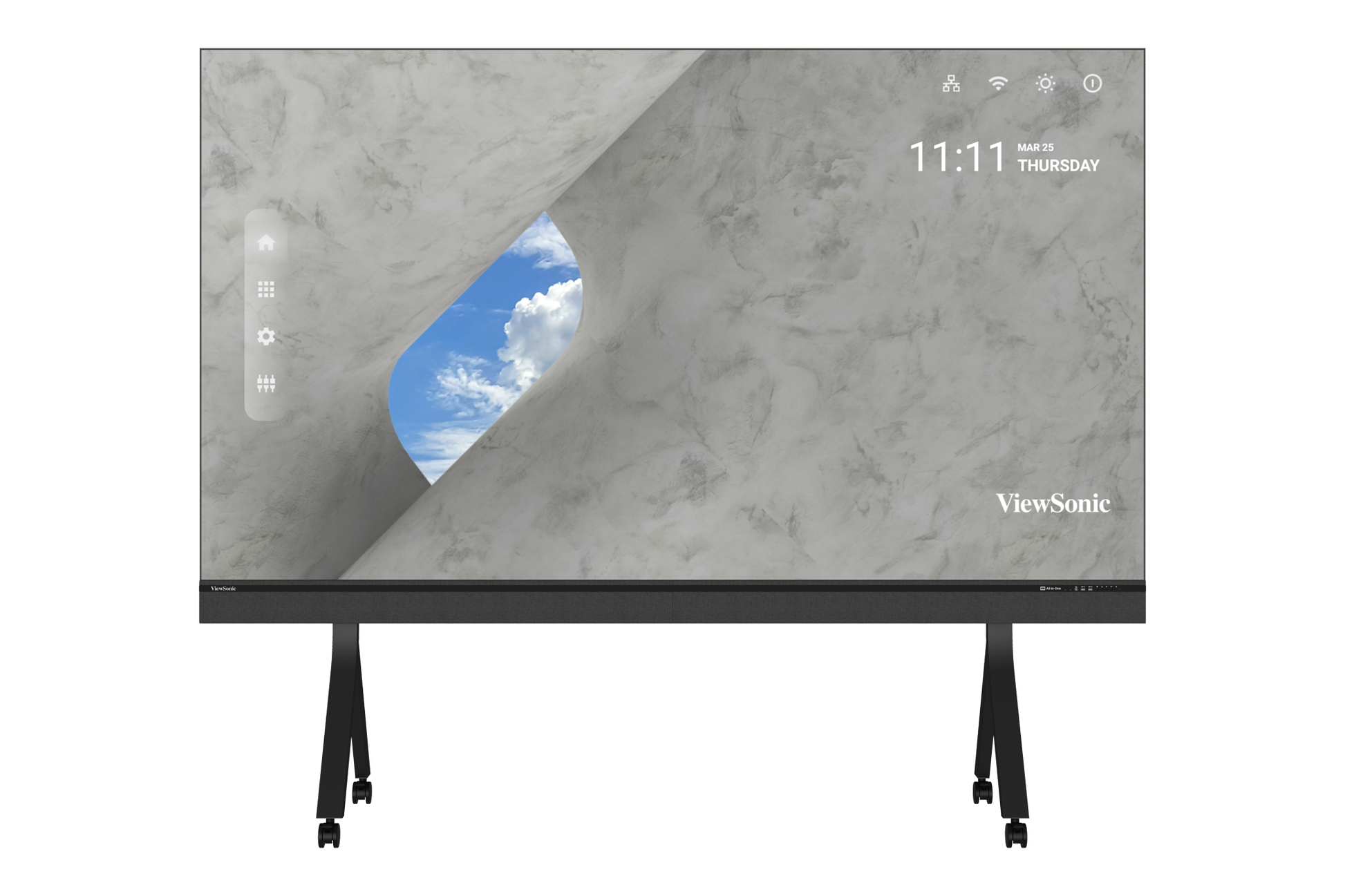

Optional Accessories Floor stand (LD-STND-009)

Application Examples
Executive Boardrooms Deliver impactful 4K presentations and real-time collaboration with brilliant clarity and professional aesthetics.
Meeting & Training Rooms Facilitate interactive sessions and hybrid conferences using integrated audio and PIP/PBP display modes.
Corporate Lobbies & Reception Areas Enhance corporate identity with large-format, bezel-free visuals ideal for digital signage and brand storytelling.
Auditoriums & Lecture Halls Provide wide-angle, bright imagery suitable for large audiences and educational applications.
Retail & Hospitality Spaces Transform commercial and public environments with immersive 4K content displays that attract attention and elevate ambience.

The ViewSonic LDP136-071C delivers premium 4K LED visual performance, durable COB engineering, and advanced smart connectivity in a sleek all-in-one design—making it the perfect choice for high-end meeting spaces, training centres, and corporate venues requiring elegance, performance, and reliability.
