SKU: LDP163-091C

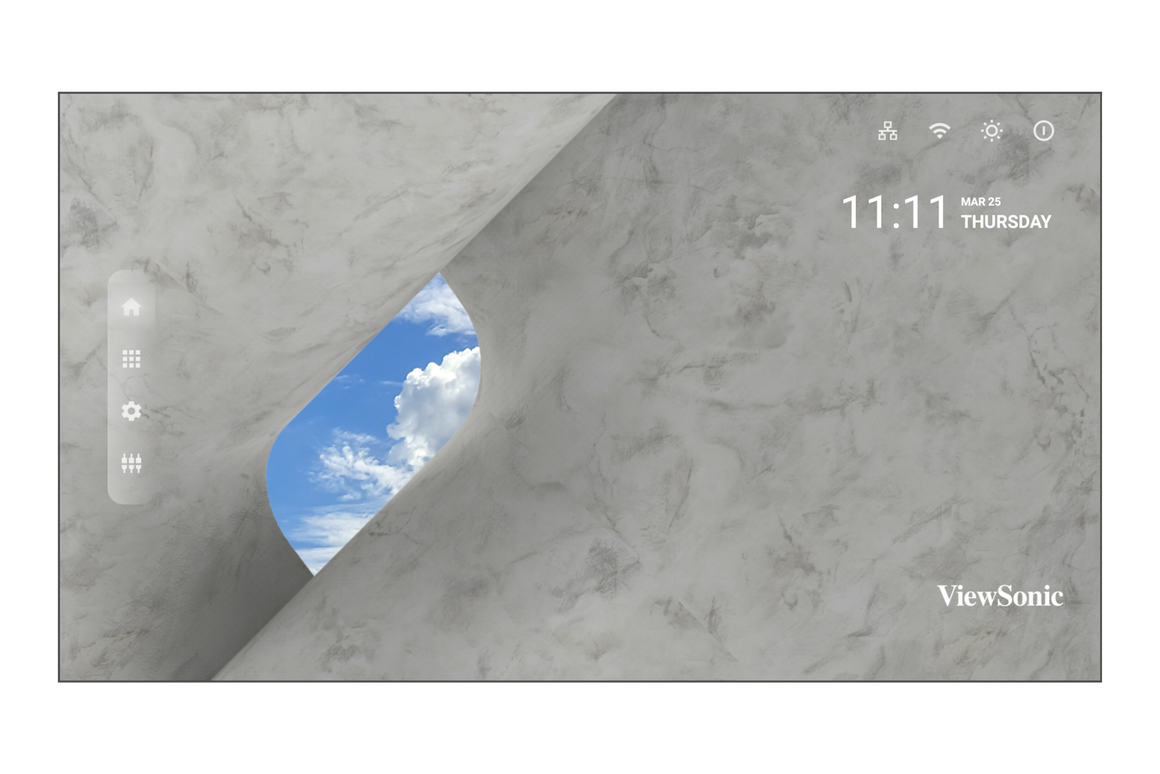

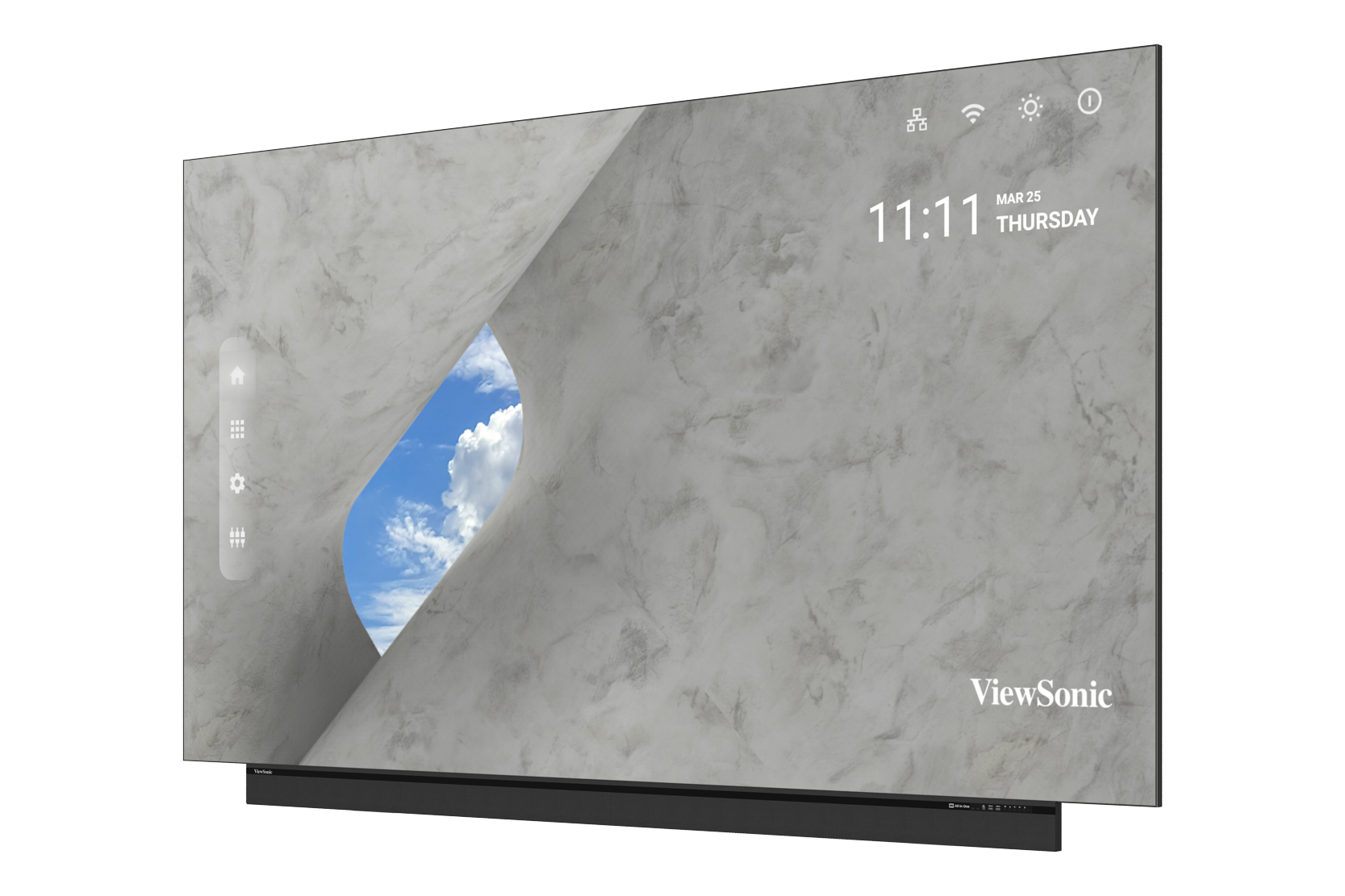

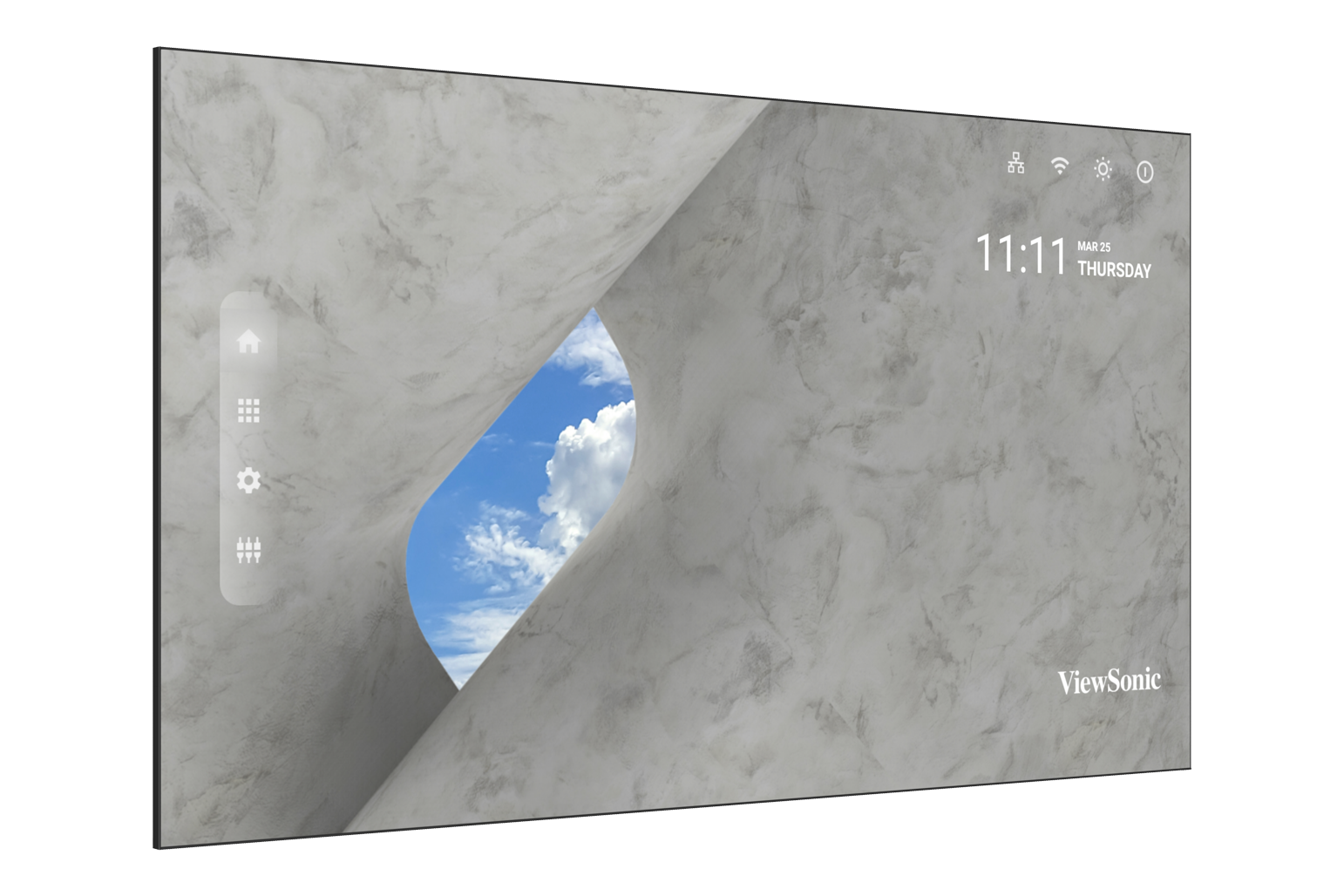

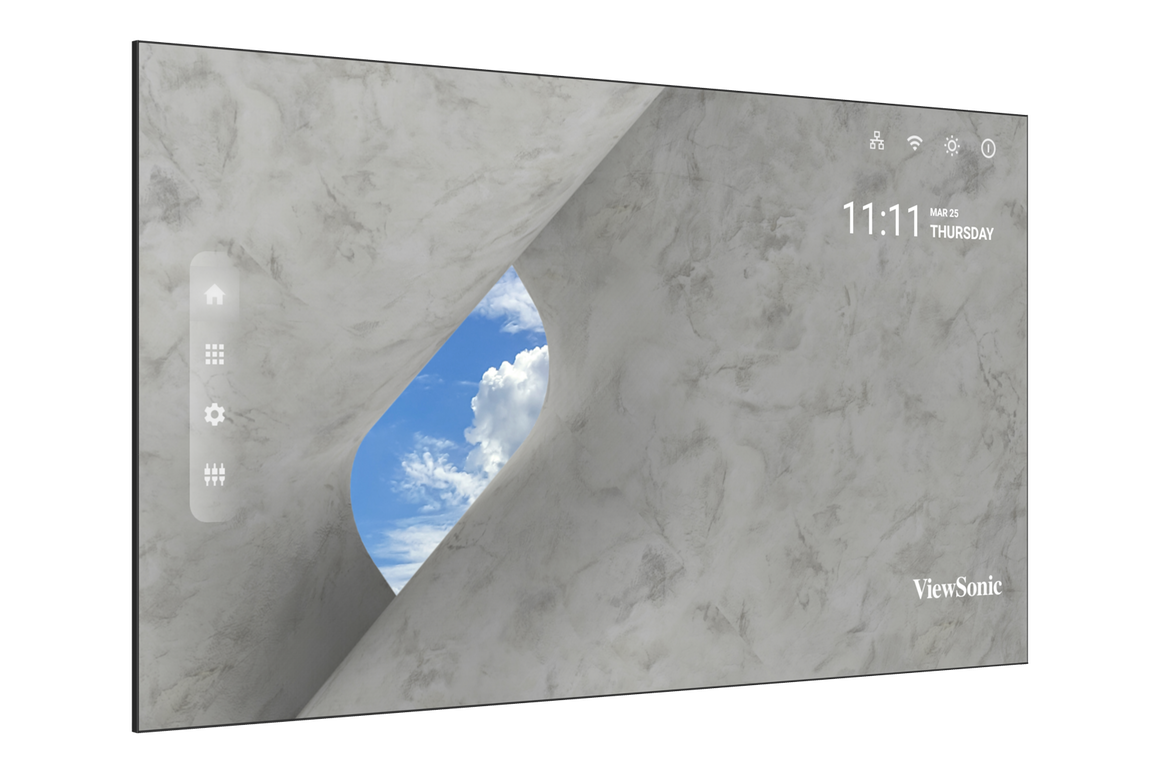

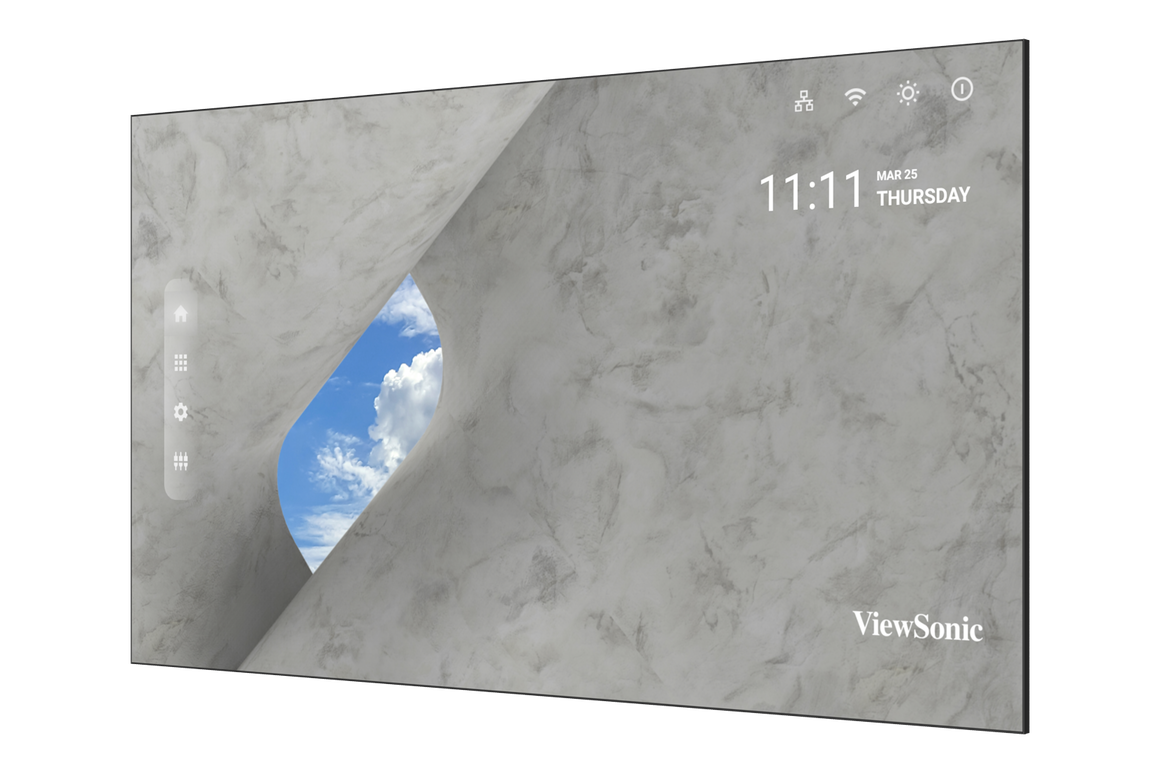

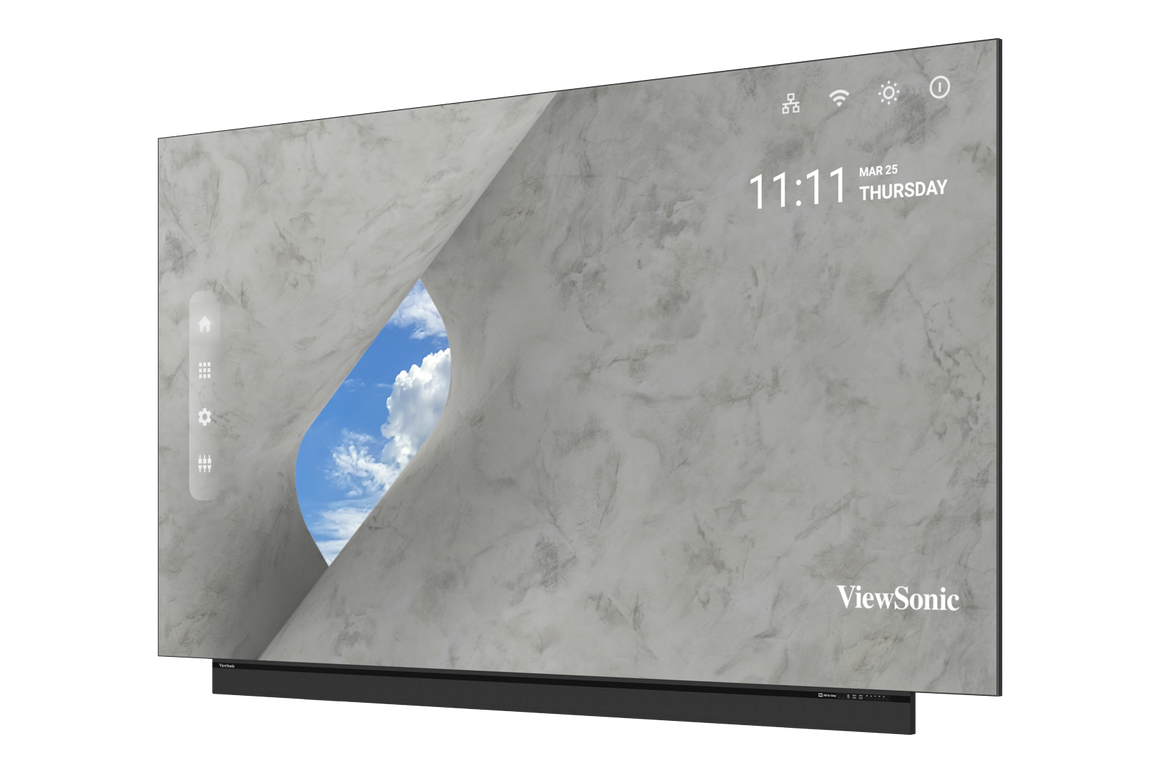

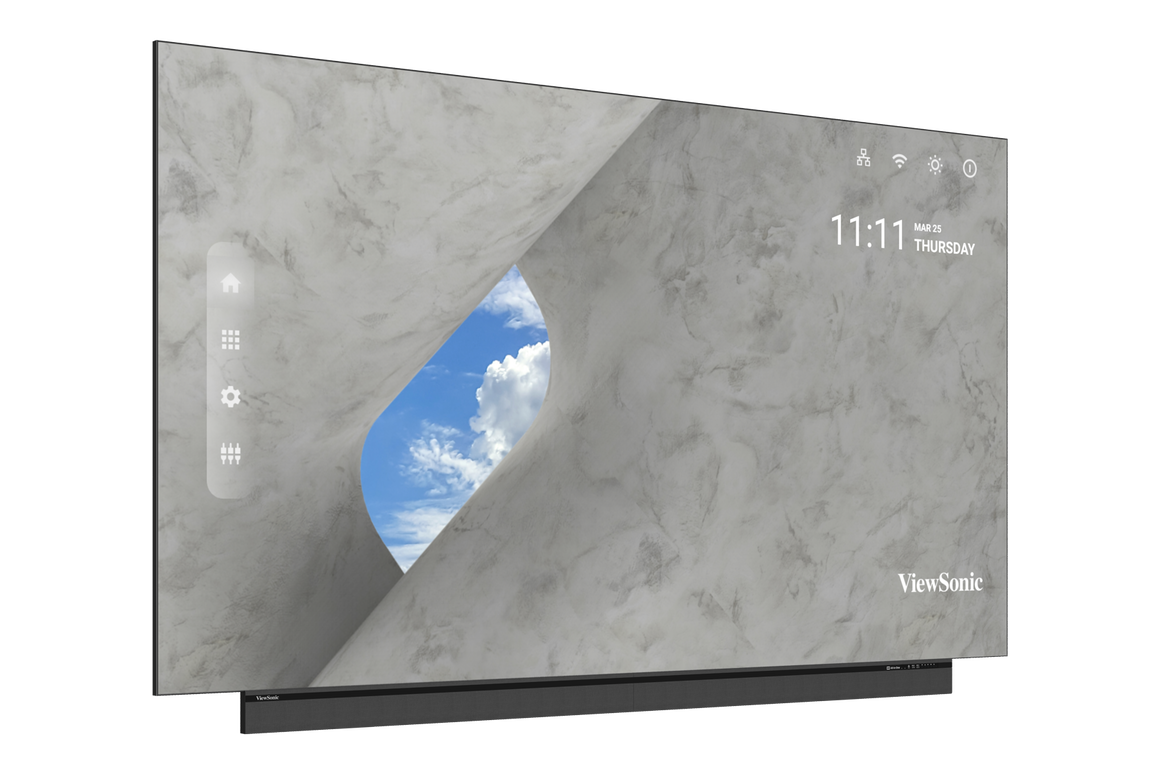

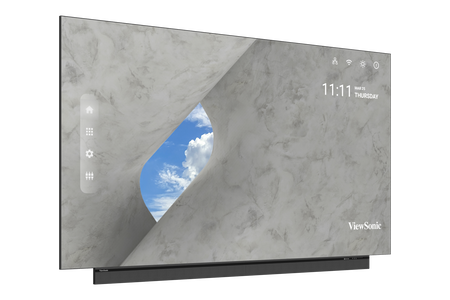

ViewSonic LDP163-091C 163" 4K UHD AIO Direct View LED Display

ViewSonic

163 inch 4K UHD AIO Direct View LED Display

The ViewSonic LDP163-091C is a 163-inch 4K UHD All-in-One Direct View LED Display engineered to deliver exceptional visual performance for premium meeting spaces, executive boardrooms, and training environments. With Mini LED technology and advanced Chip-on-Board (COB) construction, it offers stunning brightness, vivid colour, and ultra-fine detail within a sleek, ultra-slim frame. Its All-in-One design streamlines installation by integrating power, control, image stitching, and display into one unit, while the common cathode LED architecture ensures energy-efficient operation for long-term sustainability.

Key Features

  • 4K UHD Visual Excellence: 3840×2160 resolution with Mini LED architecture produces vivid colour, deep contrast, and exceptional clarity for large-scale professional environments.
  • Advanced COB Technology: Enhanced protection against impact, water, and dust with IP54 and IK08 ratings, ideal for high-traffic corporate or public settings.
  • All-in-One Integration: Combines power, control, image stitching, and display—allowing two-person setup in under two hours for easy deployment.
  • Energy-Efficient Design: Common cathode LED structure with smart ICs reduces power consumption while ensuring long-term performance and sustainability.
  • Smart Collaboration: Supports PIP/PBP split-screen modes, LAN control, and wireless content sharing via ViewShare and AirSync for effortless teamwork.
  • Premium Design: An ultra-slim 31 mm profile and near bezel-free design enhance any modern workspace with minimalist sophistication.
  • Immersive Audio: Dual 30 W built-in speakers deliver powerful, clear sound without requiring external audio equipment.

The ViewSonic LDP163-091C is the ideal choice for premium corporate environments seeking cutting-edge LED performance and seamless integration. Combining breathtaking 4K visual, durable COB engineering, and energy-conscious design, it transforms boardrooms, training centers, and auditoriums into inspiring collaborative spaces in the corporate and public sector.

In stock
£142,800.00

Secure checkout

Friendly support

Hassle-free returns

The ViewSonic LDP163-091C is a 163” 4K UHD All-in-One Direct View LED Display designed to elevate visual experiences in premium meeting rooms, training centres, and executive boardrooms. Featuring advanced Mini LED architecture and Chip-on-Board (COB) technology, it offers superior colour accuracy, brightness, and reliability within an ultra-slim, near-seamless design. Engineered for simplicity and performance, it integrates power, control, image stitching, and display into a single solution, ensuring rapid installation and long-term efficiency for modern corporate environments.

Key Features

  • 4K UHD with Mini LED: Delivers ultra-fine detail, vivid colour, and high contrast for professional-grade visual performance.
  • Advanced Flip-Chip COB Technology: Provides superior resistance to dust, moisture, and impact (IP54 and IK08 rated) for high-traffic professional spaces.
  • All-in-One Integration: Combines power, control, image stitching, and display for seamless installation by just two people in under two hours.
  • Energy-Efficient Design: Common cathode LED structure and smart ICs reduce power consumption while maintaining bright, consistent output.
  • Smart Collaboration Tools: Supports PIP/PBP split-screen modes, LAN control, and optional wireless content sharing via ViewShare and AirSync.
  • Integrated Audio: Dual 30 W stereo speakers deliver clear sound for conferences, presentations, and multimedia content.
  • Elegant, Ultra-Slim Profile: 31 mm thickness and near bezel-free design blend effortlessly with sophisticated corporate interiors.

Specifications

Screen Size 163”
Display Area (W × H) 3600 × 2025 mm
Native Resolution 3840 × 2160 (4K UHD)
Panel Technology Direct View LED
LED Package Type Flip-Chip COB (Chip-on-Board)
Pixel Pitch 0.93 mm
Brightness 600 nits (100 levels adjustable)
Contrast Ratio 10,000 : 1 (typ.)
Viewing Angle 170° (H) / 170° (V)
LED Lifetime 100,000 hours (typ.)
Orientation Landscape
Embedded OS Android 9.0
Internal Storage 32 GB (26 GB usable)
Inputs HDMI 2.0 ×4 (HDCP 2.2; 3 internal + 1 external), USB-A ×3 (USB 3.0 ×1, USB 2.0 ×2), USB-C ×1 (data only), RJ45 ×3 (2 Internet + 1 Control), IR In ×1, Wi-Fi 2.4/5 GHz
Outputs HDMI 2.0 ×1 (HDCP 2.2), Audio Out ×2 (3.5 mm), S/PDIF ×1
Speakers 30 W × 2 stereo
Control RS232 (DB9), LAN Control ×1, IR Receiver ×1
Protection Rating IP54 (front), IK08 (front)
Power Supply 100 – 120 V / 30 A (50/60 Hz) or 220 – 240 V / 15 A (50 Hz)
Power Consumption 805 W (typ.), 2414 W (max), < 0.5 W (hibernate)
Operating Temperature 0 – 40 °C

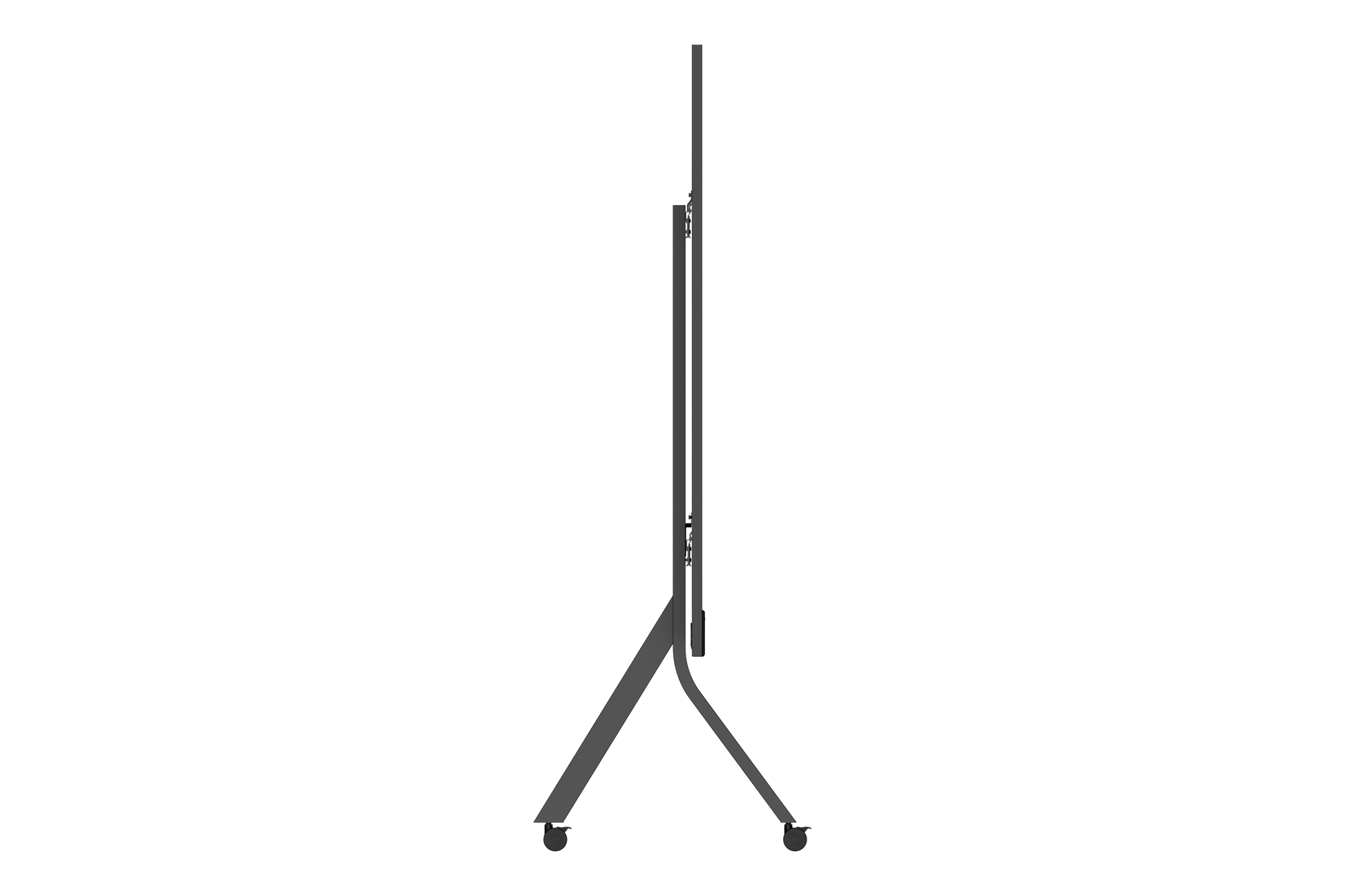

Product Dimensions (W × H × D) 3612 × 2172 × 41 mm
Net Weight 232 kg (511 lbs)
Gross Weight 361 kg (799 lbs)
Standard Accessories Power Cord, LAN Cable (Cat 5E), IR Extender, Remote Control, Wall Mount, Spare LED Modules ×20, Maintenance Tools (LD-MK-004, LD-MK-006), Installation Guide

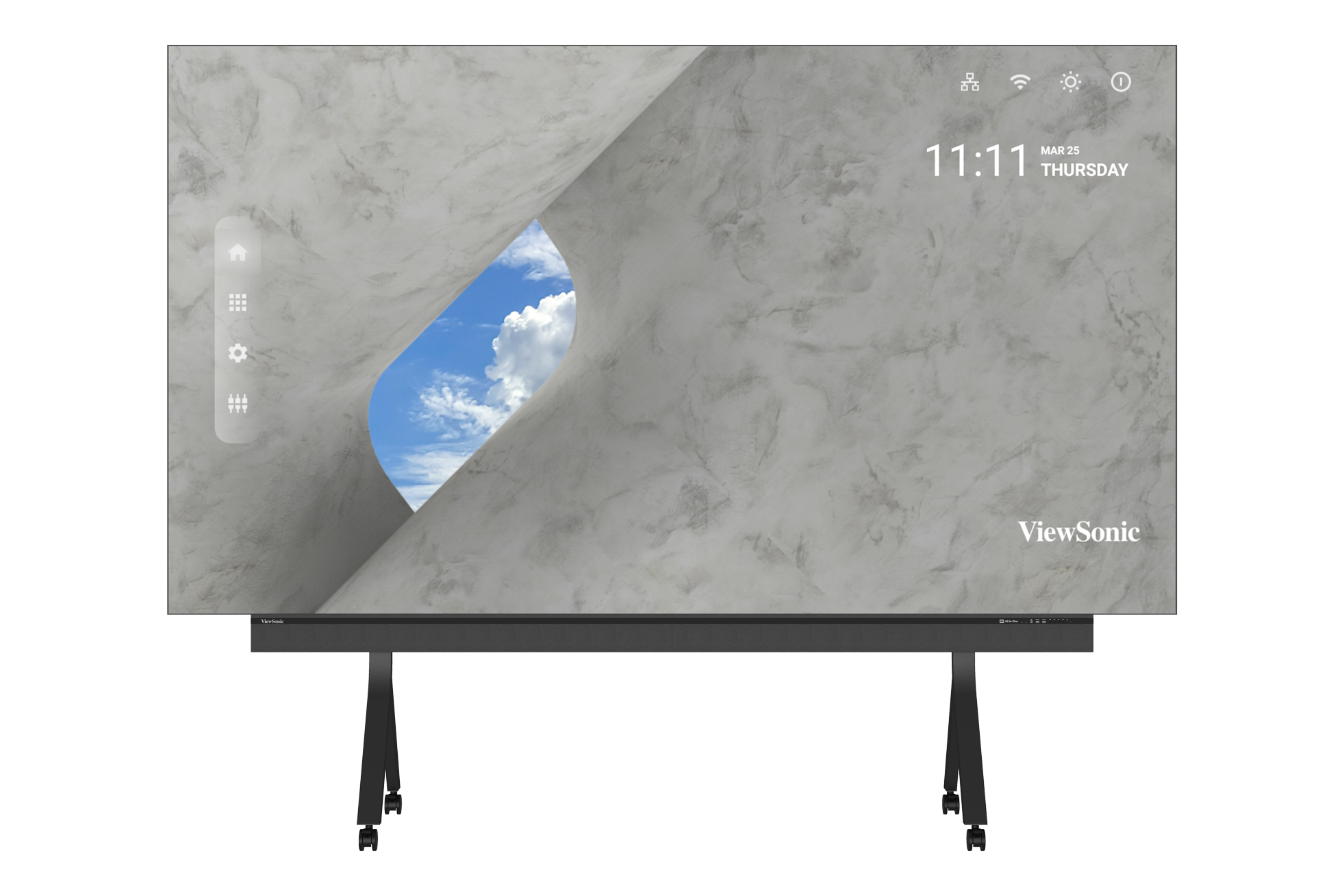

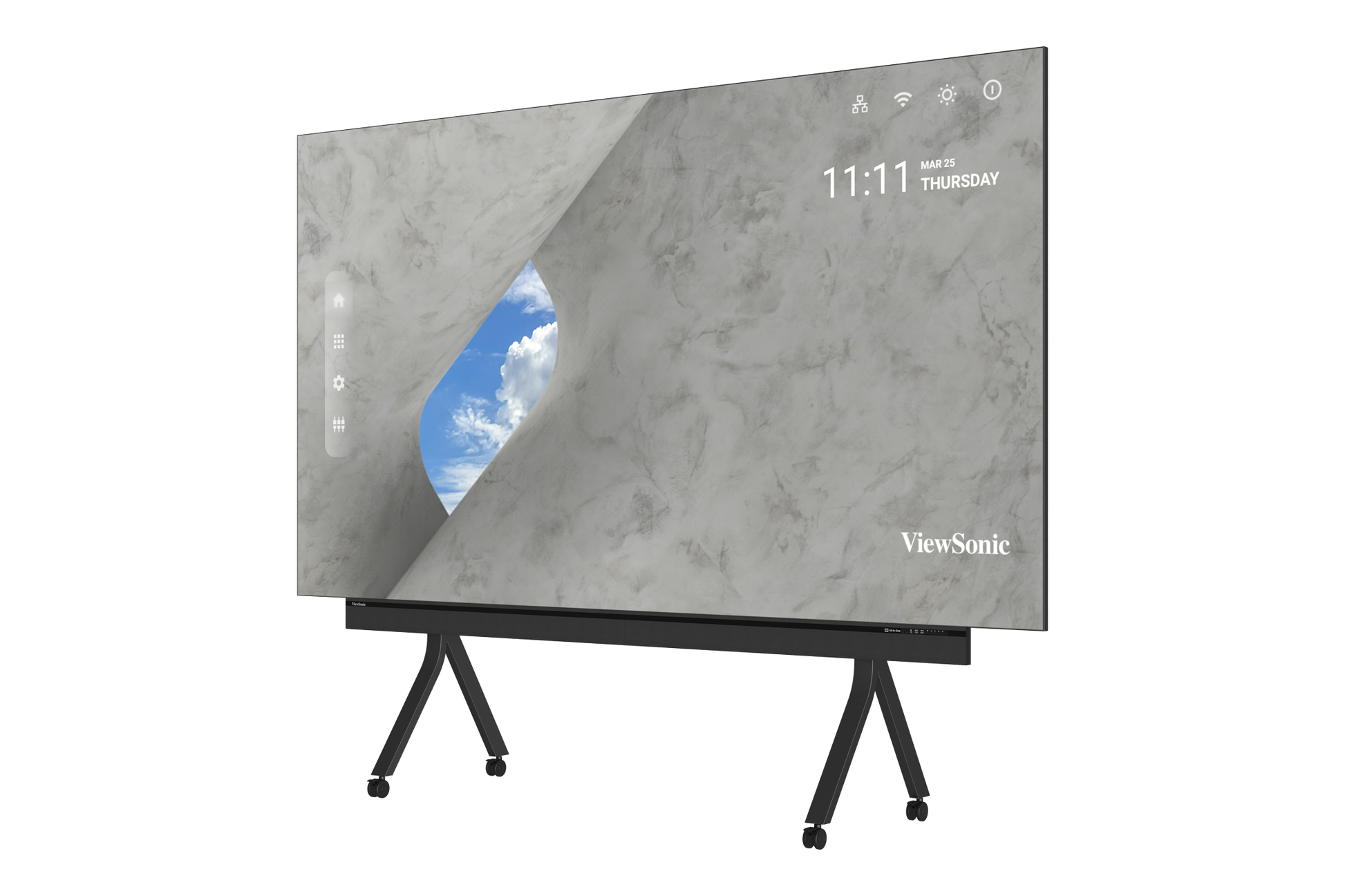

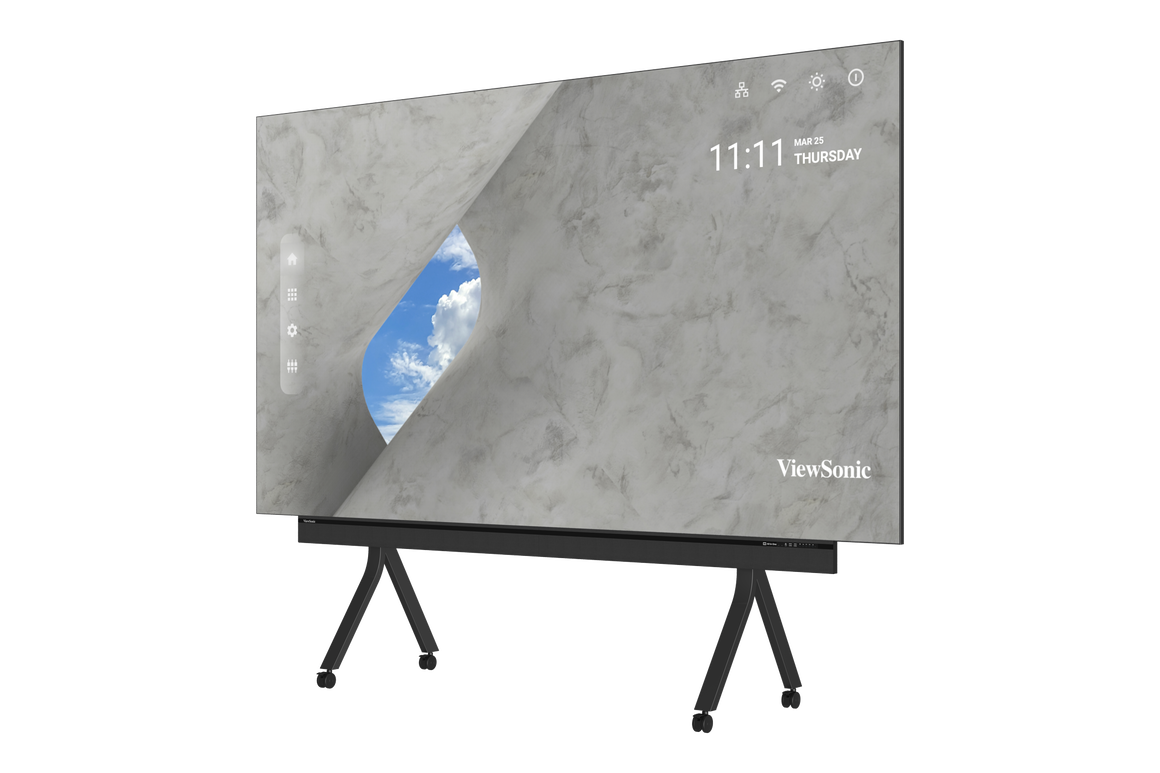

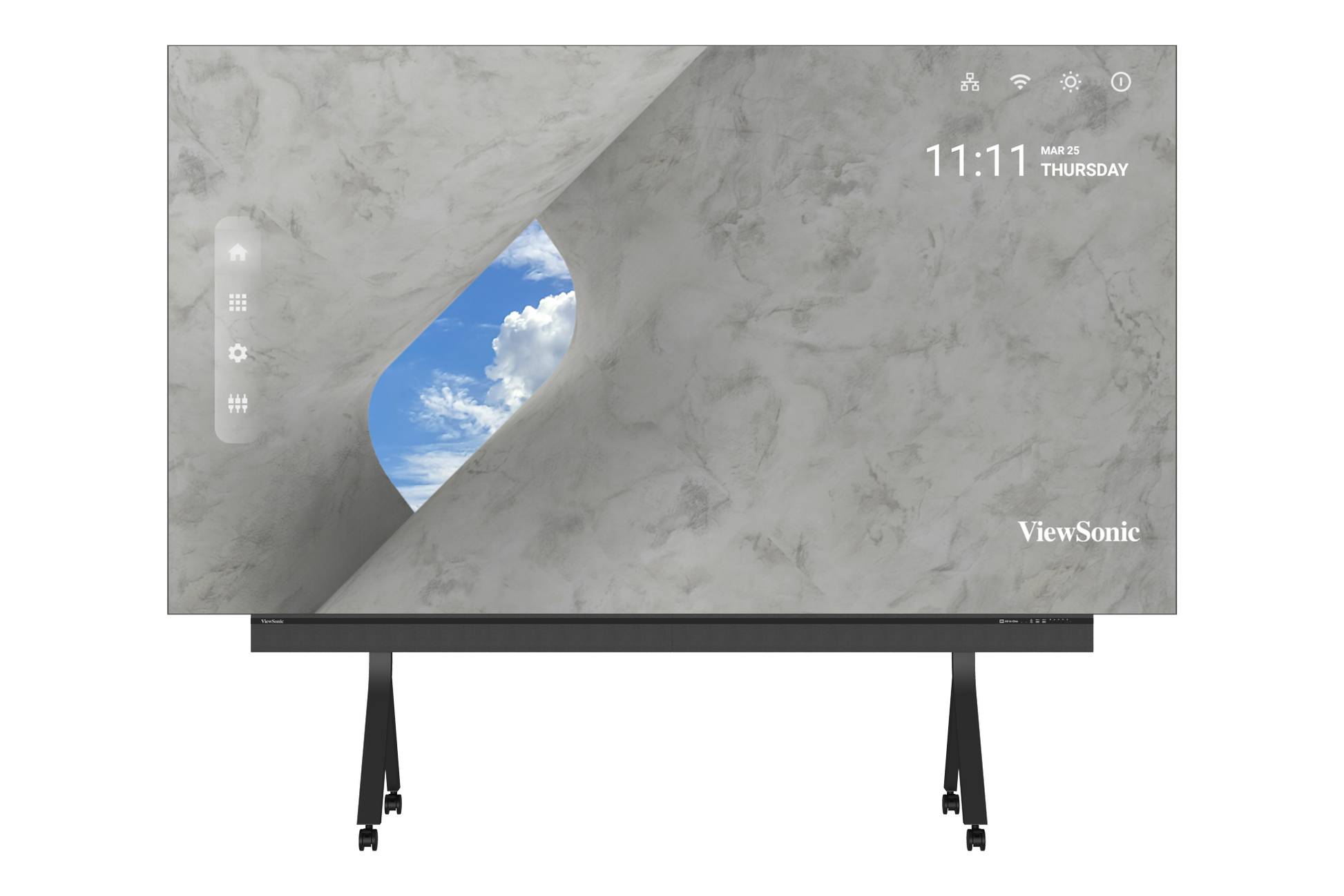

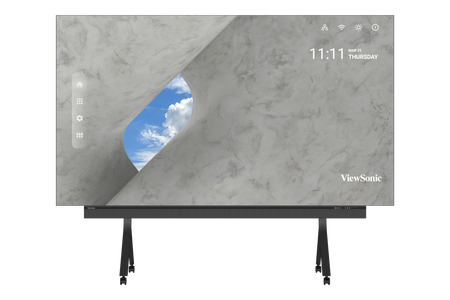

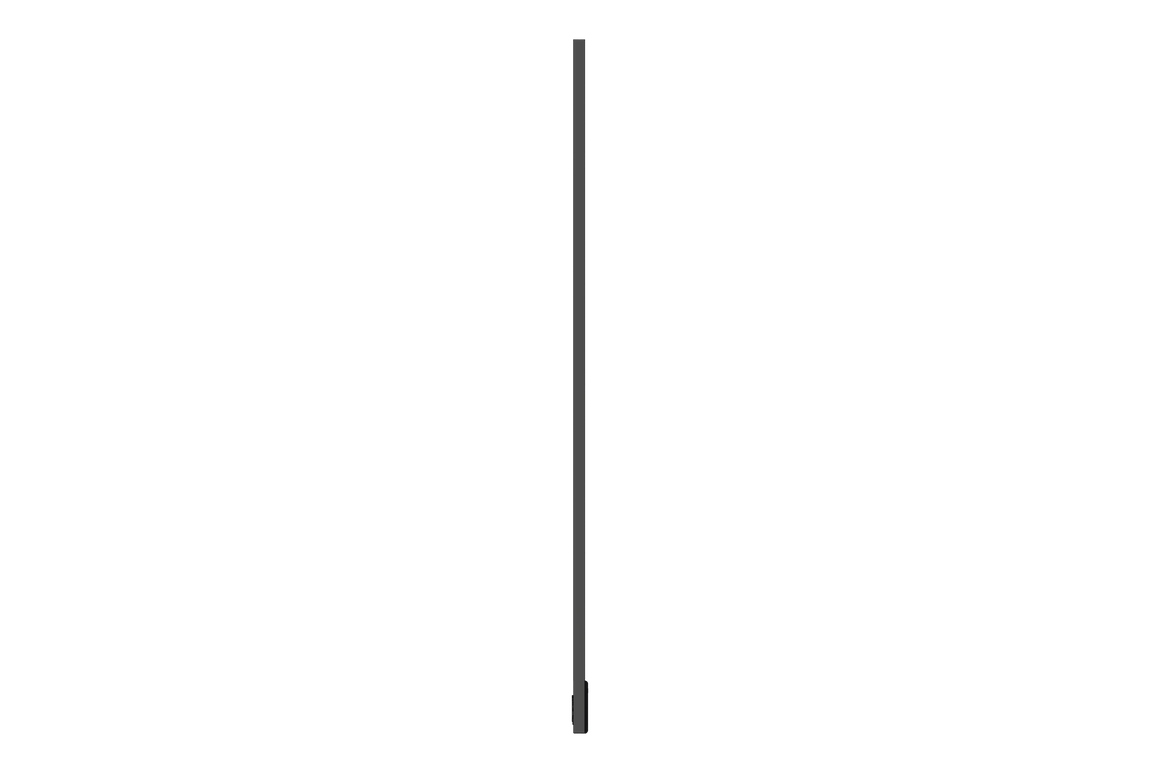

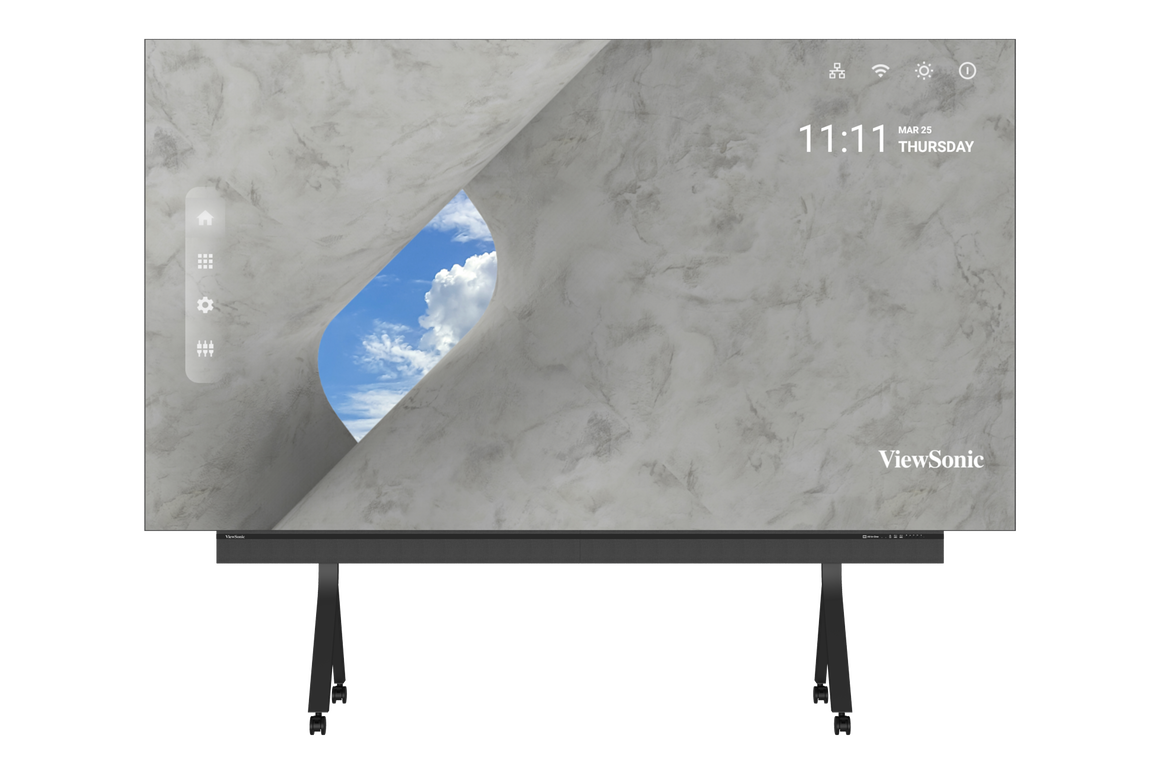

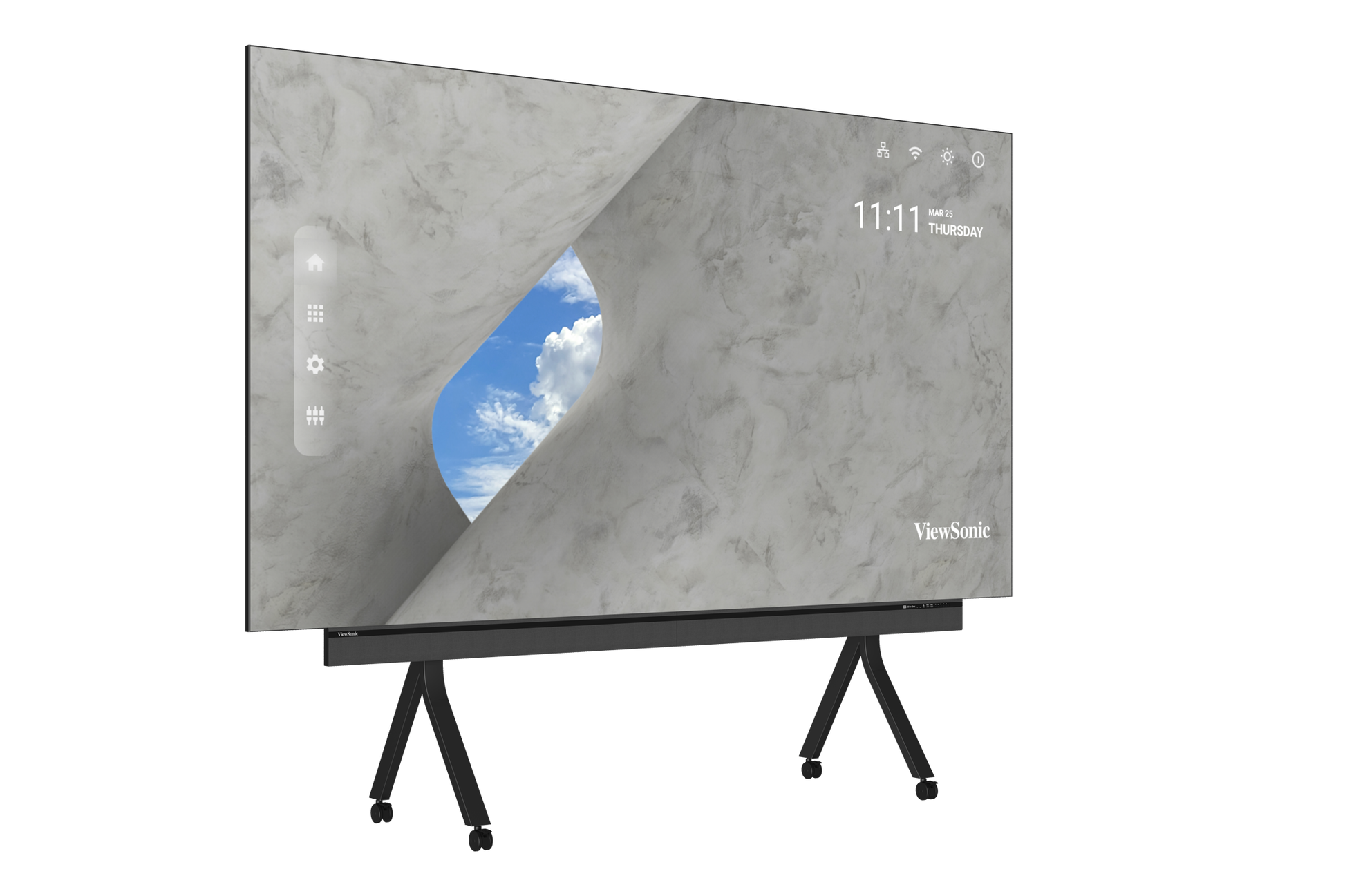

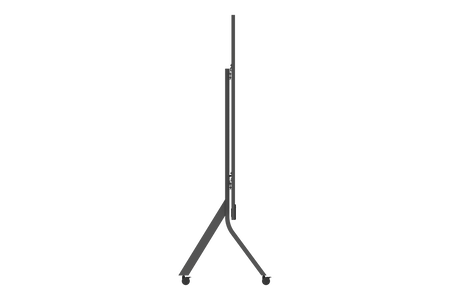

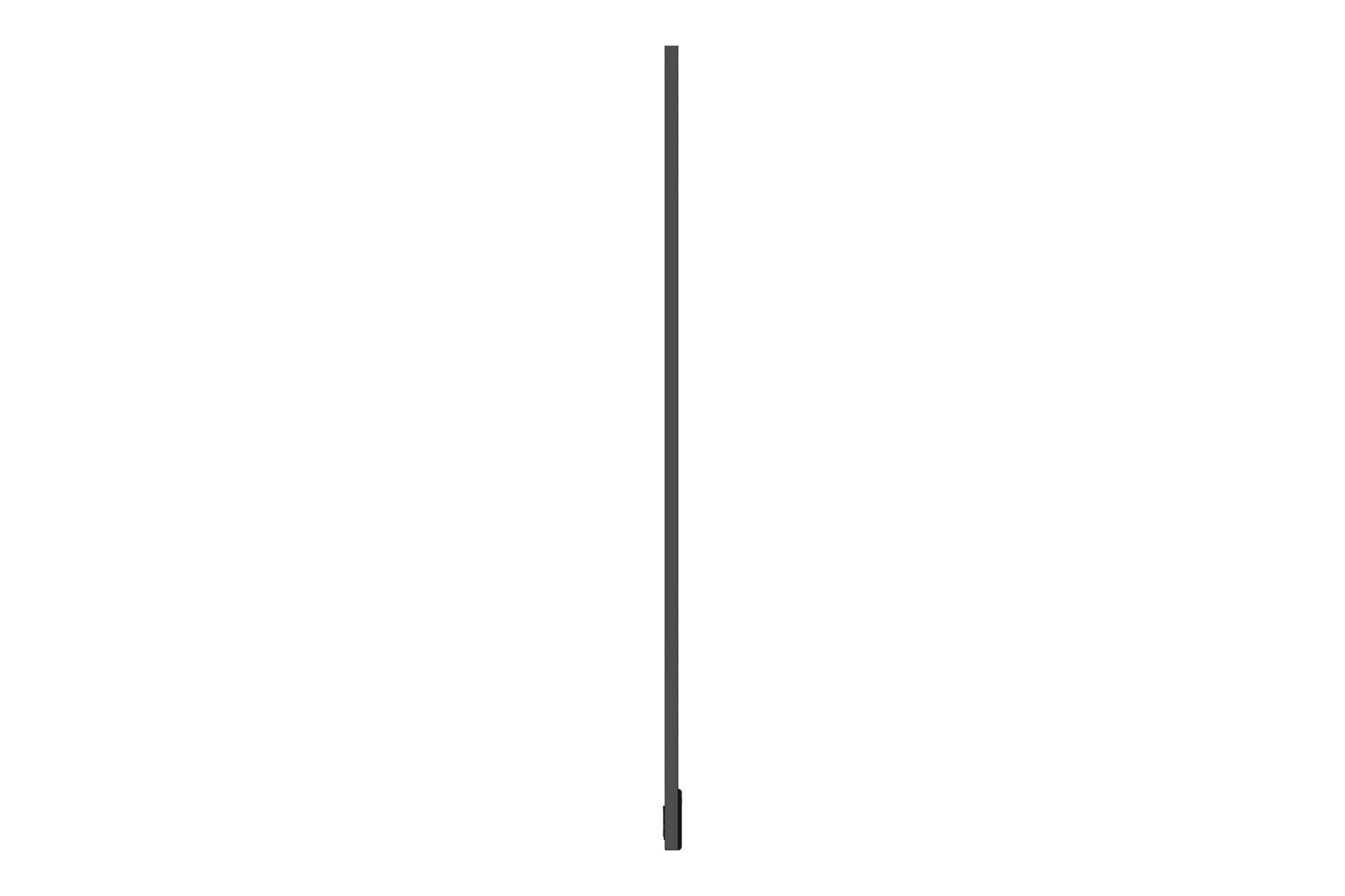

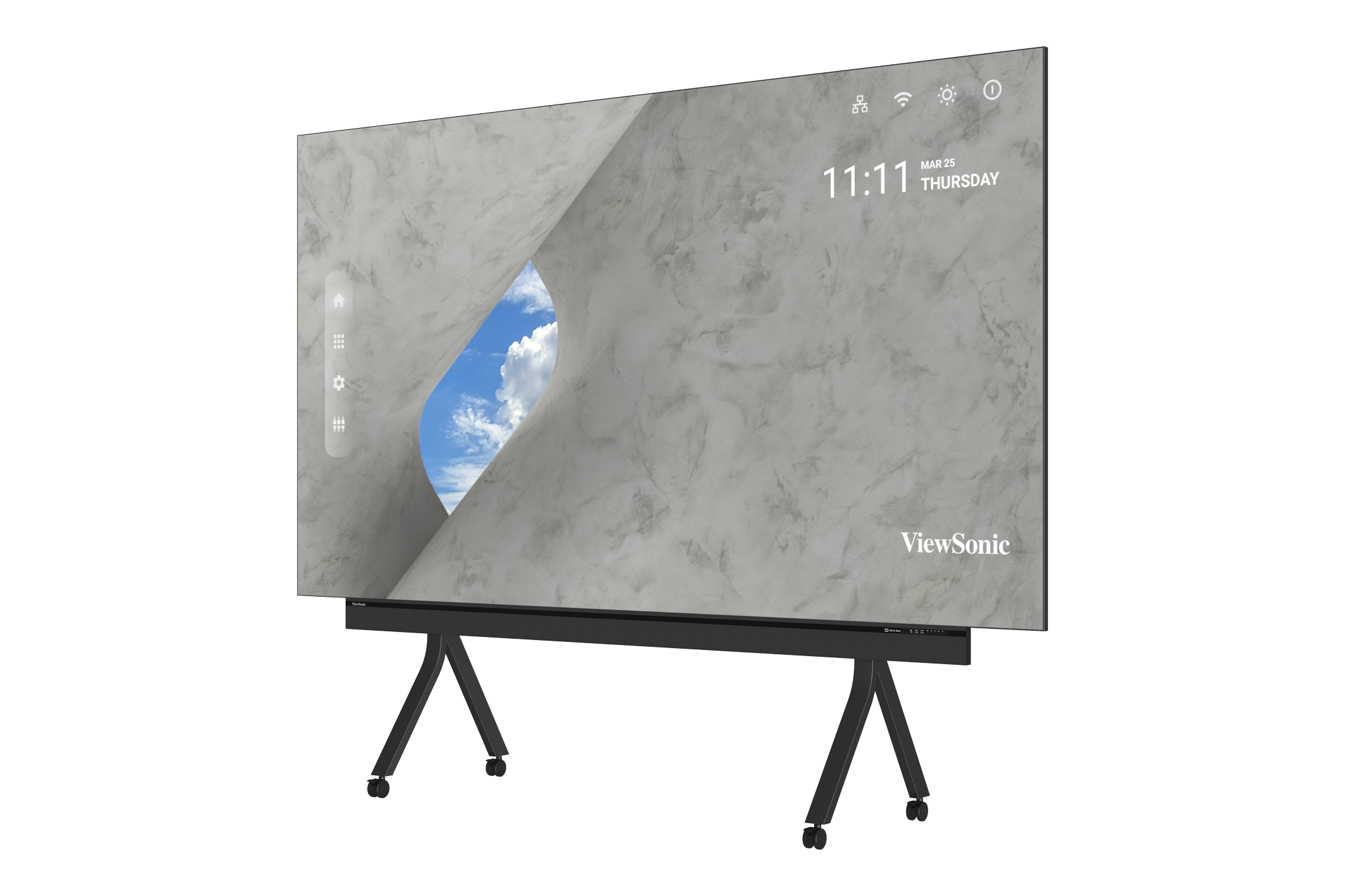

Optional Accessories Floor Stand (LD-STND-009)

Application Examples
Executive Boardrooms Deliver ultra-high-resolution visuals for presentations and decision-making, providing an elegant centrepiece for modern corporate leadership spaces.
Conference & Training Rooms Enable dynamic collaboration, multi-window content sharing, and clear visibility for all participants with the 4K UHD LED clarity.
Corporate Lobbies & Reception Areas Enhance brand image with vivid, seamless 4K visuals and an ultra-slim design ideal for high-impact messaging or welcome signage.
Auditoriums & Lecture Halls Provide large-scale, immersive visuals for educational sessions, seminars, and company-wide communications.
Retail & Hospitality Spaces Create visually striking content displays for luxury showrooms, exhibition spaces, and high-end retail environments.

The ViewSonic LDP163-091C brings together exceptional 4K image quality, robust COB reliability, and effortless all-in-one design, making it the ideal LED display solution for premium business, educational, and experiential environments.
