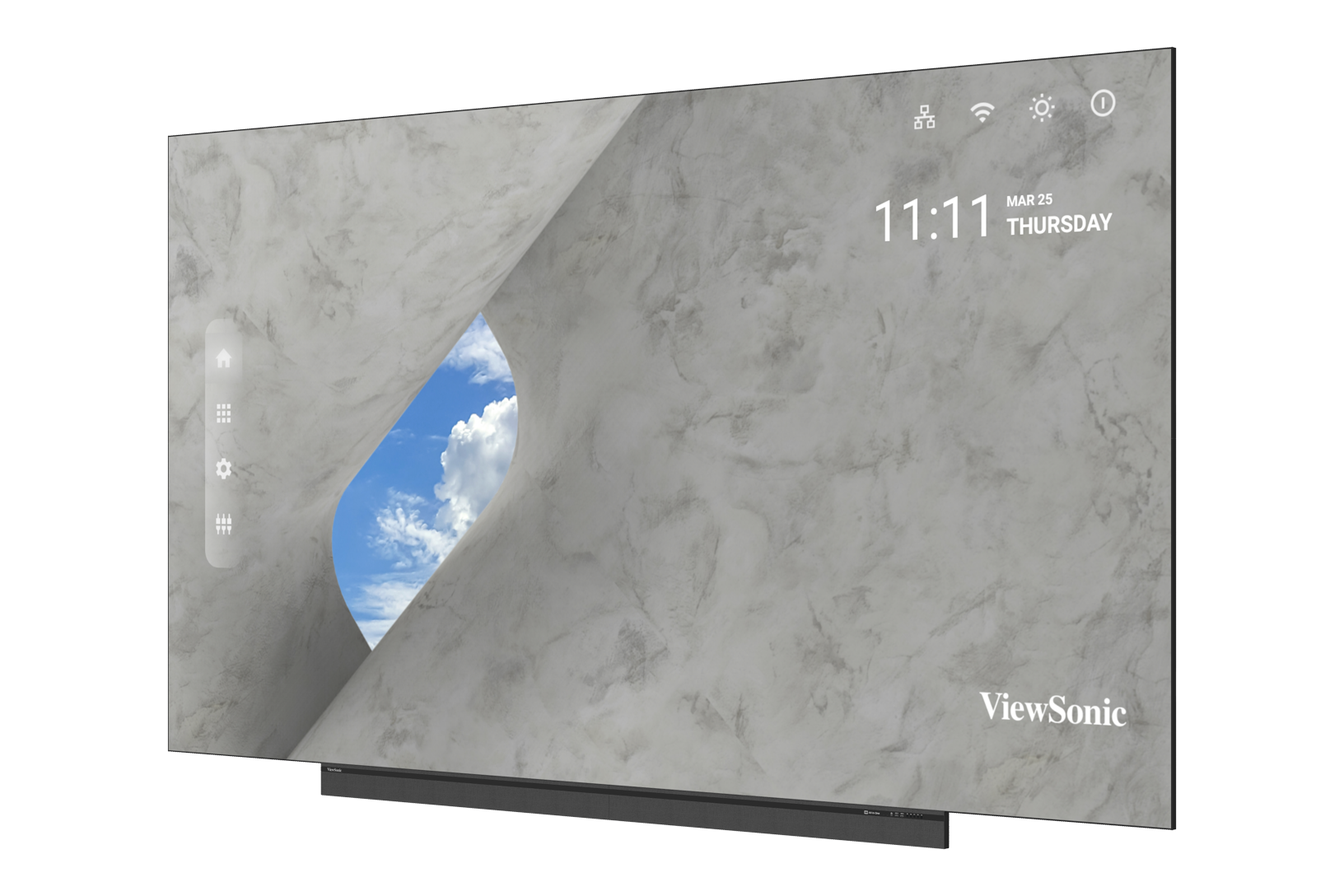

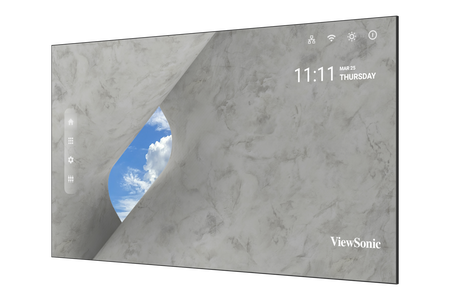

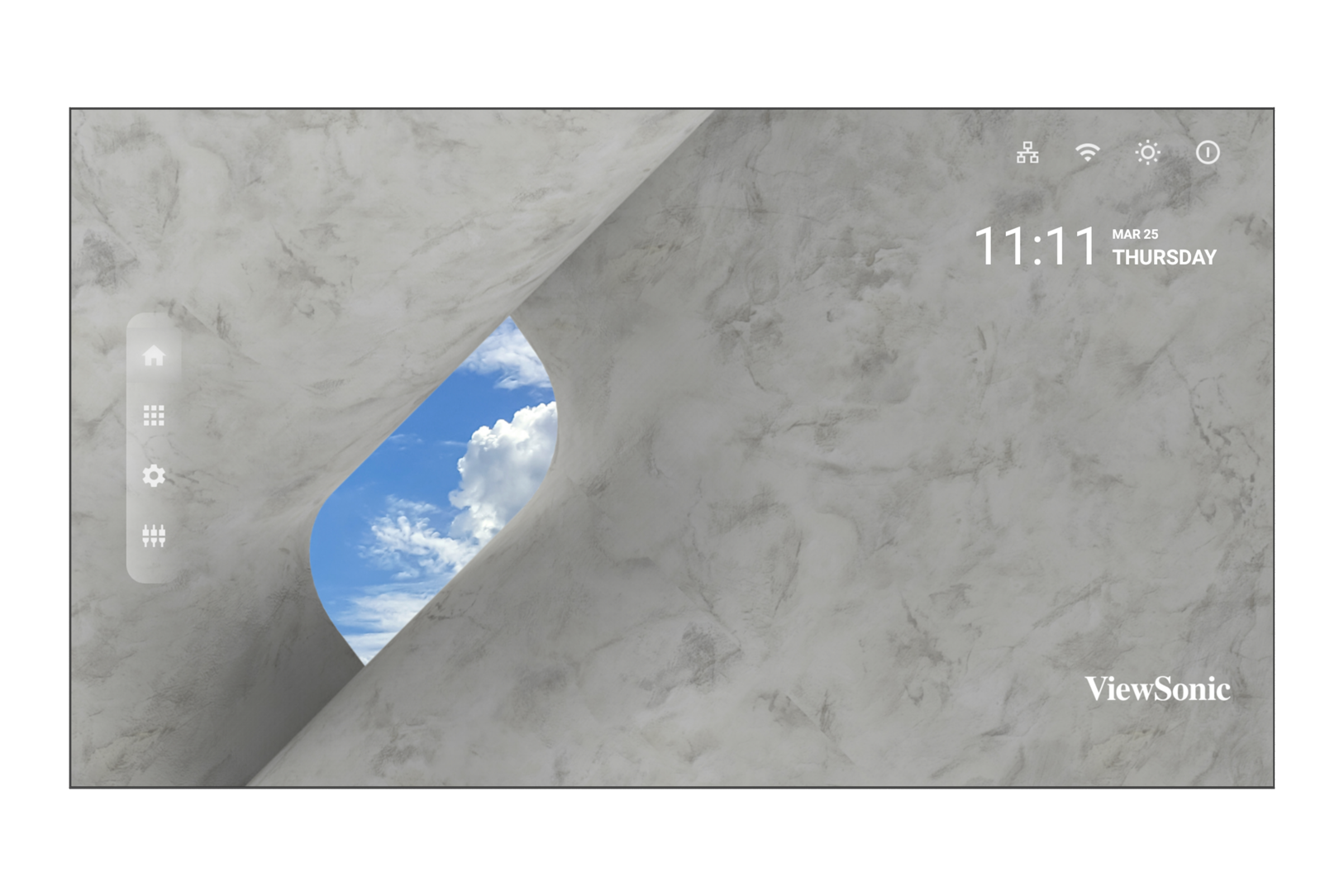

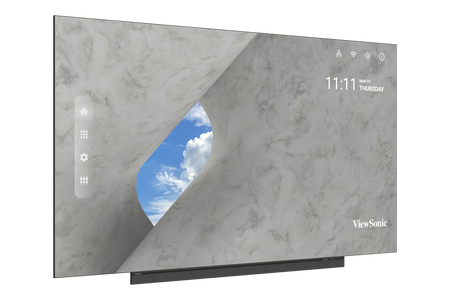

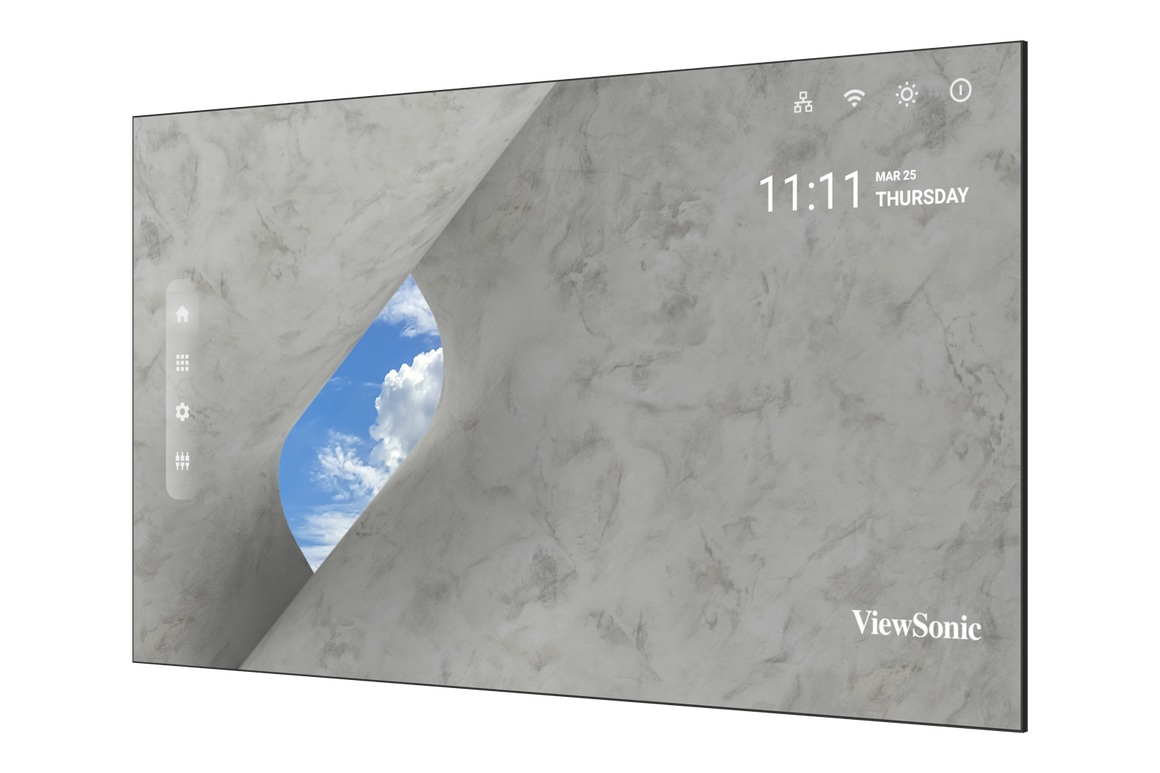

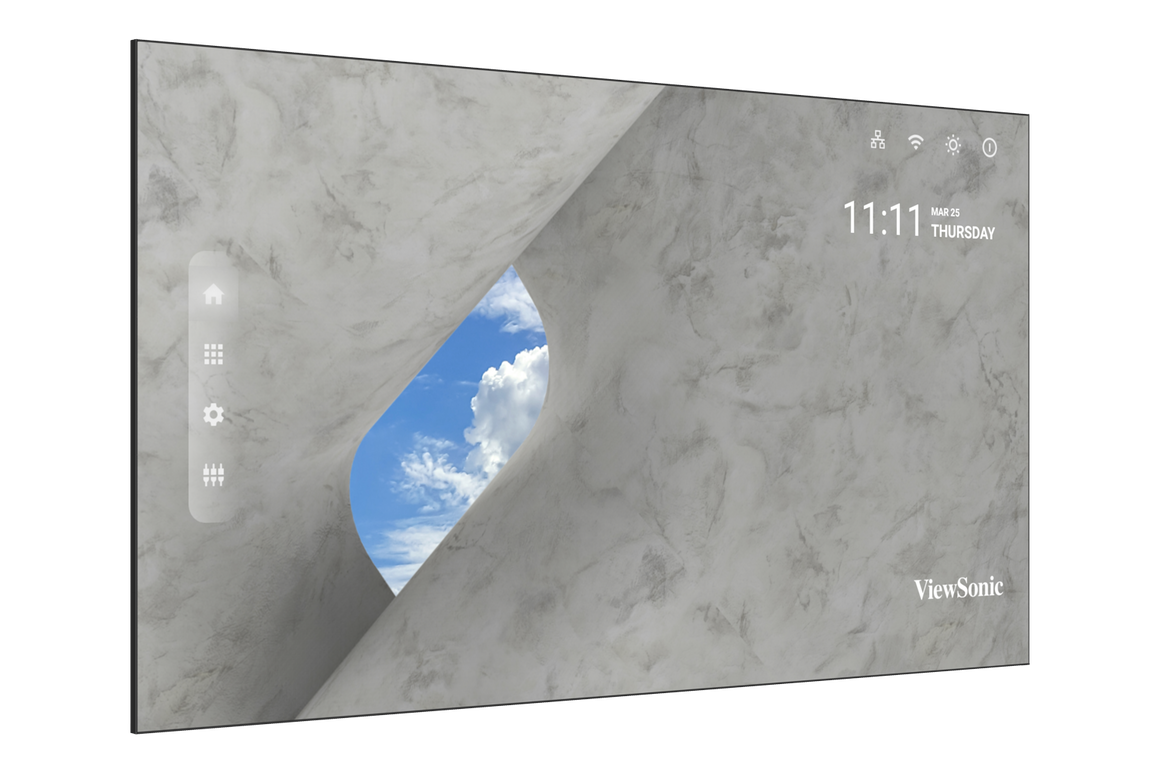

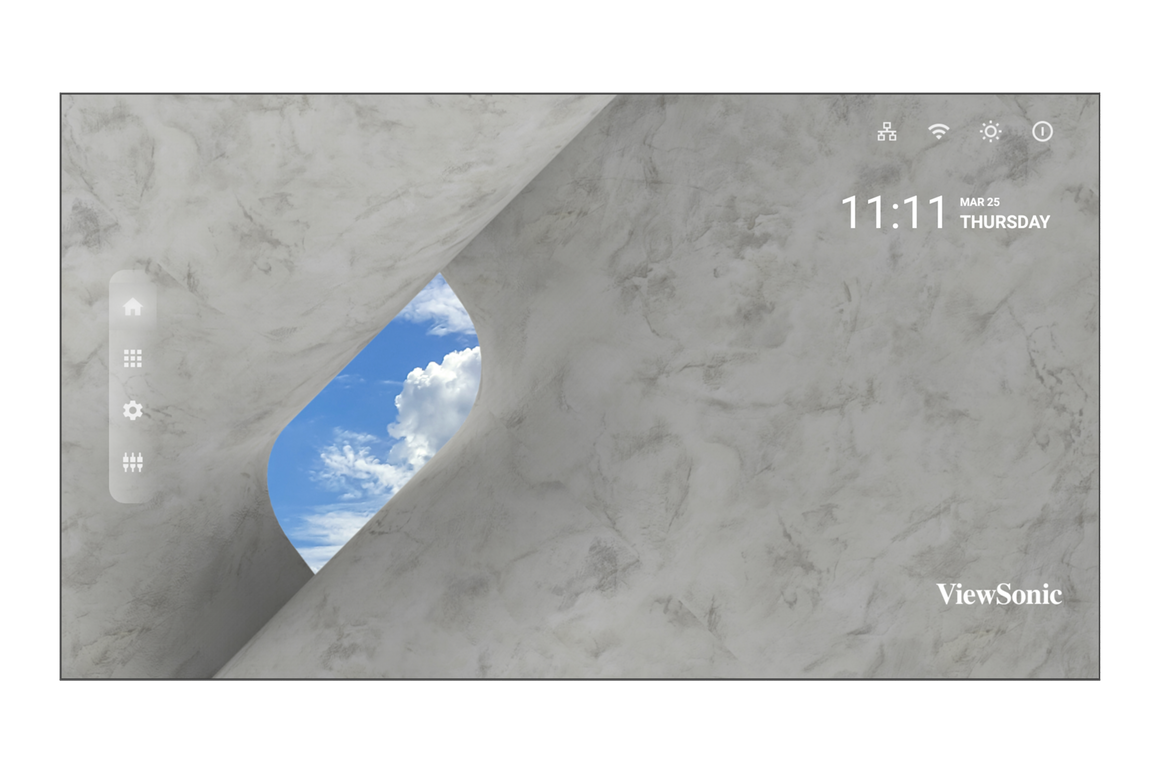

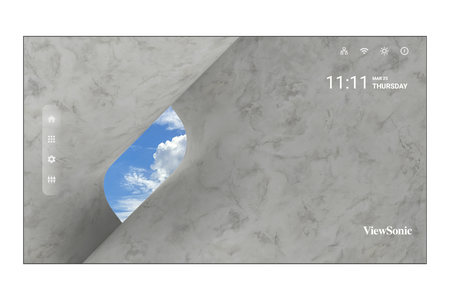

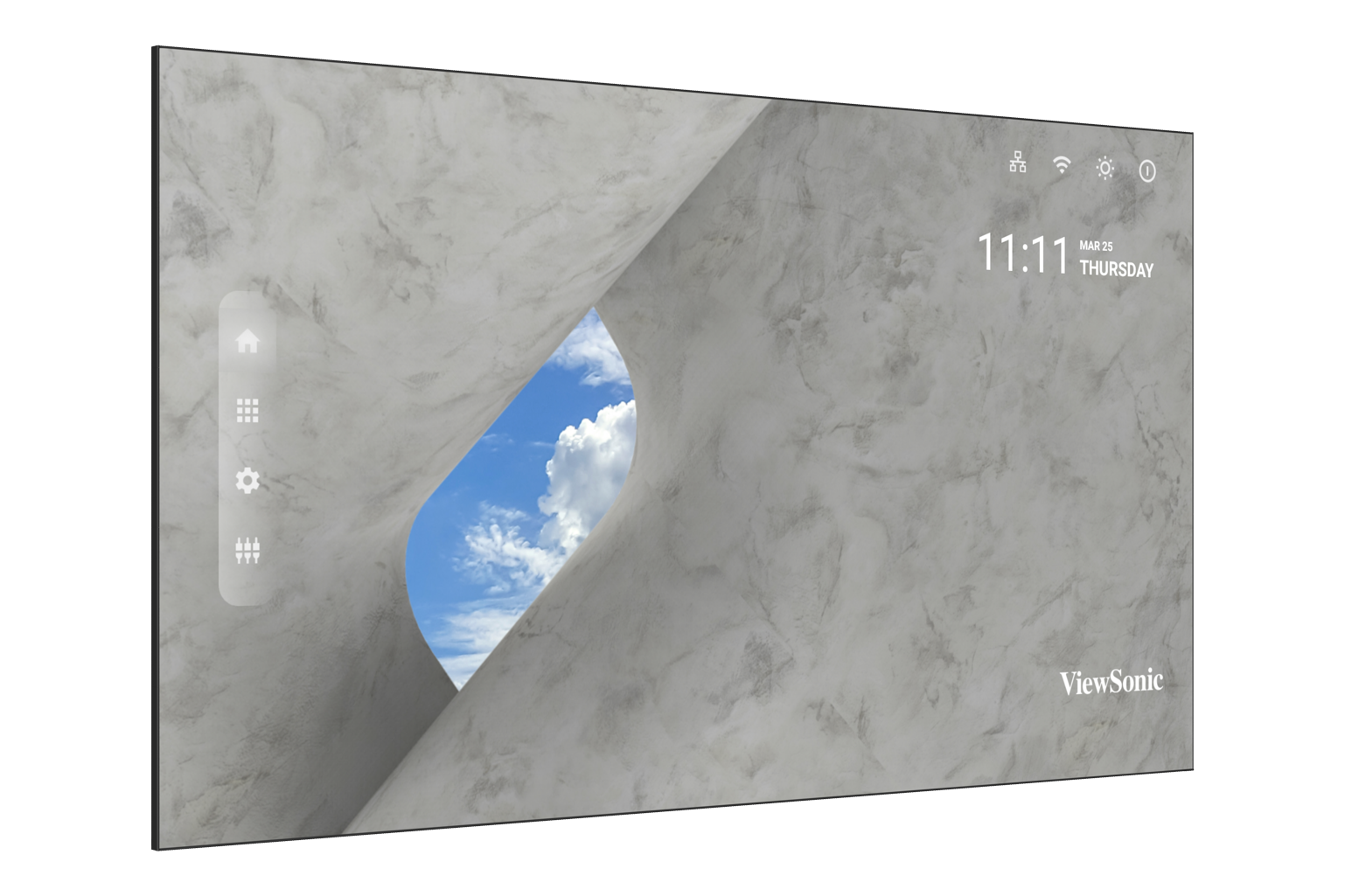

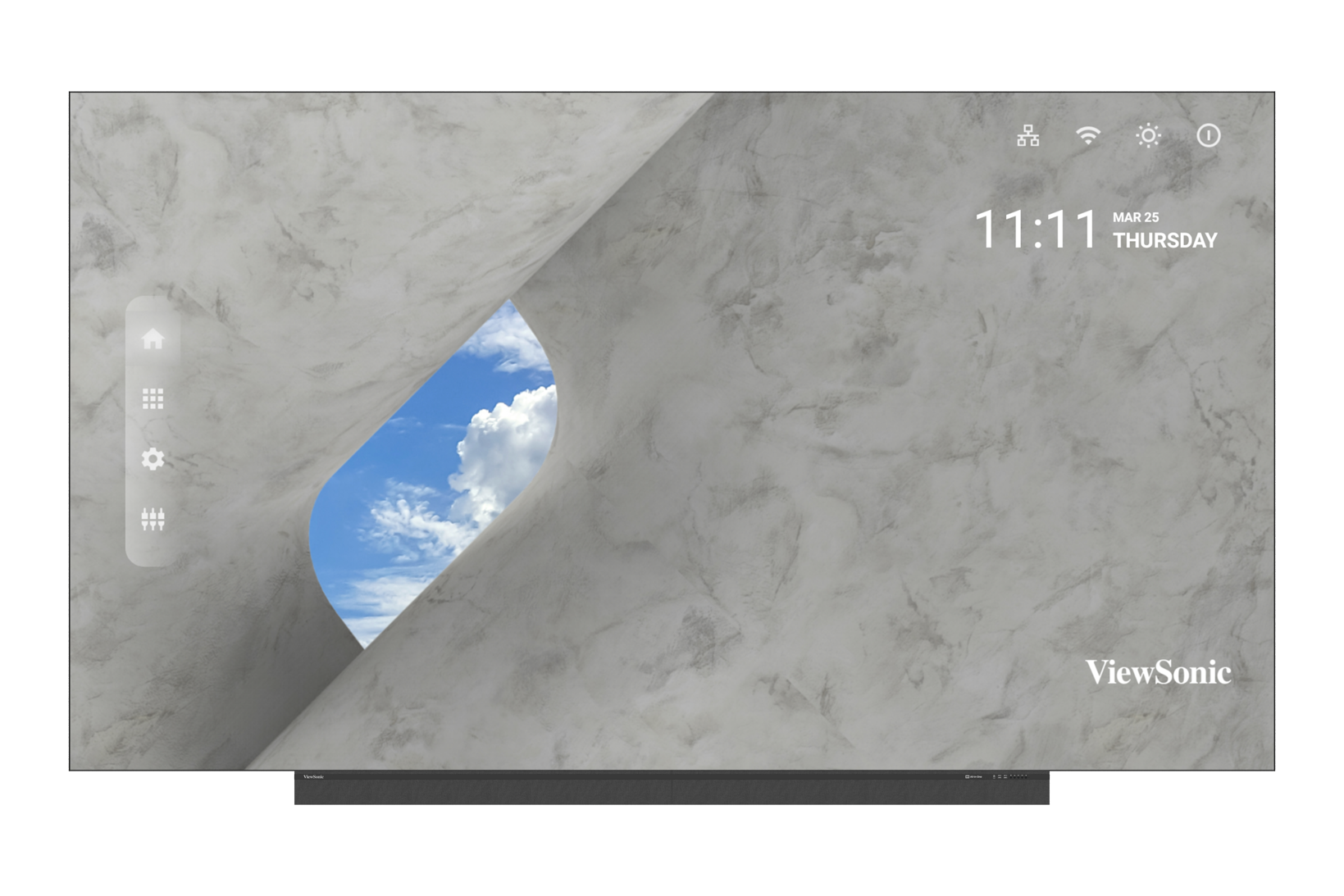

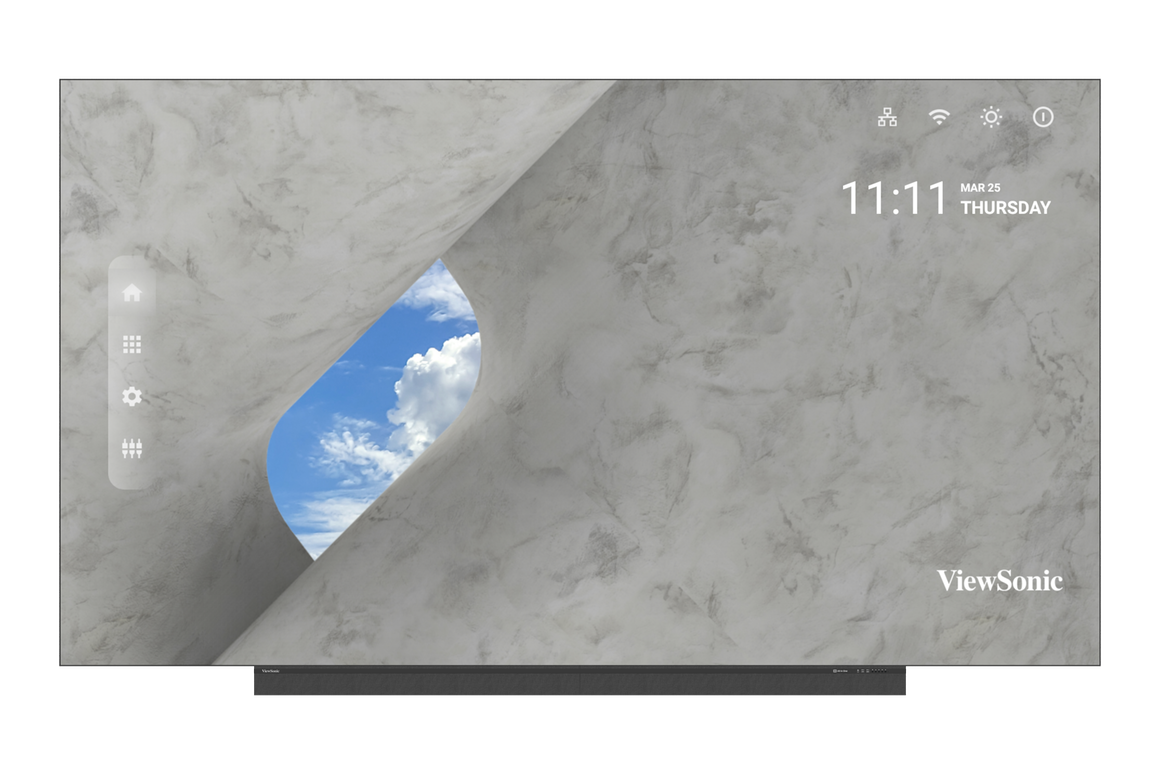

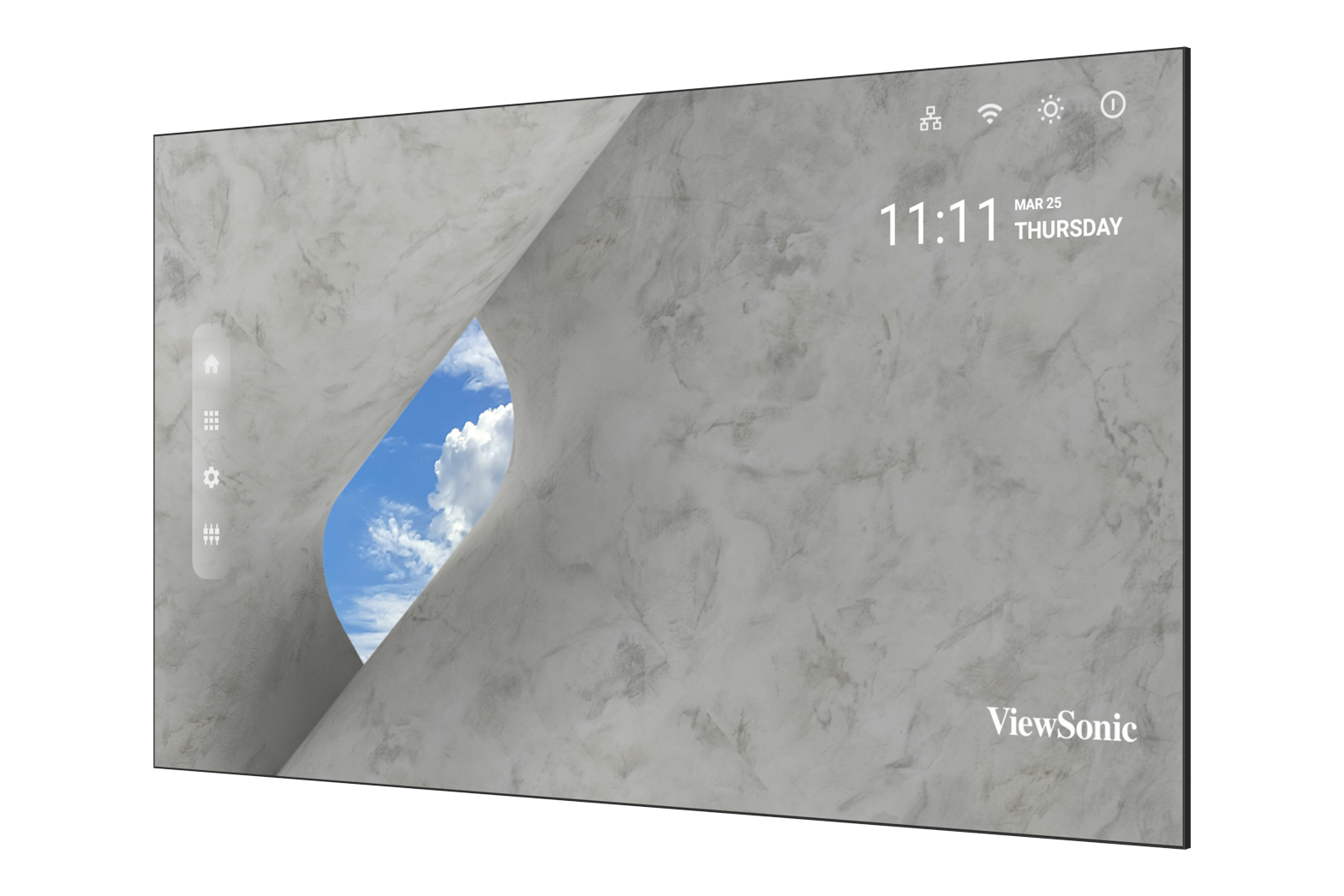

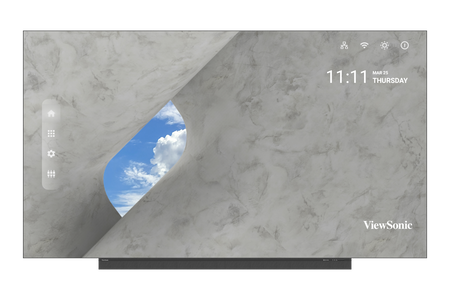

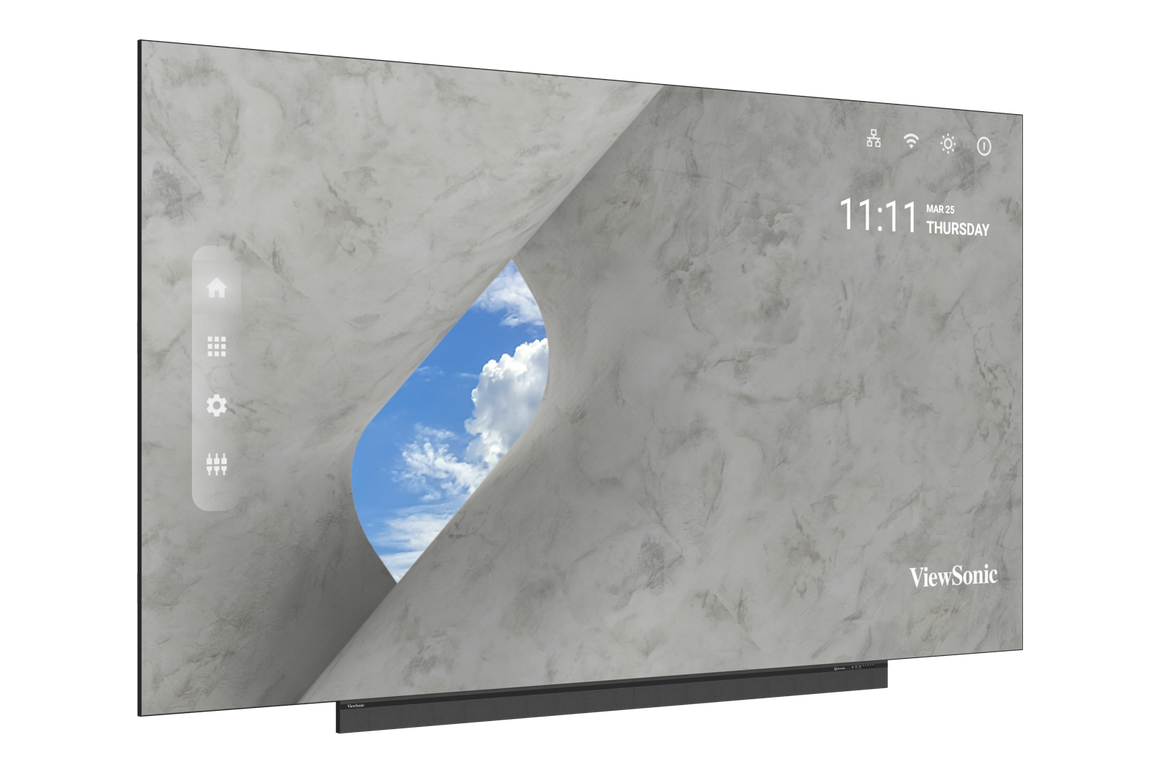

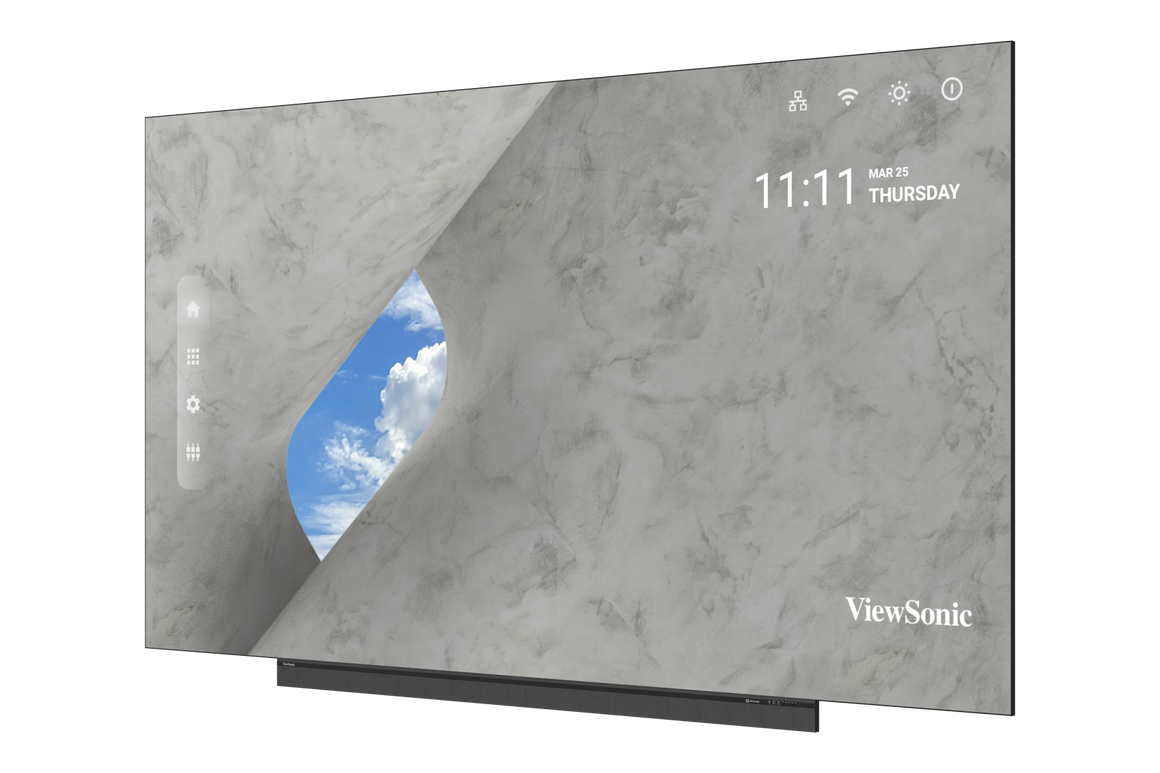

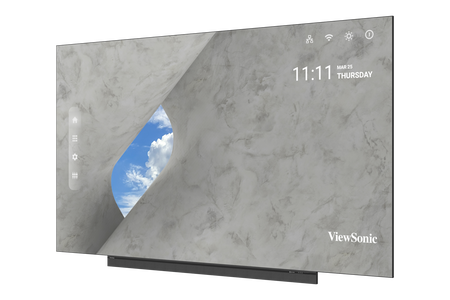

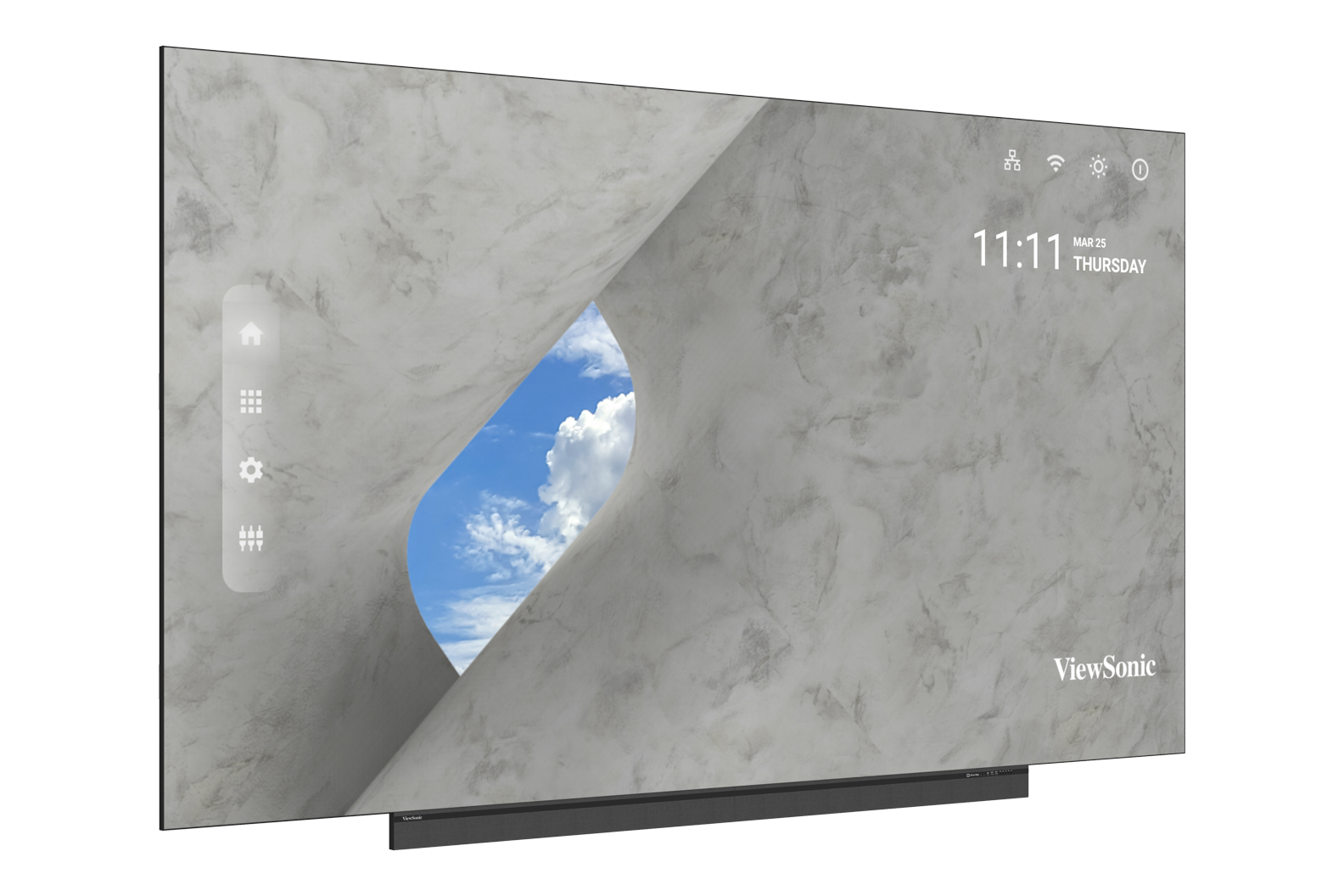

ViewSonic LDP217-121C 217" 4K UHD AIO Direct View LED Display

ViewSonic

217 inch 4K UHD AIO Direct View LED Display

The ViewSonic LDP217-121C is a 217” 4K UHD All-in-One Direct View LED Display designed to redefine visual experiences in premium corporate environments, executive boardrooms, and training facilities. Featuring Mini LED technology with advanced Chip-on-Board (COB) construction, it delivers brilliant brightness, deep contrast, and vivid color within a minimalist, ultra-slim frame. Its All-in-One design simplifies deployment by integrating power, control, image stitching, and display into a single system—allowing for a complete setup by two people in under two hours. A common cathode LED design ensures exceptional energy efficiency for long-term, sustainable operation.

Key Features

  • 4K UHD Resolution with Mini LED: 3840 × 2160 resolution combined with Mini LED technology produces ultra-fine detail, vibrant colours, and outstanding contrast for large-scale professional visuals.
  • Advanced COB Technology: Ensures enhanced durability with water, dust, and impact resistance (IP54 and IK08 rated), making it ideal for high-traffic meeting and presentation environments.
  • All-in-One Integration: Combines power, control, image stitching, and display in one unified system for simplified installation and maintenance.
  • Energy-Efficient Design: Powered by a common cathode LED structure and intelligent ICs to minimise power consumption while maintaining long-term performance and visual quality.
  • Smart Collaboration Tools: Includes PIP/PBP split-screen modes, LAN control, and wireless content sharing via ViewShare (optional) and AirSync for effortless teamwork and presentation flexibility.

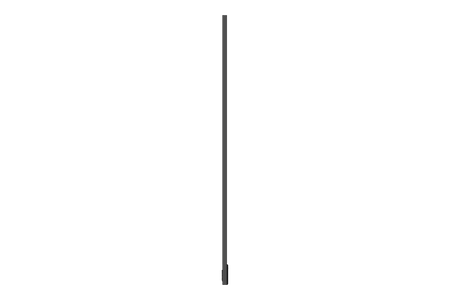

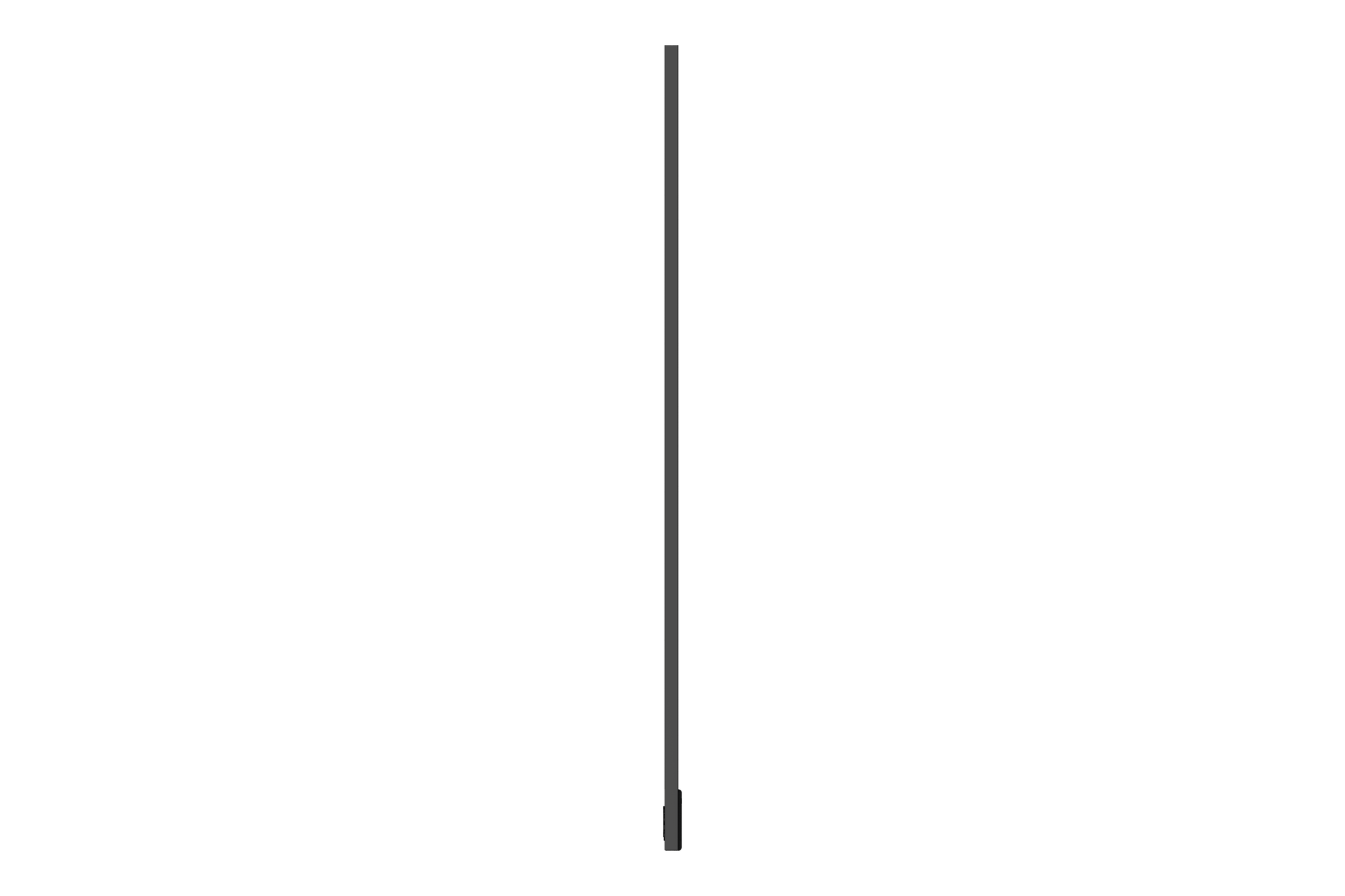

  • Sleek Ultra-Slim Design: With a 31 mm ultra-thin profile and near bezel-free appearance, it complements modern interiors with a refined, premium aesthetic.
  • Powerful Integrated Audio: Dual 30 W built-in speakers deliver clear, room-filling sound for impactful meetings and presentations without external amplification.

The ViewSonic LDP217-121C combines next-generation Mini LED visual brilliance, robust COB engineering, and an energy-conscious architecture to create a premium large-format display solution. Perfect for executive boardrooms, training centers, and high-end meeting spaces in the corporate and public sector, it provides stunning 4K visuals, simplified installation, and superior reliability for seamless professional collaboration.

In stock
£154,800.00

Secure checkout

Friendly support

Hassle-free returns

The ViewSonic LDP217-121C is a 217” 4K UHD All-in-One Direct View LED display designed for premium professional environments. Featuring advanced Mini LED architecture and Flip-Chip COB technology, it delivers ultra-fine detail, rich colour, and deep contrast with high durability and energy efficiency. With an ultra-slim 31 mm profile and near-seamless design, it offers a striking, modern aesthetic ideal for large boardrooms, auditoriums, and lobbies seeking maximum visual impact.

Key Features

  • 4K UHD Brilliance: 3840 × 2160 resolution for lifelike clarity and exceptional detail across a 217” canvas.
  • Flip-Chip COB Technology: IP54 and IK08-rated protection ensures durability against dust, water, and impact for long-term reliability.
  • All-in-One Integration: Power, control, image stitching, and display functions combined in one chassis—installed in under two hours by two people.
  • Energy Efficiency: Common-cathode LED structure with smart ICs optimises power usage while maintaining bright, vibrant performance.
  • Smart Collaboration: PIP/PBP display modes, LAN control, and optional wireless presentation via ViewShare and AirSync.
  • Powerful Integrated Audio: Dual 30 W front-facing speakers provide immersive sound without the need for external equipment.
  • Ultra-Slim Design: Only 31 mm thick, with an elegant, bezel-free look suitable for high-end interiors and corporate installations.

Specifications

Screen Size 217"
Display Area (W × H) 4800 × 2700 mm
Native Resolution 3840 × 2160 (4K UHD)
Technology Direct View LED; Flip-Chip COB; Pixel Pitch 1.25 mm
Brightness 600 nits (100-level adjustable)
Contrast Ratio 10,000:1 (typ.)
Viewing Angle 170° (H) / 170° (V)
LED Lifetime 100,000 hours (typ.)
Embedded OS Android 9.0
Internal Storage 32 GB (26 GB usable)
Inputs HDMI 2.0 × 4 (HDCP 2.2; 3 internal + 1 external), USB-A × 3 (USB 3.0 × 1, USB 2.0 × 2), USB-C × 1 (data only), RJ45 × 3 (2 Internet + 1 Control), IR In × 1, Wi-Fi 2.4/5 GHz
Outputs HDMI 2.0 × 1 (HDCP 2.2), Audio Out × 2 (3.5 mm), S/PDIF × 1
Speakers 30 W × 2
Control RS232 × 1 (DB9), LAN Control × 1 (shared with Internet), IR Receiver × 1
Protection IP54 (front), IK08 (front)
Power Supply 100–120 V / 40 A, 50/60 Hz or 220–240 V / 25 A, 50 Hz (varies by region)
Power Consumption 1150 W (typ.), 3449 W (max), < 0.5 W (standby)
Operating Temperature 0–40 °C
Dimensions (W × H × D) 4812 × 2847 × 41 mm (without mount); 4812 × 2847 × 59.8 mm (with wall mount)
Weight Net: 392 kg (864 lb); Gross: 628 kg (1384 lb)
Included Accessories Power cords × 2, LAN cable (Cat5E), IR extender, remote control, wall mount, spare LED modules × 36, installation guide, maintenance tools (LD-MK-004, LD-MK-006)

Application Examples
Executive Boardrooms Showcases premium visuals for decision-making and presentations with seamless 4K detail and high-impact corporate presence.
Conference & Training Rooms Facilitates dynamic meetings and training sessions with bright, wide-angle visuals and integrated audio clarity.
Auditoriums & Lecture Halls Delivers large-scale, clear, and vibrant visuals ideal for educational presentations and corporate gatherings.
Hospitality & Reception Areas Creates immersive brand experiences with elegant aesthetics and stunning 4K visuals for lobbies or event spaces.
Retail & Showroom Displays Engages customers with bold, high-resolution content, perfect for product launches and digital signage applications.

The ViewSonic LDP217-121C combines extraordinary 4K LED performance, robust COB durability, and effortless installation—offering a truly professional, all-in-one solution for spaces where visual excellence and reliability are essential.
