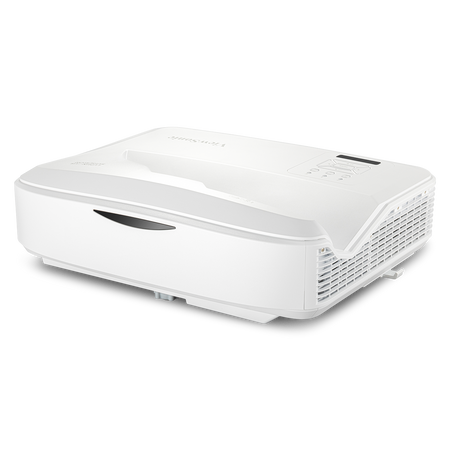

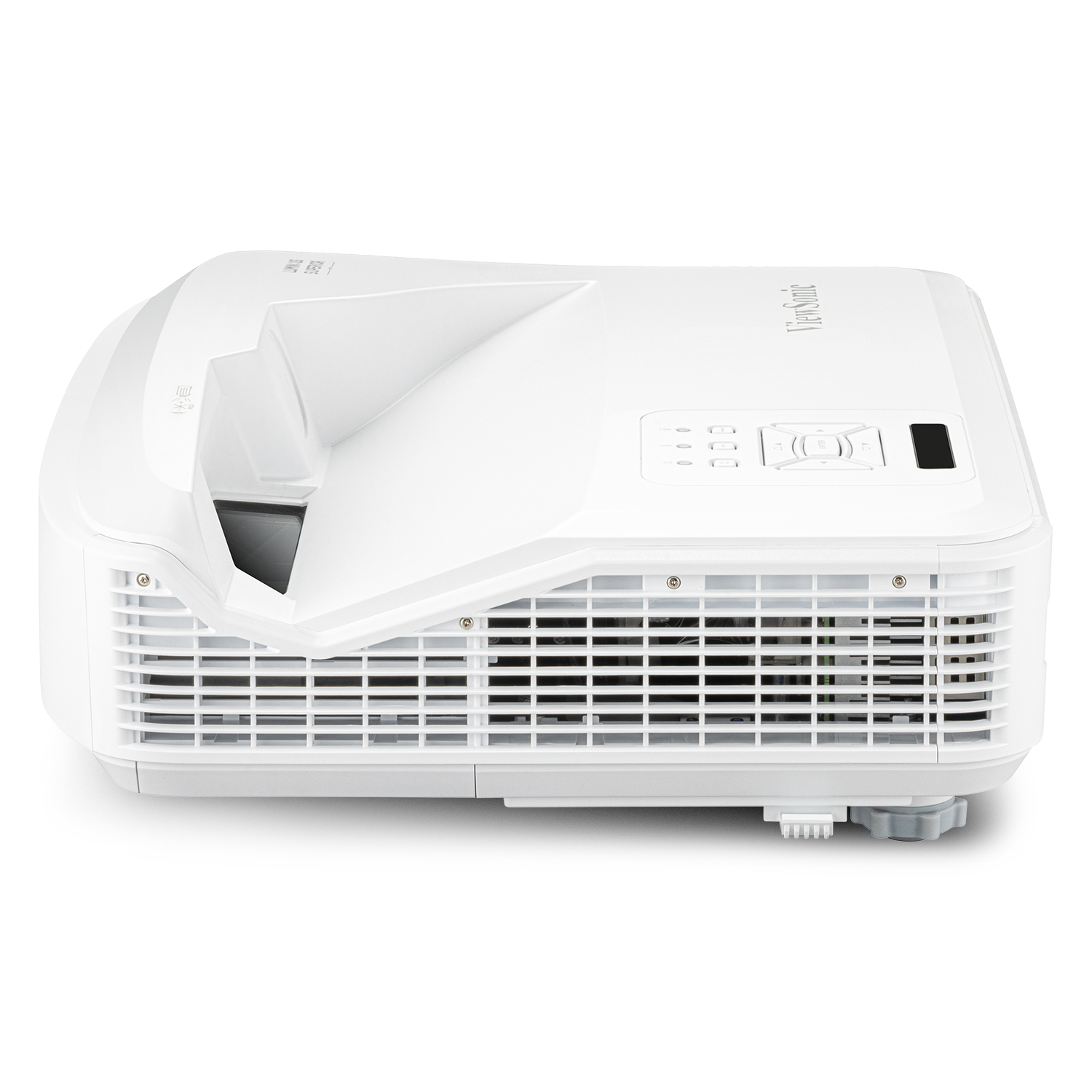

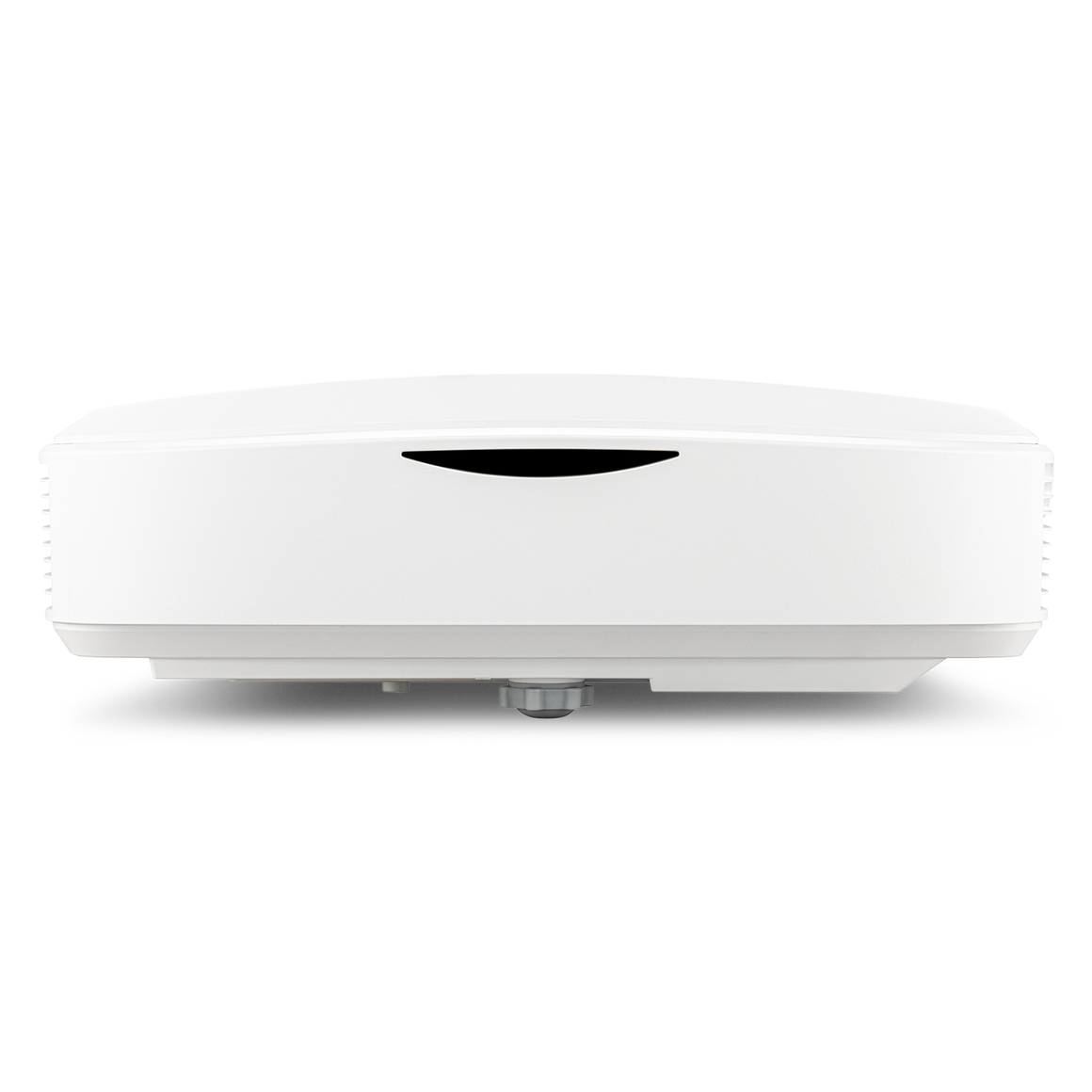

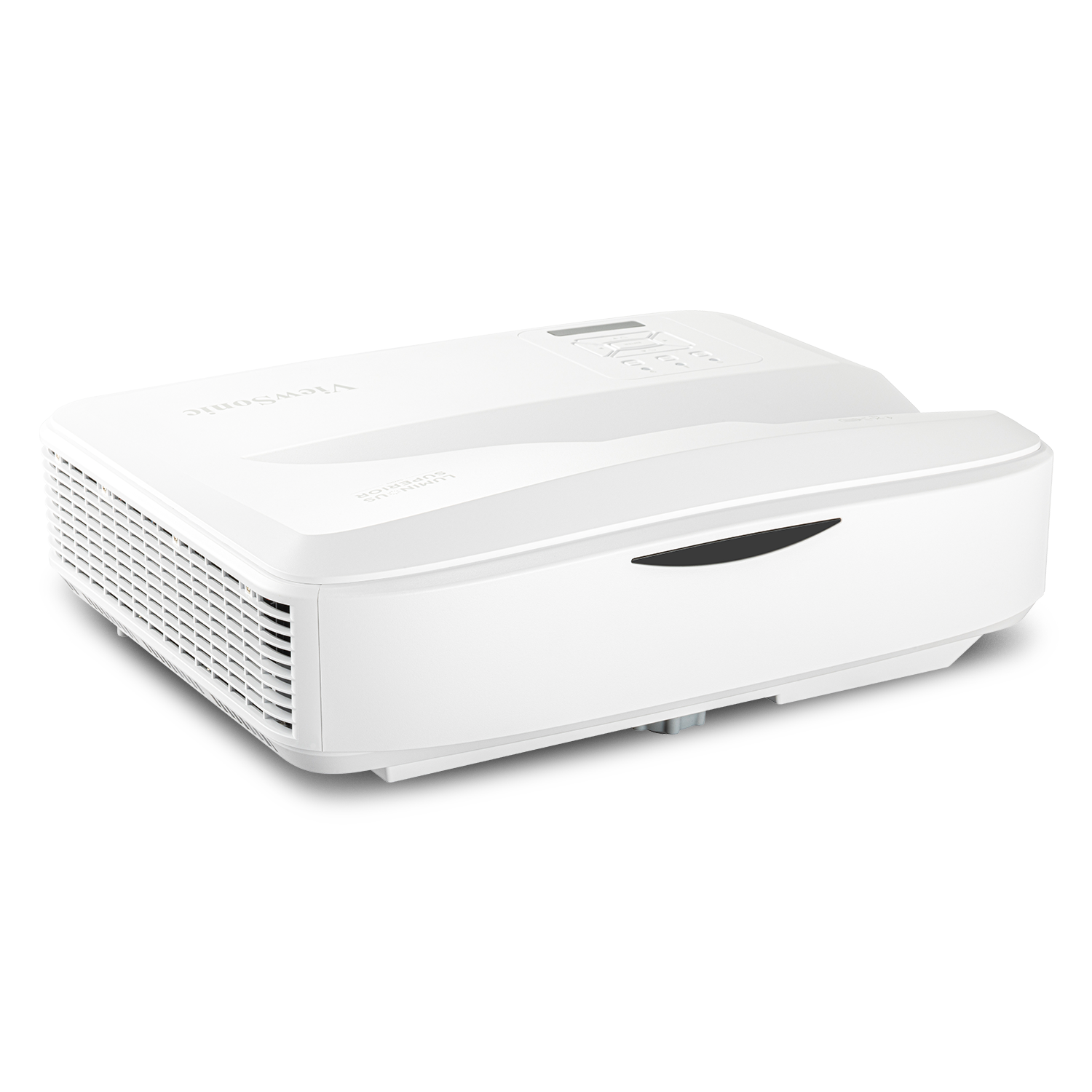

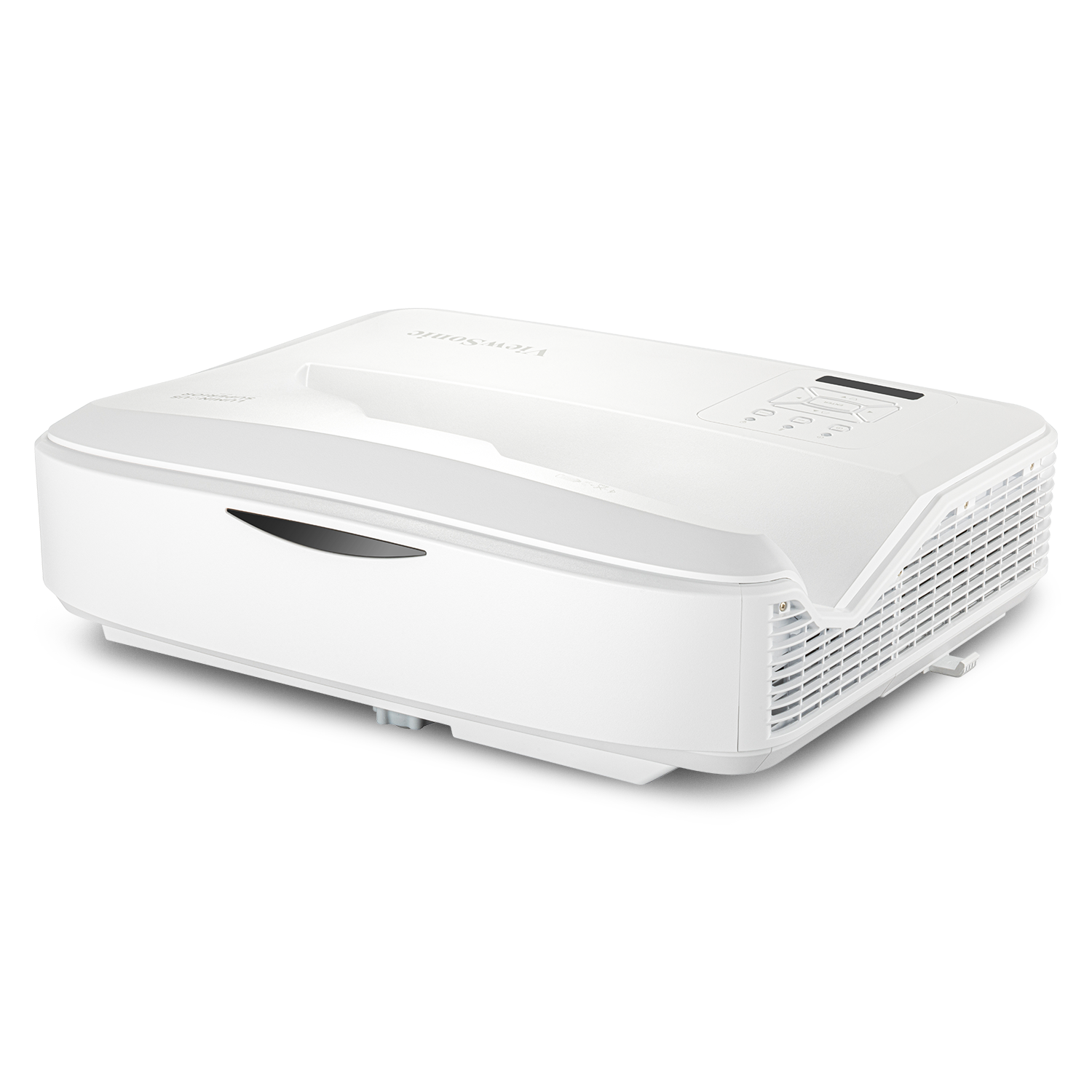

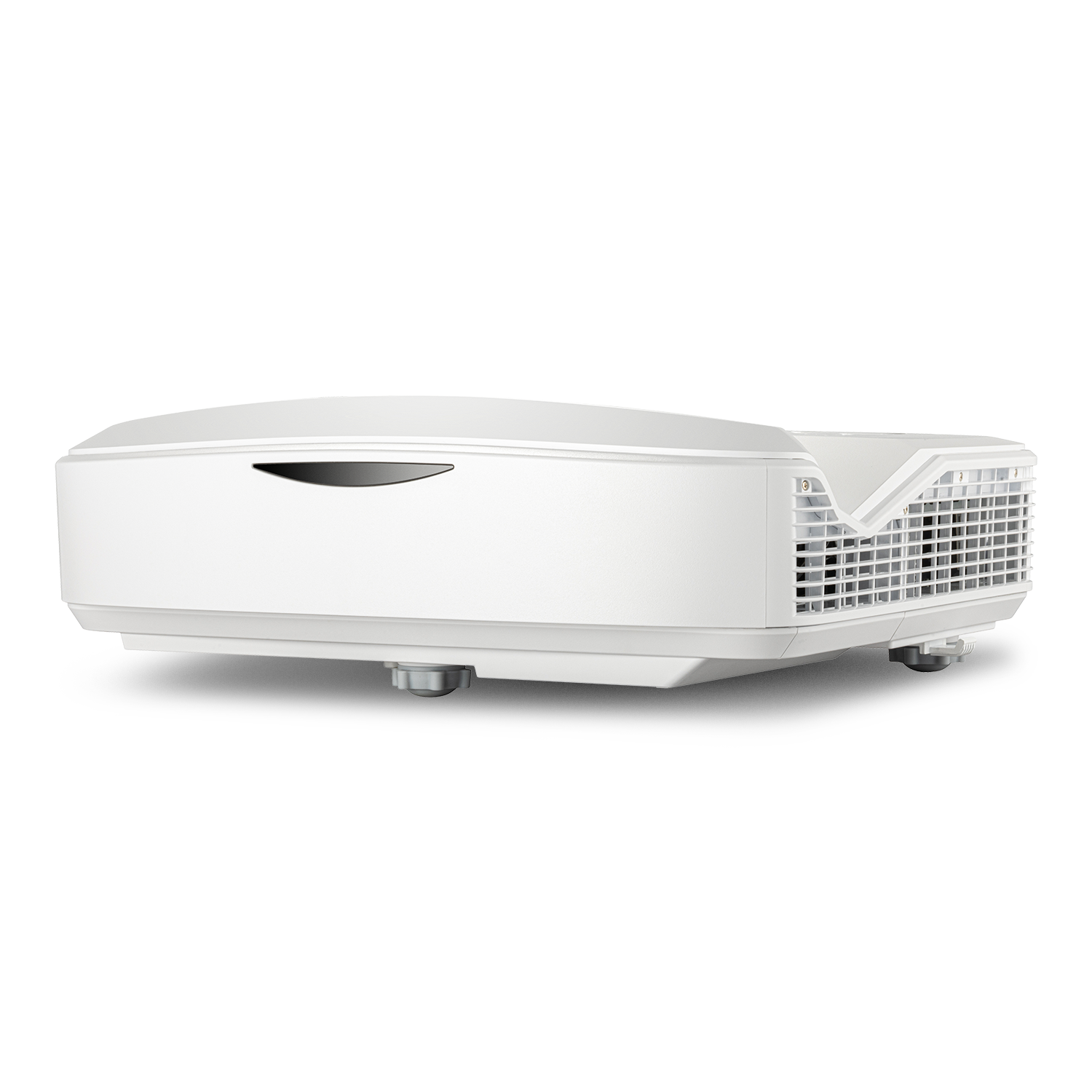

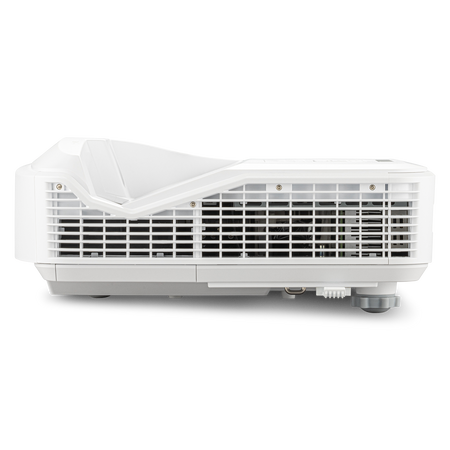

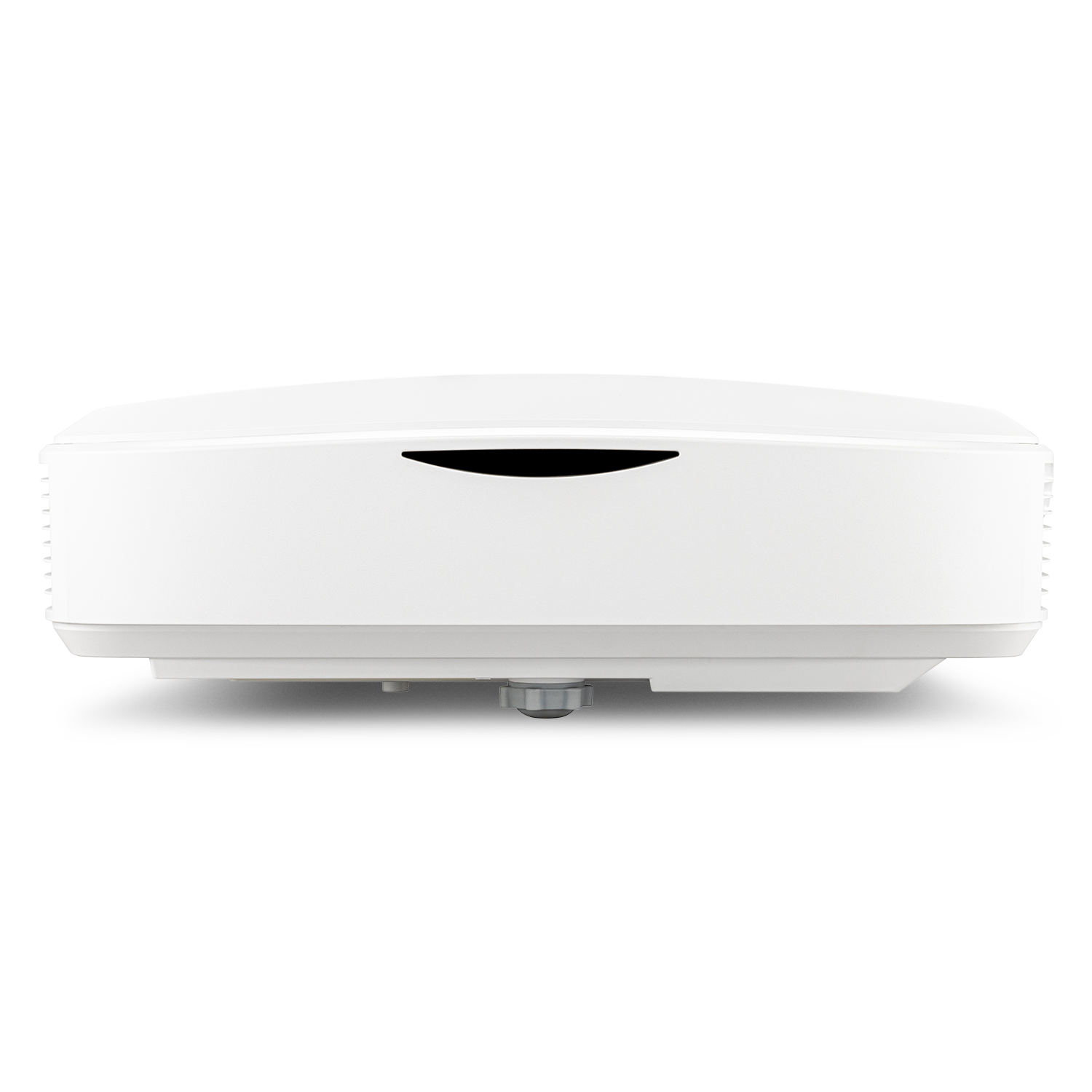

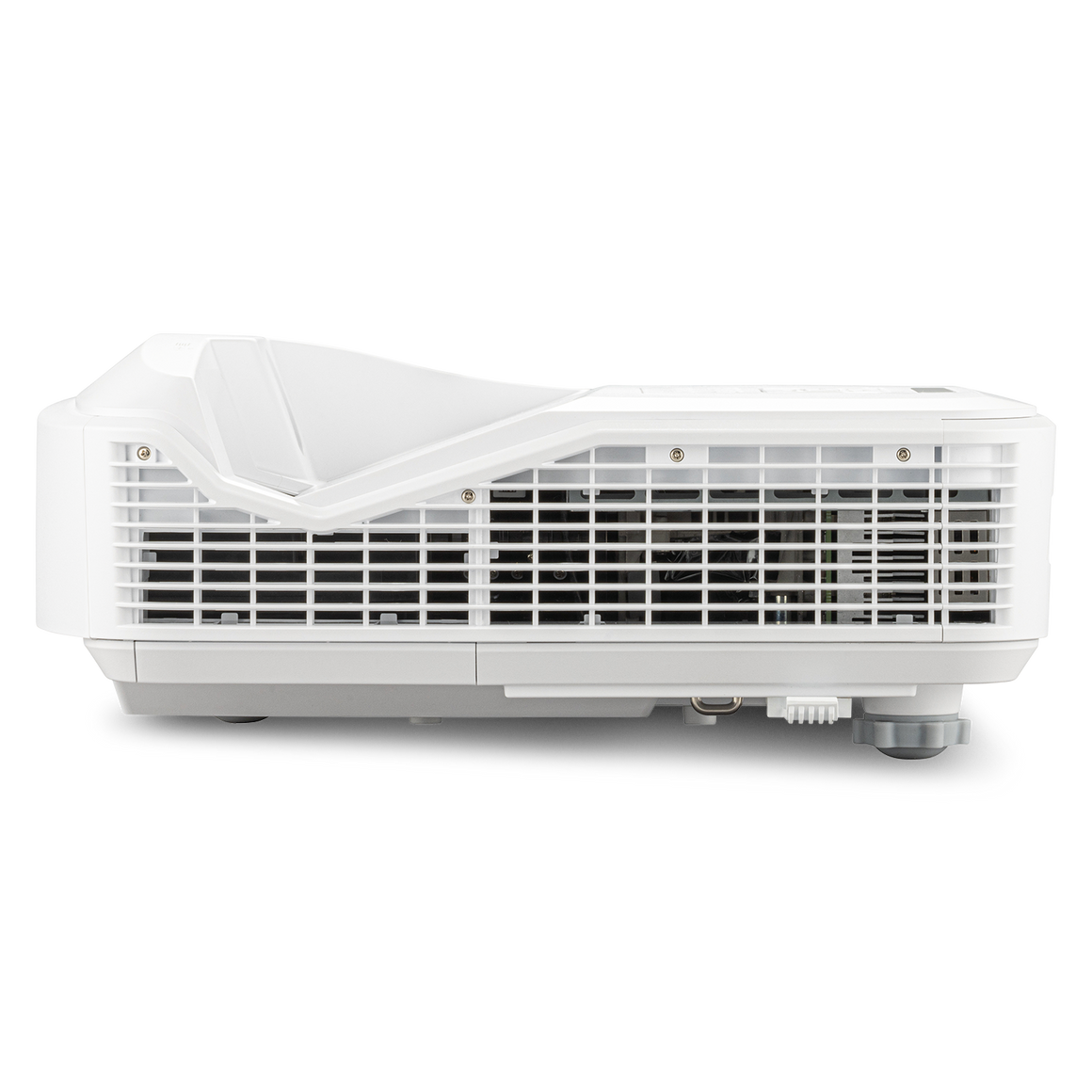

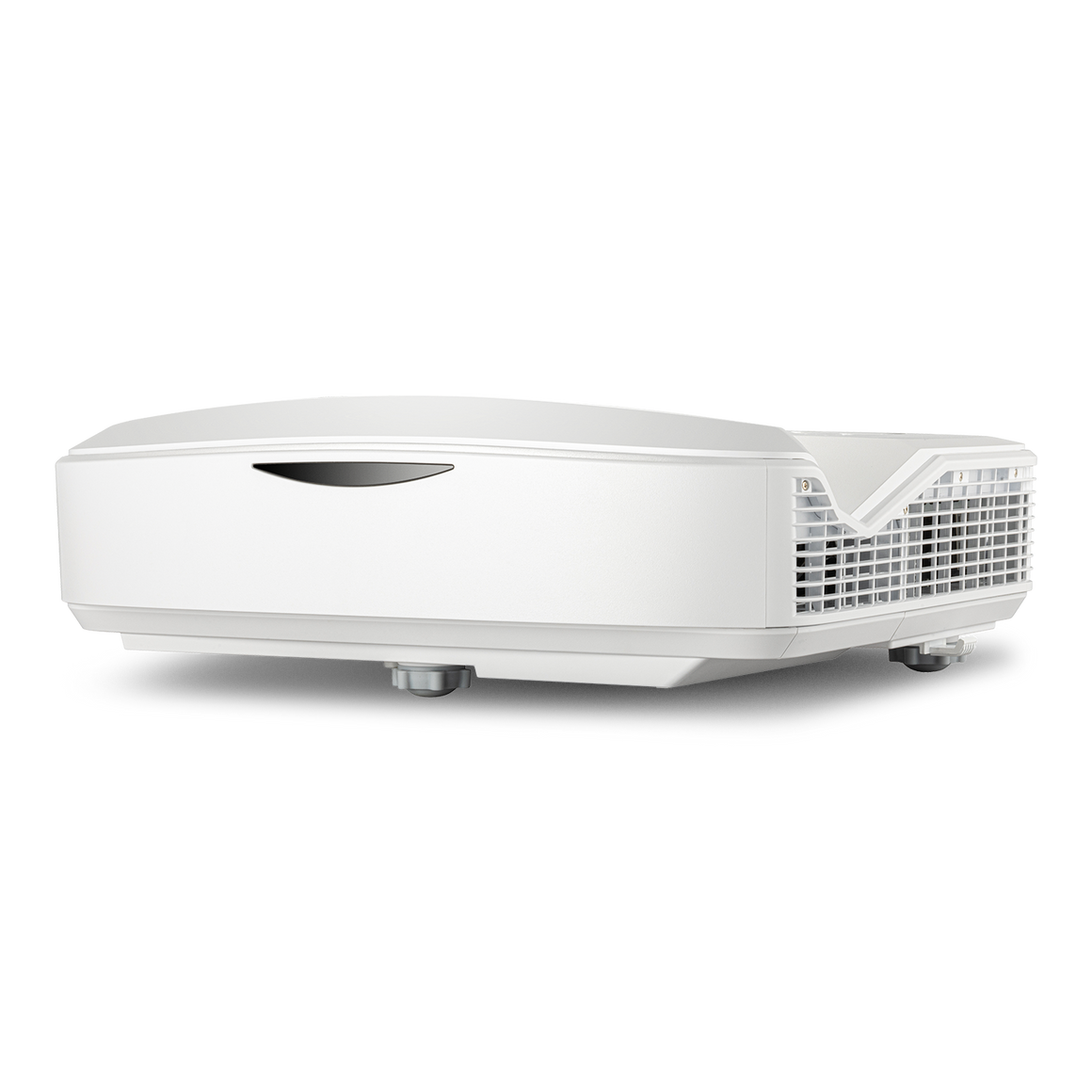

ViewSonic LS832WU Ultra Short Throw Installation Projector
5000 ANSI Lumens WUXGA Laser Installation Projector
Secure checkout
Friendly support
Hassle-free returns
The ViewSonic LS832WU is a high-performance WUXGA ultra short-throw laser projector that delivers 5,000 ANSI lumens brightness for vivid, detailed images in both commercial and educational spaces. As part of ViewSonic’s Luminous Superior Series, this lamp-free model uses advanced 2nd-generation Laser Phosphor technology to achieve up to 30,000 hours of consistent brightness. Its ultra-short throw ratio of 0.25 projects a 100” image from just 28 cm away, reducing shadows and glare while saving space — making it ideal for signage, classrooms, meeting rooms, and public installations.
Key Features
- Ultra Short Throw Design: 0.25 throw ratio projects a 100” image from only 28 cm away, eliminating glare and shadows while maximising installation flexibility.
- Laser Phosphor Technology: 2nd-generation solid-state light source provides up to 30,000 hours of maintenance-free operation with stable brightness output.
- Brilliant Brightness: 5,000 ANSI lumens ensures clear, high-impact visuals even in bright ambient light environments.
- Flexible Installation: H/V keystone correction and 4-corner adjustment allow precision alignment on curved or uneven surfaces.
- Large Screen Projection: Displays up to 170” images for impactful presentations and signage at a lower cost-per-inch than LED displays.
- Comprehensive Control: Integrated LAN control supports Crestron, AMX, Extron, and PJ Link systems for easy centralised management.

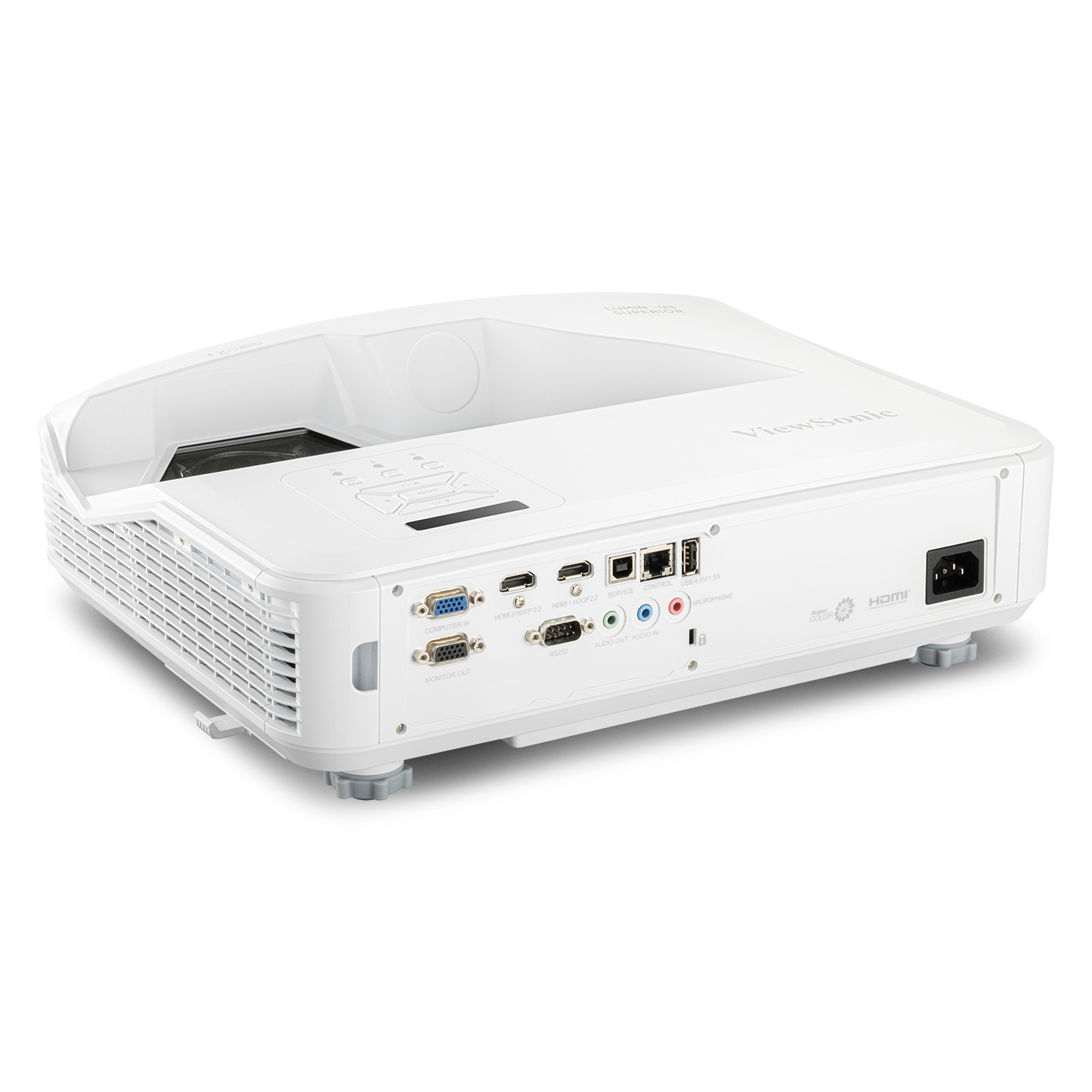

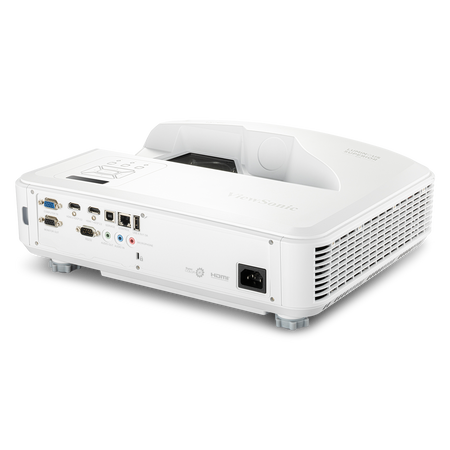

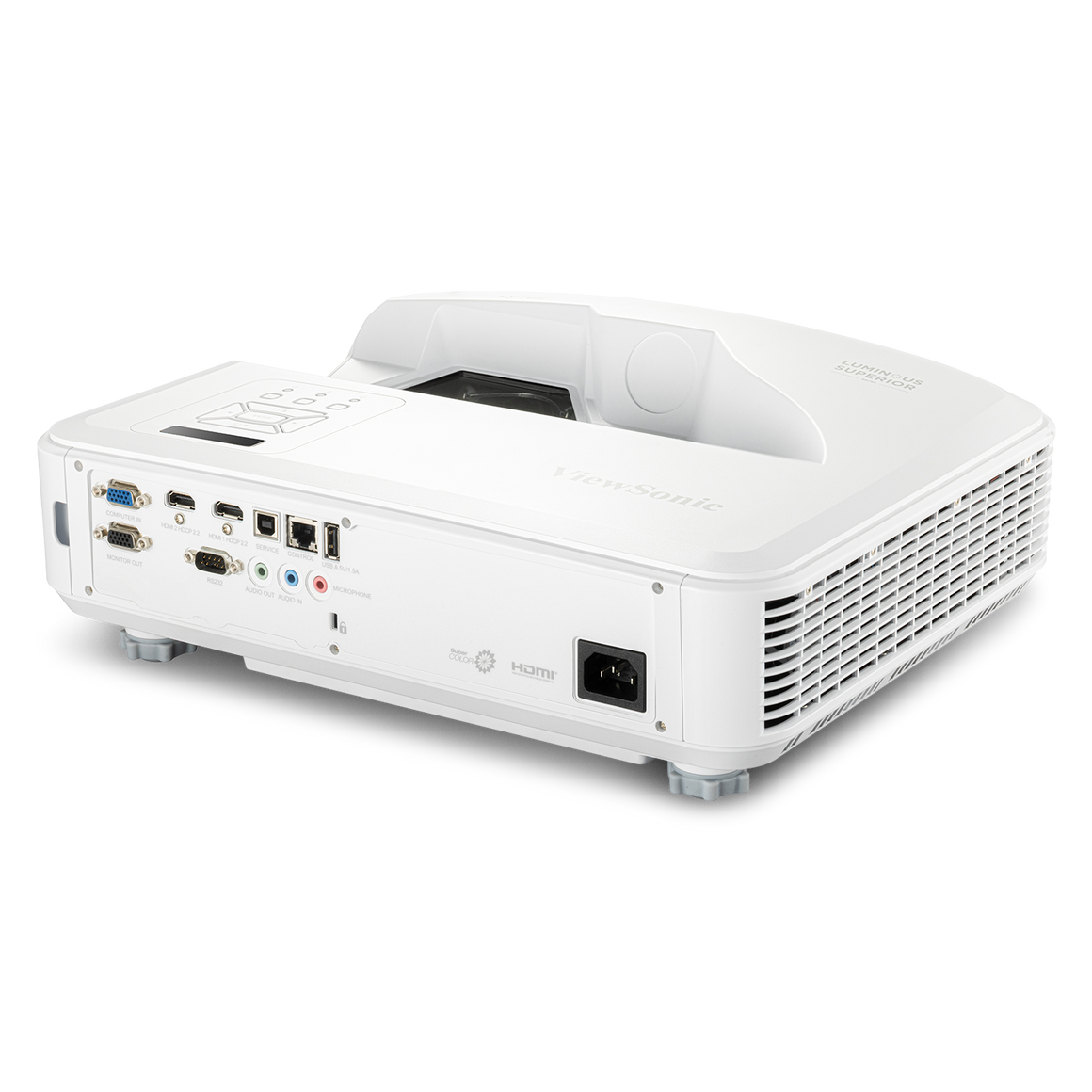

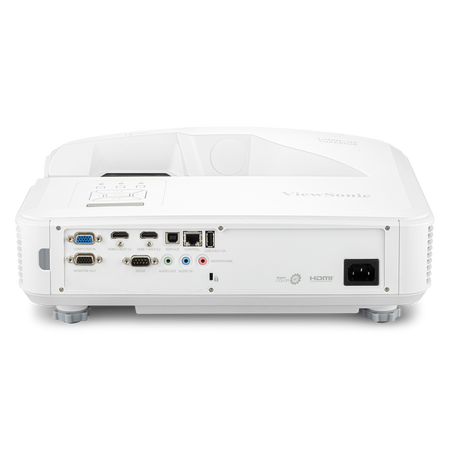

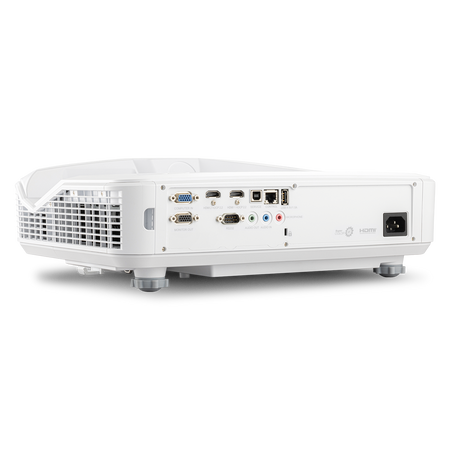

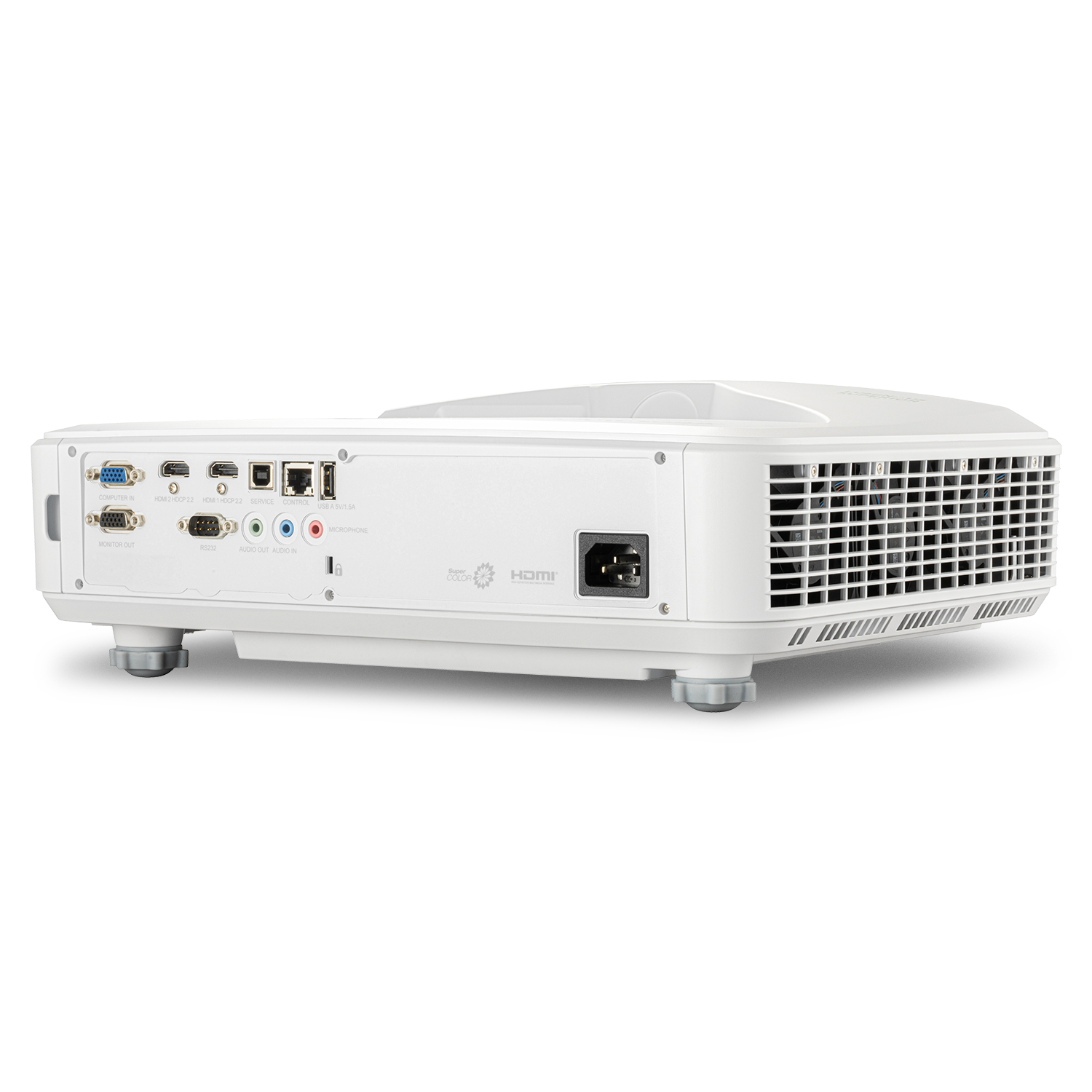

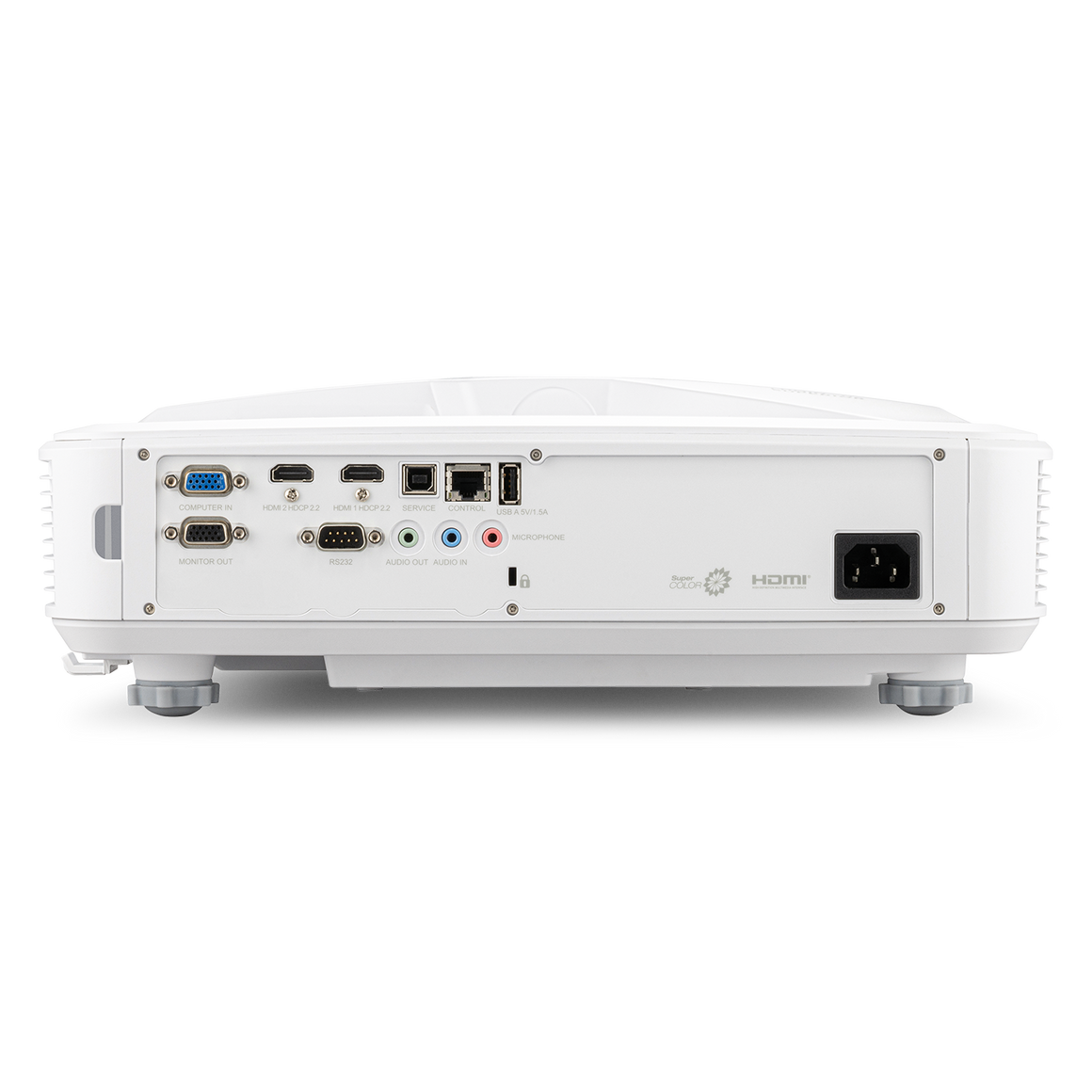

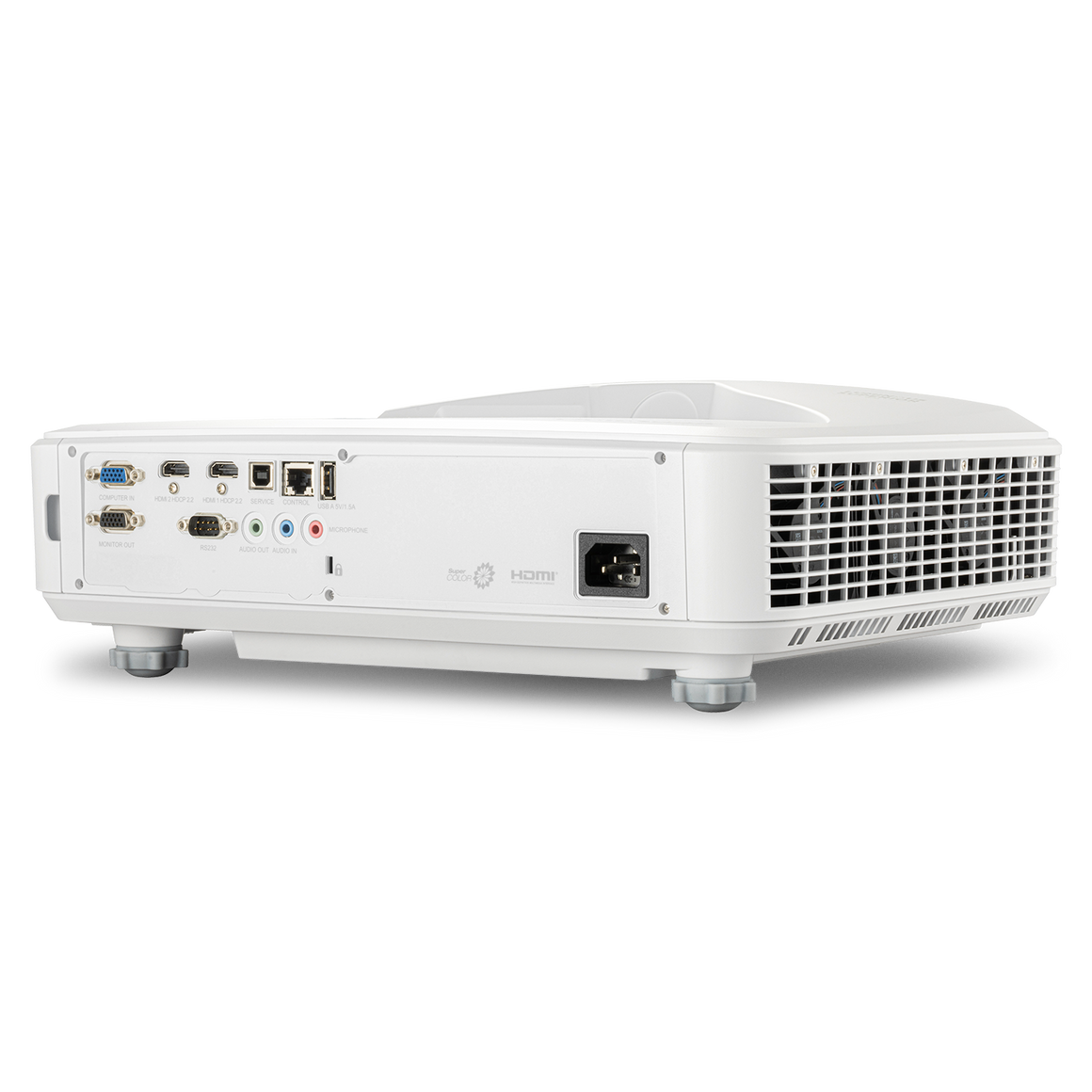

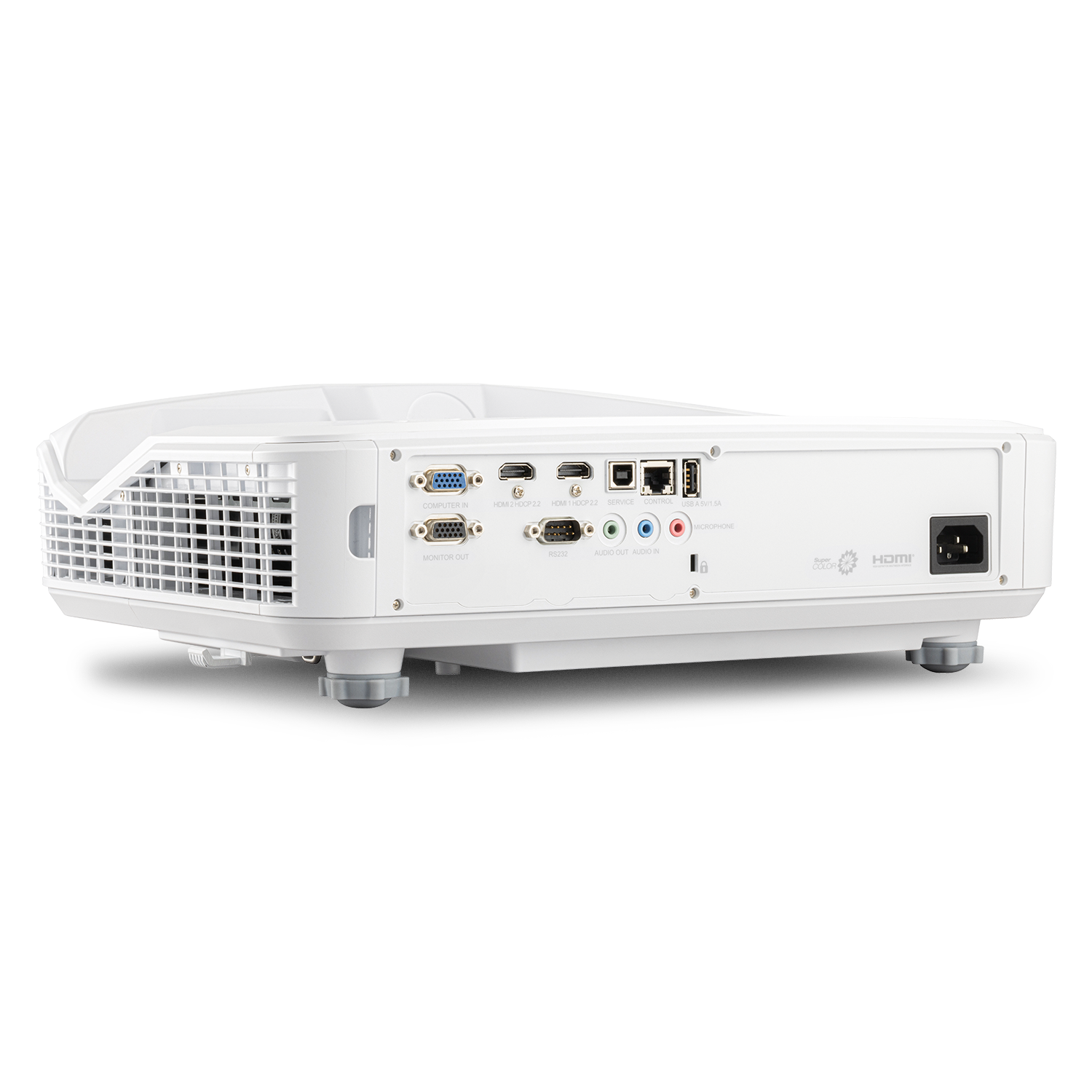

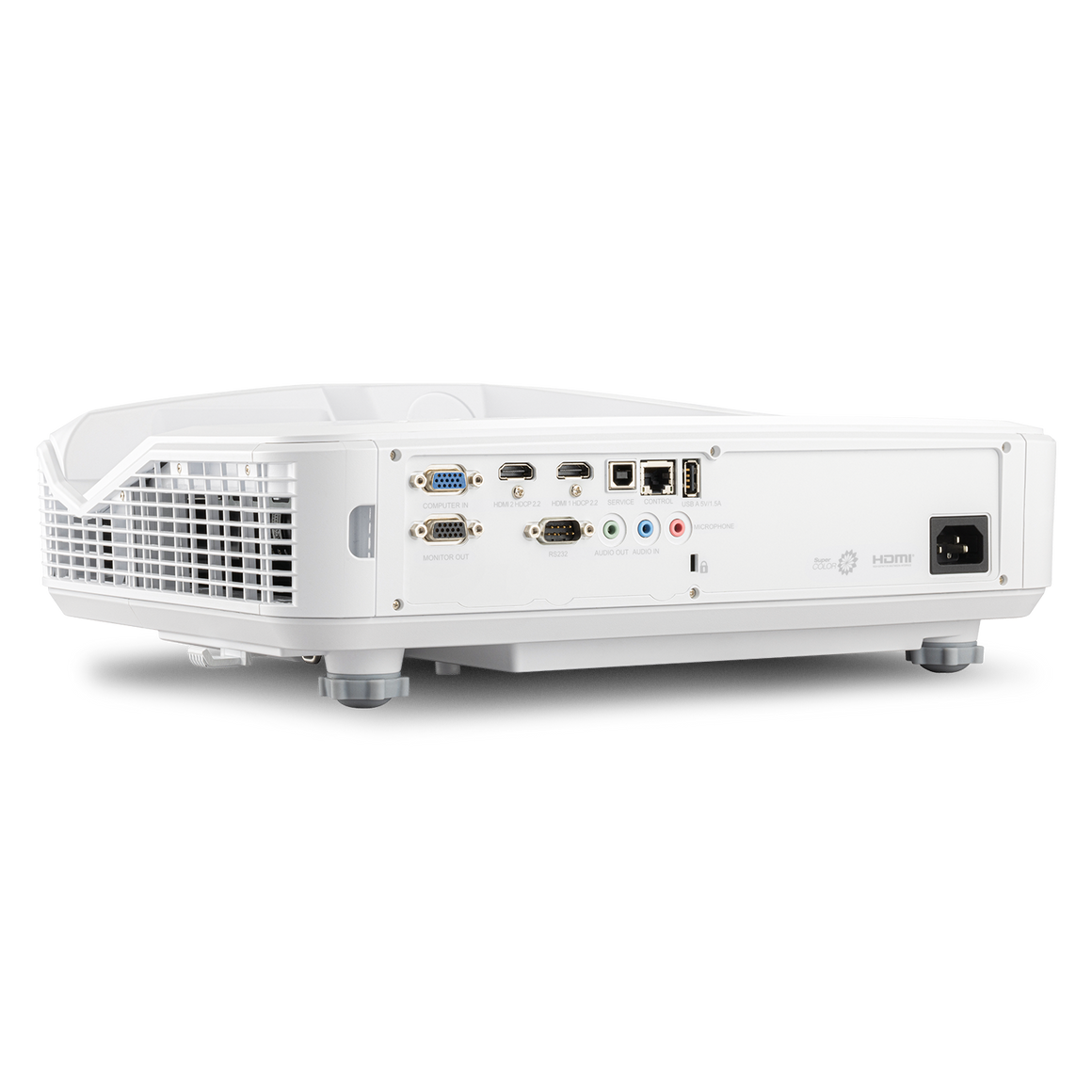

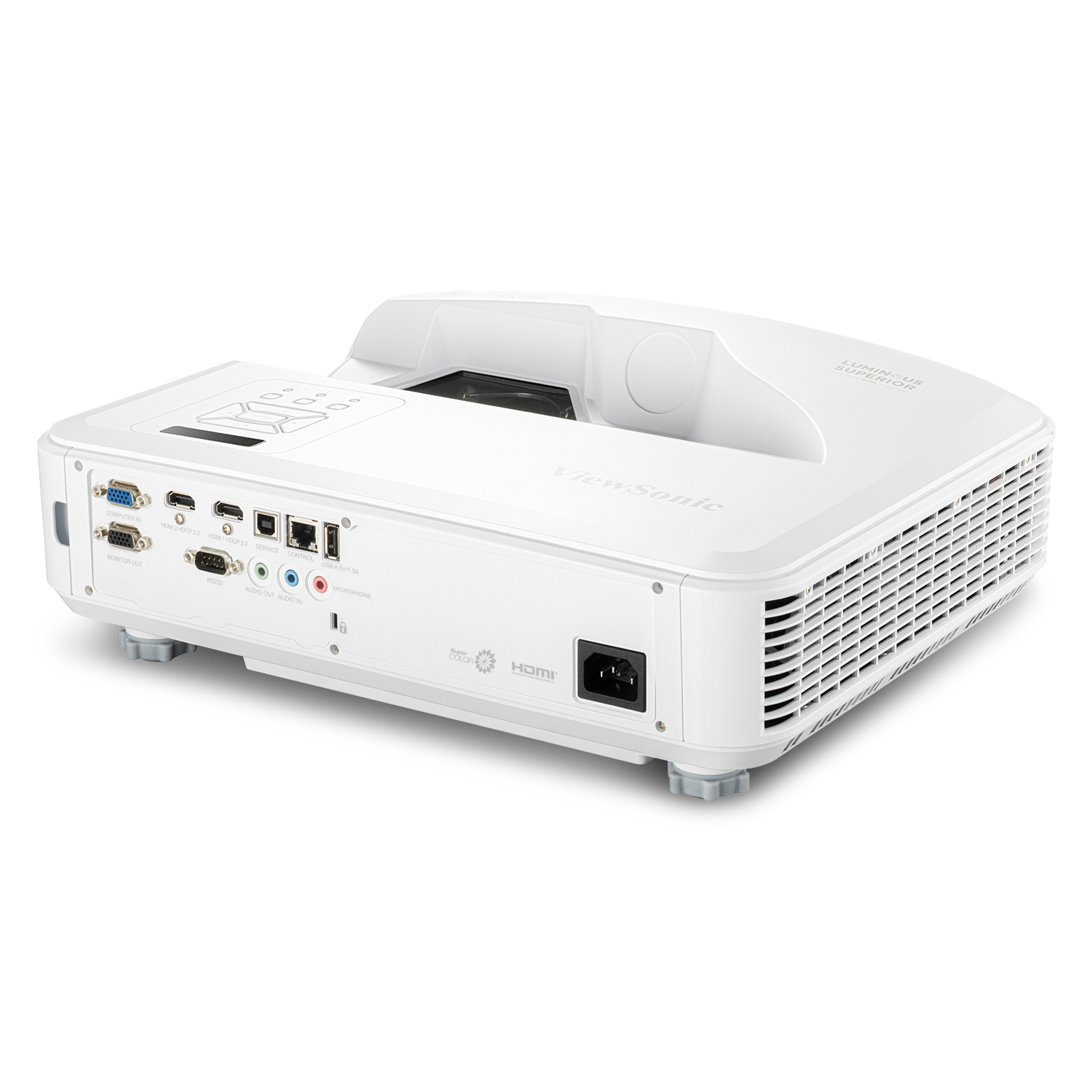

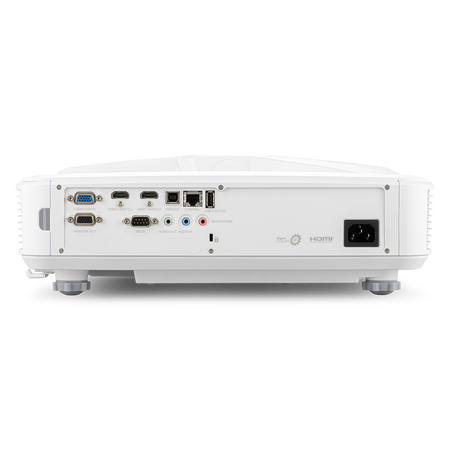

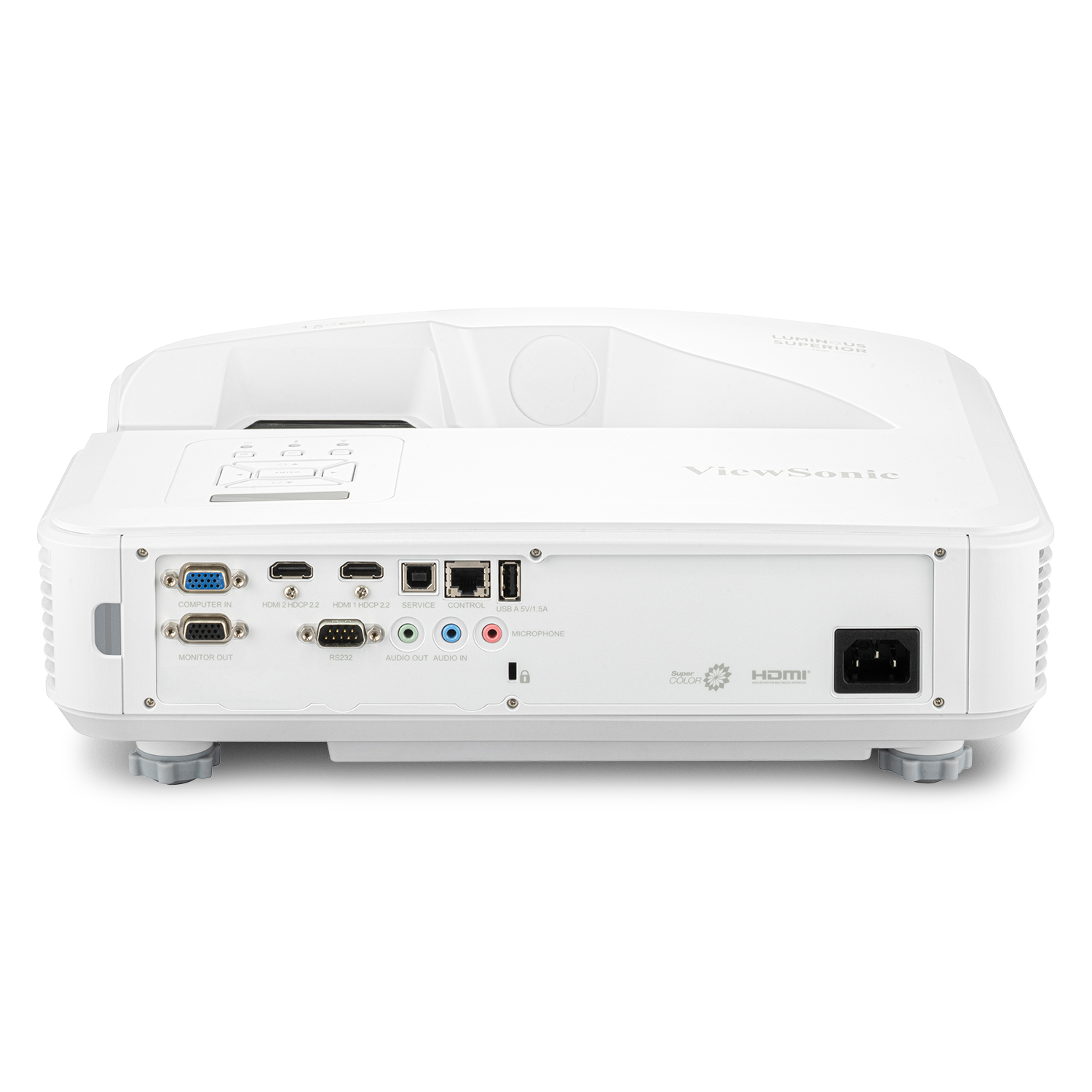

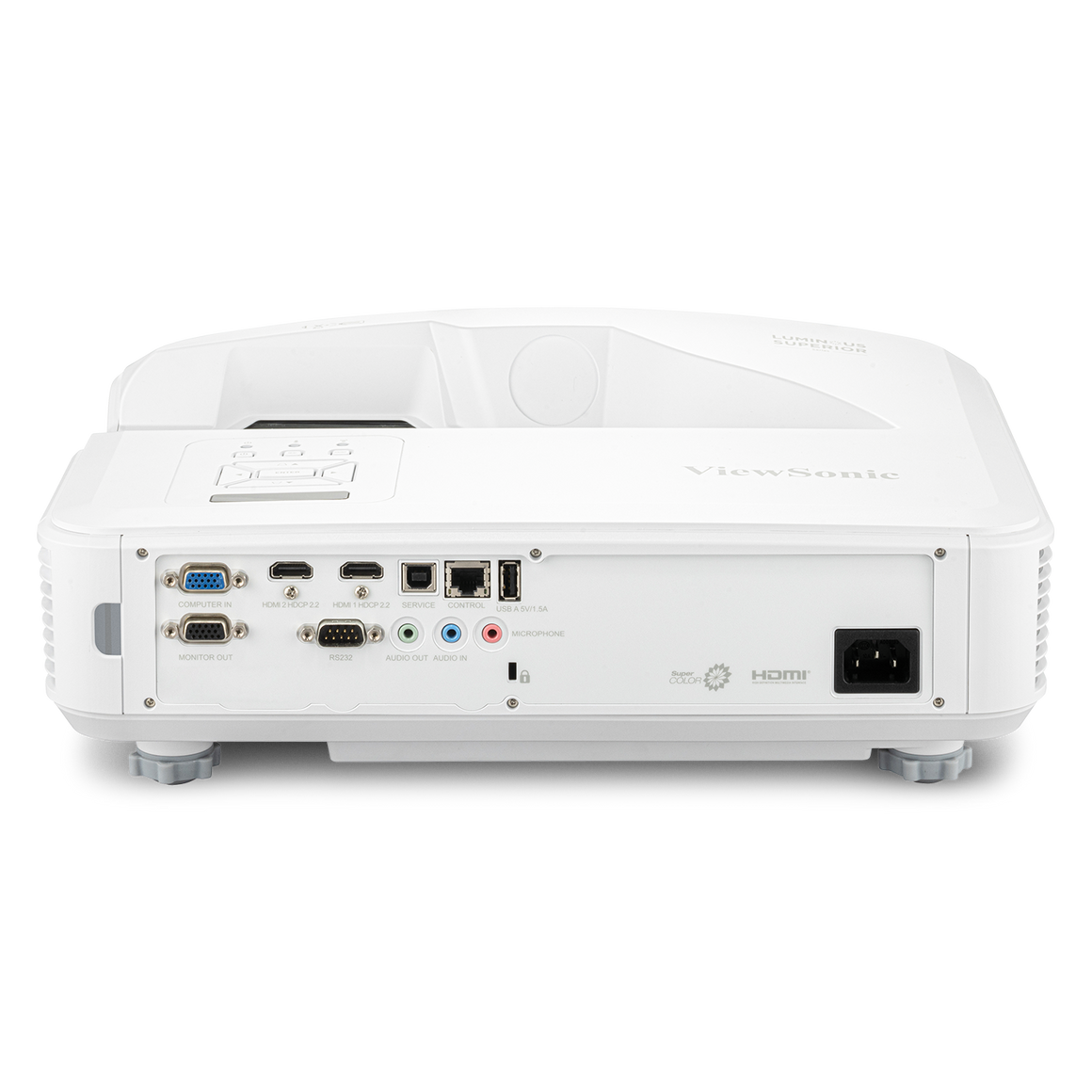

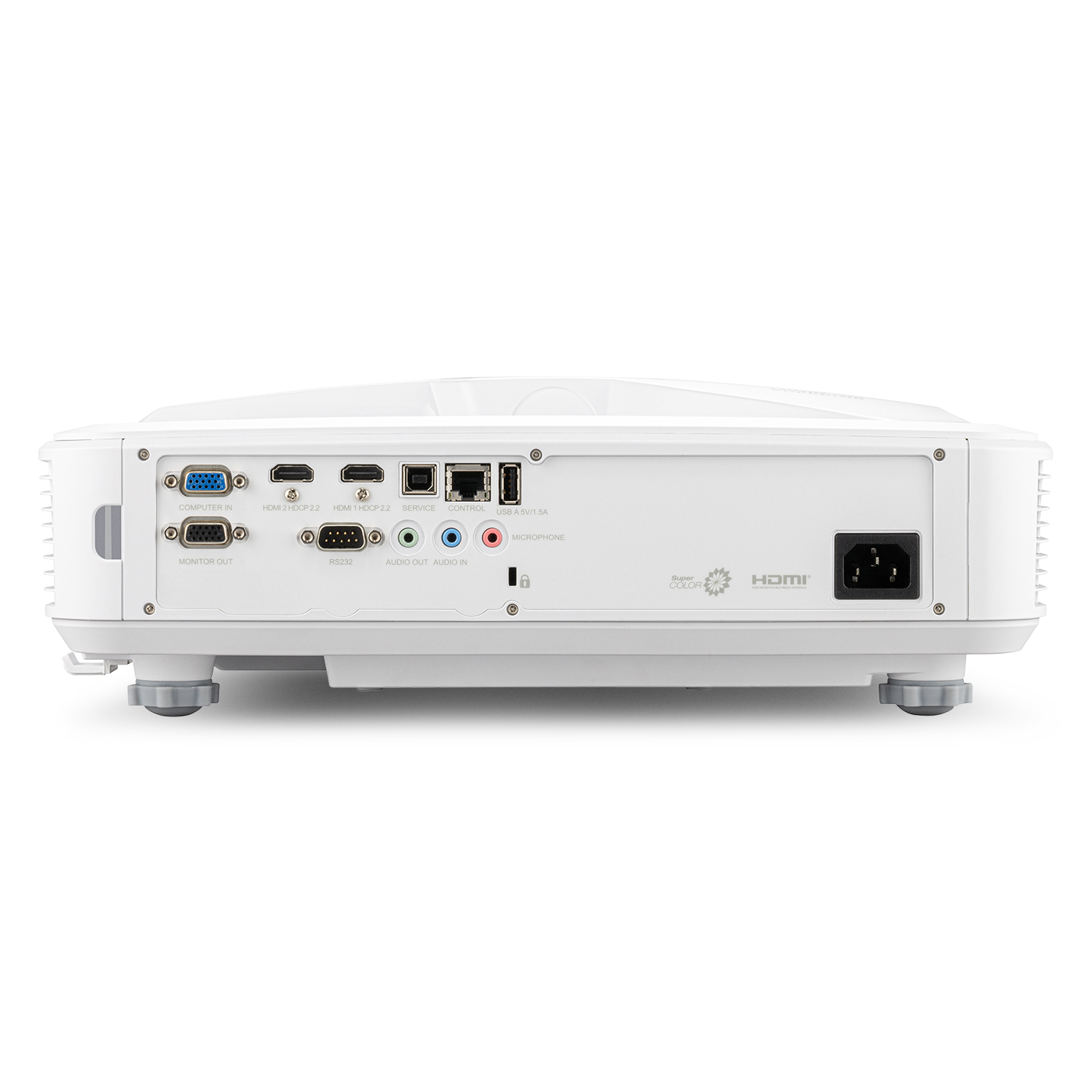

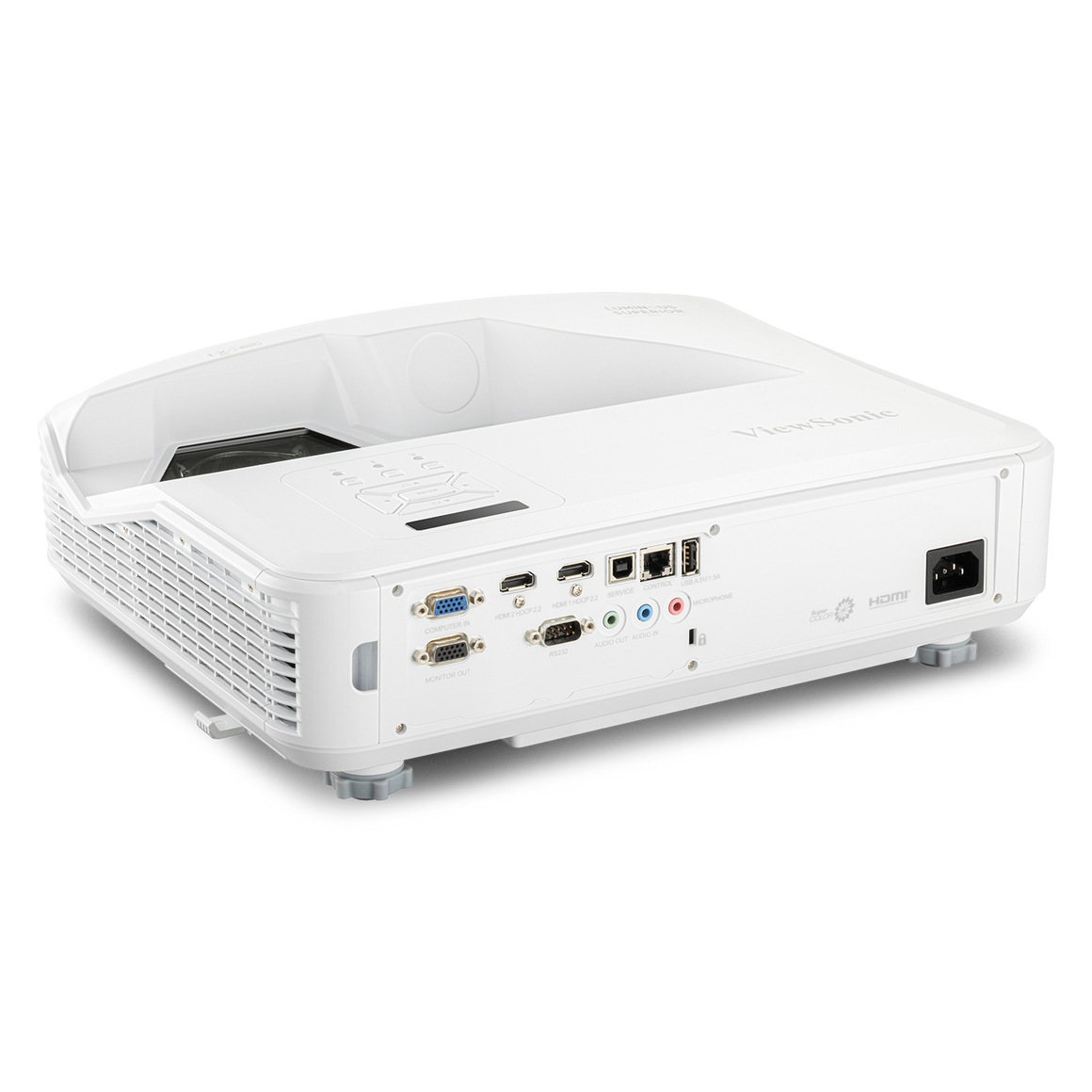

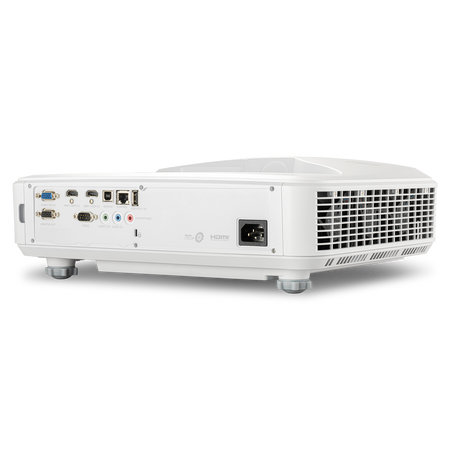

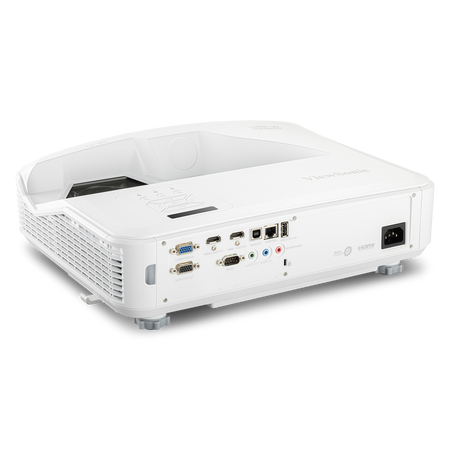

- Extensive Connectivity: Includes HDMI 2.0/HDCP 2.2, audio I/O, USB-A power output, RS232, RJ45 LAN, and microphone input.
- Durable and Quiet Operation: Operates between 5–40°C with low noise levels (28 dB in Eco mode) for reliable long-term performance.
Specifications
| Projection System | 0.67" DLP (WUXGA) |
| Native Resolution | 1920 × 1200 (WUXGA) |
| Brightness | 5,000 ANSI Lumens (6,000 Center Lumens) |
| Contrast Ratio | 3,000,000:1 (Dynamic) |
| Light Source | 2nd Gen Laser Phosphor (20,000–30,000 hours) |
| Throw Ratio | 0.253 (Ultra Short Throw) |
| Image Size | 80”–170” diagonal |
| Throw Distance | 0.17–0.66 m (100” @ 0.28 m) |
| Keystone Correction | ±10° H/V, 4-corner adjustment |
| Inputs | HDMI ×2 (HDCP 1.4/2.2), Audio In, Microphone In, Computer In |
| Outputs | Audio Out, Monitor Out, 10W Speaker, USB-A (5V/1.5A) |
| Control | RS232, RJ45 (LAN), USB-B (Service) |
| Power Consumption | 328W (Normal), <0.5W (Standby) |
| Dimensions (W × D × H) | 382 × 318 × 132 mm |
| Weight | 5.8 kg (Net), 8.1 kg (Gross) |
| Operating Temperature | 5–40 °C |

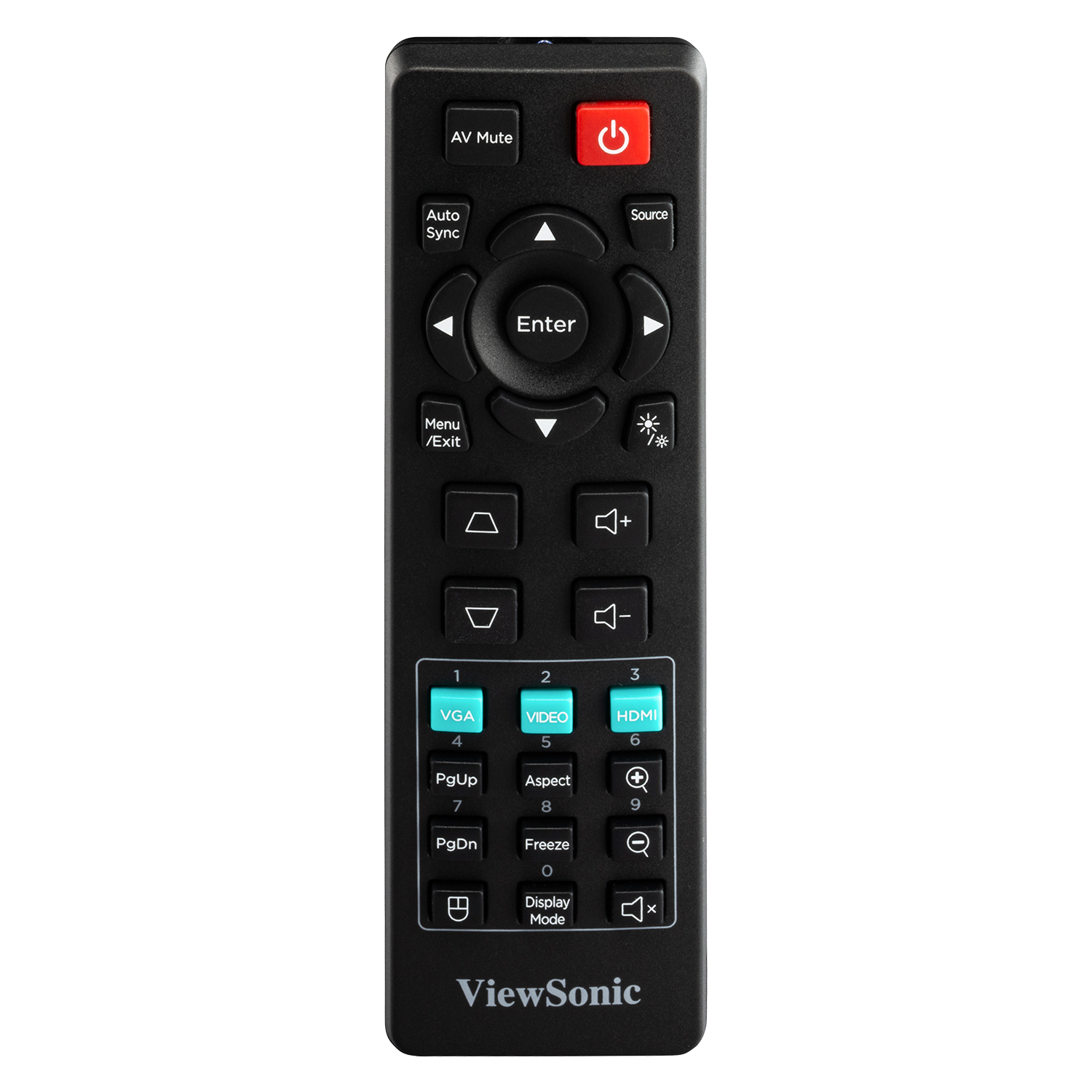

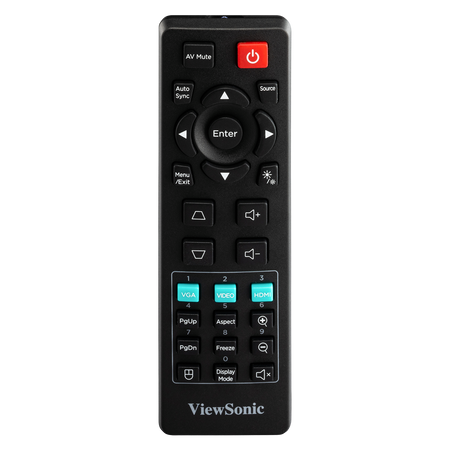

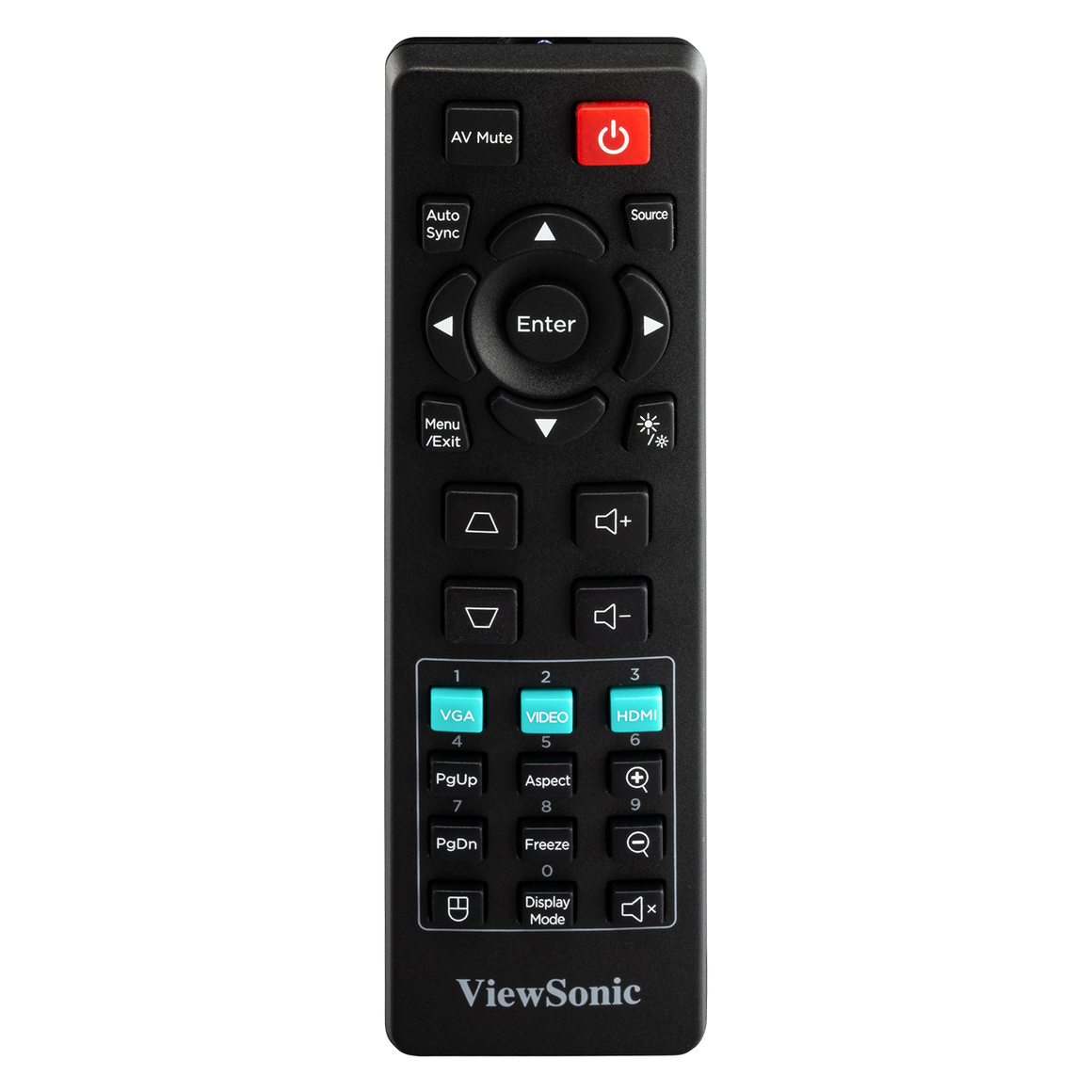

| Included Accessories | Power cord, remote control, Quick Start Guide, warranty card |
The ViewSonic LS832WU combines powerful 5,000-lumen brightness, ultra-short-throw projection, and long-lasting laser performance in a compact, installation-friendly chassis. Designed for digital signage, education, and commercial environments, it provides exceptional visual quality and operational efficiency with minimal maintenance requirements.
Application Examples
| Retail & Digital Signage | Ideal for shopfronts, museums, and exhibition displays, providing bright, large visuals even in high-traffic or well-lit areas. |
| Classrooms & Lecture Halls | Projects large, shadow-free images from close range for an immersive, distraction-free learning experience. |
| Meeting & Training Rooms | Delivers high-impact presentations with minimal glare and flexible placement options, perfect for collaboration and workshops. |
| Public Venues & Museums | Reliable for long operating hours and continuous display of exhibits or informational content. |
| Commercial Displays | Provides a cost-effective alternative to large-format LED displays, offering superior image size and clarity. |
