SKU: LSC601WU

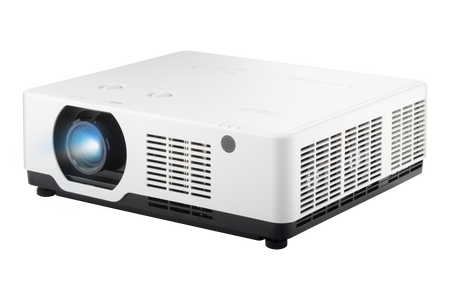

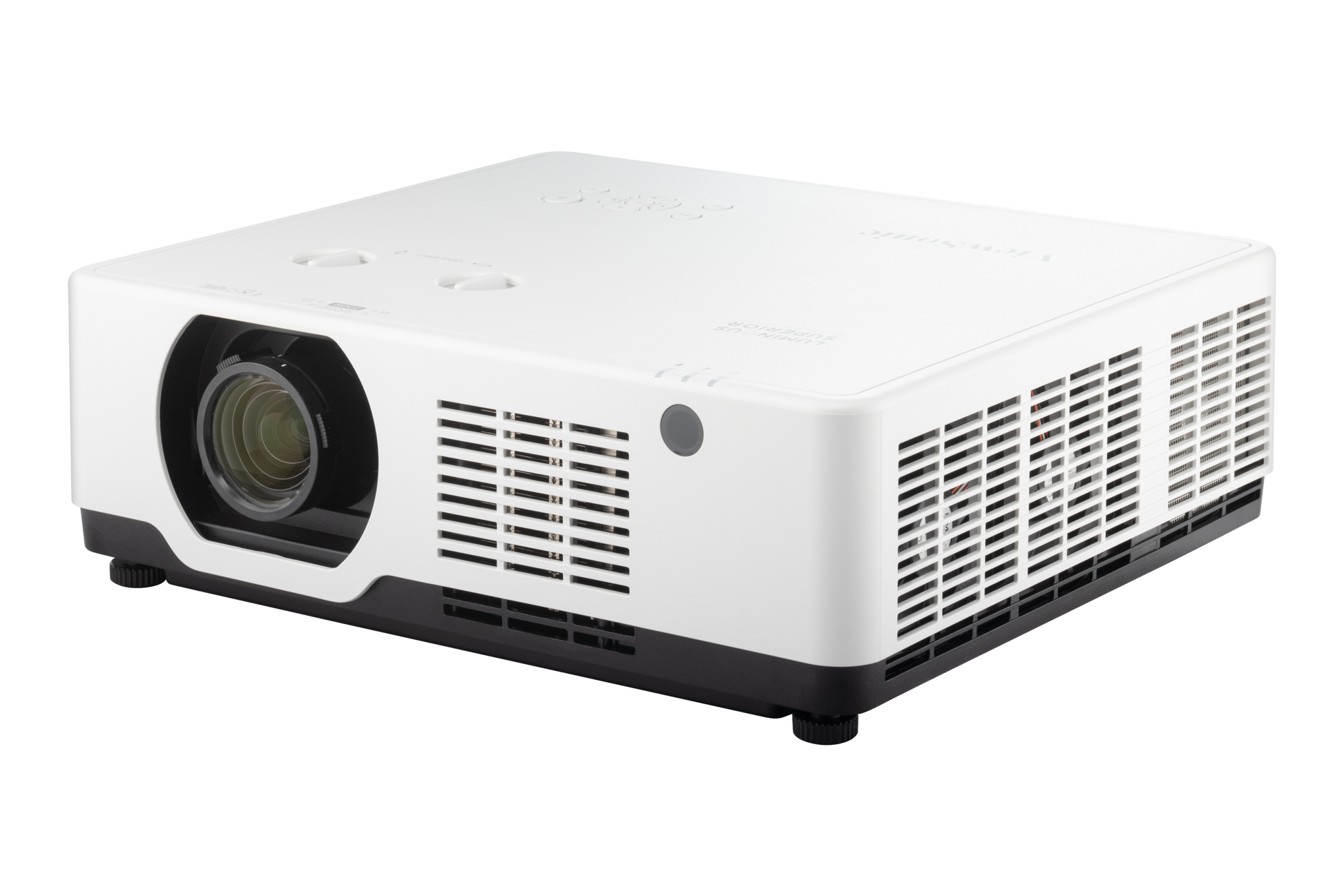

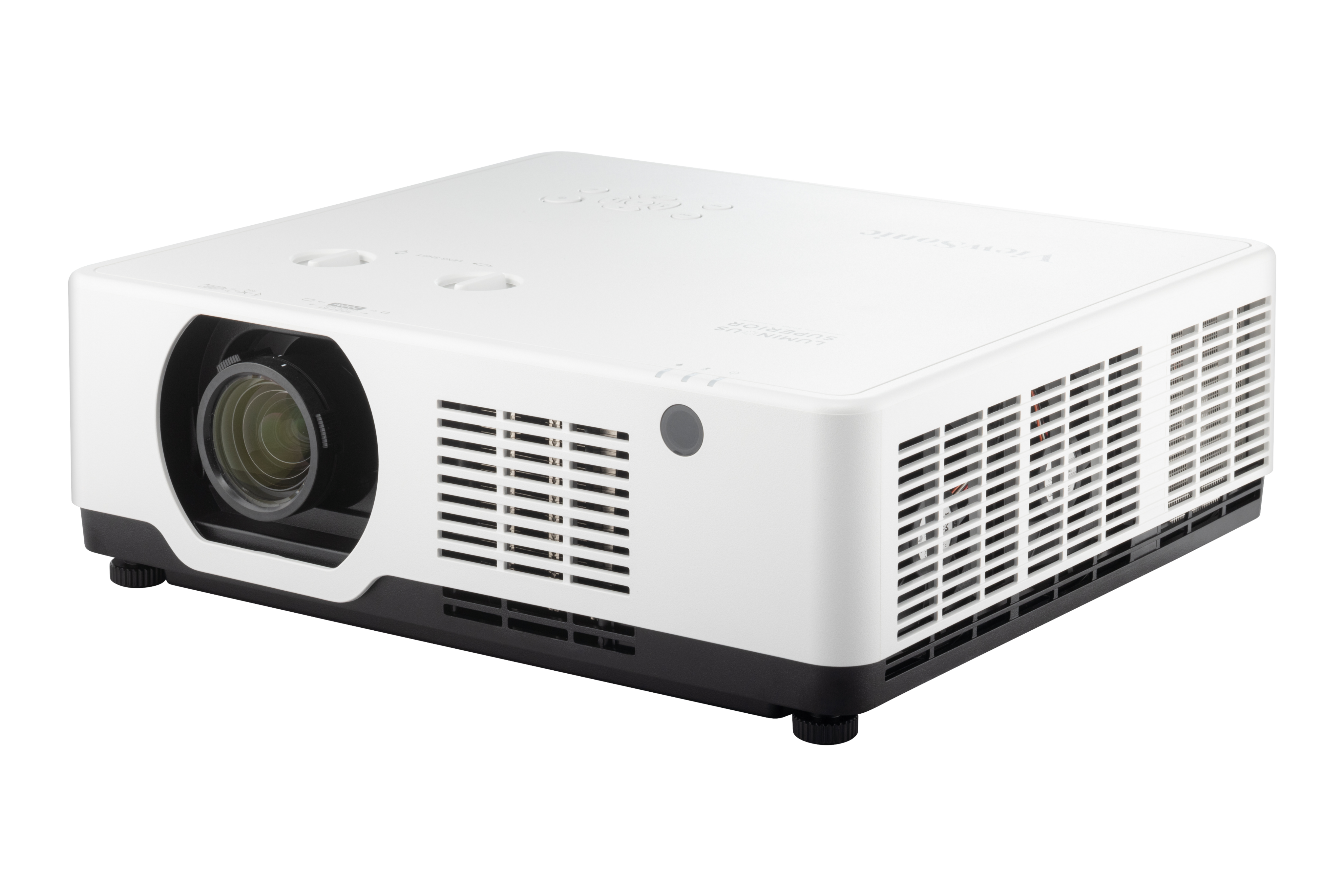

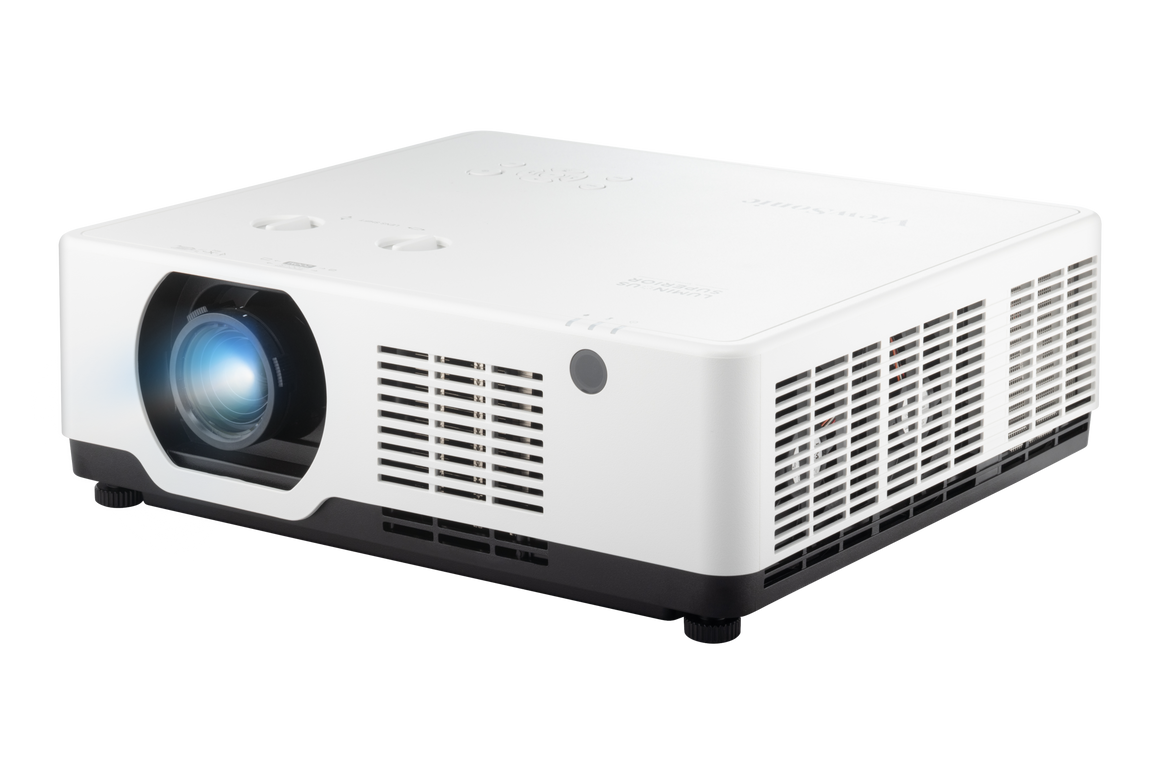

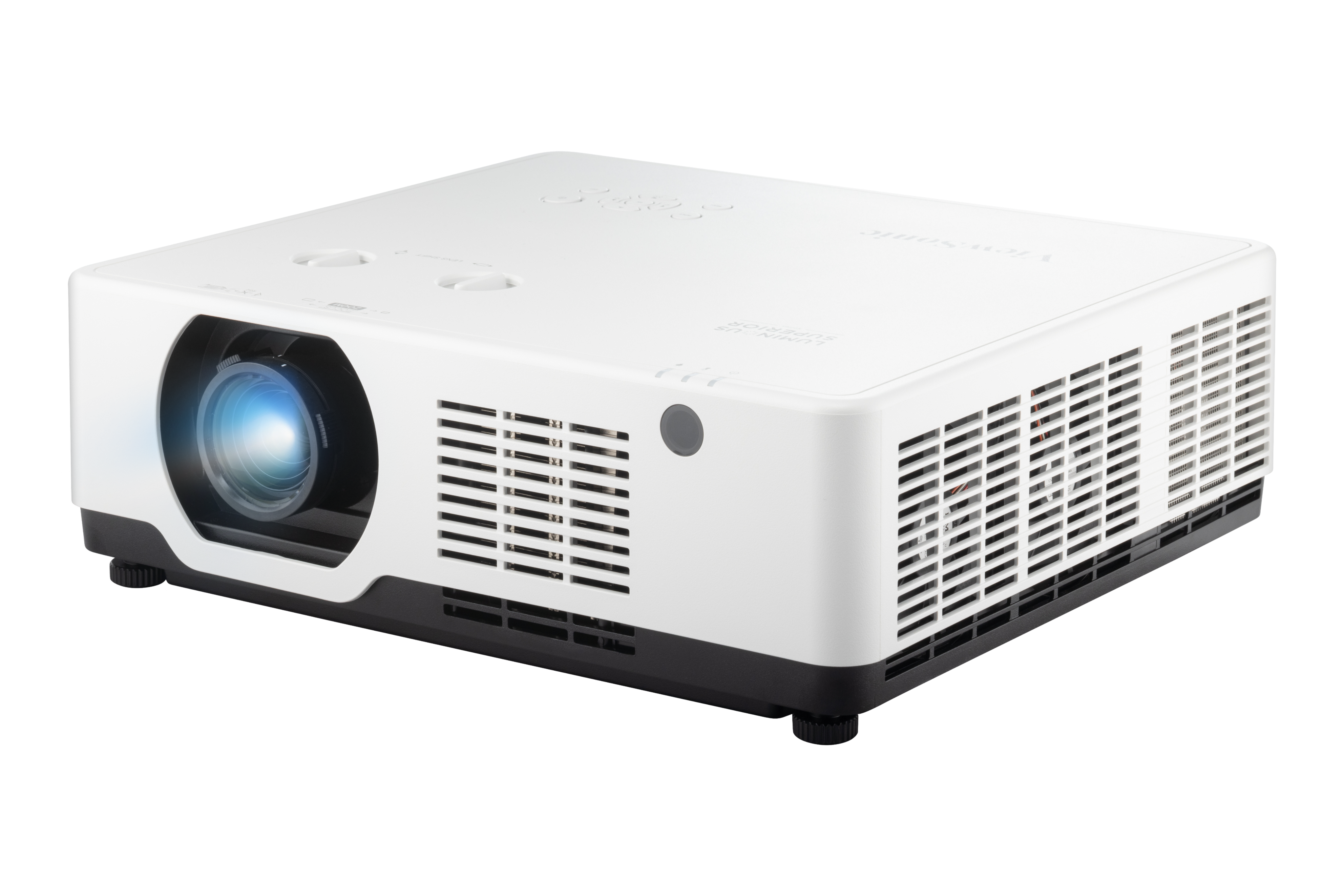

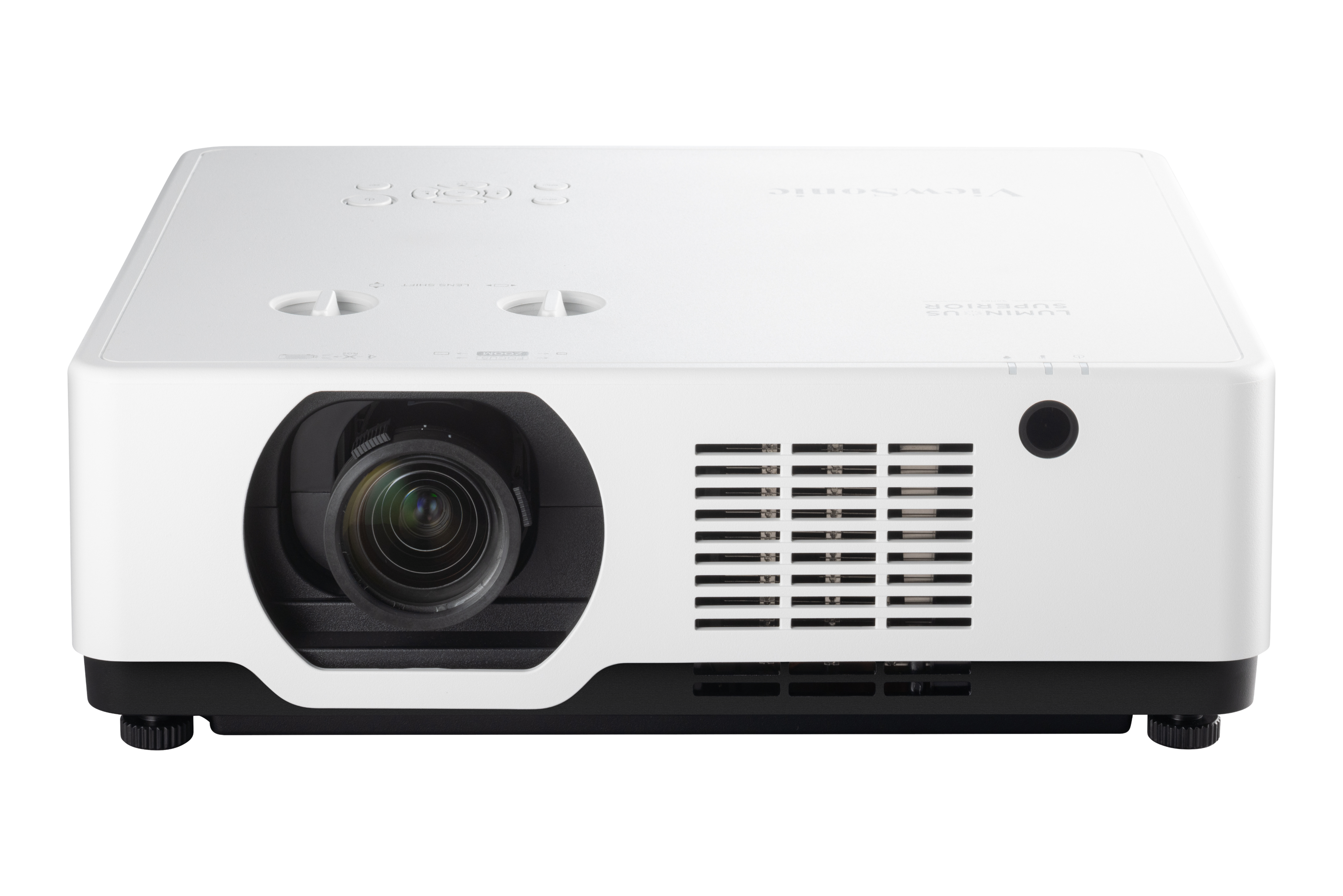

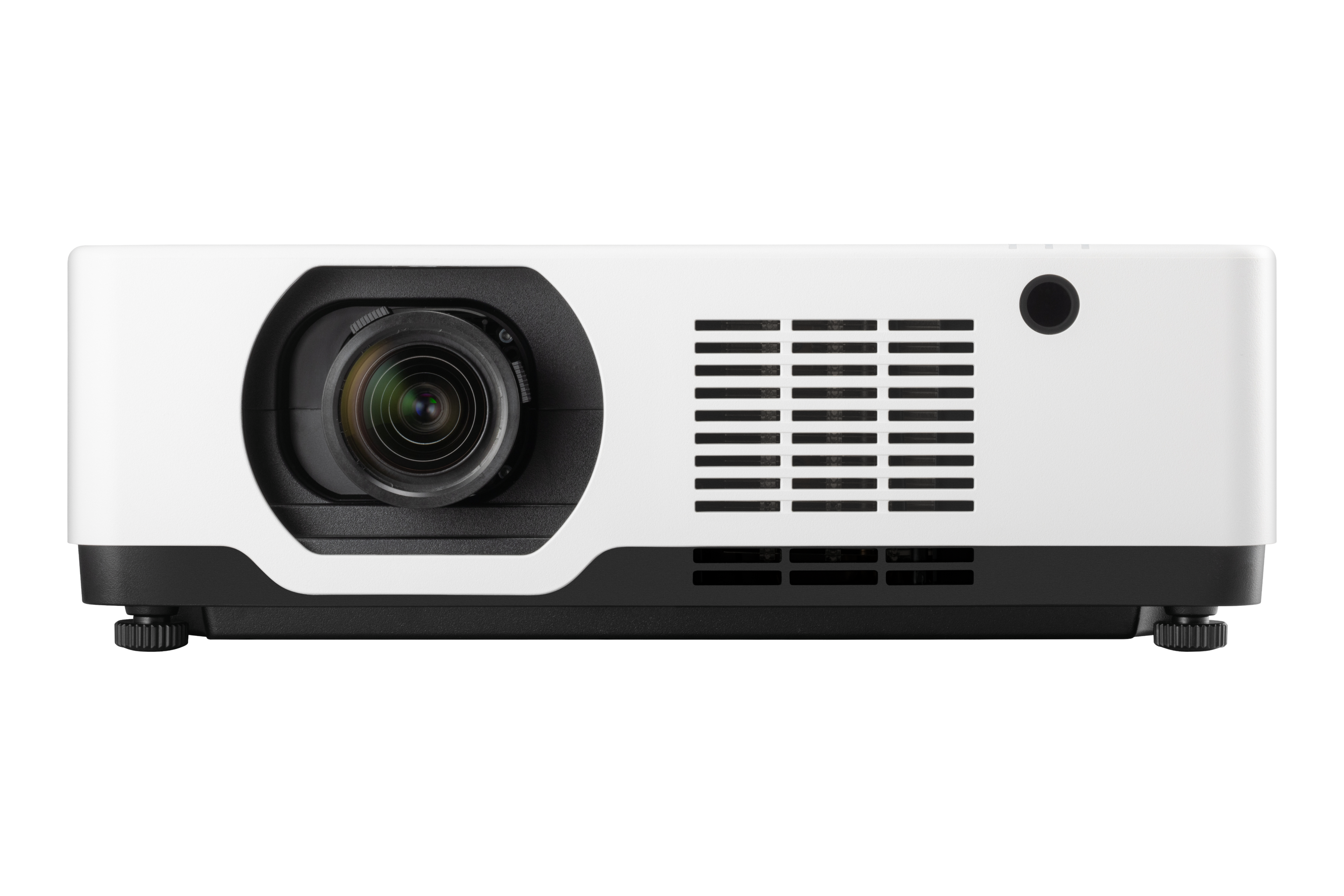

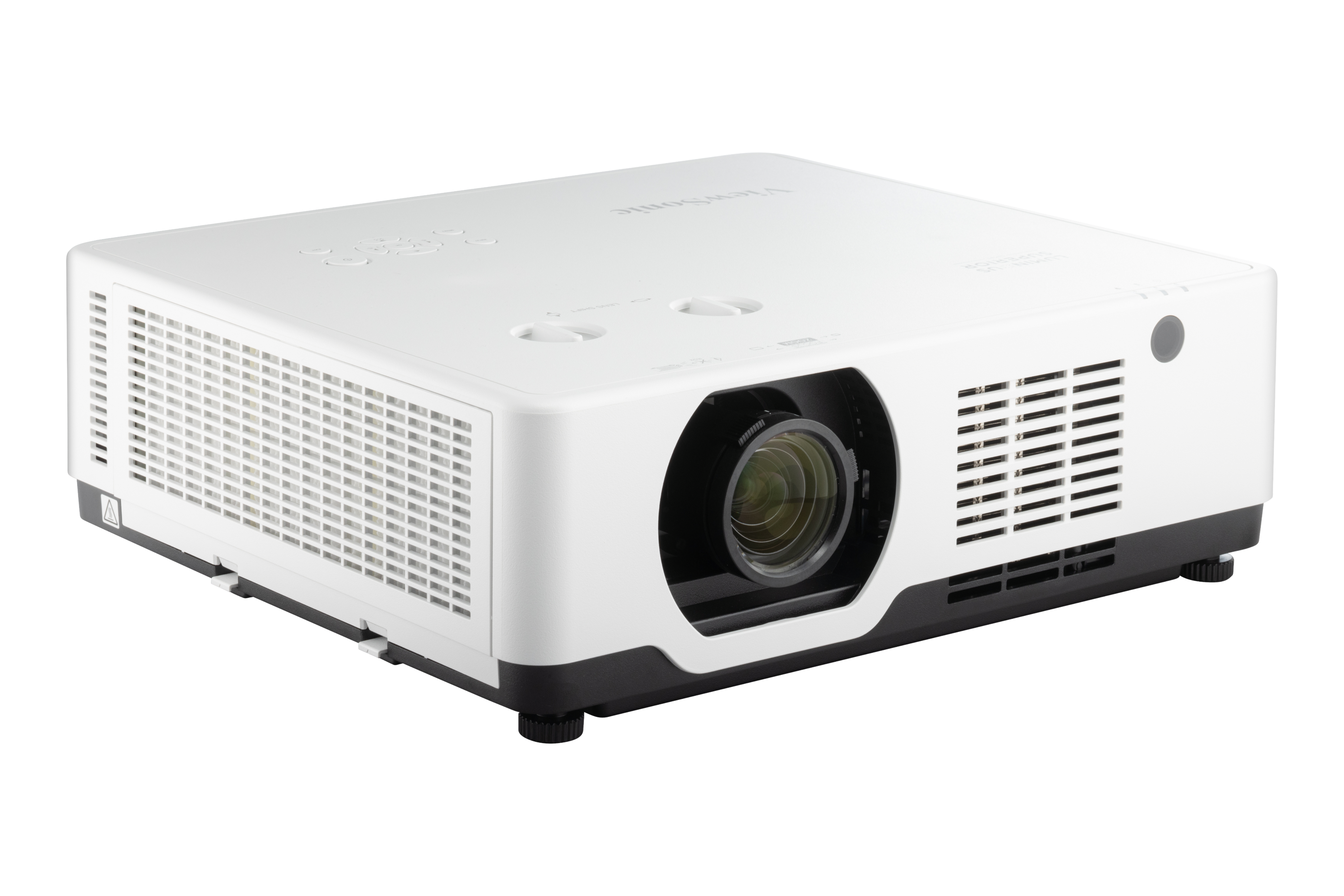

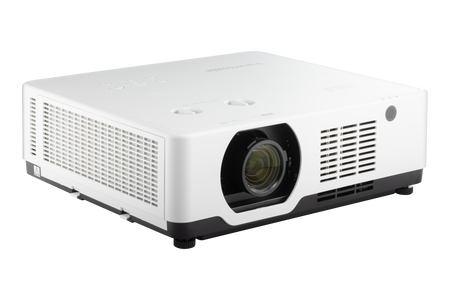

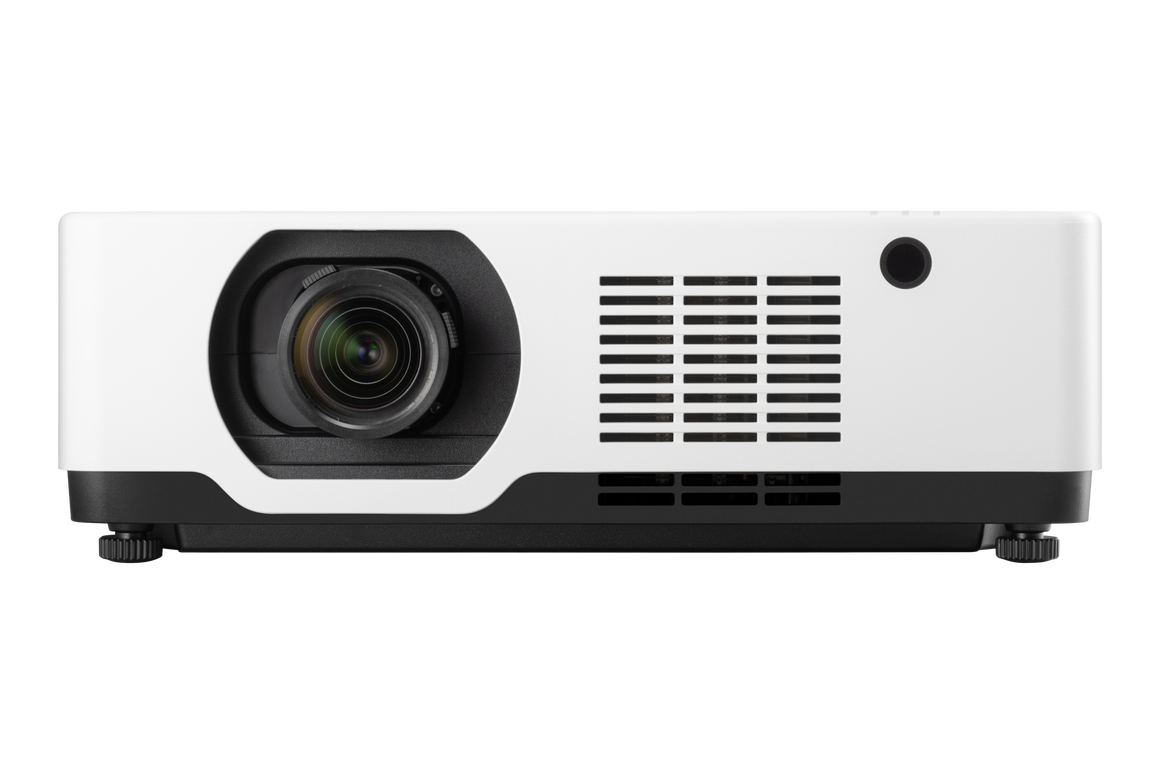

ViewSonic LSC601WU Laser Installation Projector

ViewSonic

6000 ANSI Lumens WUXGA Laser Installation Projector

The ViewSonic LSC601WU is a professional-grade WUXGA laser projector built for performance, reliability, and versatility. Delivering 6,000 ANSI lumens of brightness with 3LCD technology, it provides stunning, colour-accurate images even in bright ambient light. Featuring a 21:9 aspect ratio for immersive Microsoft Teams Rooms experiences and a 2nd-generation laser phosphor light source for up to 30,000 hours of operation, the LSC601WU is ideal for business, education, and large-scale display applications requiring precision and endurance.

Key Features

  • Brilliant Visual Performance: 6,000 ANSI lumens and WUXGA resolution deliver vivid, detailed projection across large screens and bright rooms.
  • 21:9 Aspect Ratio for Teams Rooms: Optimised for Microsoft Teams Room environments, providing wide-screen visuals for hybrid collaboration.
  • Flexible Installation Options: Features H/V lens shift, 1.6x optical zoom, keystone correction, and 360° projection for easy setup in any space.
  • Long-Lasting Laser Light Source: 2nd-generation laser phosphor technology provides up to 30,000 hours of maintenance-free operation.
  • Powerful and Quiet Operation: Delivers clear 16W built-in audio with ultra-low 25 dB noise level in Eco mode for distraction-free environments.
  • Comprehensive Connectivity: Equipped with dual HDMI, HDBaseT, computer input, USB-A, audio I/O, and LAN/RS232 control ports for seamless integration.
  • Energy Efficient and Eco-Friendly: Laser technology eliminates lamp replacements, reduces power consumption, and lowers total cost of ownership.

The ViewSonic LSC601WU combines outstanding brightness, installation flexibility, and long-life laser performance to meet the demands of modern business, education, and presentation environments. Perfect for meeting rooms, lecture halls, and digital displays, it ensures consistent, high-quality visuals with minimal maintenance and maximum reliability.

In stock
£1,968.00

Secure checkout

Friendly support

Hassle-free returns

The ViewSonic LSC601WU is a 6,000 ANSI Lumens WUXGA laser installation projector engineered for superior brightness, flexibility, and reliability in commercial, educational, and public spaces. Featuring 2nd generation laser phosphor technology with up to 30,000 hours of lifespan, it delivers consistent, vibrant visuals on screens up to 300 inches. With a 21:9 aspect ratio optimised for Microsoft Teams Rooms, the LSC601WU ensures seamless collaboration and engaging wide-format experiences. Its advanced installation features—including H/V lens shift, 1.6x optical zoom, H/V keystone correction, and 360° projection capability—offer unmatched versatility for professional installations.

Samsung LSC Series Lecture Hall
Samsung LSC Series Gallery
Samsung LSC Series Golf Club
Samsung LSC Series Boardroom

Key Features

  • 6,000 ANSI Lumens Brightness: Ensures brilliant, clear images in any lighting environment—ideal for classrooms, boardrooms, and large venues.
  • Up to 300” Projection: Delivers ultra-large, immersive visuals with a lower cost per inch compared to large-format displays.
  • 21:9 Aspect Ratio Support: Optimized for Microsoft Teams Rooms and hybrid collaboration setups, expanding screen real estate for participants and content.
  • Flexible Installation: Features H/V lens shift (+45% V, ±21% H), 1.6x optical zoom, H/V keystone correction (±30°), and 360° projection orientation for easy setup in any environment.
  • 2nd Generation Laser Phosphor Technology: Lamp-free operation provides up to 30,000 hours of maintenance-free performance with improved color accuracy and energy efficiency.
  • Advanced Connectivity: Equipped with HDMI ×2 (HDMI 1.4 / HDCP 1.4), HDBaseT, Computer input, USB Type-A (5V/2A), Audio in/out, Monitor out, RS232, and LAN control for comprehensive system integration.
  • High Contrast and Colour Performance: Boasts 3,000,000:1 contrast ratio and 1.07 billion colours for lifelike image reproduction with WUXGA (1920×1200) clarity.
  • Low Noise and Energy Efficient: Operates at just 25 dB (Eco mode) with a power consumption of 330 W (Normal) and <0.5 W in standby for eco-conscious operation.

Specifications

Projection System 3LCD (3 × 0.64" with MLA)
Native Resolution WUXGA 1920×1200 (16:10)
Brightness 6,000 ANSI Lumens / 6,500 Center Lumens
Contrast Ratio 3,000,000:1
Display Color 1.07 Billion Colors
Light Source Laser Phosphor (20,000 hrs Normal / 30,000 hrs Eco)
Lens F=1.58–2.02, f=15.3–24.6 mm; Optical Zoom 1.6× / Digital Zoom 1.0–4.0×
Throw Ratio 1.08–1.76 (100” @ 2.33 m)
Projection Size 30–300 inches
Keystone Correction H: ±30° / V: ±30°
Lens Shift Range Vertical +45% / Horizontal ±21%
Noise Level 35 dB (Normal) / 25 dB (Eco)
Input Lag 60 ms

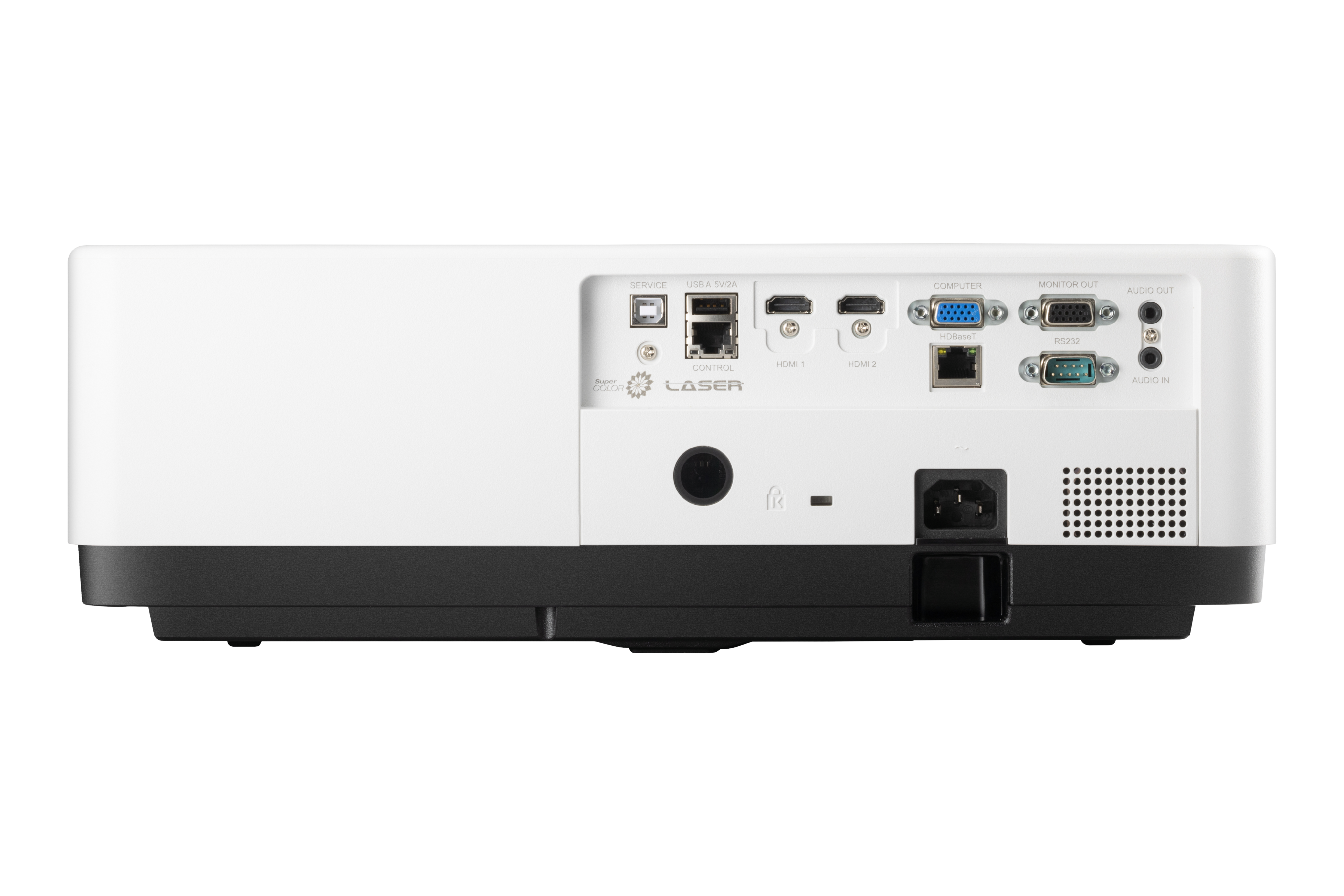

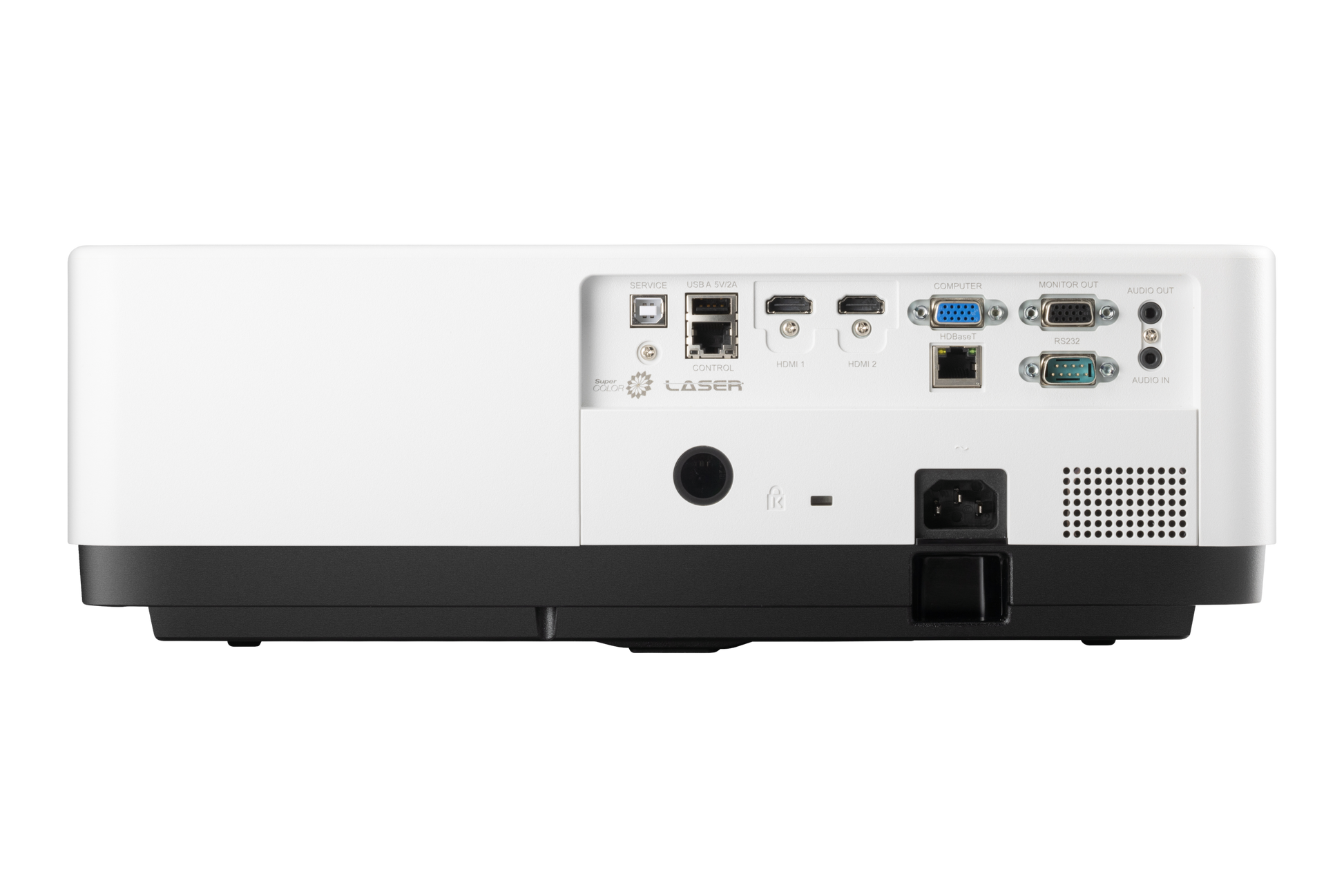

Inputs Computer in ×1 (VGA), HDMI ×2 (HDCP 1.4), Audio in (3.5 mm), HDBaseT ×1, USB Type-A (5V/2A)
Outputs Monitor out ×1, Audio out (3.5 mm) ×1, Speaker 16 W Mono
Control Ports RS232 (DB9), RJ45 (LAN Control), USB Type-B (Service)
Power Supply 100–240 V AC ±10%, 50/60 Hz (330 W Normal / <0.5 W Standby)
Dimensions (W×D×H) 405 × 358 × 137 mm (with adjustment foot)
Weight Net 7.9 kg / Gross 10.93 kg
Operating Temperature 0–40 °C / 20–80% RH (non-condensing)

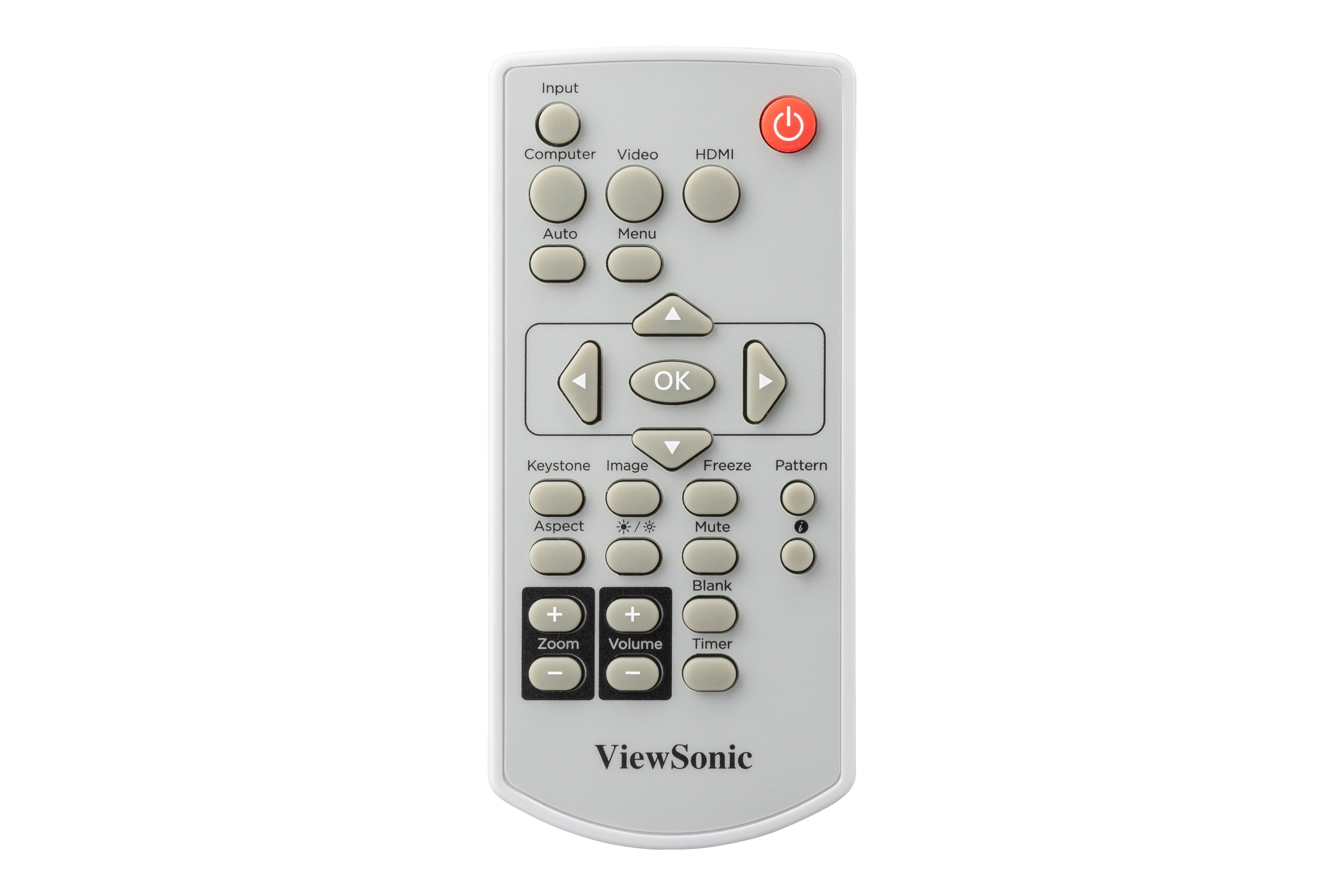

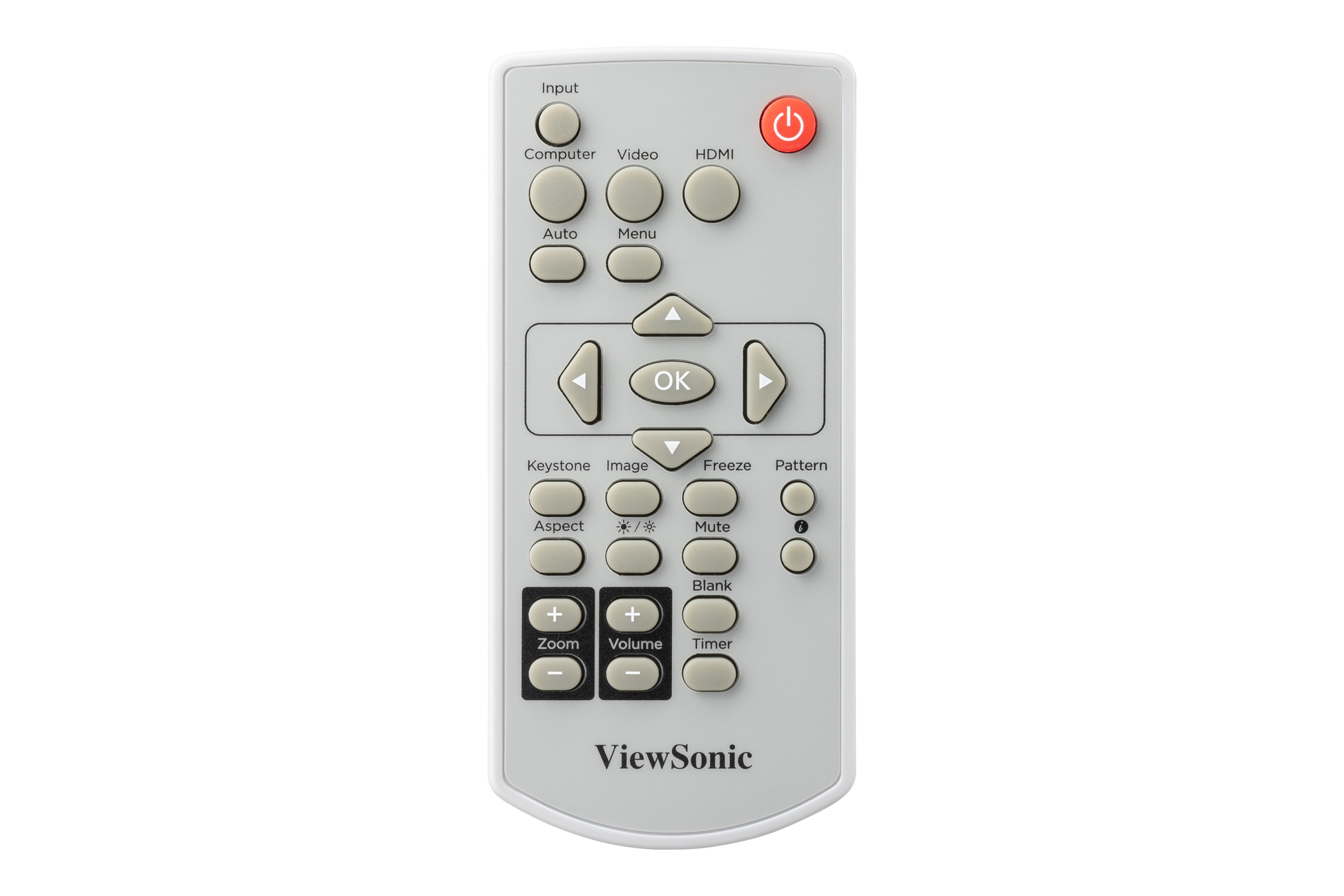

Included Accessories Power cord, Remote control, Air filter, Quick Start Guide, Warranty card (CN only)
Optional Accessories Air filter / Wall or Ceiling Mount (PJ-WMK-007)

Application Examples
Corporate Meeting Rooms & Teams Environments Perfect for wide-format collaboration spaces with 21:9 aspect ratio support, ideal for Microsoft Teams Rooms integration.
Lecture Halls & Training Centers Provide bright, large-format visuals for presentations and educational sessions up to 300 inches.
Public Venues & Auditoriums Ensure vivid projection and reliable operation with 6,000 ANSI Lumens and 30,000-hour laser lifespan.
Control Rooms & Exhibition Displays Deliver 24/7 performance, 360° projection capability, and LAN control for system management and monitoring.

The ViewSonic LSC601WU combines high-brightness laser performance, flexible installation options, and long-lasting reliability. Designed for professional spaces, it offers effortless integration, vivid WUXGA visuals, and 21:9 collaboration readiness, making it the ideal lamp-free solution for modern presentation and communication environments.
