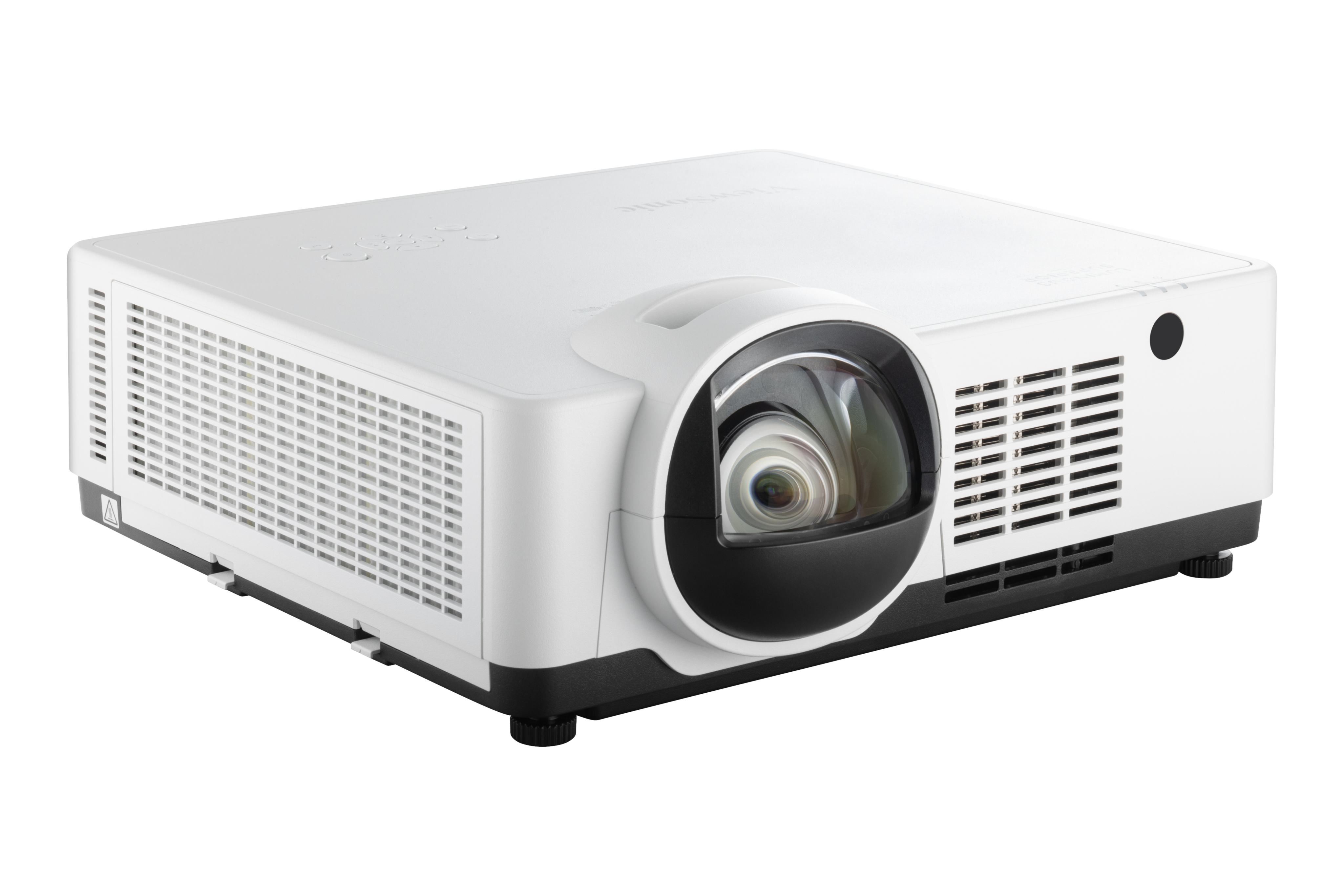

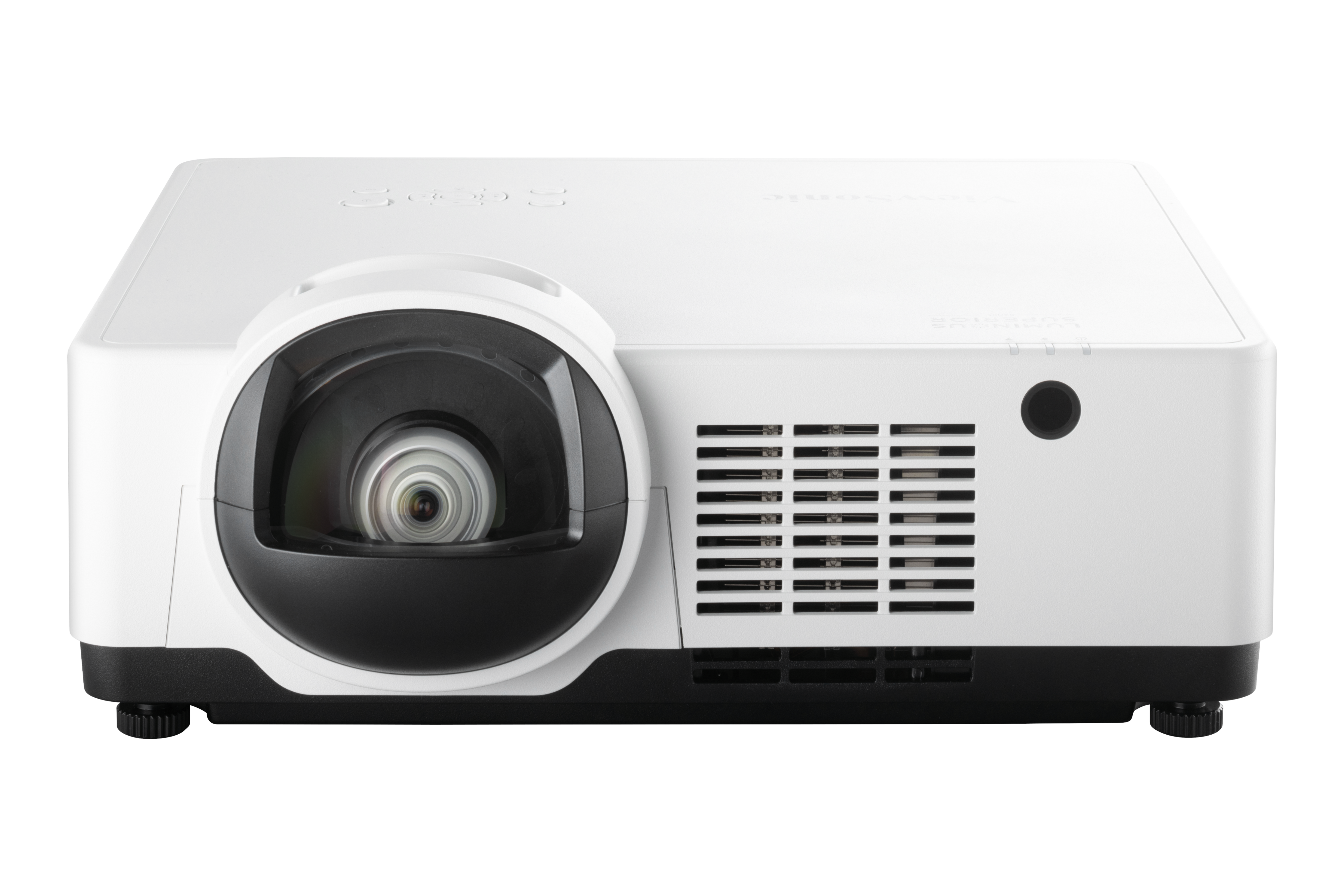

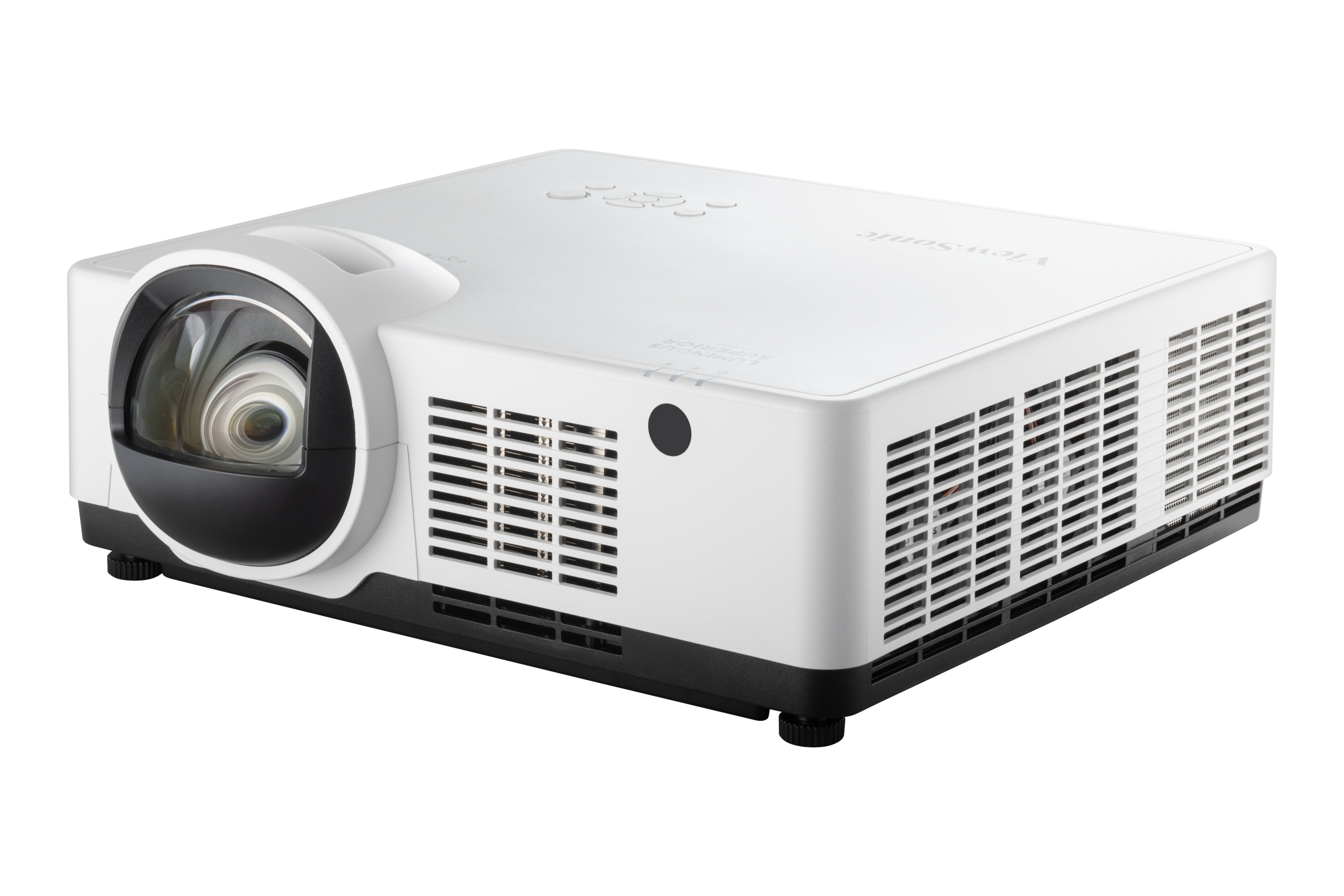

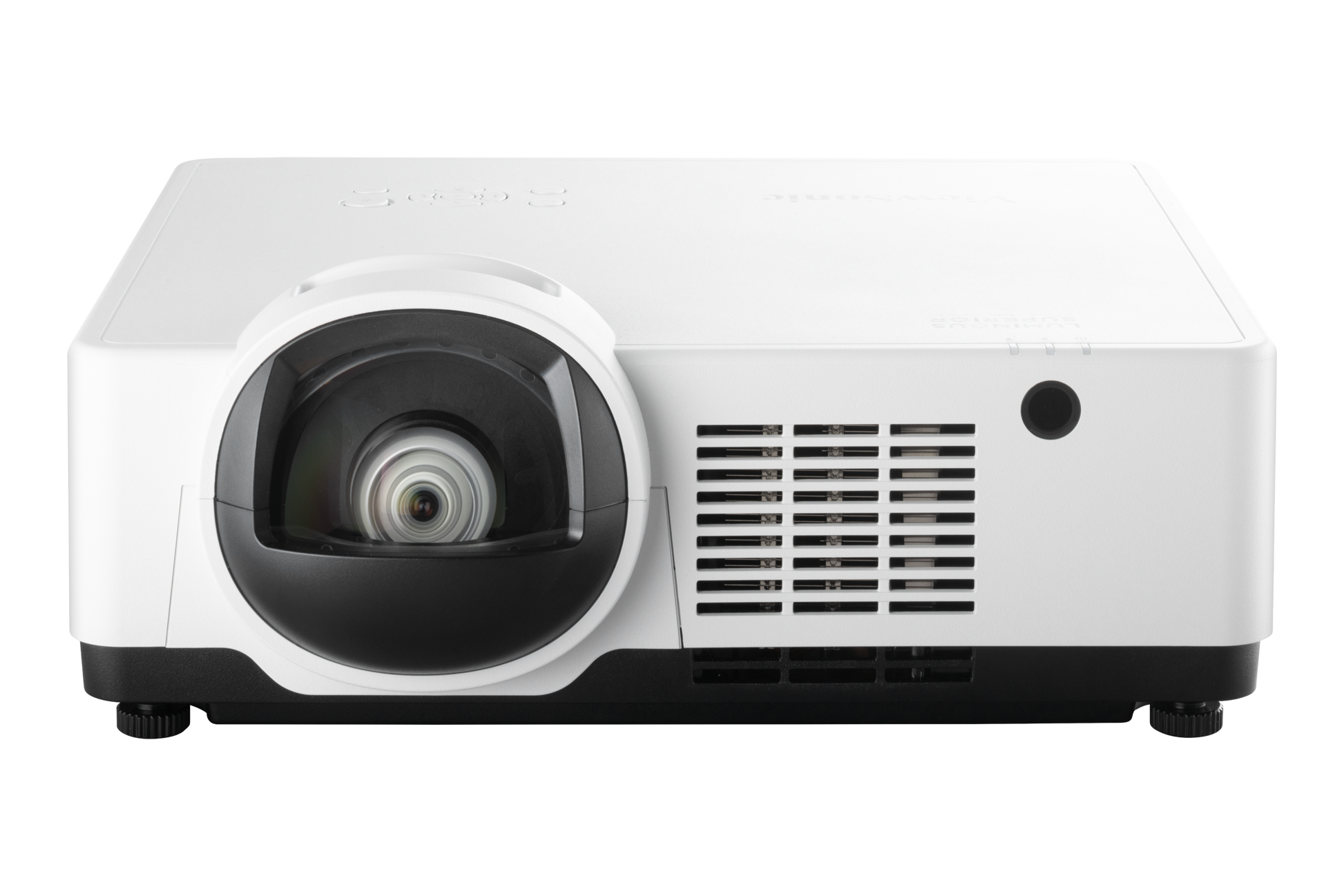

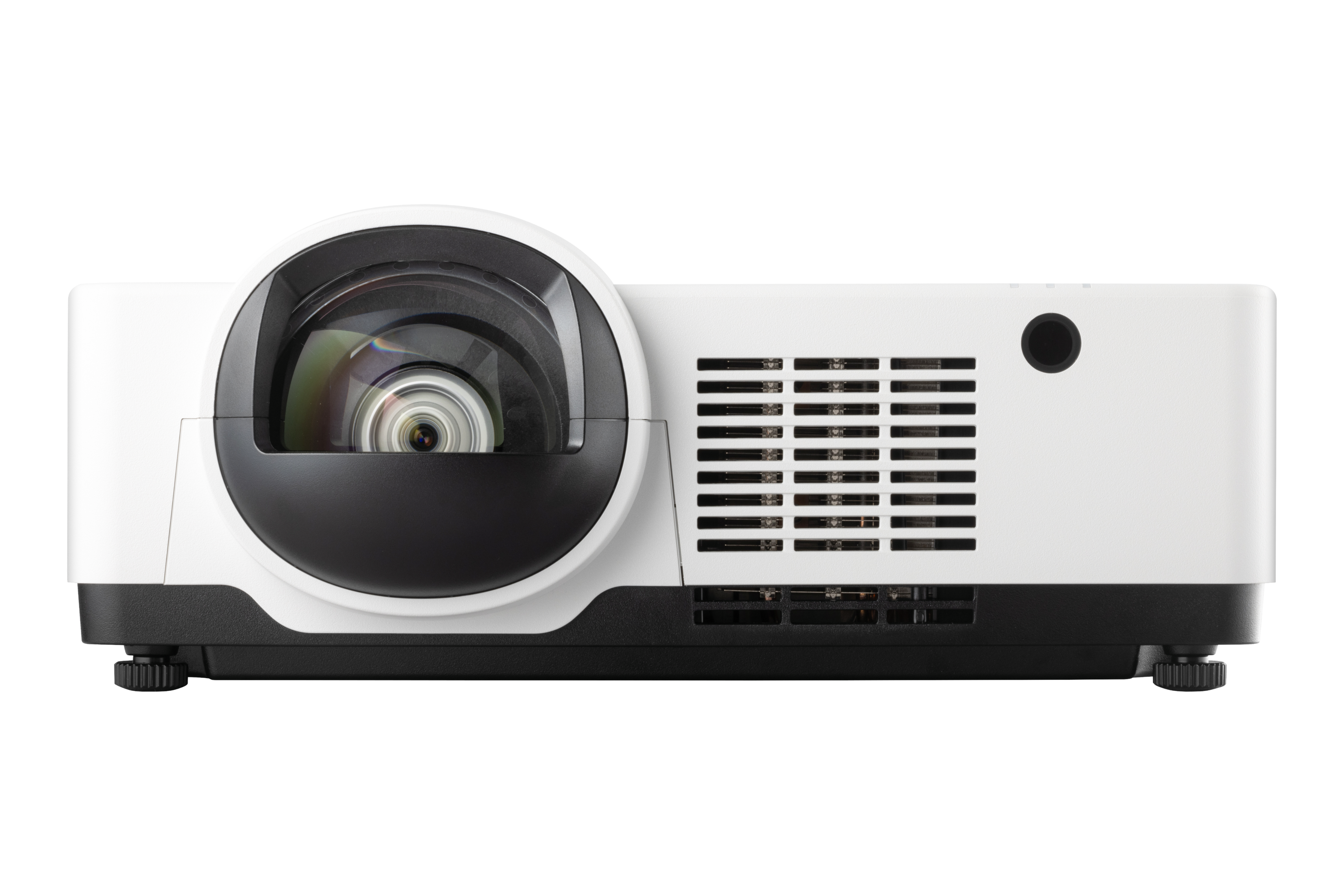

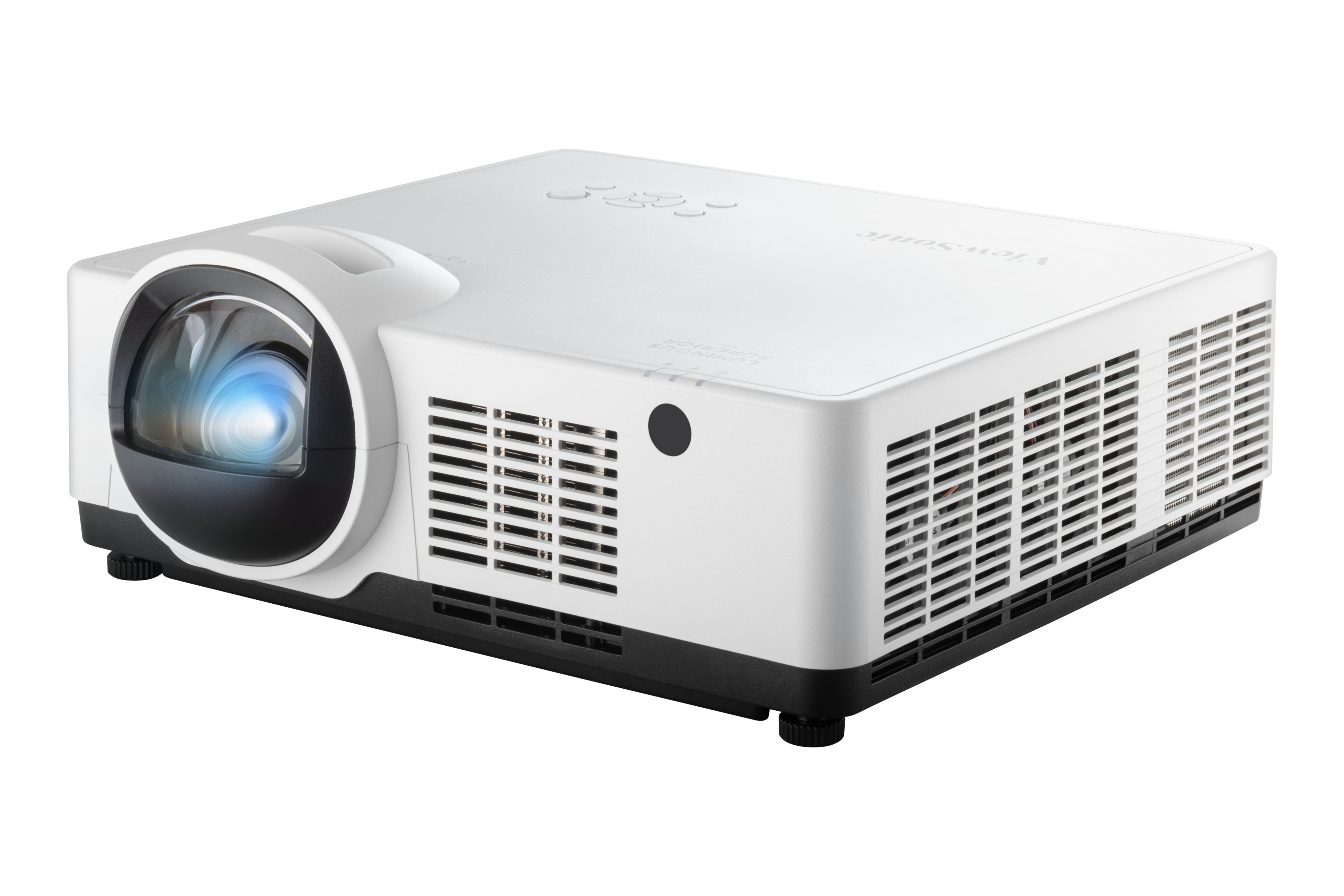

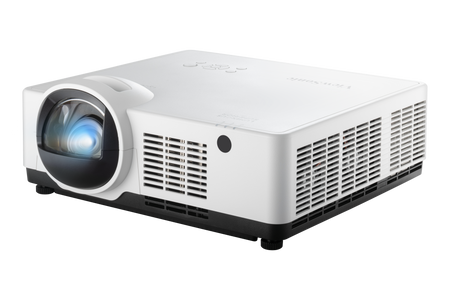

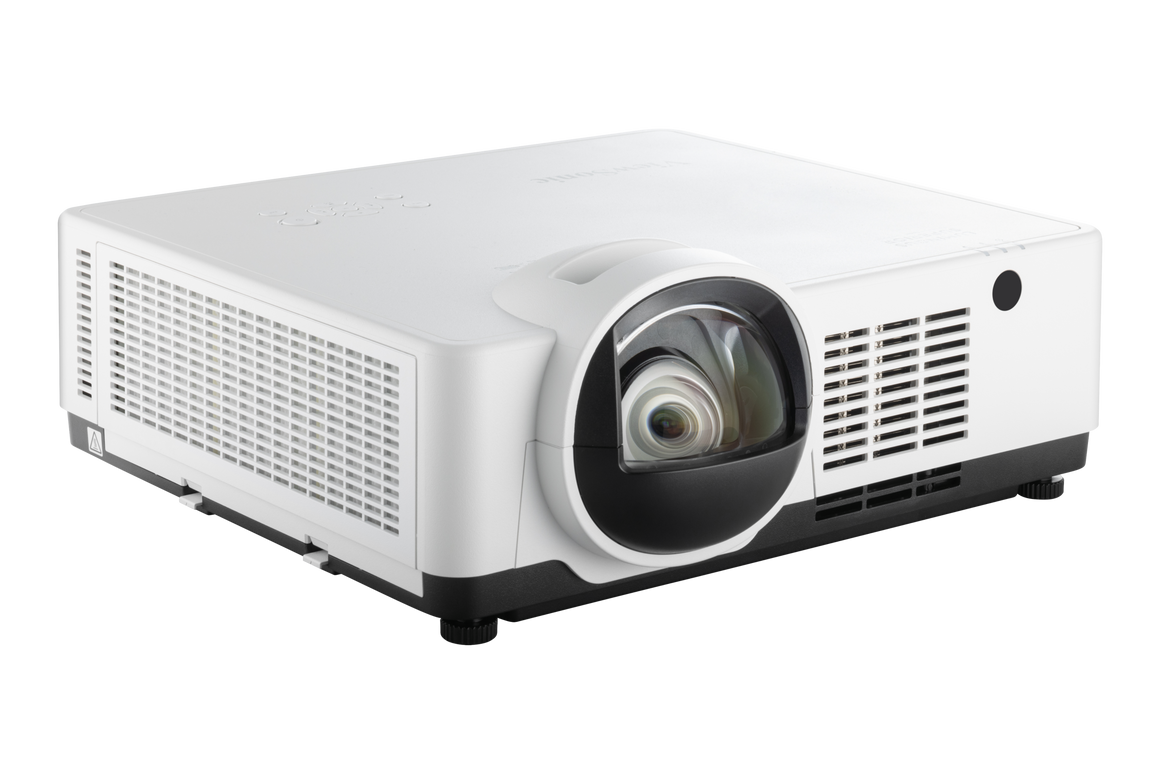

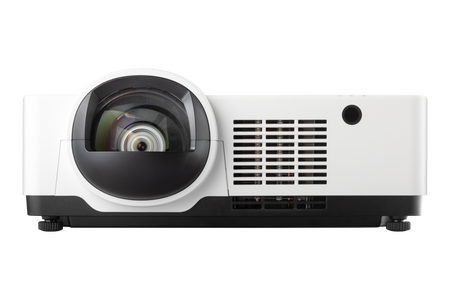

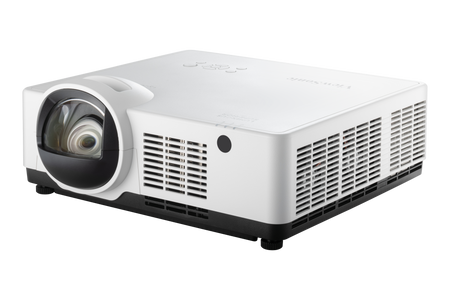

ViewSonic LSC601WU-ST Short Throw Laser Projector
6,000 ANSI Lumens WUXGA Short Throw Laser Installation Projector
Secure checkout
Friendly support
Hassle-free returns
The ViewSonic LSC601WU-ST is a high-brightness, short-throw laser projector engineered for business, education, and commercial installations. Delivering 6,000 ANSI lumens of vivid brightness and WUXGA resolution, it ensures crystal-clear visuals even in well-lit environments. Featuring a 0.44 short-throw ratio, the LSC601WU-ST can project a 100” image from less than one metre away, enabling immersive, shadow-free viewing. With a 21:9 aspect ratio ideal for Microsoft Teams Rooms and up to 30,000 hours of maintenance-free operation, this projector combines exceptional performance with lasting reliability.
Key Features
- Bright and Clear Visuals: 6,000 ANSI lumens deliver sharp, vibrant projection for classrooms, meeting rooms, and public spaces.
- Short-Throw Design: 0.44 throw ratio projects a 100” screen from only 0.95 m away, reducing shadows and maximising space efficiency.
- Ultra-Wide Collaboration Format: Supports 21:9 aspect ratio for Microsoft Teams Rooms and hybrid meeting environments.
- Flexible Installation: Equipped with H/V keystone correction, 360° projection, and geometric warping for versatile setup options.
- Reliable Laser Light Source: 2nd-generation laser phosphor engine provides up to 30,000 hours of operation with no lamp replacements.
- Comprehensive Connectivity: Dual HDMI, HDBaseT, audio I/O, USB power output, LAN, and RS232 interfaces for seamless system integration.
- Powerful Audio & Efficient Cooling: Built-in 16 W speaker and quiet 25 dB operation ensure professional performance with minimal noise.
- Low Total Cost of Ownership: Lamp-free design reduces maintenance, power consumption, and environmental impact.
Specifications
| Projection System | 3LCD (3 × 0.64" with MLA) |
| Native Resolution | 1920 × 1200 (WUXGA) |
| Brightness | 6,000 ANSI Lumens (6,500 Center Lumens) |
| Contrast Ratio | 3,000,000 : 1 (Dynamic) |
| Light Source | Laser Phosphor, 20,000–30,000 hours lifespan (Normal to Eco Mode) |
| Lens | F = 1.6 f = 6.39 mm / Fixed Focus |
| Throw Ratio | 0.44 / Short Throw (100" @ 0.948 m) |
| Image Size | 55" – 180" |
| Keystone Correction | H: ±15° / V: ±15° |
| Audio System | 16 W Speaker (Integrated) |
| Inputs | HDMI × 2 (HDCP 1.4), HDBaseT × 1, Computer In, Audio In (3.5 mm), USB-A (5 V/2 A) |
| Outputs | Monitor Out × 1, Audio Out (3.5 mm) × 1, USB Power Out |
| Control Interfaces | RS232 (DB9), RJ45 (LAN Control), USB-B (Service) |
| Power Supply | 100–240 V AC ±10%, 50/60 Hz |
| Power Consumption | 345 W (Normal) / < 0.5 W (Standby) |
| Noise Level | 35 dB (Normal) / 25 dB (Eco) |
| Dimensions (W × D × H) | 405 × 404 × 164 mm |
| Weight | 8.0 kg (Net) / 11.03 kg (Gross) |

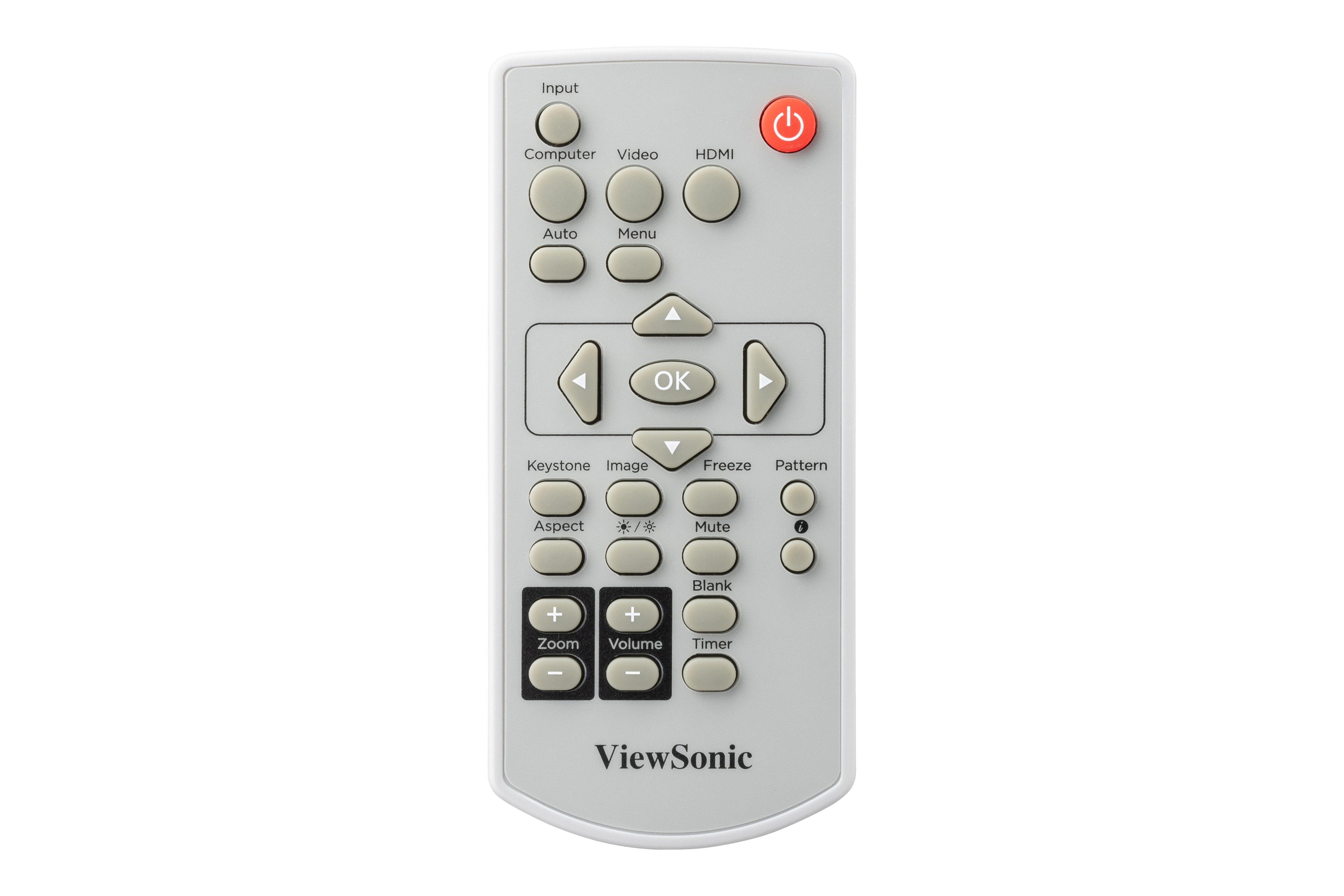

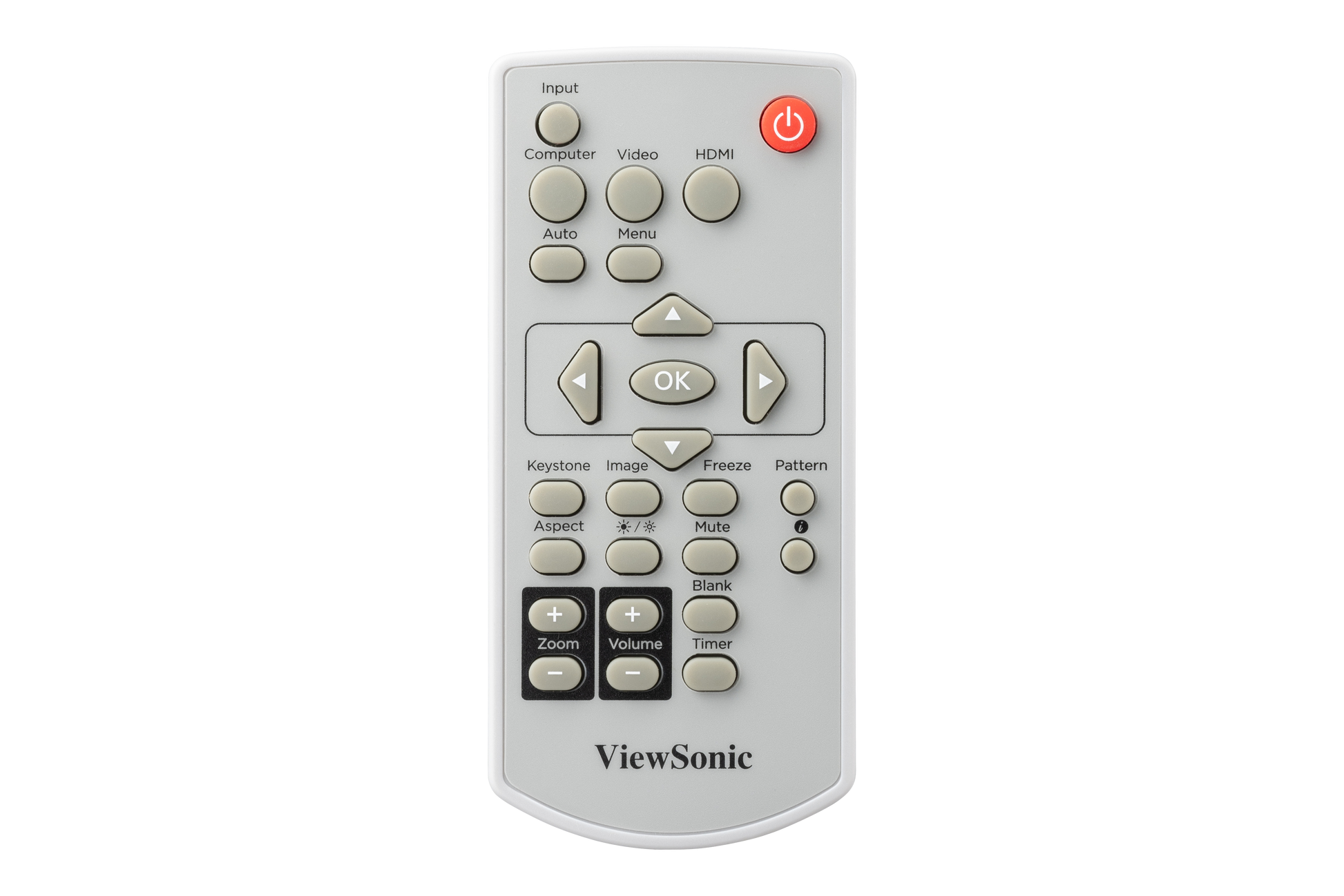

| Included Accessories | Power Cord, Remote Control, Quick Start Guide, Air Filter, Warranty Card |
The ViewSonic LSC601WU-ST blends premium image quality, effortless short-throw design, and robust connectivity to deliver outstanding performance for business, educational, and collaborative settings. Its compact, high-brightness design ensures immersive visuals, whether used in classrooms, meeting rooms, or hybrid workspaces where space and reliability are critical.
Application Examples
| Corporate Meeting Rooms | Delivers large, bright presentations and video calls without shadows, even in limited-space environments. |
| Educational Classrooms | Perfect for interactive lessons and training sessions where short-distance projection is essential. |
| Public Displays & Exhibitions | Projects high-impact visuals in retail, museum, or event setups with flexible installation options. |
| Hybrid Collaboration Spaces | Optimised 21:9 aspect ratio enhances productivity and engagement in Microsoft Teams Room environments. |
| Hospitality & Retail Applications | Ideal for digital signage and customer engagement displays requiring ultra-short projection distances. |
