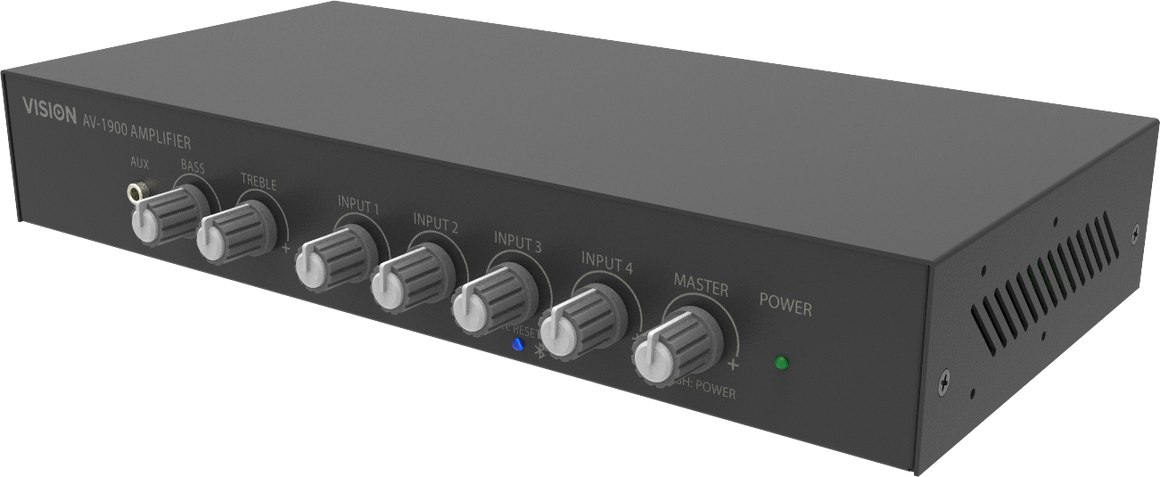

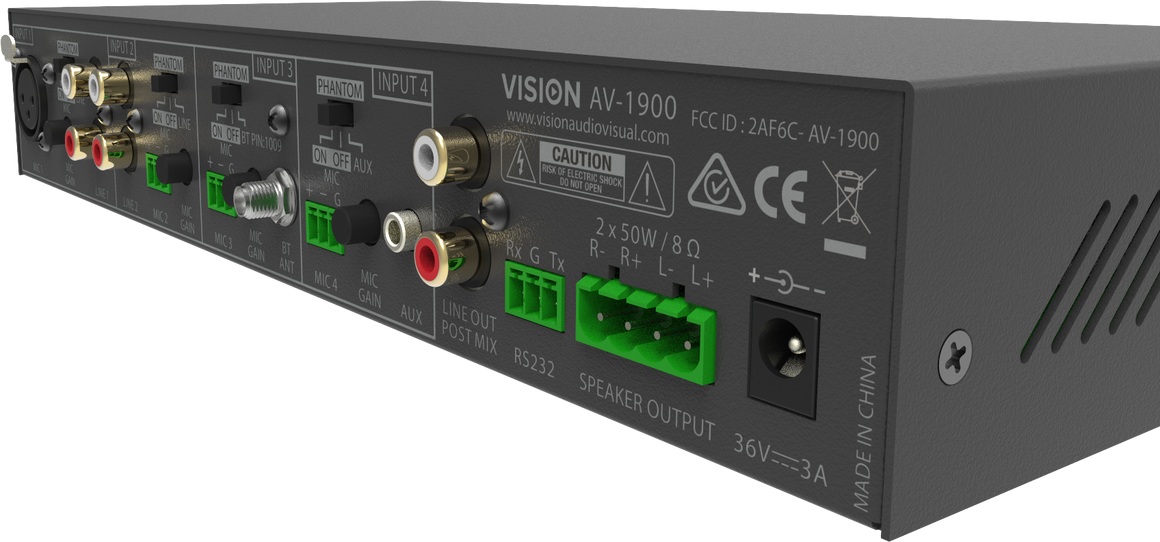

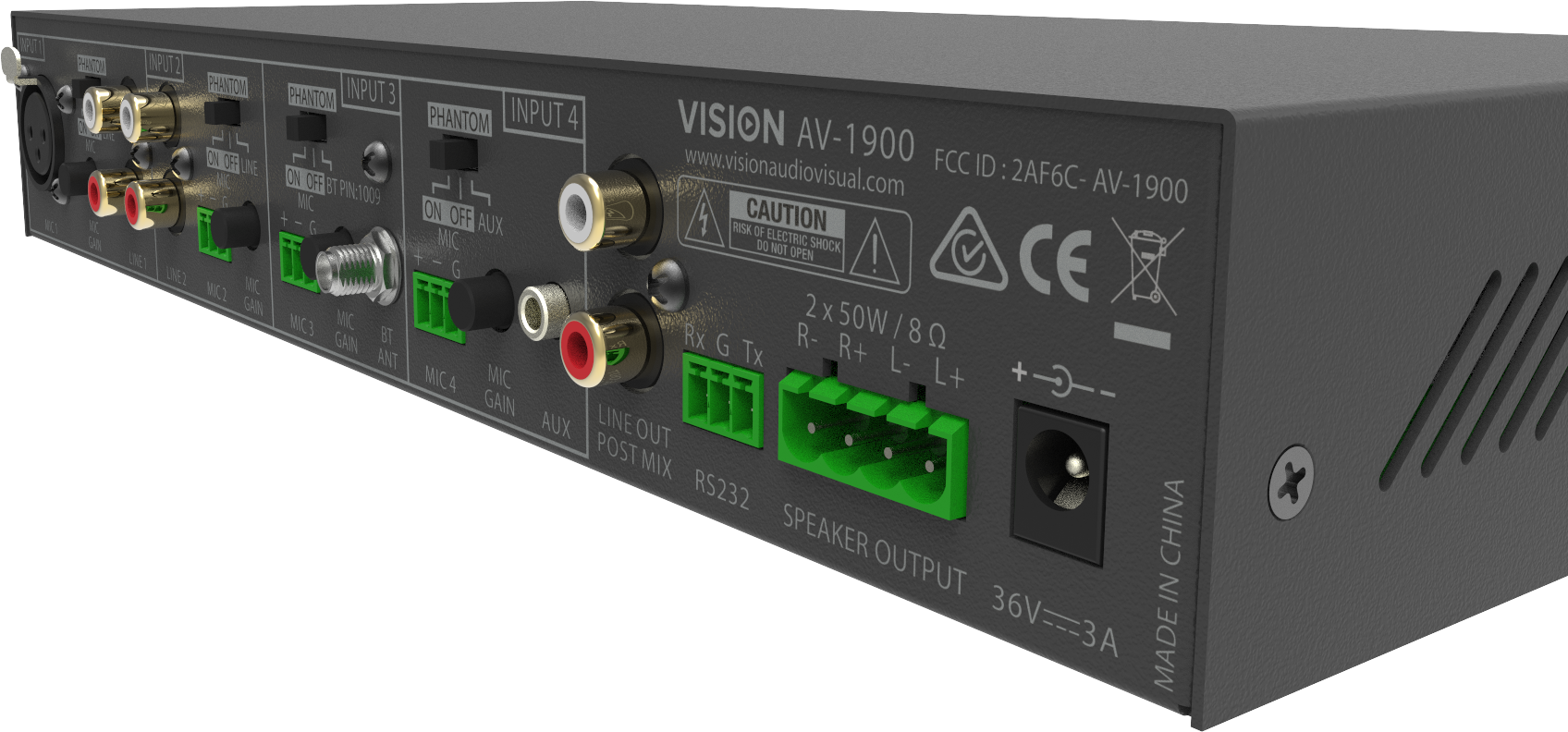

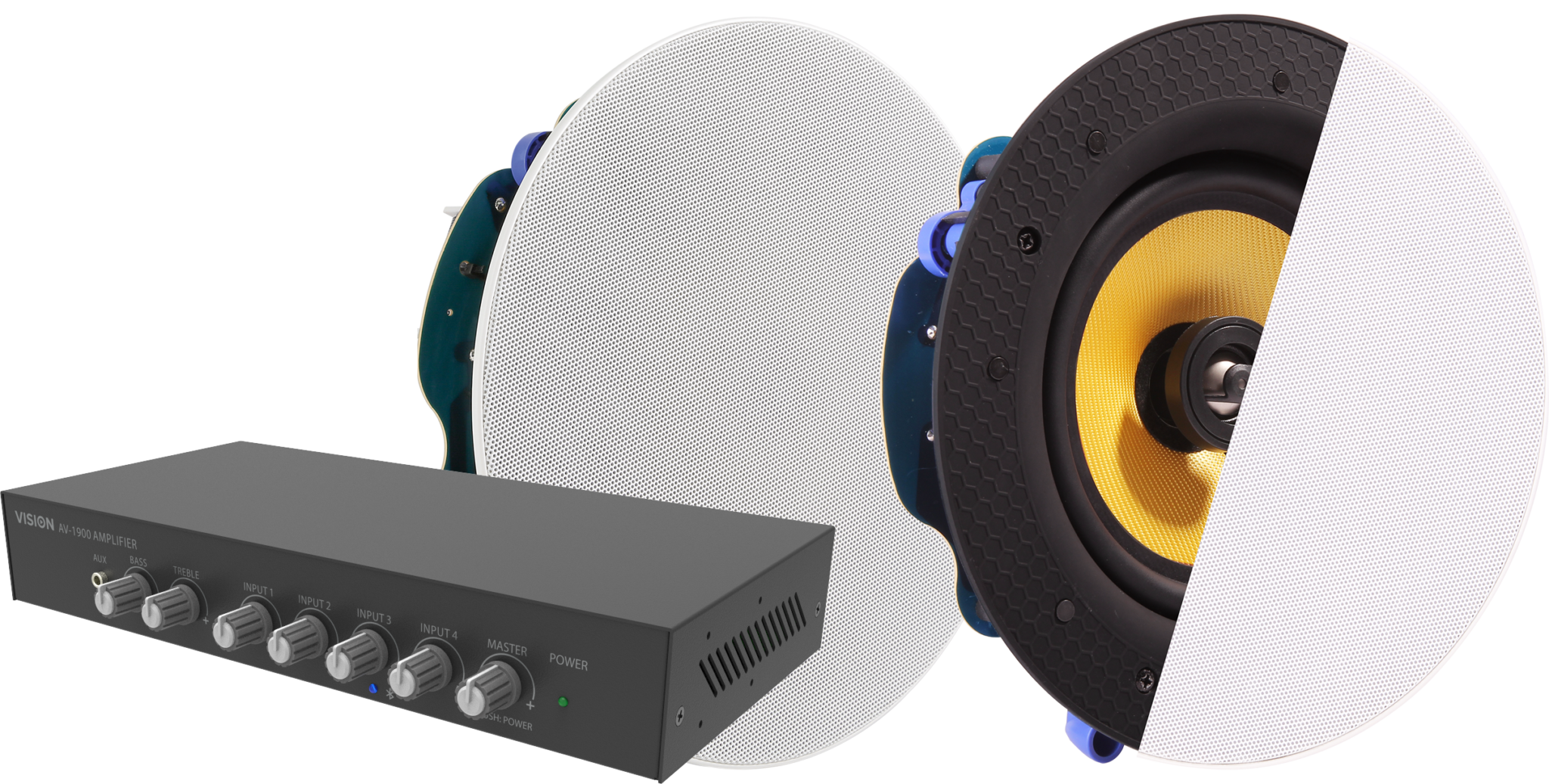

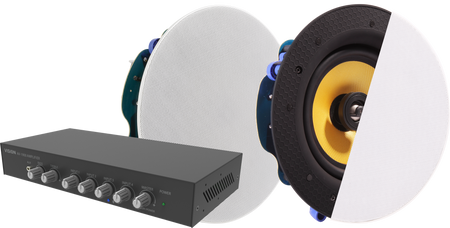

Vision 2 x 50w Mixer Amplifier
2 x 50w Mixer Amplifier
In stock
Regular price
£457.49
Secure Checkout
Warranty Protection
Hassle-Free Returns

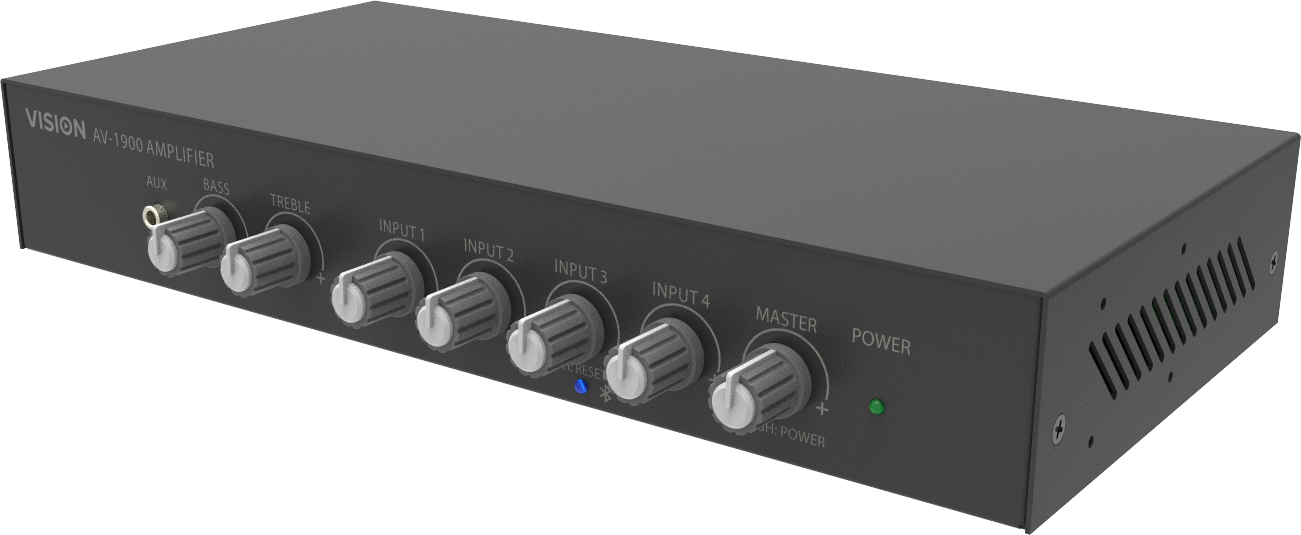

The Vision 2 x 50w Mixer Amplifier is a highly capable mixer-amplifier packed with useful features to make it as easy as possible to operate. It is designed for use in demanding applications like meeting spaces, small auditoriums, lecture theatres, school halls, and small churches.
Key Features
- Bluetooth: For ease of connectivity it has a Bluetooth input.
- Mixer Amp: This amp has four inputs, each of which can either be used for a microphone or a line-level input. It is a true mixer amp, so it can bring together multiple sources and play them at the same time.
- Mic Pre-Amp Trim: The input gain for each mic input can be "trimmed" - adjusted on the rear panel. This allows the installer to "turn up" less sensitive mics, and "turn down" hot inputs.
- Switchable Phantom Power: Each mic input has Phantom power which is a voltage required to make professional condenser mics work. Phantom can be turned off on each input discretely.
- Four Microphone Inputs: All mic inputs are “balanced” to eliminate electro-magnetic noise induced on long cables.
- RS-232 Control: Designed for integration with a bigger system, it can be controlled by a control system such as Techconnect Control via RS-232.
- Class-D Amplification: An efficient Digital-class amplifier chip dramatically reduces power consumption especially at rest, and makes this amp super-small.
- 3 x Stereo Inputs: Three line-level stereo inputs accept input from a variety of sources such as computers (via the headphone jack), tablets or phones.

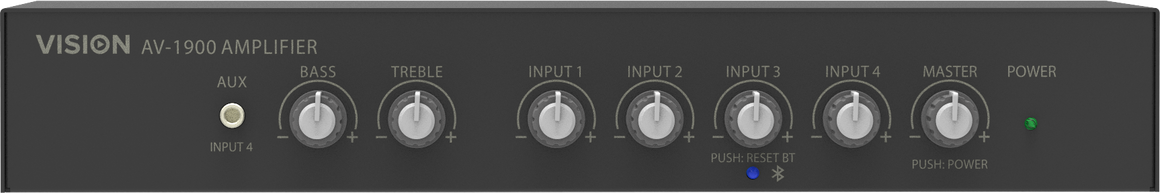

- Line Output: A line-level pre-output on the rear bypasses the internal amplifier. It would connect to a larger amplifier or powered loudspeakers. It is post-mix; volume adjustments made on the front panel affects the output level.
- Auto-Standby: If the amplifier senses no input it will automatically go into standby mode. When it senses input it will reactivate. Auto-standby can be disabled via RS-232.
Specifications

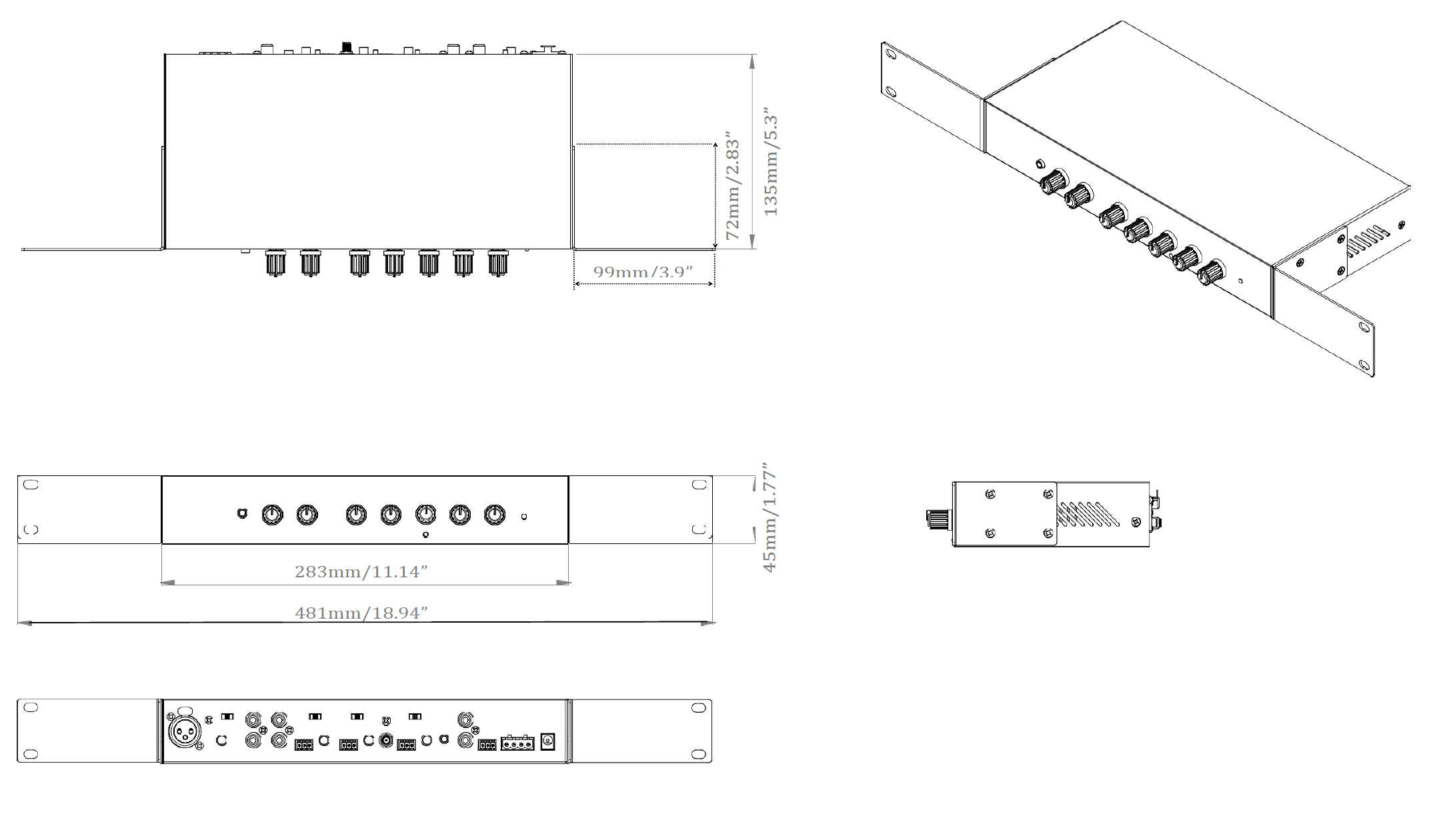

| Amplifier Dimensions | 283 x 135 x 45 mm (wide x deep x tall) not including dials and connectors |
| Carton Dimensions | 333 x 200 x 155 mm (length x width x height) |
| Amplifier Weight | 1.2 kg |
| Packaged Weight | about 3 kg |
| Colour | Black |

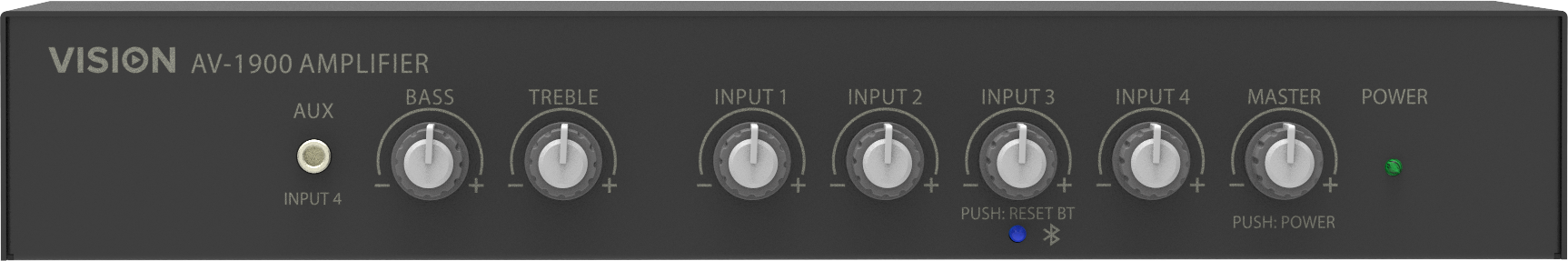

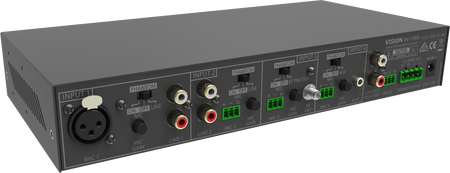

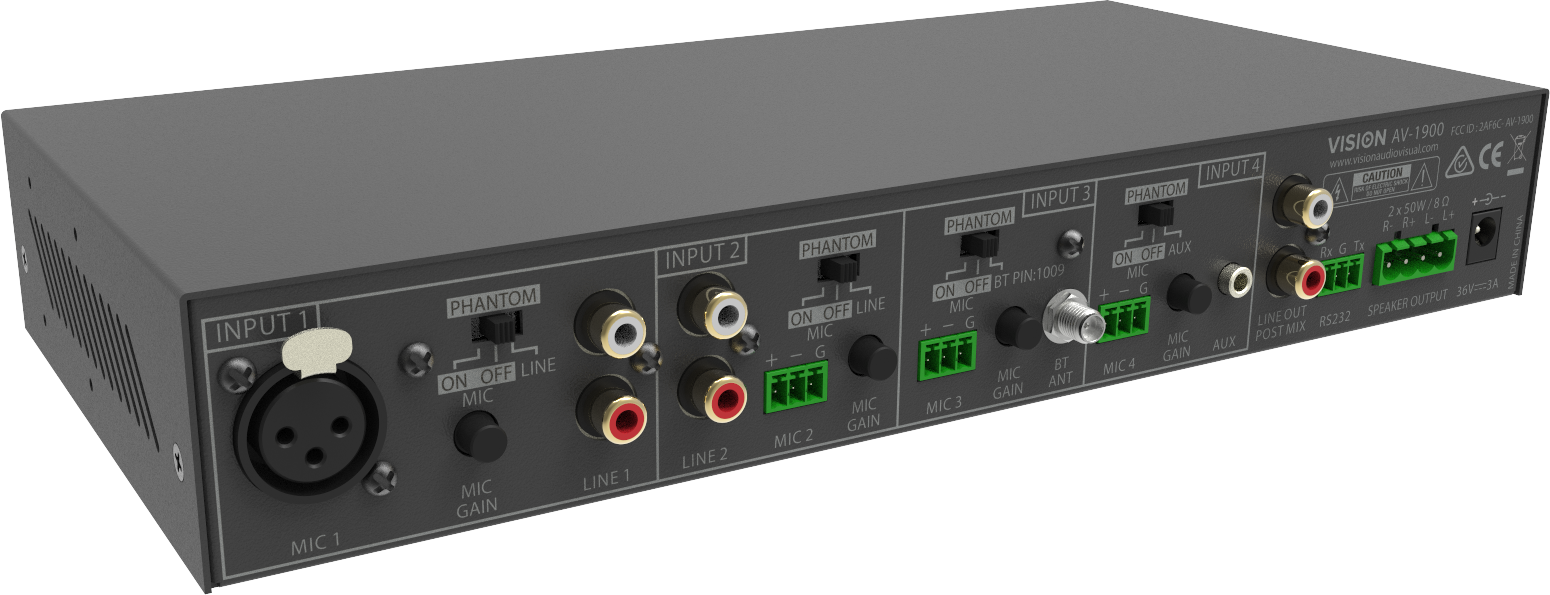

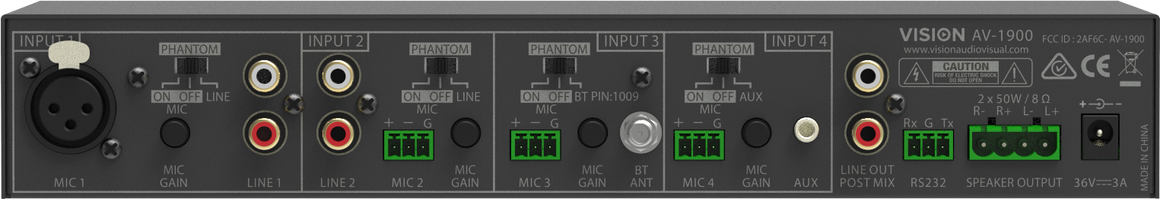

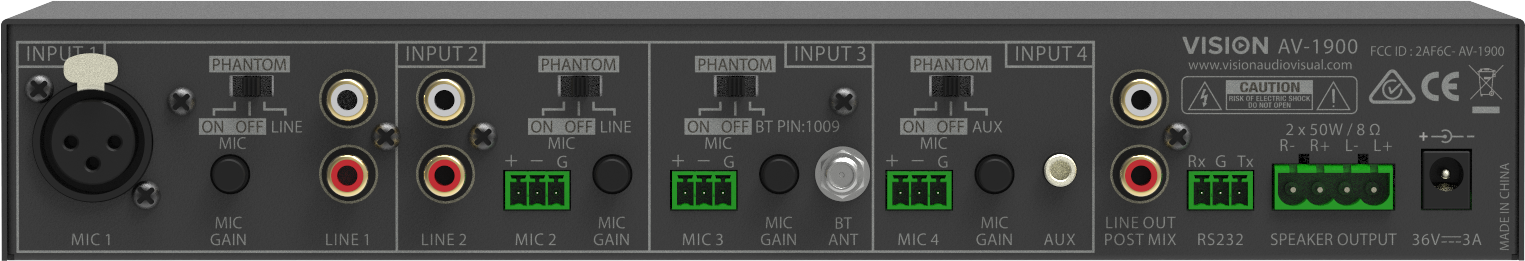

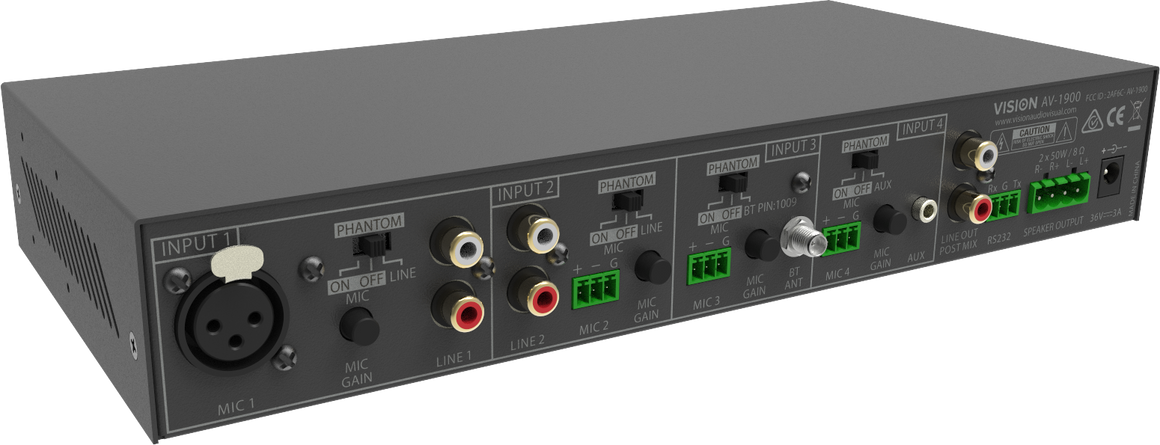

| Inputs | Input 1: Line-level Stereo (2-phono / RCA) or Balanced Mic (XLR) Input 2: Line-level Stereo (2-phono RCA) or Balanced Mic (Phoenix) Input 3: Bluetooth or Balanced Mic (Phoenix) Input 4: Line-level Stereo (Minijack) or Balanced Mic (Phoenix) Note: Input 4 is duplicated on front panel. Plugging into front panel disconnects the source plugged in at rear. |
| Outputs | 1 x Line-level Stereo (2-phono RCA) Post mix |
| Power Output | 2 x 50 Watts RMS @ 8 OHMS |
| Total Harmonic Distortion | < 10% |
| Frequency Response (Line In) | 50Hz~18KHz |
| Signal to Noise Ratio (Line In) | 70dB |
| Rating Input Level/Impedance | 700mV/47Kohms |
| Operating Temperature Range | 0 to +40°C (32 to +104 °F) |
| Power Consumption (Rating Condition) | 100W |
| Phantom Power | 48V |
| Bluetooth Version | 5.0 |

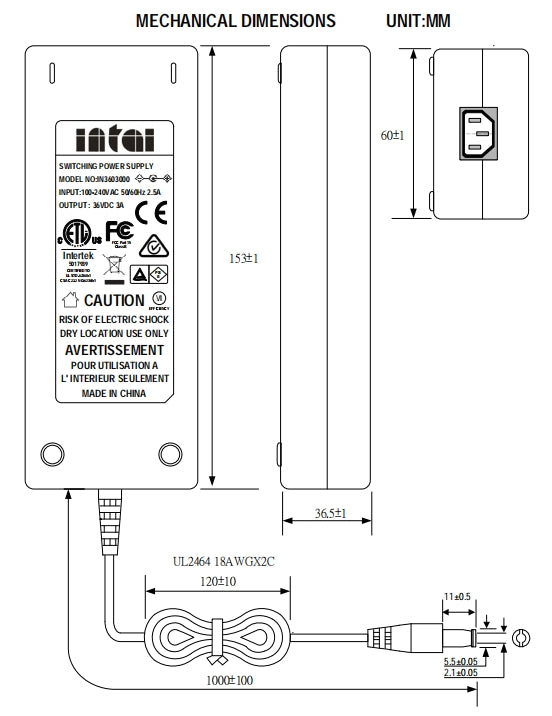

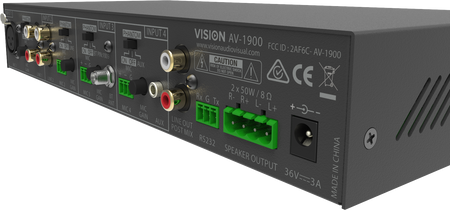

| Power Supply | 100~240V External Power Supply 36V 3A |
| Compliances | RoHS, WEEE, CE/EMC, CE/LVD, RCM_SDOC, FCC_BT3.0, FCC_BT4.0, CE-RED, UKCA |
| Country of origin | China |
What's in the Box
- 2 x Speaker Cable 5m long
- 1 x UK C7 figure-8 power cable 1.8 m long
- 1 x EU C7 figure-8 power cable 1.8 m long
- 1 x AU C7 figure-8 power cable 1.8 m long
- 1 x US C7 figure-8 power cable 5.9ft long
- 1 x Rack ears
Warranty
The Vision 2 x 50w Mixer Amplifier is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision 2 x 50w Mixer Amplifier supports meeting and presentation spaces where a dependable commercial audio amplifier is required. |
| Education and Training Spaces | A practical option for classrooms, lecture rooms, and training spaces using Vision AV infrastructure. |
| Public and Venue Installations | Suitable for shared venues and public-facing spaces that need clearly specified commercial AV equipment. |
| Installed Sound Systems | Works in fixed audio installations where Vision speakers, amplifiers, or source devices need to be integrated cleanly. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
