Vision 4K Techconnect Faceplate Pack 3m
4K Techconnect Faceplate Pack 3m
In stock
Regular price
£98.50
Secure Checkout
Warranty Protection
Hassle-Free Returns

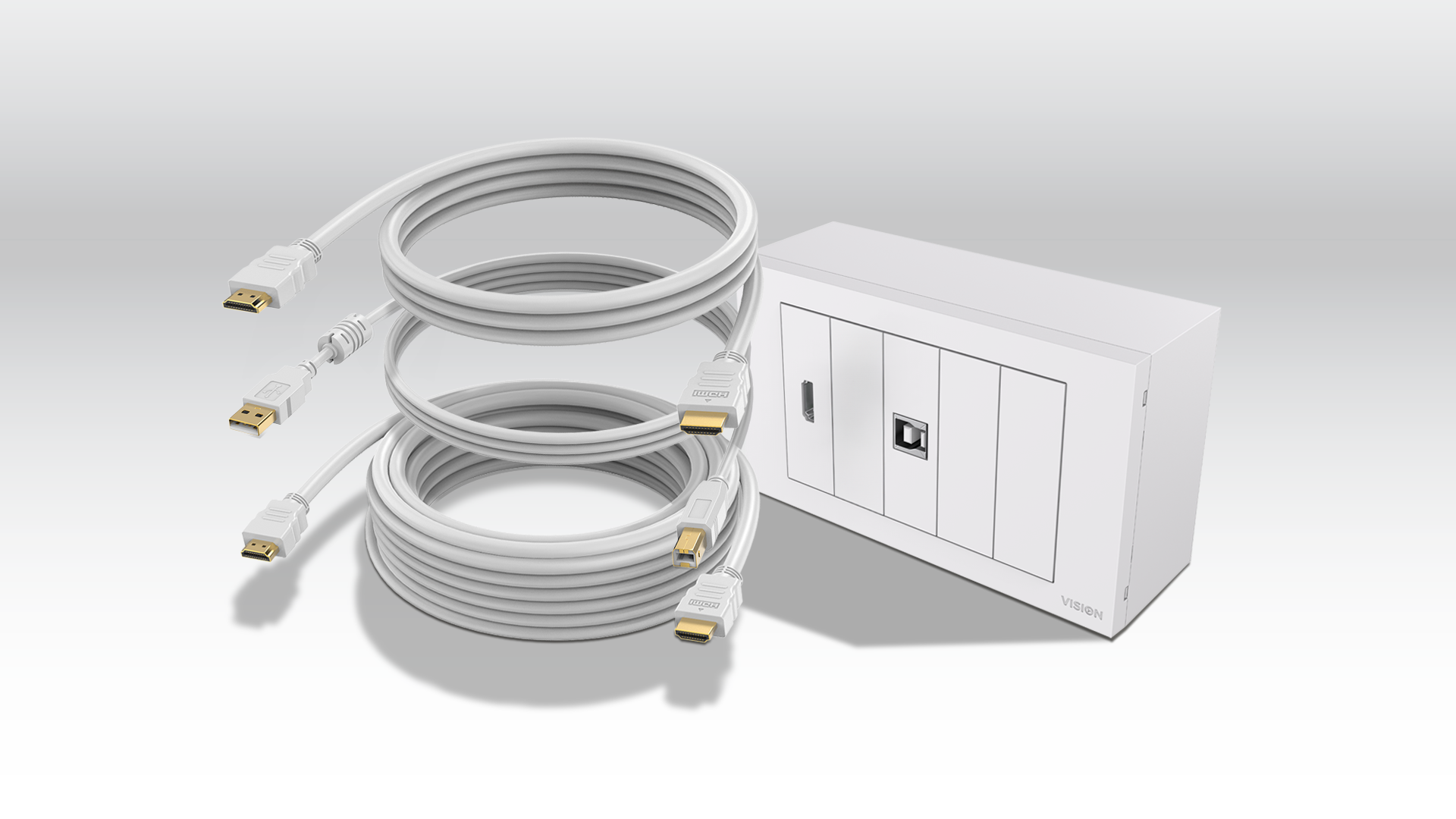

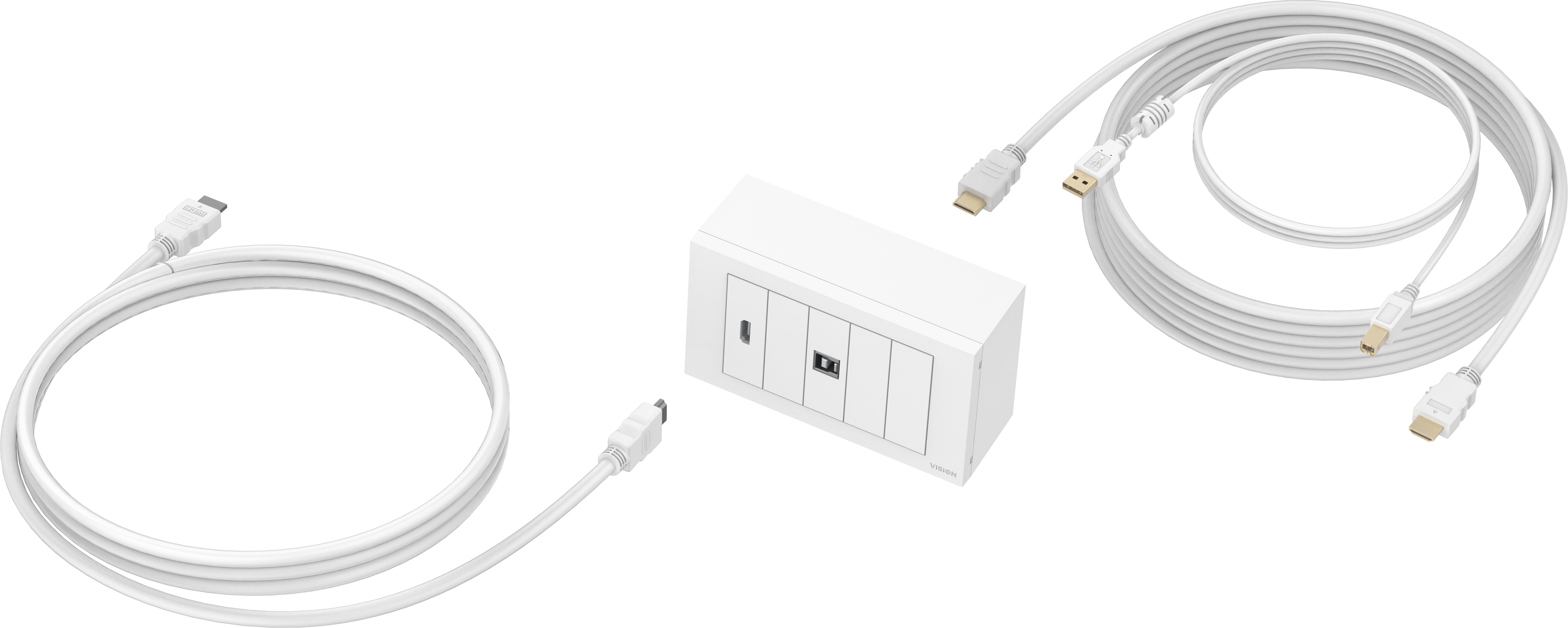

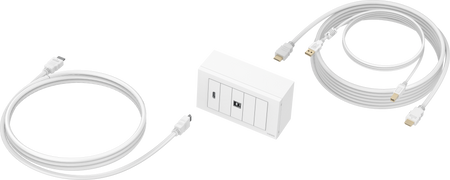

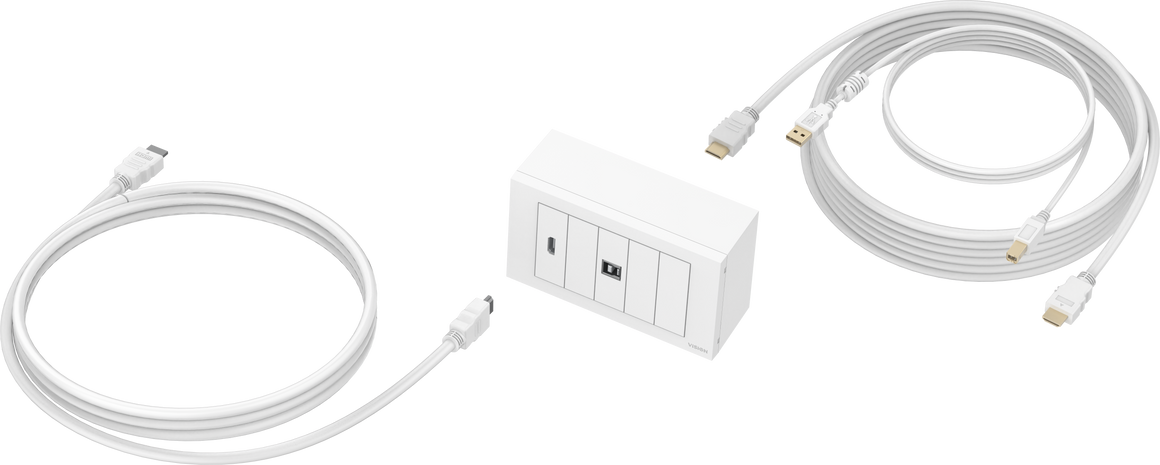

The Vision 4K Techconnect Faceplate Pack 3m techconnect is Europe's most popular modular audio-visual faceplate engineered especially for AV installers. It is made up of a “surround” that fits to a backbox - we use a standard UK size, then the modules fix into the surround to complete the installation.
Key Features
- HDMI Connectivity: 3 x BLANK modules 1 x HDMI with tail on rear 1 x USB USB 3.0 with tail on rear "A" type socket on the rear (the rectangle shape) / "B" type socket on the front (the square shape)
- Easy assembly: Techconnect is easy to install and has more space behind the modules to stash cables.
- Space for labelling: The surround is white with a chiselled profile, and it has 11 mm of space above and below the modules for information or company branding stickers.
- Stronger: Techconnect has extra ribbing to reduce module flex and the plastic won't go brittle. We have designed them to last a lifetime.
- Screw-In Modules: The modules have a tab that hooks into the surround at the bottom, then a couple of turns of the pre-installed screws locks the modules into place.
- Future-proof: A family of modules work in the same surround, so if you ever need to change anything it is easy.
- Video Resolution Support: For the best chance of success all HDMI parts in this system are individually rated at 8K @ 60 Hz, and collectively at 4K @ 60 Hz.
- Mounting hardware: single-gang backbox and surround
- Surround Dimensions: 86 x 86 x 8 mm / 3.4" x 3.4" x 0.3"
- Backbox Dimensions: 86 x 86 x 45 mm / 3.39" x 3.39" x 1.77"
Specifications
| Carton Dimensions | 275 x 180 x 80 mm (10.2"x 7.1" x 3.1") |
| Packaged Weight | 0.8 kg / 1.8 lb |
| Compliances | RoHS, WEEE, CE |
| Surround Dimensions | 86 x 86 x 8 mm / 3.4" x 3.4" x 0.3" |
| Backbox Dimensions | 86 x 86 x 45 mm / 3.39" x 3.39" x 1.77" |
| Colour | Modules and Mounting Hardware: White Cables: White |
| Hdmi Module Spec | HDMI Standard: v2.1 Conductor Thickness: AWG 28 Resolution: 8K @ 60 Hz Outer Sheath Diameter: 7.3 mm (0.3") Tail length: 200 mm (7.9") Material: ABS Dimensions: 64 x 21 mm / 2.5“ x 0.8" (height x width) |
| Usb Module Spec | USB Standard: USB 3.0 Material: ABS Tail length: 200 mm (7.9") Dimensions: 64 x 21 mm / 2.5" x 0.8" (height x width) |
| Hdmi Cable Spec | HDMI Standard: v2.1 Data Transfer rate: 48 Gbit/s Conductor Thickness: AWG 28 Resolution: 8K @ 60 Hz Outer Sheath Diameter: 7.3 mm (0.3") Connectors: gold plated Shielding: double shielded Audio Return Channel: yes |
| Usb Cable Spec | USB Standard: 2.0 Bandwidth: 480 Mbit/s Conductor Thickness: AWG 28+24 Outer Sheath Diameter: 4.5 mm (0.2") Outer Sheath Material: PVC Insulation Material: HDPE Connectors: gold plated Shielding: More than 65% coverage braided EMF Protection: Ferrite core at connector A end |
| Material | Backbox: ABS Surround and modules: PC |
| Country of origin | China |
Warranty
The Vision 4K Techconnect Faceplate Pack 3m is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |

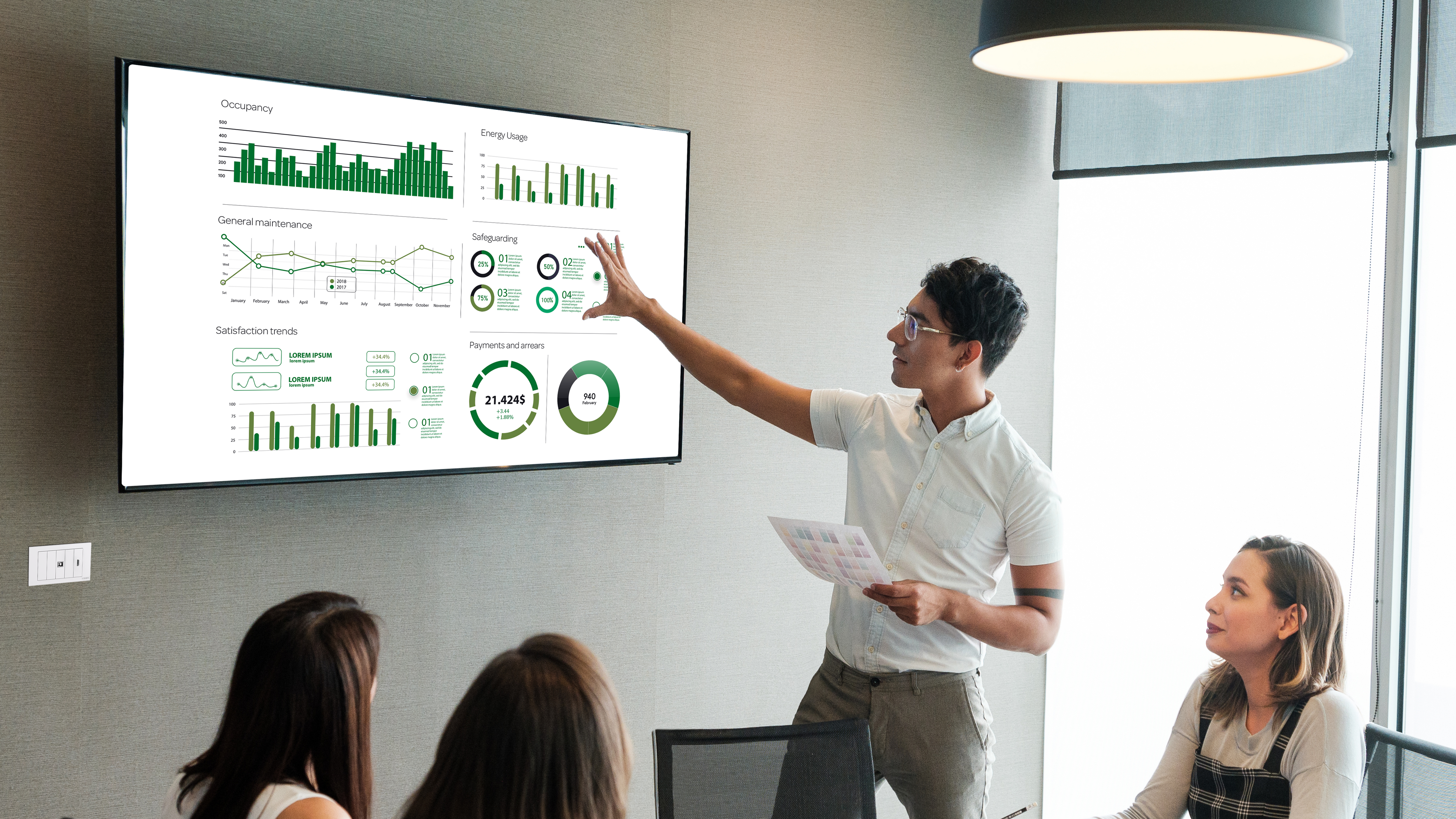

| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
