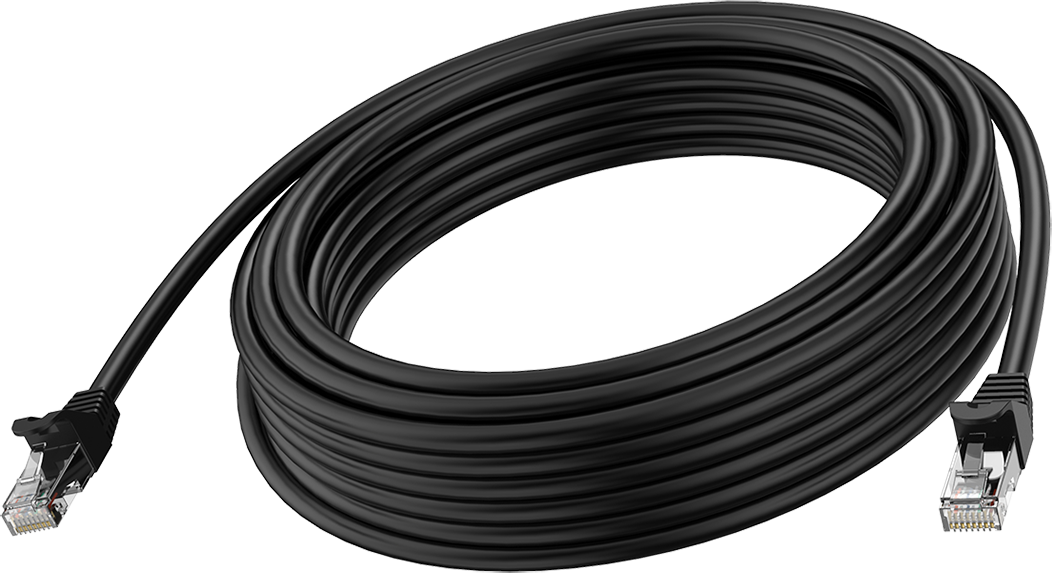

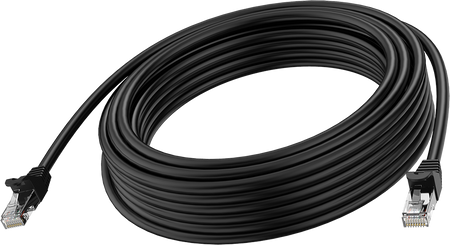

Vision Black CAT6A Cable 3m
Black CAT6A Cable 3m
In stock
Regular price
£8.49
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision Black CAT6A Cable 3m is a AV connectivity cable from Vision.
Key Features
- Insulation: HDPE, diameter: 0.90 mm (0.04″)
- Sheath: PVC, thickness: 0.6 mm (0.02″); outer diameter: 6.2 mm (0.24″)
- Conductor Thickness: 26 AWG
- High-Speed Data Transfer: 10 Gbps
- Impedance (Ω): 100±15
- Delay Skew: ≤45 @ 20℃(NS/100M)
- Stp: Shielded Twisted Pair
Specifications
| Packaged Weight | 0.17 kg (0.4 lb) |
| Packaged Dimensions | 160 mm x 115 mm x 40 mm (6.3″ x 4.5″ x 1.6") |
| Insulation | HDPE, diameter: 0.90 mm (0.04″) |
| Sheath | PVC, thickness: 0.6 mm (0.02″); outer diameter: 6.2 mm (0.24″) |
| Conductor Thickness | 26 AWG |
| Bandwidth | 10 Gbps |
| Impedance (Ω) | 100±15 |
| Delay Skew | ≤45 @ 20℃(NS/100M) |
| Stp | Shielded Twisted Pair |
| Compliance | RoHS, CE |
| Country of origin | China |
Application Examples
| Structured AV Cabling | Useful for Techconnect and installed cabling projects where consistent cable specification and presentation are important. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
