Vision Black Flat-Panel Wall Arm 400×400
Black Flat-Panel Wall Arm 400×400
In stock
Regular price
£34.64
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision Black Flat-Panel Wall Arm 400×400 vision’s Vision Flat-Panel Mount – Wall Arm range is tough and flexible. The VFM-WA4X4/3 fits any flat-panel LCD or LED screen which has rear mounting holes up to 400 x 400 mm apart.
Key Features
- Up to 60″: Most medium-to-large displays use VESA 400 or similar mounting points, so the WA4X4 fits the majority of displays up to this size.
- Manoeuvrable: The single-arm design makes this mount especially flexible without compromising the load capacity of 20 kg (44.1 lb).
- Fast Installation: The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with a single nut.
- Rotation: Didn’t fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place.
- Tilt and Swivel: -2-12° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room. Or fix displays around an office or in meeting rooms.
- Vesa: The VESA system defines how far apart the mounting holes are on the back of your flat-panel. Holes 400 x 400 mm apart are known as VESA 400 and will suit this mount. This product also fits displays with smaller VESA sizes listed below.
- Cable Management: Clip-on covers allow tidy cable routing.
- Thumbscrews: Thumbscrews are used to fix the display to help speed up the installation of this mount.
- Double-articulated wall mount: Double-articulated wall mount for flat panels that ranges from 37″ to 60″
- Reach 39-402 mm (1.5-15.8″): Reach 39-402 mm (1.5-15.8″)
Specifications

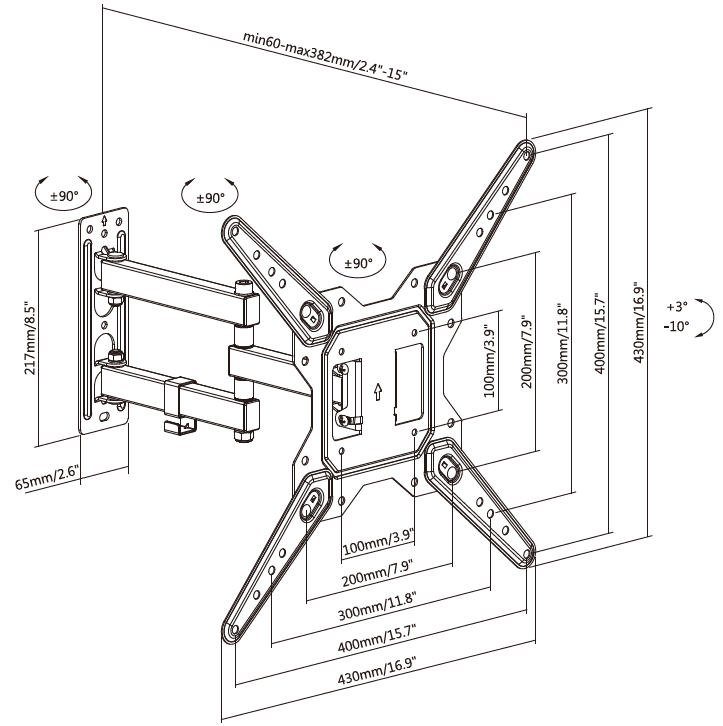

| Product Dimensions | see image |
| Packaged Dimensions | 342 x 290 x 60 mm / 13.5″ x 11.4″ x 2.4″ (length x width x height) |
| Product Weight | 3 kg (6.7 lbs) |
| Packaged Weight | 3.5 kg / 7.6 lbs |
| Safe Working Load | 20 kg (44.1 lbs) |
| Contruction Material: Wall Plate | 2.5 mm cold-roll steel |
| Contruction Material: Display Plate | 2.5 mm cold-roll steel |
| Colour | Black |
| Vesa Sizes | 400 × 400 mm 400 x 300 mm 400 × 200 mm 300 × 300 mm 300 x 200 mm 200 × 200 mm 200 x 100 mm 100 x 100 mm |
| Compliances | RoHS, REACH |
| Country of origin | China |
What's in the Box
- 4 x M4 12 mm screw
- 4 x M4 25 mm screw
- 4 x M5 12 mm screw
- 4 x M5 25 mm screw
- 4 x M6 12 mm screw
- 4 x M6 25 mm screw
- 4 x M8 16 mm screw
- 4 x M8 25 mm screw
Warranty
The Vision Black Flat-Panel Wall Arm 400×400 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision Black Flat-Panel Wall Arm 400×400 supports meeting and presentation spaces where a dependable professional AV mounting product is required. |
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
