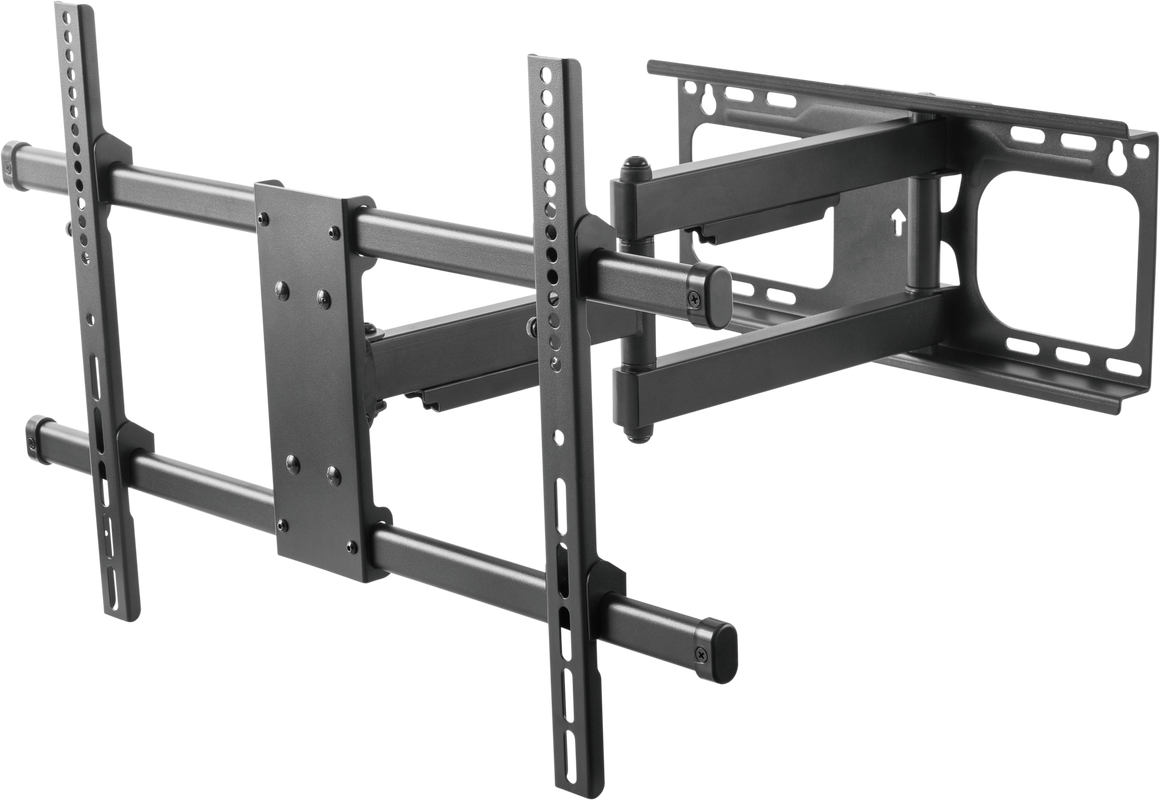

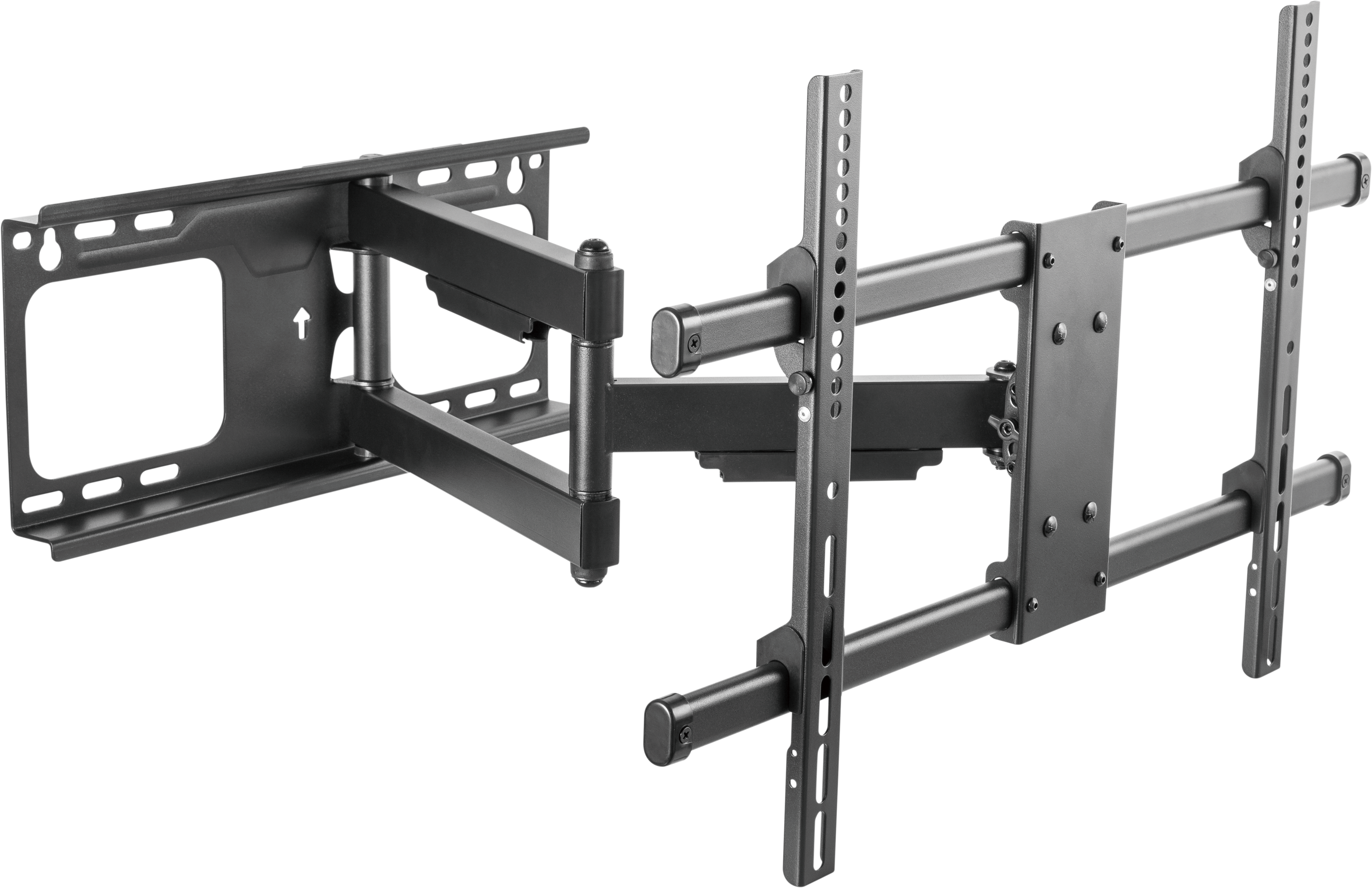

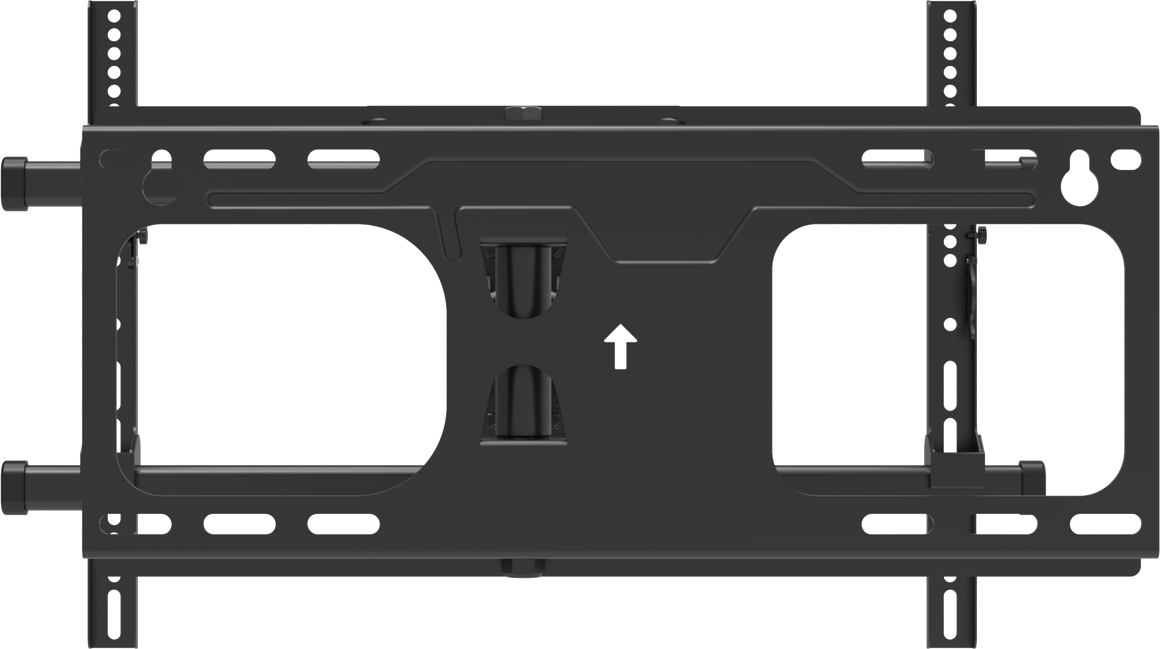

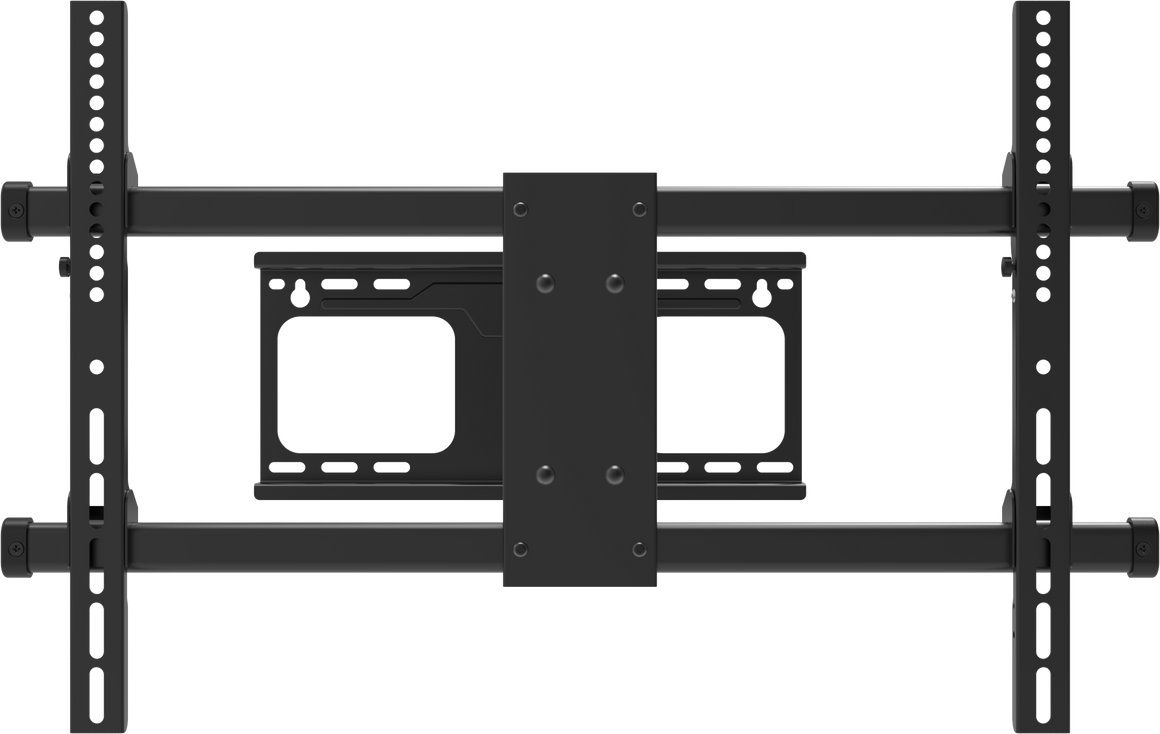

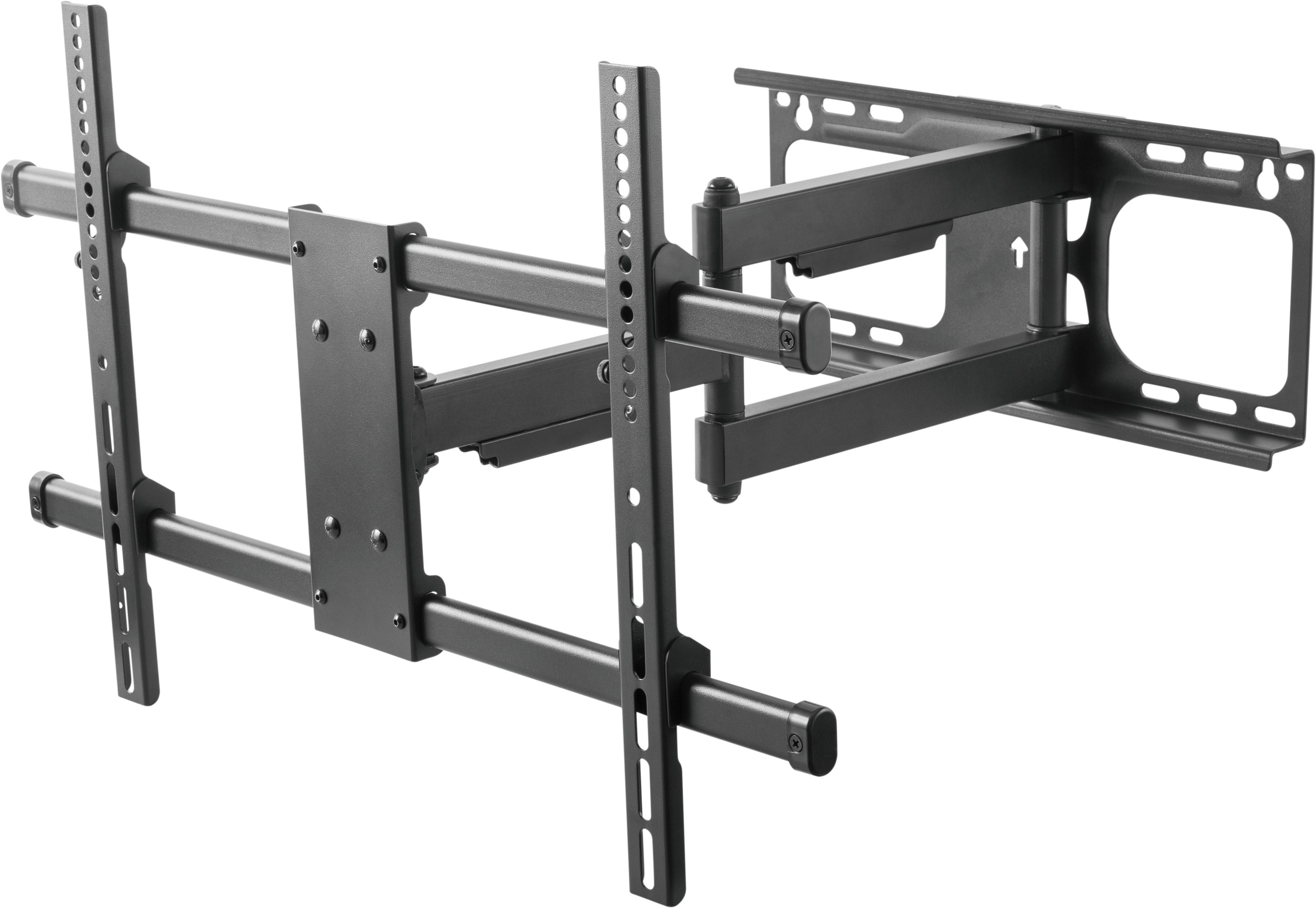

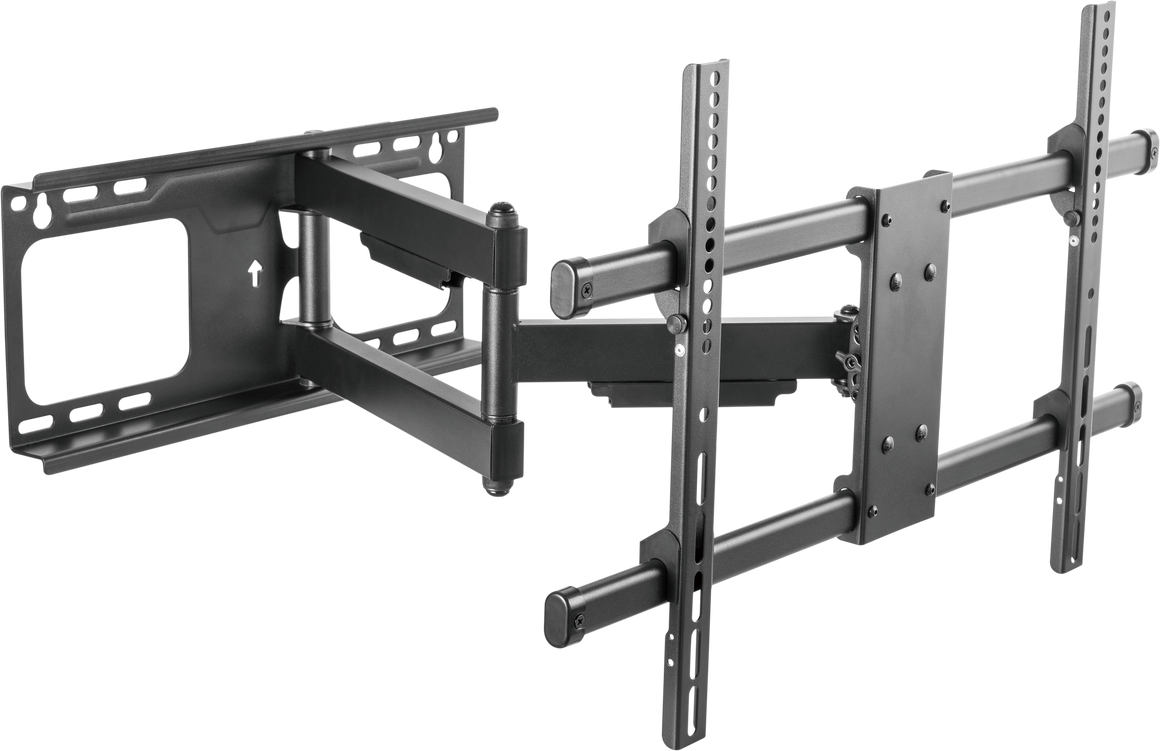

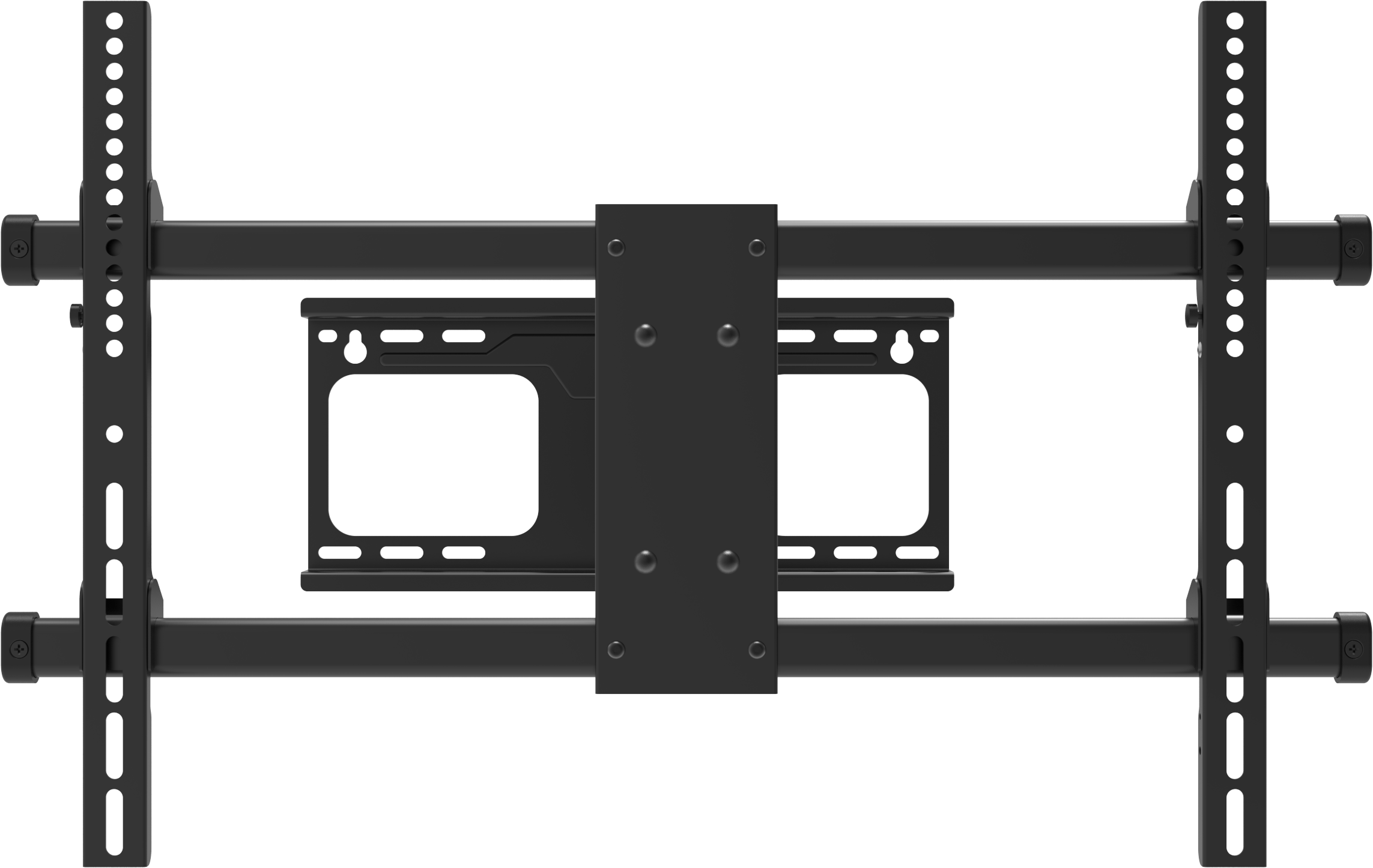

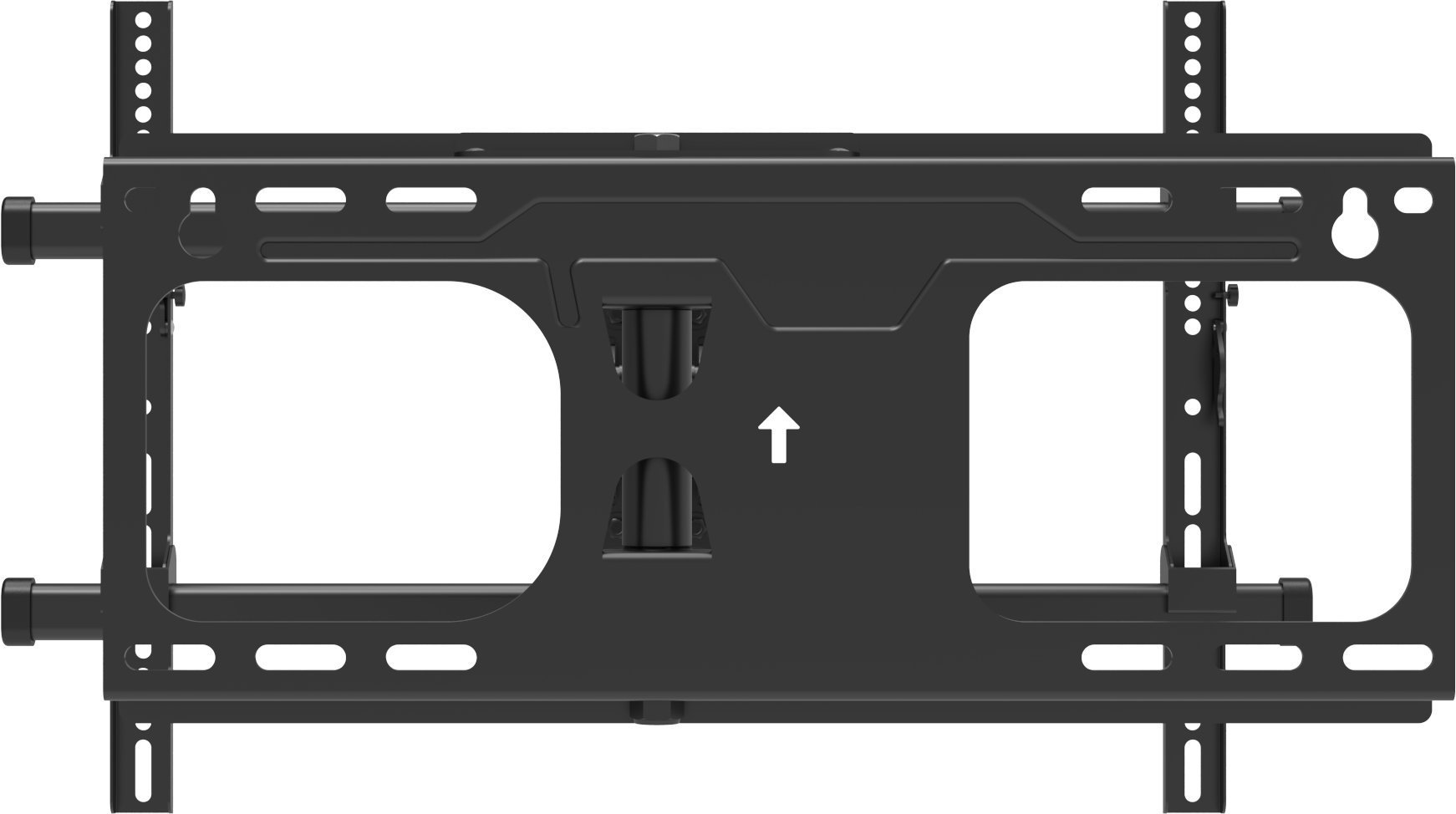

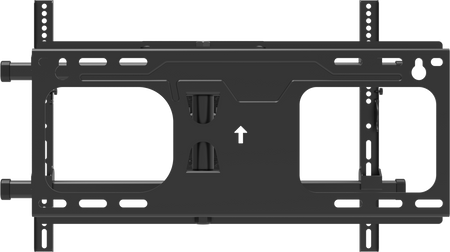

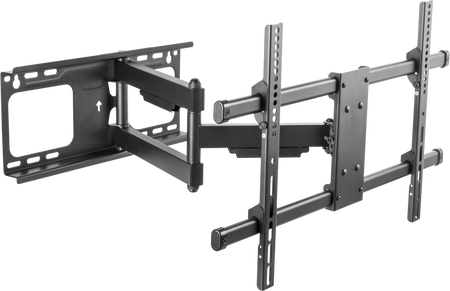

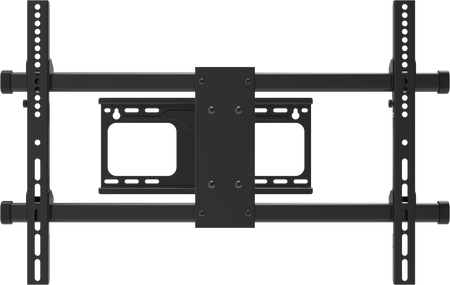

Vision Black Flat-Panel Wall Arm 600x400
Black Flat-Panel Wall Arm 600x400
In stock
Regular price
£95.66
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision Black Flat-Panel Wall Arm 600x400 vision's Vision Flat-Panel Mount - Wall Arm range is tough and flexible. The VFM-WA6X4/3 fits any flat-panel LCD or LED screen which has rear mounting holes up to 600 x 400 mm apart.
Key Features
- Up to 70": Most larger displays use VESA arrangement of mounting points up to 600 x 400 mm apart, so the WA6X4 fits the majority of displays up to this size.
- Safe Working Load: The strong mechanical design has a "safe working load" of 30 kg/ 66 lbs.
- Adjust Level: Didn't fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place.
- Tilt and Swivel: -5 -15° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.
- Vesa: The VESA system defines how far apart the mounting holes are on the back of your flat-panel. Holes 600 x 400 mm apart are known as VESA 600x400 and will suit this mount. This mount also covers all smaller VESA sizes down to 200 x 200.
- Cable Management: Integrated sleeves allow cables to be routed under the arm.
- Secure: Once the display assembly latches in place two thumbscrews can be added to the latch to lock it in place.
- Double-articulated wall mount: Double-articulated wall mount for flat panels that ranges from 42" to 70"
- Sturdy 3 mm thick rolled steel: Sturdy 3 mm thick rolled steel
- Reaches 69-615 mm (2.7"-24"): Reaches 69-615 mm (2.7"-24")
Specifications

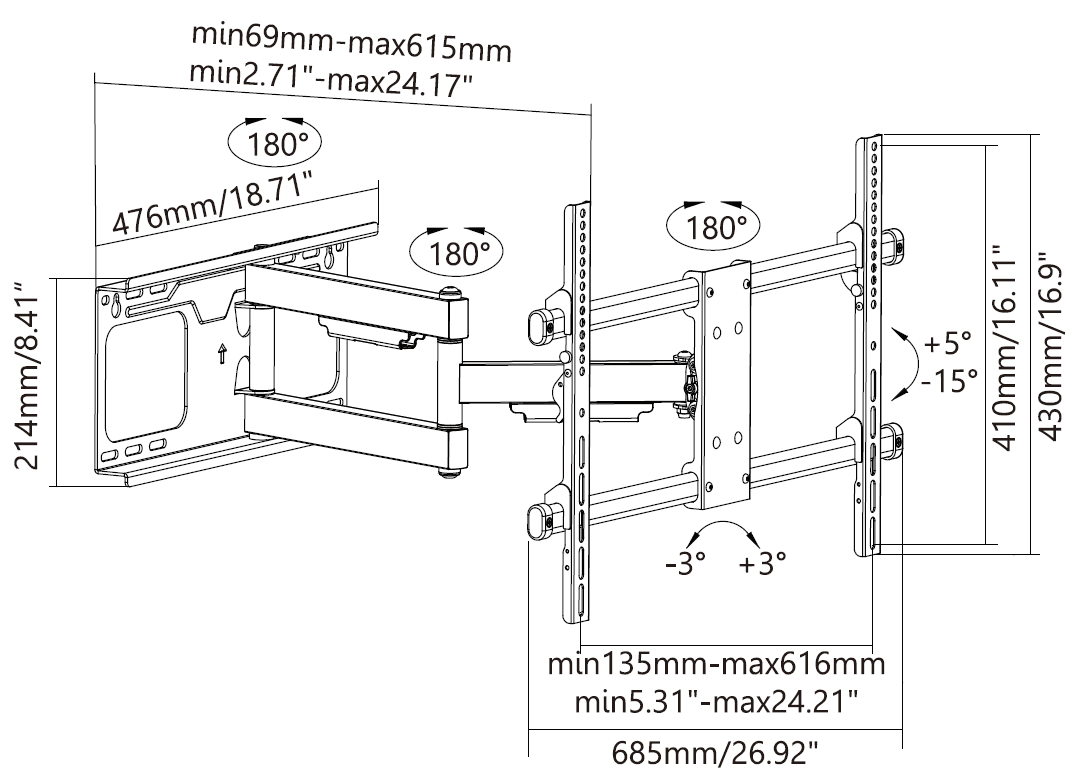

| Product Dimensions | see image |
| Packaged Dimensions | 720 mm x 288 mm x 73 mm / 28.3" x 11.3" x 2.87" (length x width x height) |
| Product Weight | 7.2kg/ 15.9 lbs |
| Packaged Weight | 7.7 kg/ 17 lbs |
| Safe Working Load | 30 kg/ 66 lbs |
| Contruction Material | Wall plate: 3 mm (0.12") cold-roll steel Arm: 1.5 mm (0.06") cold-roll steel |
| Colour | Black |
| Vesa Sizes | 600 × 400 mm 400 × 400 mm 400 × 200 mm 300 × 300 mm 200 × 200 mm 200 × 100 mm |
| Compliances | RoHS, REACH |
| Country of origin | China |
What's in the Box
- 4 x M5 14 mm screws
- 4 x M6 14 mm screws
- 4 x M6 30 mm screw
- 4 x M8 30 mm screws
- 4 x M8 50 mm screws
- Nylon Spacers
Warranty
The Vision Black Flat-Panel Wall Arm 600x400 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision Black Flat-Panel Wall Arm 600x400 supports meeting and presentation spaces where a dependable professional AV mounting product is required. |
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
