SKU: VFM-DA/4

Vision Black Monitor Desk Arm 100×100

Vision

Black Monitor Desk Arm 100×100

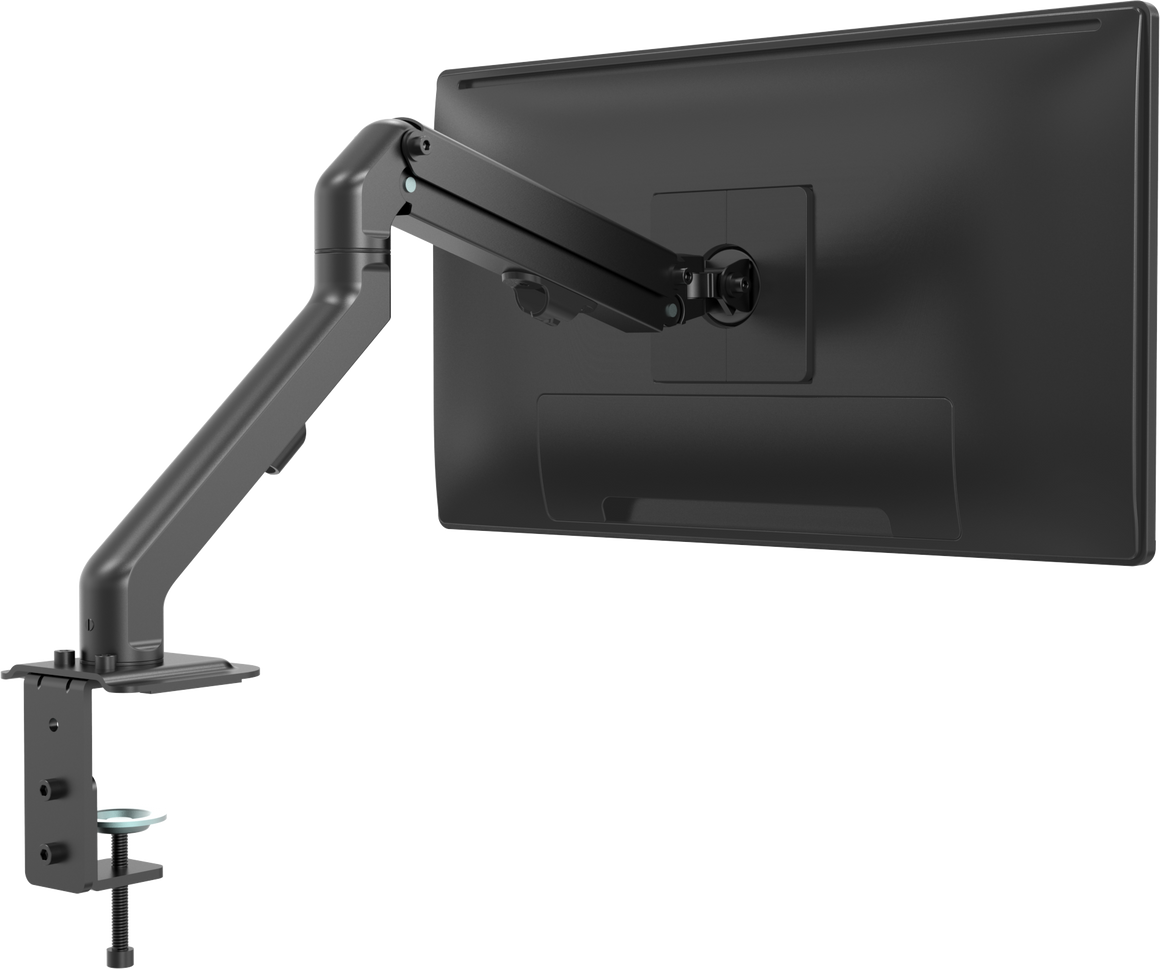

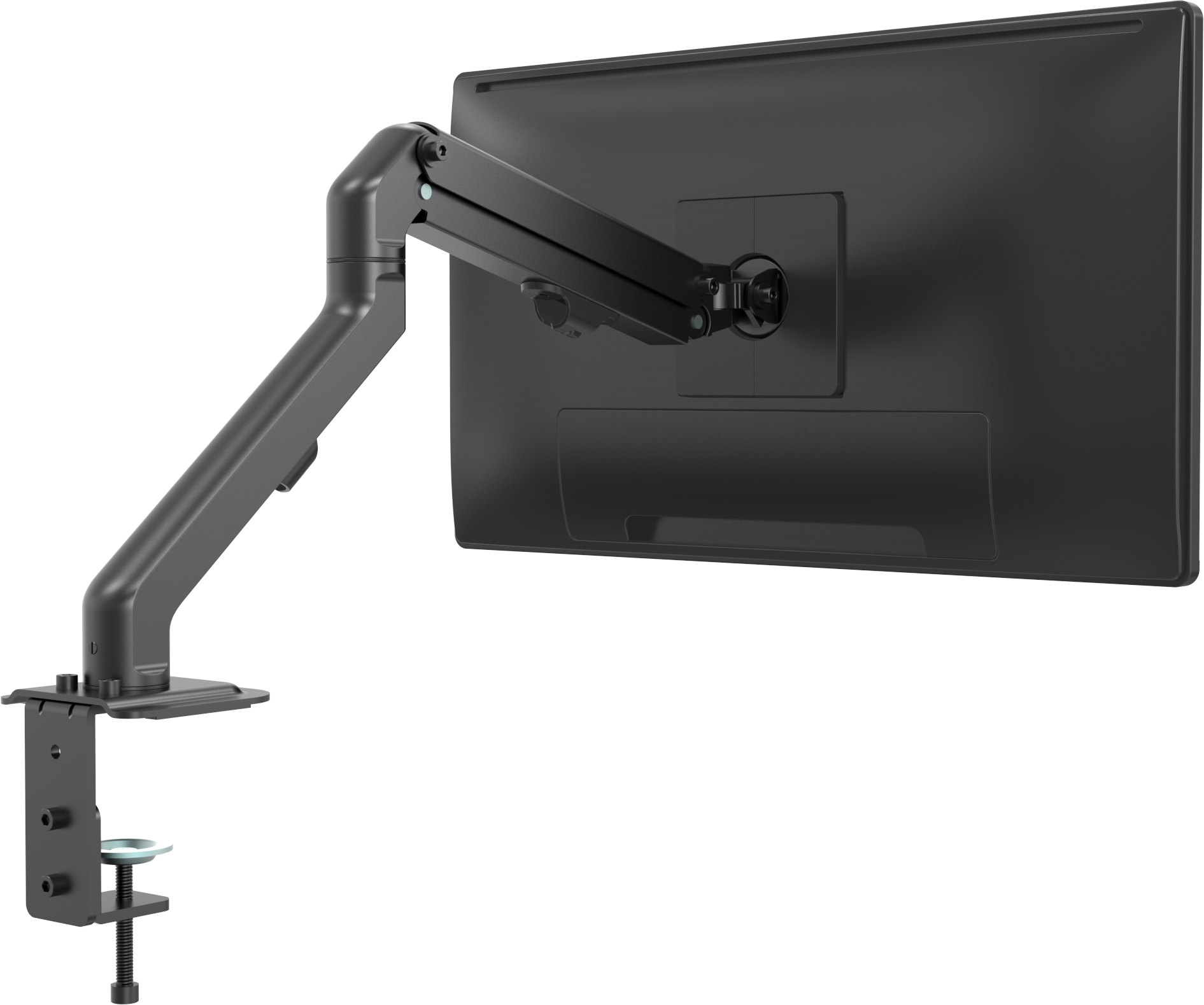

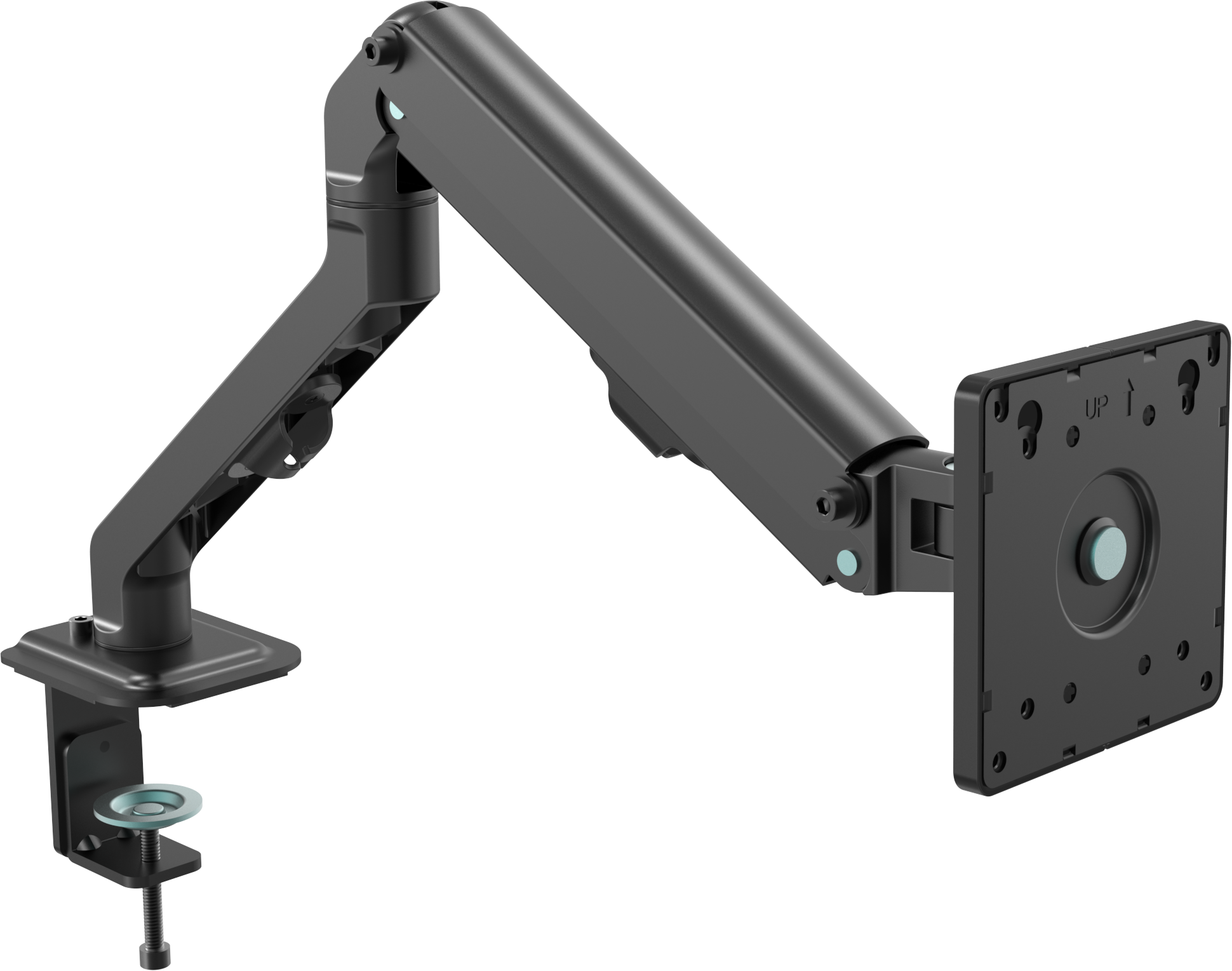

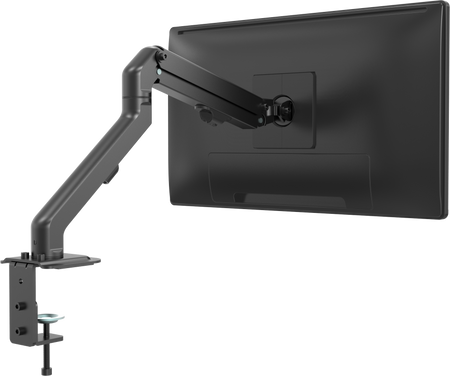

The Vision Black Monitor Desk Arm 100×100 is a Desk Arm ensures any workspace can enjoy both a clear-desk aesthetic and ergonomic working conditions without compromise. It raises the monitor off the desk surface or it can convert to a laptop or tablet shelf supporting clutter-free working and smaller desk areas.

Highlighted Features

  • Counter-Balancing Spring: We’ve swapped out the usual expensive gas struts that tension the desk arm for a spring mechanism. Not only is this much cheaper, it automatically counter-balances the load within a range of 2-7kg (4.4-15.5lbs).
  • Load Adjustment: For lightweight loads like tablets, the bolts on the sides of the arm can be tightened down to stop the arm rising.

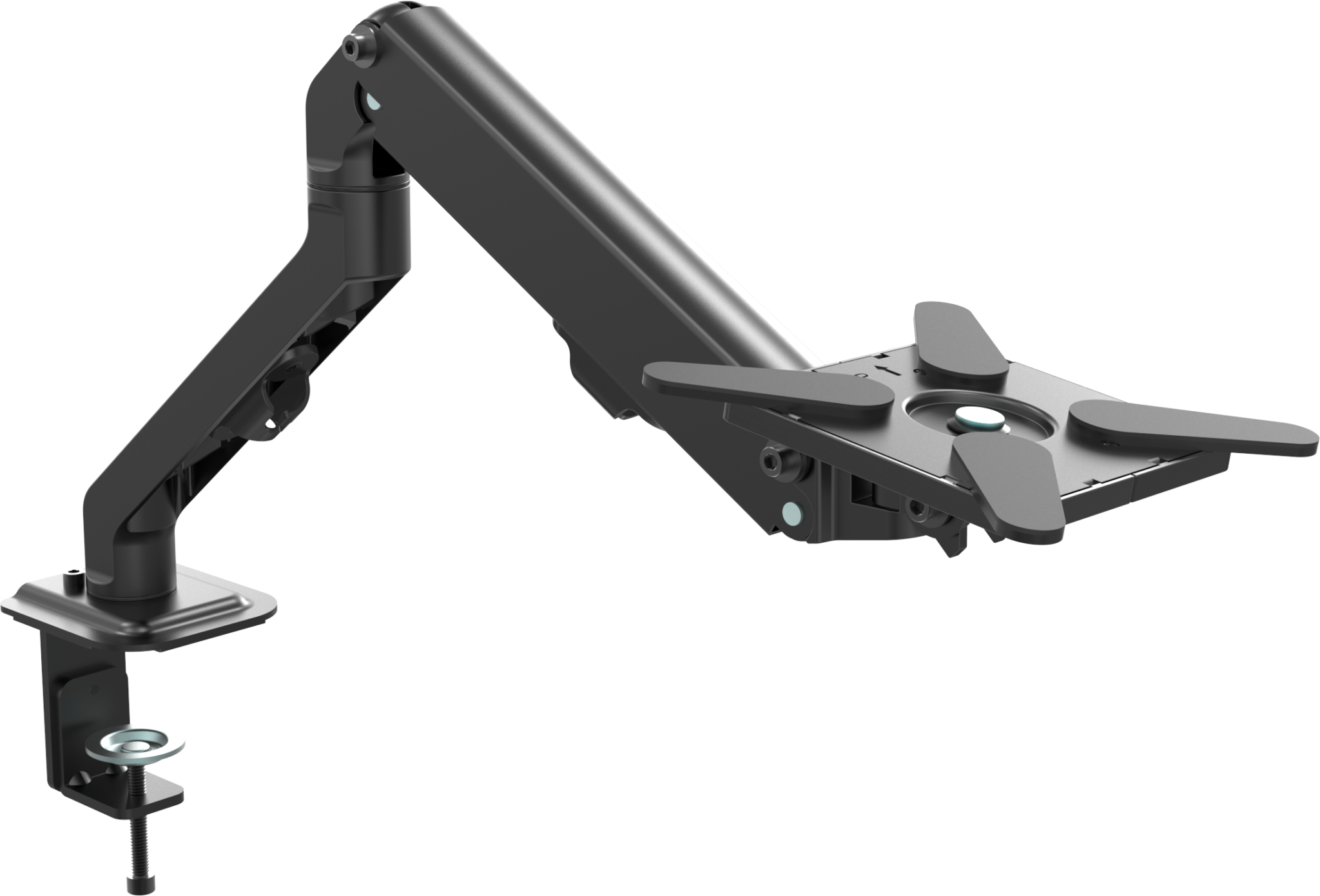

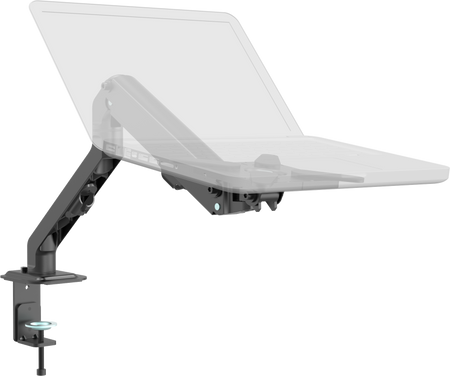

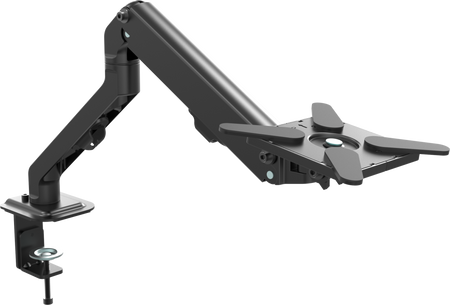

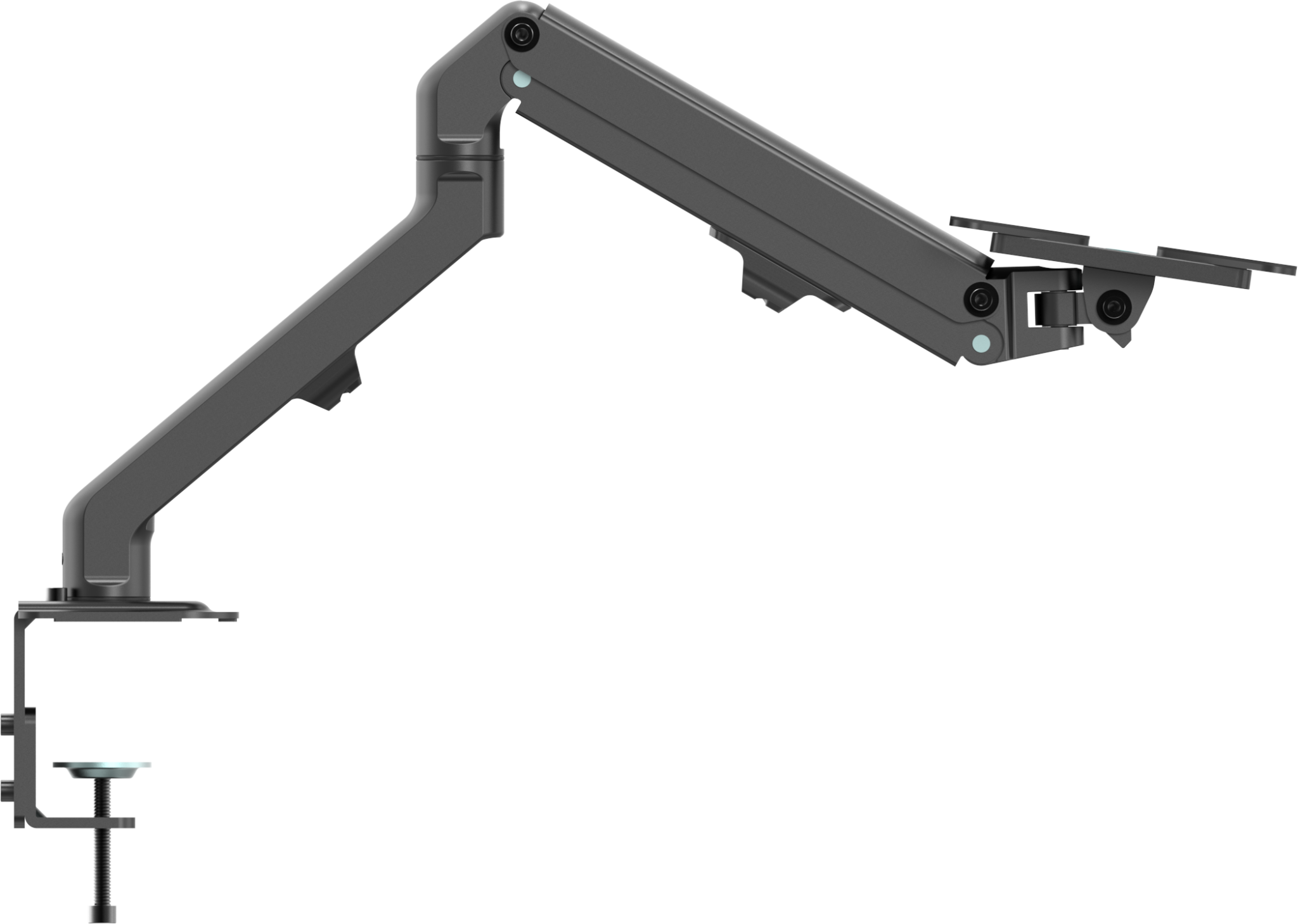

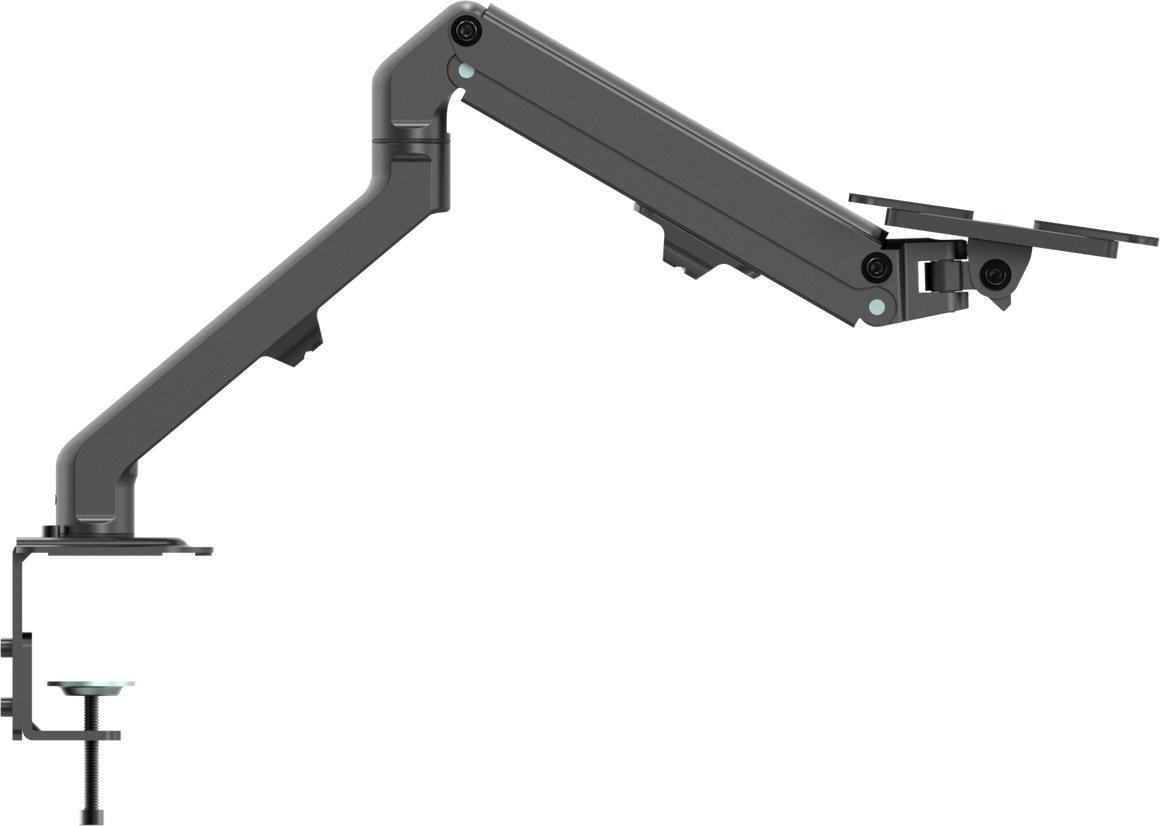

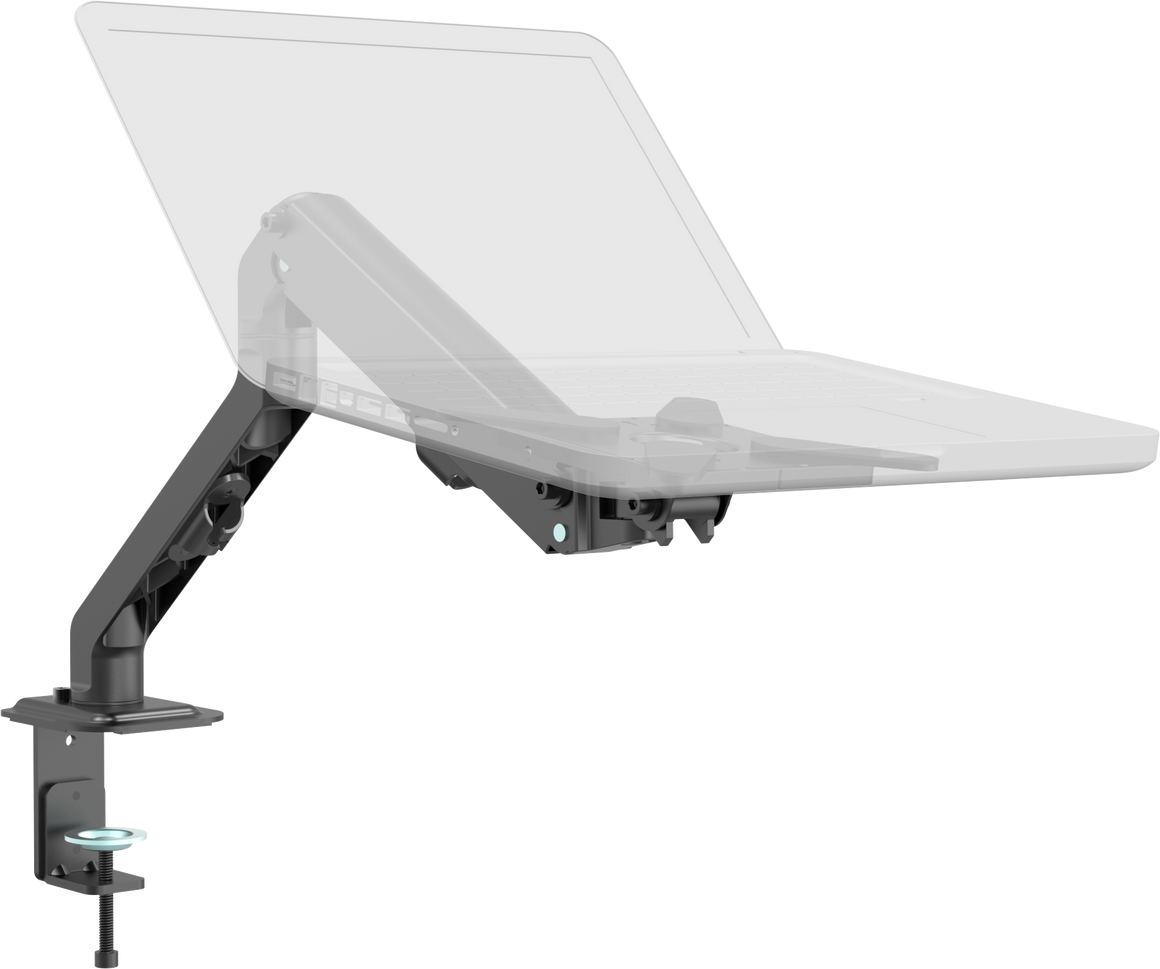

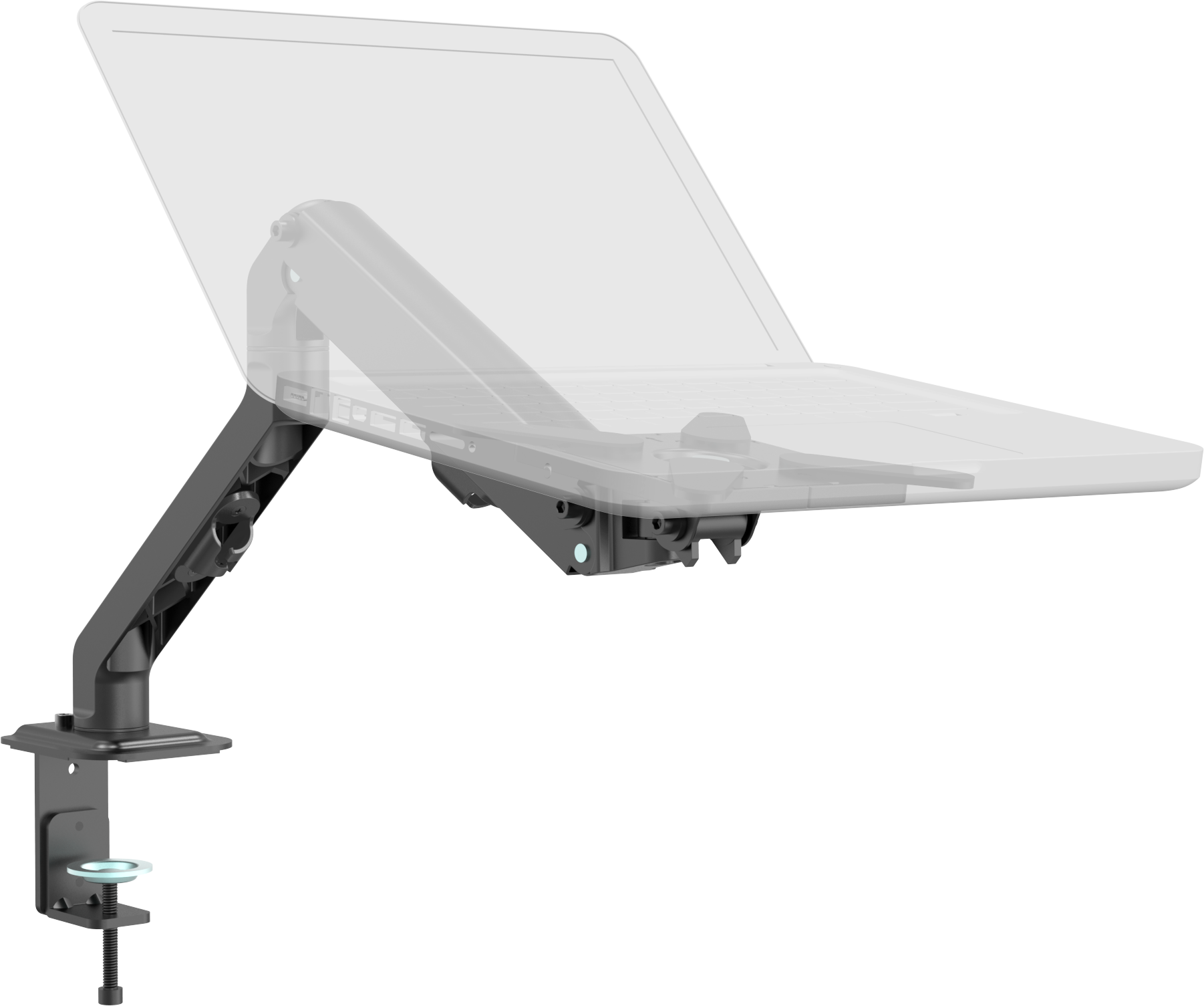

  • Laptop or Tablet shelf: Convert the mount into a convenient shelf for laptop or tablet using the provided extension strips with grippy silicon pads.
  • VESA Covers: For an enhanced finish in installations where the rear of the display is on view, hide the ugly VESA mounts using the provided covers - ideal for retail and public-facing environments.
  • SWL 7 kg: The VFM-DA/4 supports monitors with a maximum weight to 7kg (15.4lbs).

The Vision Black Monitor Desk Arm 100×100 is an ideal choice for professional AV projects requiring a clearly specified professional AV mounting product.

In stock
£62.35

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Vision Black Monitor Desk Arm 100×100 is a Desk Arm ensures any workspace can enjoy both a clear-desk aesthetic and ergonomic working conditions without compromise. It raises the monitor off the desk surface or it can convert to a laptop or tablet shelf supporting clutter-free working and smaller desk areas.

Key Features

  • Counter-Balancing Spring: We’ve swapped out the usual expensive gas struts that tension the desk arm for a spring mechanism. Not only is this much cheaper, it automatically counter-balances the load within a range of 2-7kg (4.4-15.5lbs).
  • Load Adjustment: For lightweight loads like tablets, the bolts on the sides of the arm can be tightened down to stop the arm rising.
  • Laptop or Tablet shelf: Convert the mount into a convenient shelf for laptop or tablet using the provided extension strips with grippy silicon pads.
  • VESA Covers: For an enhanced finish in installations where the rear of the display is on view, hide the ugly VESA mounts using the provided covers - ideal for retail and public-facing environments.
  • SWL 7 kg: The VFM-DA/4 supports monitors with a maximum weight to 7kg (15.4lbs).
  • Fits Displays Up to 32": Works for displays from 10 to 32" with 100x100 VESA mounting holes. It will also safely support any larger display with the same mounting points and SWL.
  • Cable Management: Clips are provided for tidy cable routing.
  • Clamp or Grommet: All the parts required to clamp the arm to the edge of a table surface or bolt to the table are provided. (Note: grommet installation requires the drilling of holes in the table.)
  • Reduced Cost of Ownership: Its durable design ensures it will not need replacing for many years. It is easily and quickly installed, adjusted and moved. Together this delivers a very low cost of ownership.
  • Thumbscrews: Thumbscrews are used to fix the display to help speed up the installation of this mount.

Specifications

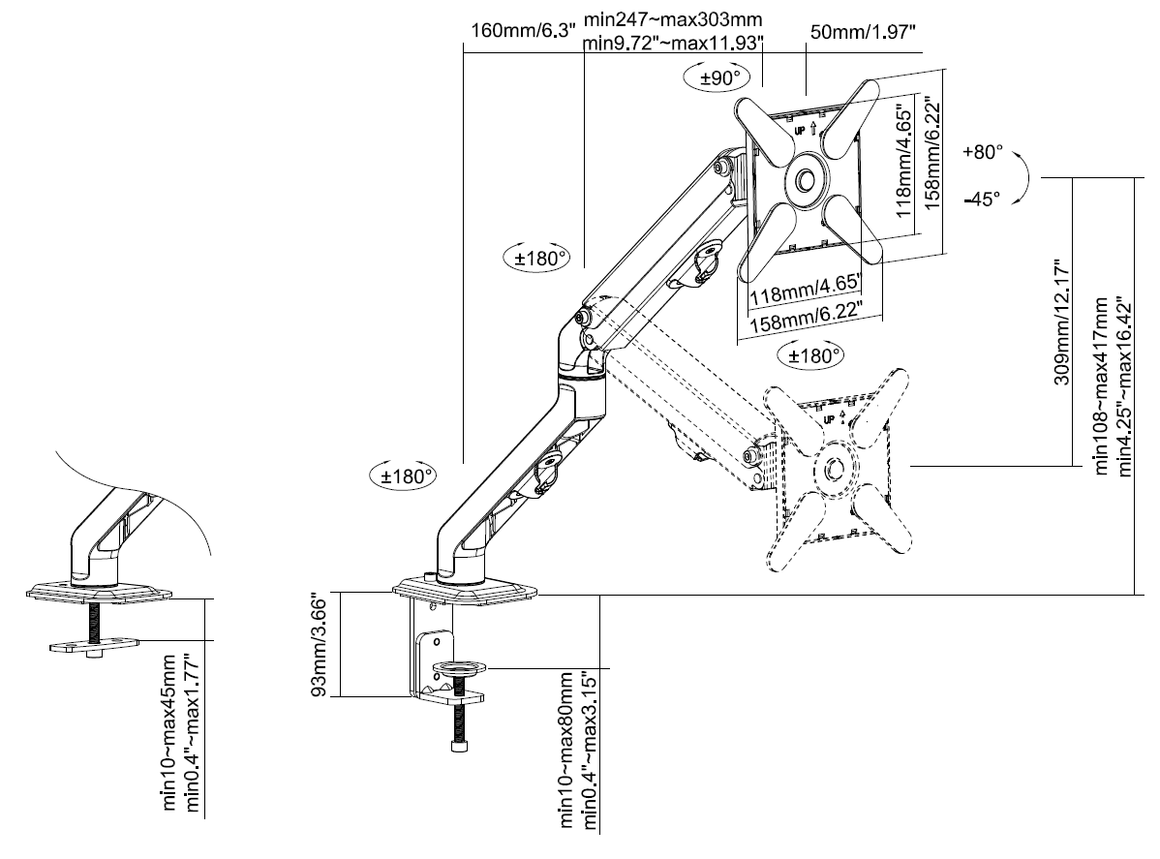

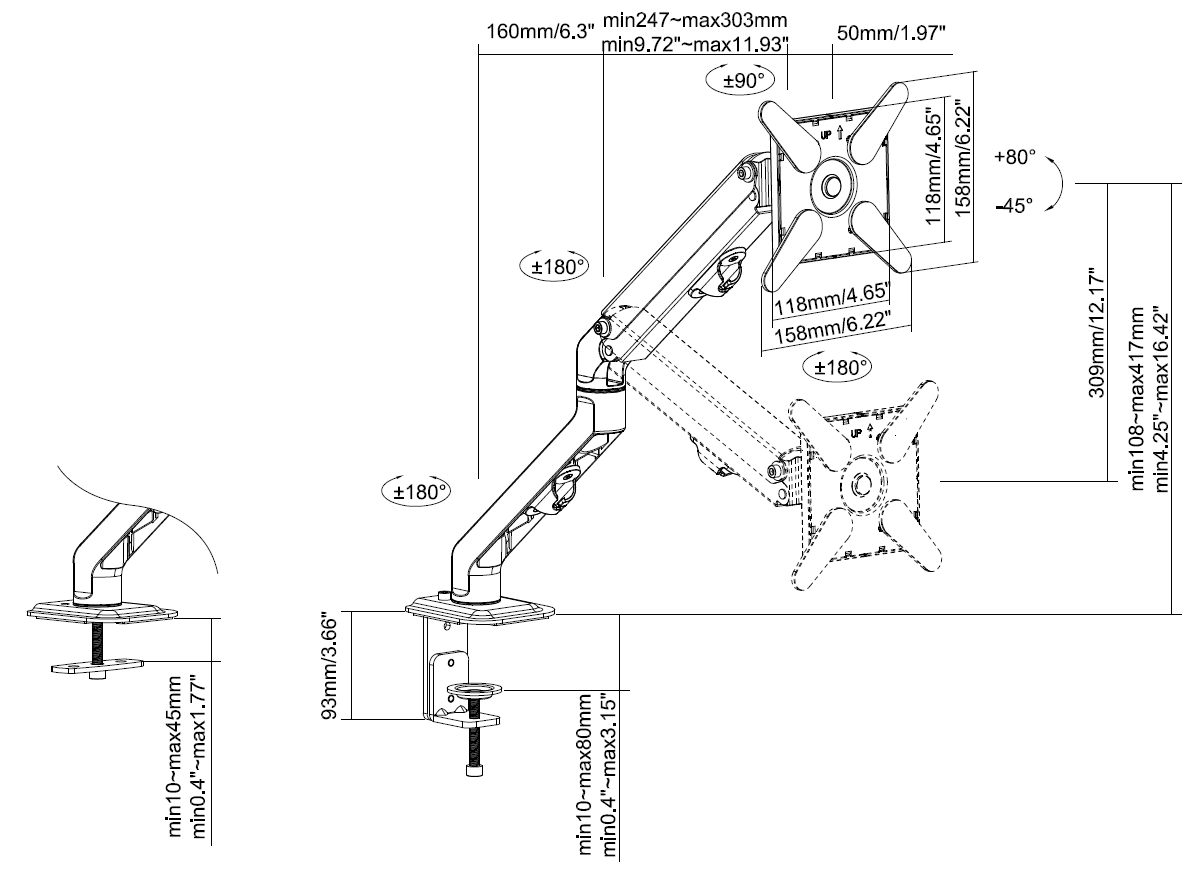

Product Dimensions see image
Packaged Dimensions 390 x 245 x 100 mm / 15.4″ x 9.6″ x 3.9″ (length x width x height)
Product Weight 2.0 kg / 4.4 lbs
Packaged Weight 2.8 kg / 6.2 lbs
Safe Working Load 7 kg / 15.4 lbs
Contruction Material Aluminium, Steel
Colour Matt Black
Vesa Sizes 100 × 100 mm / 3.9″ x 3.9″ 75 × 75 mm / 3.0″ x 3.0″
Compliances RoHS, REACH
Country of origin China

What's in the Box

  • 4 x M4 12mm thumbscrews
  • 4 x M5 12mm thumbscrews
  • 8 x M5 10mm screws for laptop strips
  • 4 x Laptop shelf strips with silicon
  • VESA Cover

Warranty

The Vision Black Monitor Desk Arm 100×100 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.

Application Examples

Public and Venue Installations Suitable for shared venues and public-facing spaces that need clearly specified commercial AV equipment.
Display and Projector Mounting Supports professional display or projector installations where positioning, stability, and installation access matter.
Corporate AV Projects Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms.
Permanent Installations Suited to fixed AV deployments where installers need documented specifications, accessories, and support information.
