SKU: VFM-DP2B

Vision Black Monitor Desk Post 100×100

Vision

Black Monitor Desk Post 100×100

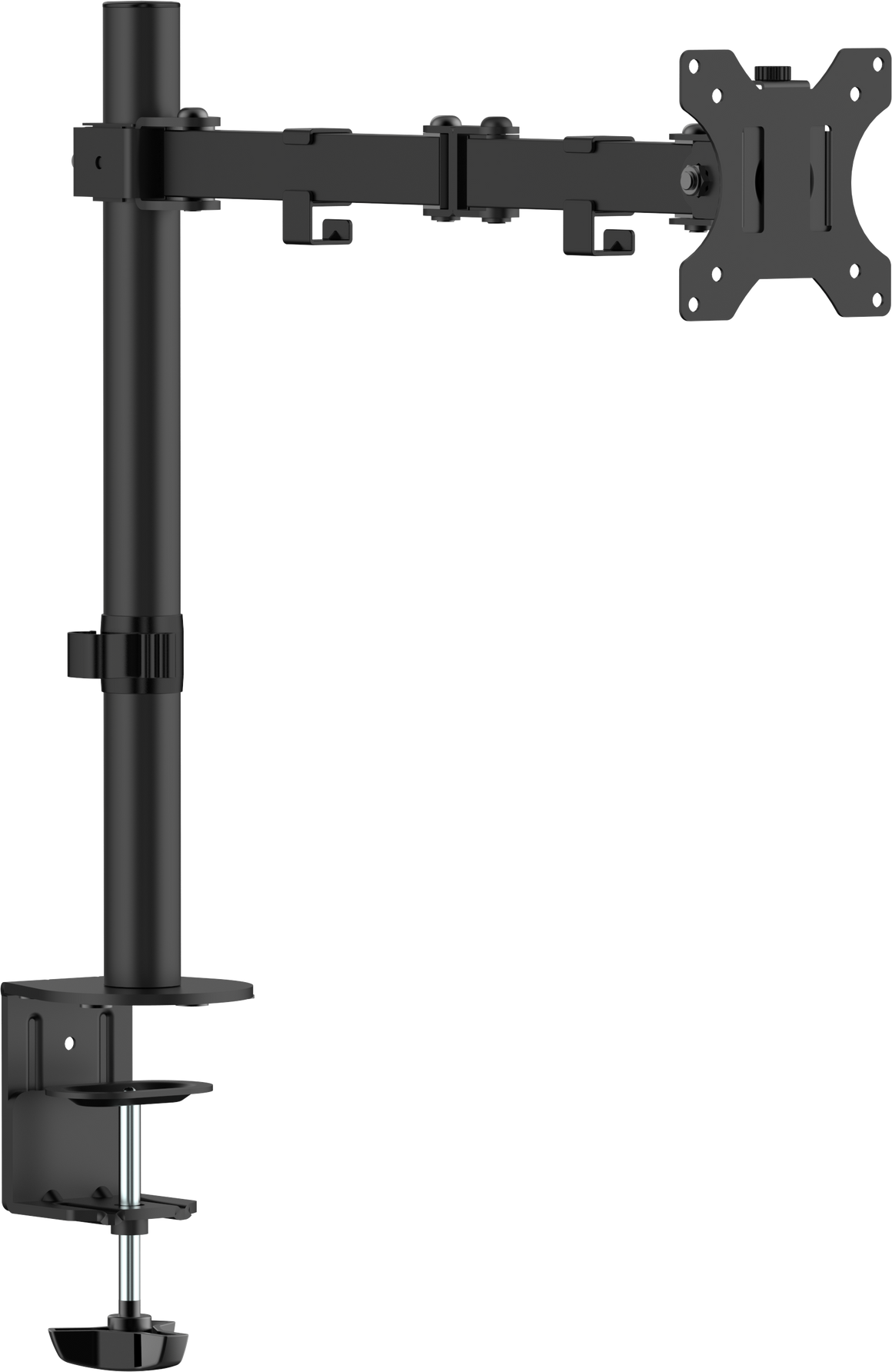

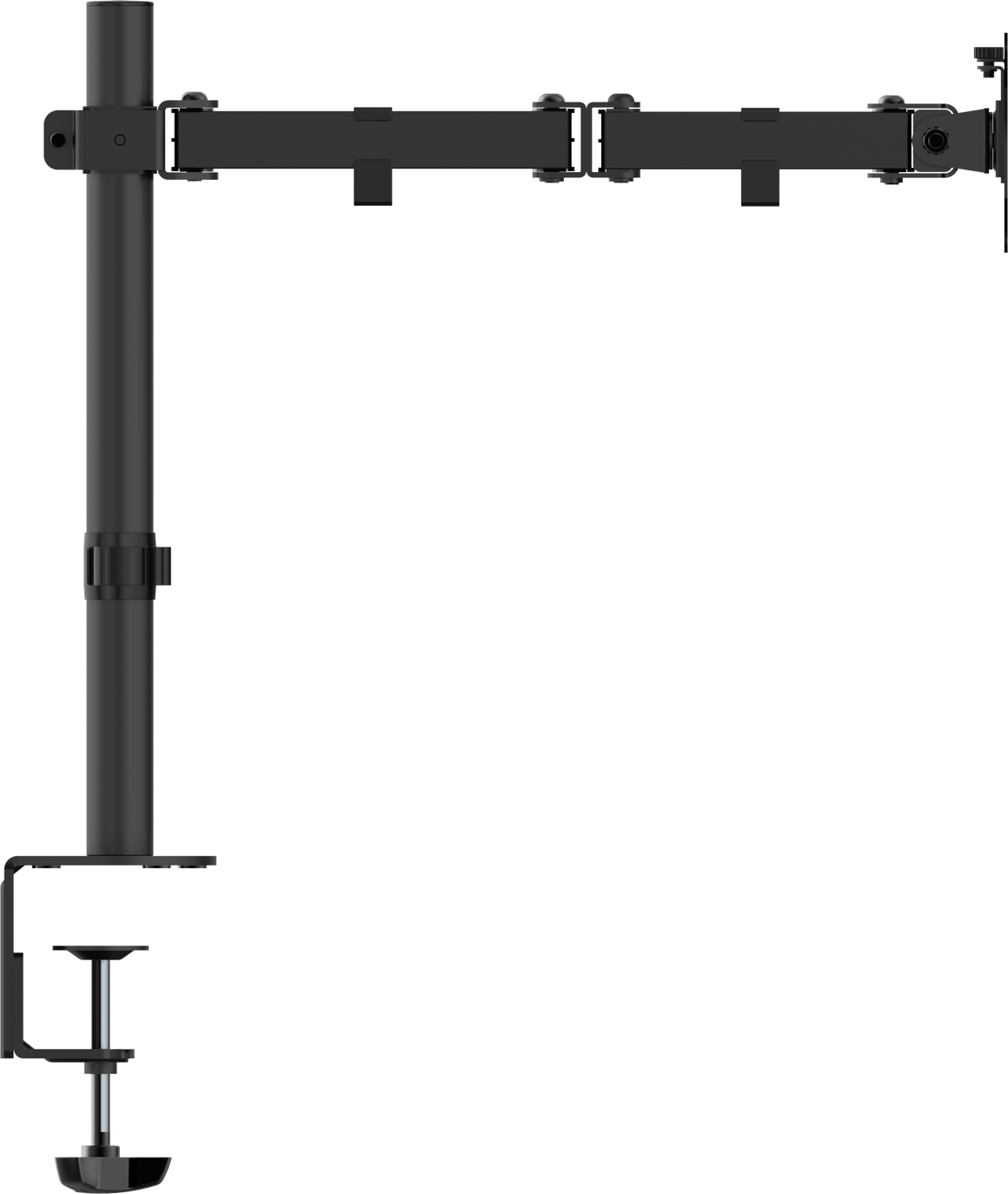

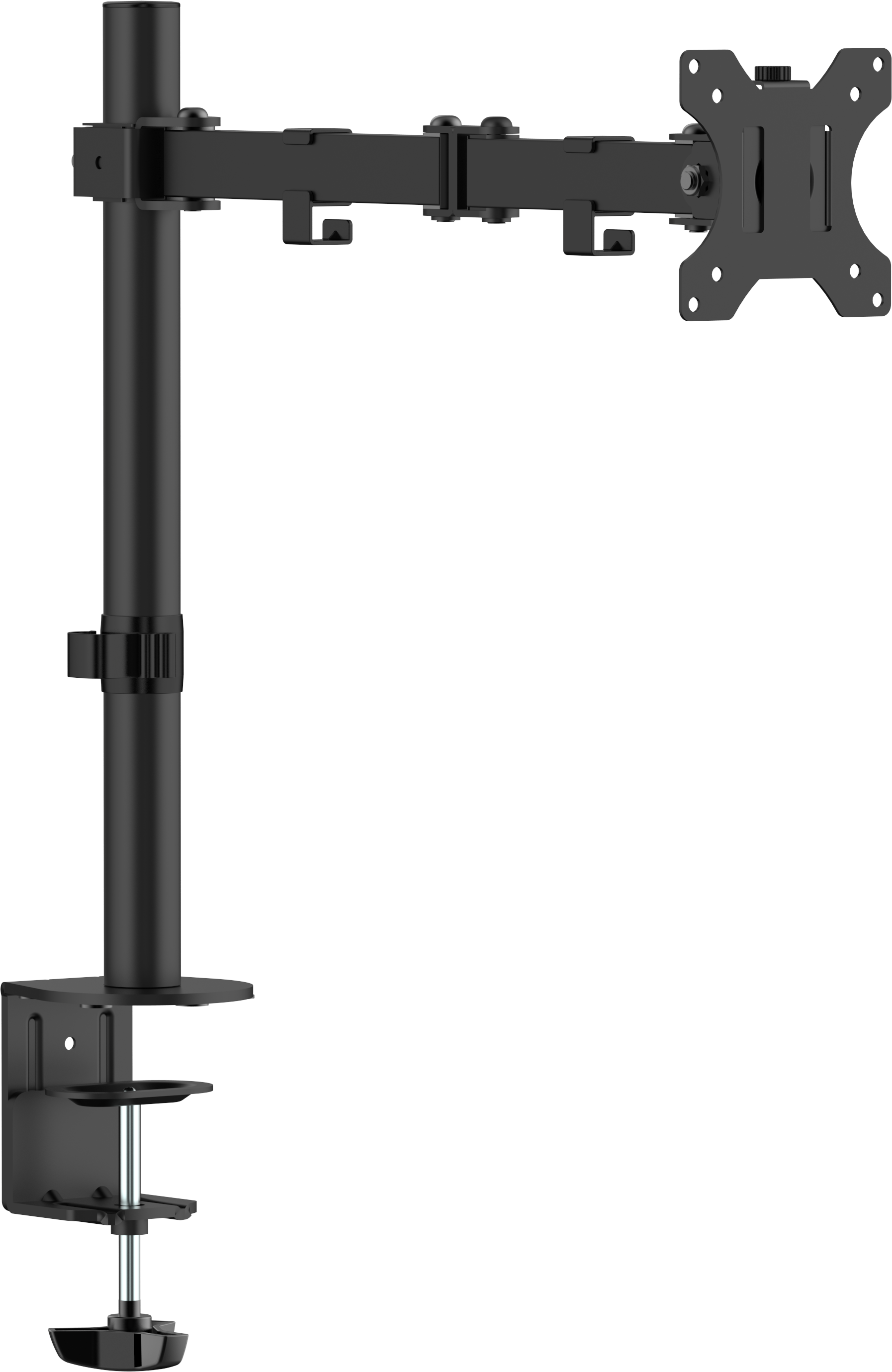

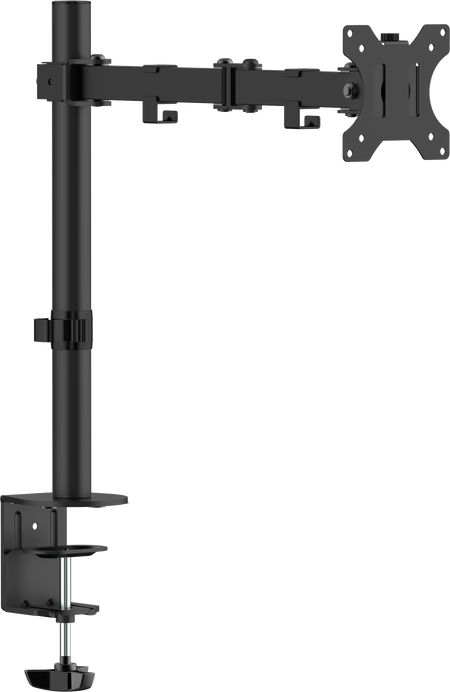

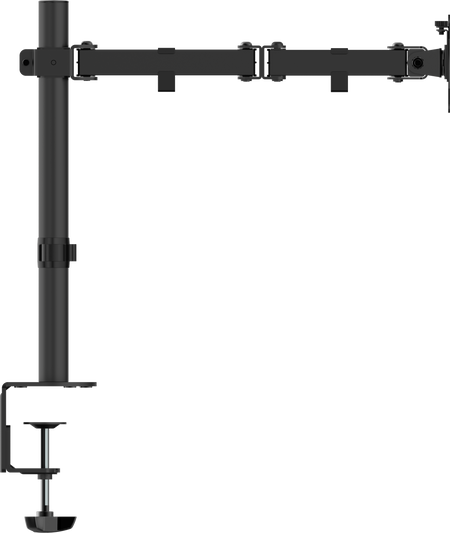

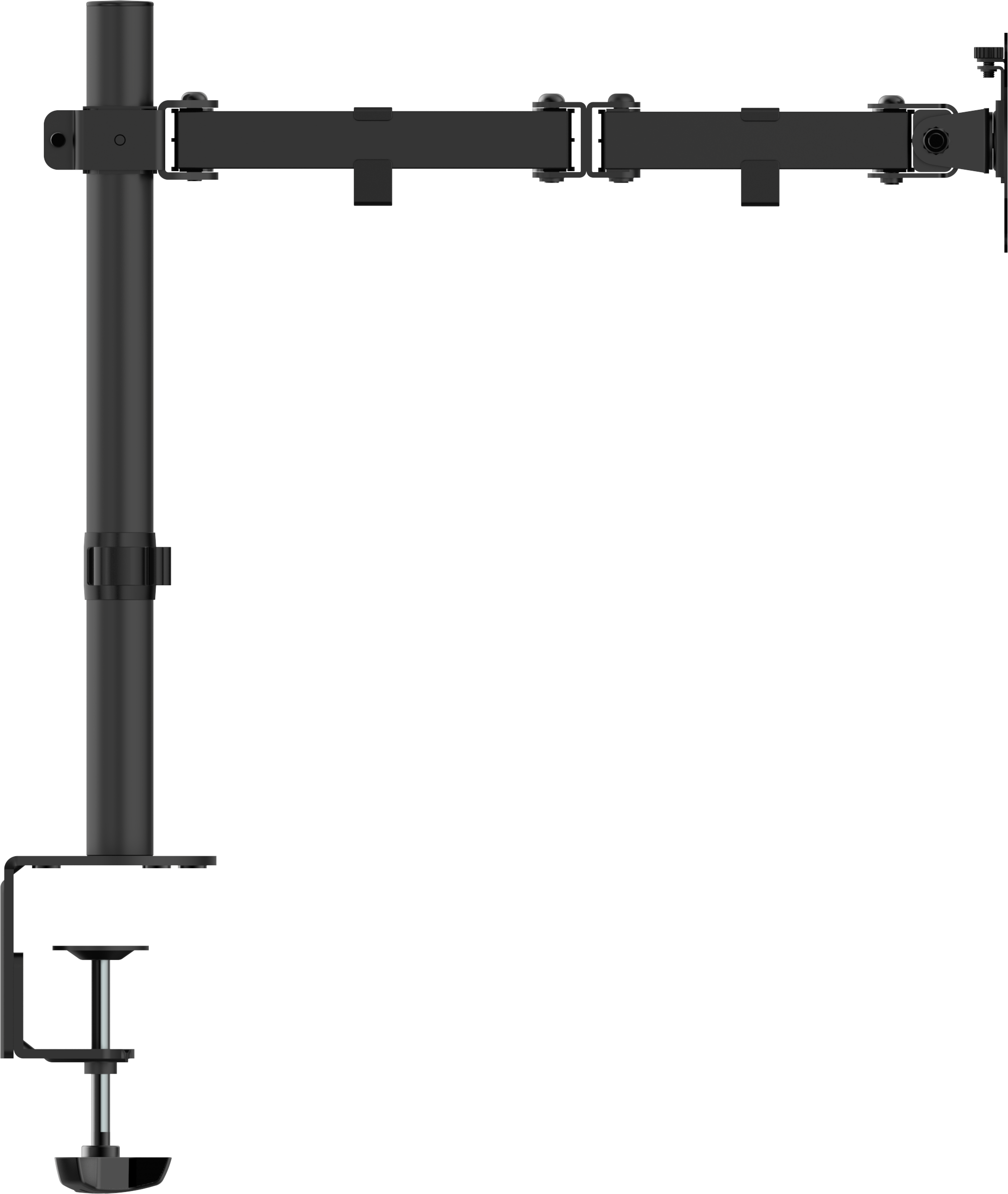

The Vision Black Monitor Desk Post 100×100 the VFM-DP2 (Vision Flat-panel Mount – Desk Post) offers a massive range of movement and fits any monitor which has 75 x 75 mm or 100 x 100 mm rear mounting holes. Vision have obsessed over the detail to make it as quick and easy to install.

Highlighted Features

  • Thumbscrews: Vision include more screws than other manufacturers to ensure you can successfully install your display with the screws included, and the screws are thumbscrews so you can be done faster, without a tool.
  • Quick Release: The VESA plate is quick-release to assist with fast assembly.
  • Optional Shelf: The shelf fixes to the mount’s VESA plate and supports laptops or tablets from 240-420 mm (9.5-16.5″) wide. Adjustable clamps help secure the device in place.
  • SWL 8 kg: The VFM-DP2 can support monitors up to 8 kg (17.6 lbs).
  • Display Size 13-32″: If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

The Vision Black Monitor Desk Post 100×100 is an ideal choice for professional AV projects requiring a clearly specified professional AV mounting product.

In stock
£52.59

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Vision Black Monitor Desk Post 100×100 the VFM-DP2 (Vision Flat-panel Mount – Desk Post) offers a massive range of movement and fits any monitor which has 75 x 75 mm or 100 x 100 mm rear mounting holes. Vision have obsessed over the detail to make it as quick and easy to install.

Key Features

  • Thumbscrews: Vision include more screws than other manufacturers to ensure you can successfully install your display with the screws included, and the screws are thumbscrews so you can be done faster, without a tool.
  • Quick Release: The VESA plate is quick-release to assist with fast assembly.
  • Optional Shelf: The shelf fixes to the mount’s VESA plate and supports laptops or tablets from 240-420 mm (9.5-16.5″) wide. Adjustable clamps help secure the device in place.
  • SWL 8 kg: The VFM-DP2 can support monitors up to 8 kg (17.6 lbs).
  • Display Size 13-32″: If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.
  • Double-Pivot: Two articulated points in the horizontal arm allow a huge range of positioning. The arm reach is up to 460 mm (18″).
  • Cable Management: Clips on the arm secure cables which can be routed along the mount.

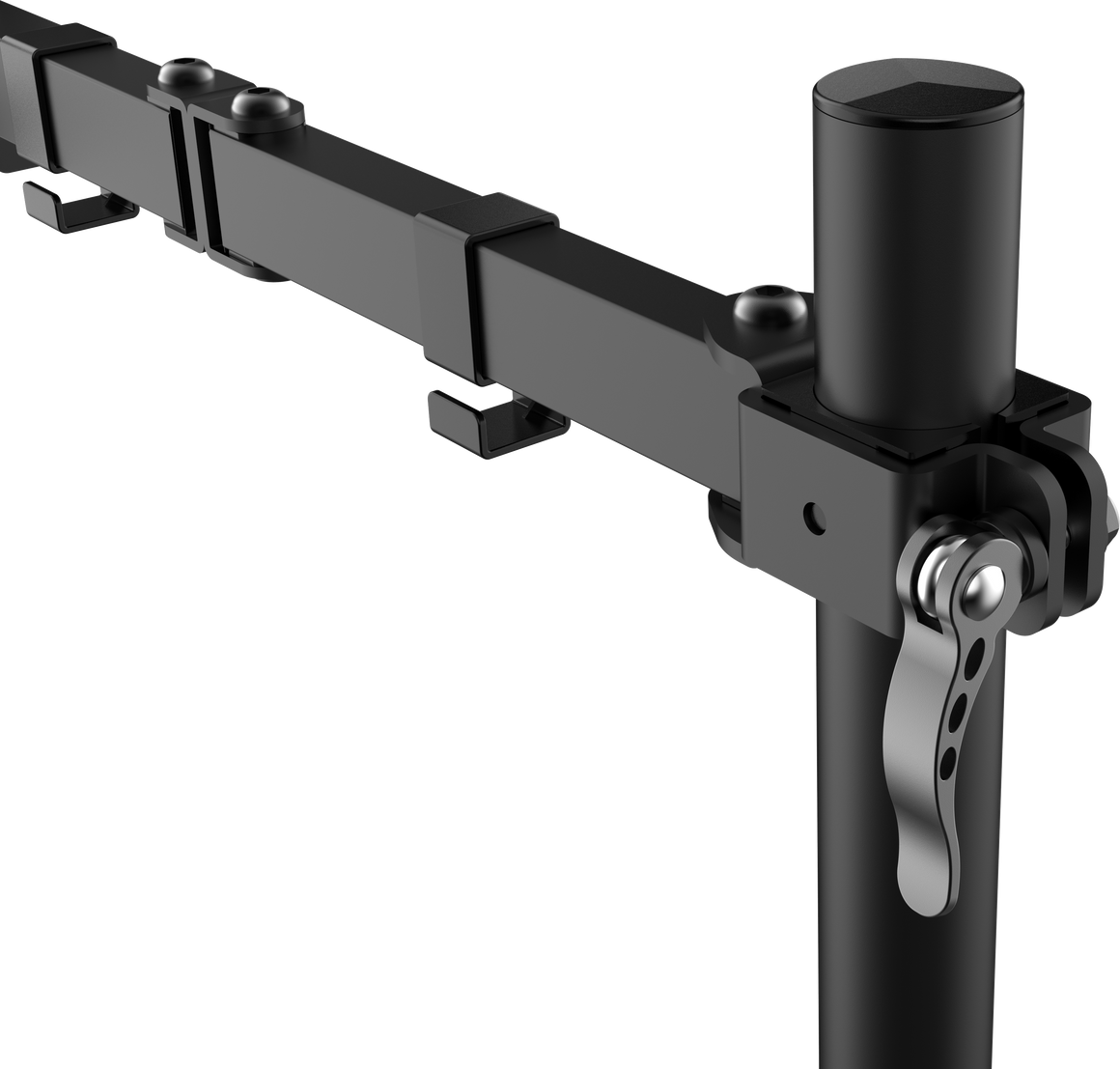

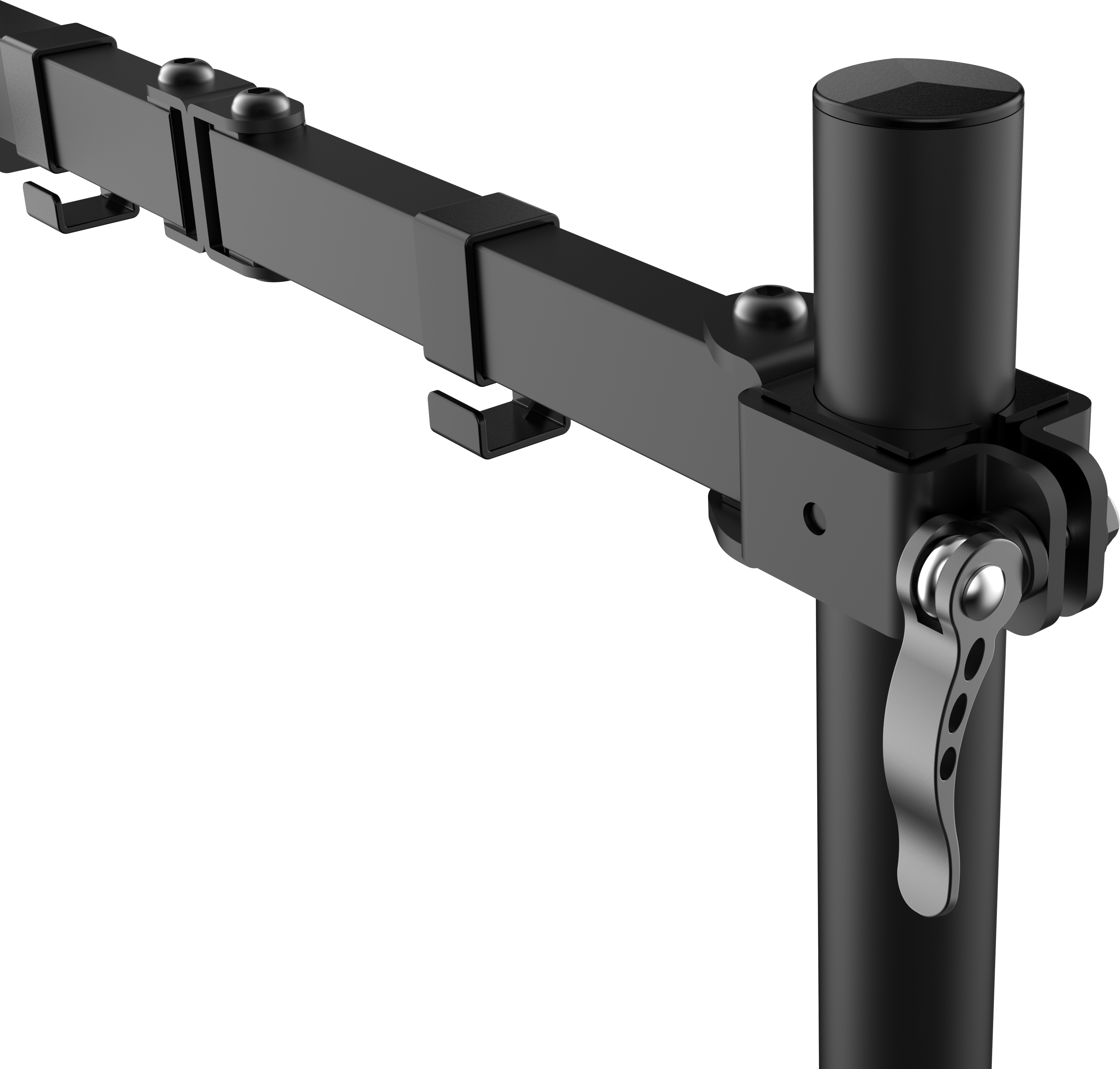

  • Variable Height: Slide the arm up and down the post, then lock off at required height. The post is 443 mm (17.3″) tall.
  • Desk Thickness: The clamp fixes to a table from 10-88 mm (0.4-3.5″) thick.
  • Grommet Included: In some applications you might prefer to drill a hole in the table and fix the mount directly.

Specifications

Product Dimensions 548 x 520 x 114 mm / 21.6″ x 20.5″ x 4.5″
Packaged Dimensions 489 x 180 x 120 mm / 19.3″ x 7.1″ x 4.7″
Product Weight 2.9 kg / 6.4 lbs
Packaged Weight 3.74 kg / 8.2 lbs
Safe Working Load 8 kg (17.6 lbs)
Contruction Material Powdercoated Steel
Colour Black
Vesa Sizes 75 × 75 mm 100 × 100 mm
Compliances RoHS, REACH
Manufacturer Part Number VFM-DP2B [SAP: 4740217]
Country of origin China

What's in the Box

  • 4 x M4 12 mm (1/2″) screw
  • 4 x M4 16 mm (2/3″) screw
  • 4 x M5 12 mm (1/2″) screw
  • 4 x M5 16 mm (2/3″) screw

Warranty

The Vision Black Monitor Desk Post 100×100 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.

Application Examples

Display and Projector Mounting Supports professional display or projector installations where positioning, stability, and installation access matter.
Corporate AV Projects Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms.
Permanent Installations Suited to fixed AV deployments where installers need documented specifications, accessories, and support information.
