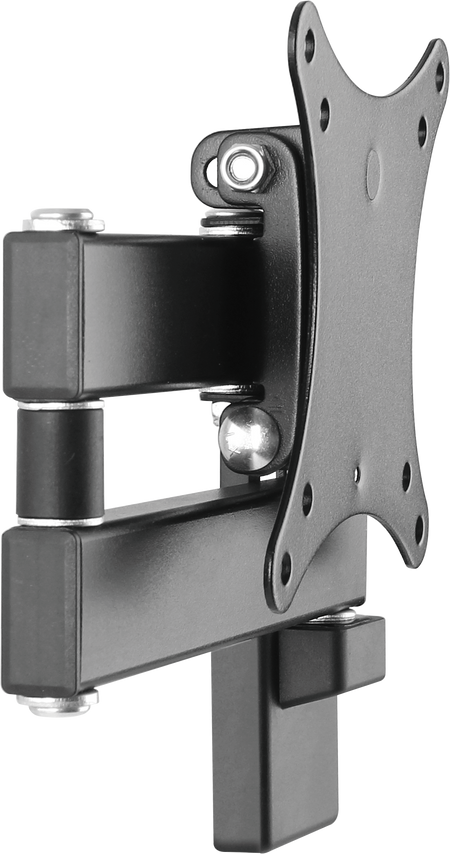

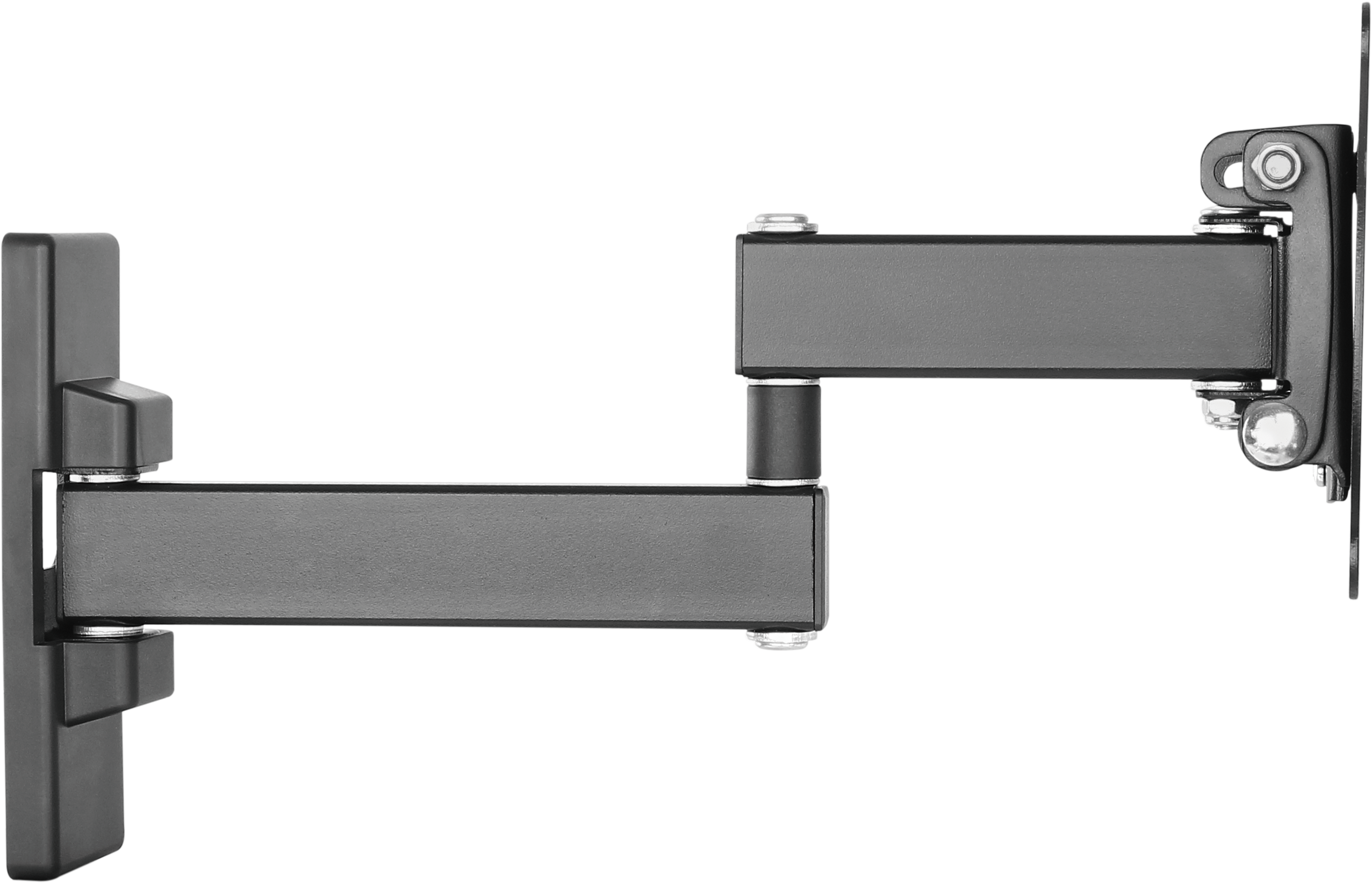

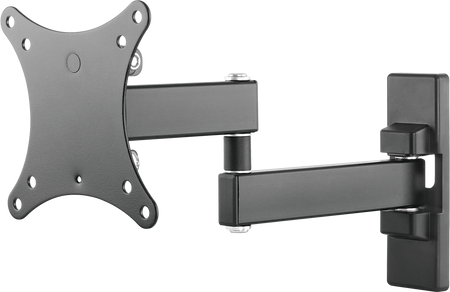

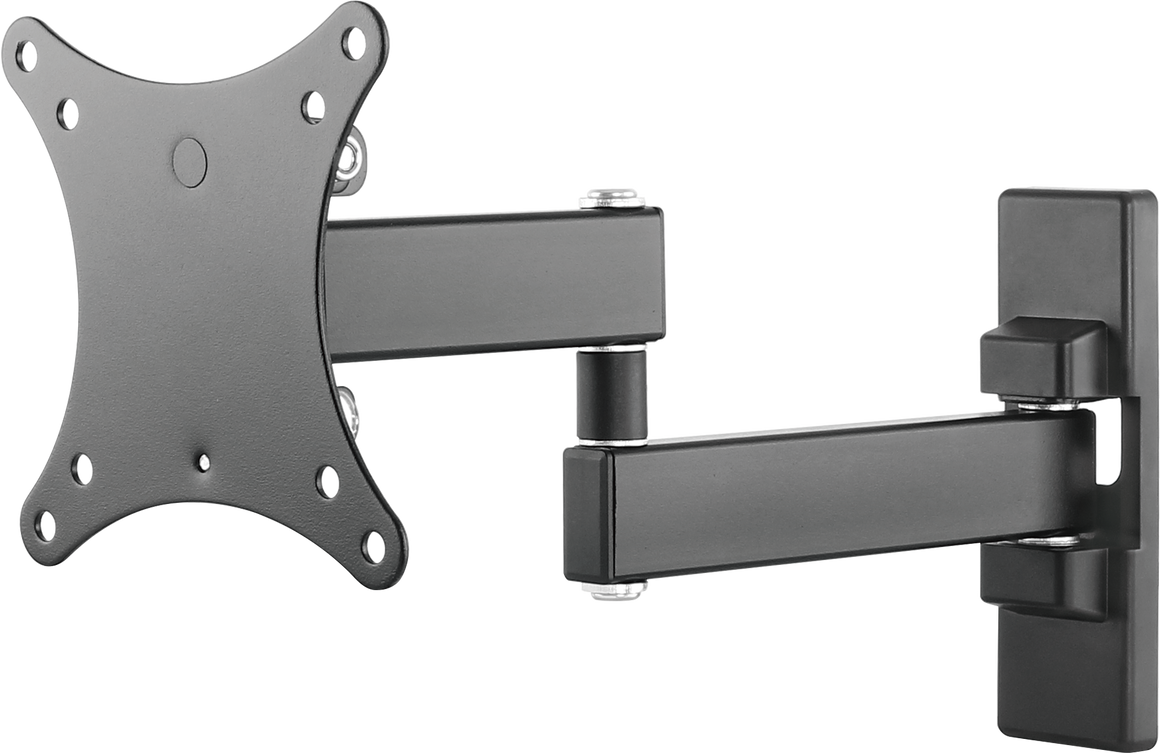

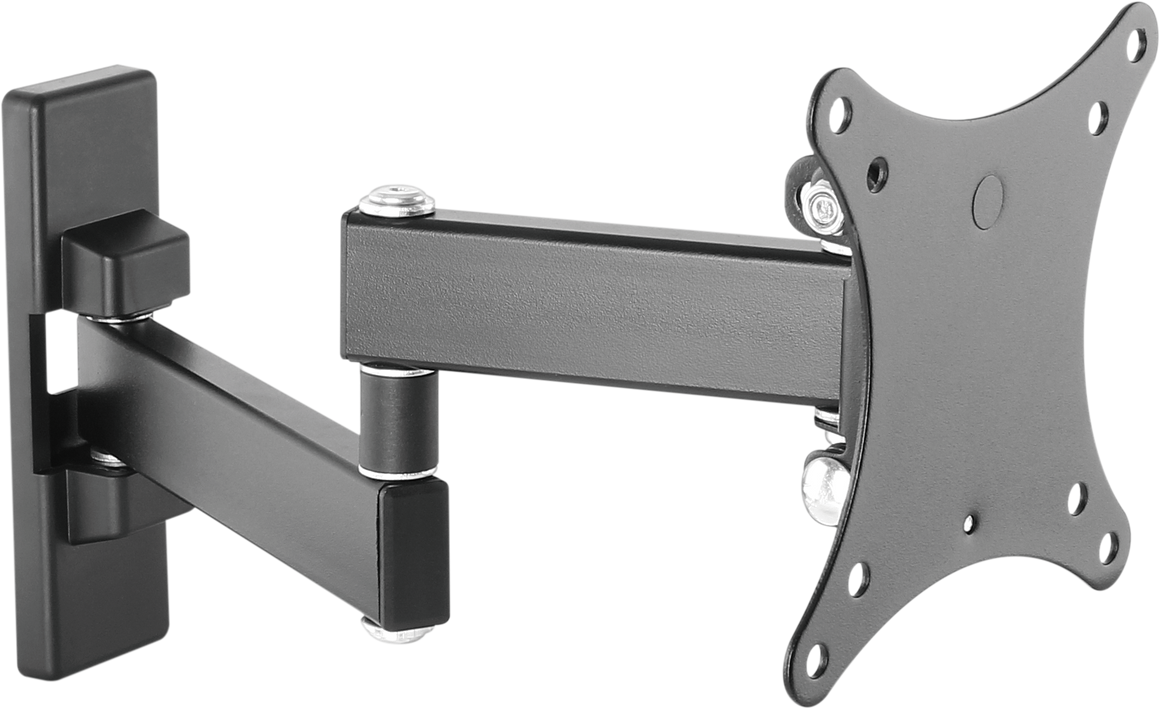

Vision Black Monitor Wall Arm 100x100
Black Monitor Wall Arm 100x100
In stock
Regular price
£23.15
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision Black Monitor Wall Arm 100x100 vision's Vision Flat-Panel Mount - Wall Arm range is tough and flexible. The VFM-WA1X1B is a value wall arm that fits most computer monitors.
Key Features
- Up to 27": Most displays from 13-27" fit this mount. If a larger monitor has the correct mounting points and weighs less than the SWL this mount can support it safely.
- Thumbscrews: Vision considers every little detail to make installation faster. Two sizes of thumbscrews are included to fix the mount to the monitor.
- Fast Installation: The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with a single nut.
- Rotation: Didn't fix the wall plate perfectly plumb? No problem! 6° of rotation allow you to get the display level easily once the display is in place.
- SWL 15 kg: This mount has a "safe working load" of 15 kg (33.1 lb). It is made of steel to make it robust.
- Tilt and Swivel: -3 -10° tilt and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office.
- Powder-Coated: Robust powder-coating makes this product more scratch resistant than the competition.
- Vesa: The VESA standard is based on how far apart the mounting holes are on the back of your flat-panel. Holes 100 x 100 mm apart are known as VESA100 and will suit this mount. This product also fits displays with the smaller VESA75 size.
- Double-articulated wall mount: Double-articulated wall mount for Monitors from 13" to 27"
- Post-Installation levelling: Post-Installation levelling
Specifications

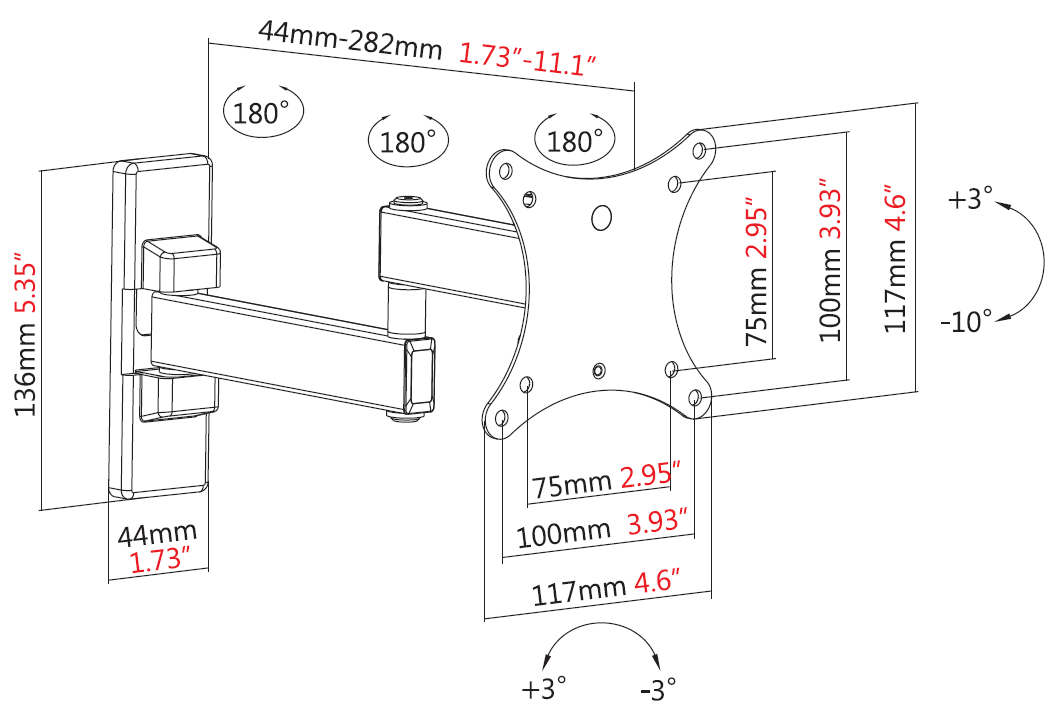

| Product Dimensions | see image |
| Packaged Dimensions | 191 x 182 x 46 mm / 7.5" x 7.2" x 1.8" (length x width x height) |
| Product Weight | 0.8 kg / 1.7 lbs |
| Packaged Weight | 0.9 kg / 2.0 lbs |
| Safe Working Load | 15 kg (33.1 lbs) |
| Contruction Material | Wall plate: 2.5 mm cold-roll steel Display plate: 2.0 mm cold-roll steel |
| Colour | Plastic-Coated Black |
| Vesa Sizes | 100 x 100 mm 75 × 75 mm |
| Compliances | RoHS, REACH |
| Country of origin | China |
What's in the Box
- 4 x M4 14 mm screw
- 4 x M5 14 mm screw
Warranty
The Vision Black Monitor Wall Arm 100x100 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
