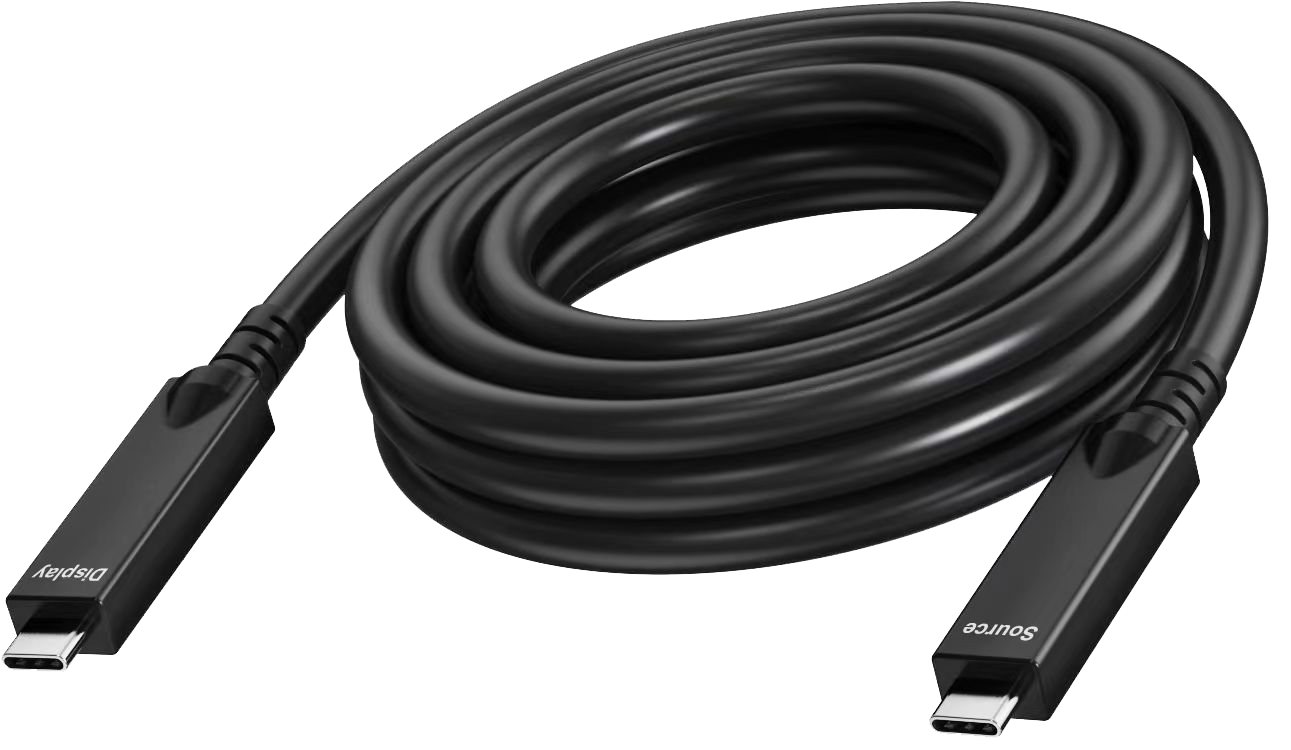

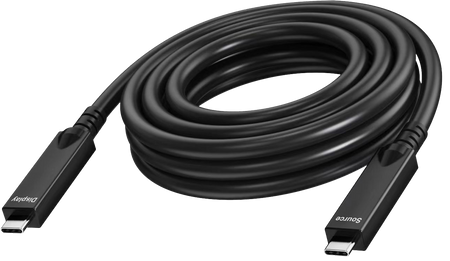

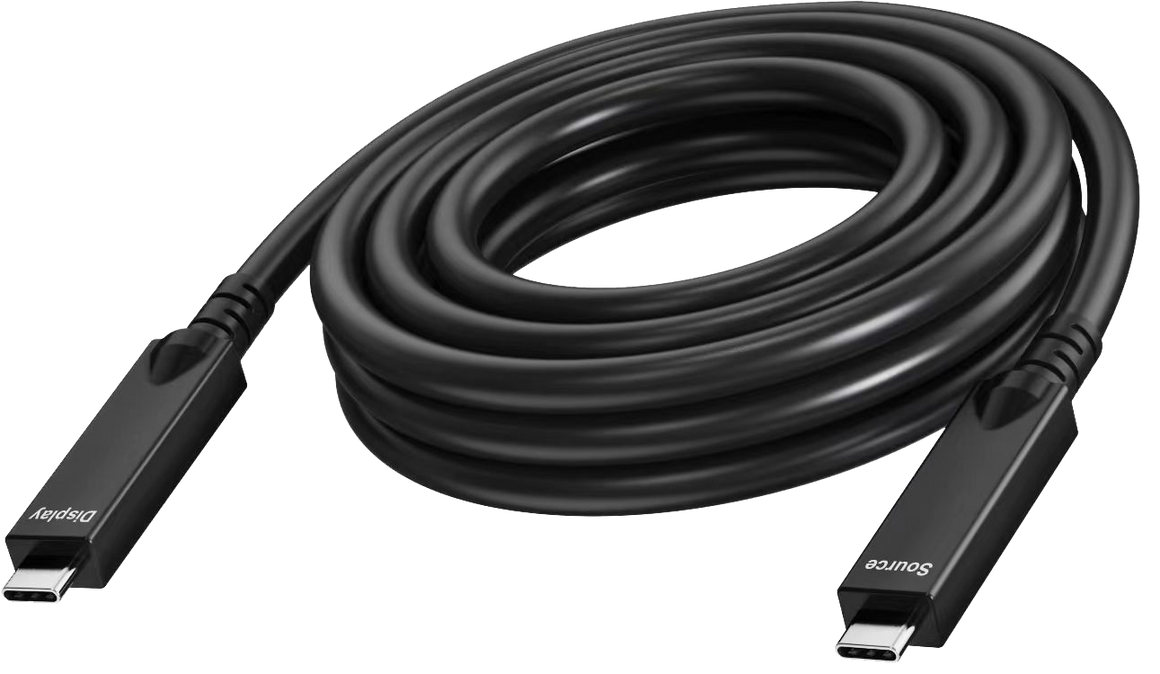

Vision Black USB-C Cable 7m
Vision Black USB-C Cable 7m
Vision Black USB-C Cable 7m
Vision Black USB-C Cable 7m
SKU: TC 7MUSBC/BL

Vision Black USB-C Cable 7m

Vision

Black USB-C Cable 7m

The Vision Black USB-C Cable 7m uSB-C is the latest USB connector. It has a smaller reversible plug which supports USB 3.2 Gen 1 signal.

Highlighted Features

  • Very Tough: This cable, reinforced with a Kevlar core, is designed to resist stretching forces. It can withstand a continuous force of up to 200 newtons or a momentary peak force of up to 400 newtons.
  • Tight Bends: Fiber cables boast a significantly tighter bend radius compared to copper cables. This particular cable features a dynamic bend radius of 20 mm and a static bend radius of 10 mm.
  • Directional: This cable contains a chip integrated into each connector, so the end marked 'display' must be connected to the display. The ends are not interchangeable.
  • Video Resolution Support: 4K & 60 Hz
  • Optical Cable: Optical Cable

The Vision Black USB-C Cable 7m is an ideal choice for professional AV projects requiring a clearly specified AV connectivity cable.

In stock
£279.08

Secure Checkout

Warranty Protection

Hassle-Free Returns

The Vision Black USB-C Cable 7m uSB-C is the latest USB connector. It has a smaller reversible plug which supports USB 3.2 Gen 1 signal.

Key Features

  • Very Tough: This cable, reinforced with a Kevlar core, is designed to resist stretching forces. It can withstand a continuous force of up to 200 newtons or a momentary peak force of up to 400 newtons.
  • Tight Bends: Fiber cables boast a significantly tighter bend radius compared to copper cables. This particular cable features a dynamic bend radius of 20 mm and a static bend radius of 10 mm.
  • Directional: This cable contains a chip integrated into each connector, so the end marked 'display' must be connected to the display. The ends are not interchangeable.
  • Video Resolution Support: 4K & 60 Hz
  • Optical Cable: Optical Cable
  • Backwards compatible with USB 2.0: Backwards compatible with USB 2.0
  • USB Connectivity: Transfers USB data and DisplayPort video data
  • Outer Diameter: 6.5 mm (0.3")
  • Filler: Kevlar
  • High-Speed Data Transfer: 2 lane supports DP 1.4 (2 x 8.1 = 16.2 Gbps) and USB 2.0 (480 Mbps) 4 lane supports DP 2.1 (4 x 10 = 40 Gbps) and USB 3.2 (10 Gbps) Note: the number of lanes are limited by the source or display

Specifications

Outer Diameter 6.5 mm (0.3")
Filler Kevlar
Data Transfer Rate 2 lane supports DP 1.4 (2 x 8.1 = 16.2 Gbps) and USB 2.0 (480 Mbps) 4 lane supports DP 2.1 (4 x 10 = 40 Gbps) and USB 3.2 (10 Gbps) Note: the number of lanes are limited by the source or display
Charging Current 3 A (60 watts)
Compliance RoHS, CE
Packaged Weight 0.6 kg (1.3 lb)
Packaged Dimensions 175 mm x 150 mm x 50 mm (6.9" x 5.9" x 1.9")
Usb Version Type-C plug
Connectors Nickel plated
Dp Alt Mode Cable can be used for DisplayPort instead of USB
Sheath PVC
Power Consumption 1200 mW (5V input)

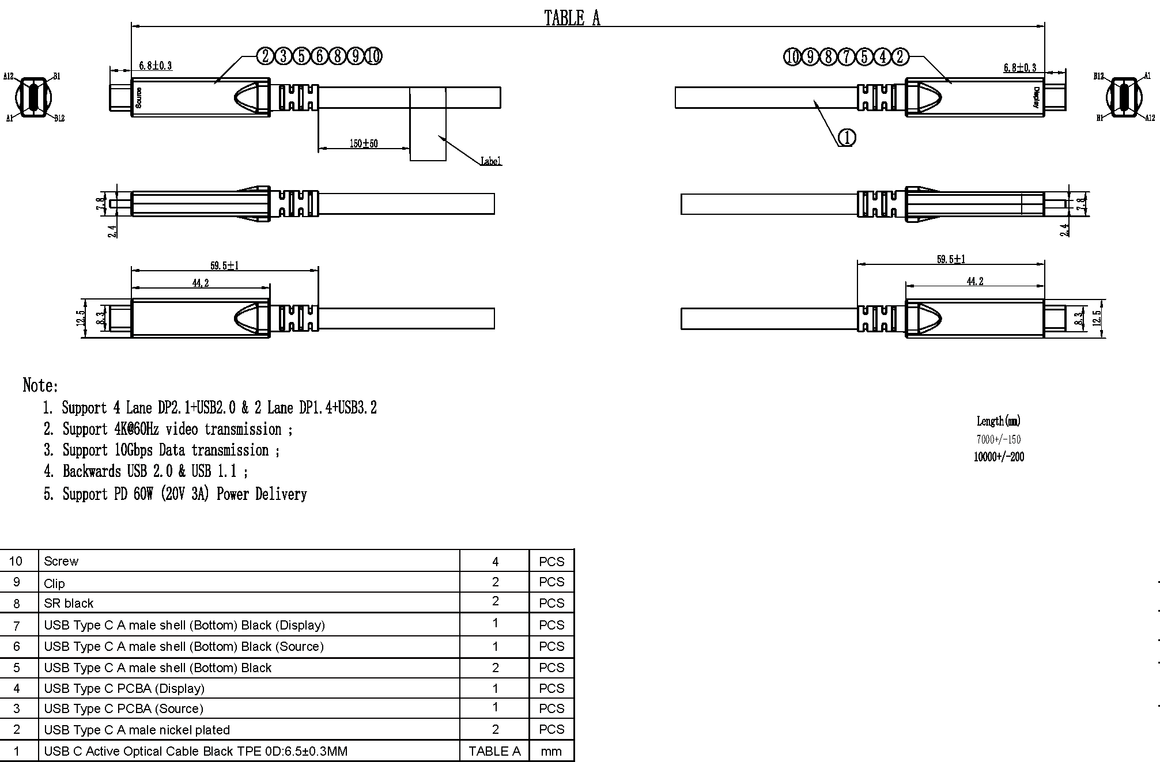

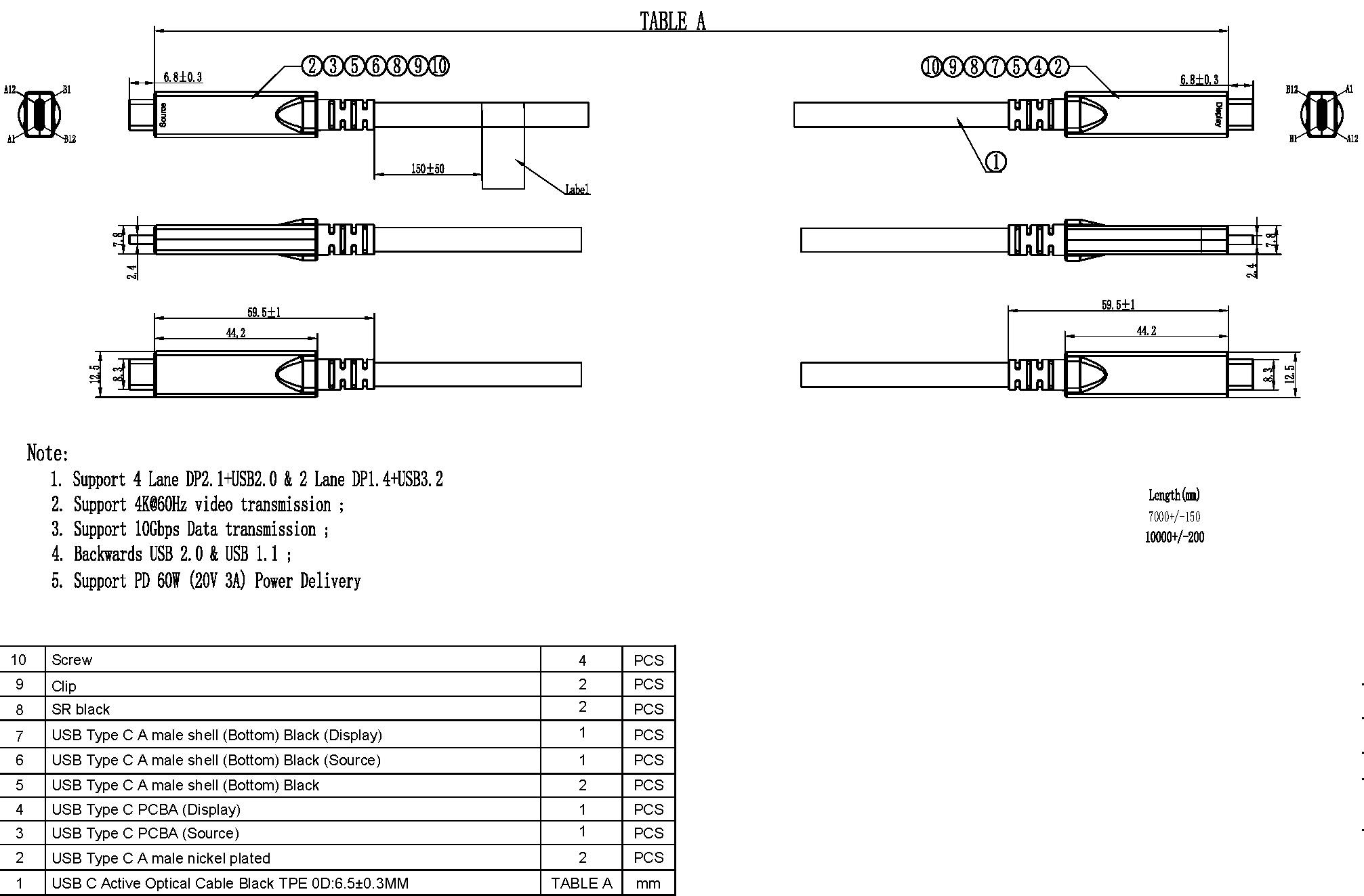

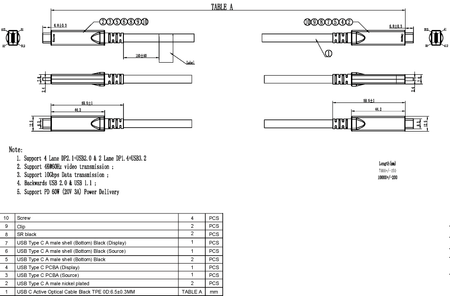

Plug Dimensions 44 mm x 13 mm x 8 mm (1.7" x 0.5" x 0.3")
Maximum Resolution 4K @ 60 Hz
Country of origin China

Application Examples

Structured AV Cabling Useful for Techconnect and installed cabling projects where consistent cable specification and presentation are important.
Corporate AV Projects Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms.
Permanent Installations Suited to fixed AV deployments where installers need documented specifications, accessories, and support information.
