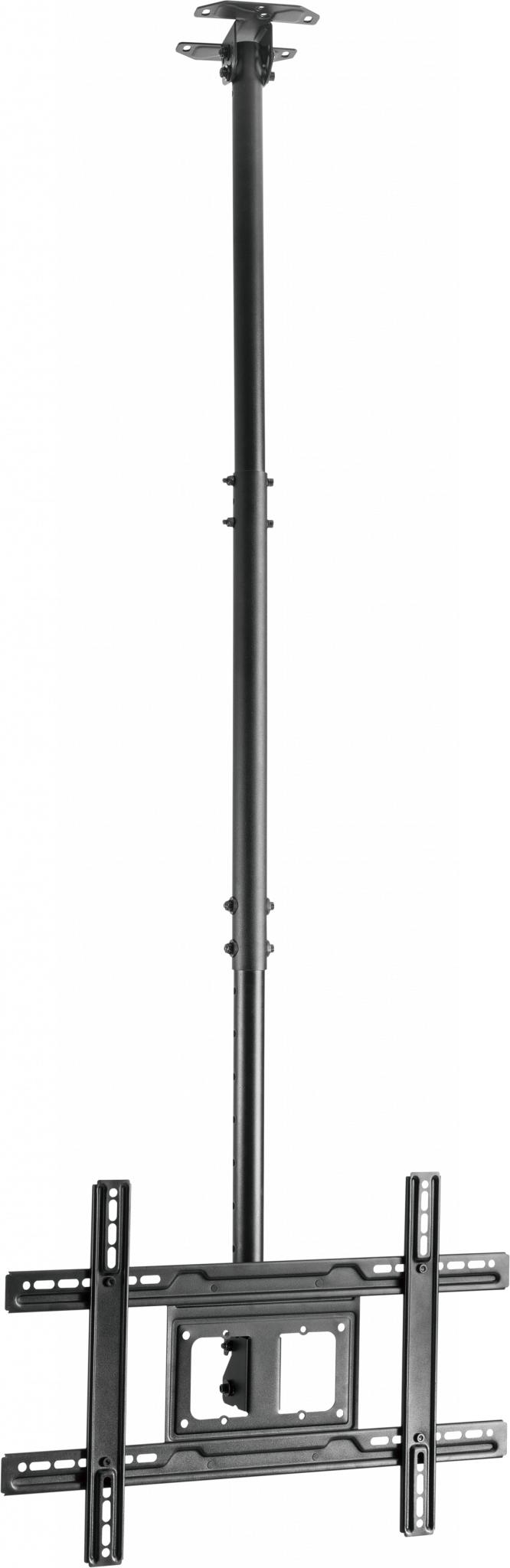

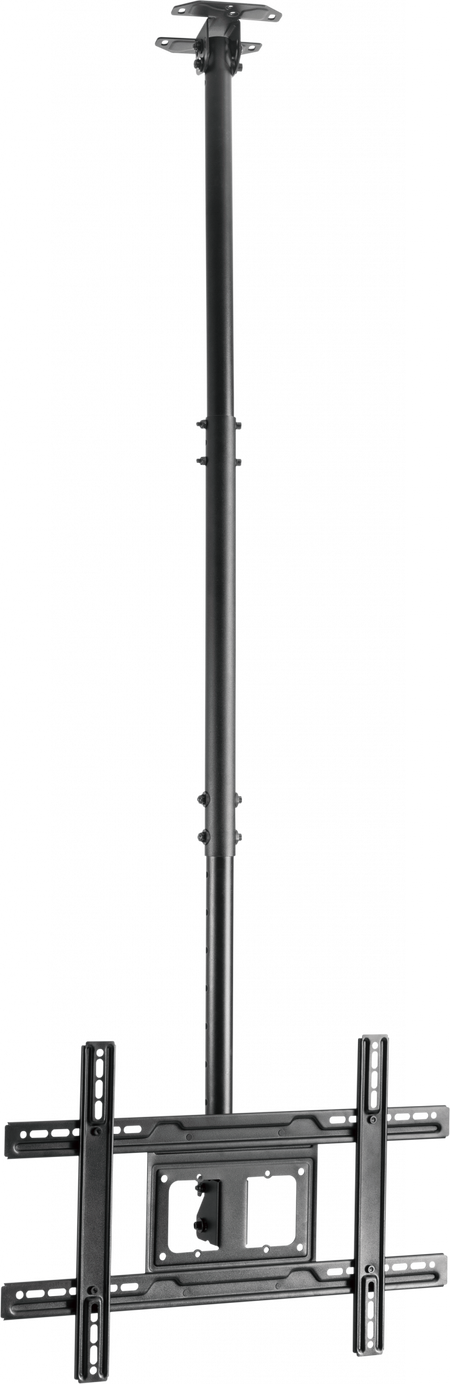

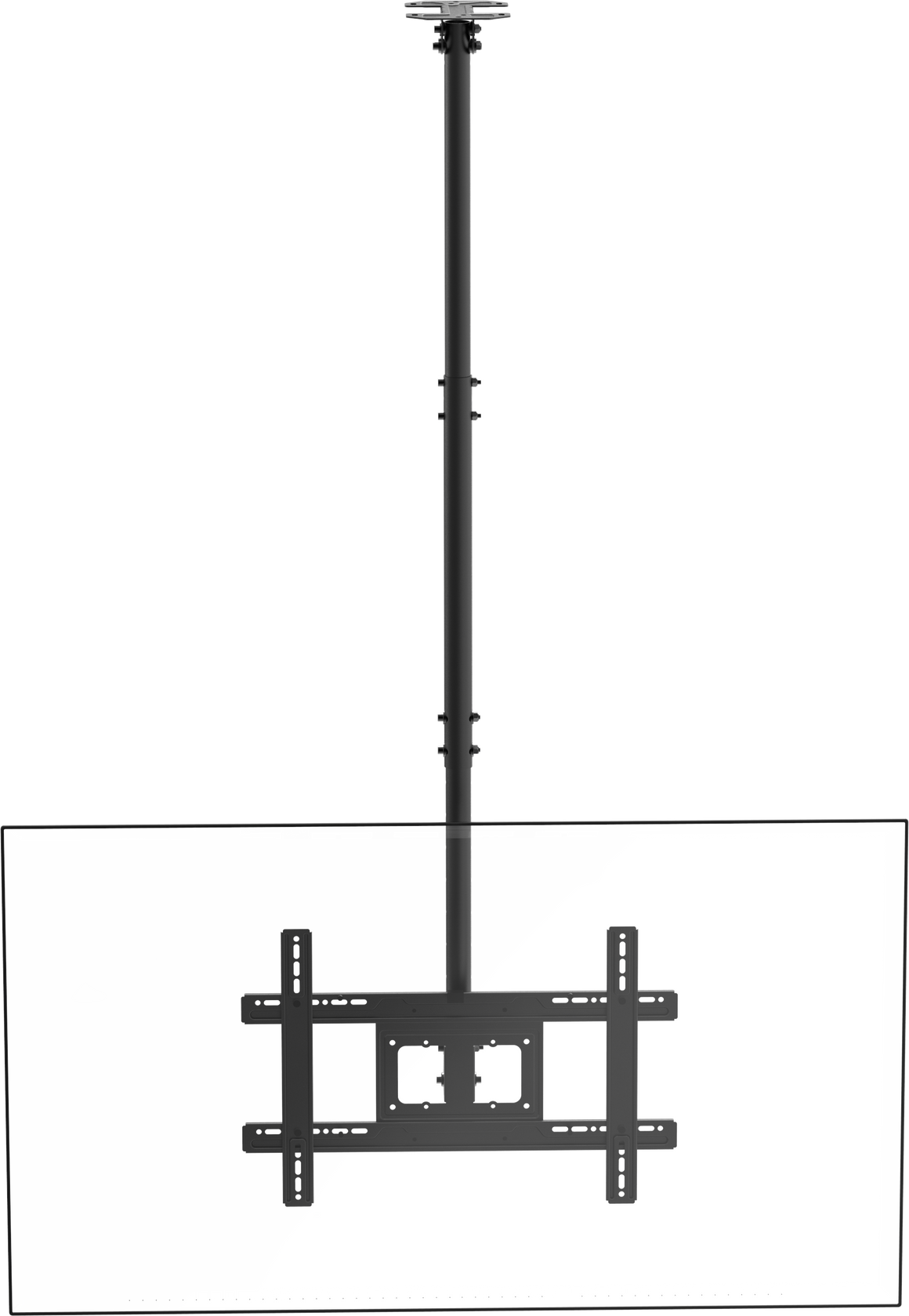

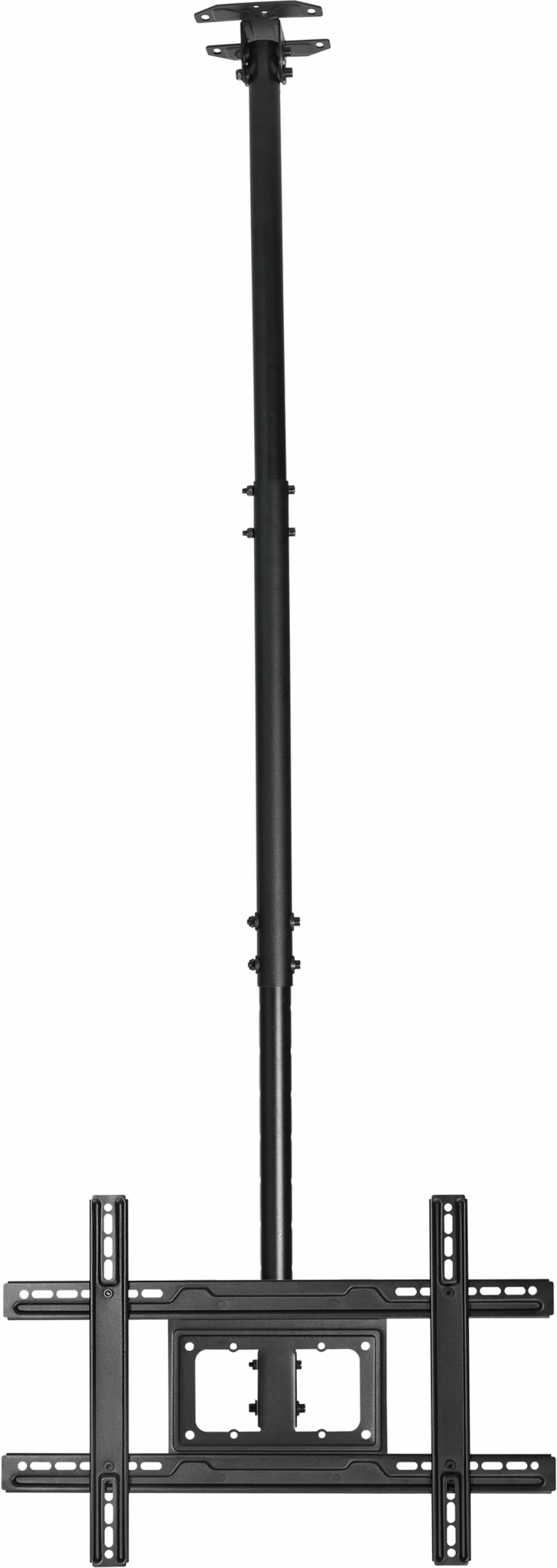

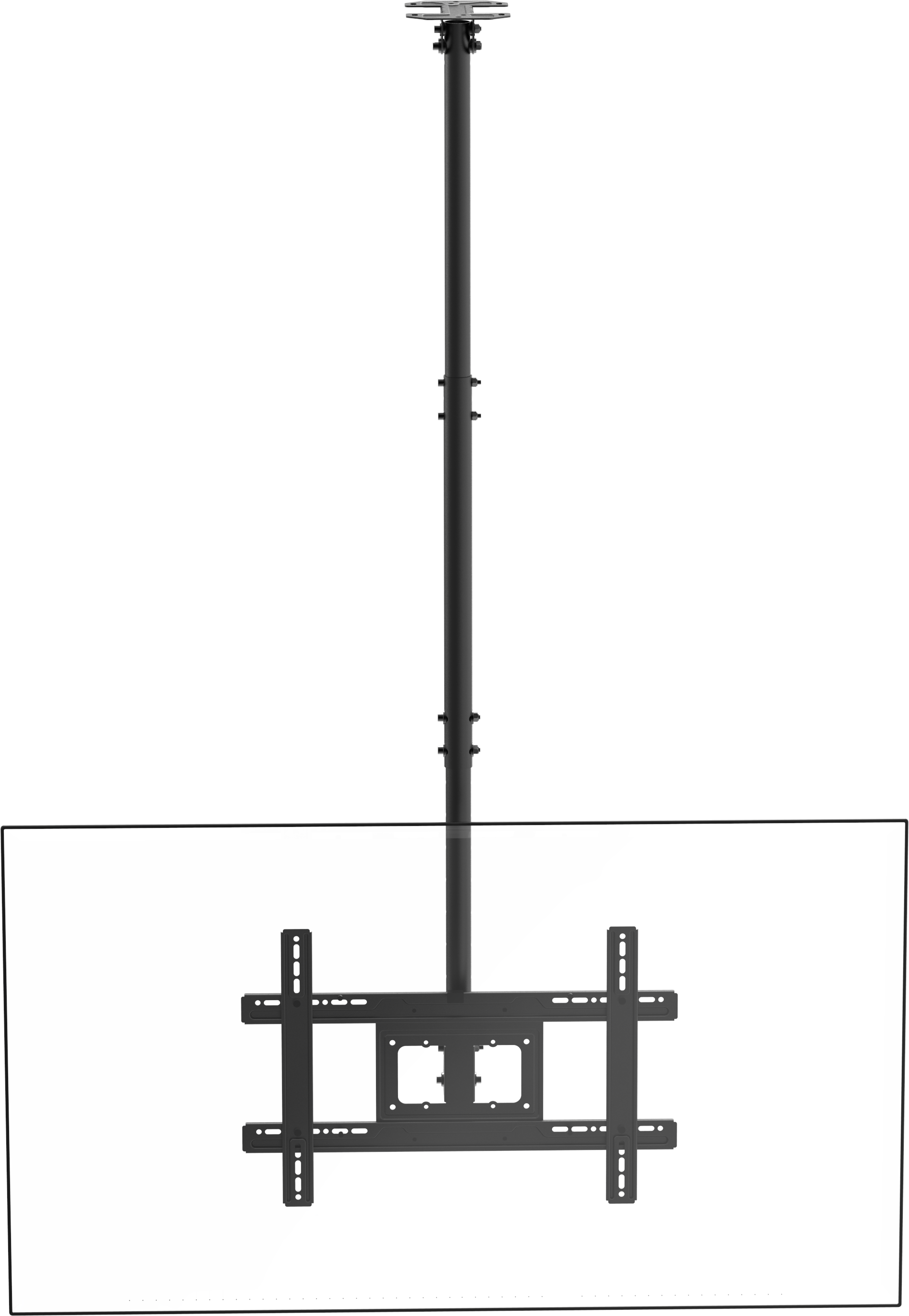

The Vision Ceiling Mount for LFD 600×400 vision’s VFM-C (Vision Ceiling Mount for LFD) is functional and flexible. This mount fits any flat-panel display which has rear mounting holes up to 600 wide x 400 mm tall apart.
Key Features
- Vesa: This mount is designed for flat panels which have holes up to 600 wide x 400 mm apart – known as VESA 600x400.
- MASSIVE range of drop: This distance from the ceiling to the centre of the display ranges from 707-1577 mm / 27.8-62.1".
- Detachable VESA: Vision make the installation process as easy as possible. The universal VESA bracket attaches to the display on the ground, then the assembly hangs in place.
- Cable Management: The 38 mm / 1.5" drop pole easily allows cables to drop down inside.
- 3-Part Pole: The pole can be assembled with either 2 or 3 sections which gives it an incredible range of telescopic adjustment. Installers can turn up to site and get the job done, no matter what they encounter onsite.
- MASSIVE VESA range: Fits small monitors from 20" all the way up to 75". If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.
- Tilt: The tilt adjustment allows the display to be directed at the audience to avoid glare and optimise the viewing angle. It can tilt 5 degrees up, or 25 degrees down.
- Swivel with display in place: 60 degrees of swivel range makes it really easy to install. Loosening the swivel adjustment bolts will not drop the display.
- Retail Applications: Ideal for doctors waiting rooms, dentist's ceilings, or to deliver digital signage in any retail environment.
- Cathedral Ceiling: The ceiling fixture tilts to accommodate sloping ceilings. It can tilt to 90 degrees to fix to the side of a ceiling joist.
Specifications

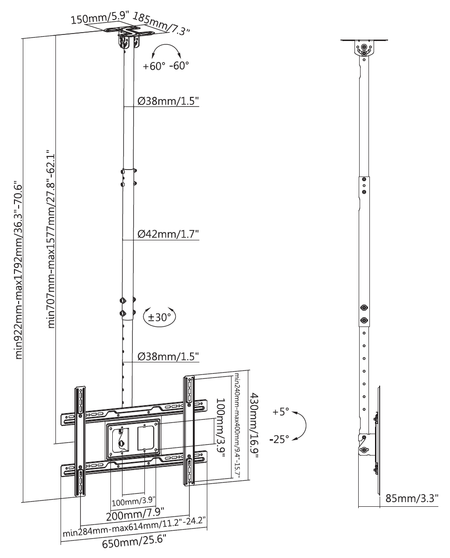

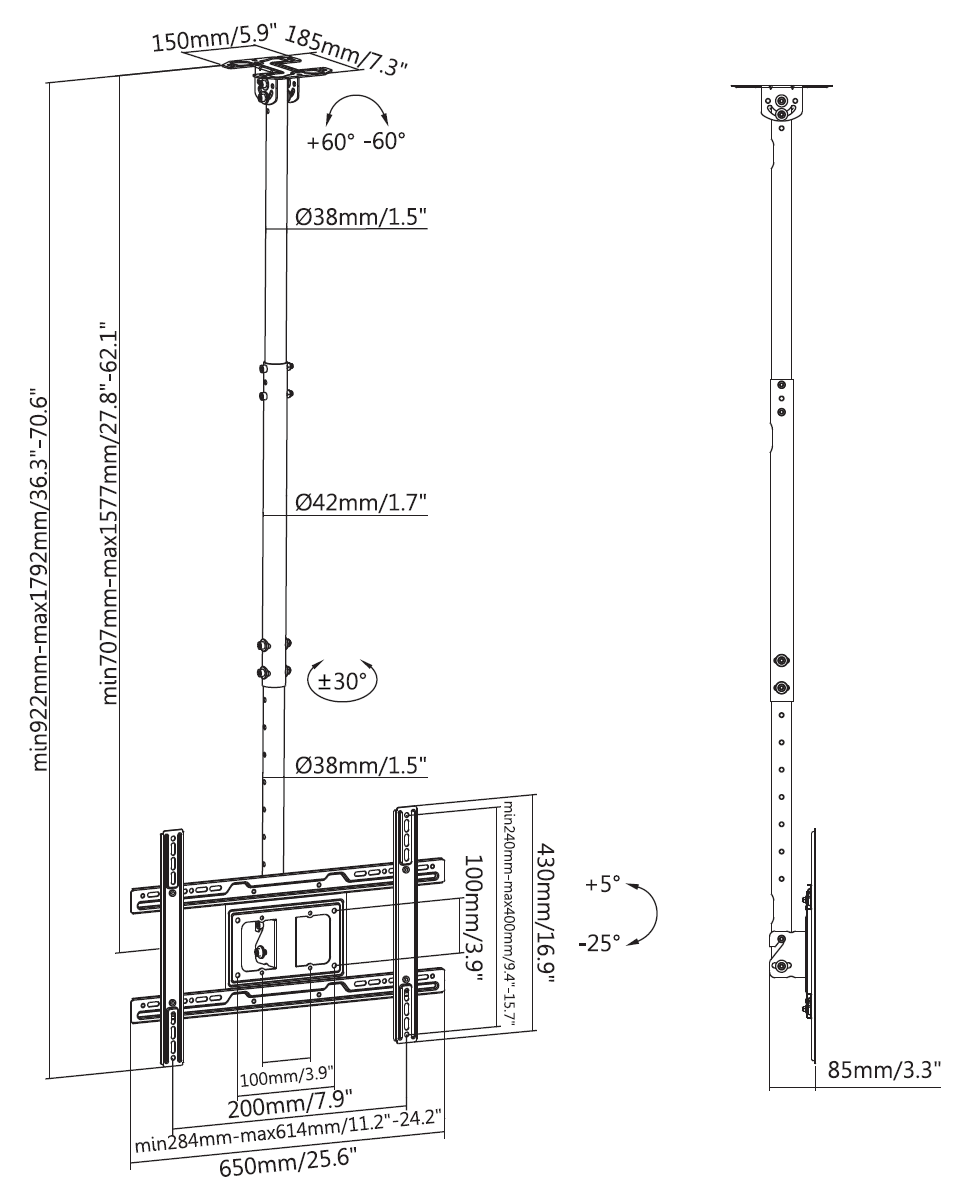

| Product Dimensions | 922-1792 x 650 x 185 mm / 36.3-70.6" x 25.6" x 7.3" (height x width x depth) |
| Distance From Ceiling to Centre of Display | 707-1577 mm / 27.8-62.1" |
| Packaged Dimensions | 780 x 245 x 180 mm / 30.7″ x 9.7″ x 7.1″ (length x width x height) |
| Product Weight | 7.3 kg (16 lbs) |
| Packaged Weight | 9.1 kg (20.1 lbs) |
| Safe Working Load | 50 kg (110 lbs) Tested to withstand 3 x SWL |
| Construction Material | Steel |
| Colour | Powder coated Black |
| Vesa Size | 600 x 400 mm 500 x 400 mm 400 x 400 mm 400 x 300 mm 300 x 400 mm 300 x 300 mm 200 x 200 mm 200 x 100 mm 100 x 200 mm 100 x 100 mm (mounting plate is 230 x 230 mm / 9" x 9" and may interfere with input cables on rear of monitor - check first) |
| Compliances | RoHS, REACH |
| Country of origin | China |
What's in the Box
- 4 x M4 14 mm screws
- 4 x M5 14 mm screws
- 4 x M6 14 mm screws
- 4 x M6 30 mm screws
- 4 x M8 30 mm screws
- 4 x M8 50 mm screws
Warranty
The Vision Ceiling Mount for LFD 600×400 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
