Vision Close-Coupled Projector Ceiling Mount

The Vision Close-Coupled Projector Ceiling Mount the Techmount TM-CC is a universal projector ceiling bracket designed to secure 99% of data projectors safety and sturdily to ceilings. It is designed for applications where no ‘drop’ is required so no pole is included.

Key Features

• Robust Construction: High standard of finish and over-engineered for stability and safety. A rugged high-quality satin-white finish blends with ceiling tiles.

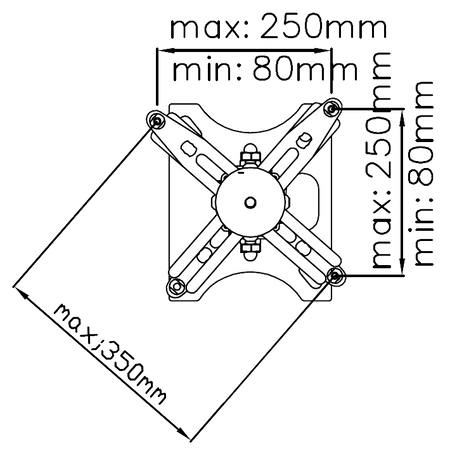

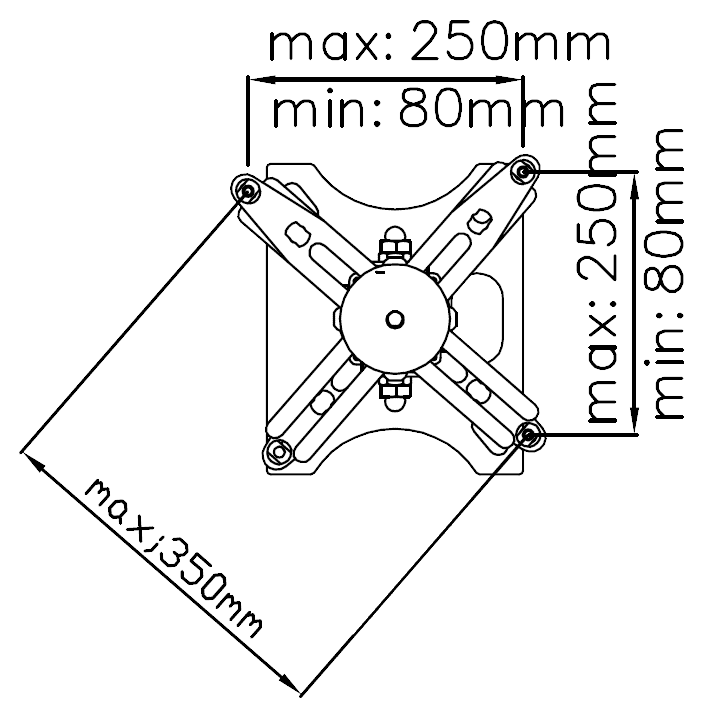

• Manoeuvrable: The top and bottom parts can rotate 360 degrees, and the spider arms have a maximum span of 340mm.

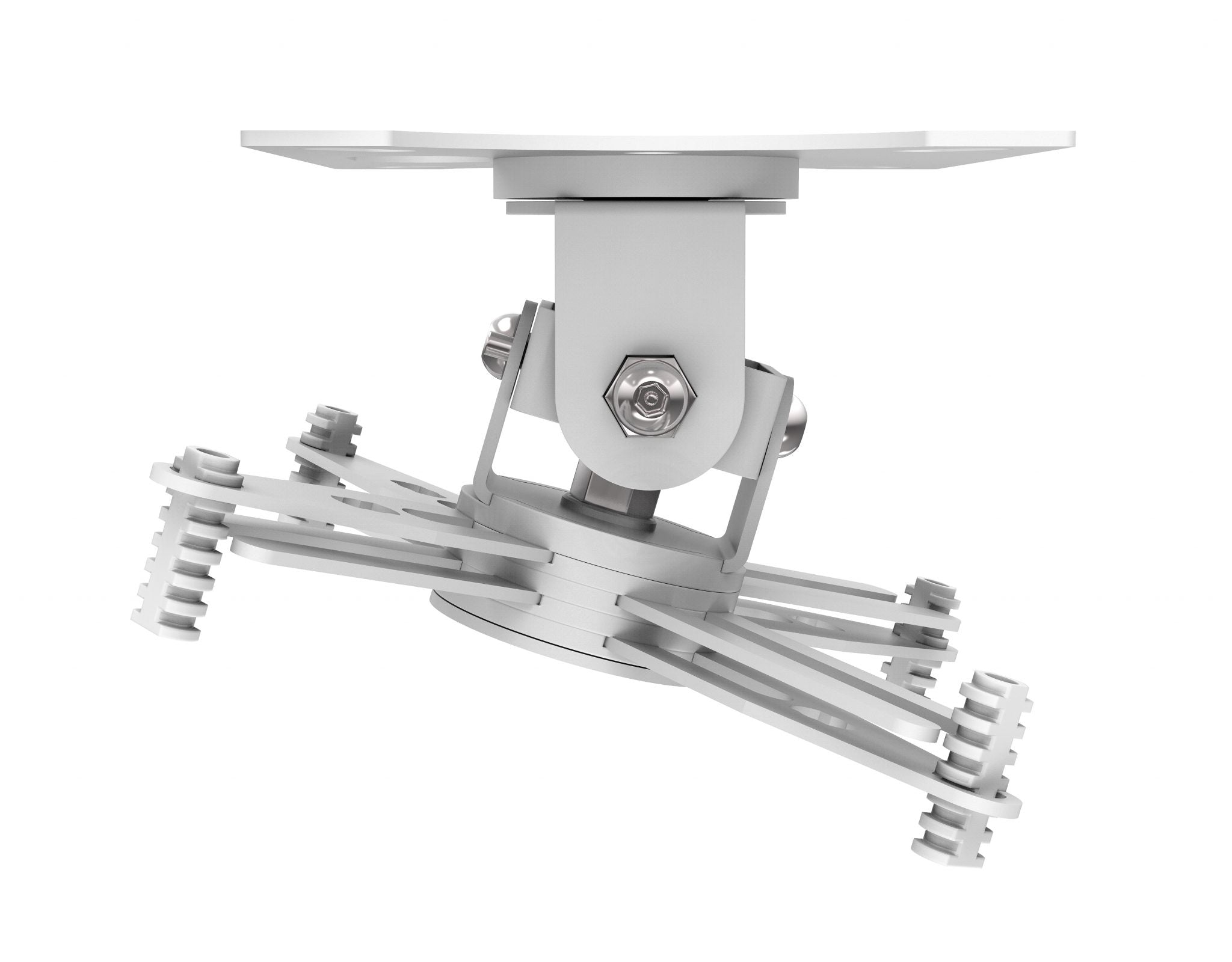

• Sloping Ceilings?: A tilting mechanism is built in allowing you to use the bracket with cathedral-type ceilings.
• Safety Approved: As with all projector Techmounts a safety cable is included to attach to the projector. The TM-CC has a recommended maximum safe working load (SWL) of 10kg which is well within the limits of the product.
• Easy fit: Fitting the bracket to the projector is simple; most projectors have threaded inserts in the bottom for attachment.
• Tools Included: A spanner and pin-hex key are included.
• Secure: Quick-release mechanisms make life easier for thieves so the TM-CC comes with secure pin-hex bolts.
• Universal projector ceiling mount for close-to-ceiling installation: Universal projector ceiling mount for close-to-ceiling installation
• All parts included: All parts included and arrives 95% assembled reducing time onsite
• 4 fully adjustable spider arms fit: 4 fully adjustable spider arms fit 99% of projectors

Specifications

What's in the Box

• 1 x H50 Pin-Hex key
• 1 x 17mm Spanner
• 4 x M2.5 40mm pan slot for Optoma & Acer
• 4 x M3 40mm screws
• 4 x M4 40mm screws
• 4 x M5 40mm screws
• 4 x M6 40mm screws
• 1 x Safety Tether

Warranty

The Vision Close-Coupled Projector Ceiling Mount is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
