Vision Control Module
Control Module
In stock
Regular price
£216.40
Secure Checkout
Warranty Protection
Hassle-Free Returns

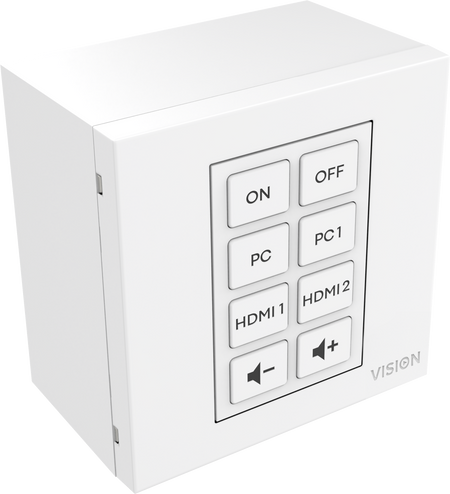

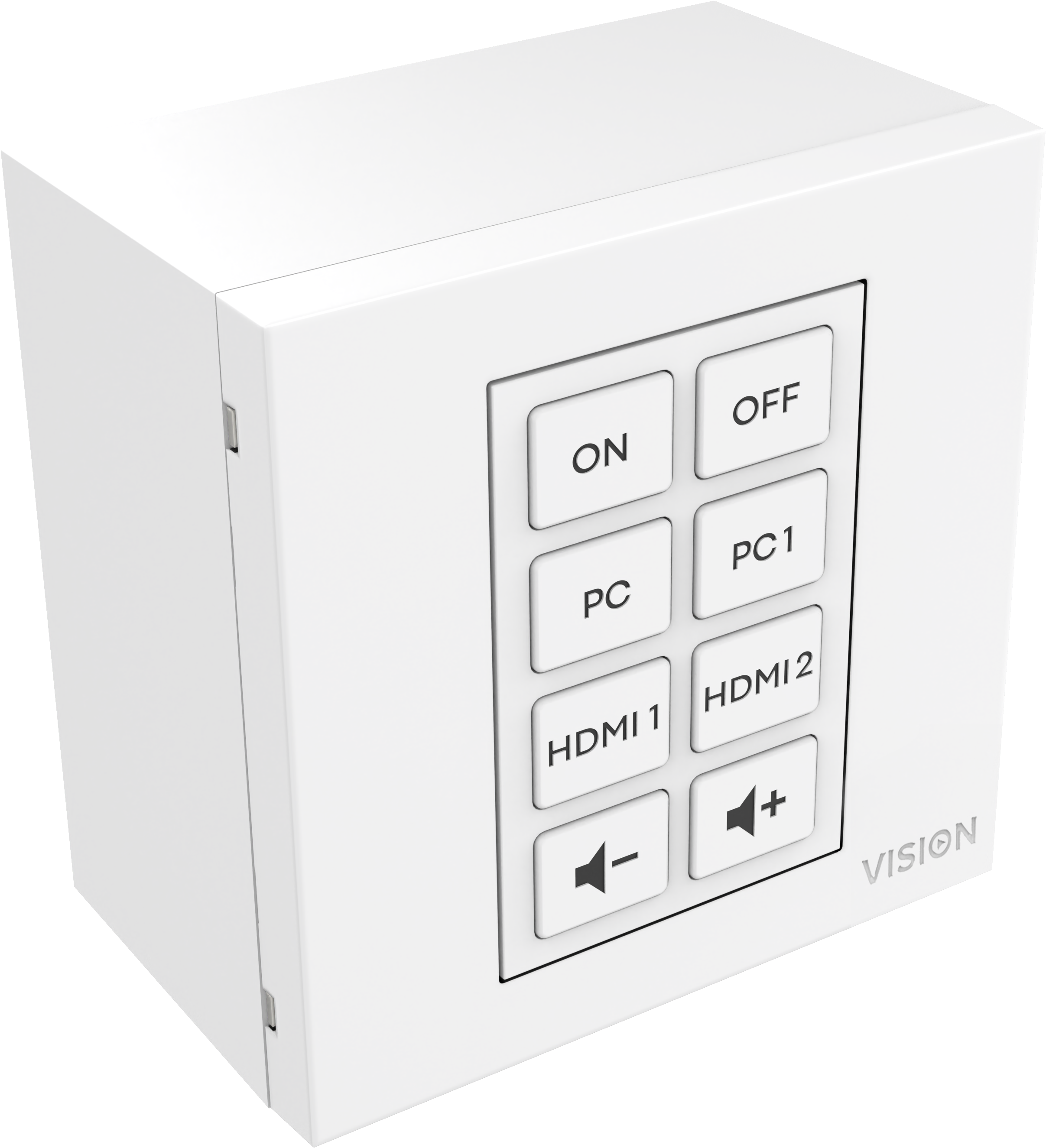

The Vision Control Module the Techconnect Control puts the end user at the centre of AV system design. It is what control should be for end users: simple.
Key Features
- Modes: Activate learning mode by holding down buttons 3 and 4.
- Digital Signage Shutoff: An onboard clock allows you to create schedules. For instance, trigger the automatic shutdown of digital signage in a store every night.
- Cloud Software: New browser-based programming software uses the same simple approach, but adds many features.
- Pronto Compatible: You can import pronto formatted IR codes.
- Crowd-Sourcing: If an AV installer adds new codes to the software library that work, everyone will have access to those codes.
- IR Learning: IR codes can be added by using the original remote pointed at the back of the module, or by copying and pasting the code in the software.

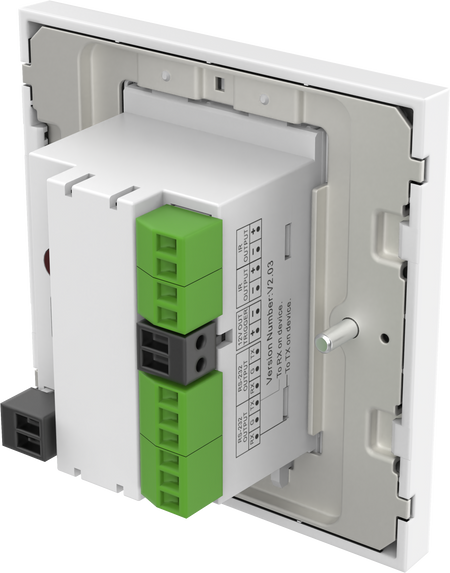

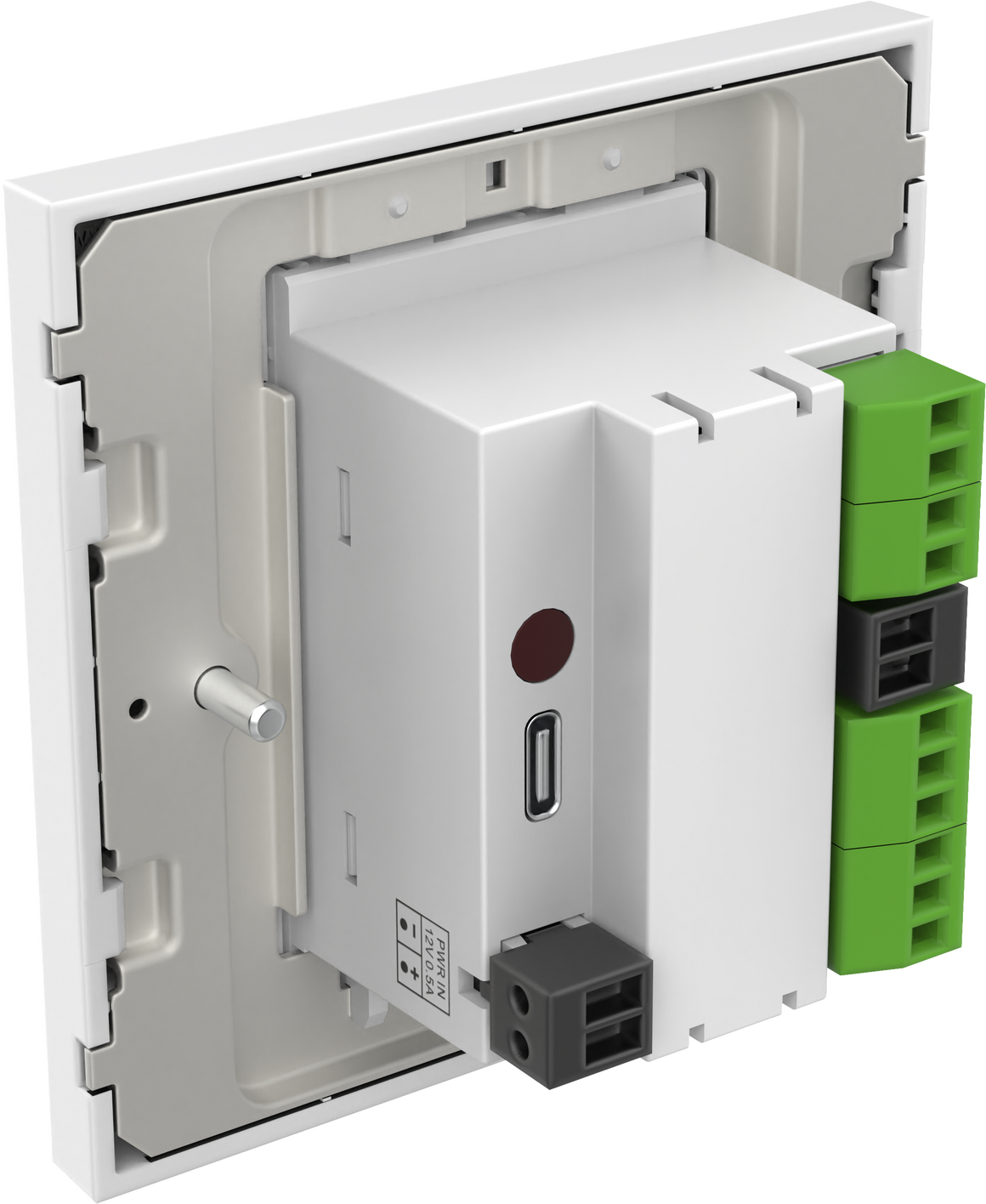

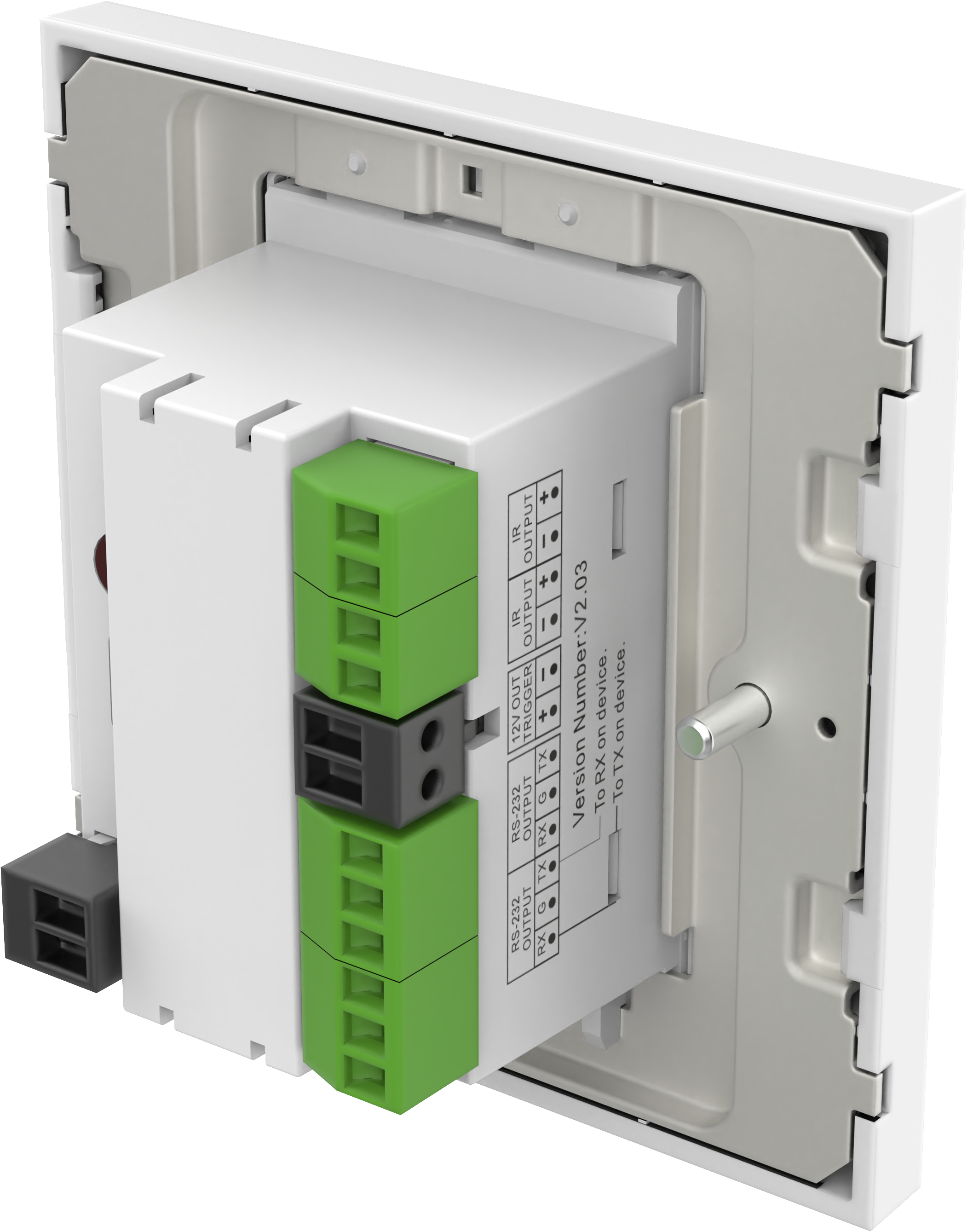

- 2 x IR Emitters: On the rear of the module are two IR ports.
- 2 x RS-232: On the rear of the module are two RS-232 ports. It comes with a short 9-pin serial cable which plugs into the phoenix port on the Control. This device this only sends codes, and does not read them.
- 12v Trigger: For activating relay devices with a 12v (2.4w) trigger voltage, such as motorised projection screens.

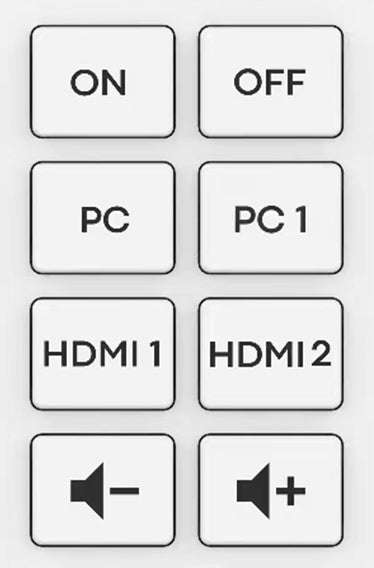

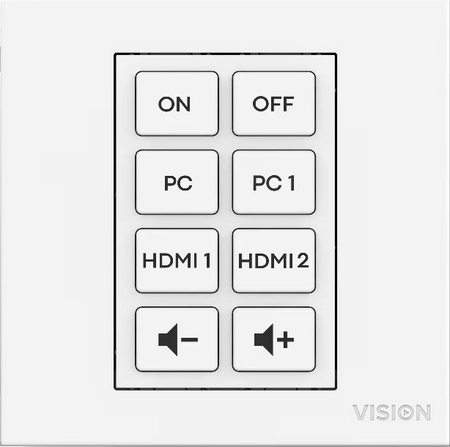

- Multi-Action Buttons: Each button can transmit multiple codes, of multiple types. So for example pressing the ON button can send commands to all AV devices simultaneously.
Specifications
| Product Dimensions | 64 x 42 x 48 mm / 2.52" x 1.65" x 1.89" (length x width x height) |
| Backbox Dimensions | 86 x 86 x 45mm / 3.39″ x 3.39″ x 1.77″ |
| Surround Dimensions | 86 x 86 x 8mm / 3.39″ x 3.39″ x 0.31″ |
| Packaged Dimensions | 180 x 150 x 63 mm / 7.09″ x 5.91″ x 2.48″ |
| Product Weight | 63 grams / 0,14 lb |
| Packaged Weight | 0.83 kg / 1.8 lb |
| Material | Backbox: ABS Surround and modules: PC |
| Colour | White |
| Power Supply | 100-240v AC 50/60Hz 12 volt / 0.5 amp Transformer integrated into plug |
| Includes Interchangeable Plugs | UK/EU/AU |
| Dc Tail Length | 4 m |
| Transformer Dimensions | 66 x 43 x 30 mm / 2.6″ x 1.69″ x 1.18″ |
| Static | 5 uA |
| Sending | 20 mA |
| Copying | 10 mA |
| Compliances | RoHS, WEEE, CE/EMC, C-TICK , UKCA |
| Country of origin | China |
What's in the Box

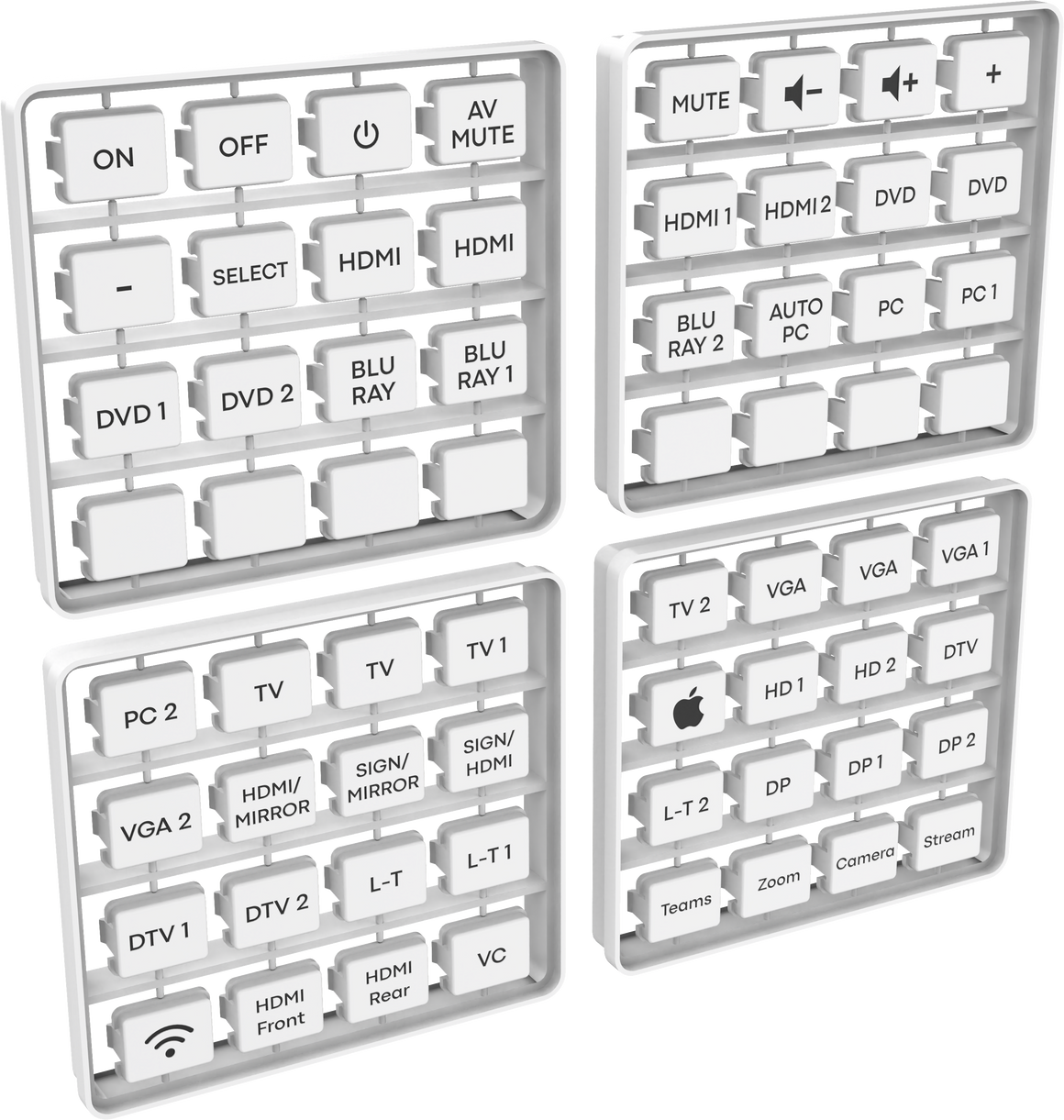

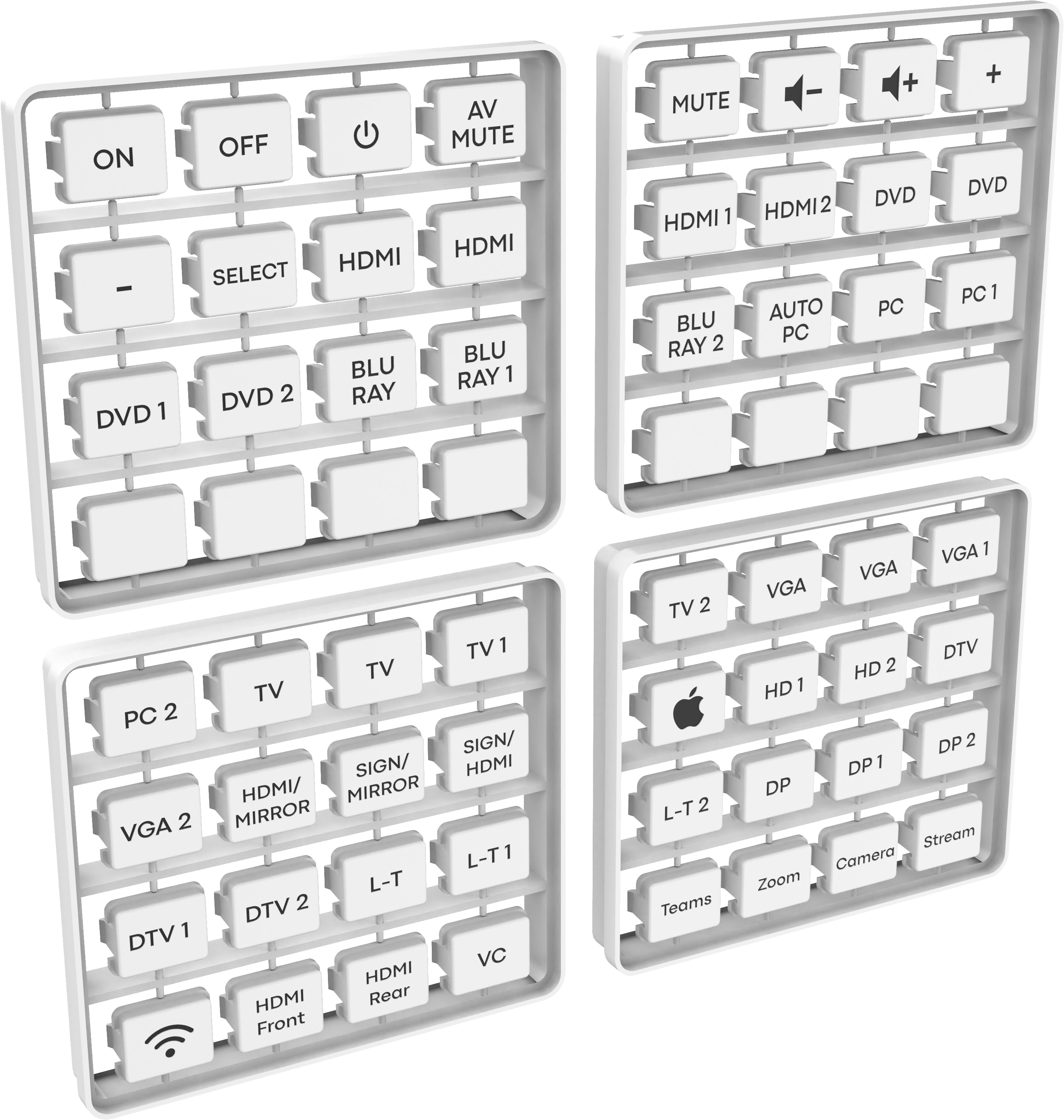

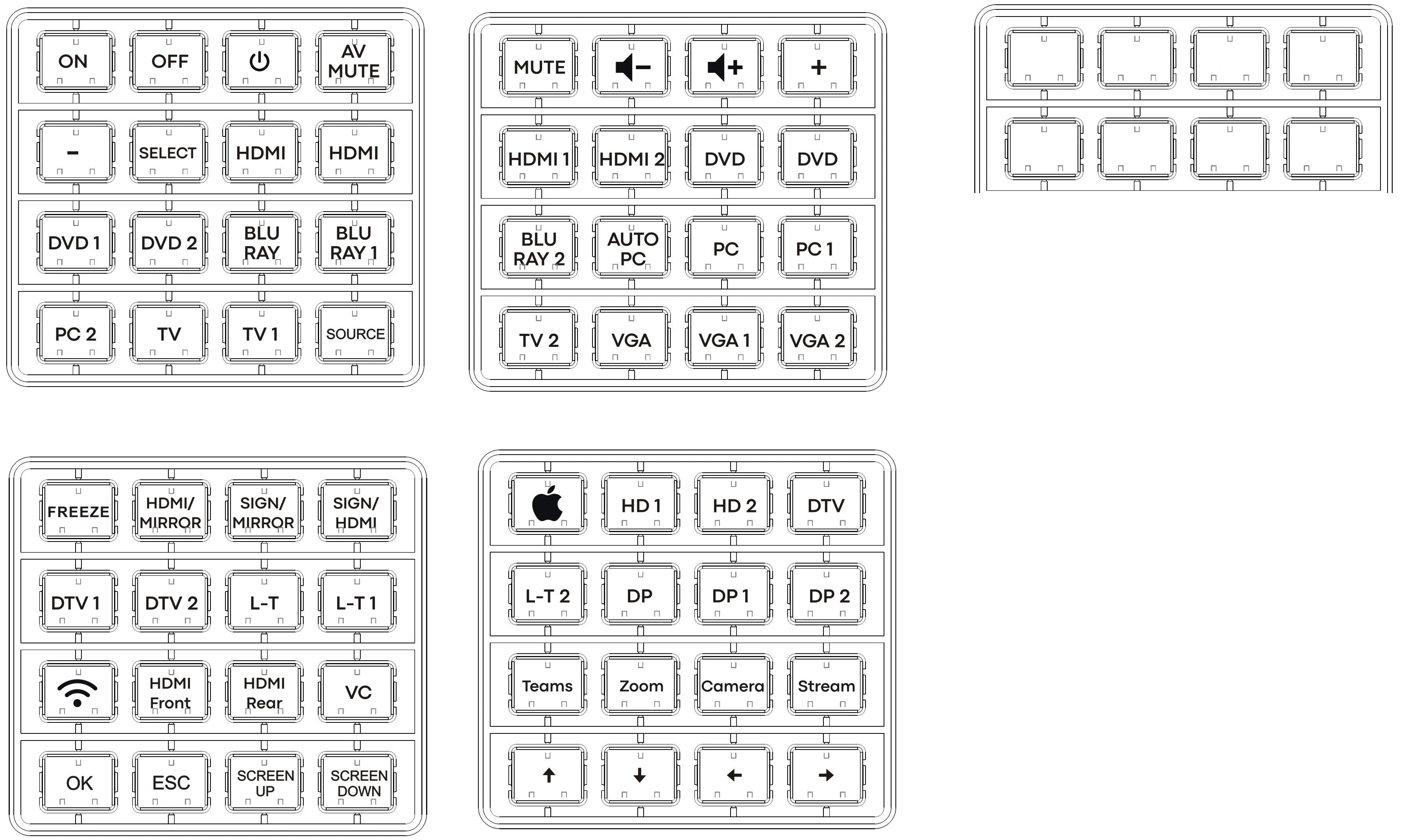

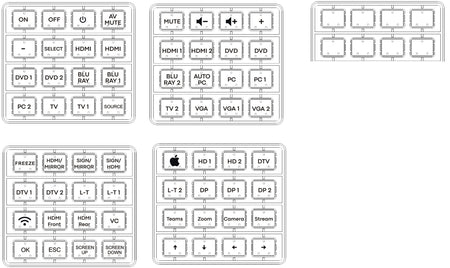

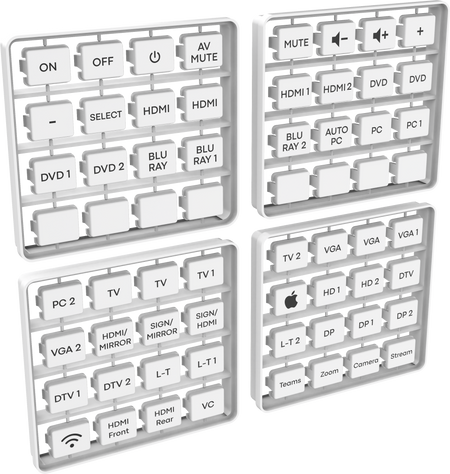

- 48 x buttons

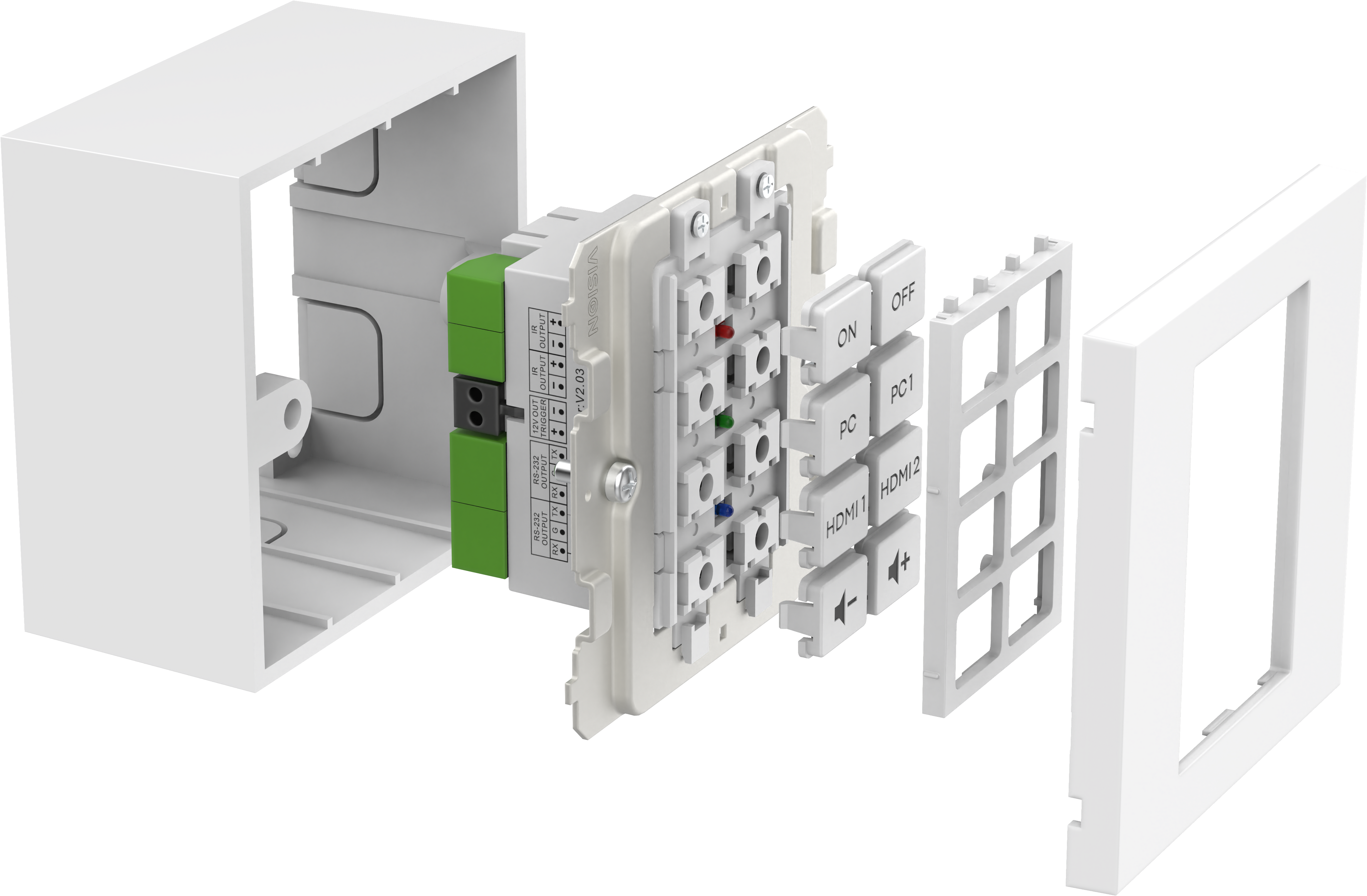

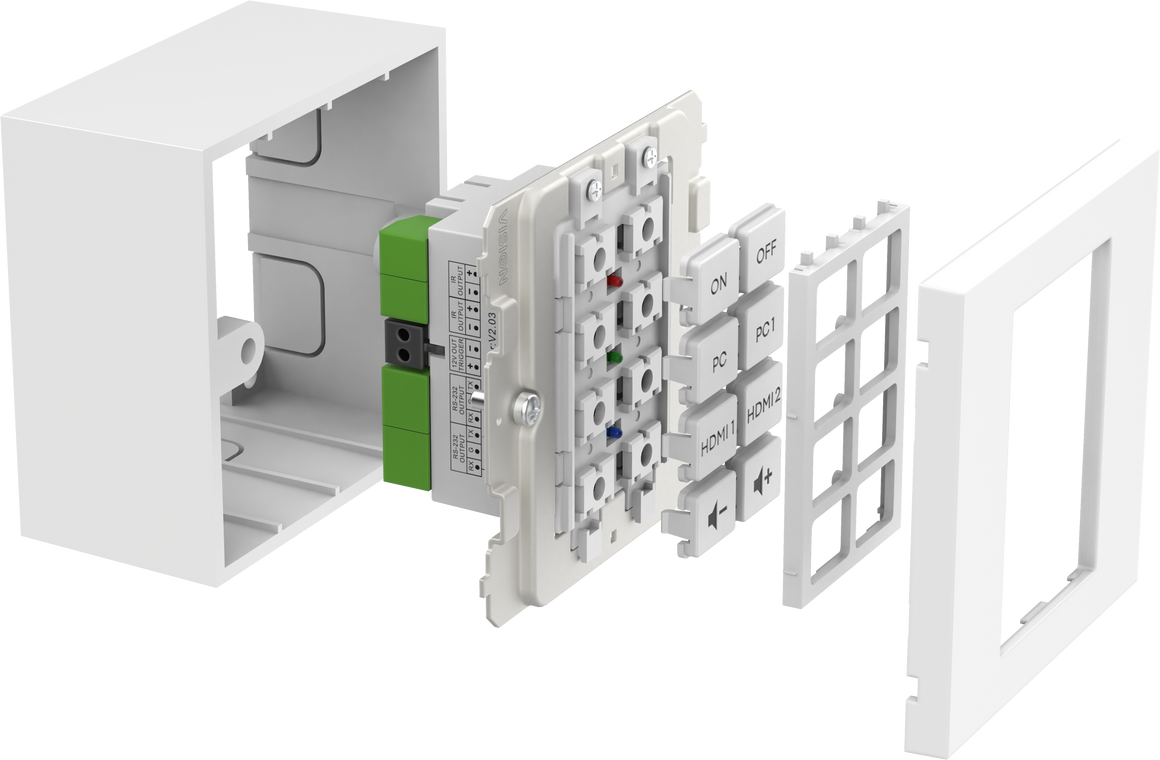

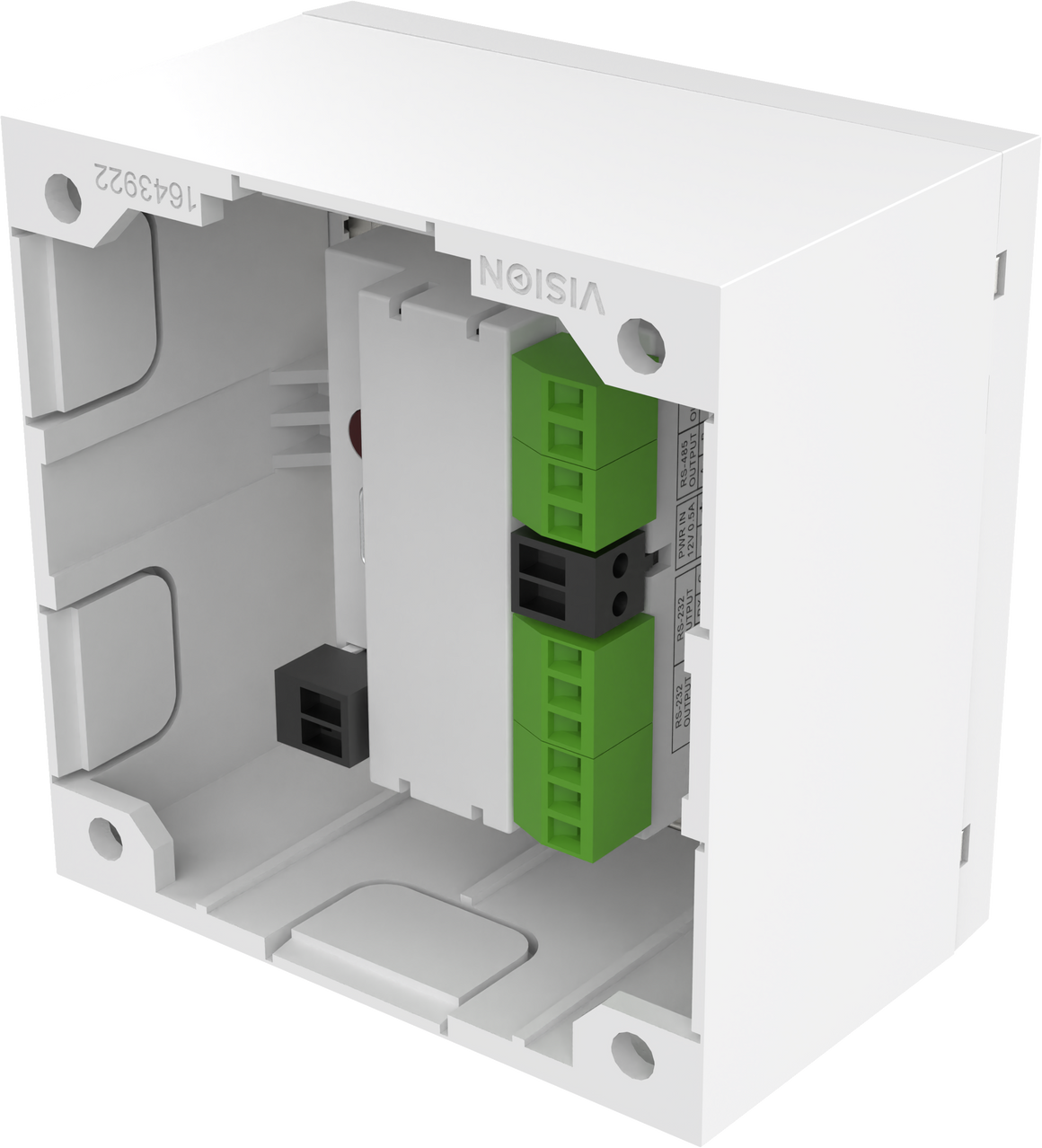

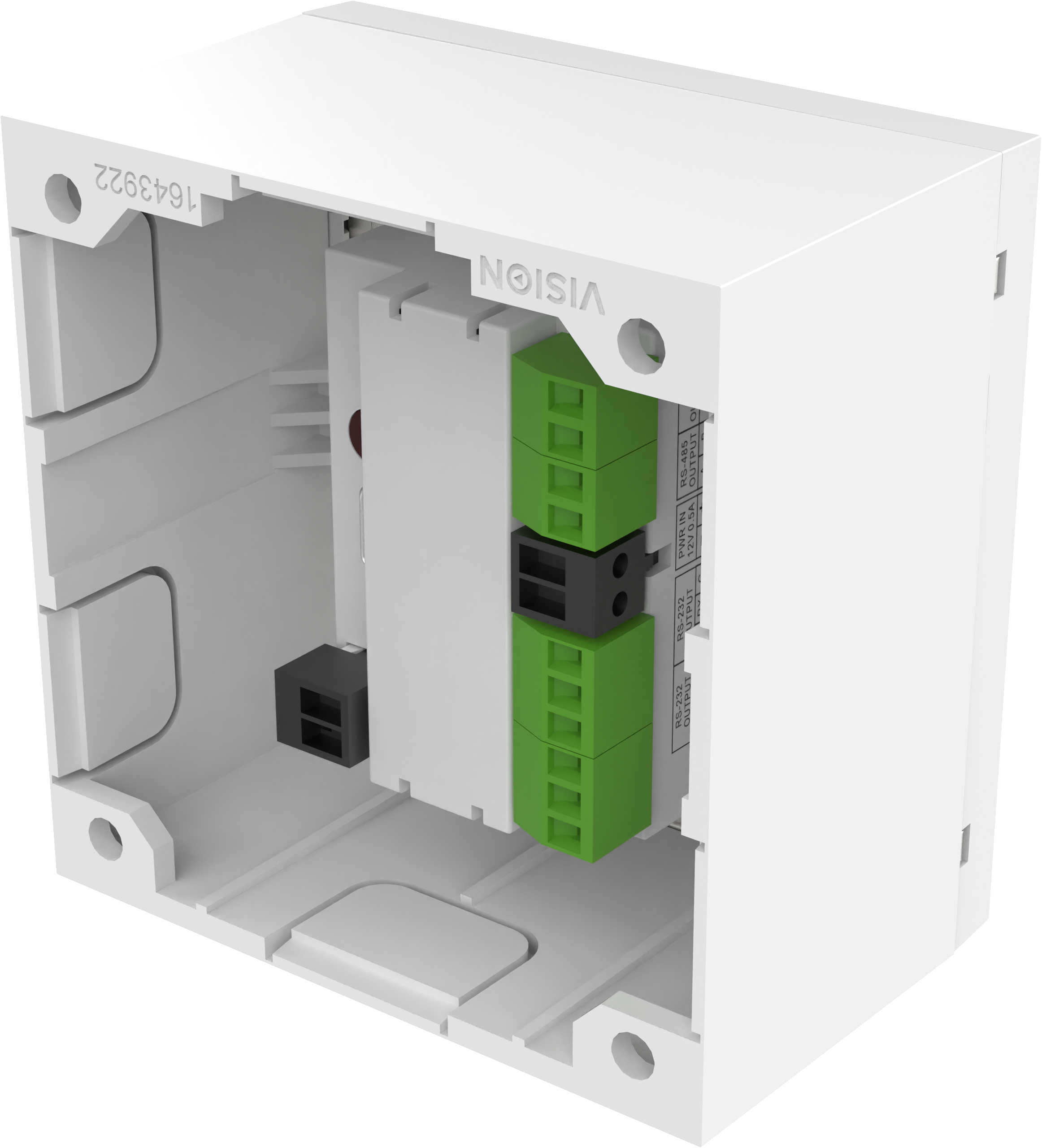

- 1 x Single-Gang Techconnect Backbox
- 1 x Single-Gang Techconnect Surround
- 1 x IR Blaster with 20 m cable
- 1 x IR Blaster with 150 mm (5.91″) cable (terminated with female minijack)

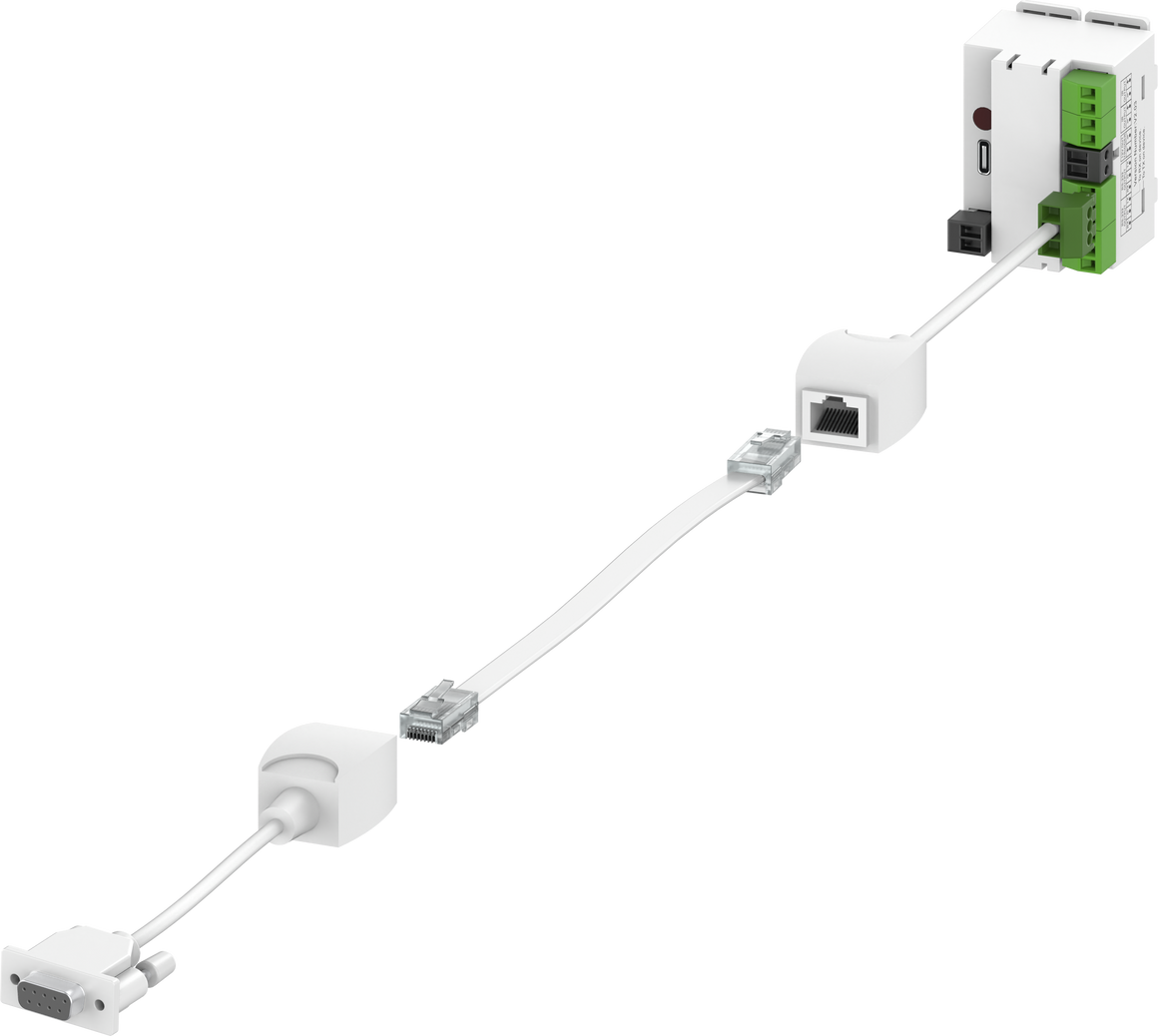

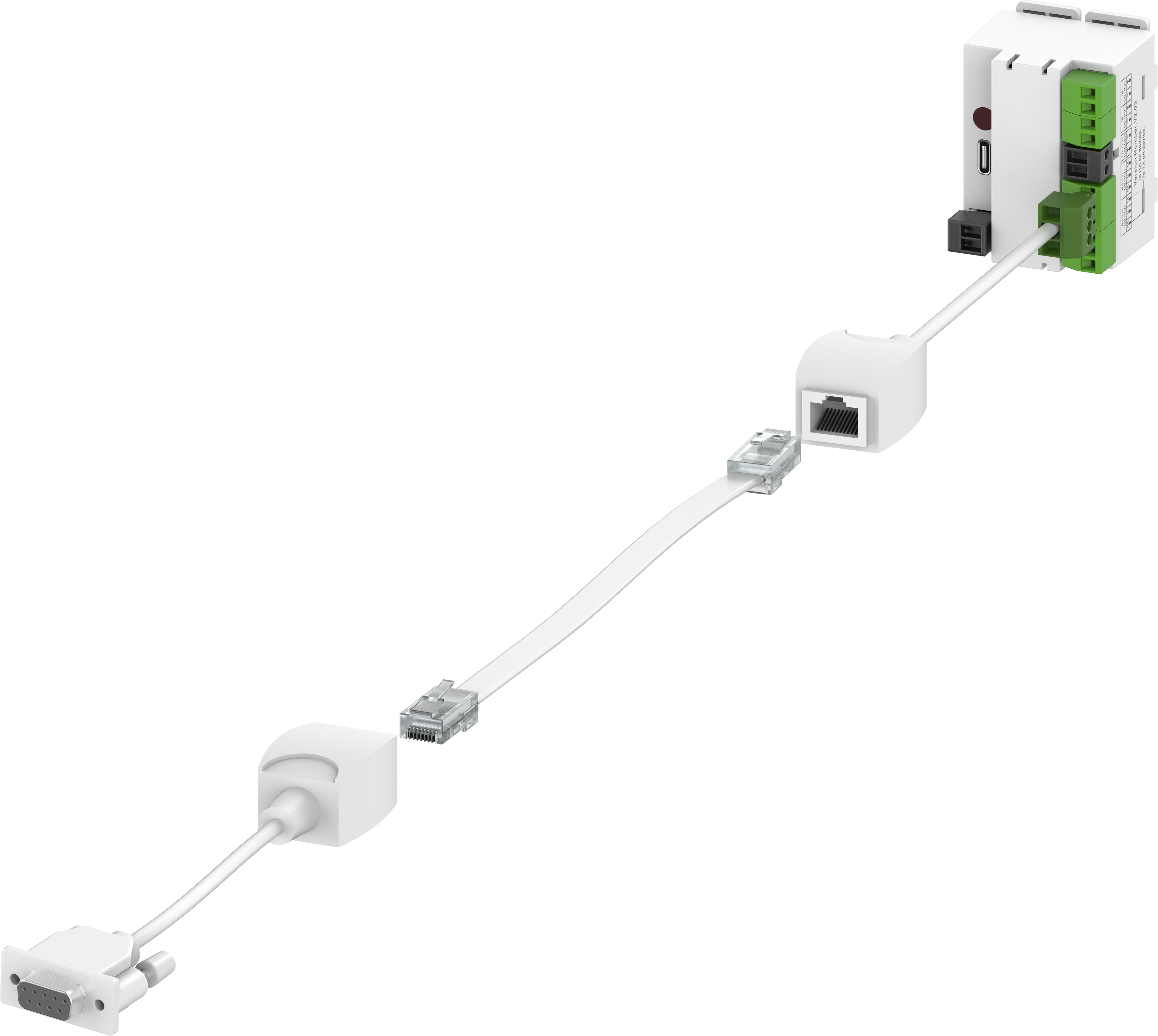

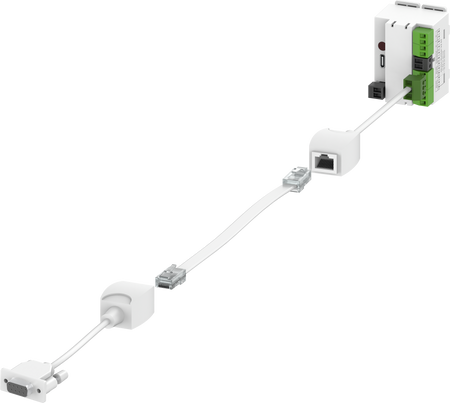

- 1 x RS-232 Phoenix (male) to RJ45 (female) 100 mm (4″) serial adaptor cable
- 1 x RS-232 RJ45 (female) to DB9 (female) 100 mm (4″) serial adaptor cable
Warranty
The Vision Control Module is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision Control Module supports meeting and presentation spaces where a dependable Techconnect AV module is required. |
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
