Vision Display Easel-Style Trolley 100kg
Display Easel-Style Trolley 100kg
In stock
Regular price
£294.39
Secure Checkout
Warranty Protection
Hassle-Free Returns

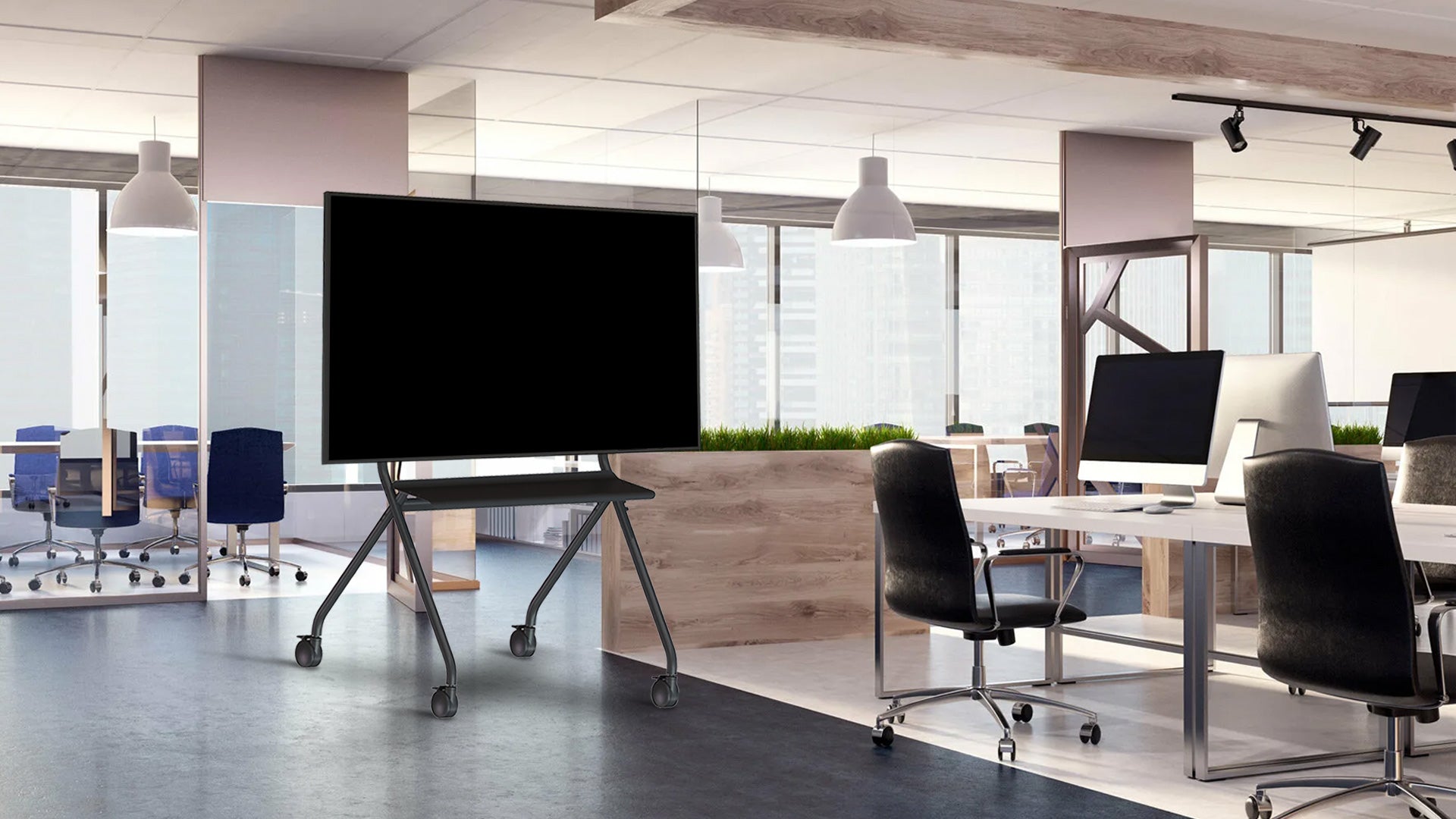

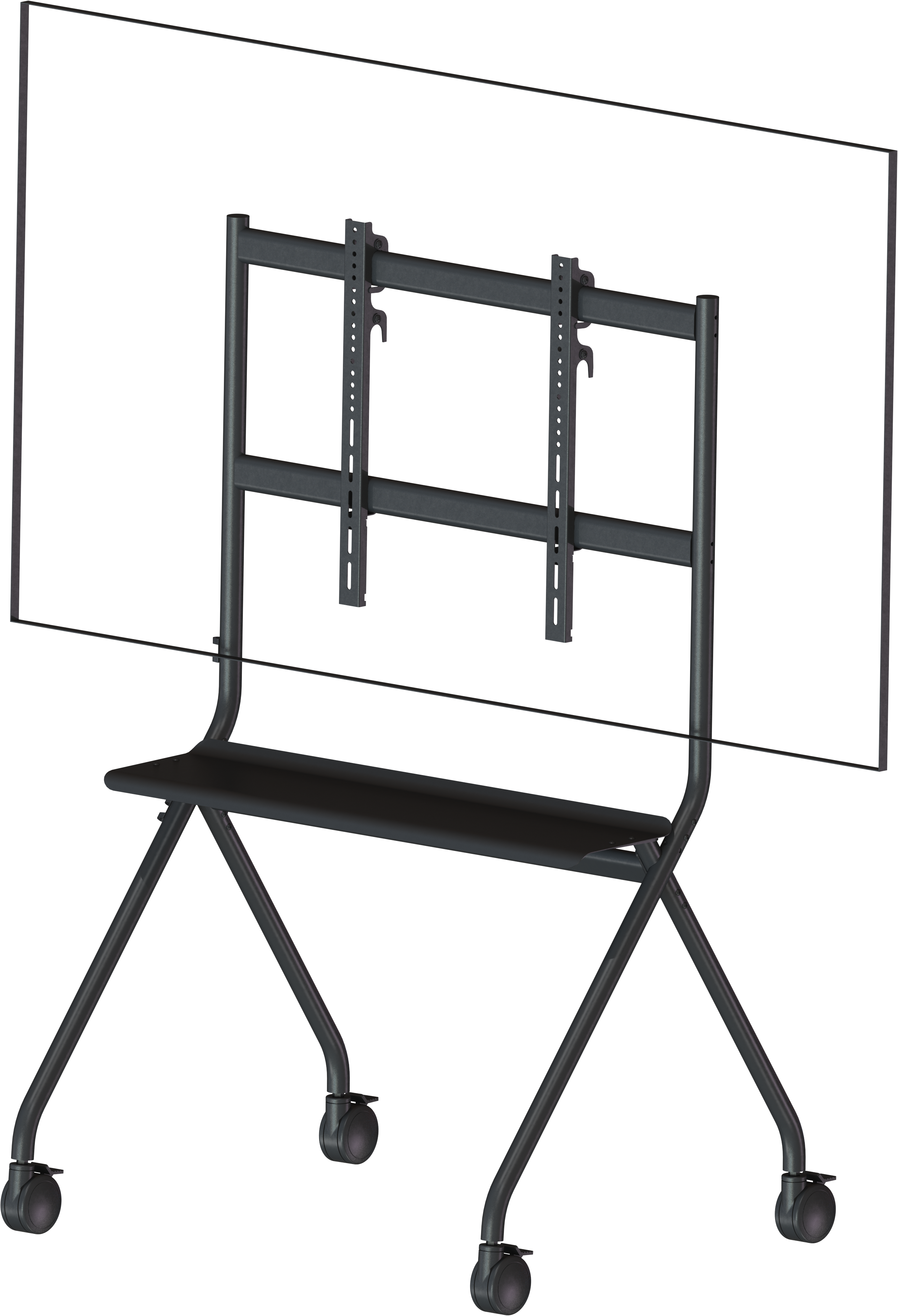

The Vision Display Easel-Style Trolley 100kg created for Microsoft Teams Rooms and Zoom rooms, this floor stand for displays is incredibly simple to put together and use. It comes with a spacious shelf designed to accommodate all types of video conferencing equipment.
Key Features
- SWL 100 kg (220 lb): Constructed from robust steel and rigid cast alloy, the frame provides steadfast support for heavy touch-screen displays.
- Quick Assembly: Our emphasis has been on minimizing the variety and quantity of screws needed for the assembly process.
- 55-100″ Displays: Any display weighing under 100 kg (200 lb) and featuring a VESA pattern of up to 900 x 600 mm is compatible with this floor stand.
- Locking Wheels: High-quality 4-inch (100 mm) castors smoothly glide over uneven surfaces, ensuring effortless manoeuvrability of the cart. The larger wheels also diminish vibrations for your valuable AV equipment.

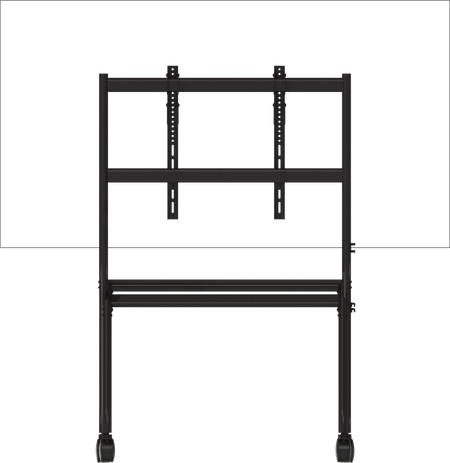

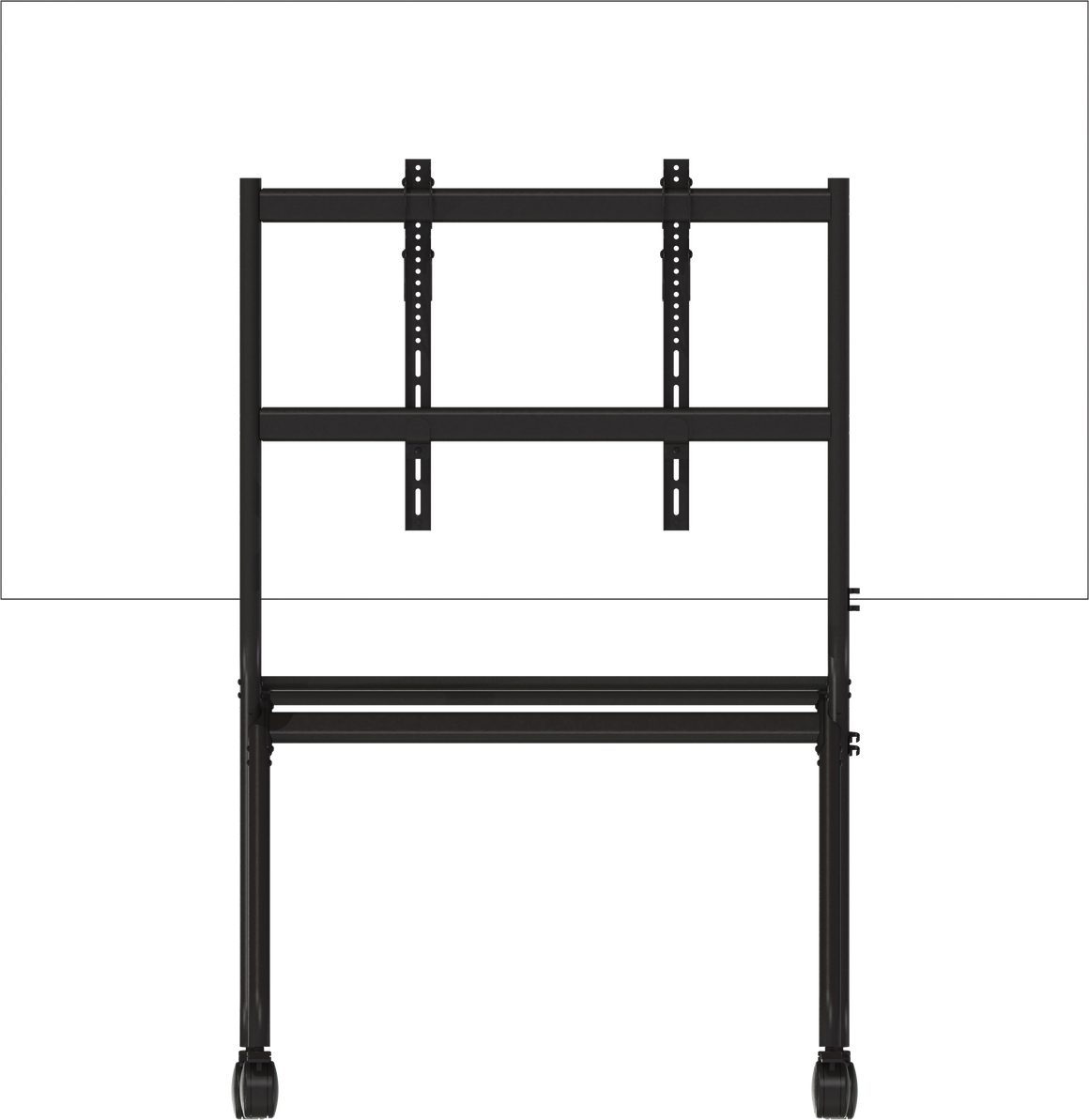

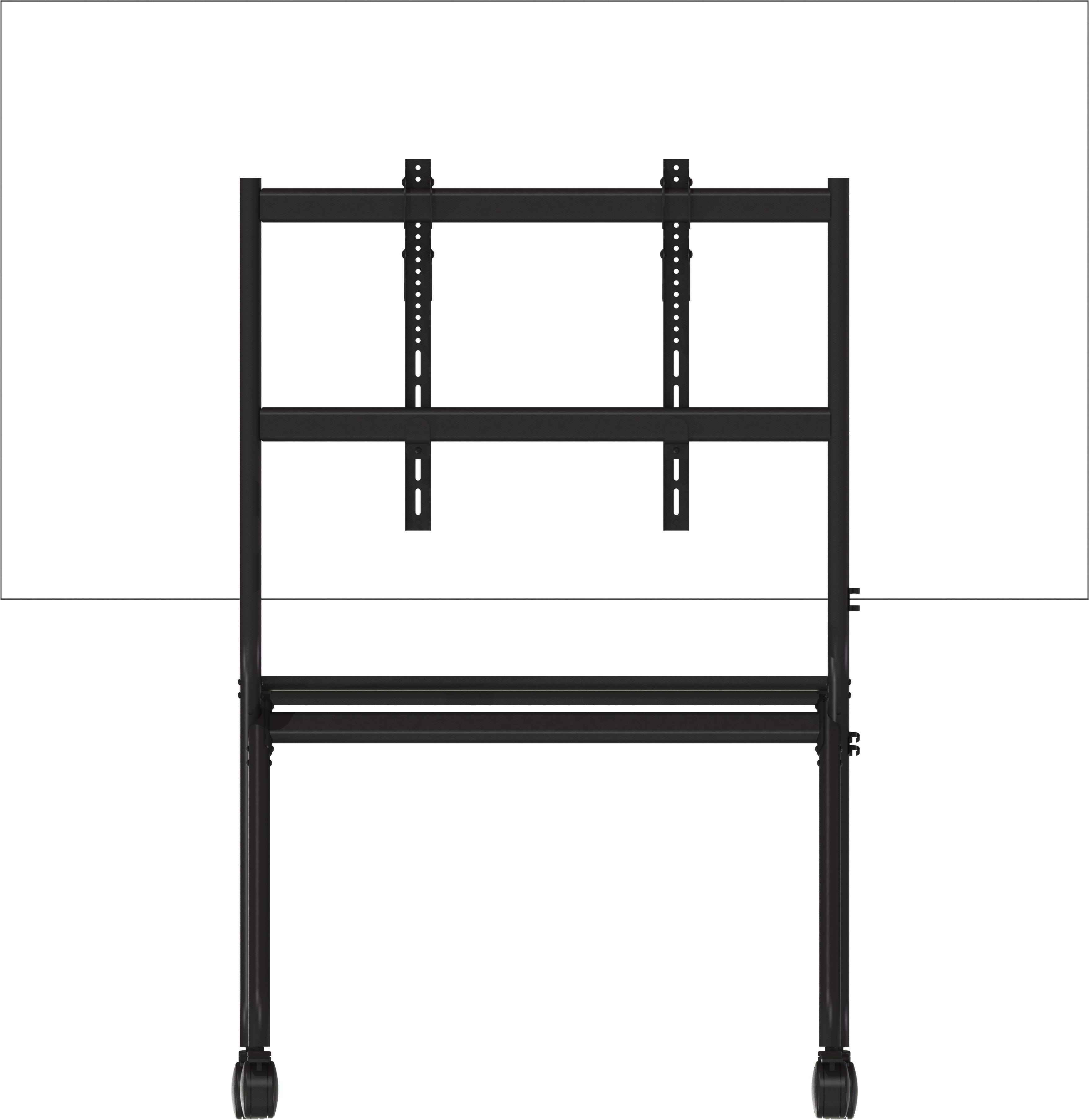

- Variable Height: The VESA brackets can be fixed to the floor stand at two height positions, enabling additional height adjustment.

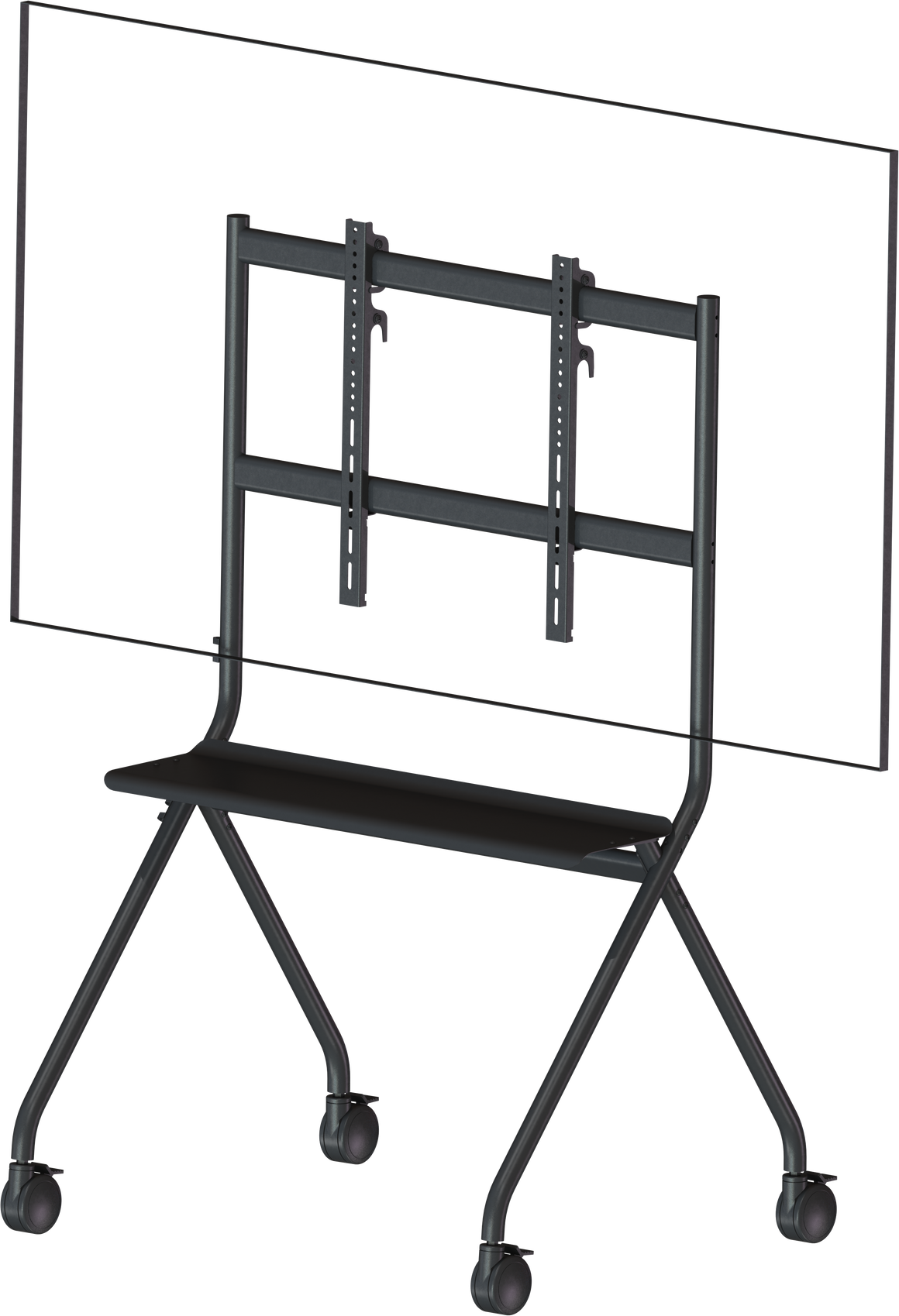

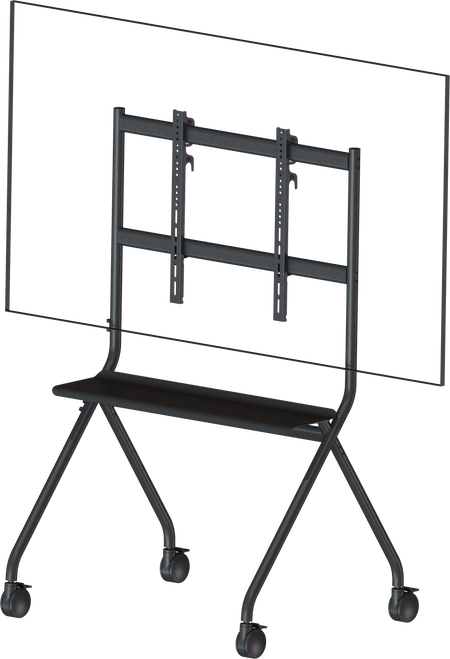

- Full-width Shelf: The shelf boasts a width of 1040 mm (41 inches), providing ample room to accommodate any conferencing sound bar with ease. With a depth of 250 mm (10 inches), there's substantial space available for accommodating large video conference cameras.
- Heavy-duty floor stand: Heavy-duty floor stand for displays up to 100 kg (220 lb)
- Fits displays: Fits displays with VESA sizes up to 900 x 600 mm
- For 55-100″ Displays (subject to VESA: For 55-100″ Displays (subject to VESA pattern and weight limit)
- Lockable 4″ wheels: Lockable 4″ wheels

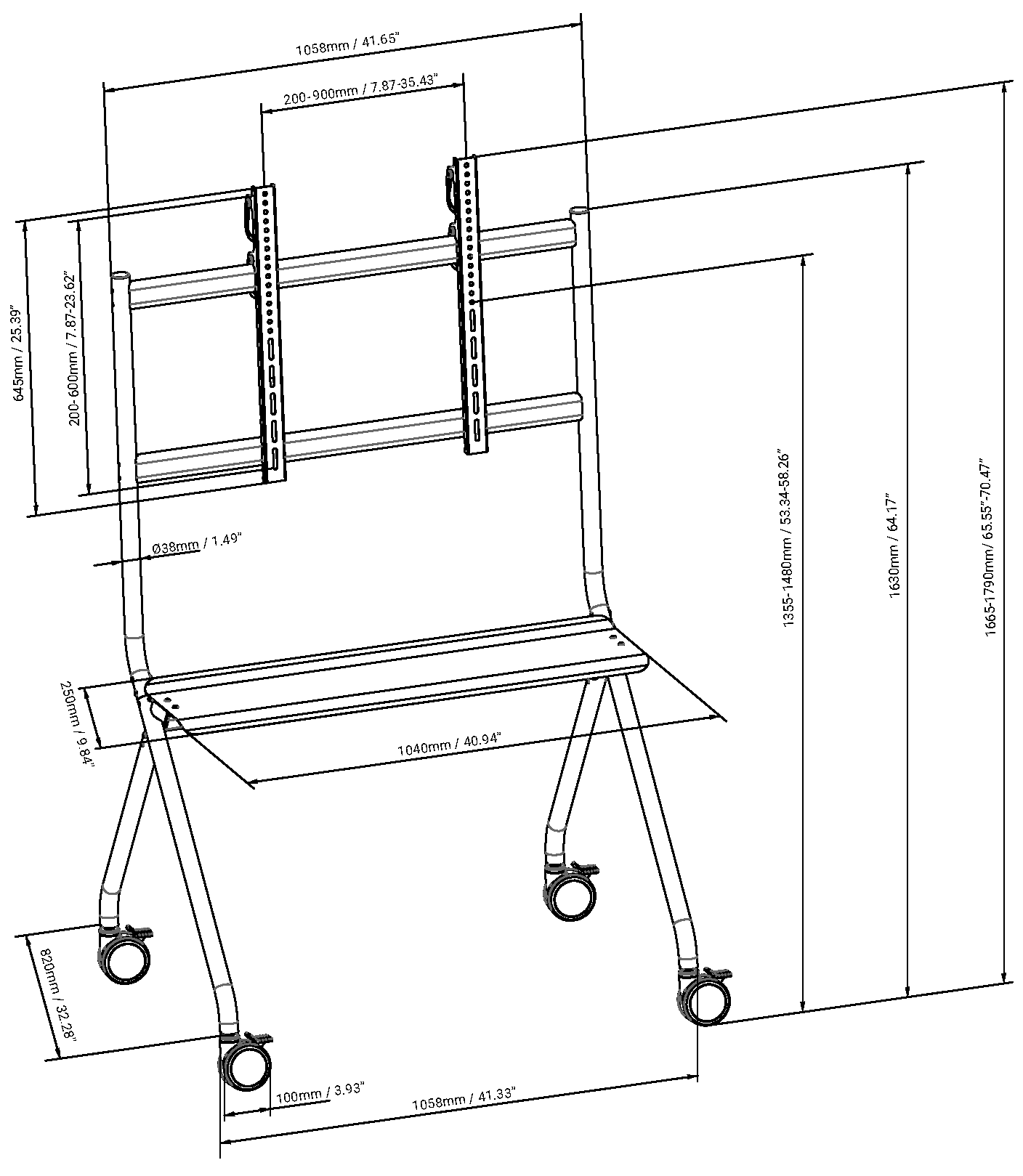

Specifications
| Packaged Dimensions | 1070 x 360 x 155 mm / 42.1″ x 14.2″ x 6.1″ (length x width x height) |
| Product Weight | 18.8 kg (41.5 lbs) |
| Packaged Weight | 20.8 kg (45.9 lbs) |
| Safe Working Load (Swl) | 100 kg (220 lbs) |
| Shelf Safe Working Load | 10 kg (22 lbs) |
| Construction Material | Steel |
| Colour | Powdercoated Matt Black |
| Vesa Sizes | 900 x 600 mm 800 x 600 mm 800 x 400 mm 600 x 600 mm 600 x 400 mm 500 x 400 mm 400 x 600 mm 400 x 400 mm 400 x 300 mm 400 x 200 mm 300 x 400 mm 300 x 300 mm 200 x 400 mm 200 x 200 mm |
| Compliances | RoHS, REACH |
| Country of origin | China |
What's in the Box
- 4 x M5 14 mm (0.6″) screw
- 4 x M6 14 mm (0.6″) screw
- 4 x M6 30 mm (1.2″) screw
- 4 x M8 30 mm (1.2″) screw
- 4 x M8 50 mm (2.0″) screw

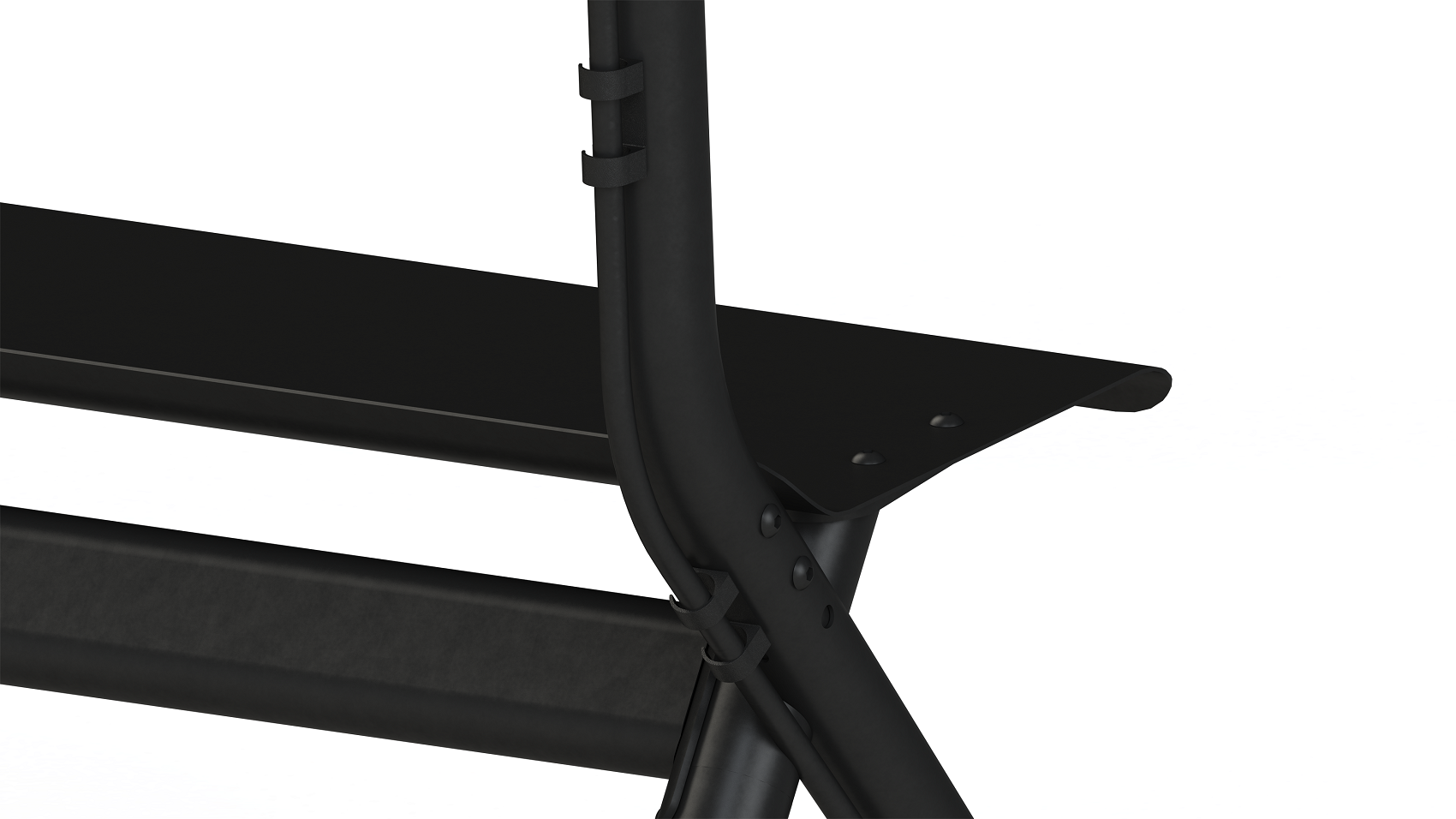

- 6 x Cable Management Clips
Warranty
The Vision Display Easel-Style Trolley 100kg is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples

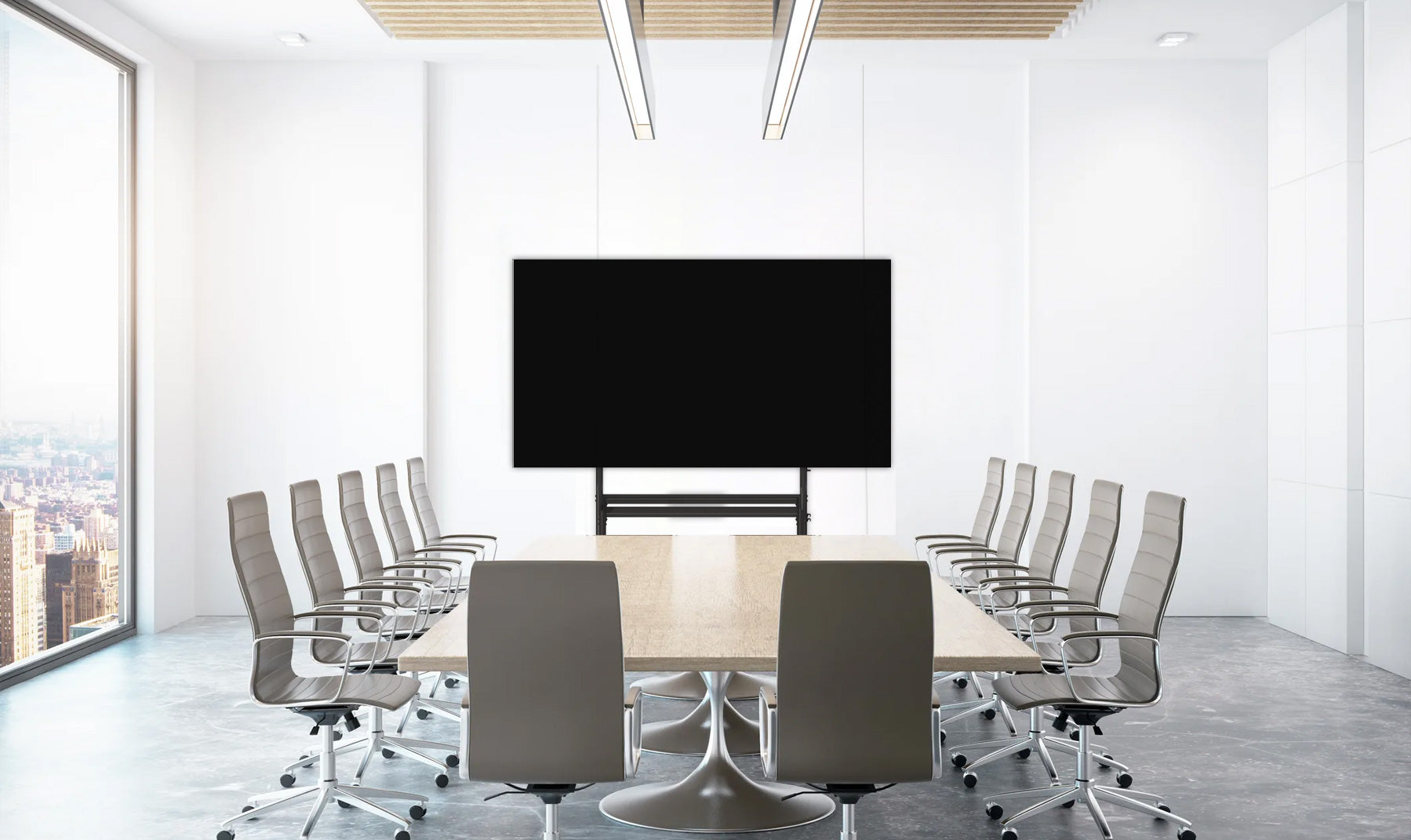

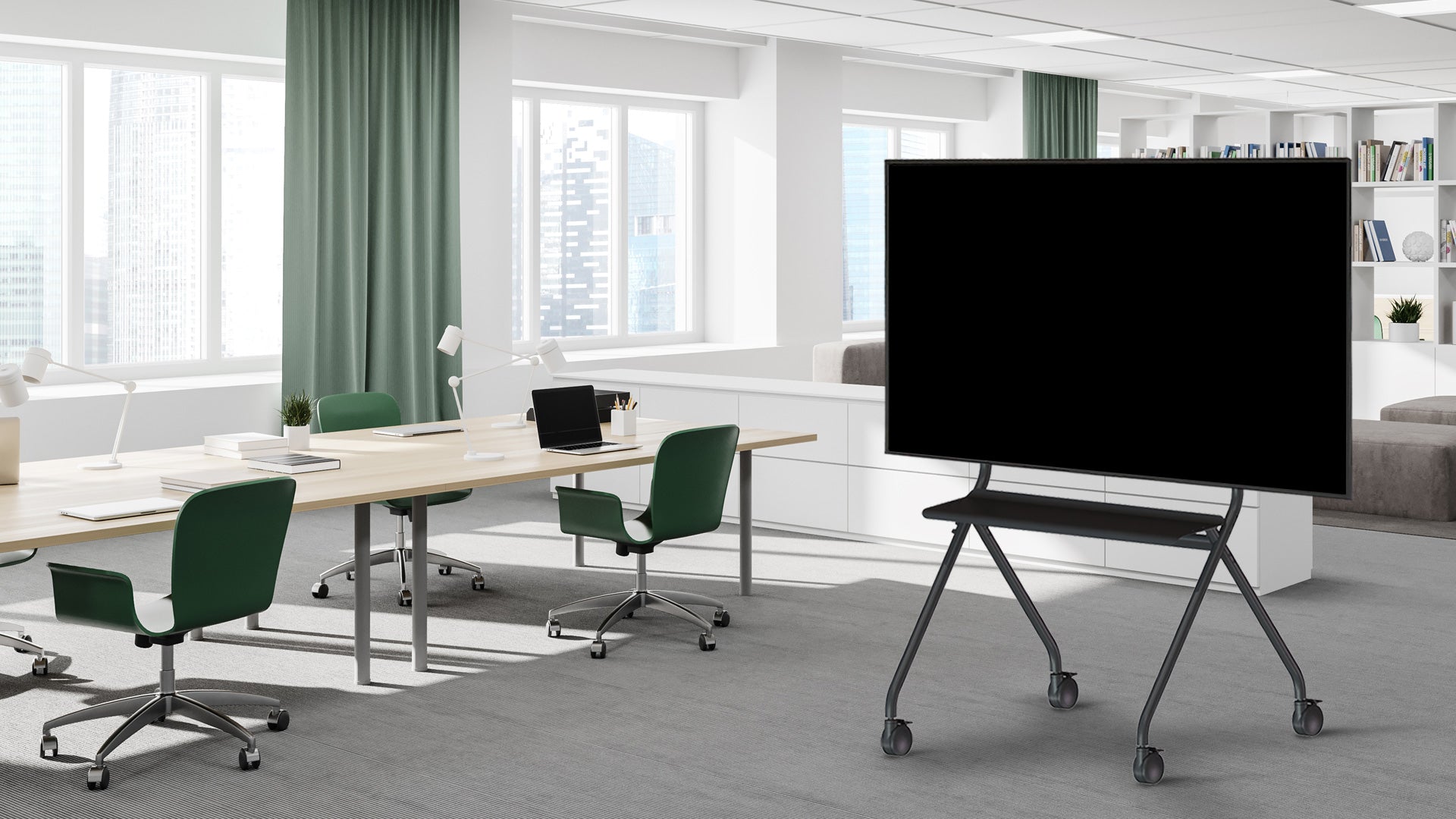

| Meeting Rooms | Vision Display Easel-Style Trolley 100kg supports meeting and presentation spaces where a dependable professional AV mounting product is required. |
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
