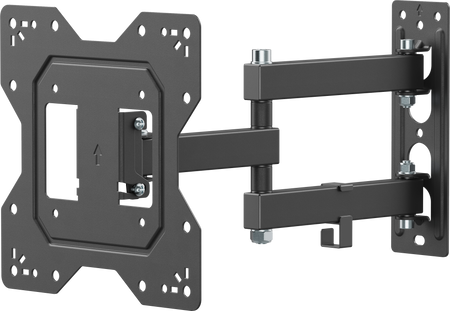

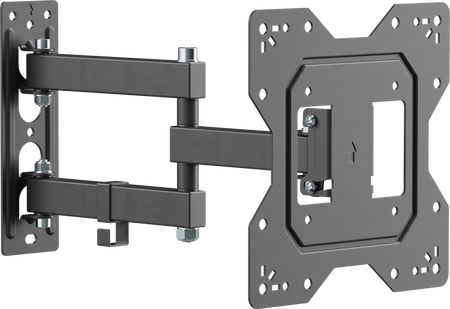

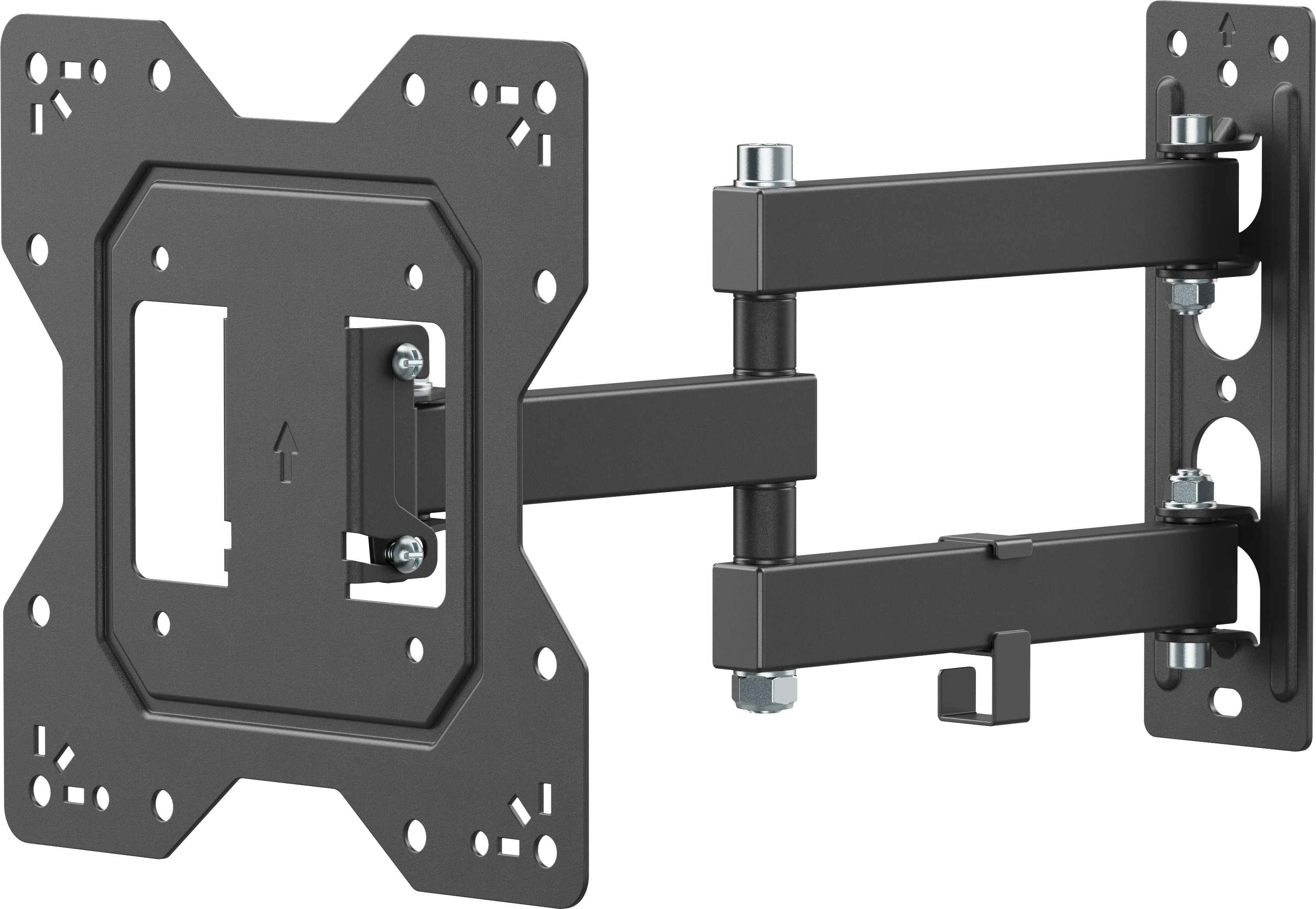

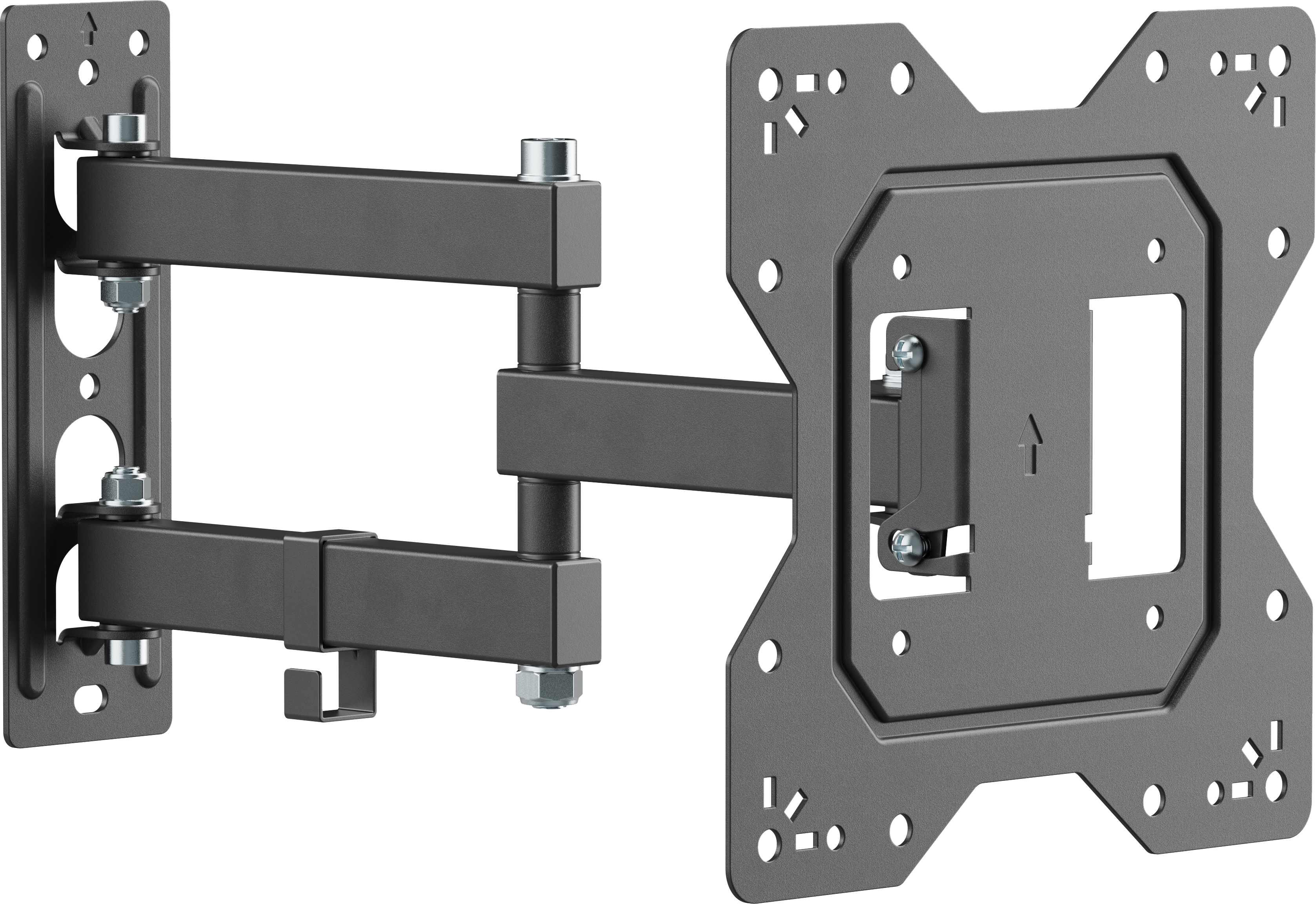

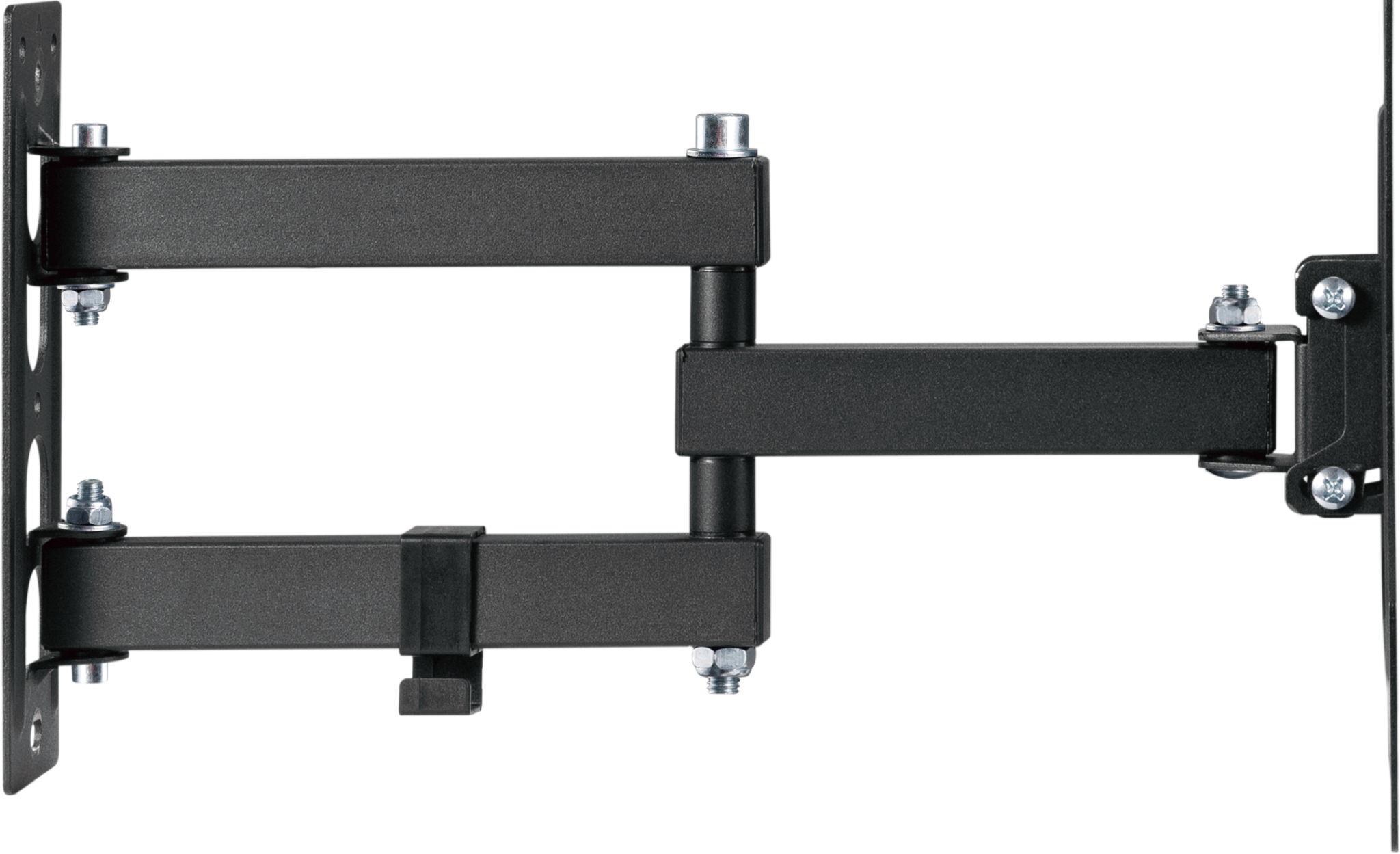

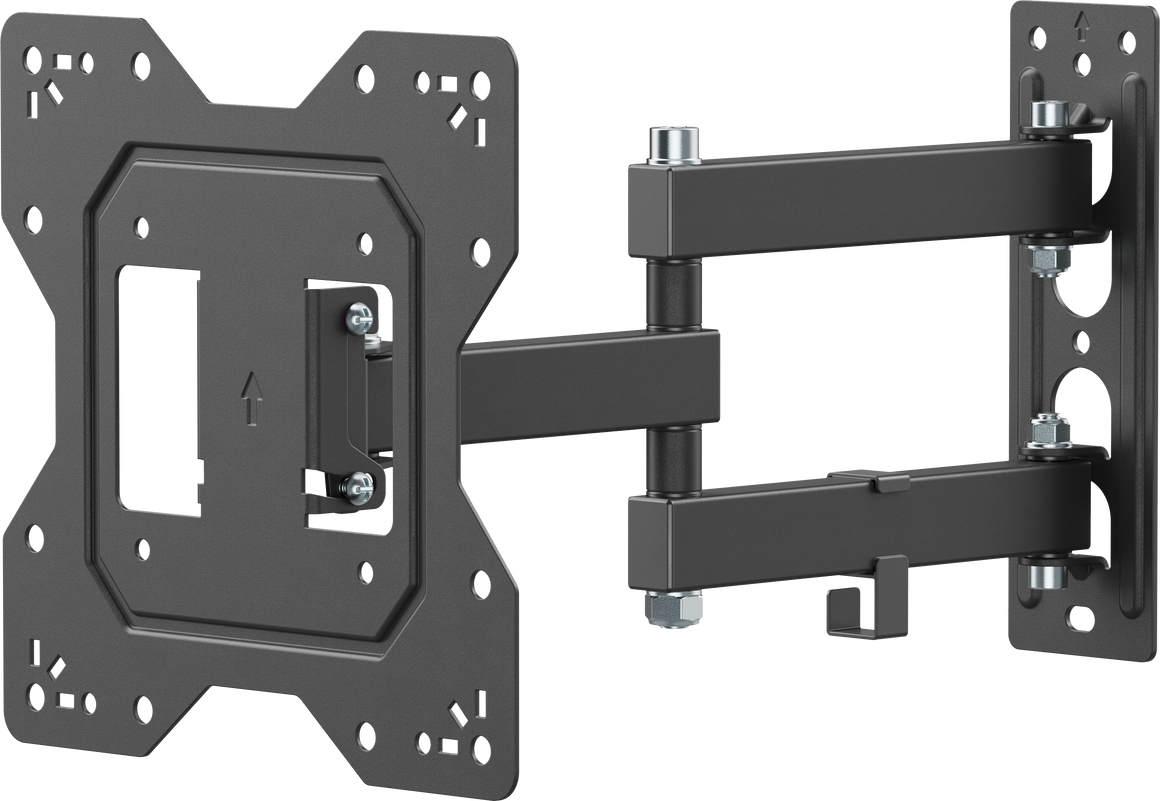

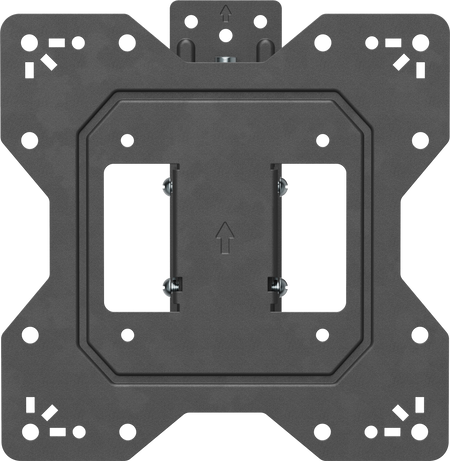

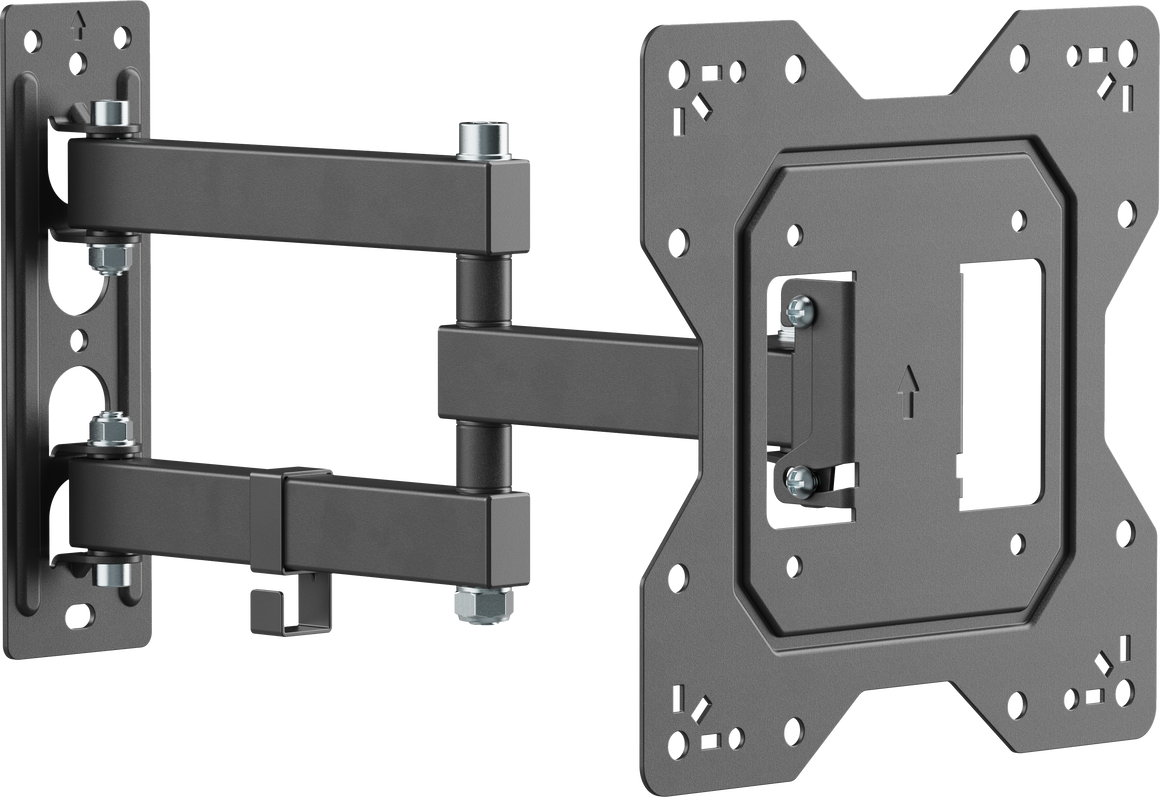

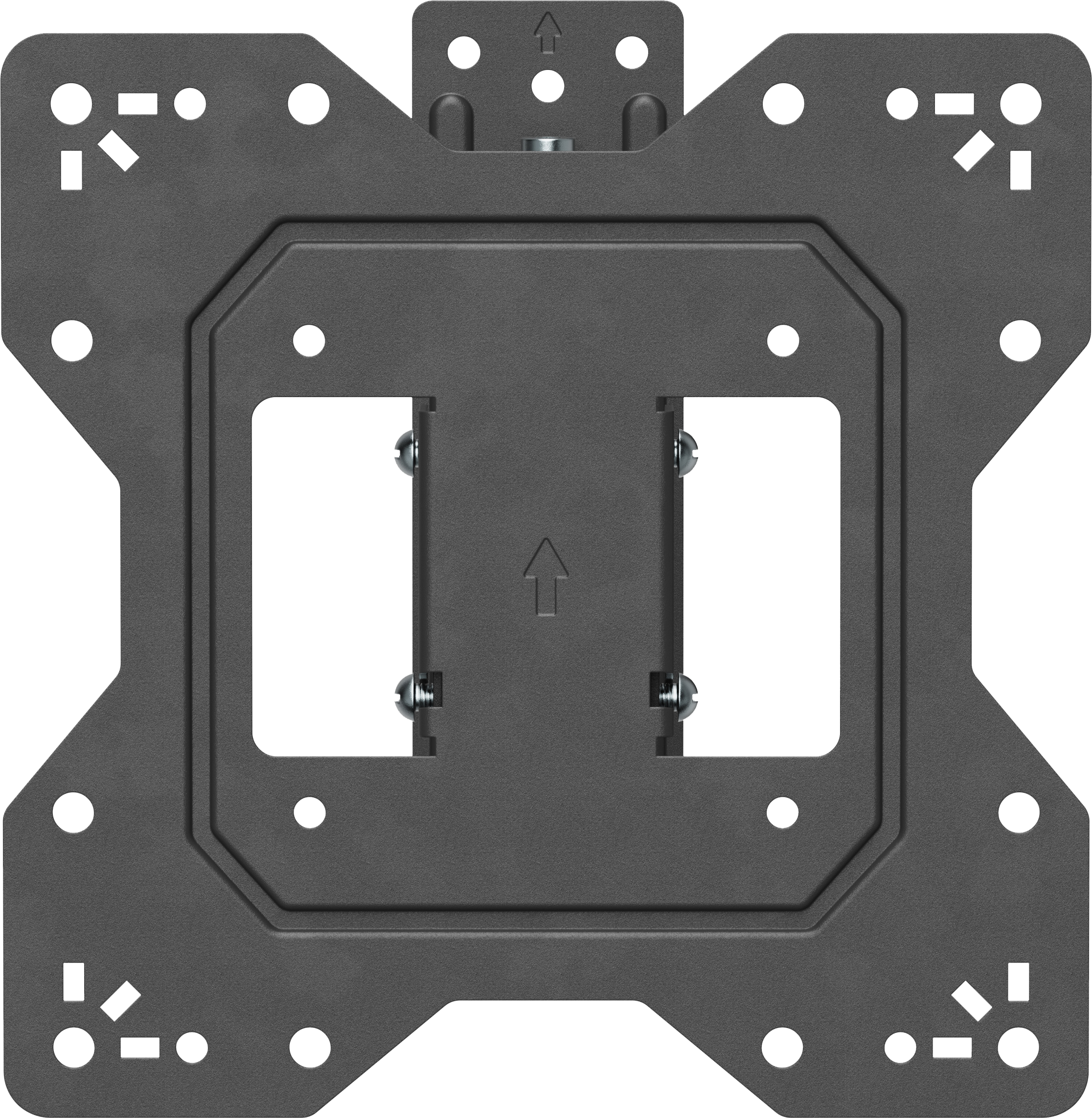

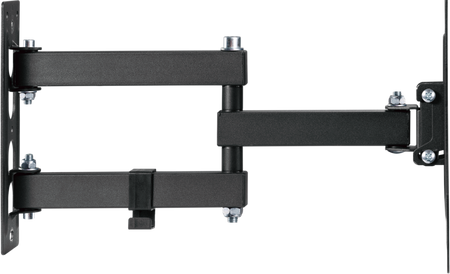

Vision Flat-Panel Wall Arm 200x200
Flat-Panel Wall Arm 200x200
In stock
Regular price
£34.13
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision Flat-Panel Wall Arm 200x200 vision's Vision Flat-Panel Mount - Wall Arm range is tough and flexible. The VFM-WA2X2/3 fits any flat-panel LCD or LED screen which has 100 x 100 mm, 200 x 200 mm, or 200 x 100 mm rear mounting holes.
Key Features
- Up to 50": Most displays up to 50" use VESA 100 or 200 mounting points, so the WA2X2 fits the majority of displays up to this size. If a larger display has the correct mounting points and weighs less than the SWL this mount can support it safely.

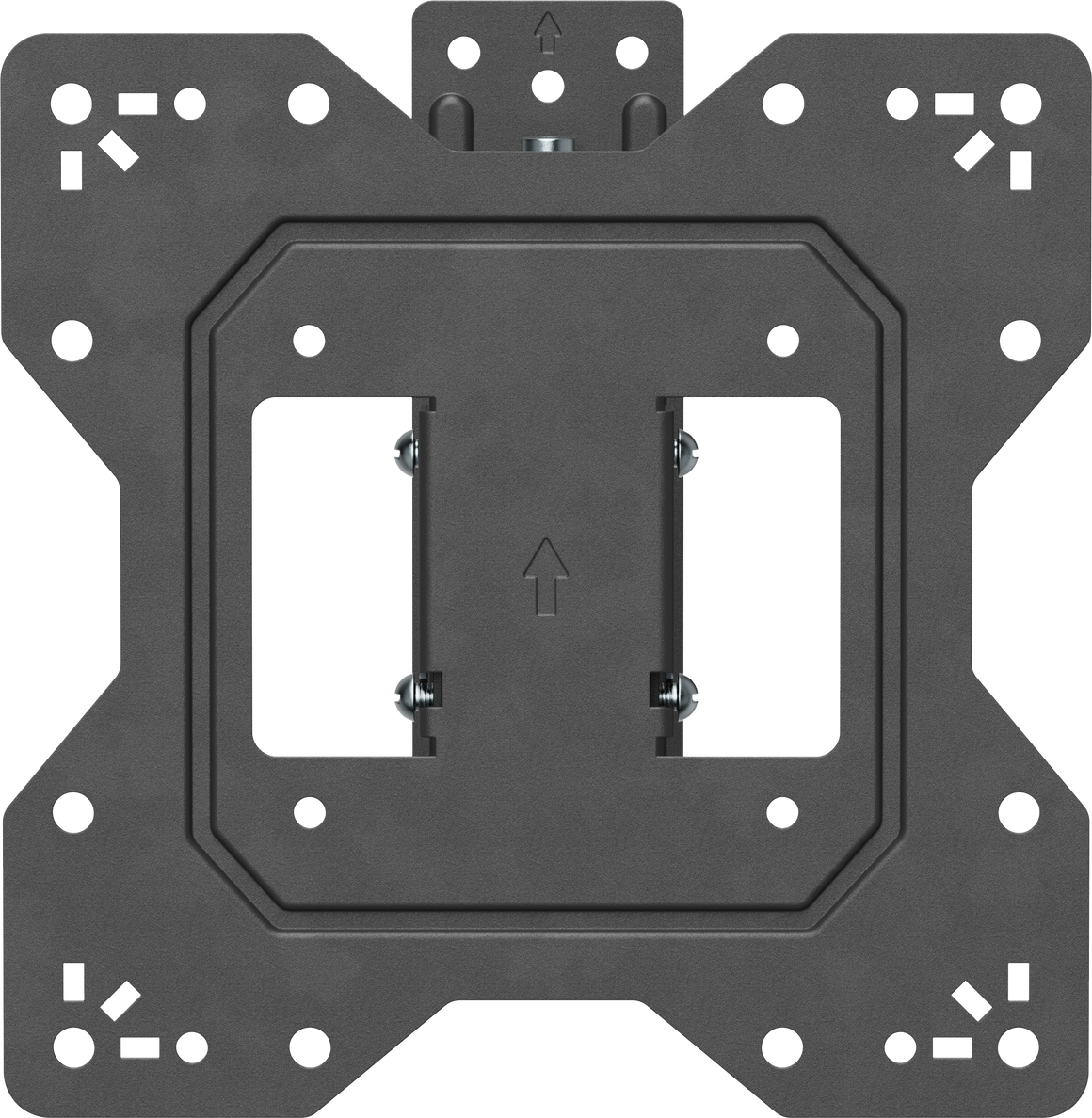

- Fast Installation: The mounting plate fixes to the back of the display, then just drop the display into place on the wall arm and lock in place with two bolts.
- SWL 25 kg: This mount has a "safe working load" of 25 kg (55 lb). The single-arm design makes this mount especially flexible.
- Cable Management: An included clip keeps cables tidy behind the TV.
- Tilt and Swivel: -3° up and 10° down tilt adjustment, and 90° swivel. Use this mount to fix a display in a corner up high in a waiting room, or fix displays around an office or in meeting rooms.
- Vesa: The VESA standard is based on how far apart the mounting holes are on the back of your flat-panel.
- Thumbscrews: Thumbscrews are used to fix the display to help speed up the installation of this mount.
- Double-articulated wall mount for flat panels: Double-articulated wall mount for flat panels
- Supports displays from 20" to 50": Supports displays from 20" to 50"
- SWL up to 25 kg / 55 lbs: SWL up to 25 kg / 55 lbs
Specifications

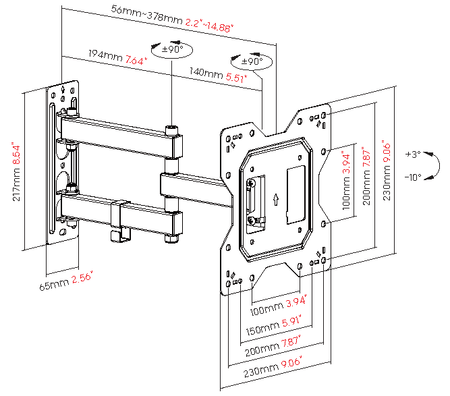

| Product Dimensions | see image |
| Packaged Dimensions | 295 x 238 x 65 mm / 11.6" x 9.37" x 2.5" (length x width x height) |
| Product Weight | 1.8 kg (4.0 lbs) |
| Packaged Weight | 2.0 kg (4.4 lbs) |
| Safe Working Load | 25 kg (55 lbs) |
| Contruction Material | Wall Plate: 2.5 mm / 0.098" steel VESA Plate: 1.8 mm / 0.071" cold-rolled steel Arms: 1.2 mm / 0.047 cold-rolled steel Arm Tube Size: 30 x 20 mm / 1.2" x 0.8" |
| Colour | Black |
| Vesa Sizes | 200 × 200 mm 200 x 100 mm 100 × 100 mm |
| Compliances | RoHS, REACH |
| Country of origin | China |
What's in the Box
- 4 x M6 14 mm thumb screws
- 4 x M8 20 mm thumb screws
Warranty
The Vision Flat-Panel Wall Arm 200x200 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Meeting Rooms | Vision Flat-Panel Wall Arm 200x200 supports meeting and presentation spaces where a dependable professional AV mounting product is required. |
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
