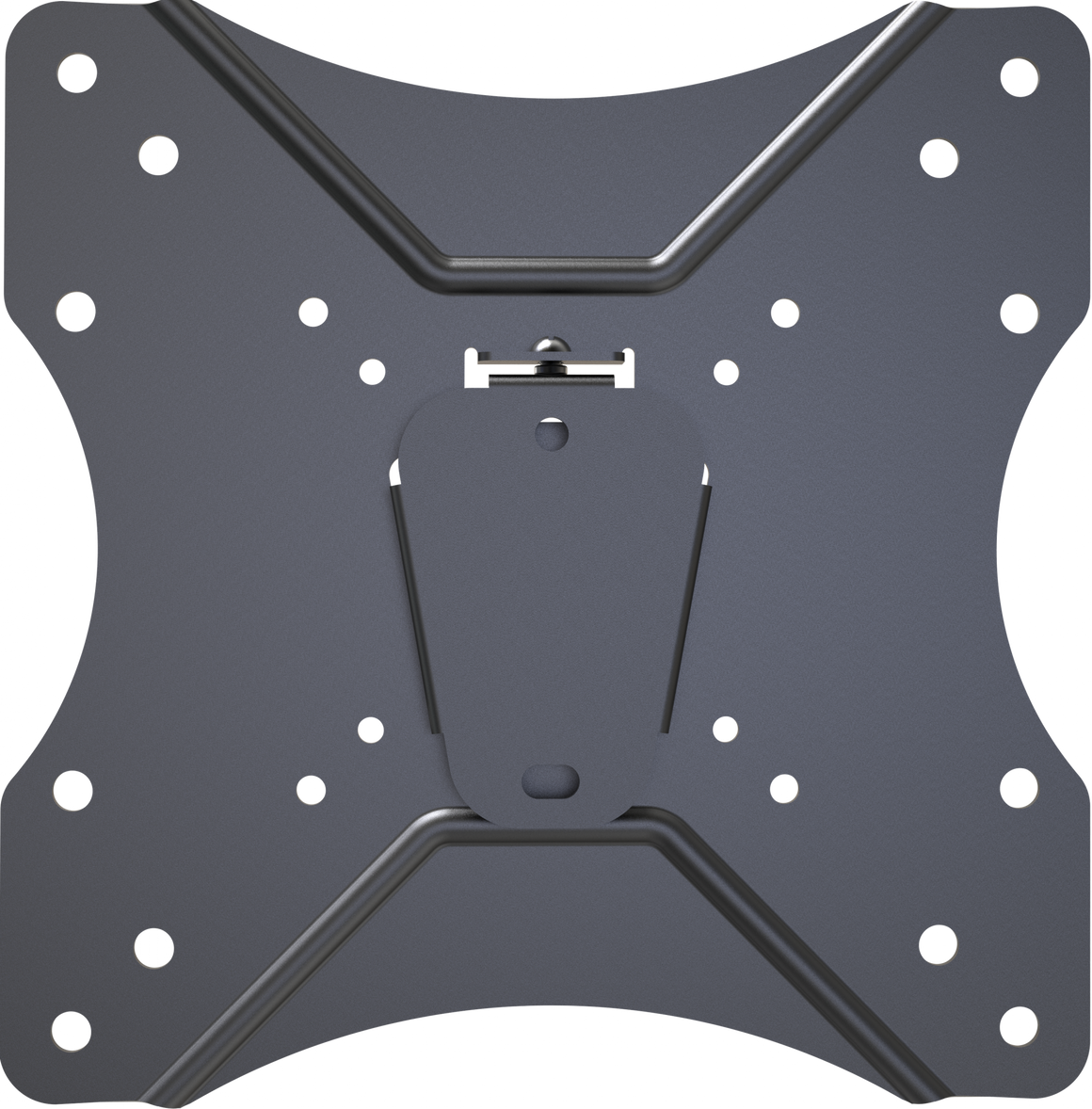

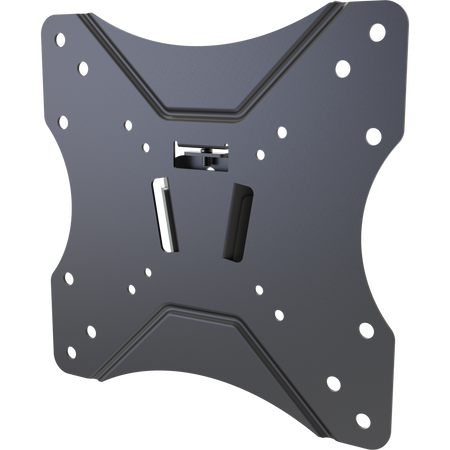

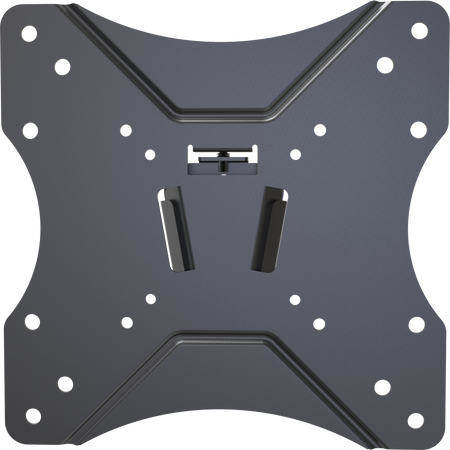

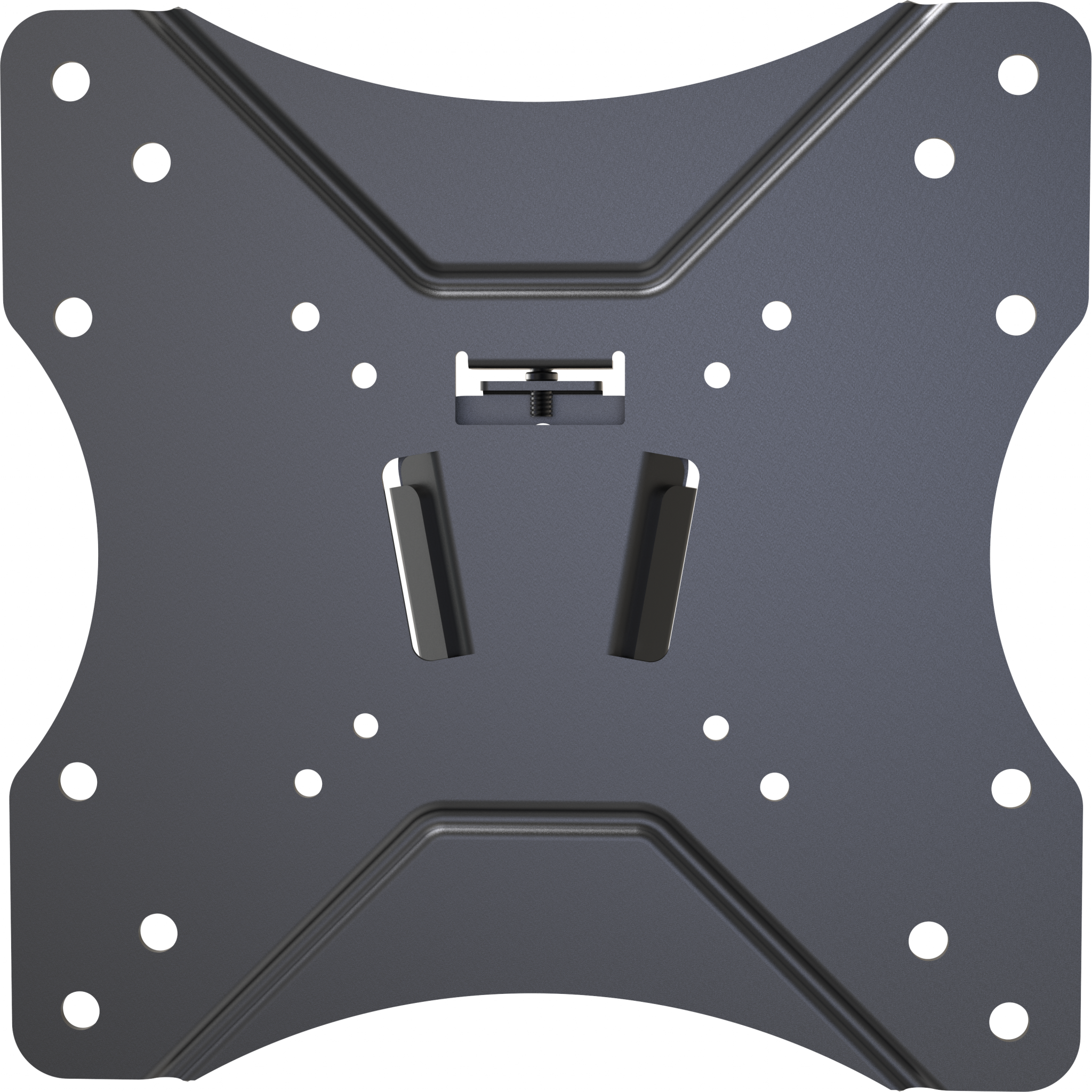

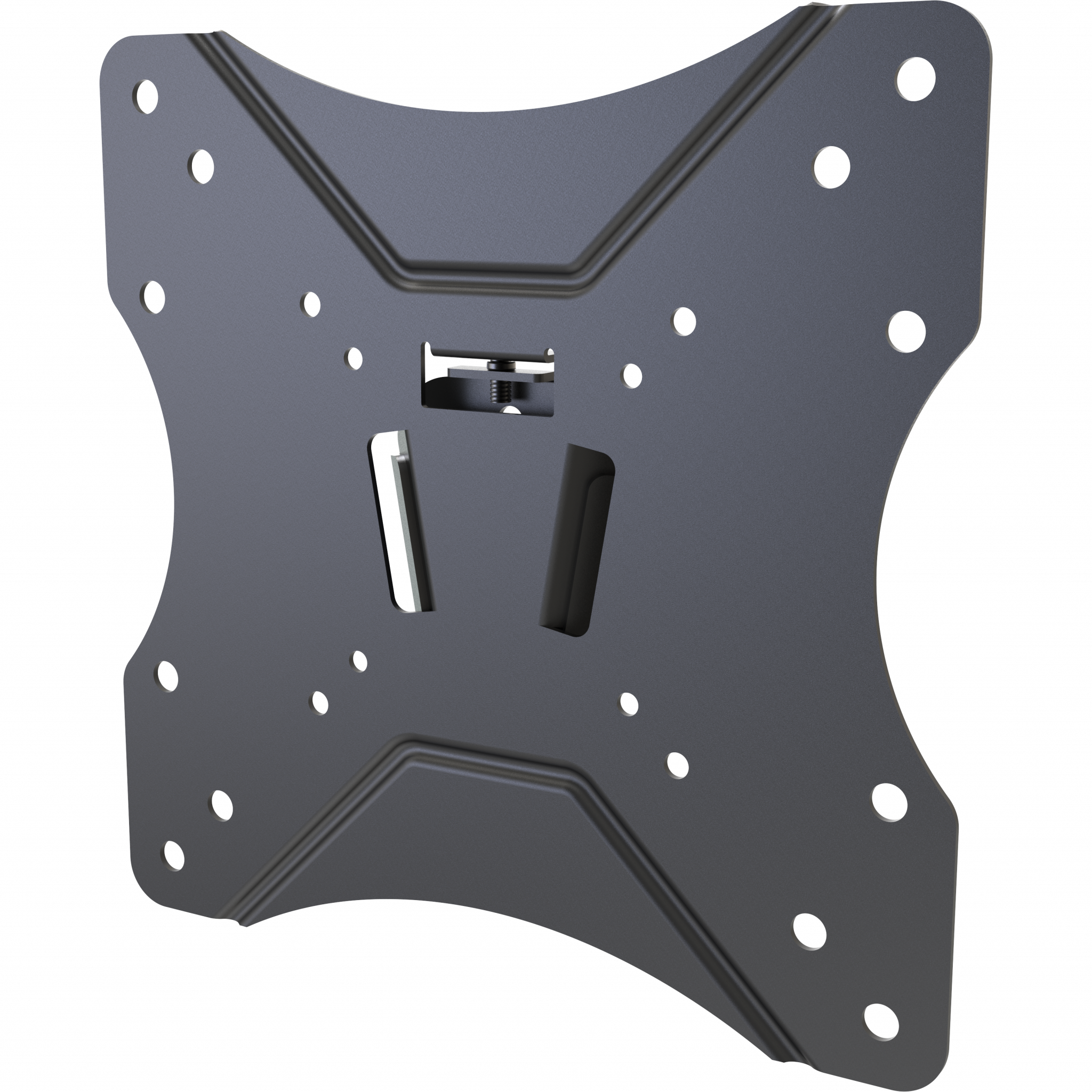

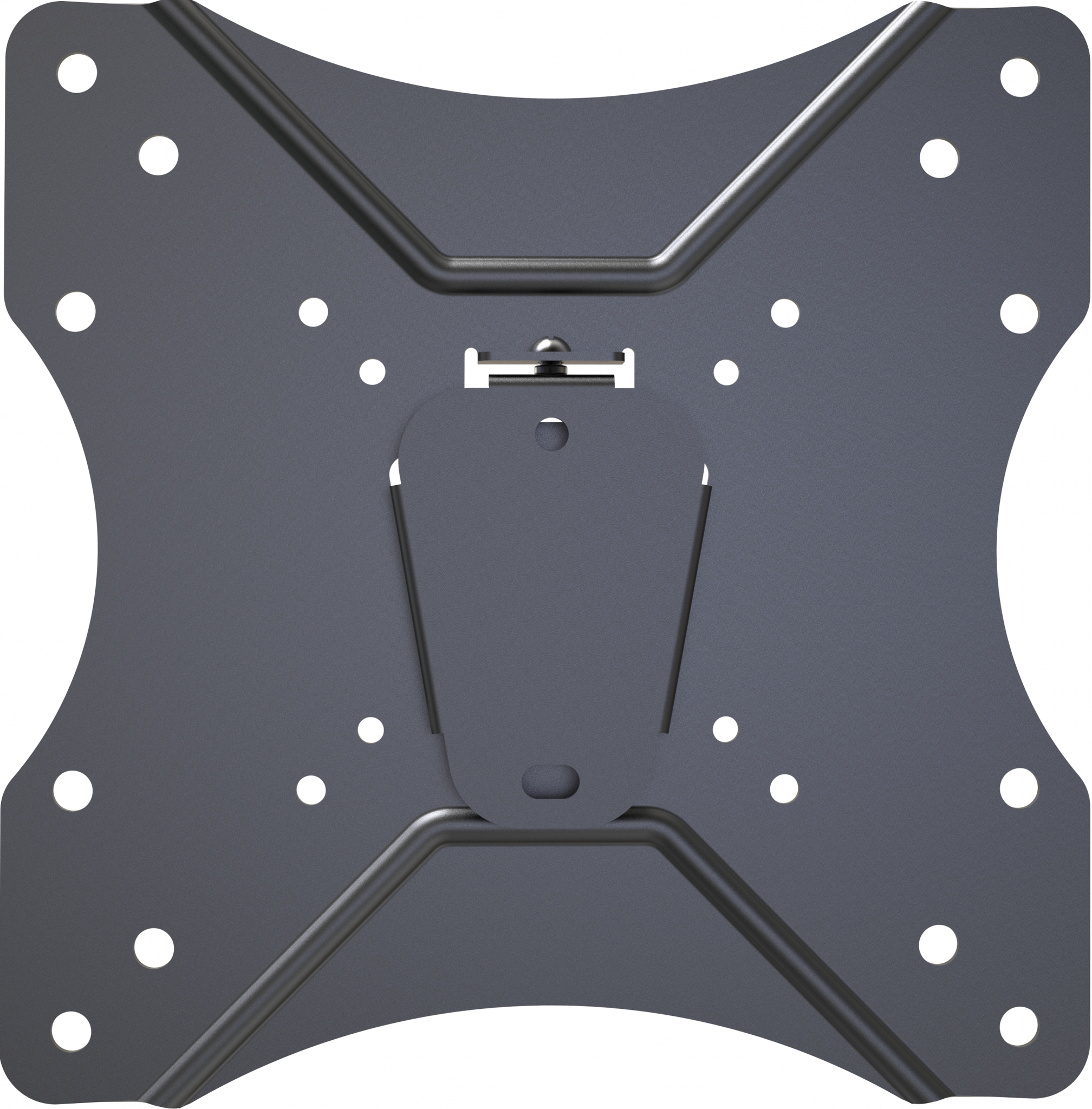

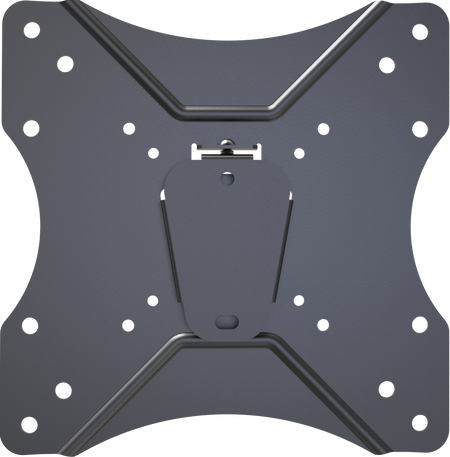

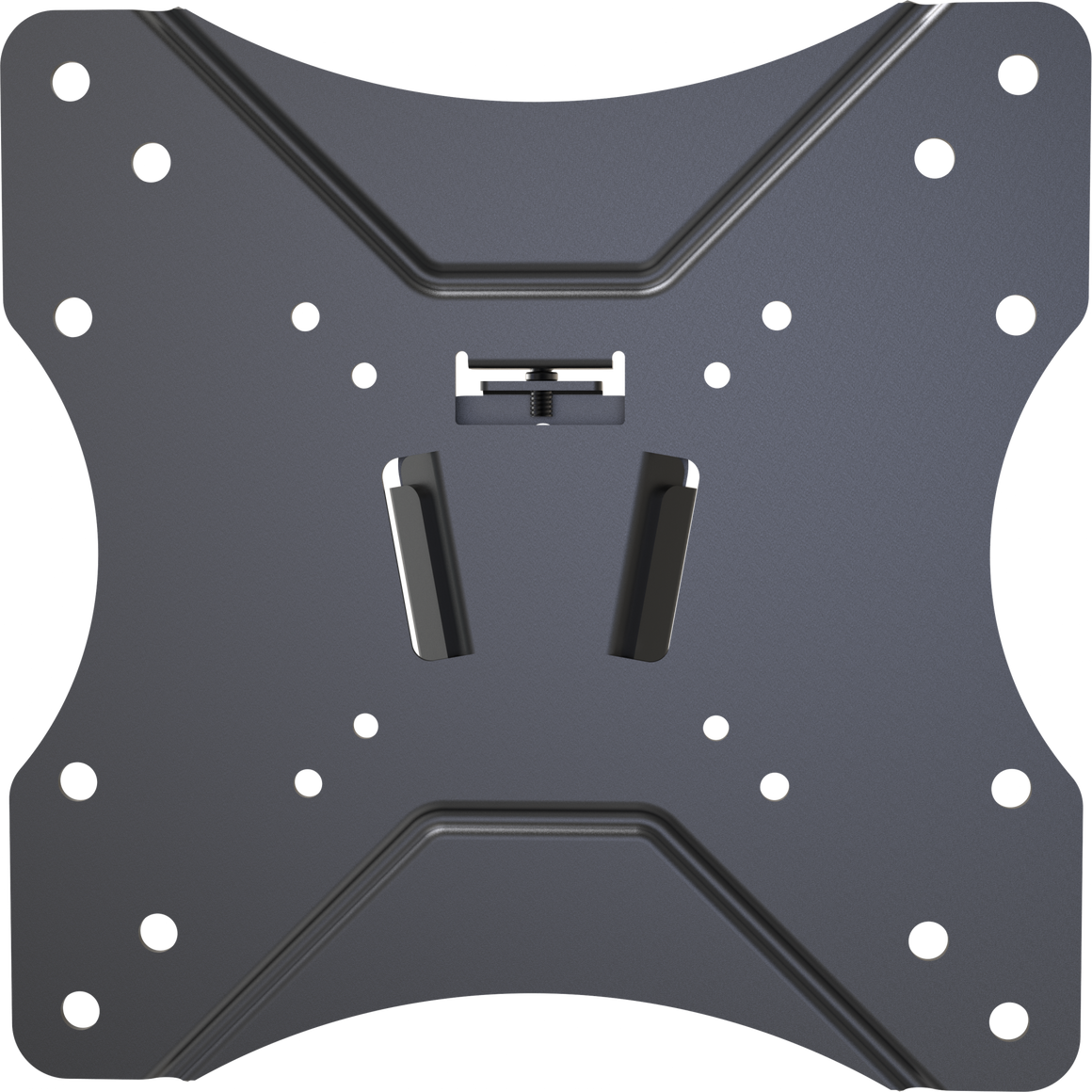

Vision Flat-Panel Wall Mount 200×200
Flat-Panel Wall Mount 200×200
In stock
Regular price
£19.62
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision Flat-Panel Wall Mount 200×200 this Flat-Panel Mount (VFM) is quick and simple to install. It fits any display which uses a standard VESA mounting configuration up to 200 x 200 mm.
Key Features
- SWL 25 kg (55 lb): Most desktop monitors are very lightweight, but interactive displays and kiosk touch-panels are much heavier. This product can easily support most monitors from 30″ to 55″ subject to VESA pattern and weight limit.
- Thumbscrews: The screws included to fix the display are thumbscrews for fast tool-free assembly.

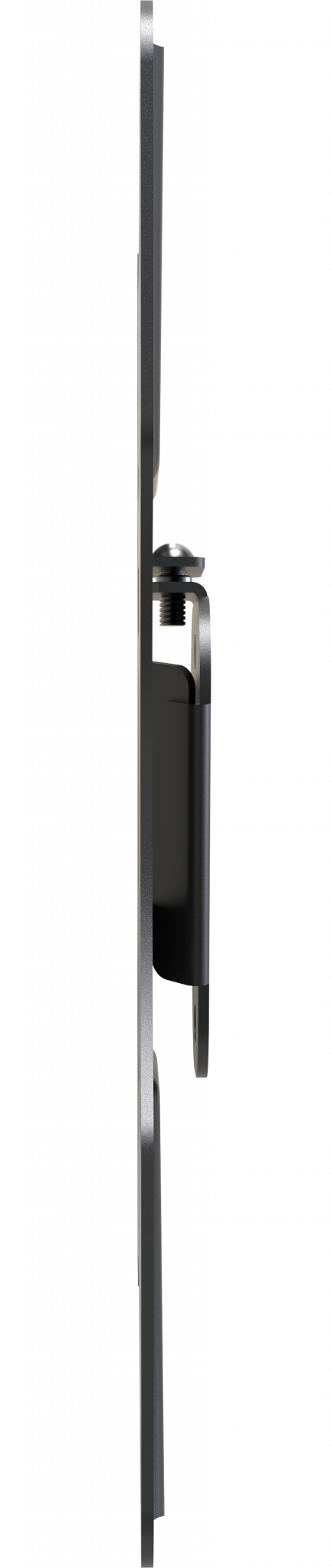

- Shallow: The thin design holds the display just 13 mm (0.51″) off the wall. This looks better, reduces snagging risk, and because the load is close to the wall the mount has a higher safe working load rating.
- Secure: Once in place a locking screw is fitted to avoid theft.
- Portrait: Mount the display portrait-style or landscape style as required.
- Simple Installation: A proven 2-part design allows fast fixing, with slotted holes on the wall part allowing leveling adjustment after fixing.
- Display Fixing Screws: Vision include more screw sizes than other manufacturers to ensure you get that display on the wall as quickly as possible every time.
- VESA Wall Mount for displays and TVs: VESA Wall Mount for displays and TVs
- Fits displays: Fits displays with 75 x 75, 100 x 100, 200 x 100, and 200 x 200mm mounting holes
- For 30-55″ Displays: For 30-55″ Displays
Specifications
| Product Dimensions | 230 x 230 x 13 mm / 9.1″ x 9.1″ x 0.5″ (height x width x depth) |
| Packaged Dimensions | 239 x 239 x 25 mm / 9.4″ x 9.4″ x 1.0″ |
| Product Weight | 0.71 kg (1.56 lbs) |
| Packaged Weight | 0.97 g (2.14 lbs) |
| Safe Working Load | 25 kg (55 lbs) |
| Contruction Material | Steel |
| Colour | Black |
| Vesa Sizes | 200 × 200 mm 200 x 100 mm 100 × 100 mm 75 x 75 mm |
| Compliances | RoHS, REACH |
| Country of origin | China |
What's in the Box
- 4 x M4 25 mm (1″) screw
- 4 x M5 12 mm (0.5″) screw
- 4 x M5 25 mm (1″) screw
- 4 x M6 12 mm (0.5″) screw
- 4 x M6 25 mm (1″) screw
- 4 x M8 16 mm (0.6″) screw
- 4 x M8 25 mm (1″) screw
Warranty
The Vision Flat-Panel Wall Mount 200×200 is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
