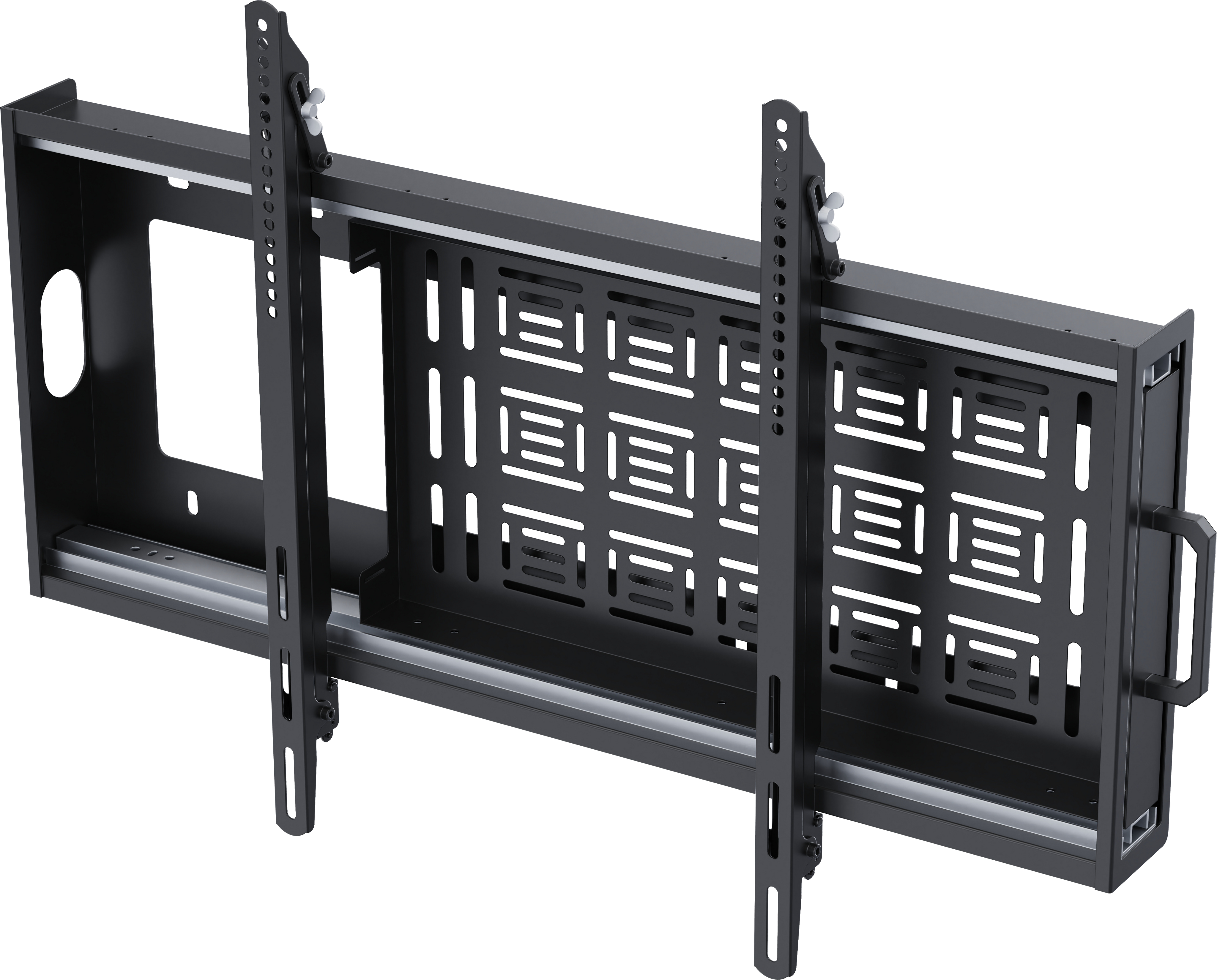

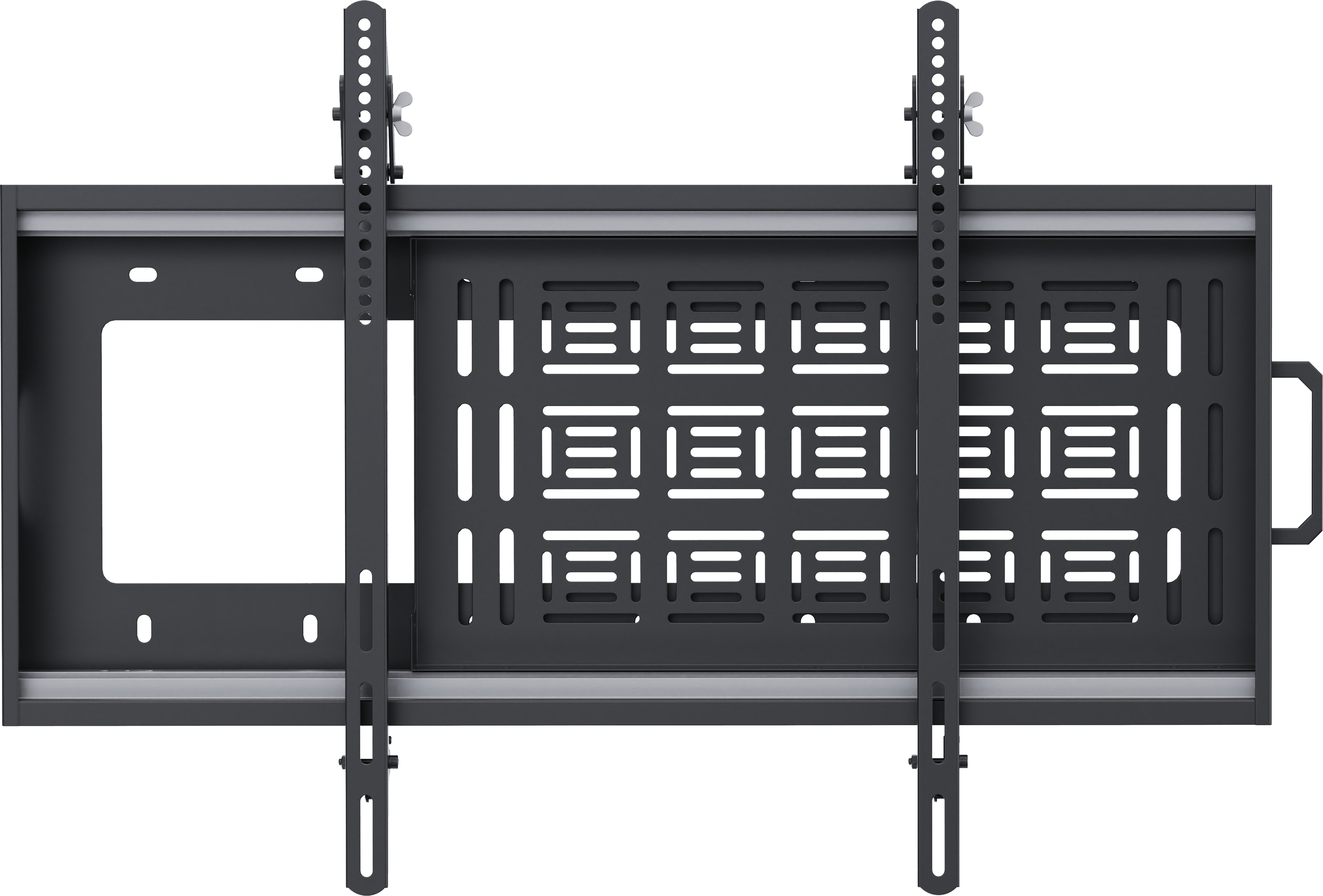

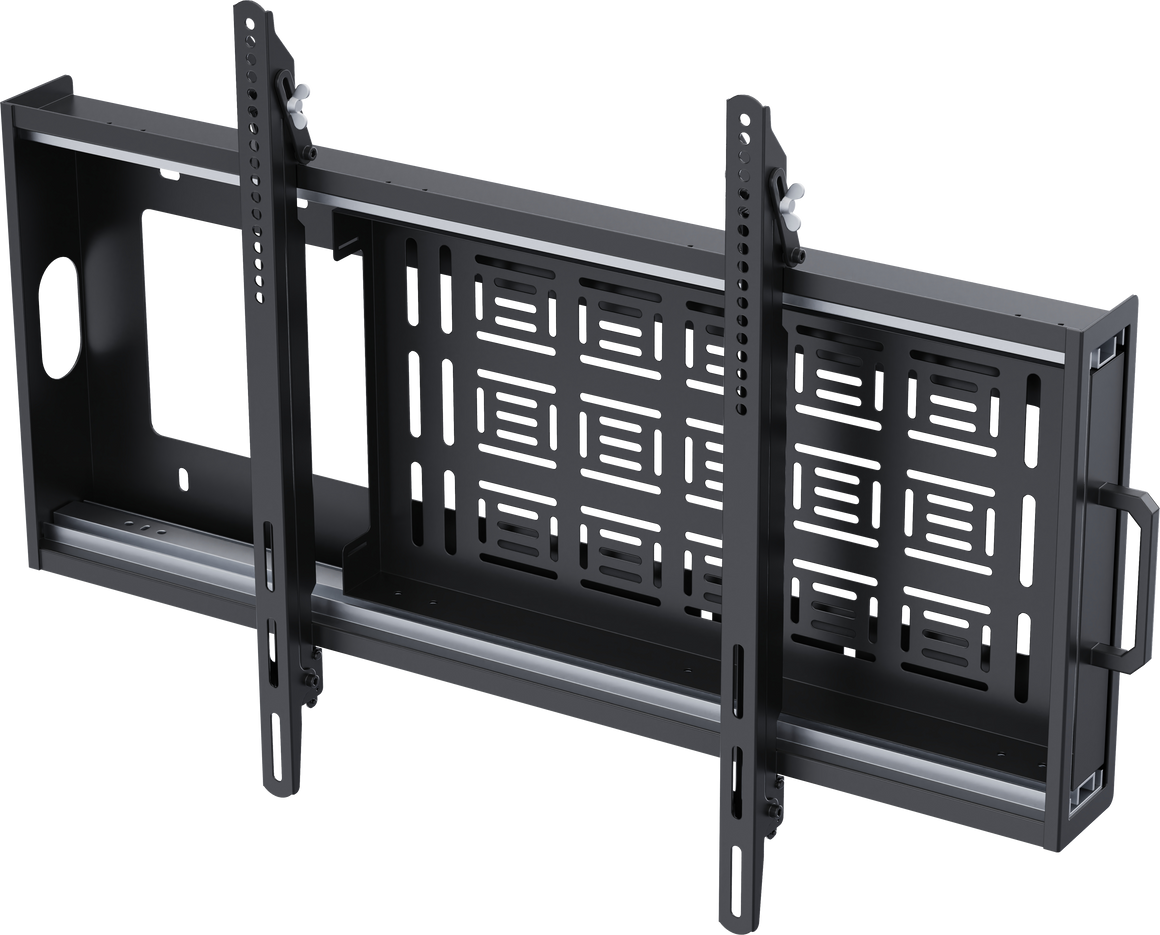

The Vision Flat-Panel Wall Mount 800×600 with Slide vision’s engineering team has designed this mount with professional AV installers in mind. It offers uncompromising strength, quick installation, and high adjustability, with all necessary components included.
Key Features
- Heavy Duty: Interactive flat panels are large and very heavy. Vision’s VFM-W8X6S uses heavy gauge sheet metal to take the weight up to SWL 90 kg / 198 lb safely.
- Everything Included: Vision includes everything you need including a load of M5, 6, and 8 bolts in varying lengths to fix the vertical arms to the rear of the display.
- For 47-90" Displays: Fits most displays from 47-90″ subject to VESA pattern and weight limit. Note: curved screens are not supported by this mount.
- Designed for Professionals: A proven design allows fast fixing, and slotted holes on the wall part allowing levelling adjustment after fixing.
- Latches Securely: The display latches on the horizontal section as the display is hung in place. Snap the plastic pull-rods off to length so they are hidden behind the display. Give the pull-rods a downward tug to unlatch the display.
- Tilt: Ideal in applications where the display is mounted high, this mount features tilt to direct the display downward.

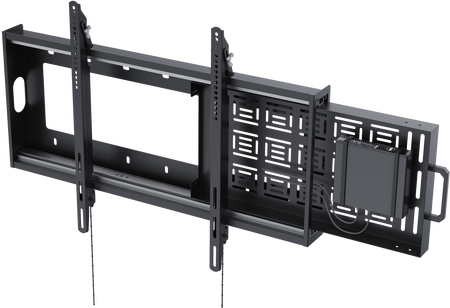

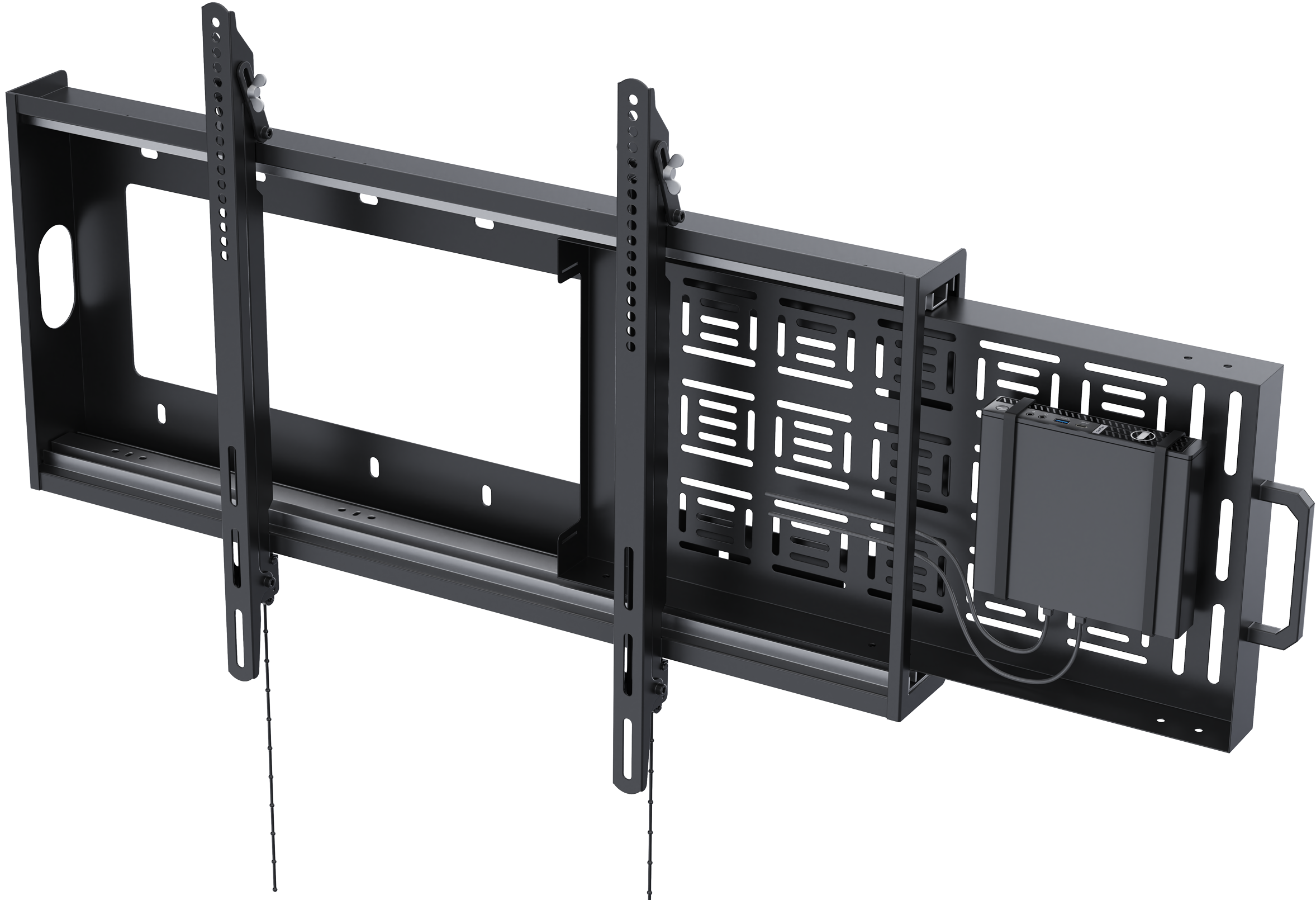

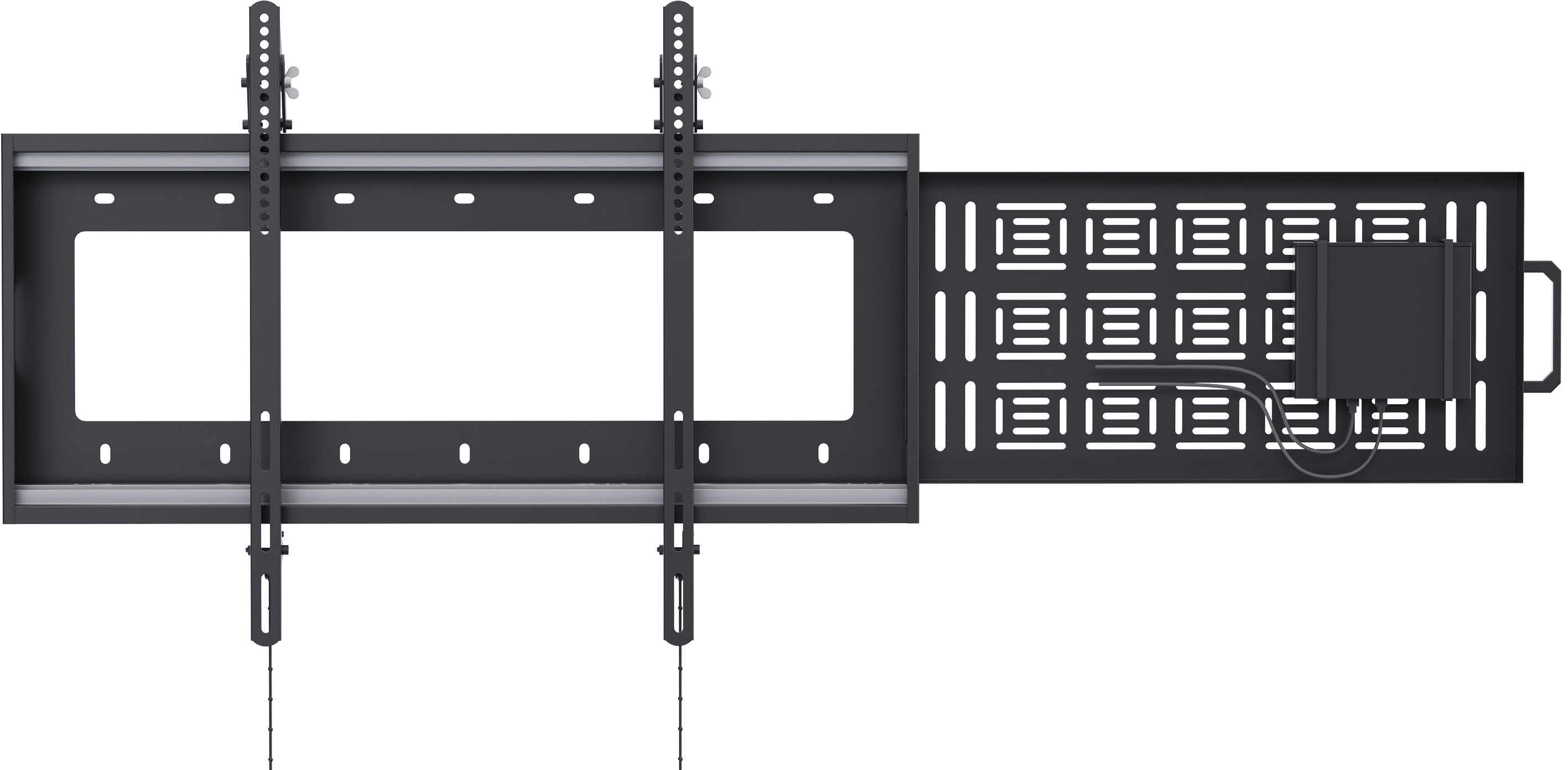

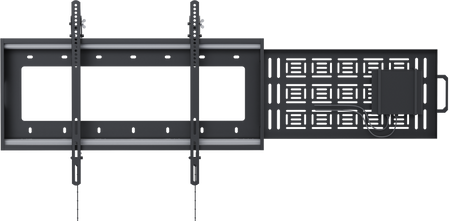

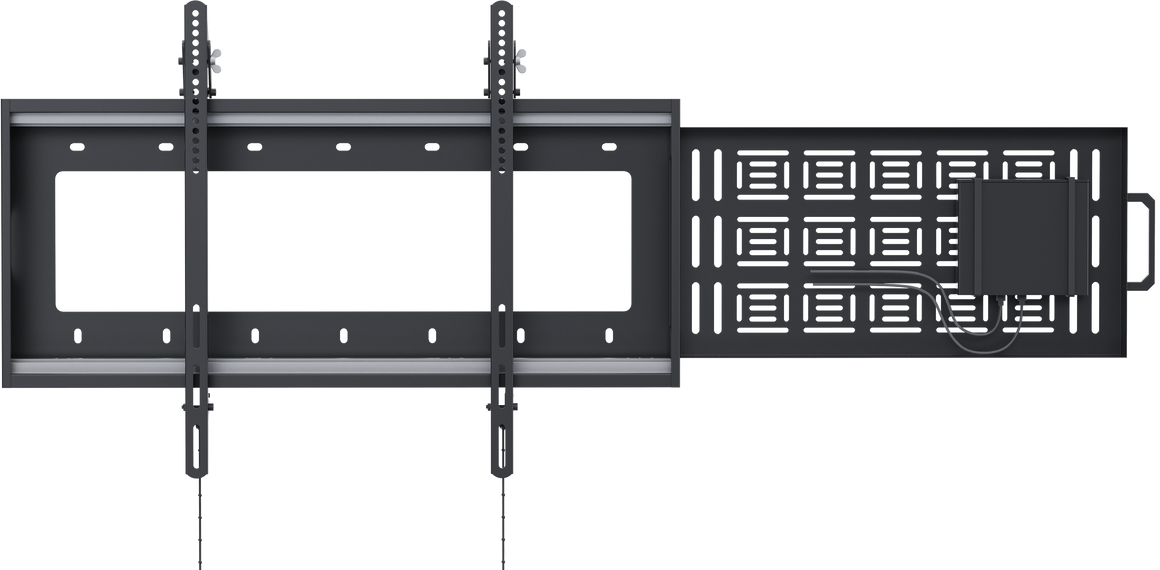

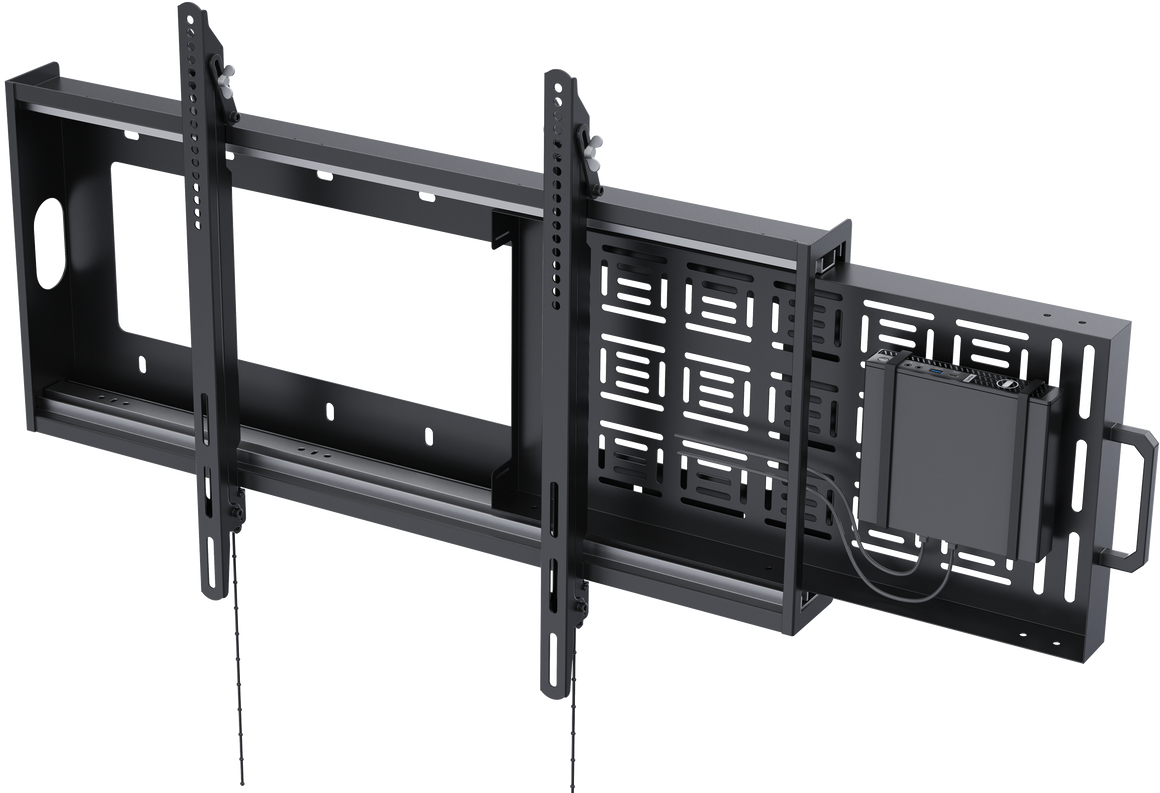

- Slide-Out Storage: Fix media players, mini-PCs, and power distribution boards on the slide-out section, simplifying maintenance access.
- Tilting Wall Mount for large-format flat panels 47-90": Tilting Wall Mount for large-format flat panels 47-90"
- (subject to VESA pattern and weight limit): (subject to VESA pattern and weight limit)
- Mounting points up to 800 (wide): Mounting points up to 800 (wide) x 600 mm (tall) apart
Specifications

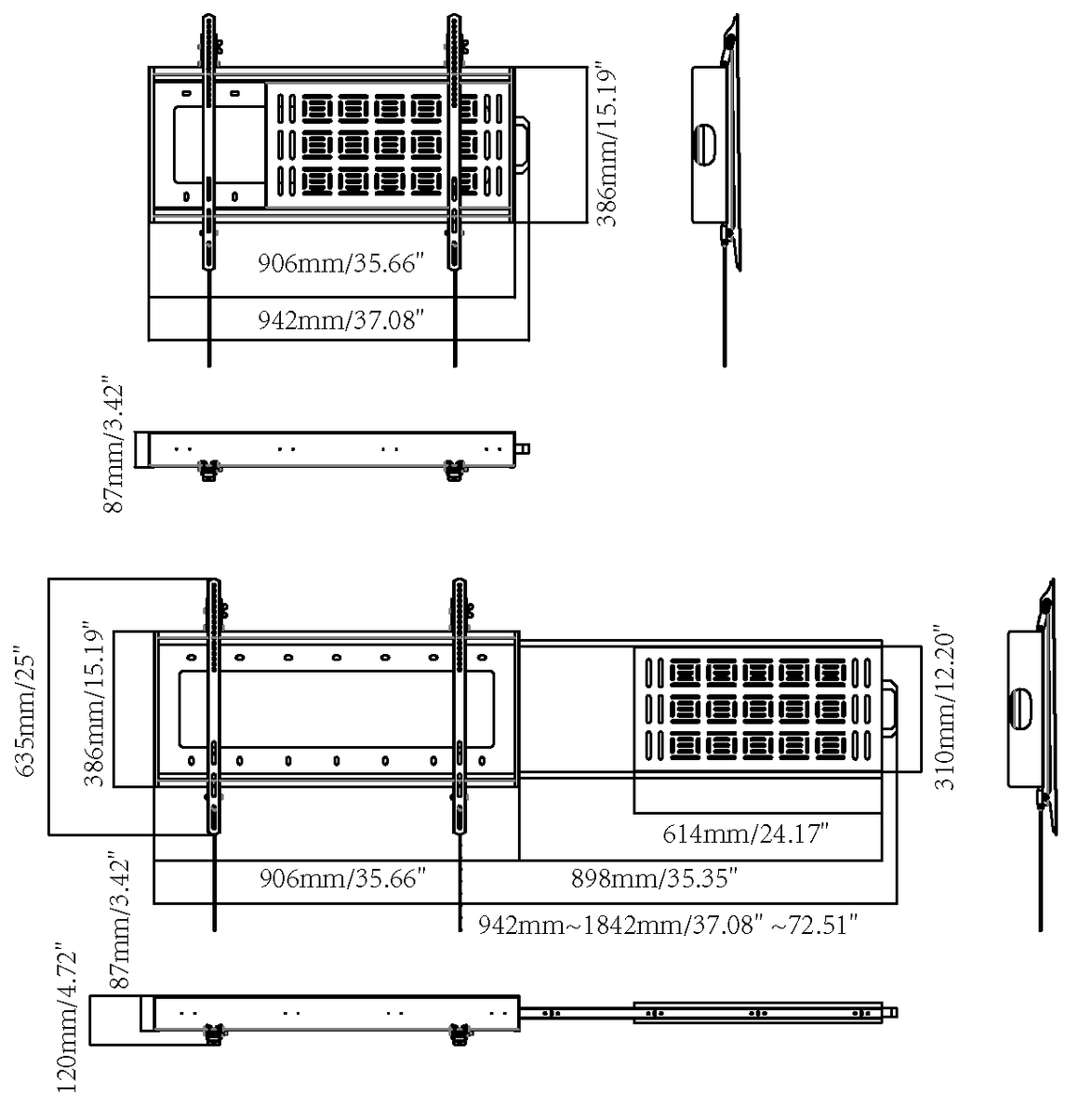

| Product Dimensions | 845 x 635 x 51 mm / 33.3″ x 25.0″ x 2.0″ (width x height x depth) |
| Packaged Dimensions | 880 x 235 x 55 mm / 34.6″ x 9.3″ x 2.2″ |
| Product Weight | 6.2 kg (13.6 lbs) |
| Packaged Weight | 7.5 kg (16.5 lbs) |
| Safe Working Load | 130 kg / 287 lb |
| Construction Material | Cold-rolled Steel 3 mm (0.12") |
| Colour | Black |
| Vesa Sizes | 800 x 600 mm 800 x 500 mm 800 x 400 mm 700 x 400 mm 600 x 600 mm 600 x 500 mm 600 x 400 mm 500 x 500 mm 500 x 400 mm 400 x 600 mm 400 x 400 mm 400 x 300 mm 400 x 200 mm 300 x 400 mm 300 x 300 mm |
| Compliances | RoHS, ADA (Americans with Disability Act) Compliant |
| Country of origin | China |
What's in the Box
- 4 x M5 16 mm screw
- 4 x M6 16 mm screw
- 4 x M6 25 mm screw
- 4 x M8 30 mm screw
- 4 x M8 50 mm screw
- 4 x 13 mm thick nylon spacers
- 4 x 20 mm thick nylon spacers
Warranty
The Vision Flat-Panel Wall Mount 800×600 with Slide is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| Display and Projector Mounting | Supports professional display or projector installations where positioning, stability, and installation access matter. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
