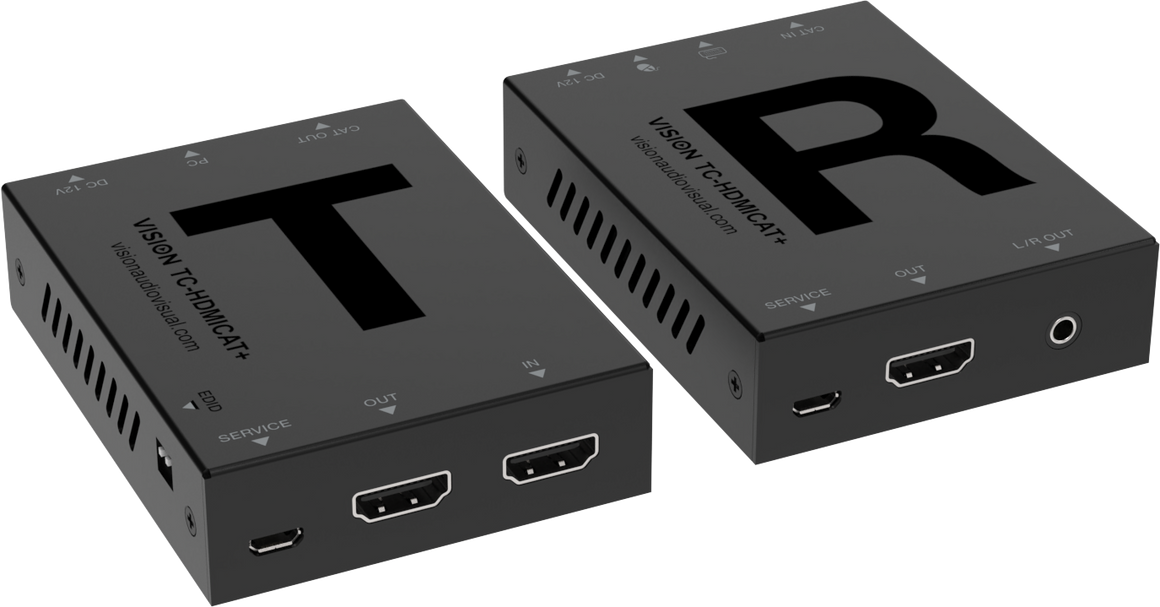

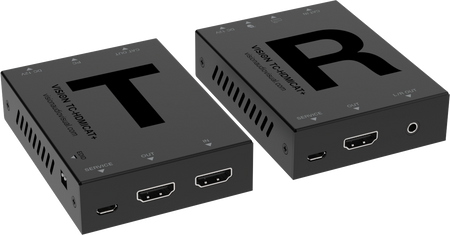

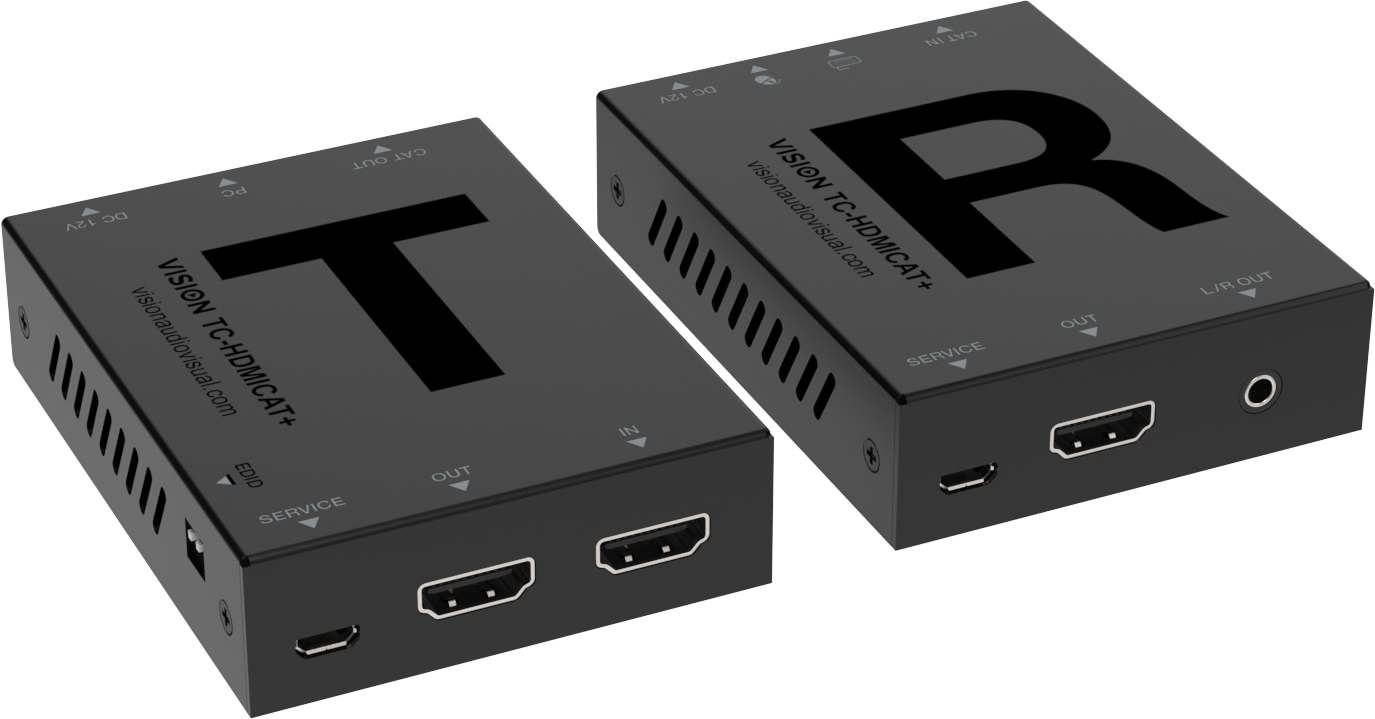

Vision HDMI and USB-over-CAT6 Transmitter and Receiver Set 70 m
HDMI and USB-over-CAT6 Transmitter and Receiver Set 70 m
In stock
Regular price
£234.54
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision HDMI and USB-over-CAT6 Transmitter and Receiver Set 70 m during the first-fix stage of installation, you may not always have the opportunity to install a fibre cable for long runs. If you're not the one handling the first-fix, you can instruct an electrician to install a standard CAT6 cable in preparation.
Key Features
- HDMI Connectivity: Sends HDMI over a CAT6 cable up to 70 metres long. Note the signal cannot be router through an IP network.
- High-Speed Data Transfer: With a video bandwidth of 18 Gbps, this product supports 4:4:4 video with no latency.
- IR Pass-Through: One-way IR ports make controlling a display simple.
- Power over Cable: We only provide one power supply, and you can choose to connect it either to the transmitter, or receiver. This makes a big difference when you have limited power sources at one end.
- Audio Output: The receiver features a built-in digital-to-analog de-embedder, allowing you to connect it to powered speakers or an amplifier through the minijack.
- Video Resolution Support: 4K at 60 Hz with zero latency
- Maximum length 70 m: Maximum length 70 m
- One to one only (not IP): One to one only (not IP)
- Usb 1.1 Kvm: USB 1.1 KVM
- Outputs: Analogue audio output on receiver
Specifications

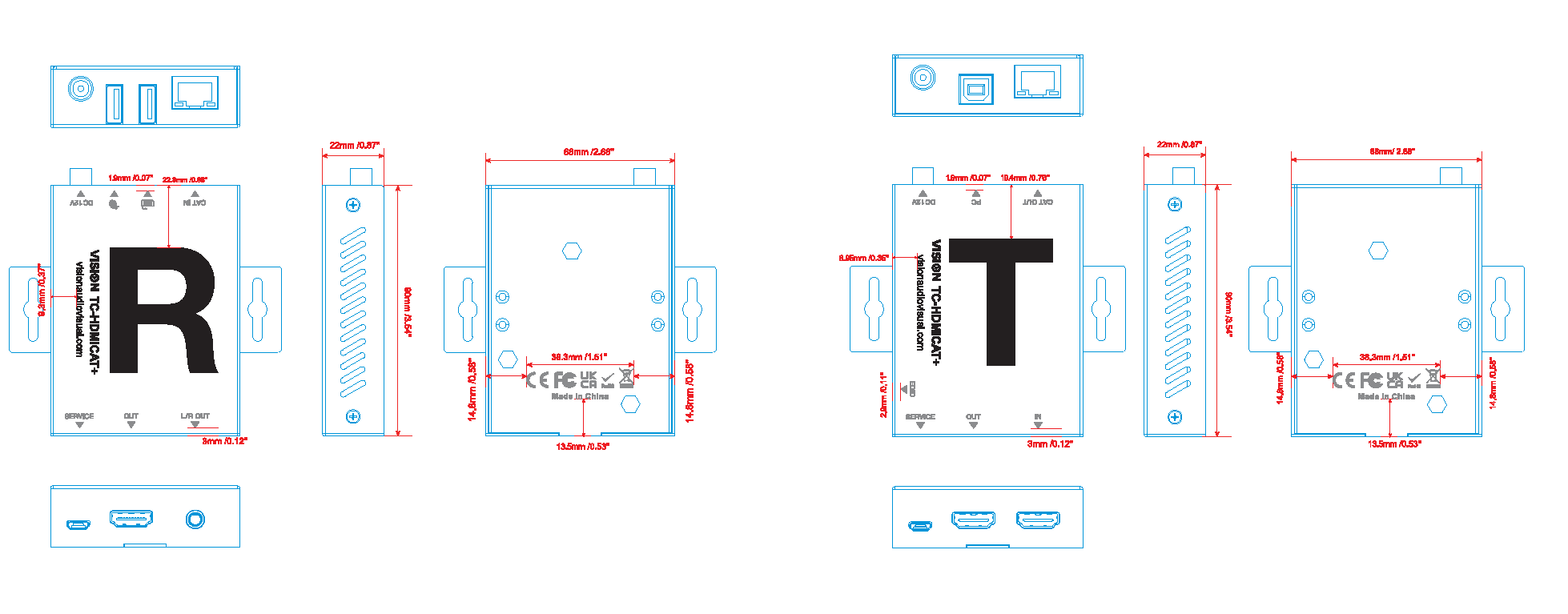

| Chassis Dimensions | 90 x 68 x 22 mm (3.5" x 2.7" x 0.9") |
| Packaged Dimensions | 215 x 135 x 75 mm (8.5" x 5.3" x 3.0") |
| Packaged Weight | 0.7 kg (1.6 lbs) |
| Product Weight | Transmitter 170 g / Receiver 169 g |
| Construction Material | Metal |
| Colour | Black |
| Latency | Zero |
| Bandwidth | 18 Gbps |
| Resolution | Up to 4K at 60Hz |
| Hdmi Version | 2.0b |
| Hdcp Version | 2.2 with EDID automatic copy function |
| Maximum Cable Length | CAT6/6A/7: 4K 60 Hz 70 m |
| Colour Space | RGB / YCbCr 4:4:4 YCbCr 4:2:2/4:2:0 YUV 4:4:4 |
| Colour Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0, YUV 4:4:4 |
| Audio Formats | LPCM up to 7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus (DD+) |
| Ir Frequency | 20 Hz ~ 60 kHz |
| Esd Protection | IEC 61000-4-2: Human body model —±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Operating Temperature Range | 0℃ - 40 ℃ |
| Relative Humidity | 20 ~ 90% RH (non-condensing) |
| Power Consumption | 4.2 Watts |

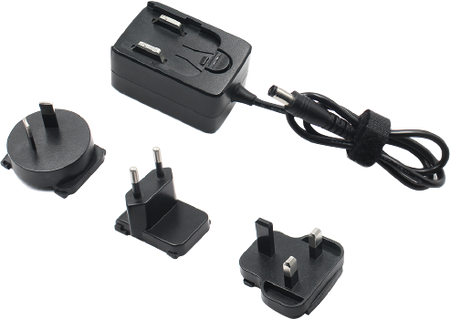

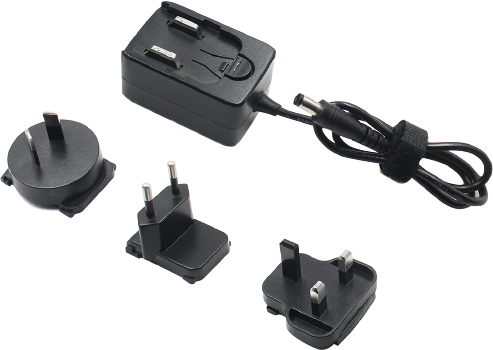

| Power Supply | 100-240v 50/60Hz AC 12 volt / 1 amp |
| Power Plug Type | Interchangeable UK/EU/AU |
| Dc Tail Length | m |
| Power Transformer Dimensions | x x mm |
| Accessories | 1 x 1.5 m IR Blaster with Cable 1 x 1.5 m IR Receiver with Cable 4 x Mounting ears |
| Compliances | RoHS, WEEE, CE/EMC, LVD, IEC, FCC, RCM, IC |

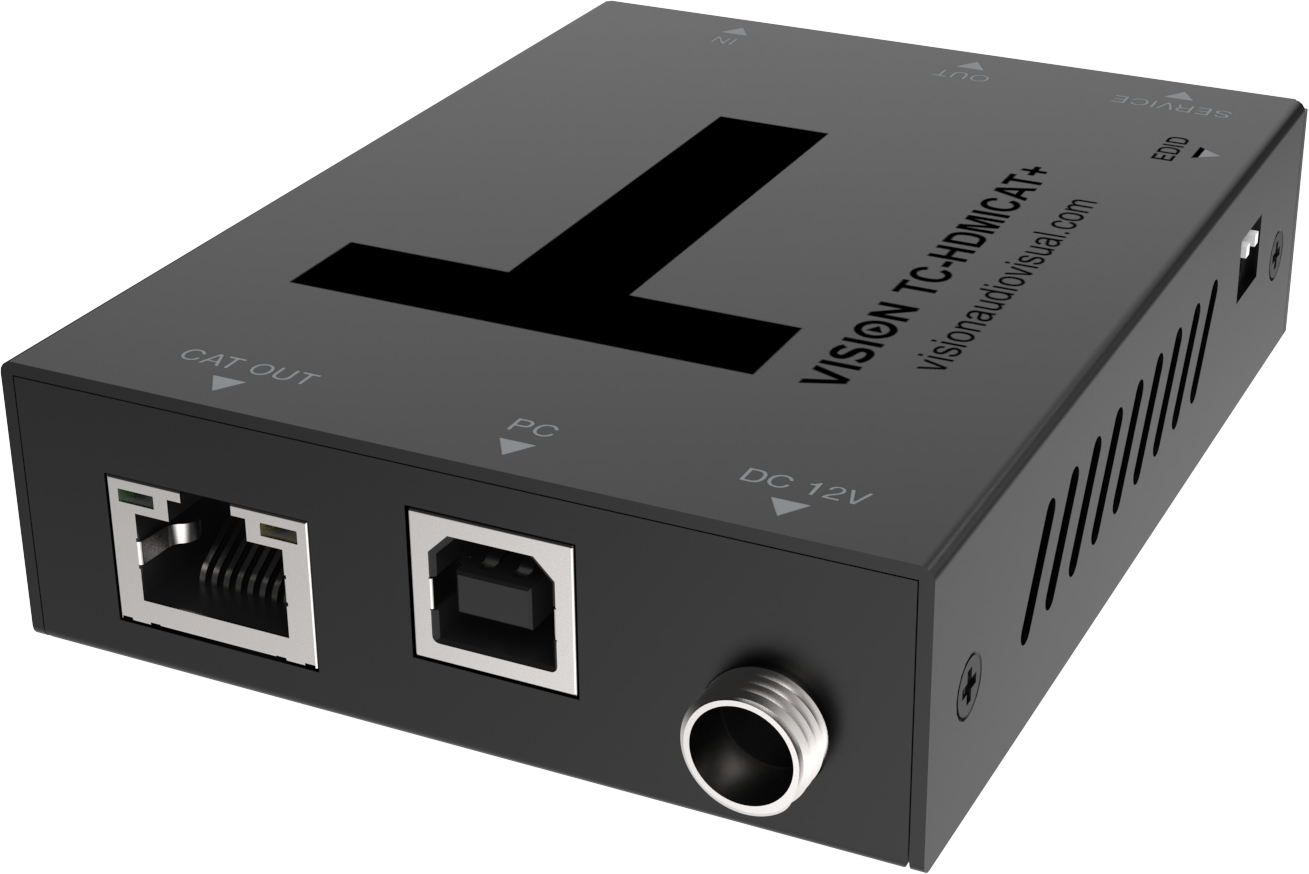

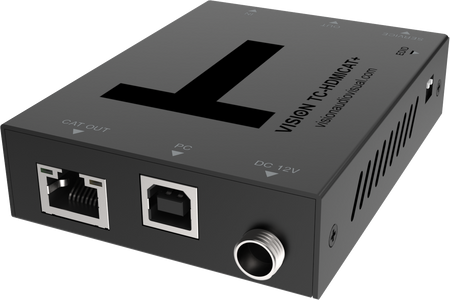

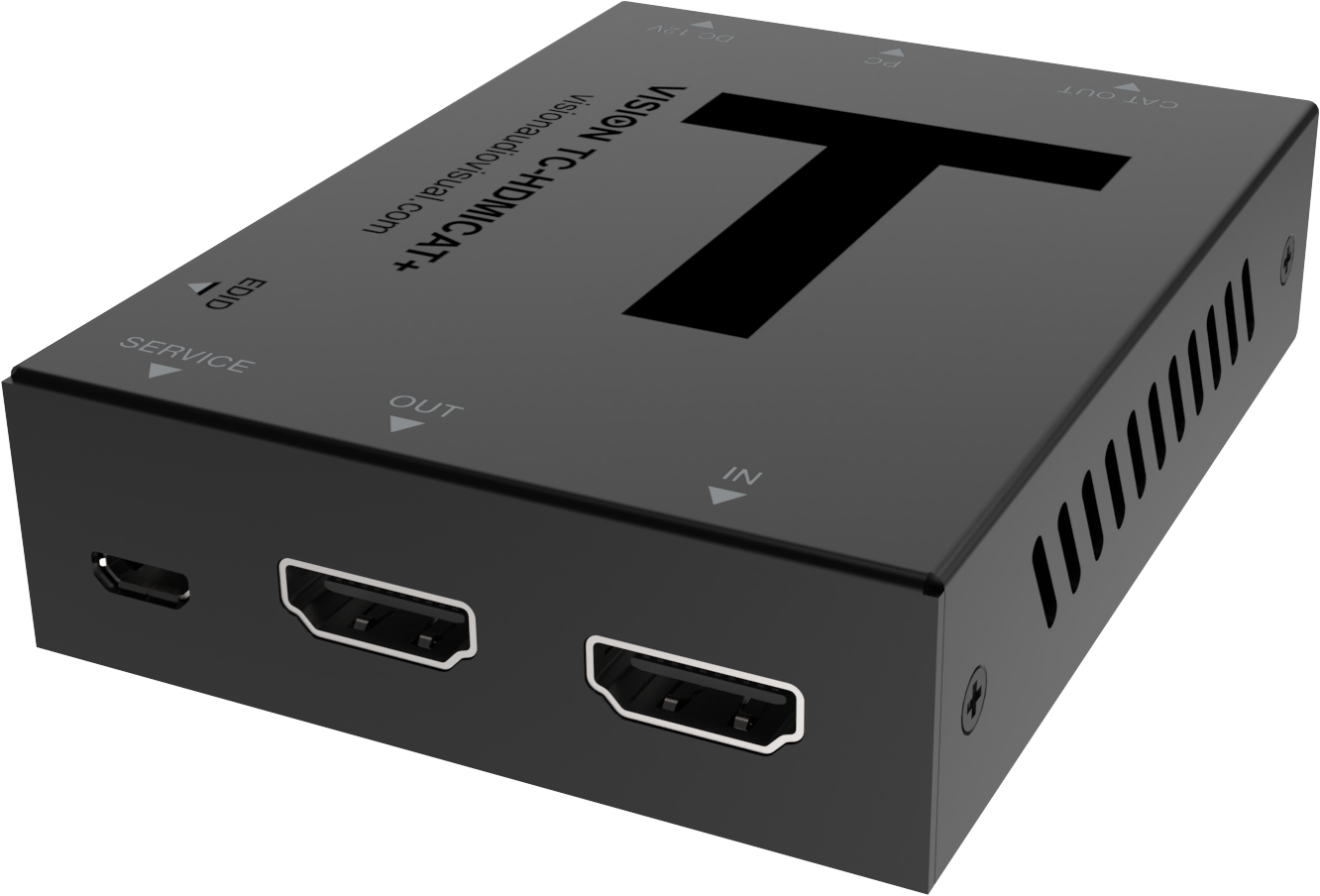

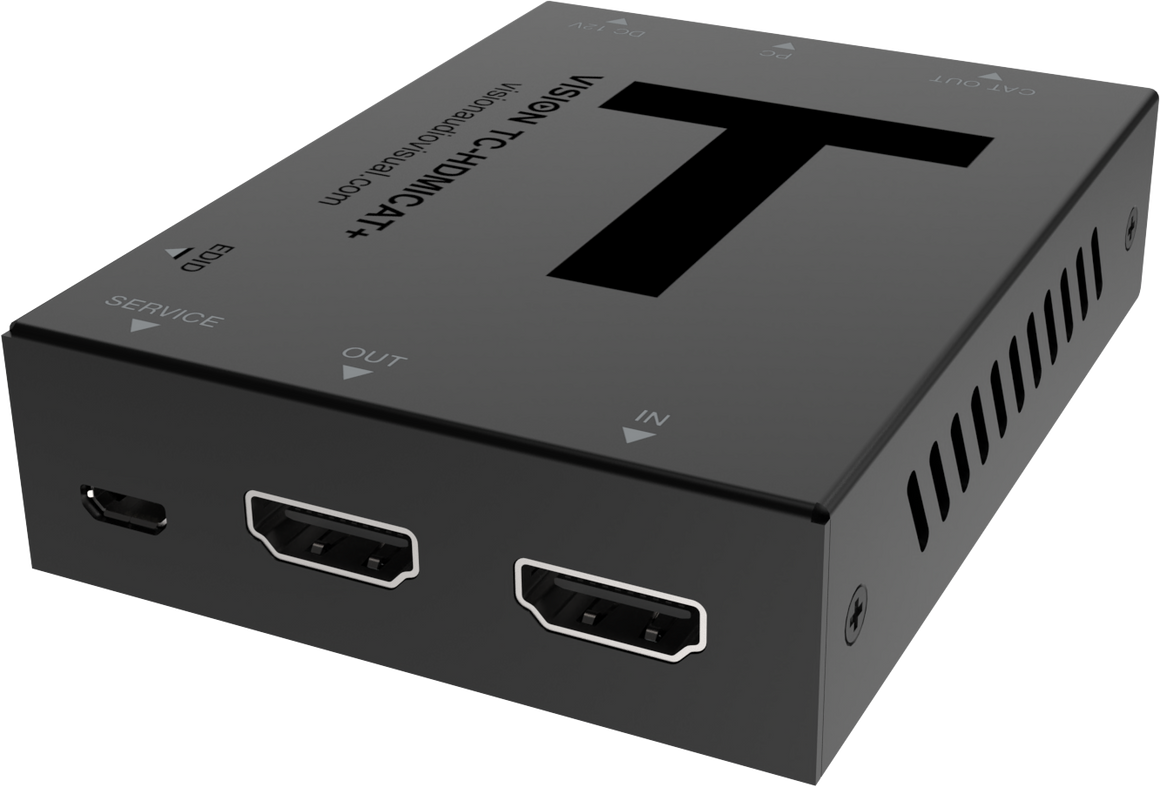

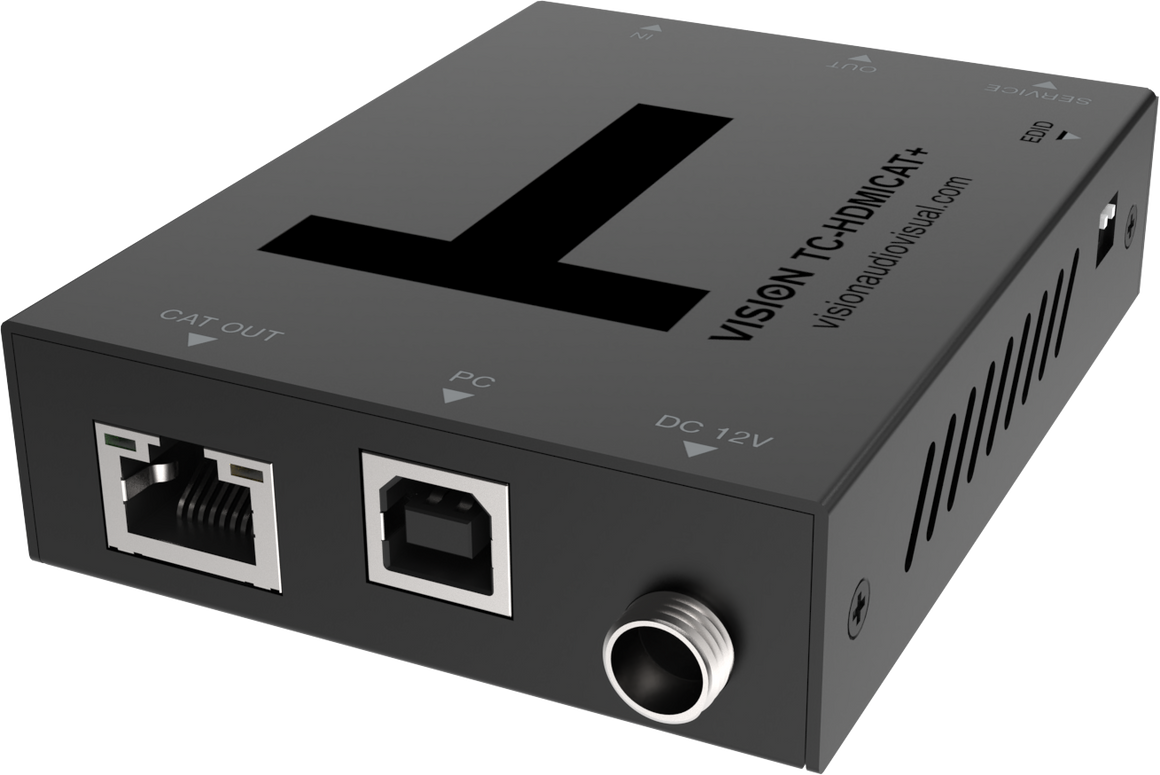

| Transmitter Io | In 1 x HDMI Type A Out 1 x HDMI Type A Out 1 x RJ45 Control 1 x USB-B 1.1 Service Port 1 x Micro USB |
| Colour Depth | 8/10/12-bit (1080P 60Hz, 4K 30Hz, 4K 60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K 60Hz 4:4:4) HDR, HDR10, HDR10+, Dolby Vision, HLG |

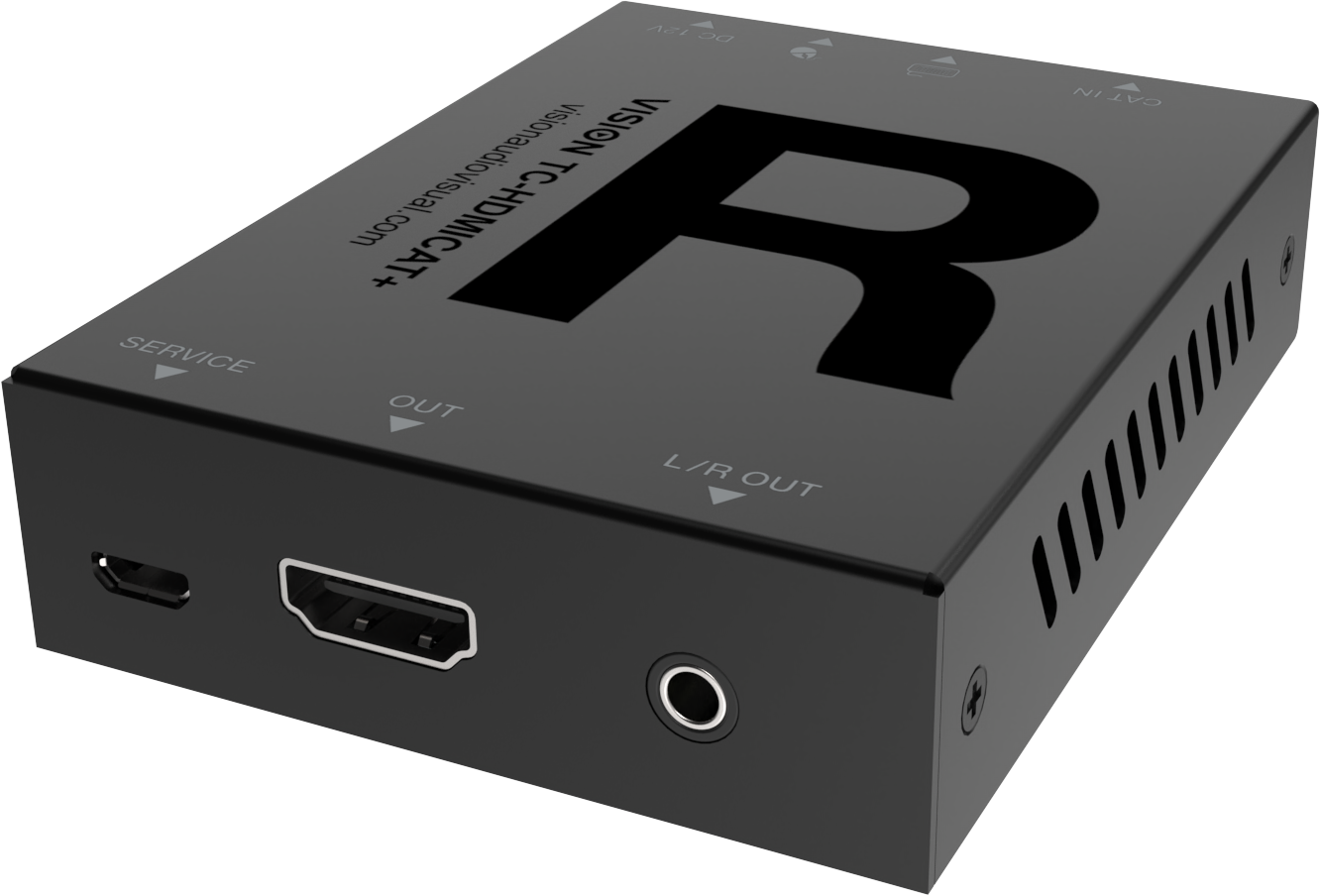

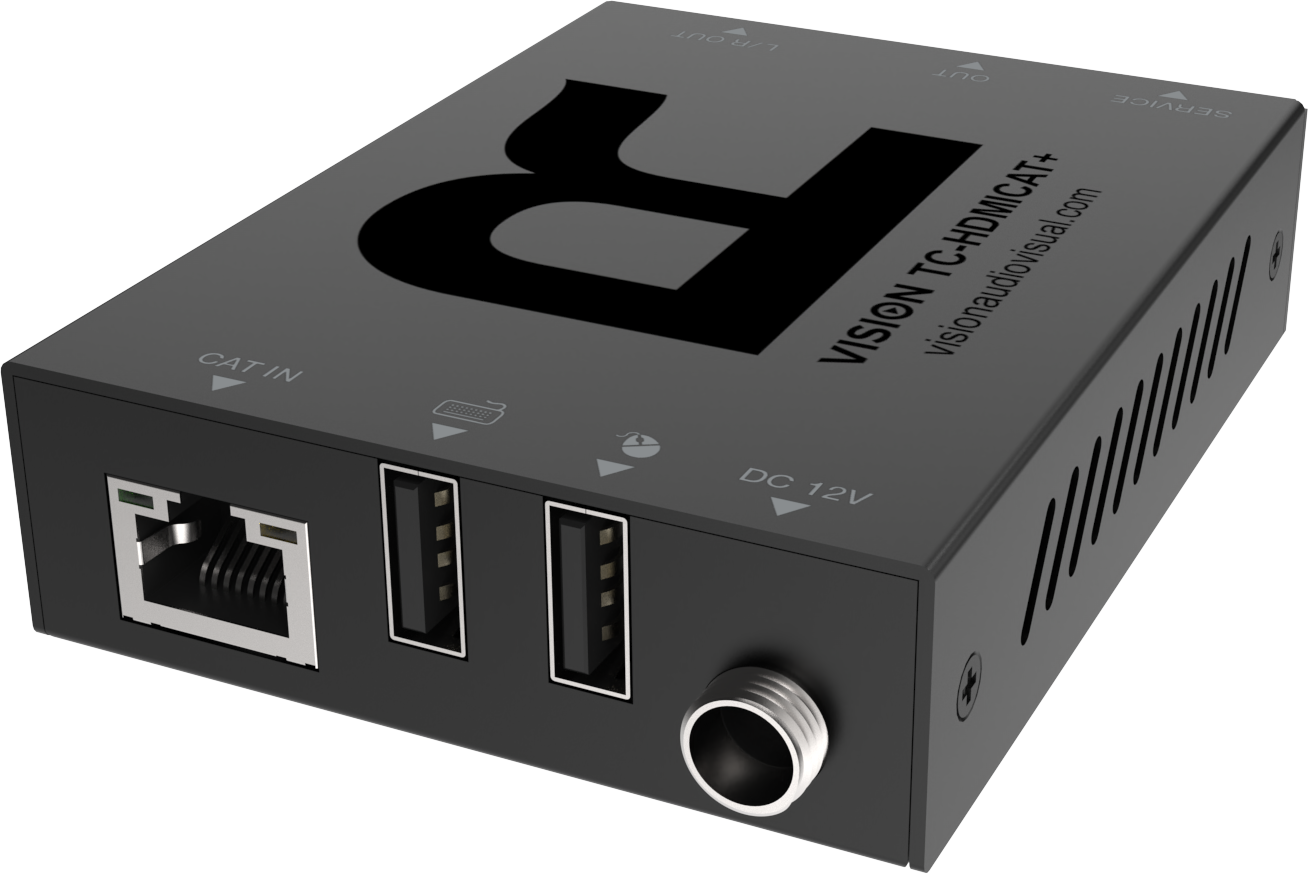

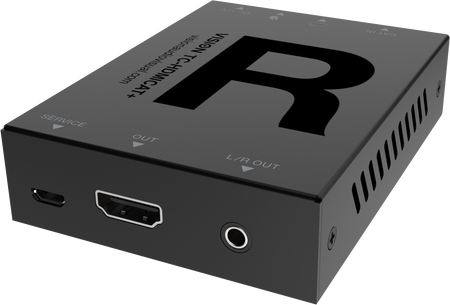

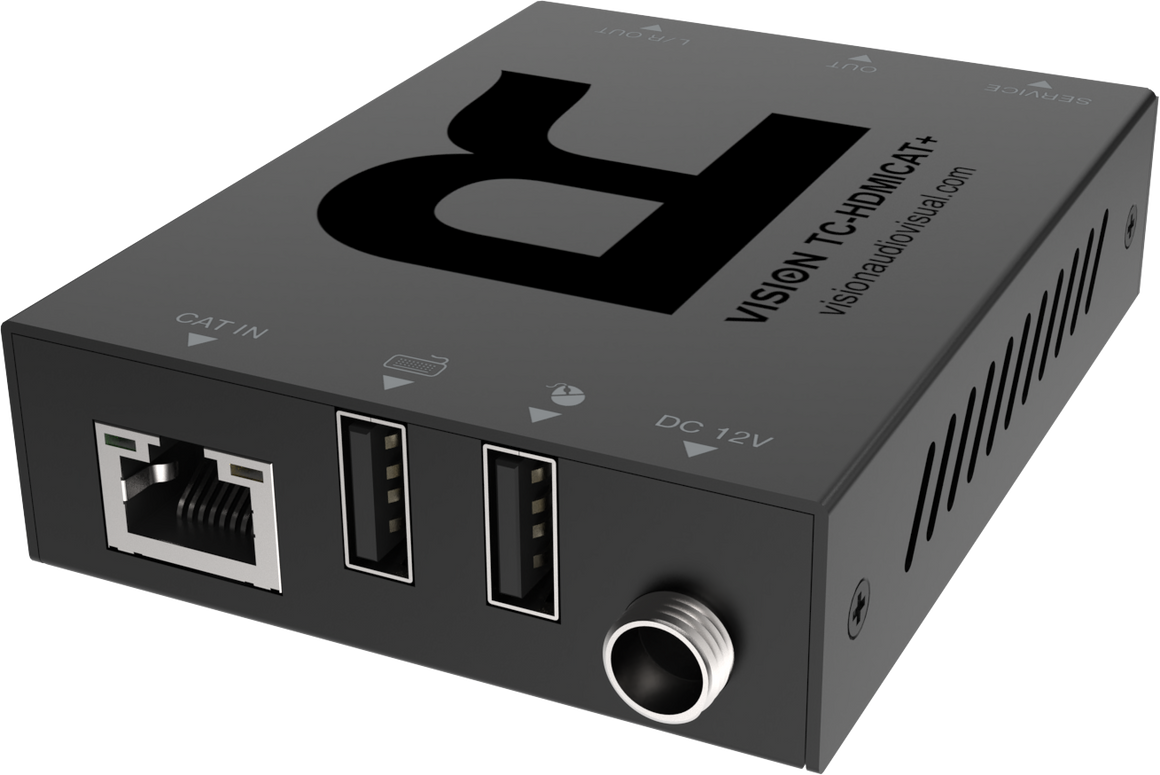

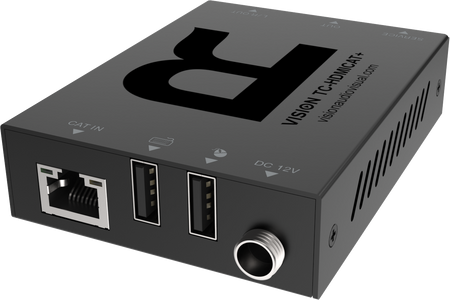

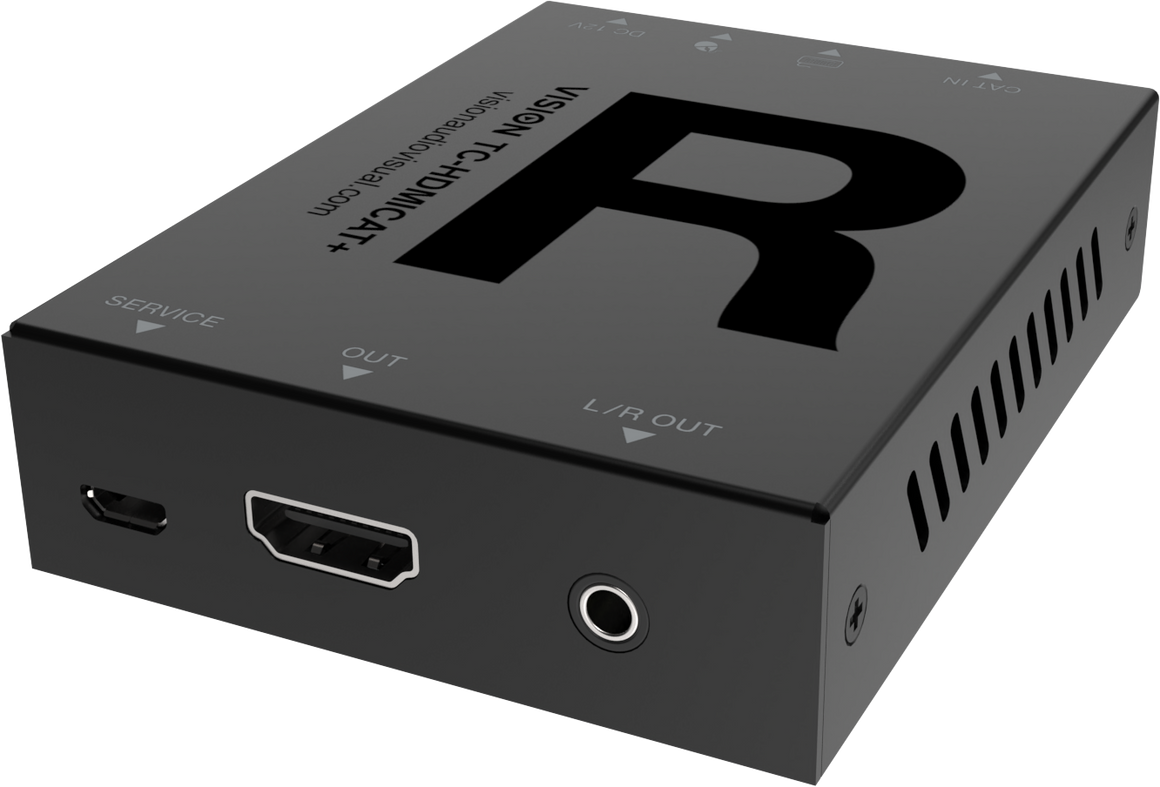

| Receiver Io | In 1 x RJ45 Out 1 x HDMI Type A Out 1 x Audio 3.5 mm Stereo Minijack Control 2 x USB-A 1.1 Service Port 1 x Micro USB |
| Storage Temperature Range | -20℃ - 60 ℃ |
| Country of origin | China |
Warranty
The Vision HDMI and USB-over-CAT6 Transmitter and Receiver Set 70 m is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
