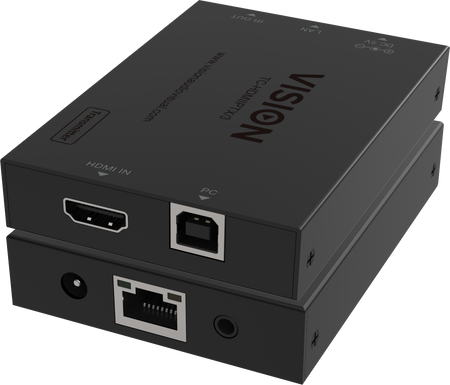

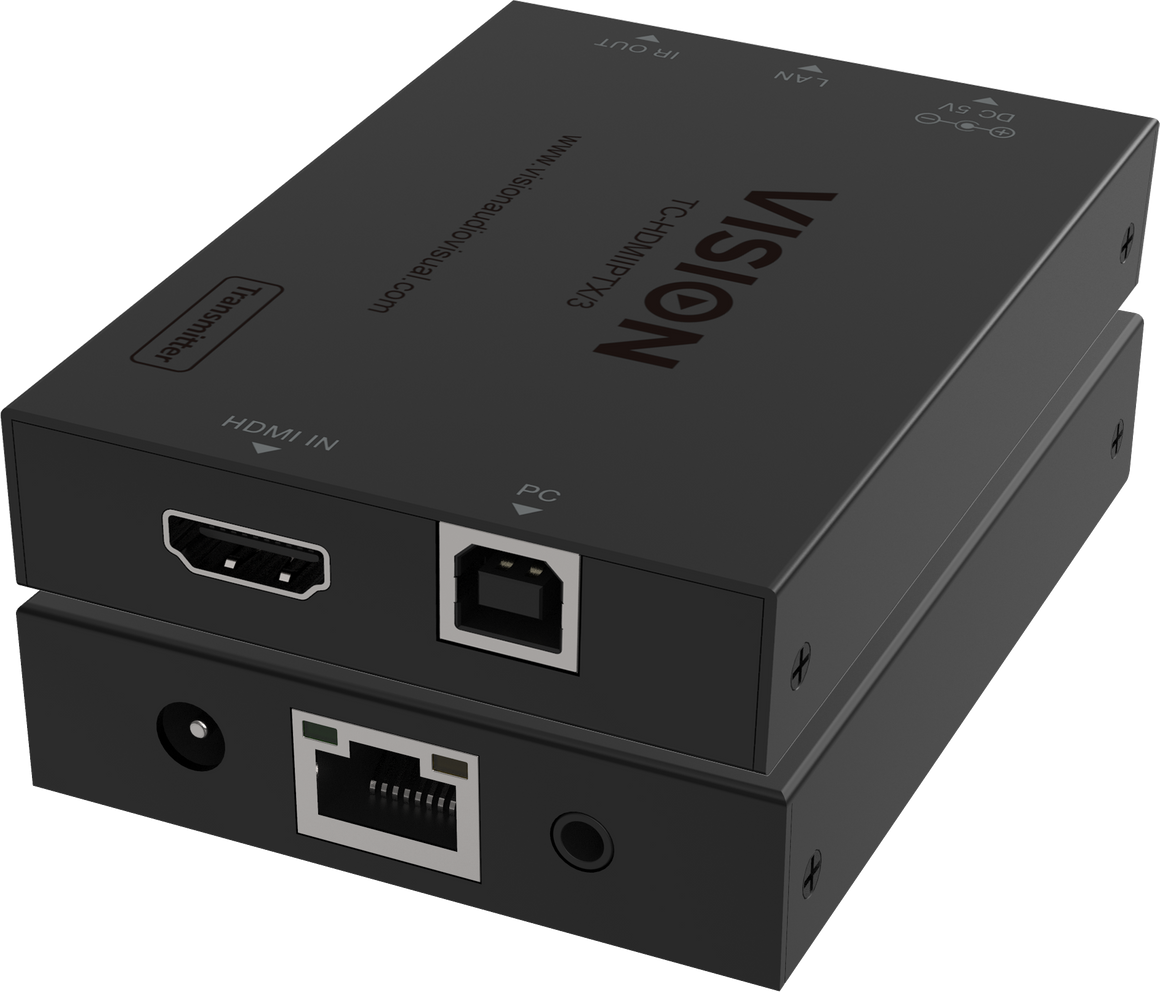

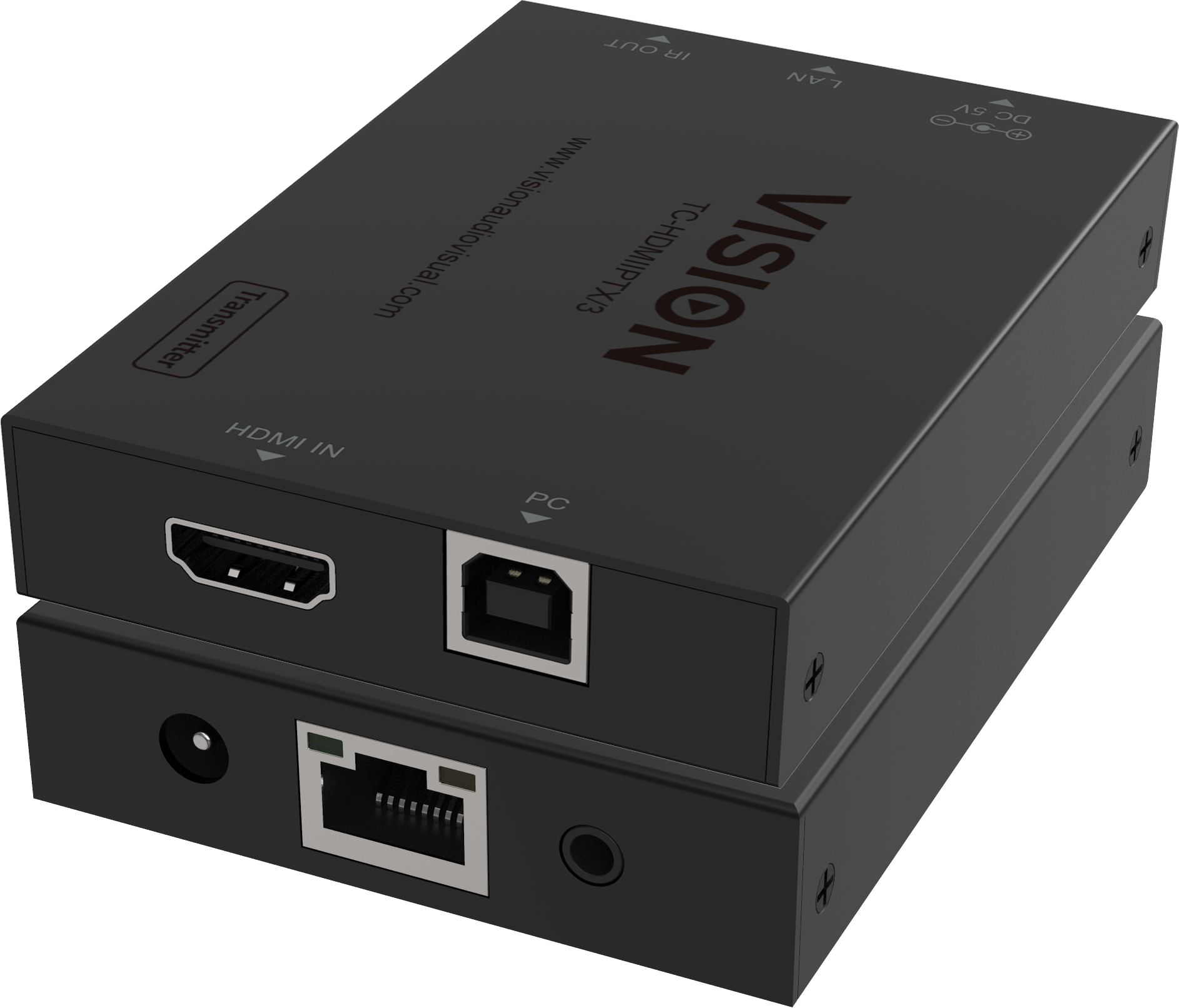

Vision HDMI-over-IP Transmitter
HDMI-over-IP Transmitter
In stock
Regular price
£109.40
Secure Checkout
Warranty Protection
Hassle-Free Returns
The Vision HDMI-over-IP Transmitter is a AV signal extension product from Vision.
Key Features
- Chassis Weight: 0.15 kg
- Construction Material: Metal
- Colour: Black
- Latency Compression Type: H.265
- Chipset: Sigmastar
- Cable: CAT5E/6 Shielded or Unshielded
- HDMI Connectivity: 1.3 (3D not supported)
- Hdcp Version: 1.4
- Maximum Cable Length: 150 m
- Video Resolution Support: HD 1920×1200 @60Hz
Specifications

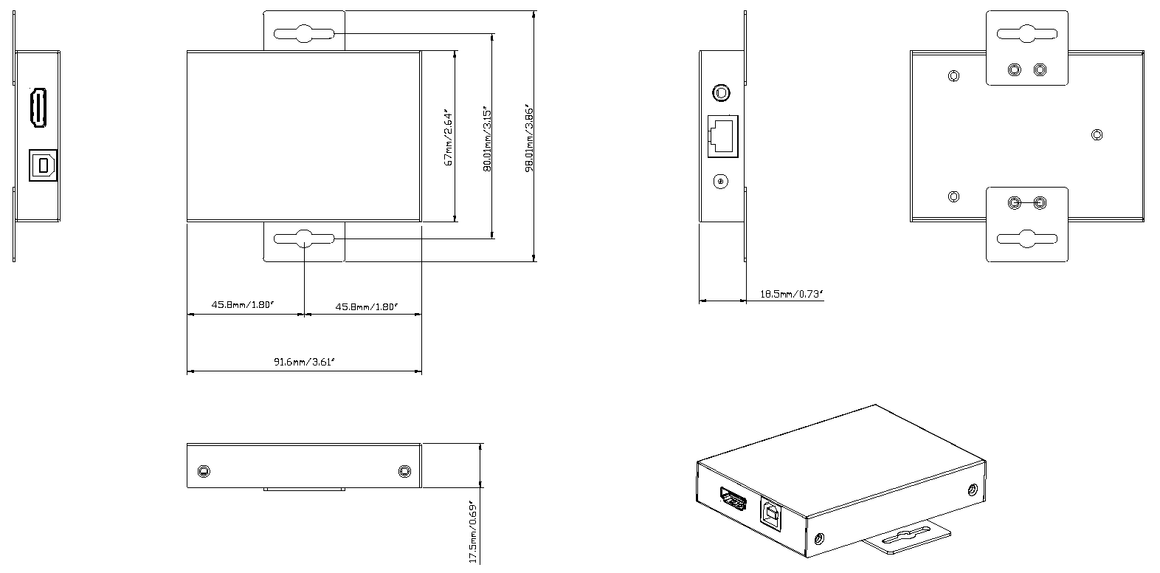

| Chassis Dimensions | 92 x 67 x 168 mm (length x width x height) |
| Packaged Dimensions | 150 x 135 x 70mm |
| Packaged Weight | 0.2 kg (per Tx or Rx) |
| Chassis Weight | 0.15 kg |
| Construction Material | Metal |
| Colour | Black |
| Latency Compression Type | H.265 |
| Chipset | Sigmastar |
| Cable | CAT5E/6 Shielded or Unshielded |
| Hdmi Version | 1.3 (3D not supported) |
| Hdcp Version | 1.4 |
| Maximum Cable Length | 150 m |
| Maximum Resolution | HD 1920×1200 @60Hz |
| Video Bandwidth | 6.75 Gbps |
| Colour Space and Depth | RGB, YCbCr 4:4:4, YCbCr 4:2:2 12-bit |
| Hdmi Audio Formats | LPCM 2.0CH, 32 kHz, 44.1 kHz, 48 kHz |
| Ir Frequency | 20 Hz ~ 60 kHz |
| Esd Protection | Human body model —±8kV (Air-gap discharge) & ±4kV (Contact discharge) |
| Operating Temperature Range | 10℃ - 50 ℃ / 14 °F - 122 °F |
| Relative Humidity | 20~90% RH (non-condensing) |
| Power Consumption | 1.5 Watts |
| Inputs/Outputs | Input: 1 x HDMI (type A) 1 x USB (type B) Outputs: 1 x RJ45 1 x 3.5mm Minijack (for IR blaster) |

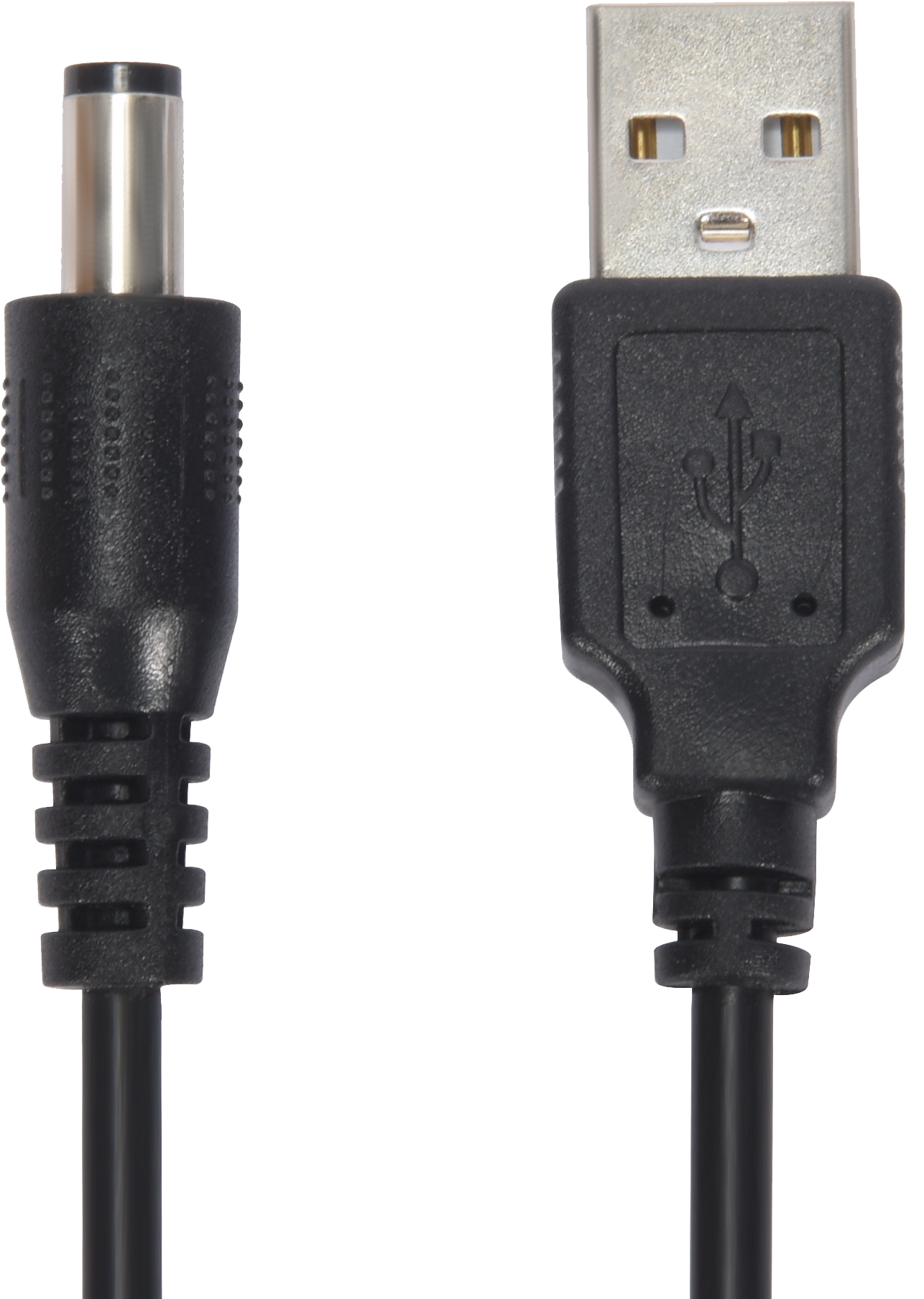

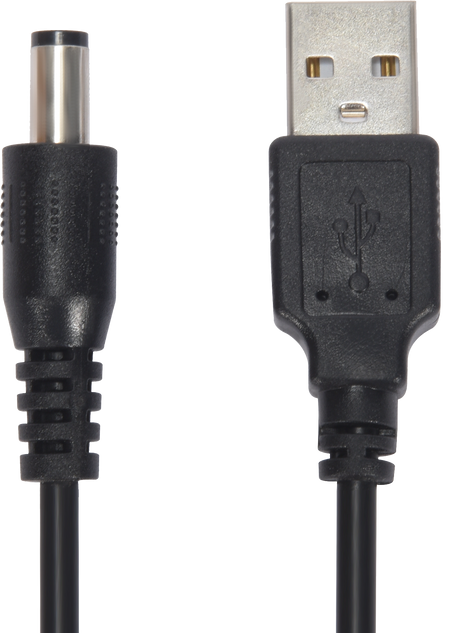

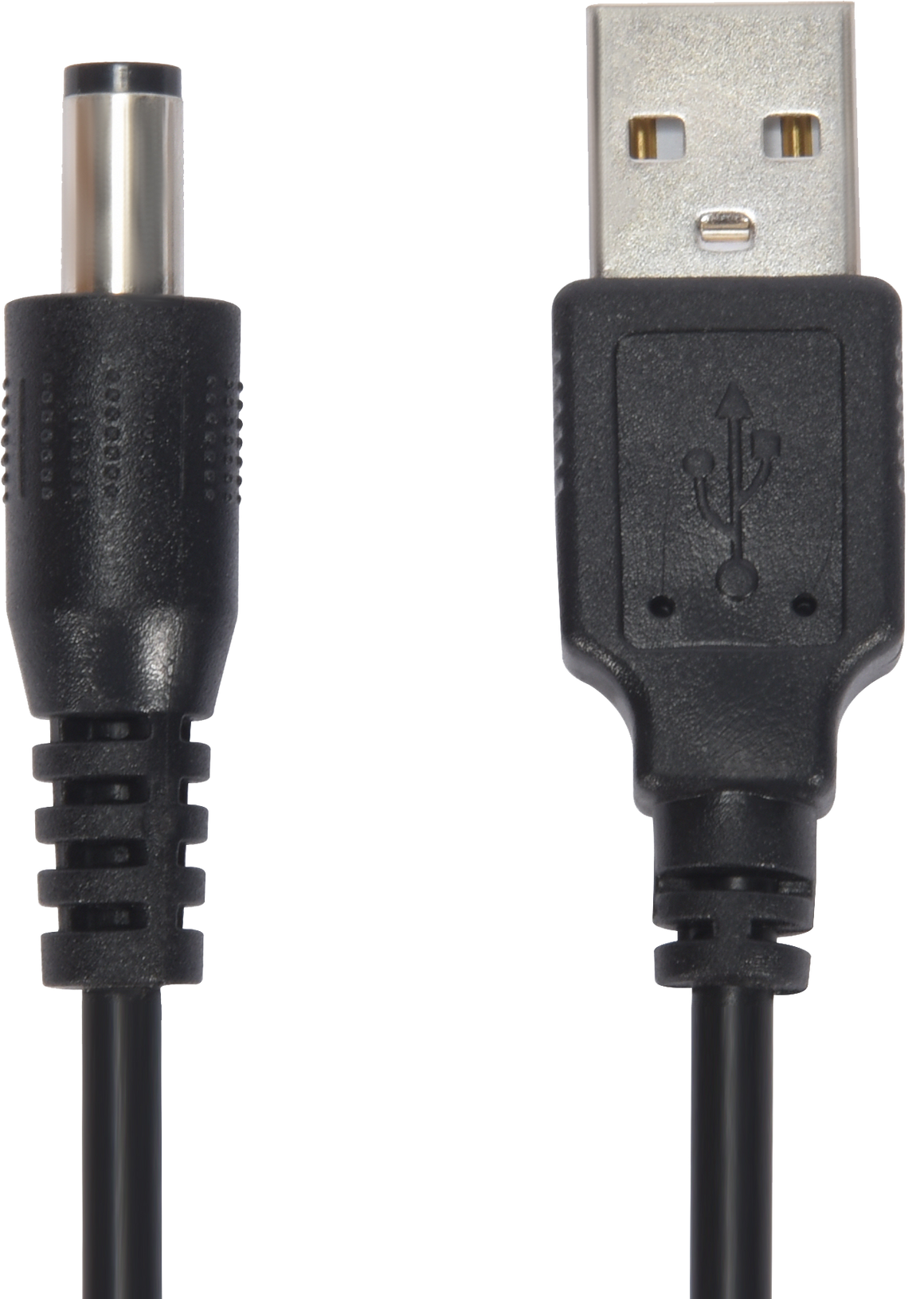

| Power Cable | USB-A to round DC 5.5 mm pin 0.8 m (Note from Nov 25 external power supply not included) |
| Accessories | 1 x IR Blaster with 1.5 m Cable 1 x set of wall mounting ears |
| Compliances | RoHS, WEEE, CE/EMC, LVD, IEC, FCC, RCM, IC |
| Usb Version | 1.1 |
| Country of origin | China |
Warranty
The Vision HDMI-over-IP Transmitter is backed by Lifetime return-to-base, providing cover for professional and commercial deployments.
Application Examples
| AV Signal and Room Integration | Fits into installed AV systems where source devices, displays, and room interfaces need structured connectivity. |
| Corporate AV Projects | Designed for professional workplaces that need dependable Vision hardware across meeting, presentation, or collaboration rooms. |
| Permanent Installations | Suited to fixed AV deployments where installers need documented specifications, accessories, and support information. |
